Rear Powertrain Return (Remove and Replace)
Correction code
1830021402
FRT
3.36
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the ancillary bay engagement seal from the HV battery pack. See Ancillary Bay Engagement Seal.
-

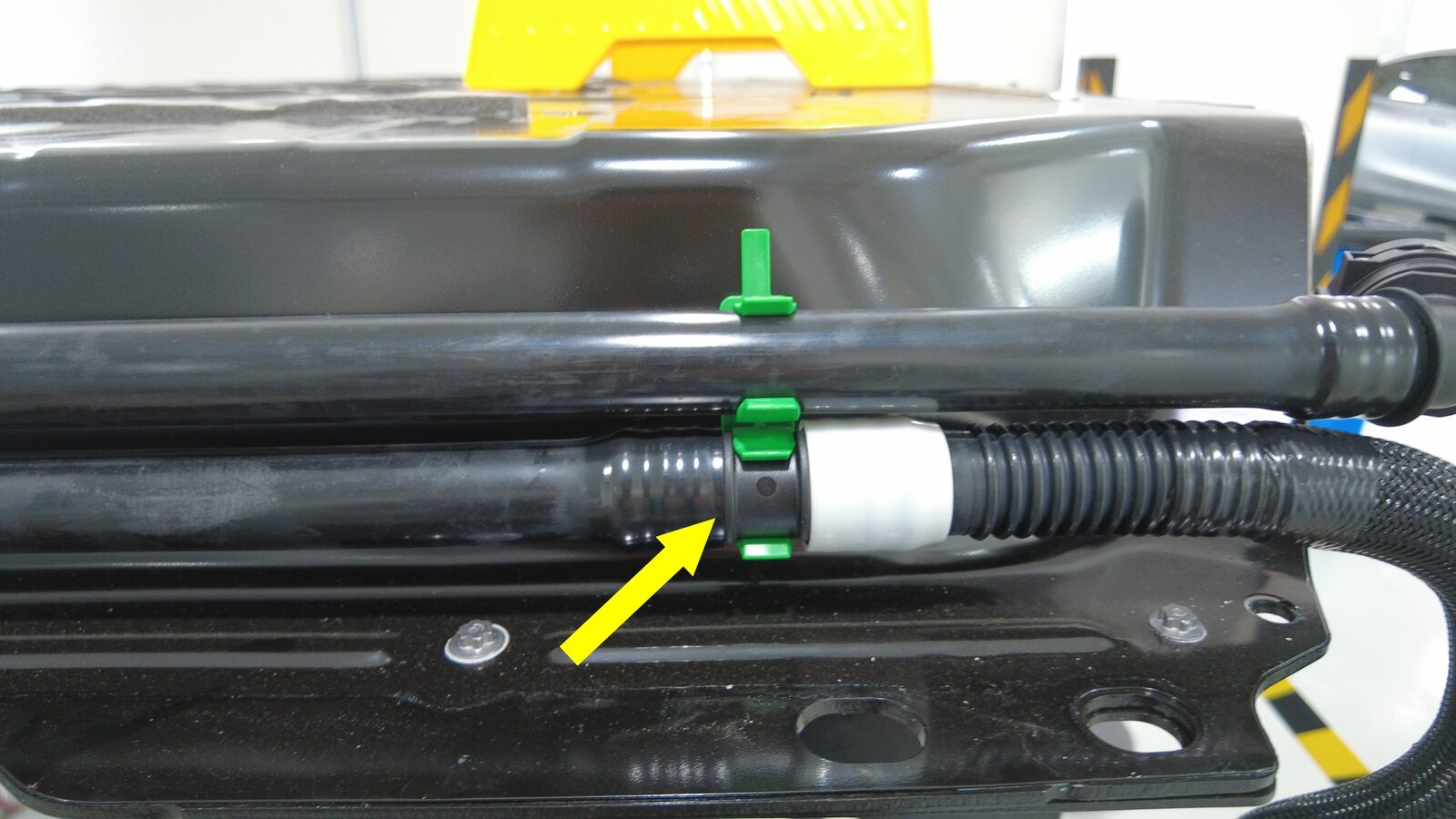

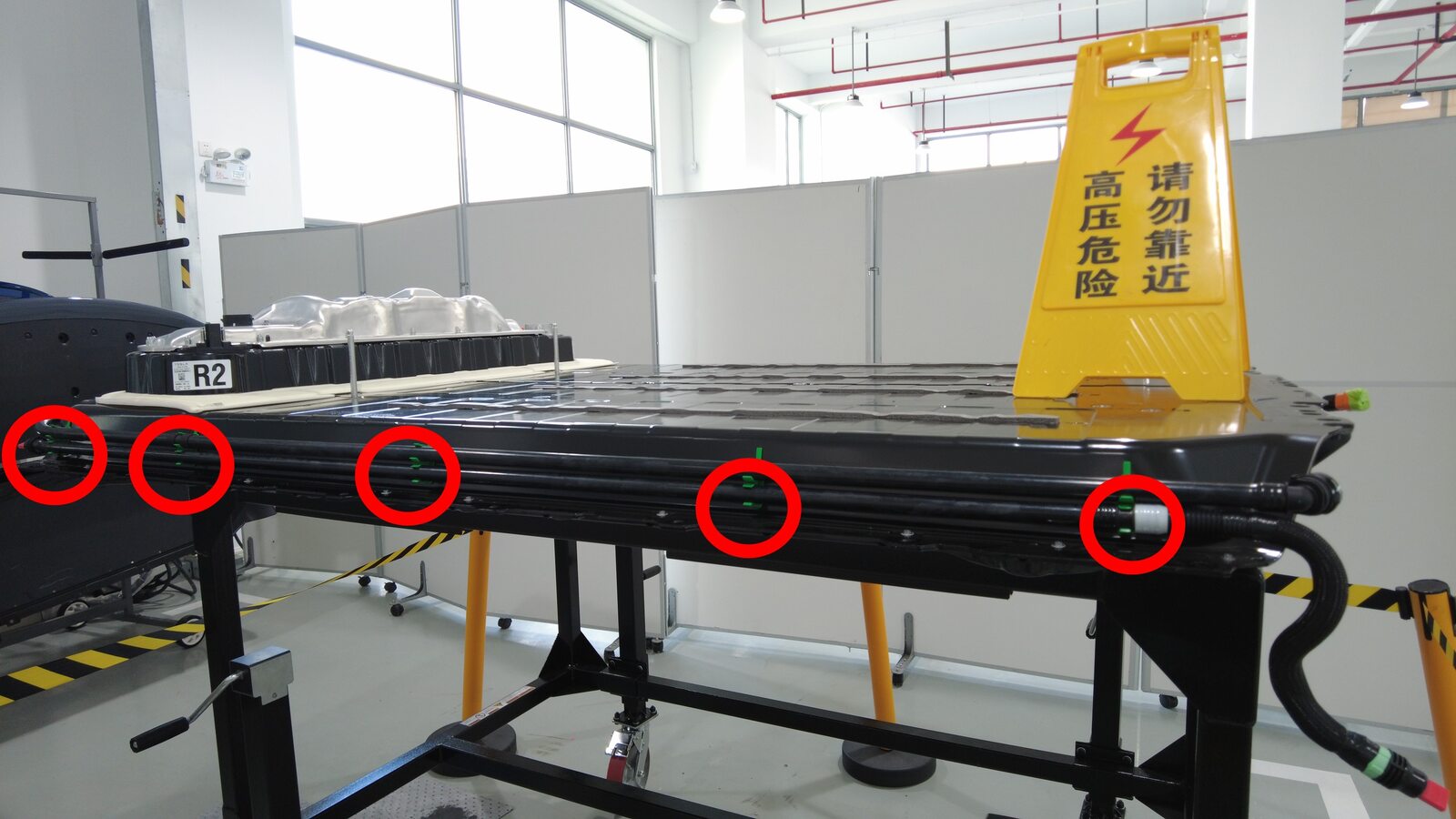

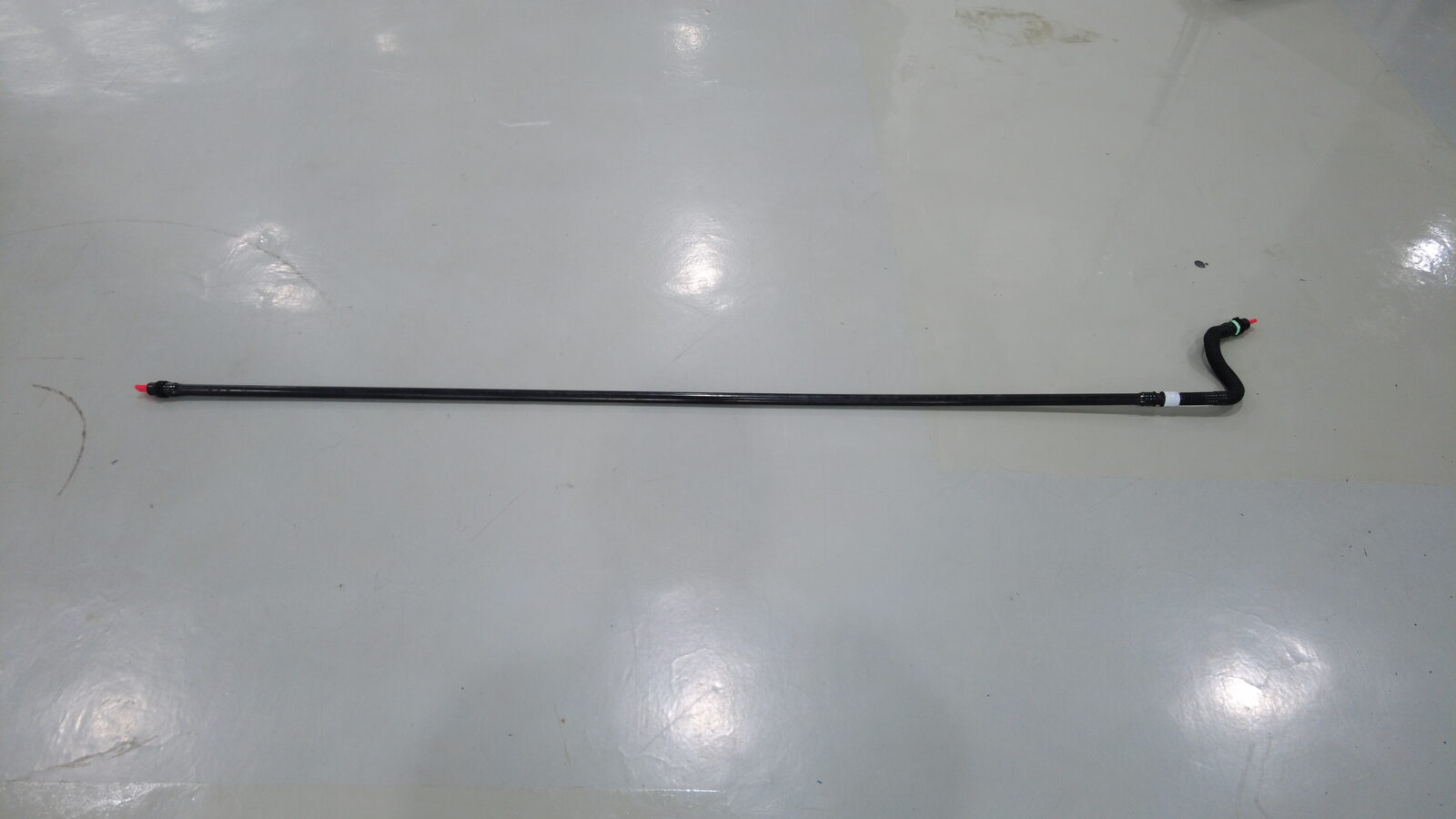

Remove the powertrain return tube from
the RH side of the HV battery.
Install
-
Install the powertrain return tube to
the RH side of the HV battery.
- Install a new ancillary bay engagement seal to the HV battery pack. See Ancillary Bay Engagement Seal.
