Display Module - Center Console (Model YL) (Remove and Replace)

Correction code 15190202002 FRT 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-07-22: Updated the steps from removing the hockey sticks to partially releasing them for enough access space.

Torque Specifications

Table 1. Torque Specifications: Display Module - Center Console (Model YL) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x5) that secure the display module
1.2 Nm (.9 lbs-ft)
  • Torx T20 bit
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Replace 1096312-00-A

Remove

  1. Remove the rear end module. See Rear End Module - Center Console (Model YL) (Remove and Install).
    Note
    During removal, certain steps require extra care. See the animation(s) for detailed guidance.

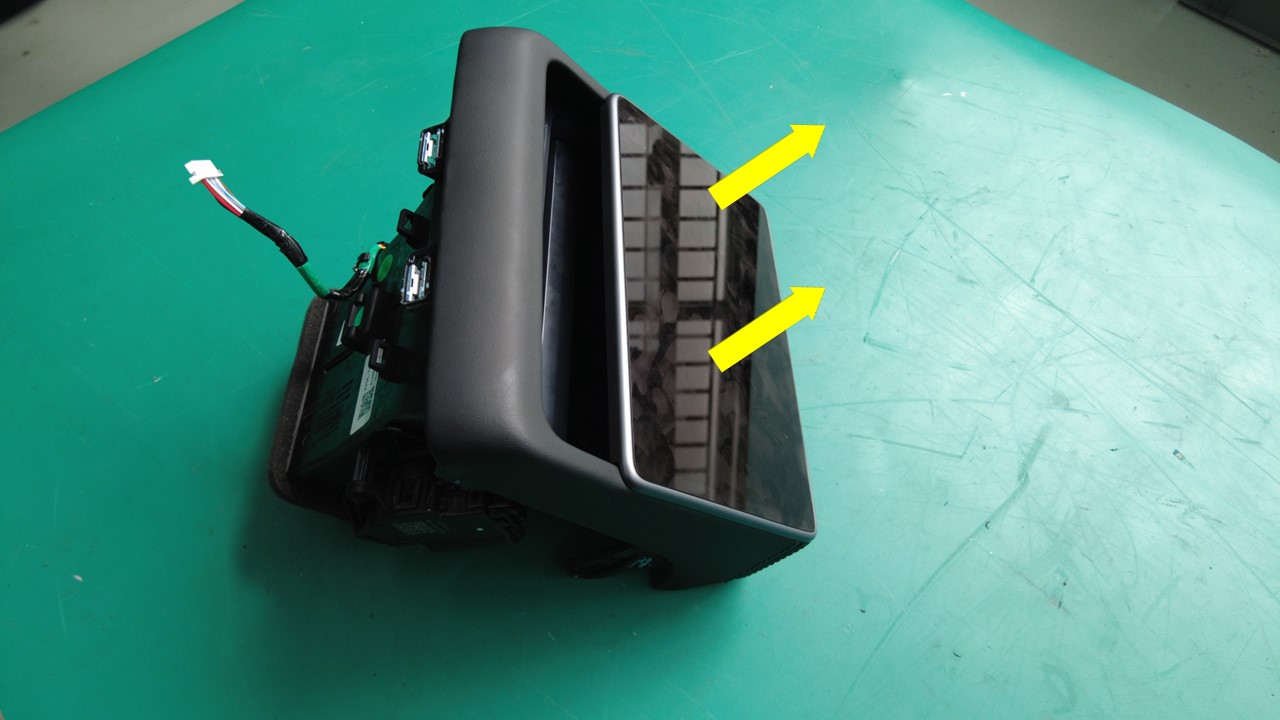

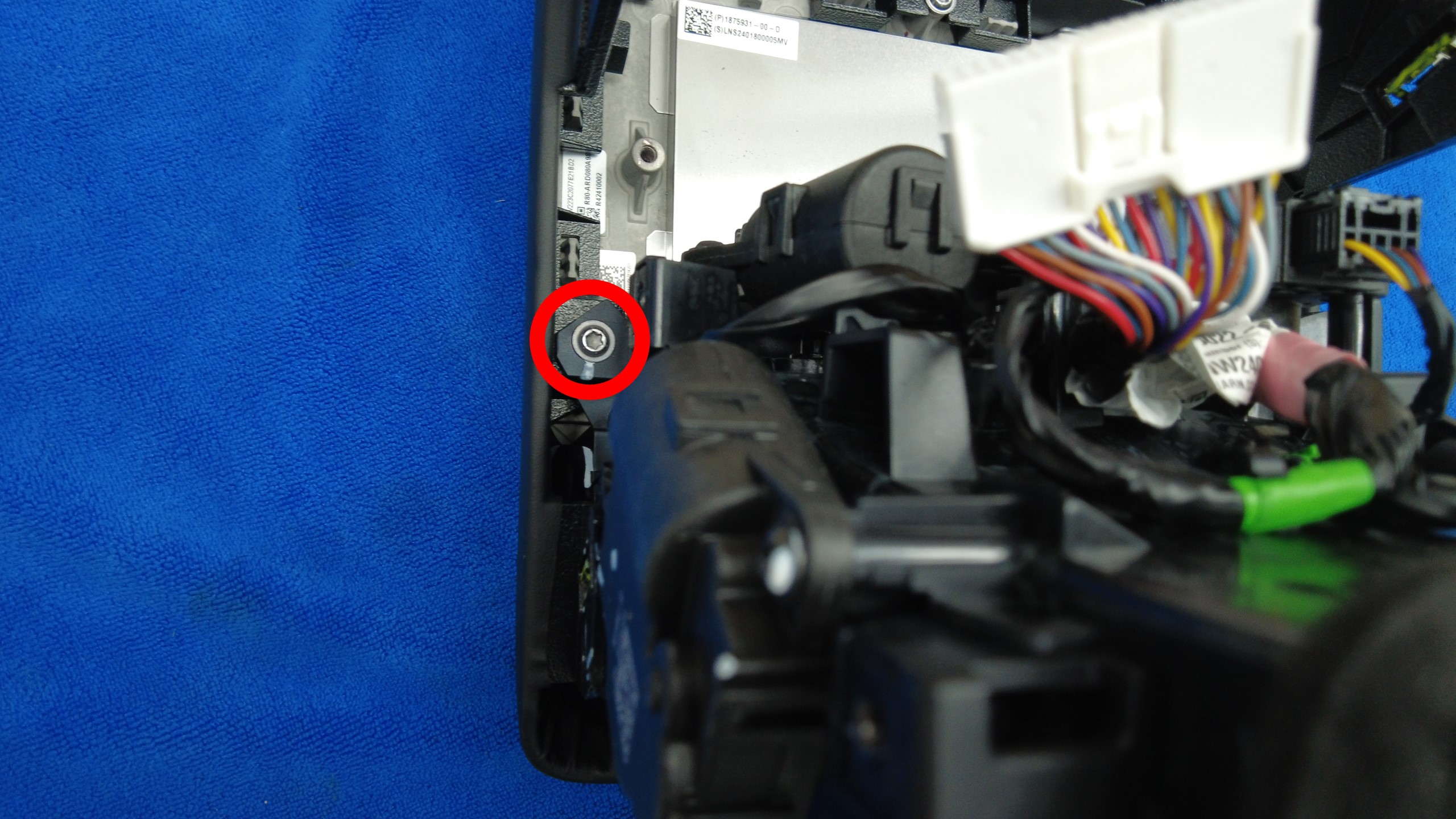

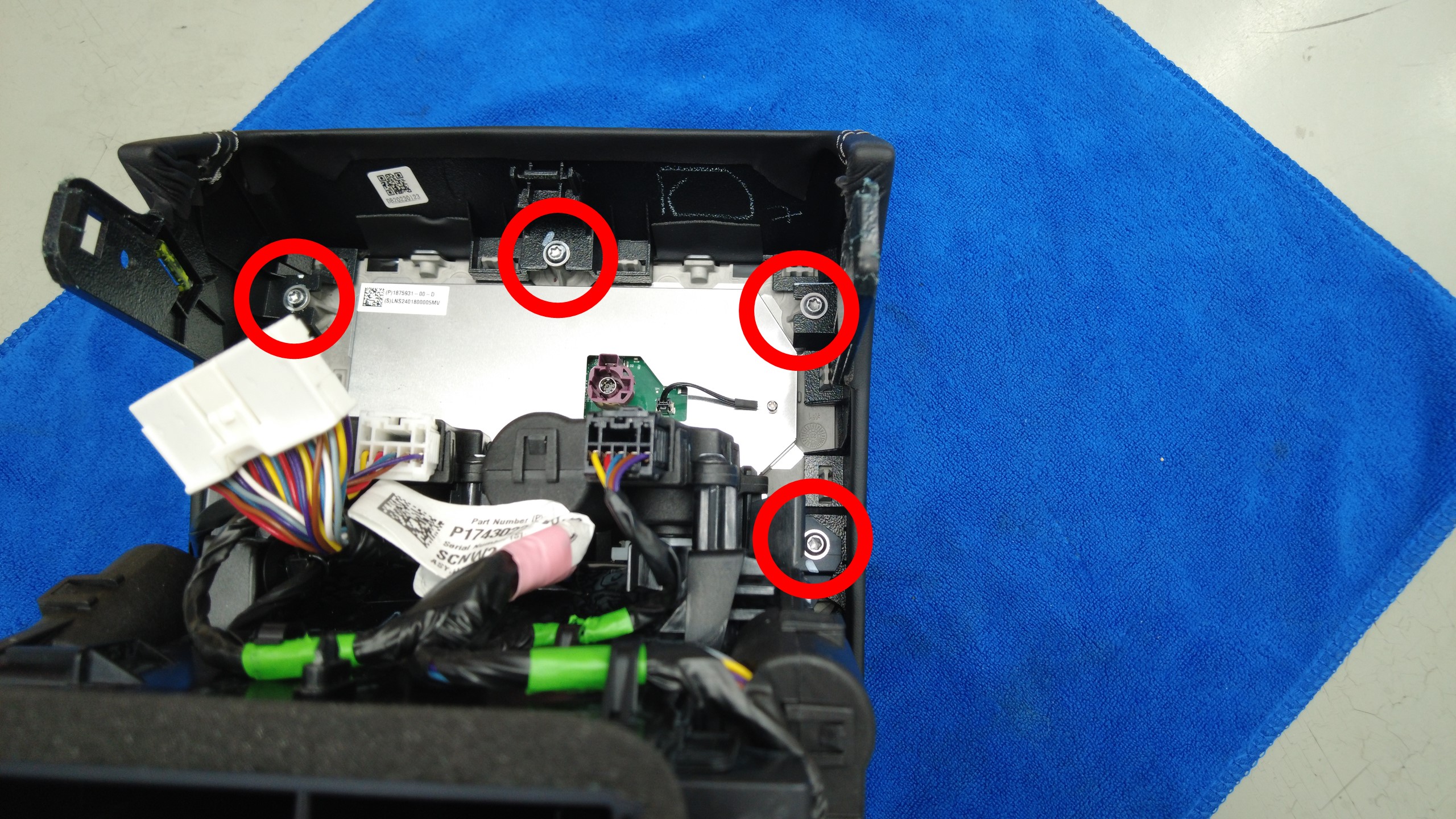

  2. Remove and discard the screws (x5) that secure the display module.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Replace

  1. Install new screws (x5) (1096312-00-A) that secure the display module.
    1.2 Nm (.9 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the rear end module. See Rear End Module - Center Console (Model YL) (Remove and Install).
  3. Locally connect a laptop with Toolbox 3 to the vehicle. See Toolbox (Connect and Disconnect).
  4. Click the Actions tab, type "PING-BASH_DISPLAY" into the search field, click PING-BASH_DISPLAYvia Toolbox:(link), select rear at the Poppyseed Display Test Arg field, and change the timeout to 20, then click Run, and allow the routine to complete.
  5. Disconnect the laptop.
  6. On the touchscreen, press and hold the Exit Service Mode button to exit Service Mode Plus.
  7. Raise all windows and close all doors.
