Wiper Blade - LH (Remove and Replace)

Correction code 1750021002 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.
  2. On the touchscreen, touch Controls > Service > Wiper Service Mode to enable "Wiper Service Mode".
  3. Place a towel or shop rag underneath the wiper arm to prevent scratches on the windshield.
  4. Pull up the wiper arm, depress the tab that attaches the LH wiper blade to the LH wiper arm, and then slide to remove the LH wiper blade from the vehicle.
    CAUTION
    Pull up the wiper arm no more than 20 degrees. Over-pulling will damage the wiper arm.
    CAUTION
    Support the wiper arm and ensure it does not contact the windshield.

Install

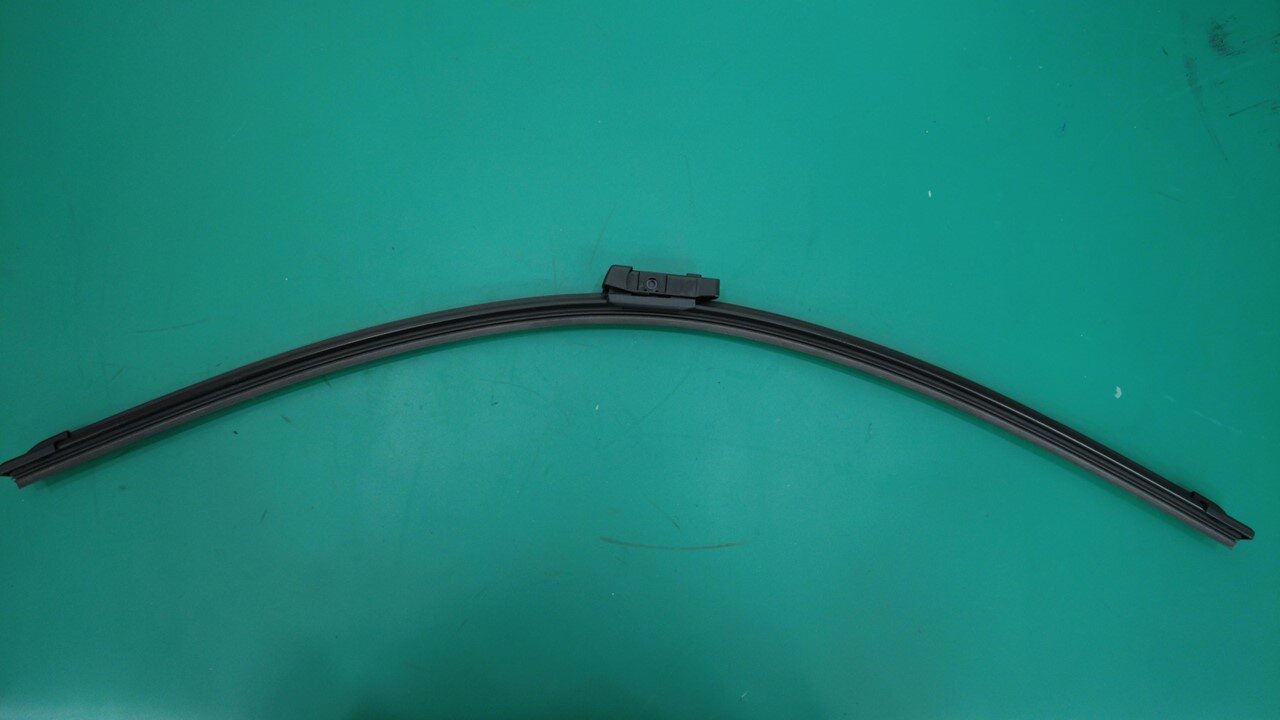

  1. Install the new LH wiper blade onto the LH wiper arm until the retaining tab is visible and an audible click is heard.
    CAUTION
    Pull up the wiper arm no more than 20 degrees. Over-pulling will damage the wiper arm.
  2. Remove the towel or shop rag from the windshield.
  3. On the touchscreen, touch Controls > Service > Wiper Service Mode to disable "Wiper Service Mode".
  4. Raise the LH front window and close the LH front door.
