Side Panel - Rear - RH - Center Console (Model Y Standard) (Remove and Install)

Correction code 15190404901 15190404902 FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Side Panel - Rear - RH - Center Console (Model Y Standard) (Remove and Install)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

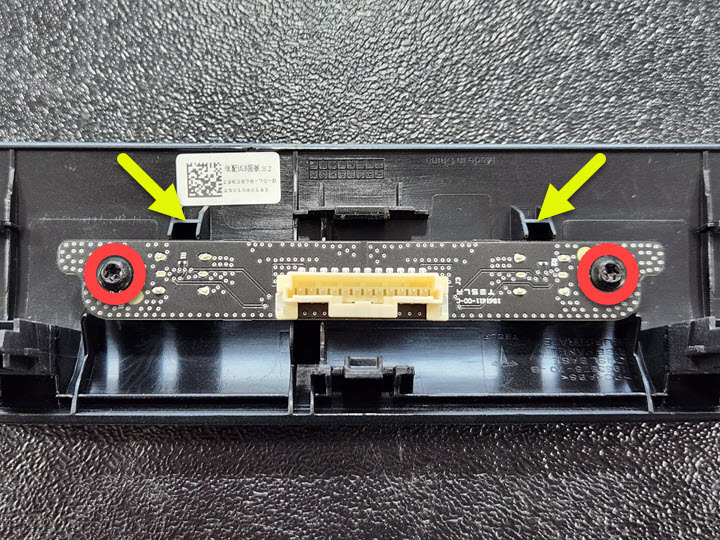

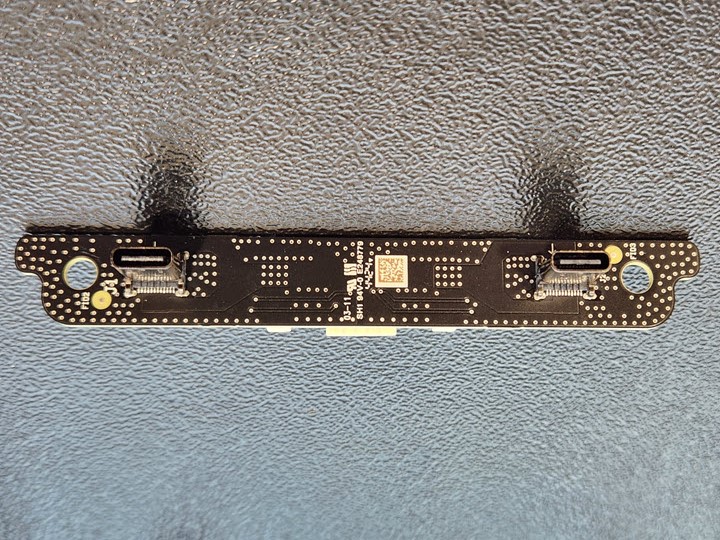

Screws (x2) that attach the USB hub to the USB panel assembly	0.6 Nm (5 lbs-in)	Torx T10 bit Digital Torque Screwdriver 0.10Nm - 2.0Nm	Reuse
