Steering Column Control Module (Model Y Standard) (Remove and Install)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

CAUTION
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See Airbag and Supplementary Restraint System (SRS) Precautions
CAUTION
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

Remove

  1. Remove the steering column upper shroud. See Steering Column Shroud Upper (Model Y Standard) (Remove and Install).

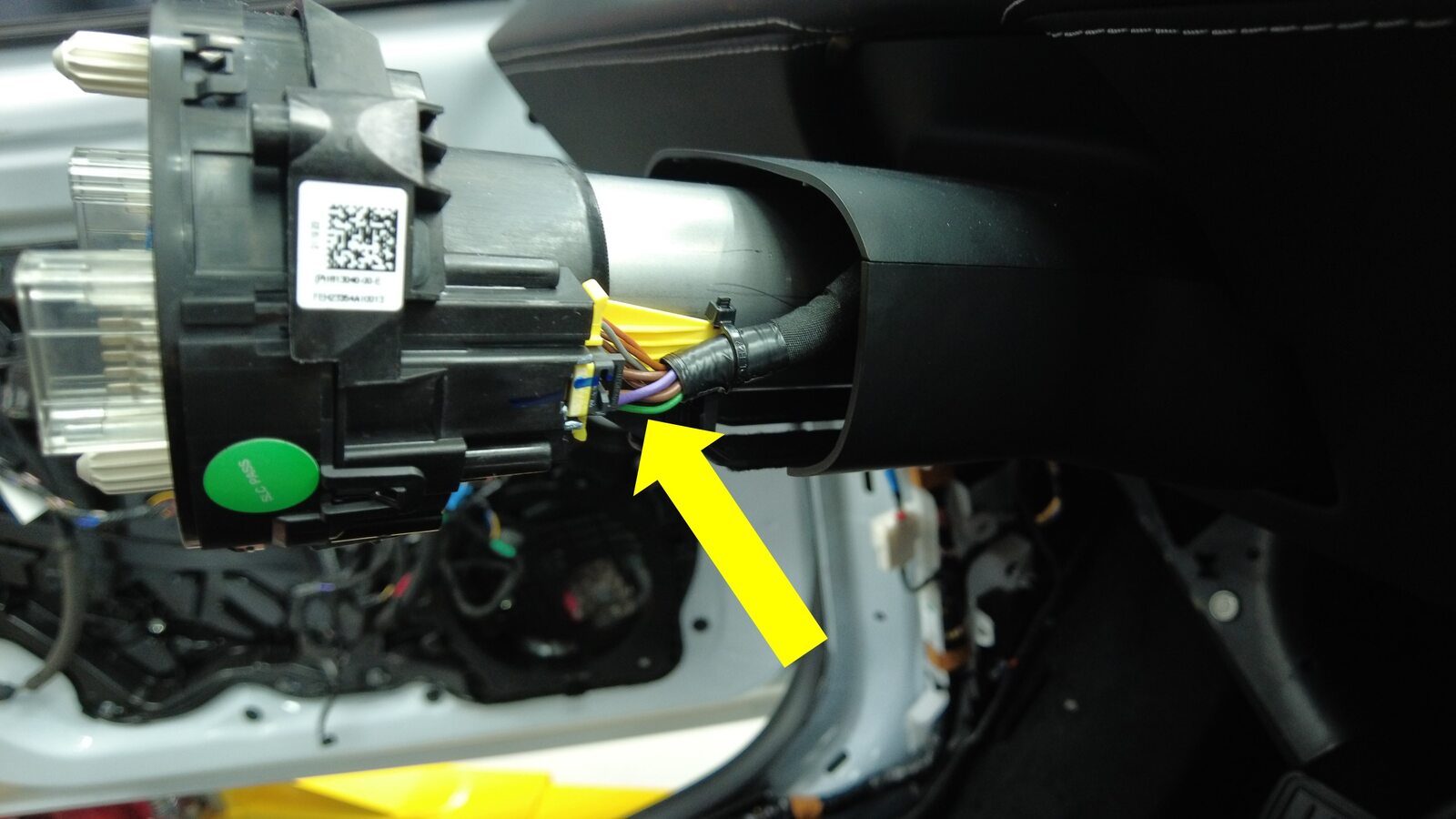

  2. Disconnect steering column control module connector
    Note

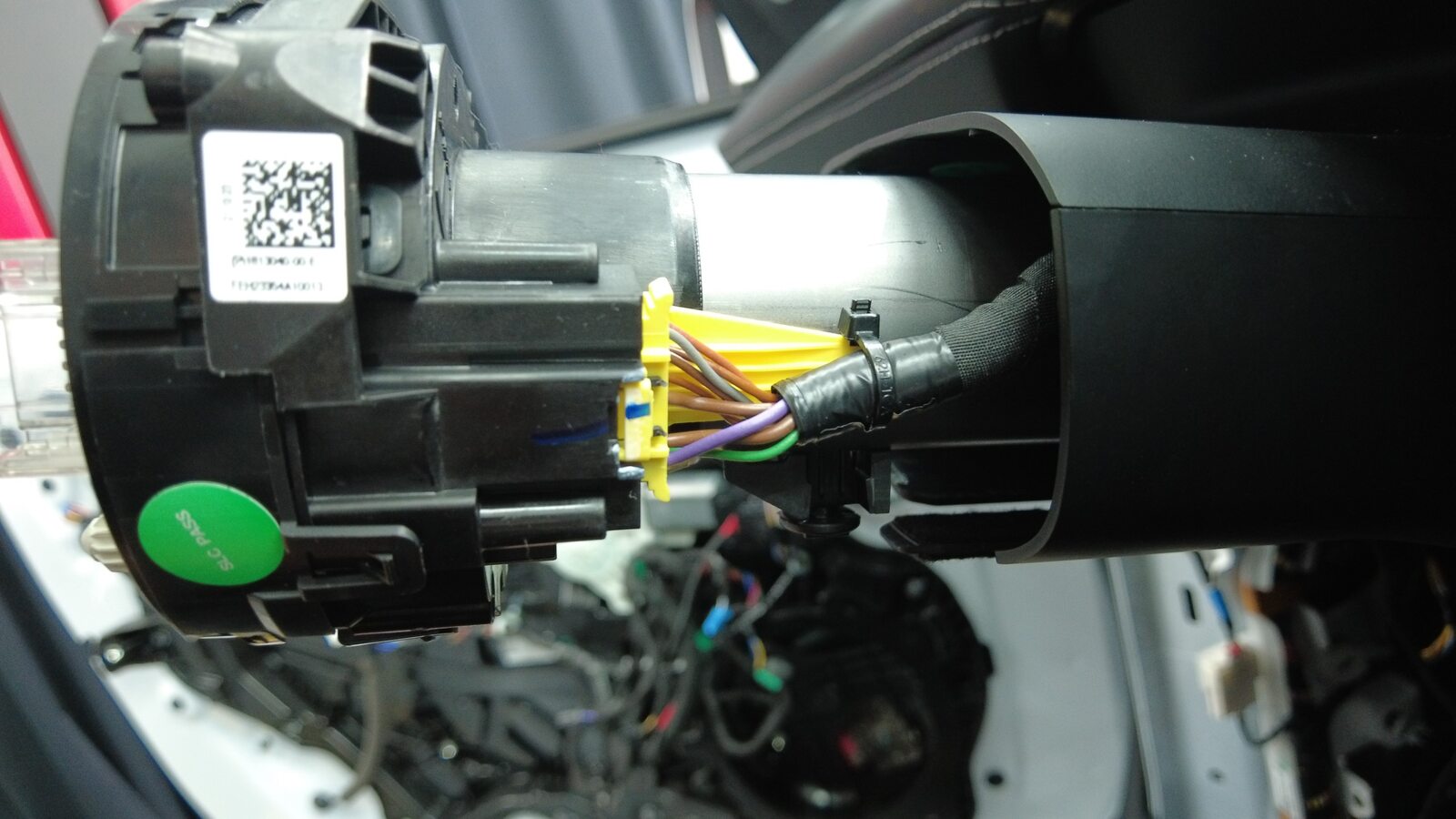

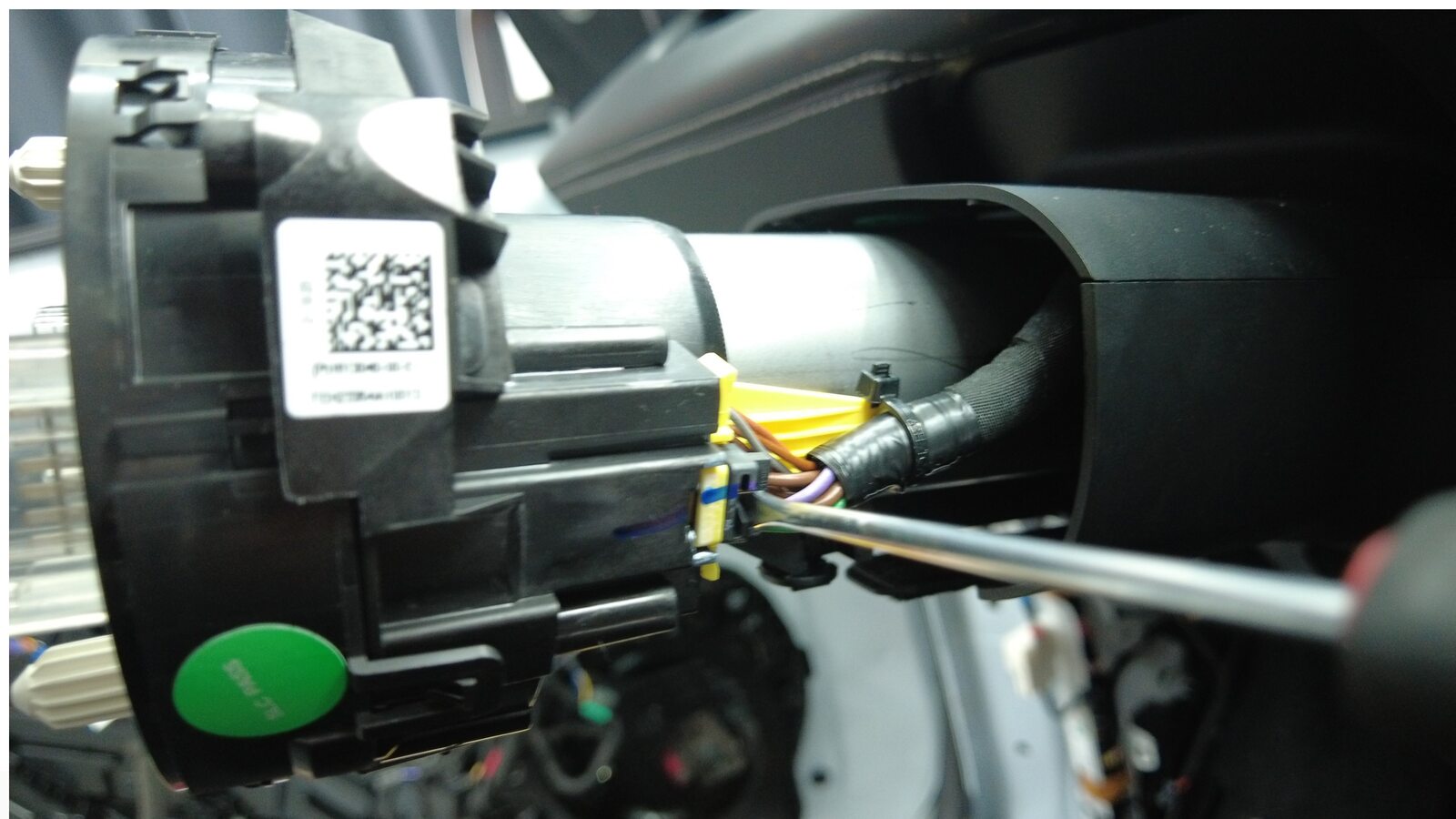

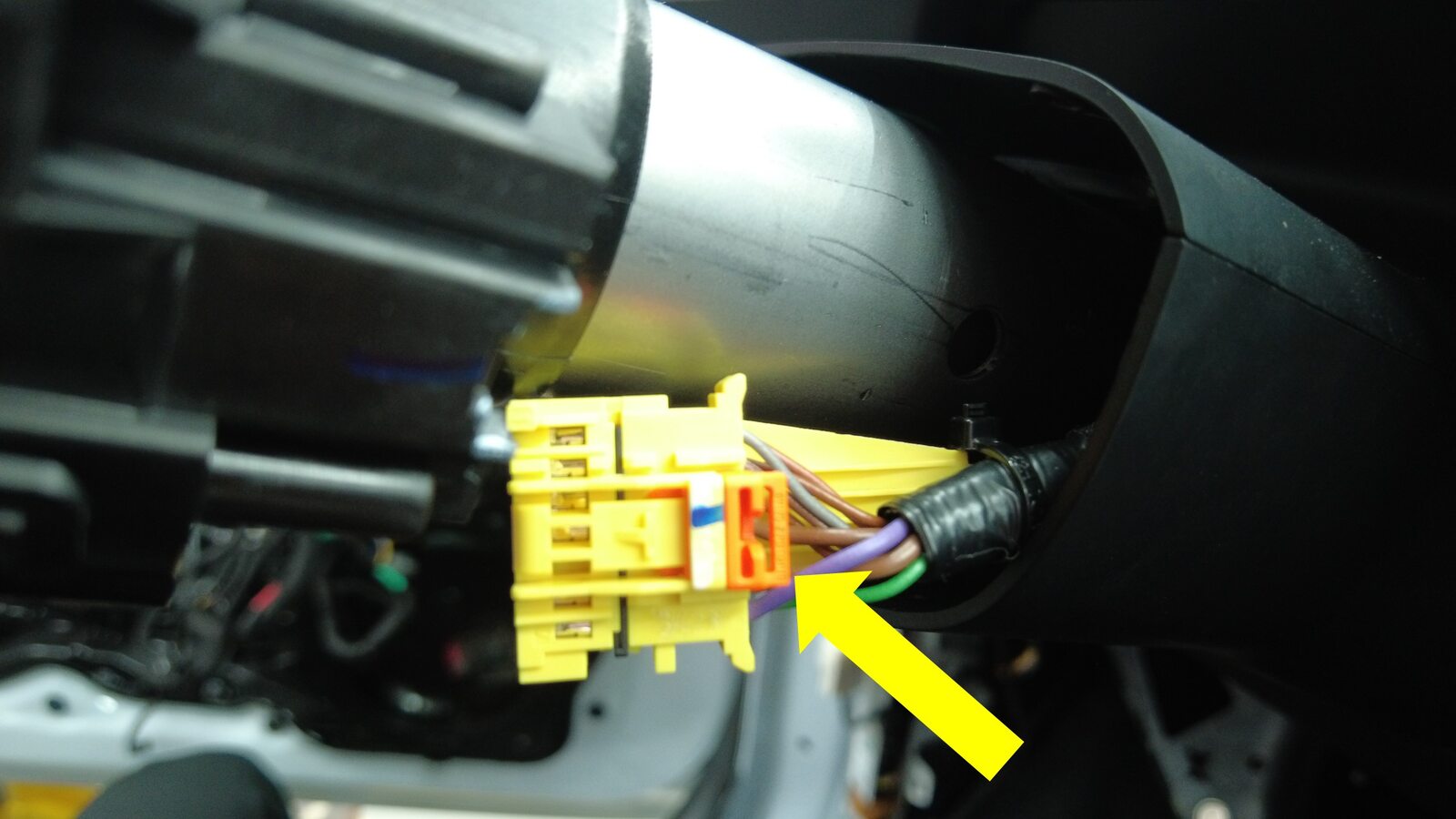

    1x connector, Remove retaining clip on the connector, release connector, then remove the remaining broken clip from connector, Discard retaining clip after removal, Originally installed clip is black, Replacement clip is orange
  3. Remove steering column control module
    Note

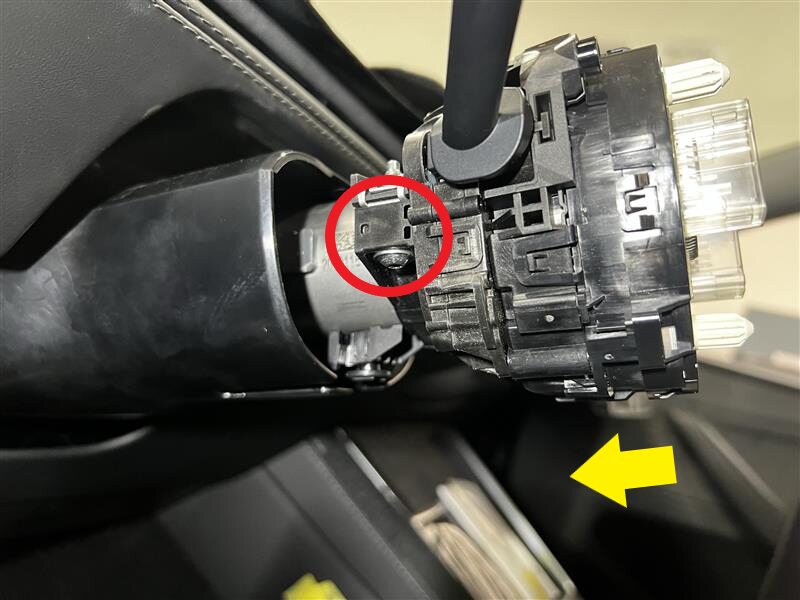

    1x bolt, T20, 2.4 Nm, 1x clip, Loosen the bolt, not need remove

Install

  1. Install steering column control module
    Note

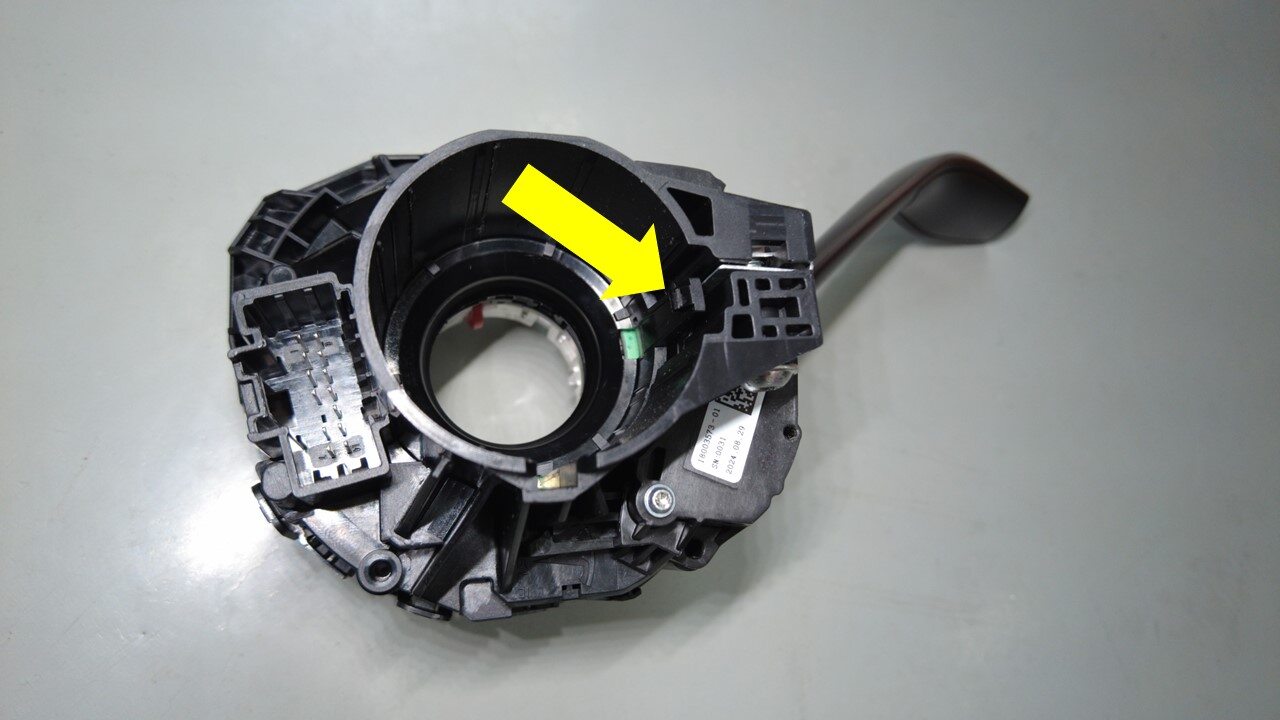

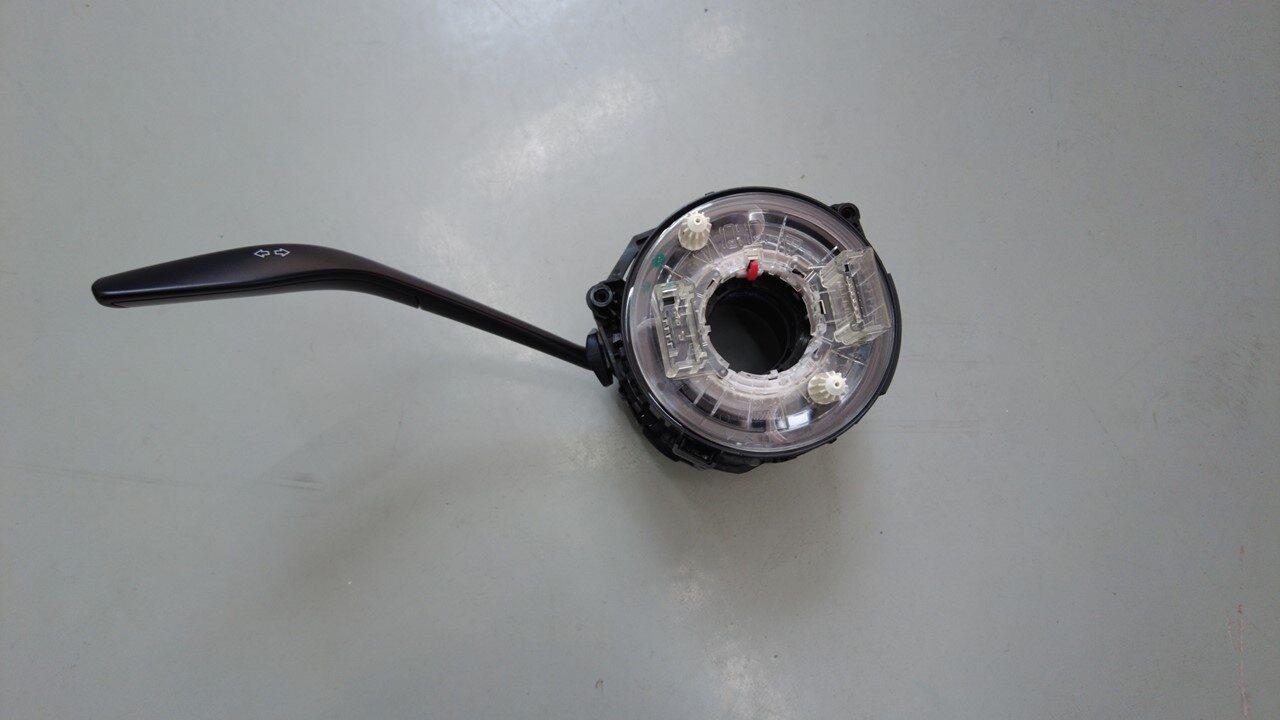

    1x bolt, T20, 2.4 Nm, 1x clip, Ensure SCCM is fully seated
  2. Connect steering column control module connector
    Note

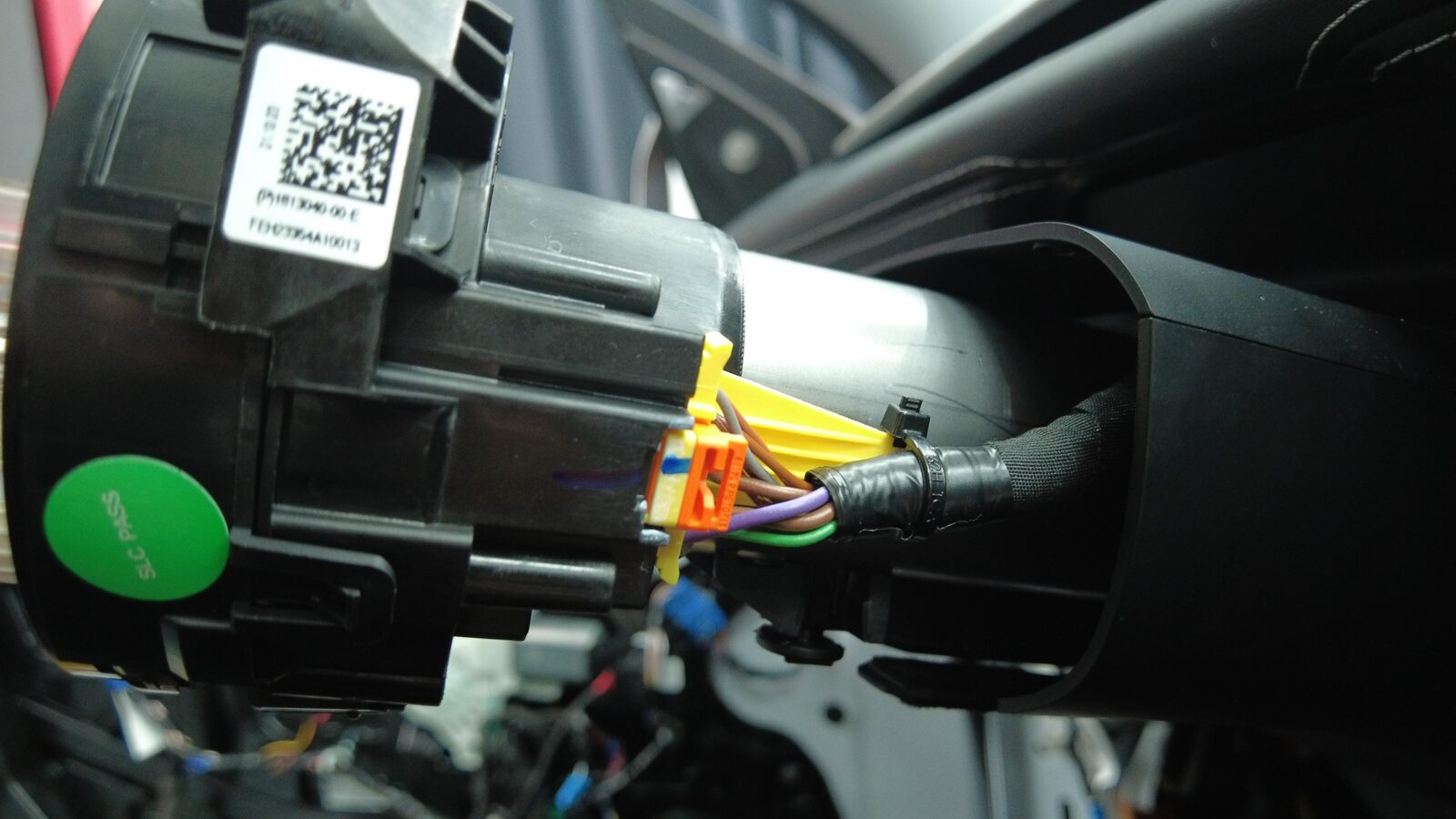

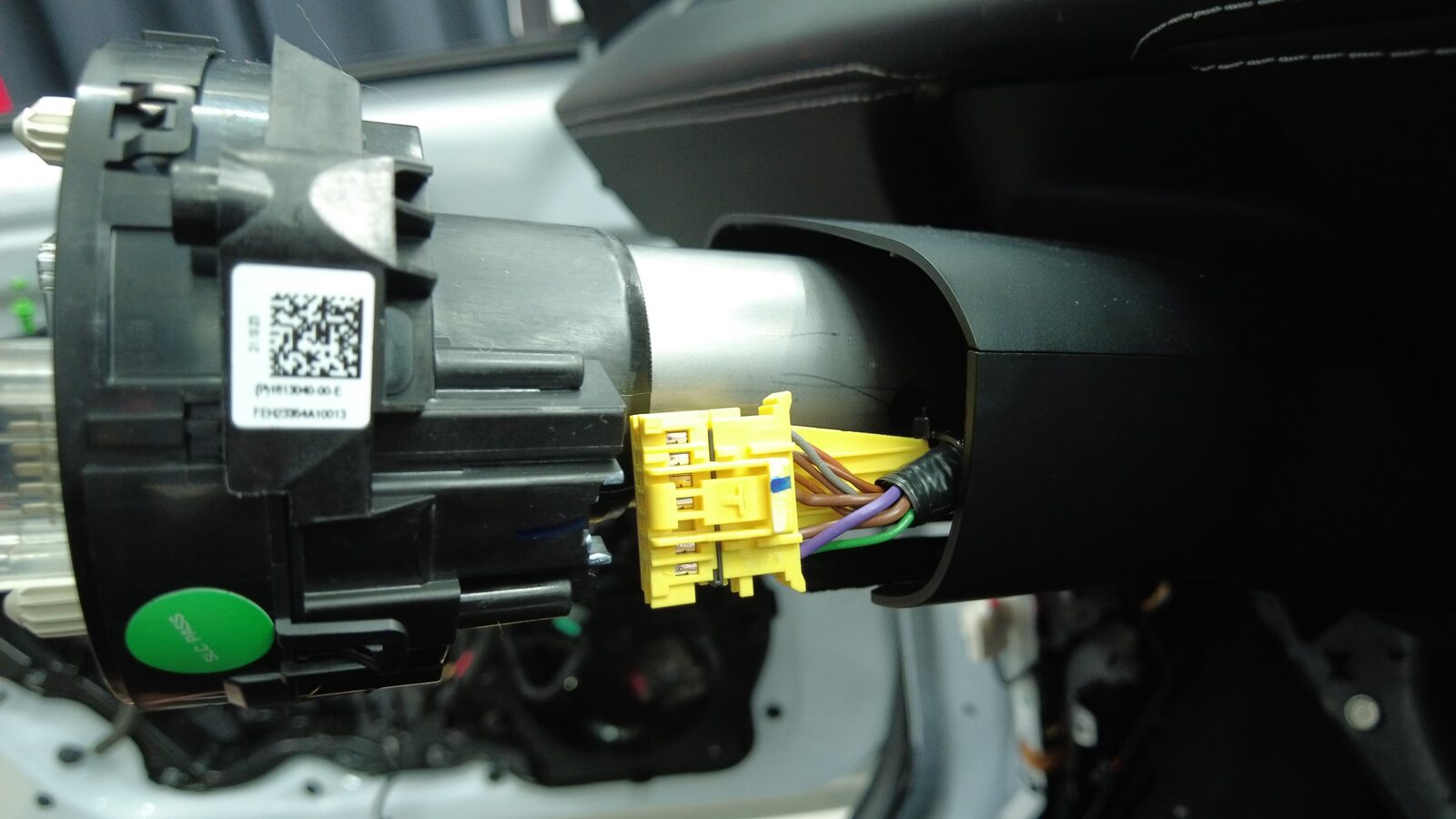

    1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly
  3. Install the steering column upper shroud. See Steering Column Shroud Upper (Model Y Standard) (Remove and Install).
