Cabin Carpet - Front - RH (Remove and Replace)

Correction code 1530030302 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the RH front door and lower the RH front window.
  2. Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  3. Release the RH front seat harness from the sill trim clips (x4).

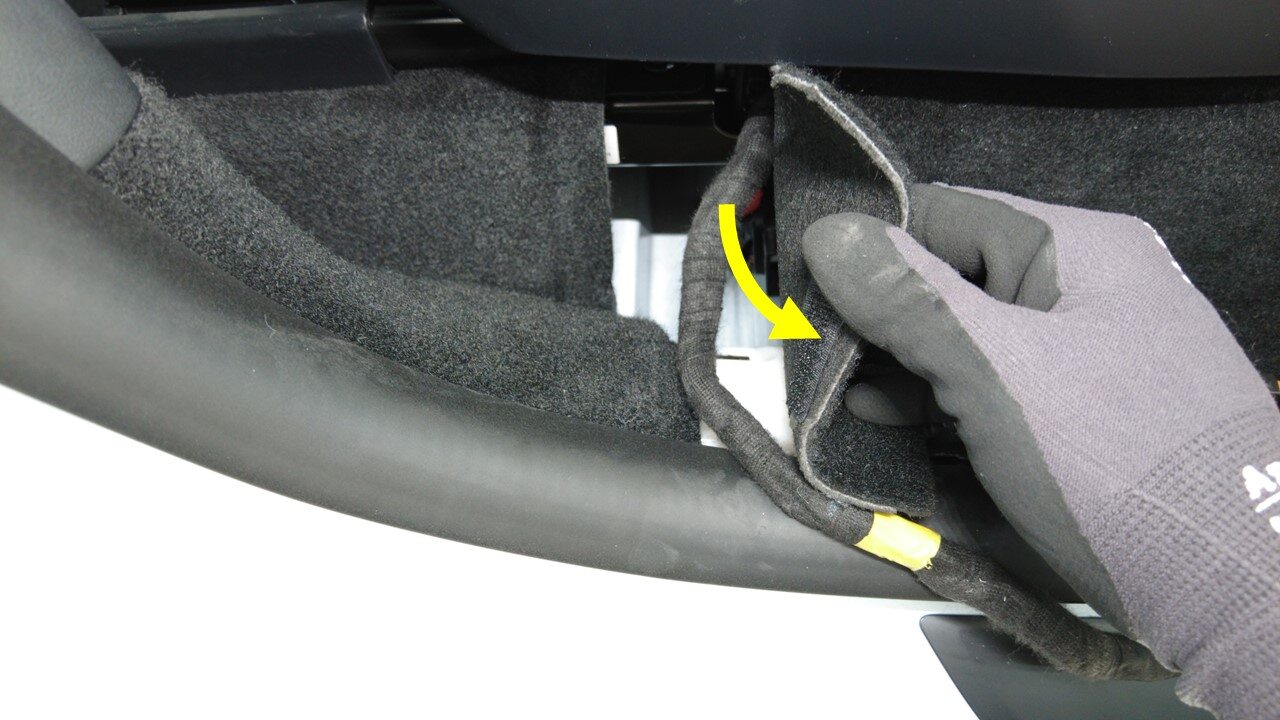

  4. Pull the RH front seat harness from under the RH front cabin carpet.
  5. Move the RH front seat forward.
  6. Open the RH rear door and lower the RH rear window.

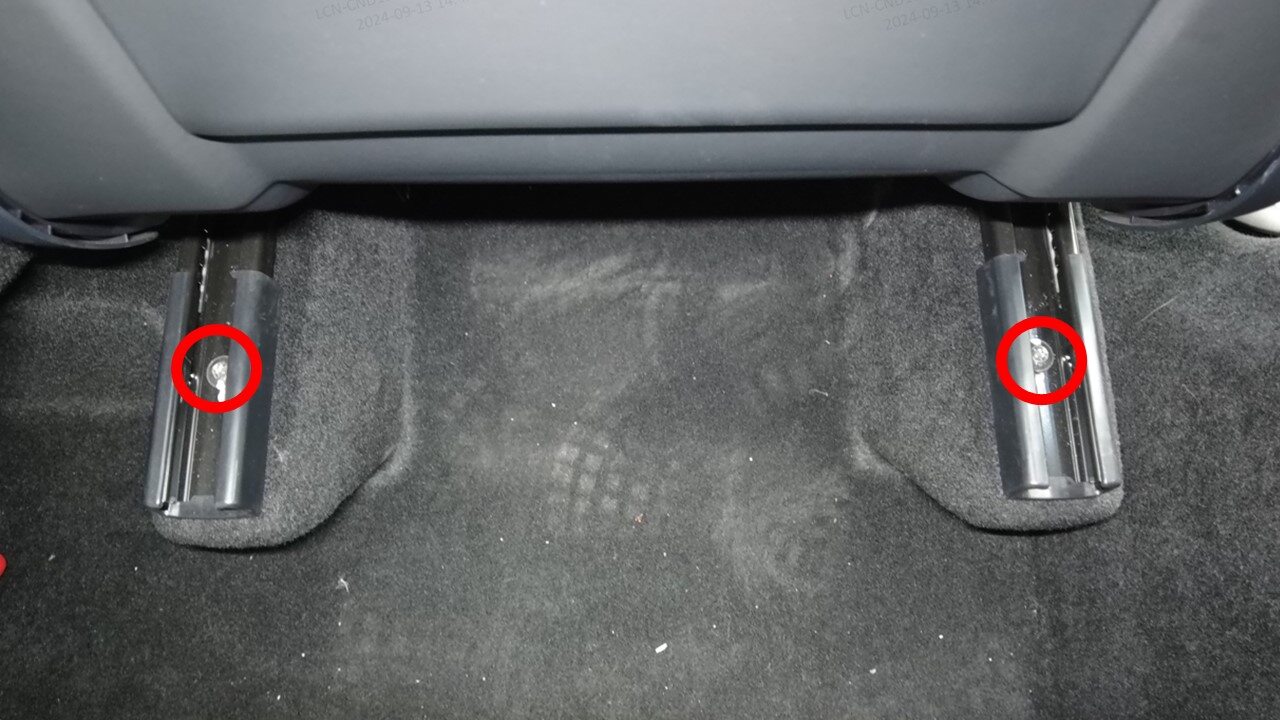

  7. Remove and discard the RH front seat rear bolts.
    Tip
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Torx Plus TP45 Bit Socket
    • Ratchet/torque wrench
  8. Move the RH front seat backward.

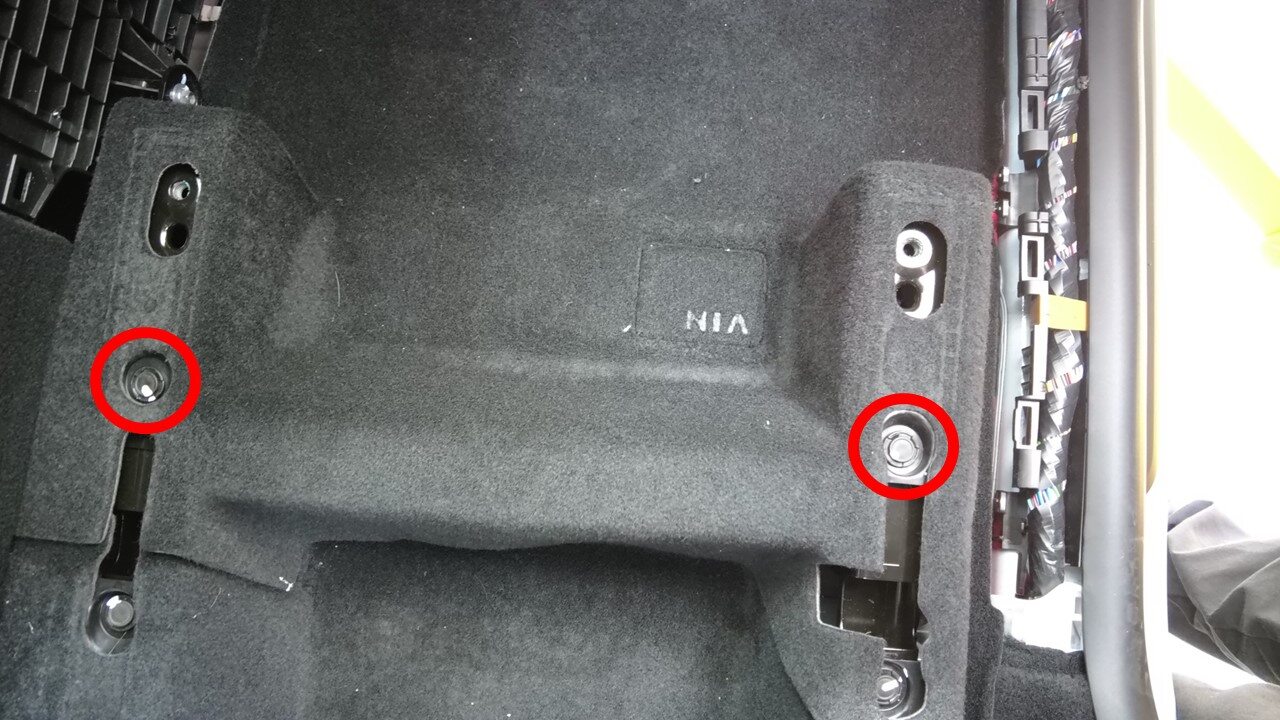

  9. Remove and discard the RH front seat front bolts.
    Tip
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Torx Plus TP45 Bit Socket
    • Ratchet/torque wrench
  10. Tilt the RH front seat backward.
    Note
    No need to disconnect the RH seat harness from the body controller.
  11. Remove the RH footwell hush panel. See Hush Panel - Footwell - Front Passenger (Remove and Replace).
    Note
    No need to separate the puddle lamp from the passenger footwell hush panel.
  12. Remove the RH front center console side panel. See Side Panel - Front - Center Console - RH (Remove and Replace).

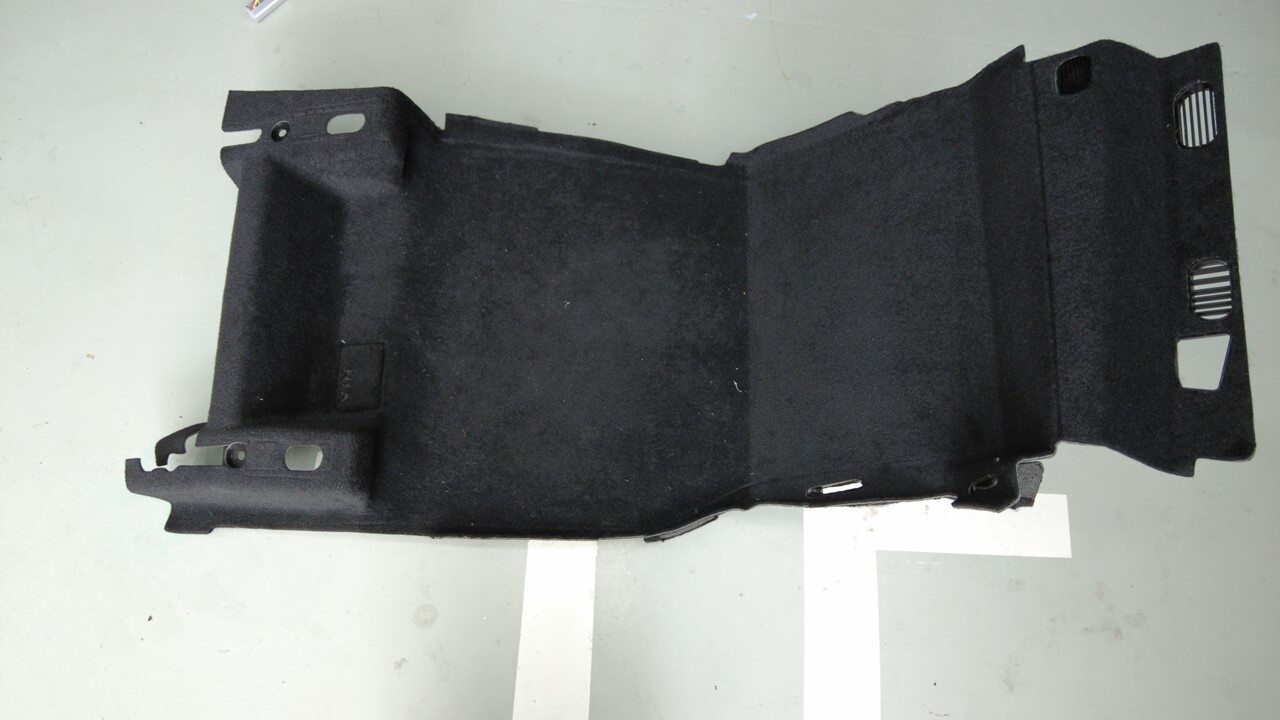

  13. Release the push clips (x2) that attach the RH front cabin carpet to the body, and then remove the RH front carpet from the vehicle.
    Note
    Lift up the rear edge of the carpet and then slide it out towards the rear of vehicle. Be cautious to avoid the foam below catching on the seat risers.

Install

  1. Place the RH front cabin carpet into the vehicle, and then install the push clips (x2) that attach the carpet to the body.
  2. Install the RH front center console side panel. See Side Panel - Front - Center Console - RH (Remove and Replace).
  3. Install the RH footwell hush panel. See Hush Panel - Footwell - Front Passenger (Remove and Replace).
  4. Return the RH front seat to installation position.
  5. Install new RH front seat front bolts (x2) (1458818-00-A).
    33.5 Nm (24.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Torx Plus TP45 Bit Socket
    • Ratchet/torque wrench
  6. Move the RH front seat forward.
  7. Install new RH front seat rear bolts (x2) (1458818-00-A).
    33.5 Nm (24.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Torx Plus TP45 Bit Socket
    • Ratchet/torque wrench
  8. Raise the RH rear window and close the RH rear door.
  9. Move the RH front seat to original position.
  10. Secure the RH front seat harness under the RH front cabin carpet.

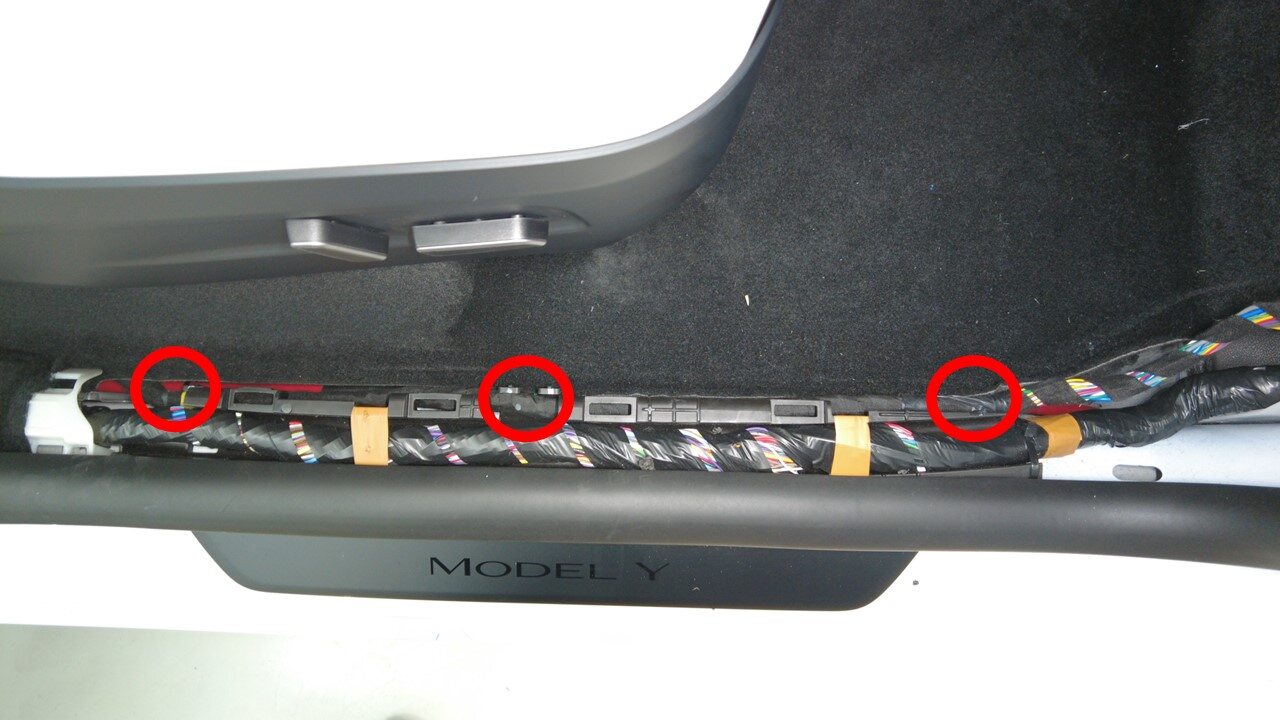

  11. Install the RH front seat harness to the sill trim clips (x4).
    Note
    Tuck the excess harness between the harness bracket and body.
  12. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  13. Raise the RH front window and close the RH front door.
