Correction code 1306010301 1306010302 FRT NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-01-27: Released new procedure.

Remove

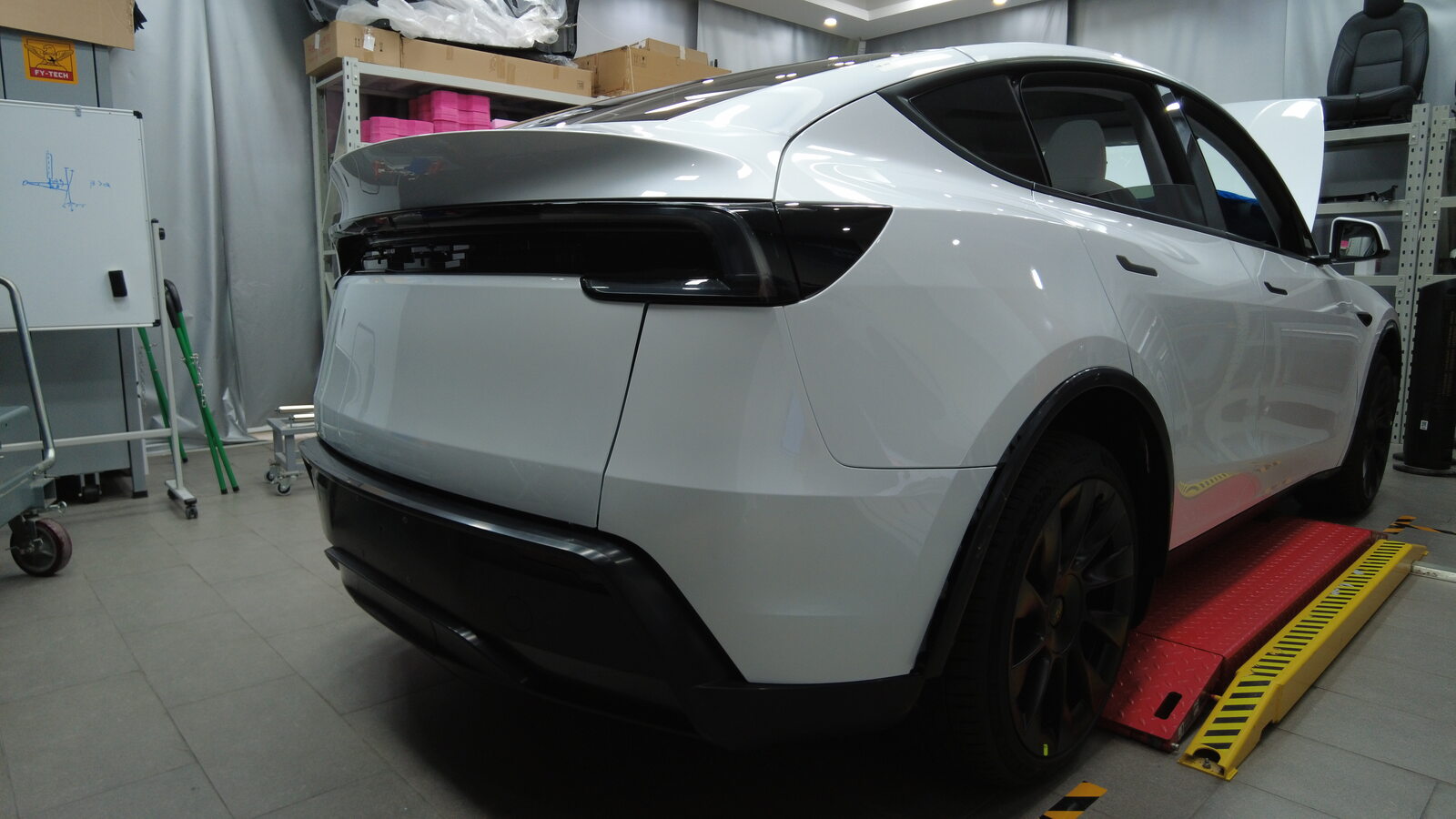

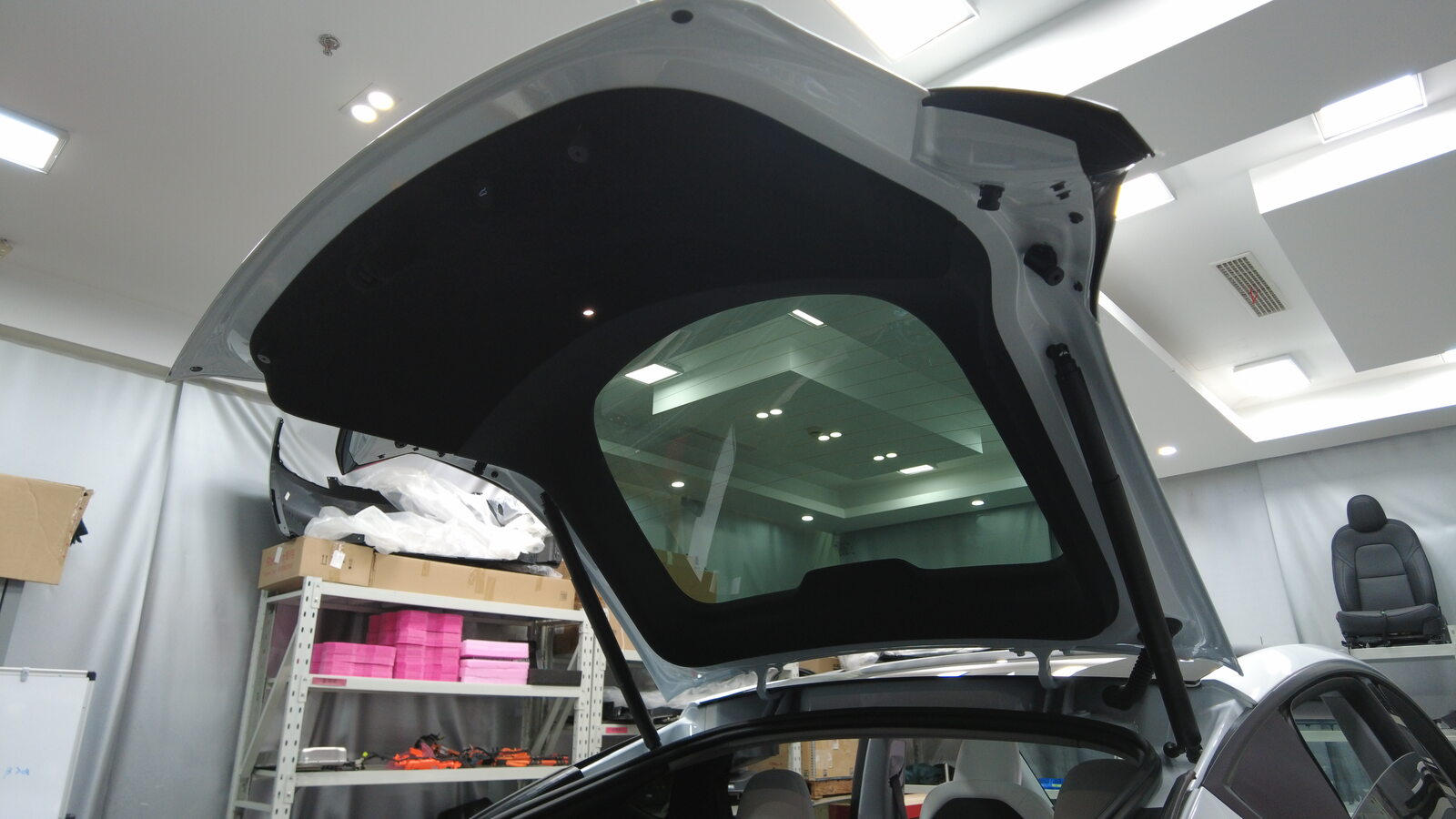

  1. Open the liftgate.
  2. Remove the 3rd row seat cushion. See Seat Cushion - 3rd Row (7-Seat) (Remove and Replace).

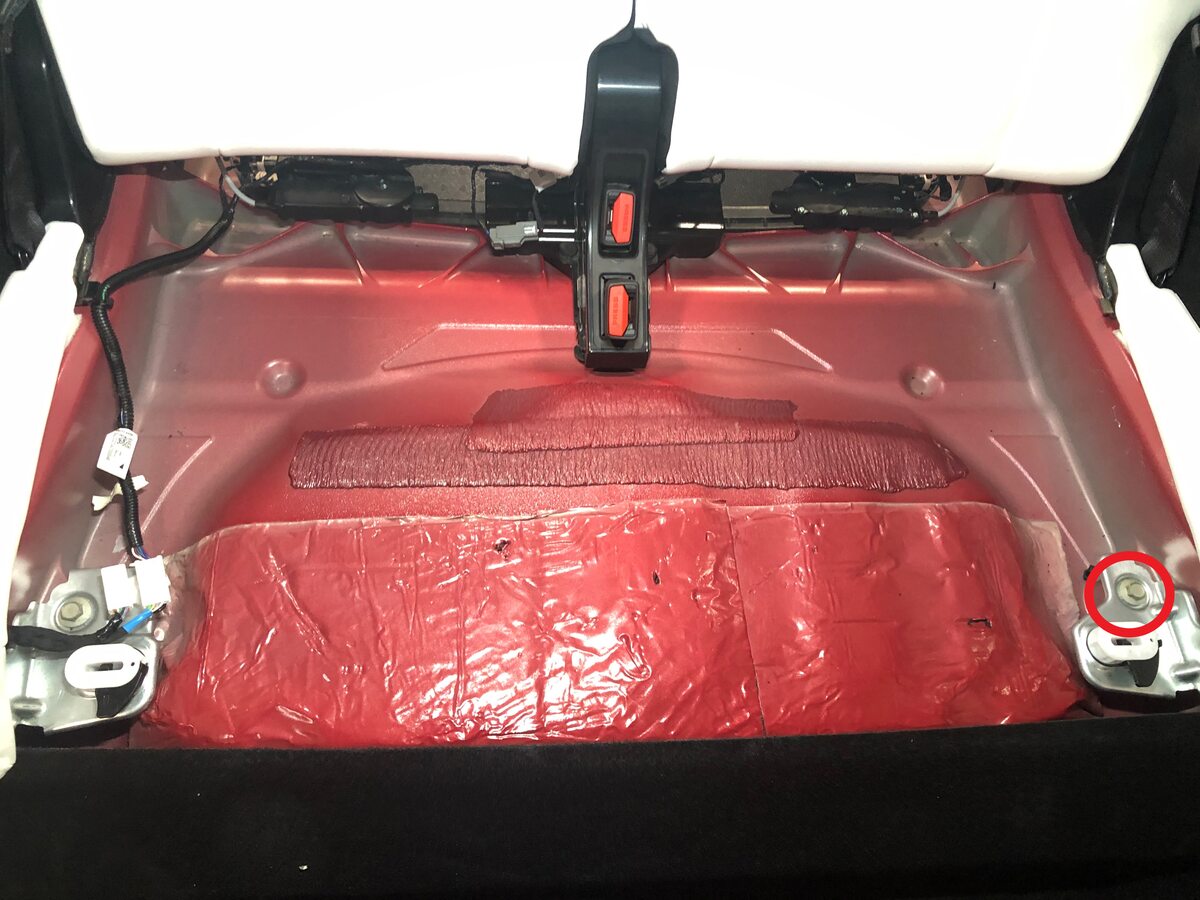

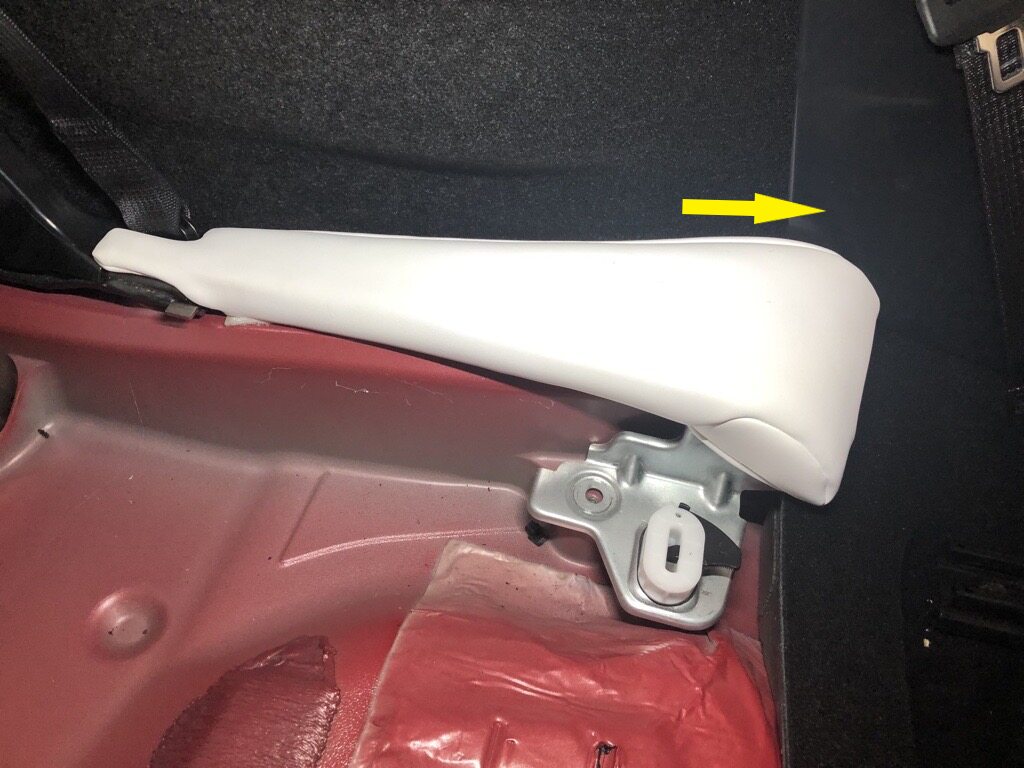

  3. Remove the bolt that attaches the 3rd row LH seat cushion bolster to the vehicle, then pull the bolster toward the front of the vehicle to remove it.
    Tip
    Use of the following tool(s) is recommended:
    • Socket 3/8in Dr. 6pt. Std. x 13mm

Install

  1. Reposition and push the bolster toward the rear of the vehicle, then install the bolt that attaches the bolster to the vehicle.
    37 Nm (27.3 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • Socket 3/8in Dr. 6pt. Std. x 13mm
  2. Install the 3rd row seat cushion. See Seat Cushion - 3rd Row (7-Seat) (Remove and Replace).

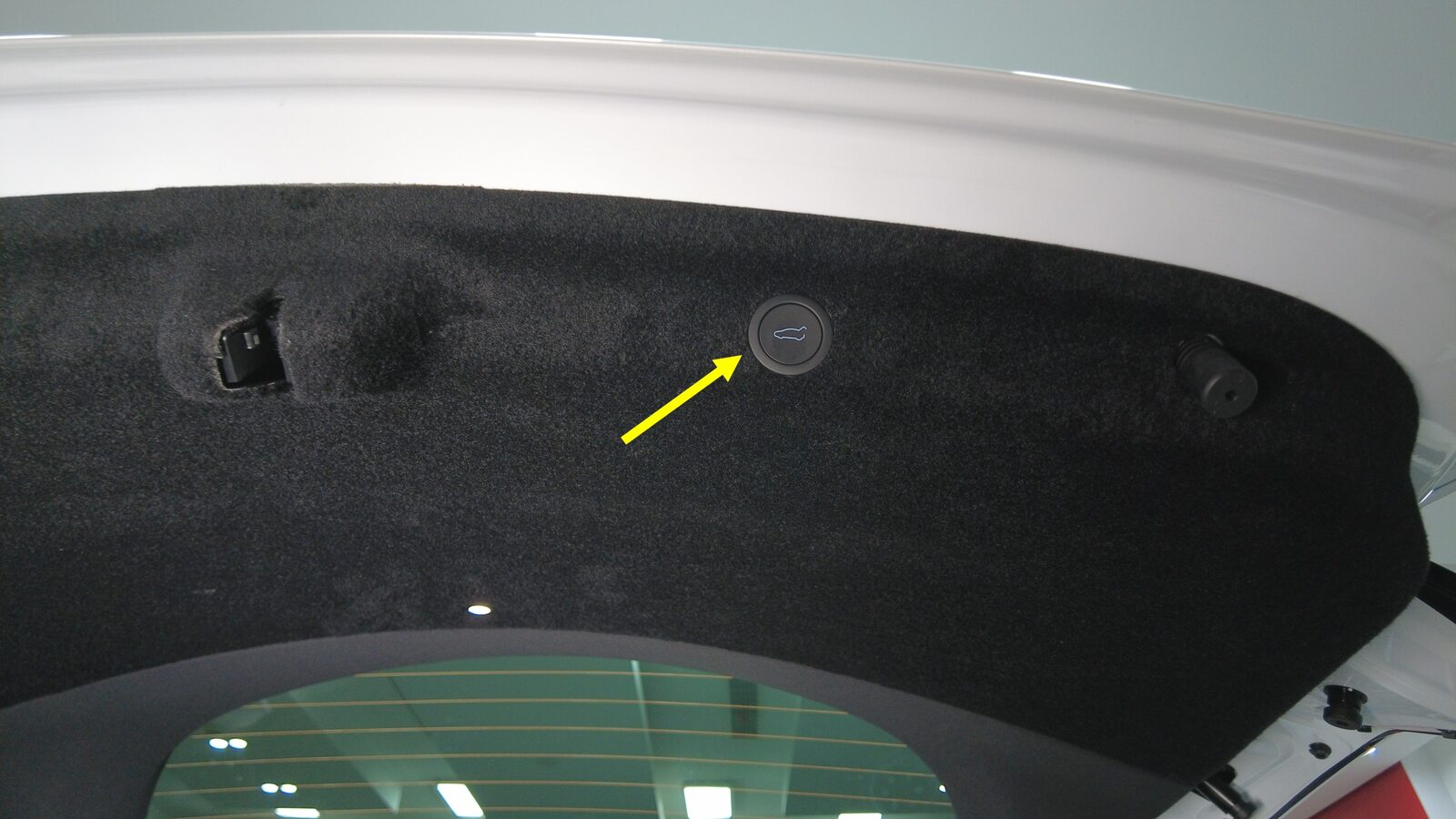

  3. Close the liftgate.
