Correction code
1309011201
1309011202
FRT
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
- 2026-01-27: Released new procedure.
Remove
- Open the liftgate.
-

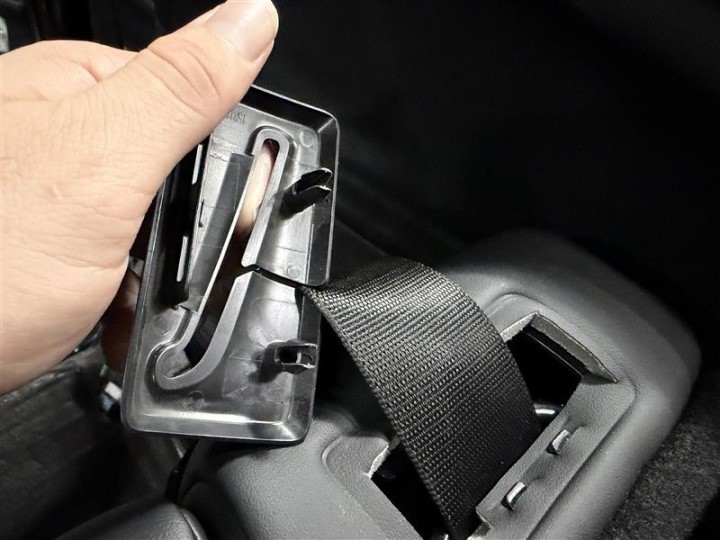

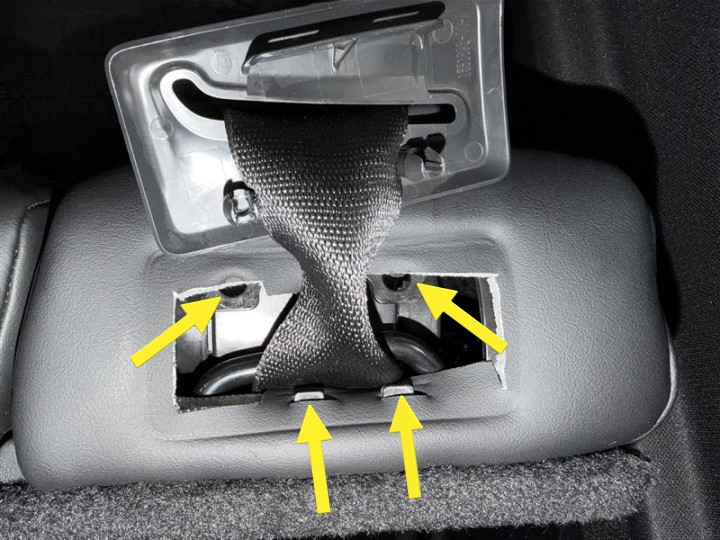

Release the tabs (x2) and clips (x2)
that attach the 3rd row LH escutcheon to the LH seat assembly, then remove it from the
seat.
Install
-

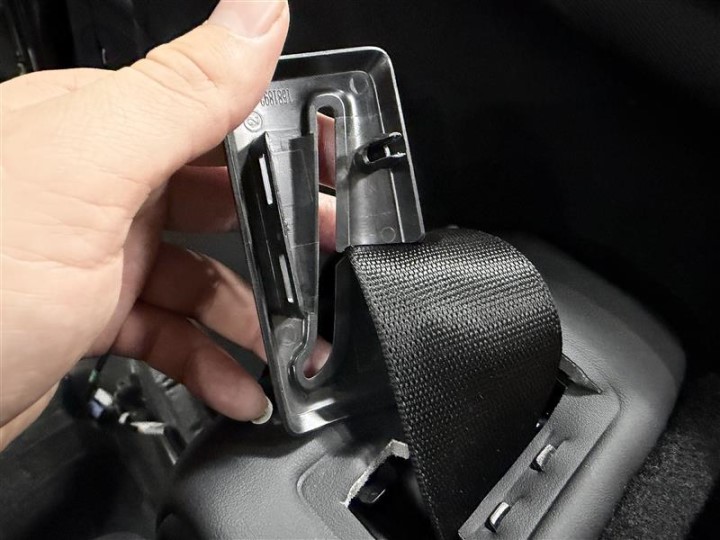

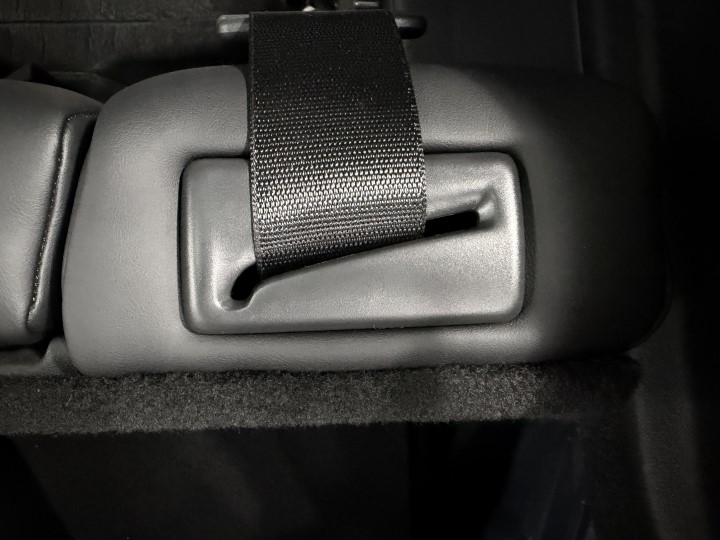

Insert the tabs (x2) into the 3rd row LH escutcheon, then fully press the clips (x2)
into position to install it onto the seat assembly.
- Close the liftgate.
