Correction code 1302010801 1302010802 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the 2nd row LH seat inner track. See GUID-B0C73BFA-99A2-4F55-B162-9B770FE6B842.html.

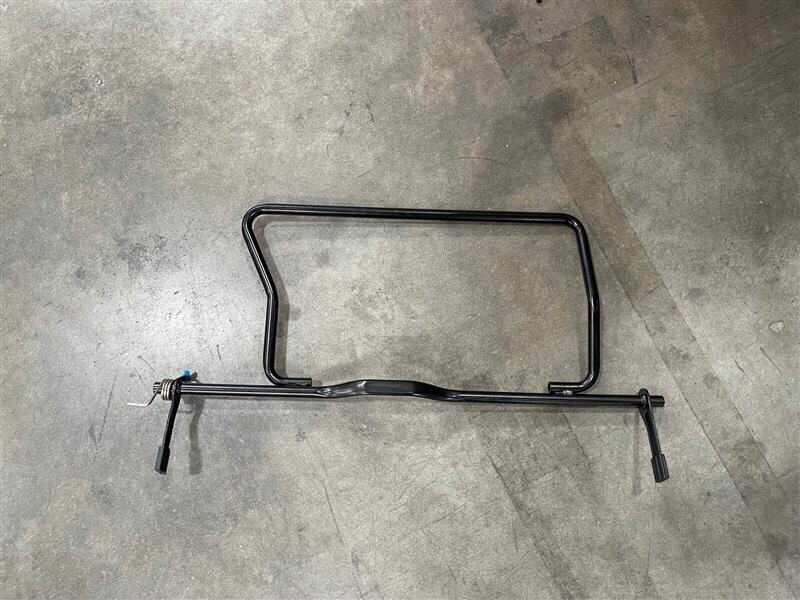

  2. Remove the 2nd row LH seat inner seat track with the towel bar.
    Note

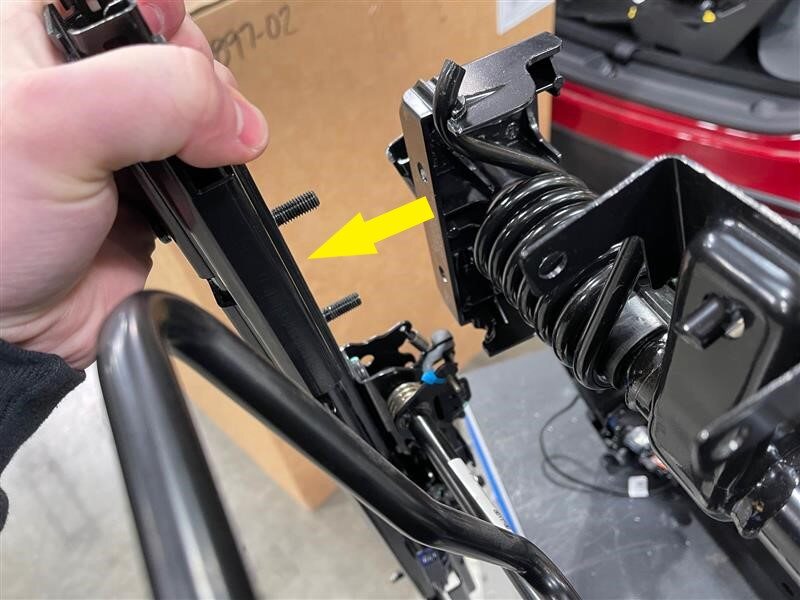

    Remove the inner seat track and the towel bar by pulling outwards.

Install

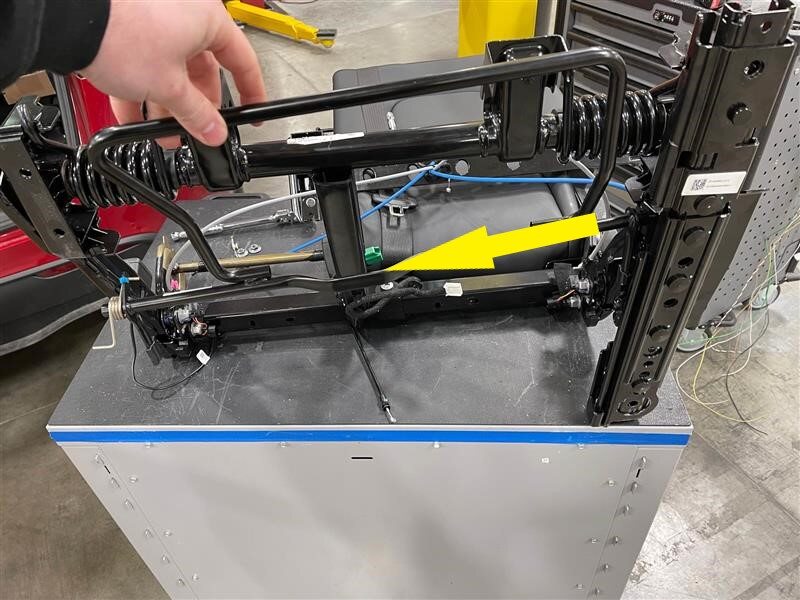

  1. Install the towel bar to the 2nd row LH seat inner seat track.
    Note

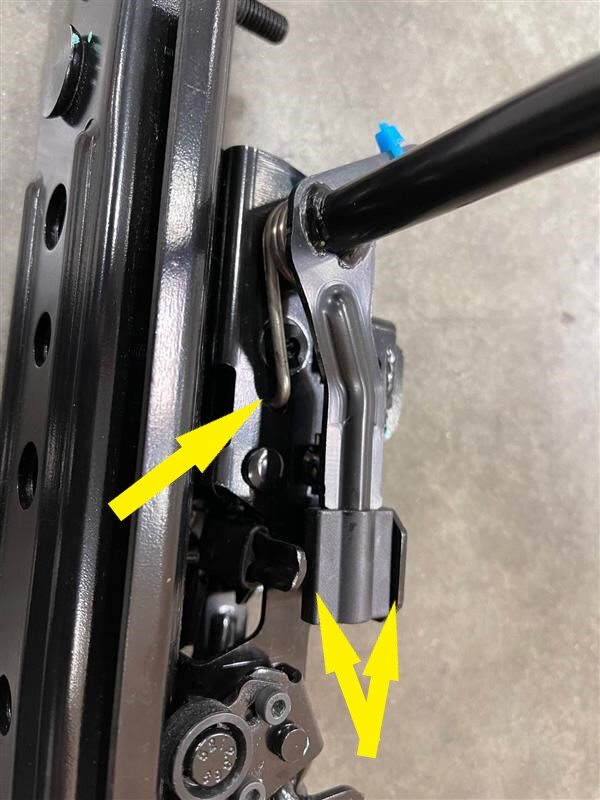

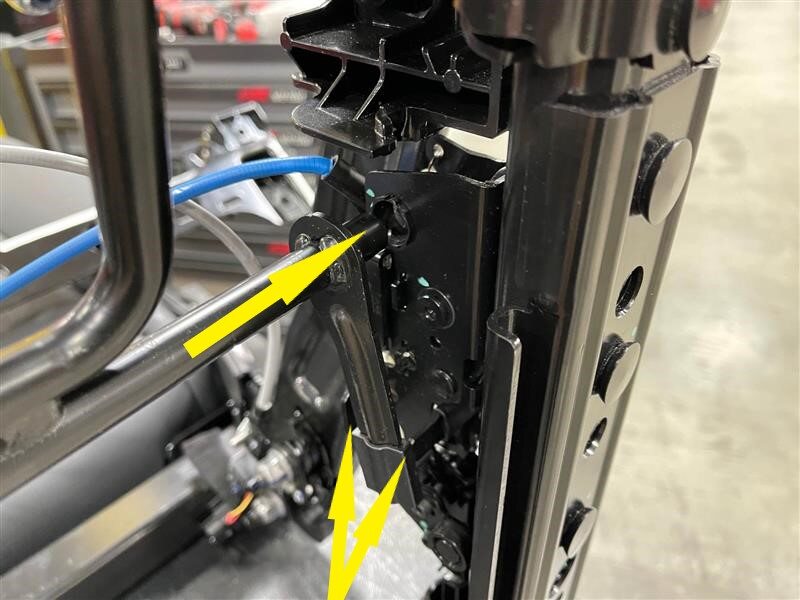

    Make sure the spring clip is seated and the towel bar lever is within the detents and installed to seat frame.
  2. Install the 2nd row LH seat inner track. See GUID-B0C73BFA-99A2-4F55-B162-9B770FE6B842.html.
