Correction code 1308020202 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.
- 2026-01-26: Released new procedure.
Remove
- Remove the 2nd row RH seat cushion assembly. See GUID-6CD9E7F2-0B1F-4746-AF1A-D5FC31071791.html.
-

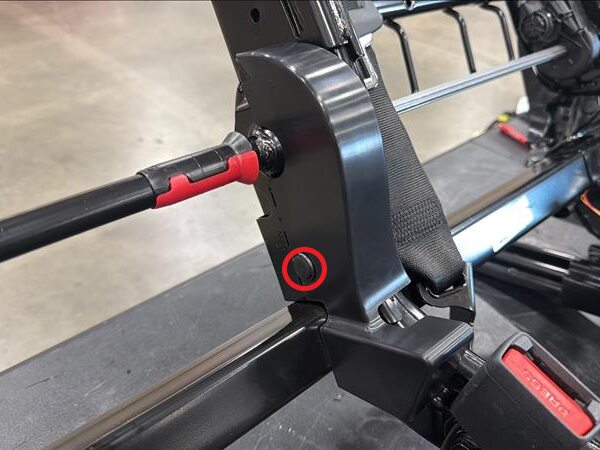

Remove center outer b-cover.
Install
-
Install center outer b-cover.
- Install the 2nd row RH seat cushion assembly. See GUID-6CD9E7F2-0B1F-4746-AF1A-D5FC31071791.html.
- Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
- Run ODIN routine
- Run ODIN routine PROC_VCLEFT_X_2R-SEAT-RECLINE-CALIBRATIONvia Service Mode:Low Voltage ➜ Second Row Seats ➜ Calibratevia Toolbox:(link)
- Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
-
Close all four doors.
NoteIf LV is powered up then unlatch rear doors before closing.
