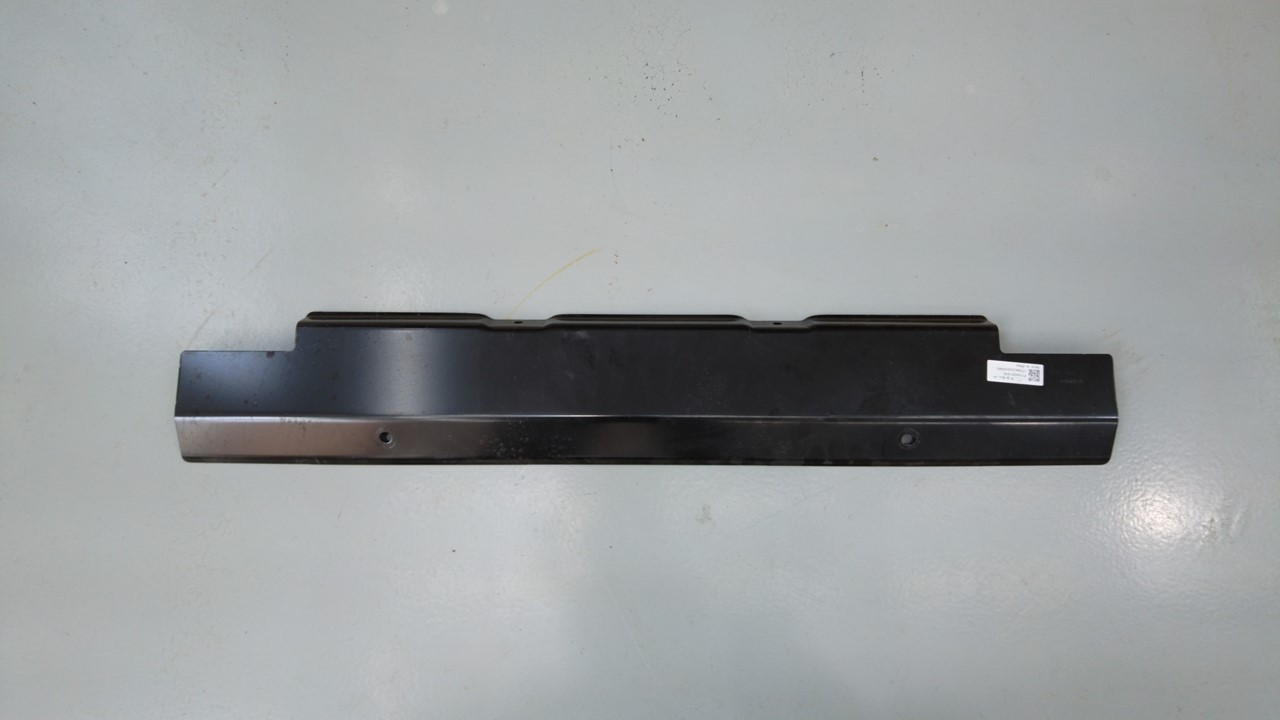

Underbody Deflector Assembly - Subframe - Front ((拆卸和更换))

校正代码 3001010602 FRT 0.30 注意:除非本程序中另有明确规定,否则上文所列校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时深入了解 FRT 及其创建方式。 注意:请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意:请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-05-07: Released new procedure.

拆卸

  1. Remove the front valance. See 前保险杠底板 ((拆卸和更换)).
    Informational PurposesAn informational icon, calling your attention
    Do not remove the pedestrian warning speaker from the front valance.

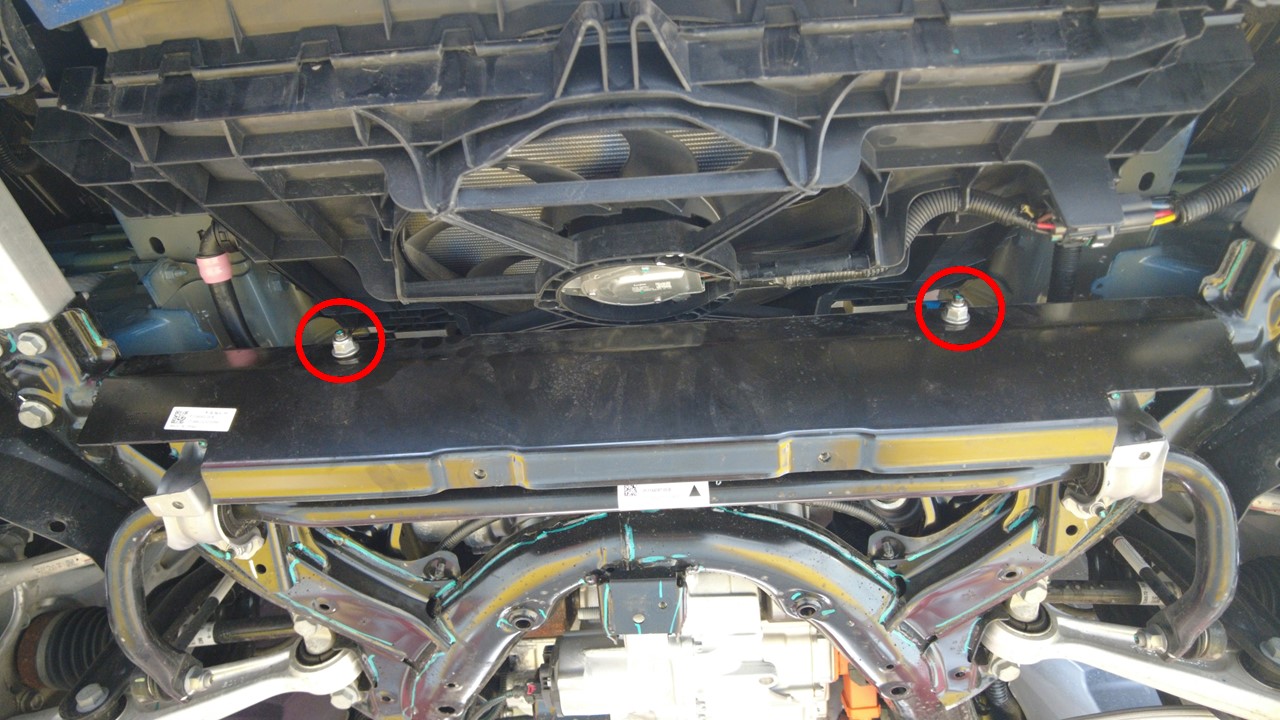

  2. Remove and discard the nuts (x2) that attach the underbody deflector assembly to the front subframe.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 3/8 英寸钻头 15 毫米深套筒

更换

  1. Install new nuts (x2) that attach the underbody deflector assembly to the front subframe.
    35 Nm (25.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具
    • 3/8 英寸钻头 15 毫米深套筒
  2. Install the front valance. See 前保险杠底板 ((拆卸和更换)).
