校正代码 1133040102 1133040101 FRT 0.18 注意： 除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。 除非明确要求，否则请勿堆叠校正代码。 注意： 请参阅平均维修工时深入了解 FRT 及其创建方式。 注意： 请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意： 请参阅人体工程学注意事项查看安全健康的作业规程。

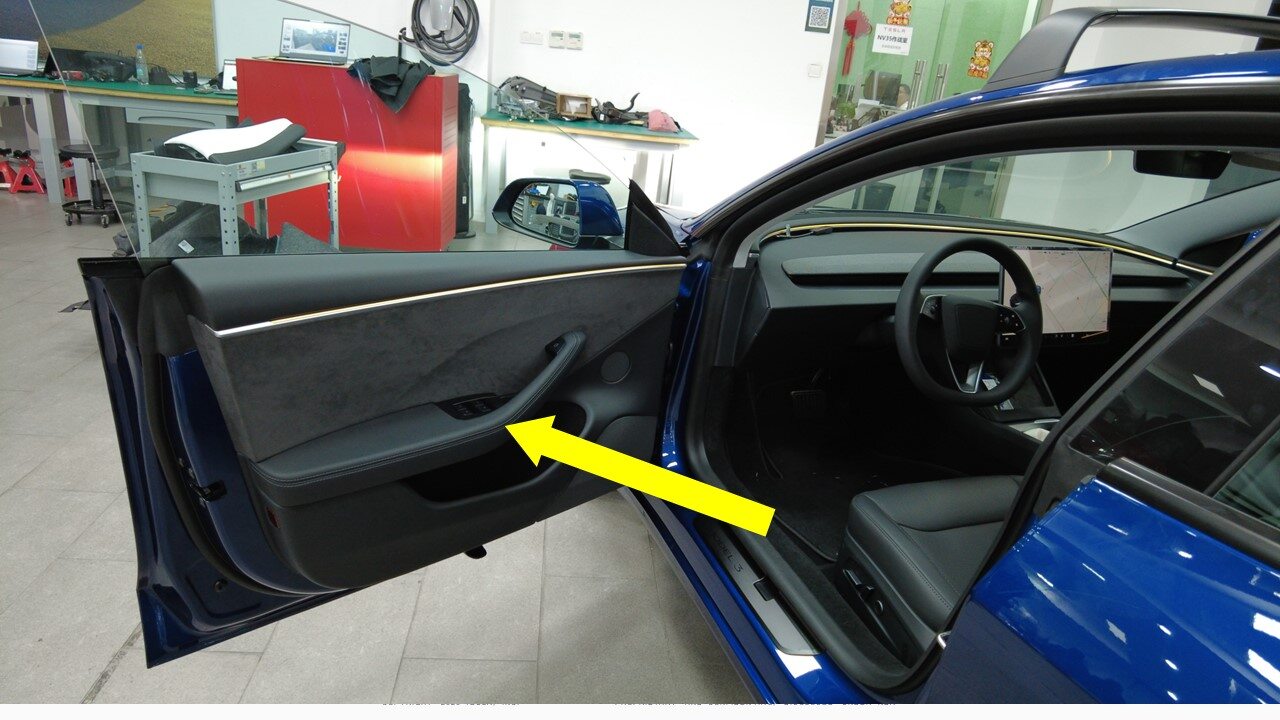

1. Open LH front door

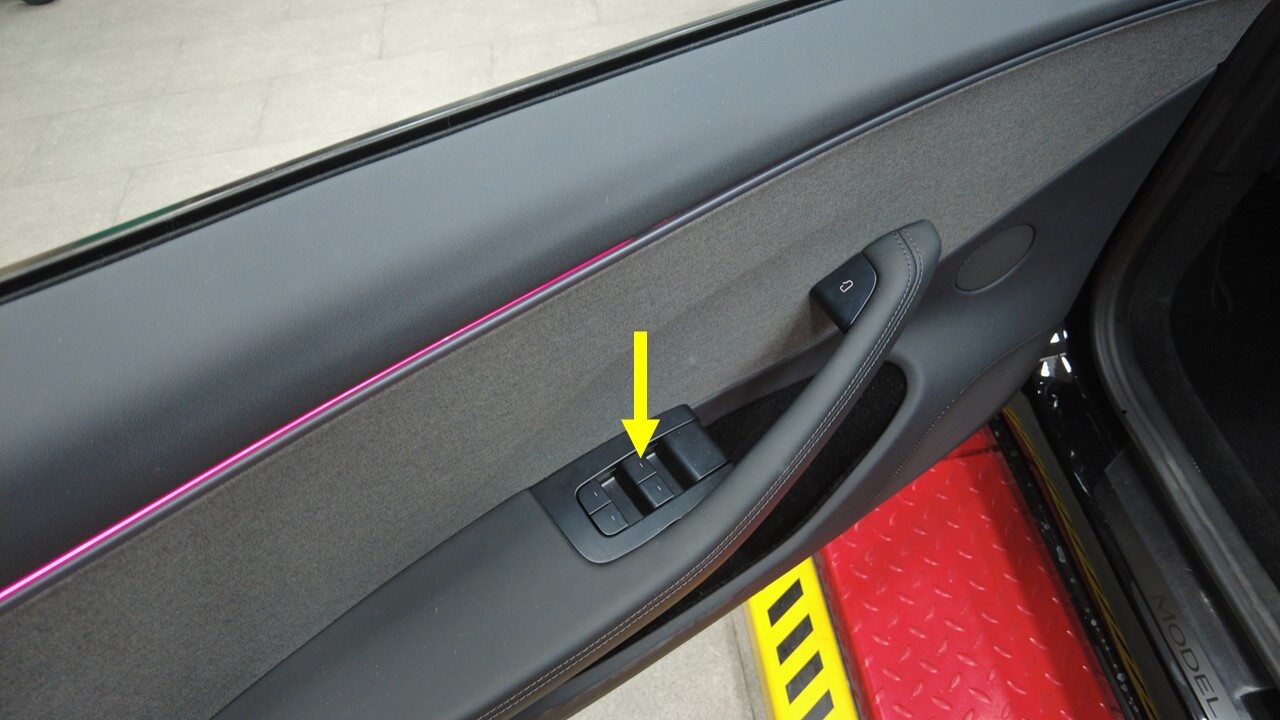

2. Lower LH front window

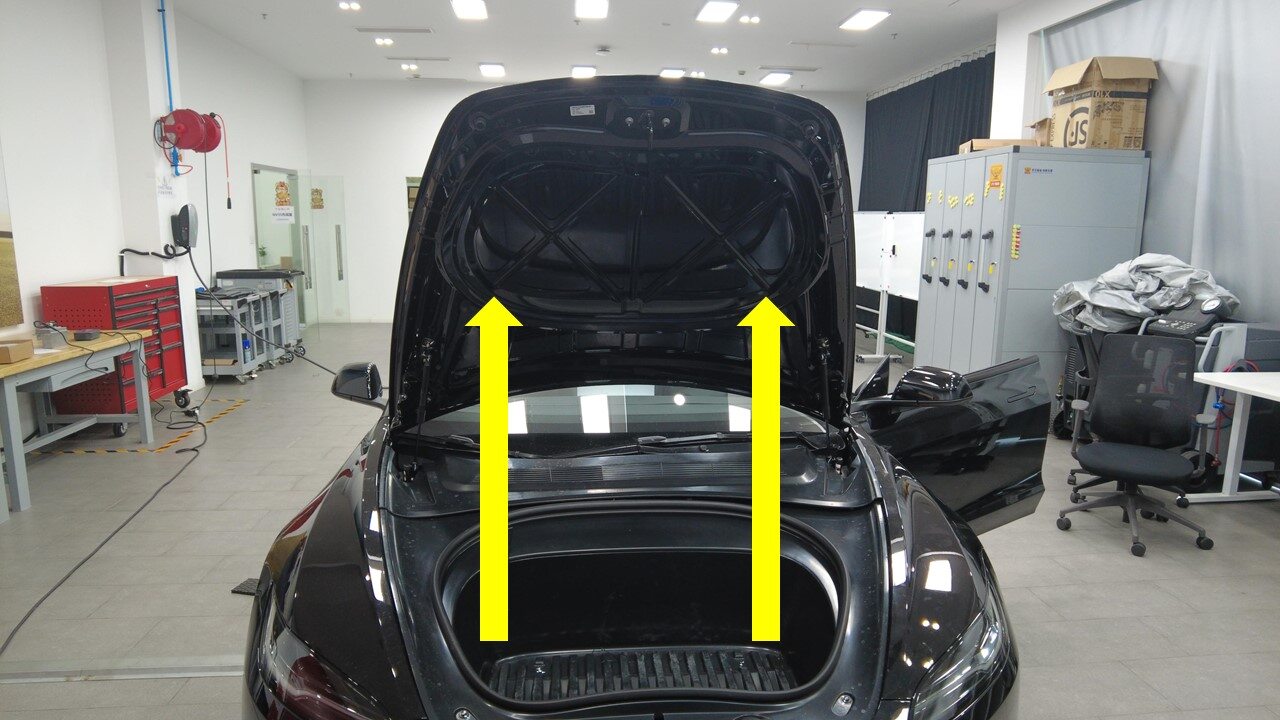

3. Open hood

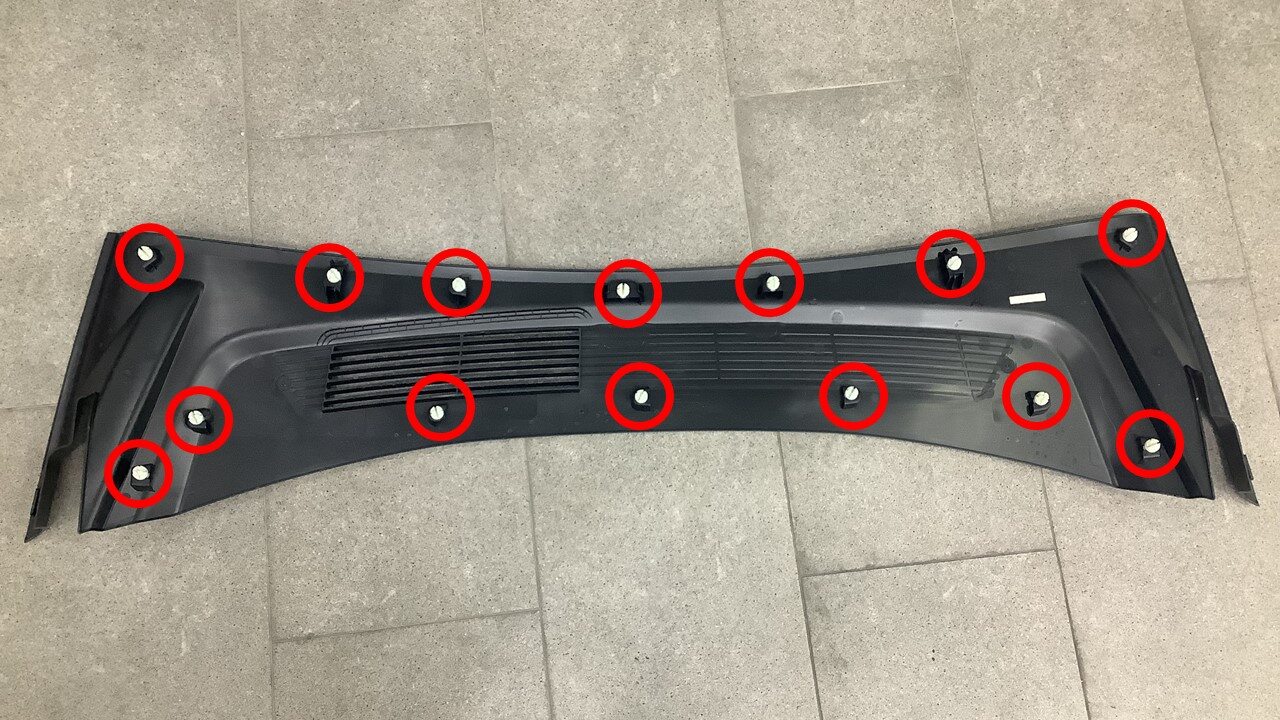

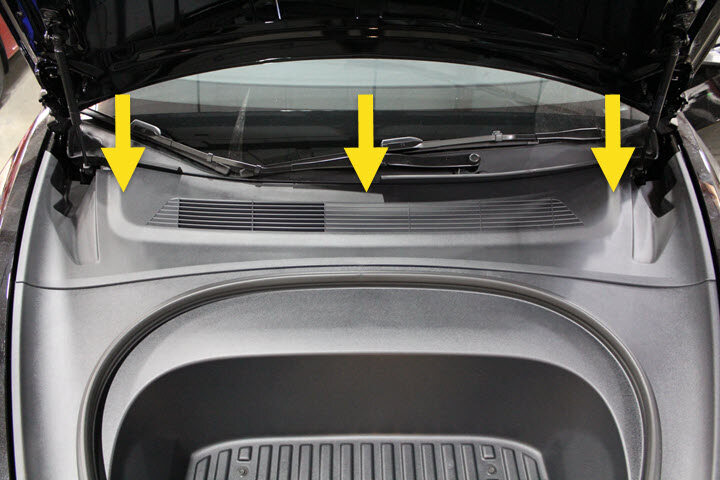

4. Remove rear underhood apron
   注

   14x clips

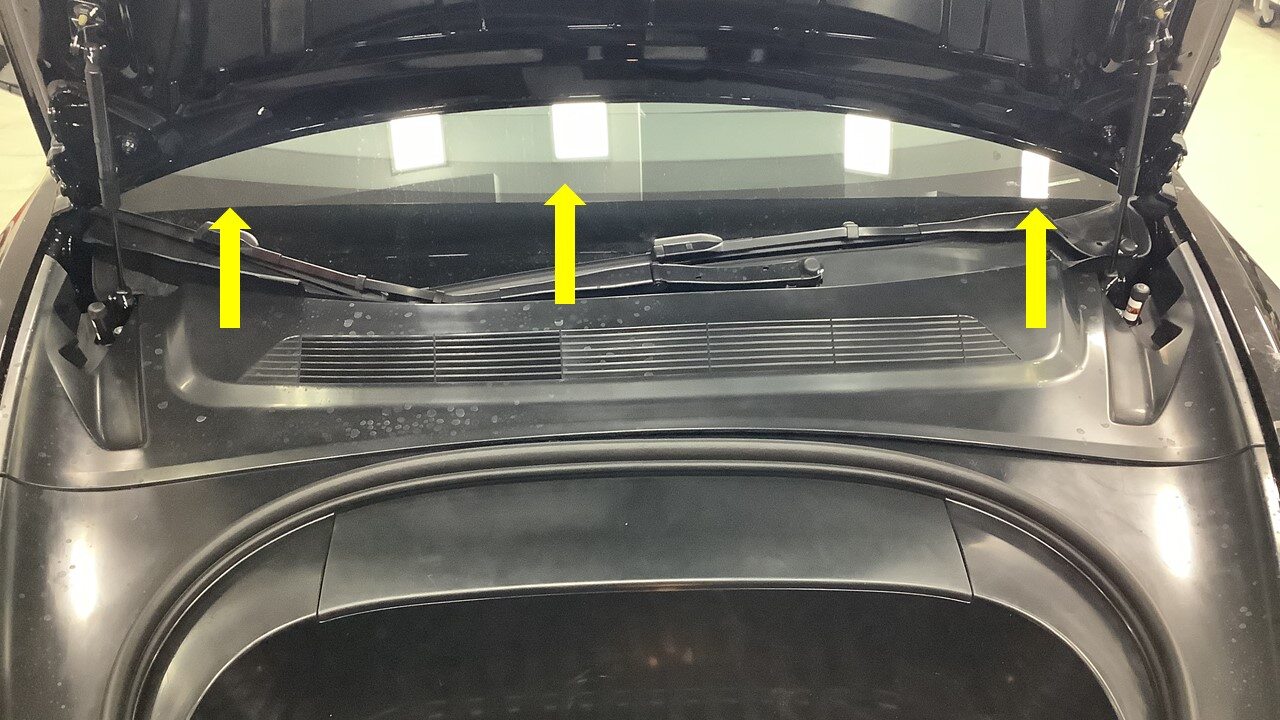

5. Remove fresh air gutter assembly
   注

   3x clips

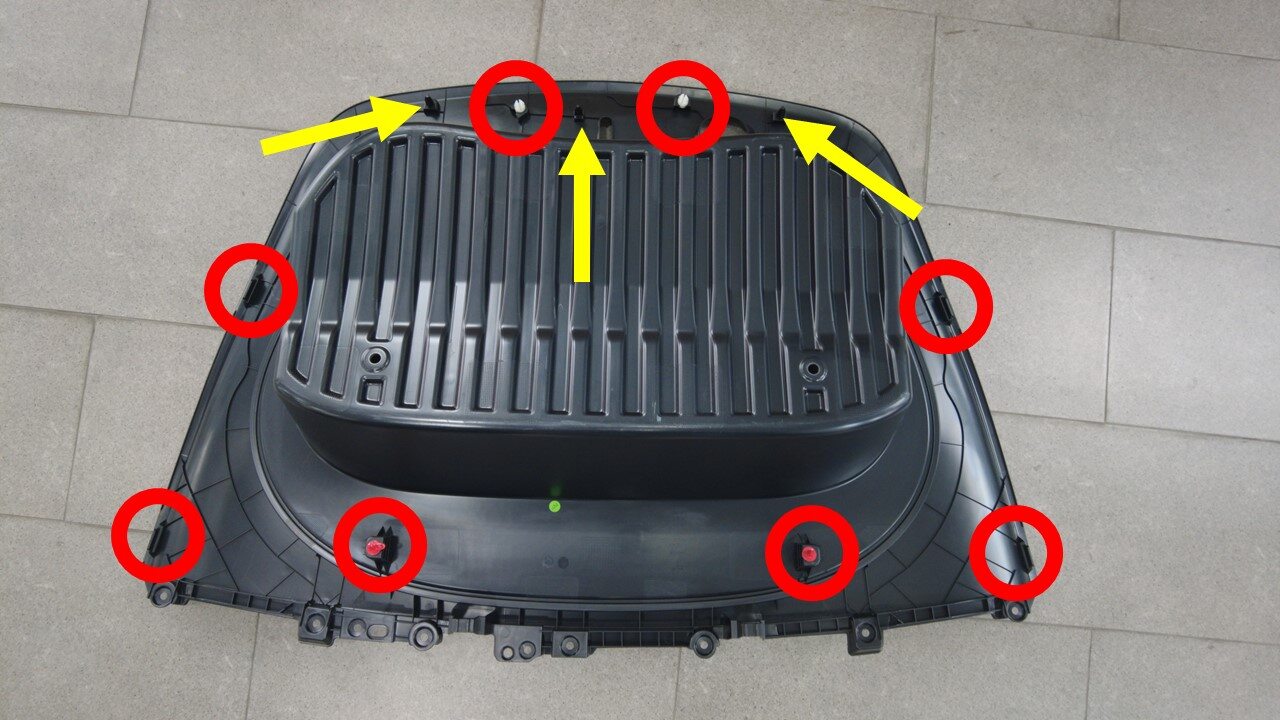

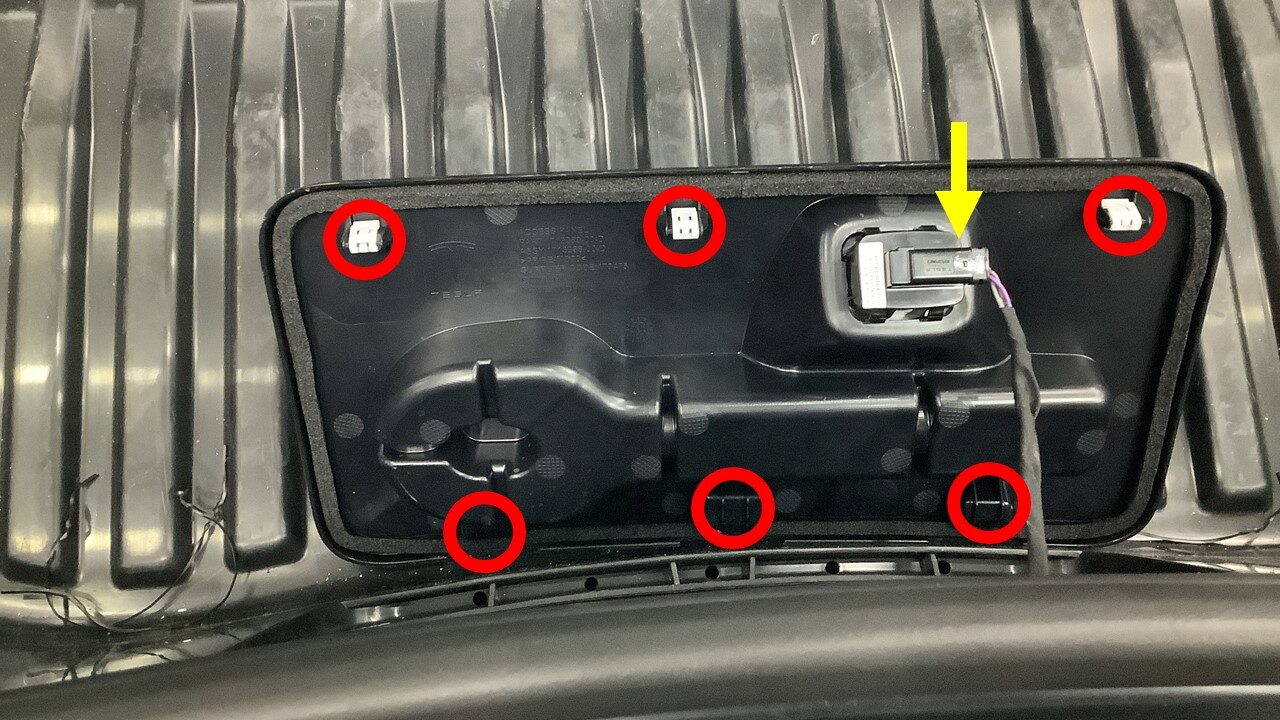

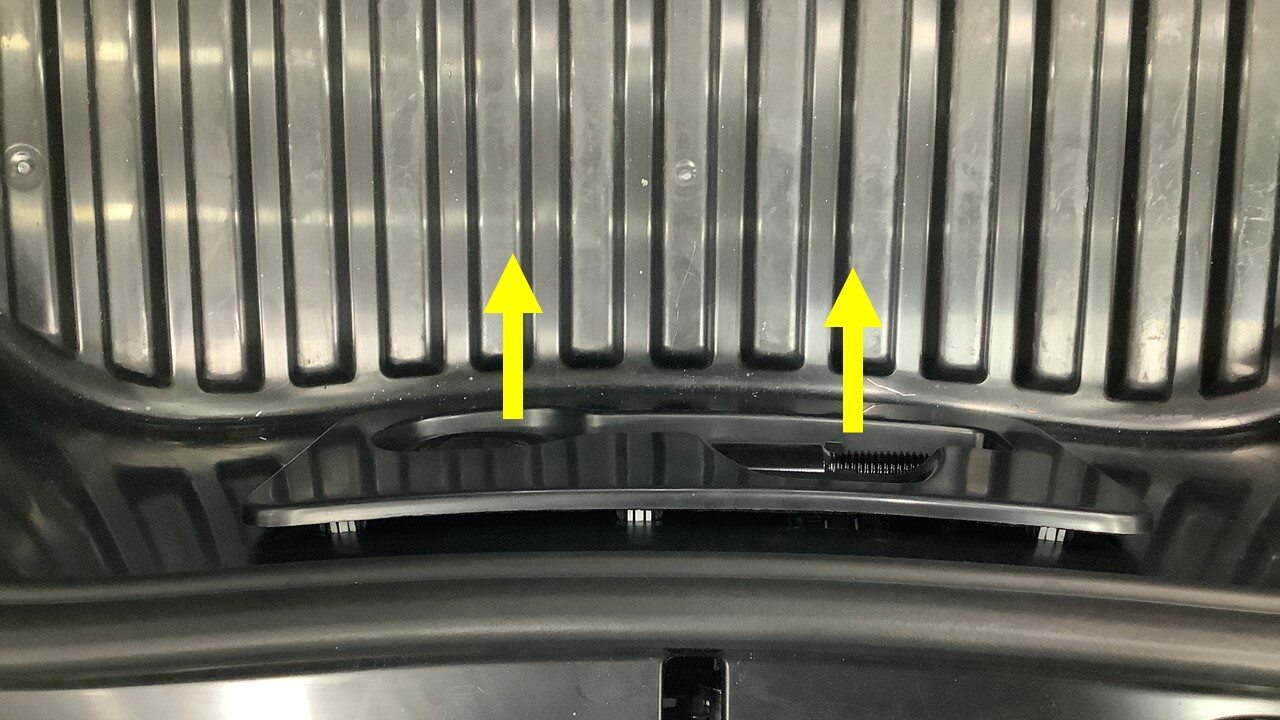

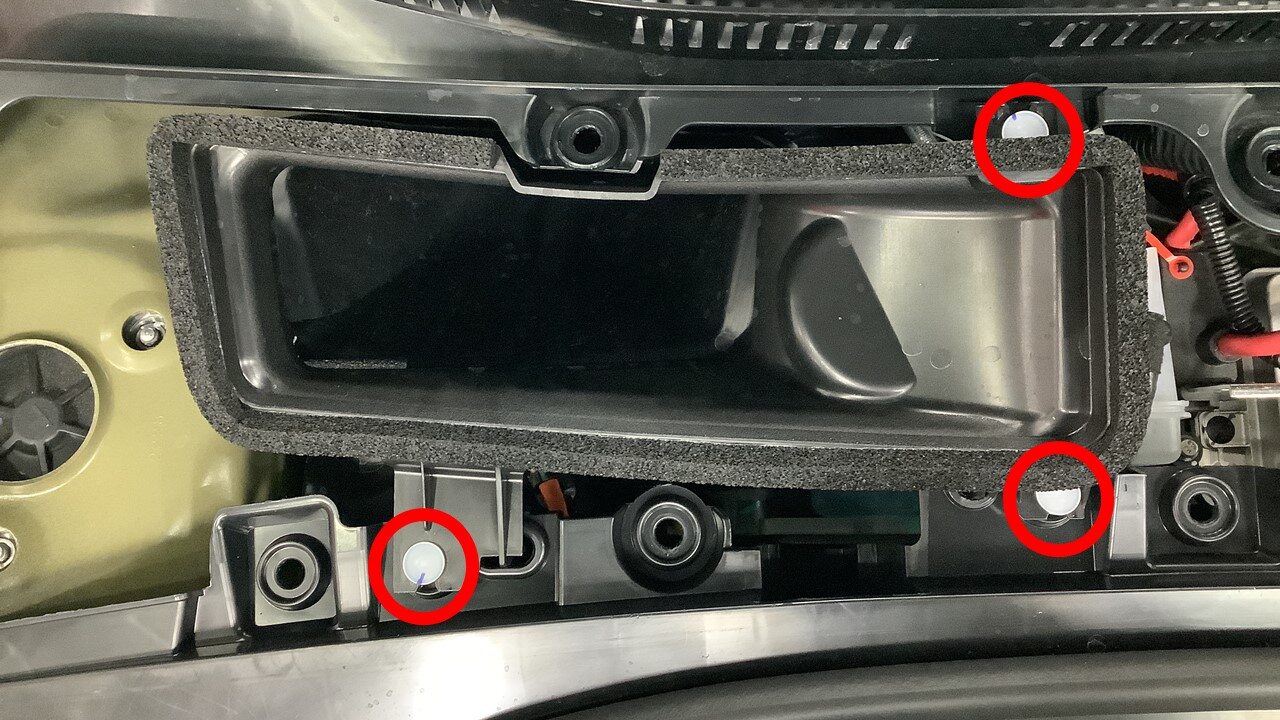

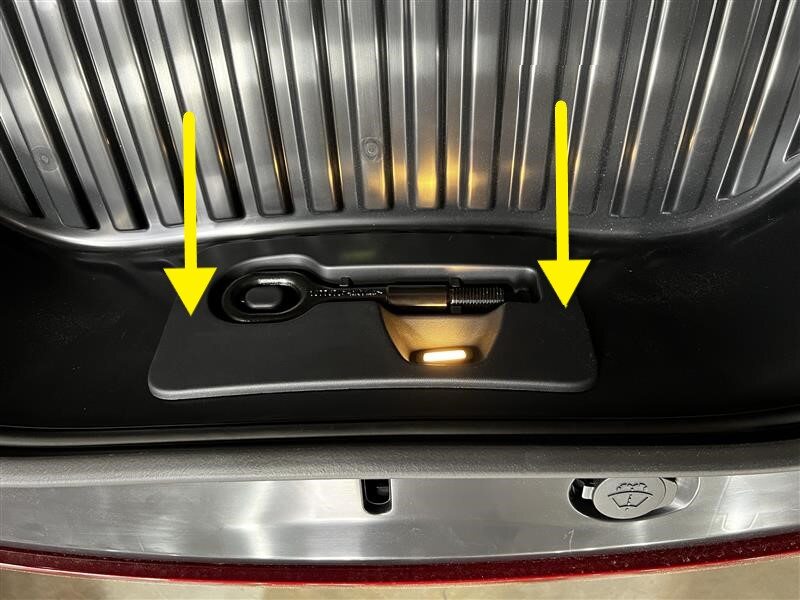

6. Remove access panel from frunk assembly
   注

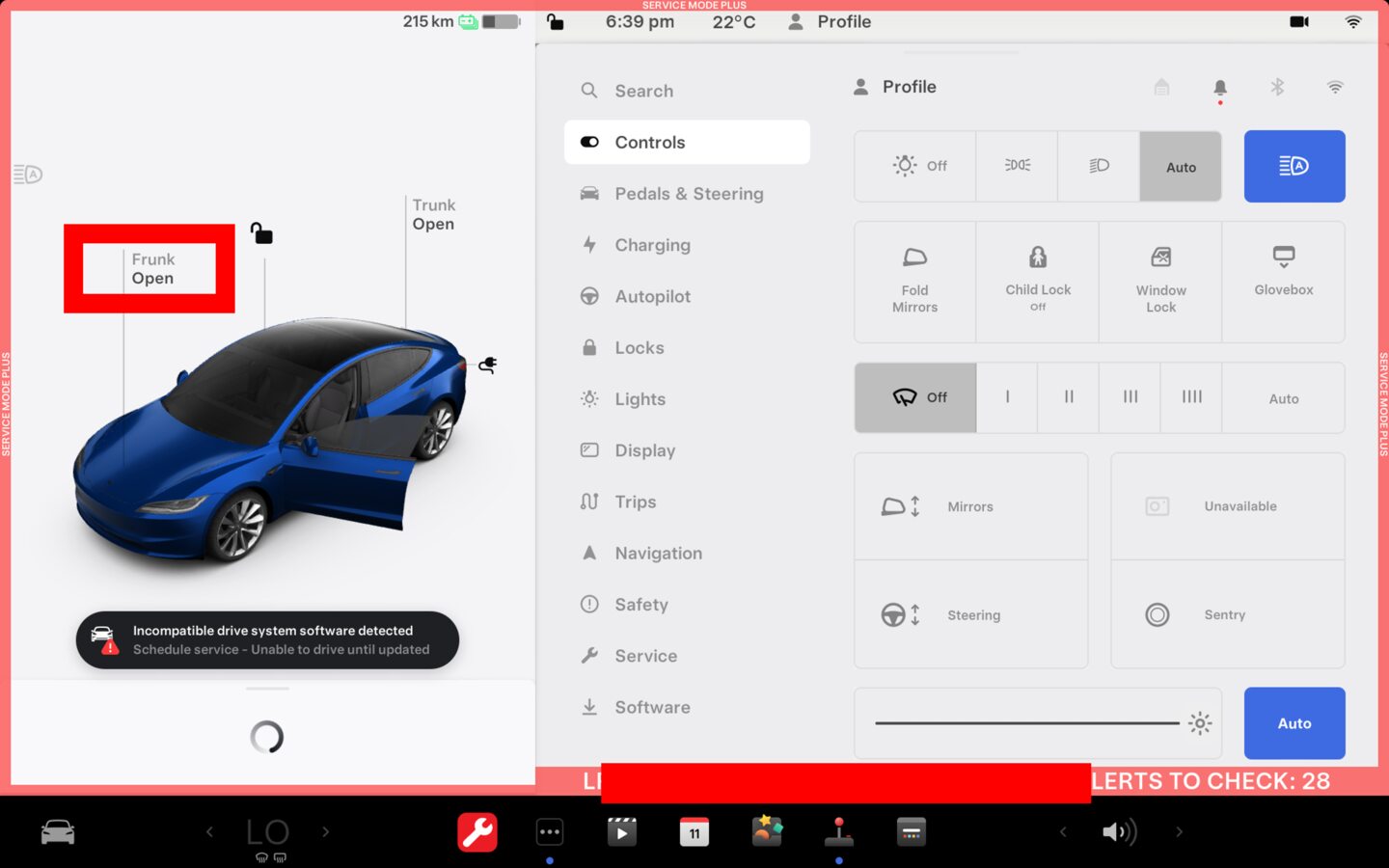

   3x clips, 1x connector, 3x guide tabs, Frunk safety switch, Grasp access panel at top and pull it back to release clips, Disconnect switch

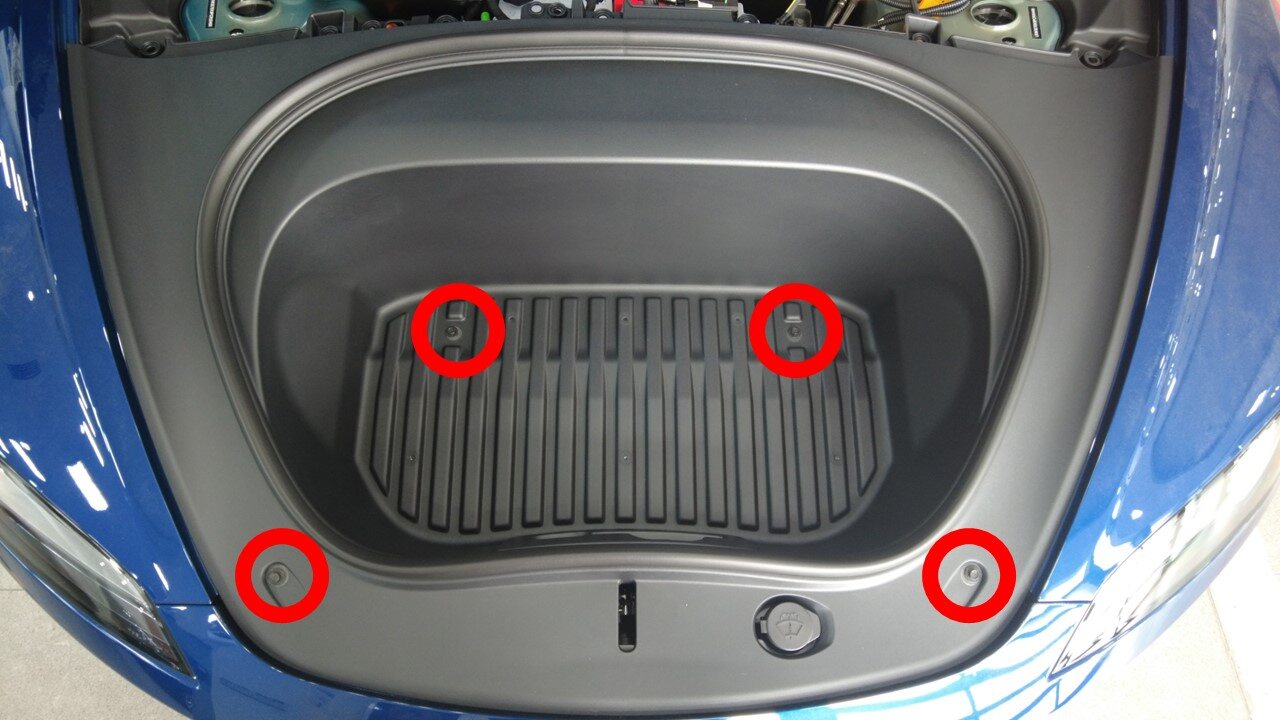

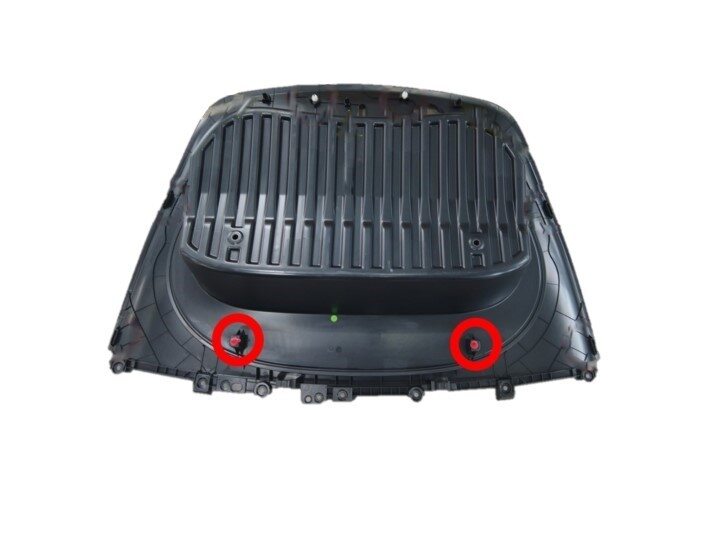

7. Remove bolts securing frunk assembly from body
   注

   4x bolts, 10mm, 5 Nm

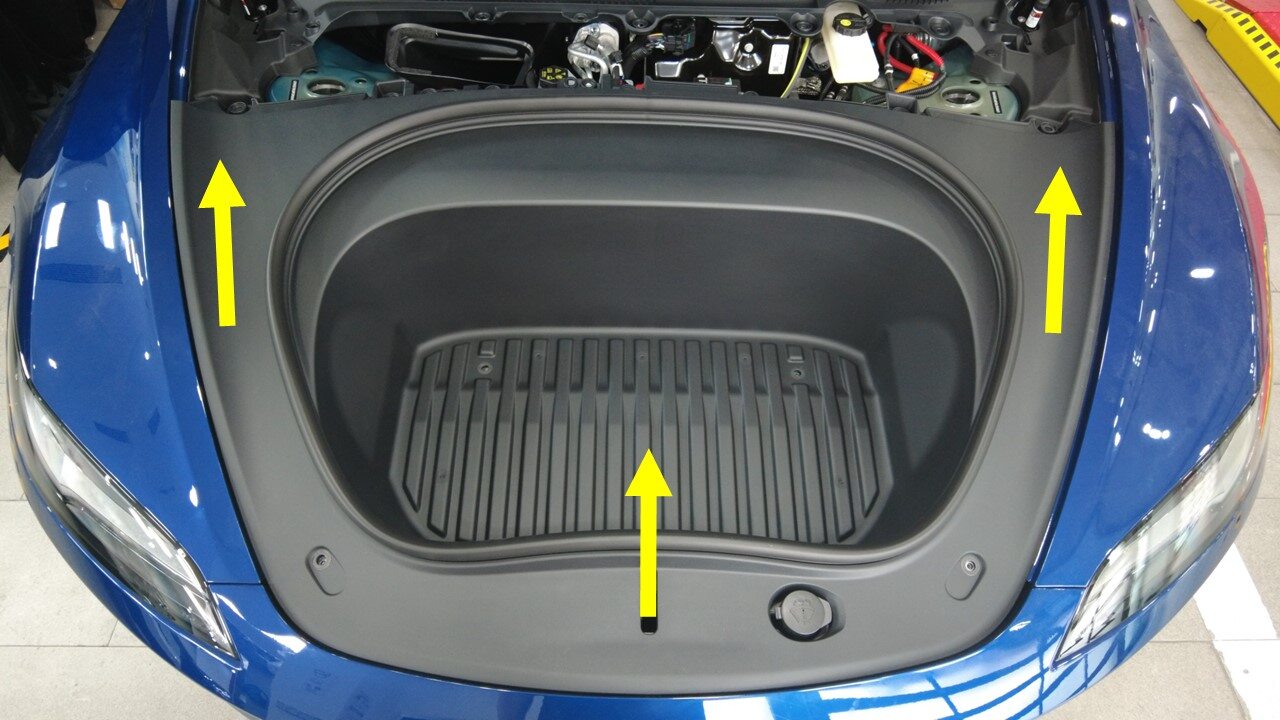

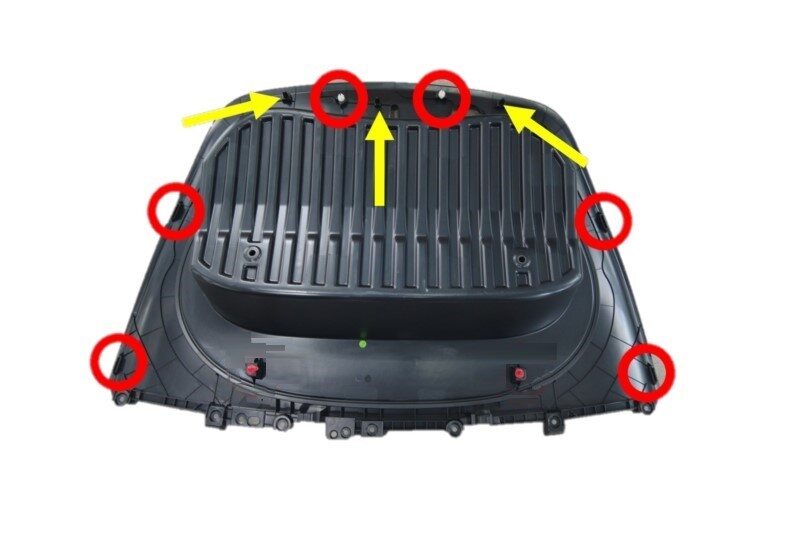

8. Remove frunk assembly from vehicle
   注

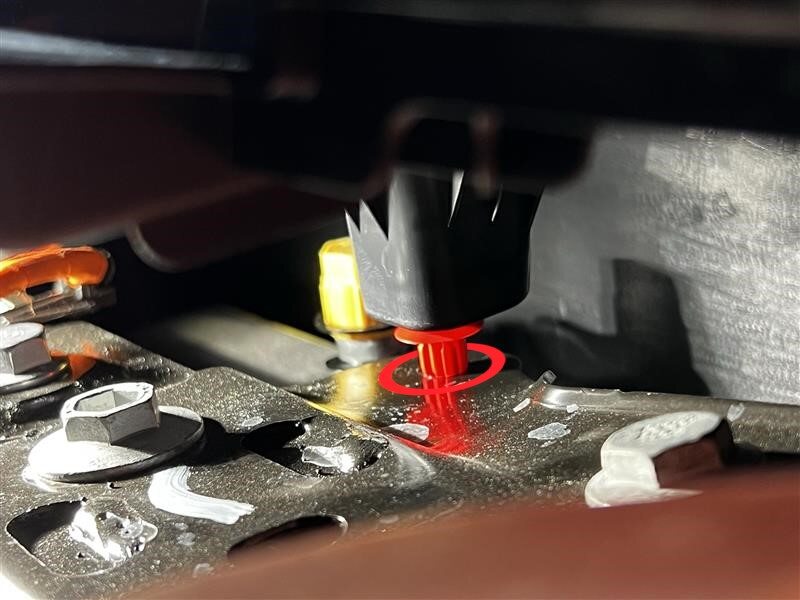

   8x clips, 3x location pins, Replace any clips if broken or missing

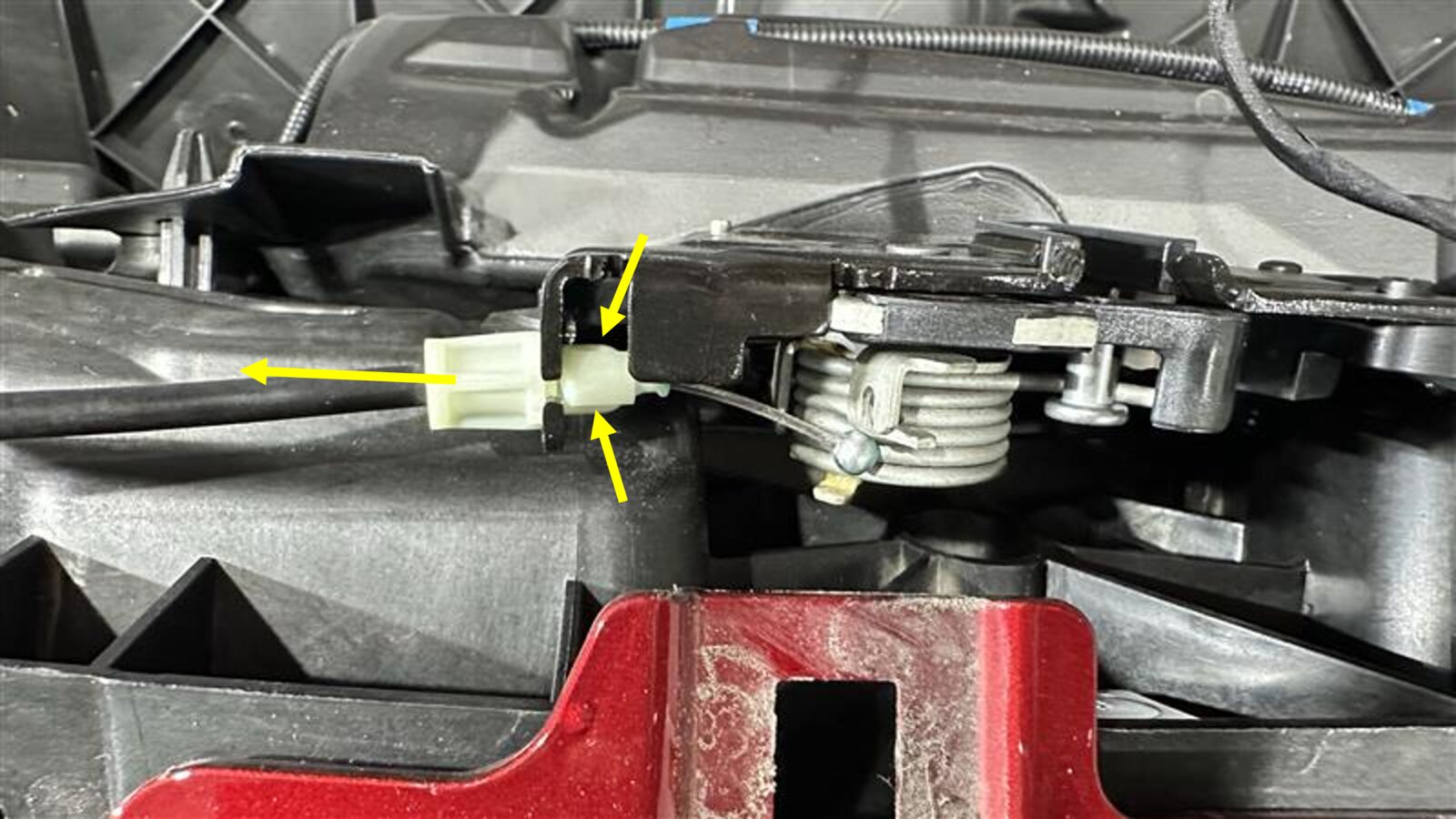

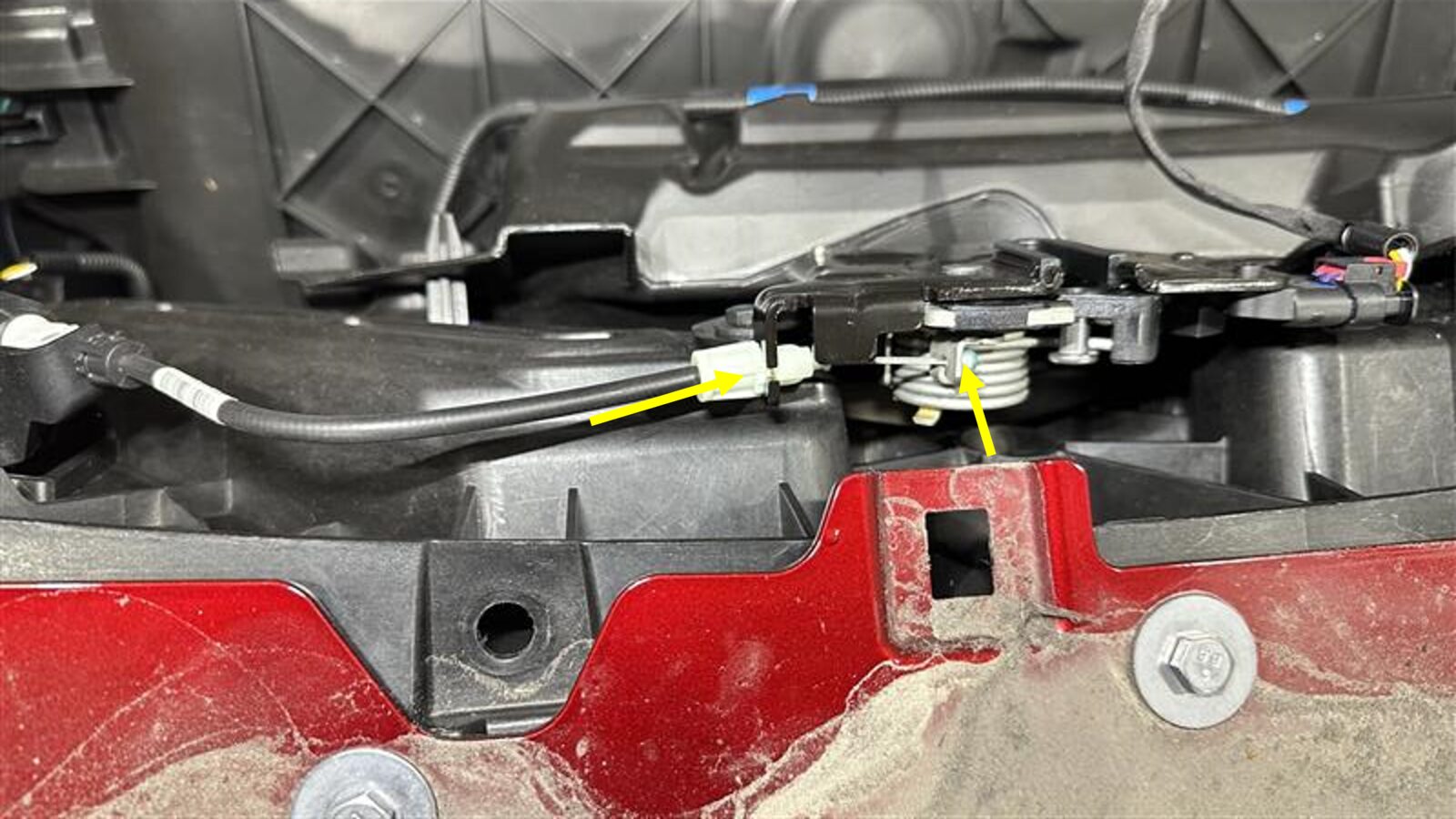

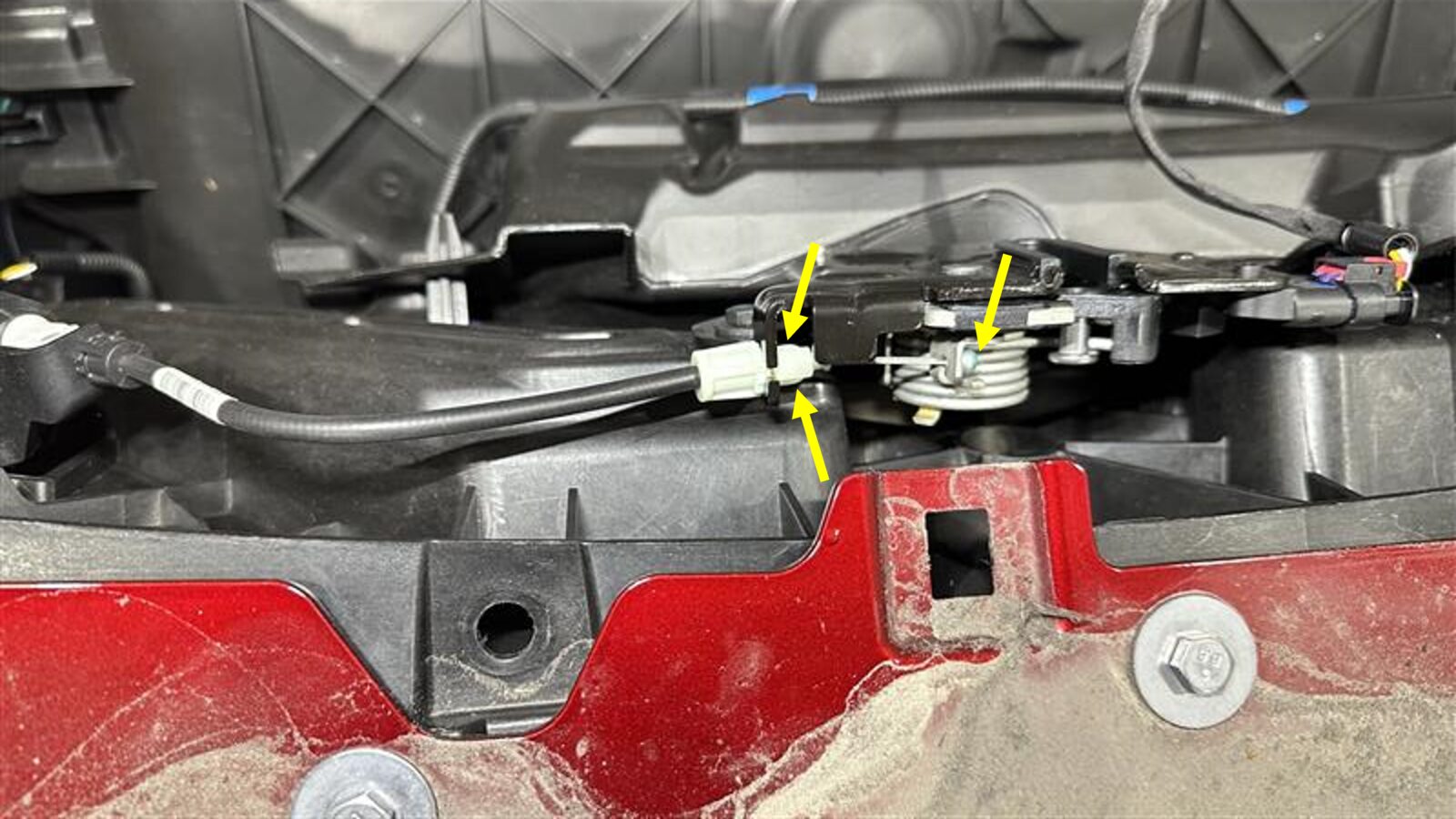

9. Release hood latch actuator cable from hood latch assembly
   注

   1x cable, Release plastic tabs securing cable and remove cable end from latch arm

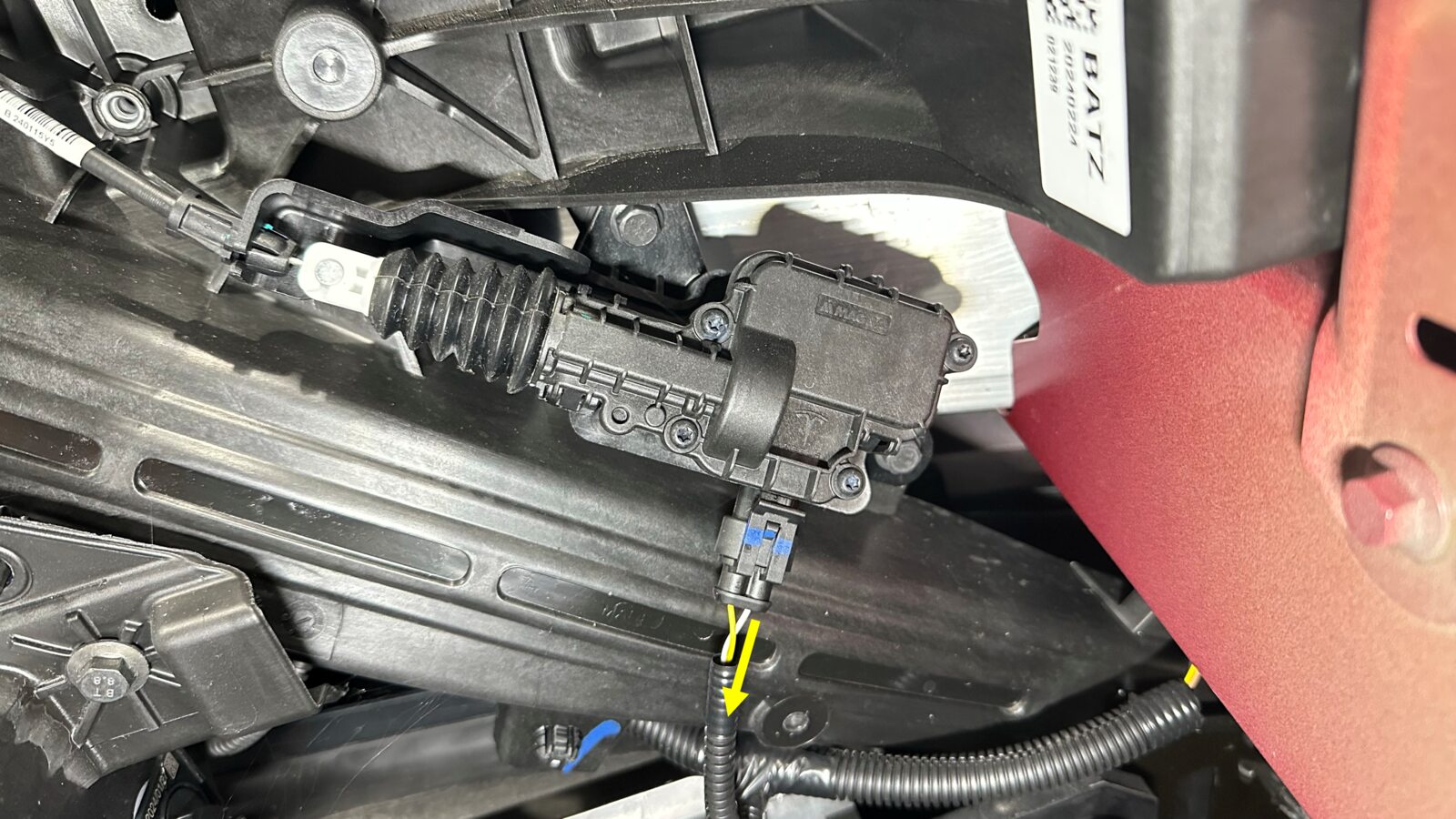

10. Disconnect hood latch actuator
    注

    1x connector

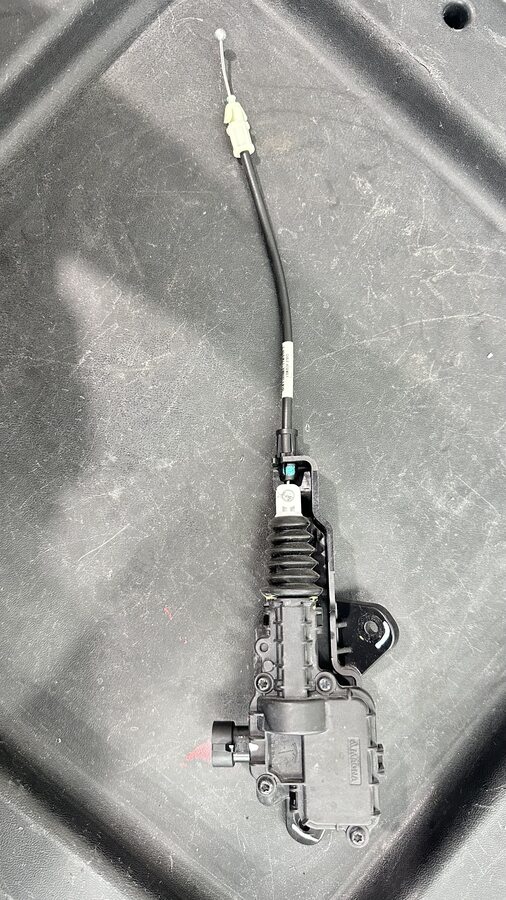

11. Remove hood latch actuator from front end carrier
    注

    2x bolts, 10mm, 5 Nm





12. Install hood latch actuator onto front end carrier
    注

    2x bolts, 10mm, 5 Nm





13. Connect hood latch actuator
    注

    1x connector



14. Install hood latch actuator cable to hood latch assembly
    注

    1x cable, Engage cable clips and install cable end to latch arm



15. Position frunk assembly to vehicle
    注

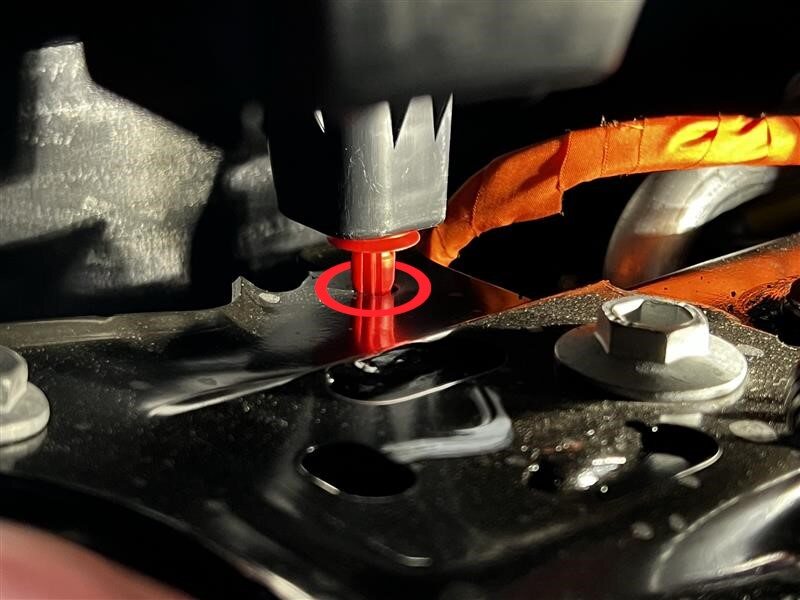

    8x clips, 3x locator pins, Ensure clips are aligned at thermal beam, Replace any clips if broken or missing











16. Install bolts securing frunk assembly
    注

    4x bolts, 10mm, 5 Nm, Number of bolts may vary depending on build date



17. Install access panel to frunk assembly
    注

    3x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push forward to secure clips





18. Install fresh air gutter assembly
    注

    3x clips





19. Install rear underhood apron
    注

    14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips

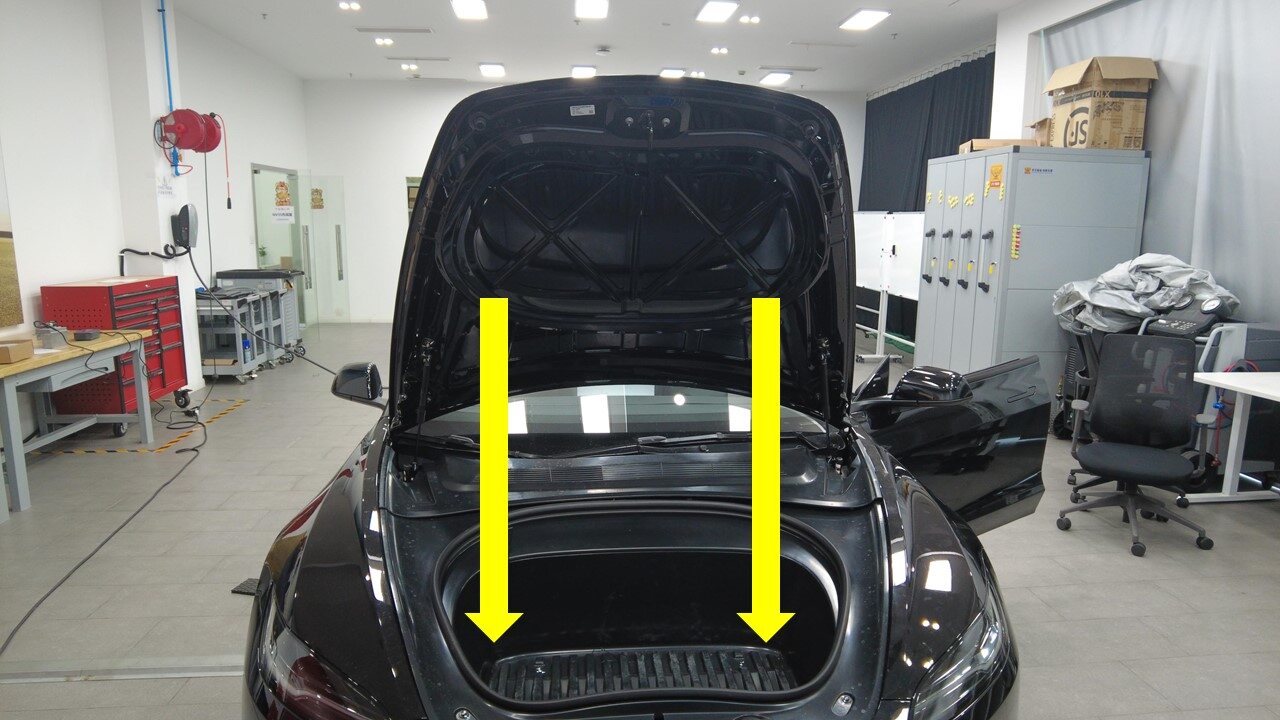

20. Close hood



21. Raise LH front window



22. Close LH front door
