Headlights (Check Aiming with LET Tool) (Inspection)

校正代码 17400800719 FRT 0.12 注意：除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-07-10: Released new procedure.

Special tools required for this procedure:

Supplier Part Number Description
Tesla 1133367-00-B LET Headlight Machine SLA 40

Check Headlight Aiming

警告
When checking the aiming of the headlights, do not set the vehicle to the "Adjust Headlights" mode through the touchscreen. The "Adjust Headlights" mode creates a non-standard headlight beam pattern that should not be used for checking the aiming of the headlights.
  1. Park the vehicle on a flat and level surface.
  2. Make sure that the tire pressures are set to specification.
  3. Open the hood.
  4. Power on the headlight tester.

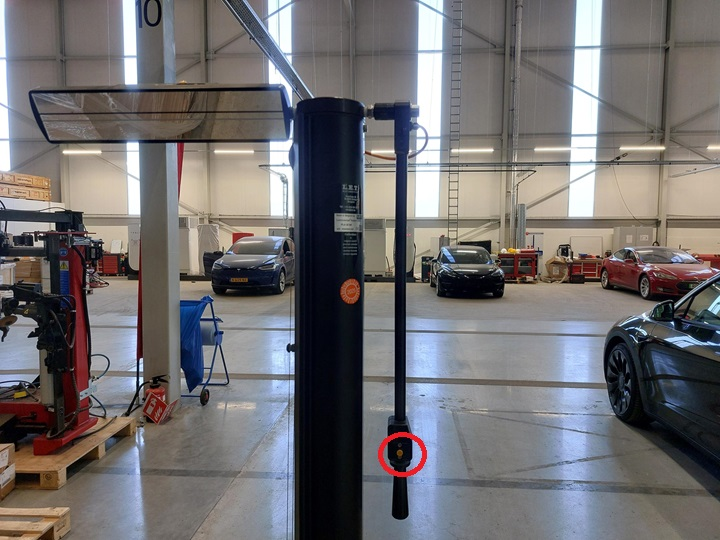

  5. Position the headlight aimer perpendicular to the vehicle, at a 35 cm distance from the headlight lens.
    注
    Use the visor/laser to line up the tester perpendicular to the axis between the hood struts. If the headlight aimer can move between the LH and RH headlights while maintaining the same laser angle projected onto the hood struts, it is set correctly (perpendicular) to the vehicle.

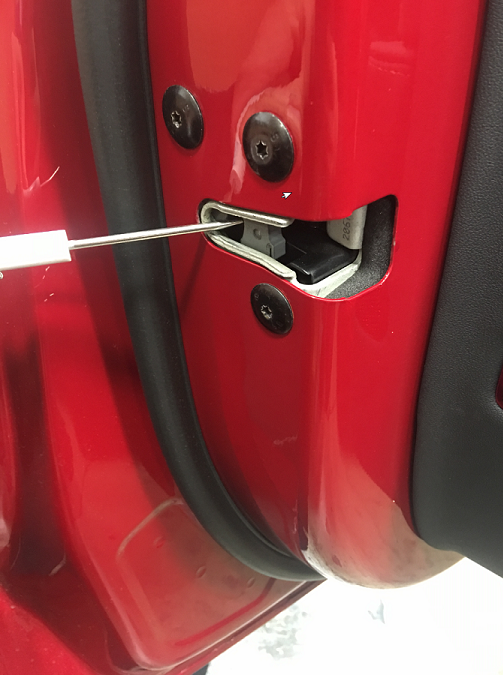

  6. Latch the LH front door.
    注
    Latching the LH front door prevents the headlights from shutting off during the procedure.
  7. Turn on the headlights.

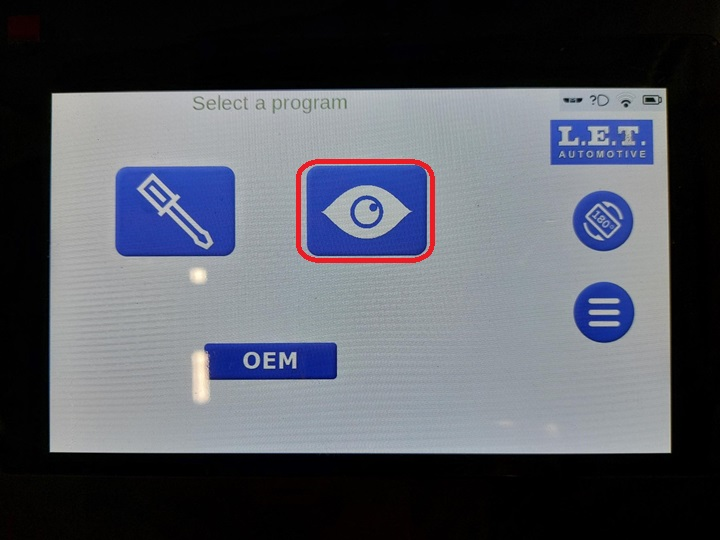

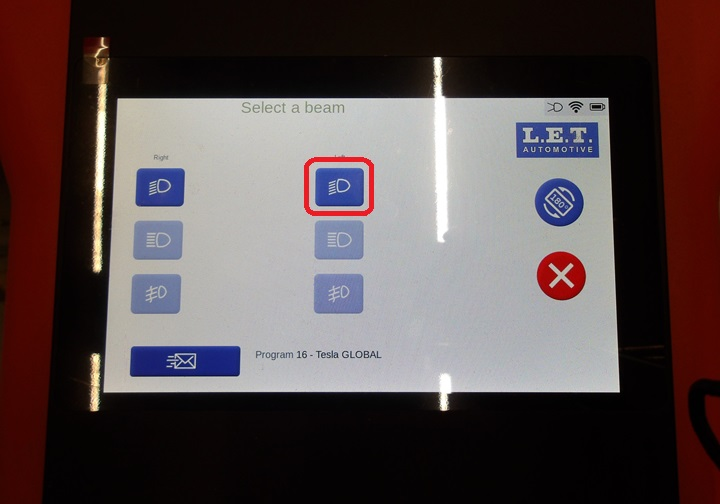

  8. Select the "eye" icon on the LET headlight aimer, and then select the left headlight icon.
  9. Select height to <0.8m.
  10. Position the headlight aimer in front of the LH headlight.
    注
    Adjust the height of the headlight aimer as needed to align it with the center point of the headlight.
  11. Move the headlight aiming machine following the black arrows on the screen. Once the machine is centered to the headlight, select the "X" button which will direct you to the aiming screen.

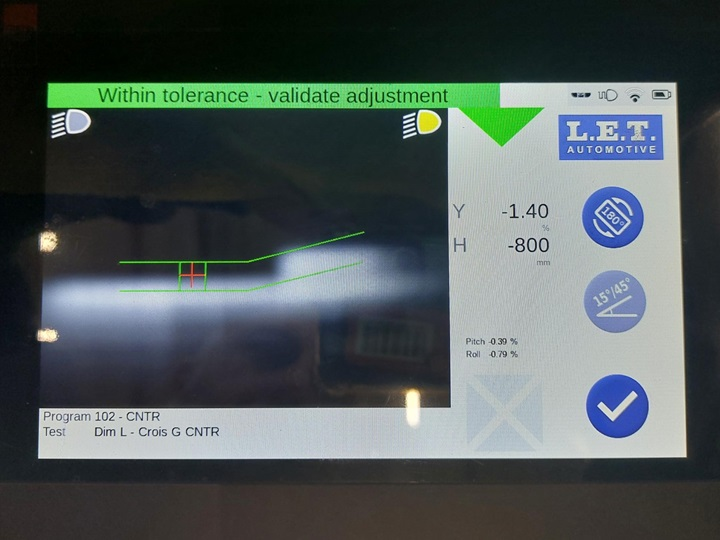

  12. Note down the headlight "Y" and "H" values in the internal notes in SCA.
  13. Position the headlight aimer in front of the RH headlight, and then repeat steps #SNY_TJH_XGC__GUID-48F17305-DC40-448C-94C5-E90E352645DE and #SNY_TJH_XGC__GUID-B4502A1D-1AE1-4B34-912E-72A895CC17A4 for the RH headlight.
  14. Unlatch the LH front door.
