管道(电池)- 电池回路 ((拆卸和更换))
校正代码
1830021702
FRT
3.24
注意: 除非本程序中另有明确规定,否则上文所列校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。 除非明确要求,否则请勿堆叠校正代码。
注意: 请参阅平均维修工时深入了解 FRT 及其创建方式。
注意: 请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
注意: 请参阅人体工程学注意事项查看安全健康的作业规程。
拆卸
- Remove penthouse engagement seal from HV battery pack. See 高压电池仓接合密封件.
-

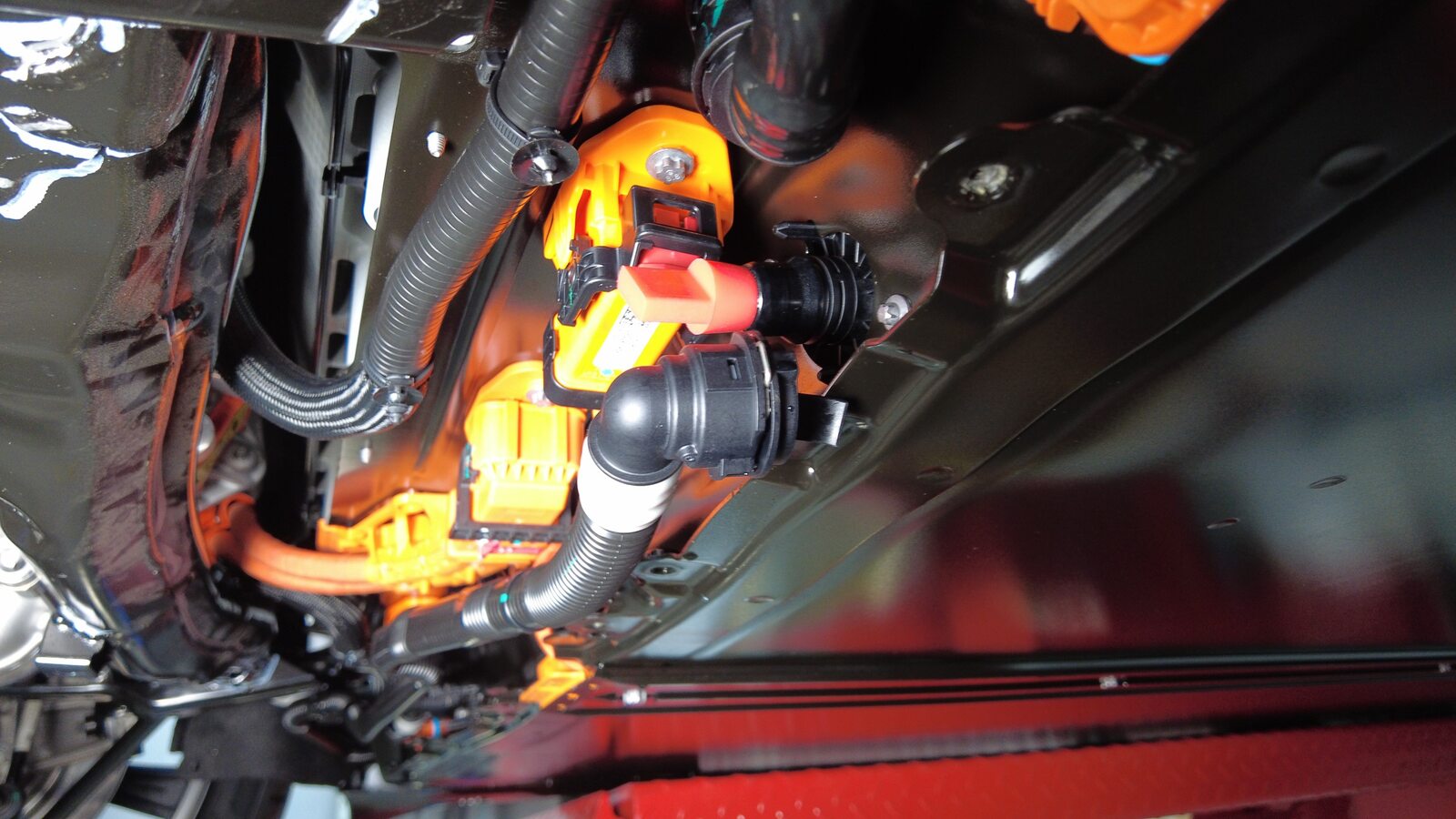

Disconnect RH coolant hose from rear
of HV battery.
-

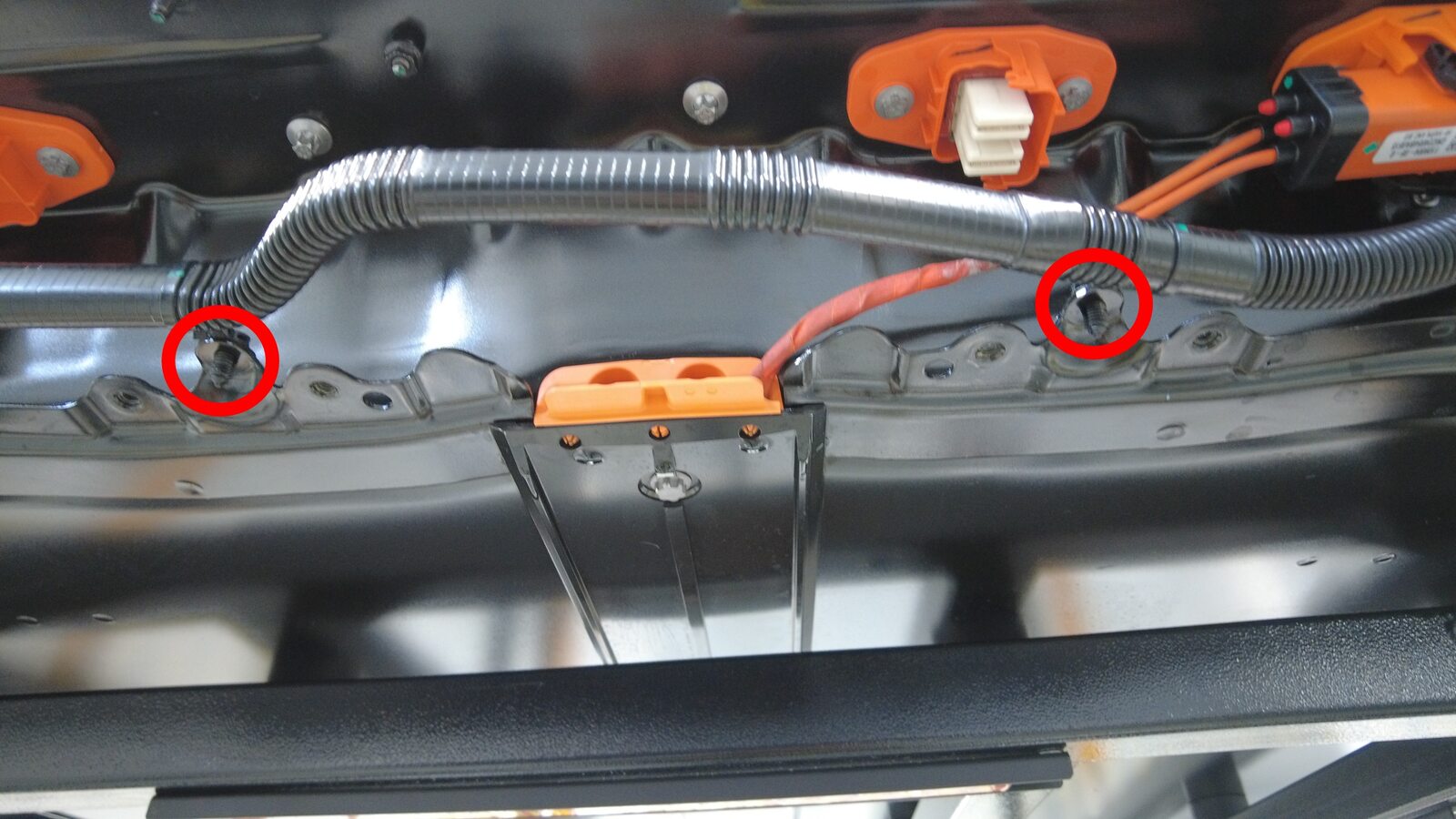

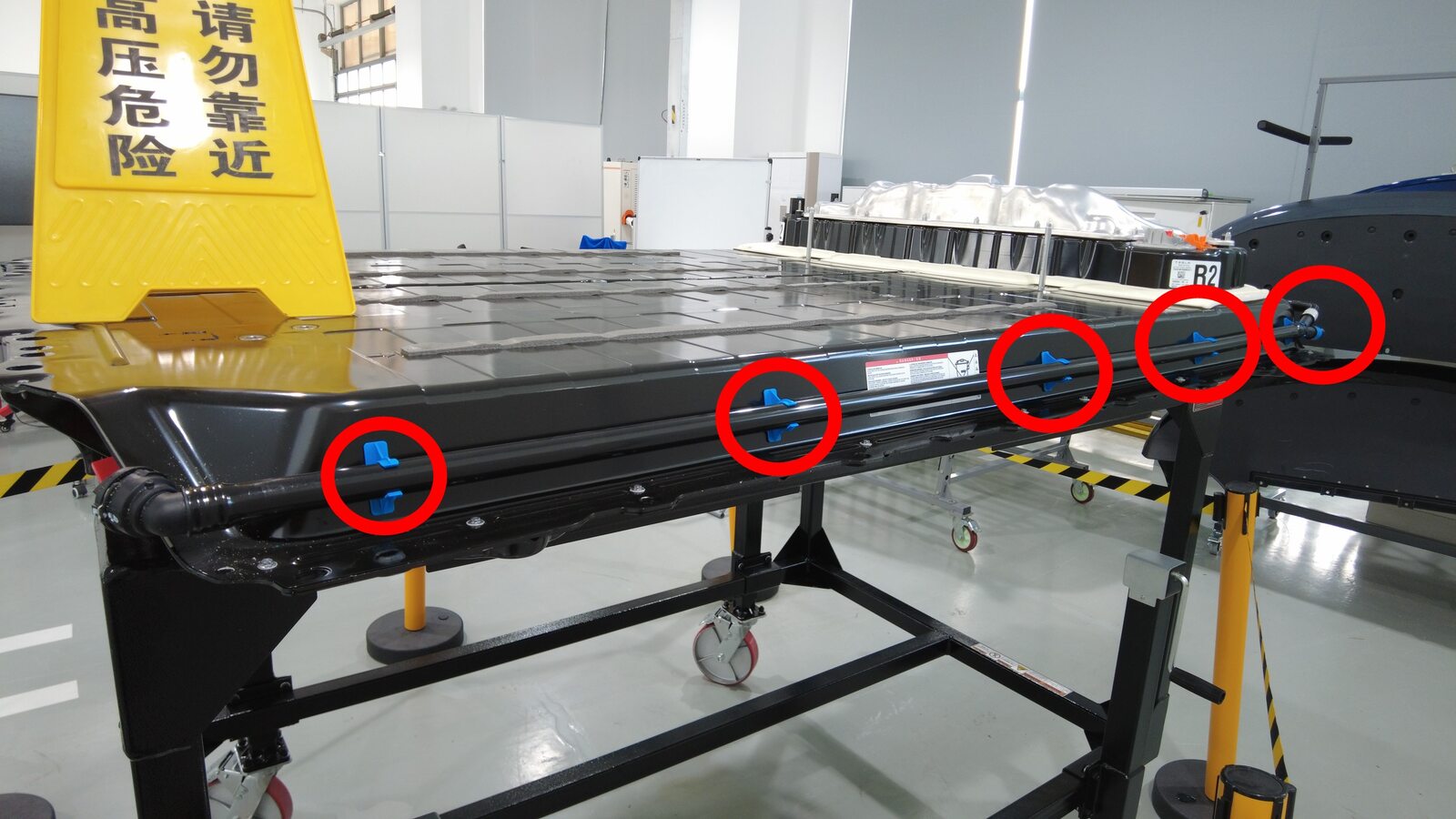

Release clips securing HV battery return tube from rear of HV battery.
-

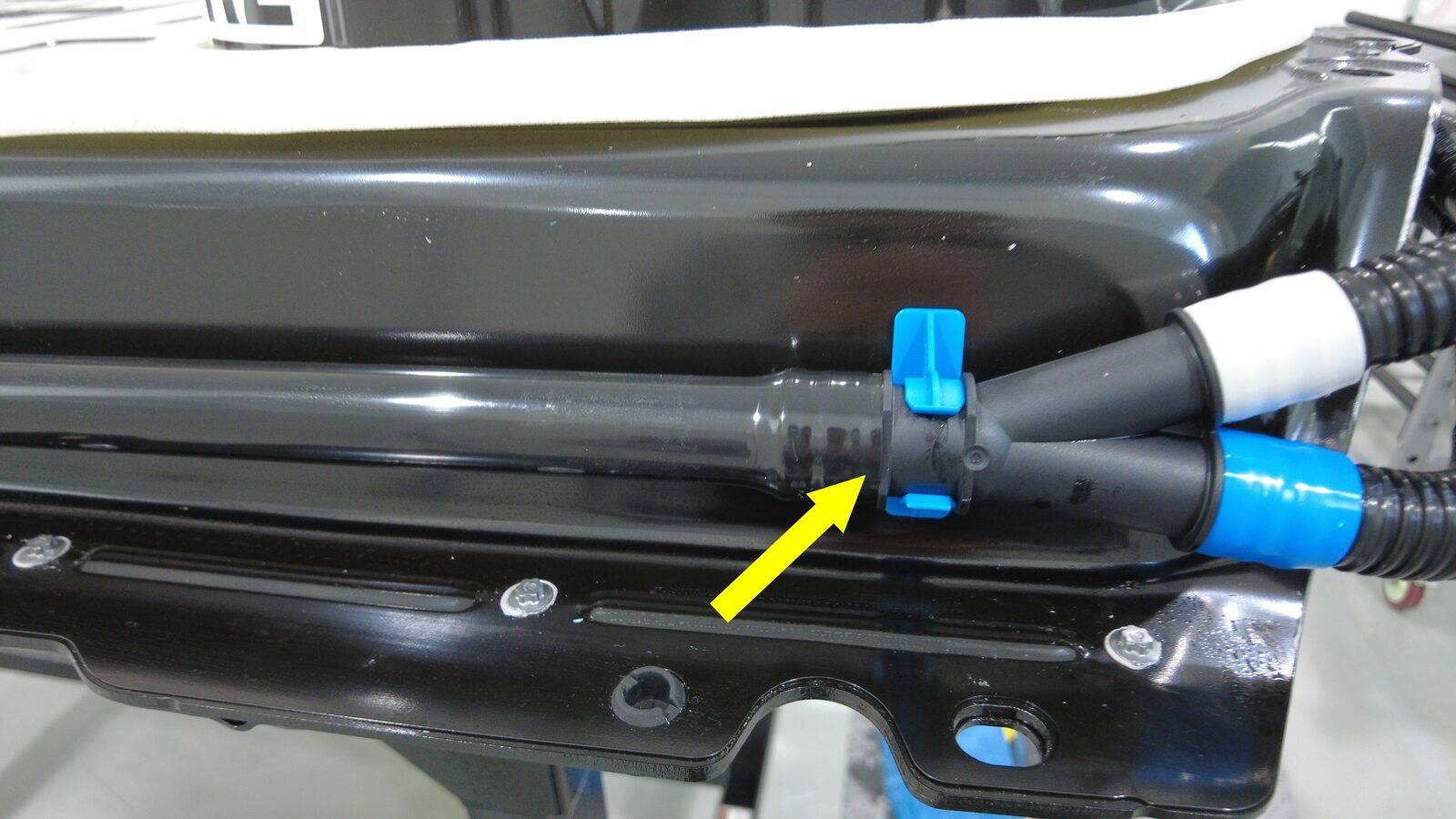

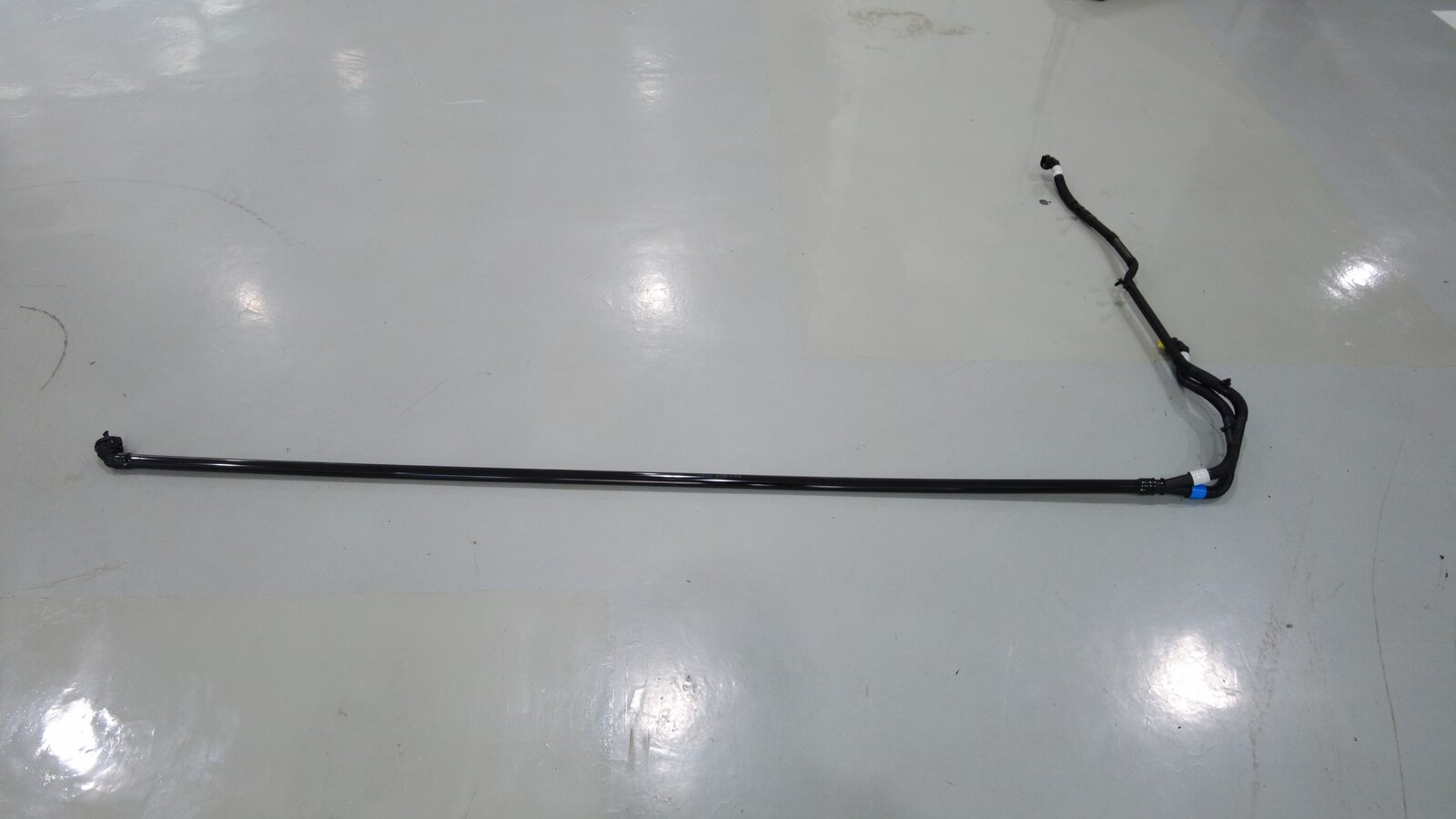

Release HV battery return tube from LH side of HV battery and allow hose to fully
drain.
安装
-
Install HV battery return tube onto LH
side of HV battery.
-
Install clips securing HV battery return tube to rear of HV battery.
-

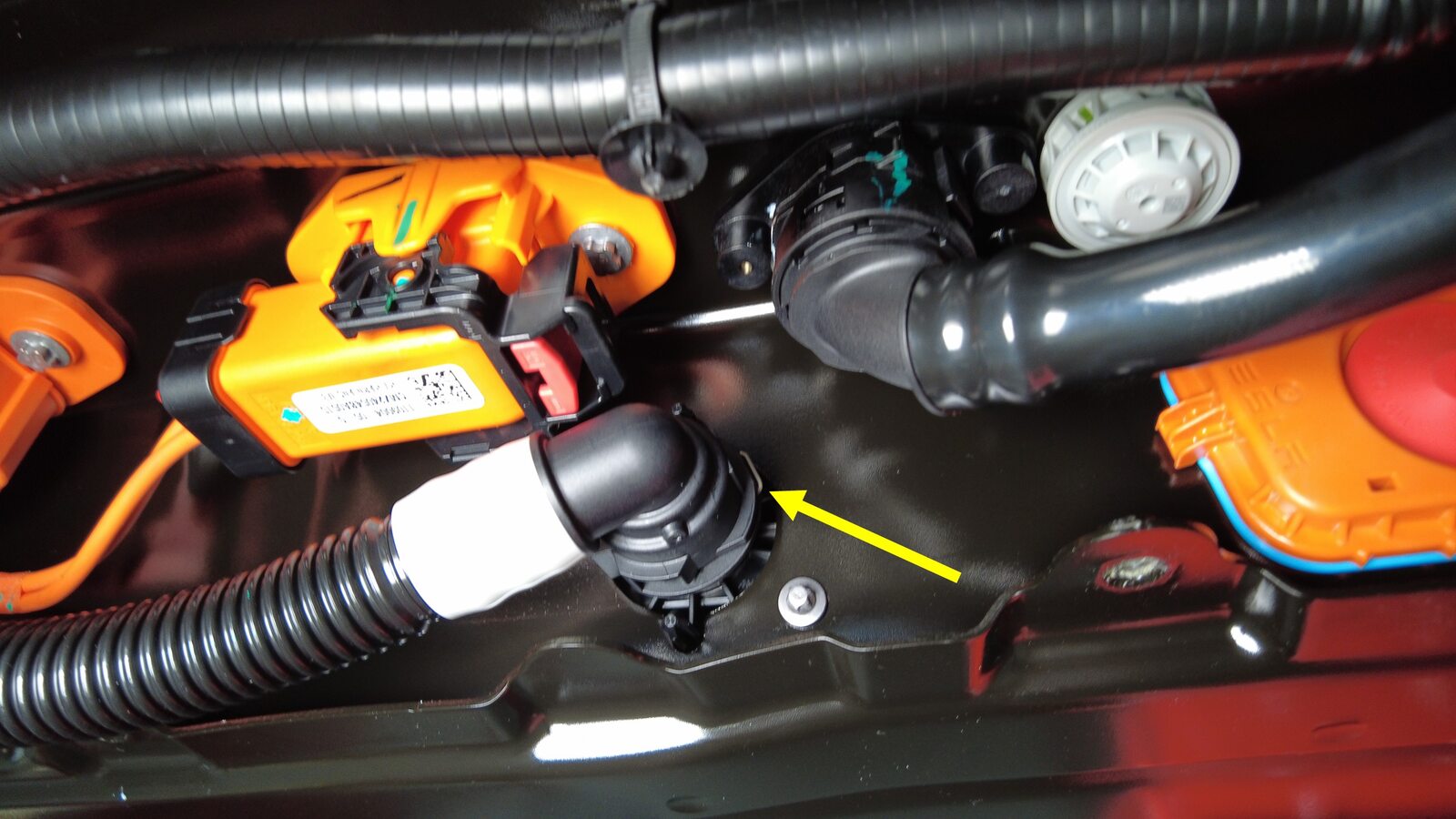

Connect RH coolant hose to rear of HV battery.
- Install penthouse engagement seal to HV battery pack. See 高压电池仓接合密封件.
