同轴电缆 - 侧转向灯 - 前 - 左右两侧（更换） ((拆卸和更换))
校正代码
17403032
1.20
注意： 除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。 除非明确要求，否则请勿堆叠校正代码。
注意： 请参阅平均维修工时深入了解 FRT 及其创建方式。
注意： 请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
注意： 请参阅人体工程学注意事项查看安全健康的作业规程。
警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。
- 2025-12-16: Released new procedure.
拆卸
-

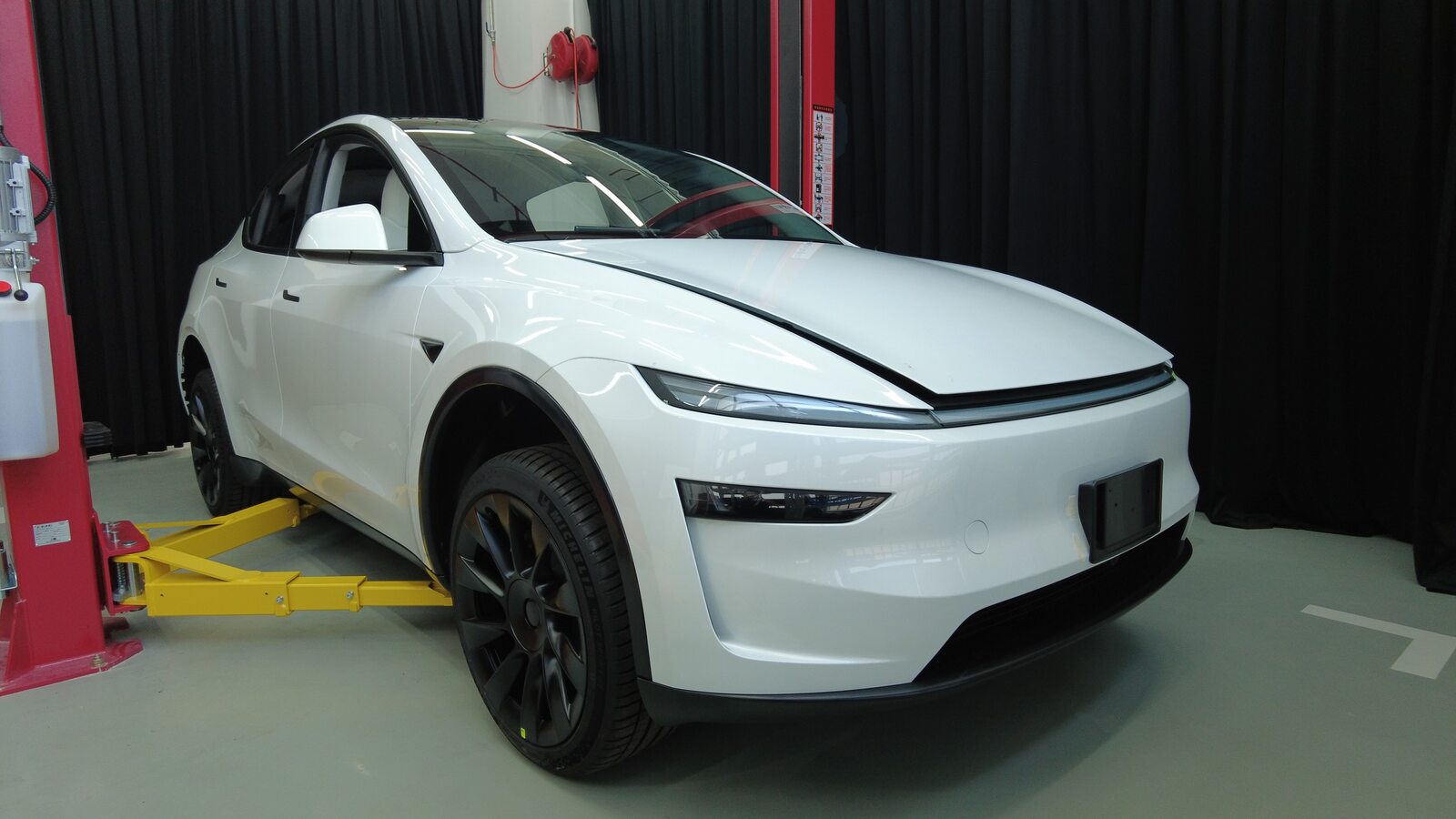

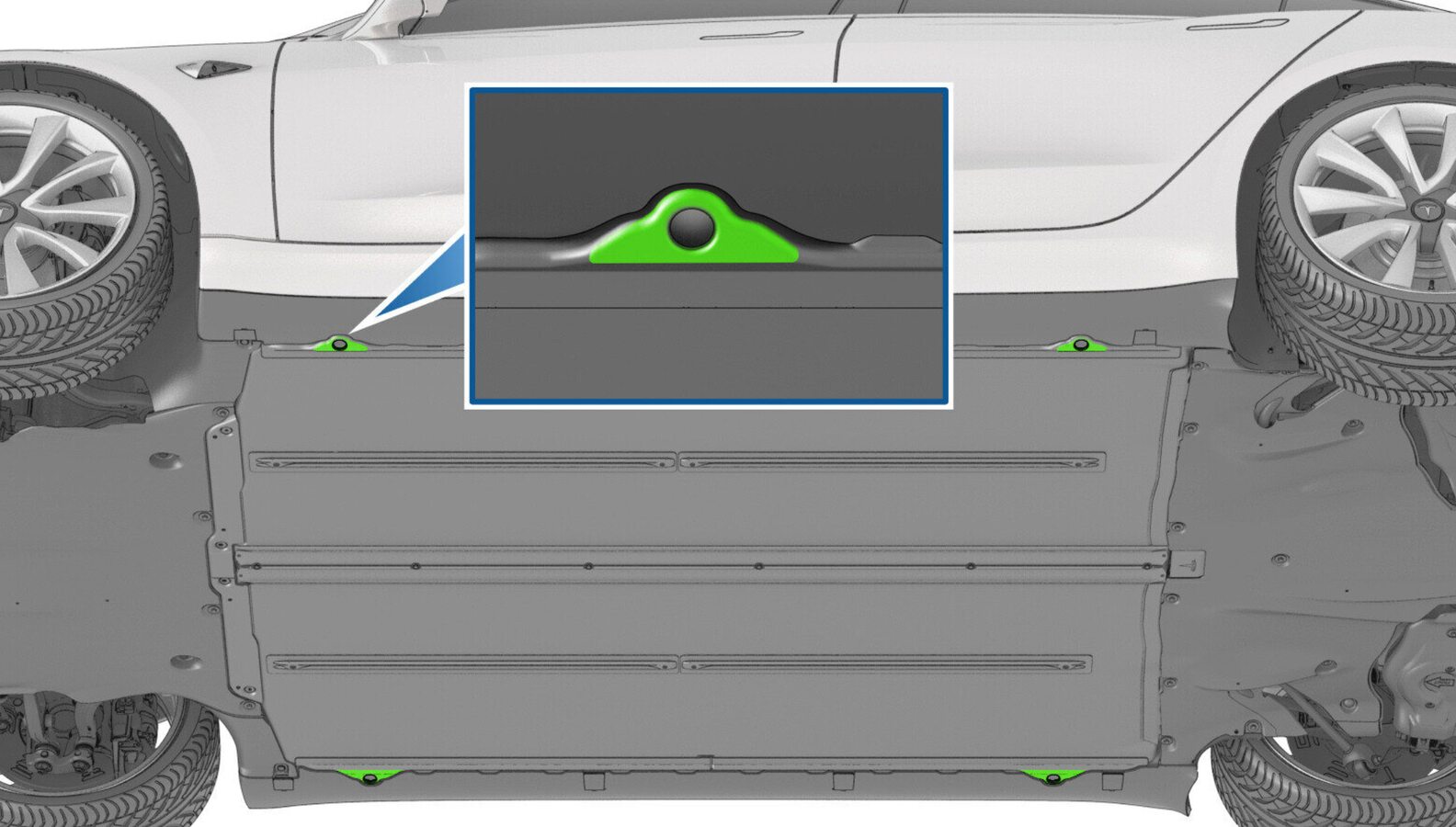

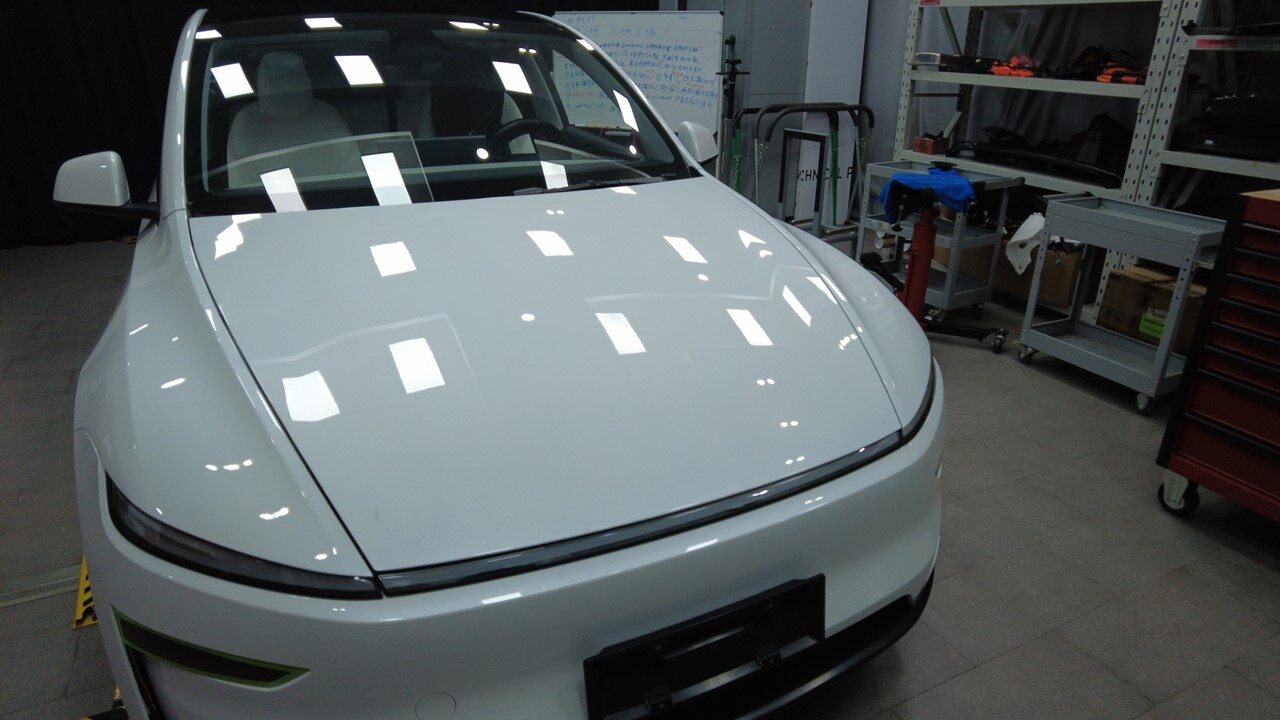

Raise and support vehicle

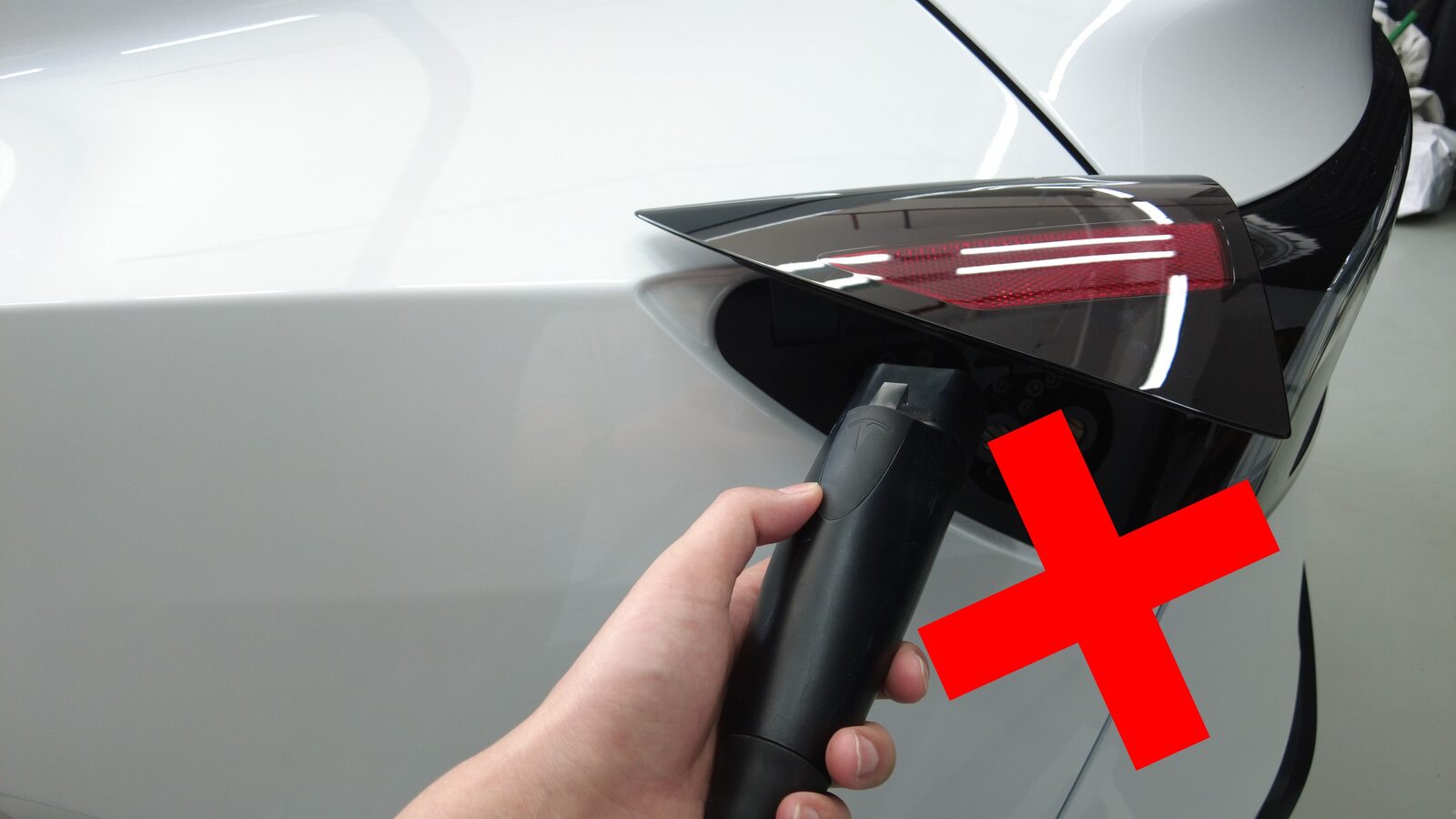

注Ensure vehicle is not charging, Remove charging cable if it's plugged in
- Remove the cowl screen. See 前挡风玻璃下饰板 ((拆卸和更换)).
- Remove the air intake duct. See 风管 - 进气 ((拆卸和更换)).
-

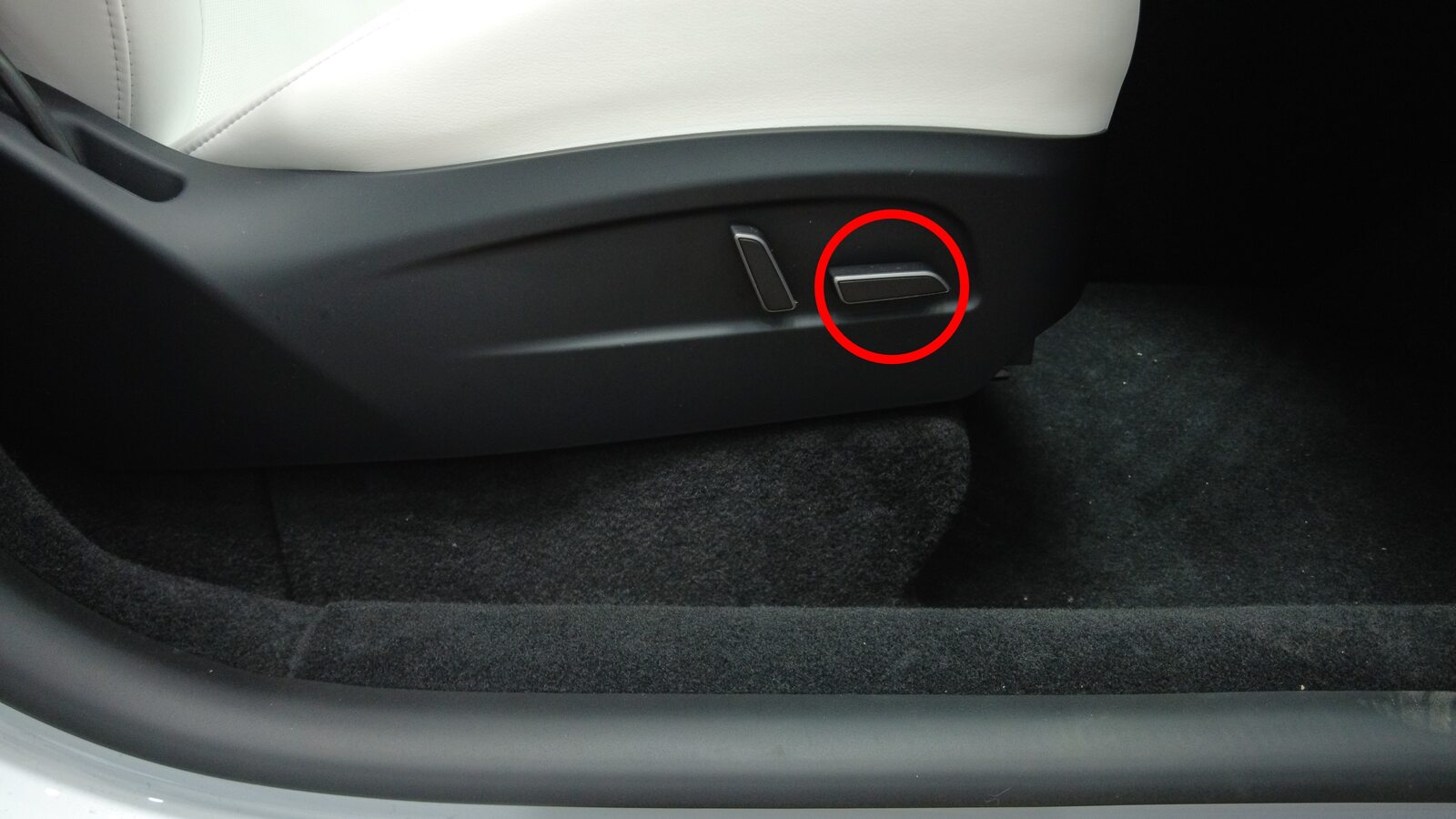

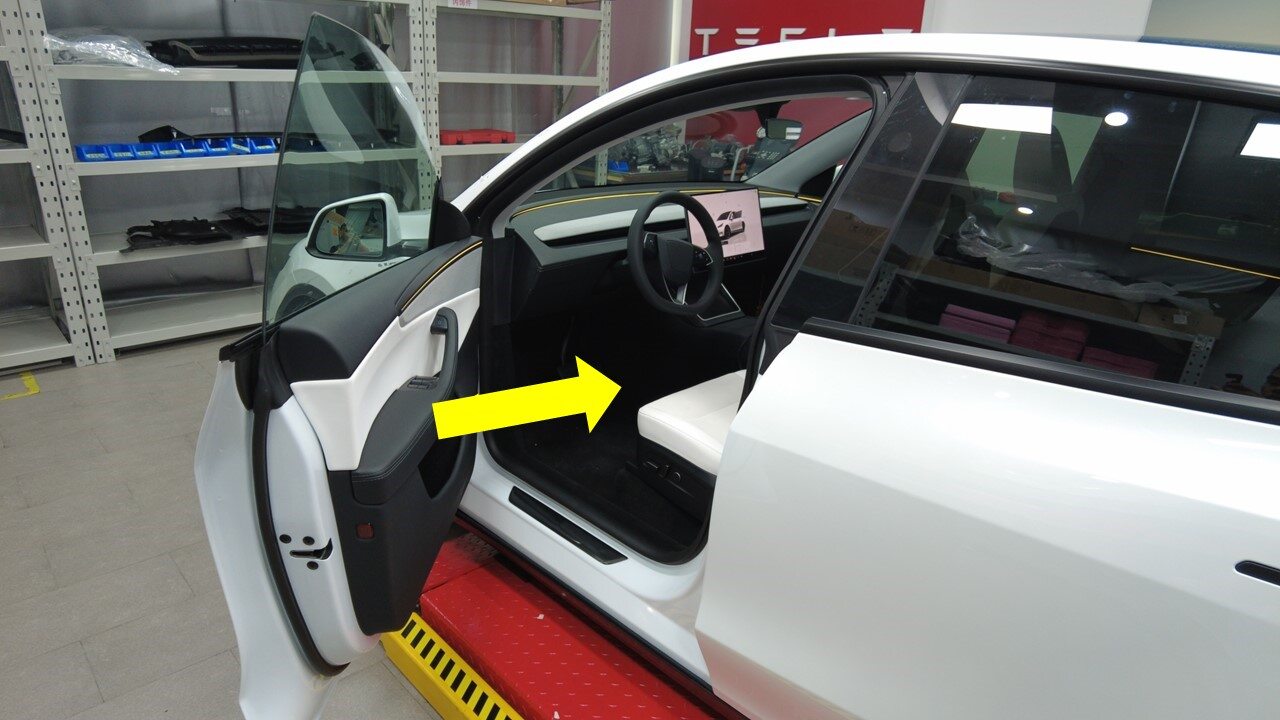

Move RH front seat backward
-

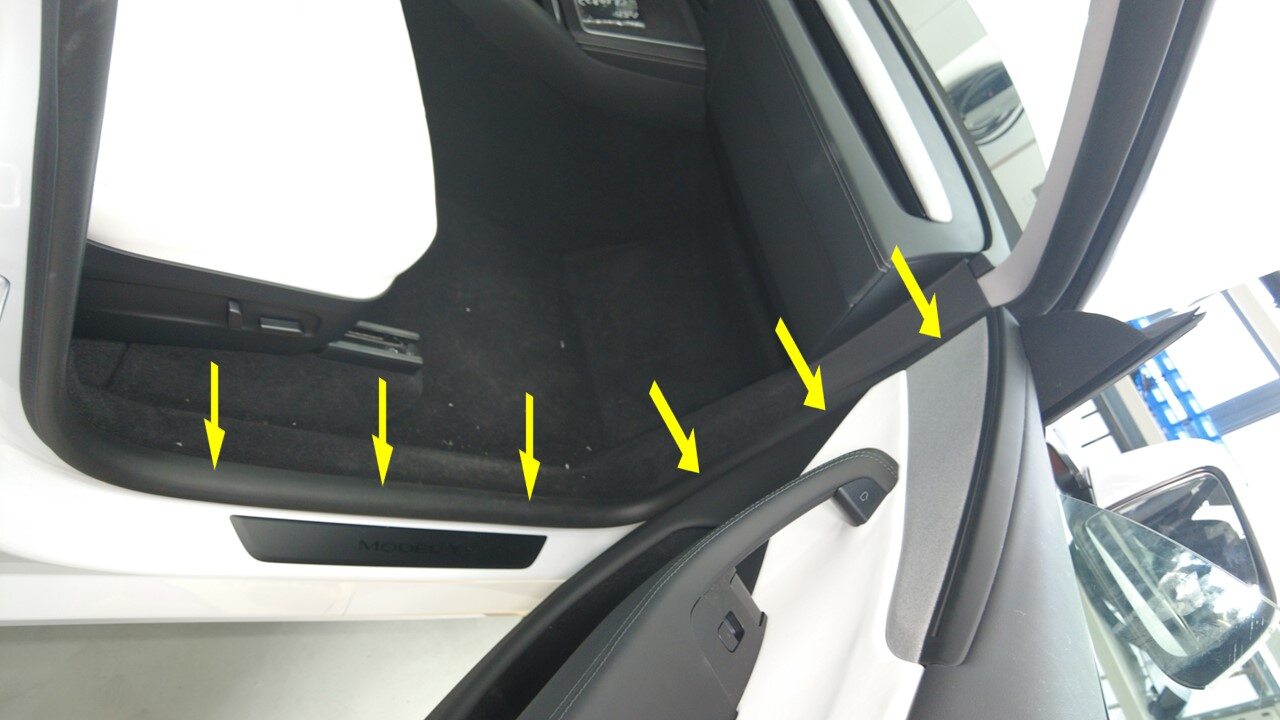

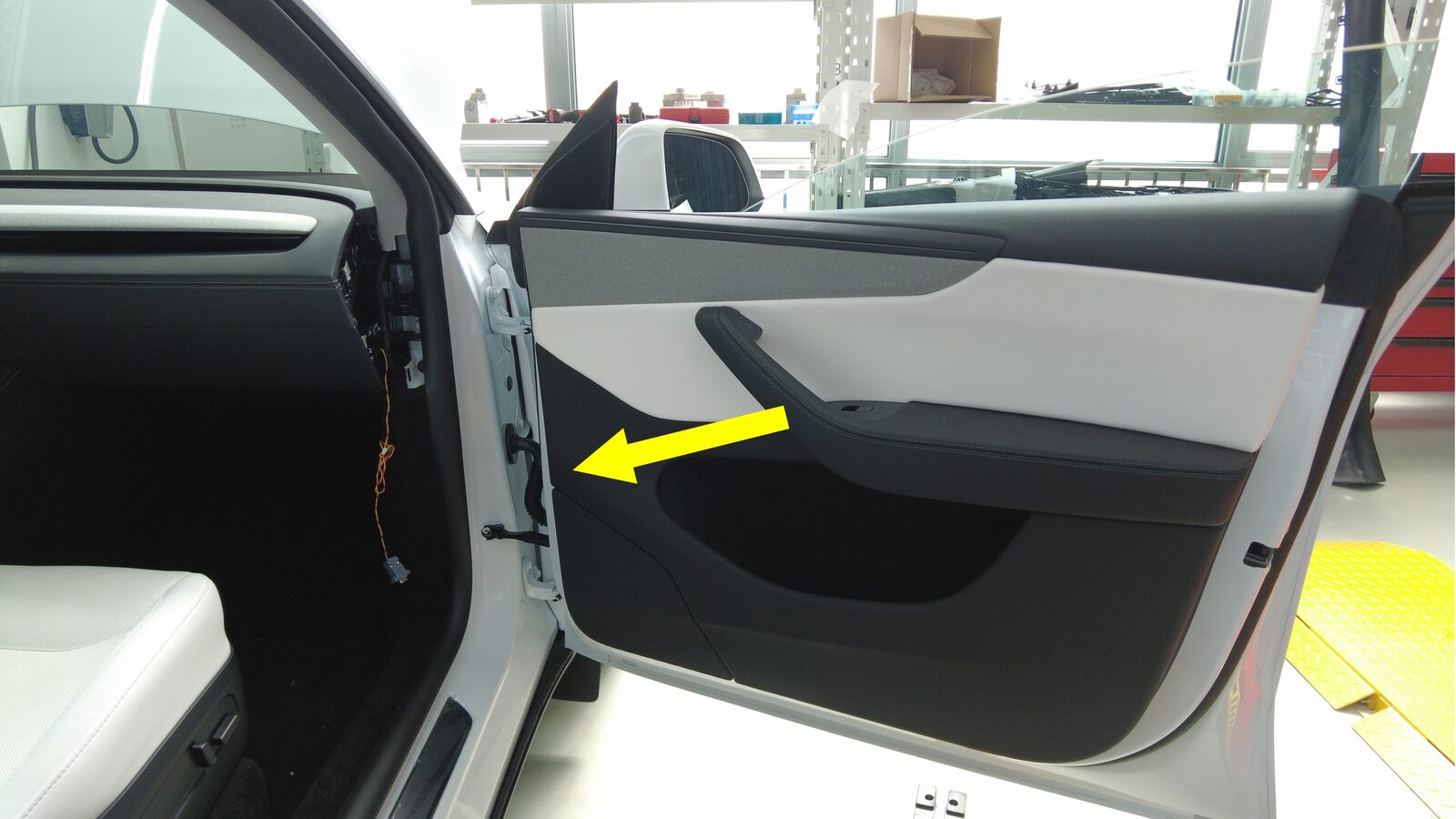

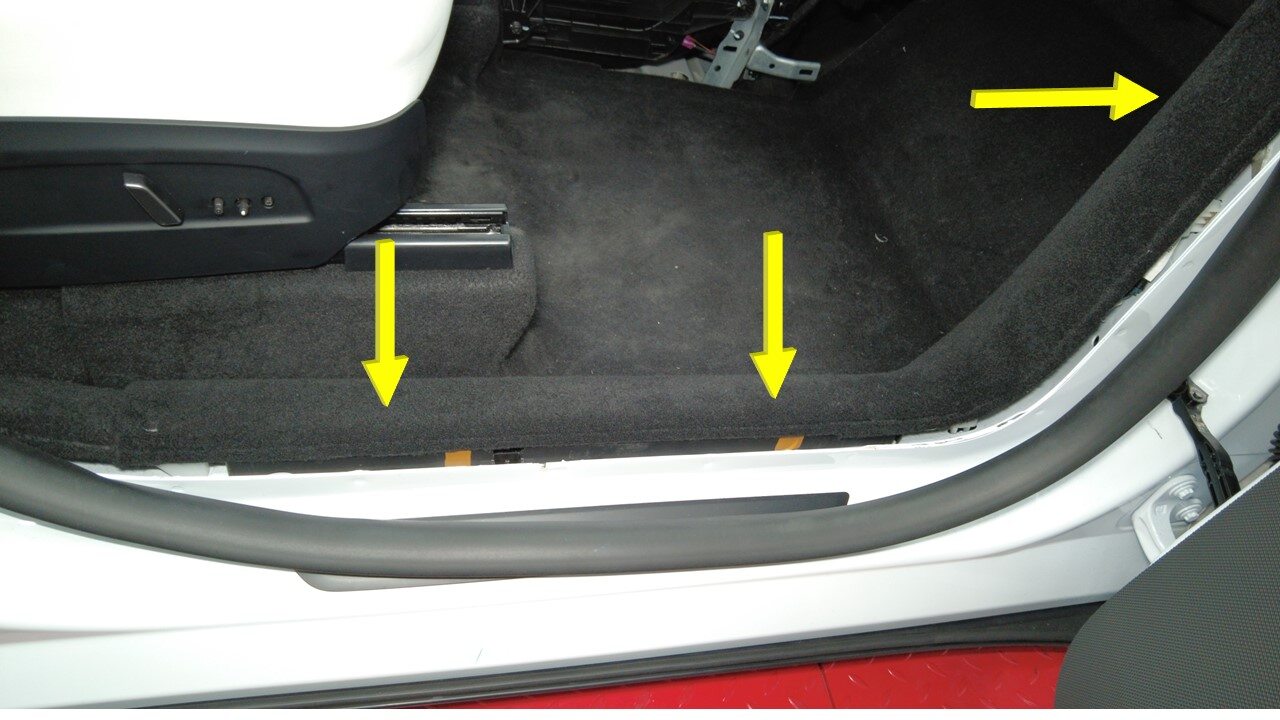

Partially release RH front primary door seal
注For remove RH IP end cap, RH lower A pillar trim, RH front B pillar trim
-

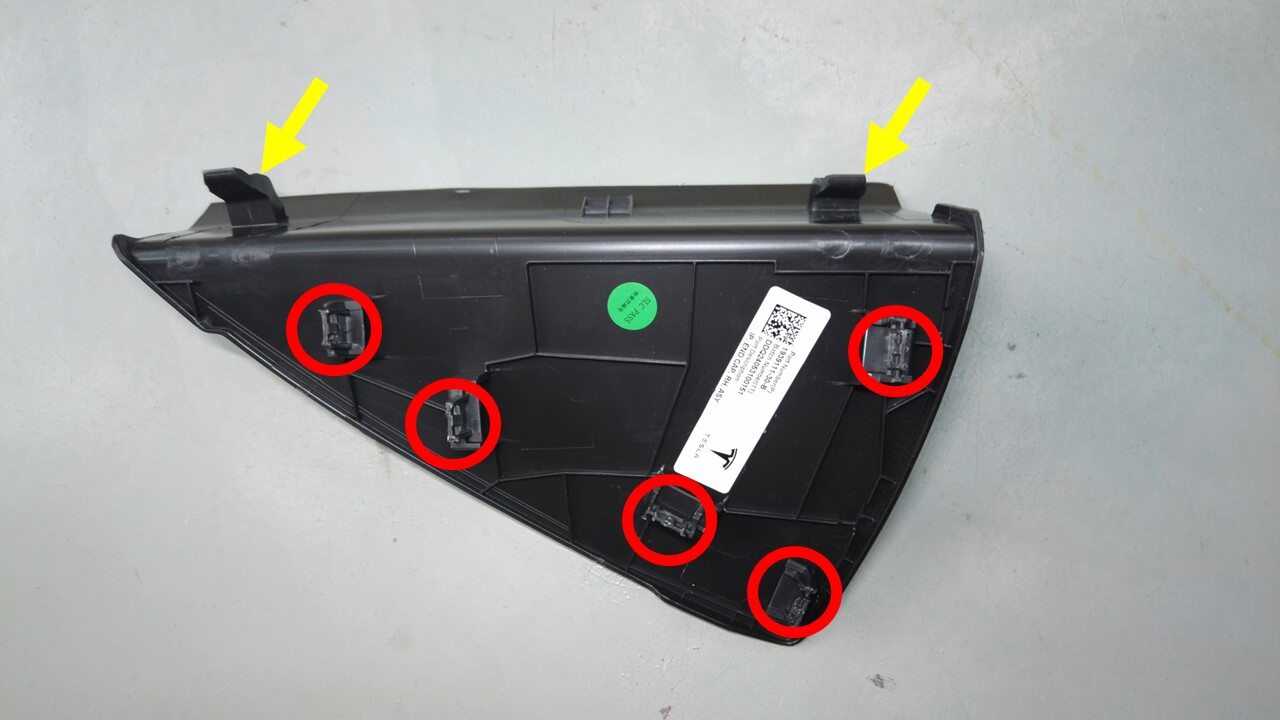

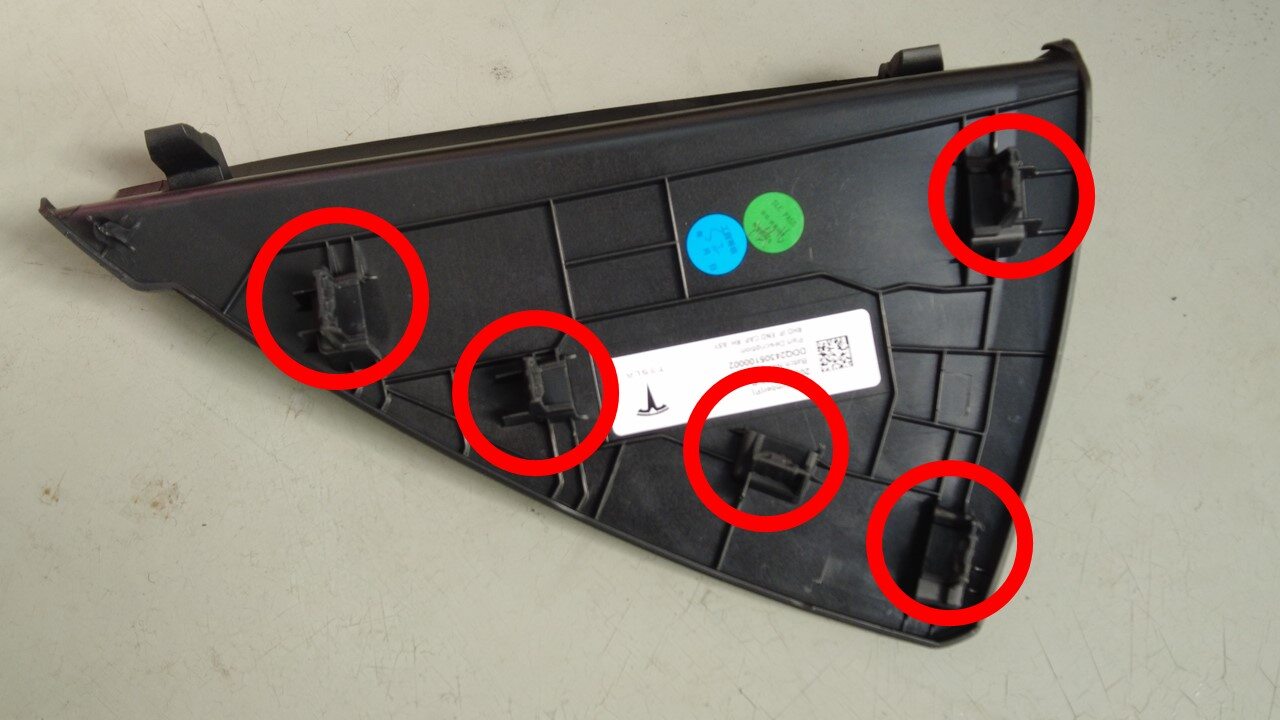

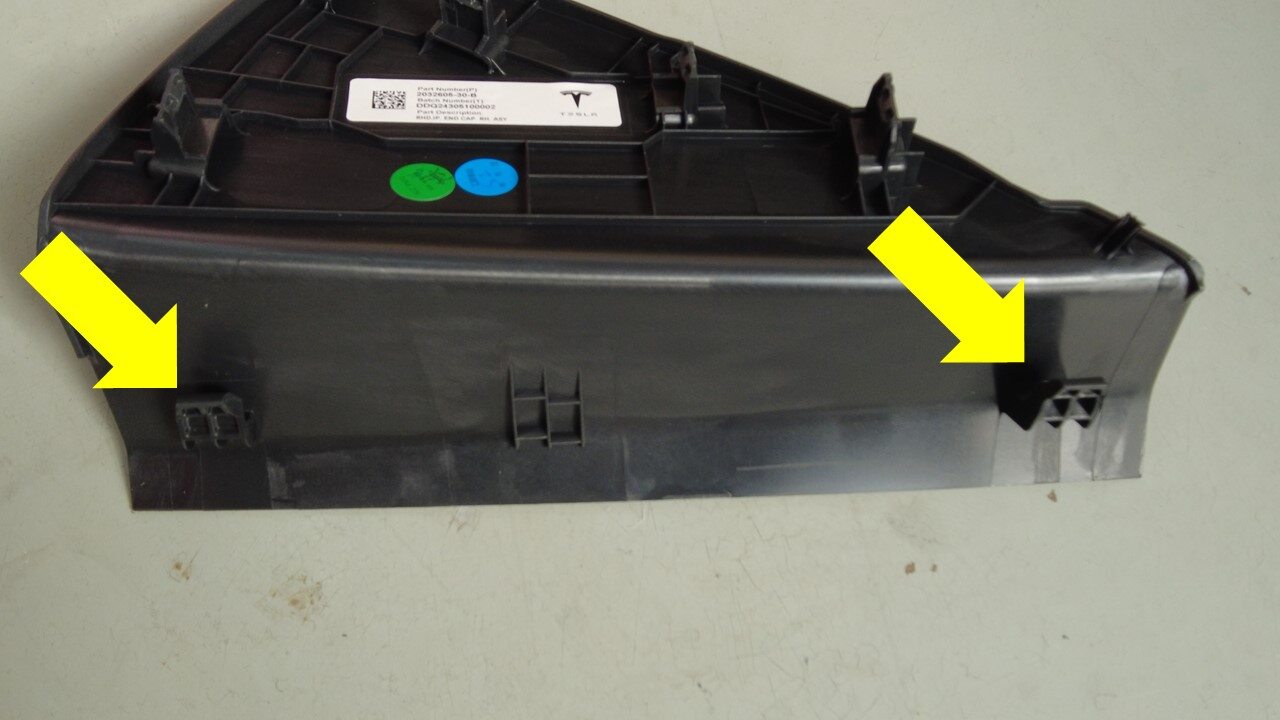

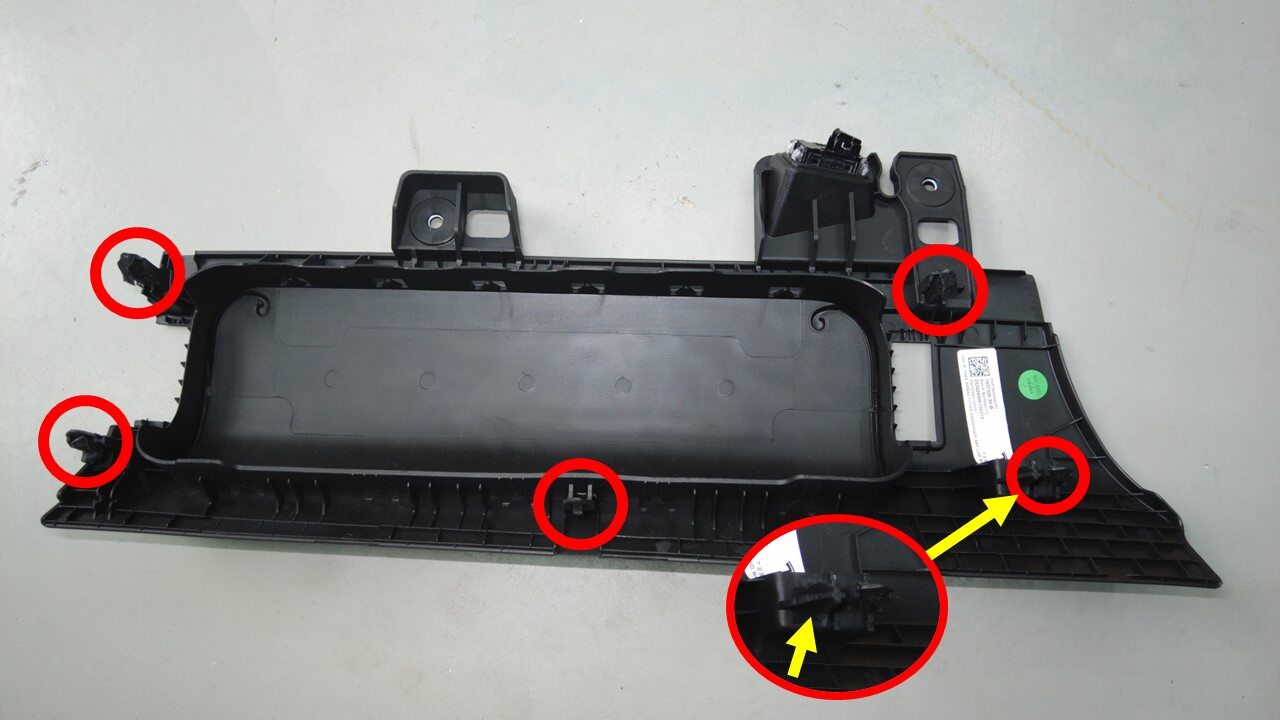

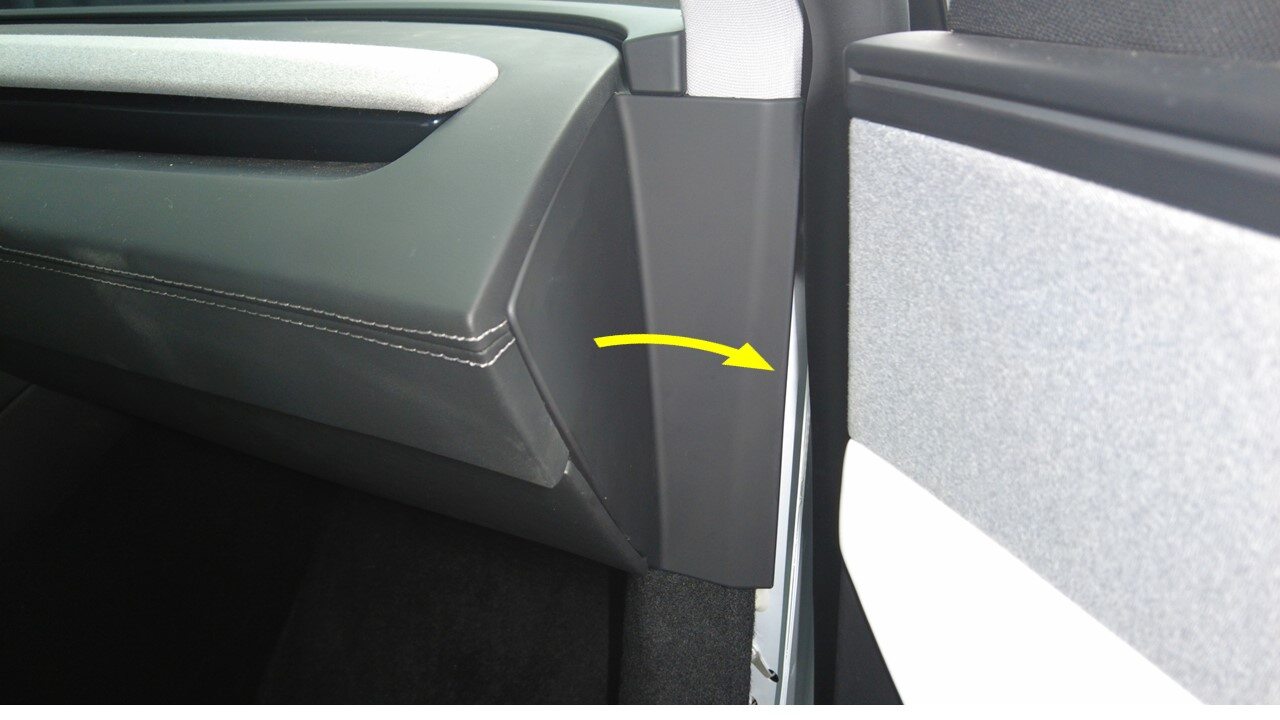

Remove RH IP end cap
注5x clips, 2x guide tabs
-

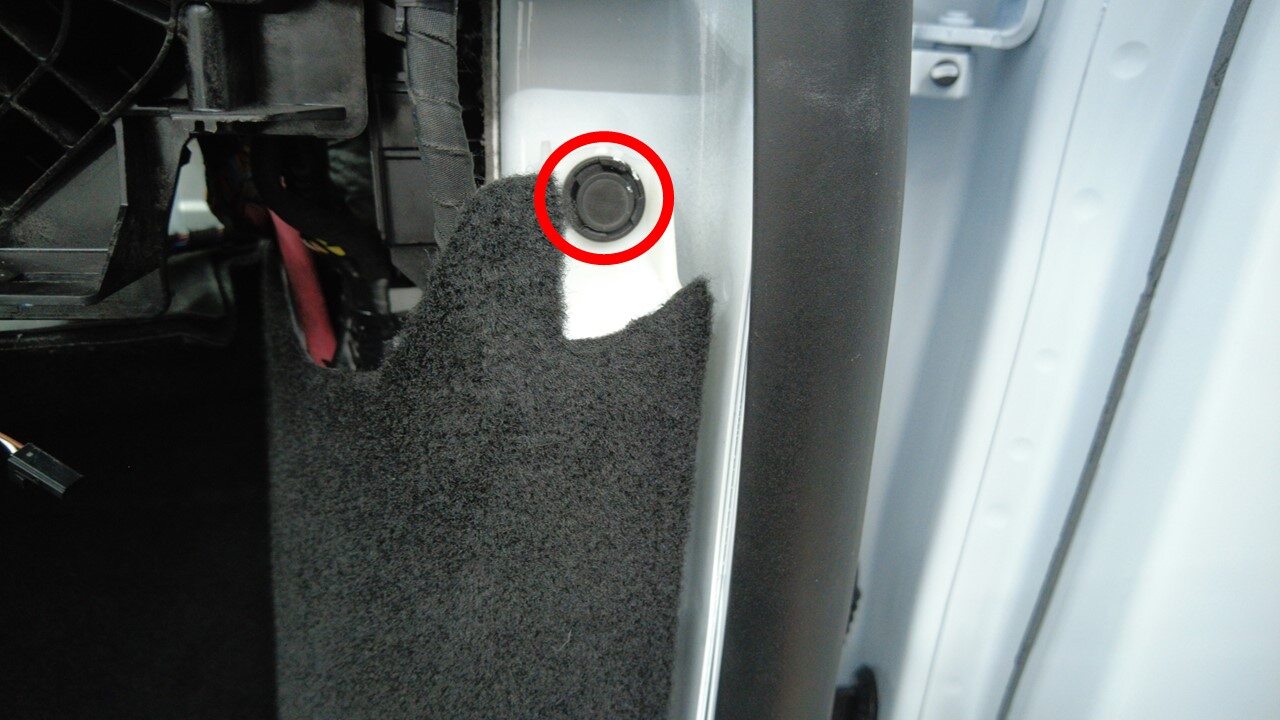

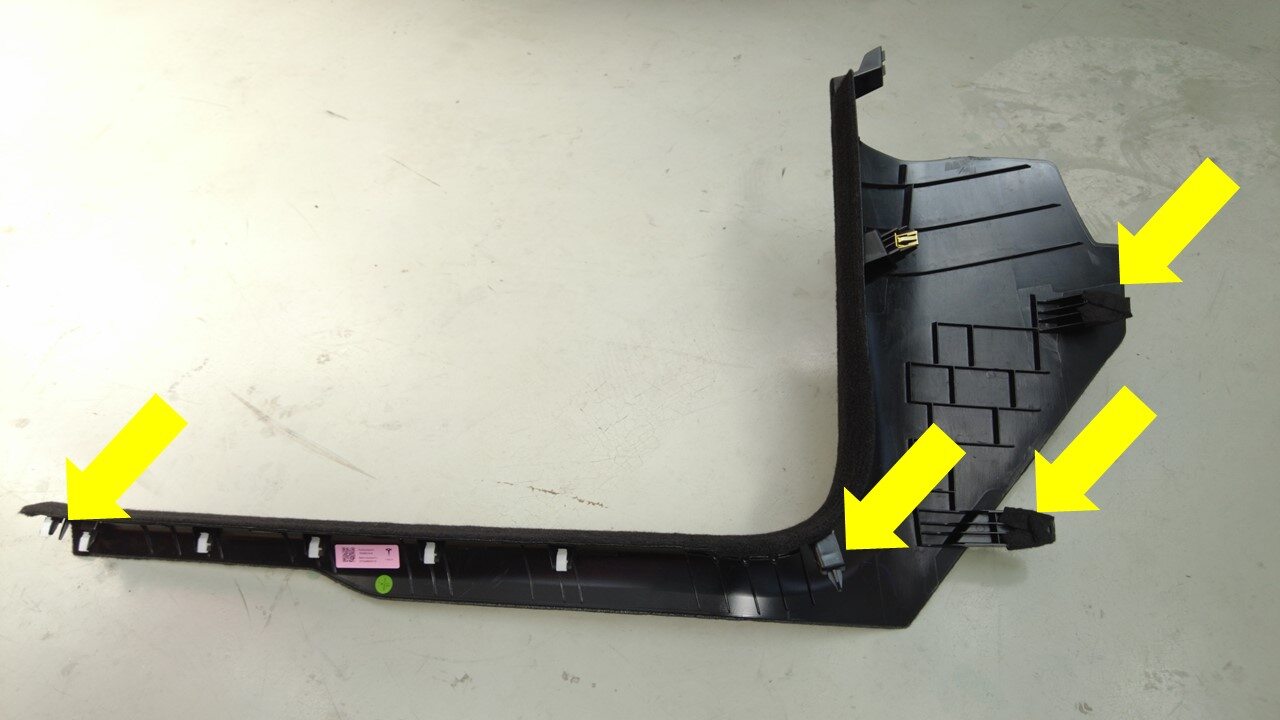

Remove RH lower A pillar trim
注7x clips, 4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
-

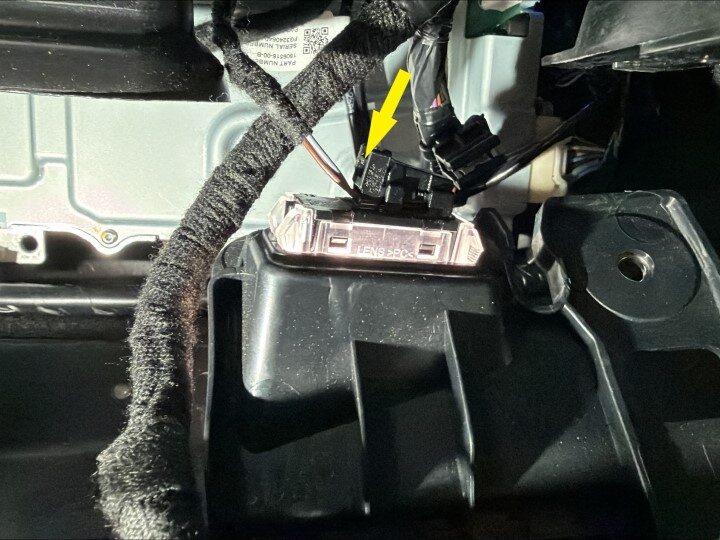

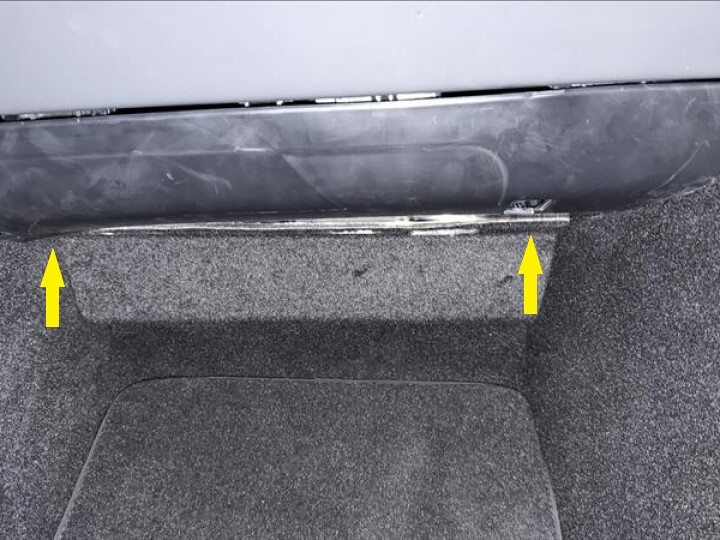

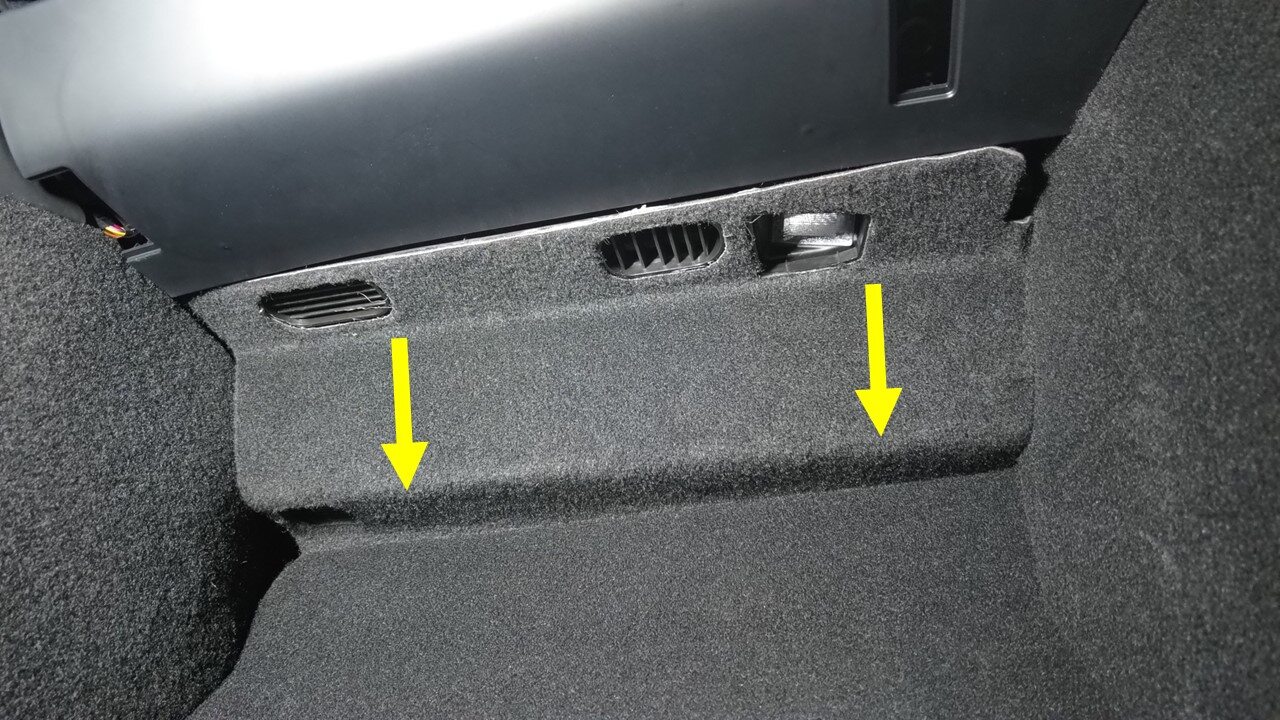

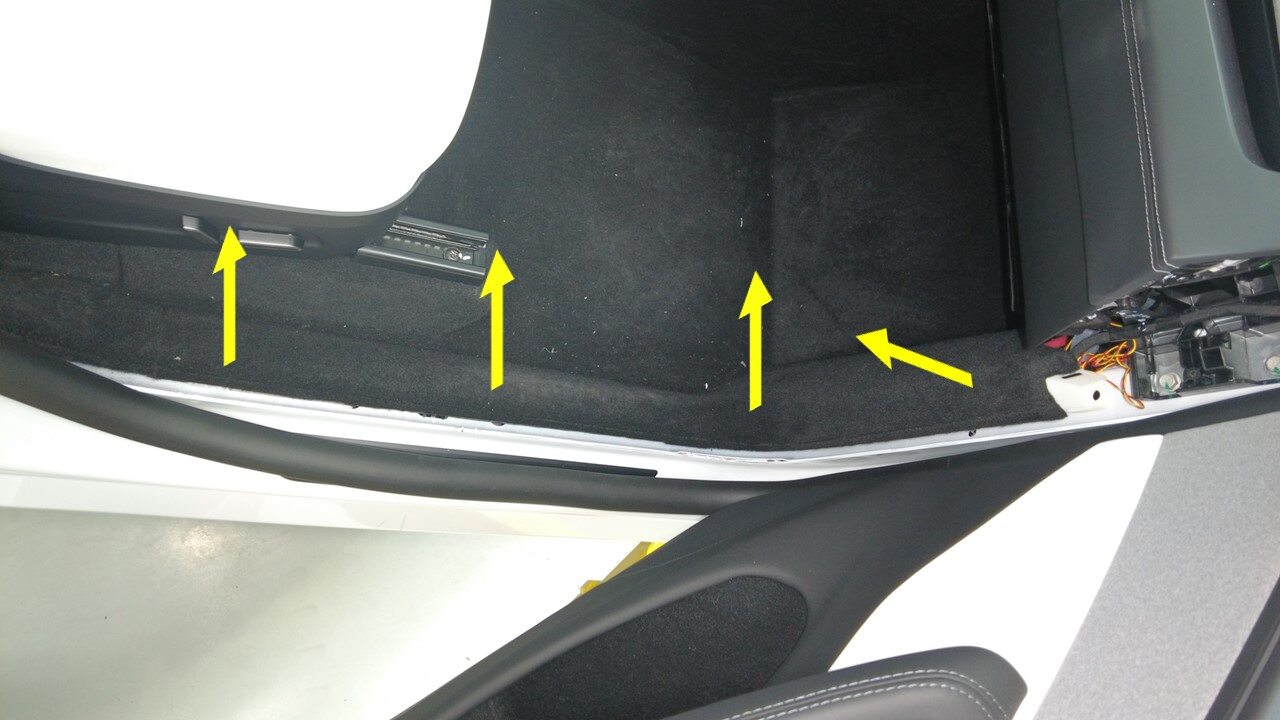

Release front RH cabin carpet cover from RH knee air bag cover
注1x connector, 2x magnets, 2x datums
-

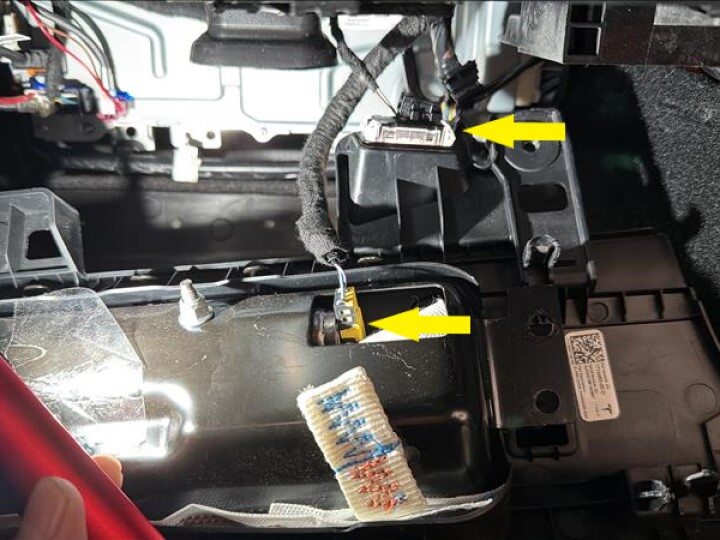

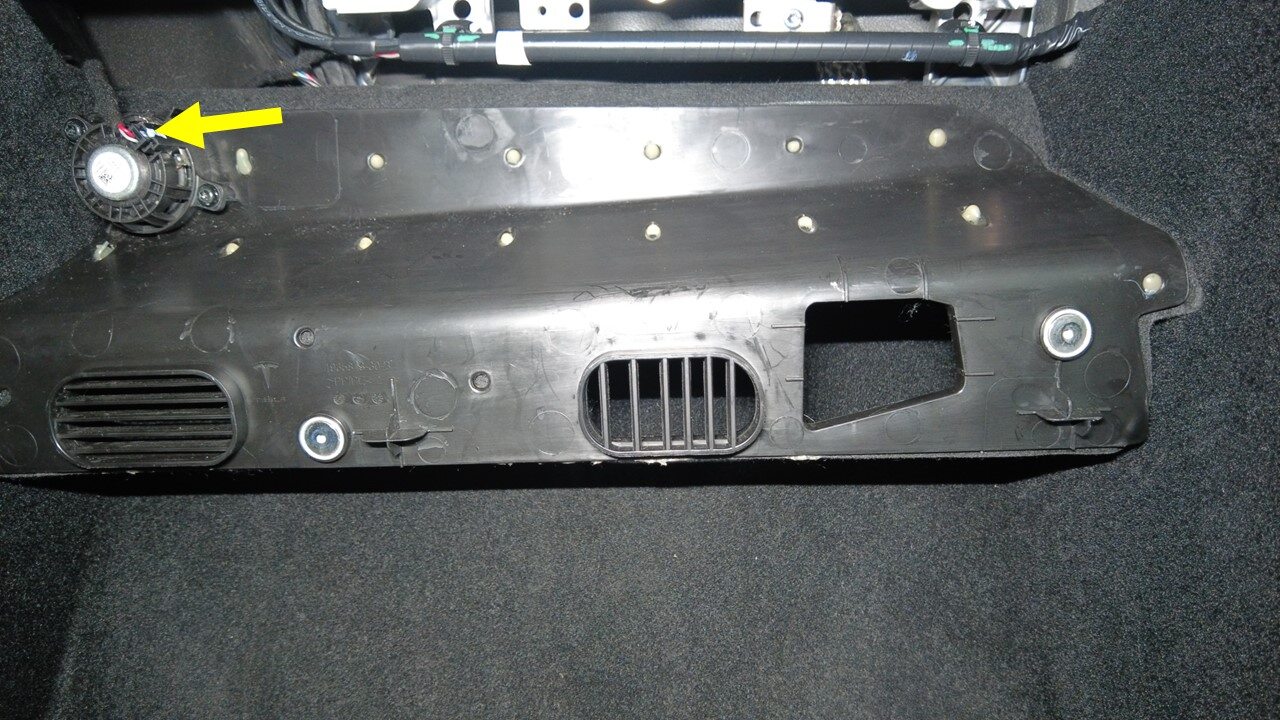

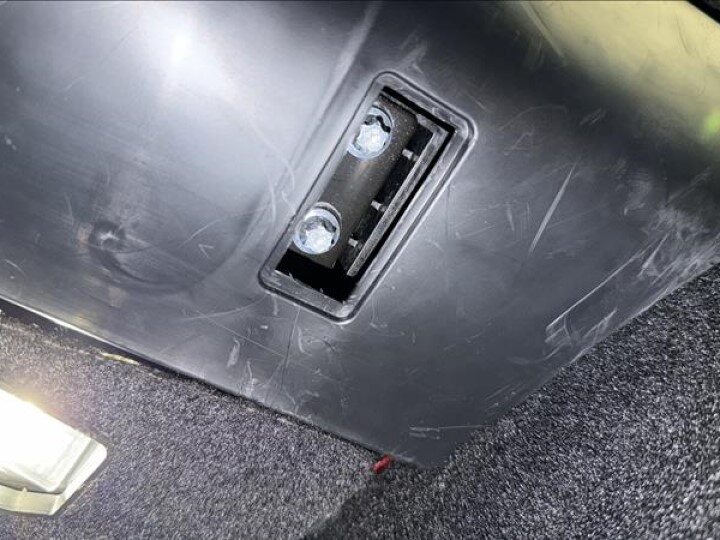

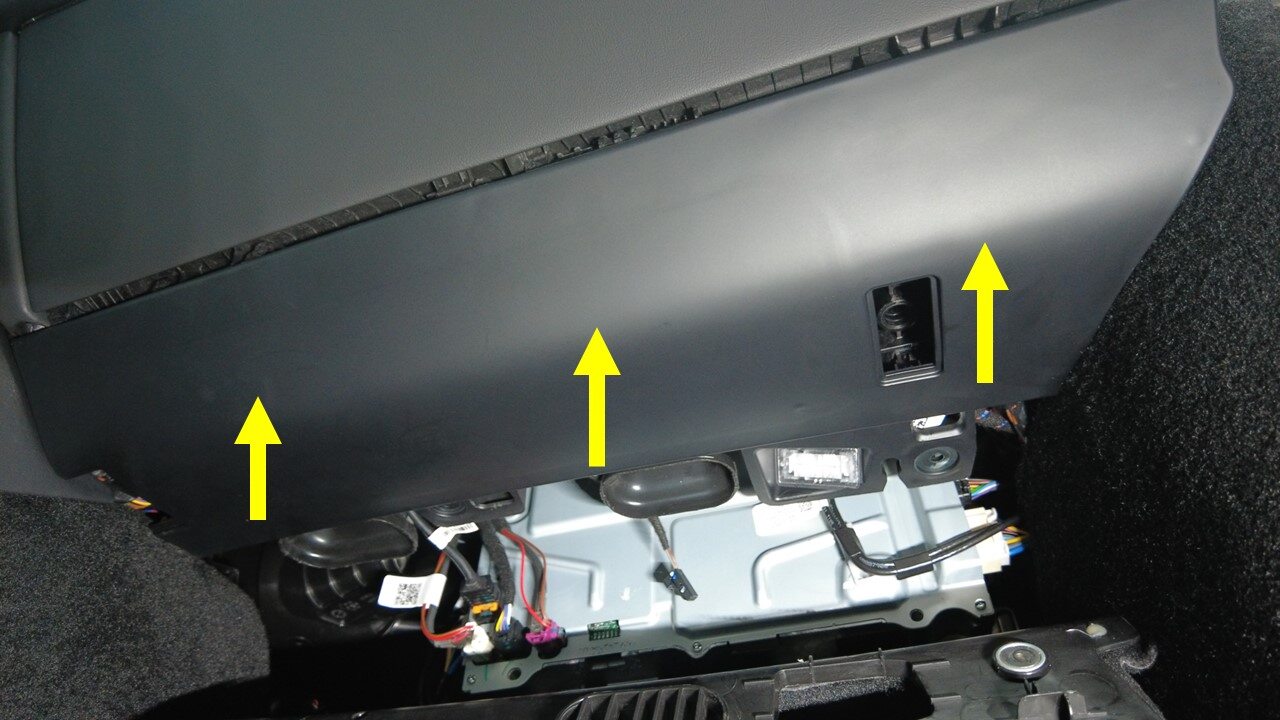

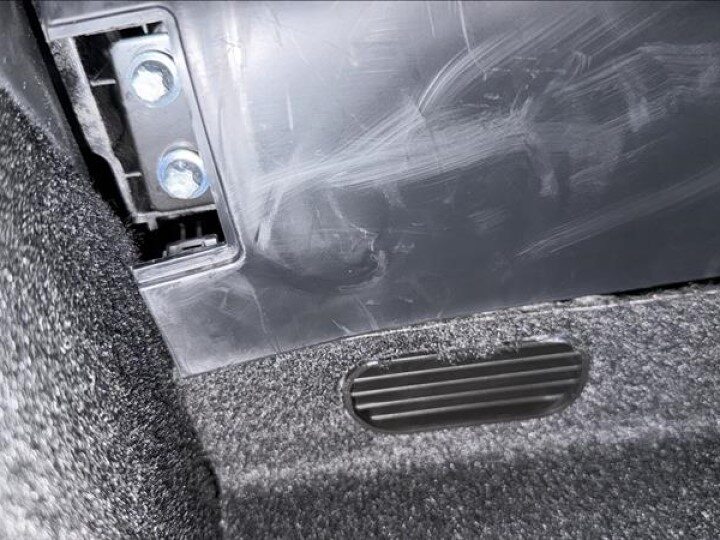

Remove RH knee air bag cover from IP carrier
注2x connector, 5x tabs, 1x datum, 4x bolts, E10, 8 Nm, Discard bolts after removal, Remove 4x fasteners before unlatching airbag cover assembly, carefully remove connector for light by pressing tab and pulling, for airbag use pick tool to unlock tabs and release connector.
-

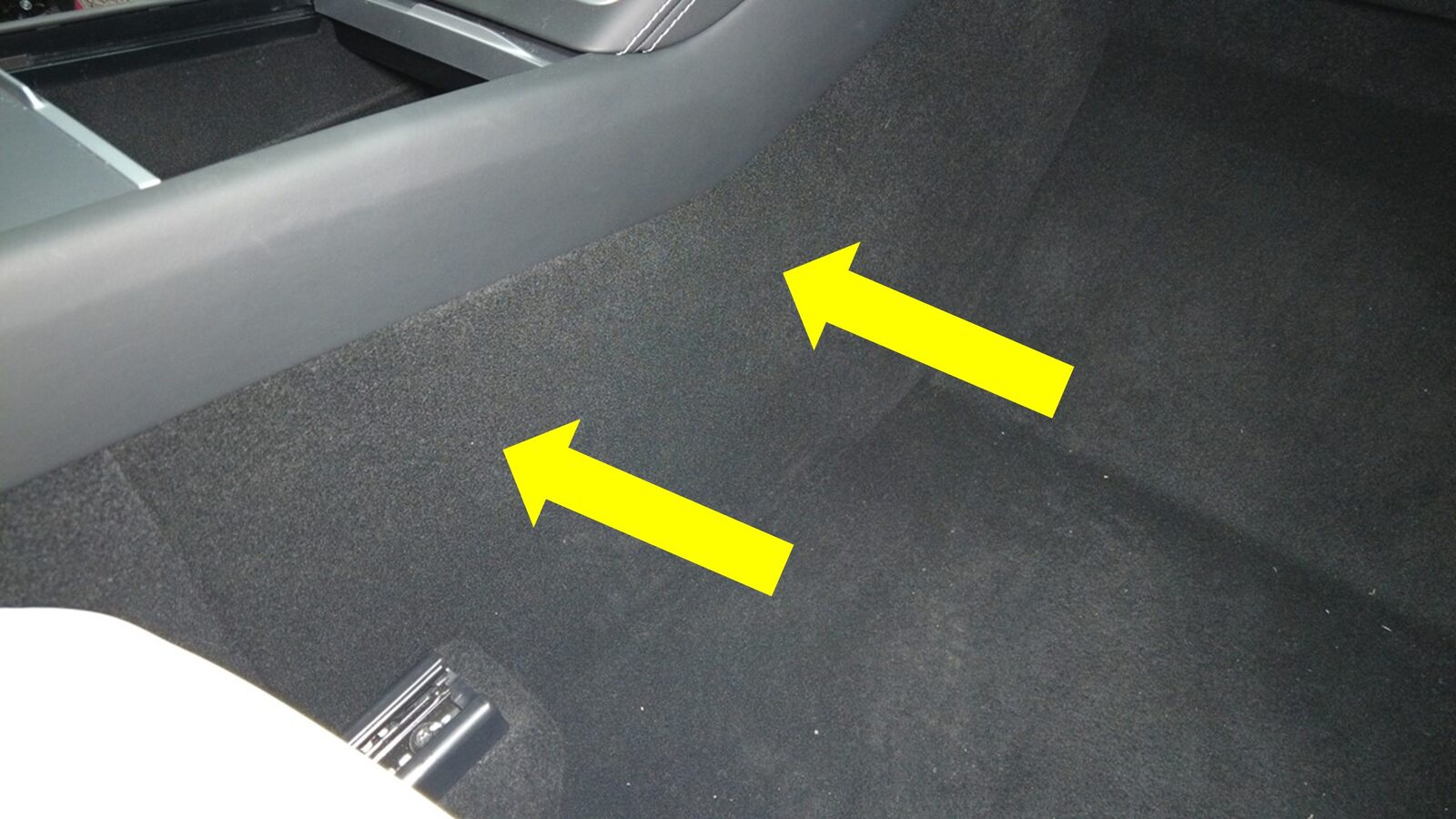

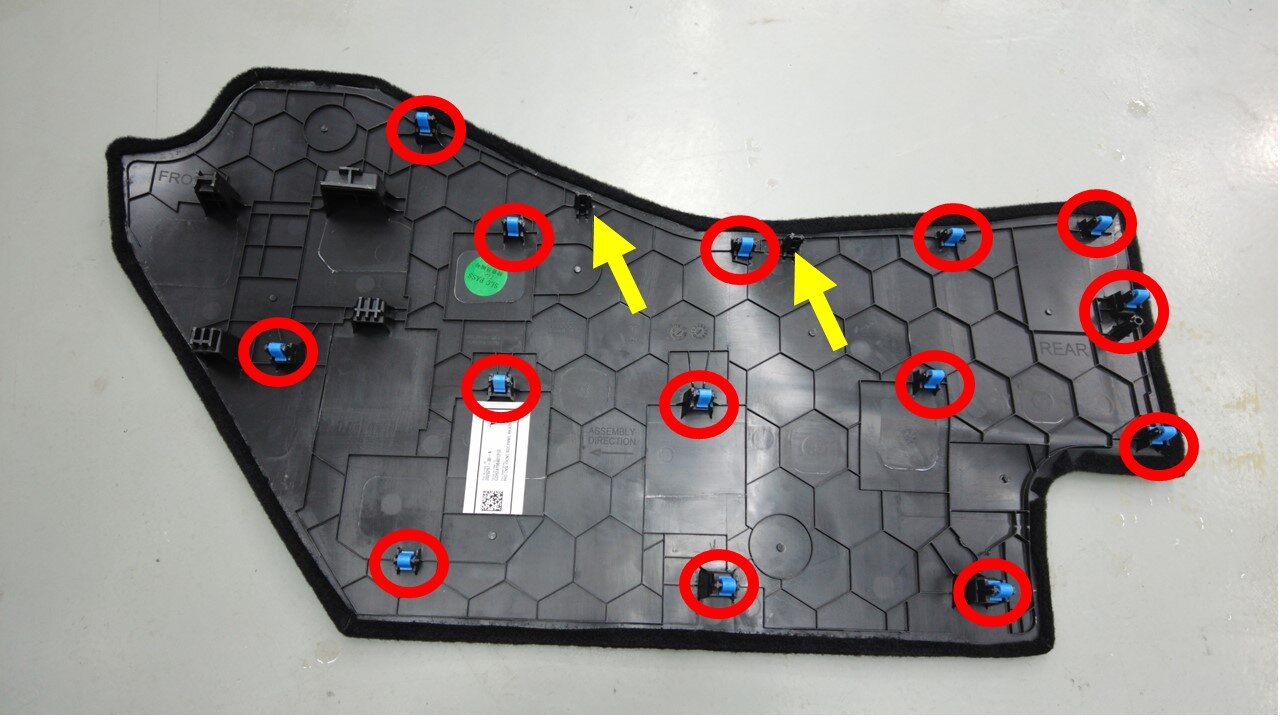

Remove console RH front side panel

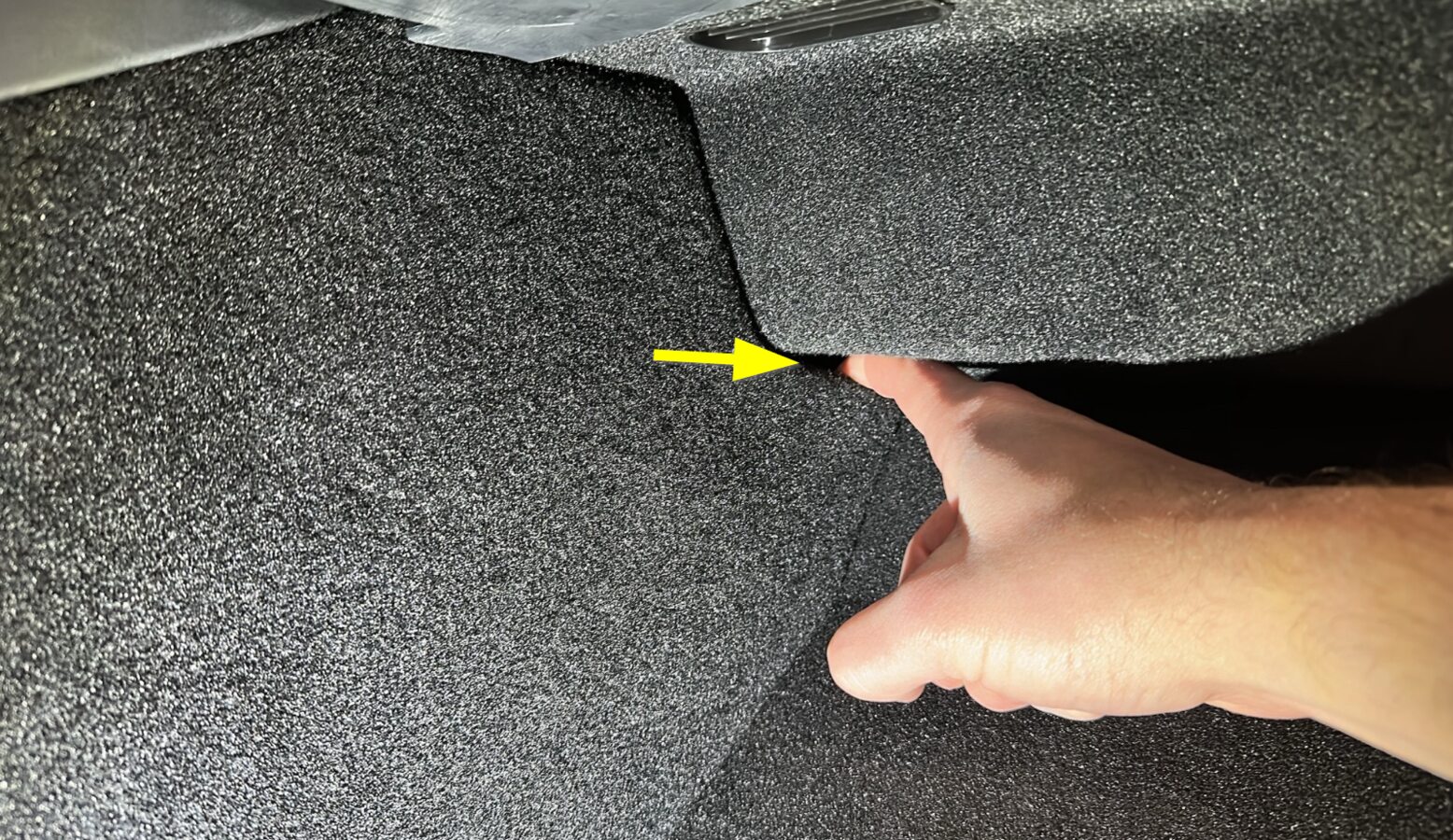

注14x clips, 2x datums, Use finger hole to release panel located at top edge of front side panel, Pull bottom to release remaining clips, Use caution and pull panel straight away from console to avoid damage
- Remove the LH and RH front wheel liners. See 轮拱内衬 - 前 - 左 ((拆卸和更换)).
-

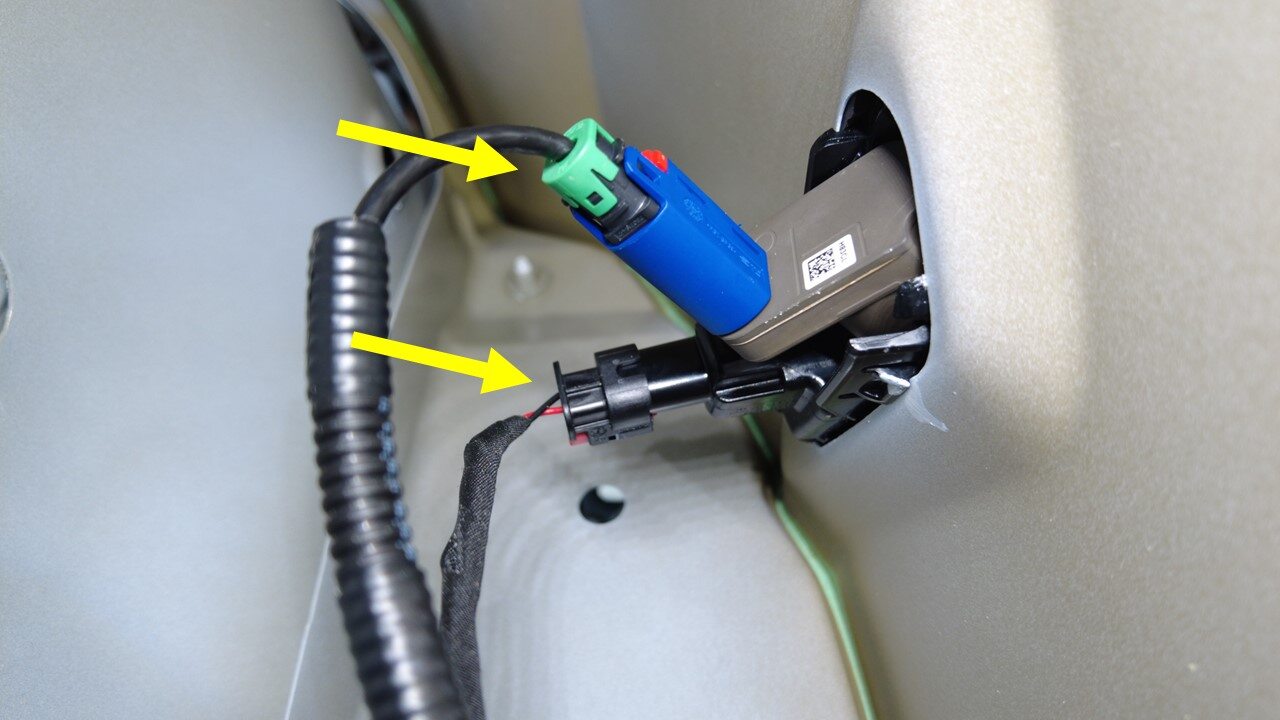

Disconnect front main harness from LH side repeater camera
注2x connectors, Release locking tabs
-
Disconnect front main harness from RH side repeater camera
注2x connectors, Release locking tabs
-

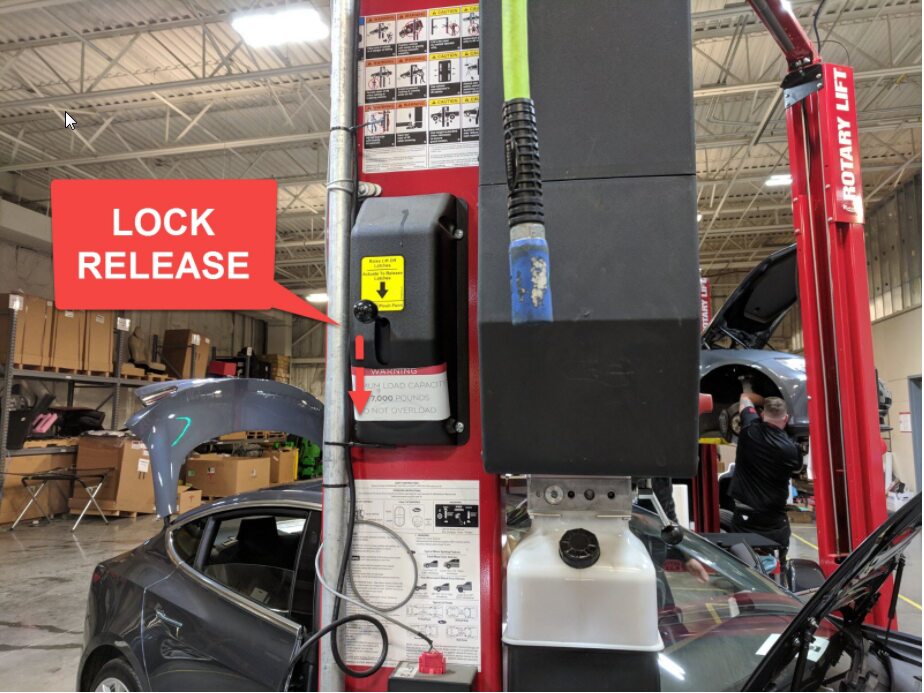

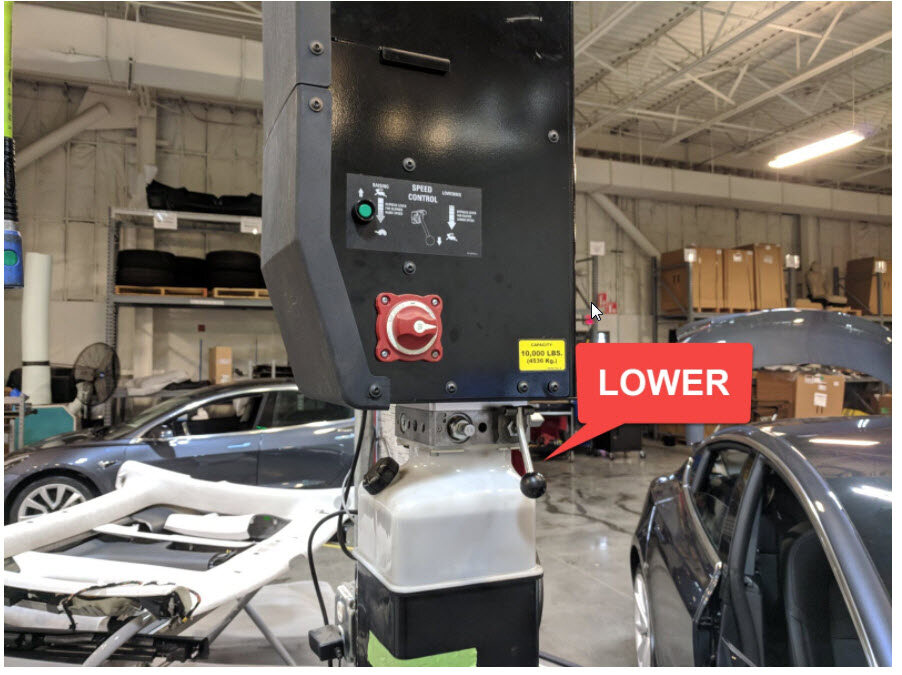

Lower vehicle partially and set lift onto locks
注Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
-

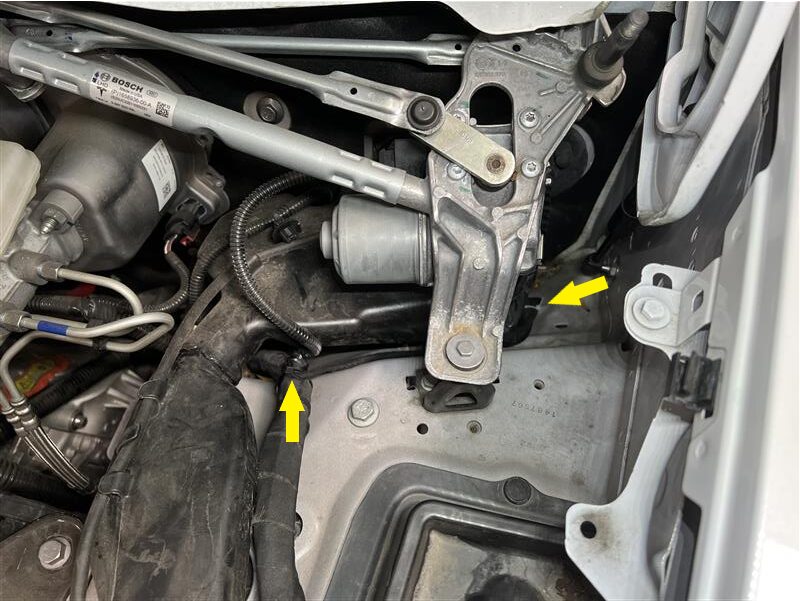

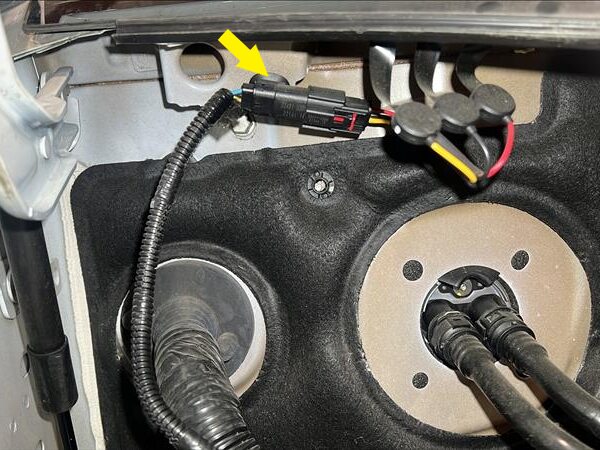

Release windshield heater connecter
注1x connector
-

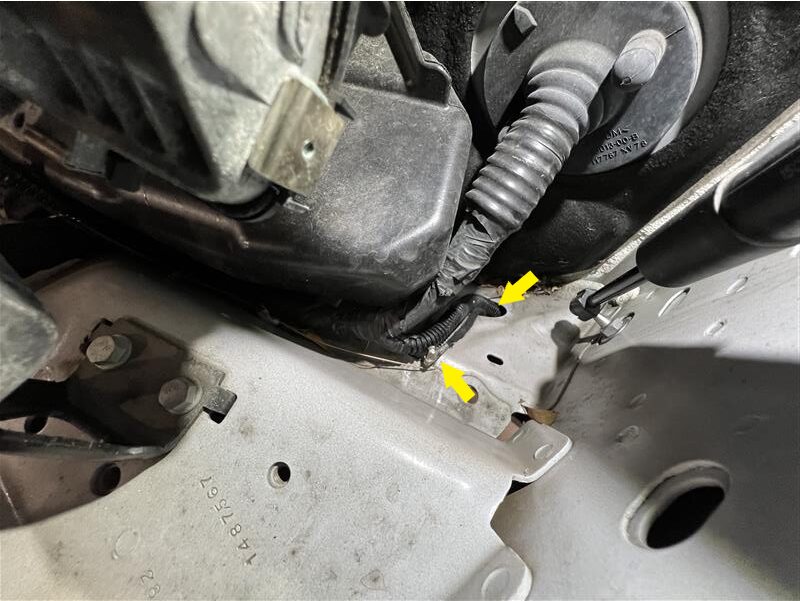

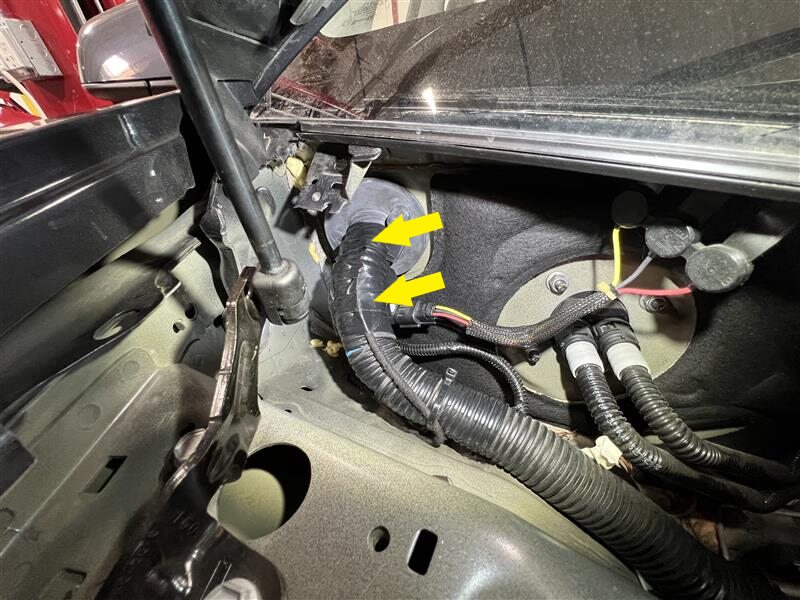

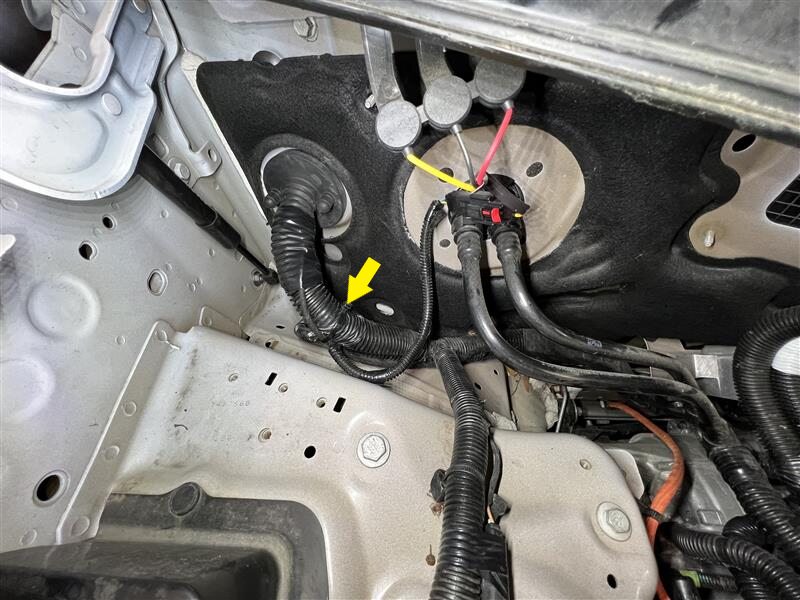

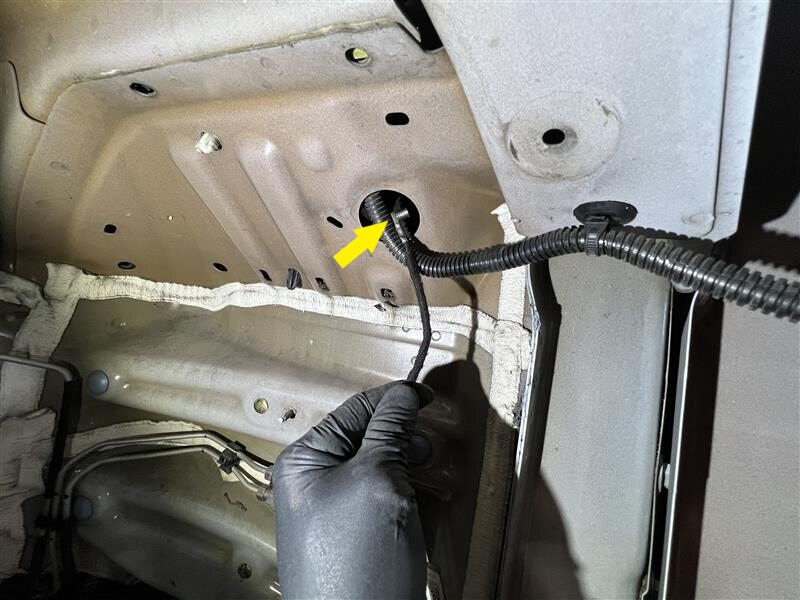

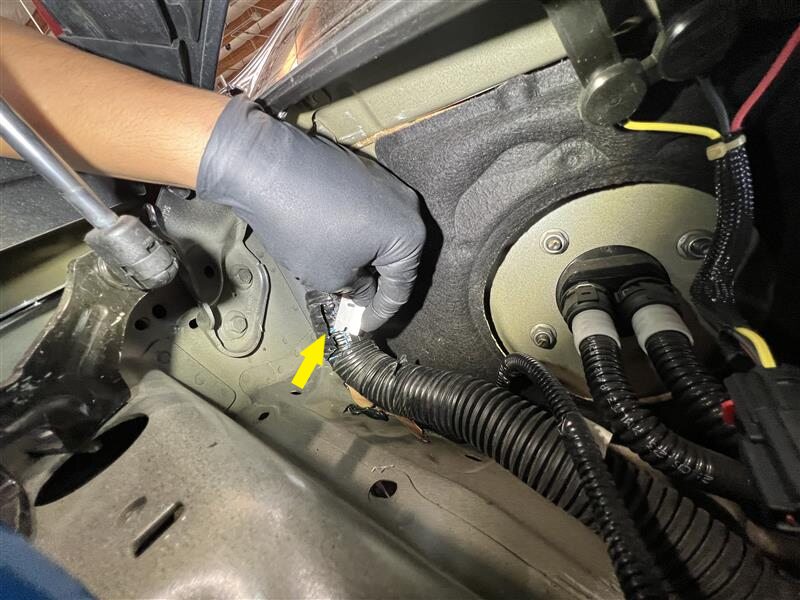

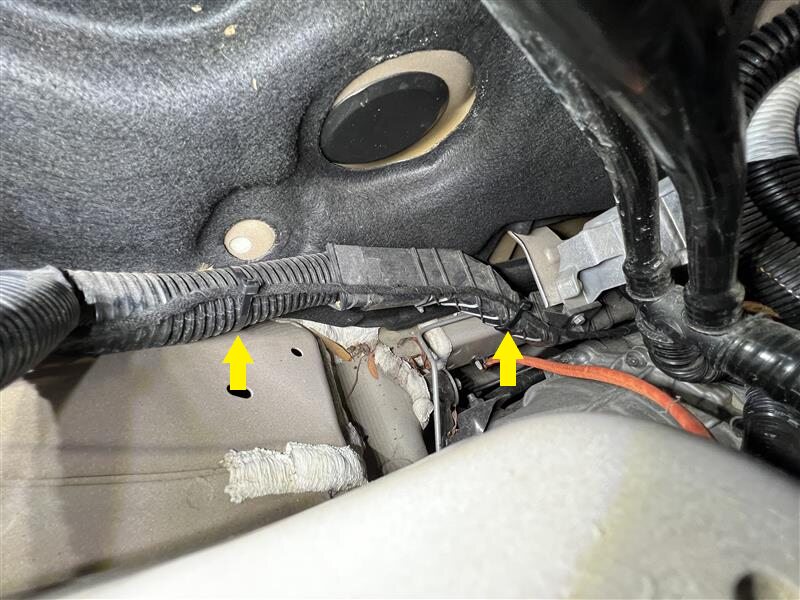

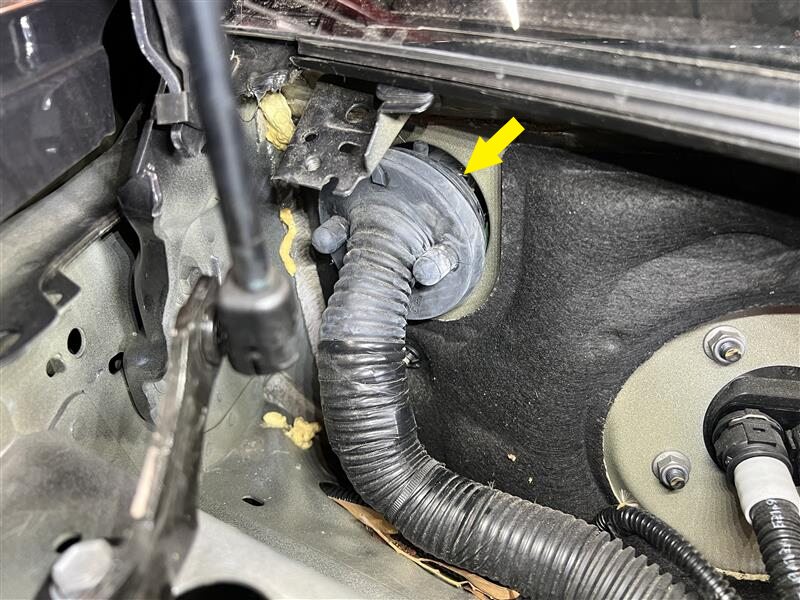

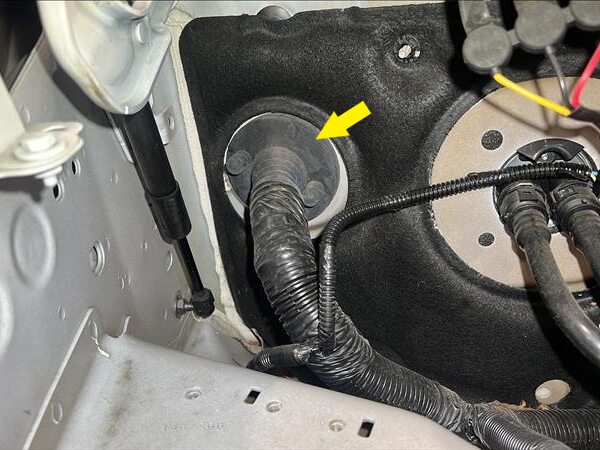

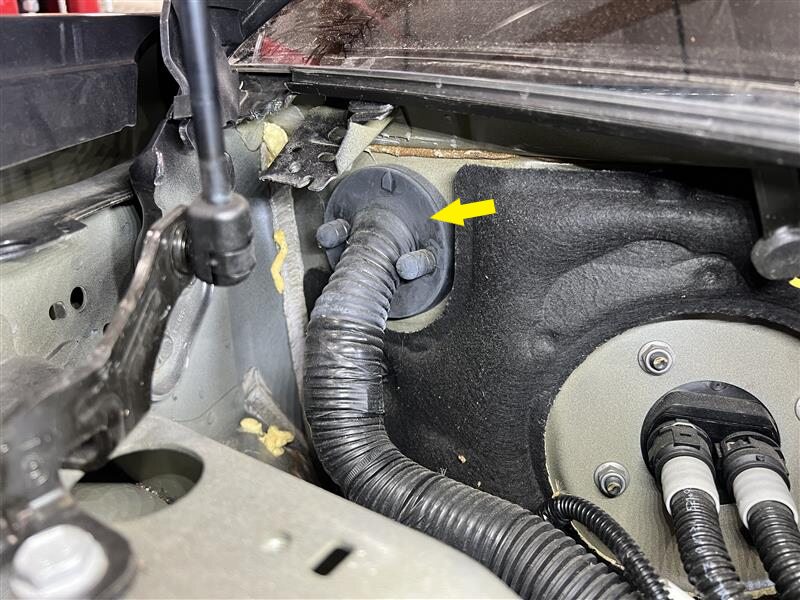

Release RH grommet from body
-

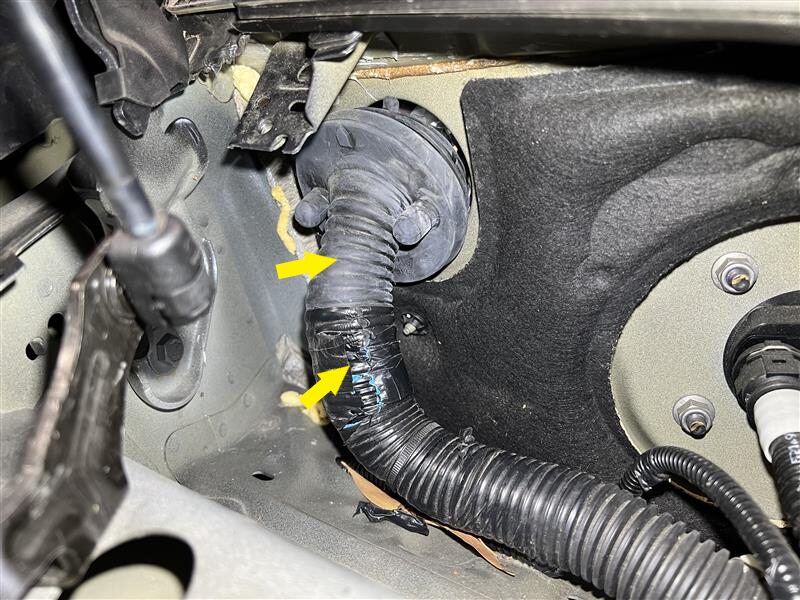

Remove electrical tape securing harness bundle to rubber dust boot
注Use a razor blaze, carefully cut electrical tape away to expose rubber dust boot
-

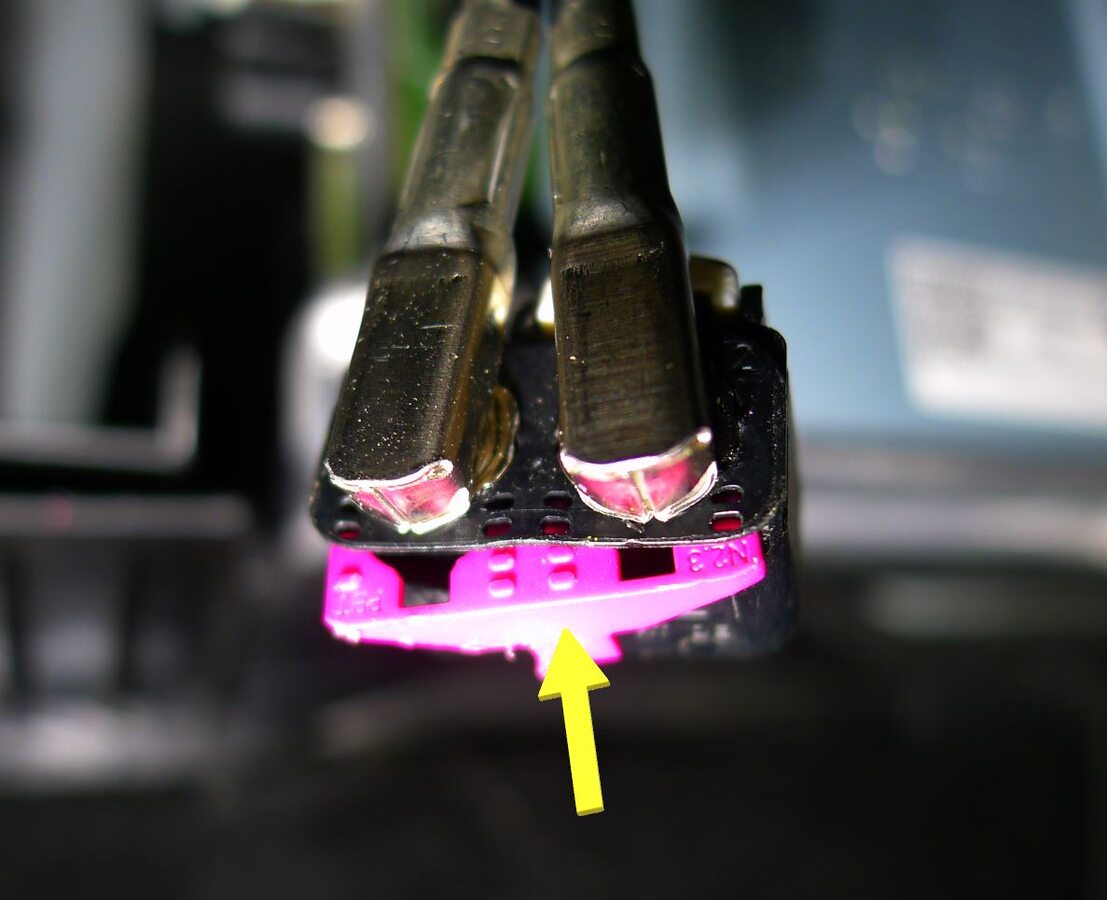

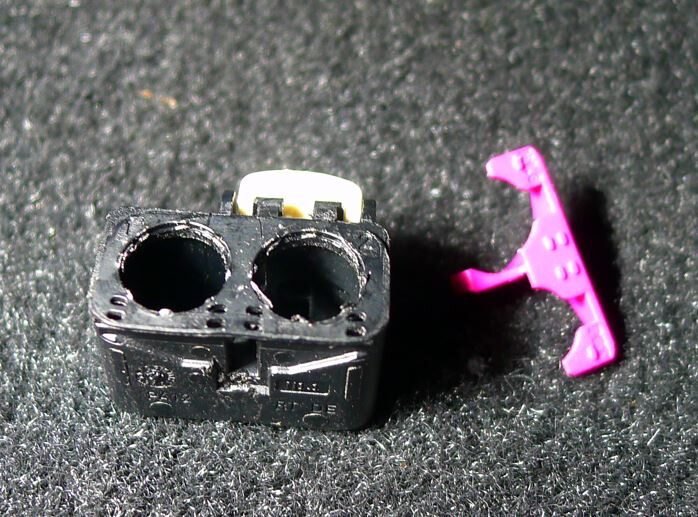

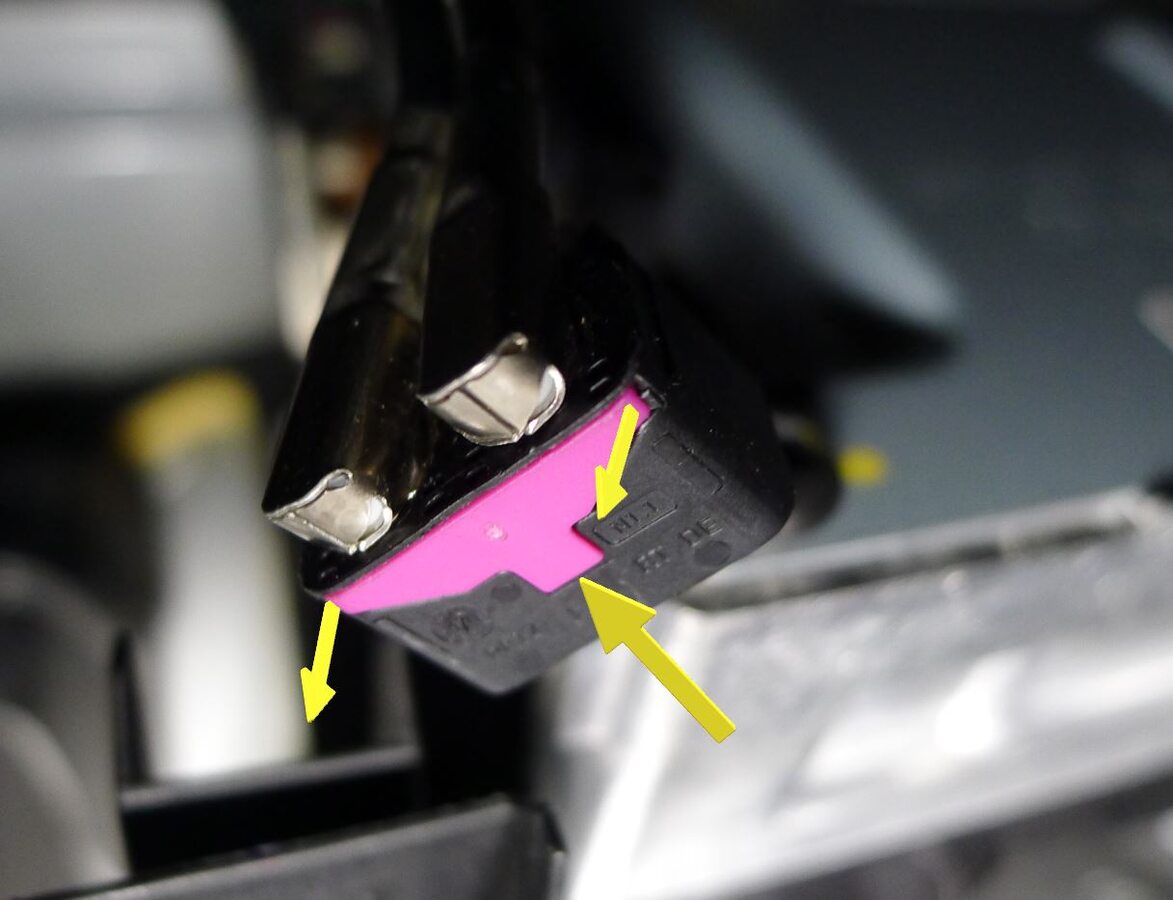

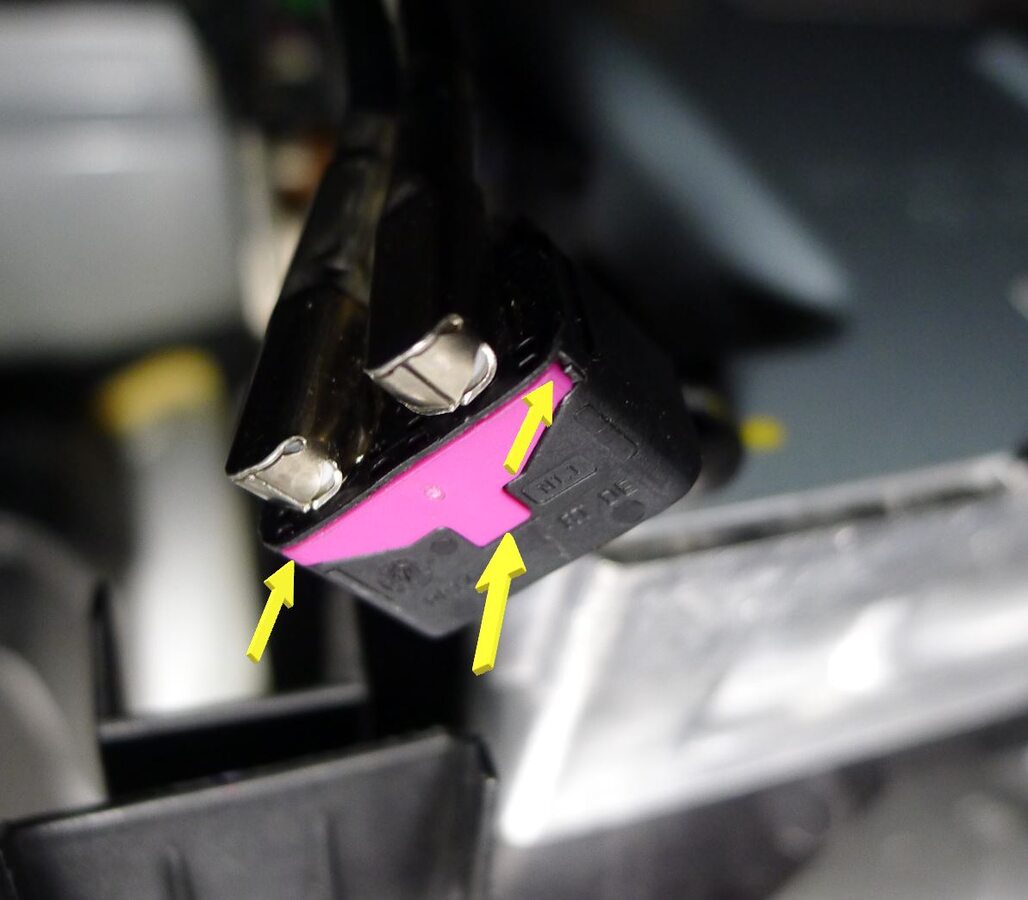

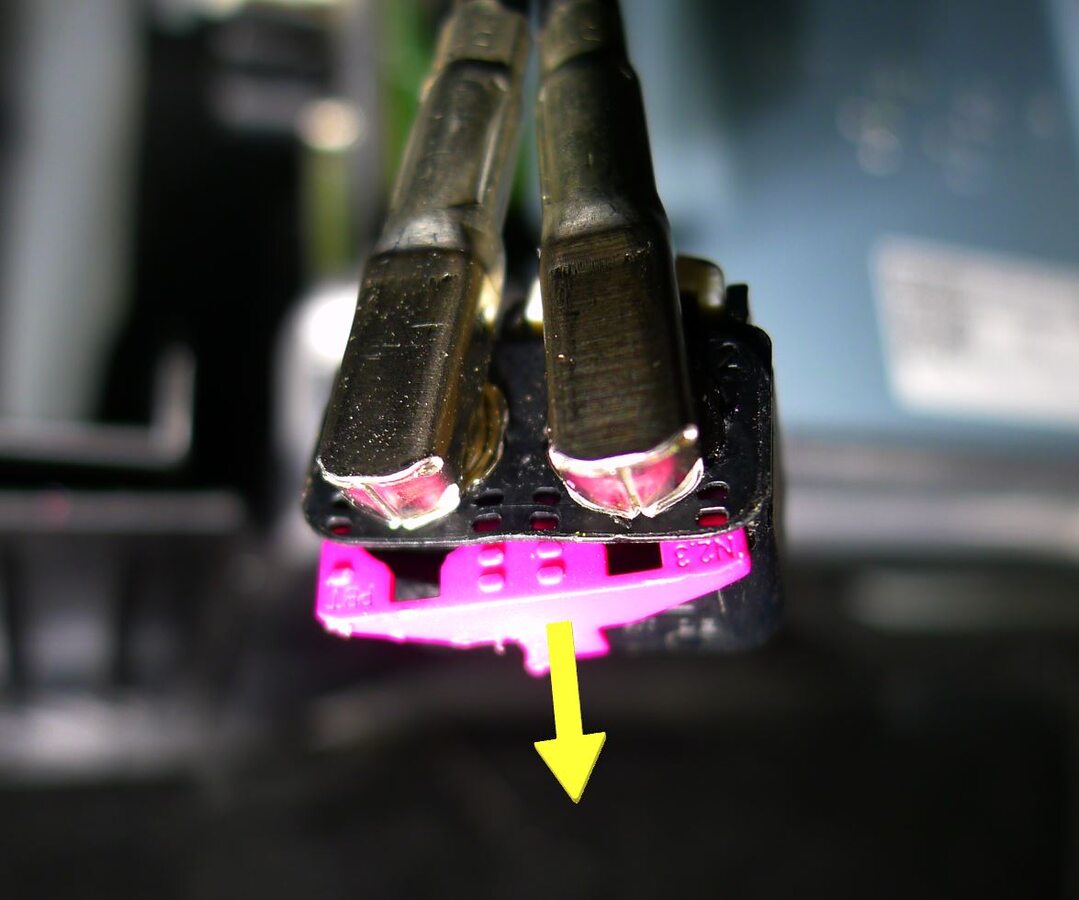

Remove locking pin from connector
注Carefully pry pin out of connector and fully remove locking pin
-
Remove coax cable needed for the side repeater overlay MY terminal 1 (LHS)
注Inspect all components for damage
-
Remove coax cable needed for the side repeater overlay MY terminal 2 (RHS)
注Inspect all components for damage
安装
-

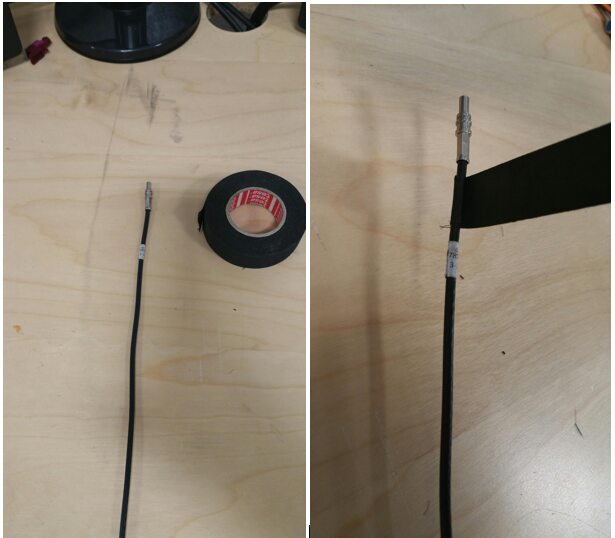

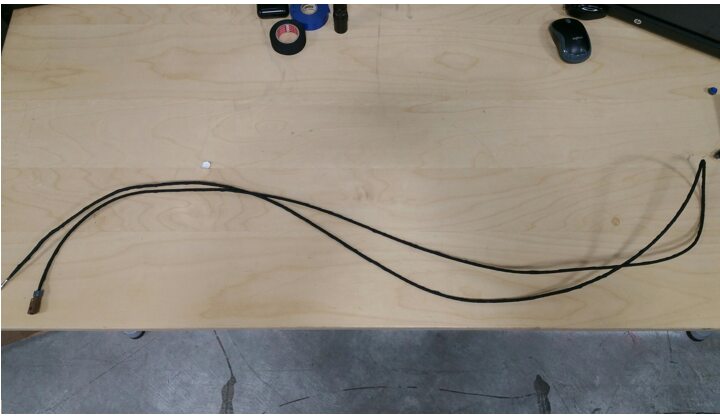

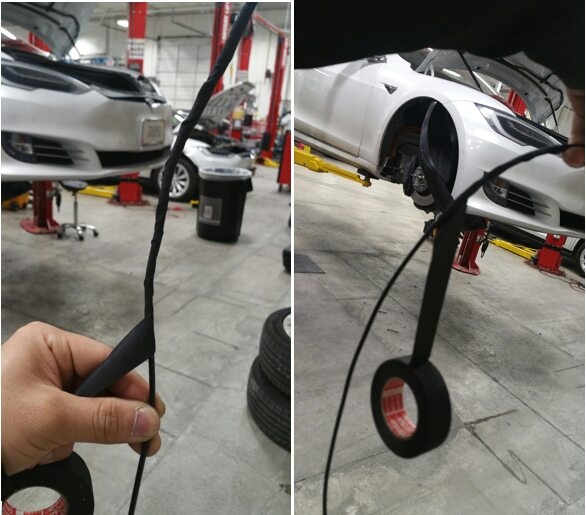

Apply harness tape onto LH and RH coax overlay cables before installation
注Use Anti-abrasion tape and wrap the entire length of the coax cable to protect the cable for damage when it is in the vehicle
-

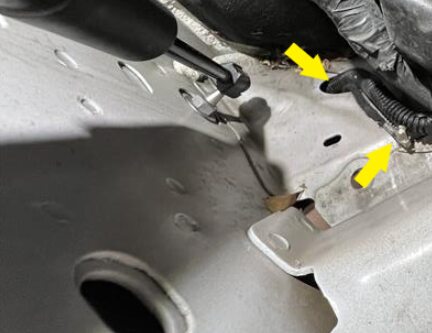

Position MY LH coax overlay cable into place, Place through LH wheel liner
注Pull till you have roughly 12 inches of cable towards the interior of the vehicle
-

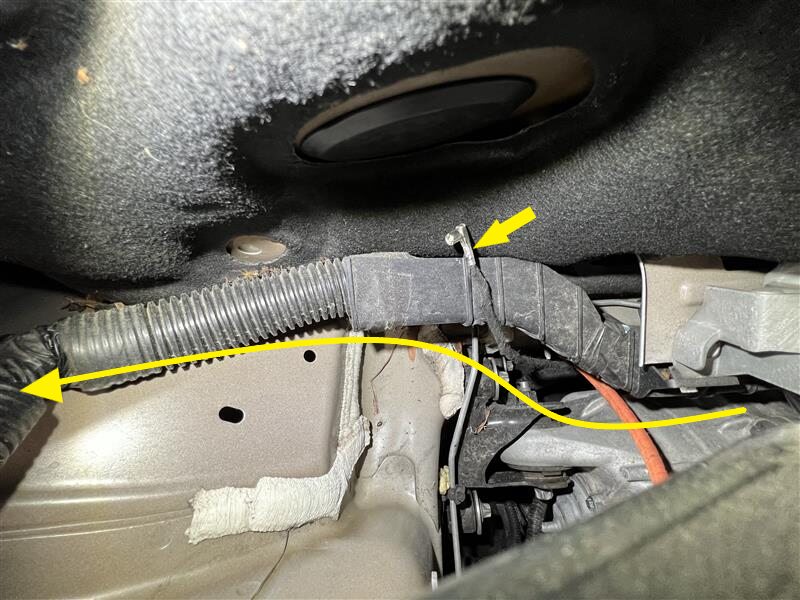

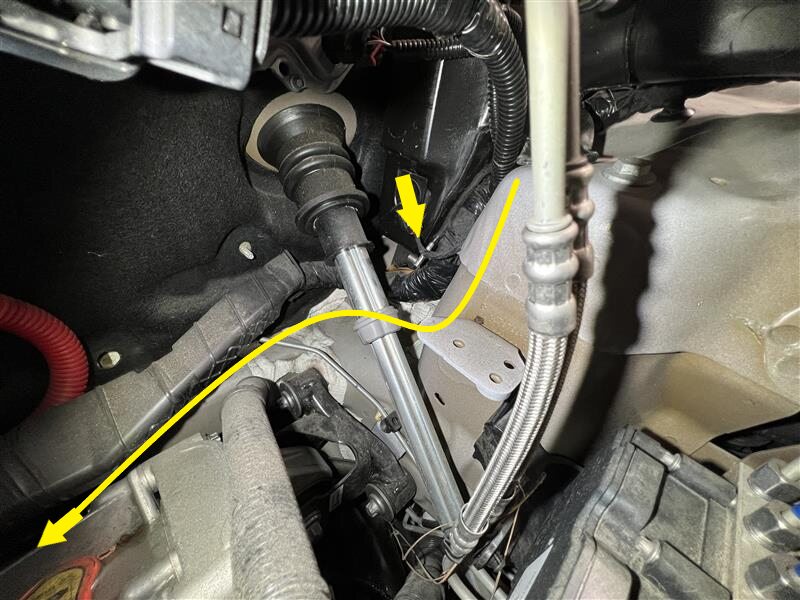

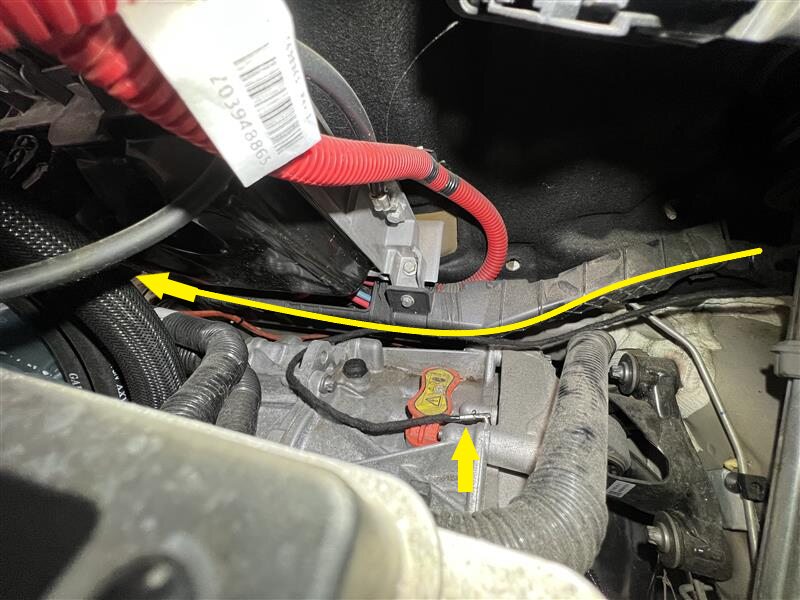

Pull LH coax overlay cable through frunk harness

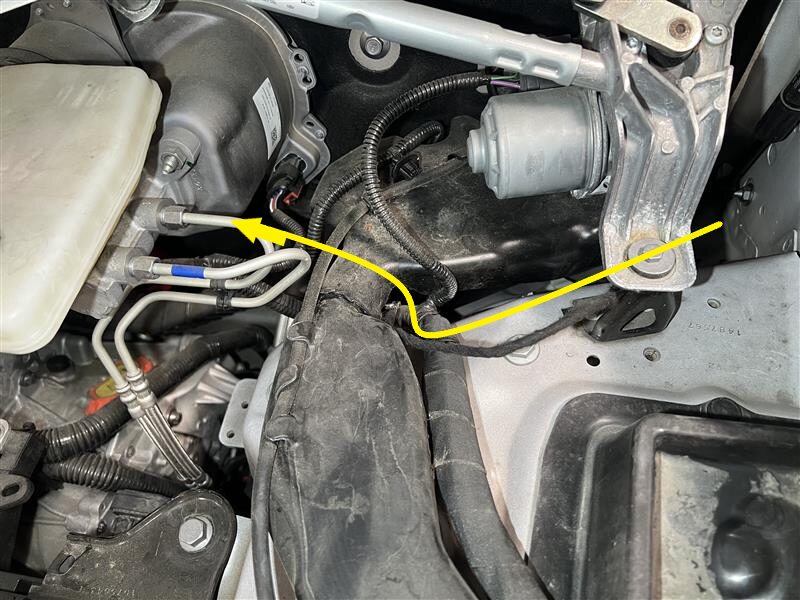

注Pull harness towards car computer and grommet, Route under steering electric steering column
-

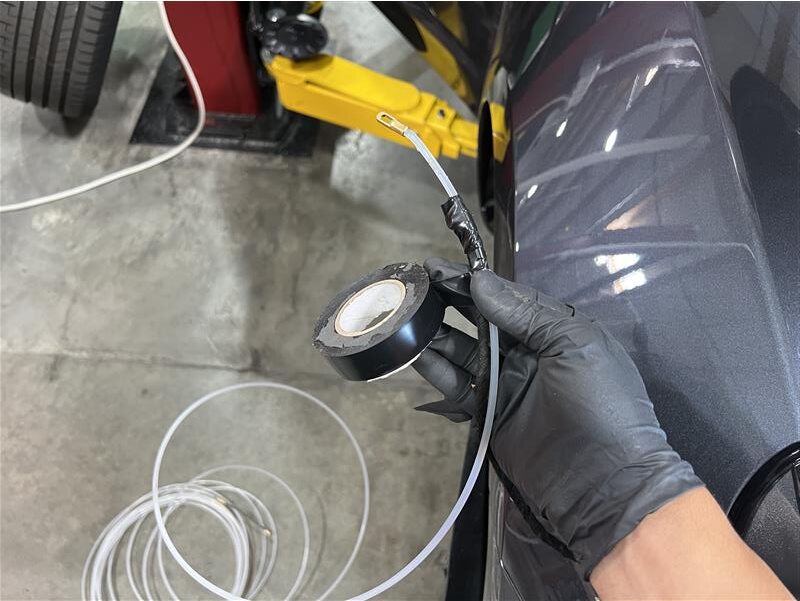

Tape coax overlay onto fish nylon tape
-

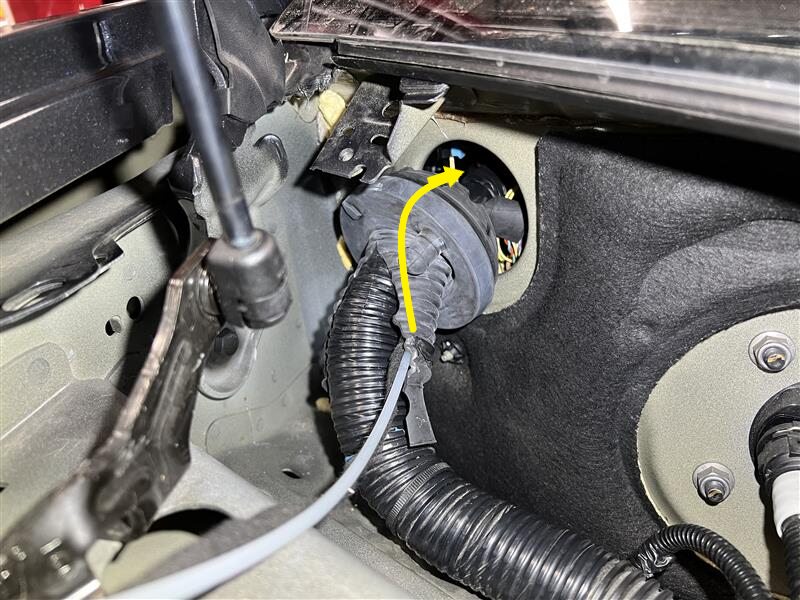

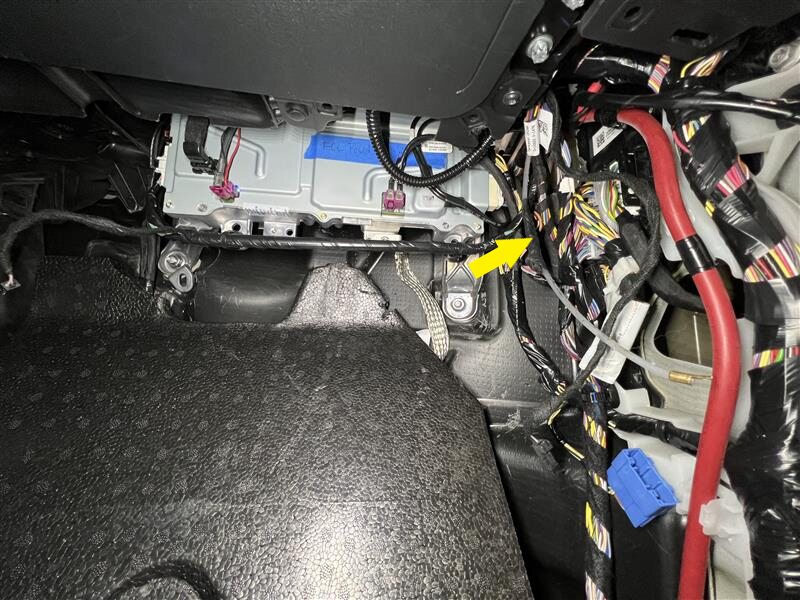

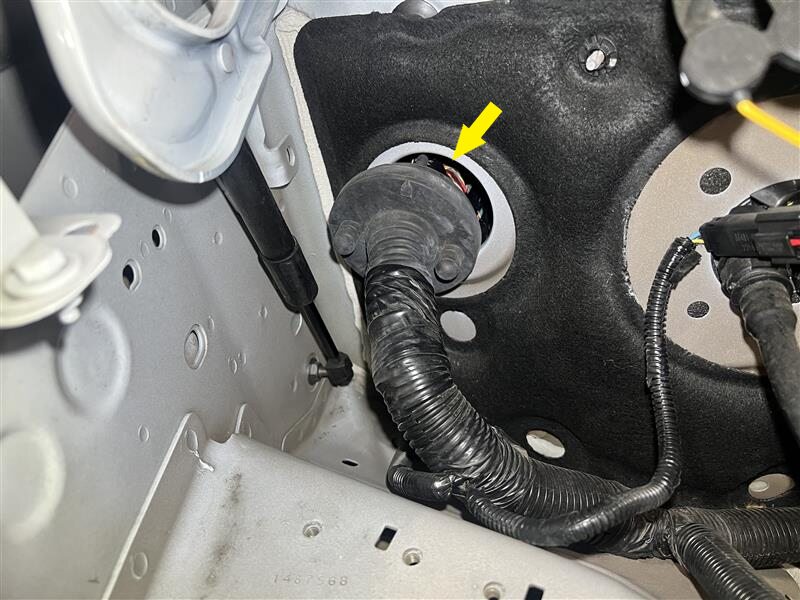

Pull LH coax overlay cable through bulkhead and into interior cabin
-
Remove nylon fish tape
注Remove tape the pull nylon fish tape out of vehicle
-
Position MY RH coax overlay cable into place, Place through RH wheel liner
注Pull till you have roughly 12 inches of cable towards the interior of the vehicle
-

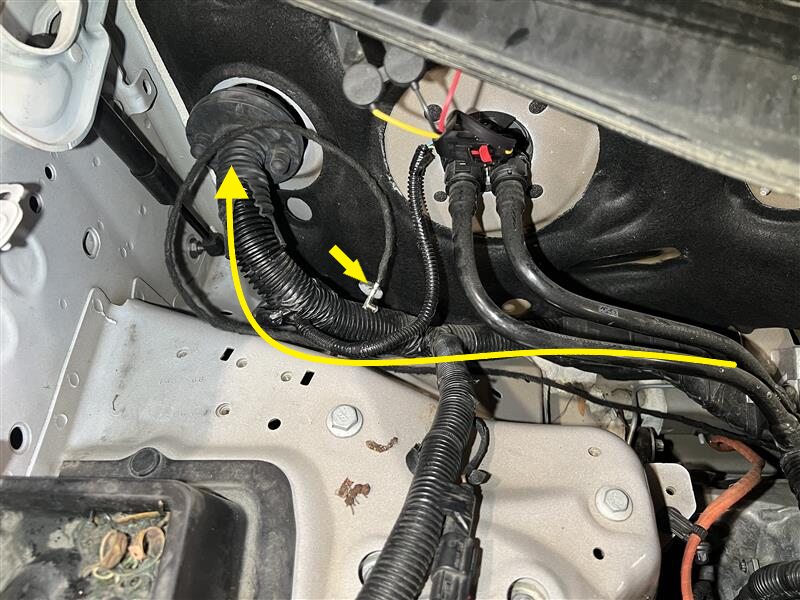

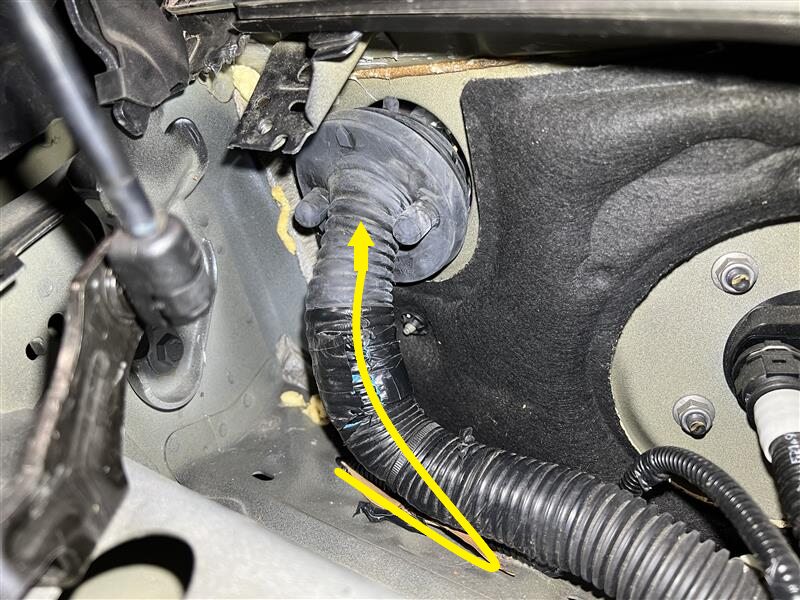

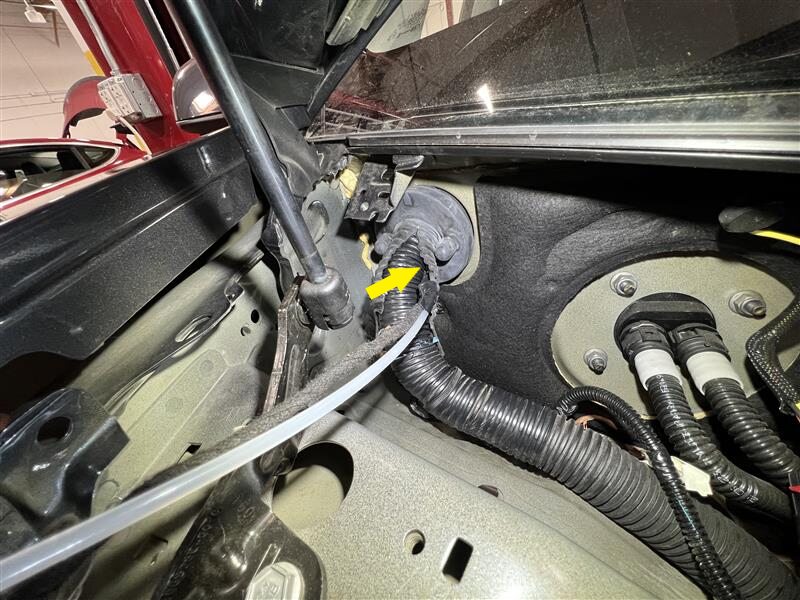

Pull RH coax overlay cable through RH grommet harness
注Pull harness toward car computer under RH grommet main harness
-
Tape coax overlay onto fish nylon tape
-
Pull RH coax overlay cable through bulkhead and into interior cabin
-
Remove nylon fish tape
注Remove tape the pull nylon fish tape out of vehicle
-

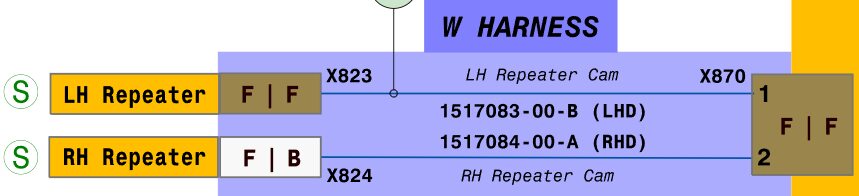

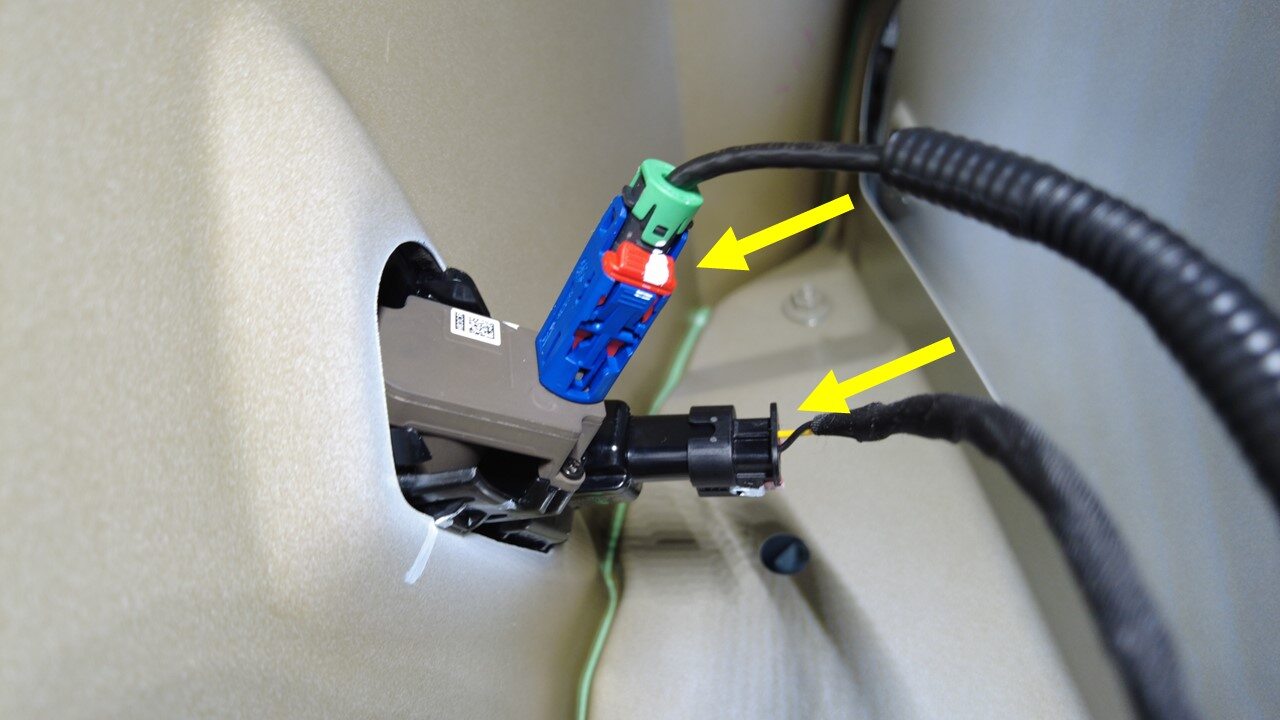

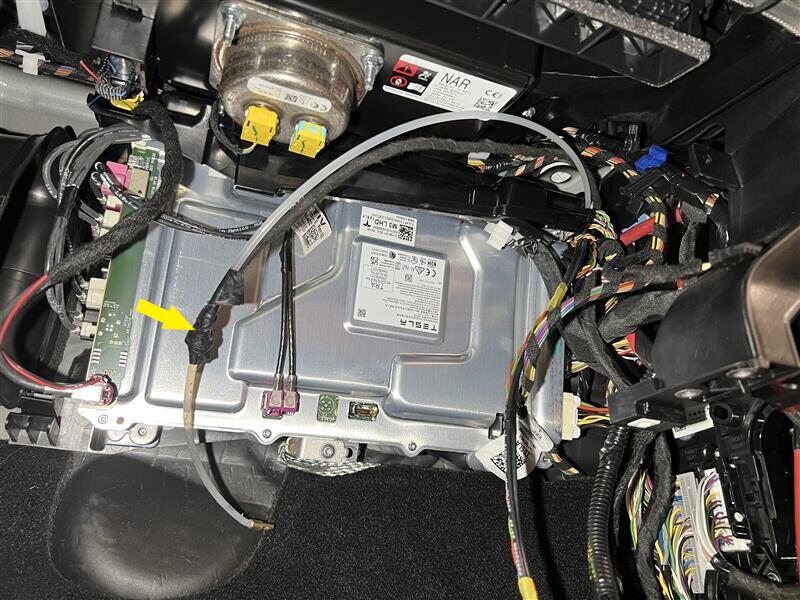

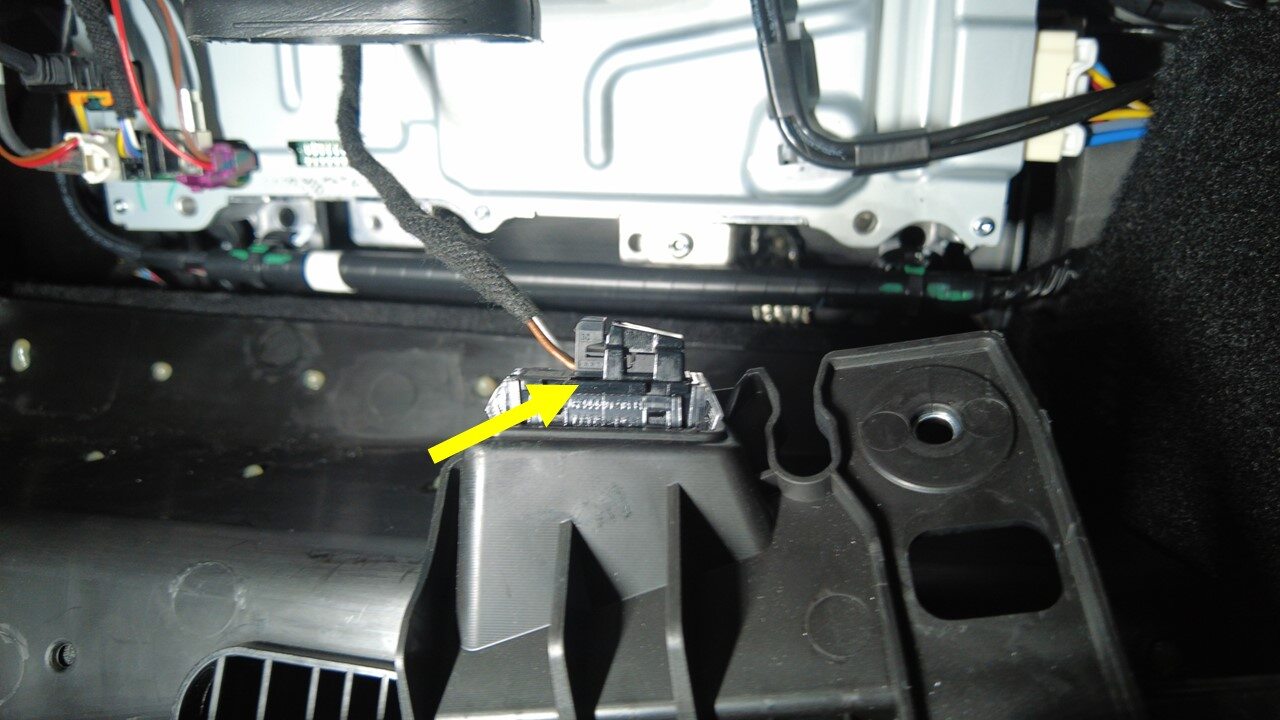

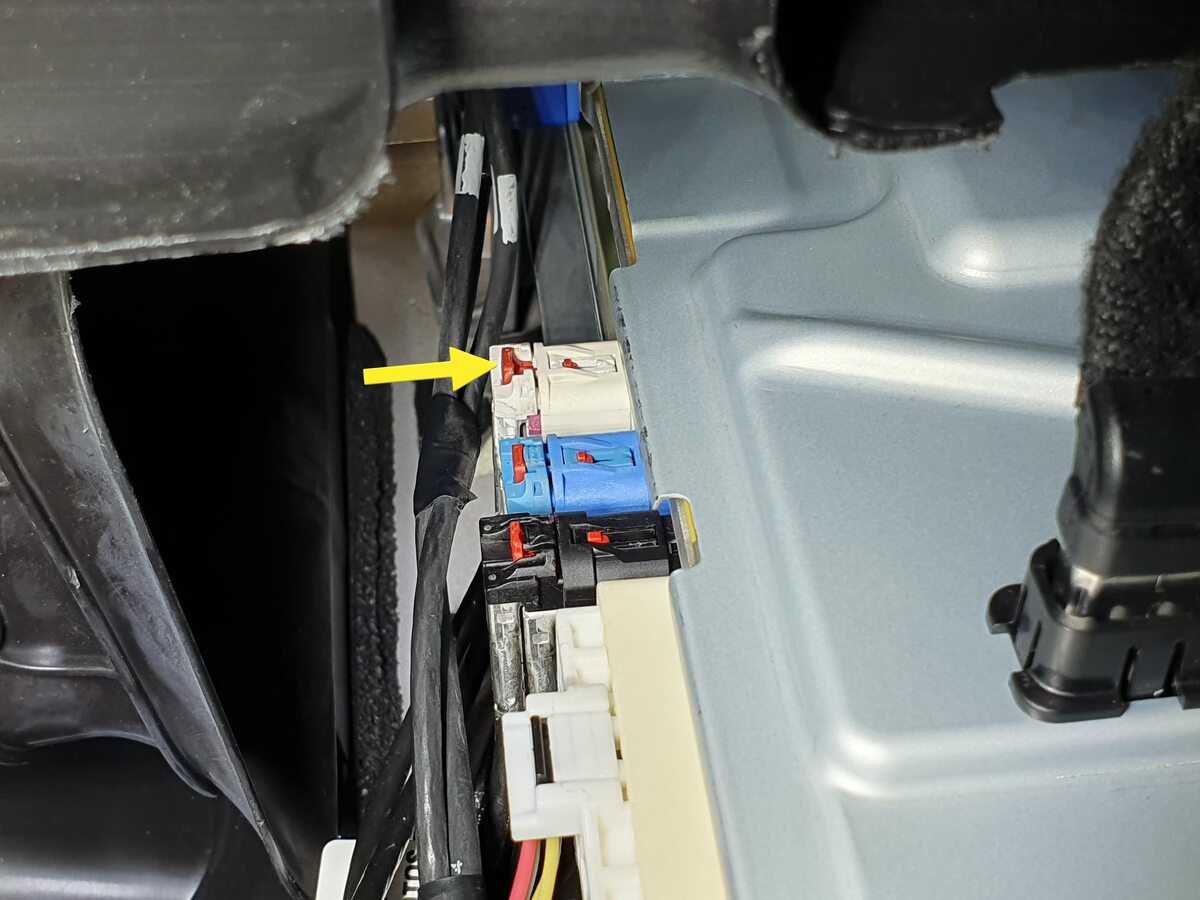

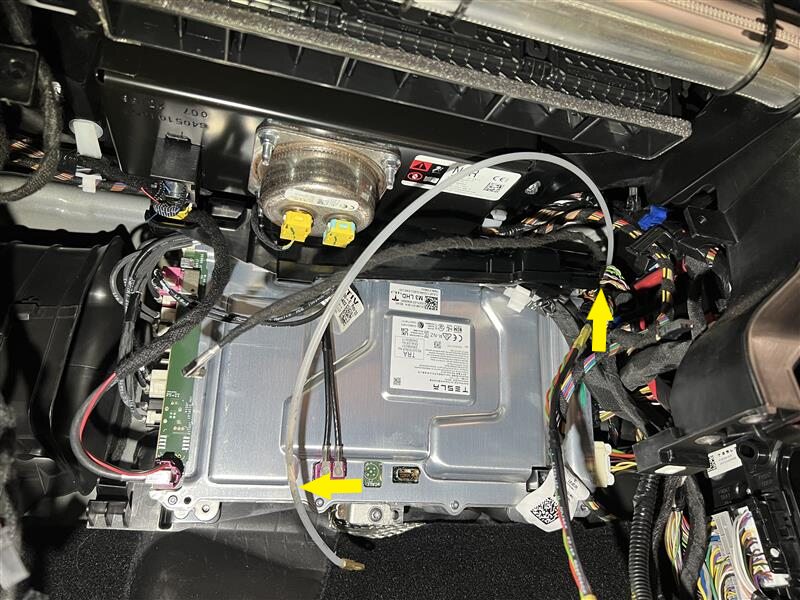

Release side repeater cameras connector X870 from car computer
注1x connector, Release red tab before removing connector
-
Remove locking pin from side repeater cameras connector
注Carefully pry pin out of connector and fully remove locking pin
-

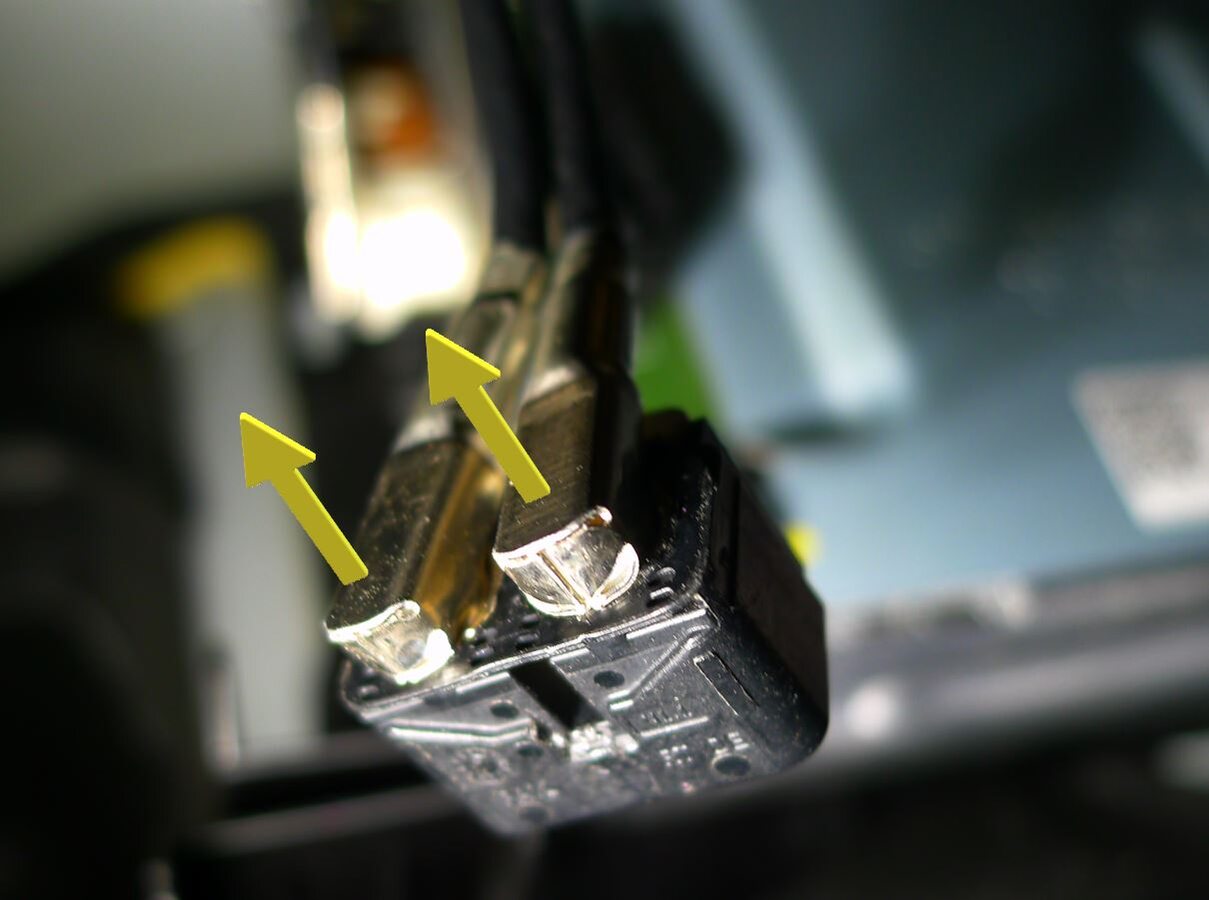

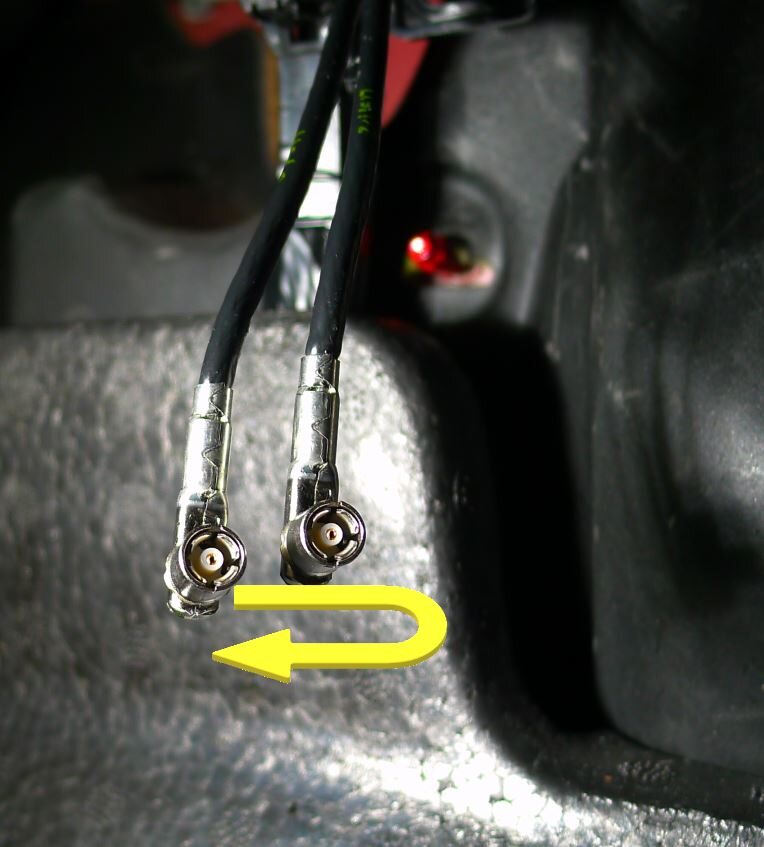

Remove MY coax terminal 1 (LHS) cable from connector
注Inspect all components for damage
-

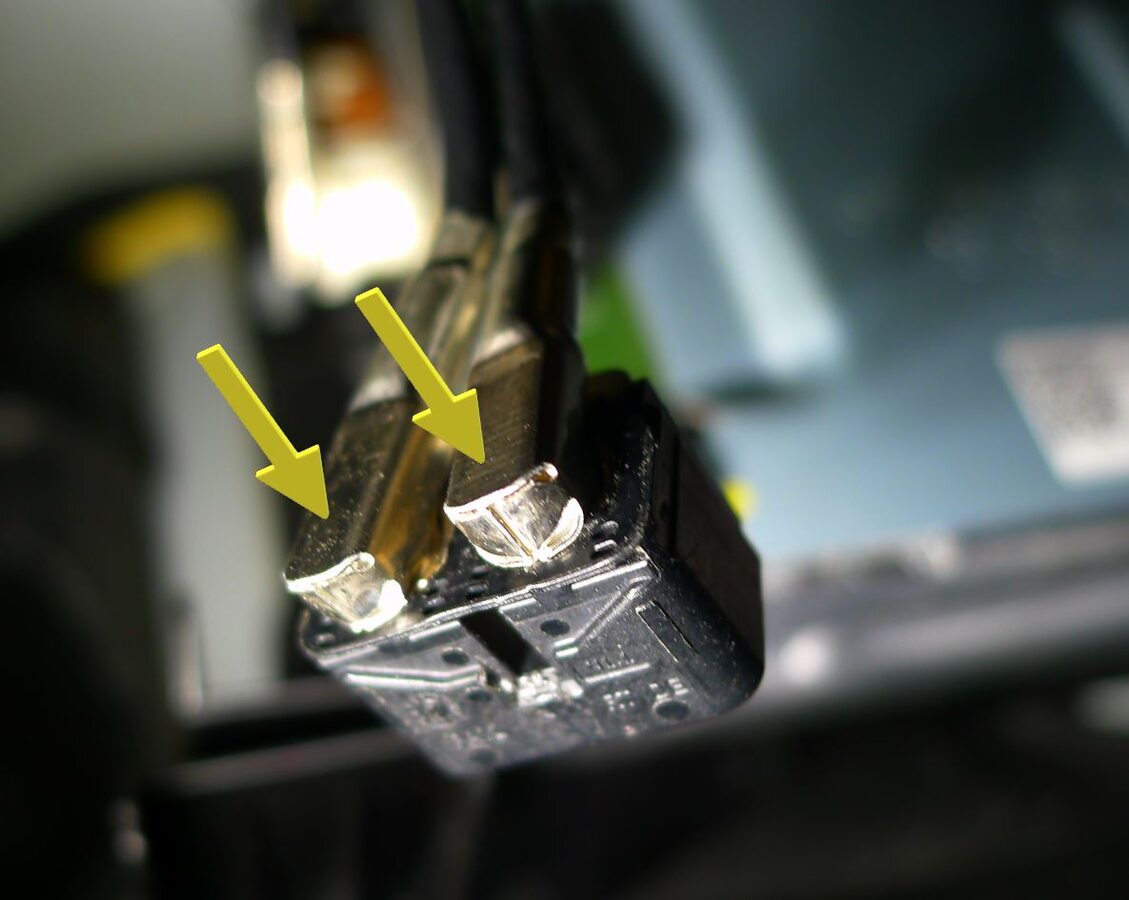

Insert new side repeater coax terminal 1 (LHS) cable onto side repeater cameras connector
注Ensure both coax cables are fully seated into connector, Audible locking and flush mounting to confirm
-
Remove MY coax terminal 2 (RHS) cable from connector
注Inspect all components for damage
-
Insert new side repeater coax terminal 2 (RHS) cable onto side repeater cameras connector
注Ensure both coax cables are fully seated into connector, Audible locking and flush mounting to confirm
-
Secure locking pin to connector
注Align tabs of lock in connector housing, Ensure flush installation of locking pin to connector housing
-

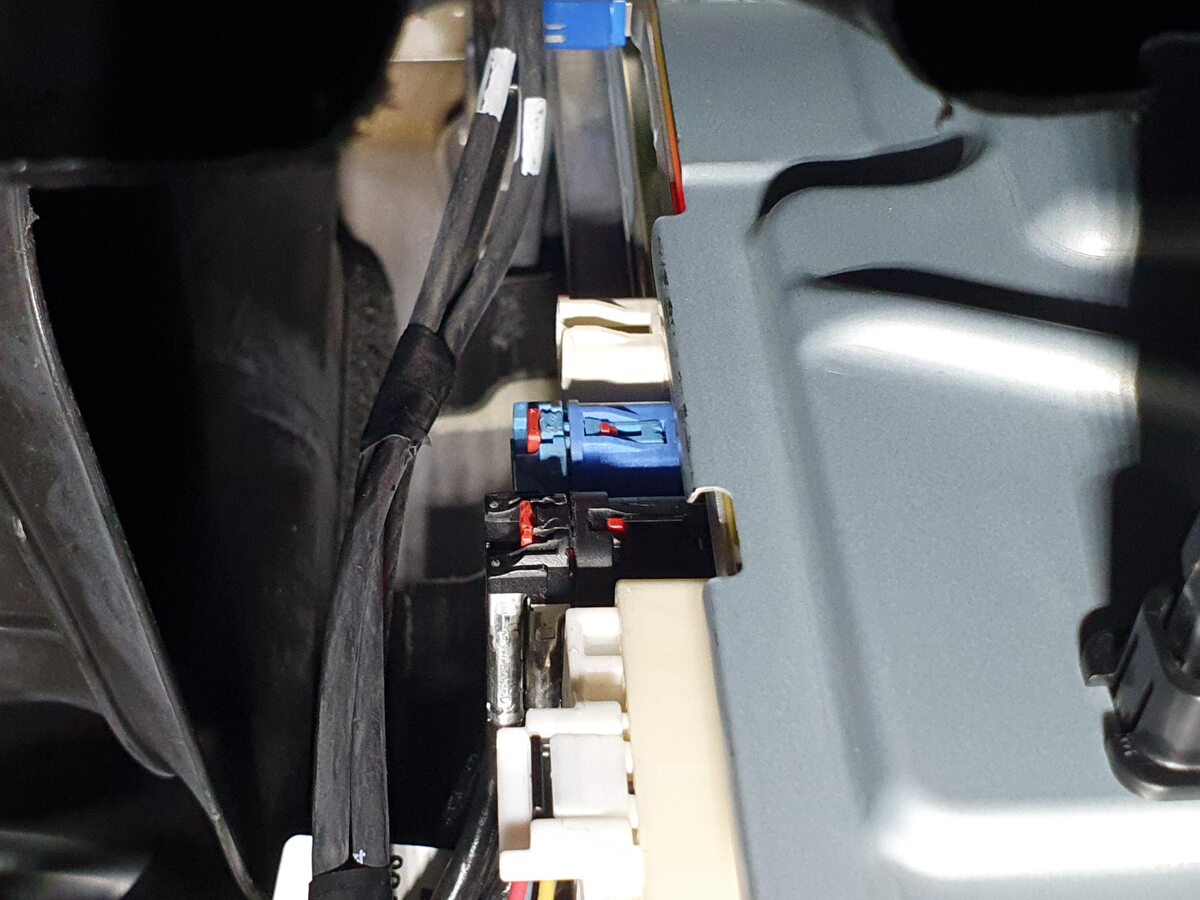

Install side repeater cameras connector x870 onto car computer
注1x connector
-

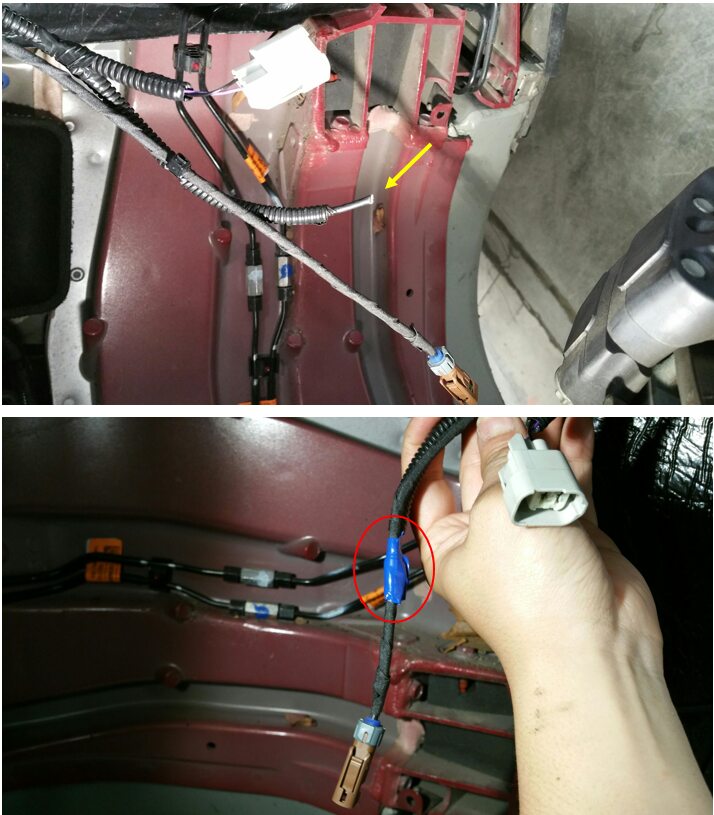

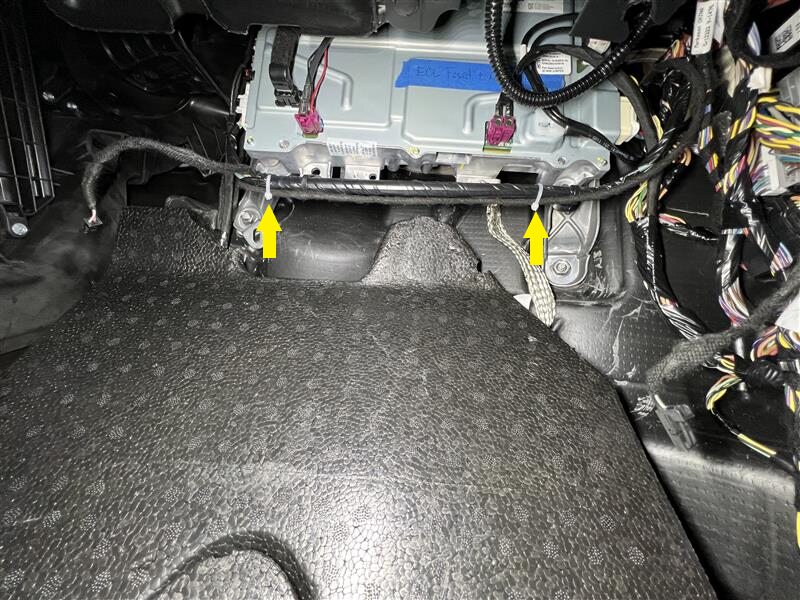

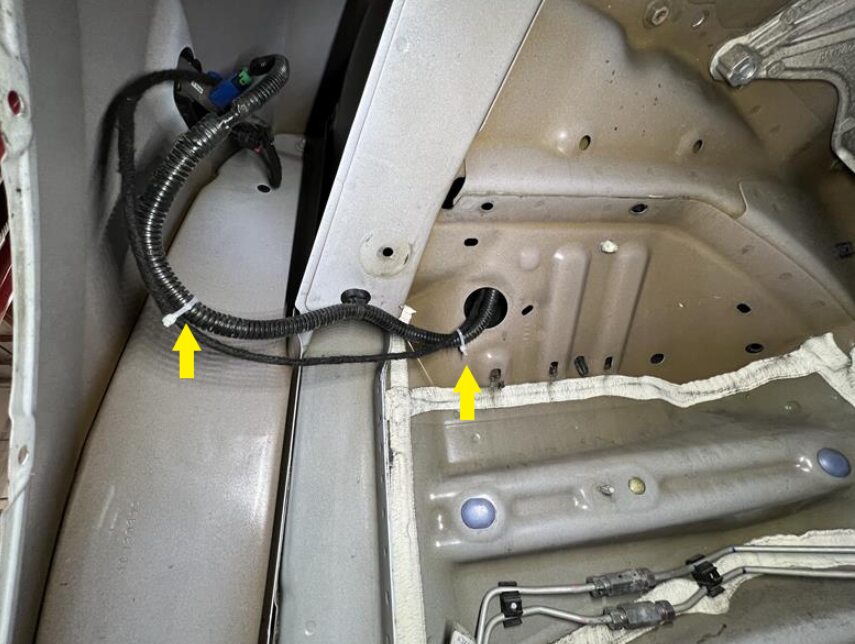

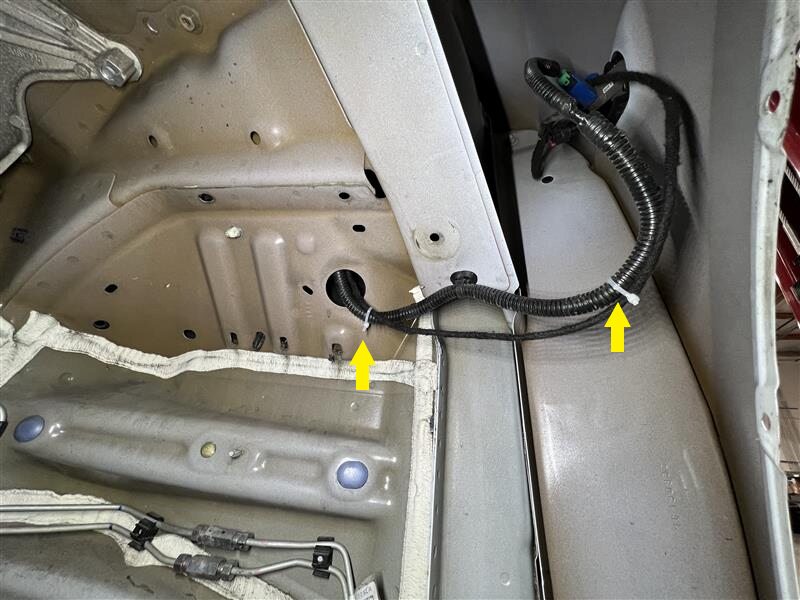

Position MY LH coax overlay cable onto frunk main harness, Secure cable onto harness using zip ties
注11x zip-ties, Trim off excess material after harness has been secured
-
Cut off the vehicle side repeater coax terminal and tape to vehicle harness
注Cut the coax connector only
-
Connect front main harness to LH side repeater camera
注2x connectors, Engage locking tabs
-

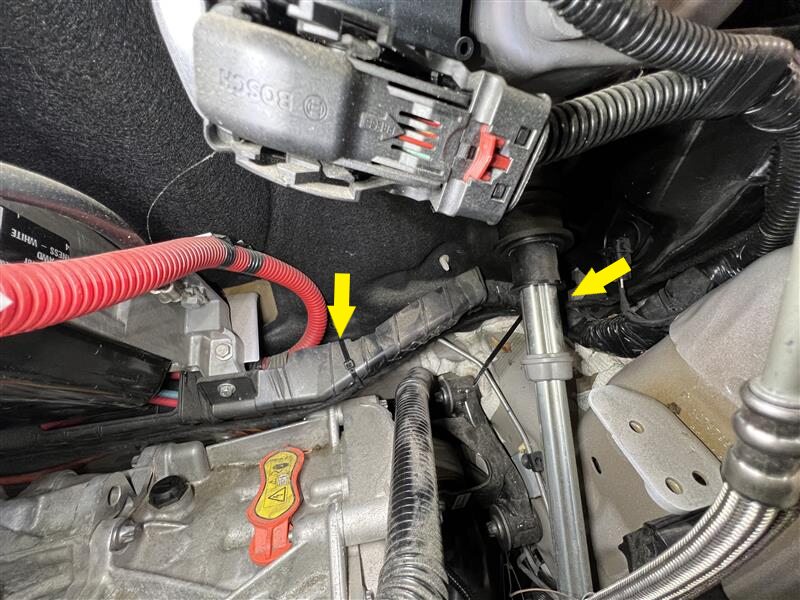

Position MY RH coax overlay cable onto frunk main harness, Secure cable onto harness using zip ties
注5x zip-ties, Trim off excess material after harness has been secured
-
Cut off the vehicle side repeater coax terminal and tape to vehicle harness
注Cut the coax connector only
-
Connect front main harness to RH side repeater camera
注2x connectors, Engage locking tabs
-

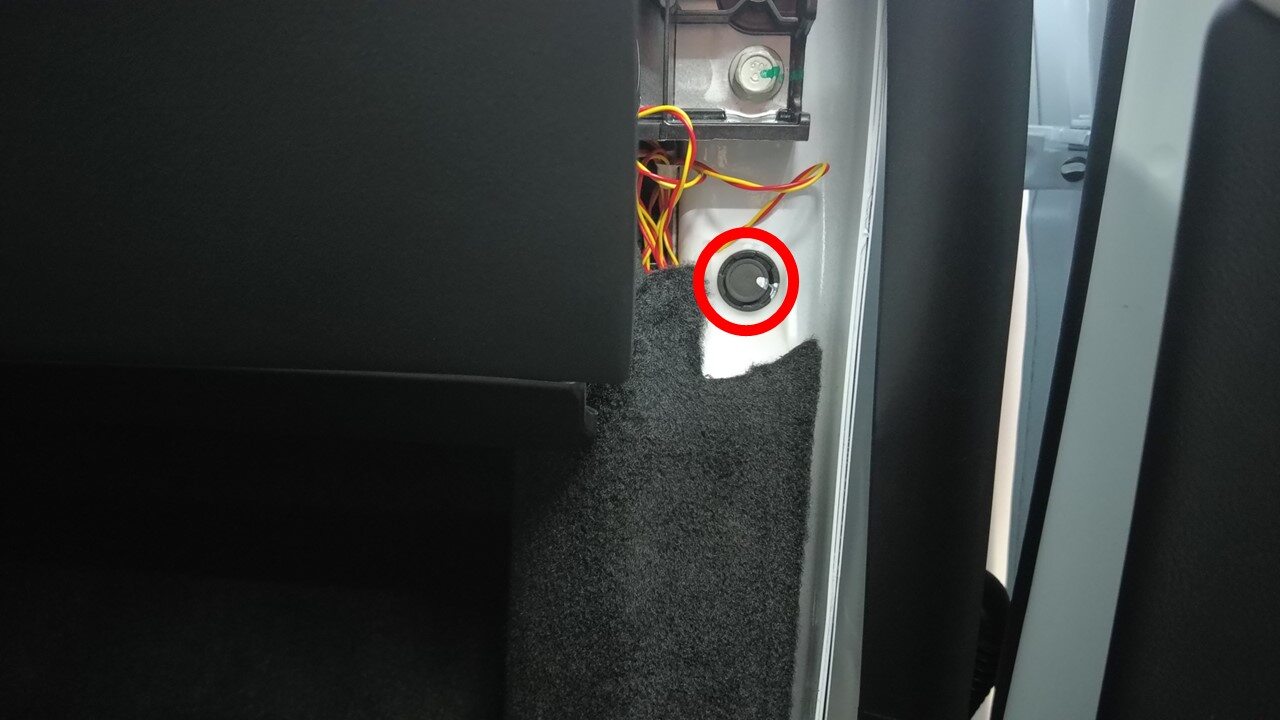

Secure RH grommet from body
注Use electrical tape to wrap the end of the dust boot
- Install the LH and RH front wheel liners and wheels. See 轮拱内衬 - 前 - 左 ((拆卸和更换)).
- Install the air intake duct. See 风管 - 进气 ((拆卸和更换)).
- Install the cowl screen. See 前挡风玻璃下饰板 ((拆卸和更换)).
-

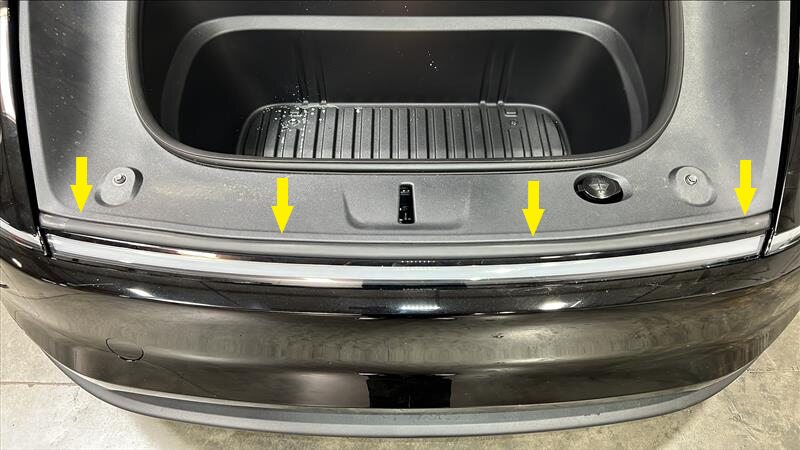

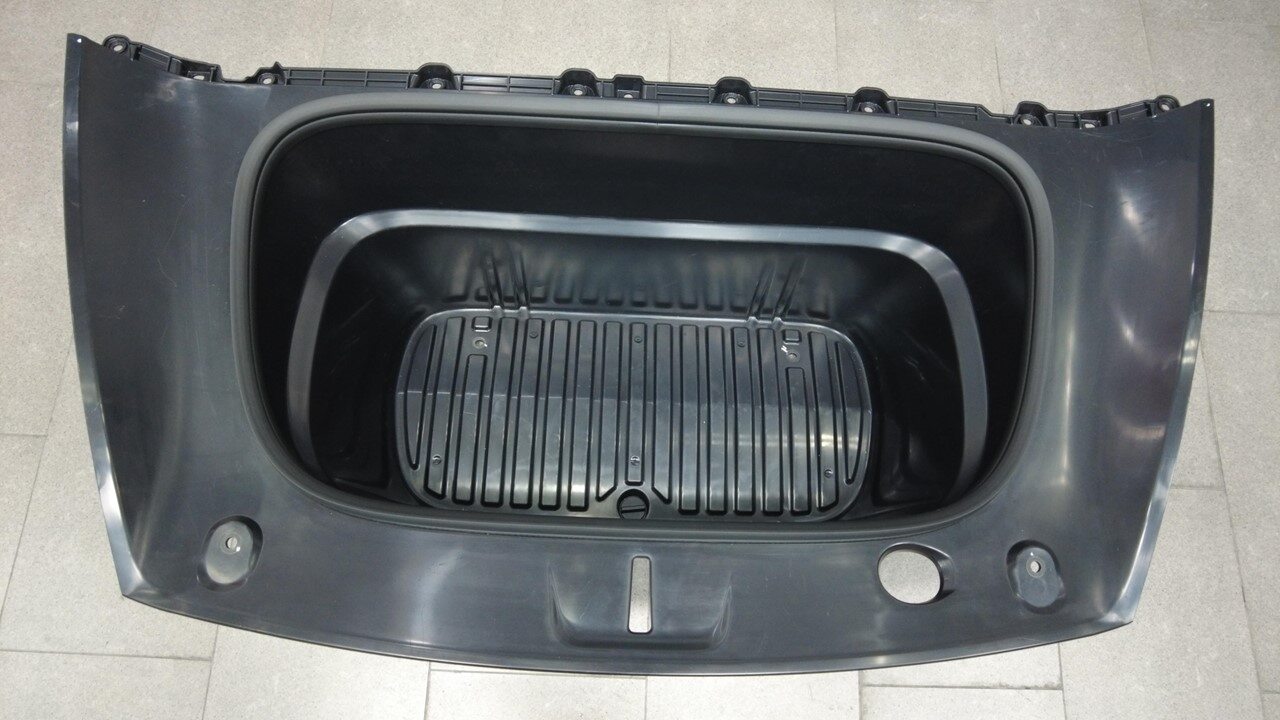

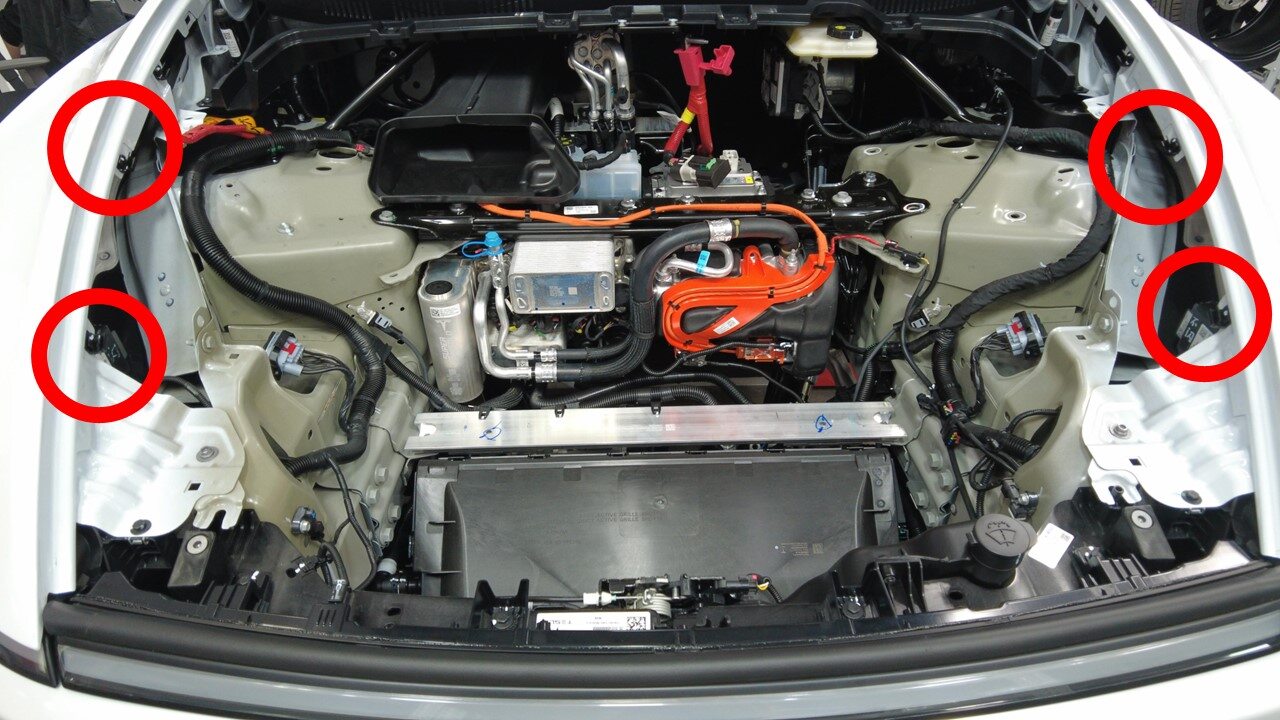

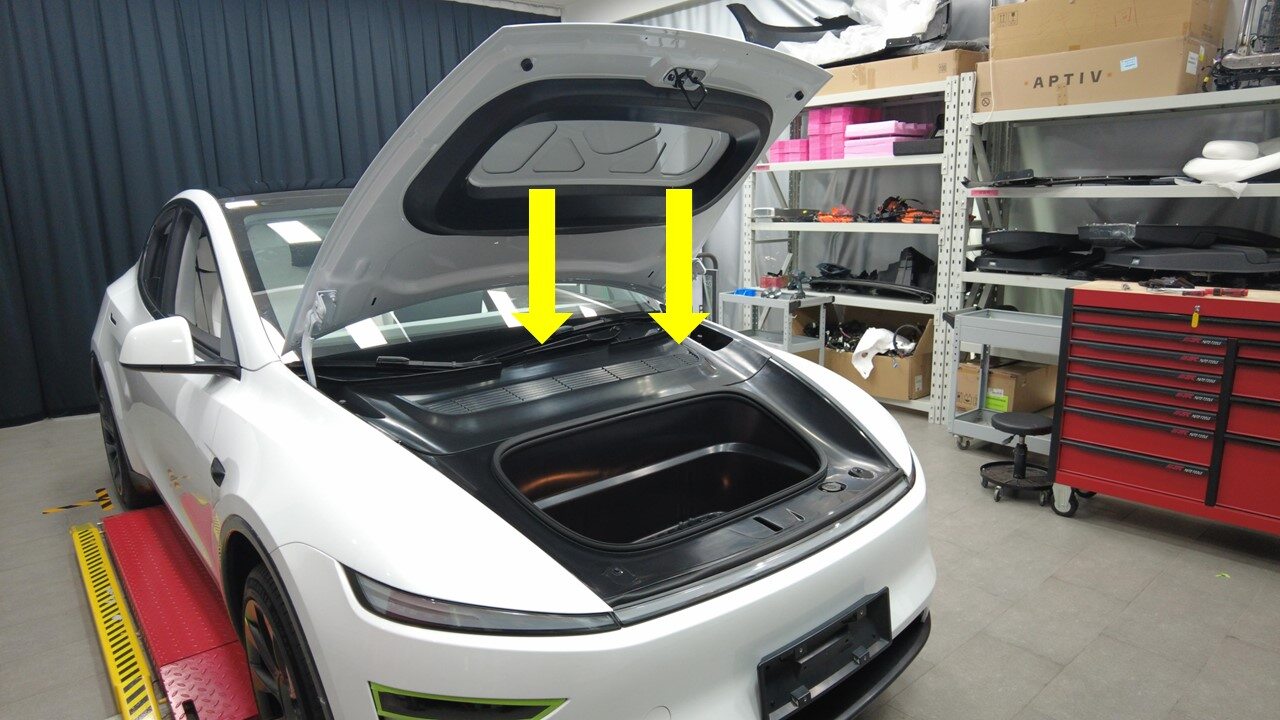

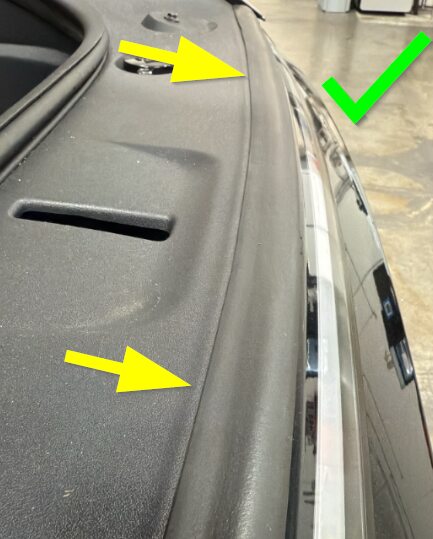

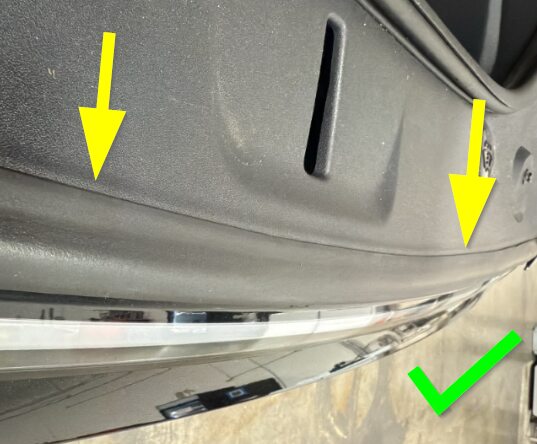

Install frunk onto vehicle
注4x clips, 3x tabs, 2x trim clips, Replace any clips if broken or missing, Ensure aero seal is positioned over frunk leading edge and not under leading edge
-

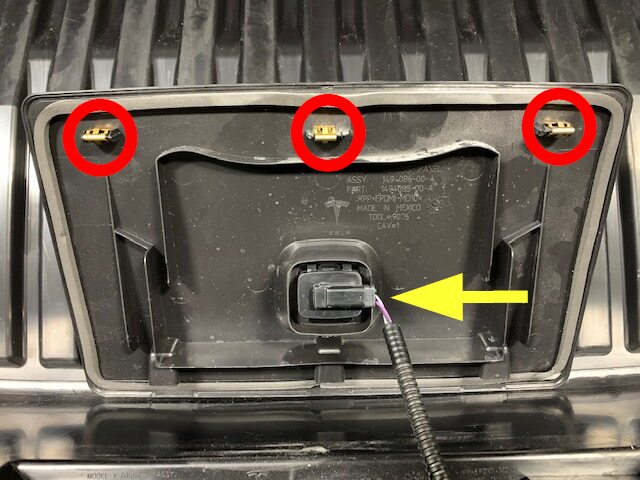

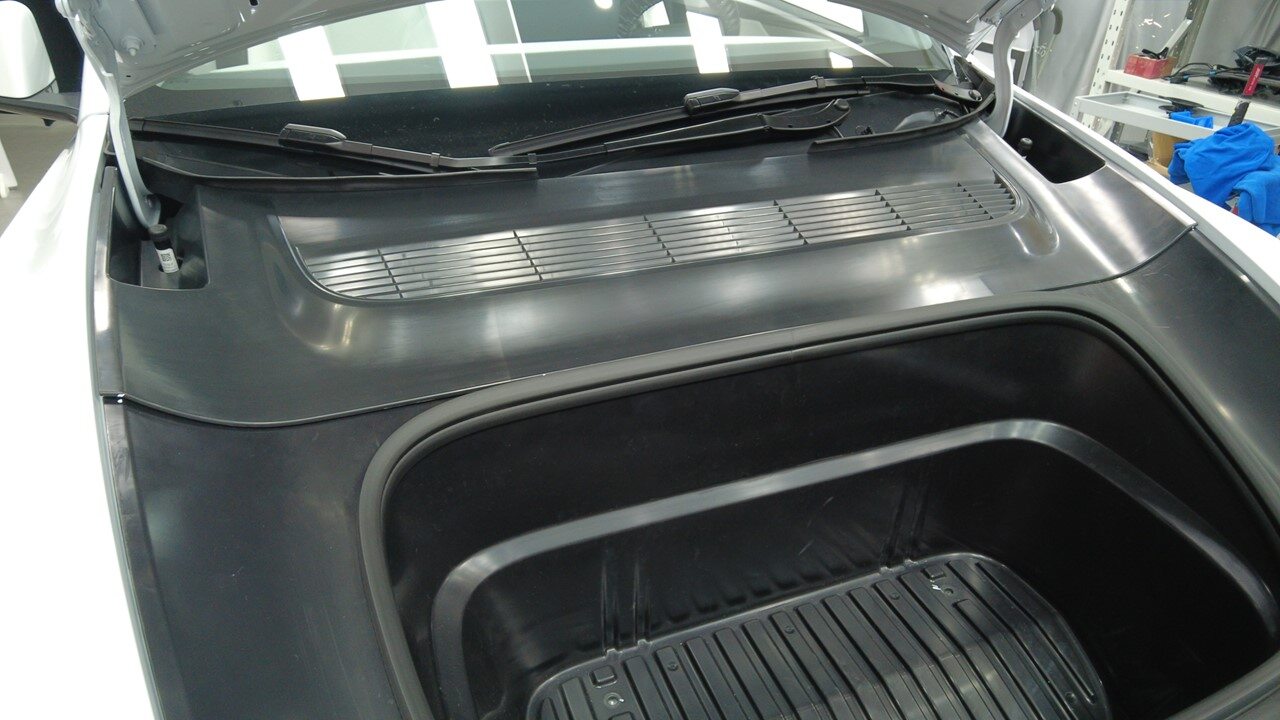

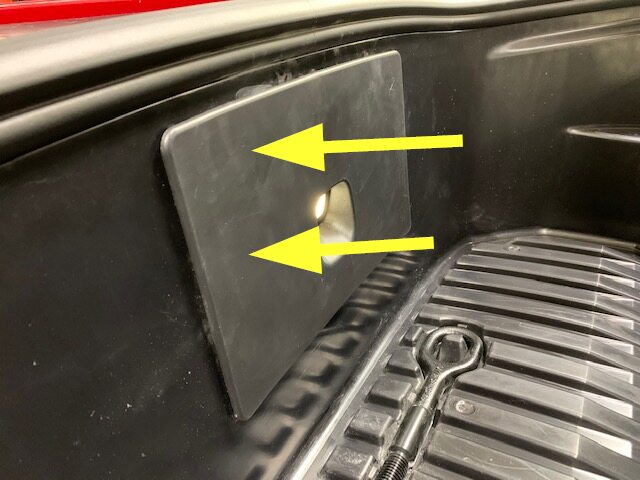

Install frunk access panel
注3x clips, 1x connector
-

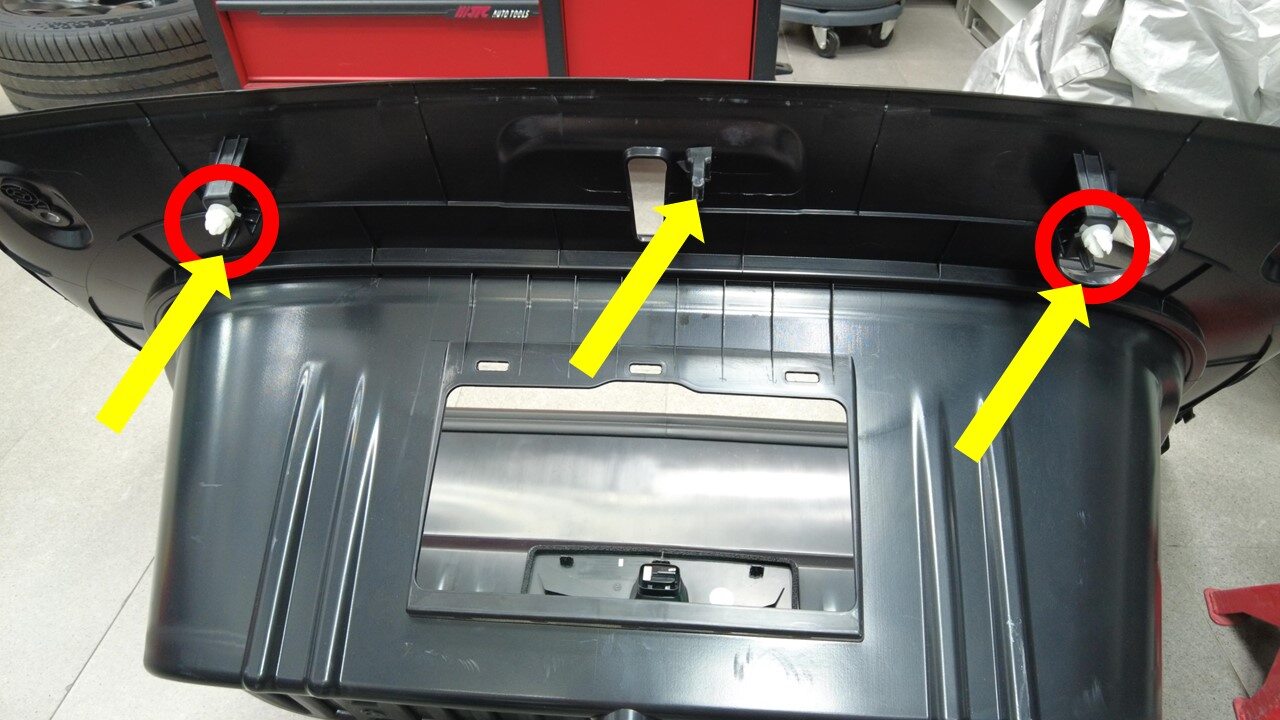

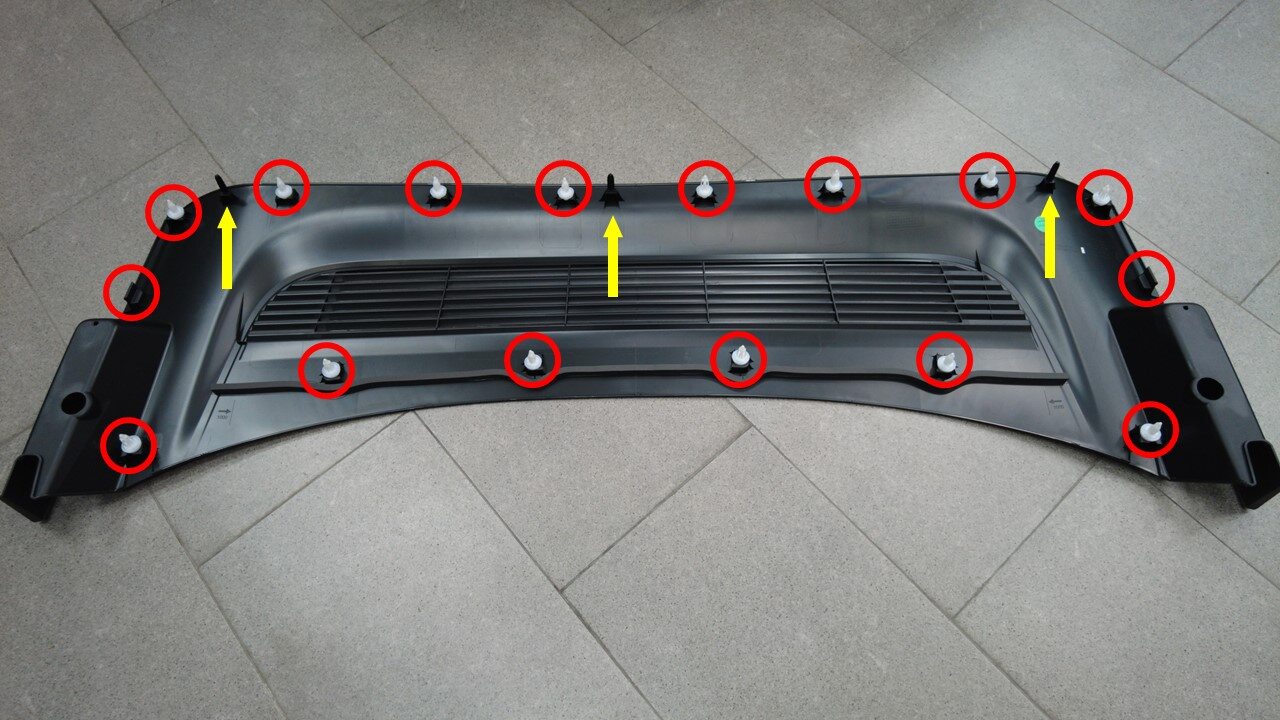

Install rear apron
注16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron
-

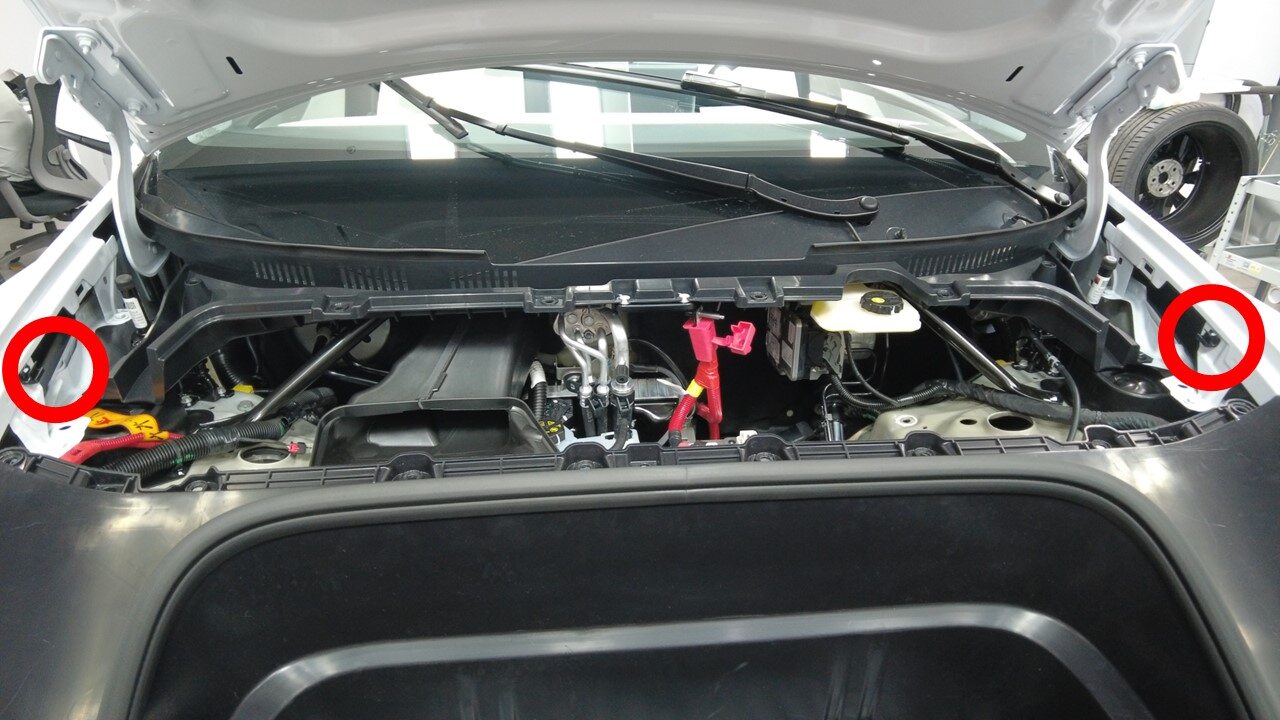

Close hood
-

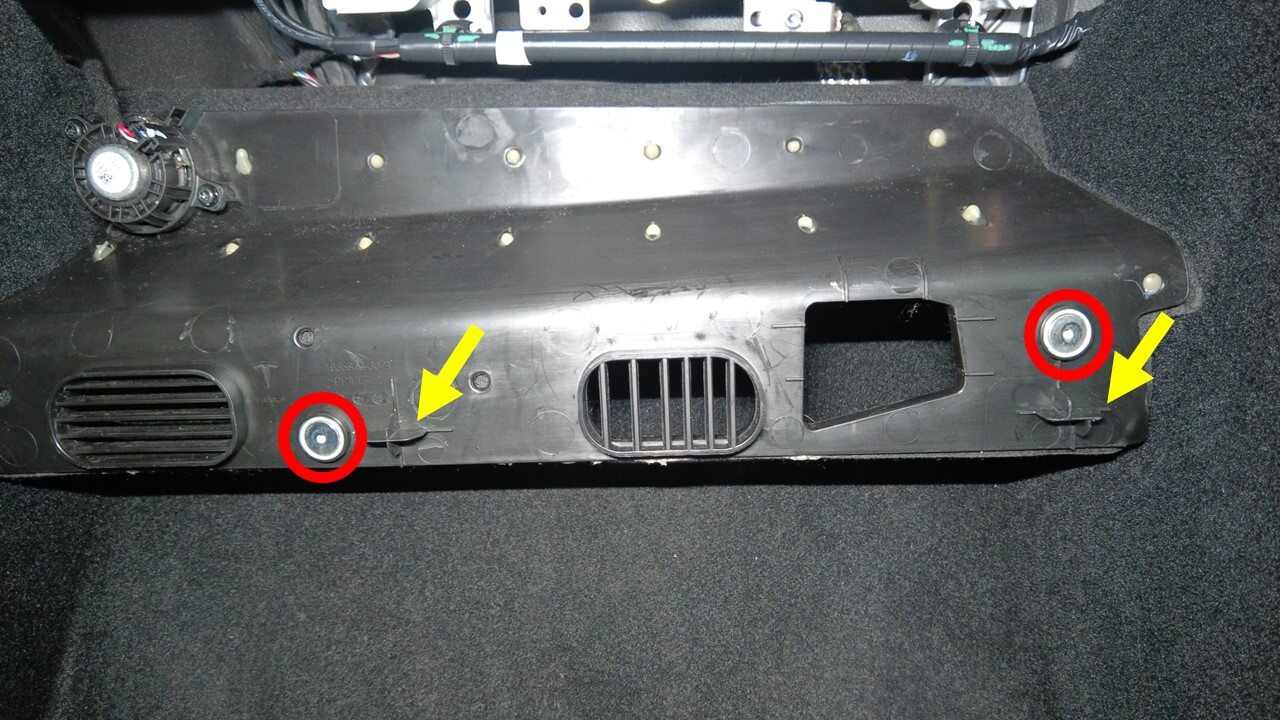

Install console RH front side panel
注14x clips, 2x locating pins, Ensure all clips and pins seat propely
-

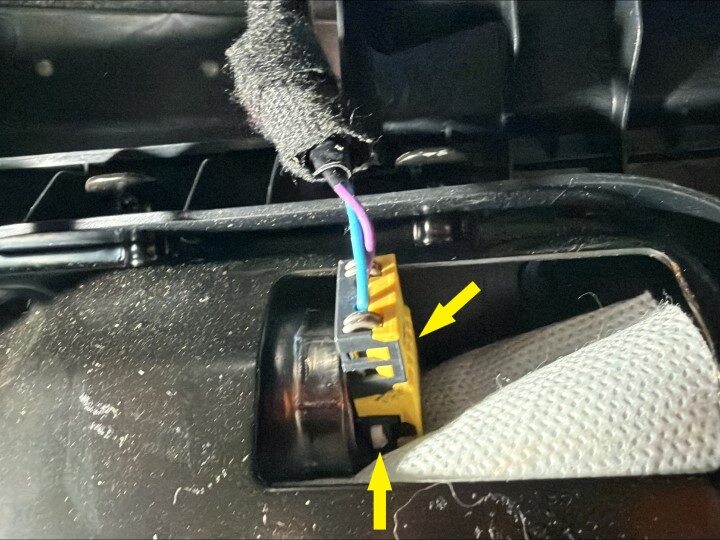

Install RH knee air bag cover to IP carrier
注2x connector, 5x tabs, 1x location pin, 4x bolts, E10, 8 Nm, Install new bolts, After reconnecting 2x harness assure 5x datum's and location pin align prior to re-attaching air bag cover assembly, insert 4x e10 bolts to secure air bag assembly after re-attachment
-
Secure front RH cabin carpet cover to RH knee air bag cover
注1x connector, 2x magnets, 2x datums
-

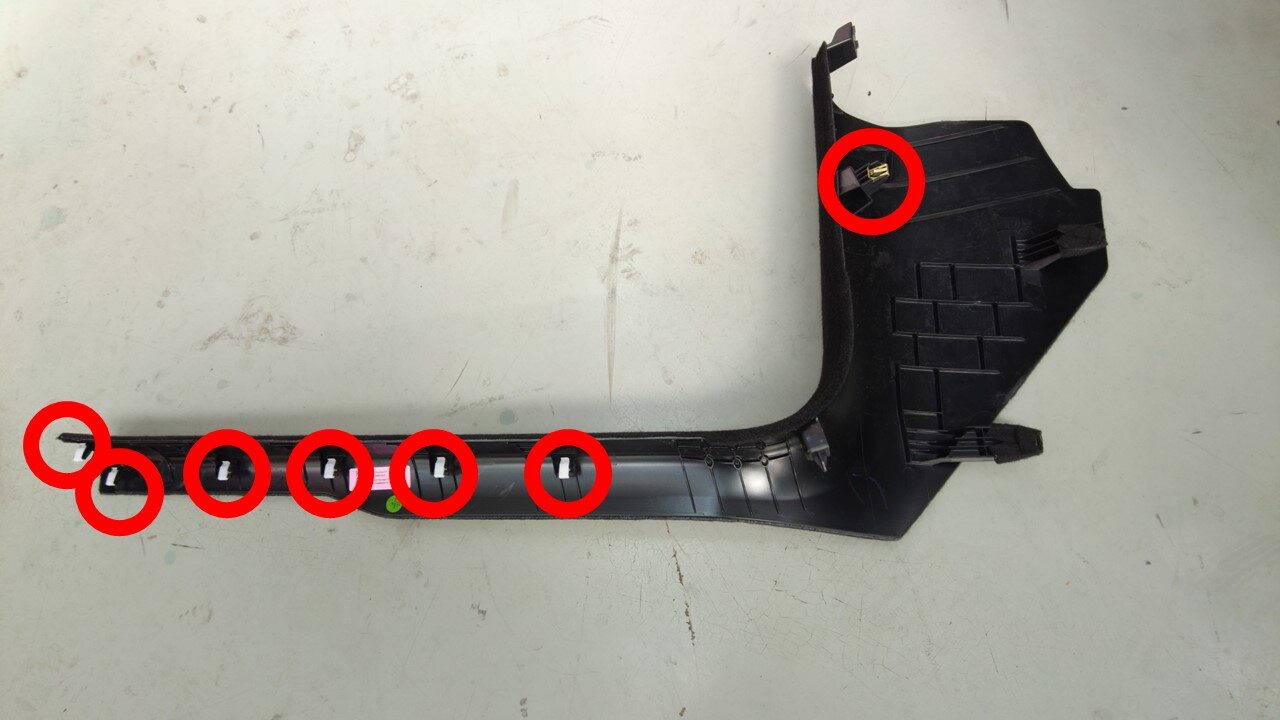

Install RH lower A pillar trim
注7x clips, 4x guide tabs, 1x push clip, Align front guide tabs then align slot with harness bracket and then push rear clip to secure, Make sure all clips and tabs fully seated
-
Install RH IP end cap
注5x clips, 2x guide tabs, Pull the seal over end cap
-

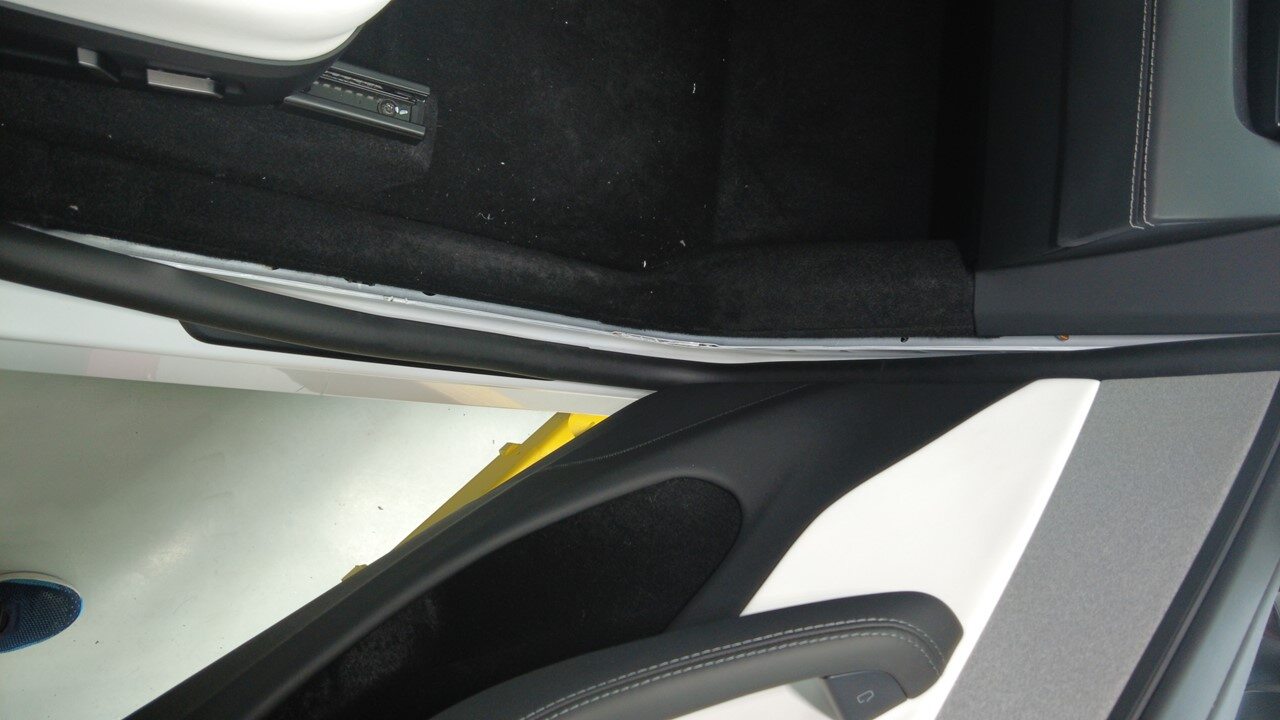

Install RH front primary door seal
注Verify seal is seated properly on all trim panels
-
Move RH front seat to original position
-

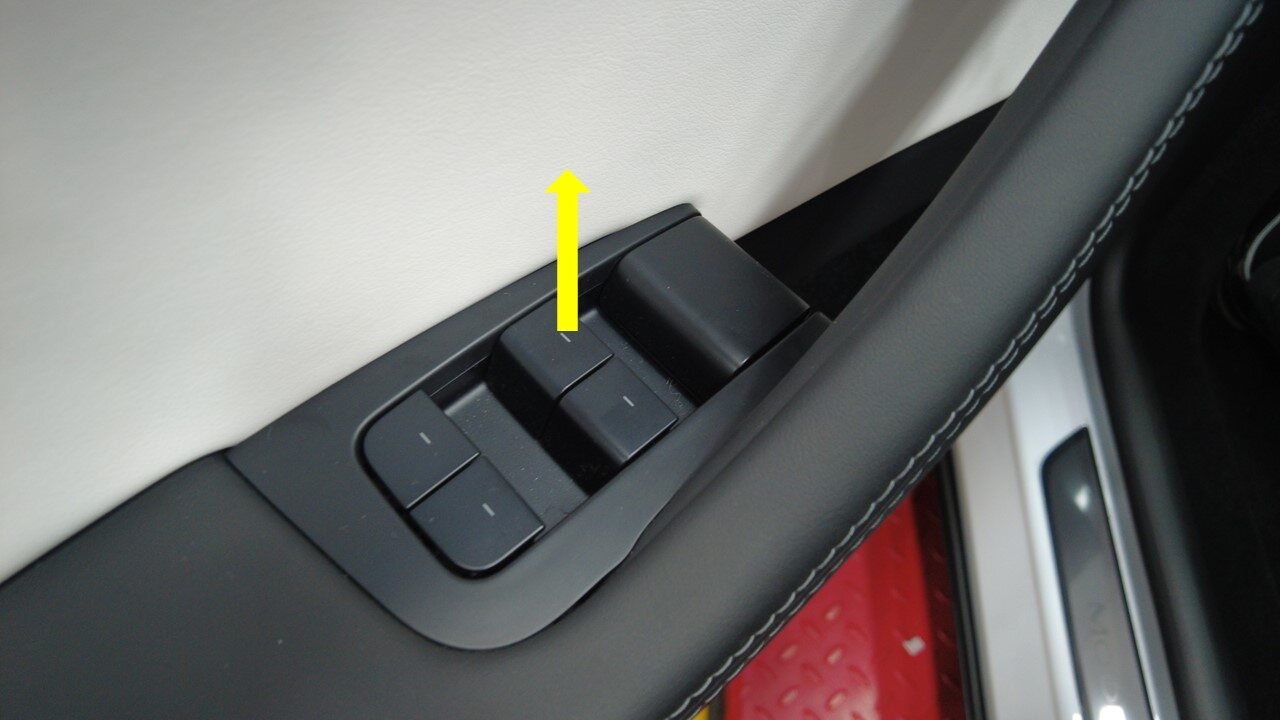

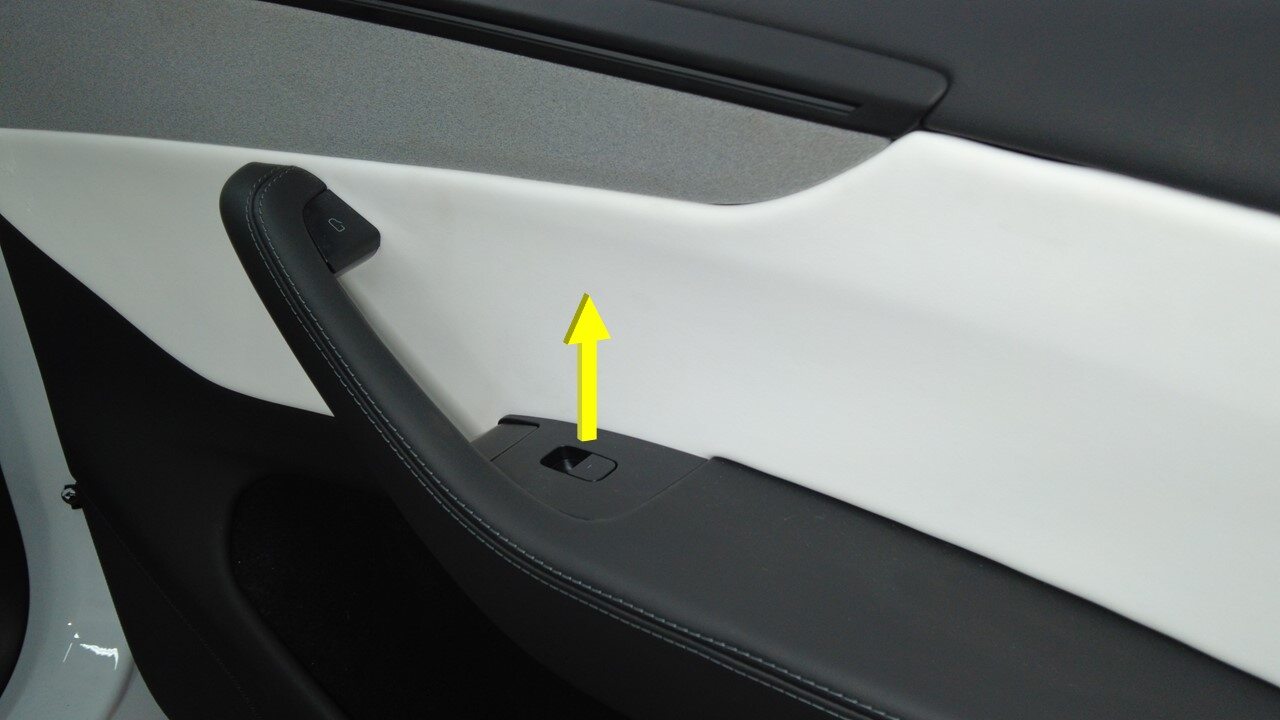

Raise RH front window
-
Close RH front door
-

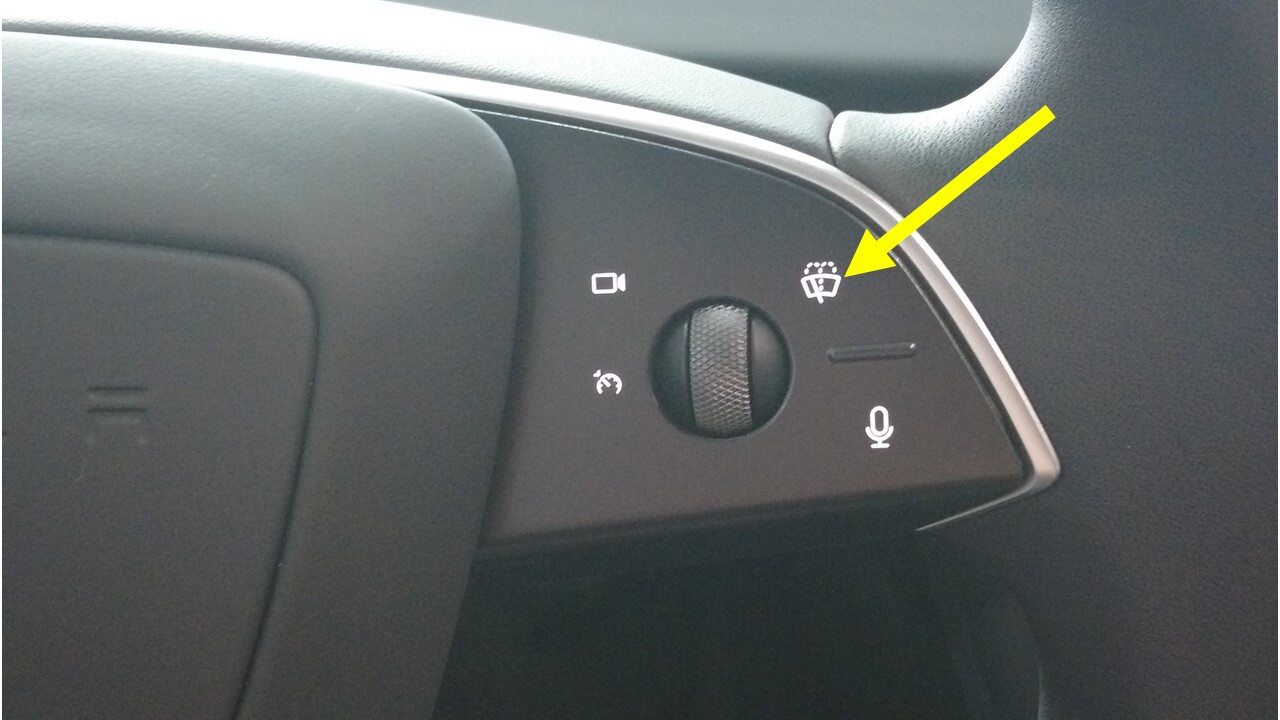

Verify operation of windshield washers and wipers
-

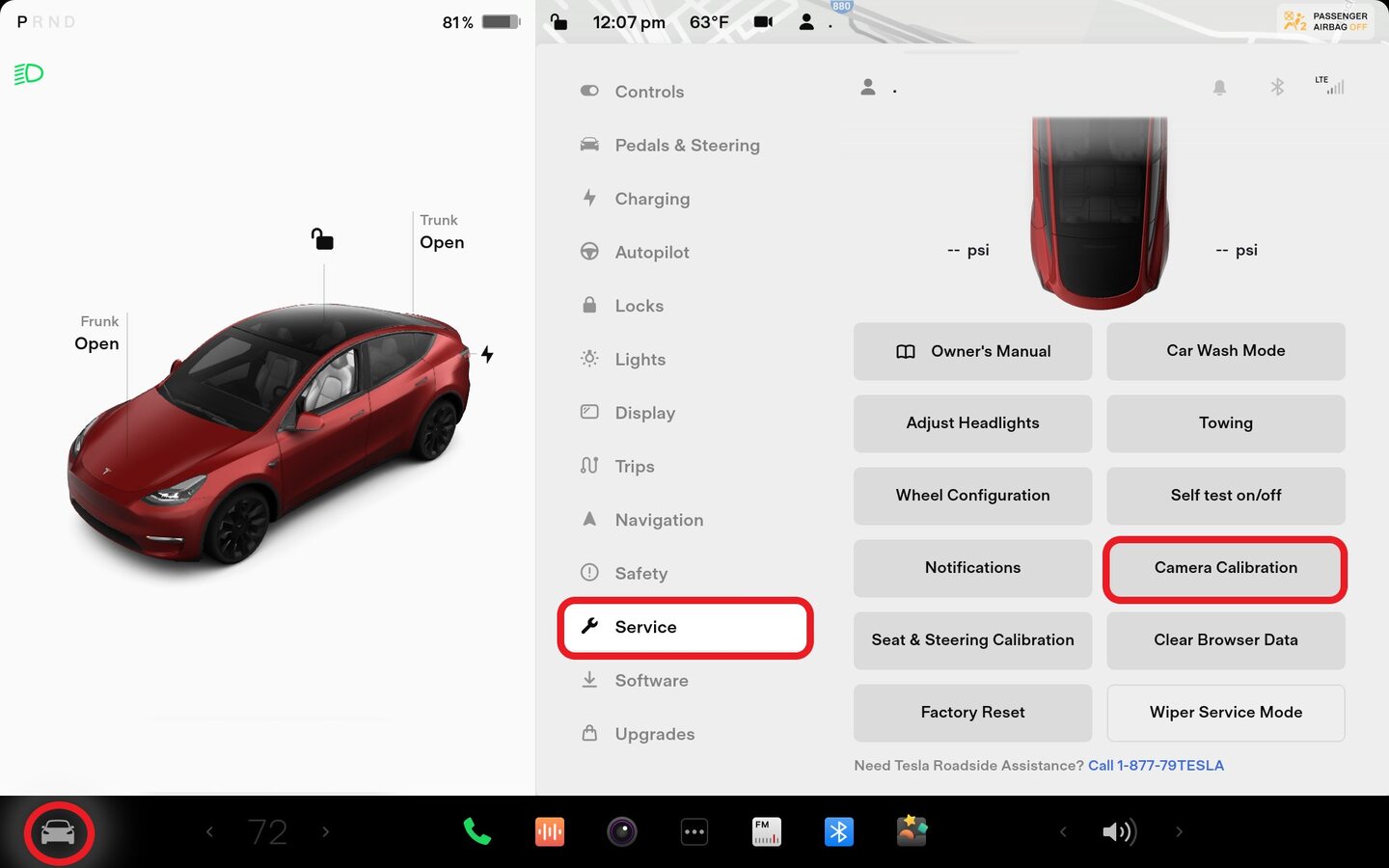

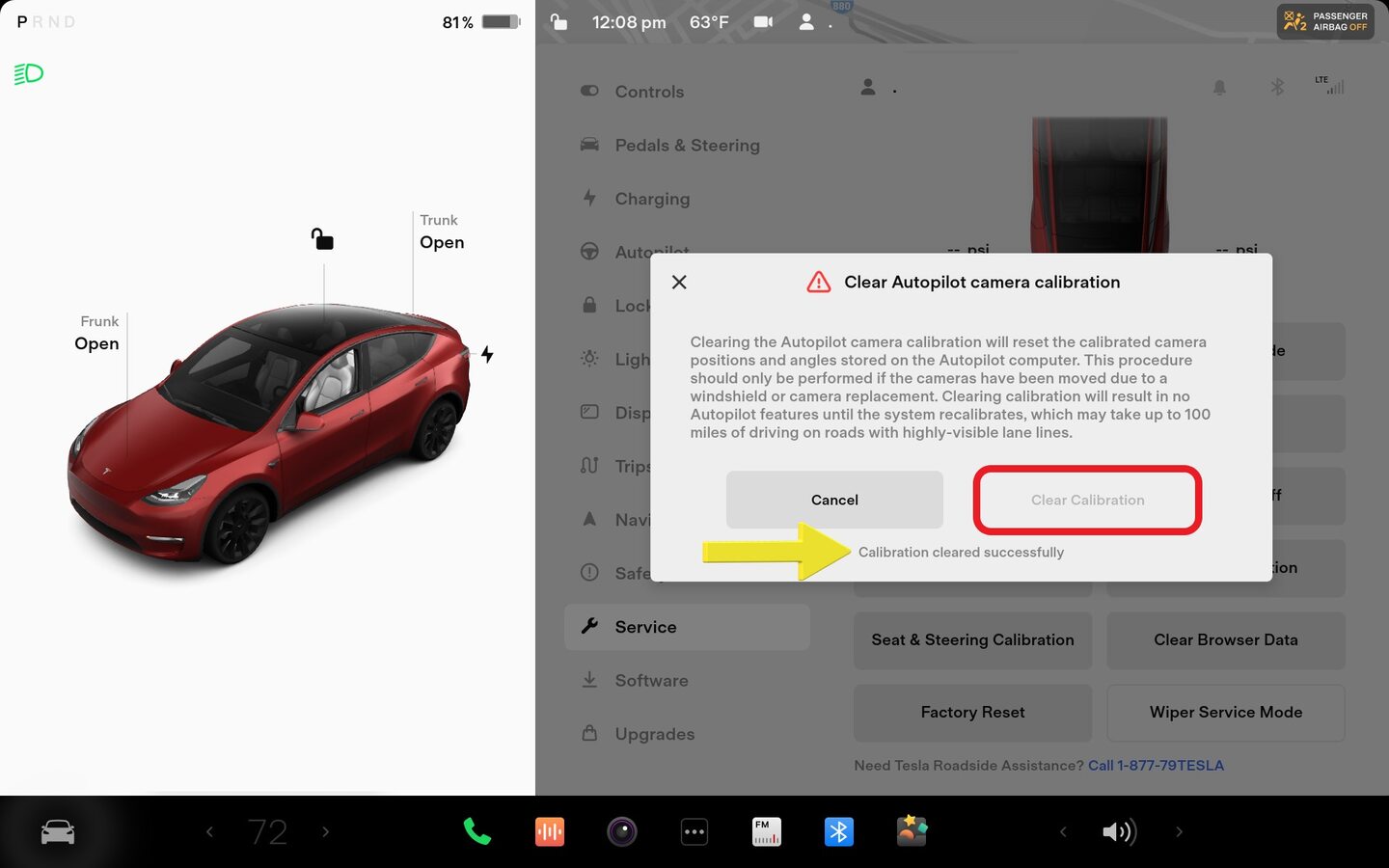

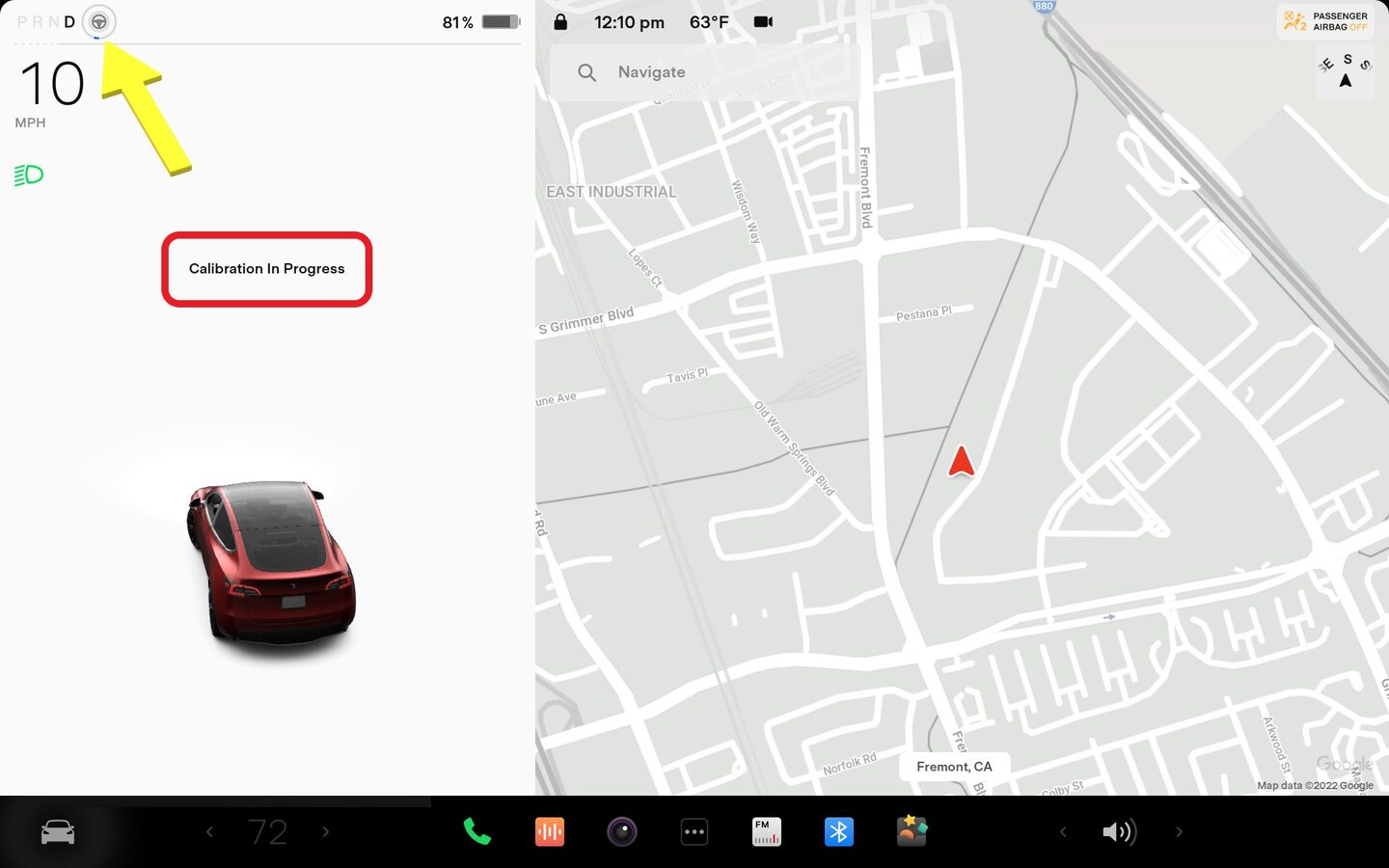

Clear DAS Calibration through UI
注Controls > Service > Camera Calibration, Select Clear Calibration, Verify calibration was cleared successfully, Wait for prompt to disappear automatically before continuing, Calibration in Progress message and progress icon will appear during the next drive cycle
-
Raise LH front window
-
Close LH front door
