校正代码 40202000 0.60 注意： 除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。 除非明确要求，否则请勿堆叠校正代码。 注意： 请参阅平均维修工时深入了解 FRT 及其创建方式。 注意： 请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意： 请参阅人体工程学注意事项查看安全健康的作业规程。

1. Raise and support the vehicle. See 举升车辆 - 双柱举升机.

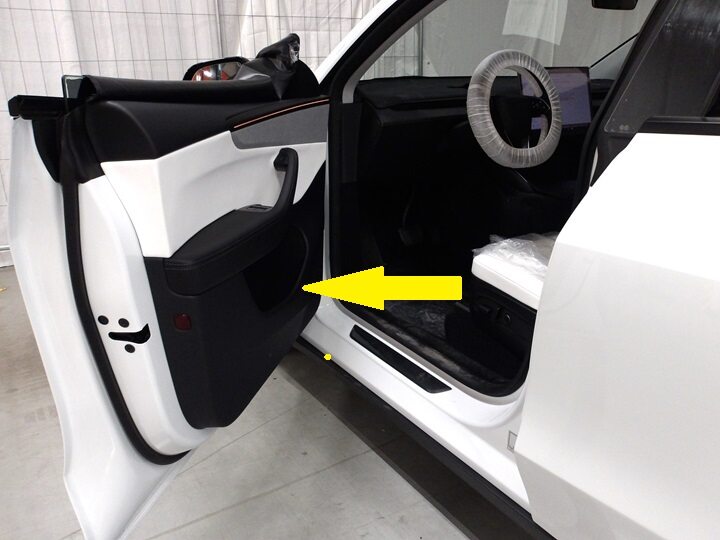

2. Open LH front door

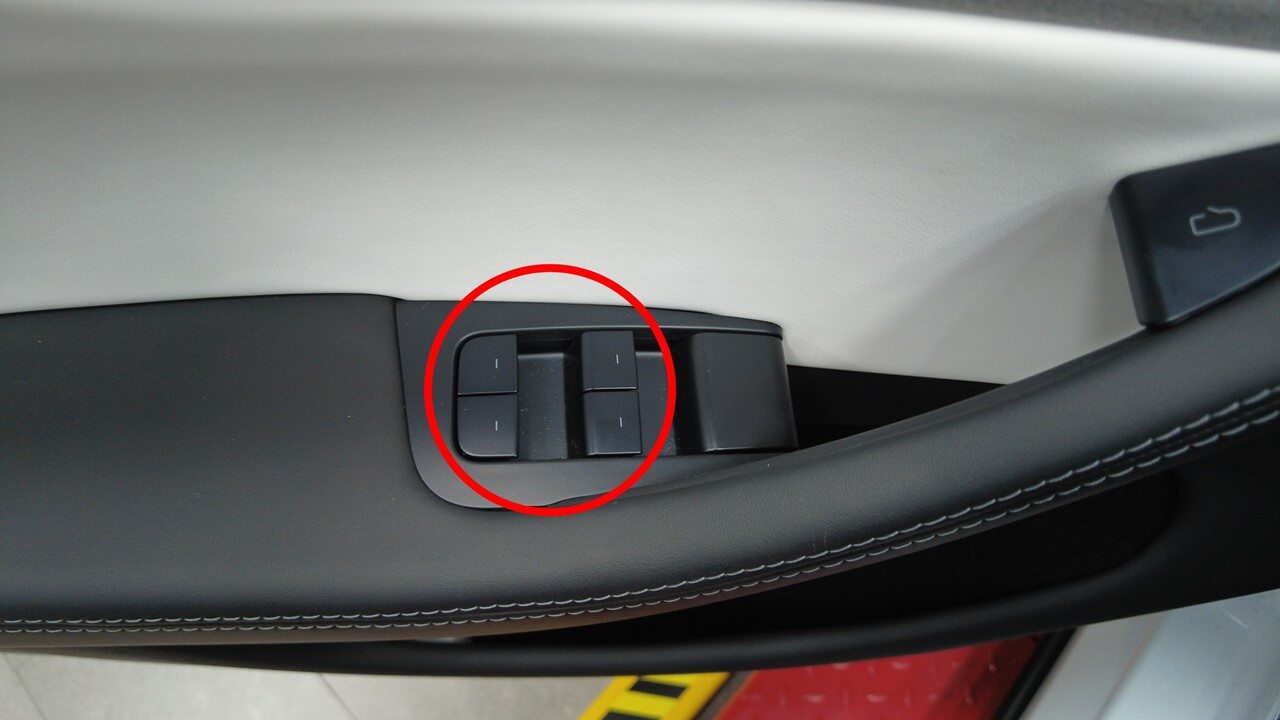

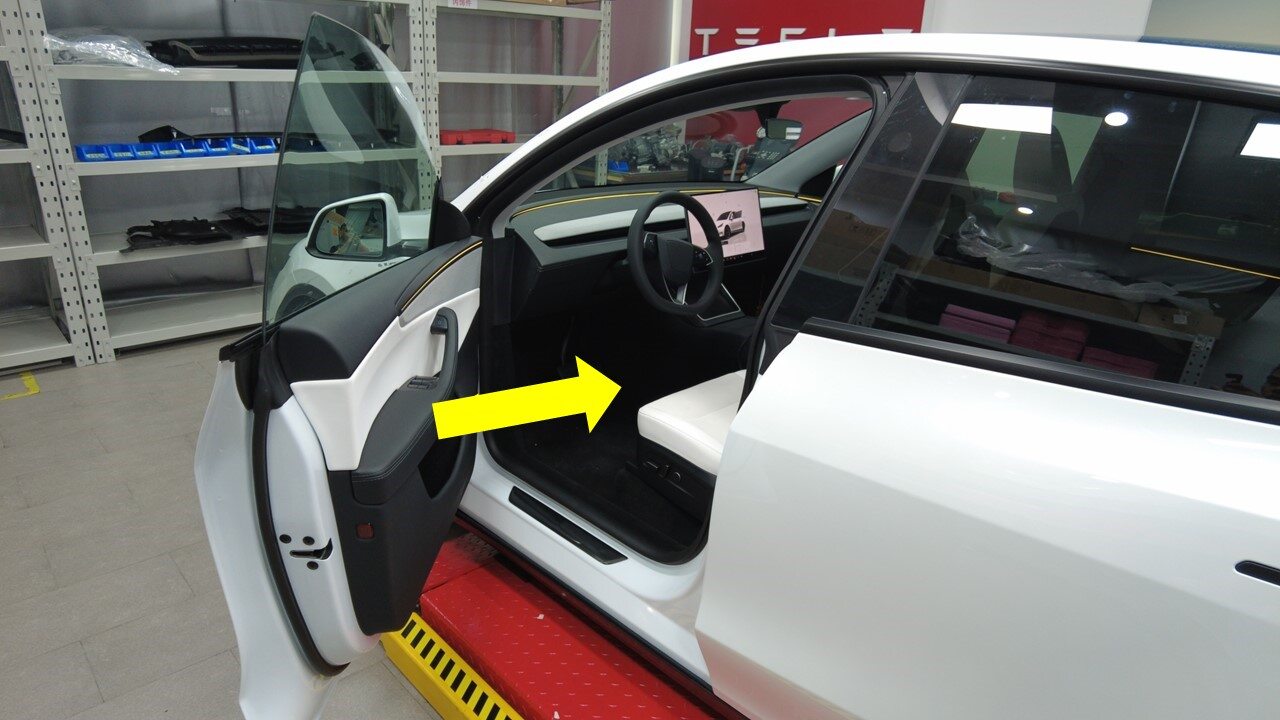

3. Lower LH front window



4. 运行 ODIN 例行程序 PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
5. Unlock the vehicle gateway. See 网关（解锁）.
6. Access thermal system routines via UI
   注

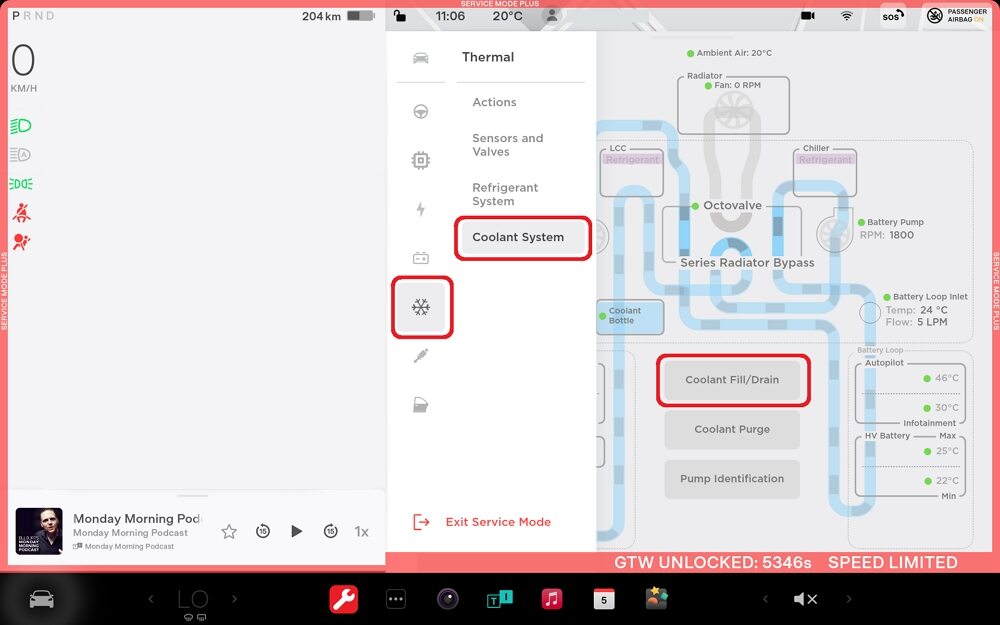

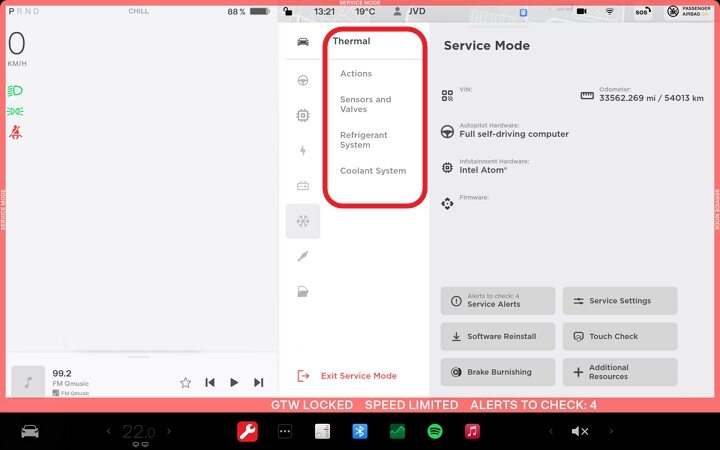

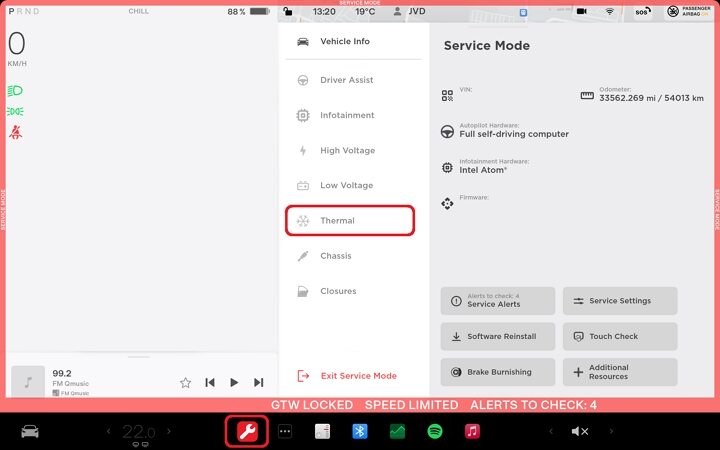

   Select Service mode > Thermal

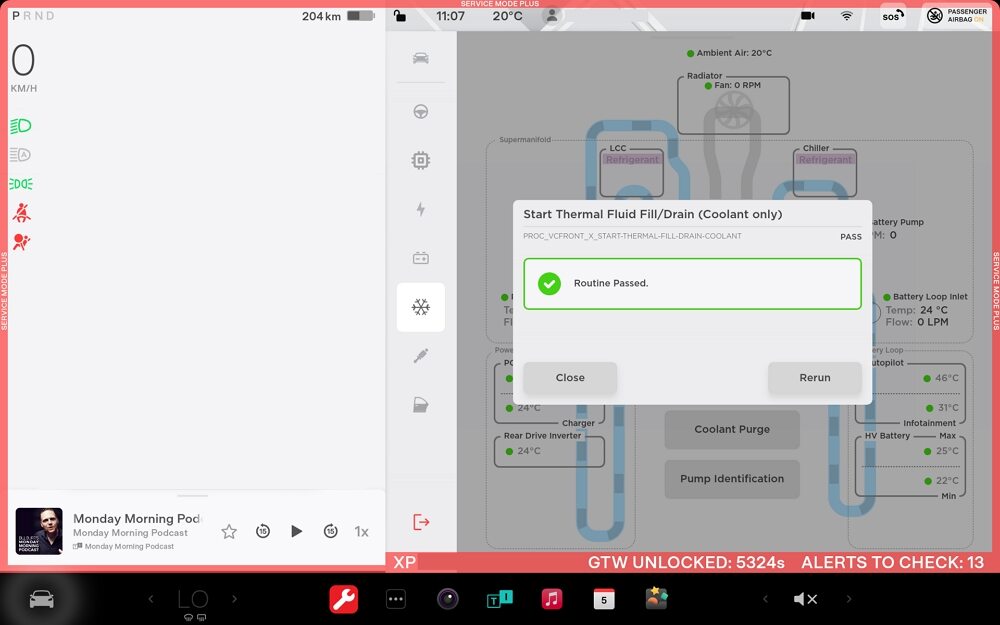

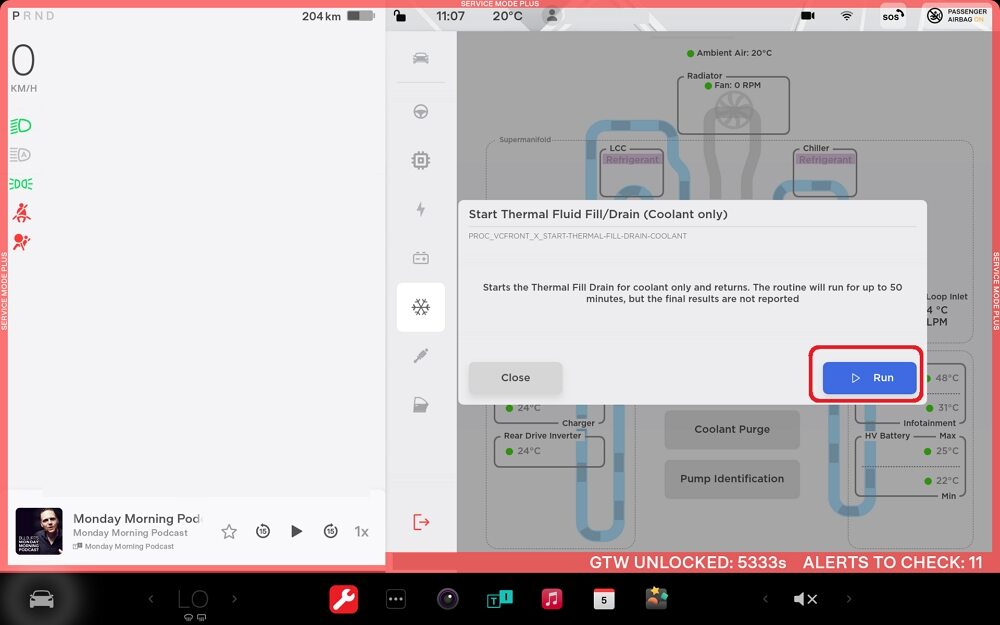

7. Perform "Start Thermal Fill/Drain (Coolant Only)" through Service UI
   注

   Select Thermal > Coolant System > Coolant Fill/Drain, click Run, close once routine is completed, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours routine must be performed again







8. Disconnect LV power. See 低压电源（锂）（断开和连接） (Modify).
9. Remove the front aero shield. See 流线型护板 - 前 ((拆卸和更换)).

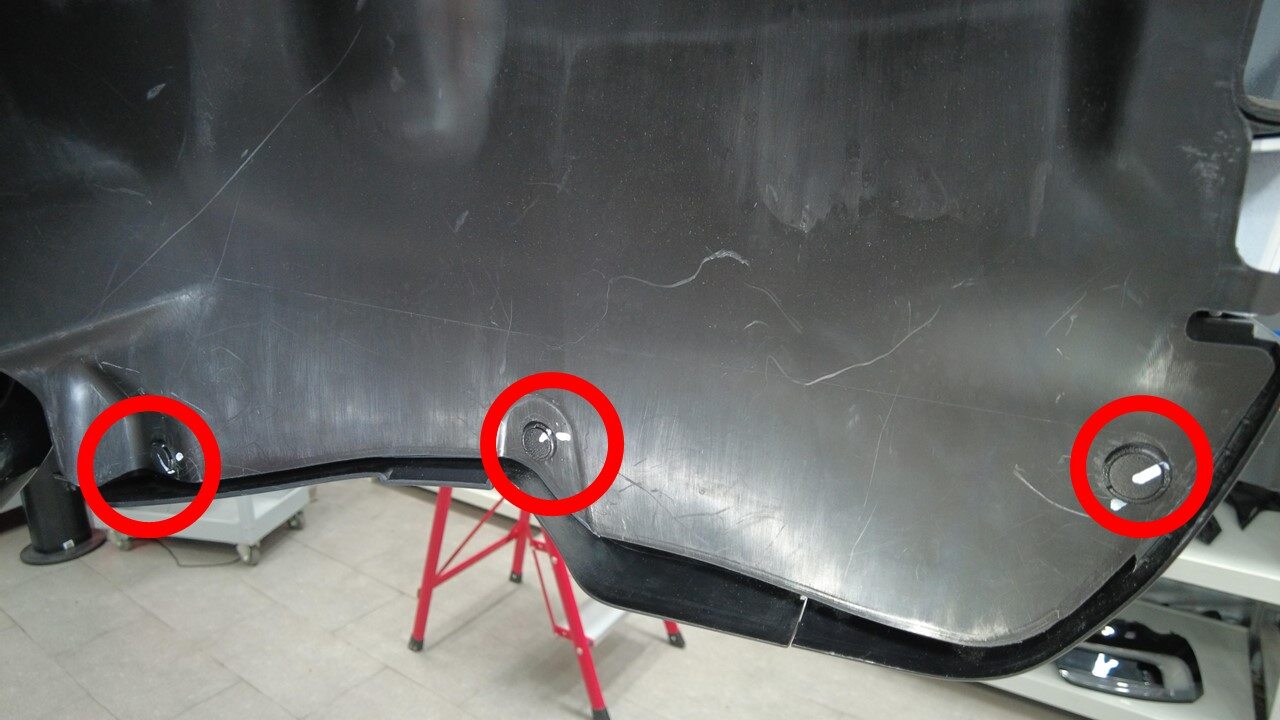

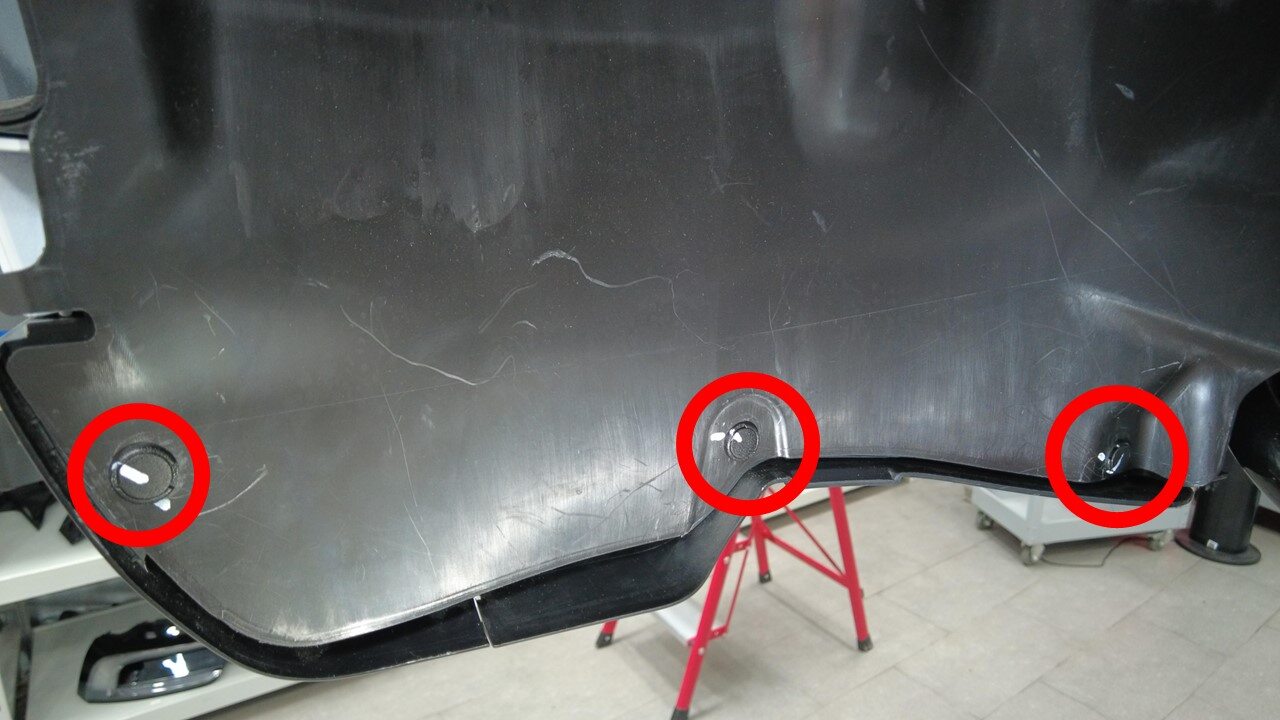

10. Remove clips secure LH wheel liner to front fascia and valance
    注

    3x push clips



11. Remove clips secure RH wheel liner to front fascia and valance
    注

    3x push clips

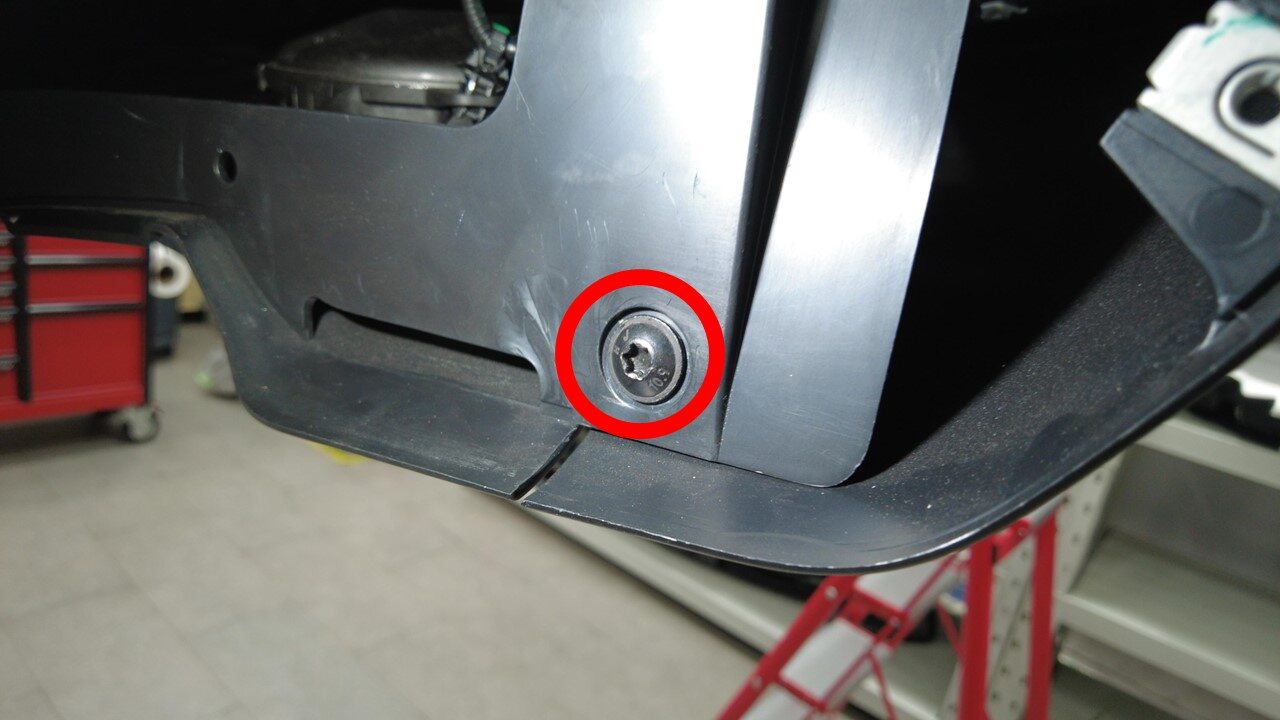

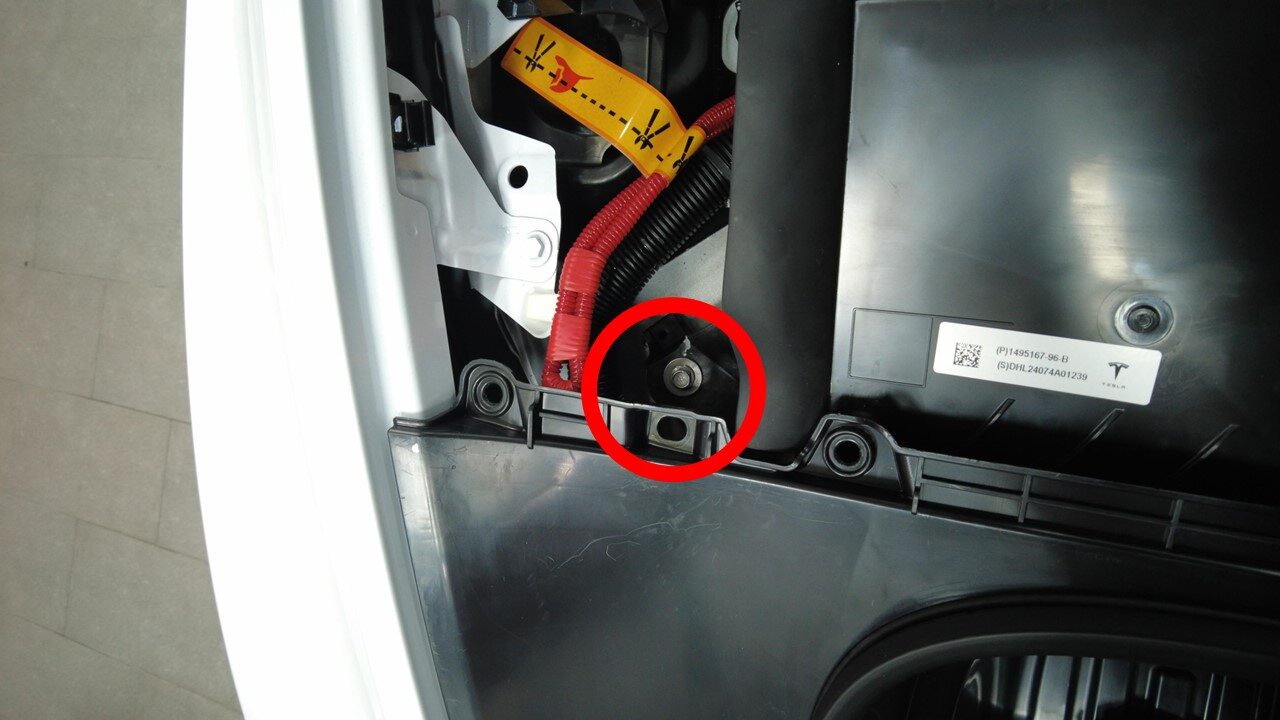

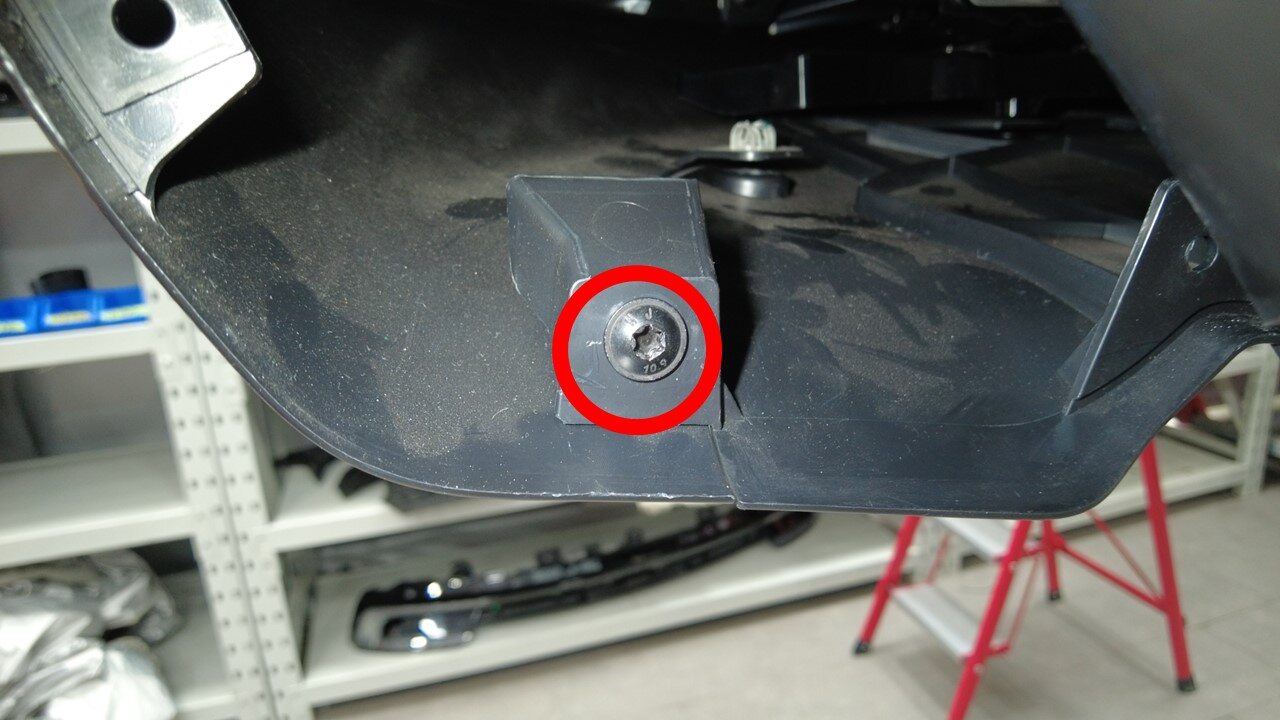

12. Remove both side bolts securing valance to fascia
    注

    2x bolts, T40, 2.5Nm

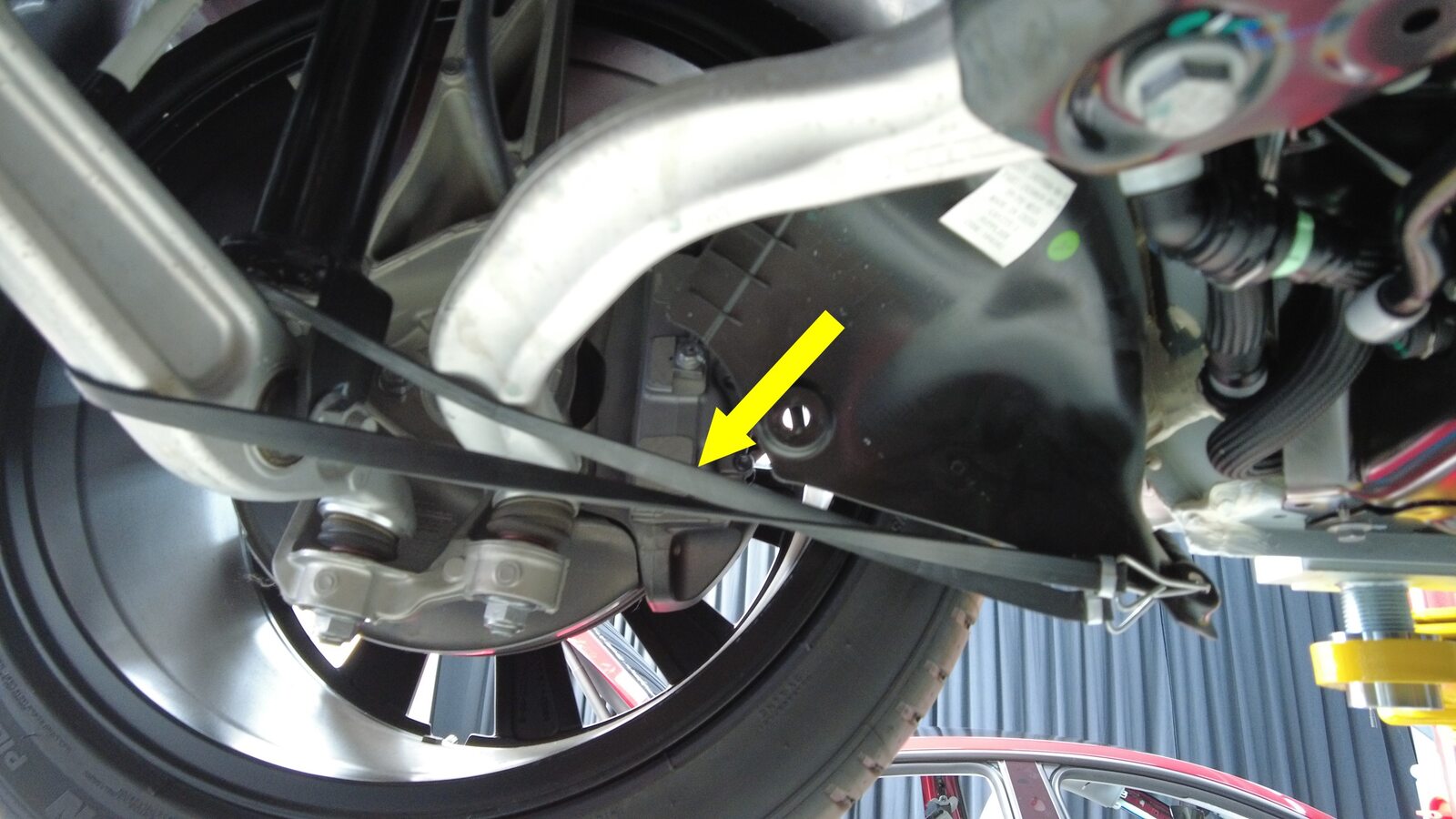

13. Secure RH front wheel liner aside
    注

    1x bungee strap, Secure to subframe

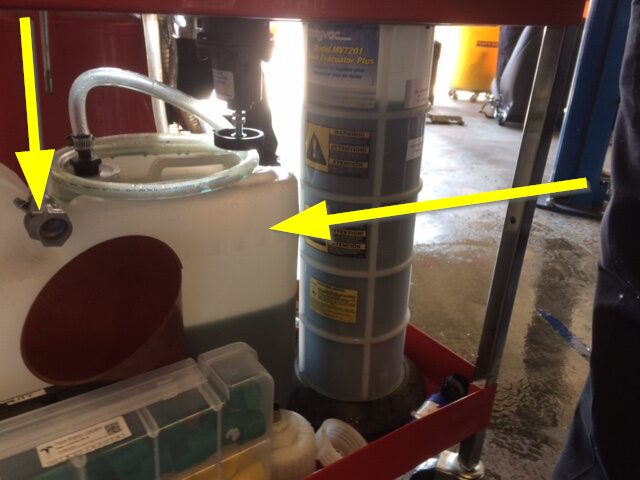

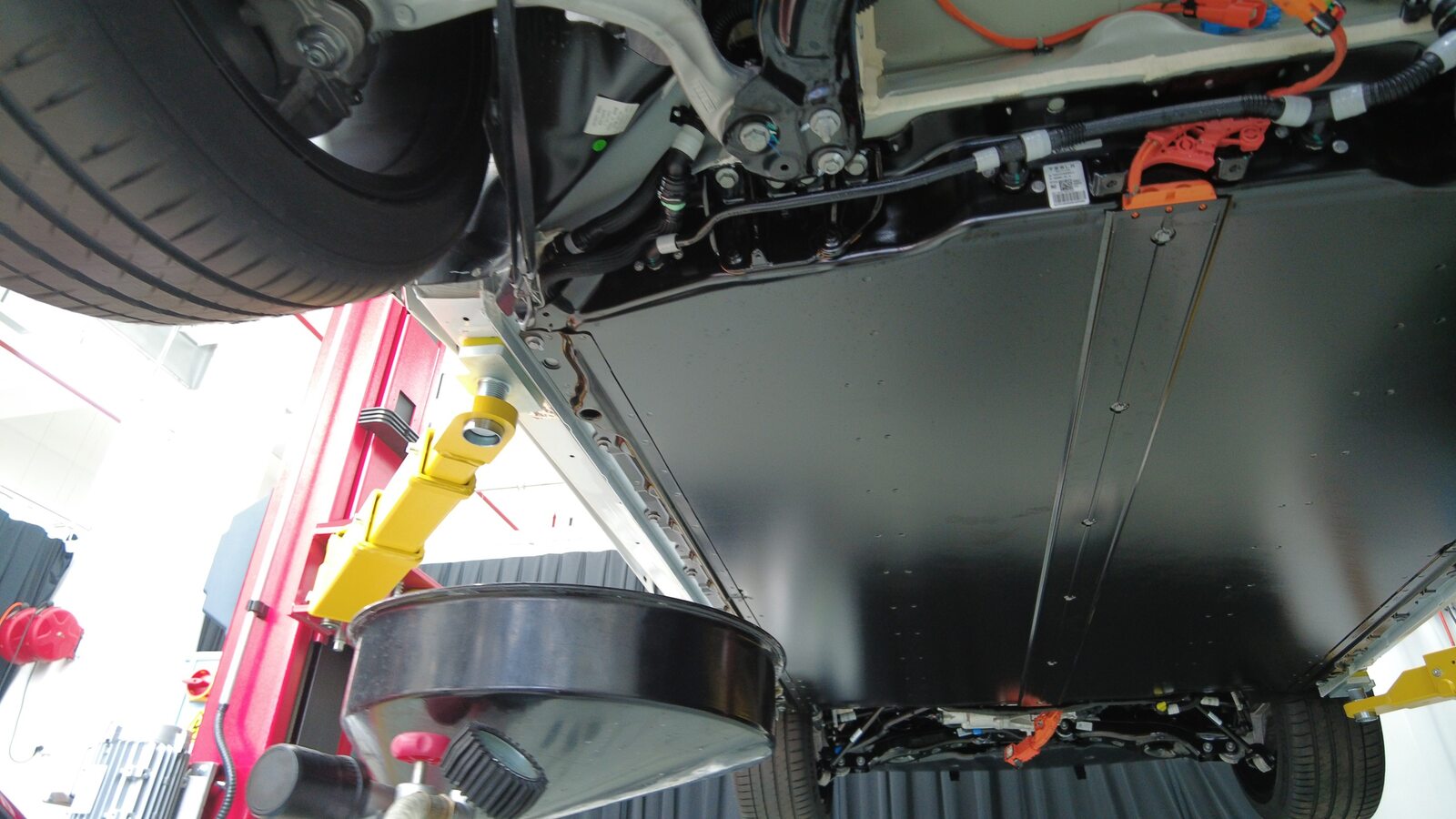

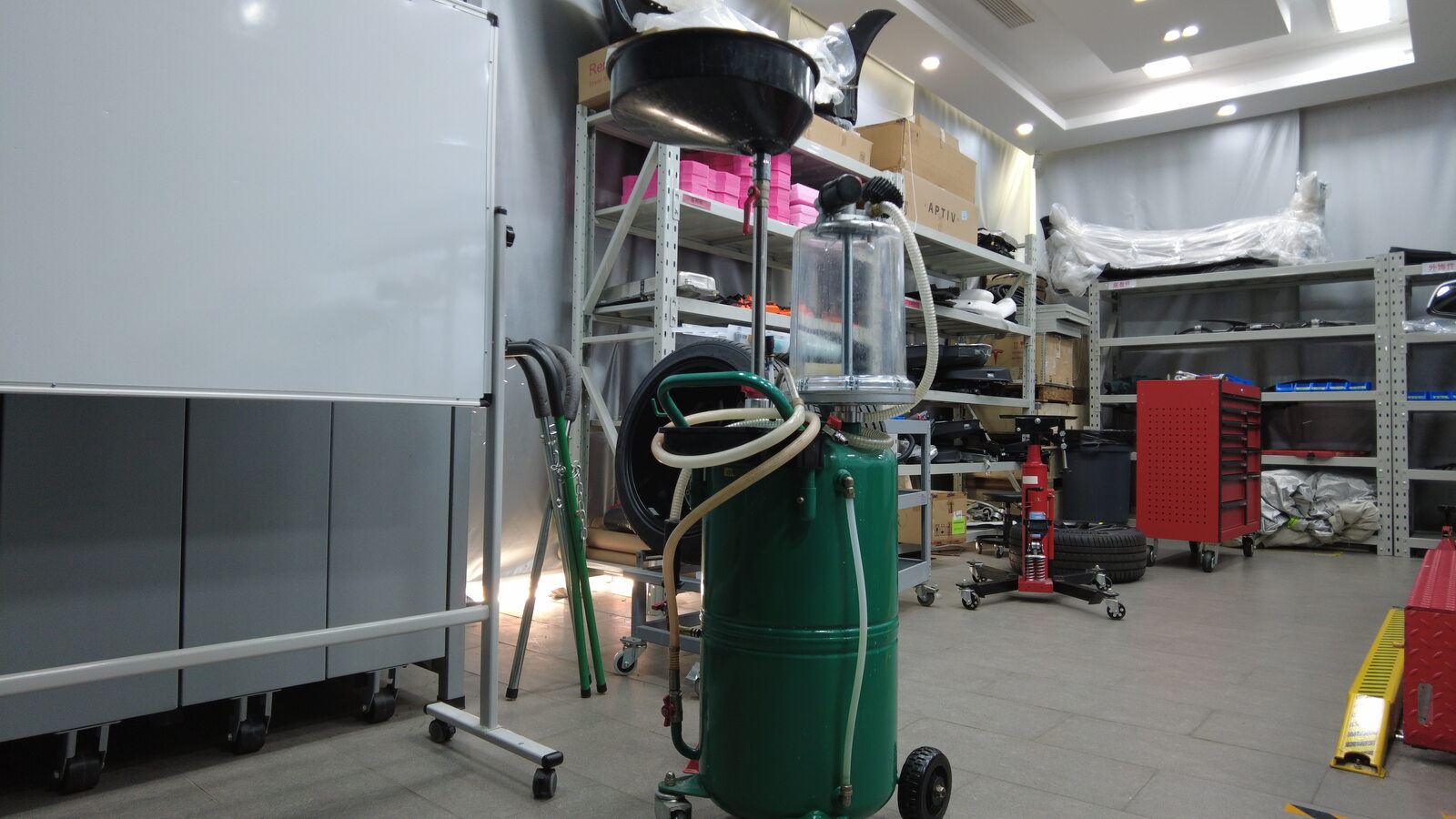

14. Position coolant drain container underneath RH front of HV battery

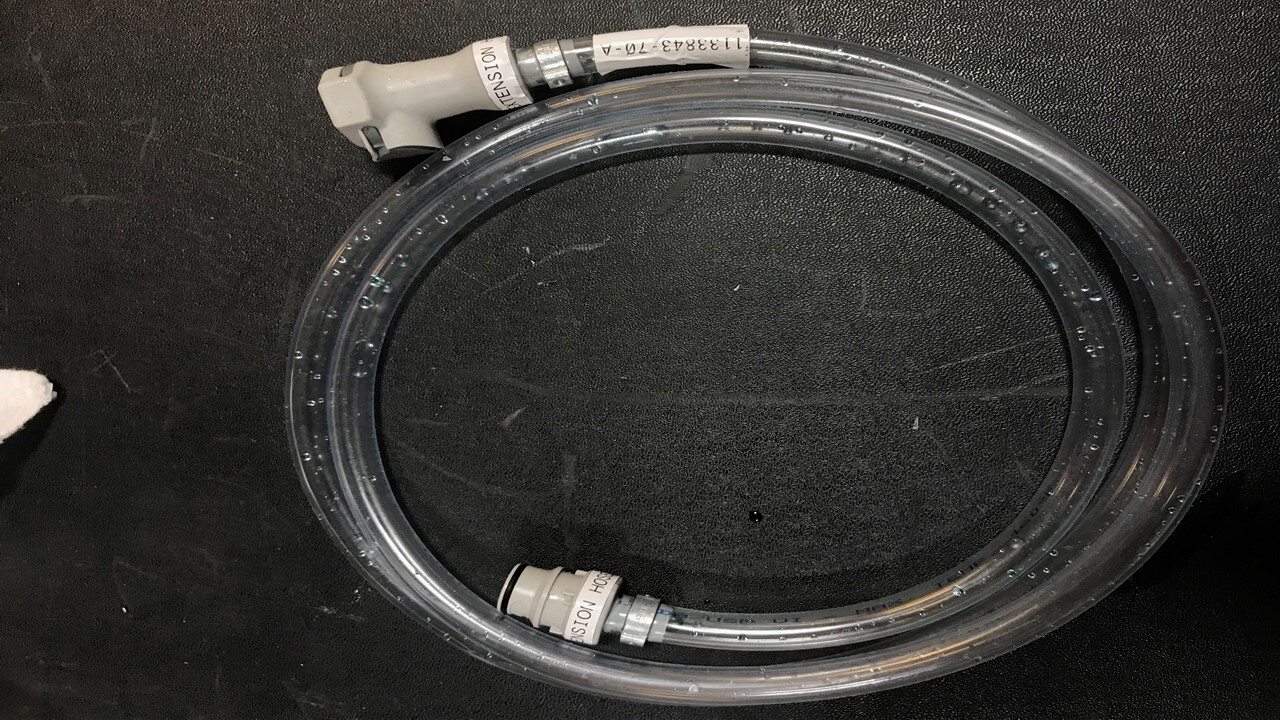

15. Attach hose extension to coolant drain hose for extra length

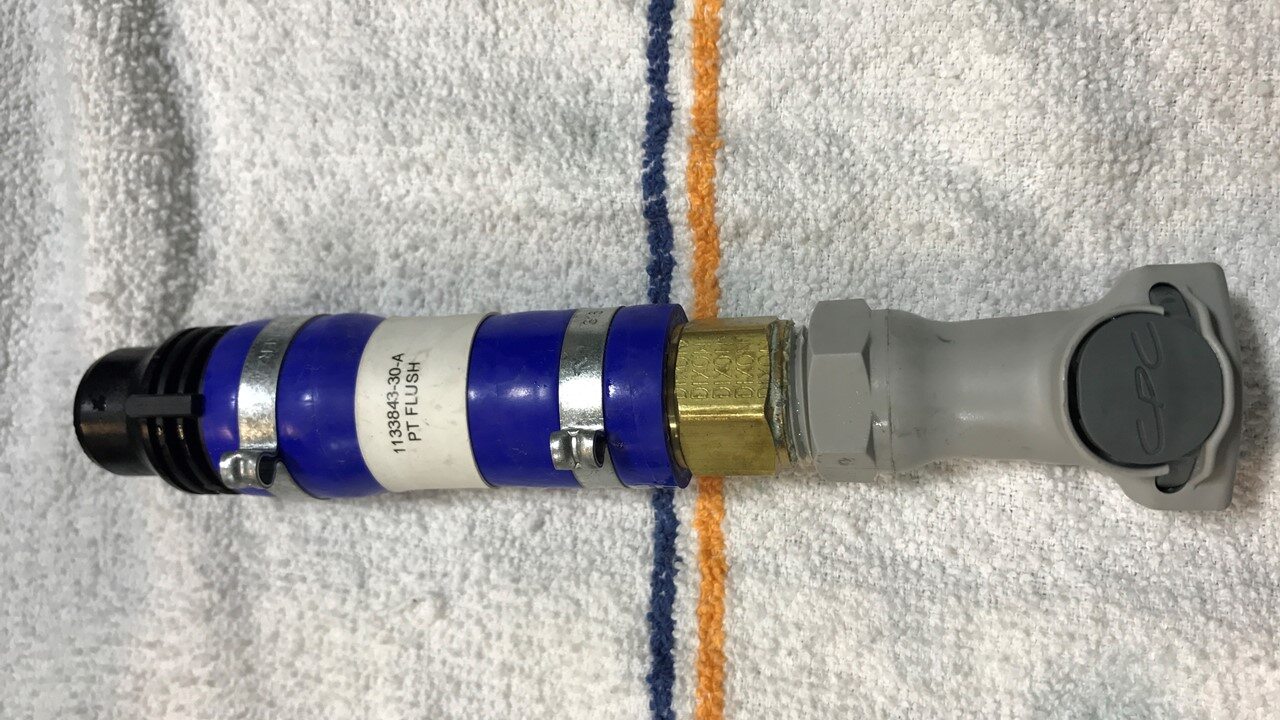

16. Attach the powertrain (PT) flush fitting adapter to coolant cart pressure hose

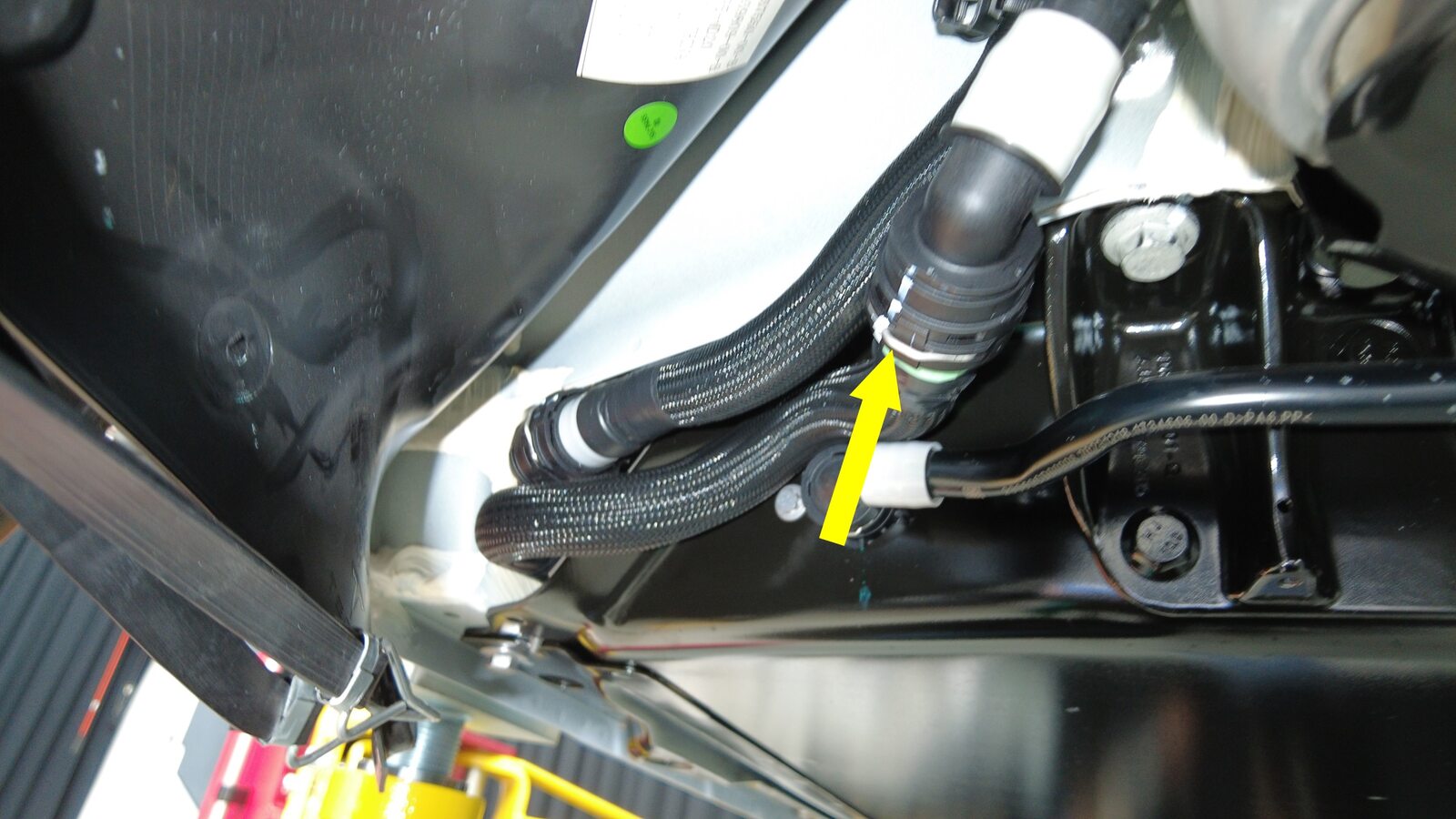

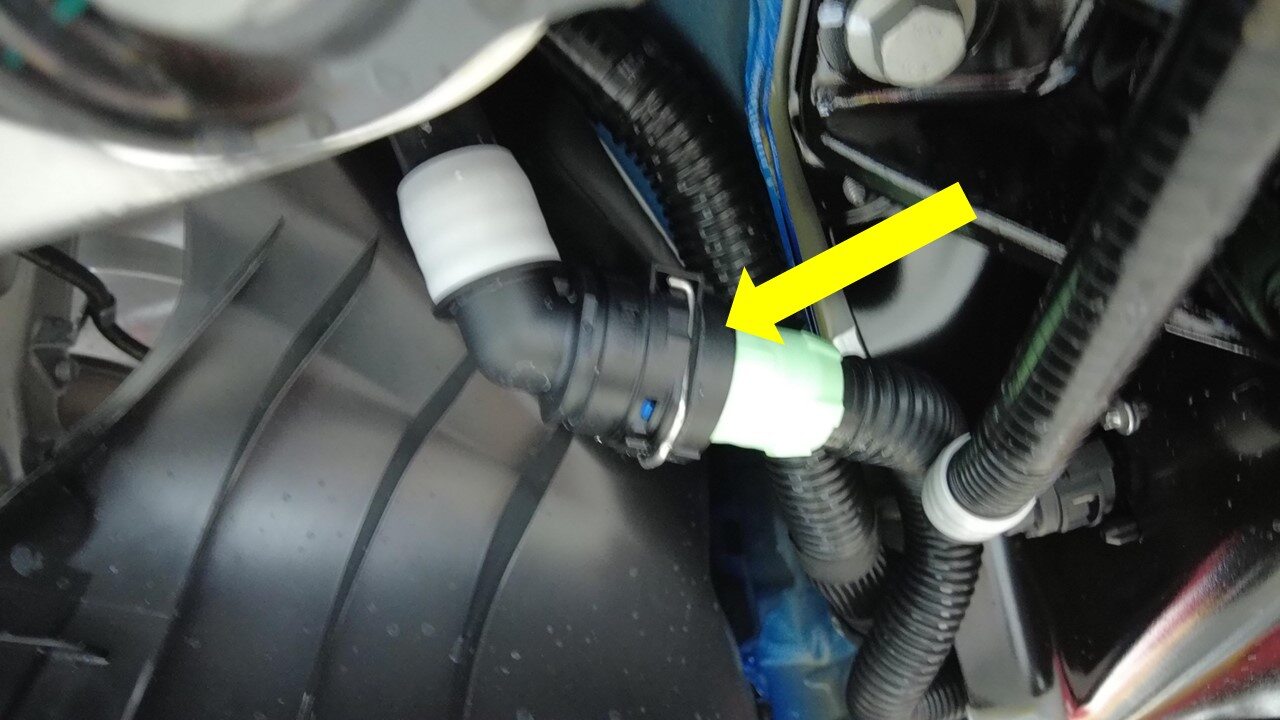

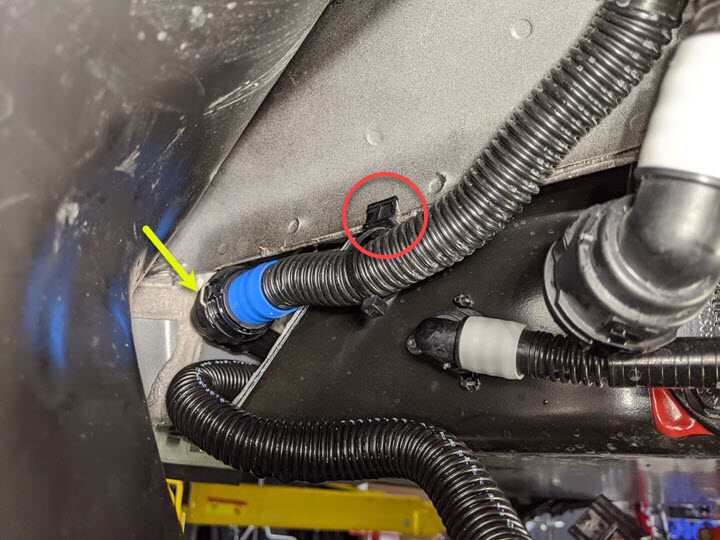

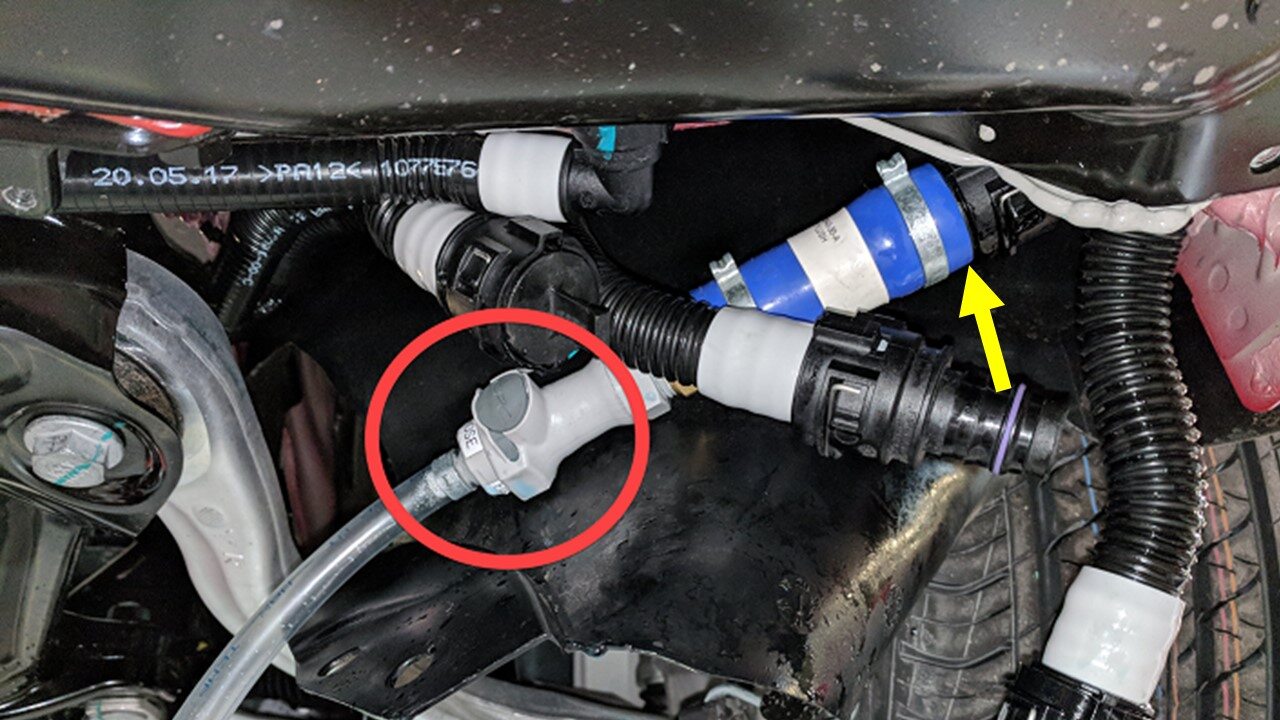

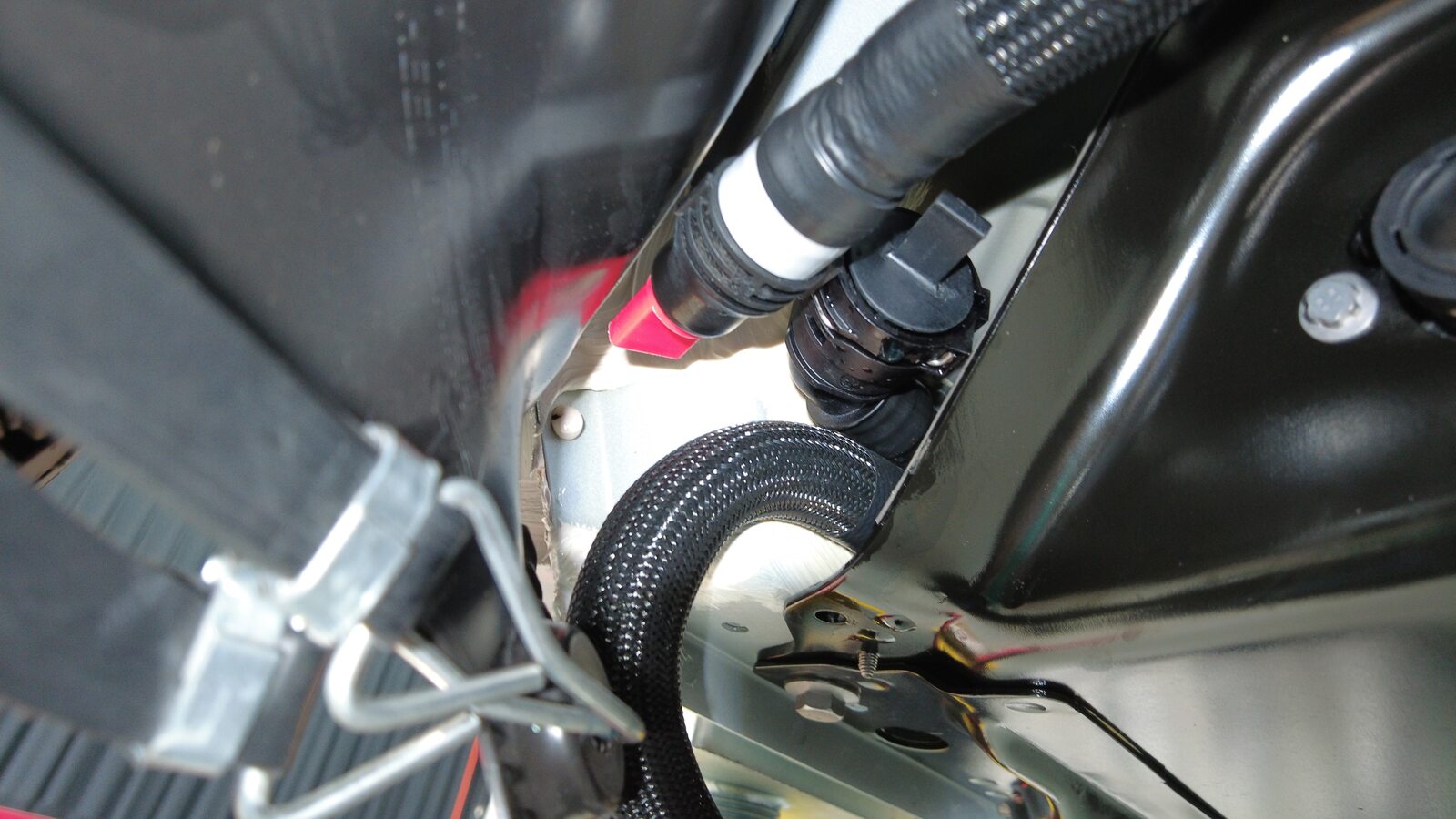

17. Disconnect PT return hose
    注

    1x spring clip, Plug coolant connections as needed, Loss of coolant greater than 1L requires coolant vacuum fill

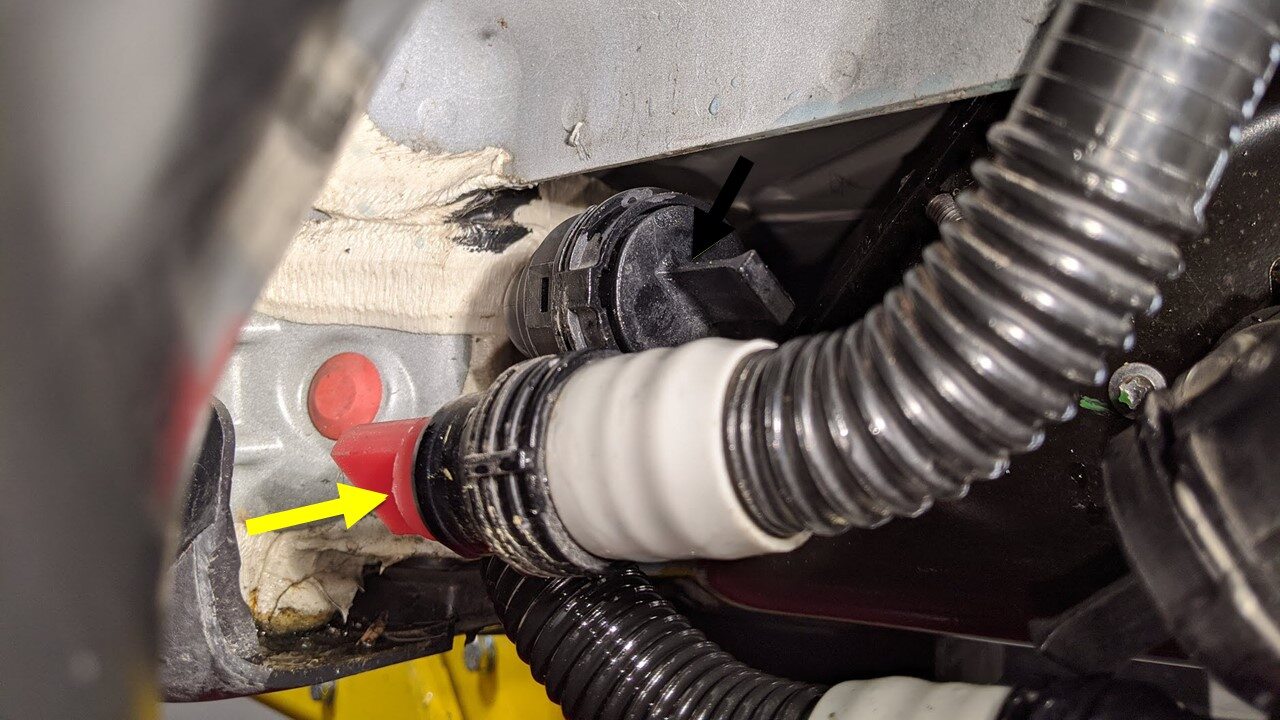

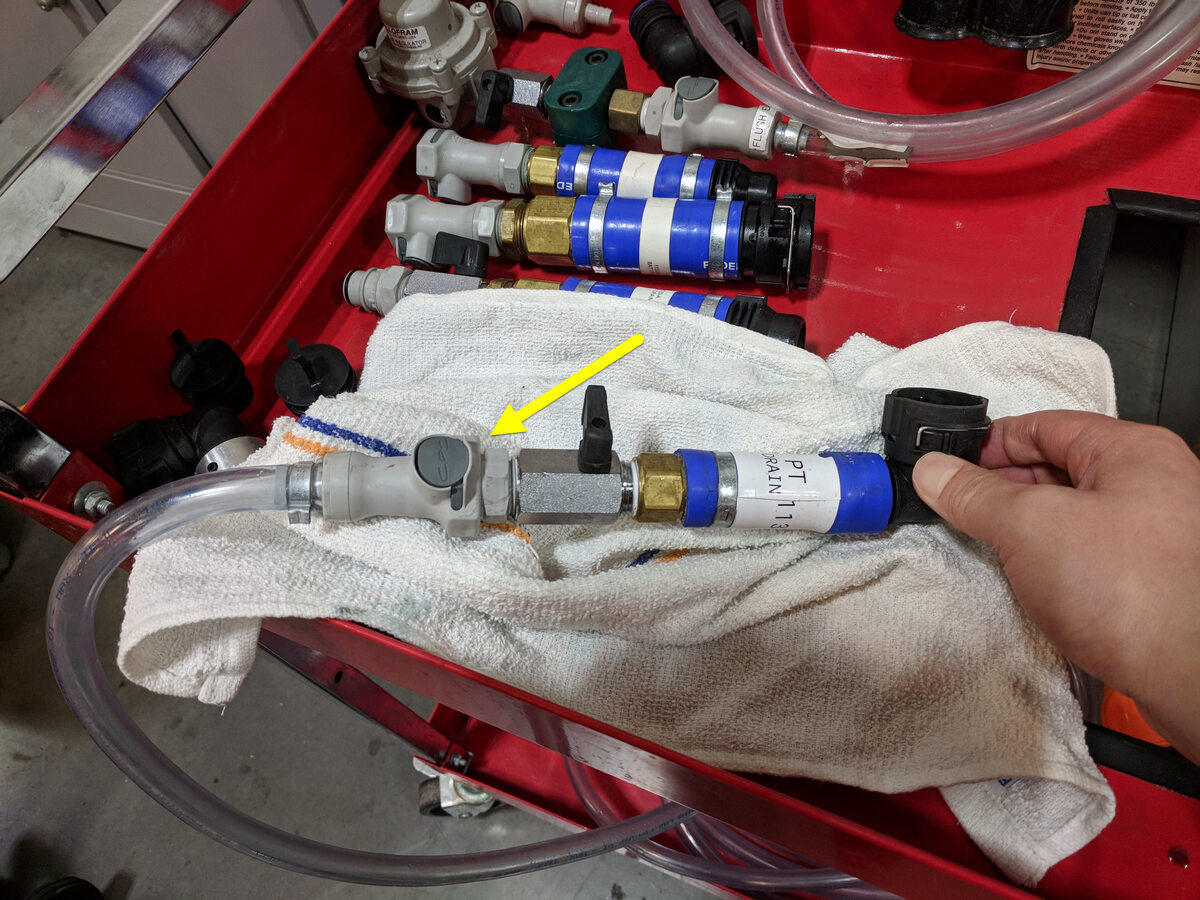

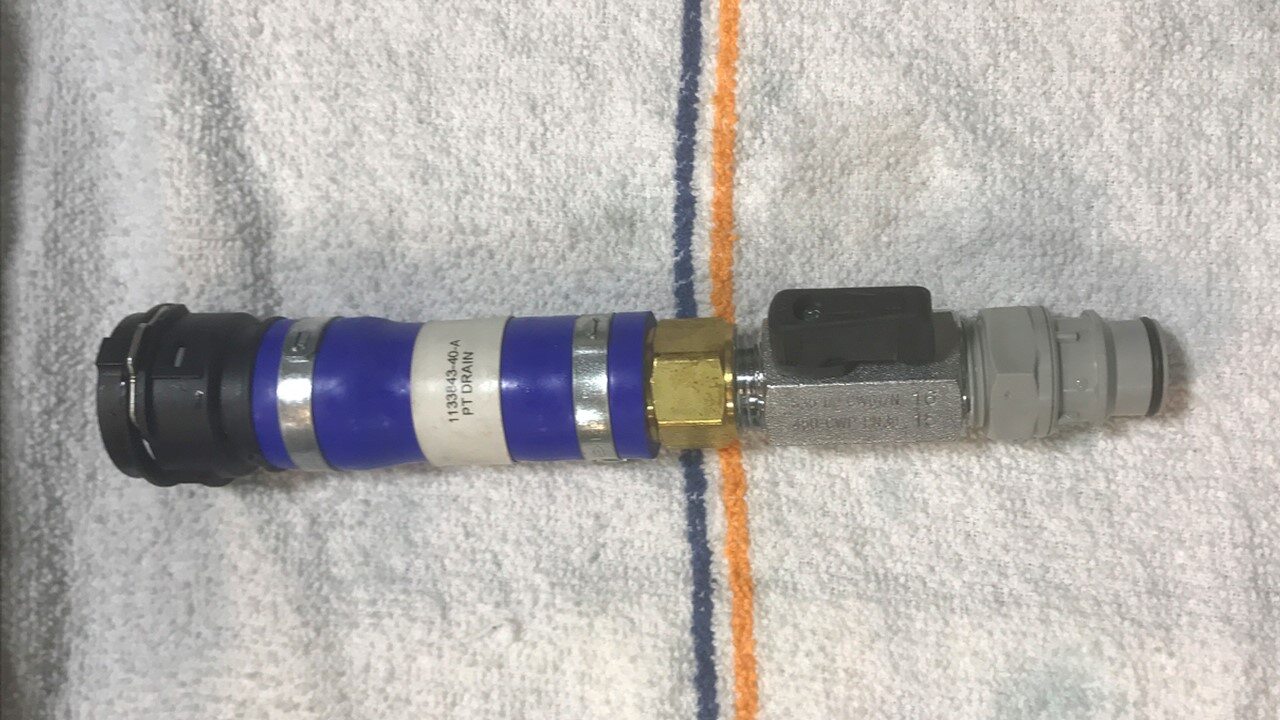

18. Attach PT drain fitting adapter to male PT return hose

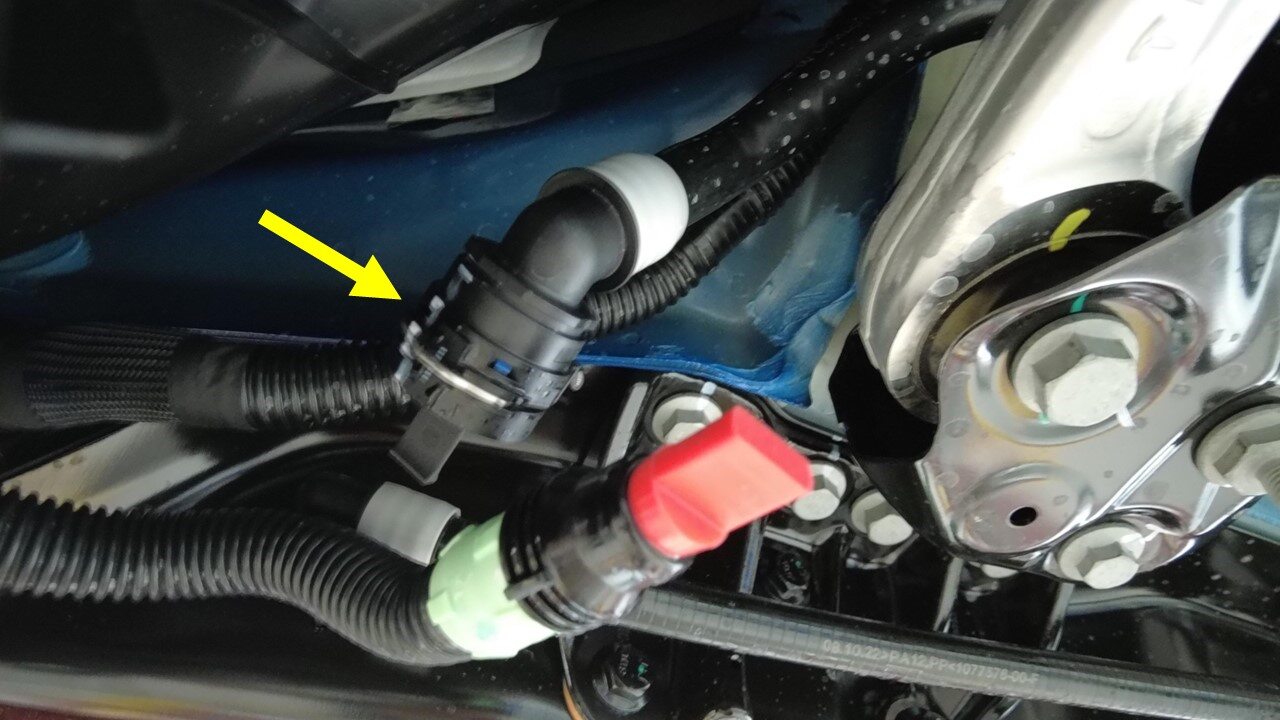

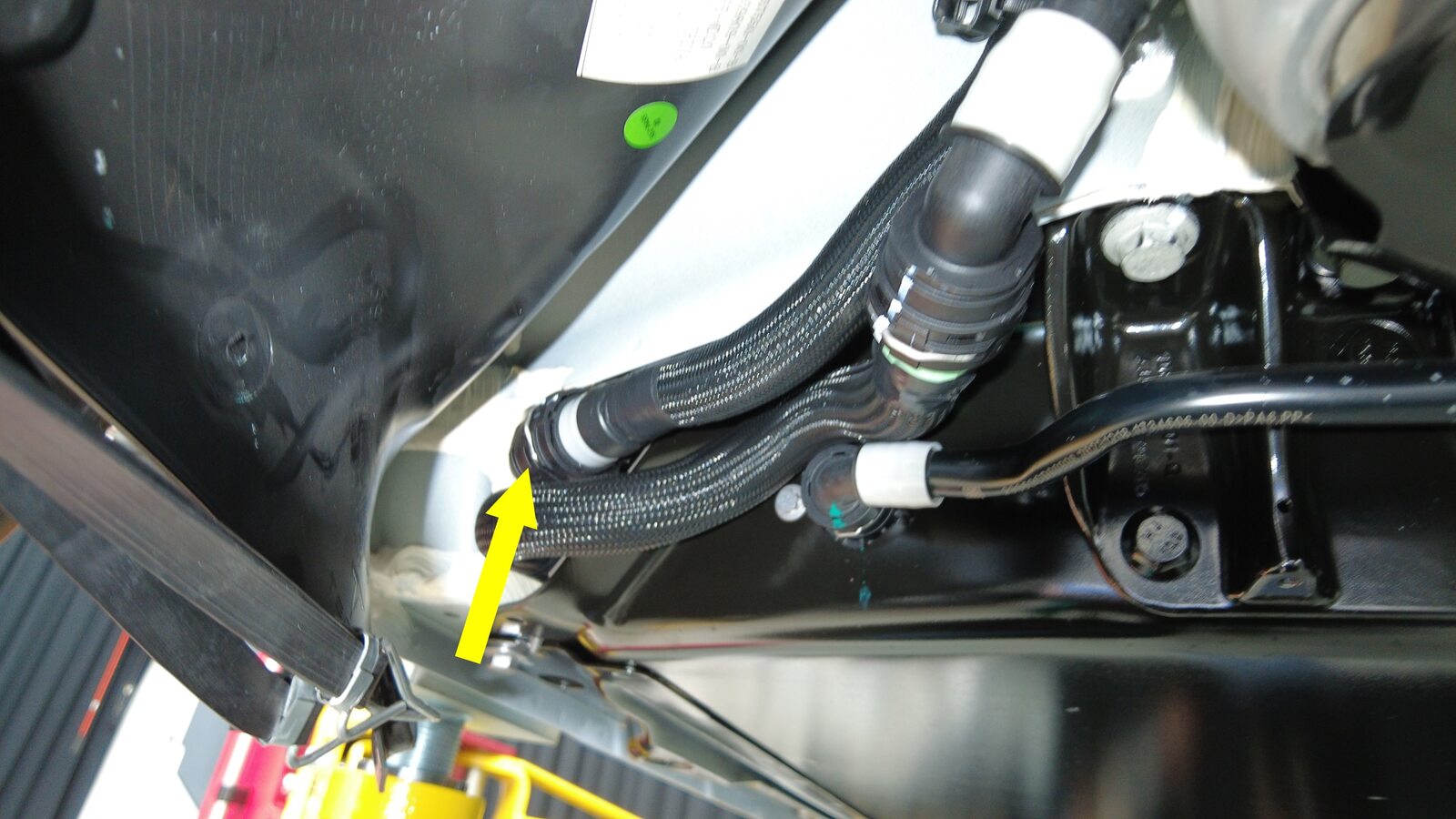

19. Disconnect PT supply hose
    注

    1x spring clip, Plug coolant connections as needed, Loss of coolant greater than 1L requires coolant vacuum fill

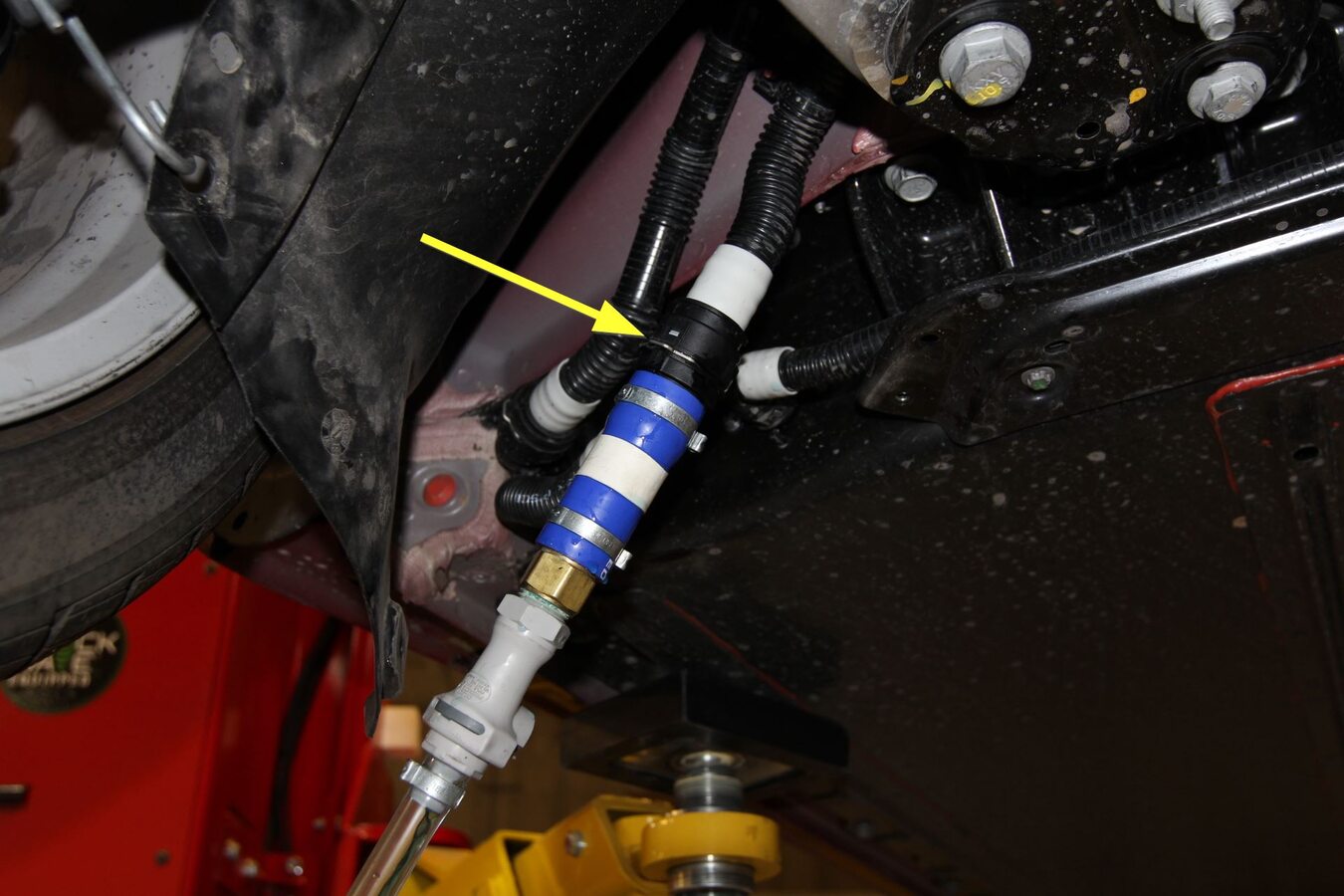

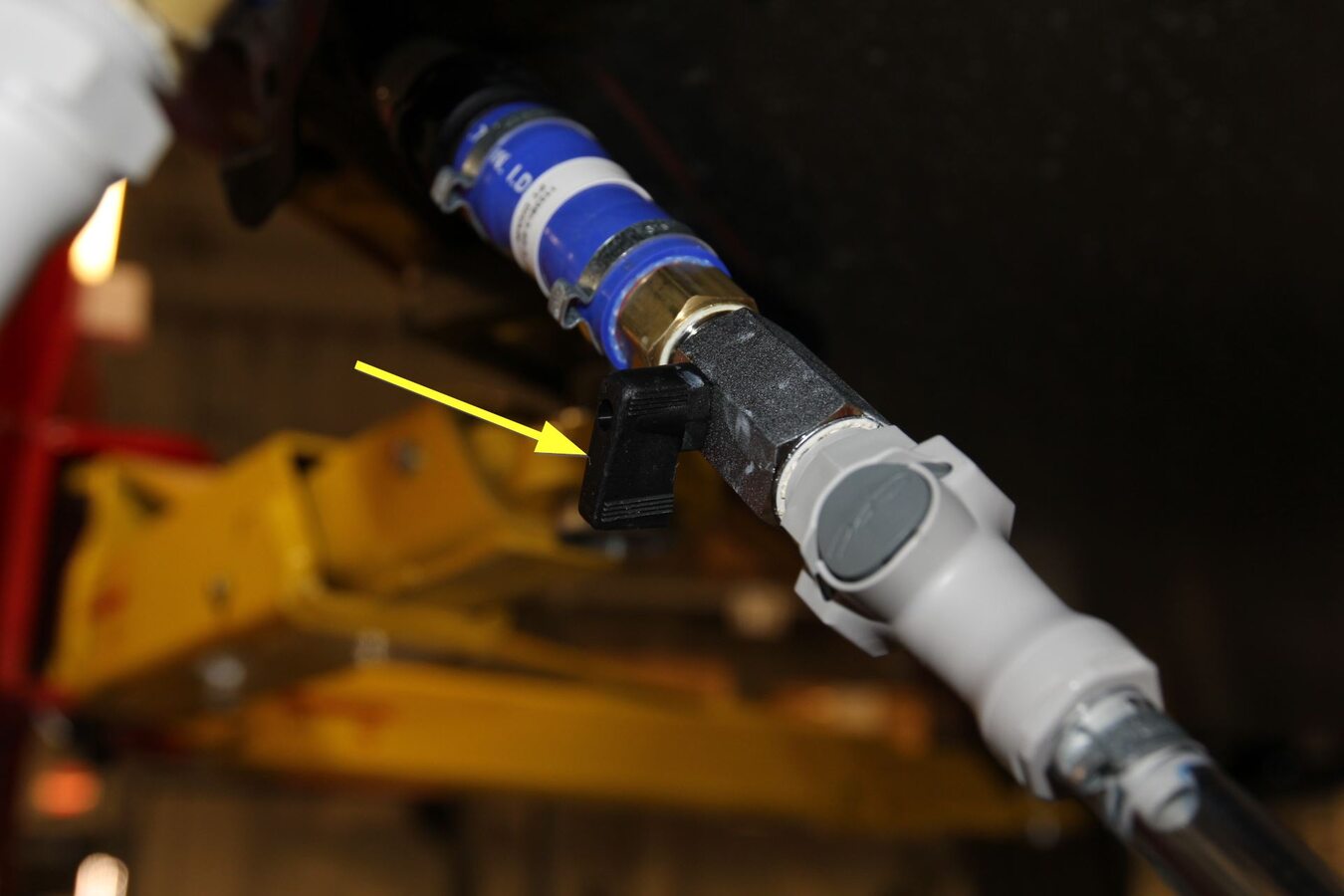

20. Attach PT flush fitting adapter to female side of PT supply hose
    注

    1x spring clip, Perform push-pull test to verify adapter is fully engaged

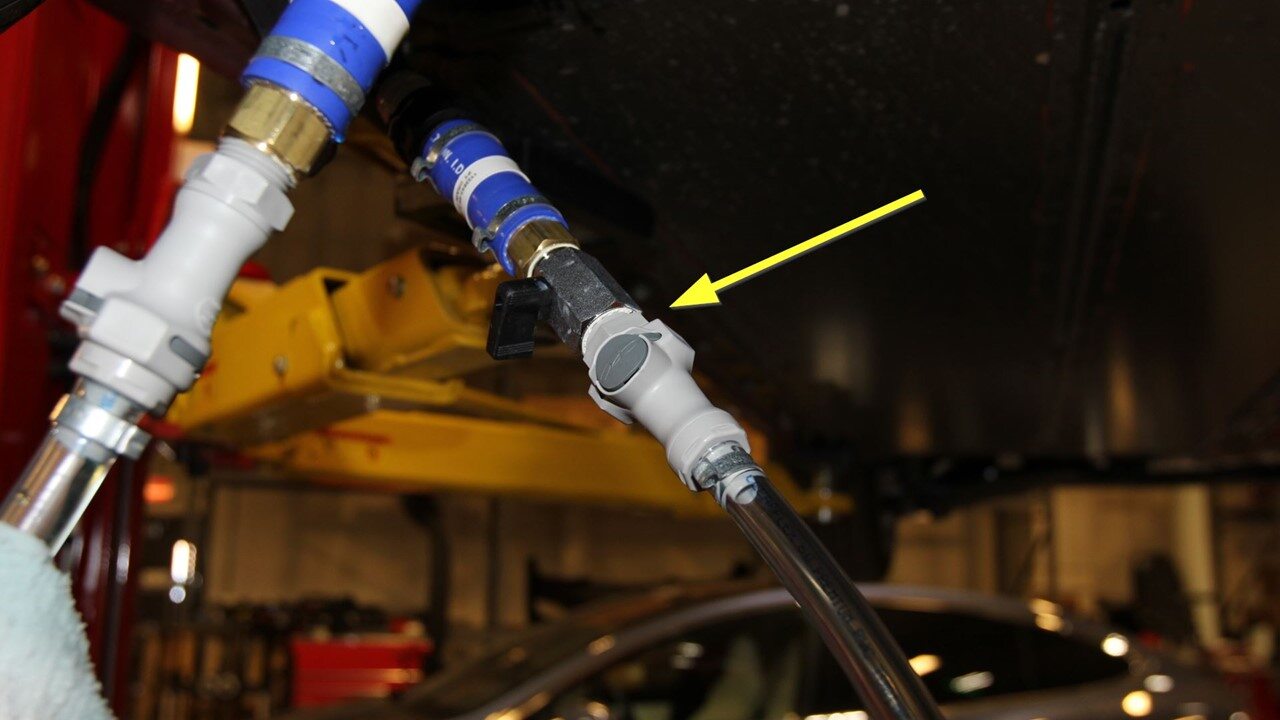

21. Attach PT drain fitting adapter to coolant pressure tester cart
    注

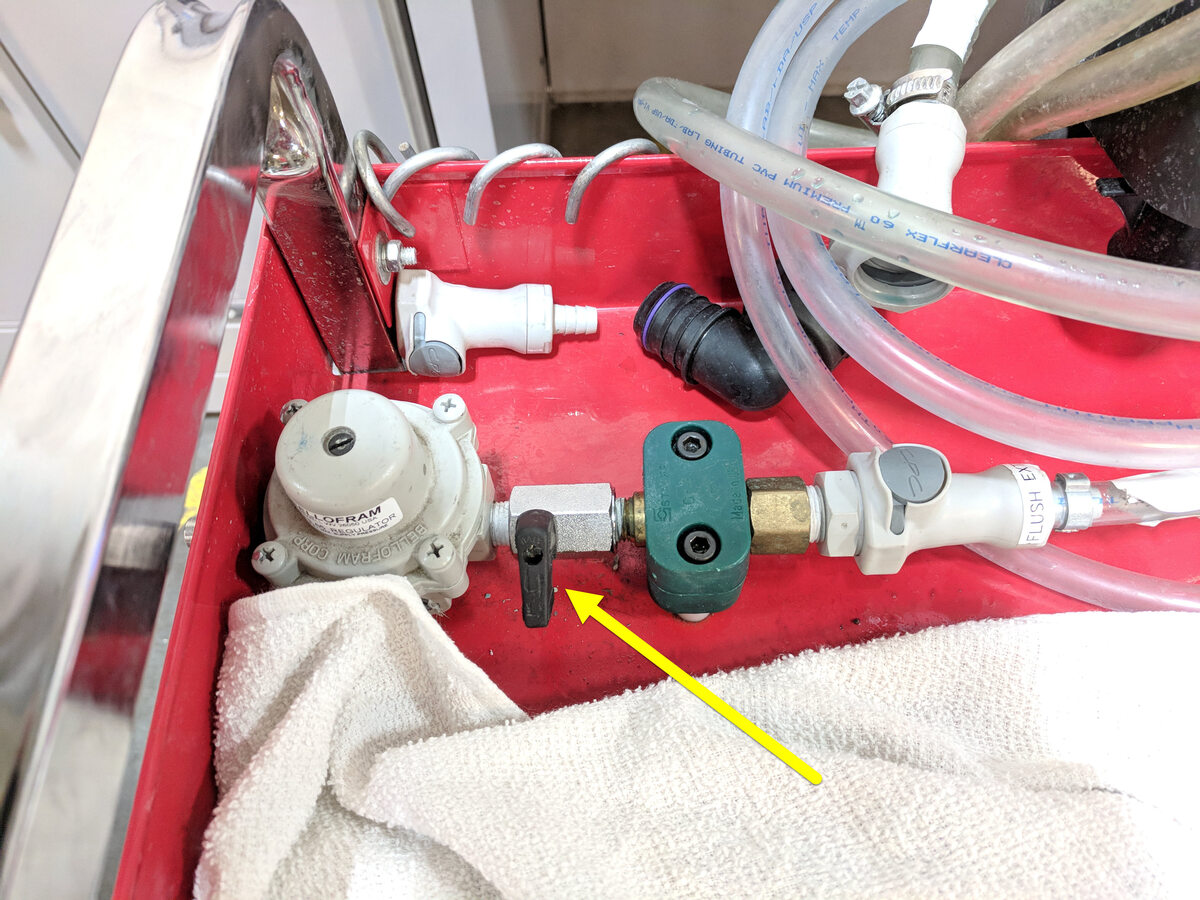

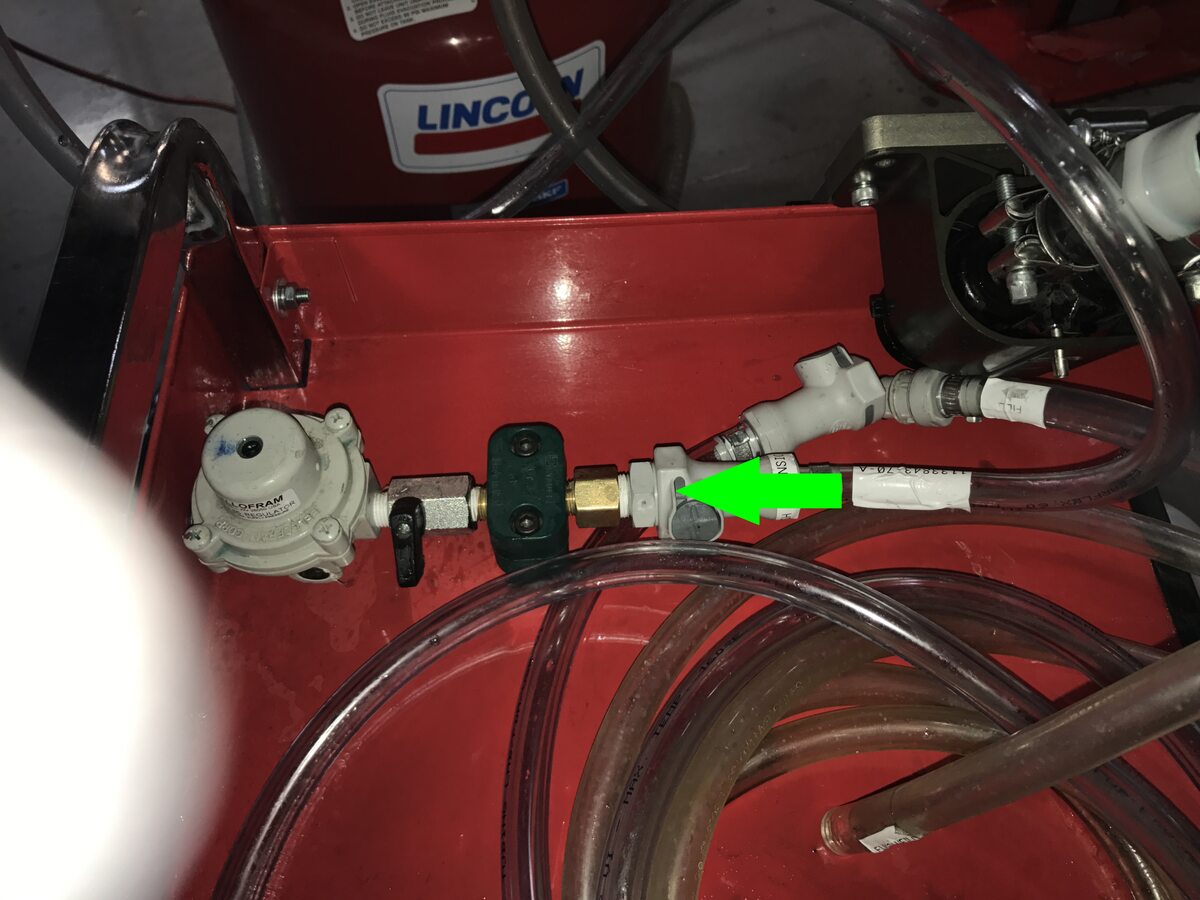

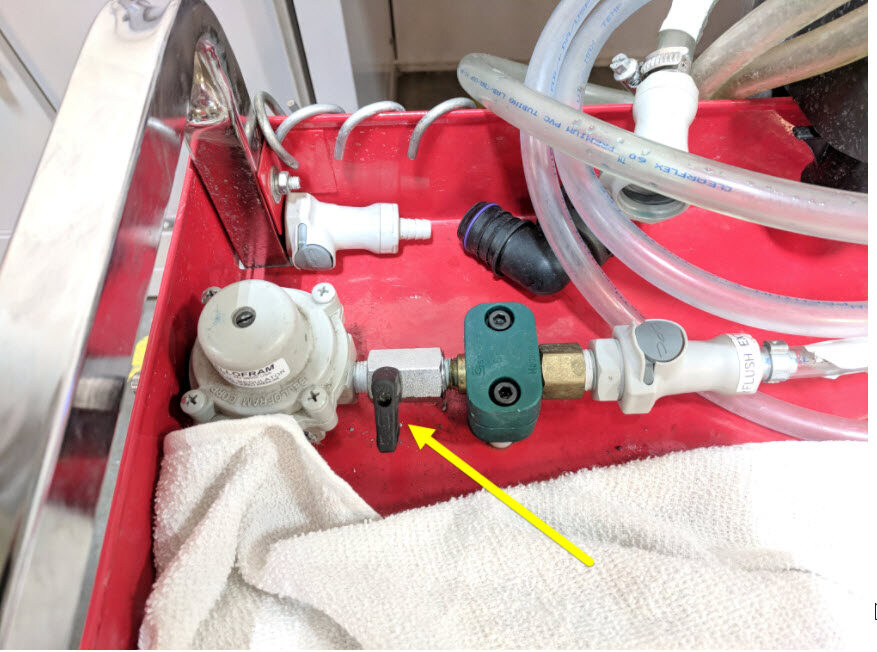

    The regulator valve is pre-set to 20 psi, When valve is set to horizontal position it is fully closed, Verify valve is in closed position

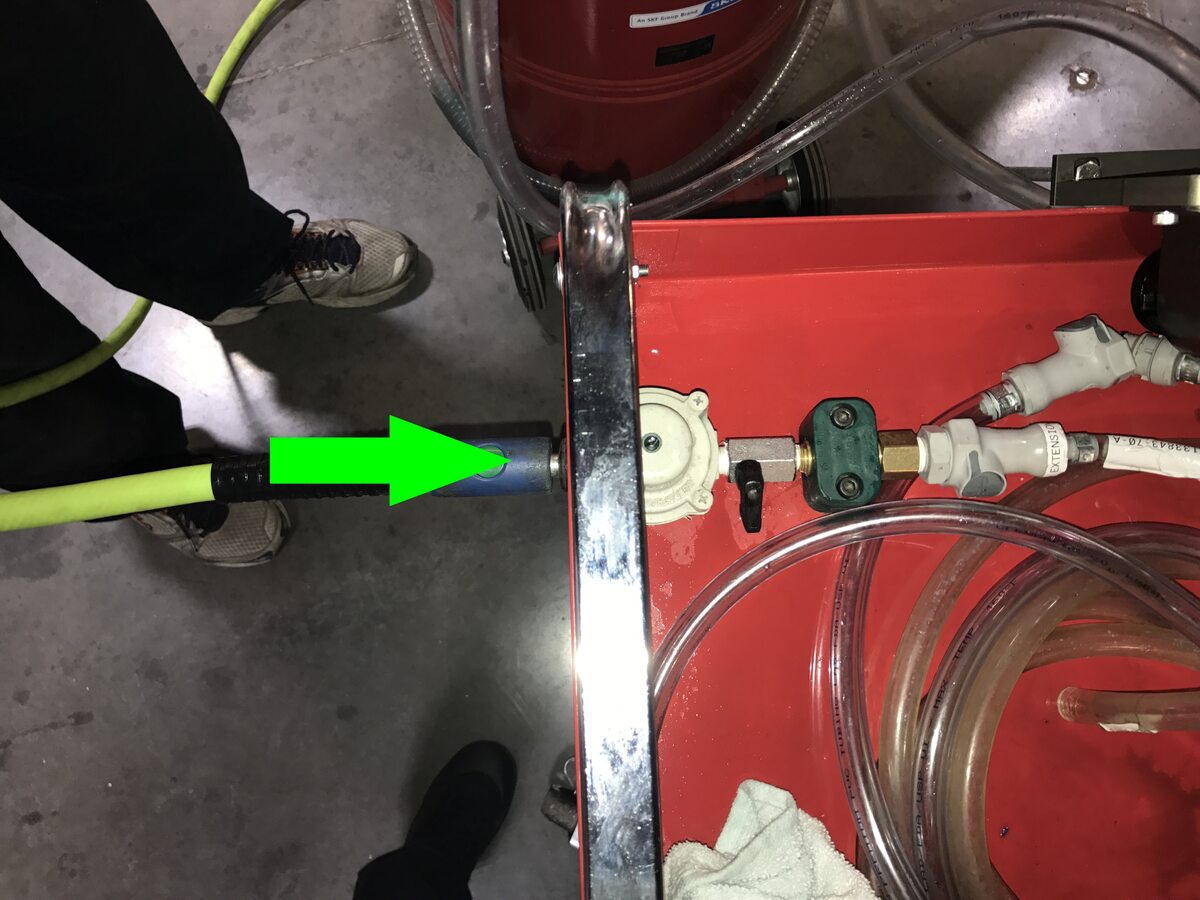

22. Attach compressed air line to coolant pressure tester
    注

    Verify valve is in closed position



23. Open valve on PT drain fitting adapter
    注

    When valve is in the vertical position it is fully open



24. Slowly open valve on pressure regulator and allow coolant to drain out of PT return hose
    注

    Open valve very slowly, If opened too quickly, pressure relief valve on superbottle cap may open, Also superbottle cap may make humming noise, If so, pressure is too high and should be lowered by adjusting the valve



25. Close valve on pressure regulator
    注

    Turn valve knob horizontal when coolant is no longer visibly draining



26. Remove PT flush fitting adapter from female side of PT supply hose
    注

    1x spring clip



27. Remove plugs then connect PT supply hose
    注

    1x clips, 1x plugs, Perform push-pull-push test to make sure hose is fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill

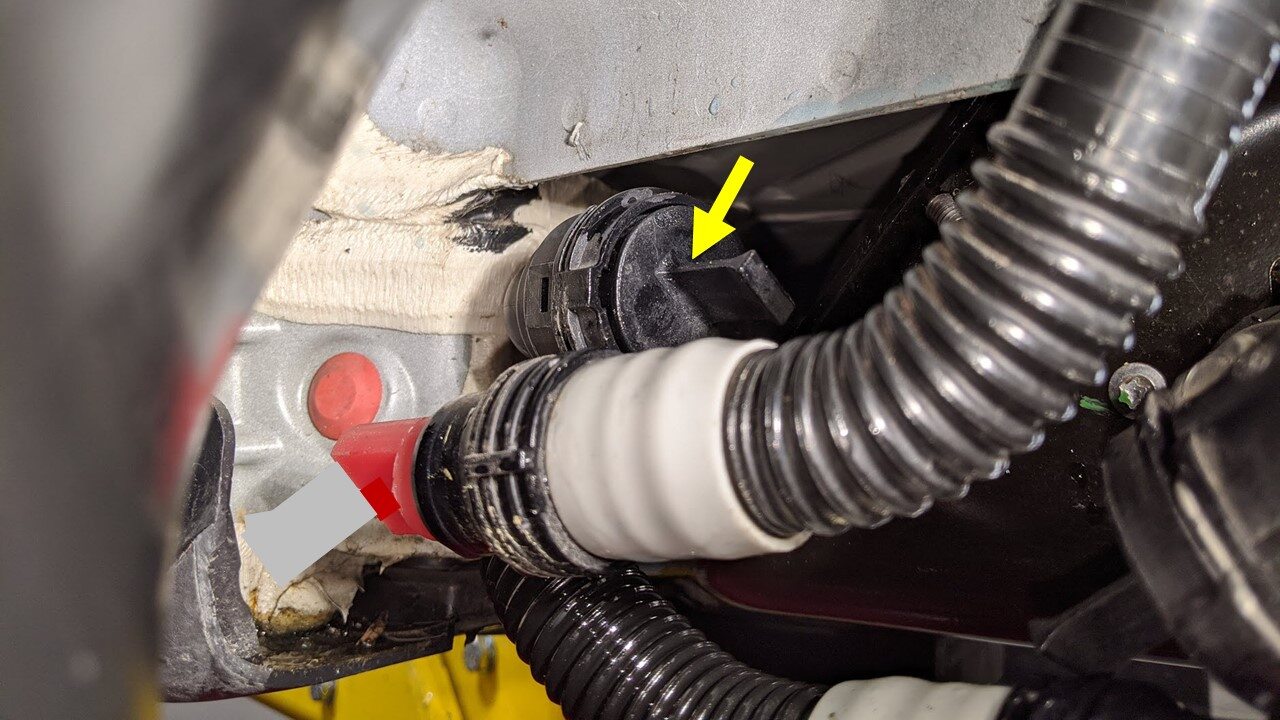

28. Disconnect PT flush fitting adapter from female side of PT return tube
    注

    1x spring clip



29. Remove PT drain fitting adapter from male side of PT return hose
    注

    1x spring clip, Plug the PT return hose



30. Remove plugs then connect PT return tube
    注

    执行推拉推测试，确保软管完全就位。请勿晃动软管连接点。





31. Remove PT drain fitting adapter from cart drain hose



32. Remove coolant drain container from underneath vehicle



33. Release RH front wheel liner
    注

    1x bungee strap, Remove bungee strap as needed

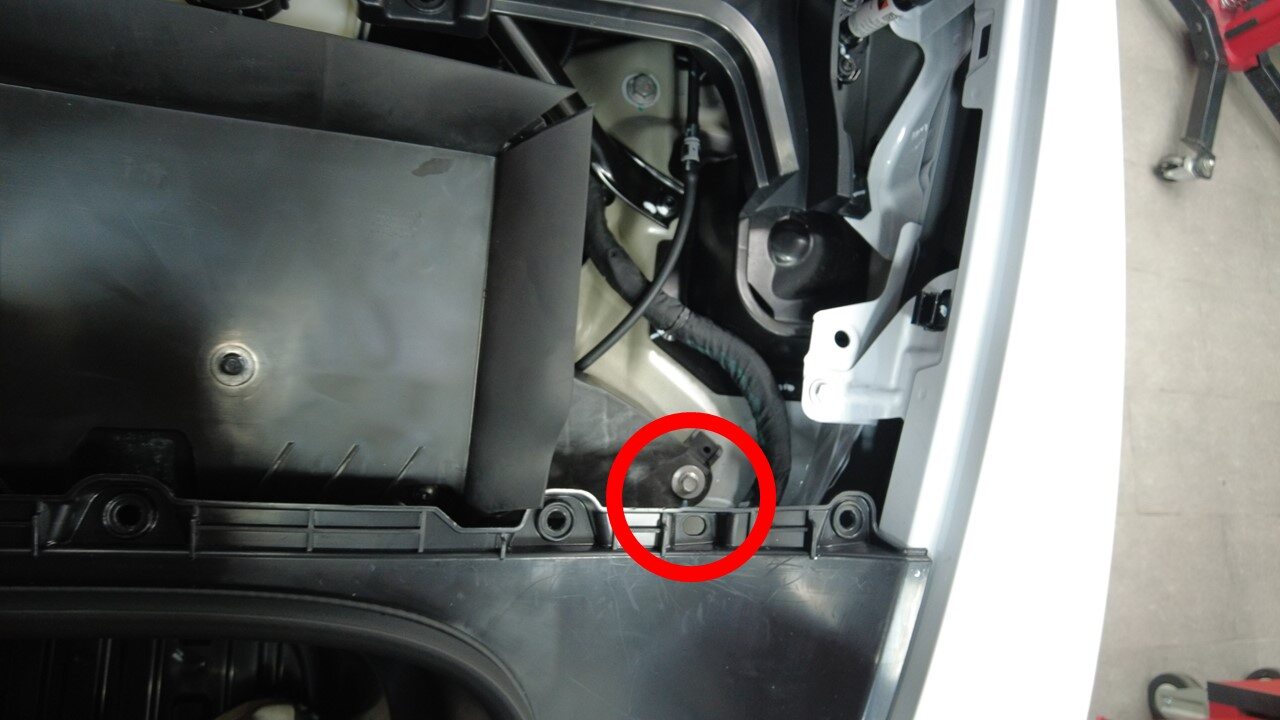

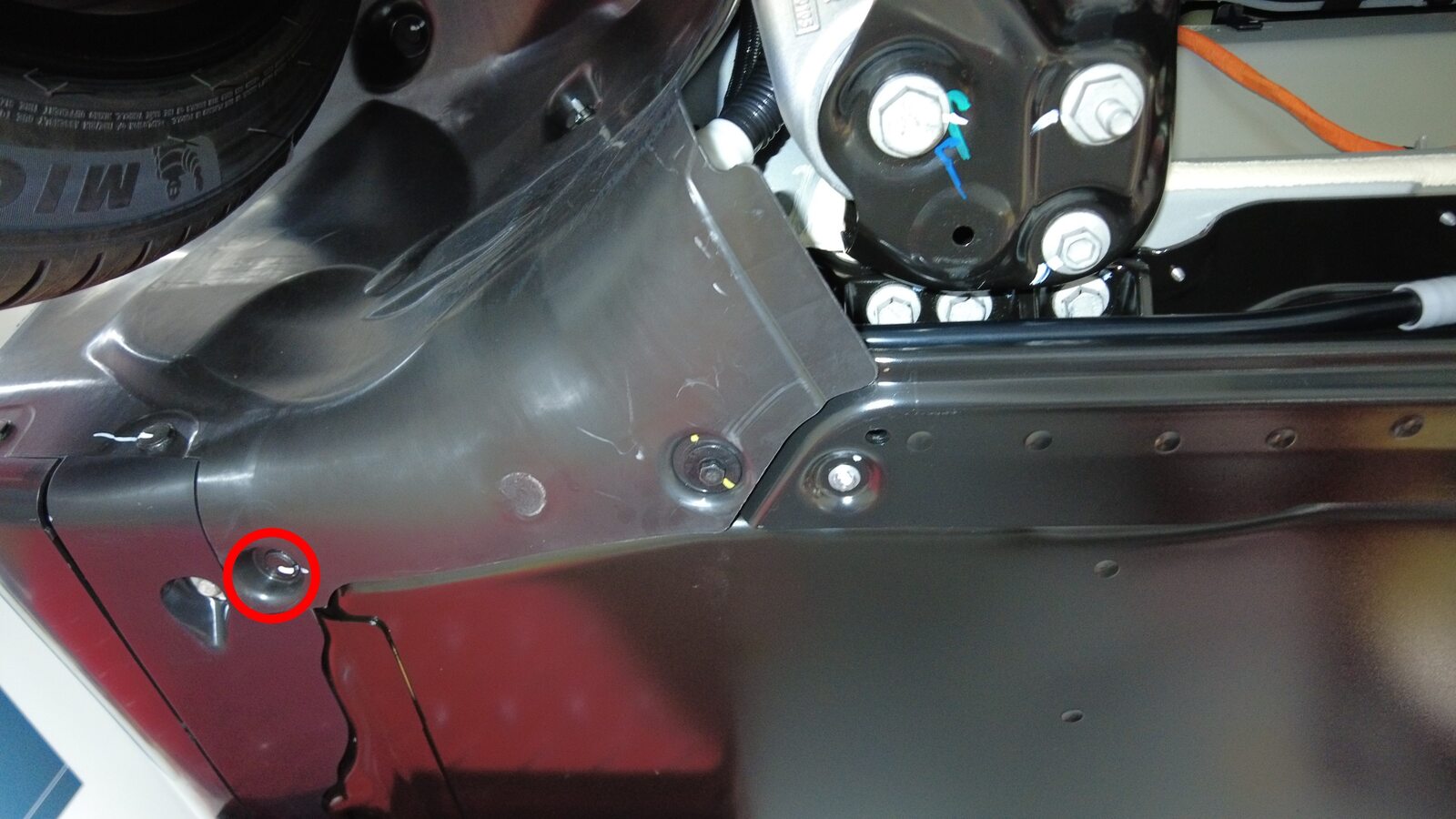

34. Install bolt securing RH front wheel liner to skid plate
    注

    1x bolt, 10mm, 5 Nm



35. Install clip securing RH wheel liner to body
    注

    1x push clip



36. Install the front aero shield. See 流线型护板 - 前 ((拆卸和更换)).
37. Perform a coolant vacuum refill. See 冷却系统 - 真空重新加注 (Test/Adjust).
38. Connect LV power. See 低压电源（锂）（断开和连接） (Modify).
39. Access thermal system routines via UI
    注

    Select Service mode > Thermal





40. Unlock the vehicle gateway. See 网关（解锁）.
41. 运行 ODIN 例行程序 PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Service Mode:
    • Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
    • Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
    • Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain
    via Toolbox:(link)
42. 运行 ODIN 例行程序 TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Service Mode:
    • Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
    • Thermal ➜ Coolant System ➜ Coolant Purge Start
    via Service Mode Plus:
    • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
    • Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge
    via Toolbox:(link)
43. Inspect coolant level and top off as necessary
    注

    Ensure that fluid level is at Max line, Vacuum fill required if greater than 1L lost during repair

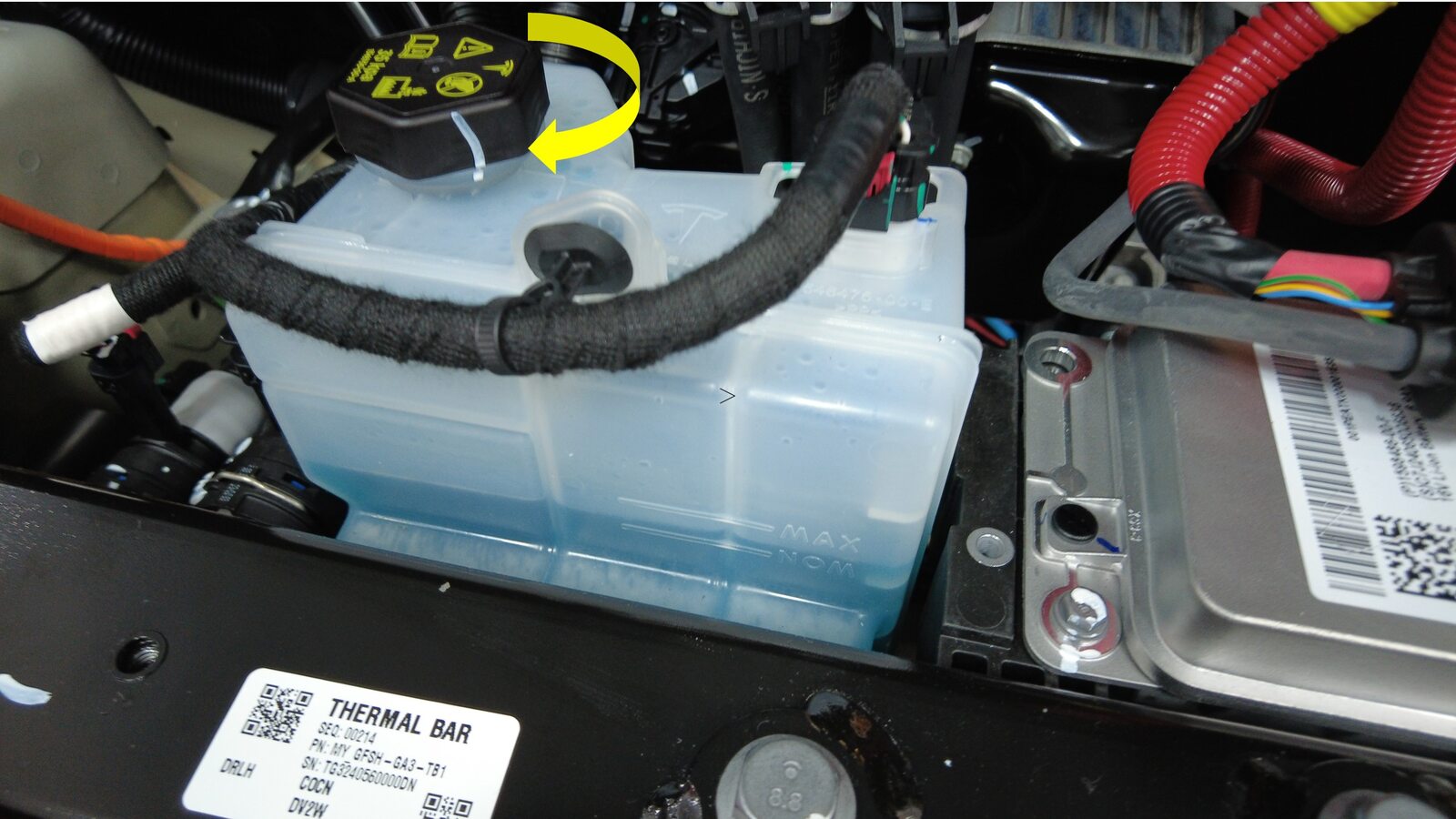

44. Install coolant bottle cap



45. 运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)

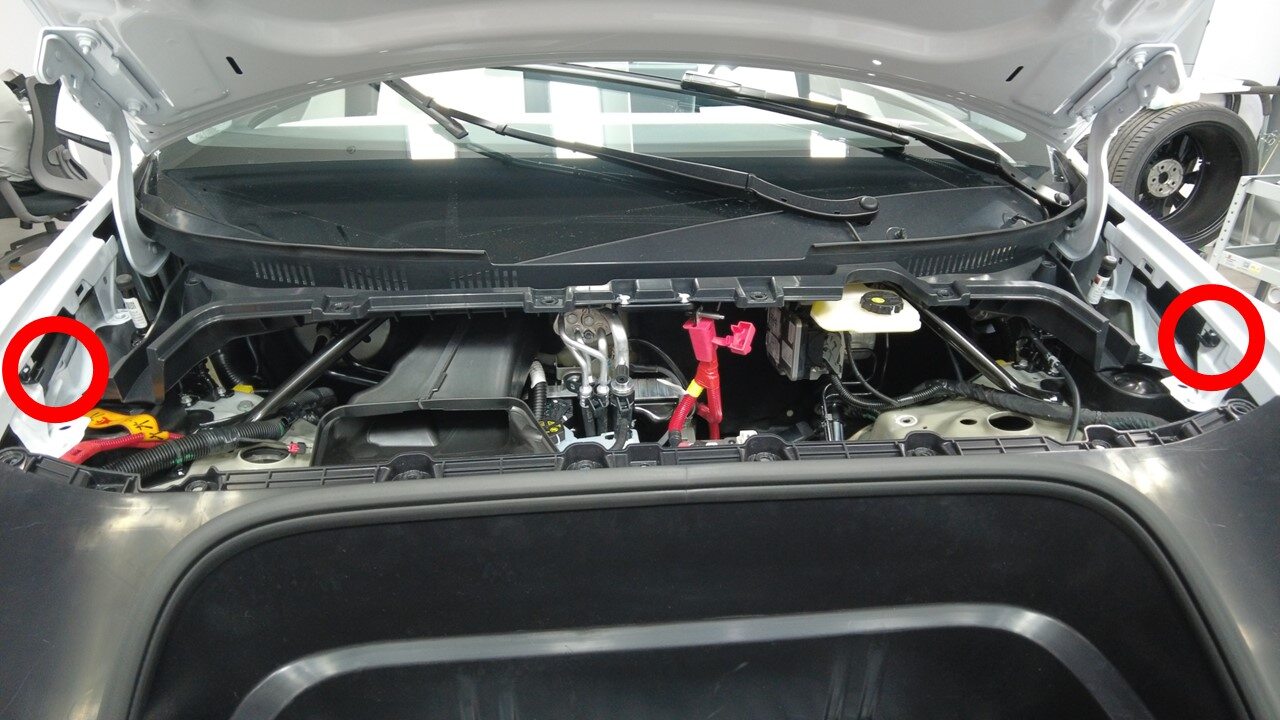

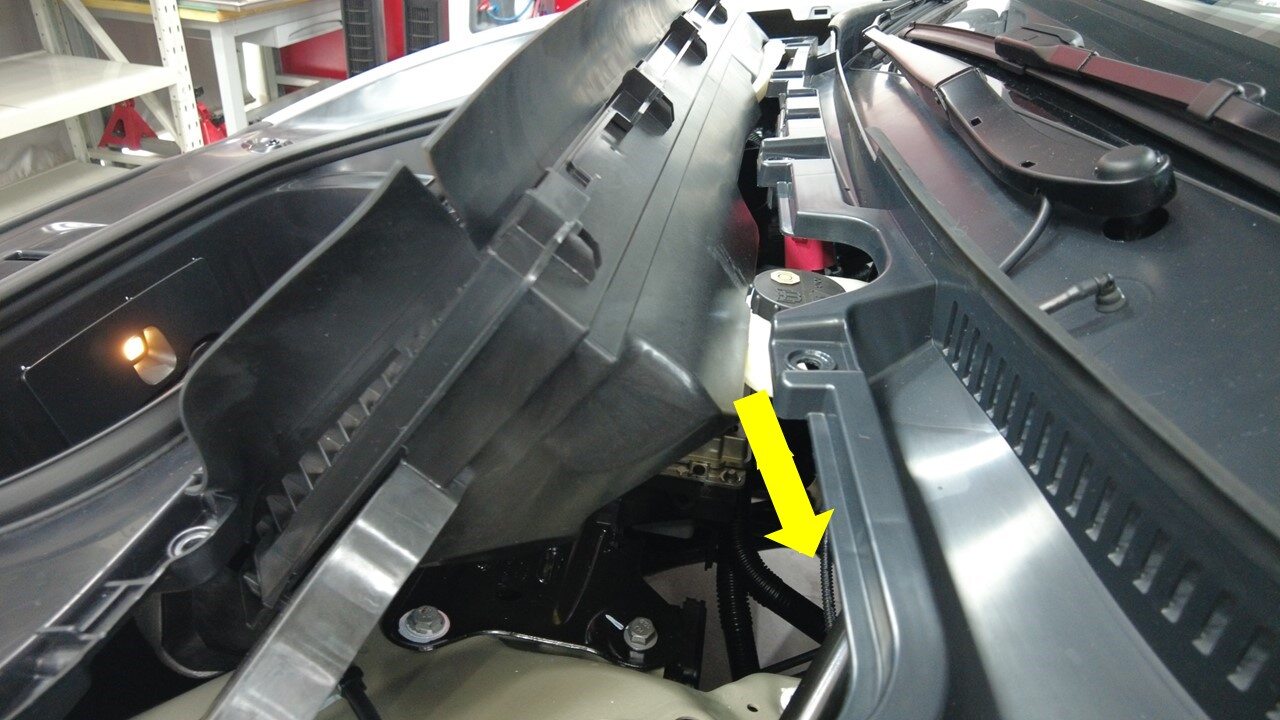

46. Install HEPA filter assembly
    注

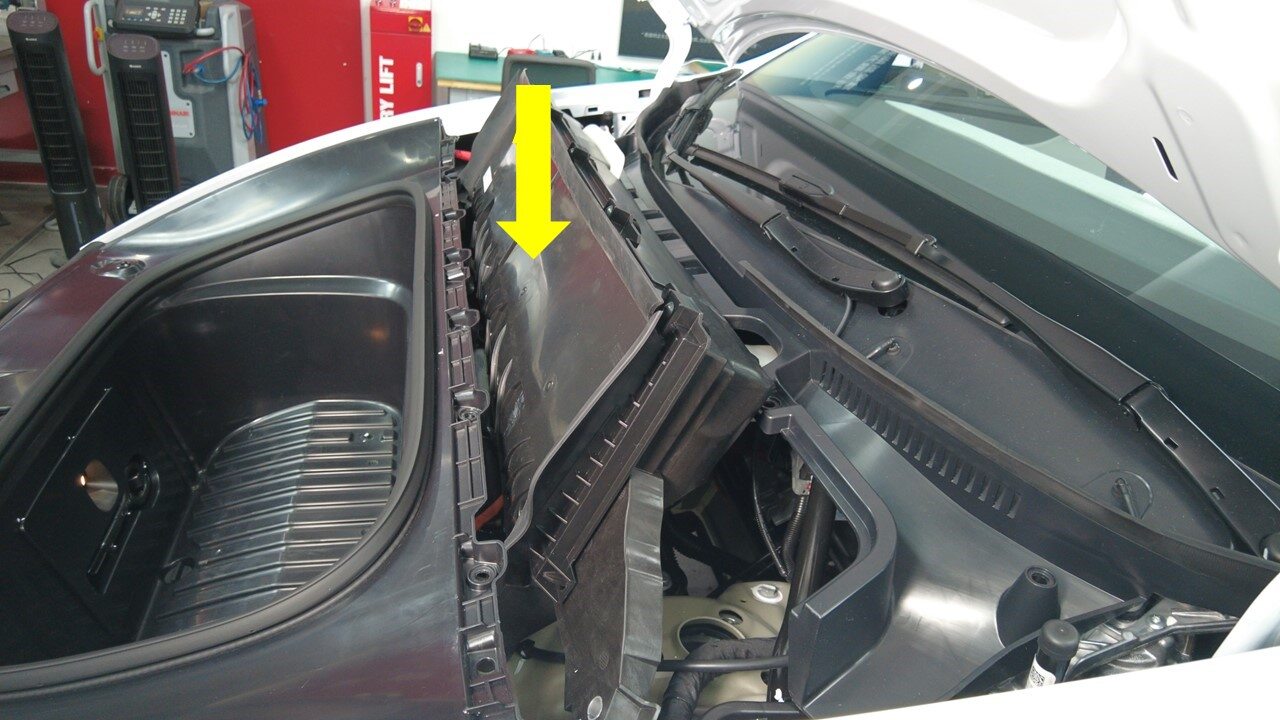

    2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct

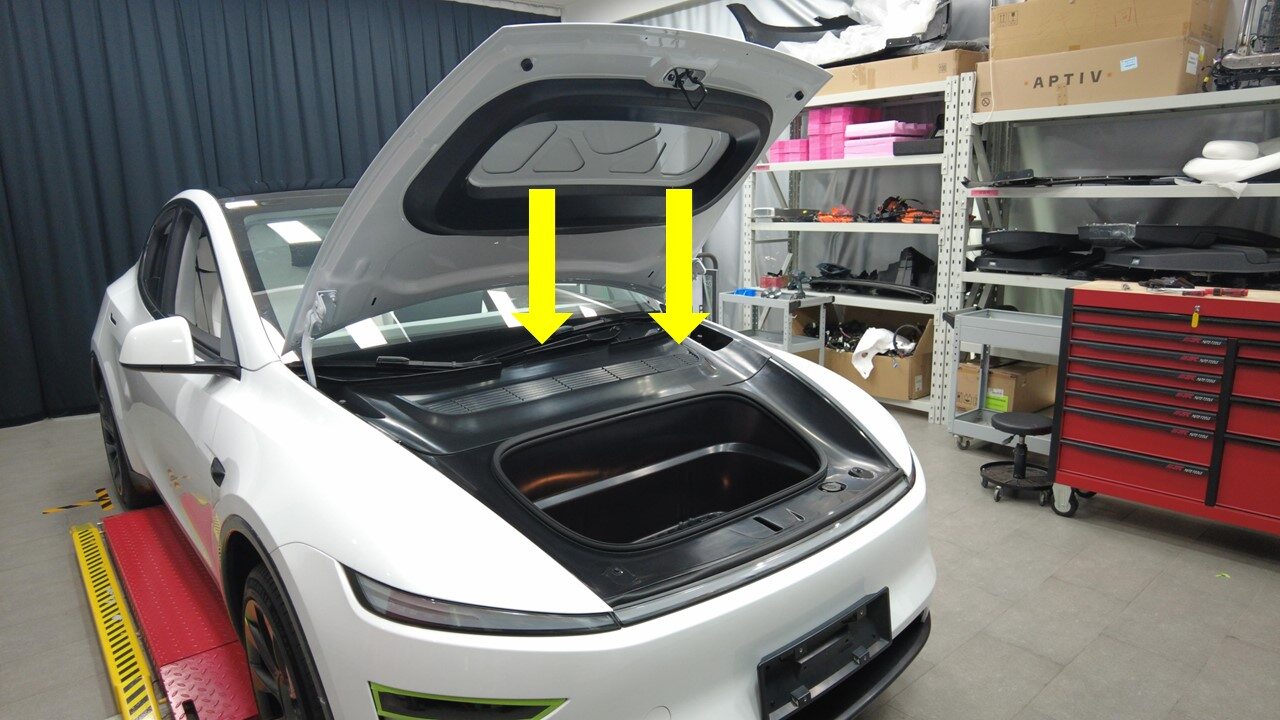

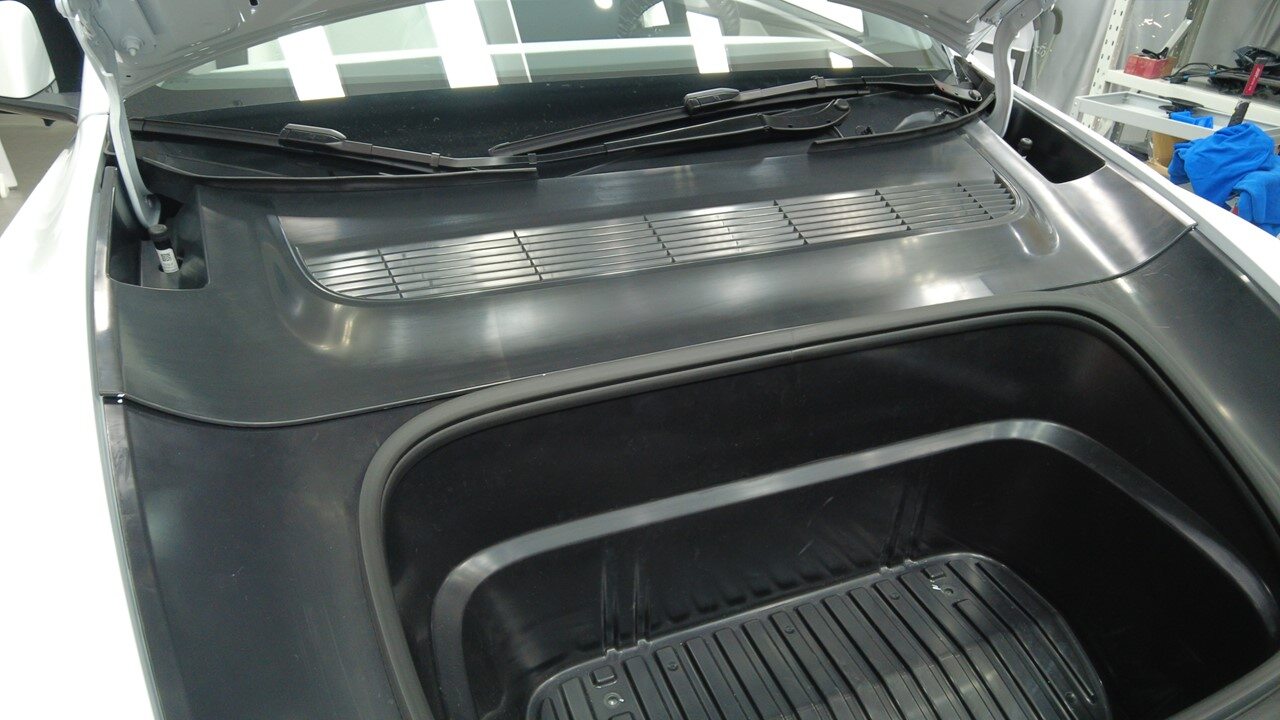

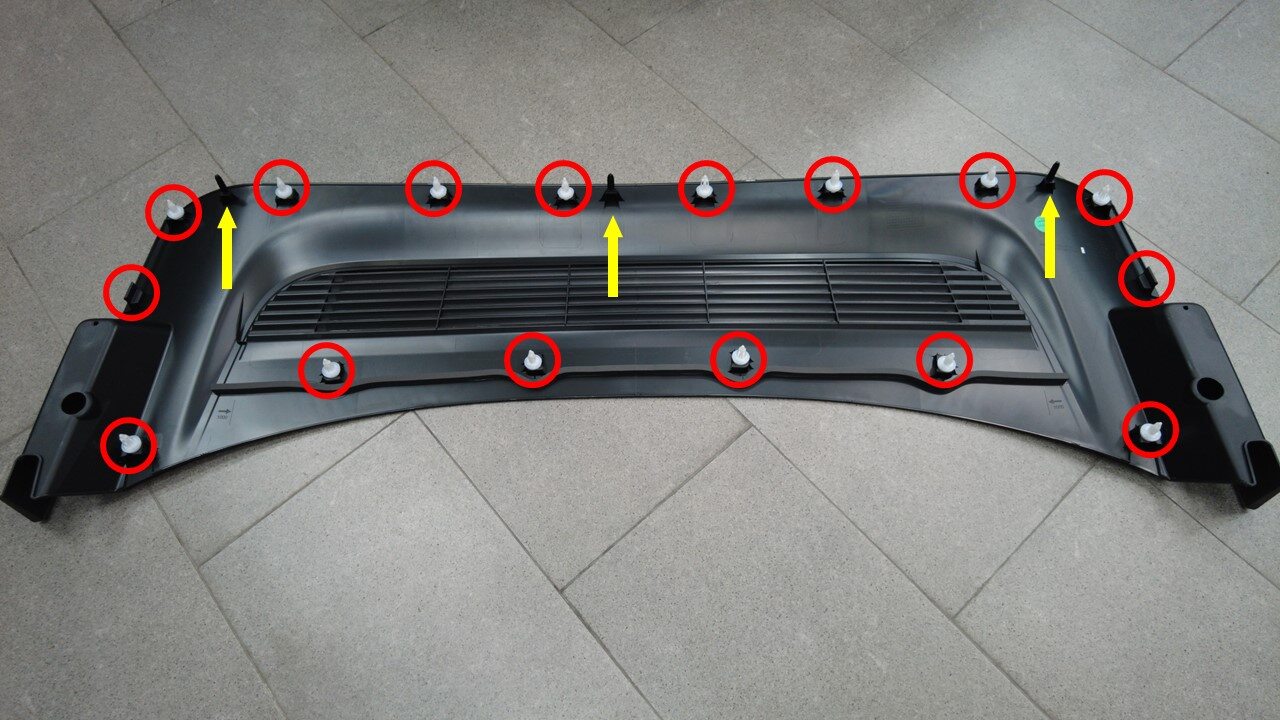

47. Install rear apron
    注

    16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







48. Close hood





49. Raise LH front window



50. Close LH front door
