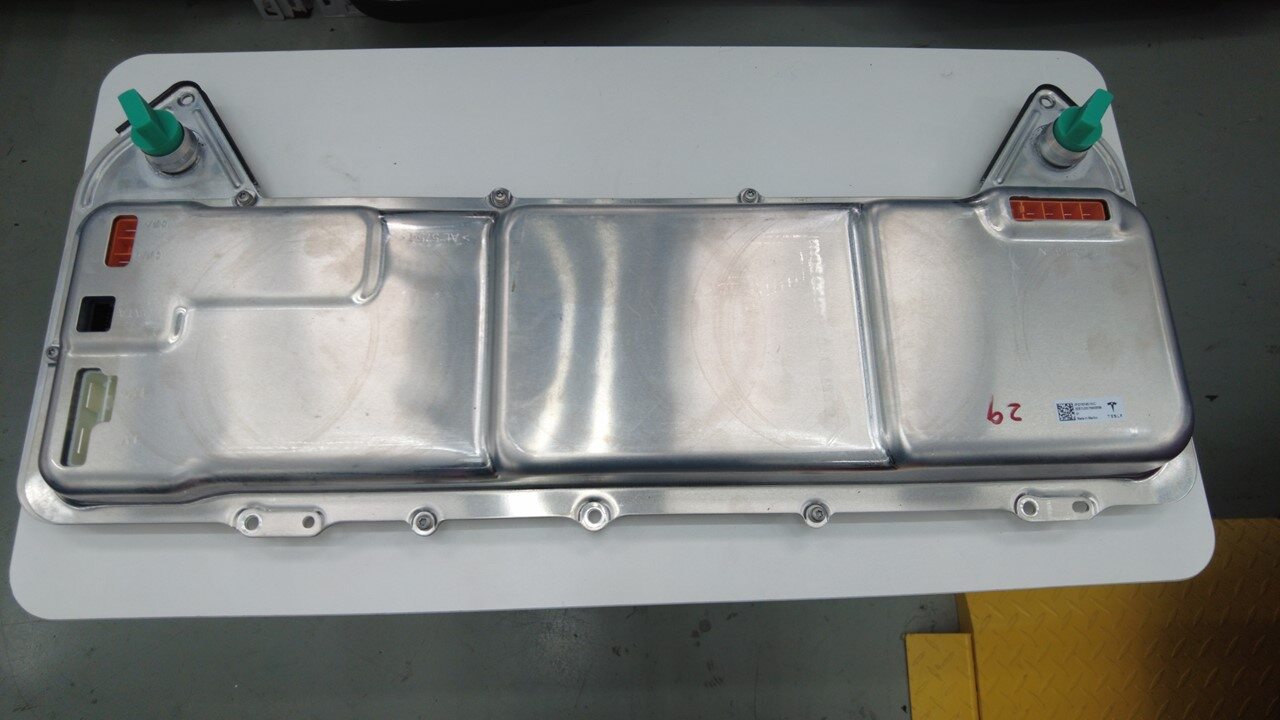

Power Conversion System (PCS2Lite) ((拆卸和更换))

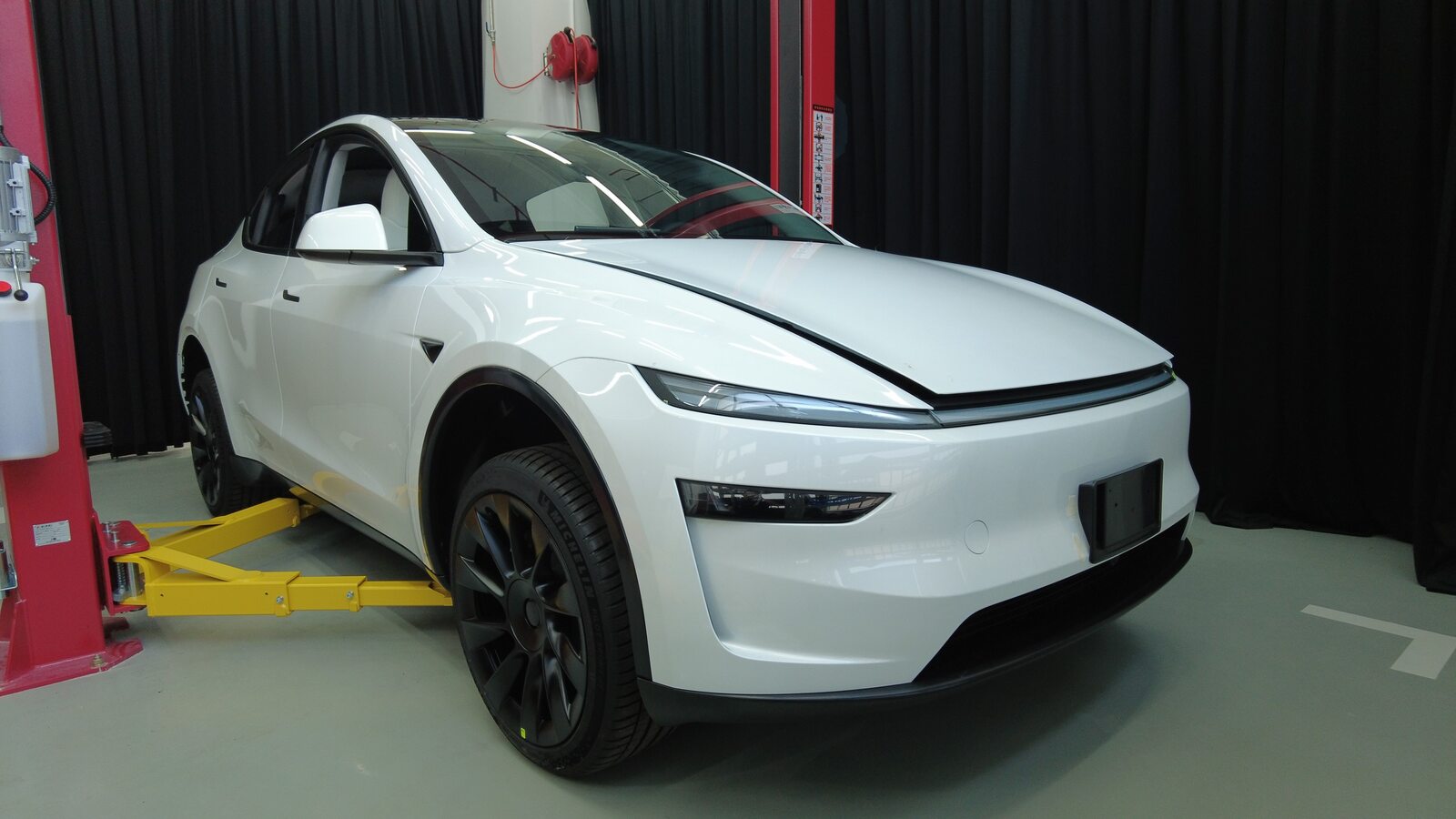

Raise and support vehicle

注

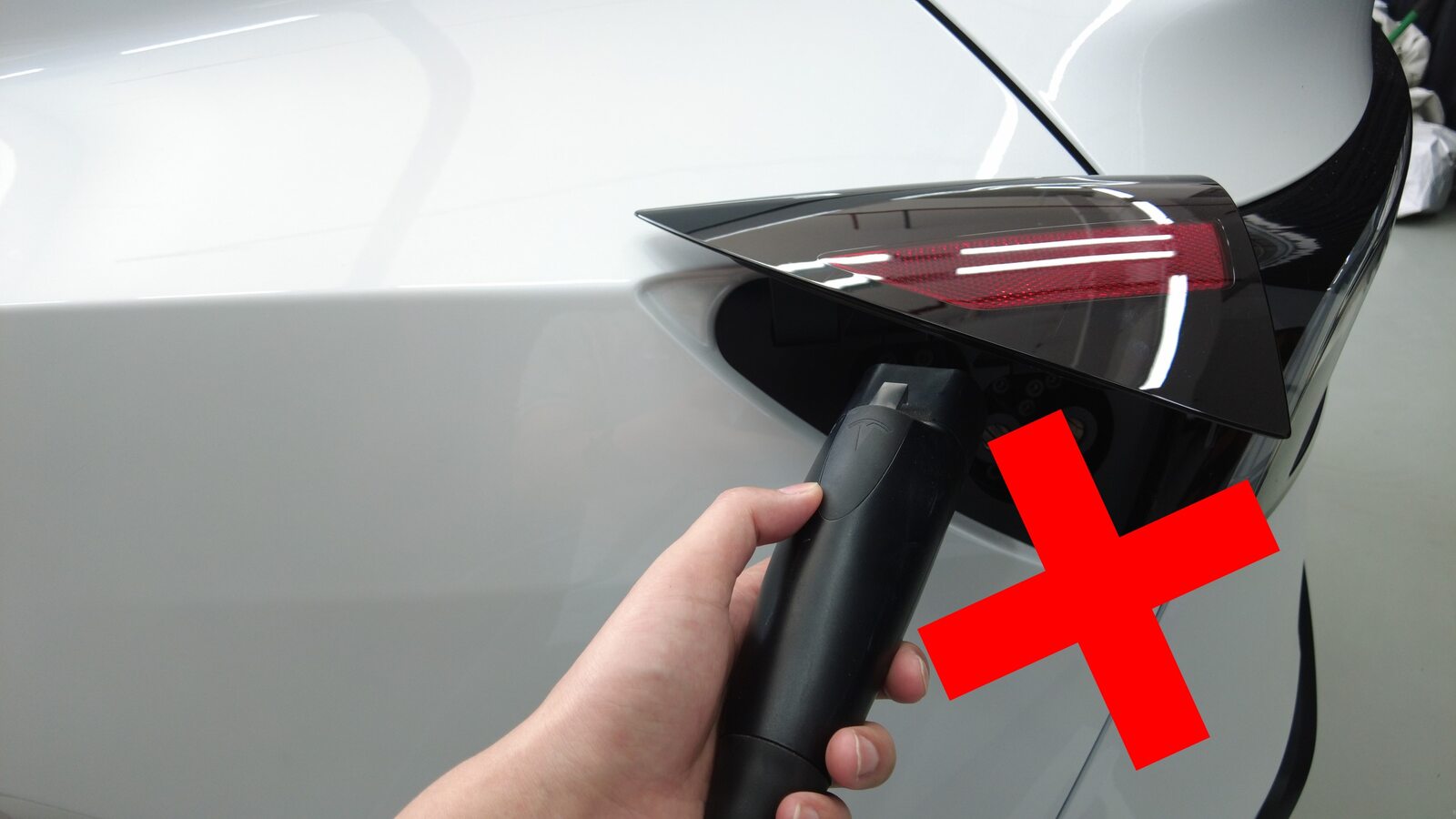

Ensure vehicle is not charging, Remove charging cable if it's plugged in

Open all four doors

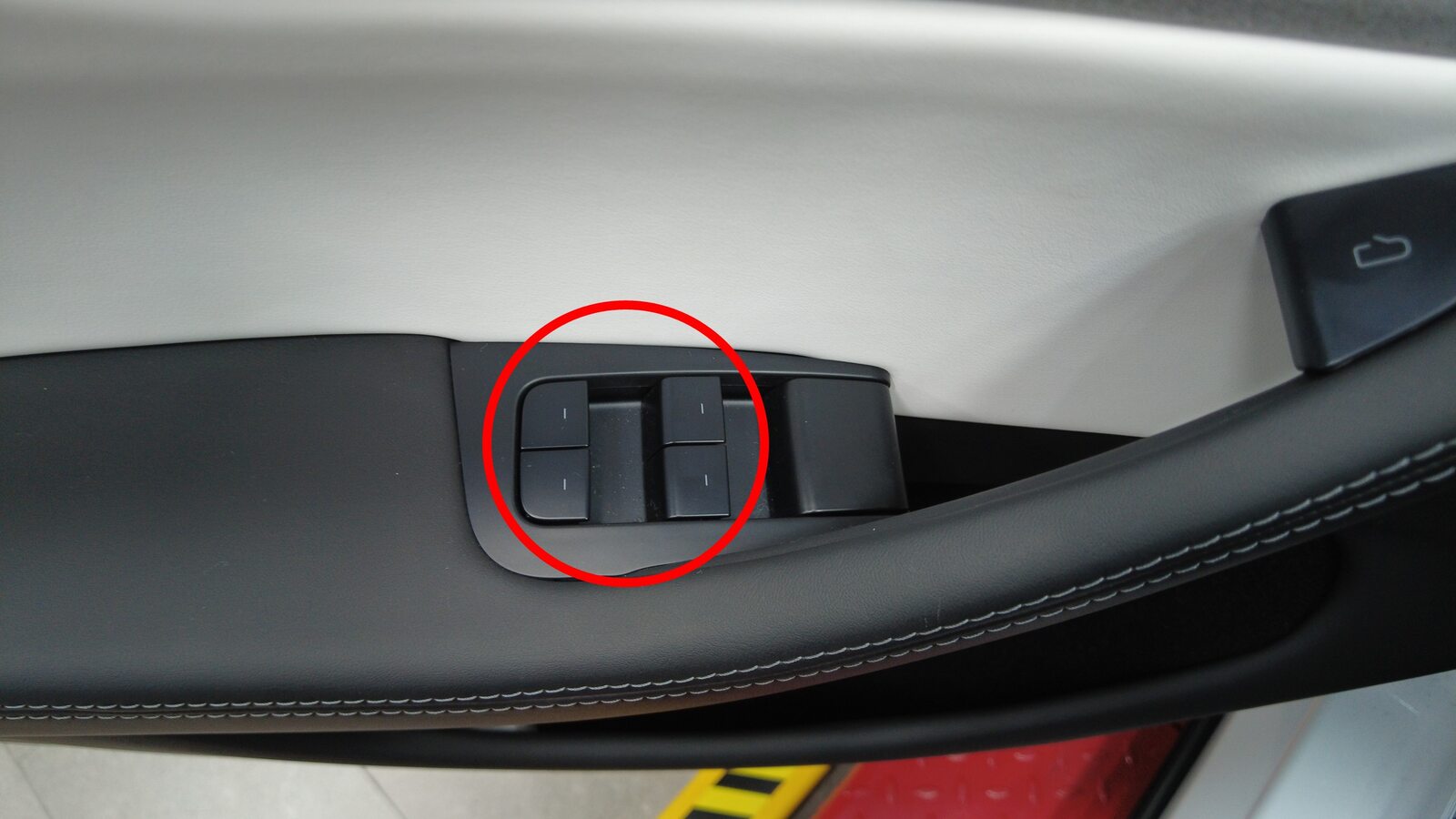

Lower all four windows

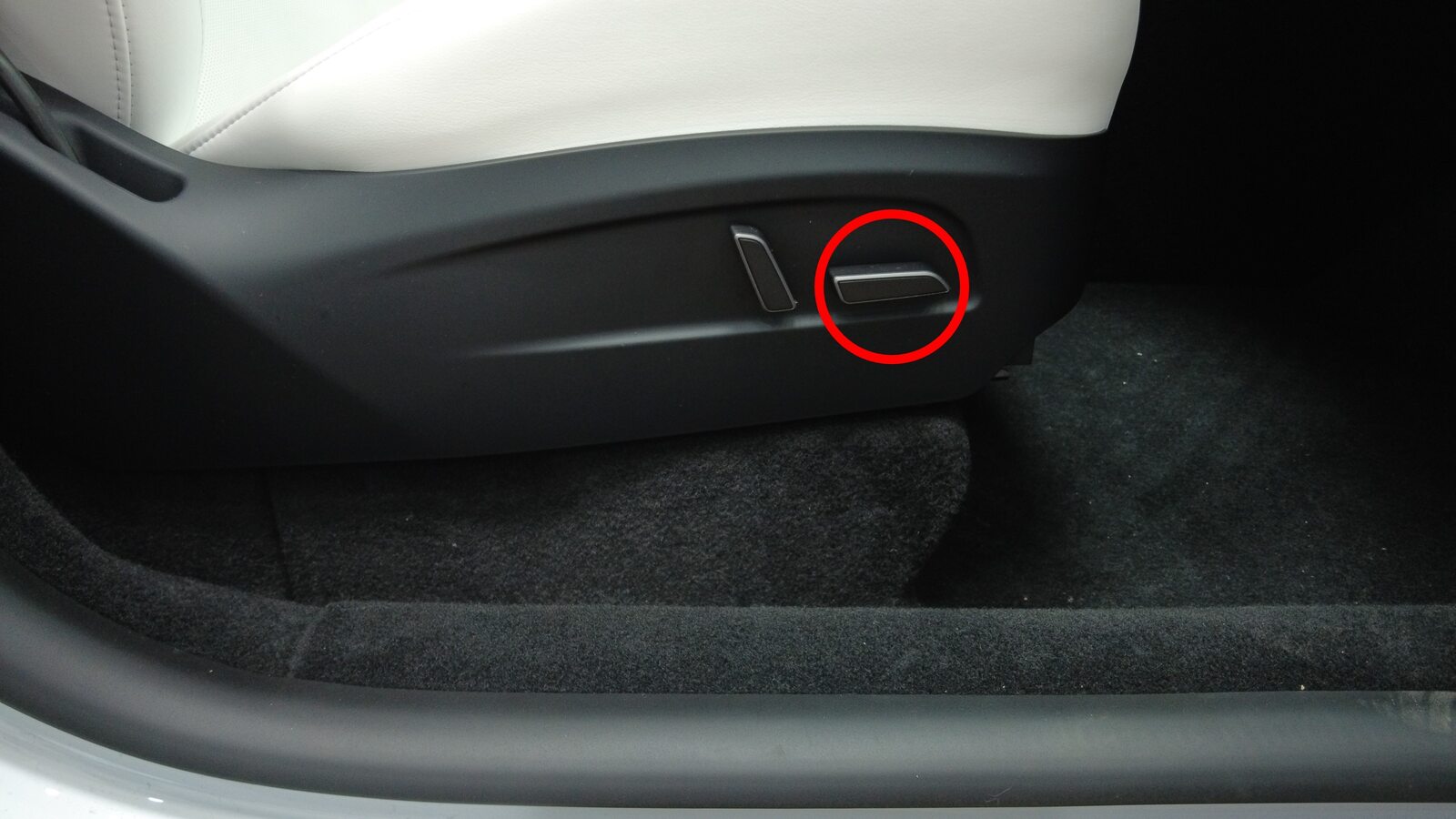

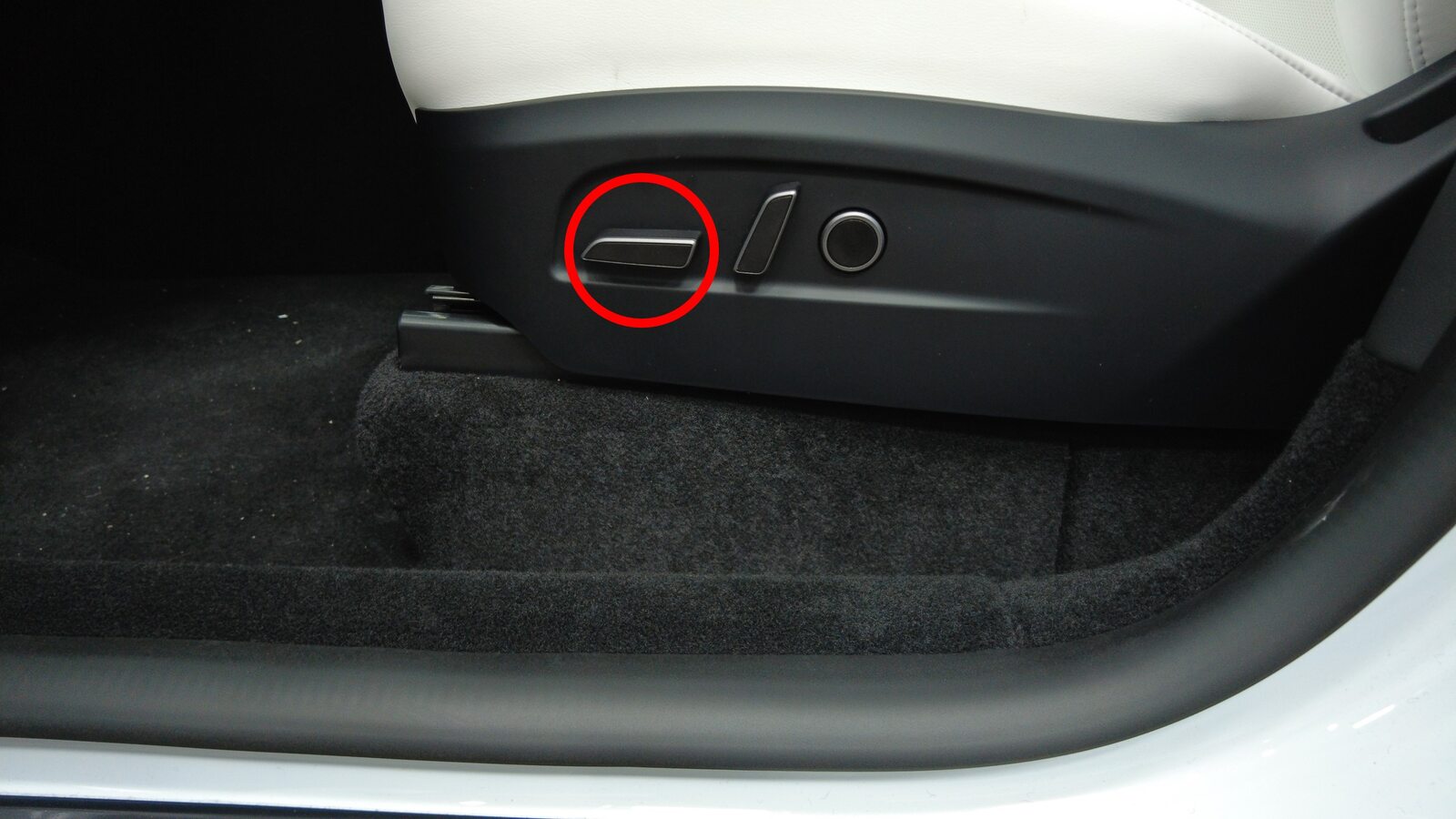

Move LH front seat forward

注

Adjust seat back if needed to avoid contacting headliner

Move RH front seat forward

注

Adjust seatback if needed to avoid contacting headliner

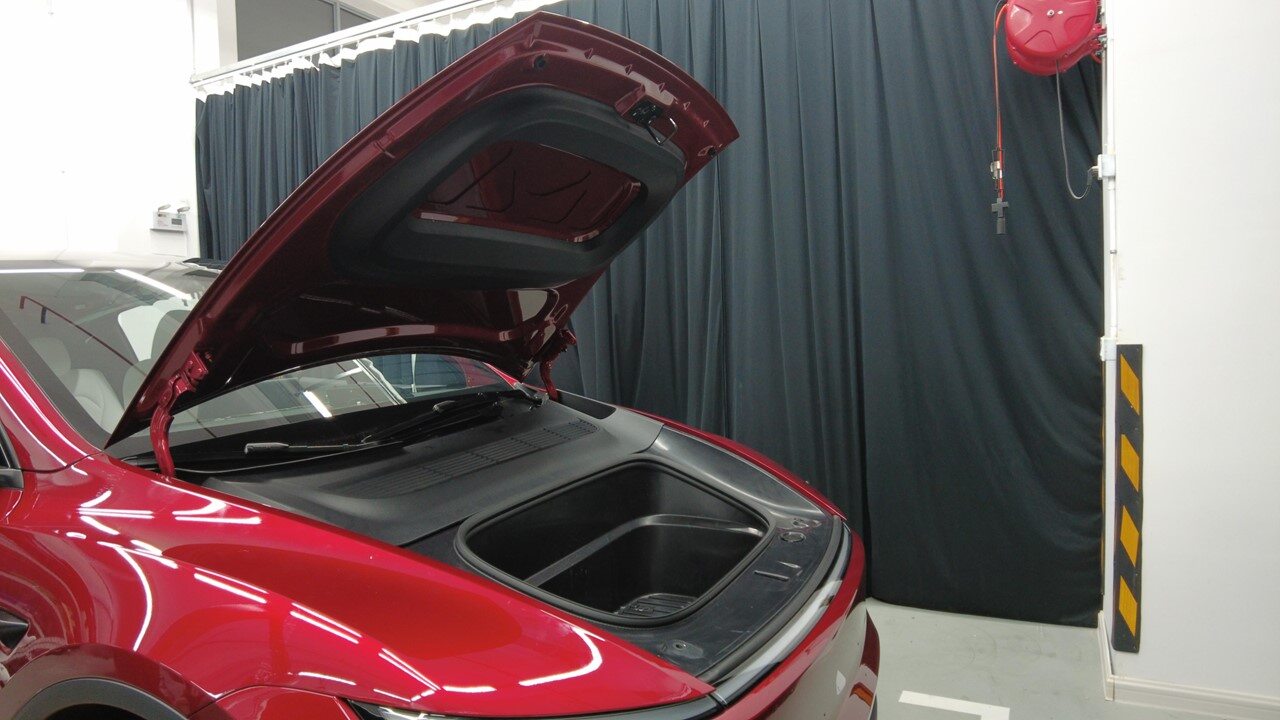

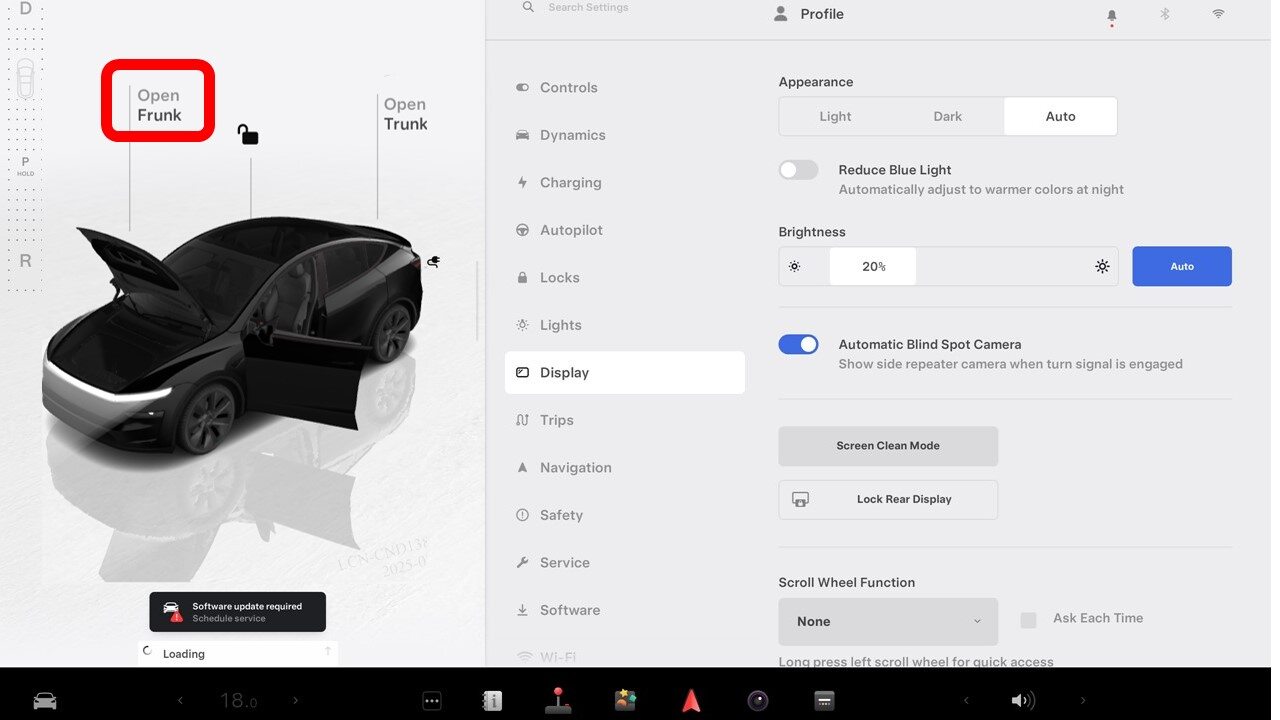

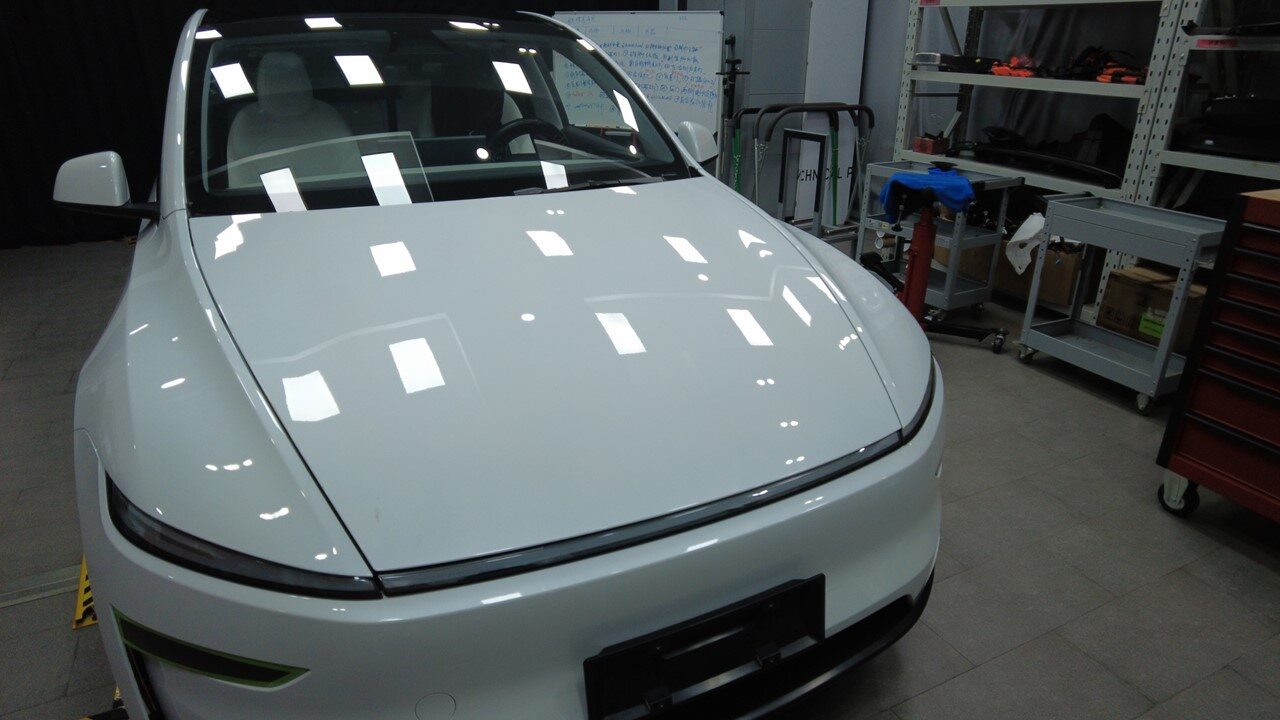

Open hood

运行 ODIN 例行程序 PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)

Unlock the vehicle gateway. See 网关（解锁）.

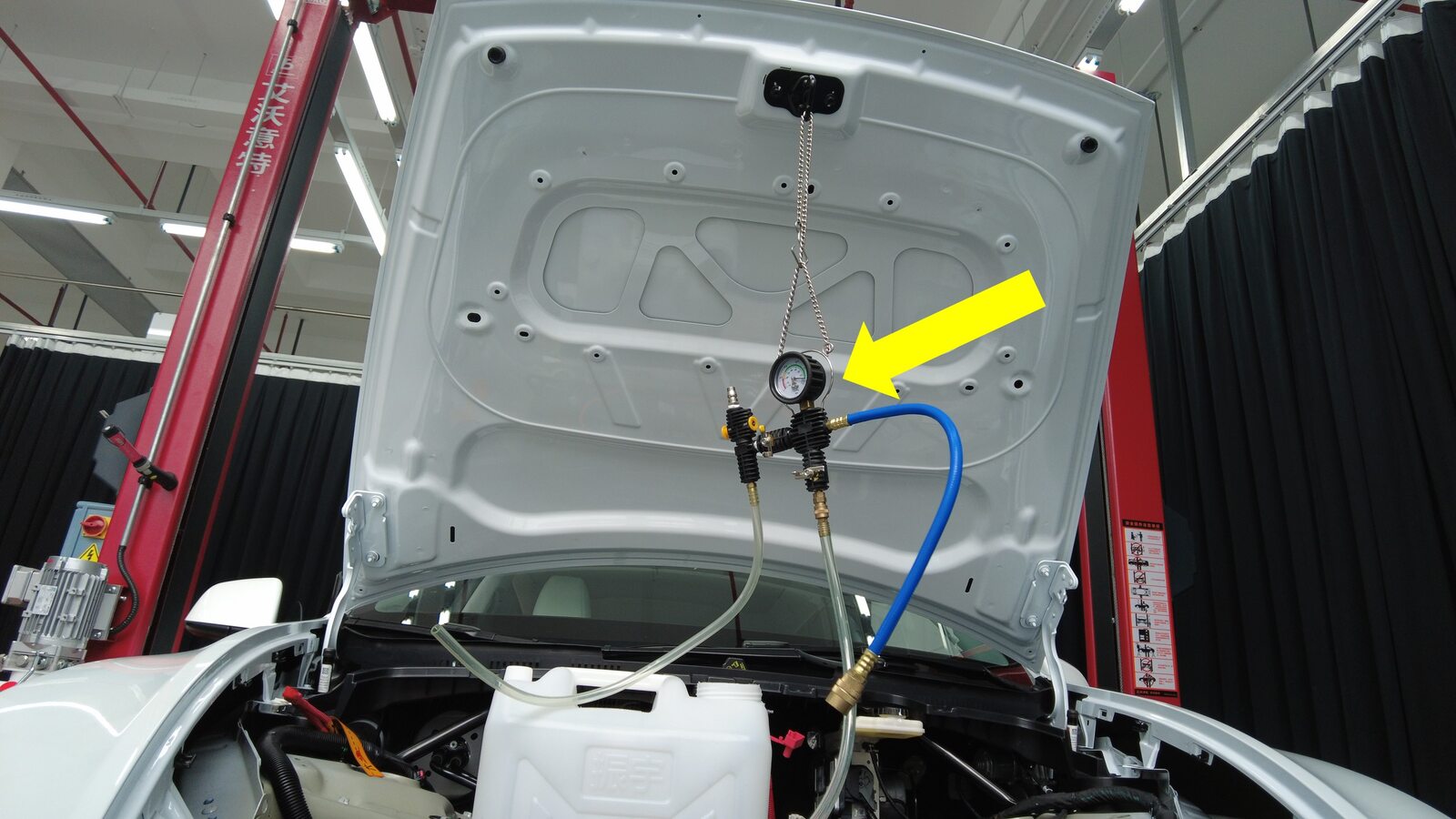

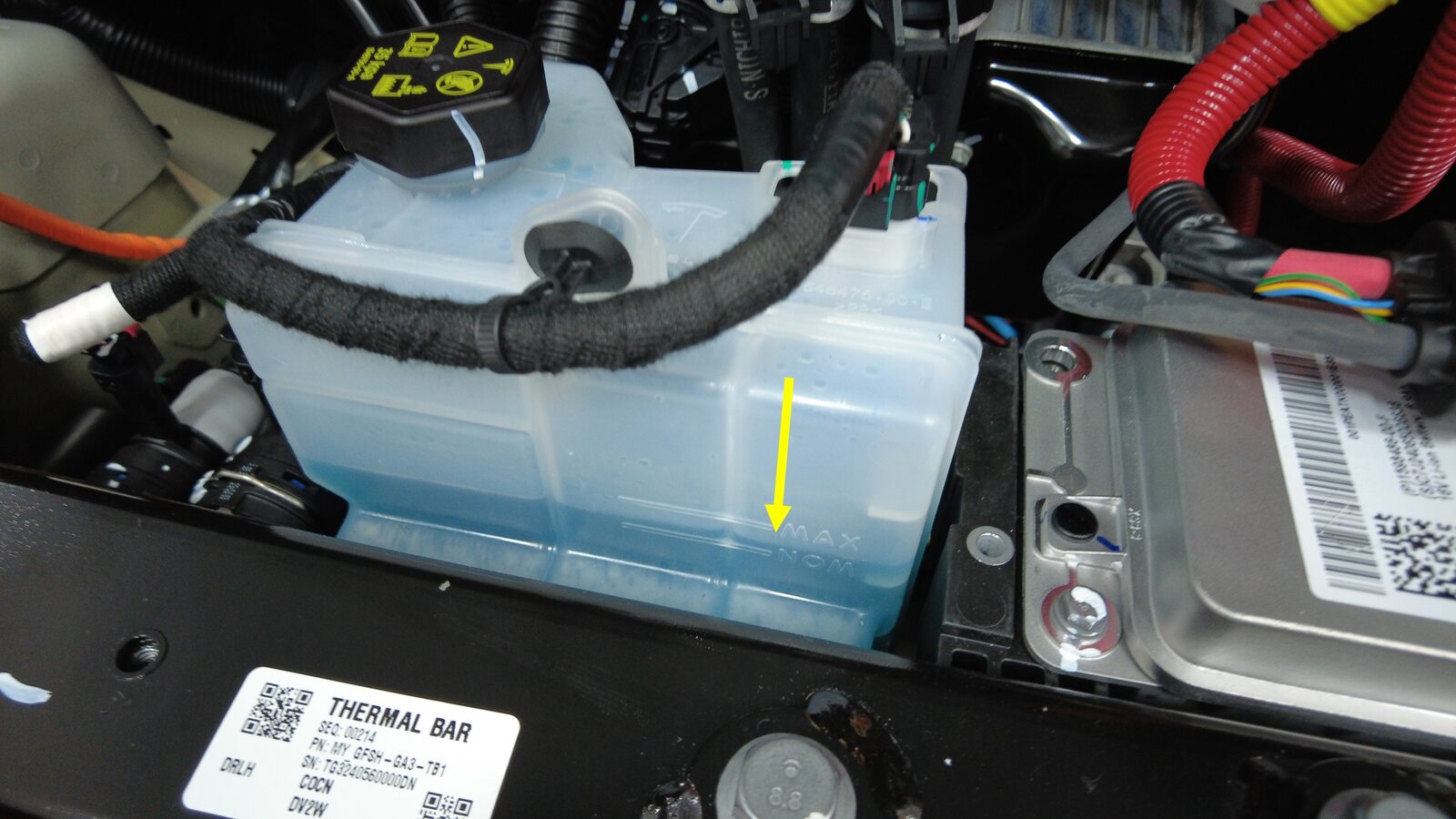

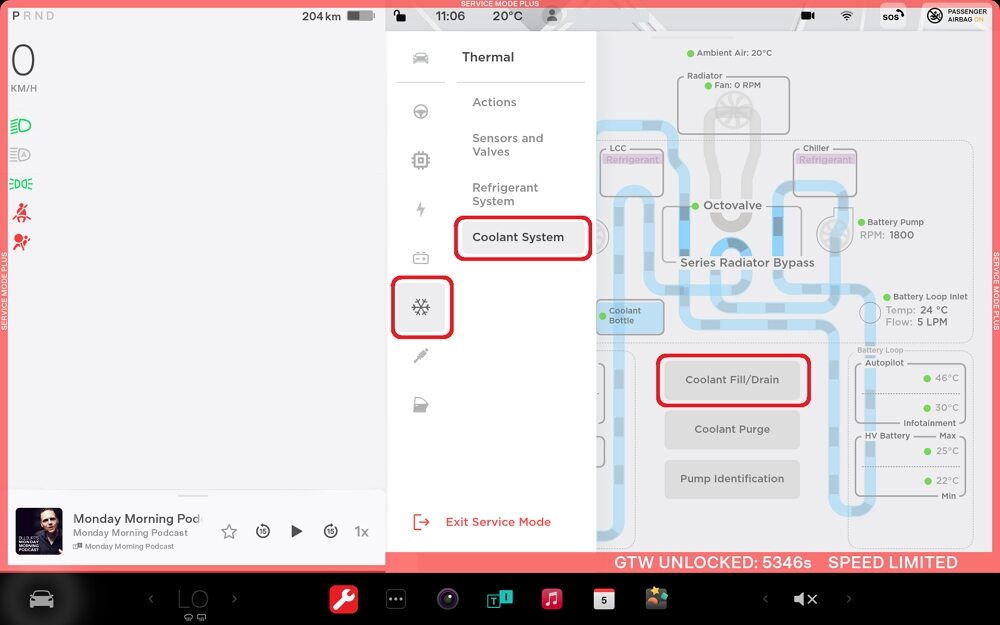

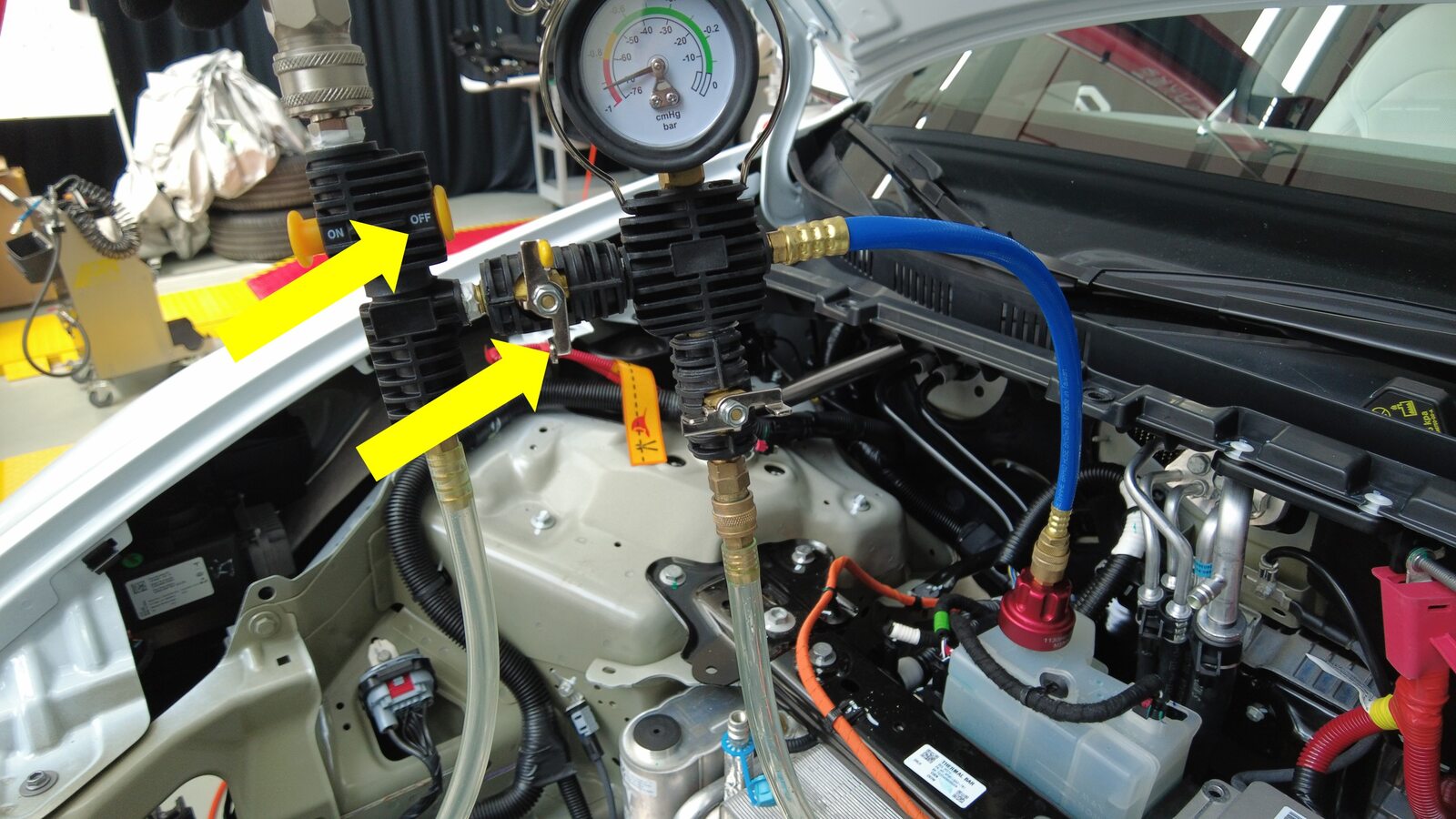

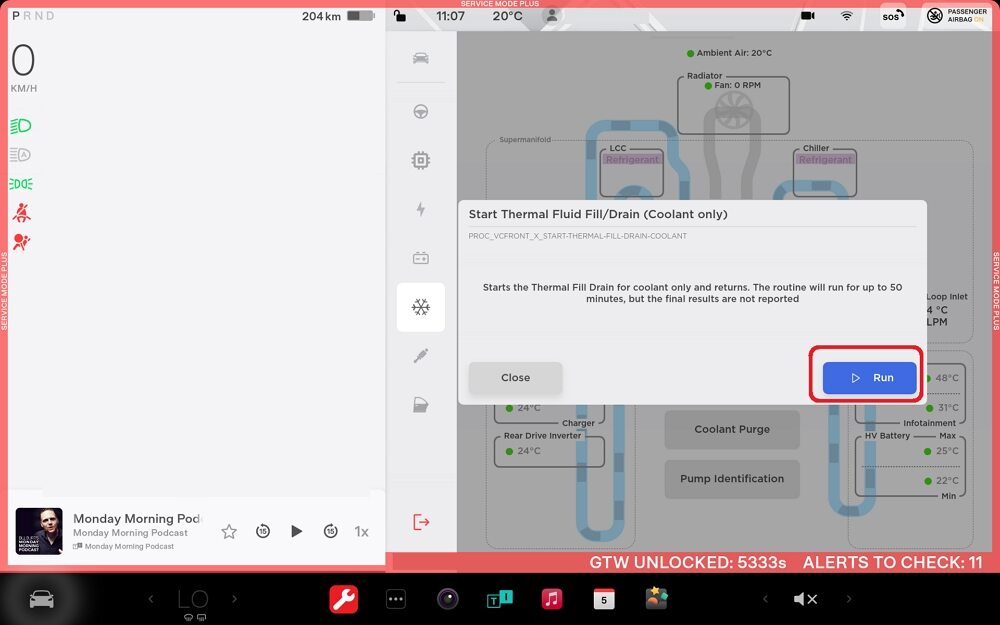

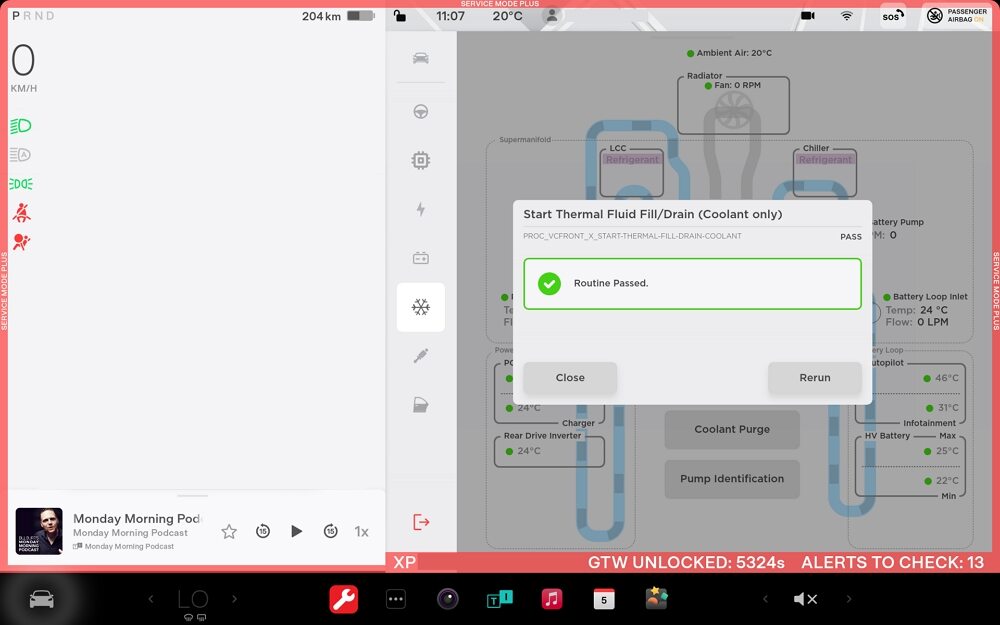

Perform "Start Thermal Fill/Drain (Coolant Only)" through Service UI

注

Select Thermal > Coolant System > Coolant Fill/Drain, click Run, close once routine is completed, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours routine must be performed again

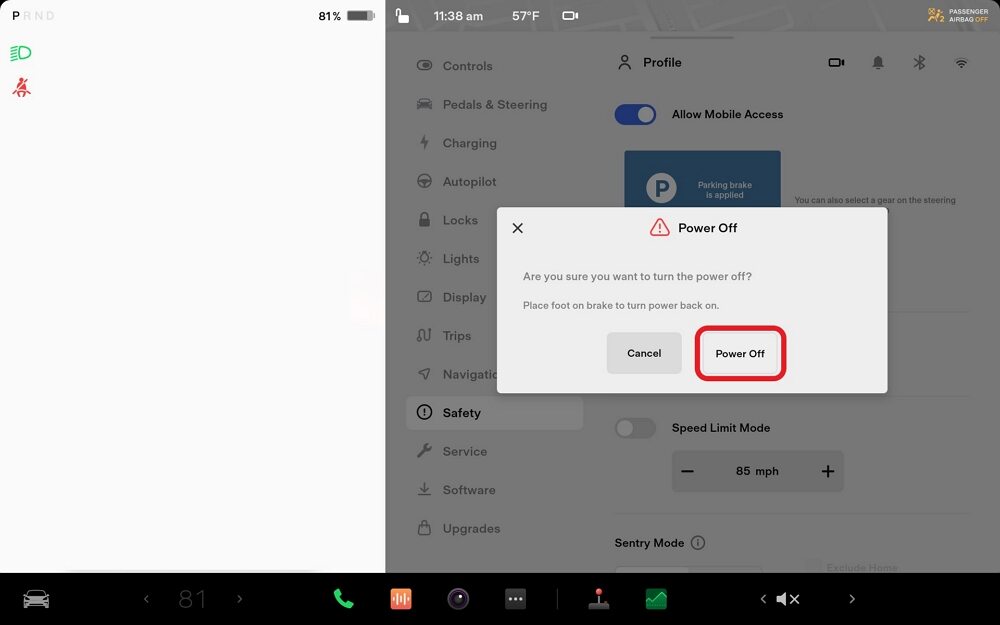

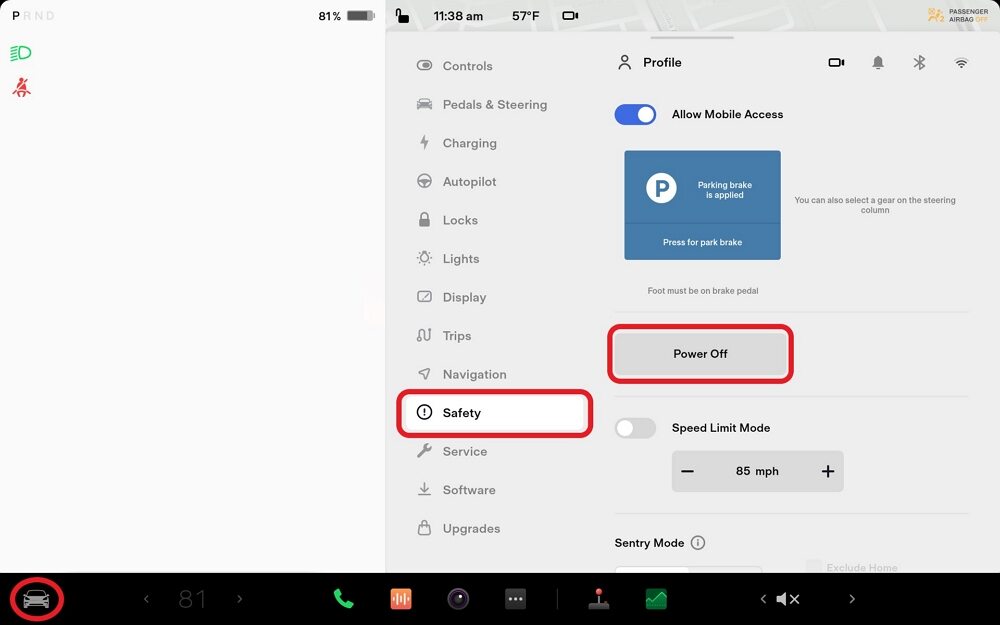

Power off vehicle from center display

注

Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

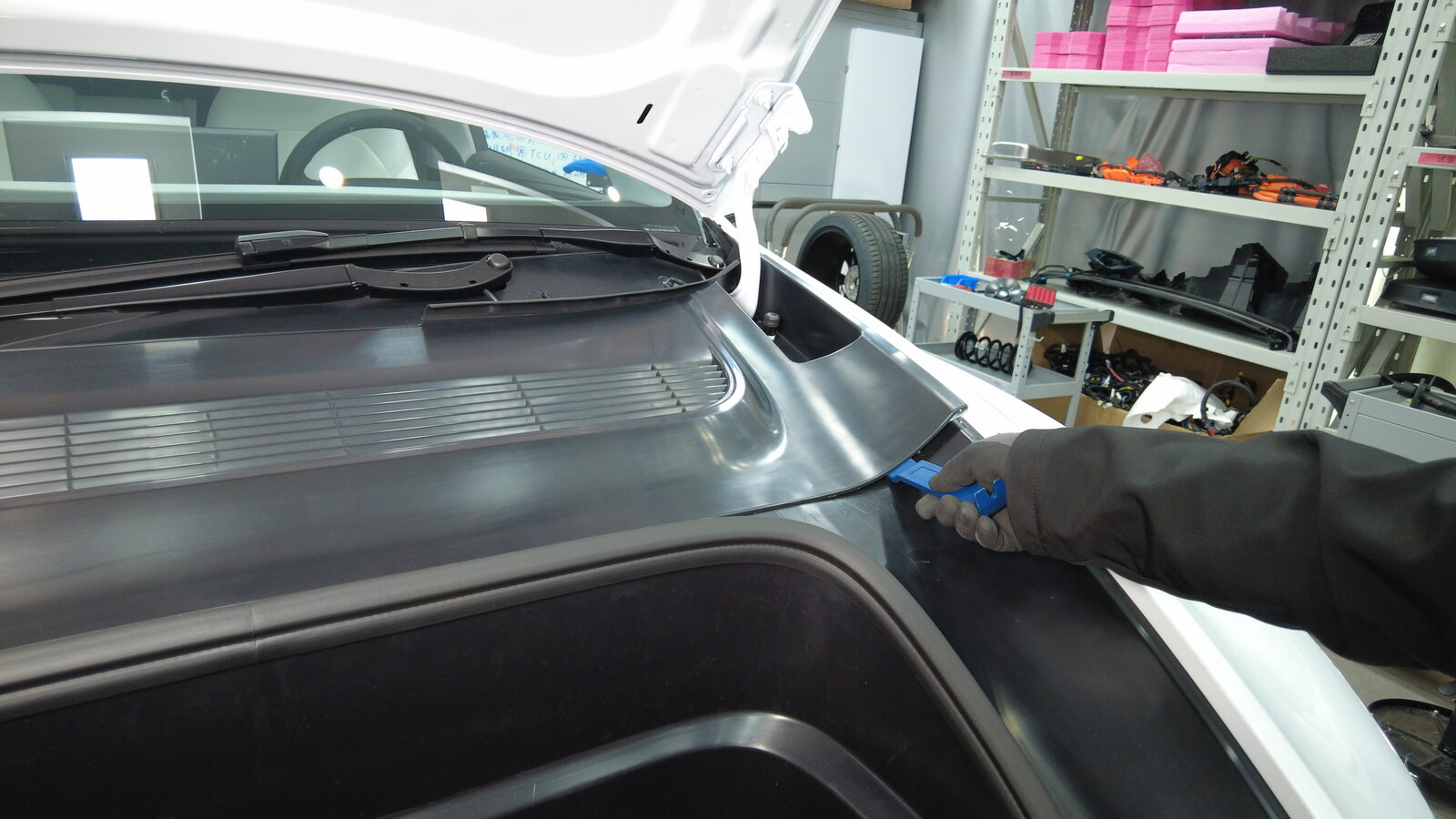

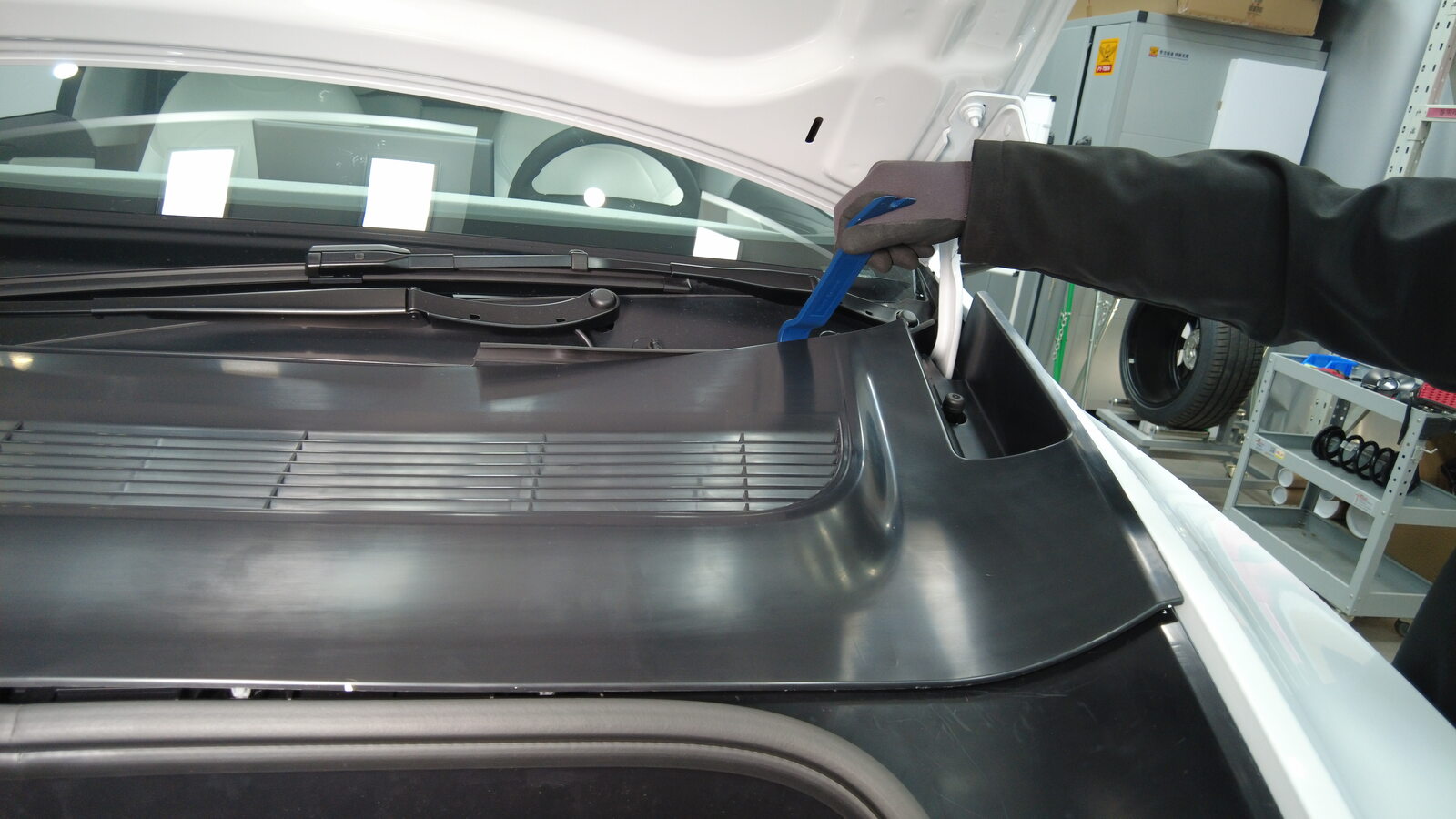

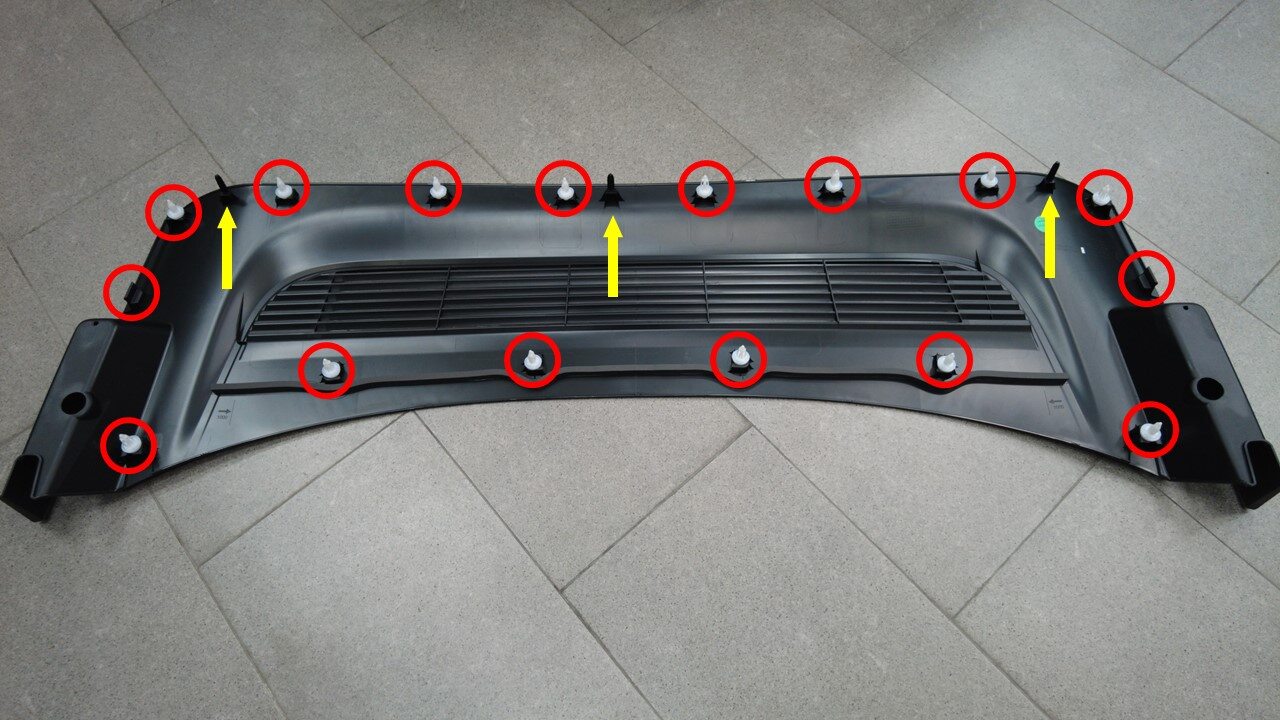

Remove rear apron

注

16x trim clips, 3x datums, 2x clips

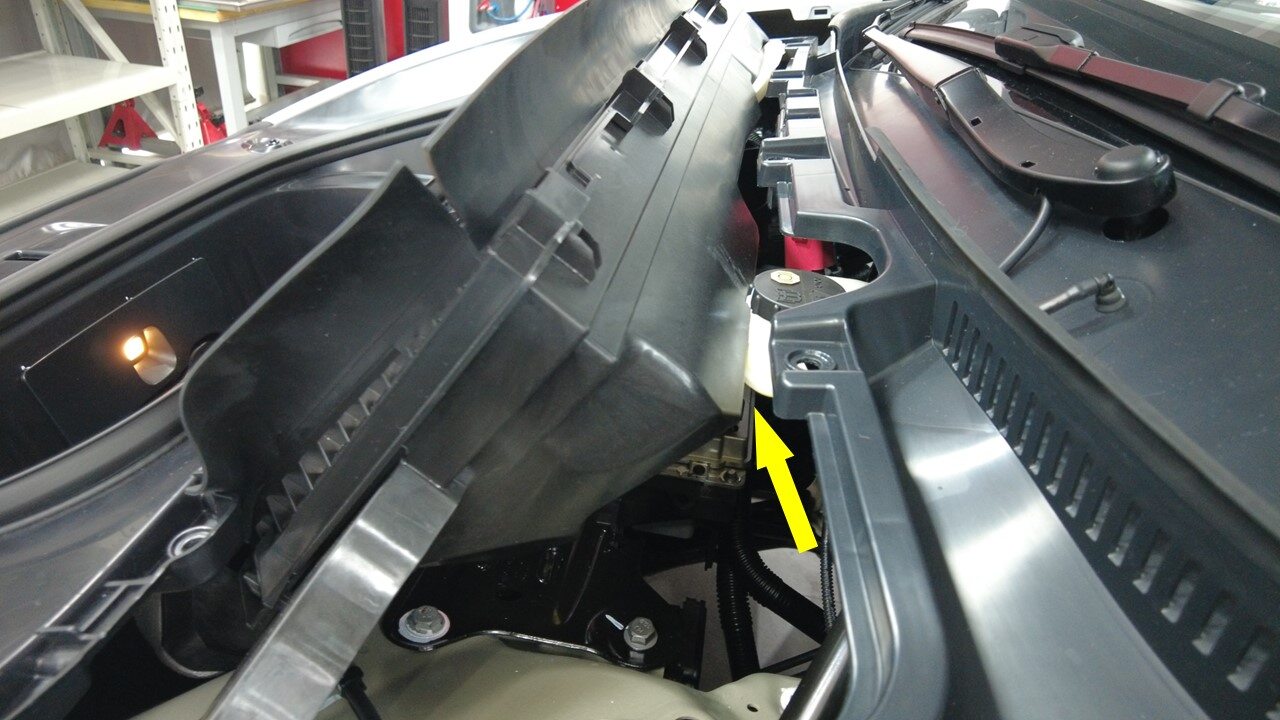

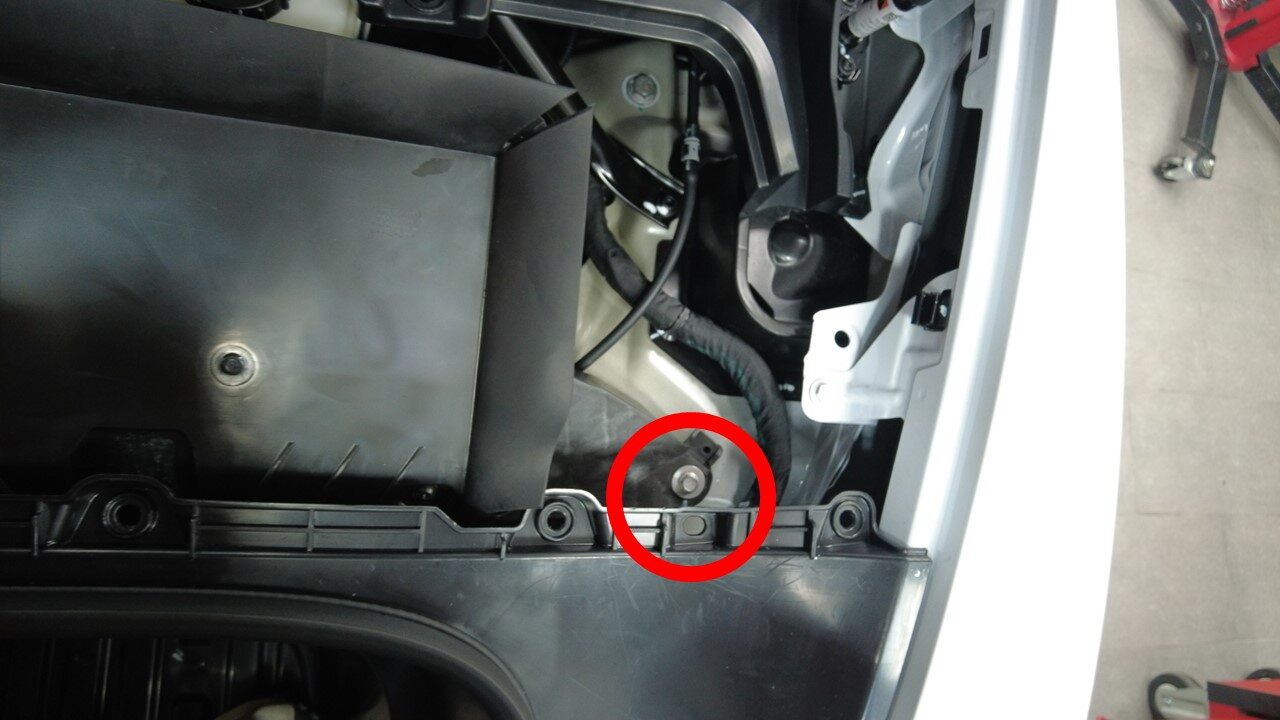

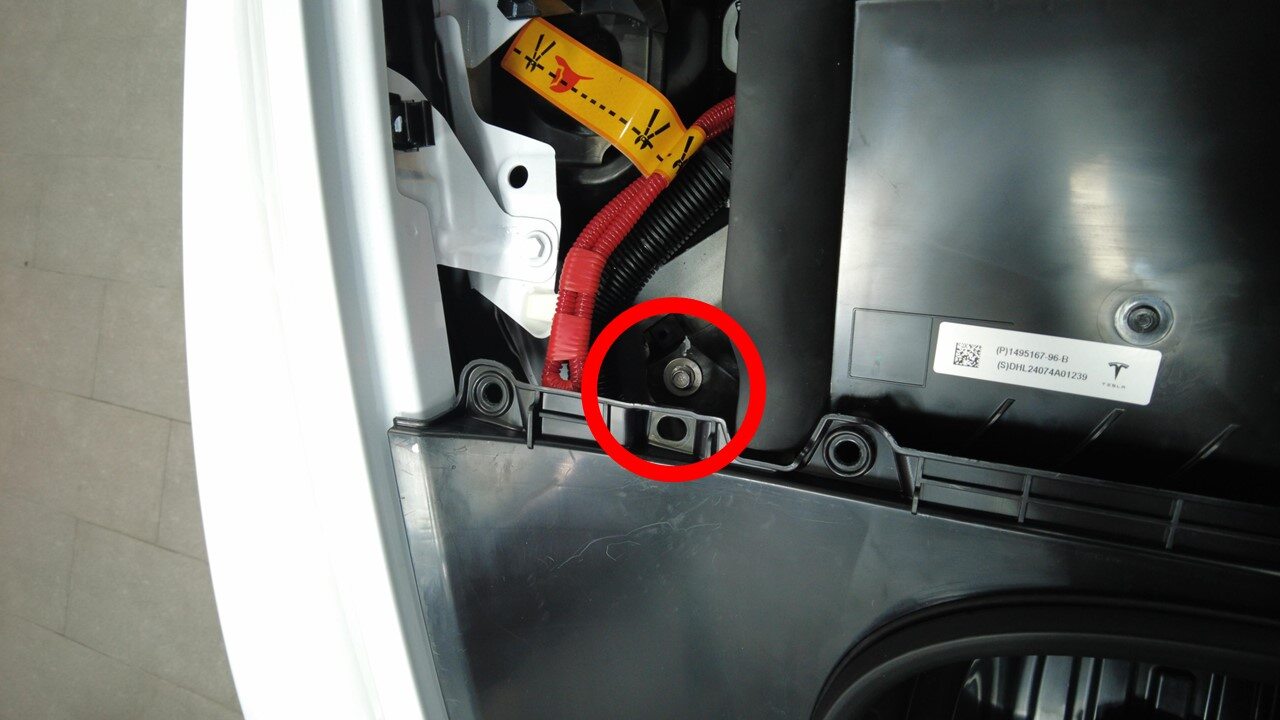

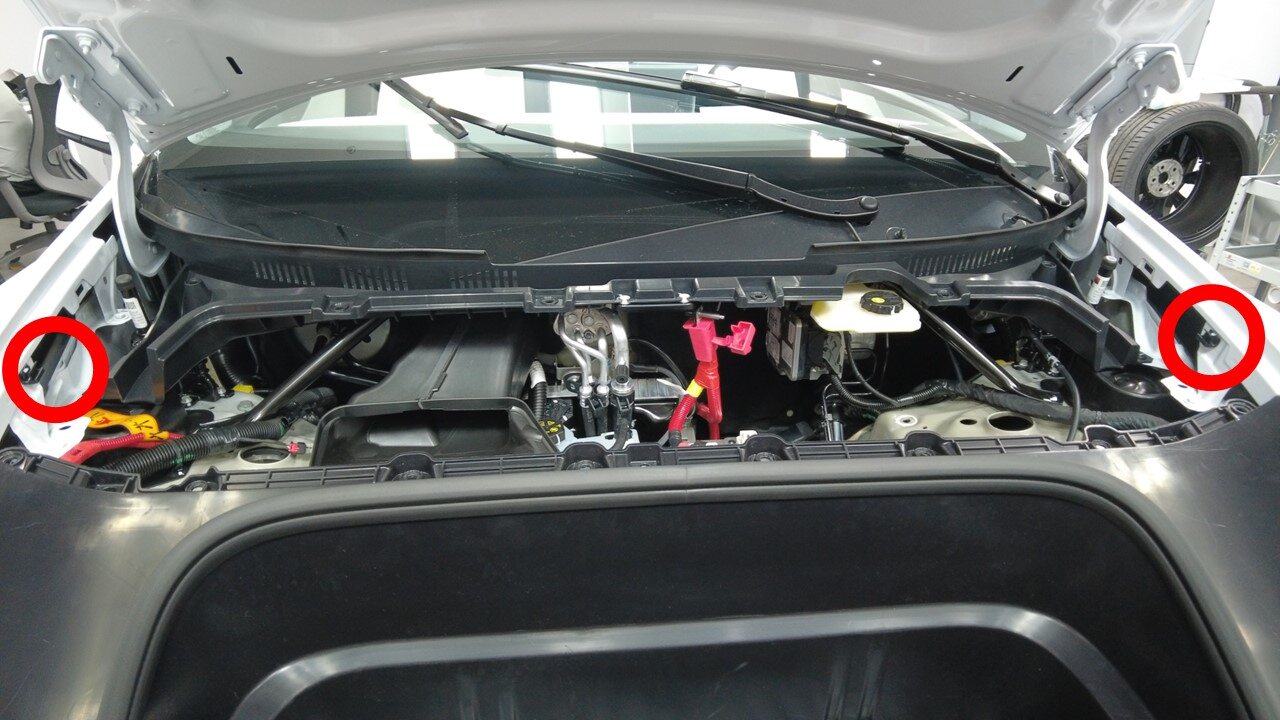

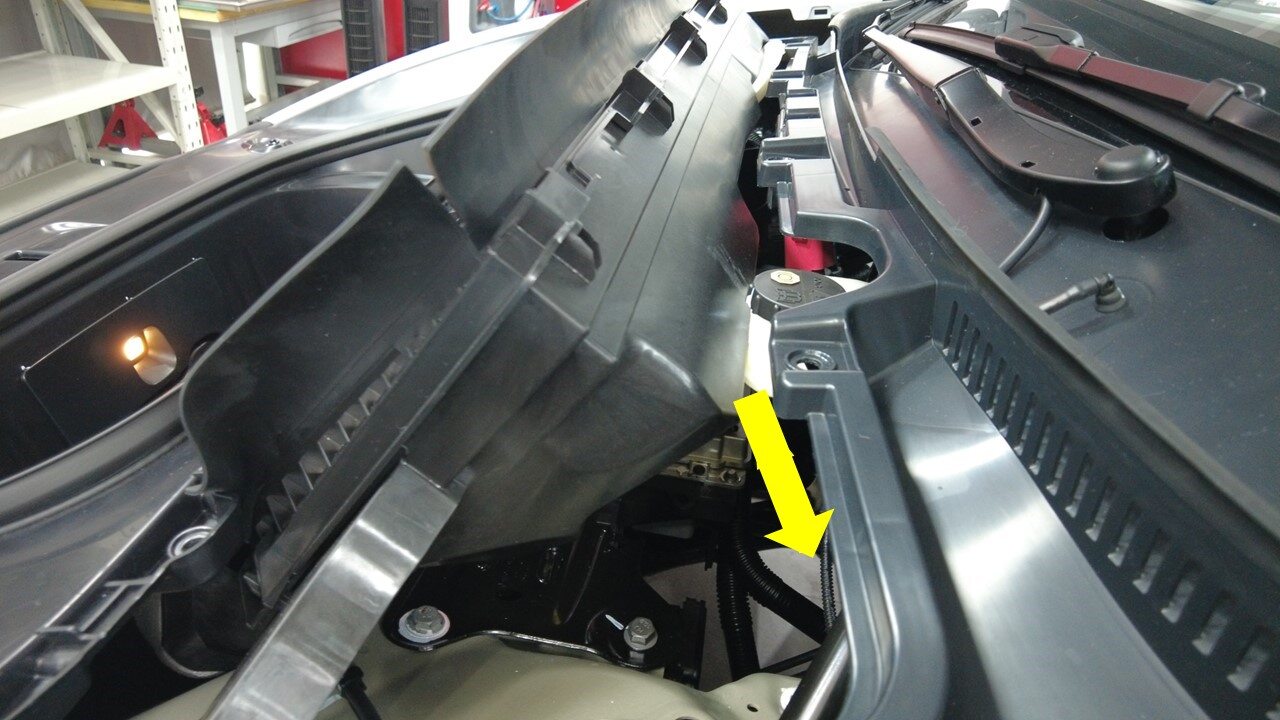

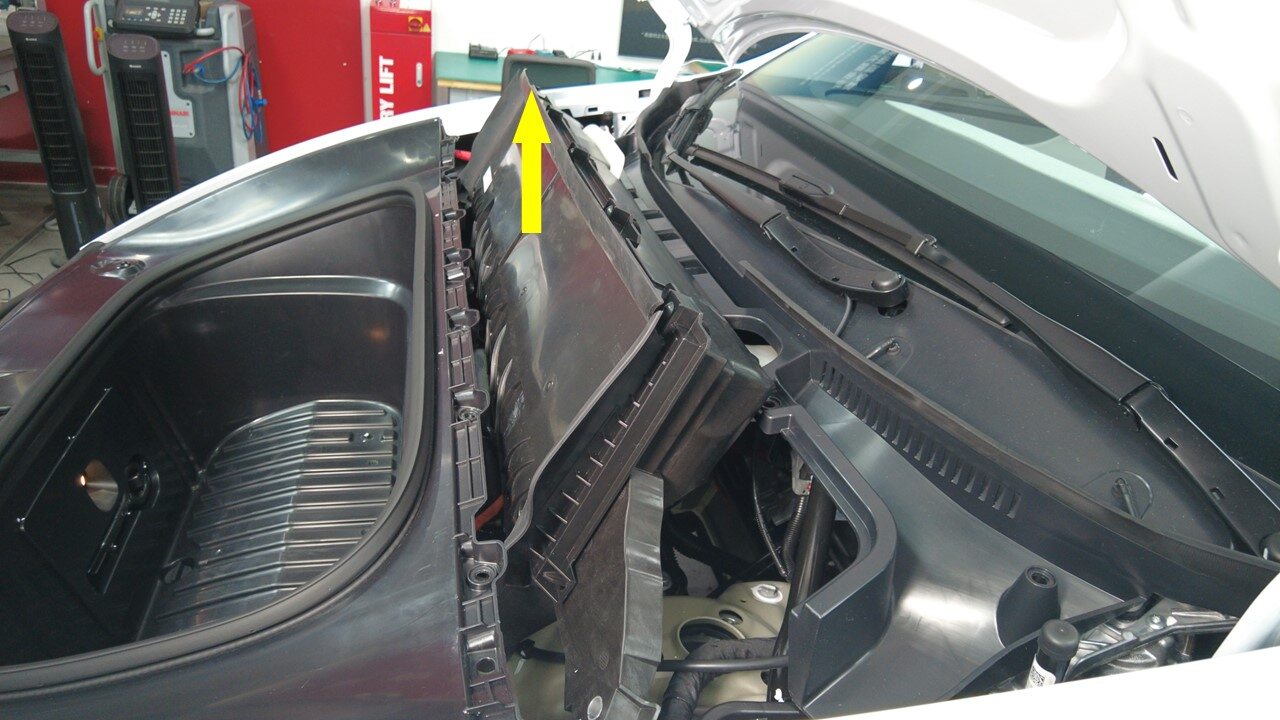

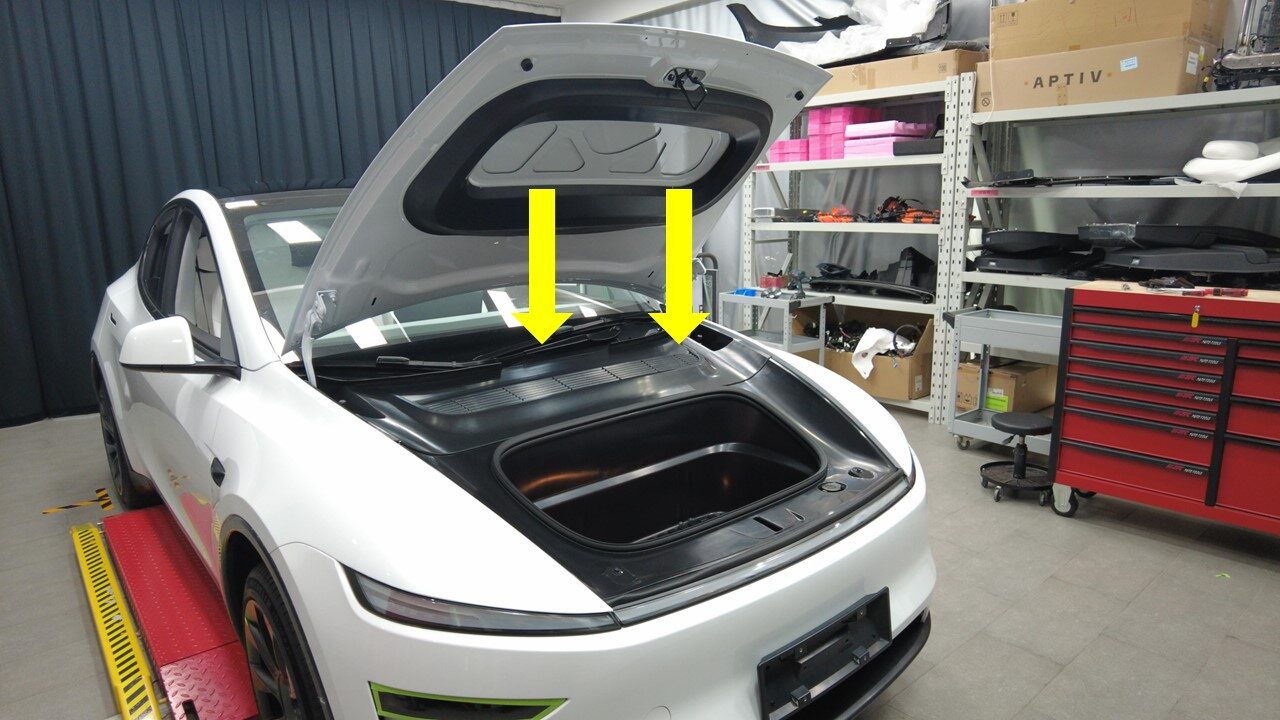

Remove HEPA filter assembly

注

2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly

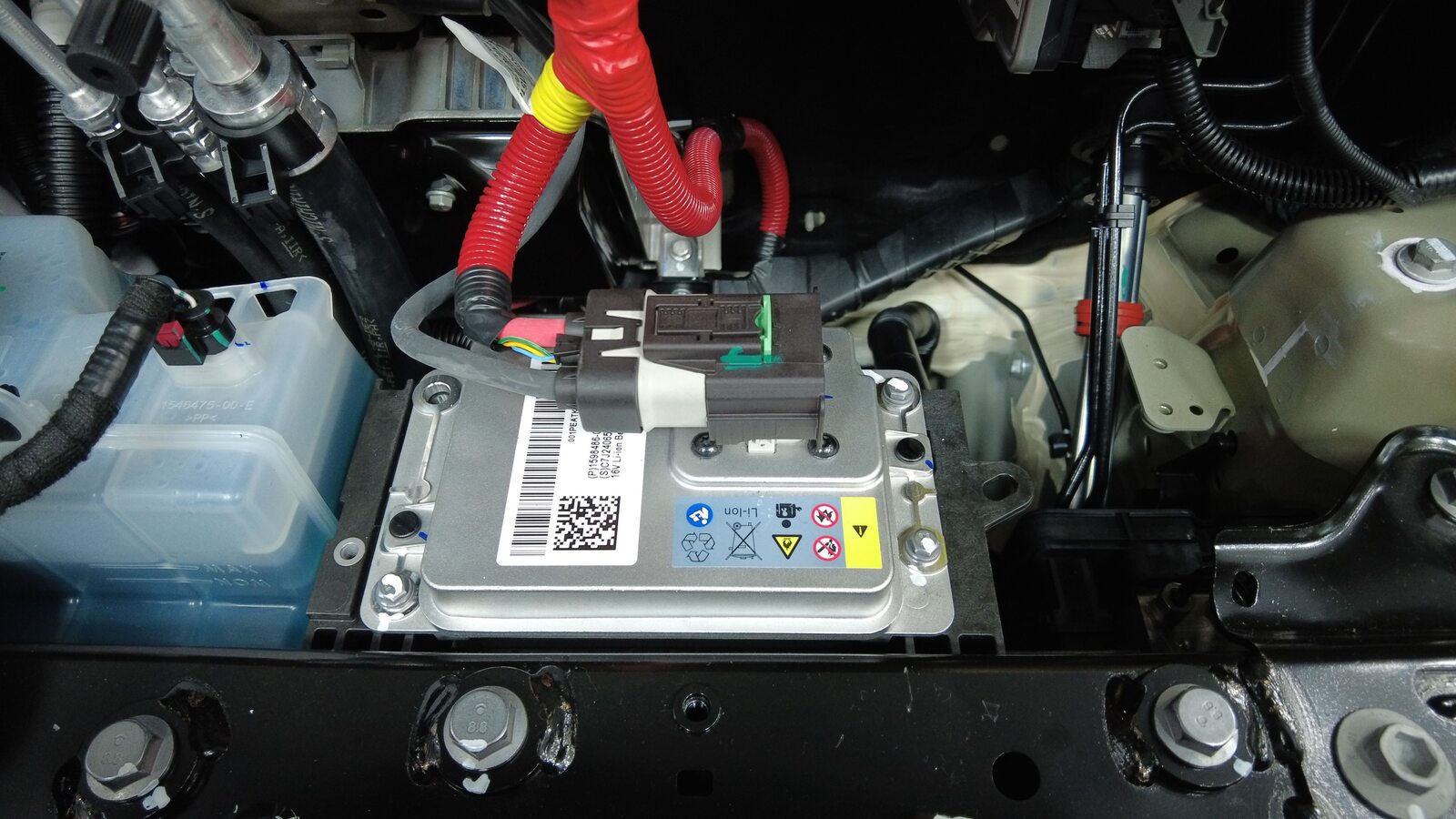

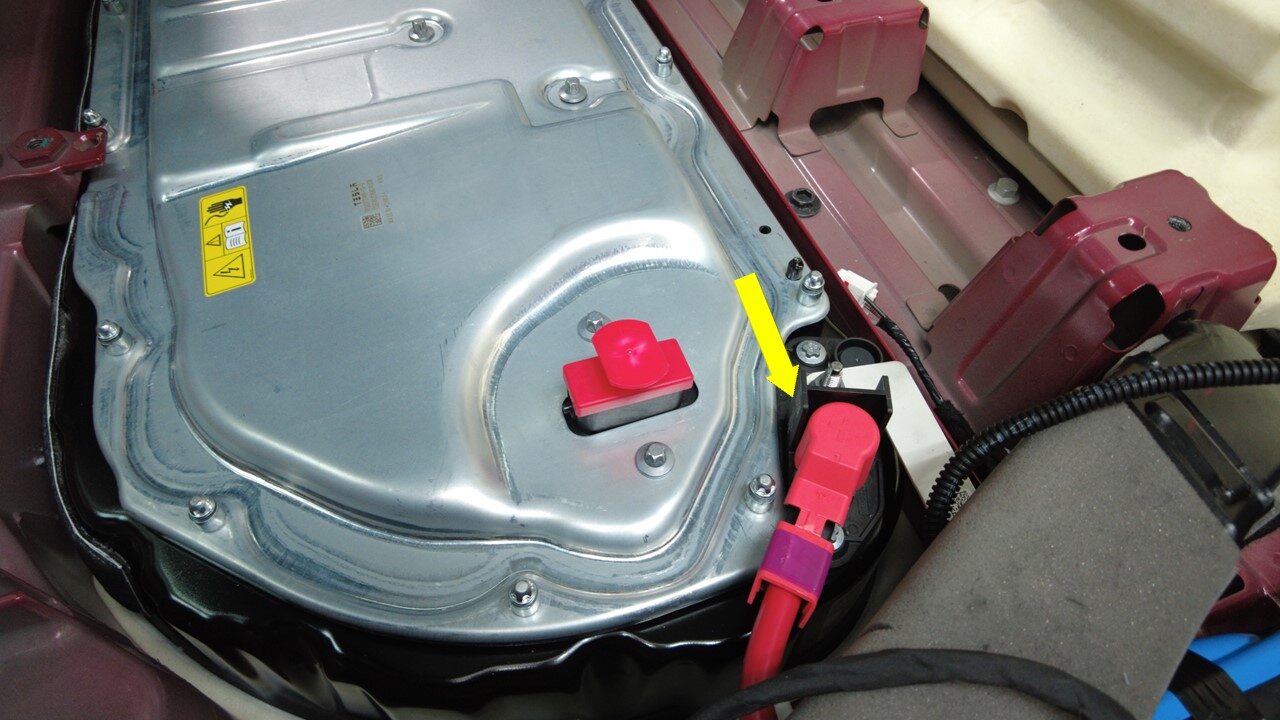

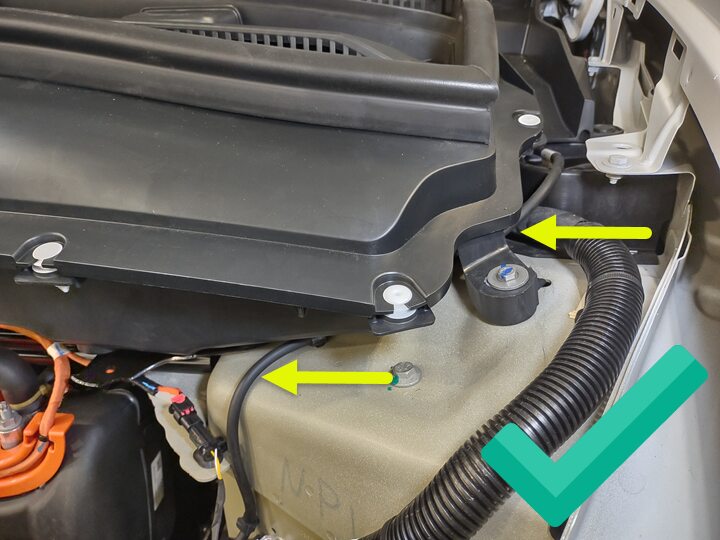

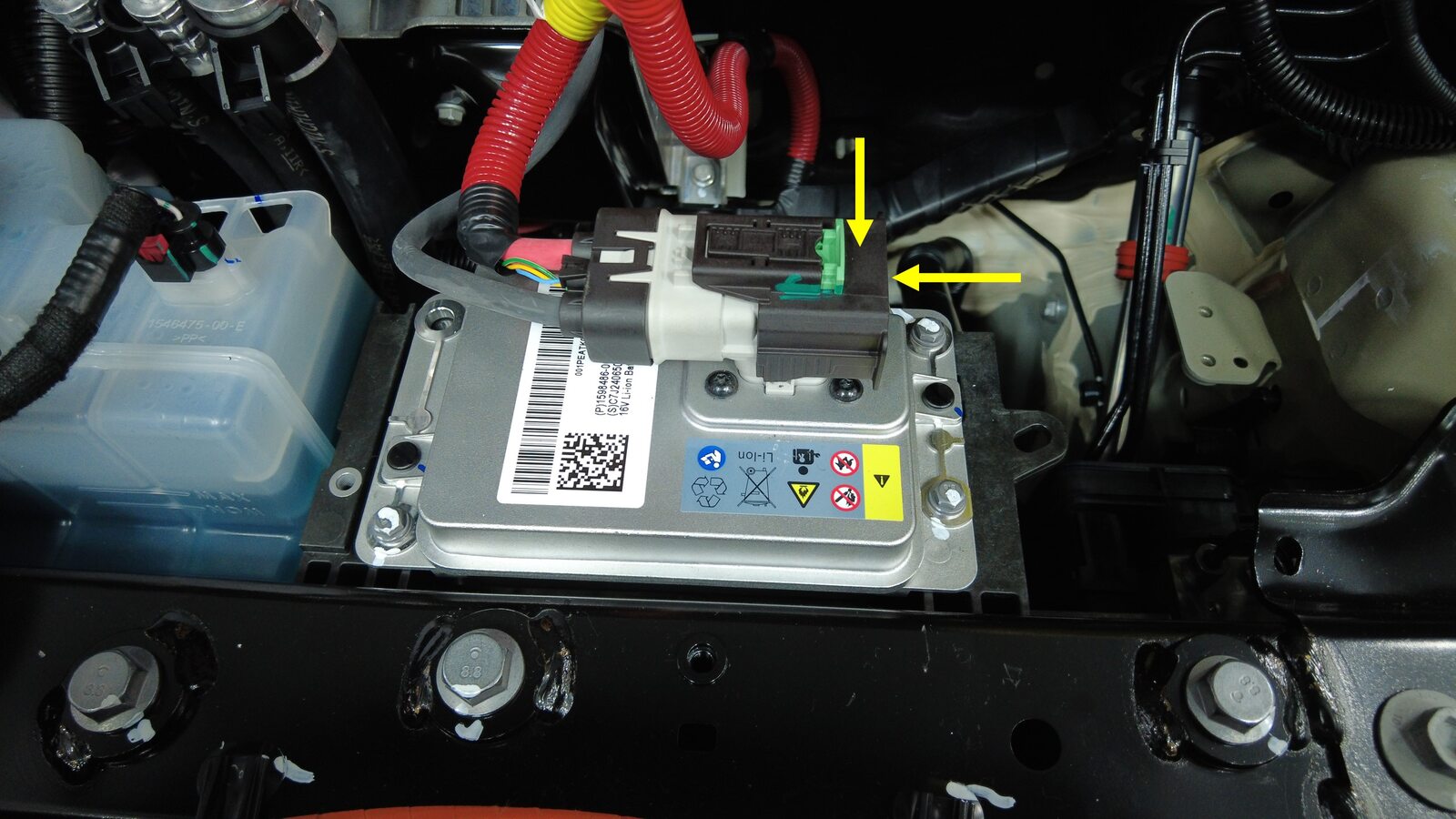

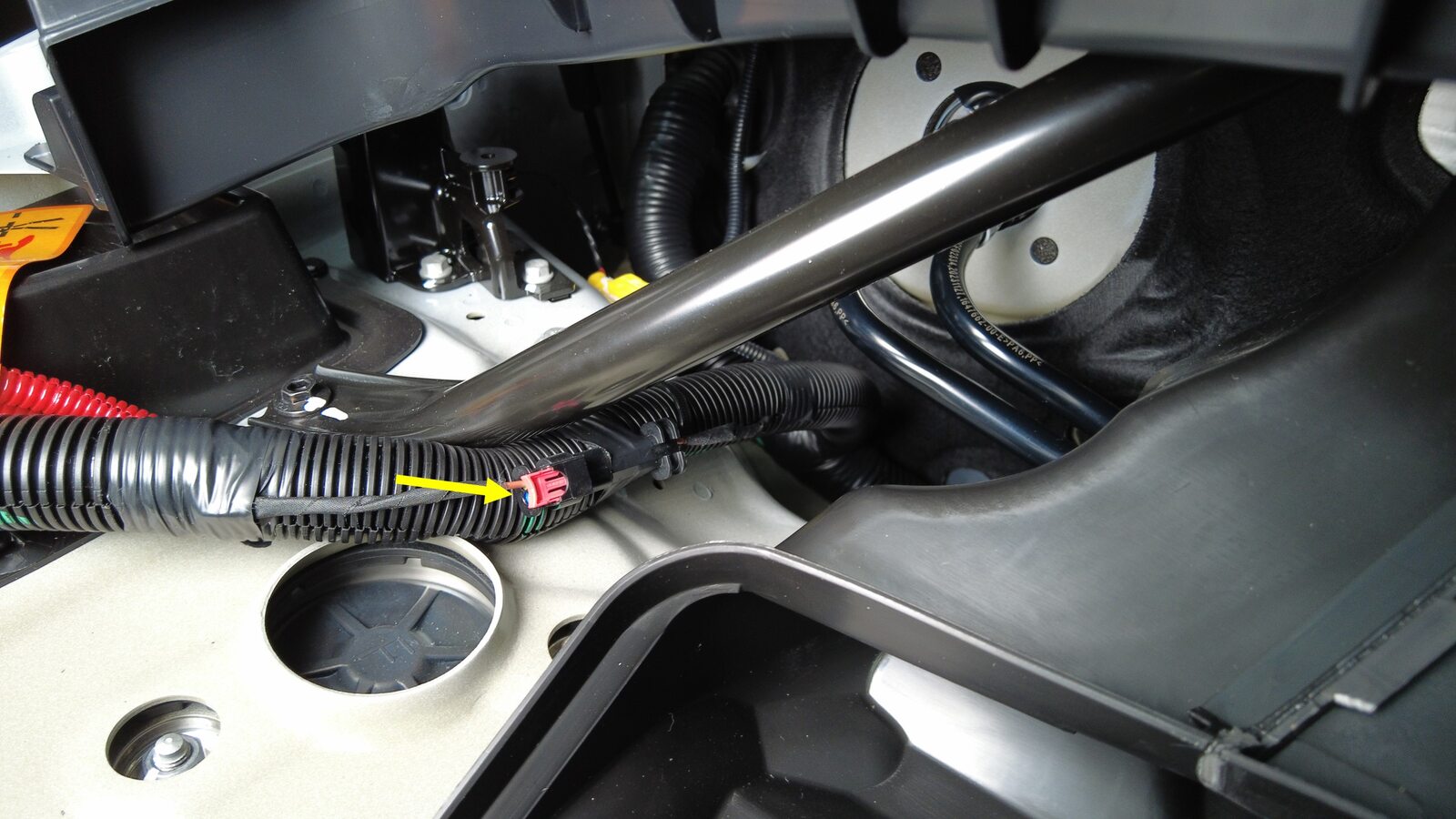

Disconnect LV battery and first responder loop

注

2x connectors, Ensure that one minute has passed after window movement before performing the power-off, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

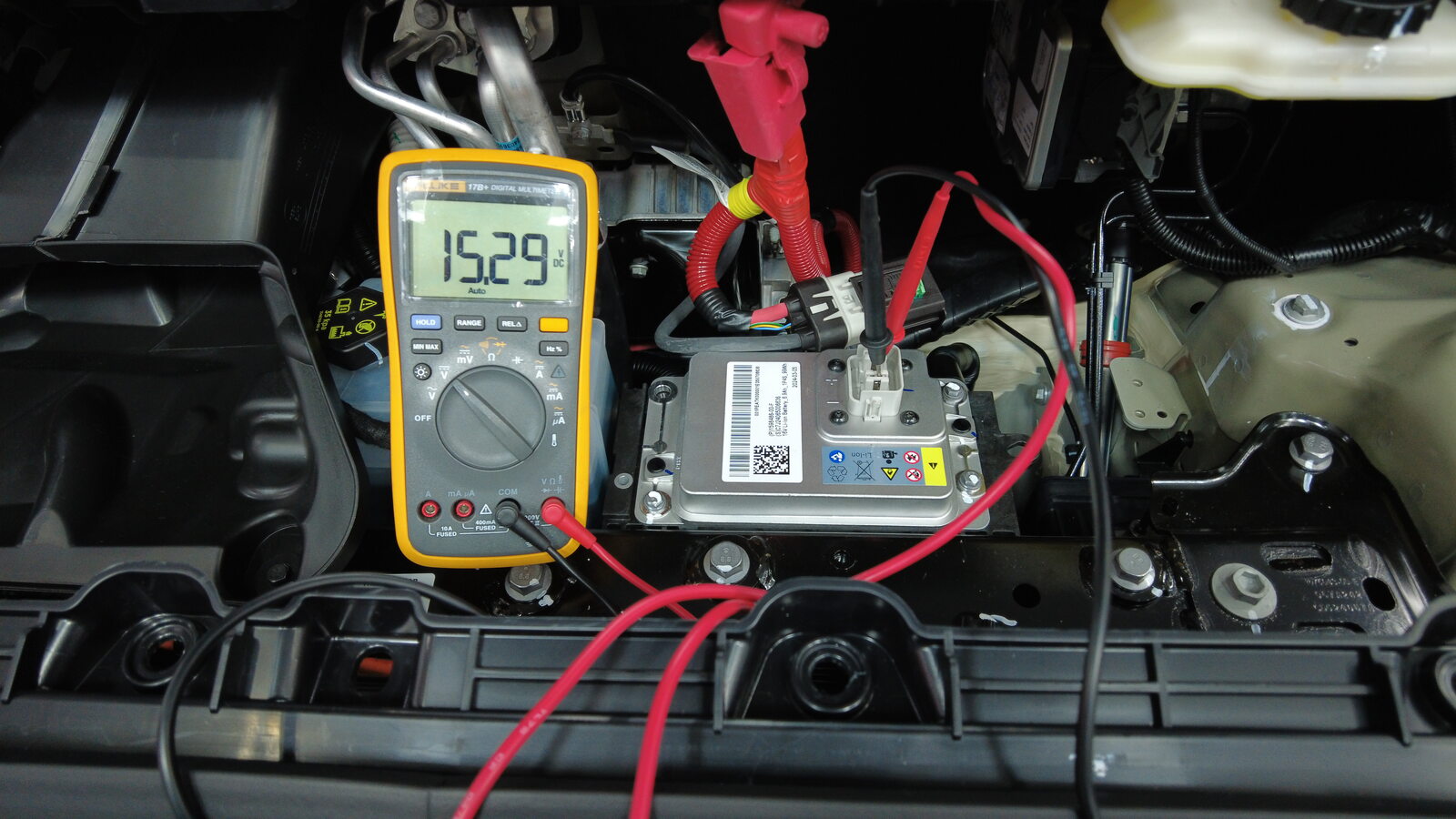

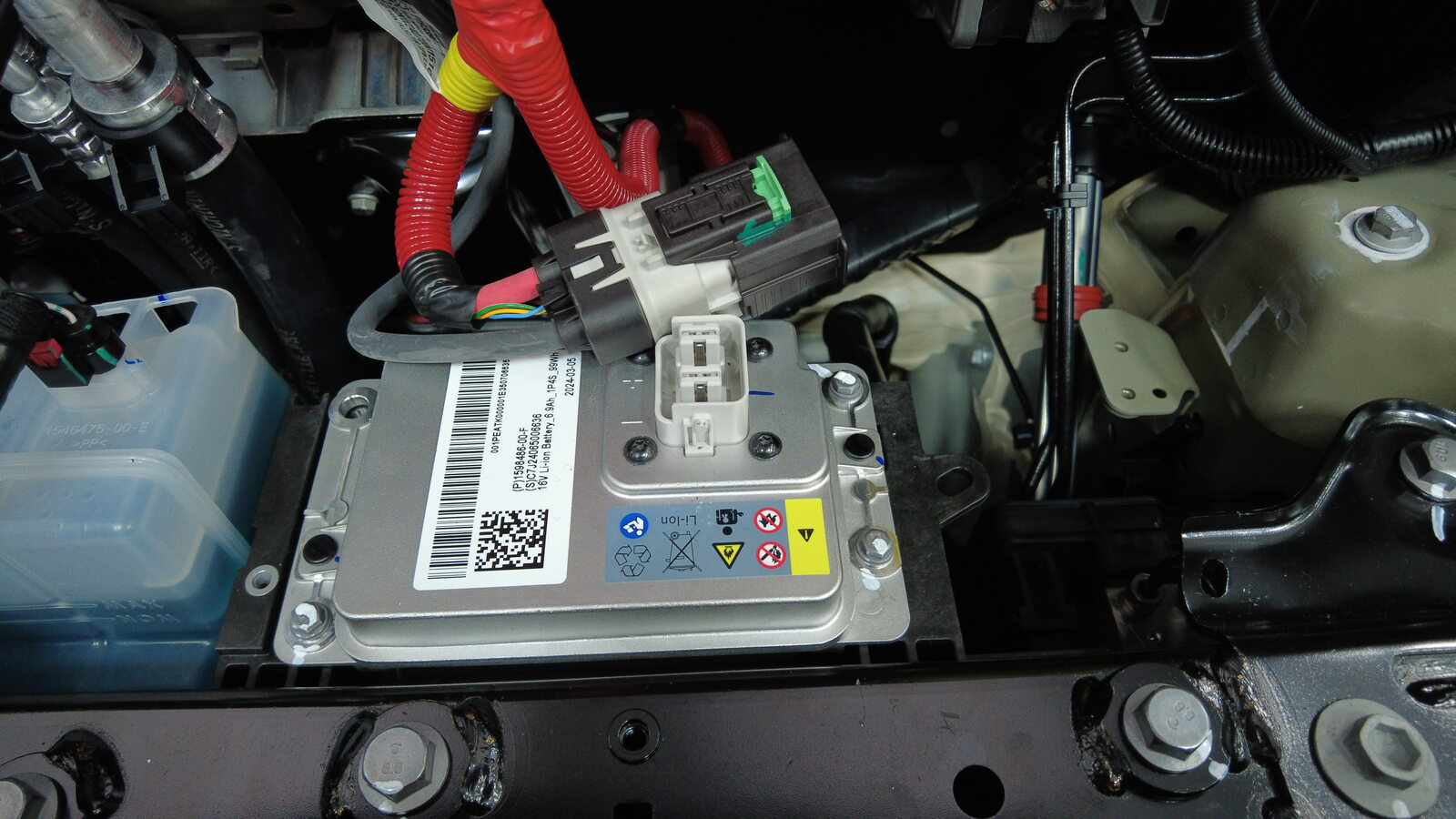

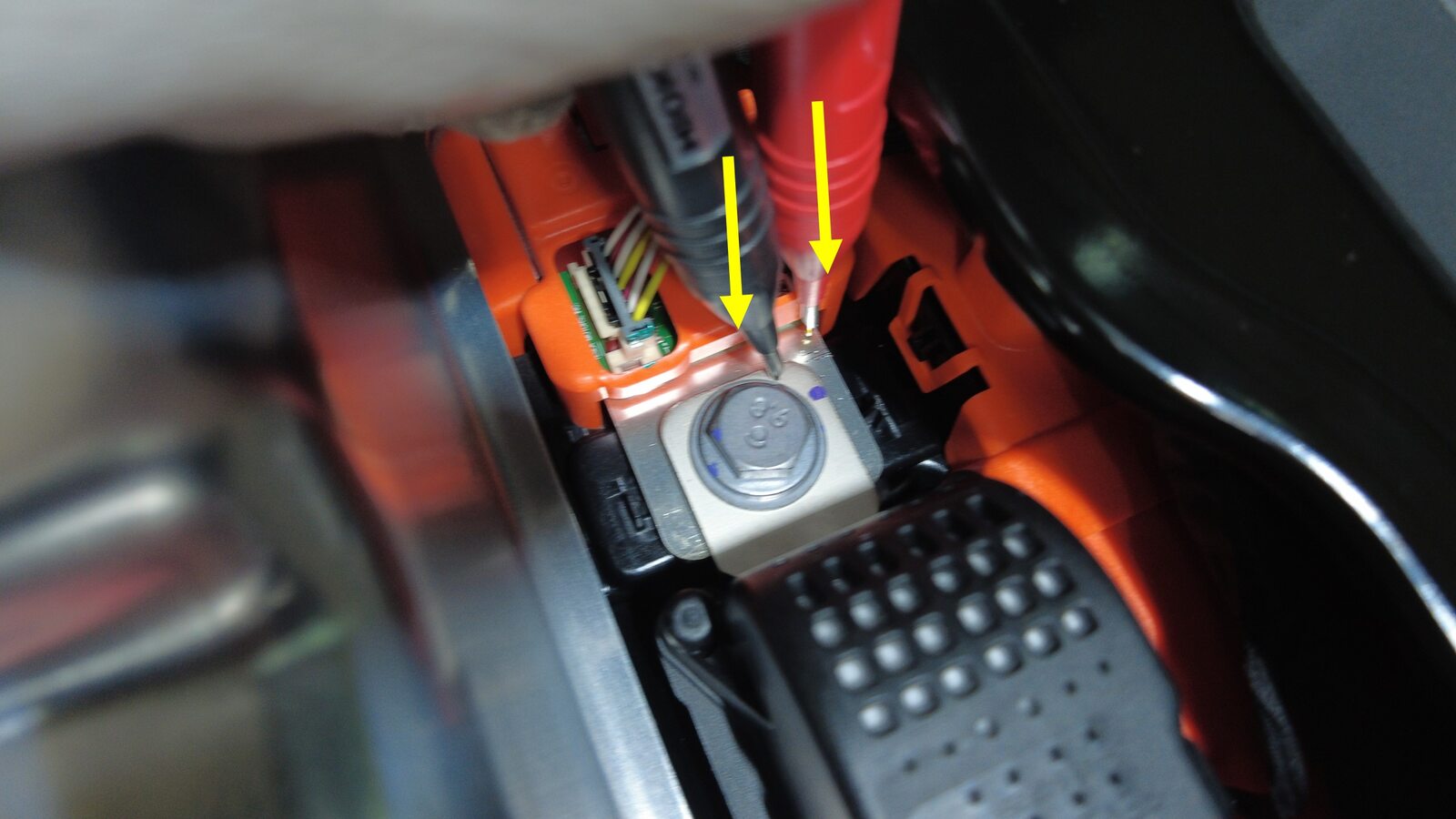

Verify operation of multimeter

注

Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery

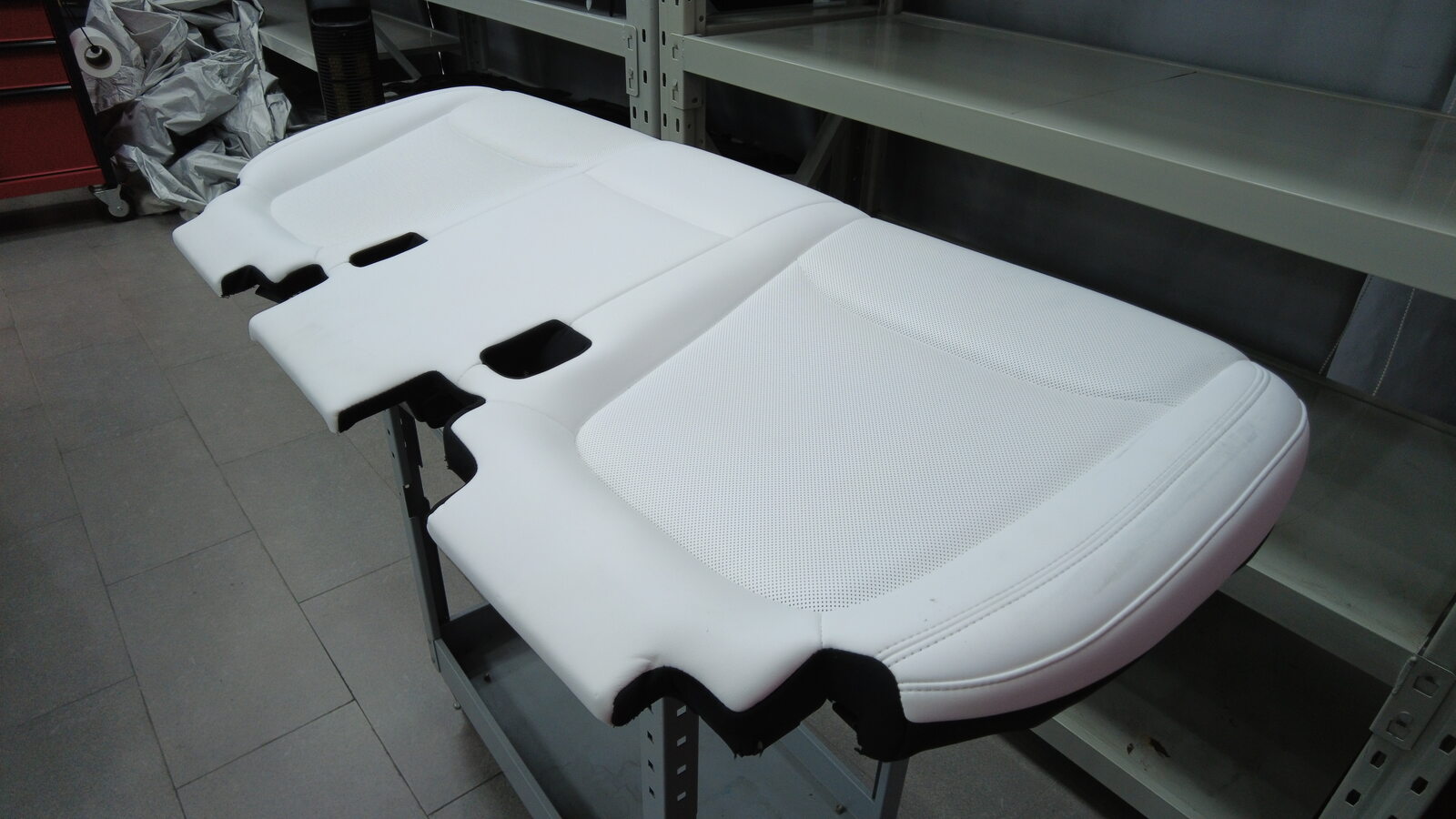

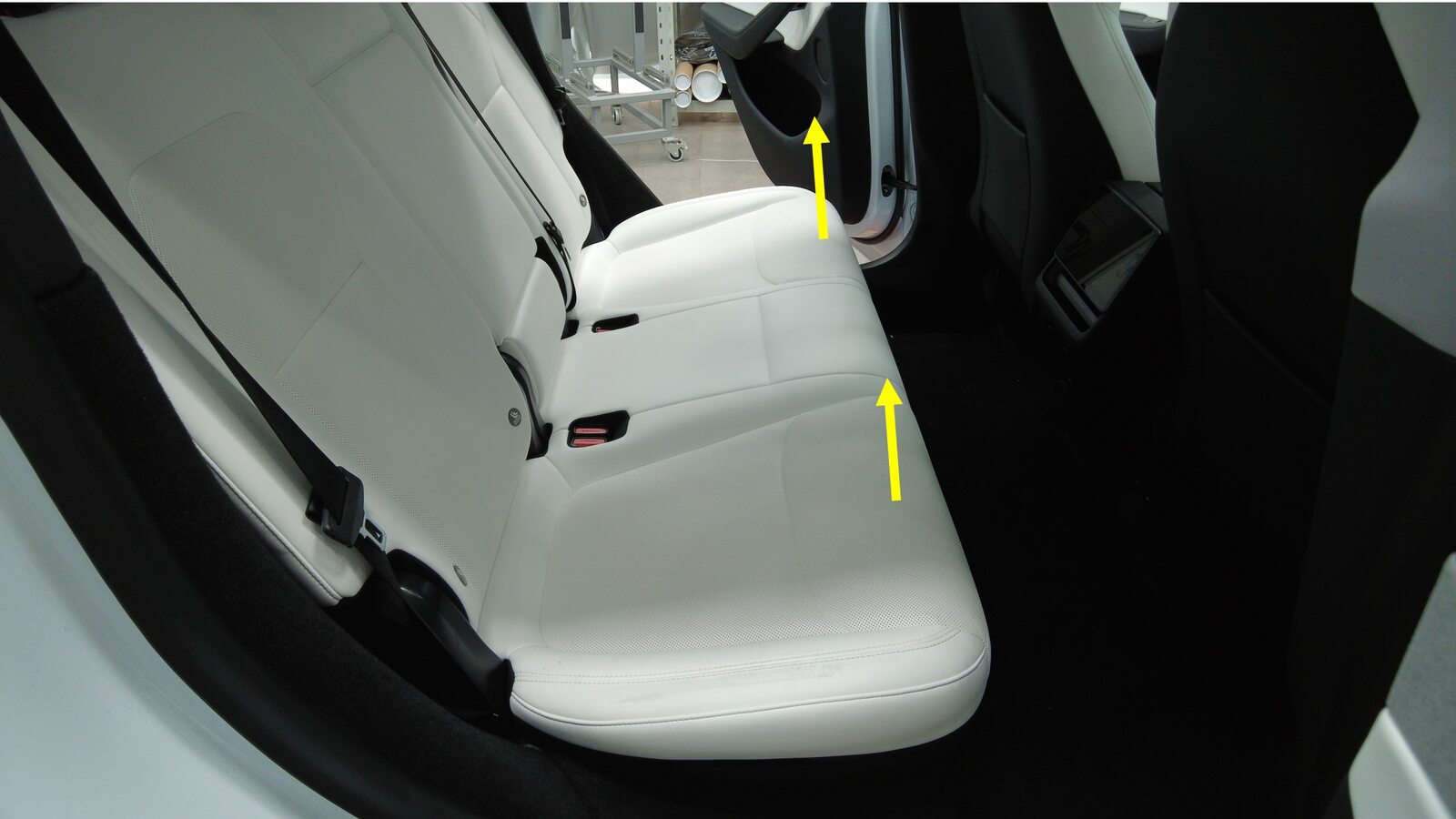

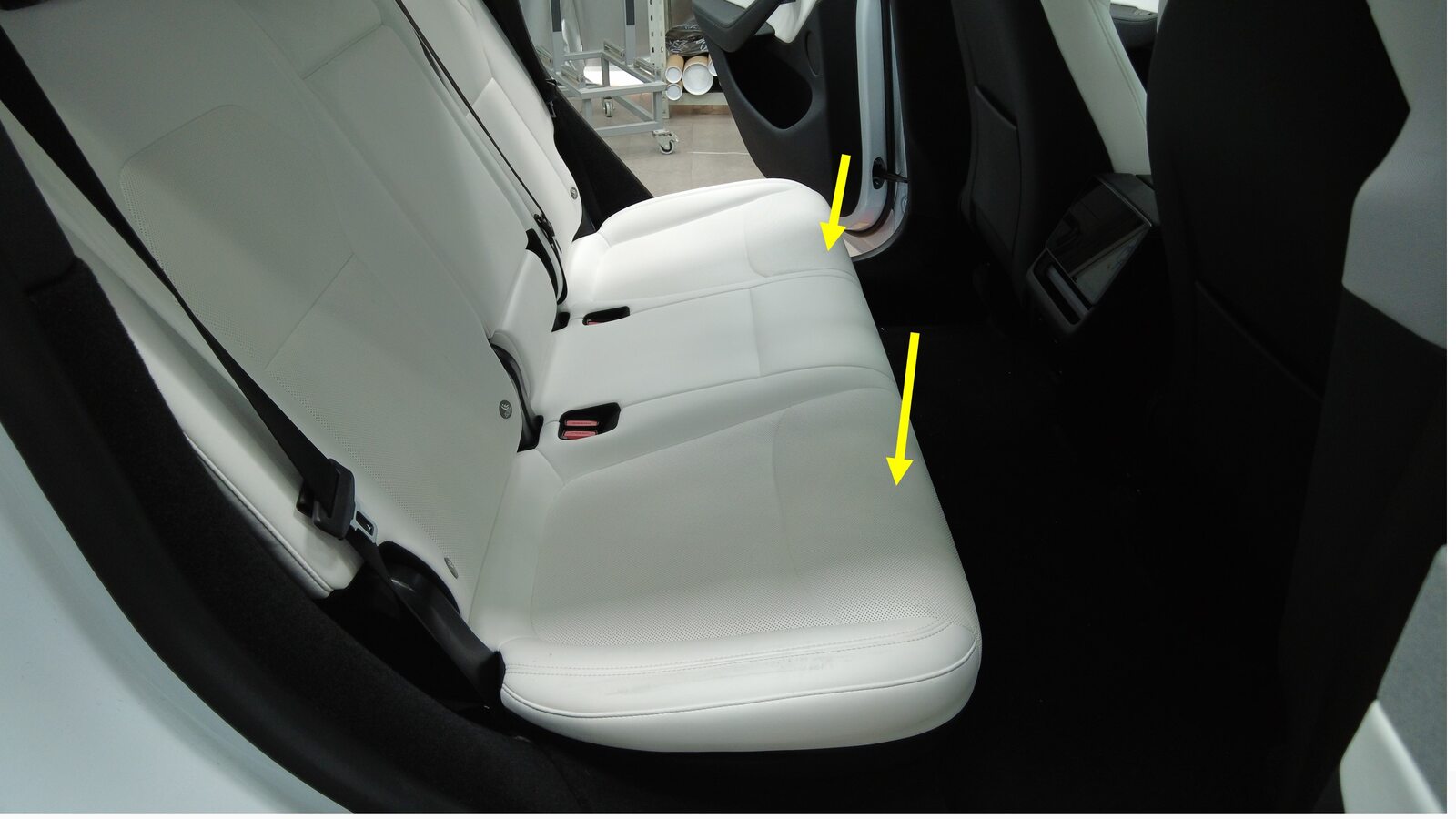

Remove 2nd row seat cushion

注

1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed

Remove all items from pockets and ensure not wearing metal items

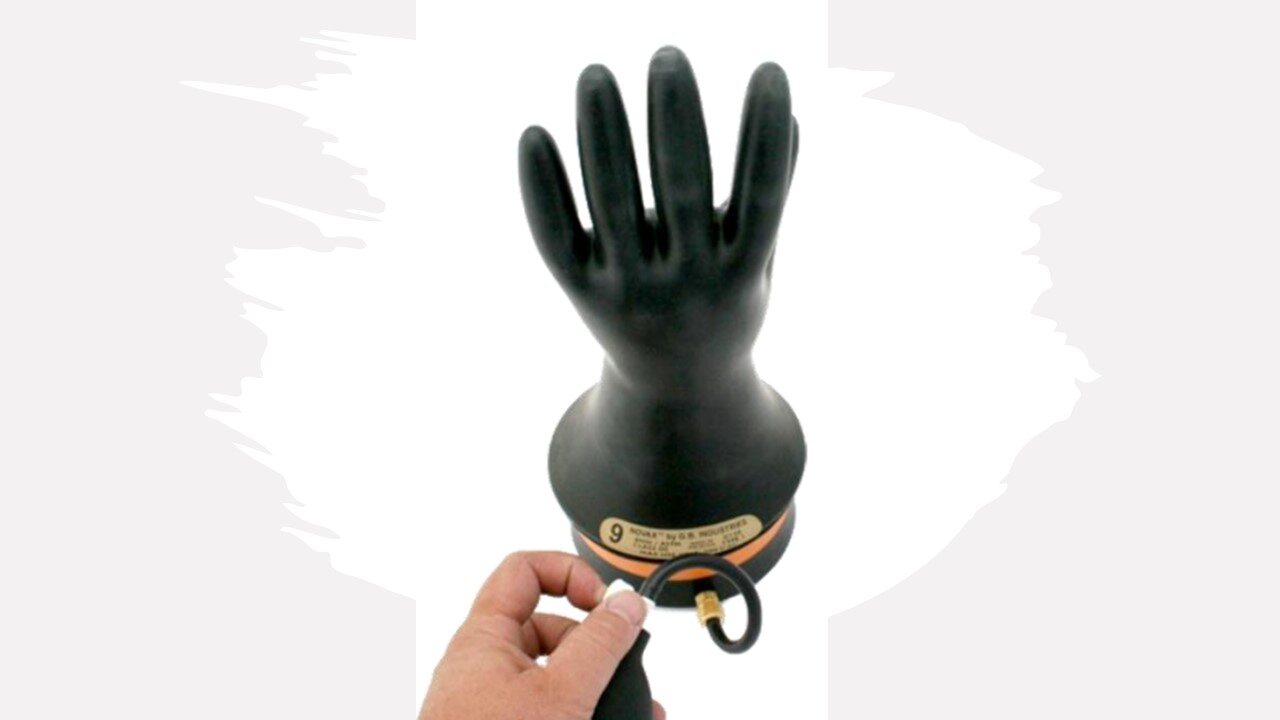

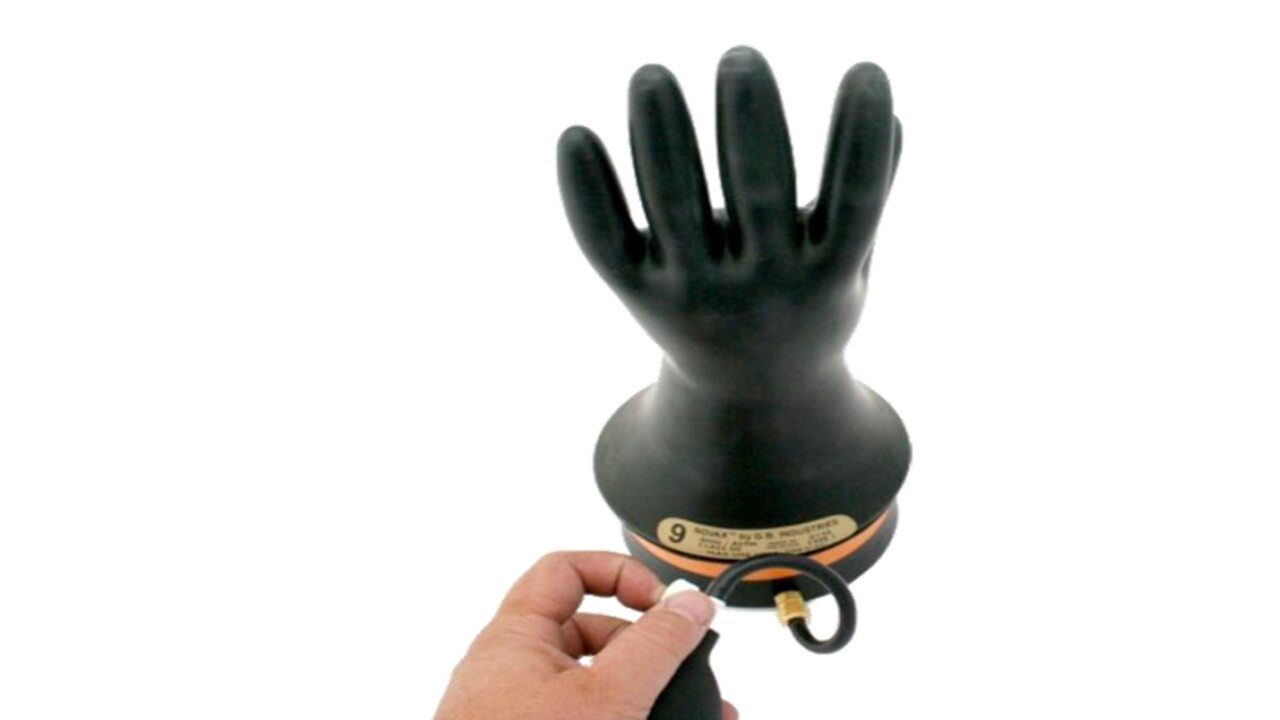

Inspect HV insulating gloves

注

Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

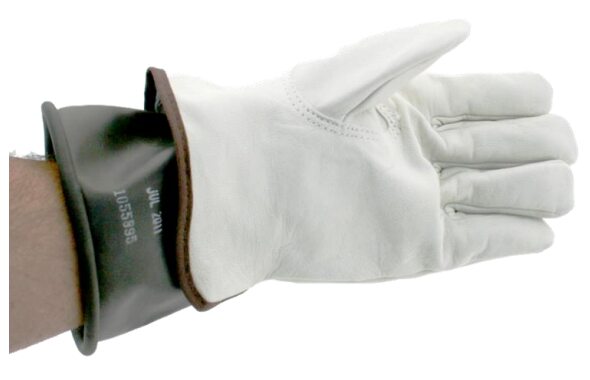

Put on HV insulating gloves and leather over gloves

注

Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.

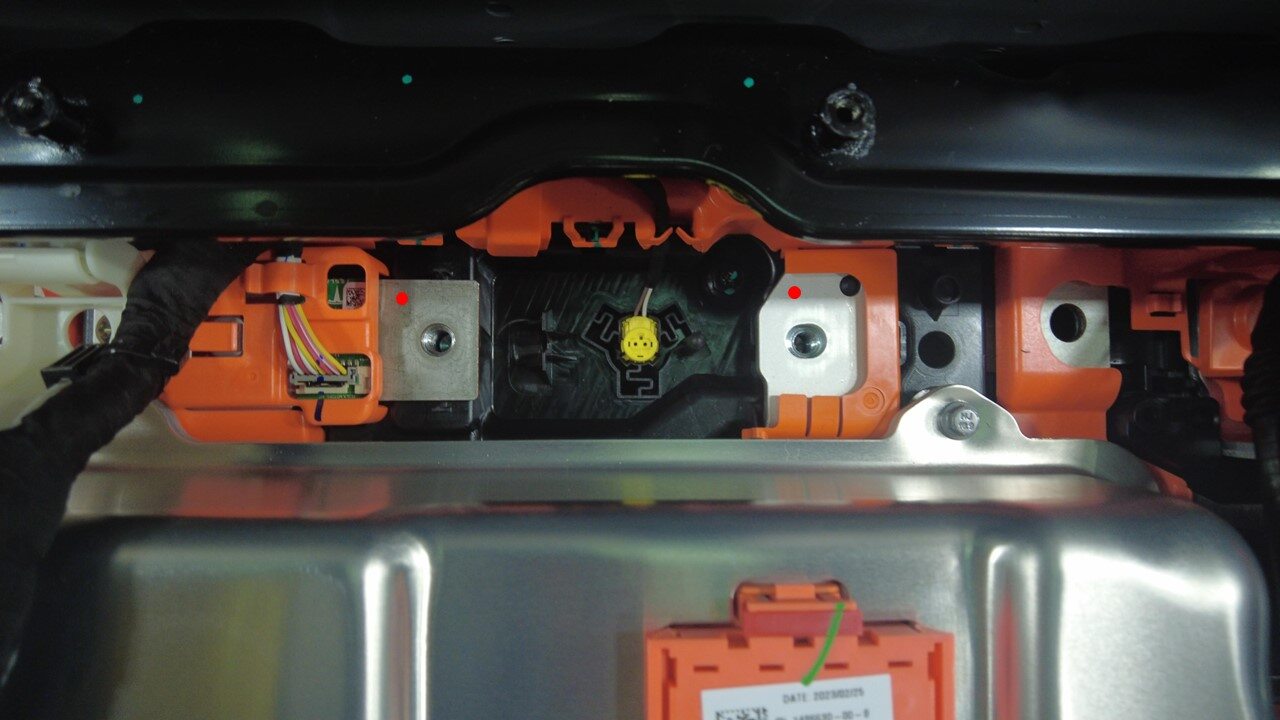

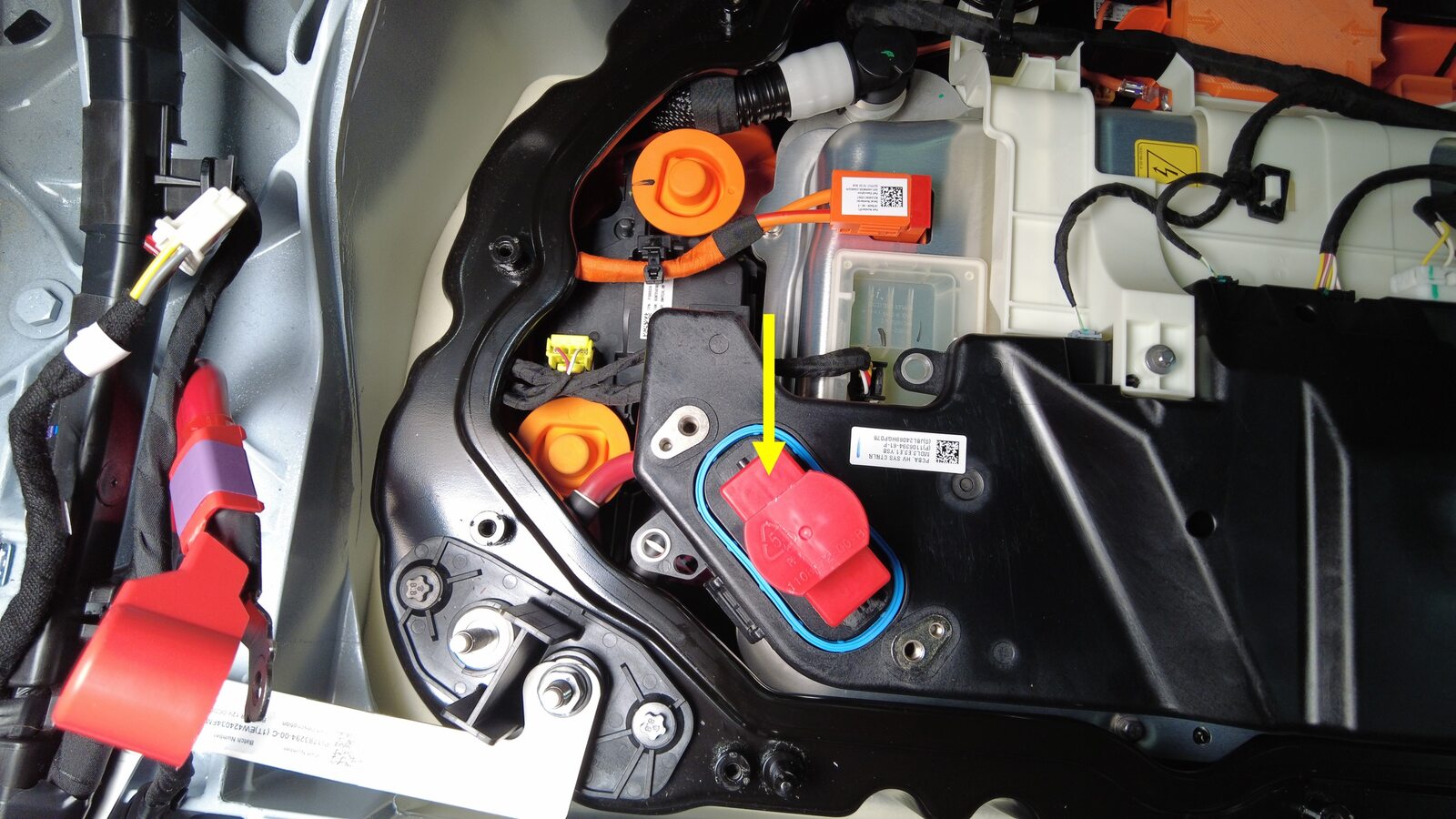

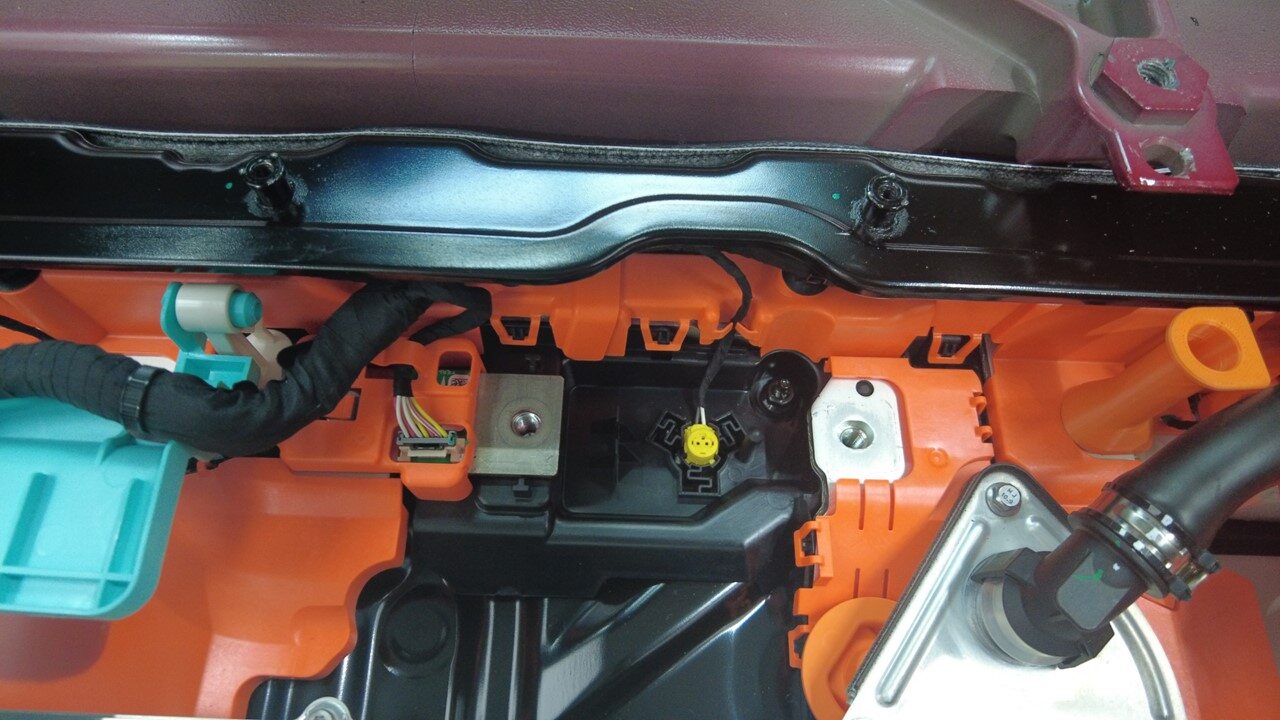

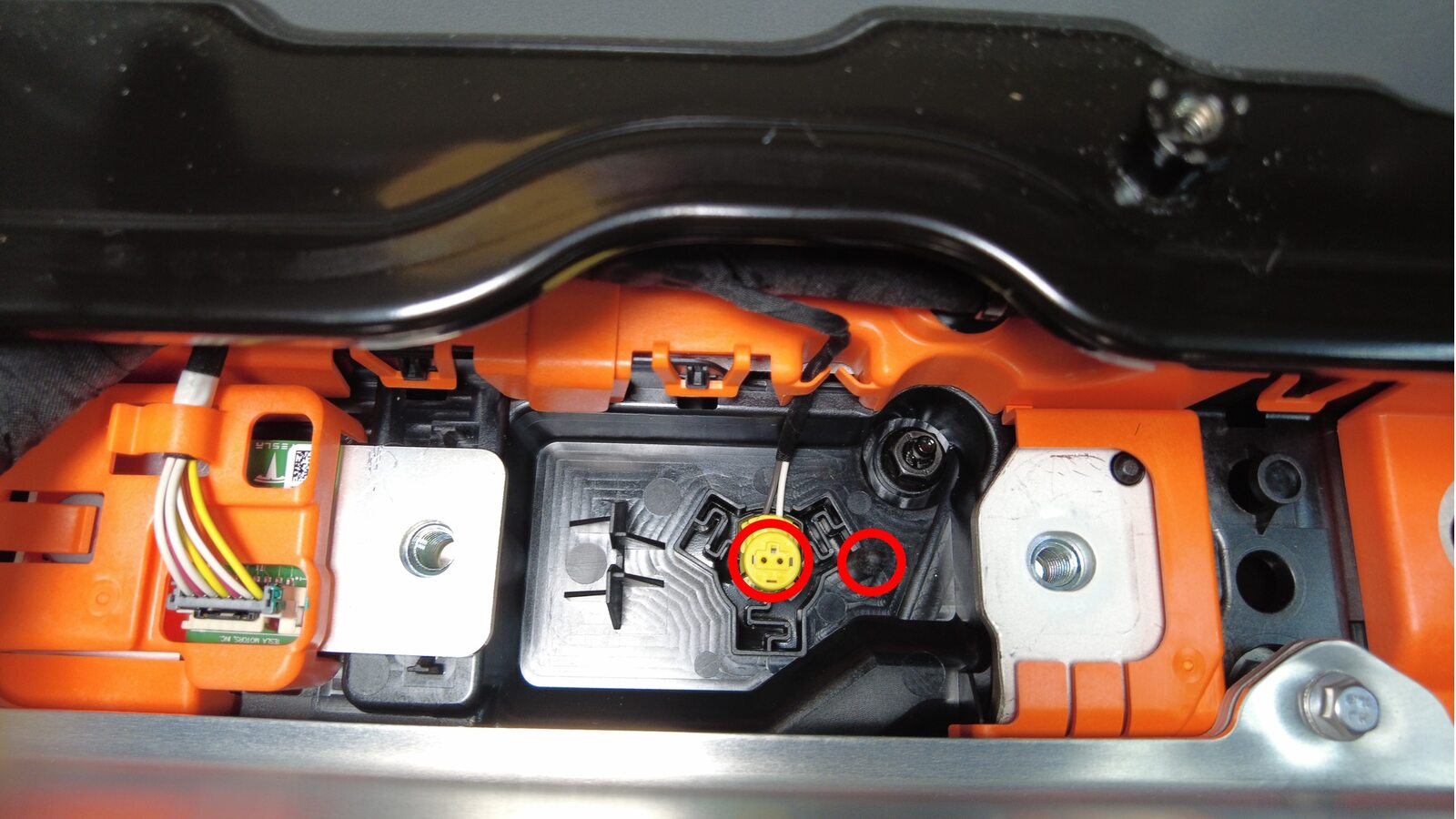

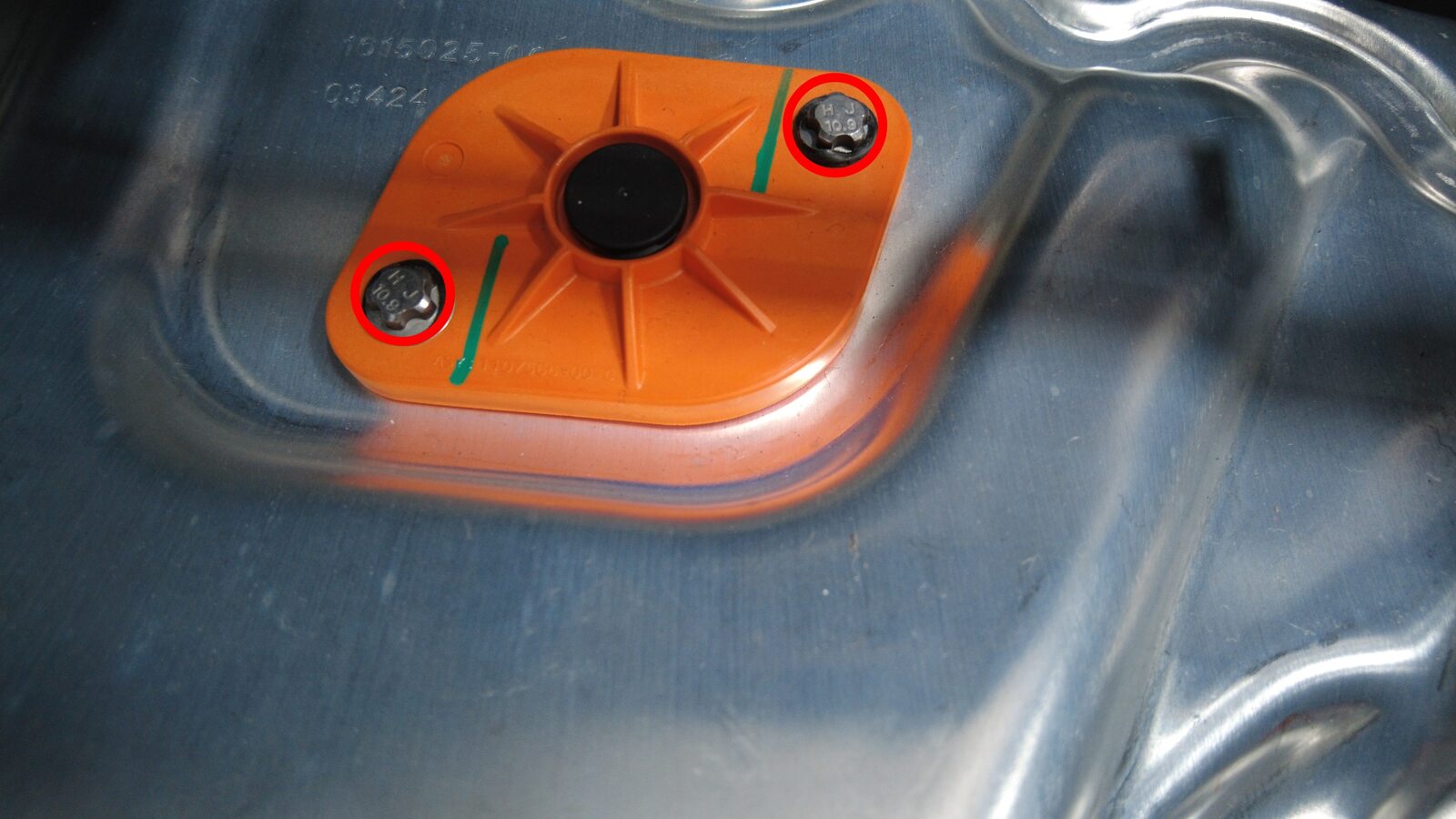

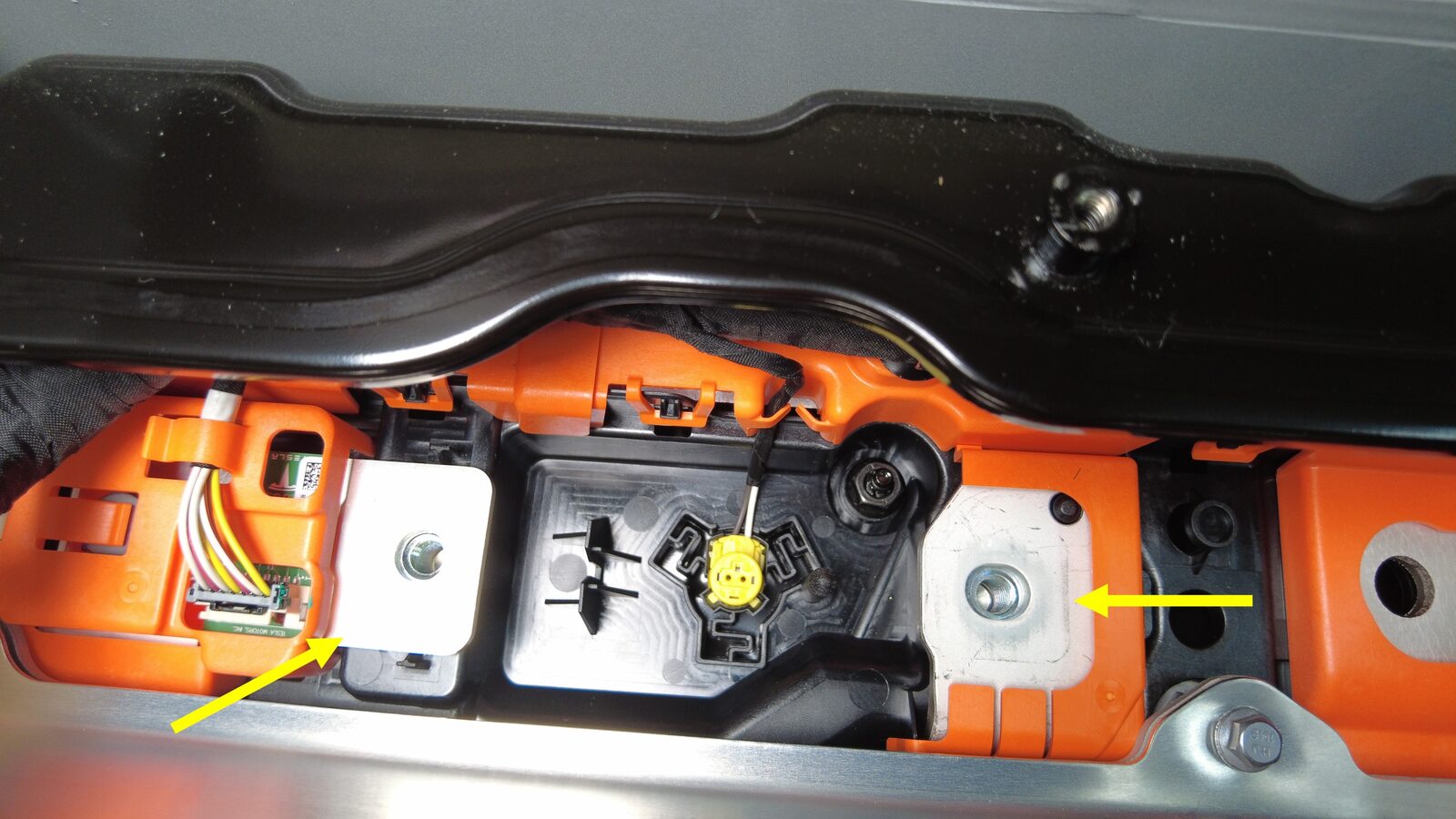

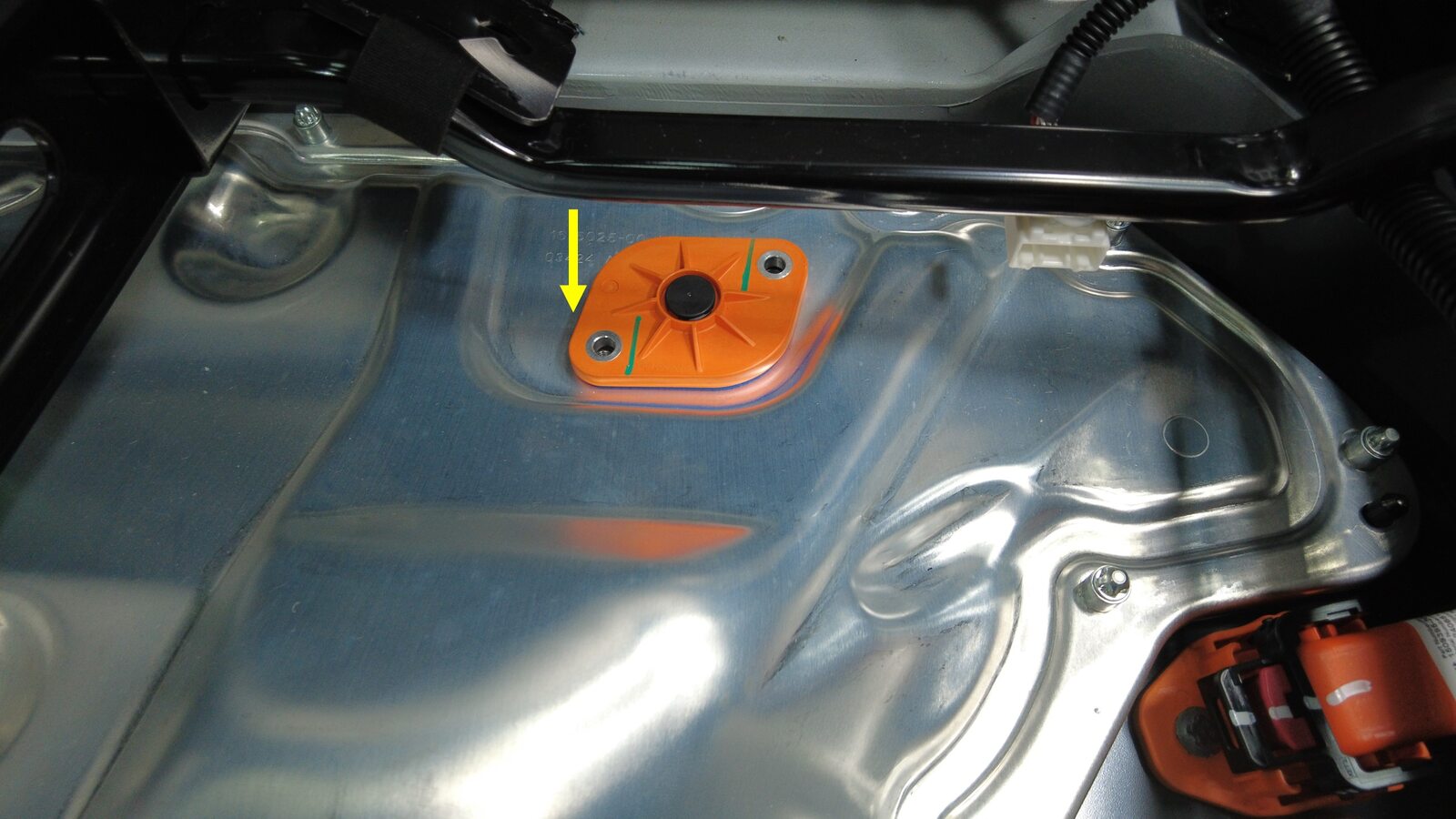

Remove bolts securing ancillary bay probe lid cover

注

2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal

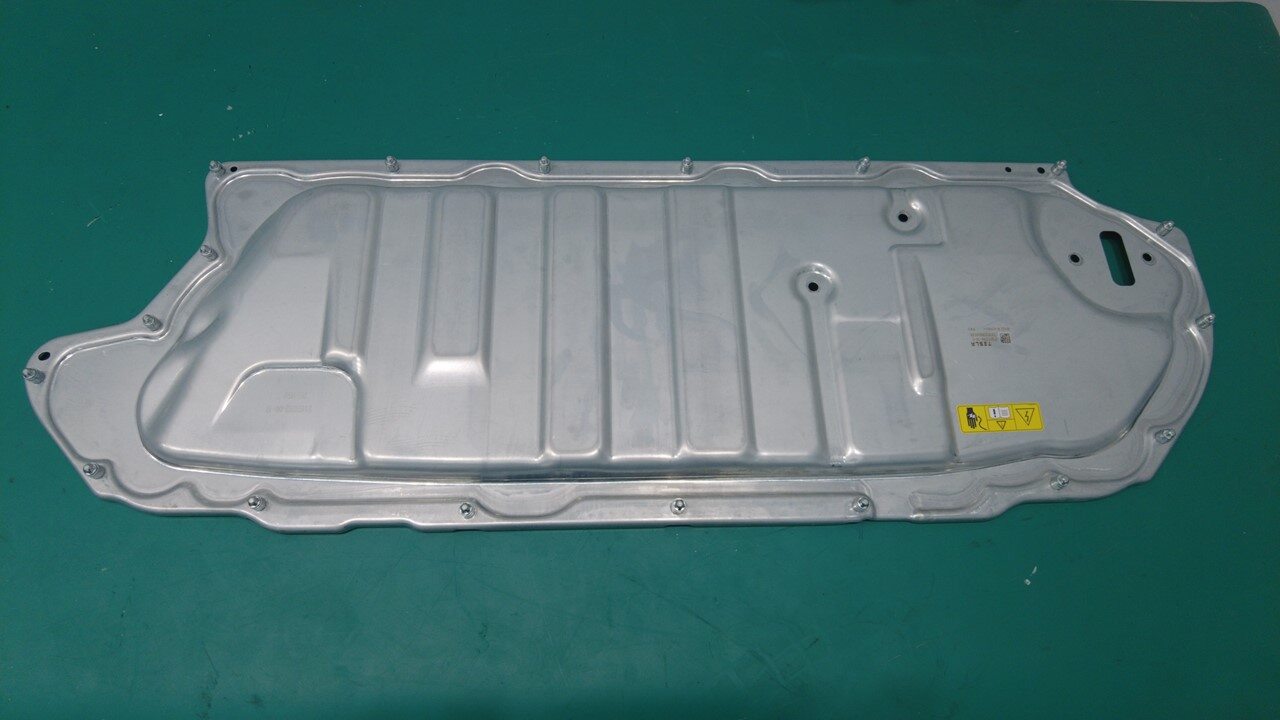

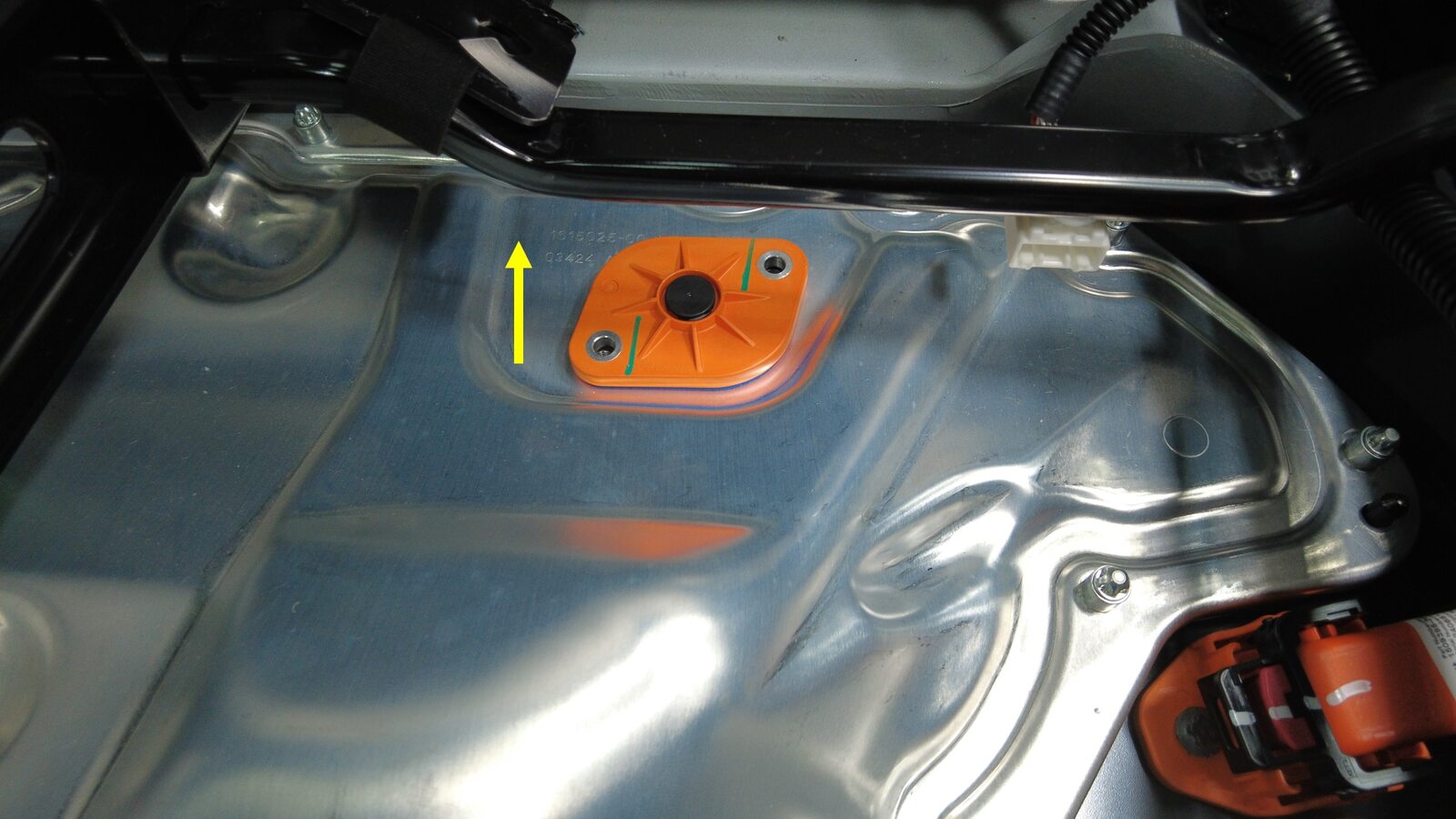

Remove ancillary bay probe lid cover

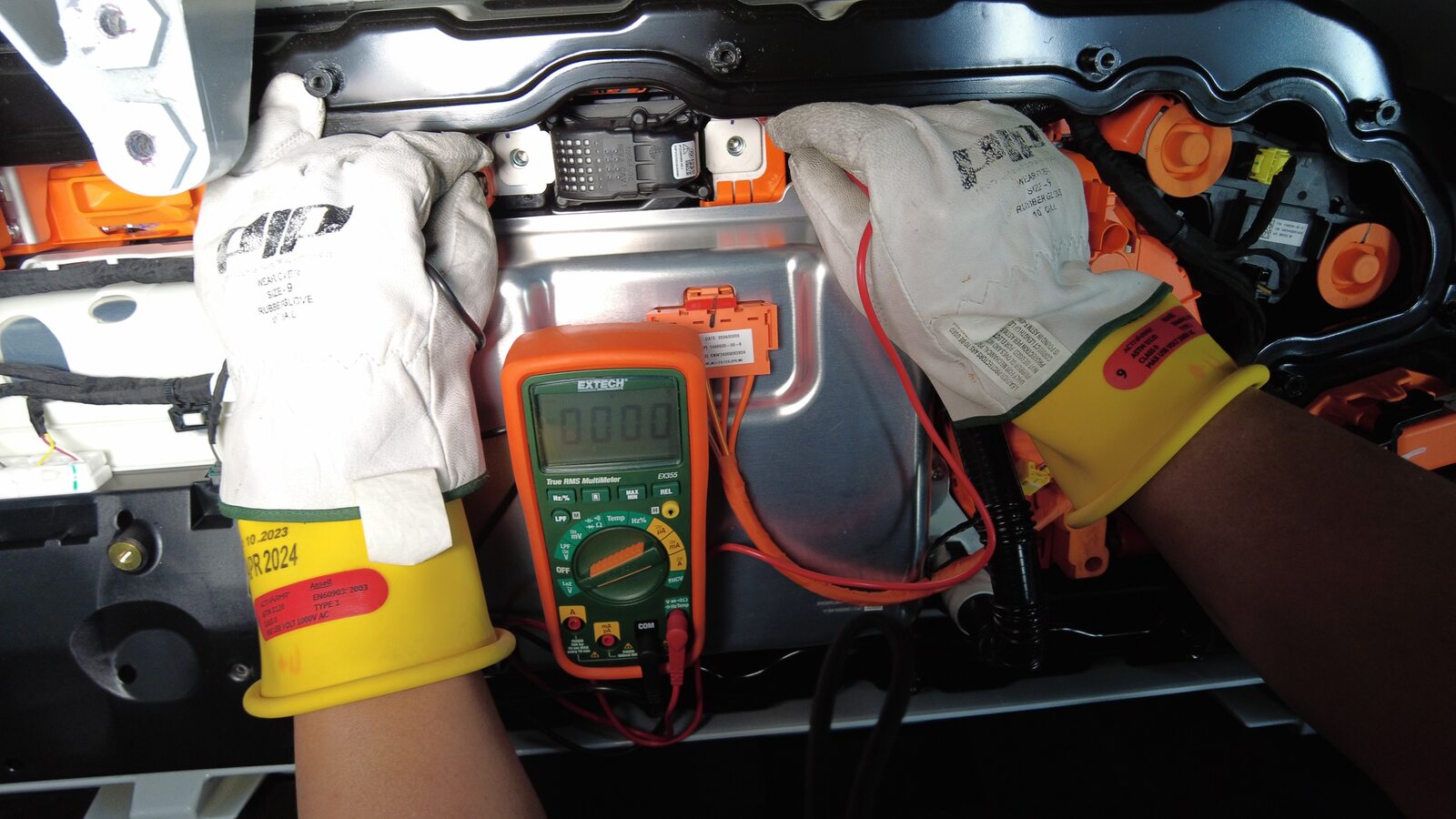

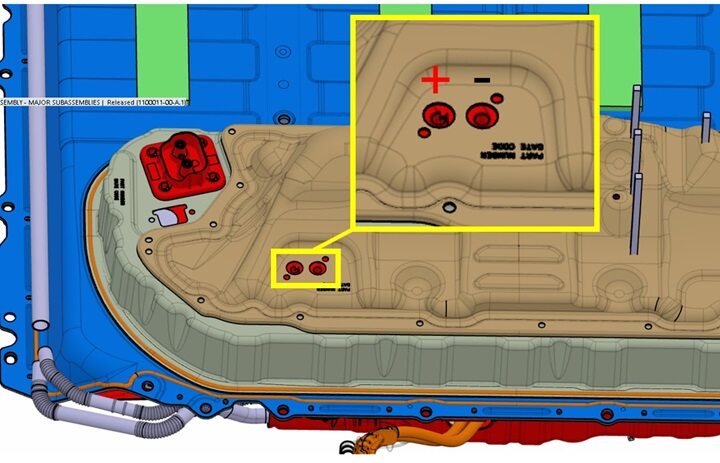

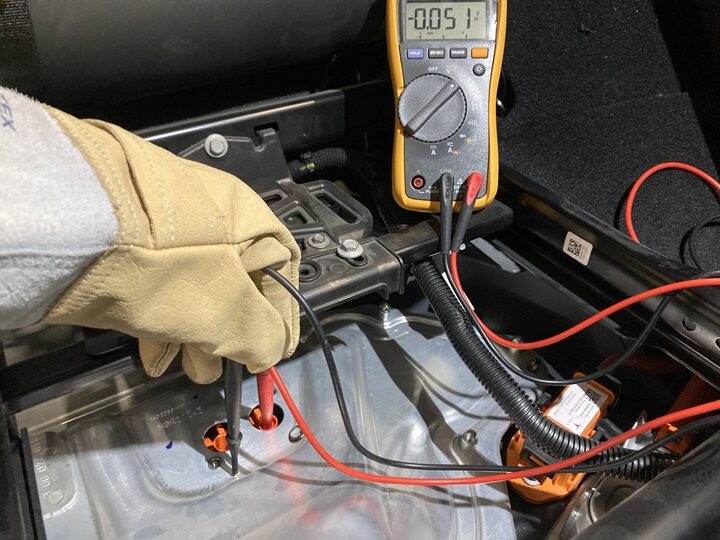

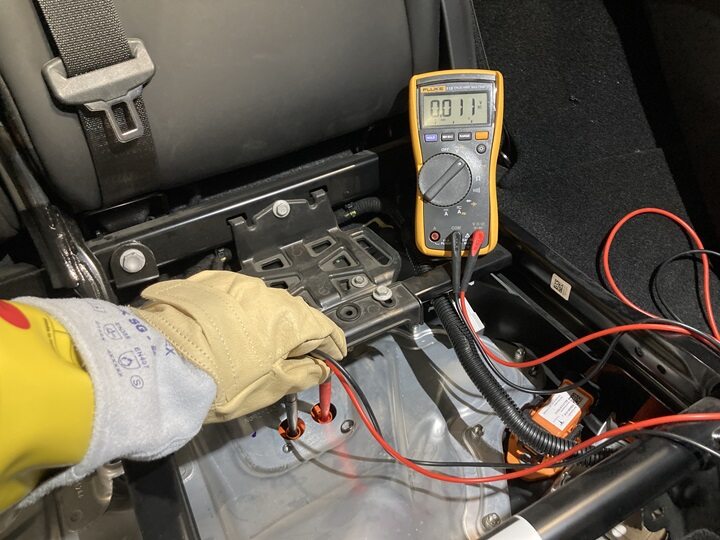

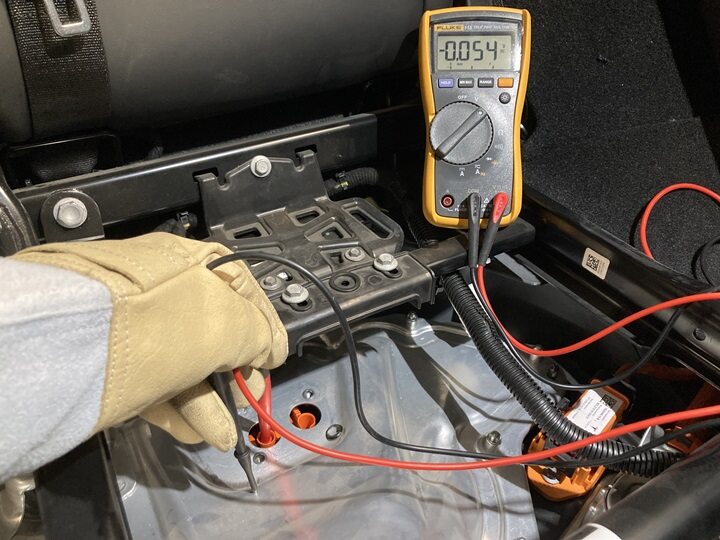

Verify no high voltage

注

Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

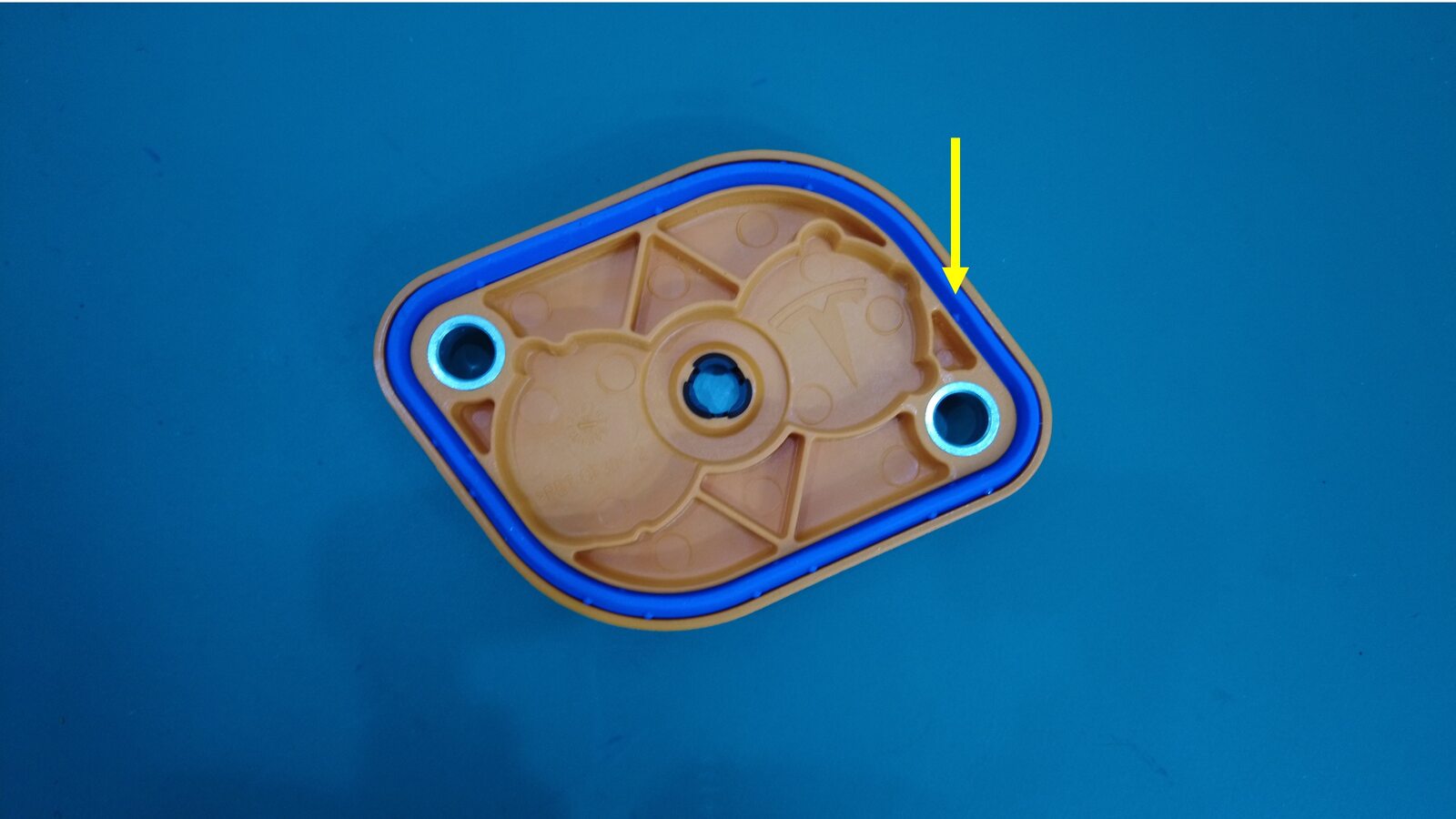

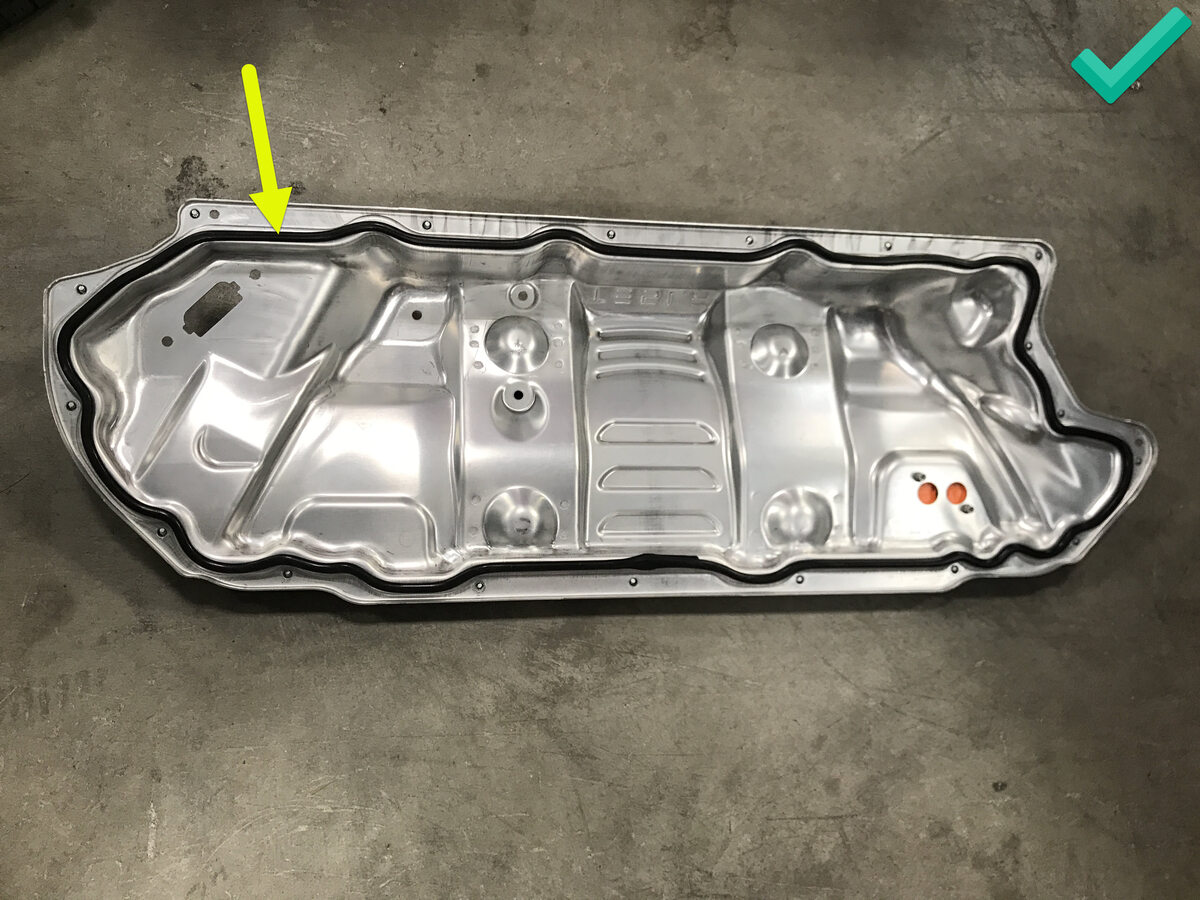

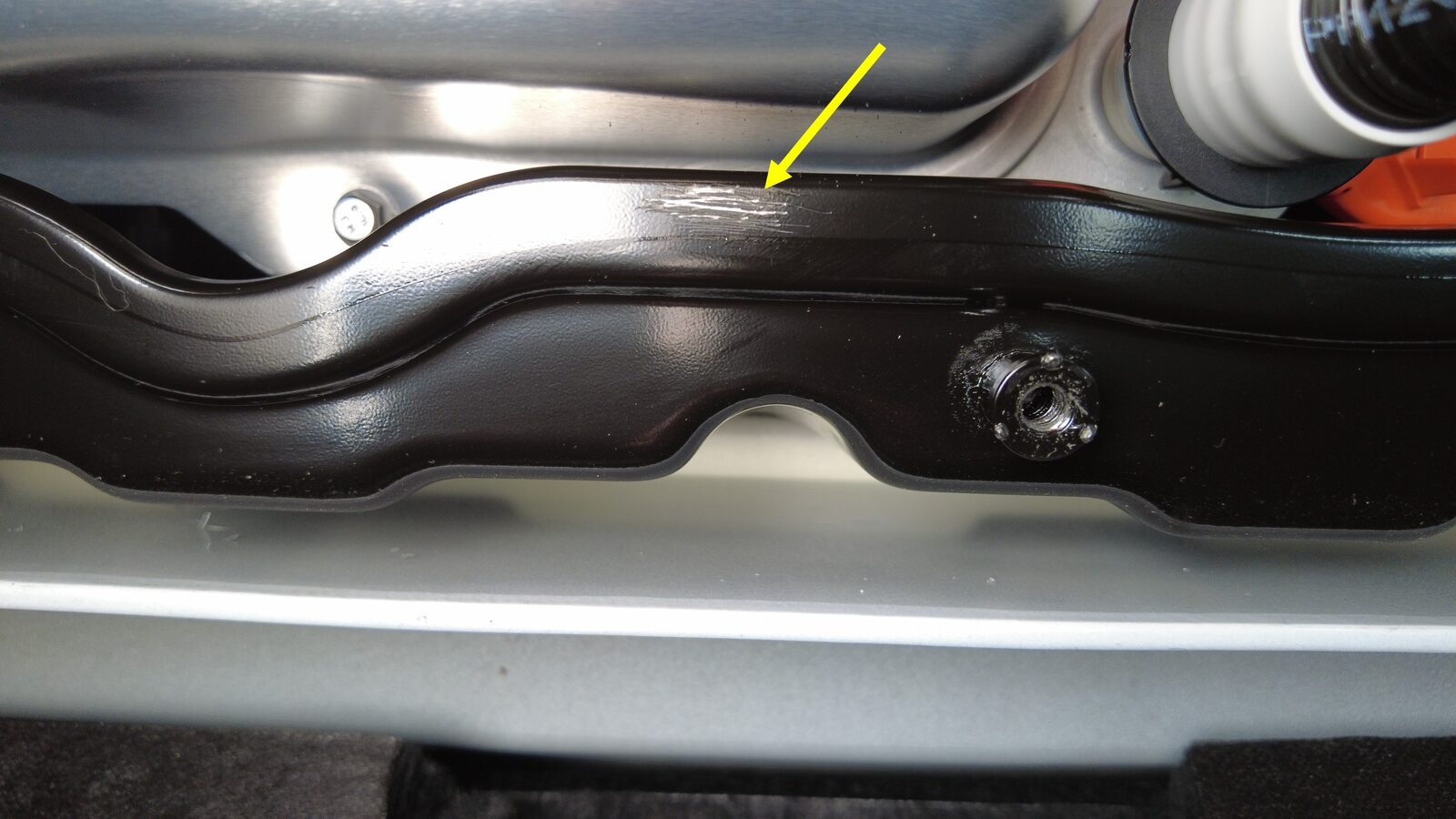

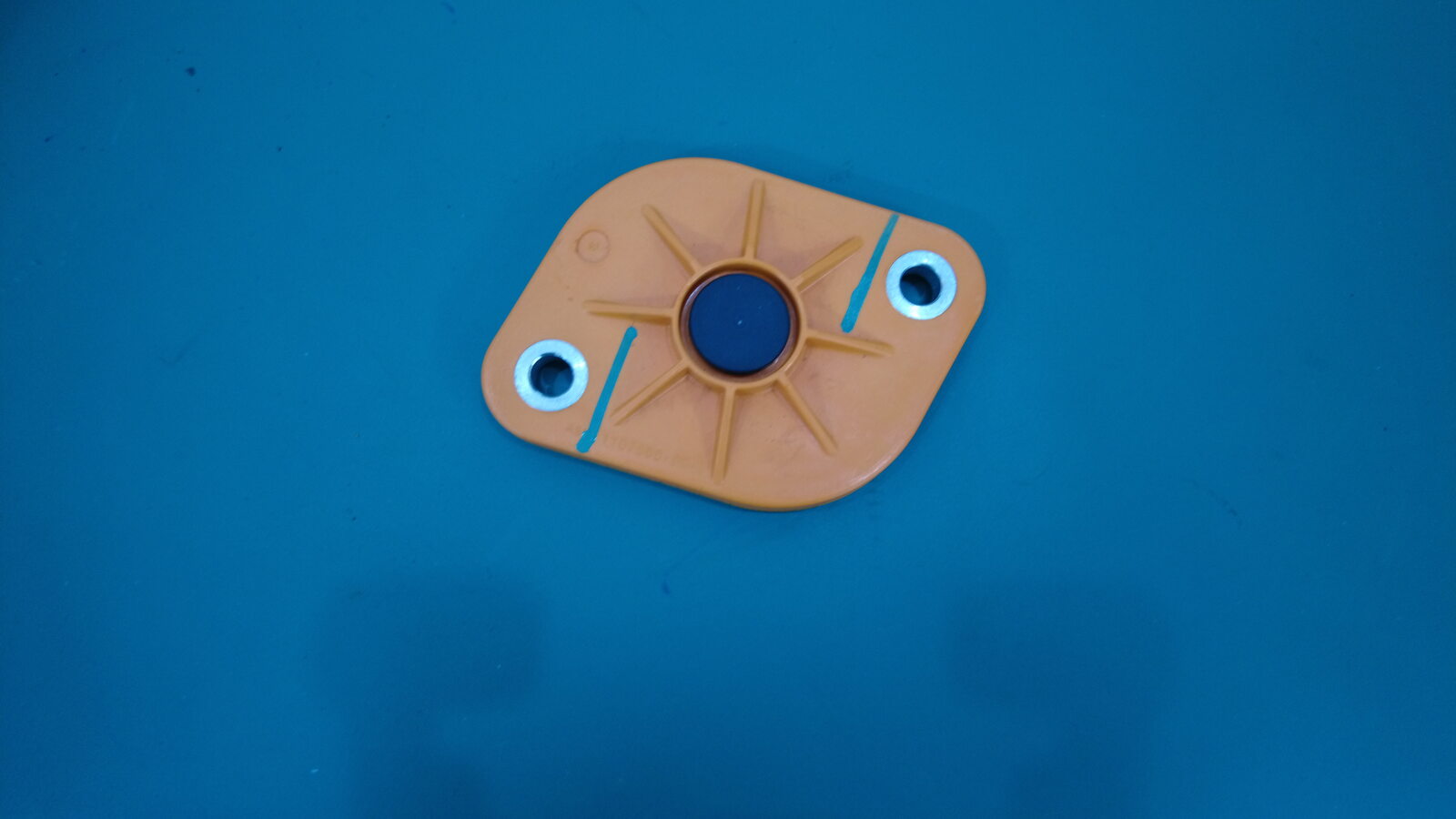

Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover

注

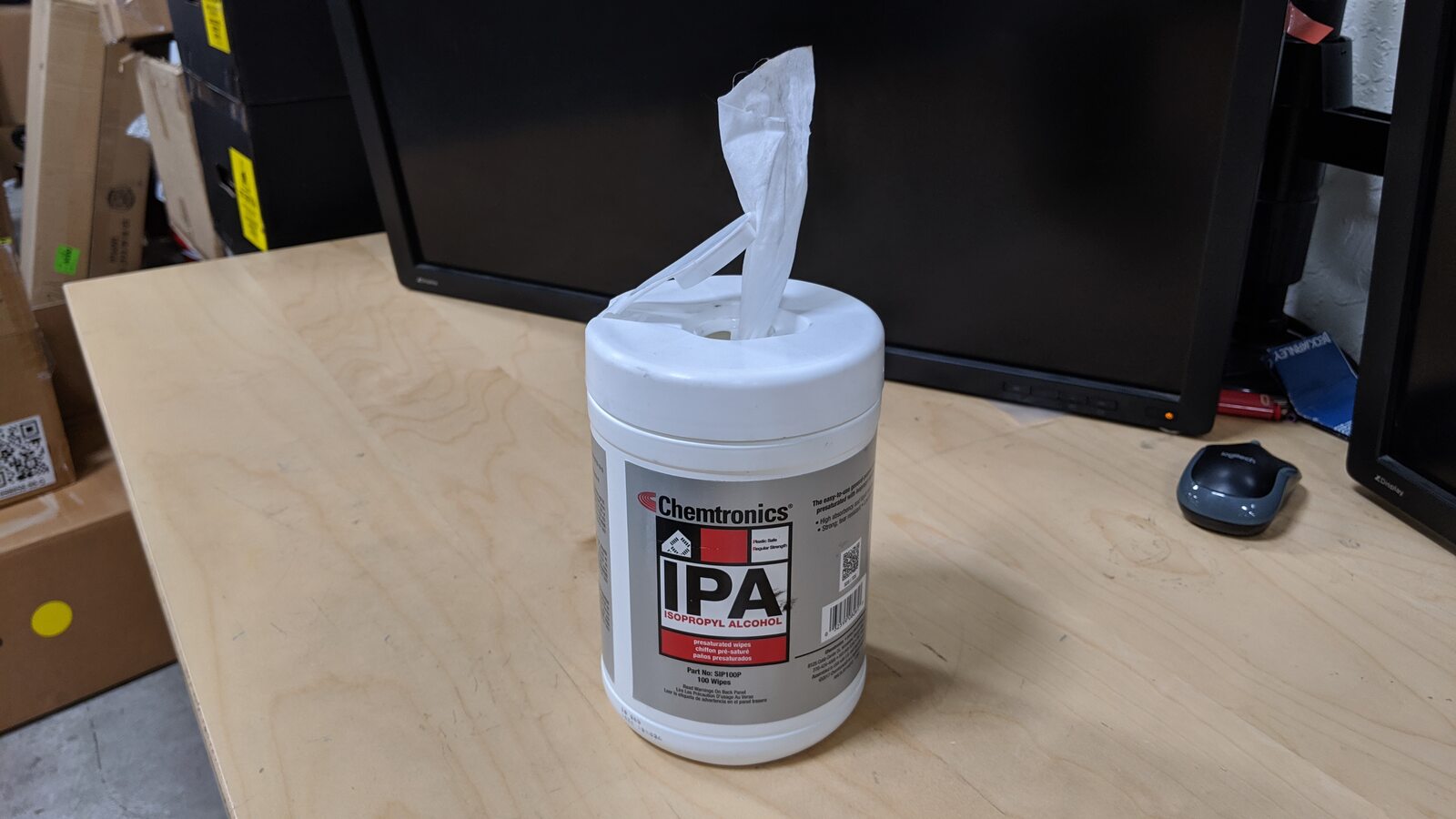

Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time

Install bolts securing ancillary bay probe lid cover to ancillary bay cover

注

2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts

Remove leather over gloves and HV insulating gloves

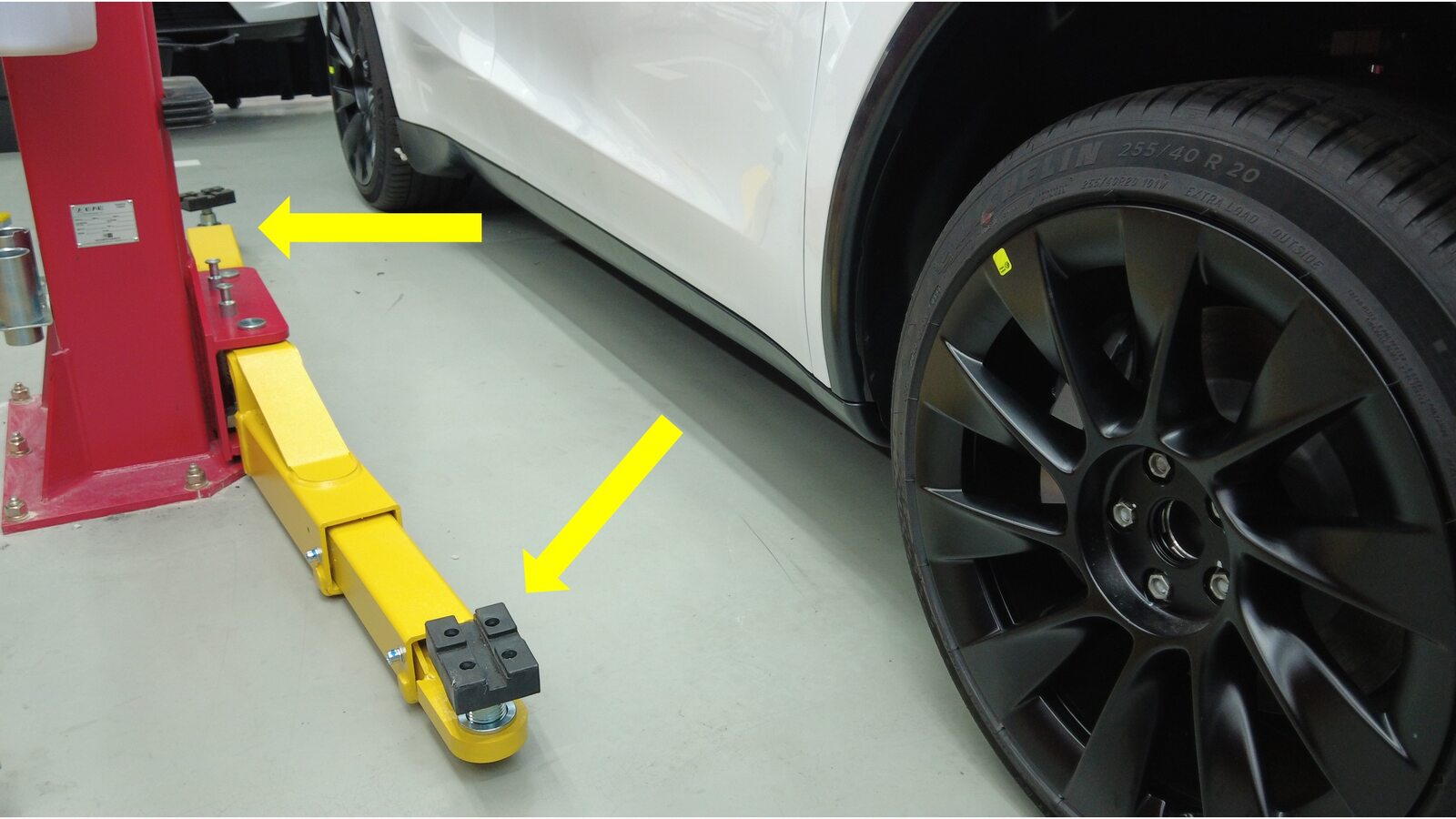

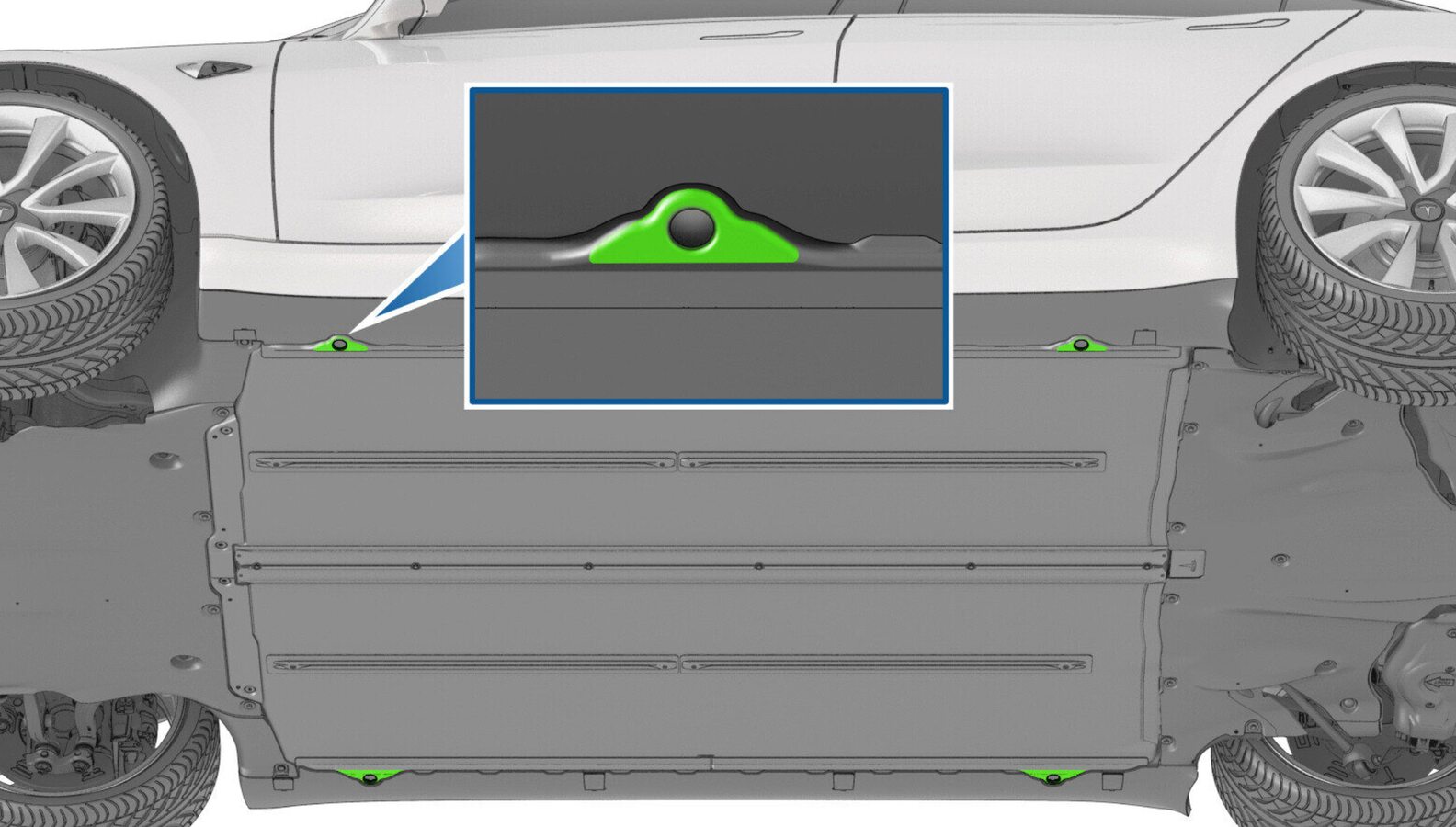

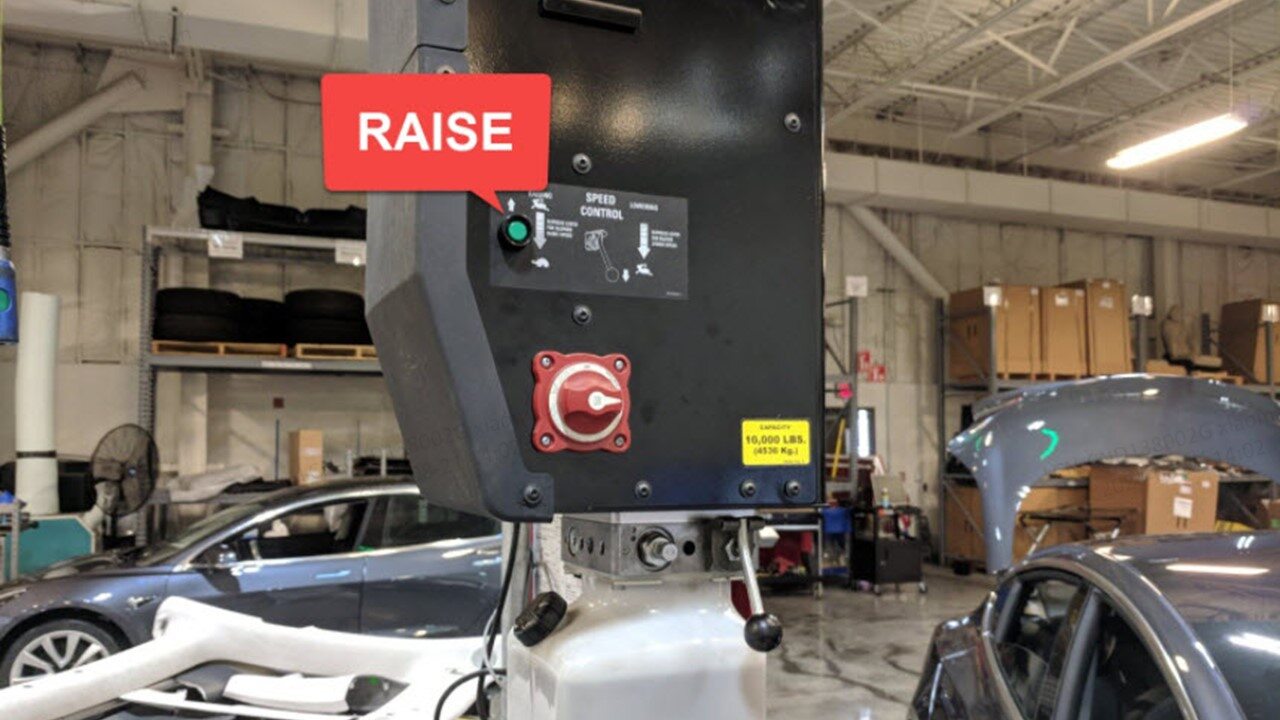

Raise vehicle fully and lower lift onto locks

注

Set vehicle to comfortable working height, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to the side if both locks are not engaged

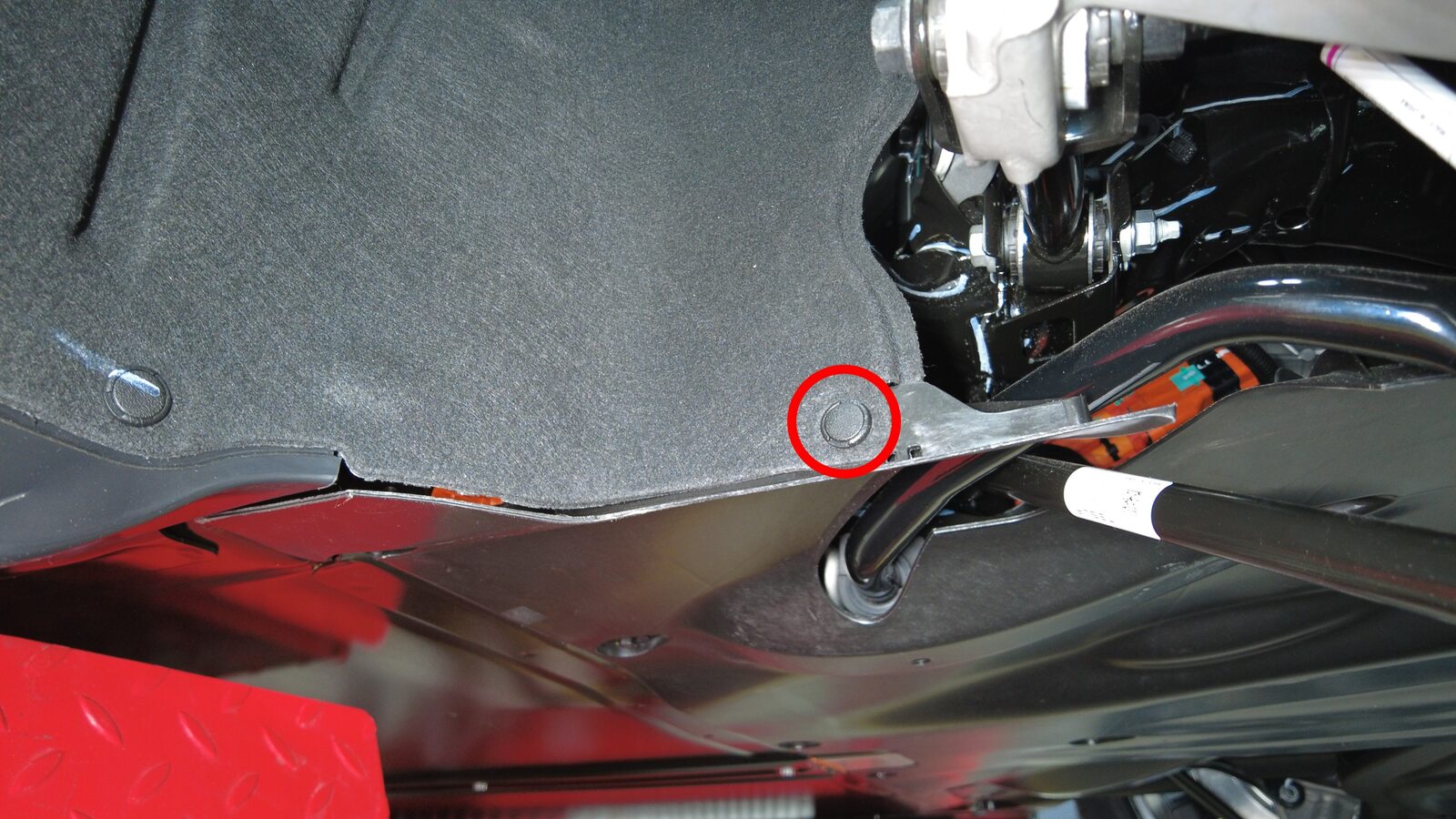

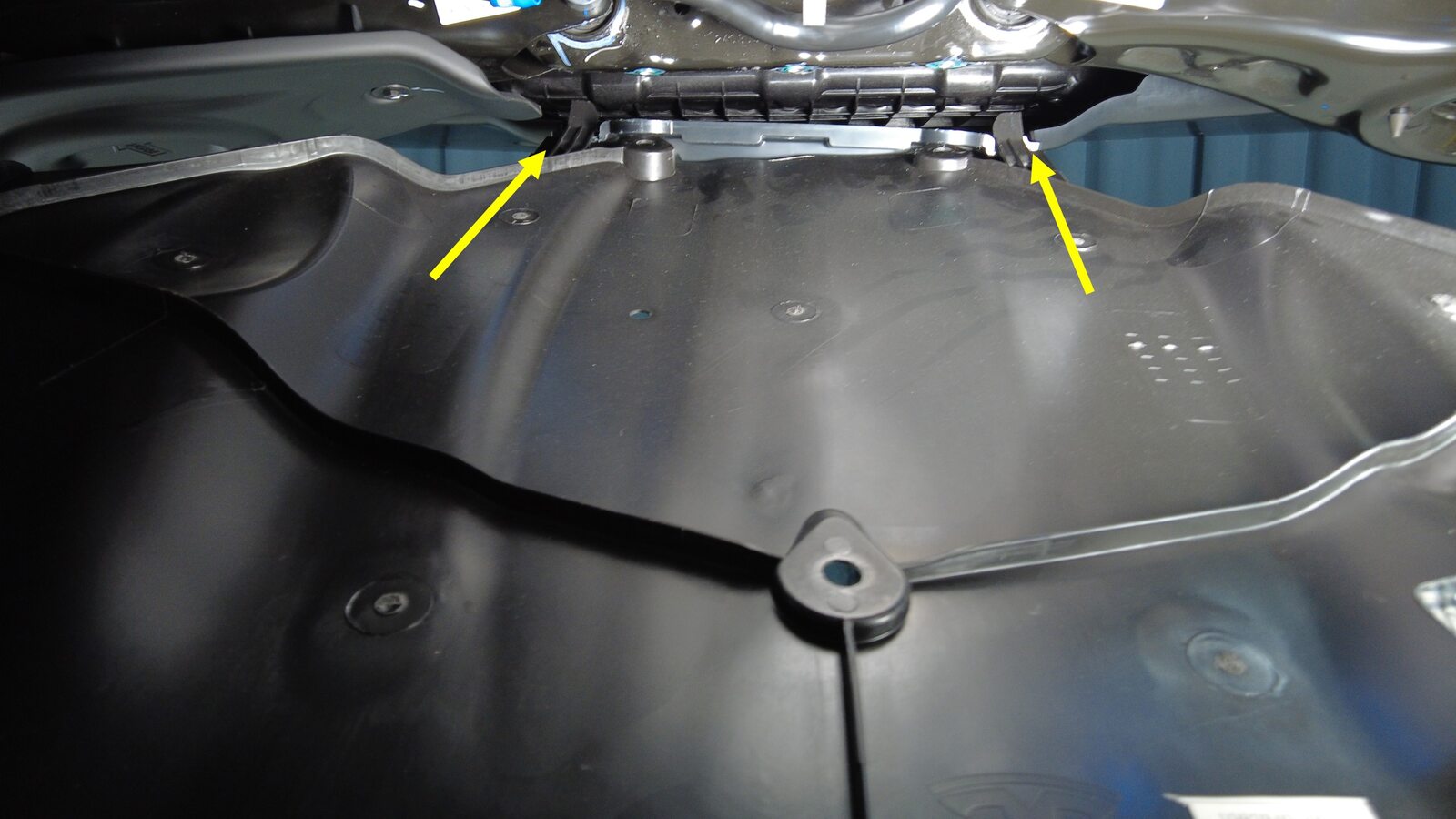

Remove LH and RH push clips securing mid aero shield to wheel house liner

注

2x clips

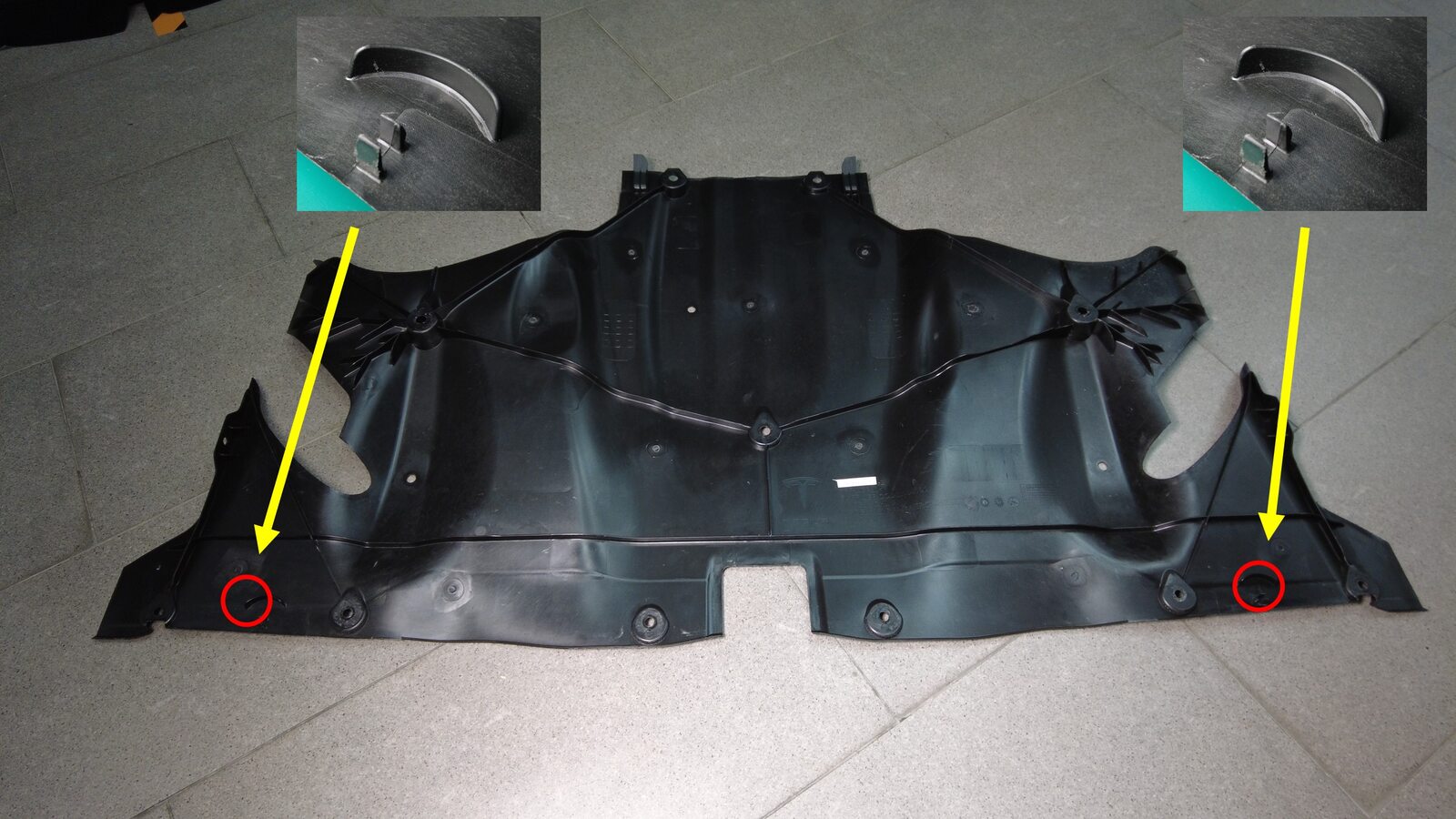

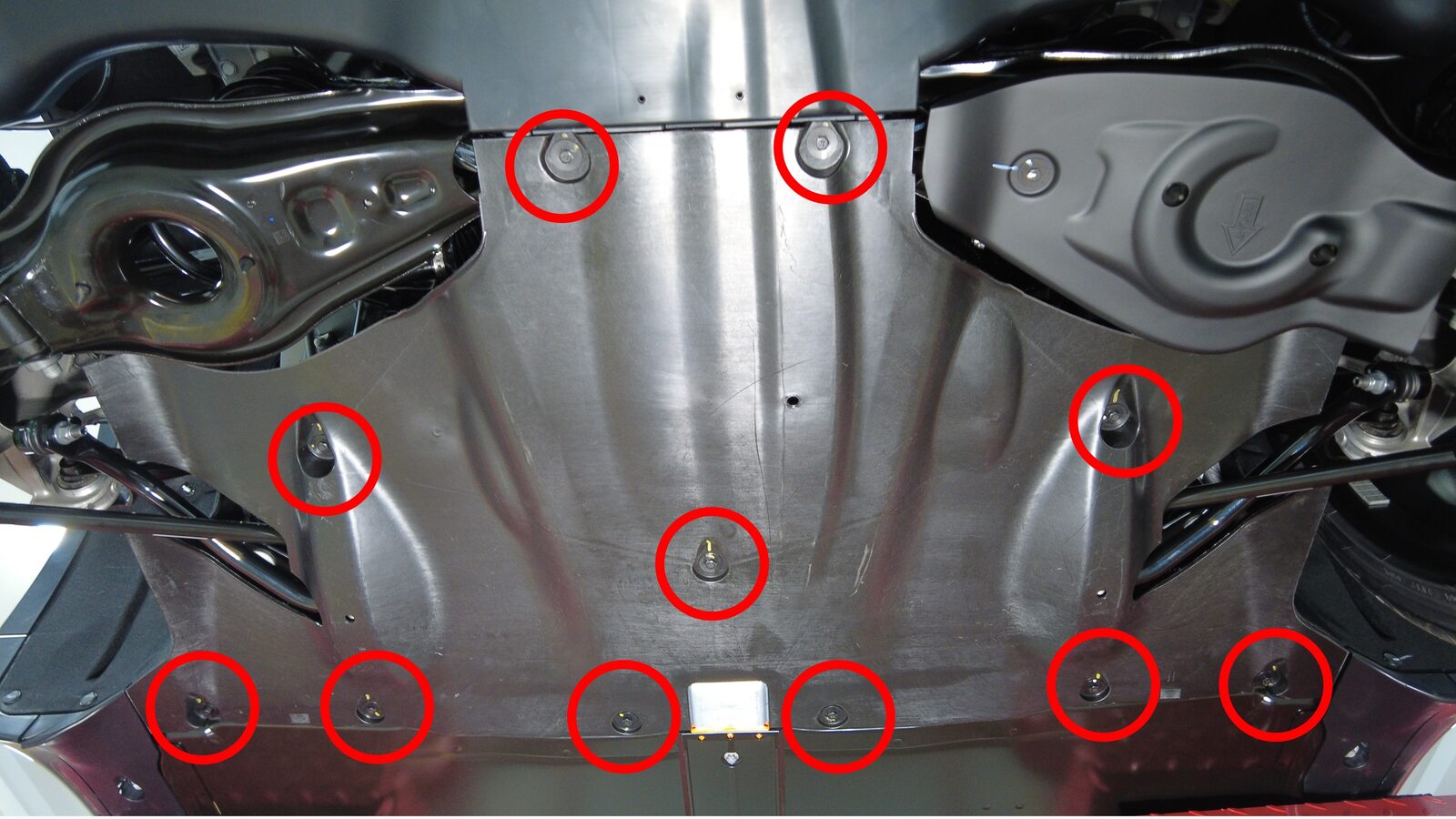

Remove mid aero shield

注

11x bolts, 2x tabs, 10mm, 5 Nm

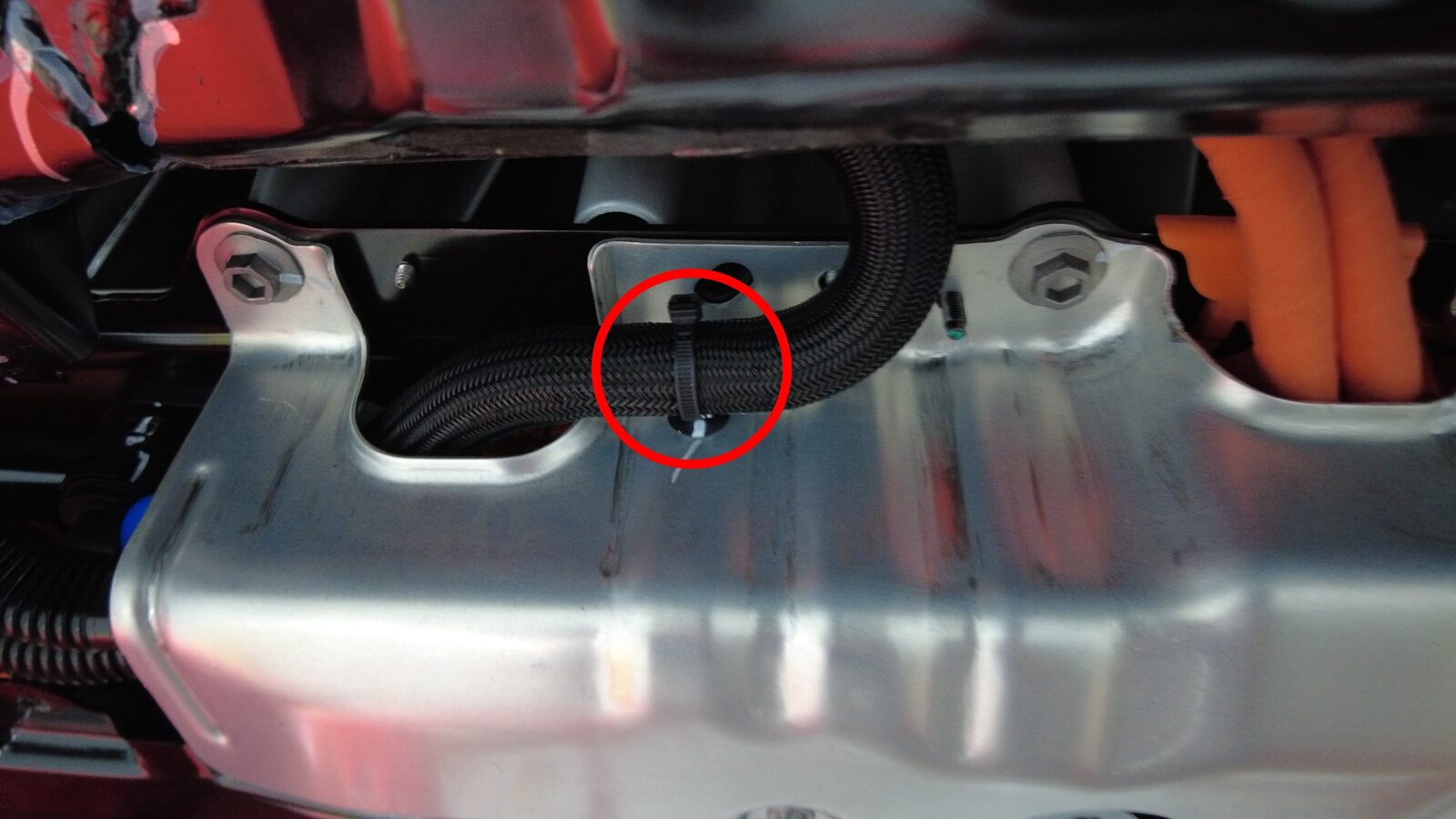

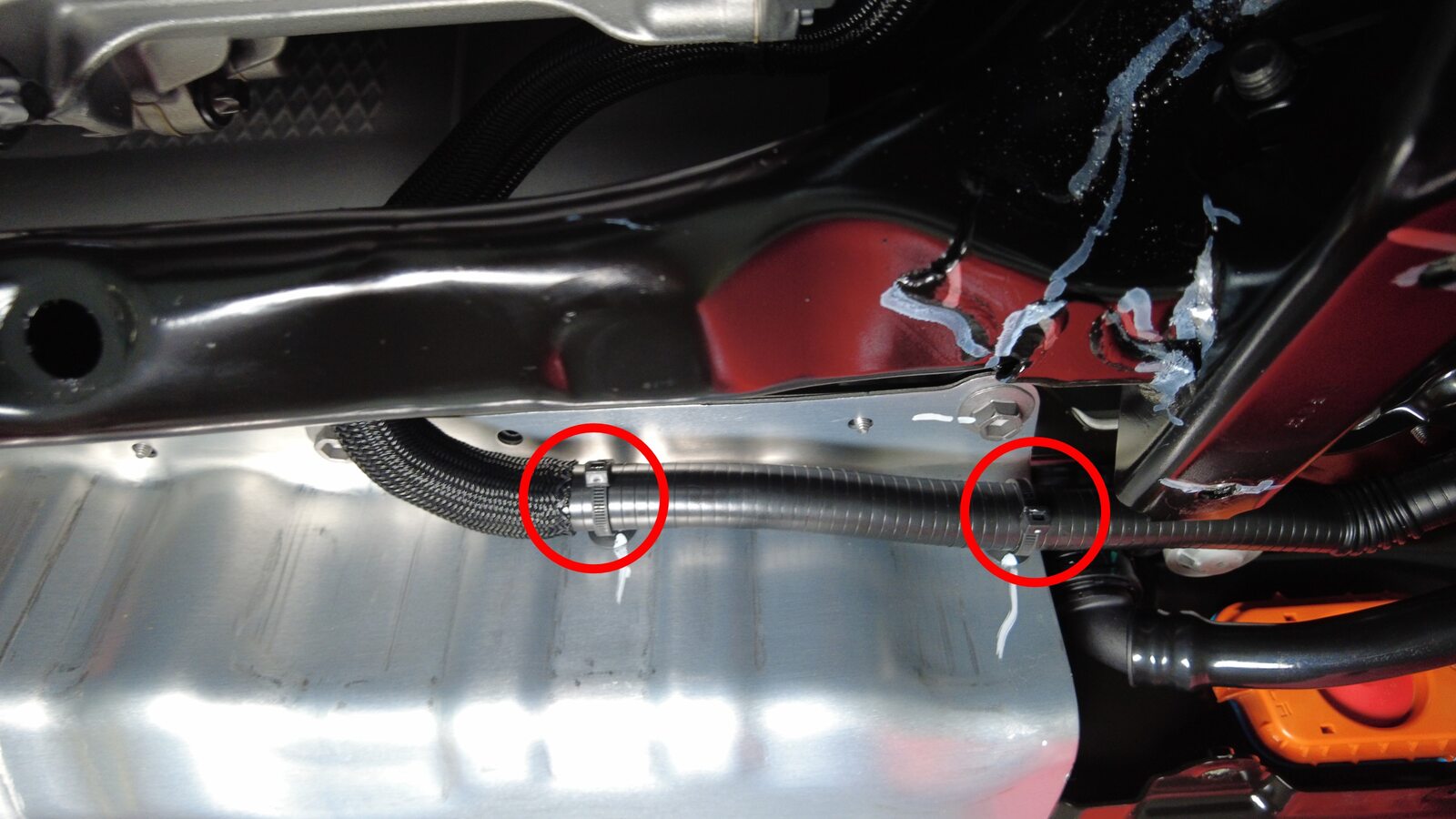

Release LH side hose clip from rear battery skid plate

注

1x fir tree clip

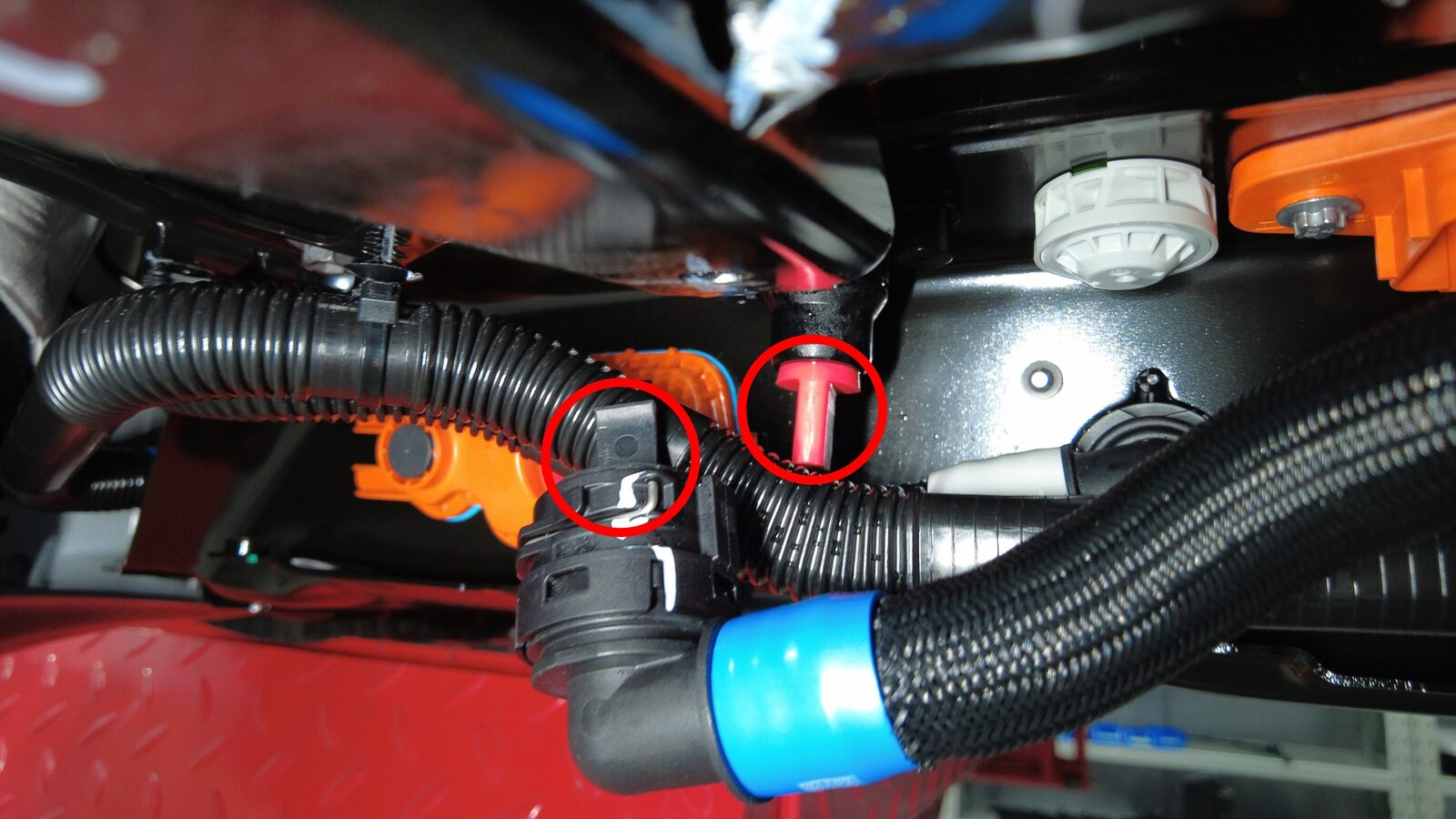

Release RH side hose clips from rear battery skid plate

注

2x fir tree clips

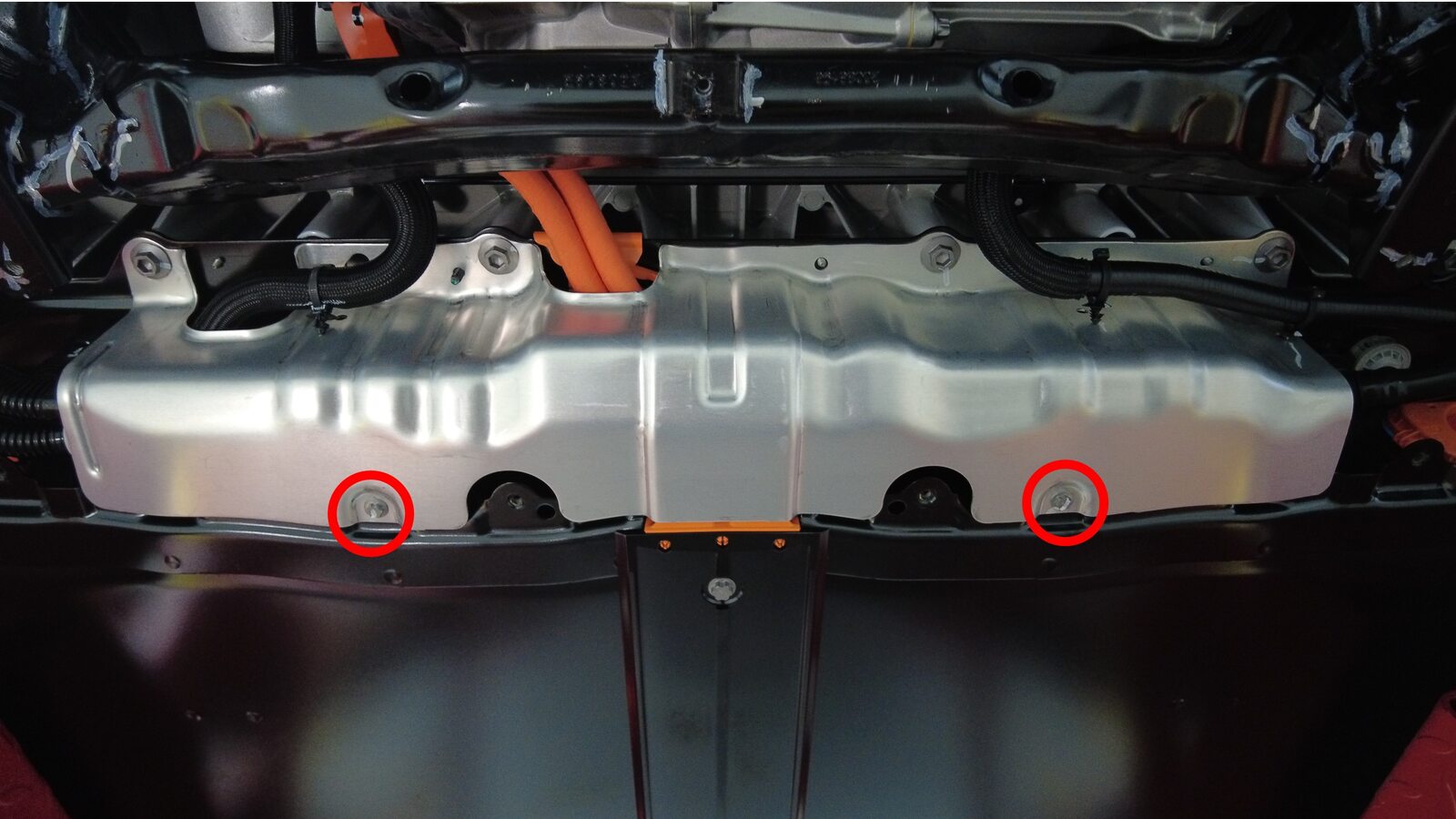

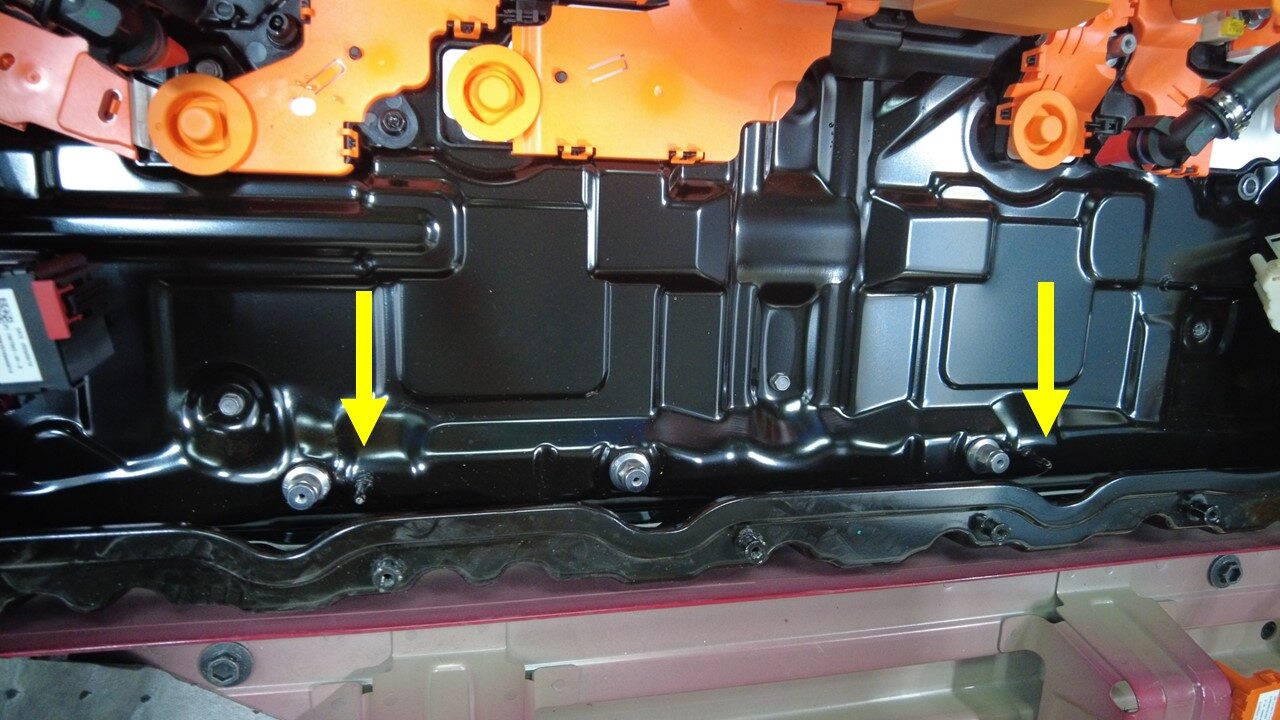

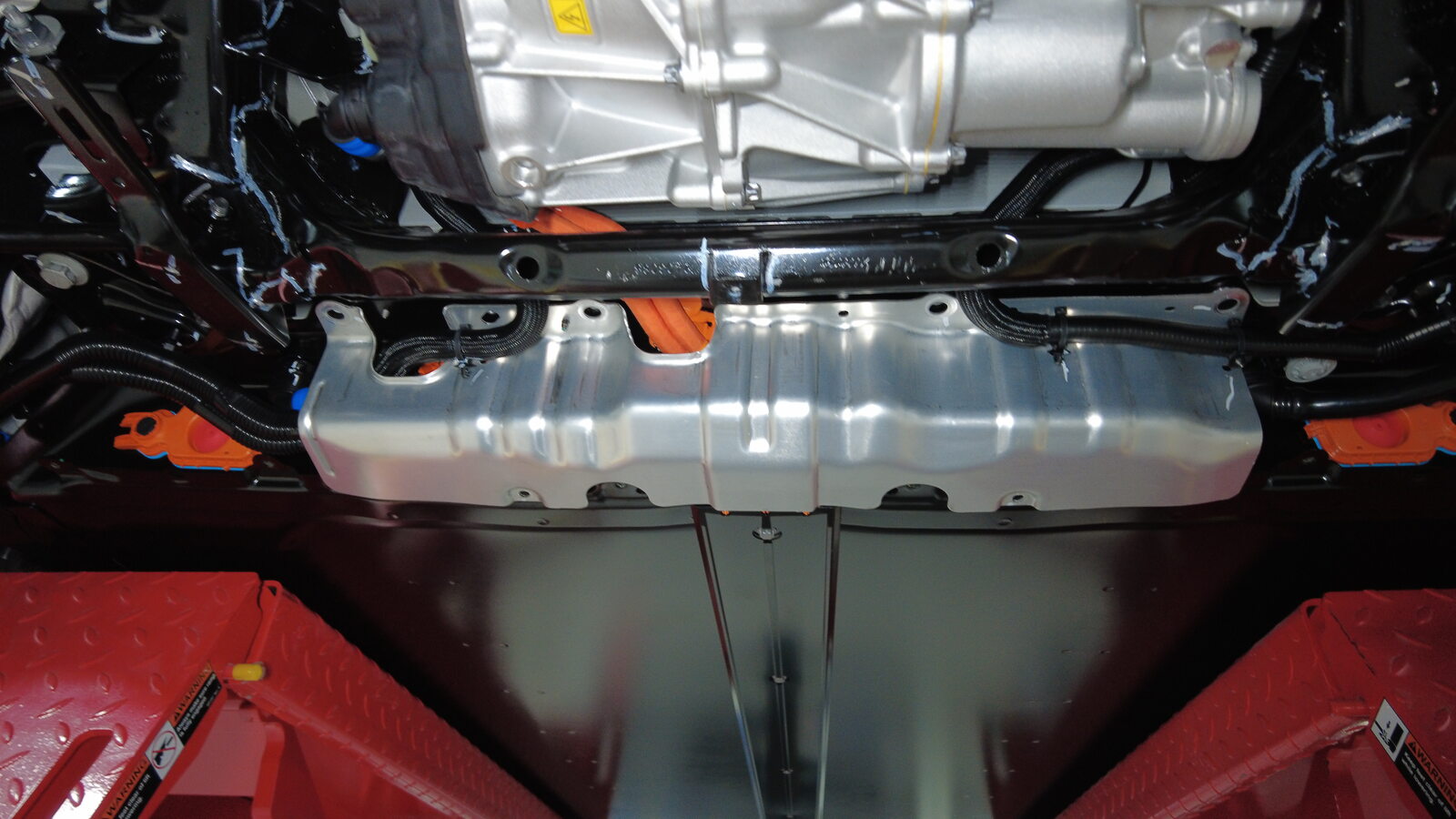

Remove lower bolts securing HV battery rear skid plate enclosure

注

2x bolts, EP10, 13 Nm

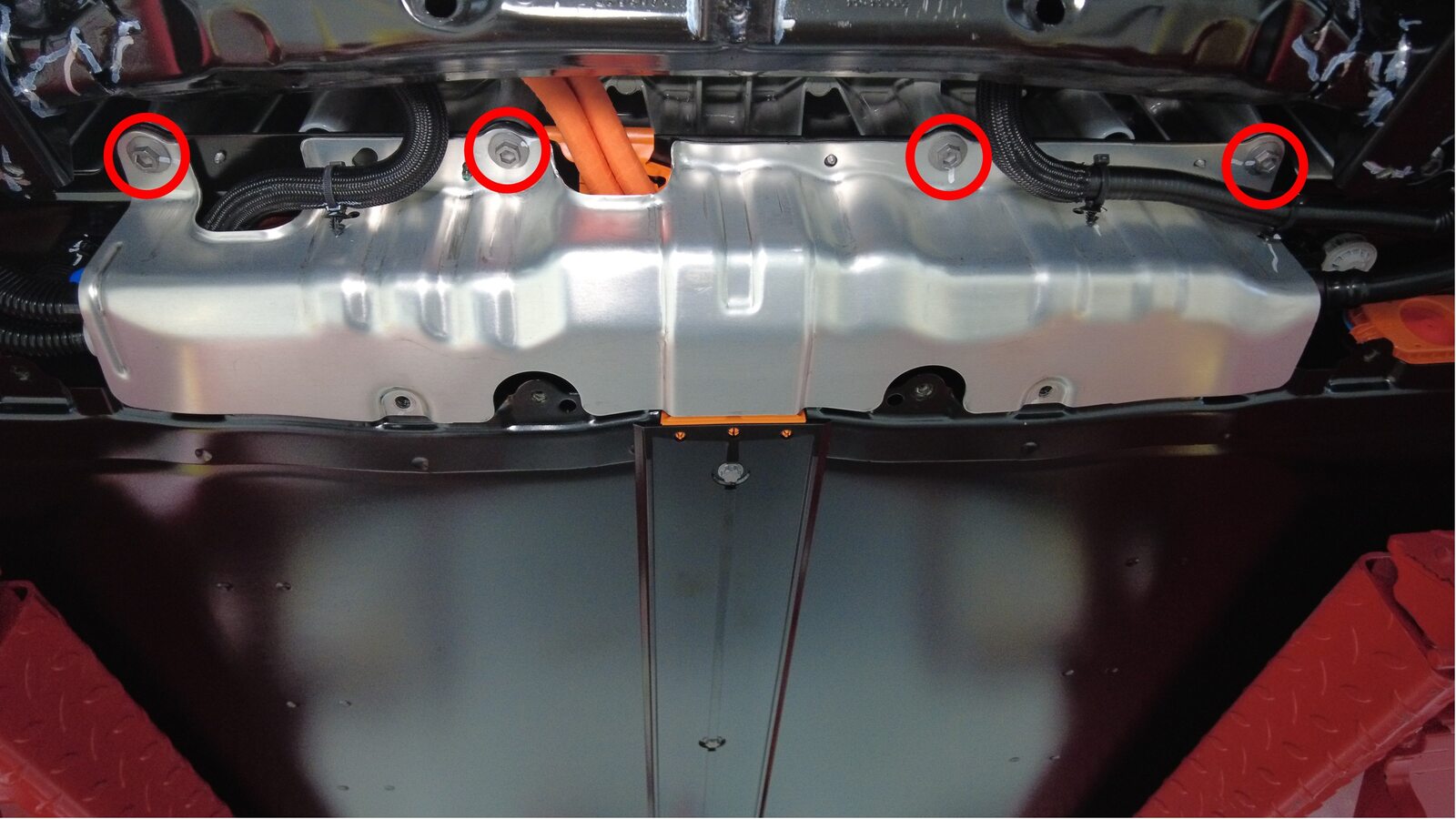

Remove upper bolts securing HV battery rear skid plate enclosure

注

4x bolts, 13mm, 64 Nm

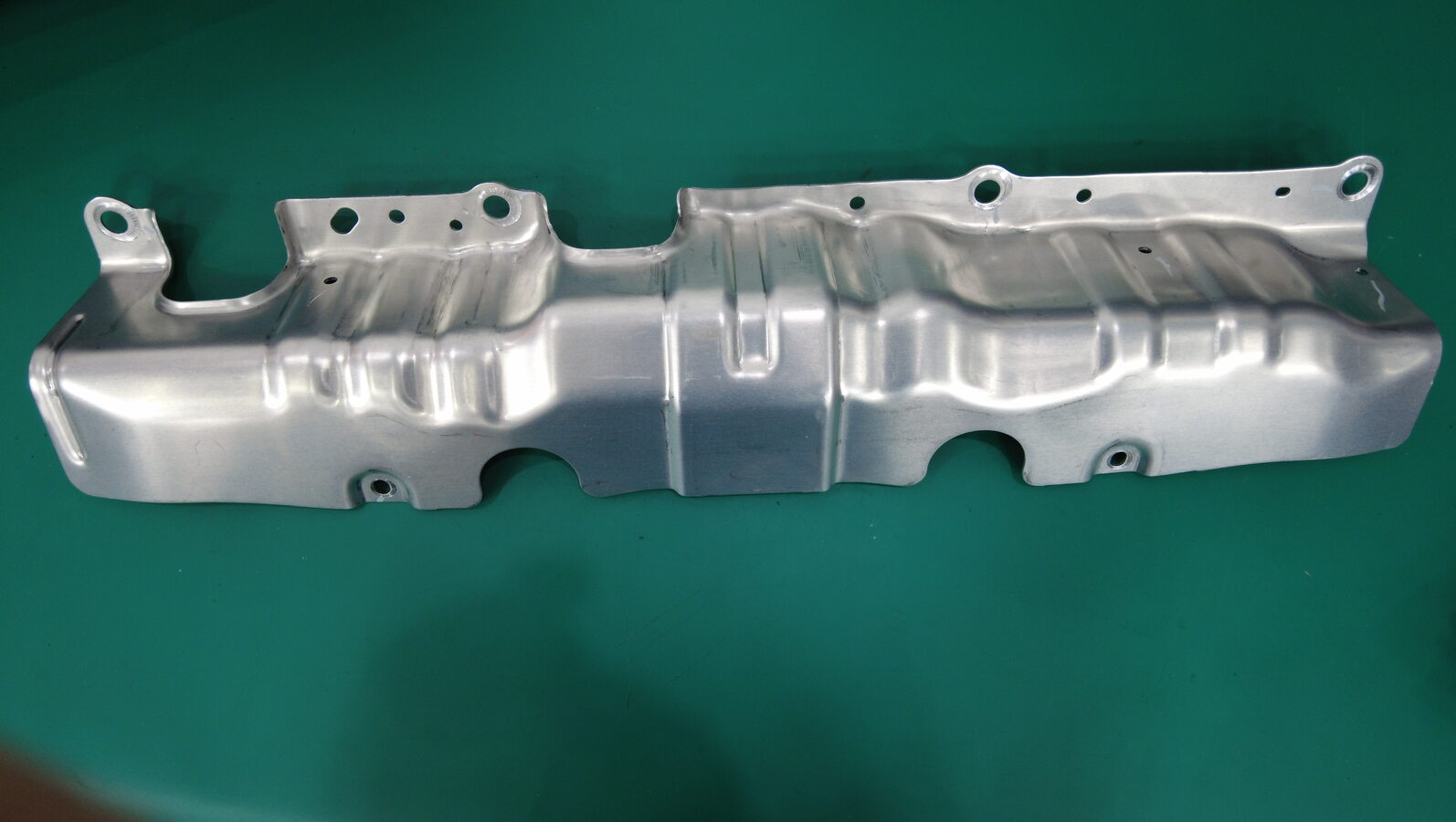

Remove HV battery rear skid plate enclosure

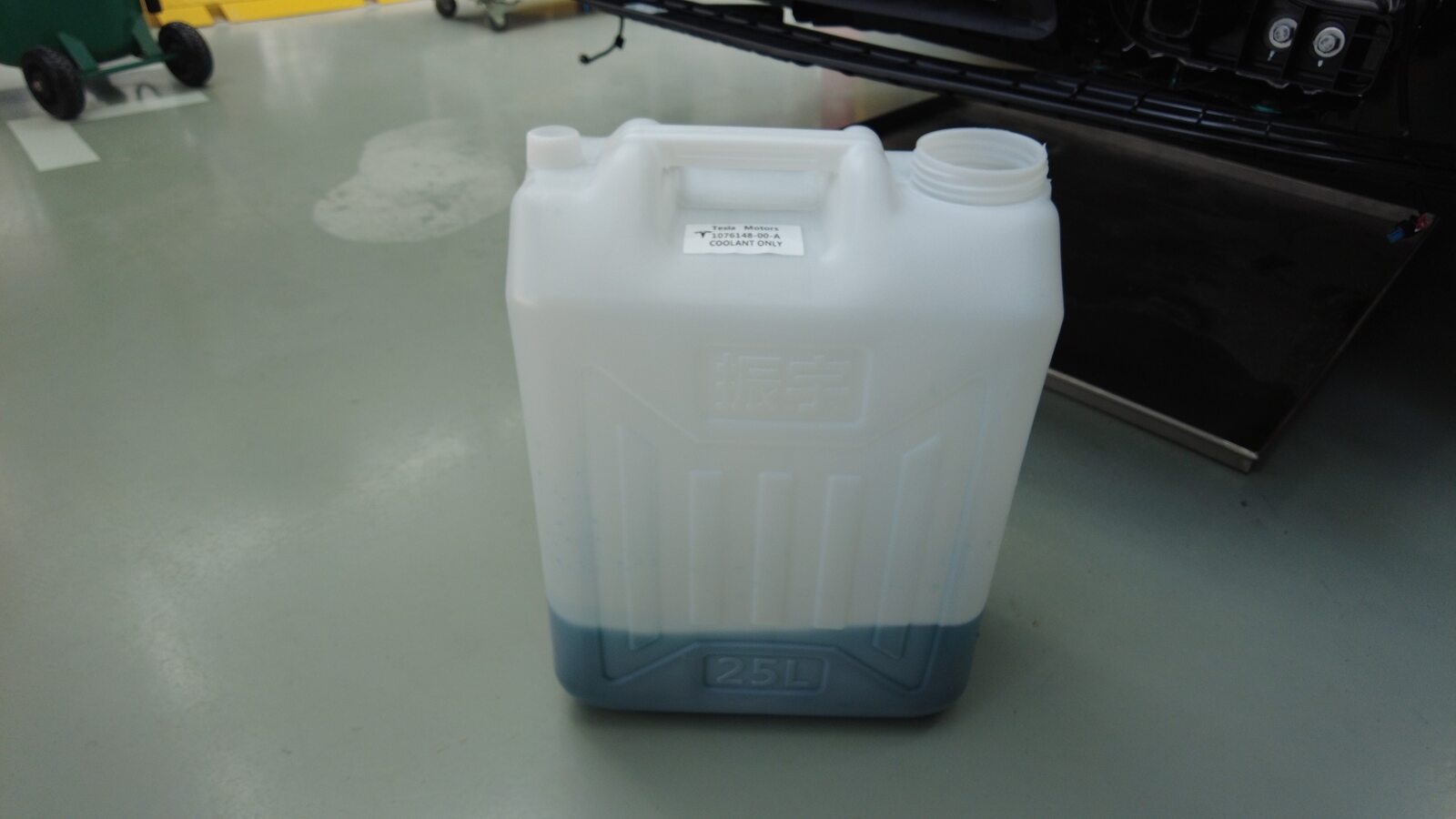

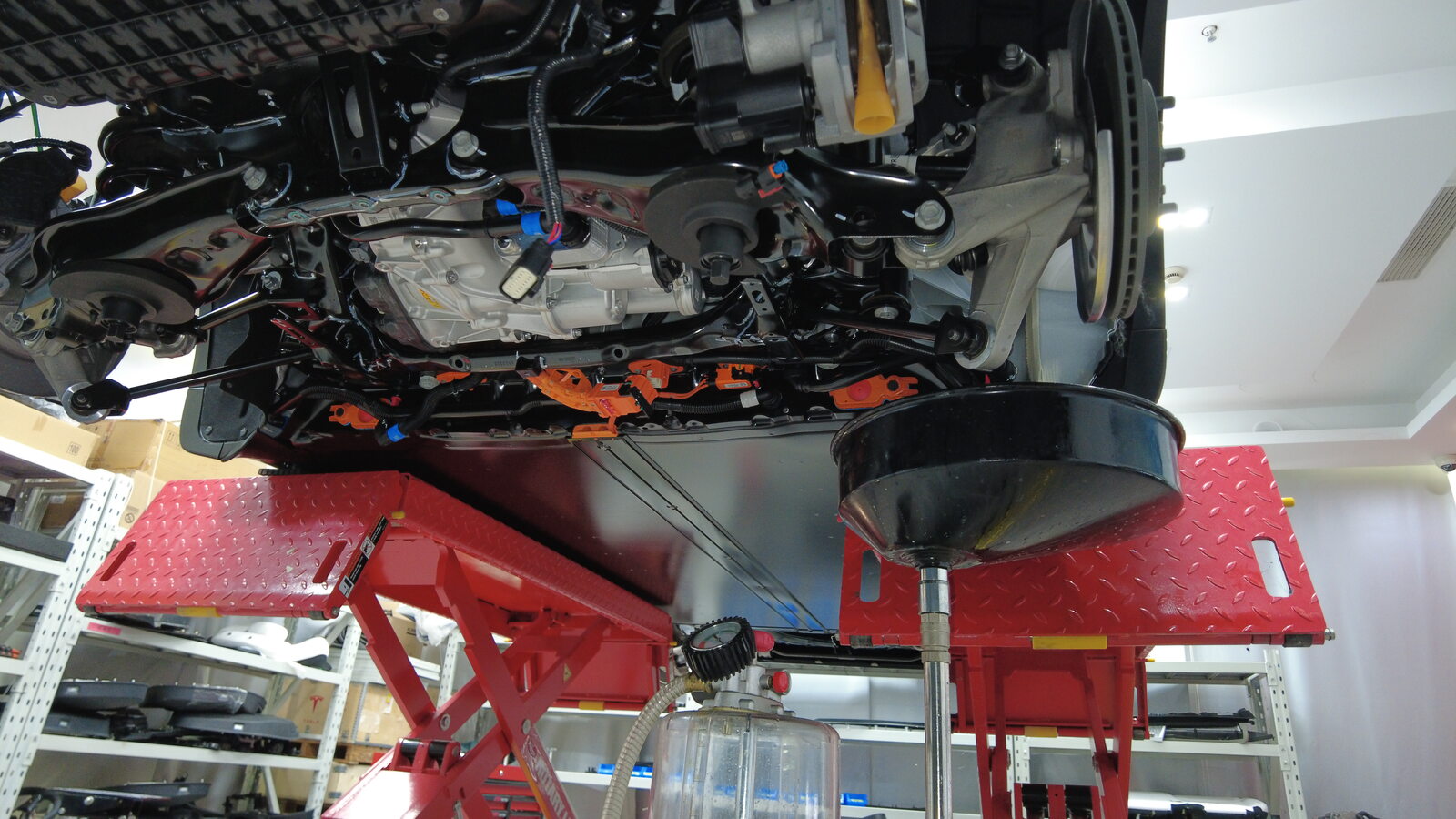

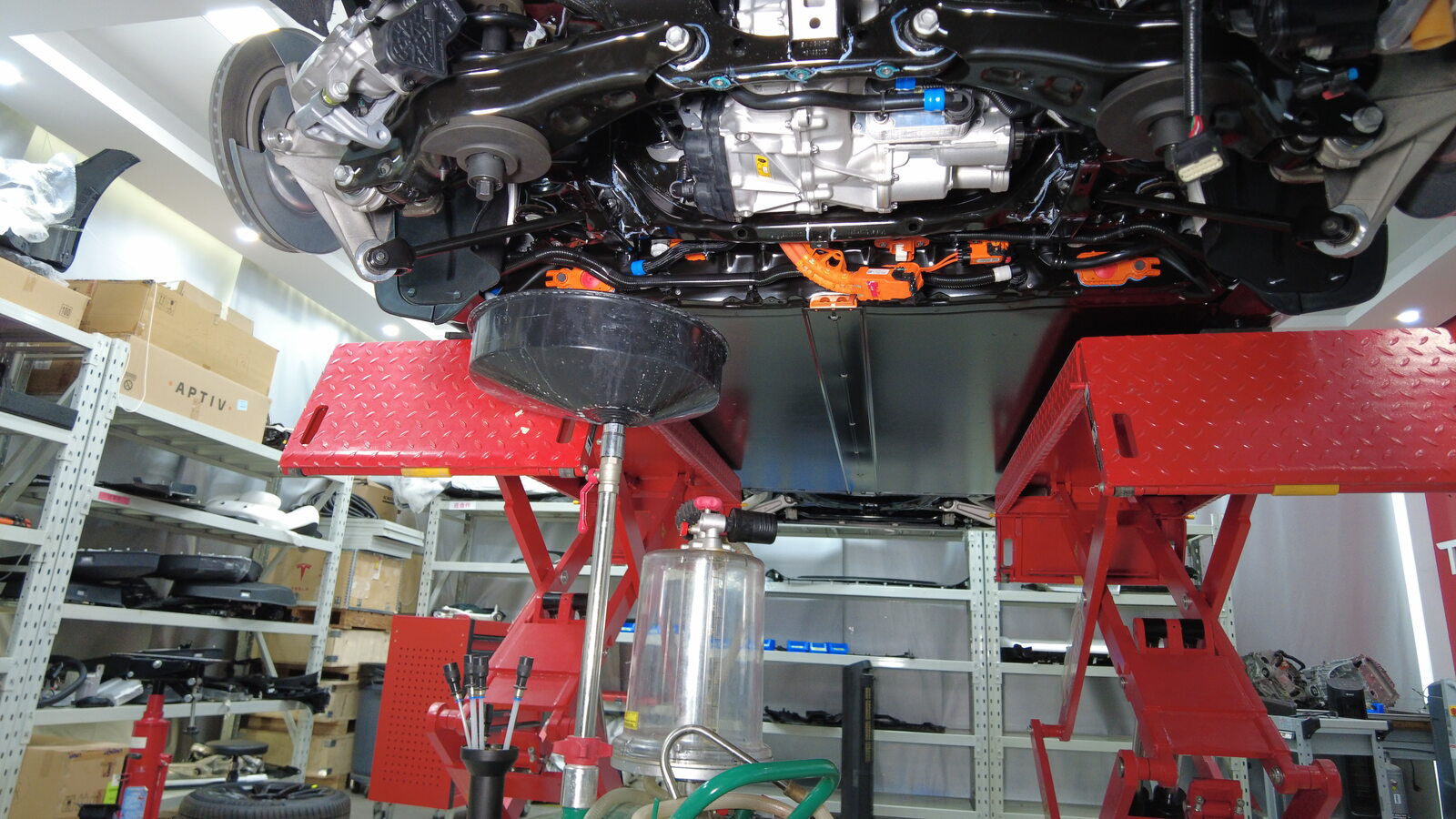

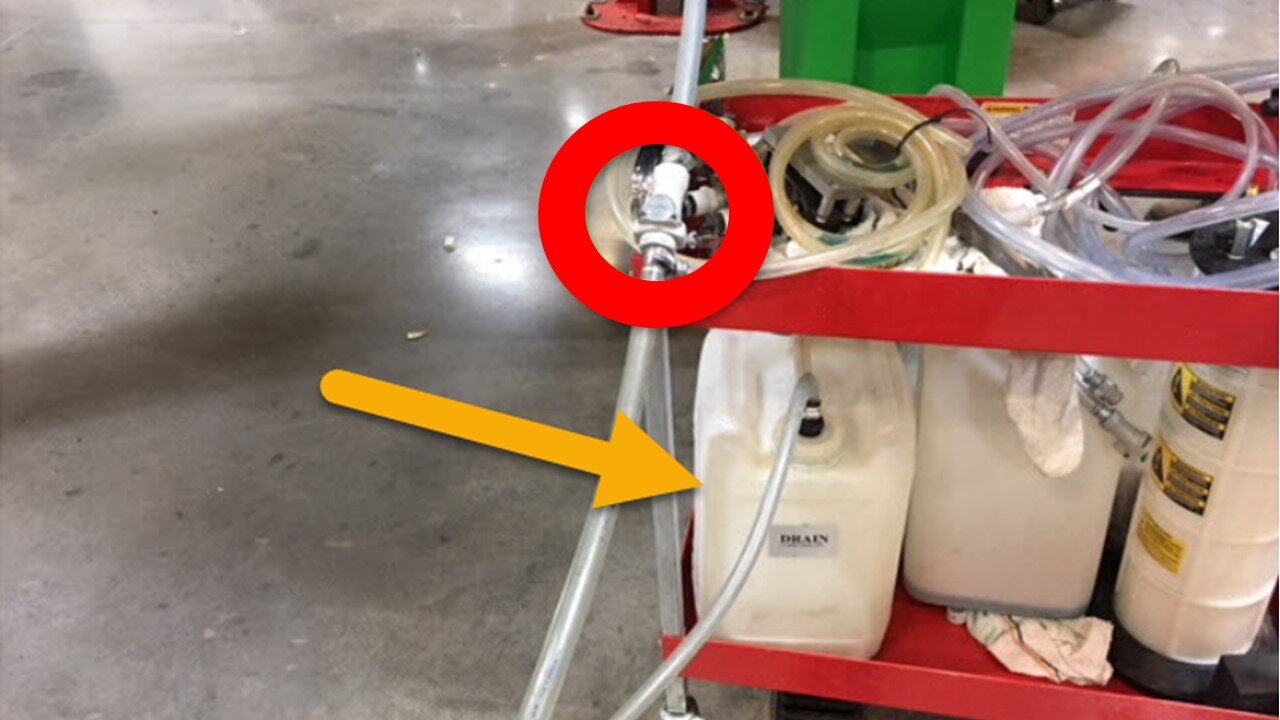

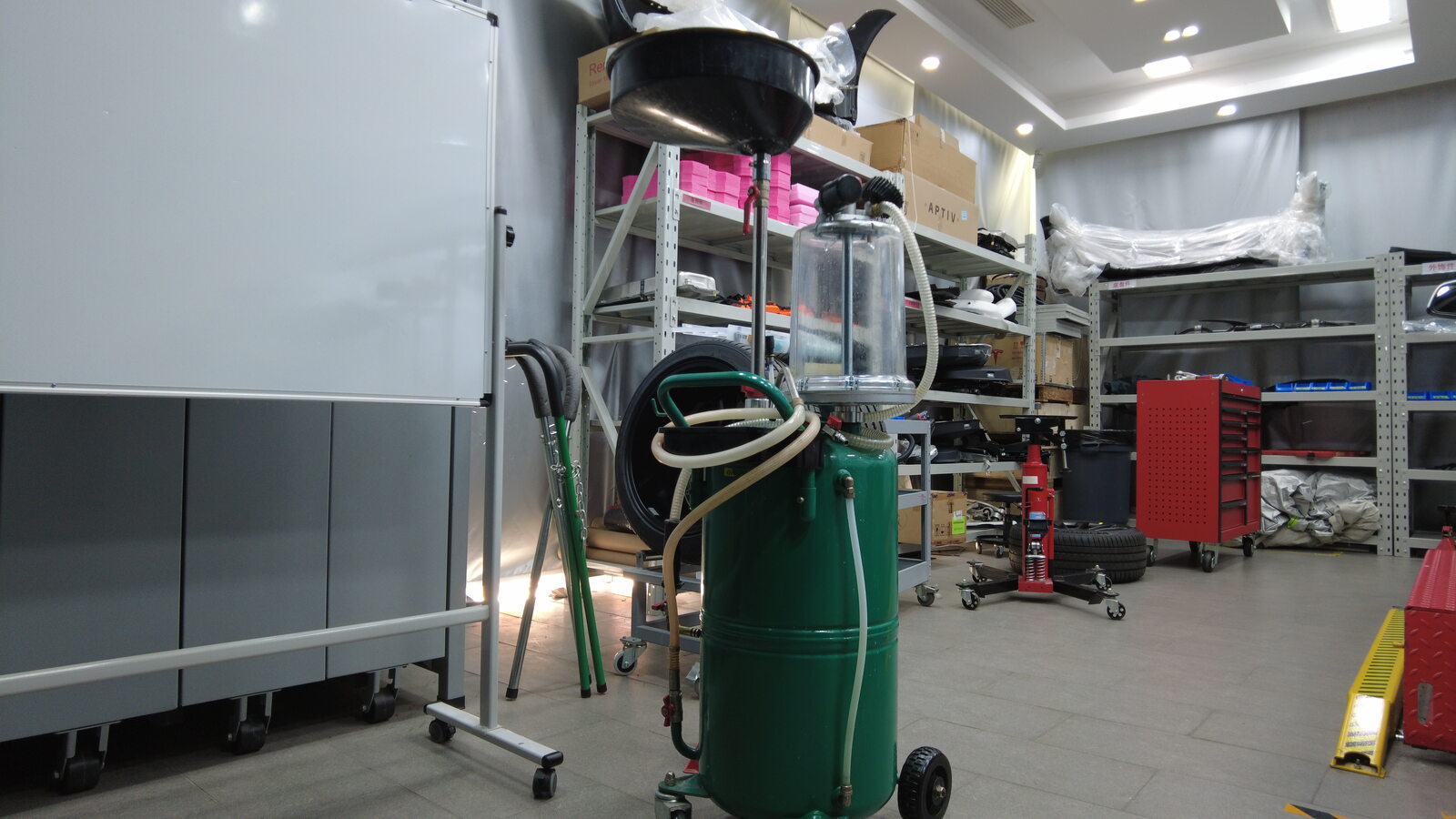

Position coolant drain container under LH rear of vehicle

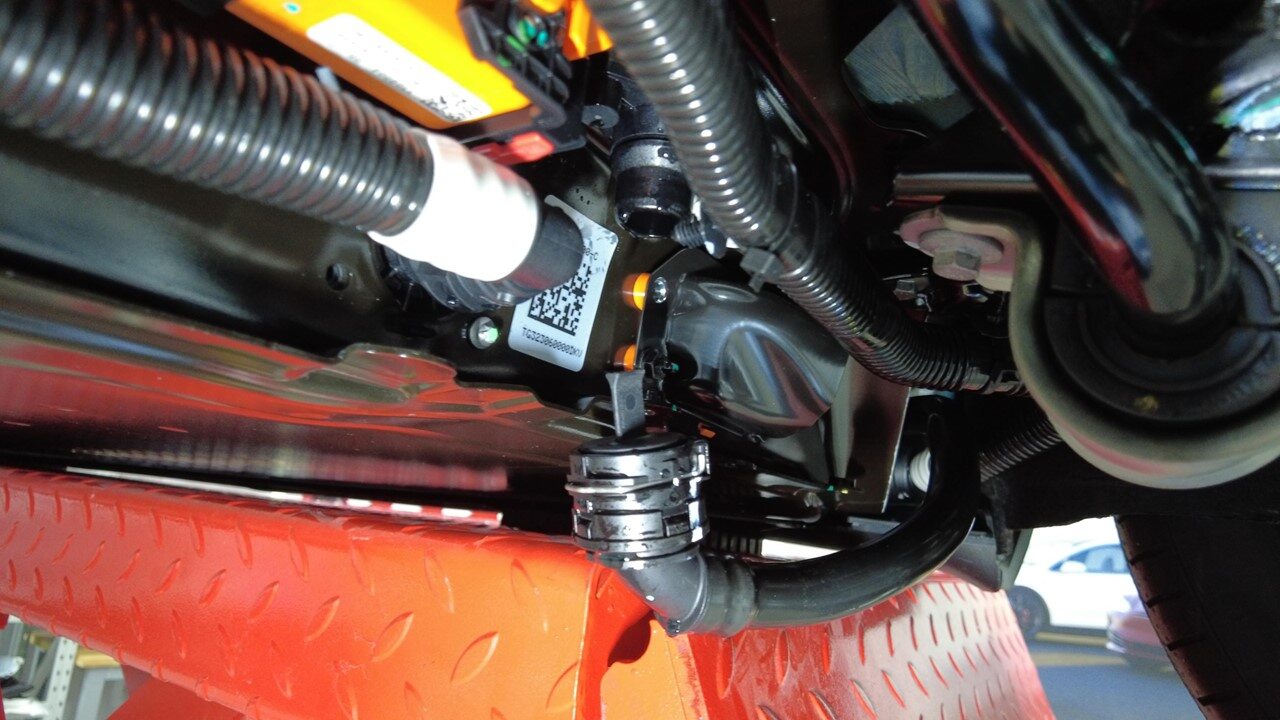

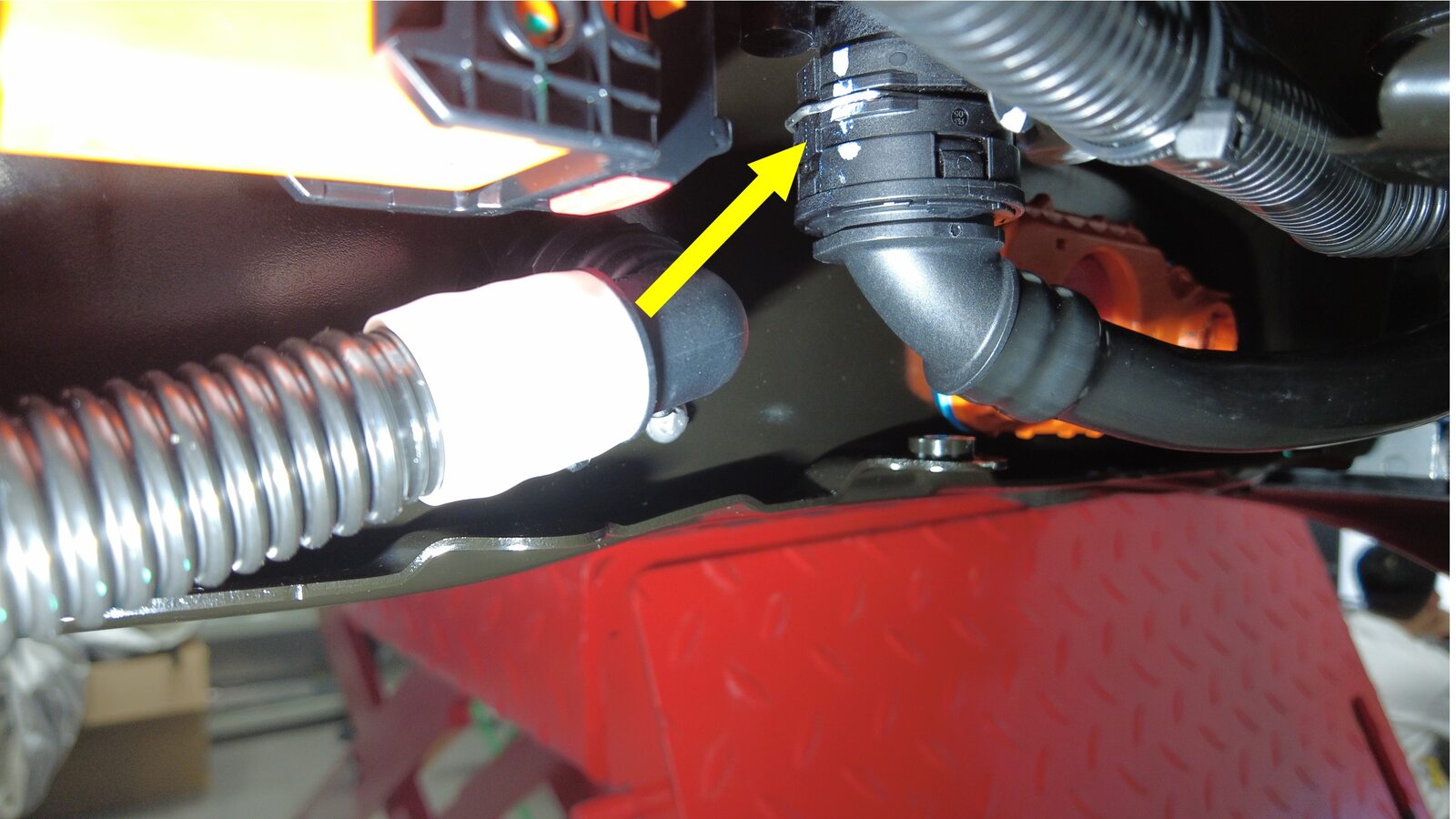

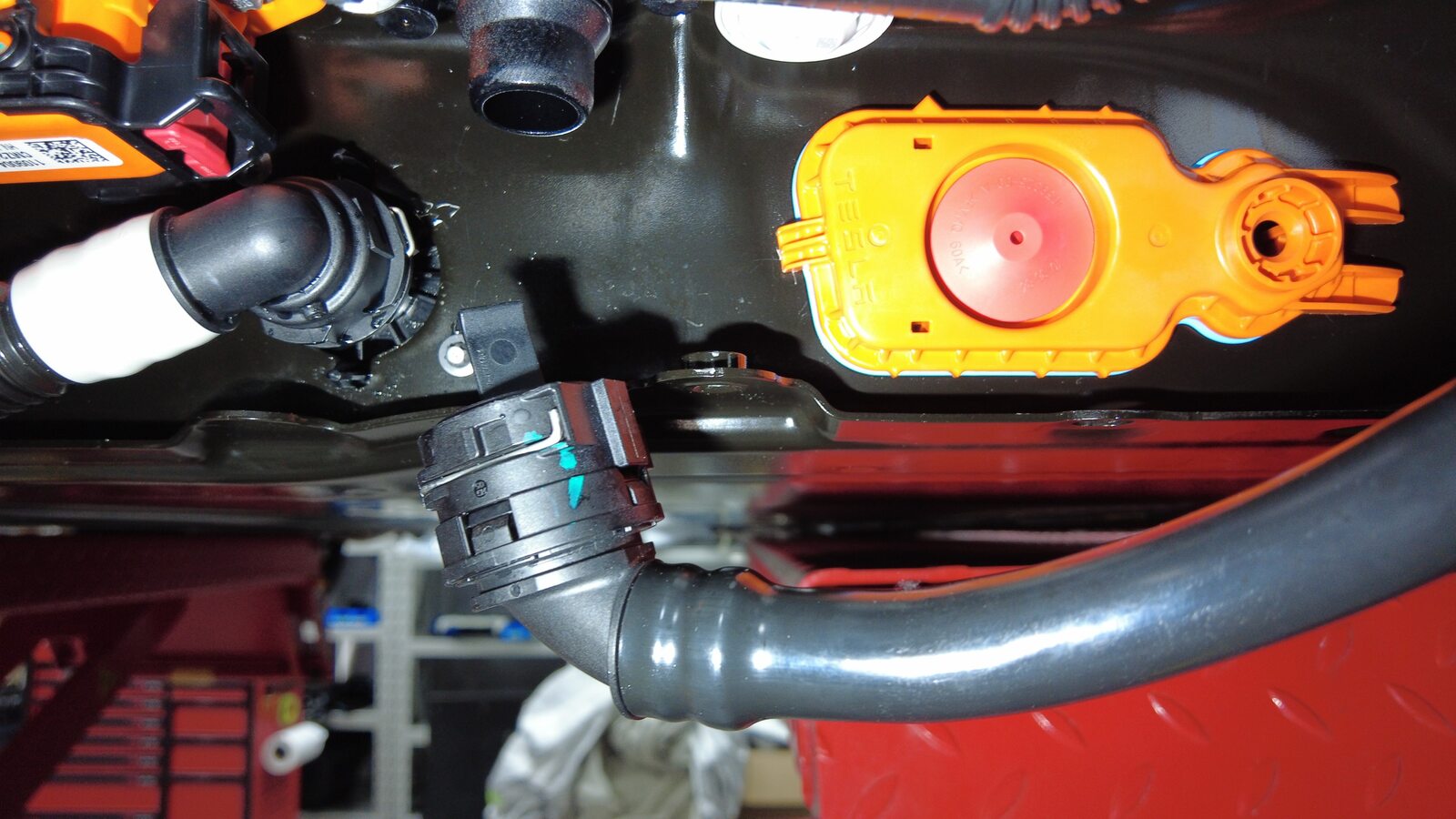

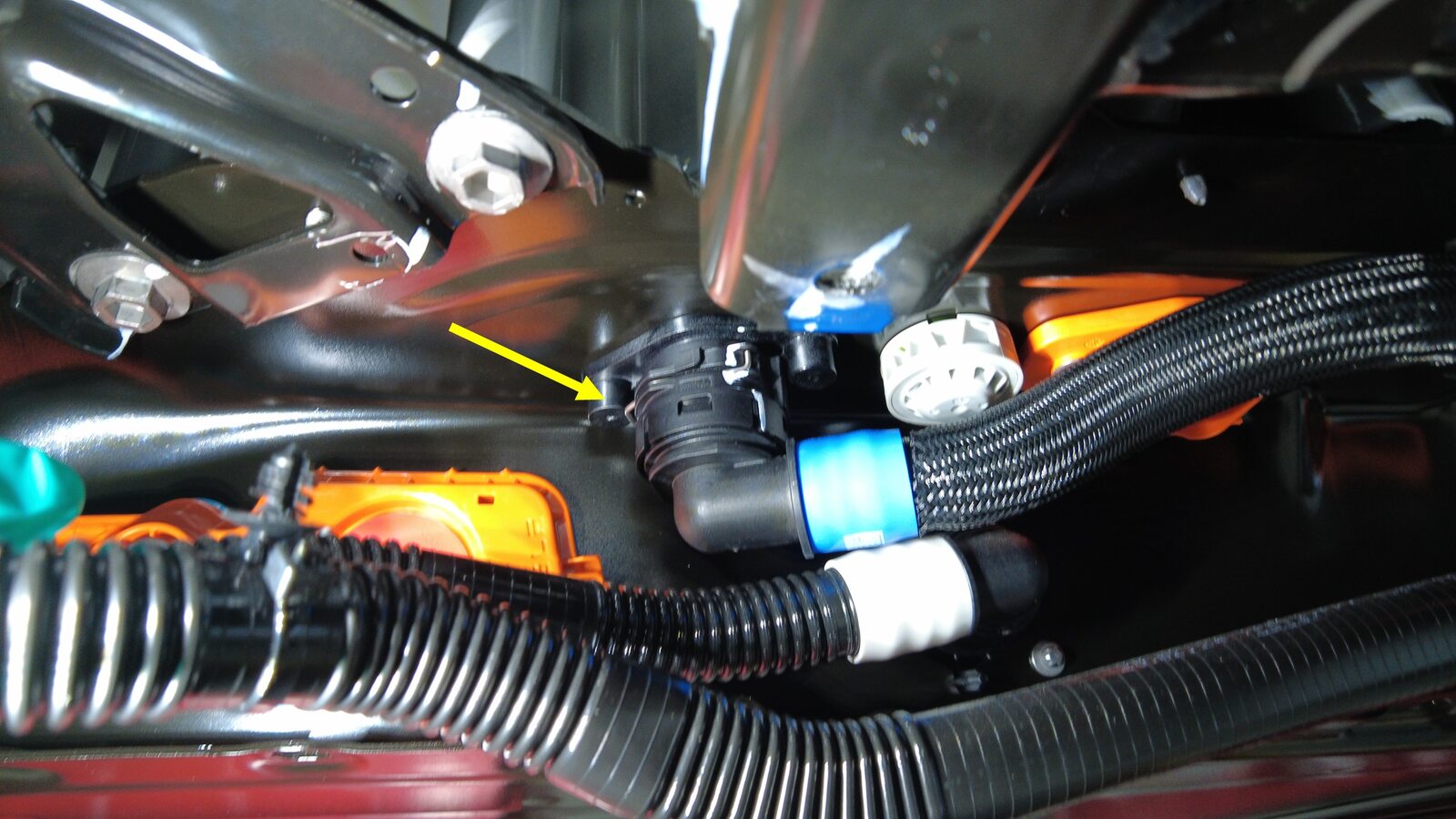

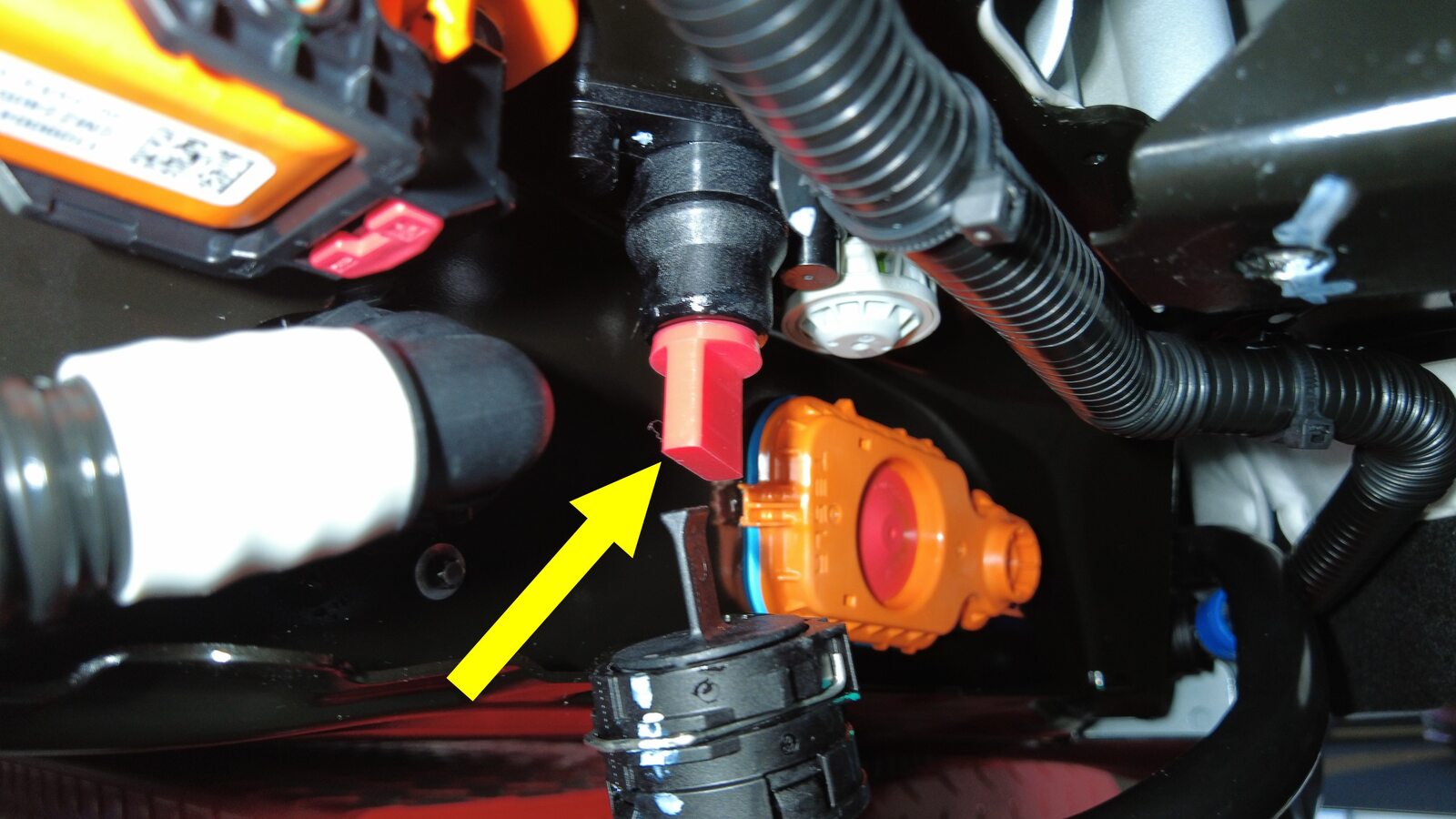

Disconnect RDU inverter inlet hose from PCS outlet hose coupling

注

1x spring clip, 2x plugs, Connection is located at the LH rear of the HV Battery, Install plugs once disconnected, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plug

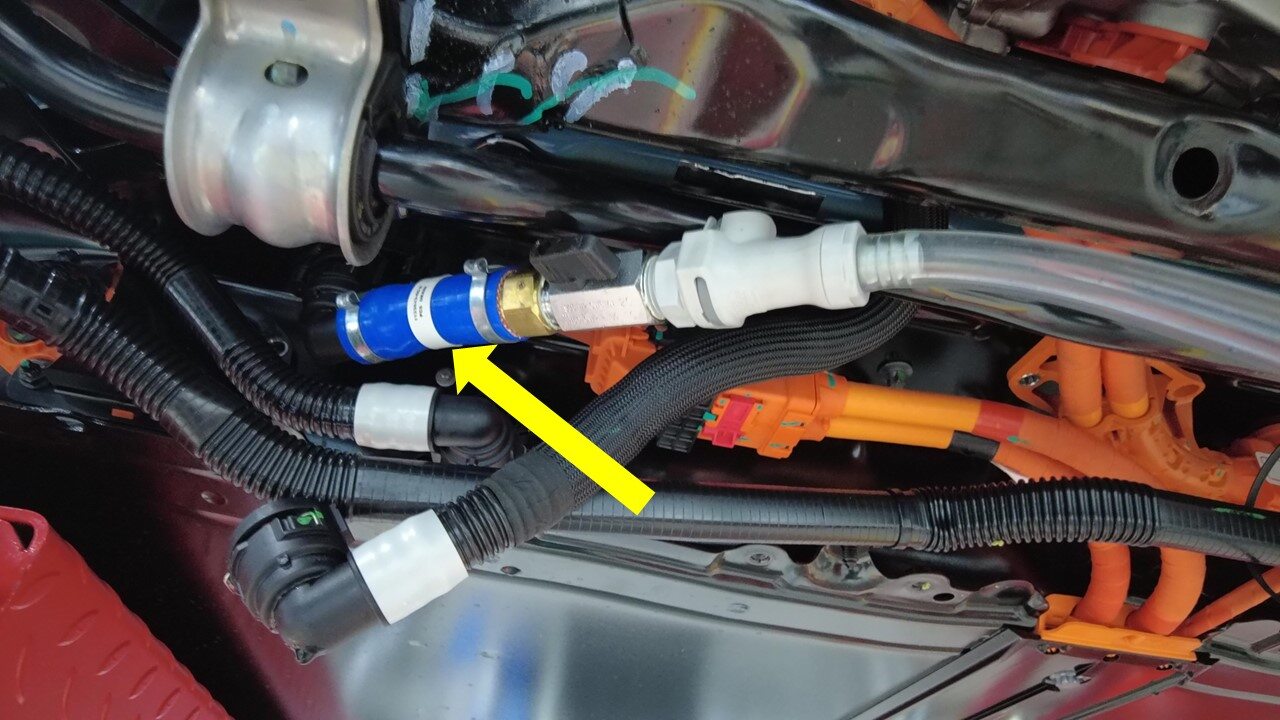

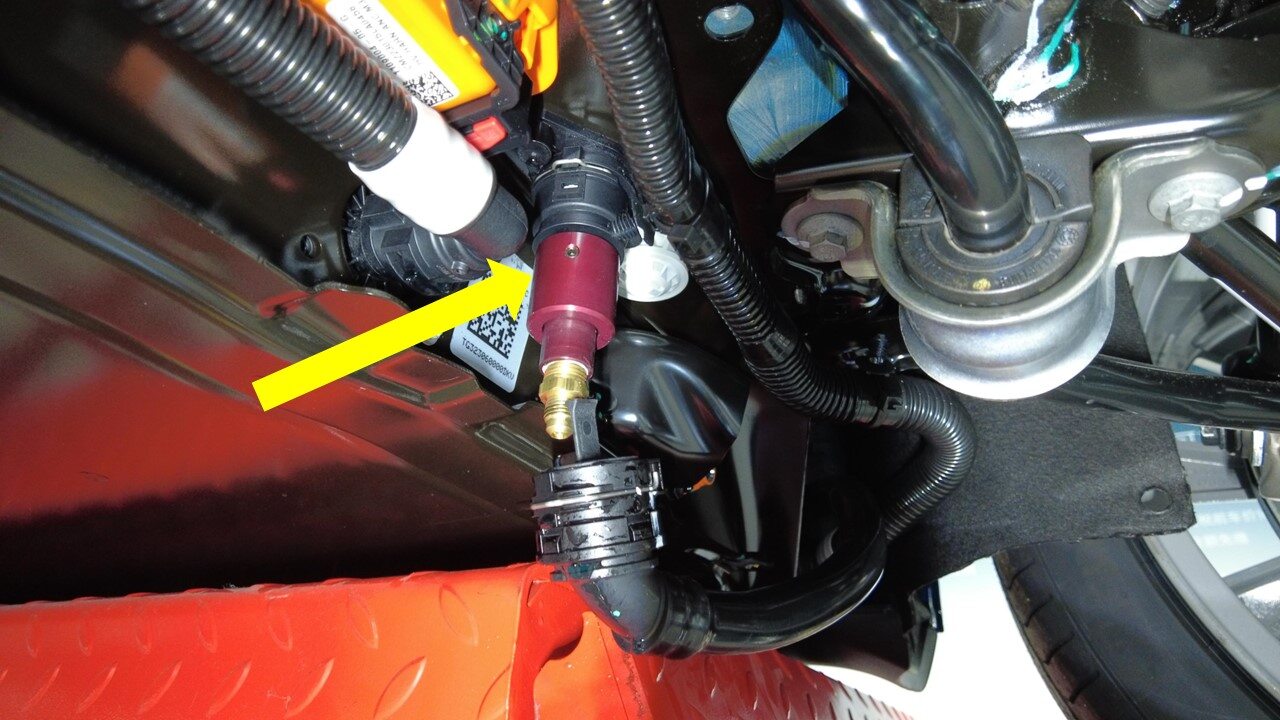

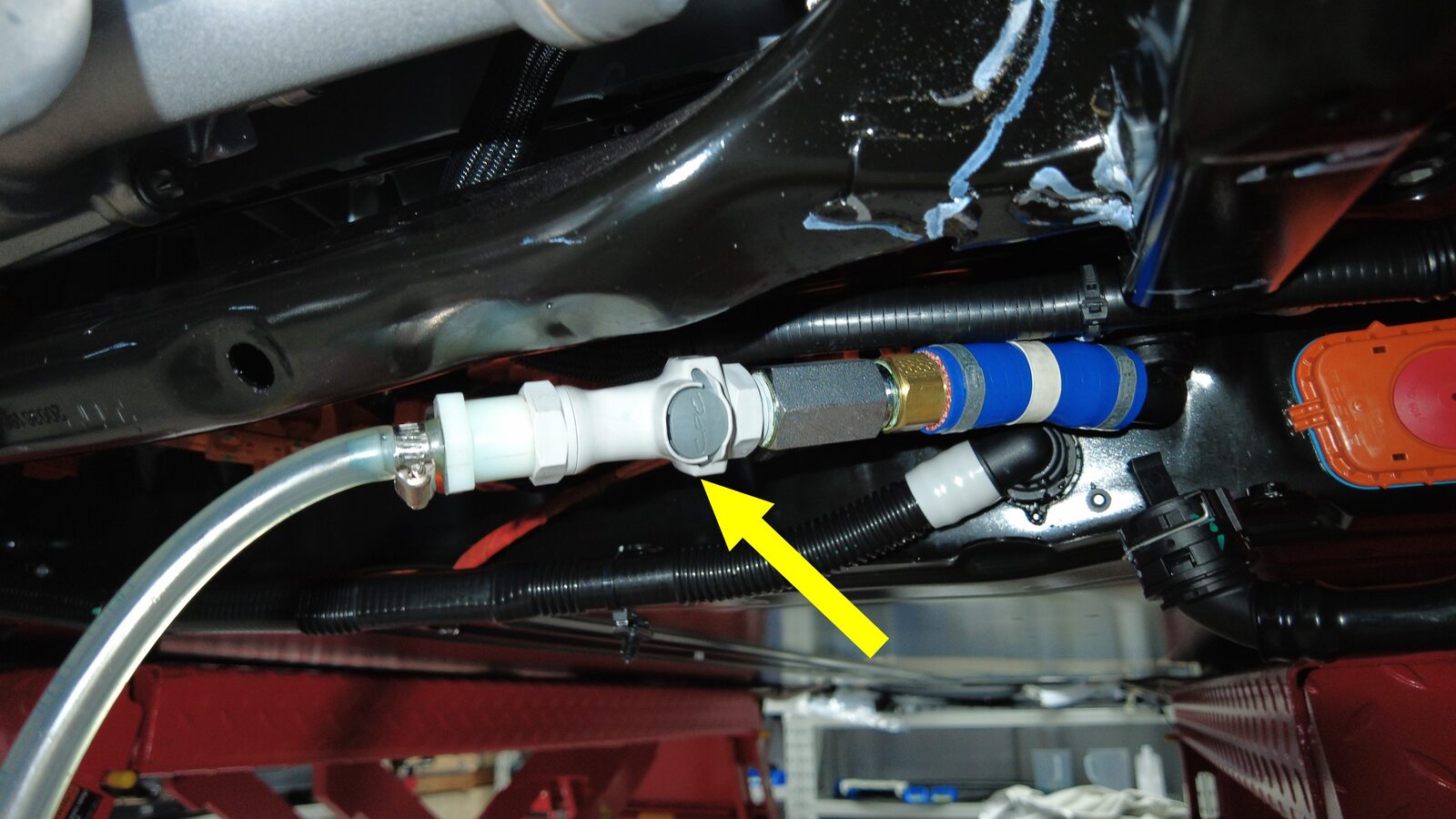

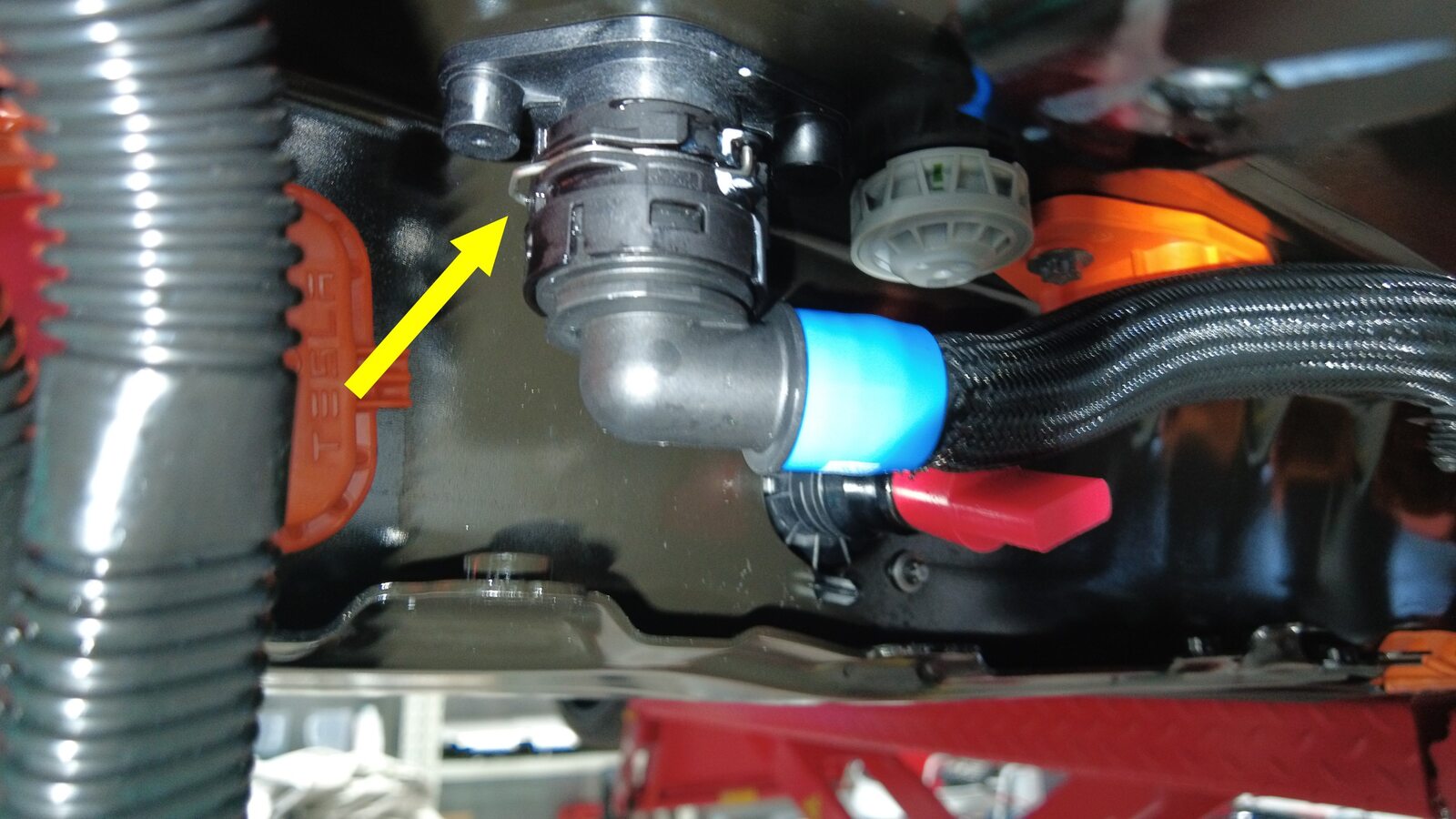

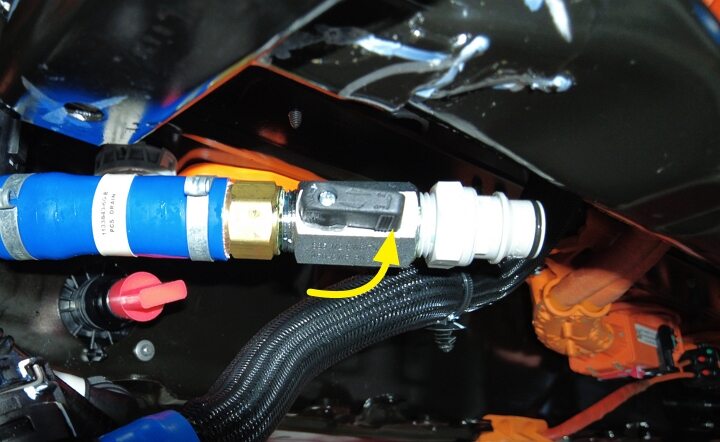

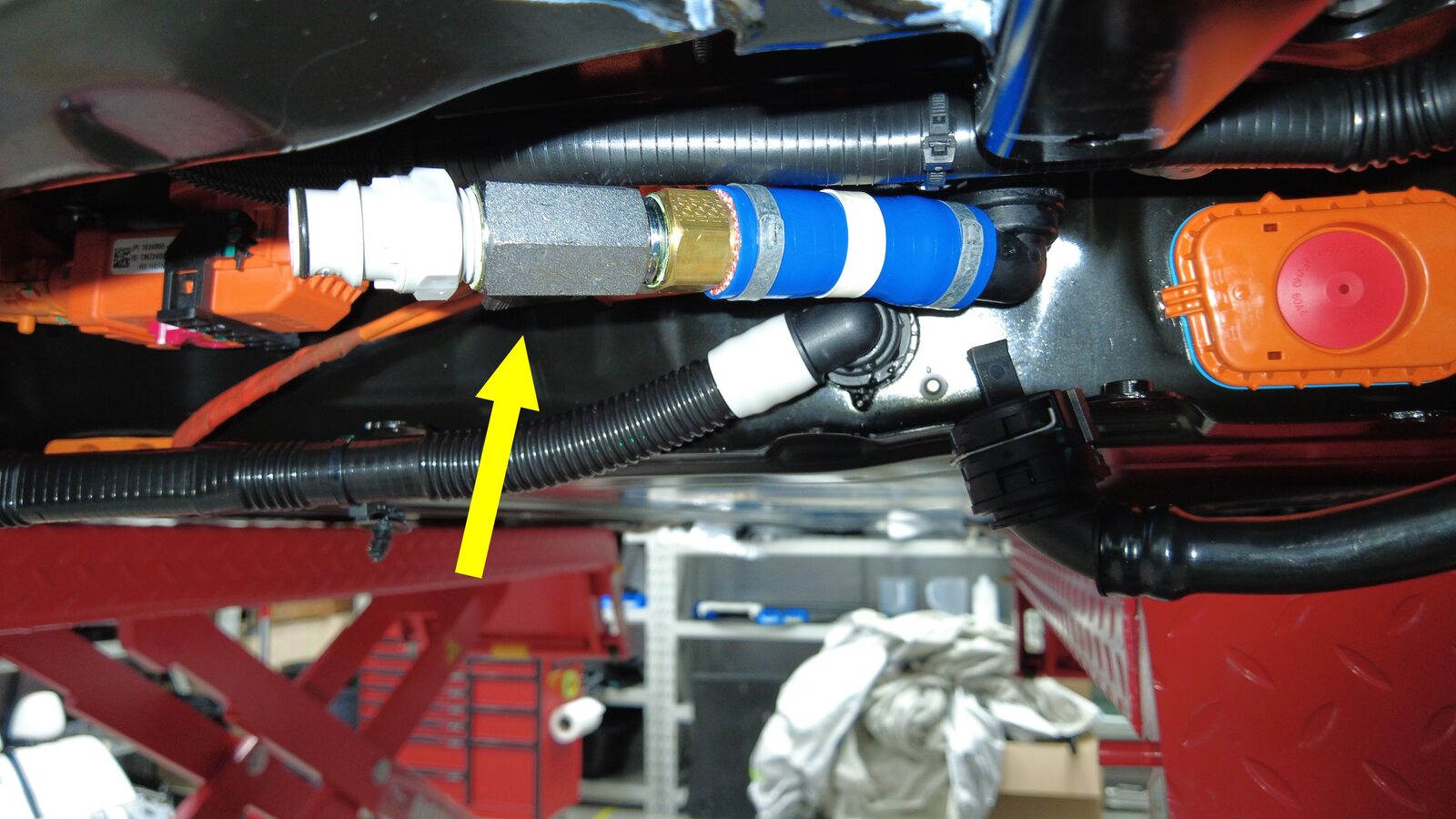

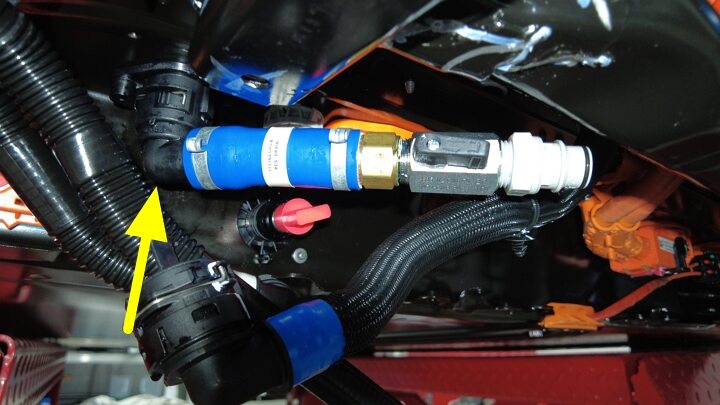

Connect coolant Drain and Fill Adapter to PCS outlet hose coupling

注

Use adapter with 90 degree angle, Make sure locking clip is fully seated, Make sure valve is open, Valve is inline with the adapter when open, Connection is at LH rear of HV Battery

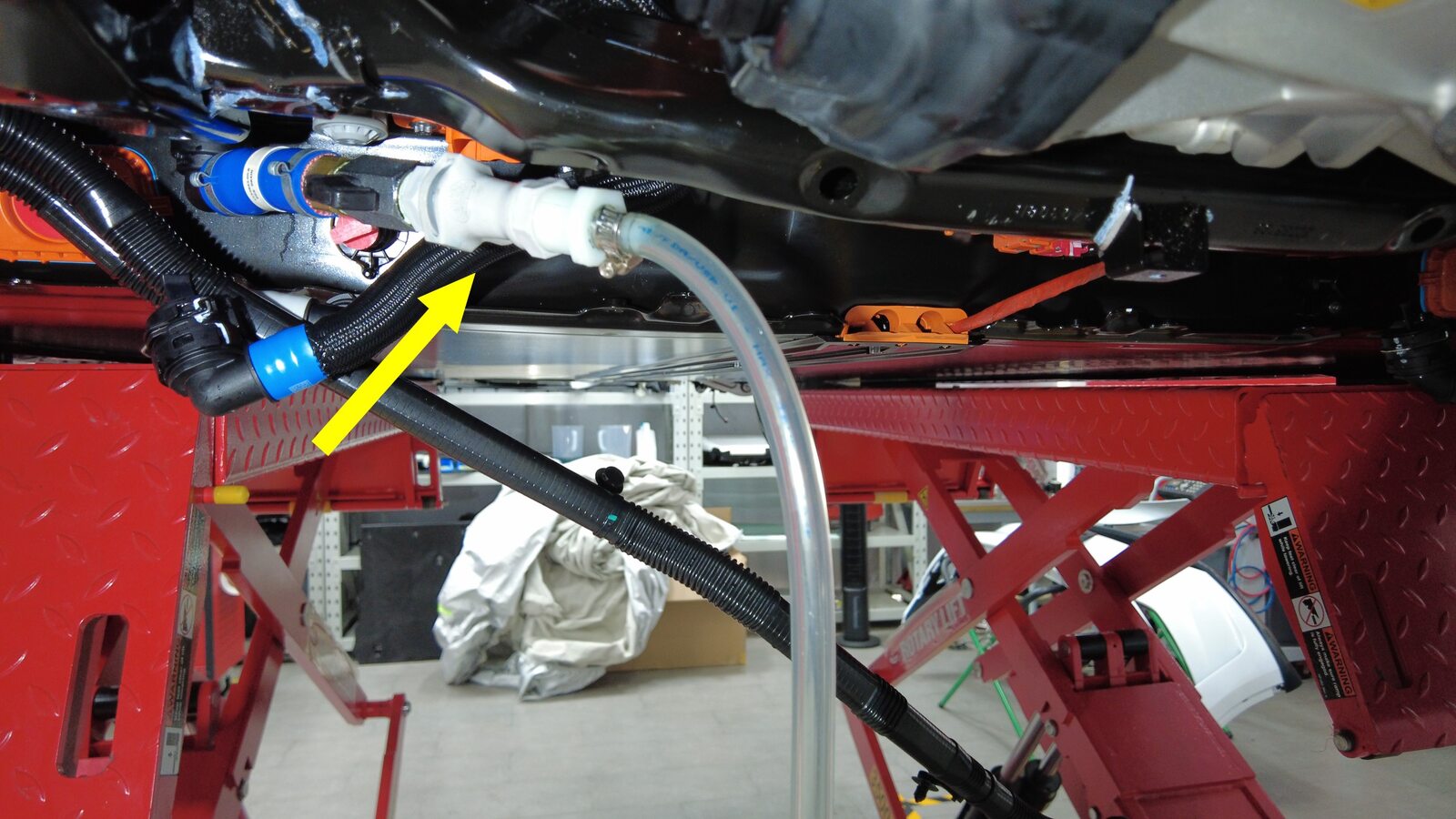

Connect coolant hose extension to Drain and Fill adapter

注

Press hose end onto adapter until clicked into place

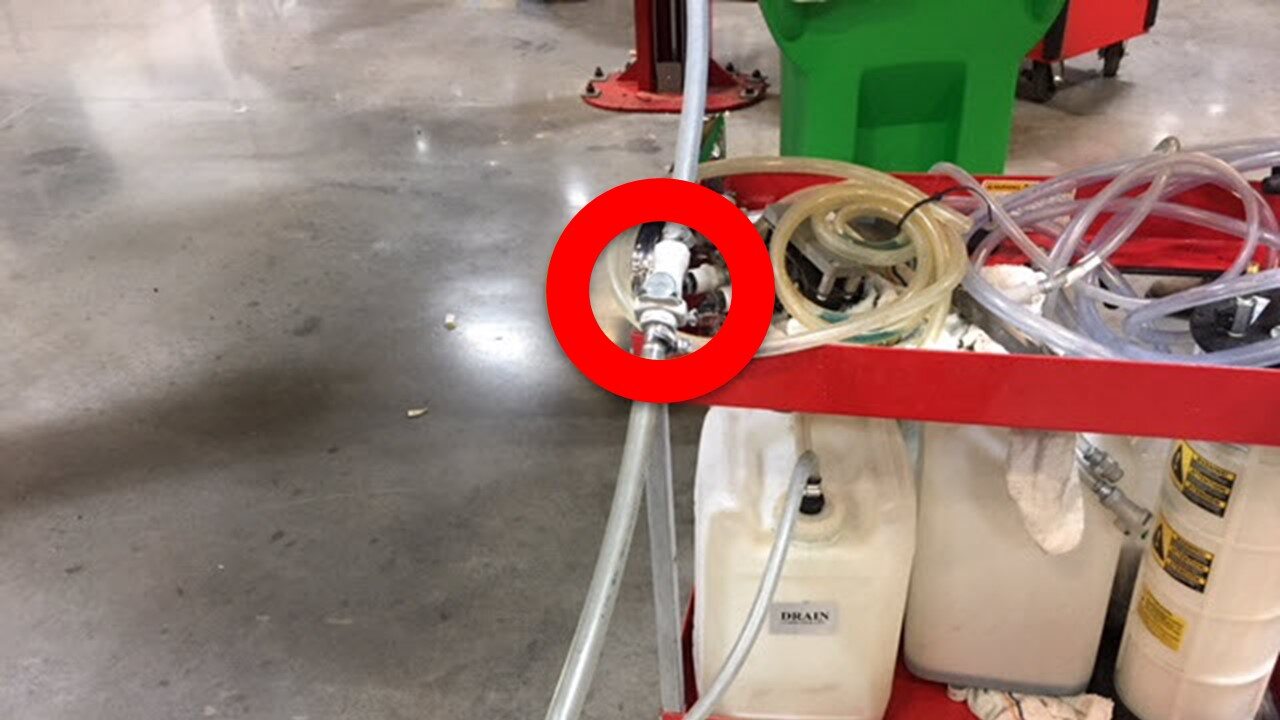

Connect coolant hose extension to coolant drain hose

注

Use caution as coolant may spill, Make sure to wear safety glasses

Position coolant drain container underneath RH rear of HV battery

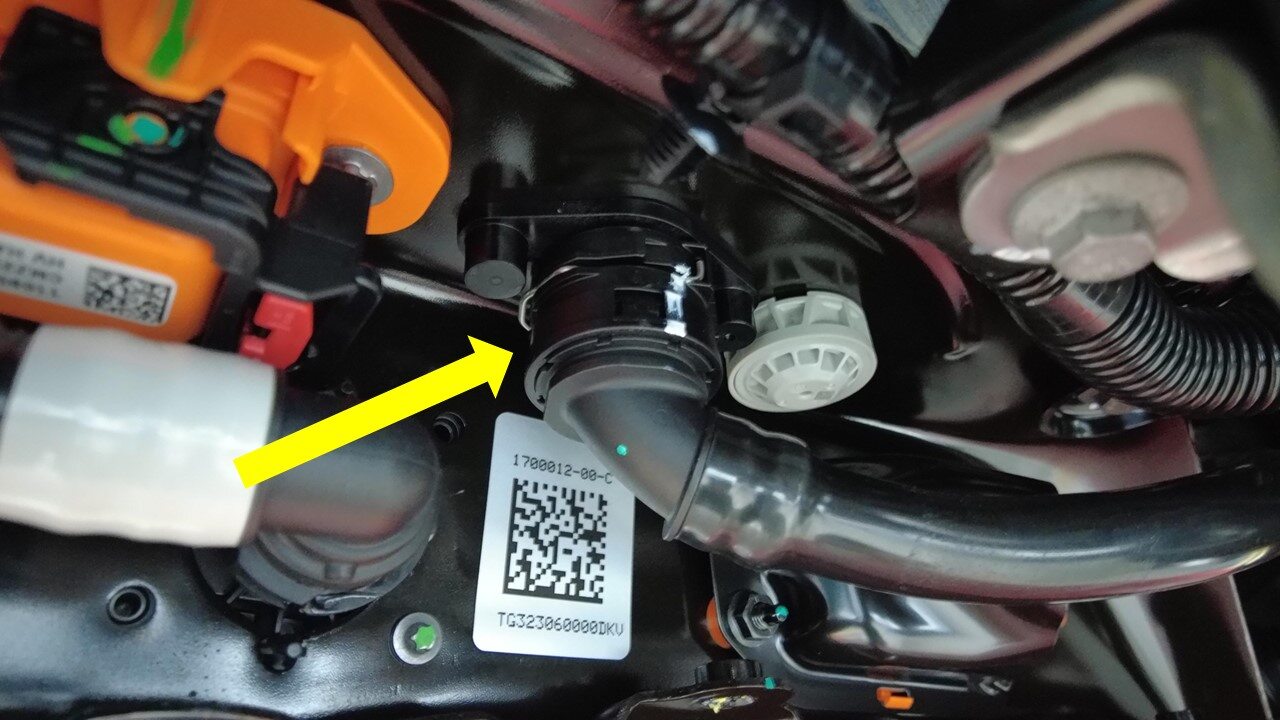

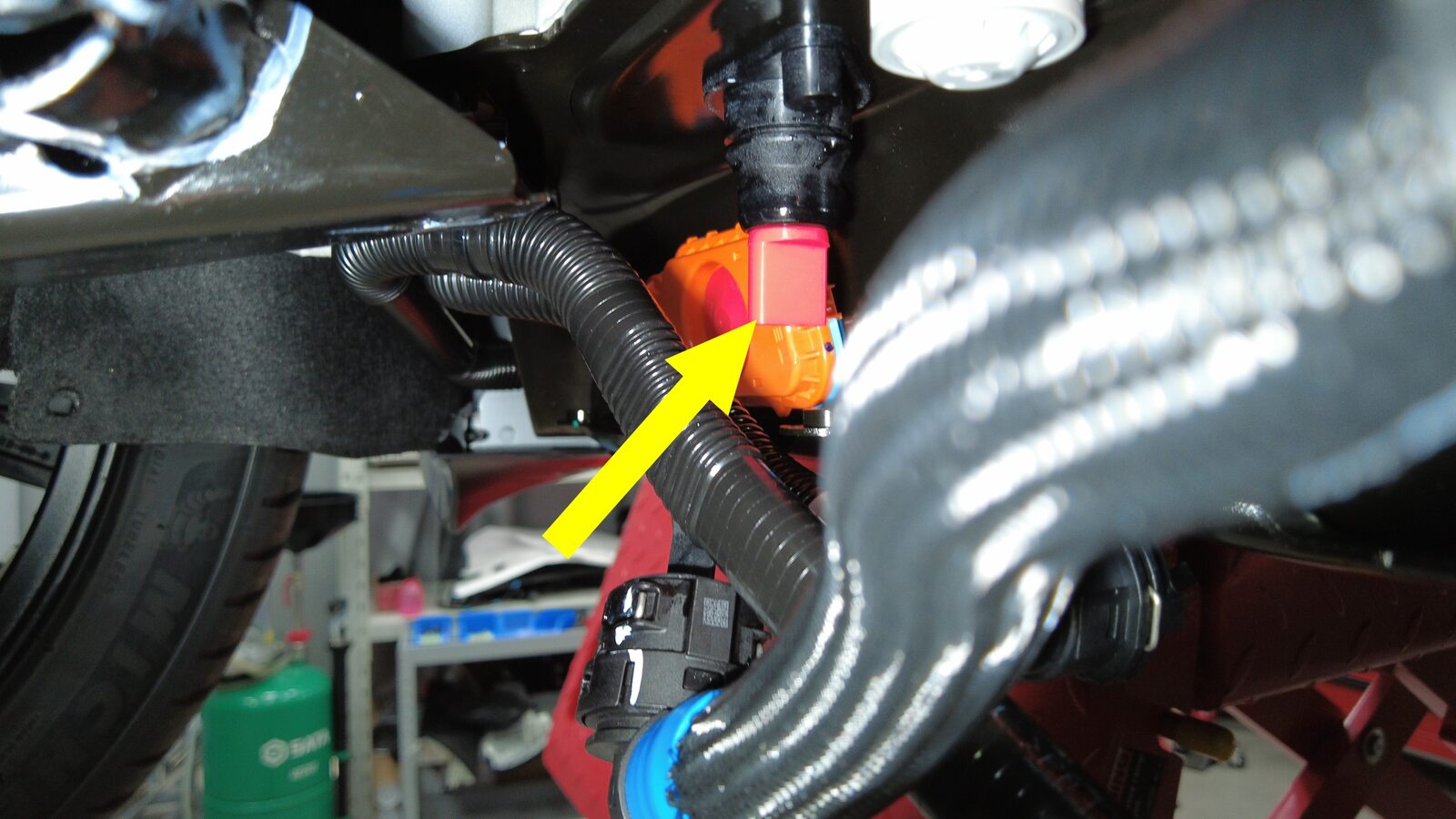

Disconnect rear powertrain supply hose from PCS inlet hose coupling

注

1x spring clip, Plug hose connections as needed, Connection is located at RH rear of HV Battery, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs

Remove coolant drain container from underneath vehicle

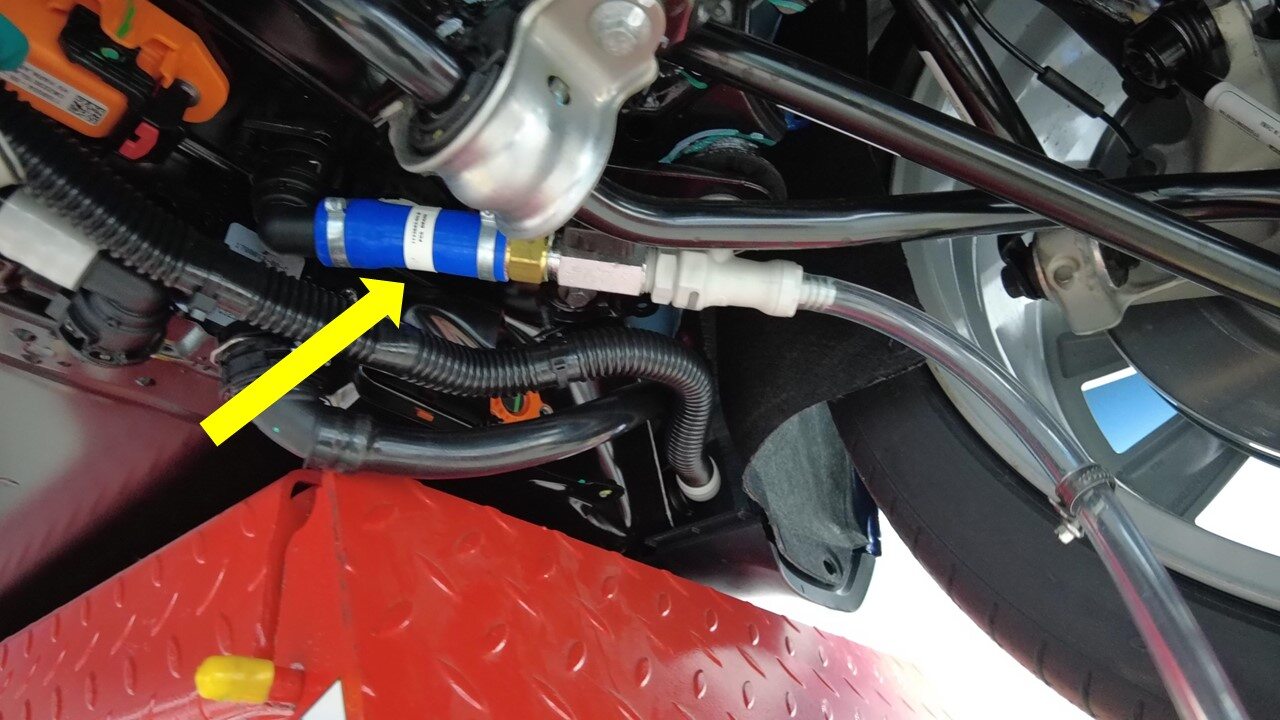

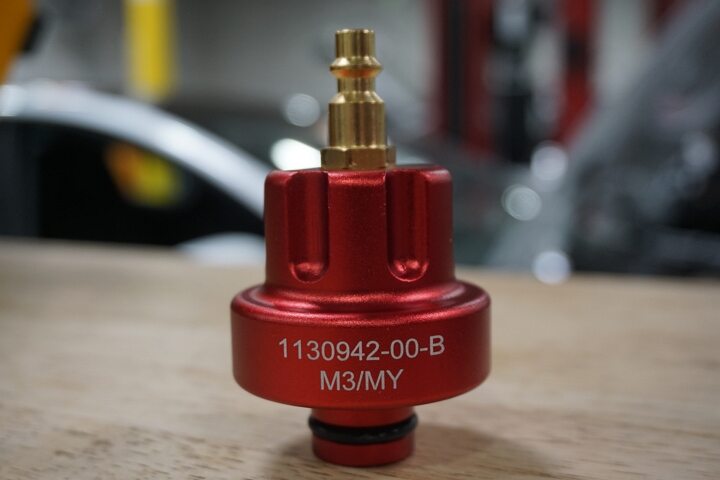

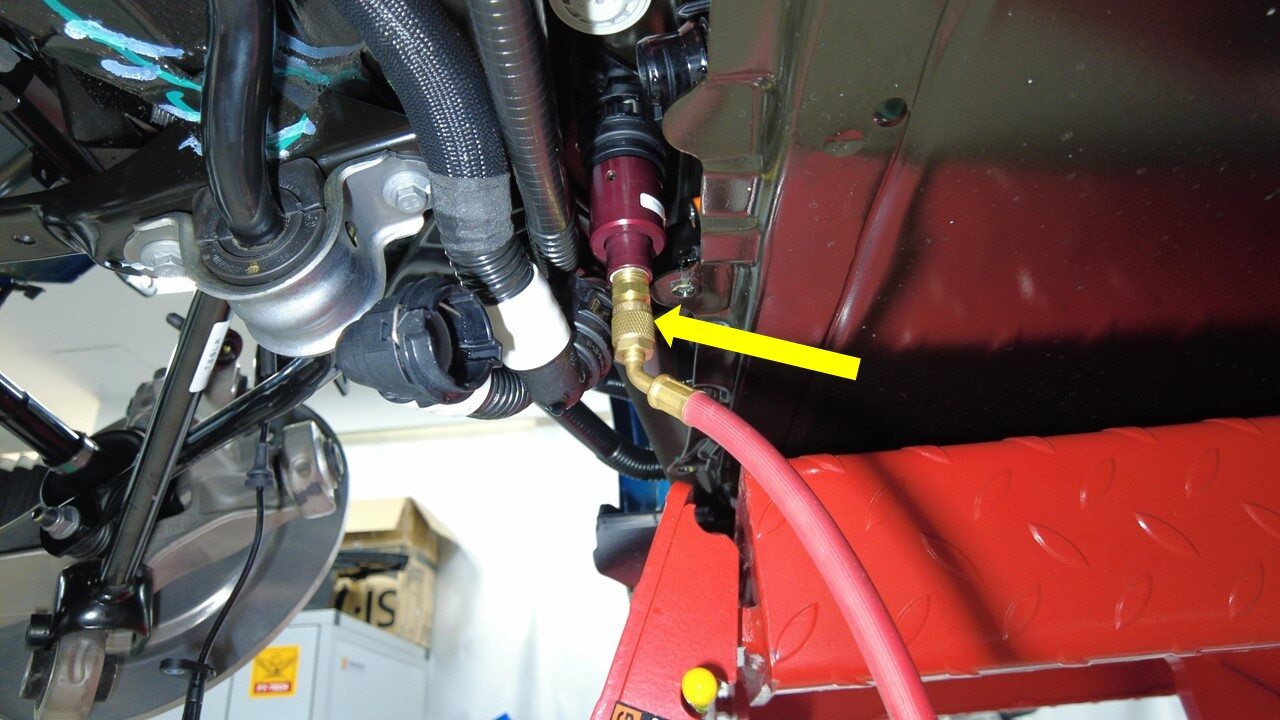

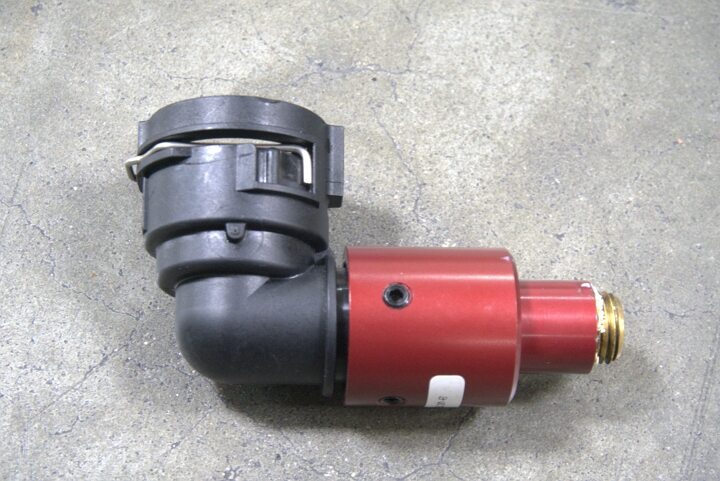

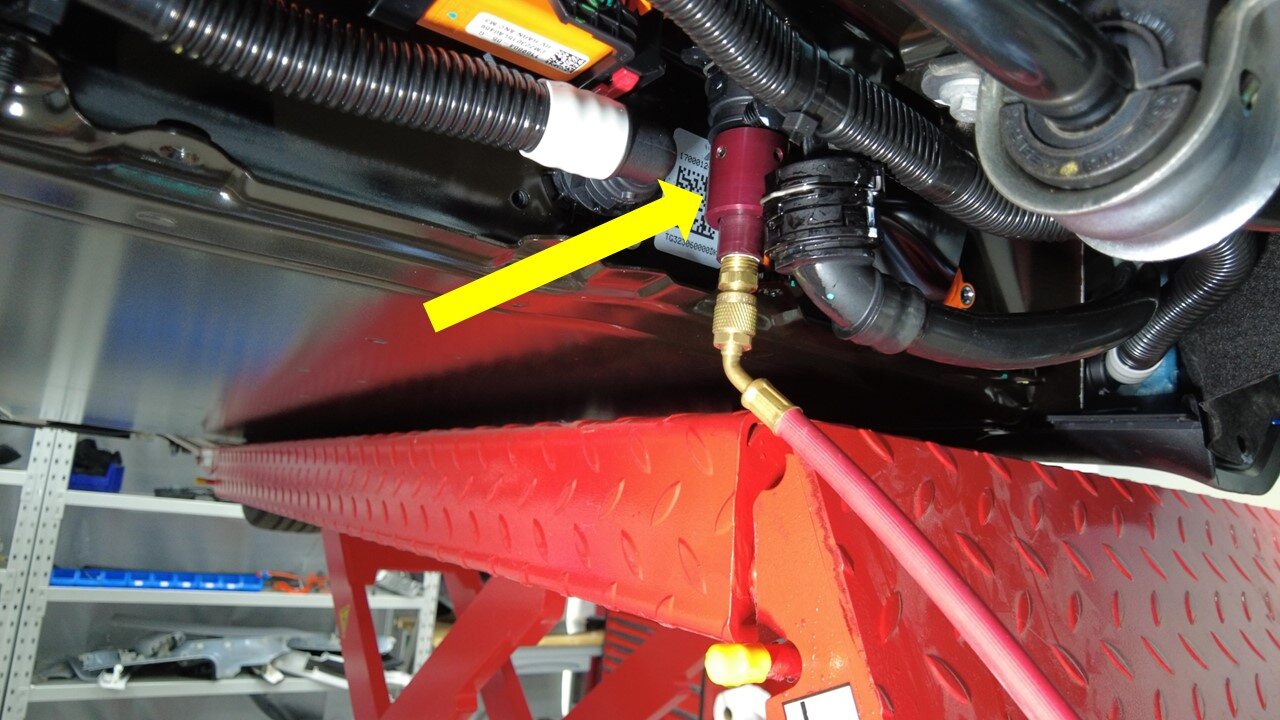

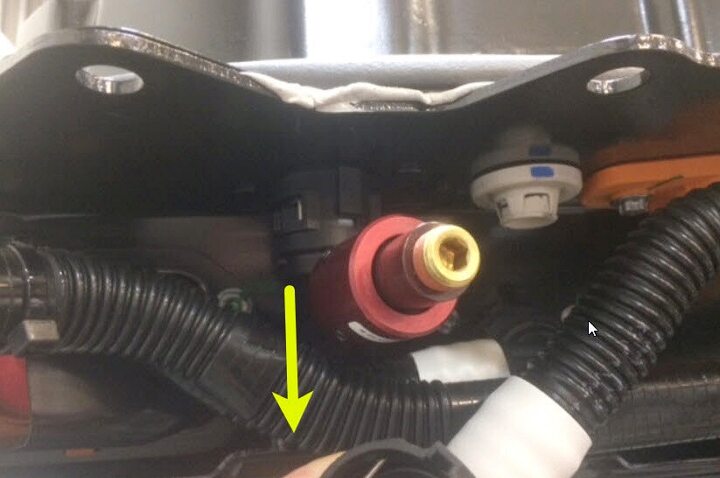

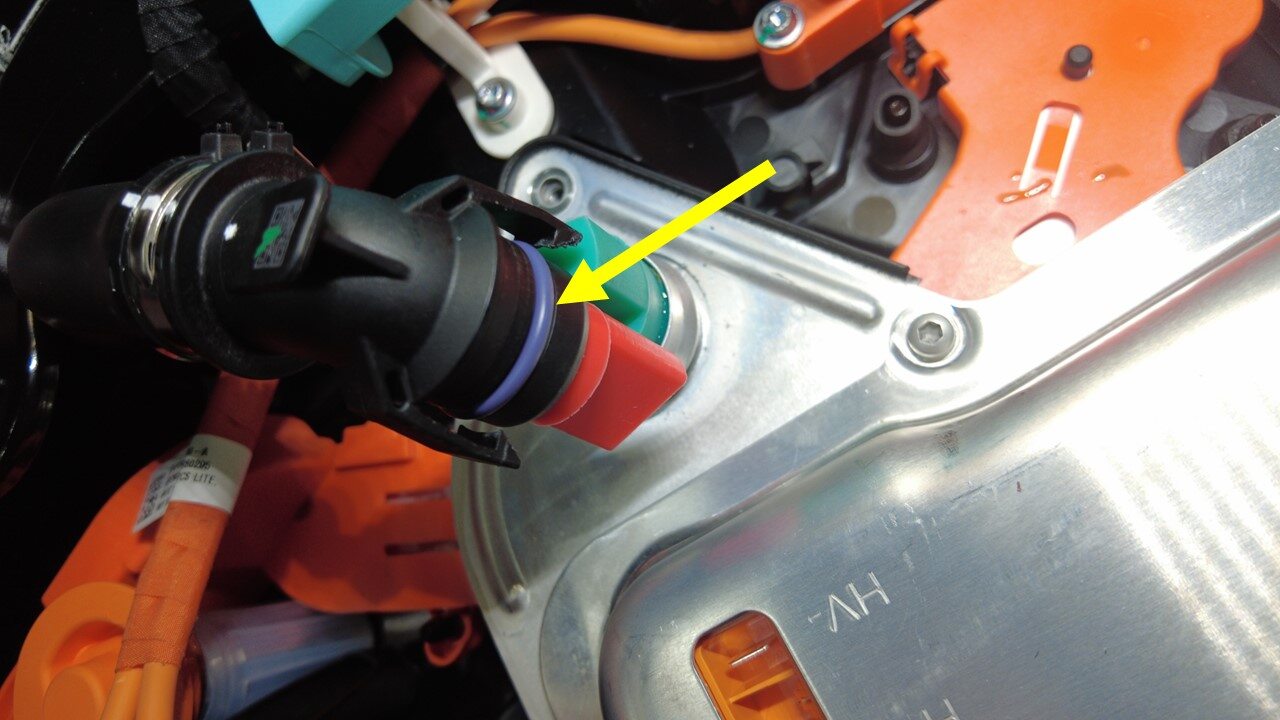

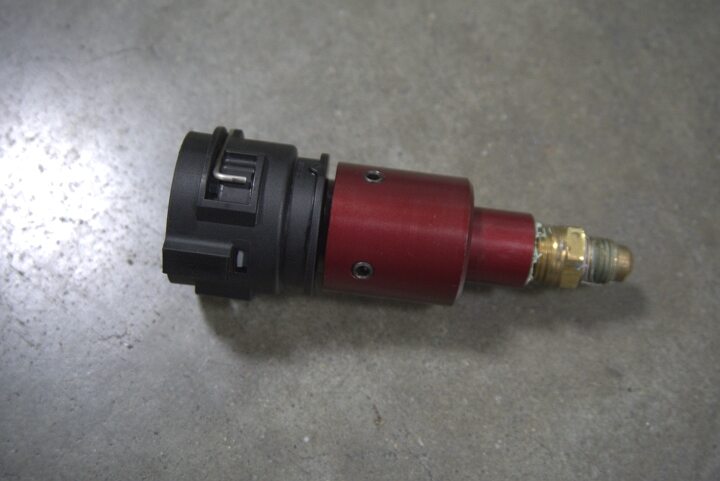

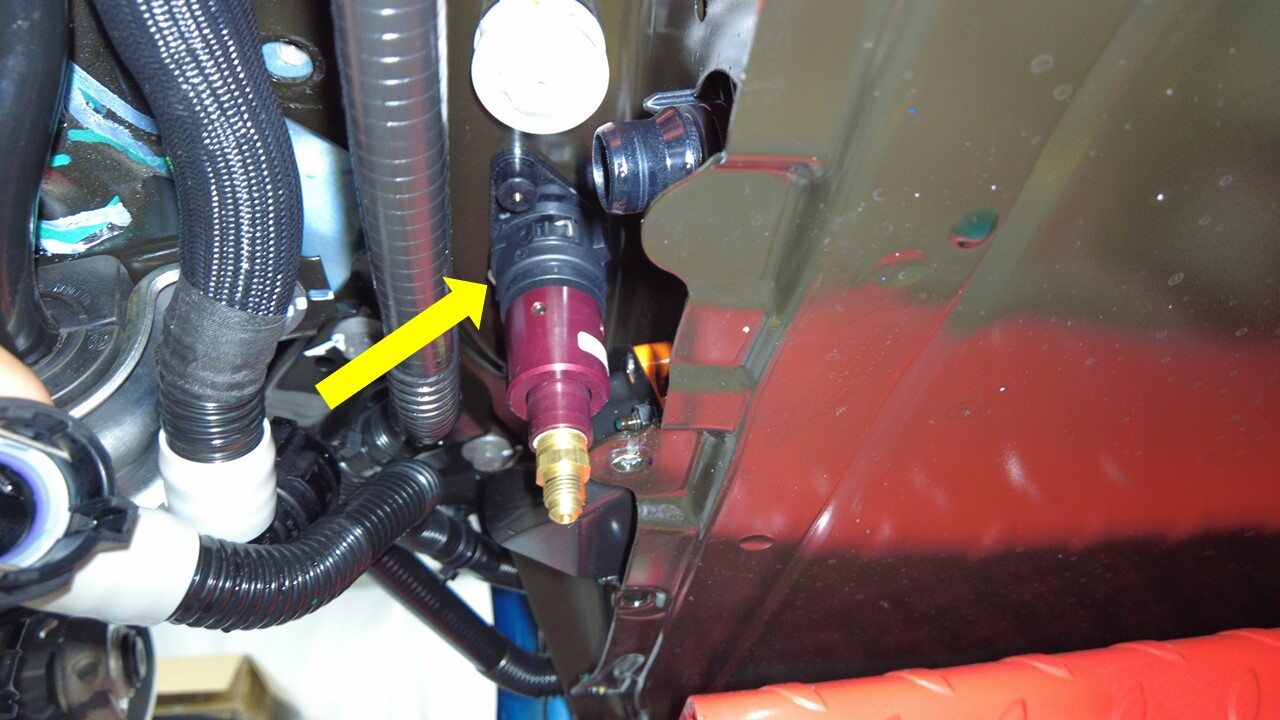

Connect coolant Leak Test Adapter to PCS inlet hose coupling

注

Remove rubber plug from coupler if installed, Make sure the locking clip is fully seated, Connection is at RH rear of HV Battery

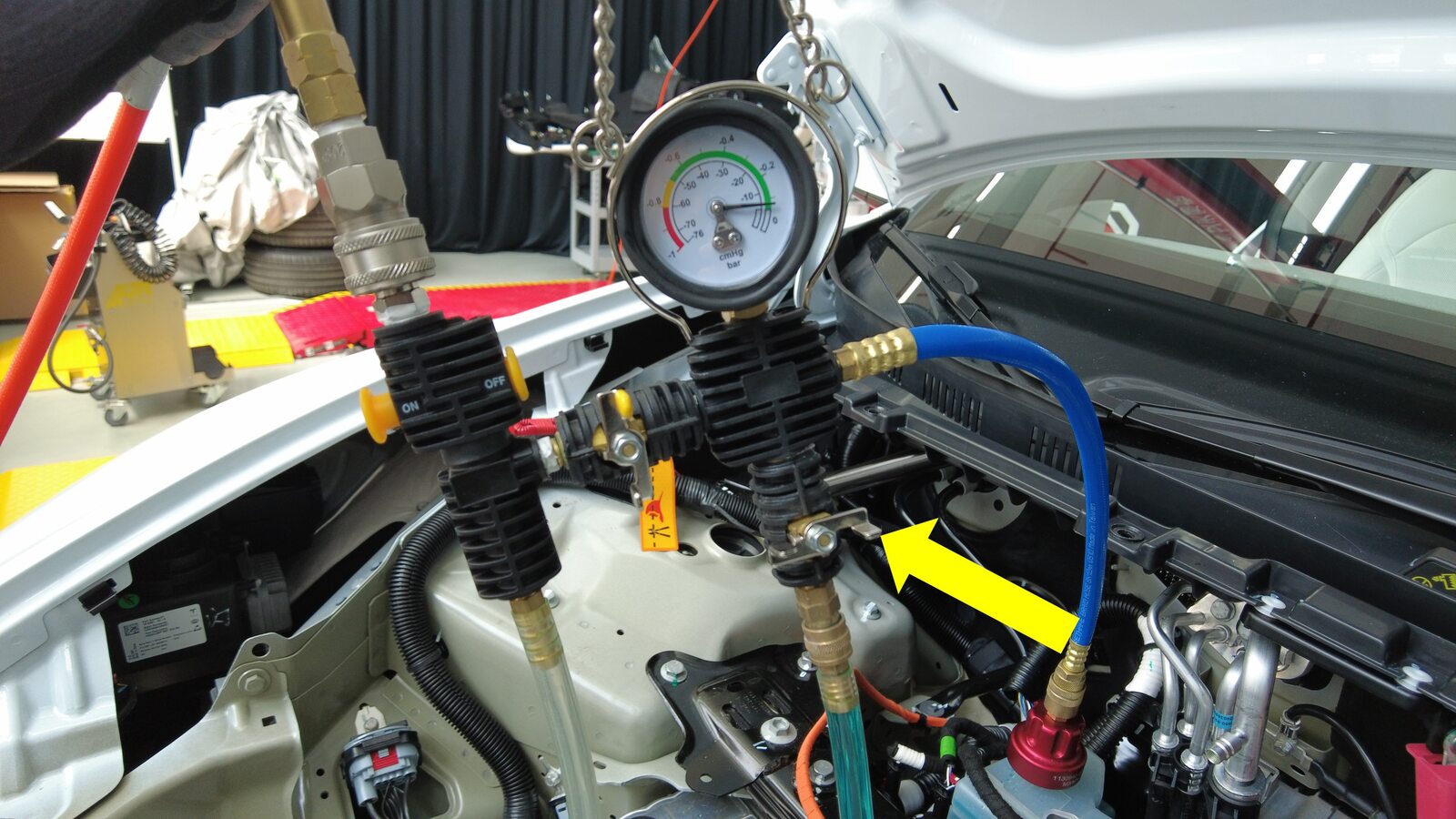

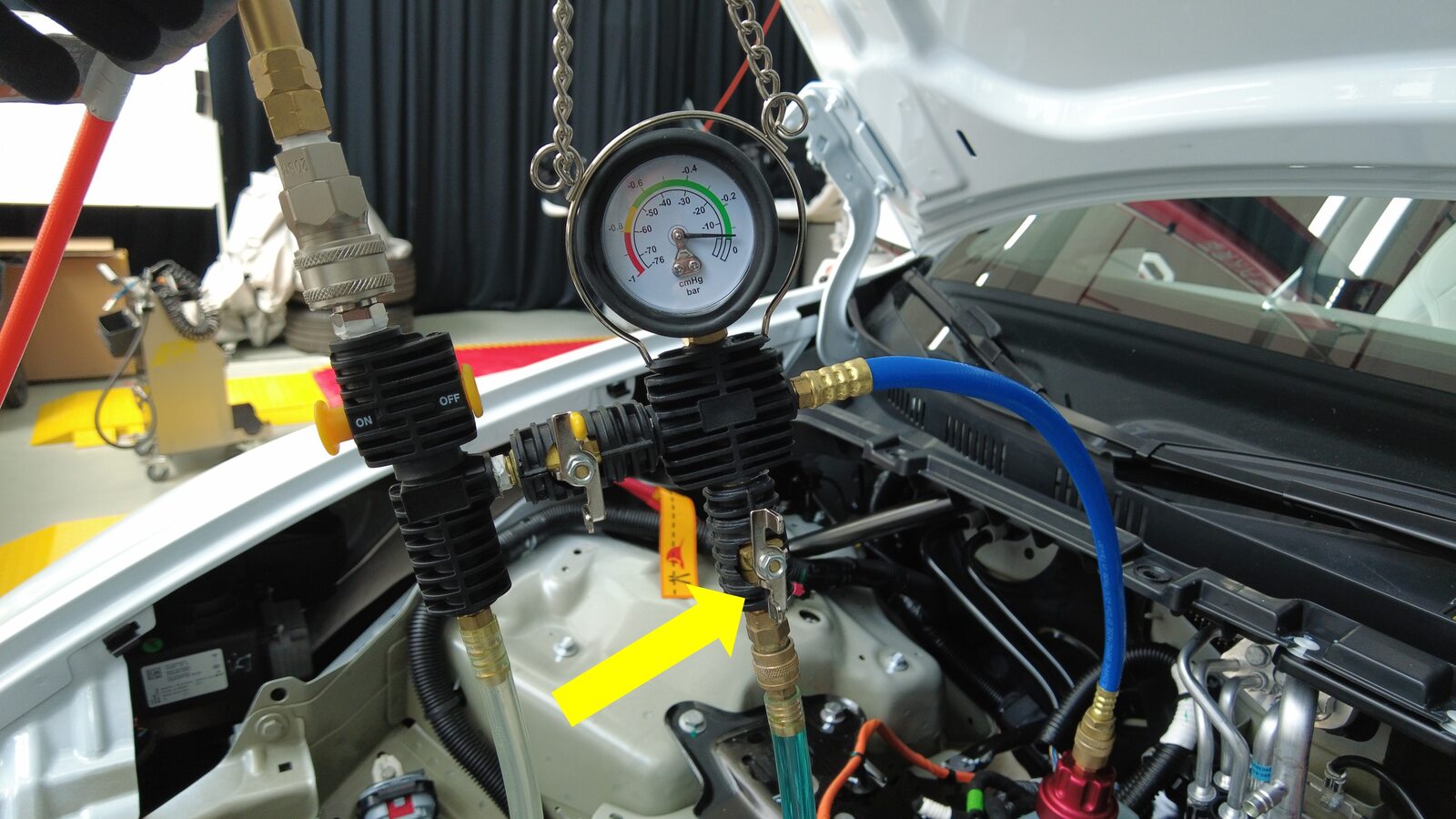

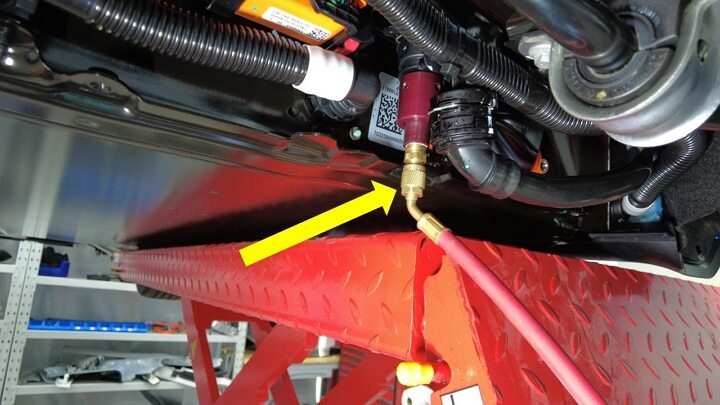

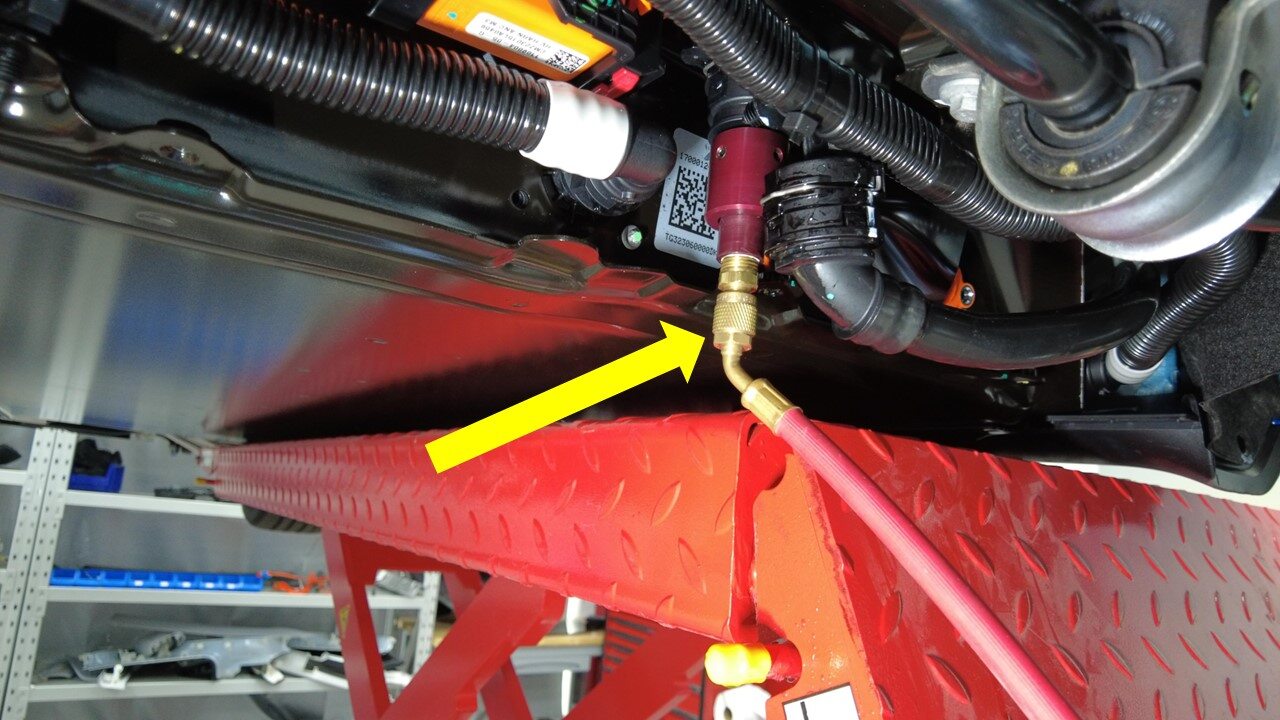

Connect coolant Leak Test Fixture inlet hose to Leak Test Adapter

注

Hand tighten hose connection, No tool required to tighten

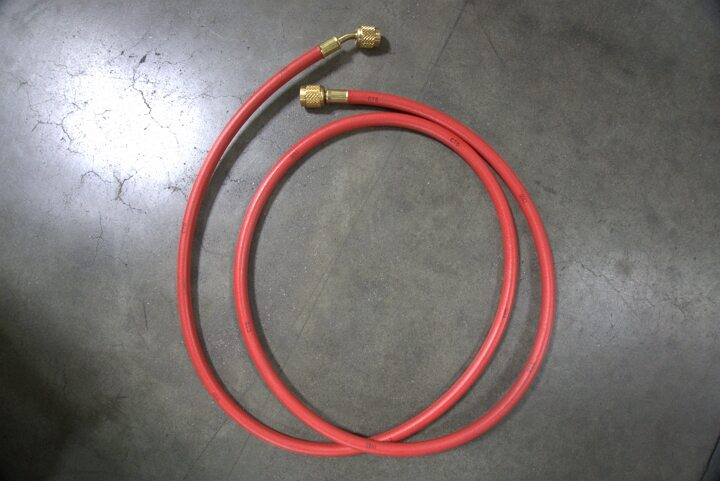

Connect outlet hose to the Leak Test Fixture tool

注

Hand tighten hose connection, No tool required to tighten

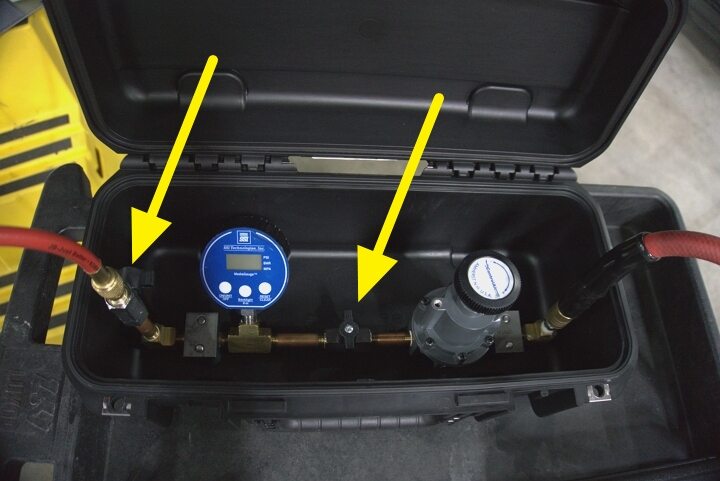

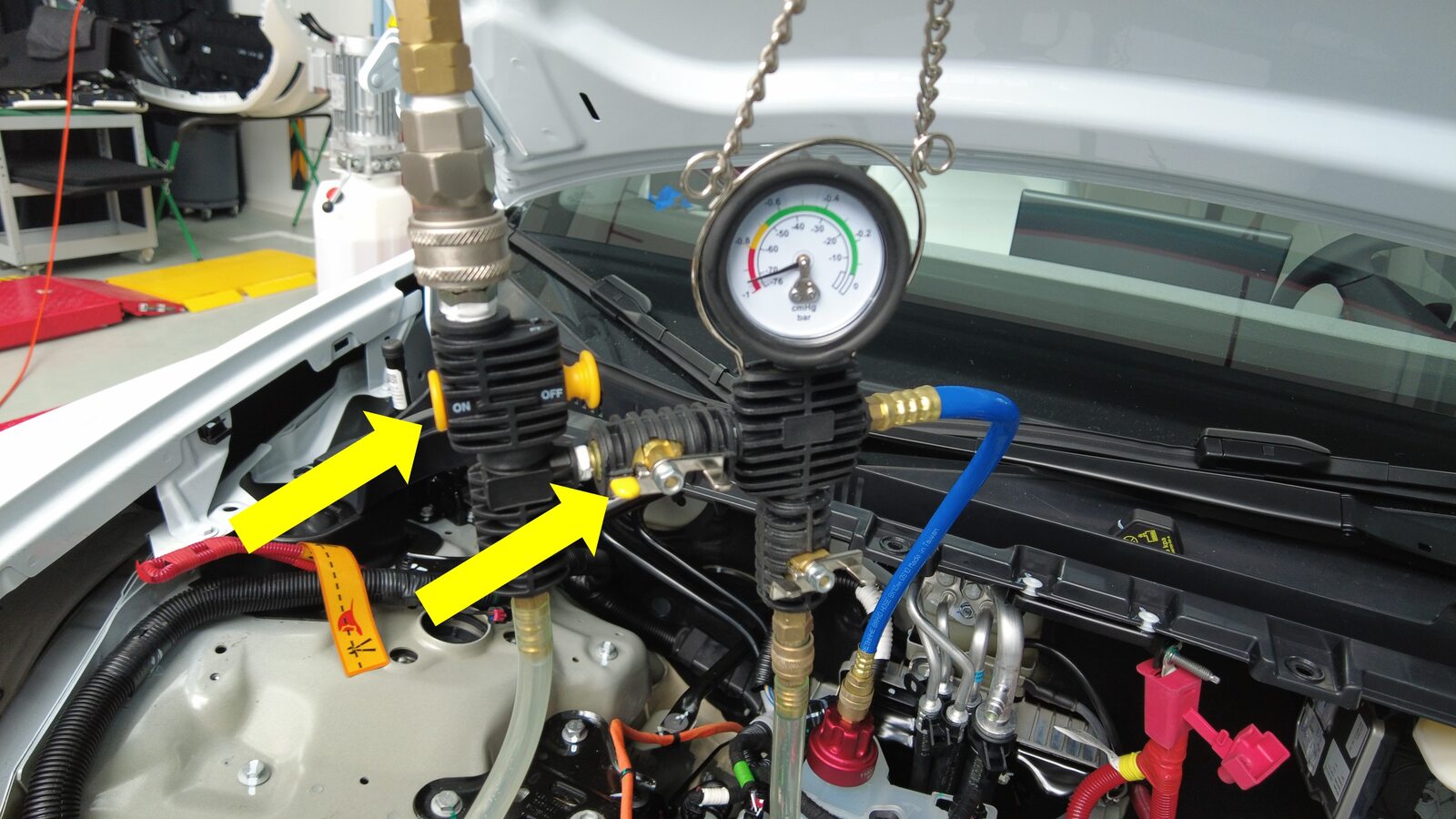

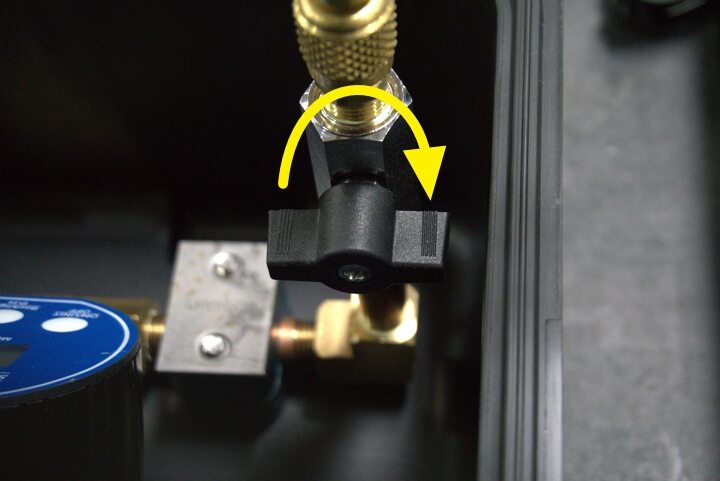

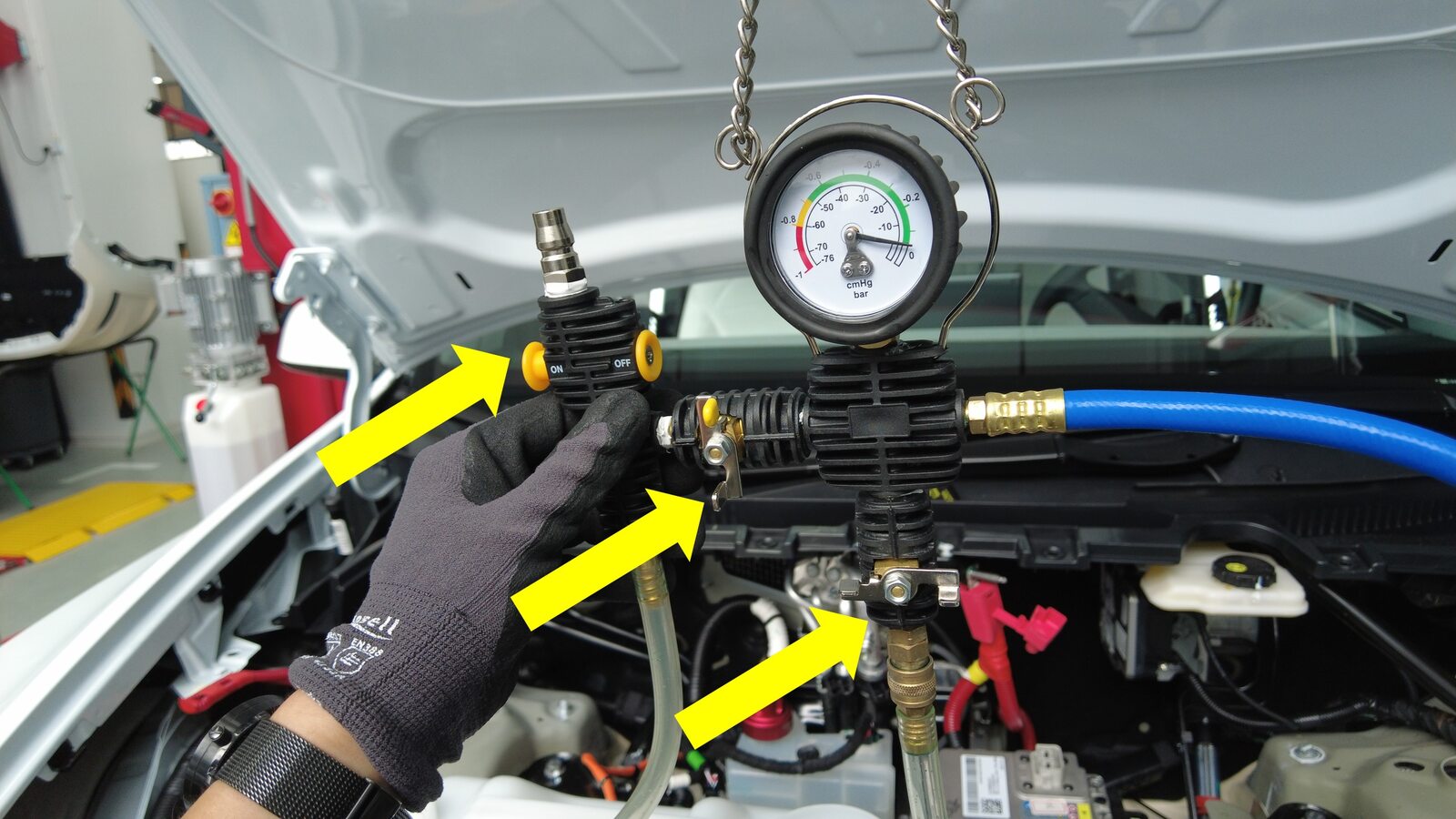

Close both valves on the coolant Leak Test Fixture tool

注

The valve knobs should both be perpendicular to the air lines when closed.

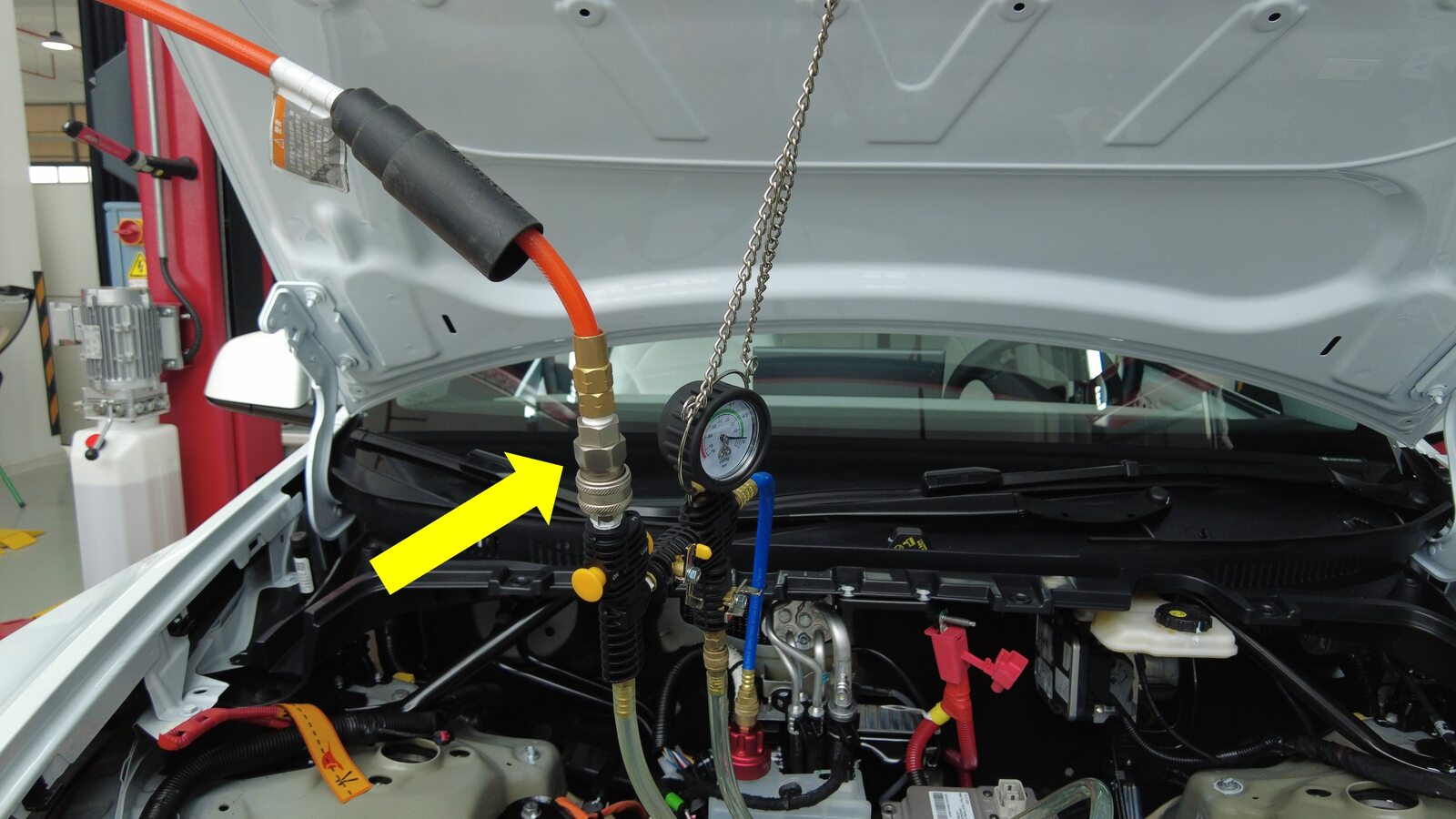

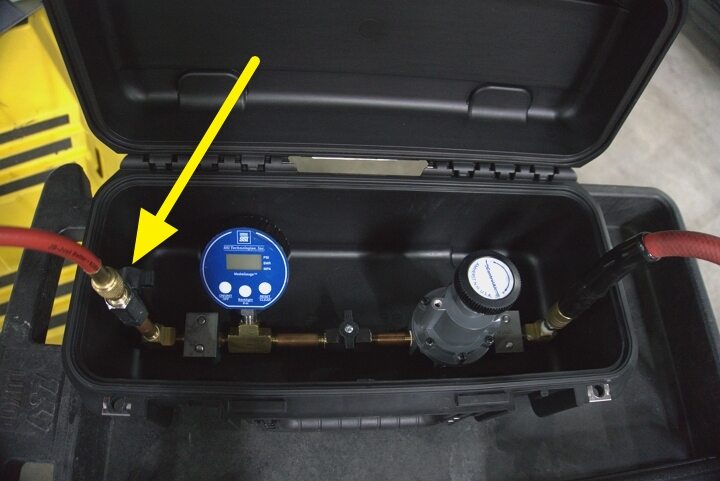

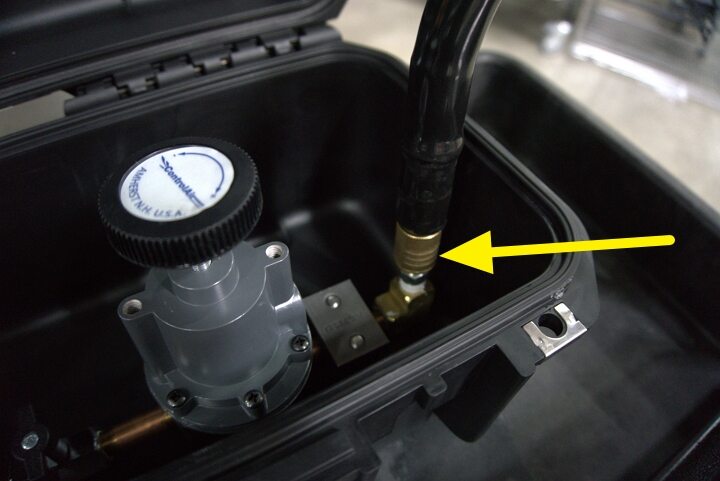

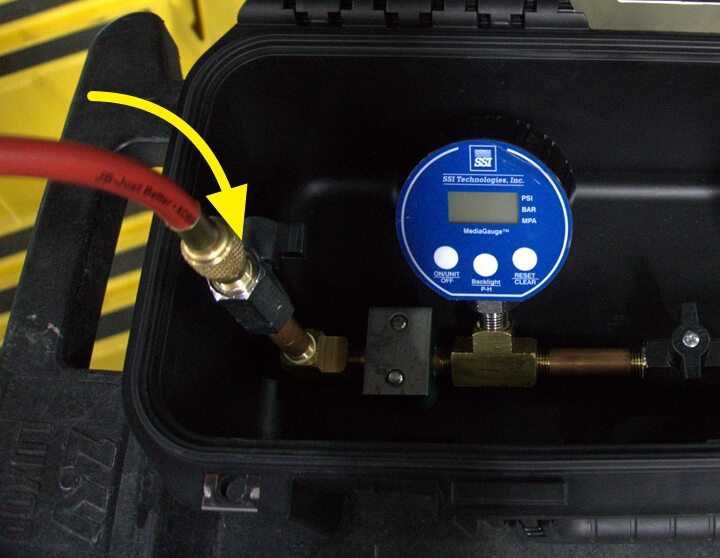

Connect compressed air to coolant Leak Test Fixture tool

注

Air supply source should be above 50 psi

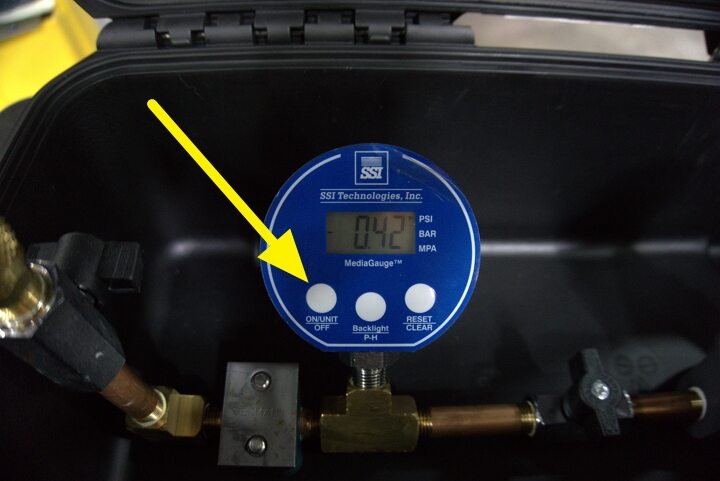

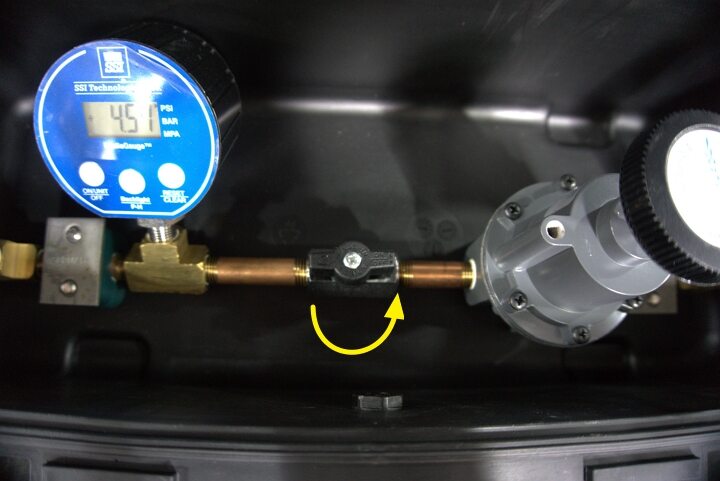

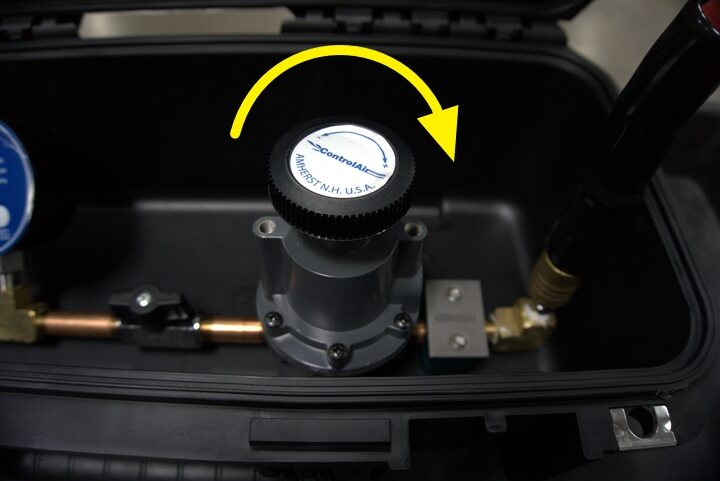

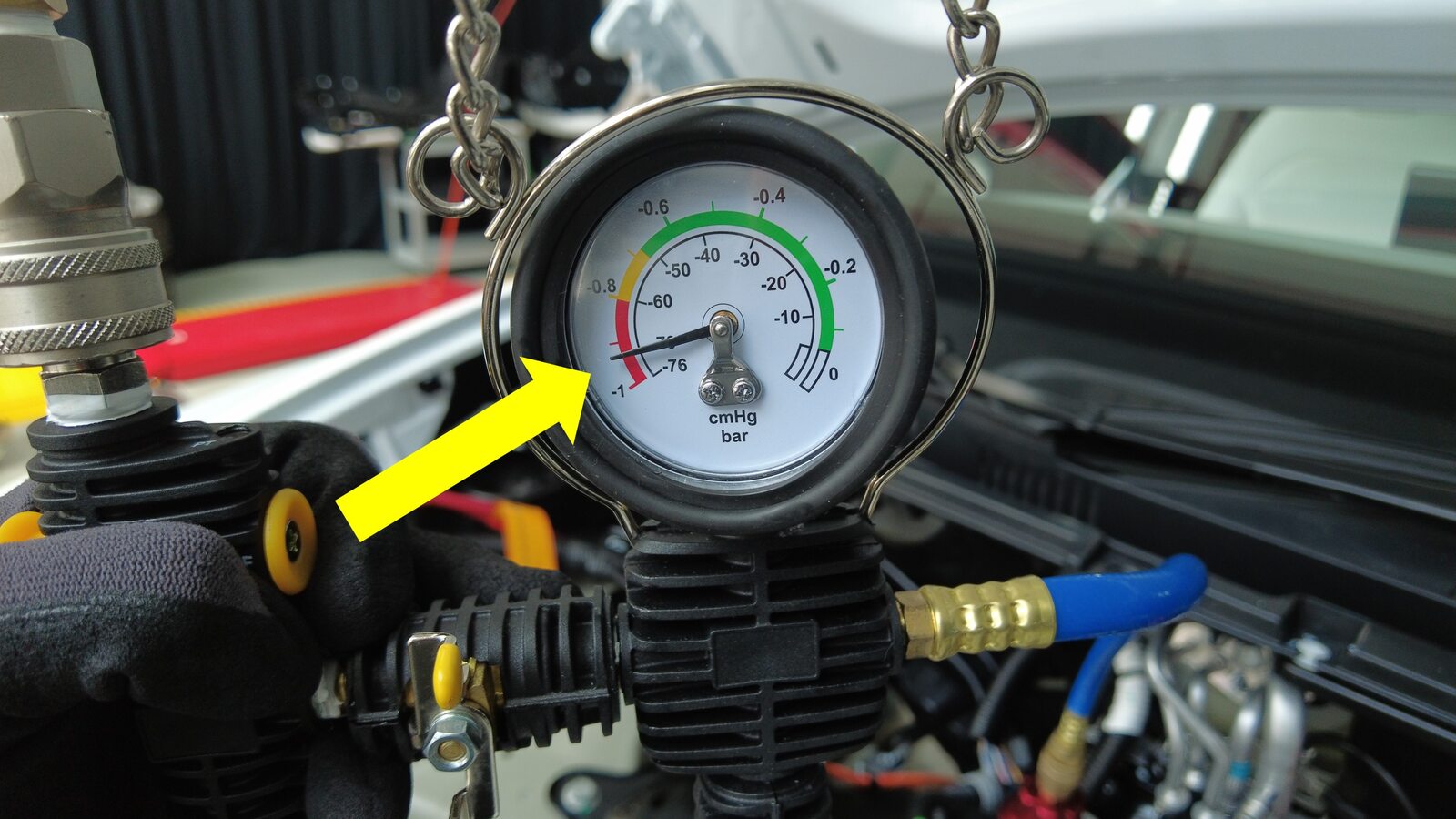

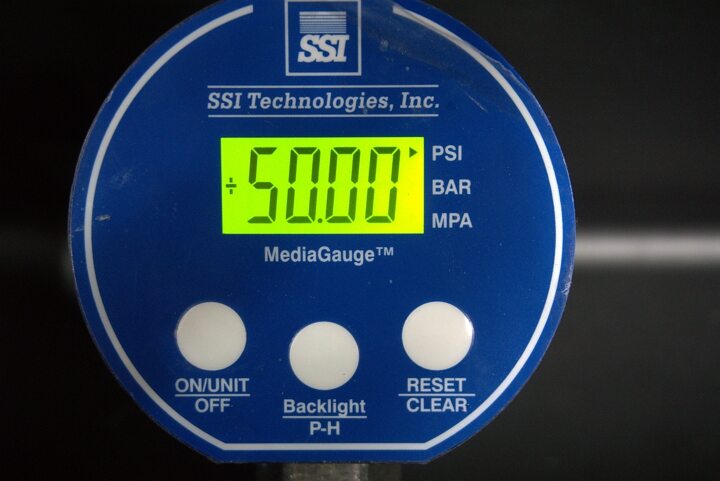

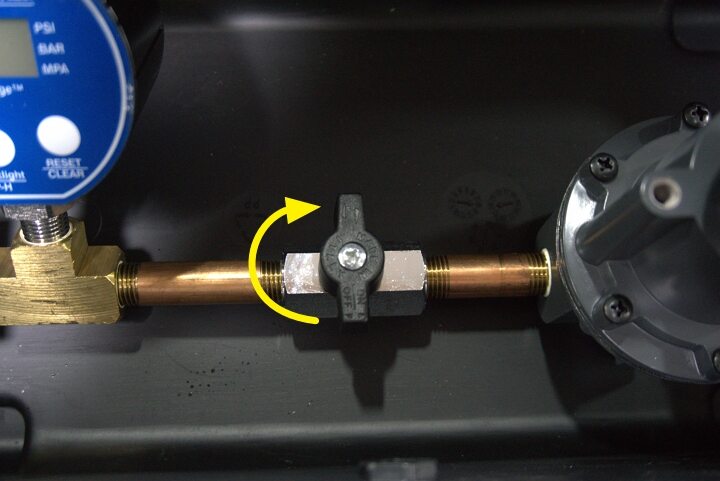

Open inlet valve on Leak Test Fixture tool then adjust regulator to 50 psi

注

Turn on digital gauge and set to "psi", Turn inlet valve counter clockwise to open, Turn Regulator knob clockwise to increase pressure and counter clockwise to decrease pressure, Use caution as coolant may spill, Make sure to wear safety glasses

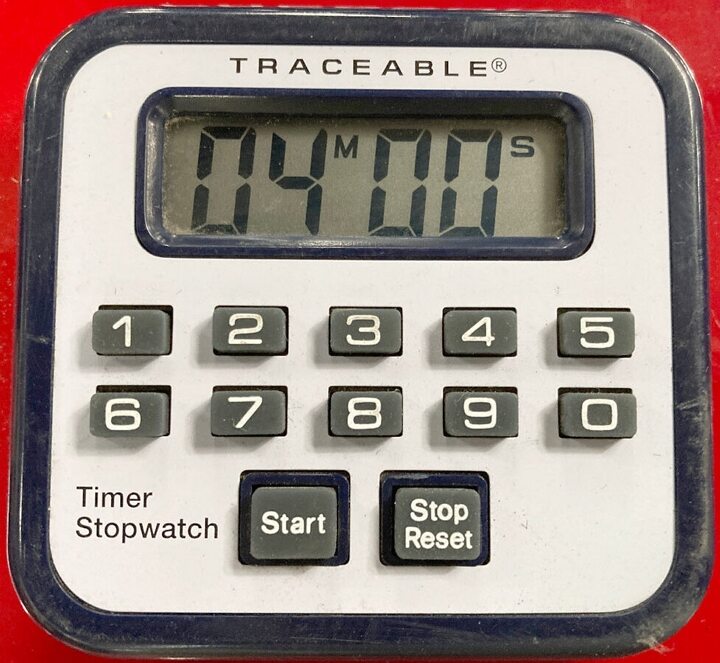

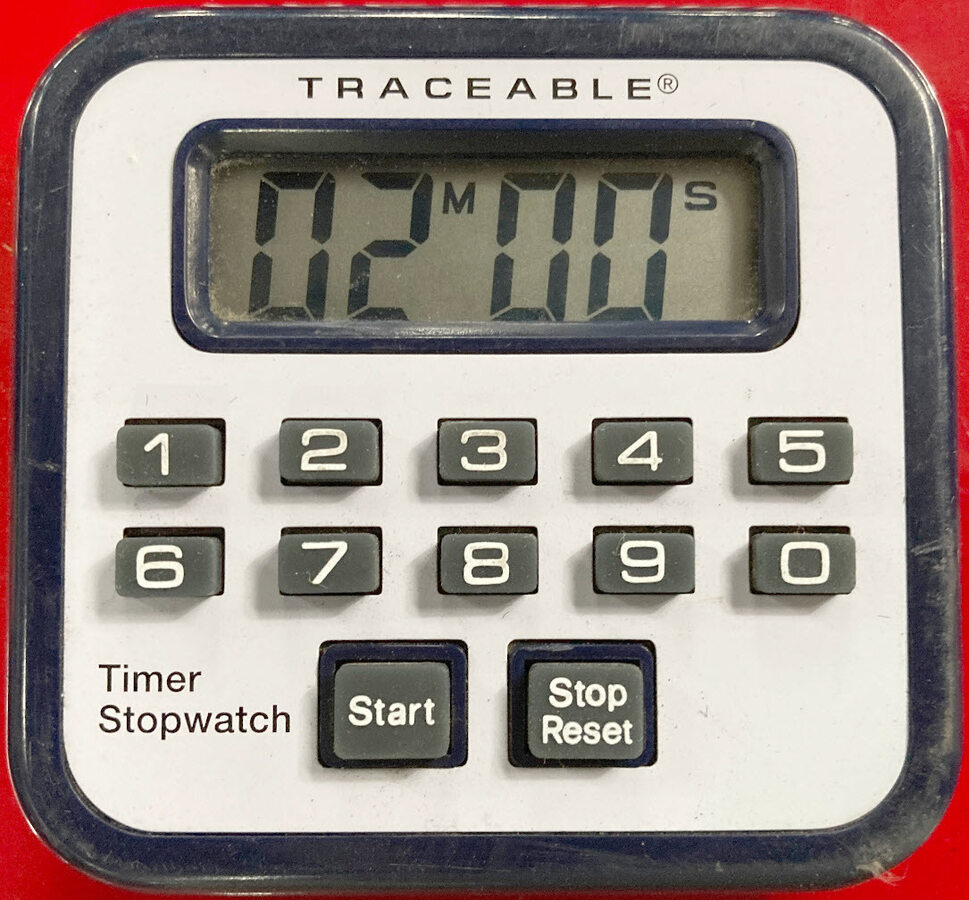

Set timer for 2 minutes

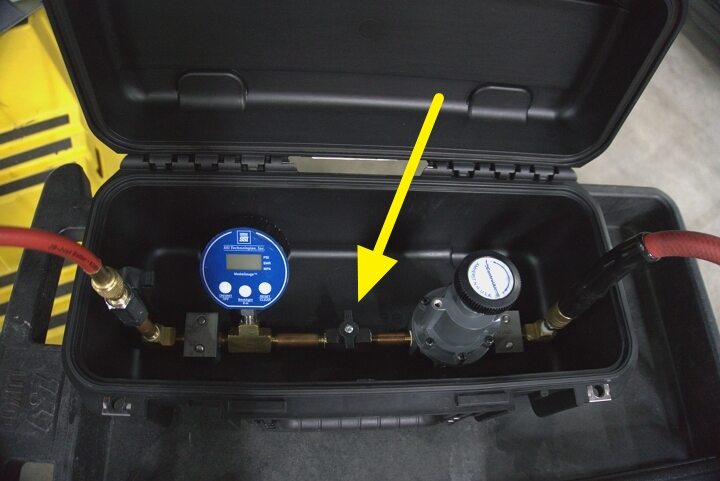

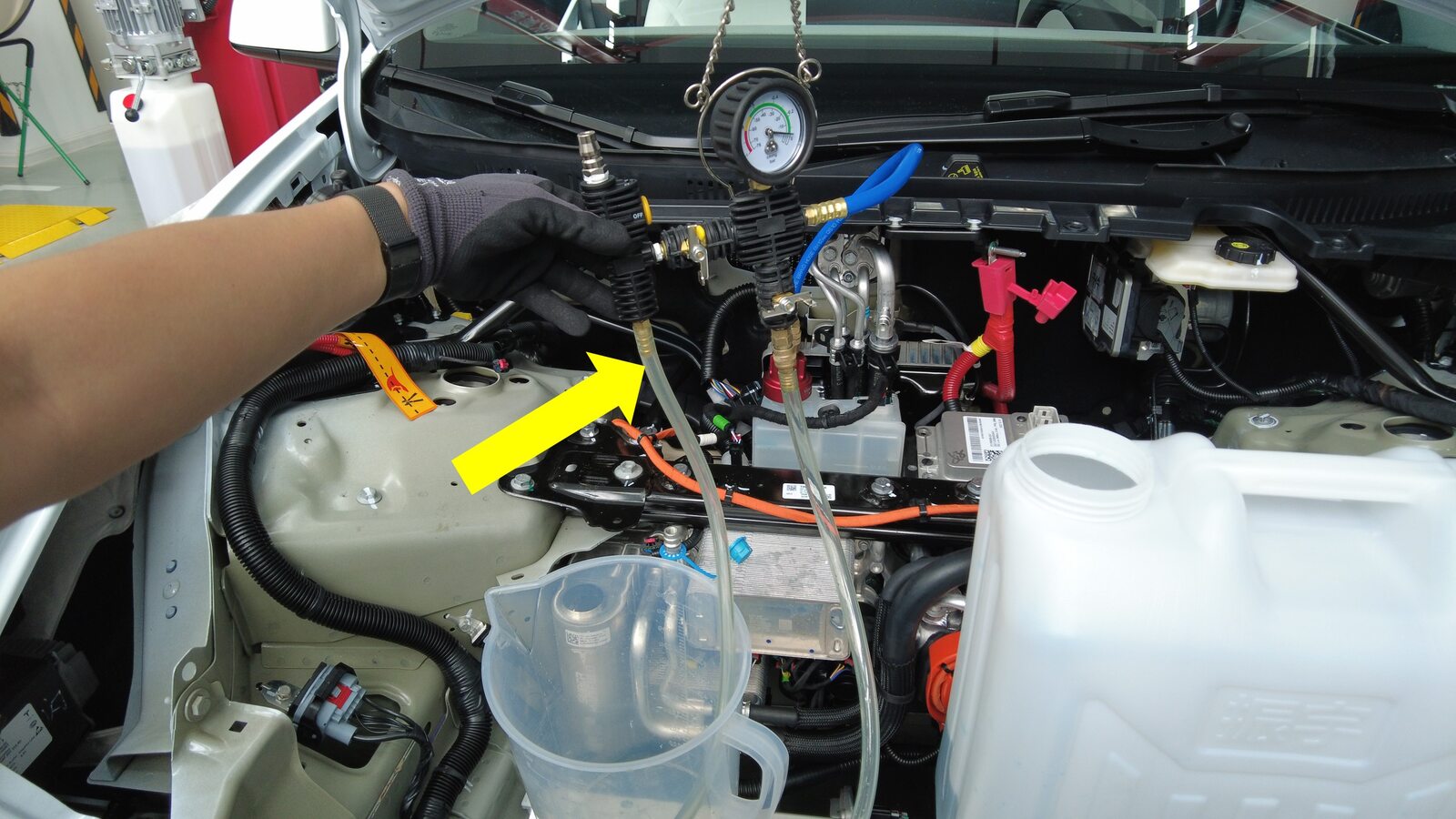

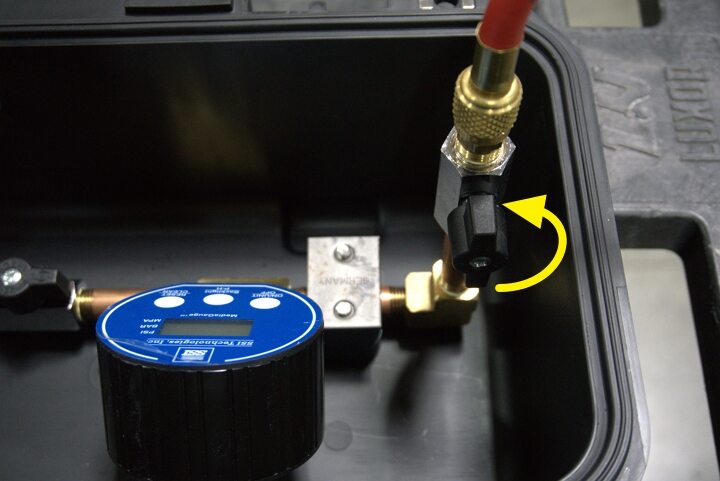

Open outlet valve on Leak Test Fixture tool.

注

Open valve slowly, Valve knob should be inline with airline when open, Use caution as coolant may spill, Make sure to wear safety glasses

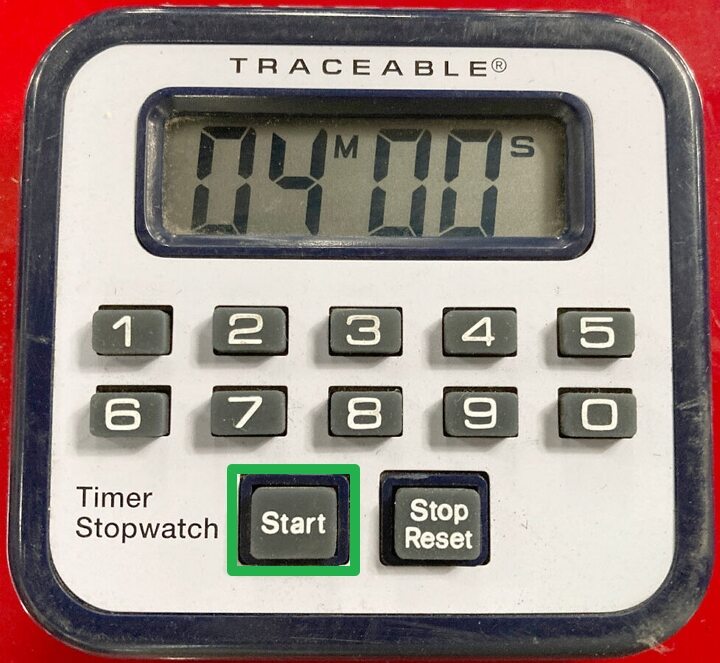

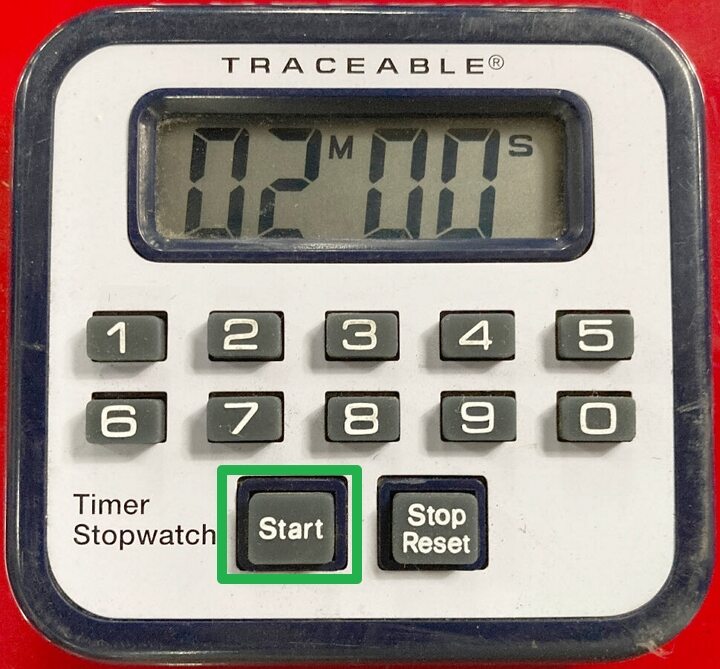

Start 2 minute timer

注

Once timer is complete, select Stop Reset

Close both valves on the coolant Leak Test Fixture tool

注

The valve knobs should both be perpendicular to the air lines when closed.

Disconnect coolant Leak Test Adapter with hose from PCS inlet hose coupling

注

1x spring clip, Leave the Leak Test Fixture hose connected to Leak Test Adapter, Connection is at RH rear of HV Battery

Disconnect coolant Drain and Fill Adapter with extension hose from PCS outlet hose coupling

注

1x spring clip, leave extension hose attached to drain and fill adapter, Connection is at LH rear of HV battery

Connect coolant Leak Test Adapter with hose to PCS outlet hose coupling

注

1x spring clip, Make sure the locking tab is fully seated, Leave the coolant Leak Test Fixture hose attached to the Leak Test Adapter, Connection is at LH rear of HV Battery

Connect coolant Drain and Fill Adapter with extension hose to PCS inlet hose coupling

注

1x spring clip, Make sure the locking tab is fully seated, Connection is at RH rear of HV battery

Open inlet valve on Leak Test Fixture tool then adjust regulator to 50 psi

注

Turn on digital gauge and set to "psi", Turn inlet valve counter clockwise to open, Turn Regulator knob clockwise to increase pressure and counter clockwise to decrease pressure, Use caution as coolant may spill, Make sure to wear safety glasses

Set timer for 2 minutes

Open outlet valve on Leak Test Fixture tool.

注

Open valve slowly, Valve knob should be inline with airline when open, Use caution as coolant may spill, Make sure to wear safety glasses

Start 2 minute timer

注

Once timer is complete, select Stop Reset

Close both valves on the coolant Leak Test Fixture tool

注

The valve knobs should both be perpendicular to the air lines when closed.

Disconnect compressed air from Leak Test Fixture tool

Disconnect coolant hose extension from coolant drain hose

注

Press grey button to release hose fitting

Disconnect coolant hose extension from coolant Drain and Fill adapter

注

Press grey button to release hose fitting

Disconnect coolant drain hose adapter from PCS inlet hose coupling

注

1x spring clip, Install plug to inlet hose coupling, If the battery is returned to Reman, please remove the special tool plugs

Disconnect coolant Leak Test Fixture outlet hose from Leak Test Adapter

注

1x hose connection

Disconnect coolant Leak Test Adapter from PCS outlet hose coupling

注

1x spring clip, Install plug to outlet hose coupling, If the battery is returned to Reman, please remove the special tool plugs

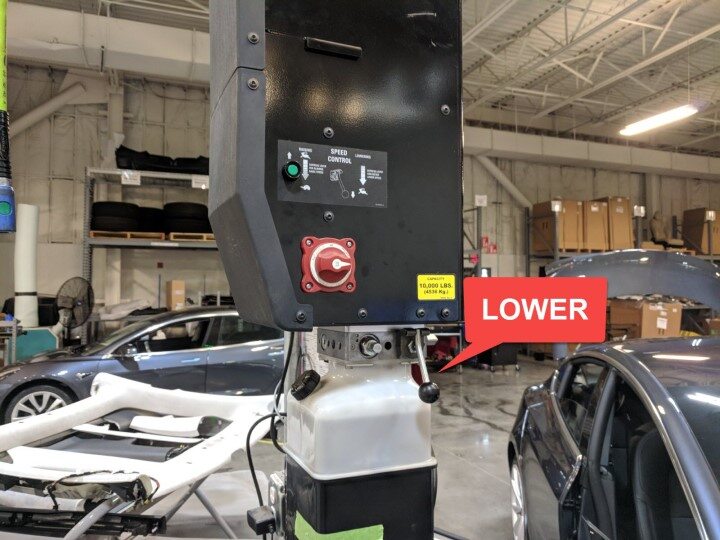

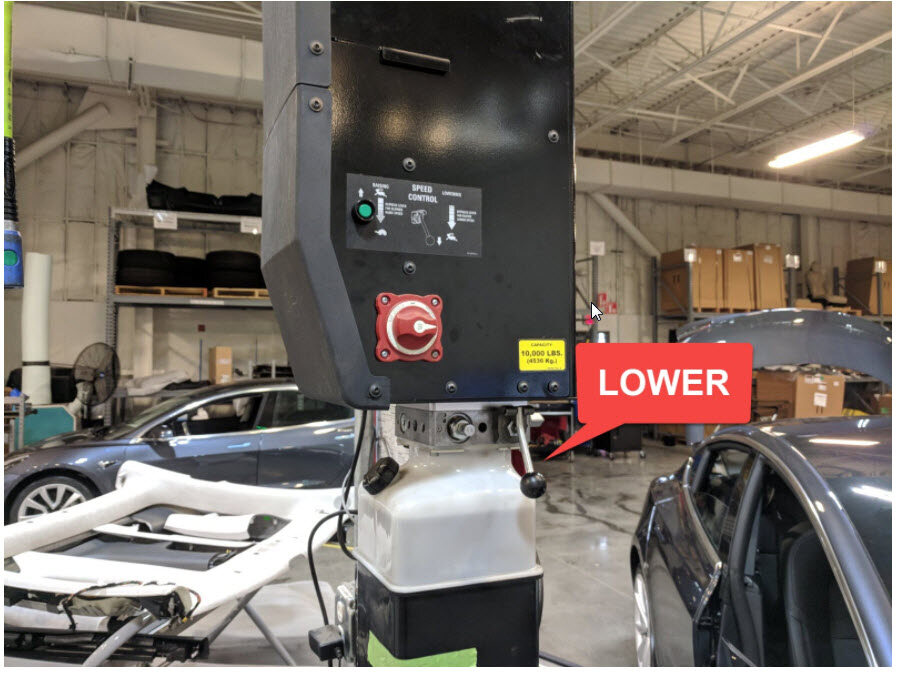

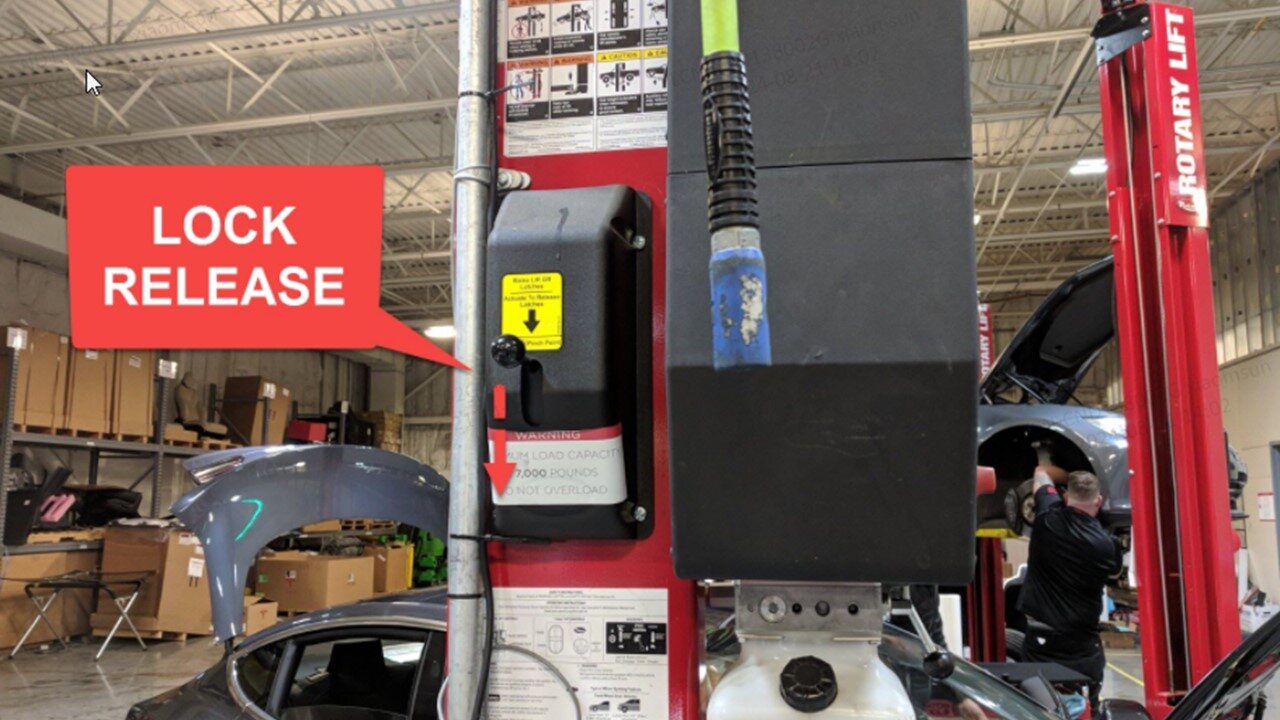

Lower vehicle fully

注

Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

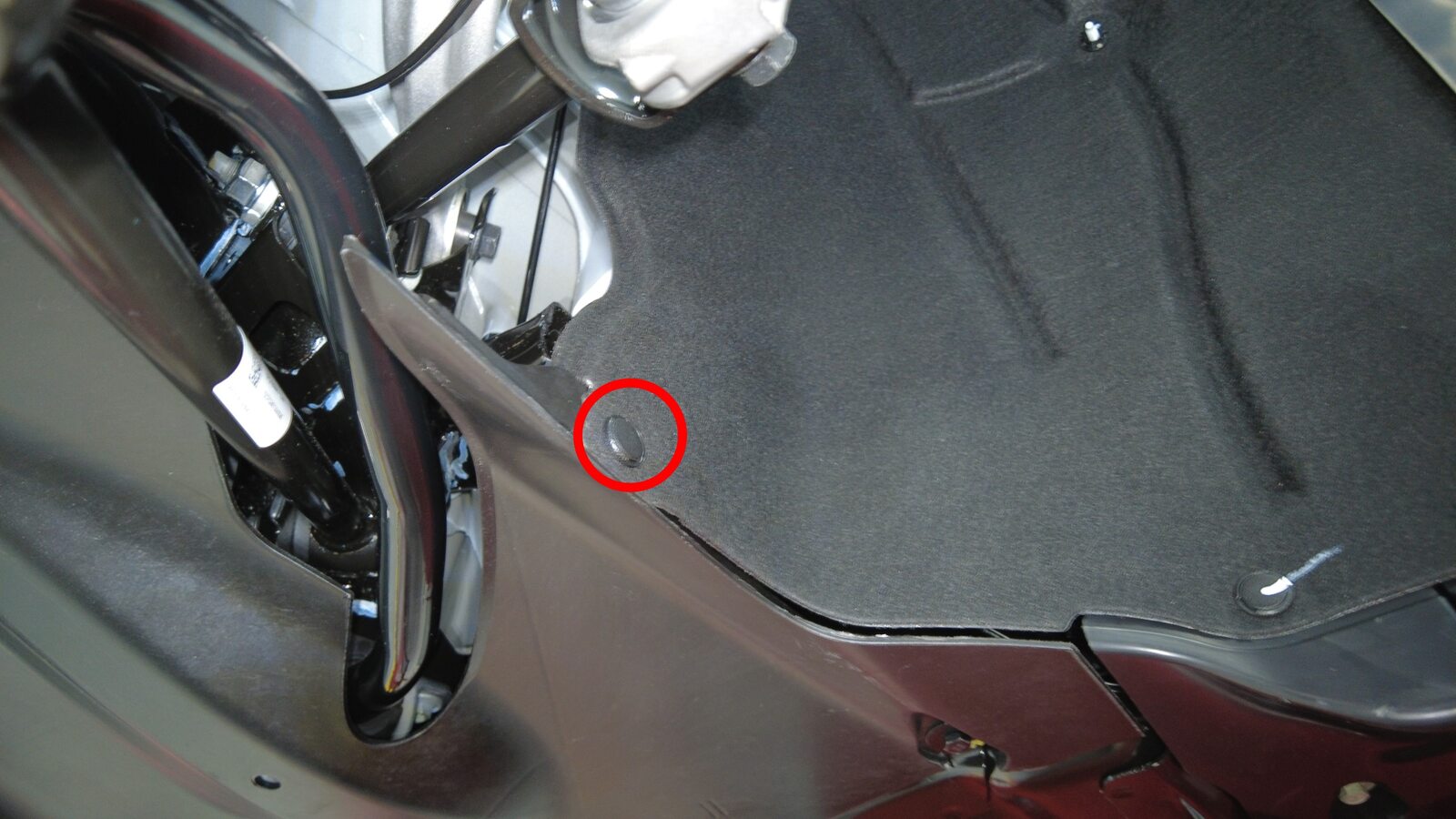

Remove clips securing rear main cabin carpet to vehicle

注

3x push clips

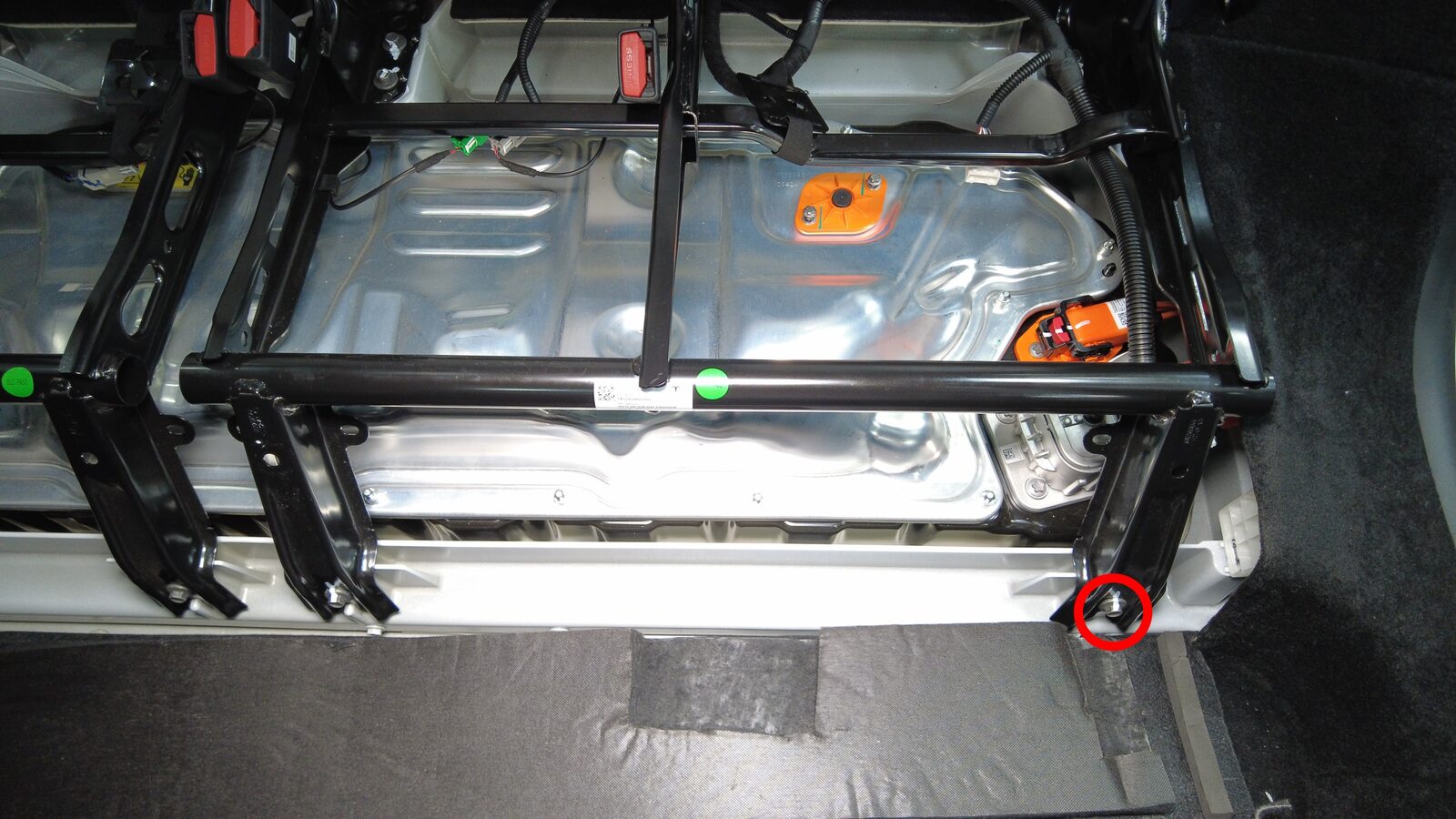

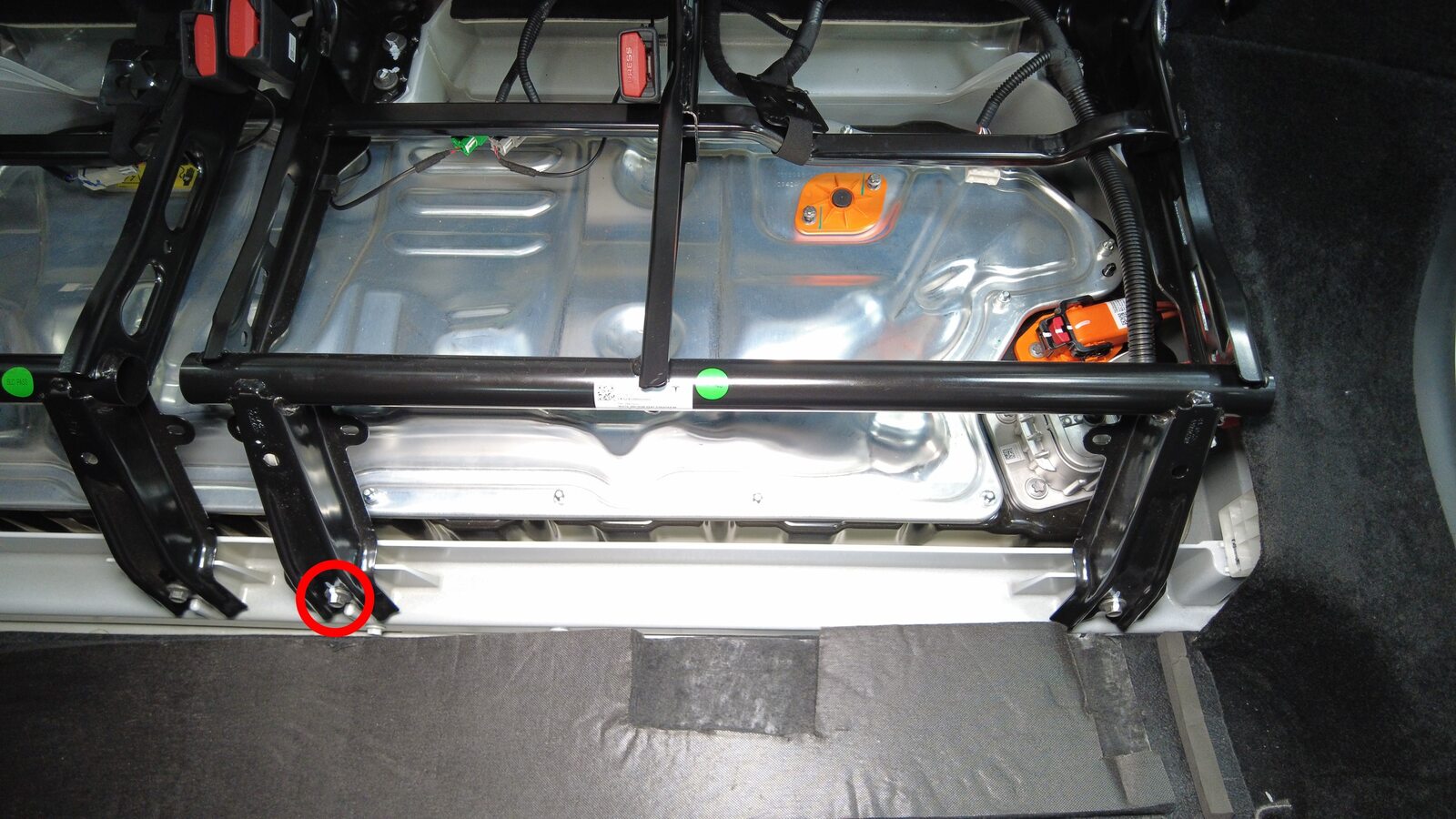

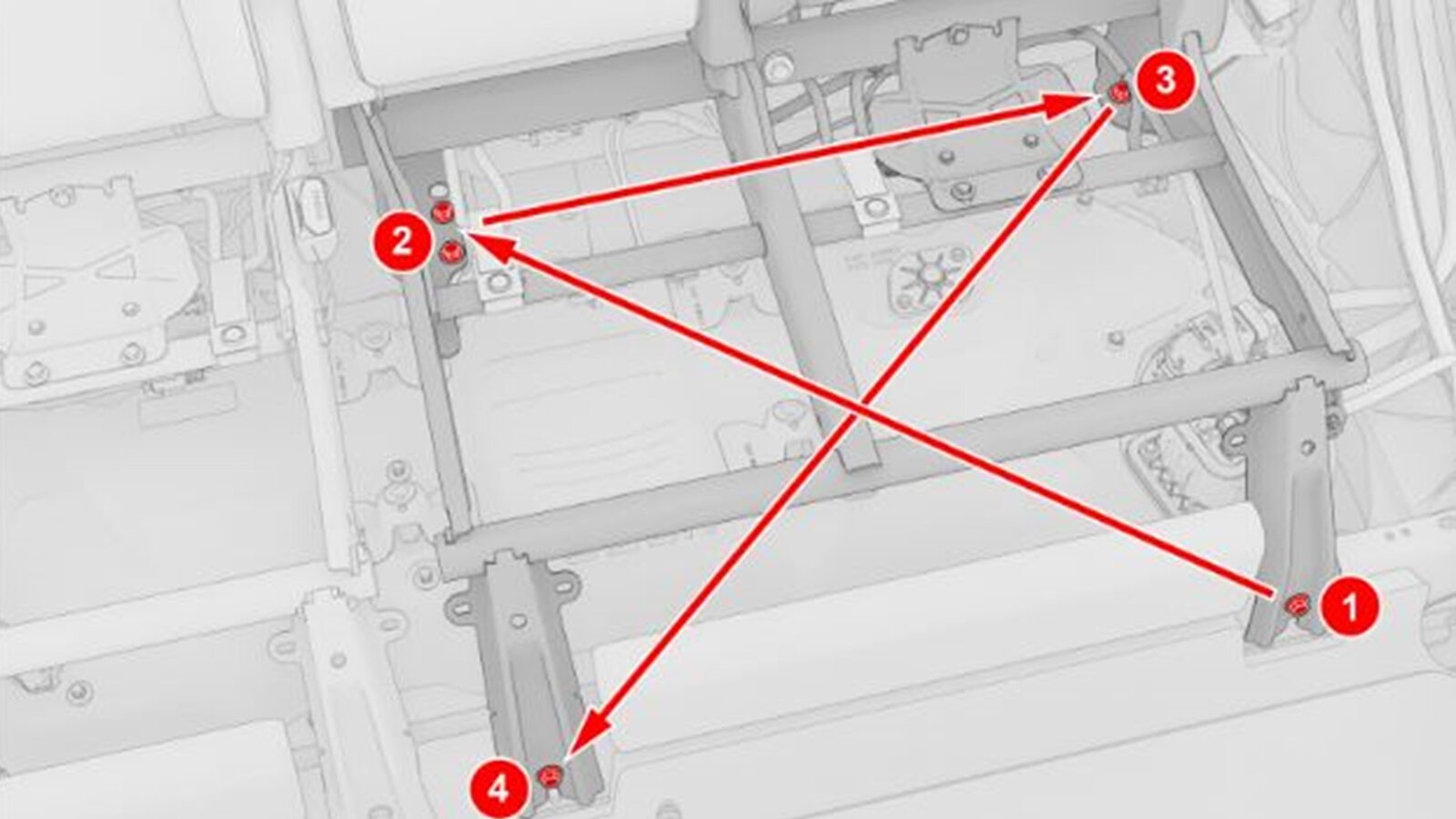

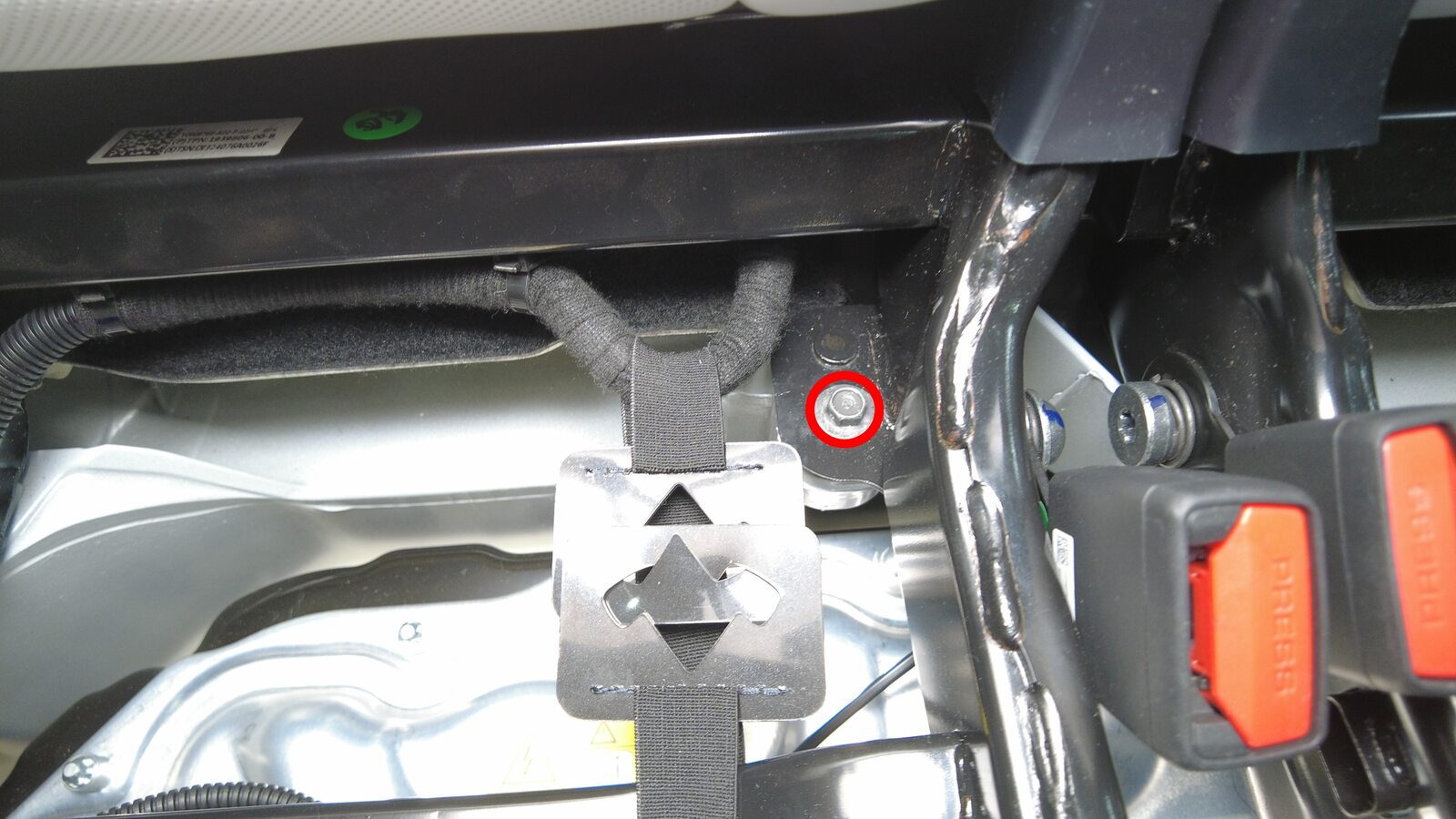

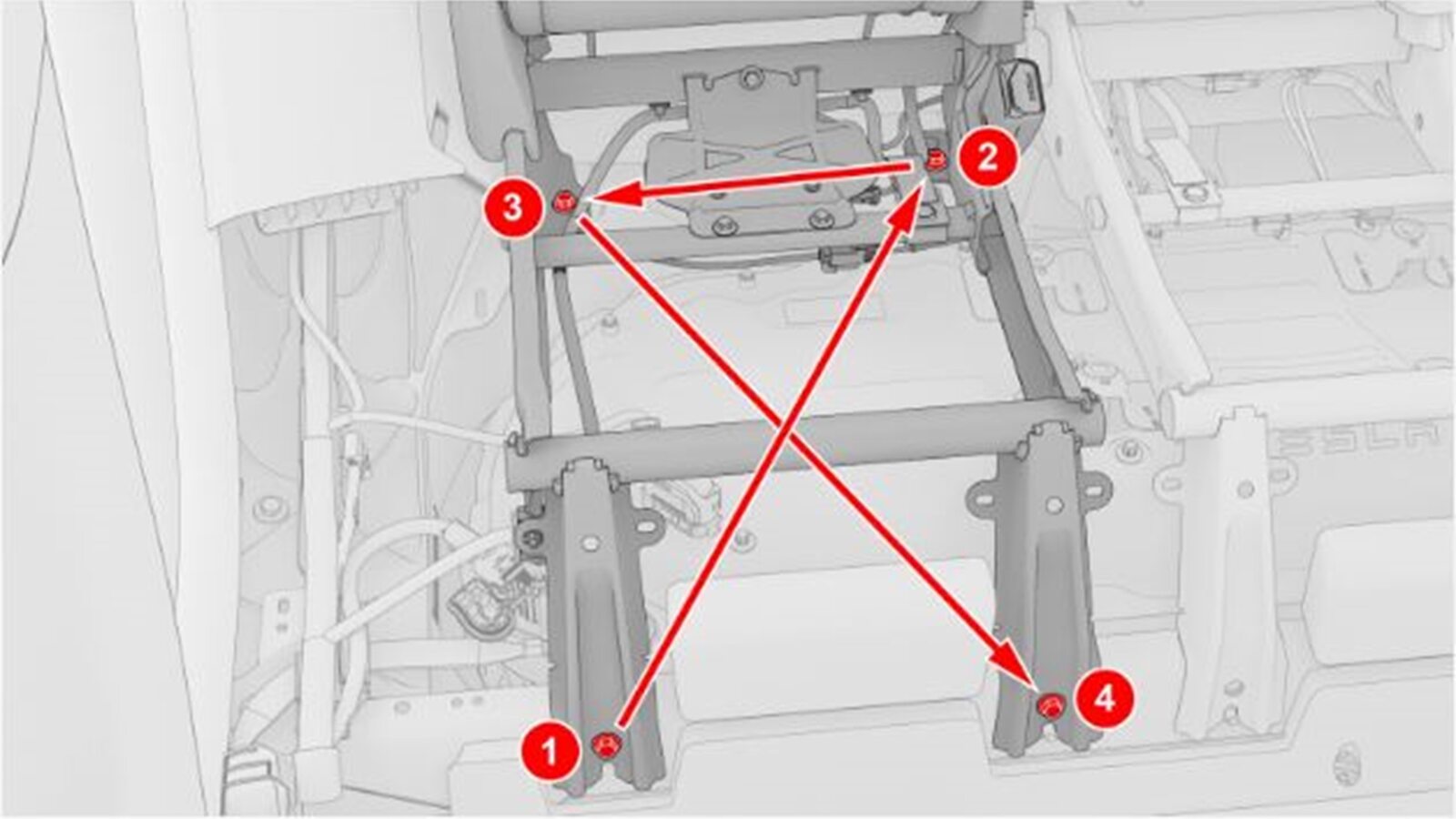

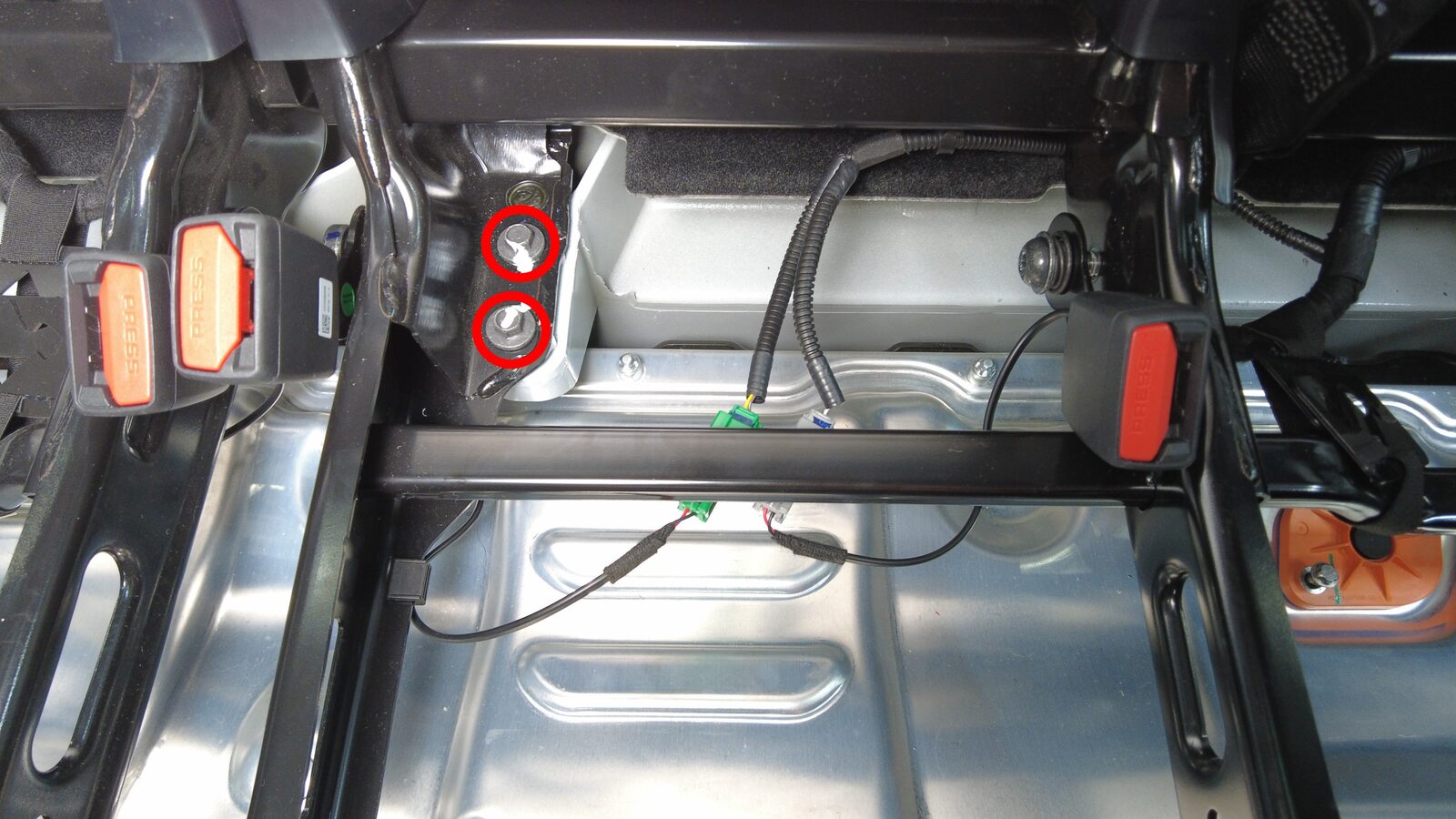

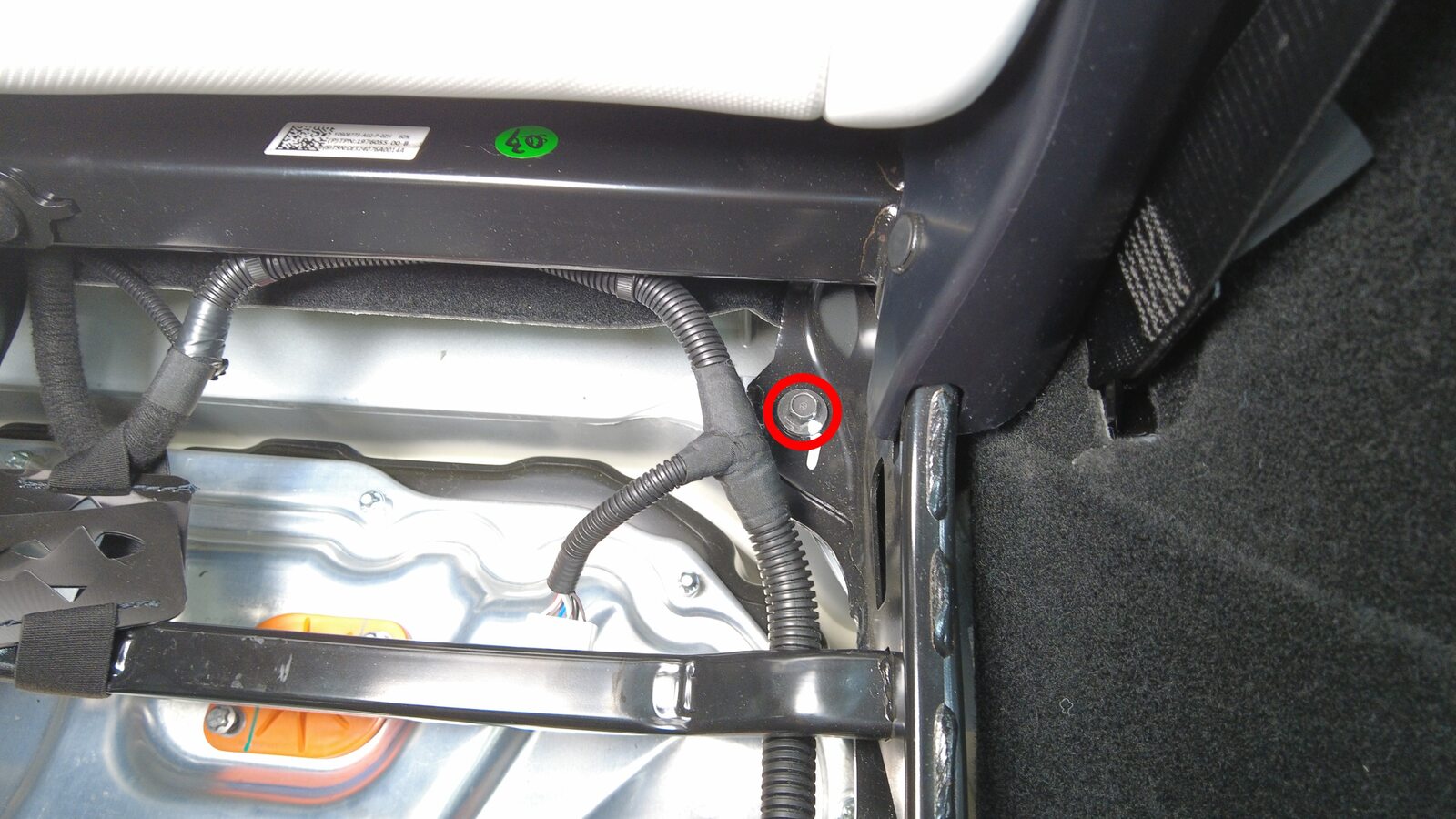

Remove fasteners securing 2nd row 40 seat frame to body

注

4x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal

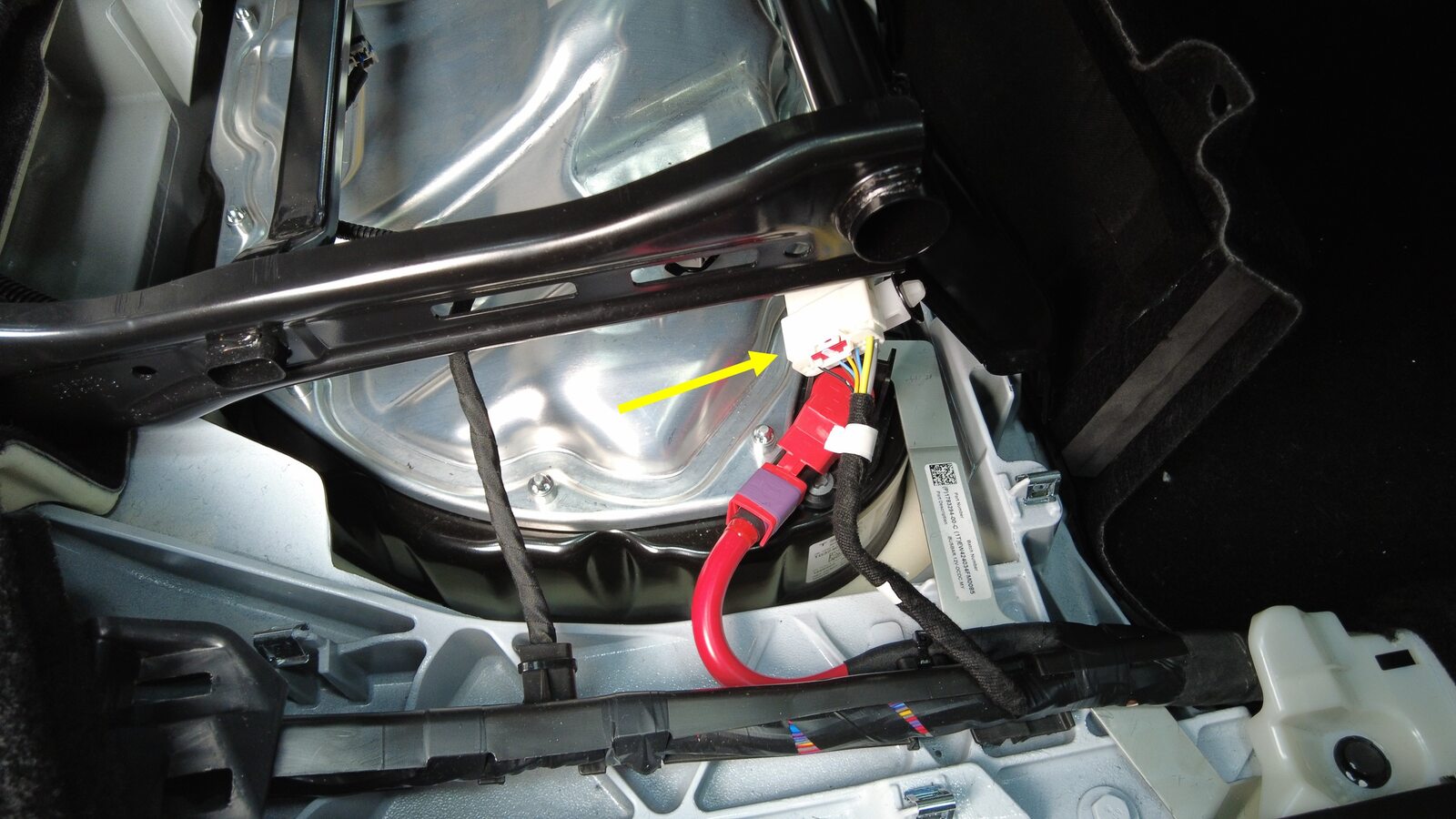

Disconnect 2nd row 40 seat connector

注

1x connector, Disengage the tab

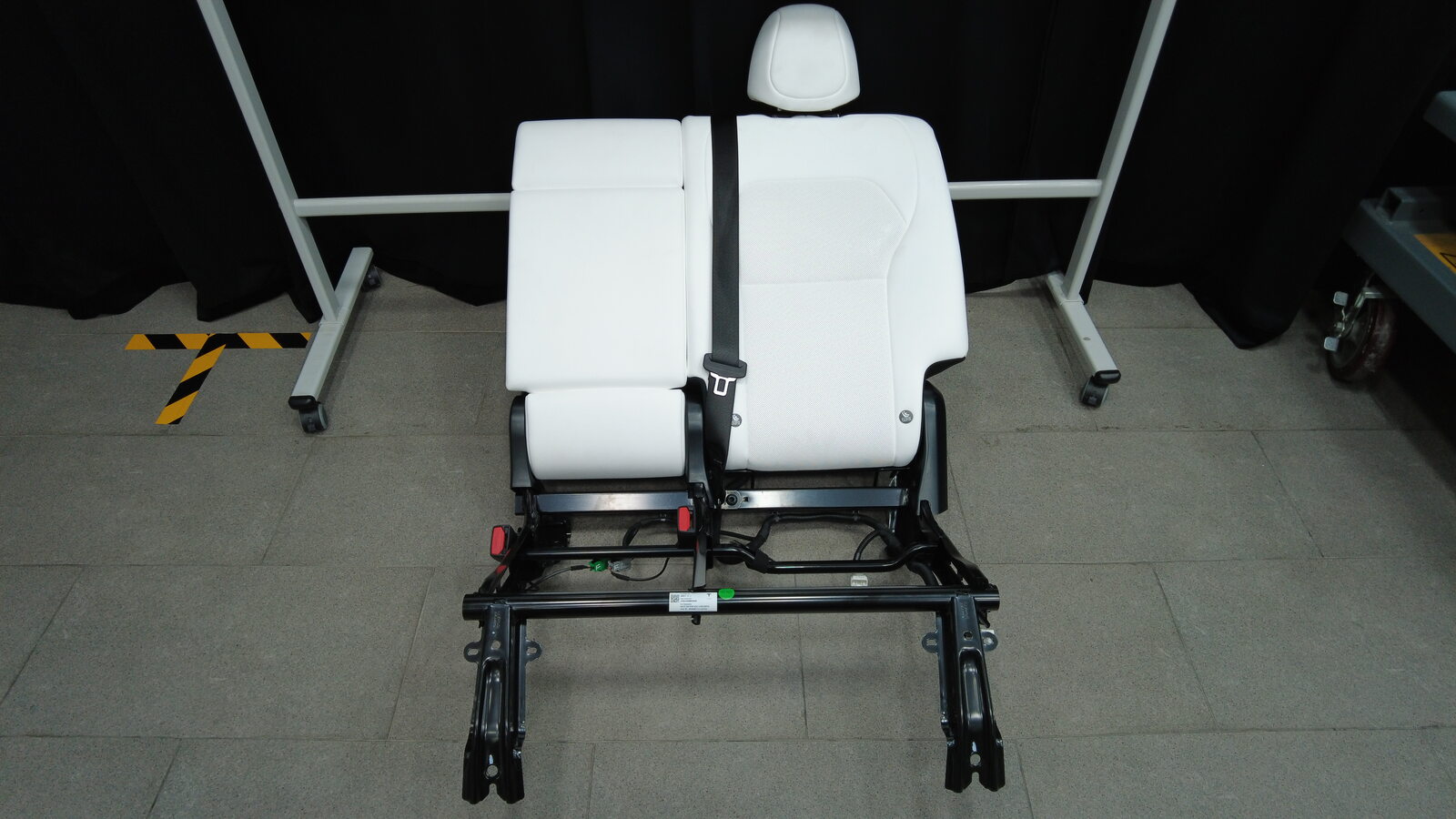

Remove 2nd row 40 seat assembly from vehicle

注

Recommend assistance

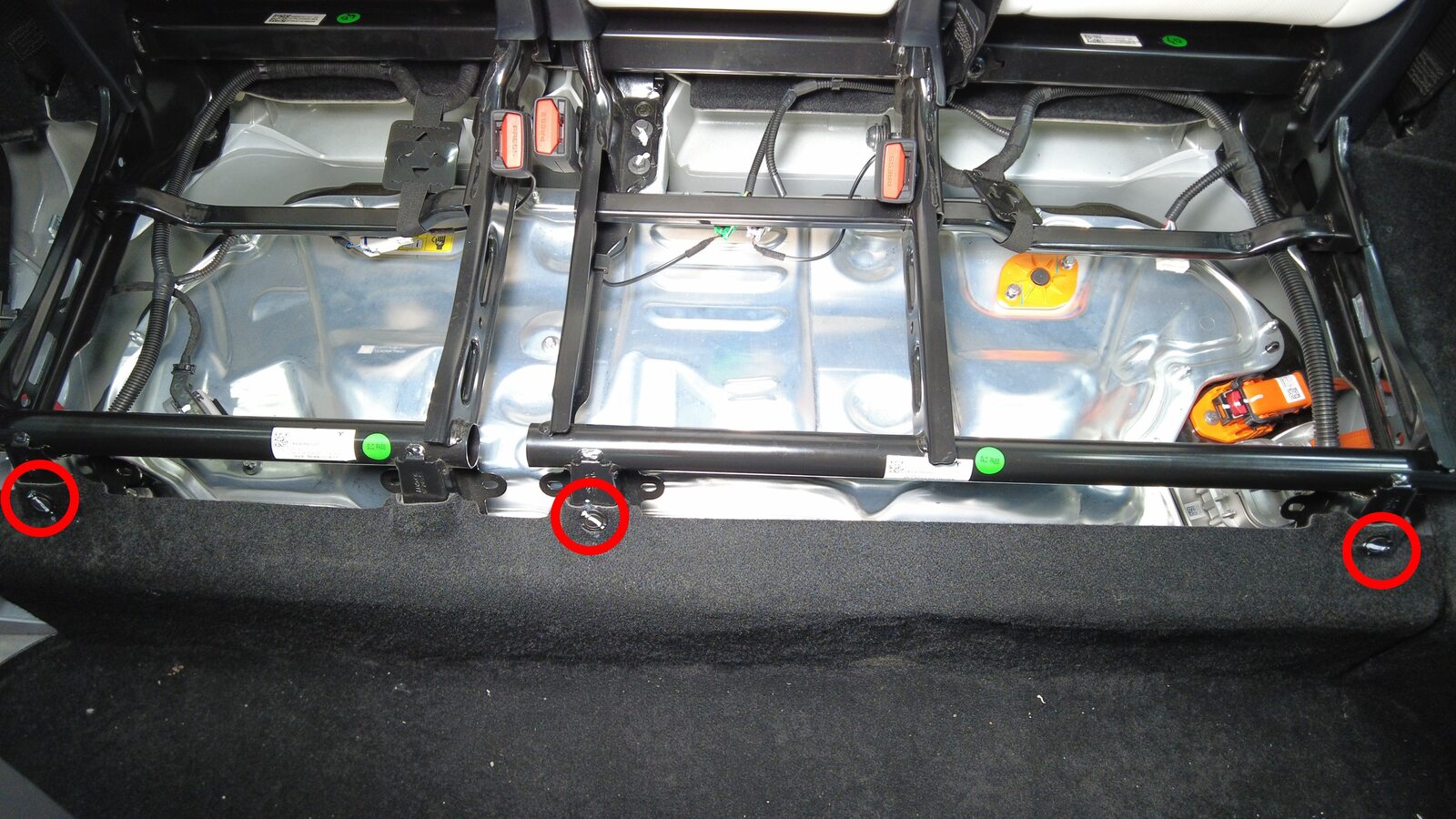

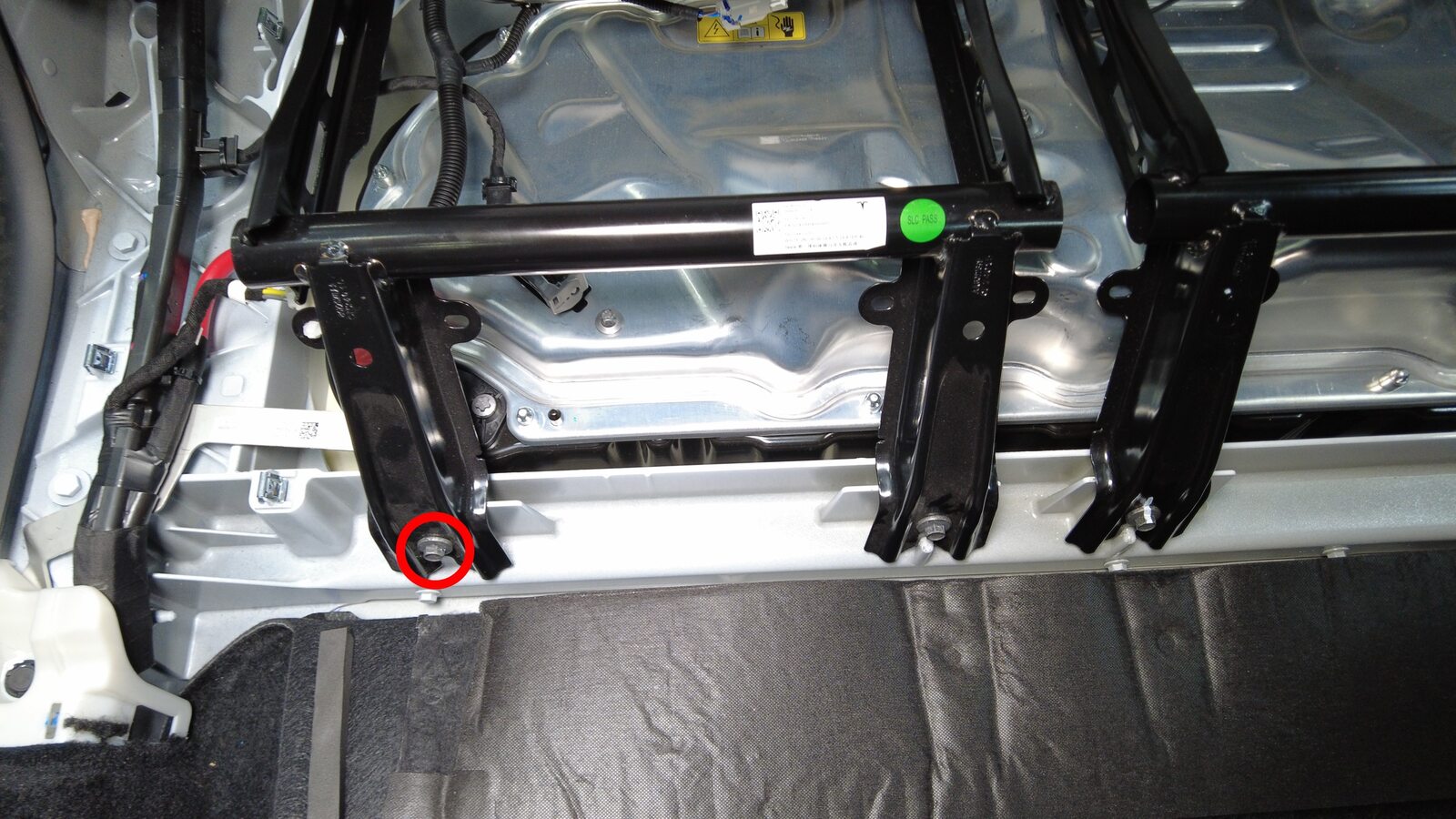

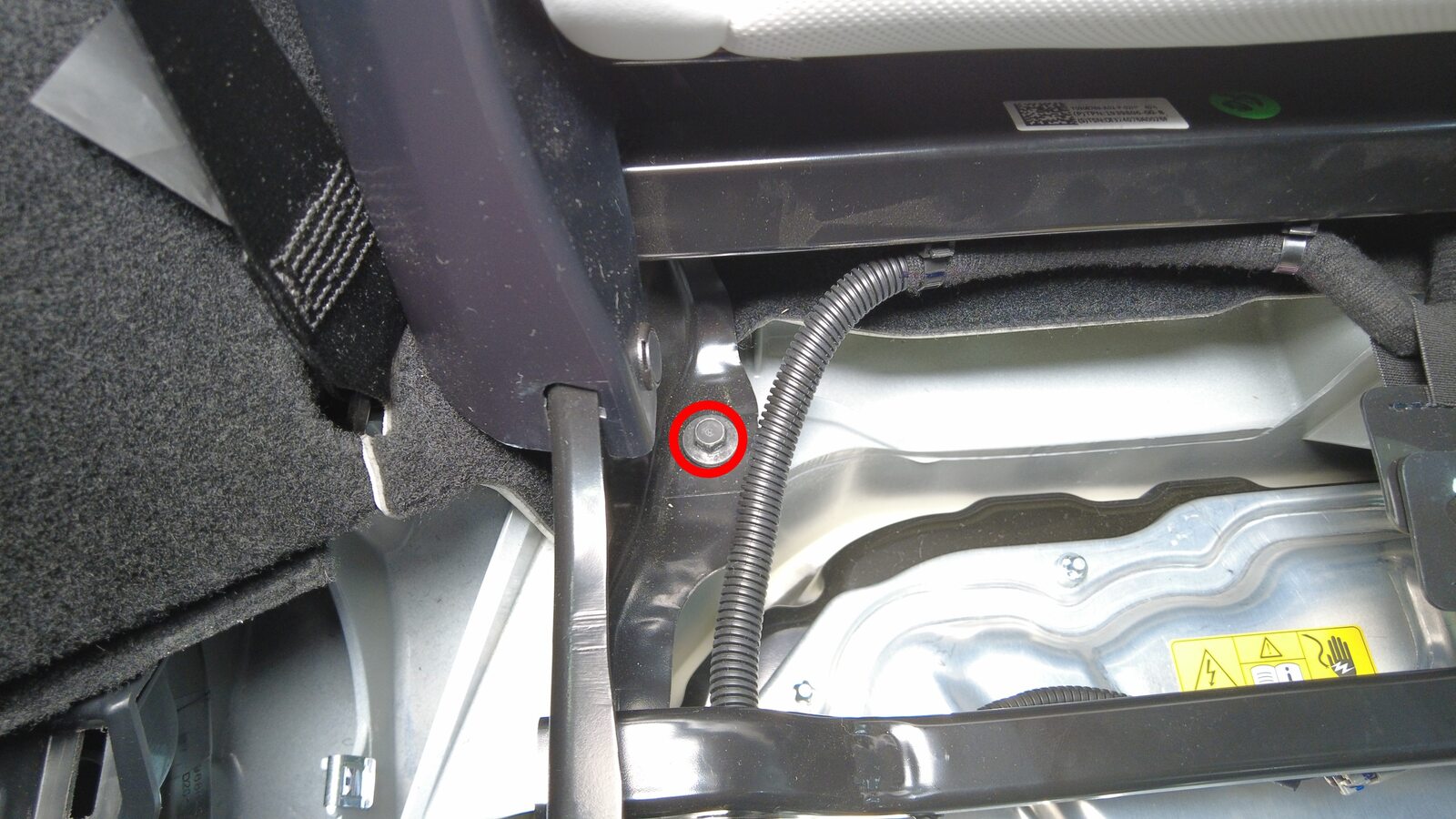

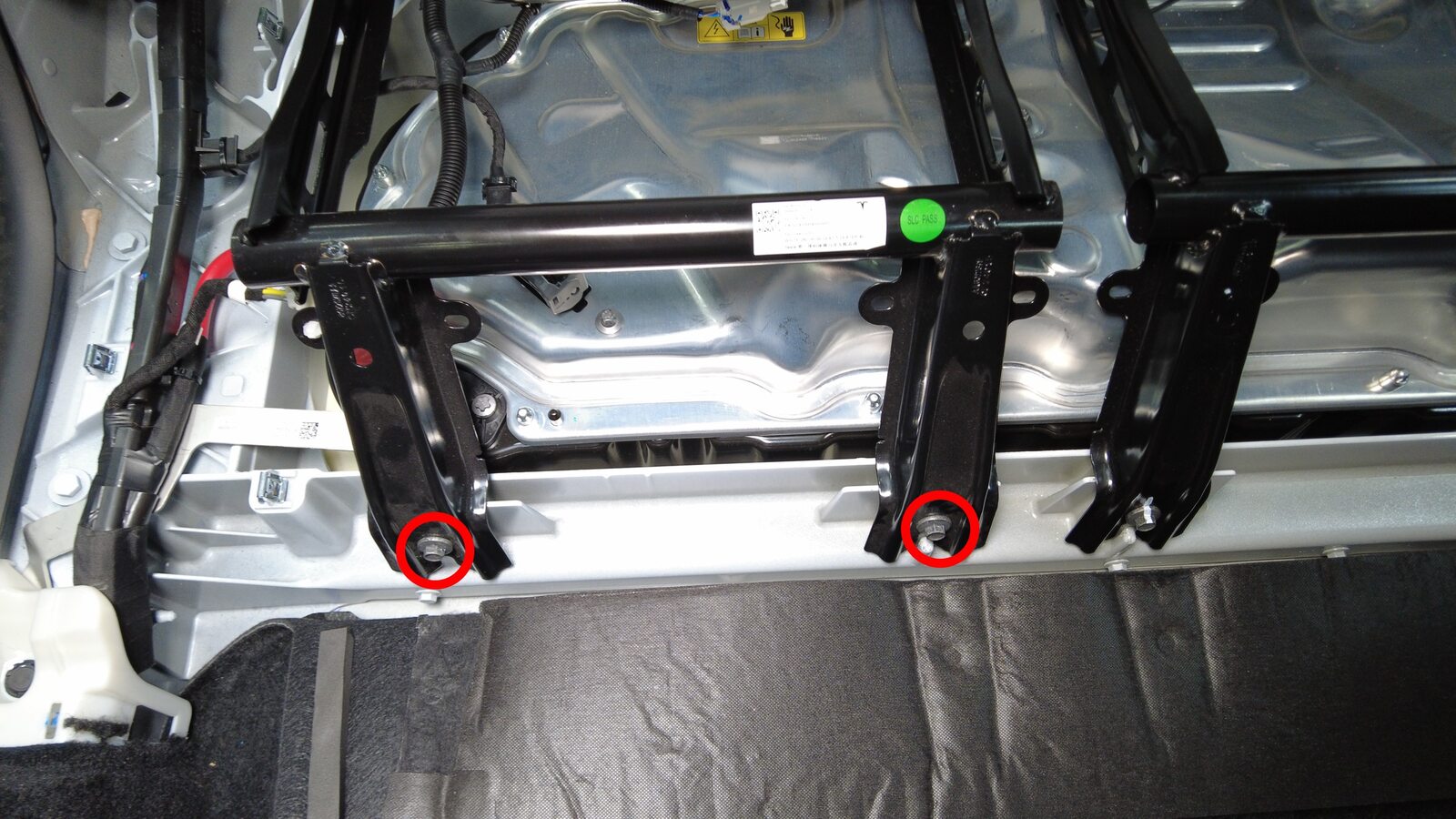

Remove fasteners securing 2nd row 60 seat frame to body

注

5x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal

Disconnect 2nd row 60 seat connector

注

1x connector, Disengage locking tab

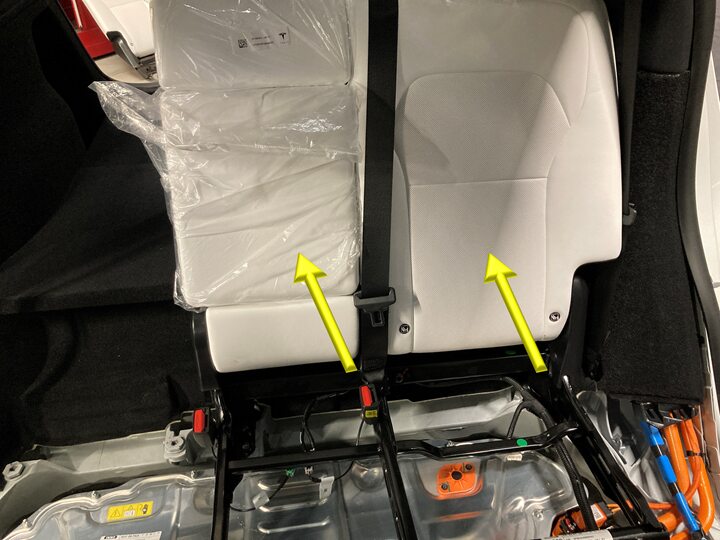

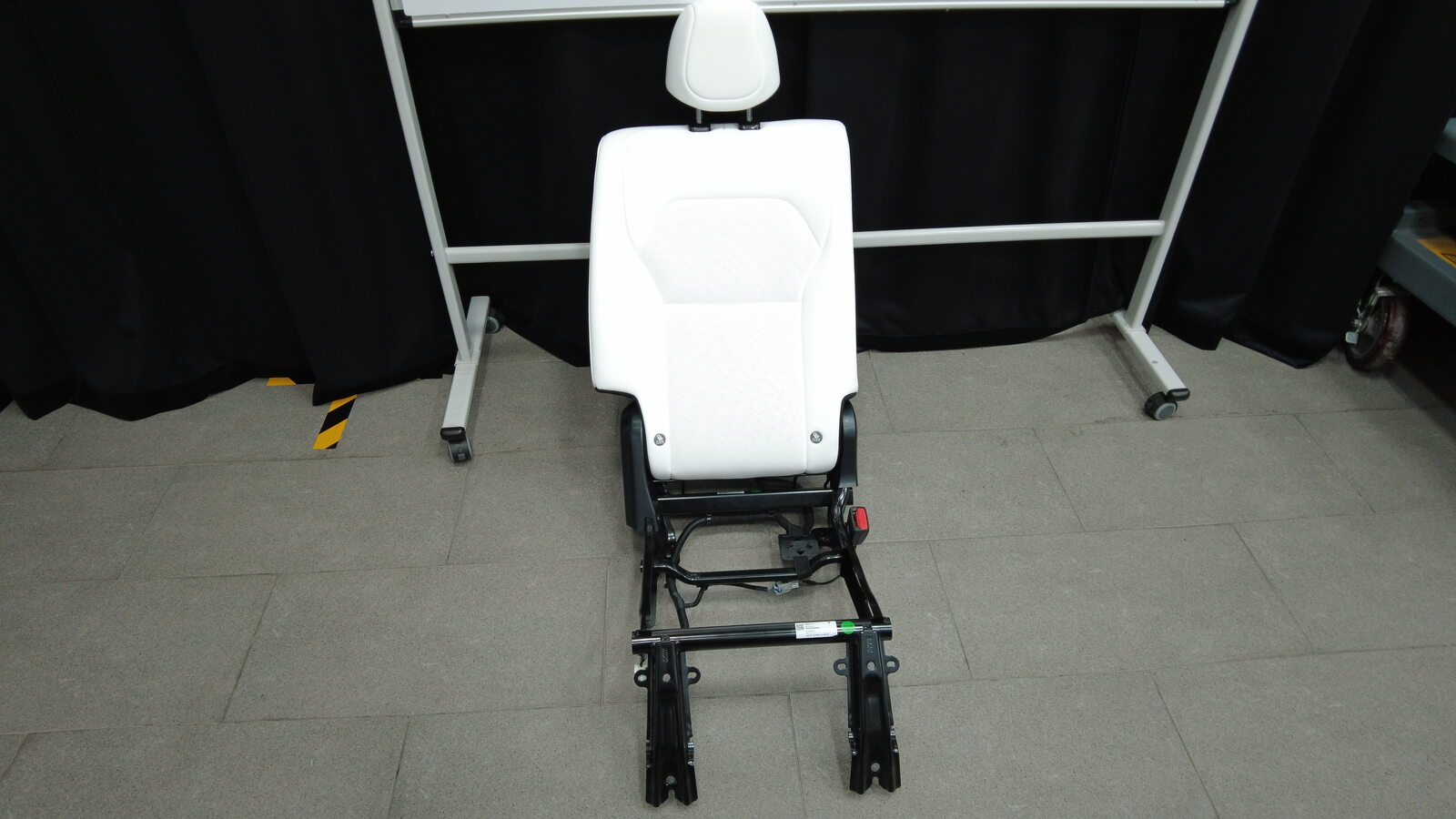

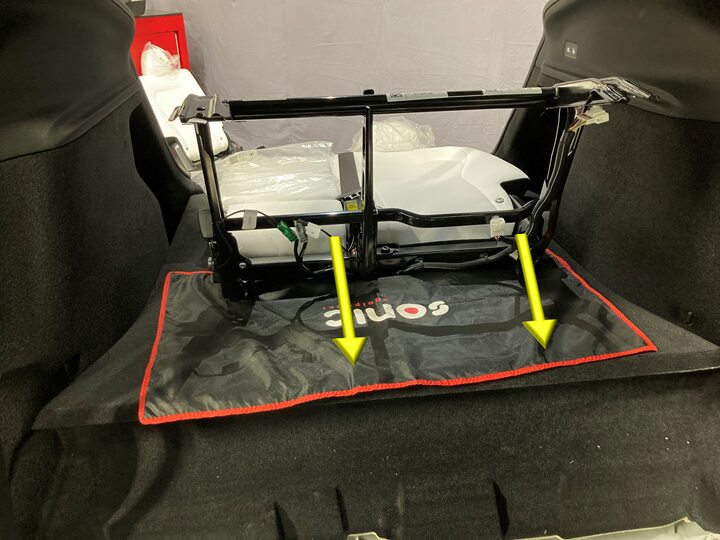

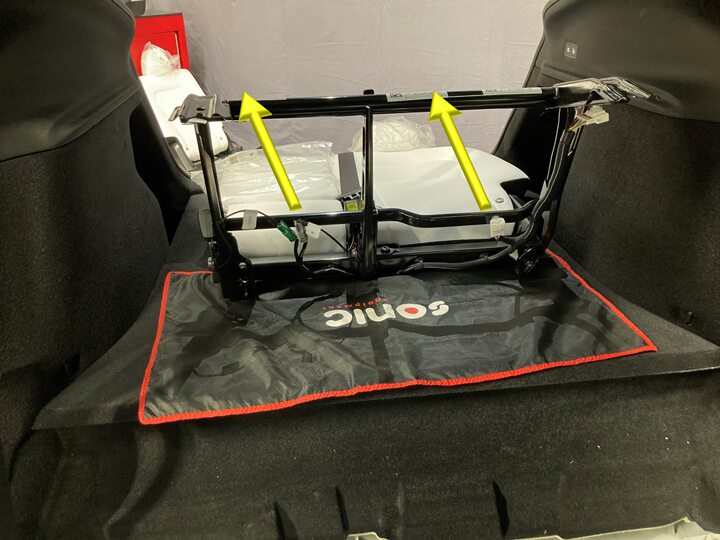

Remove 2nd row 60 seat assembly from vehicle

注

Set 60 seat assembly onto rear load floor, Then remove the seat assembly from the rear side of the vehicle, Use fender cover to avoid damaging trims, Recommend assistance

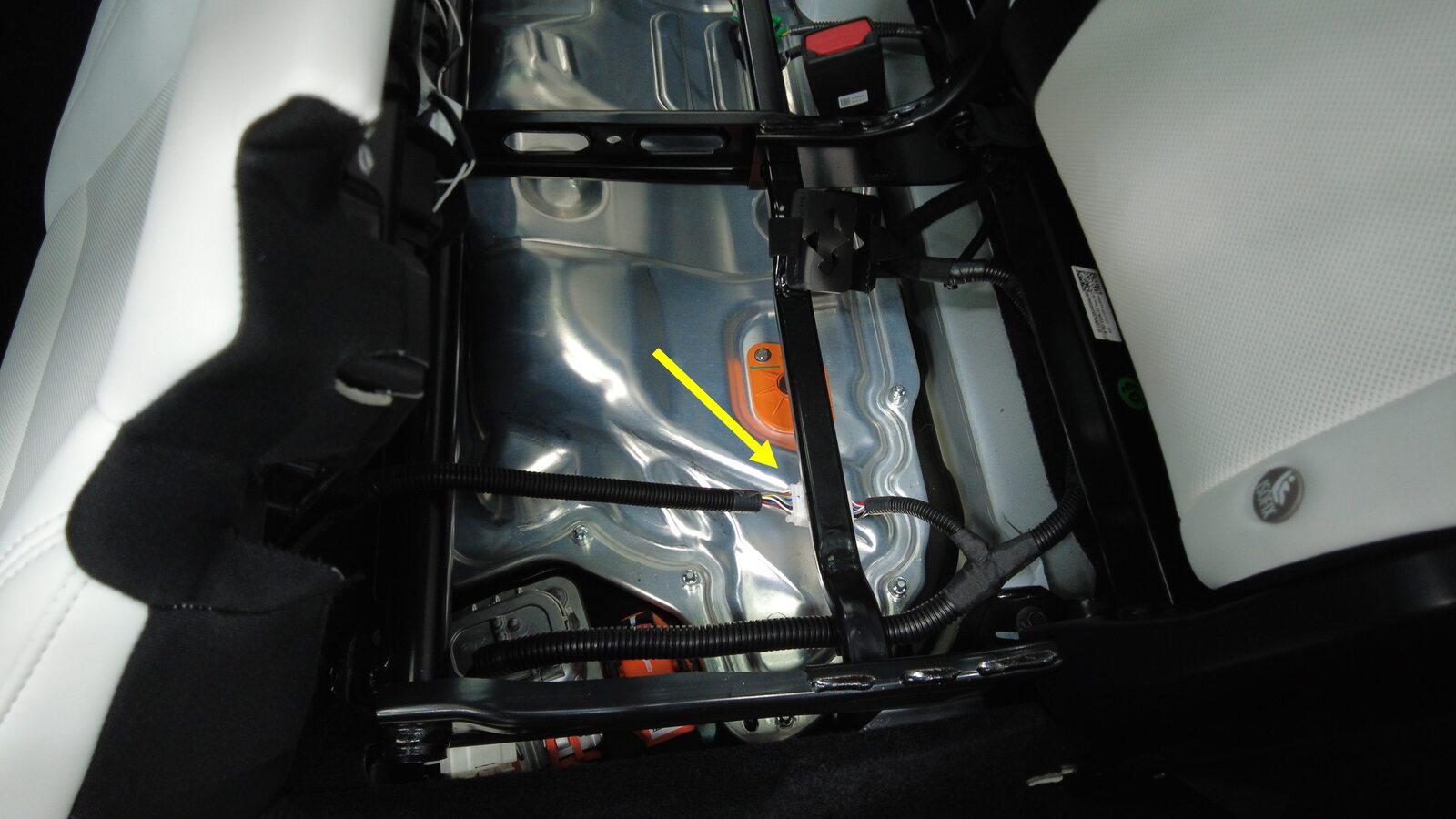

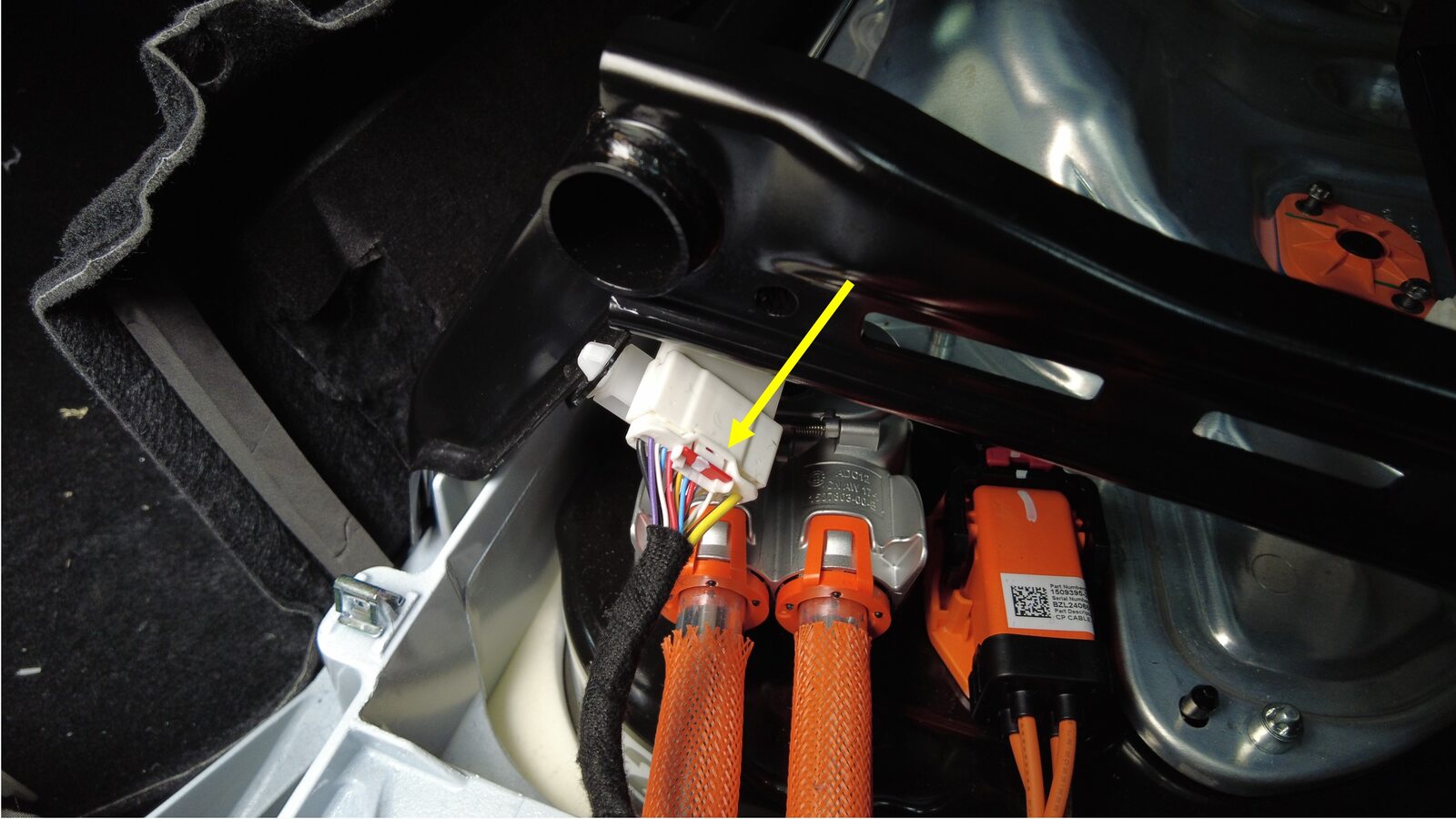

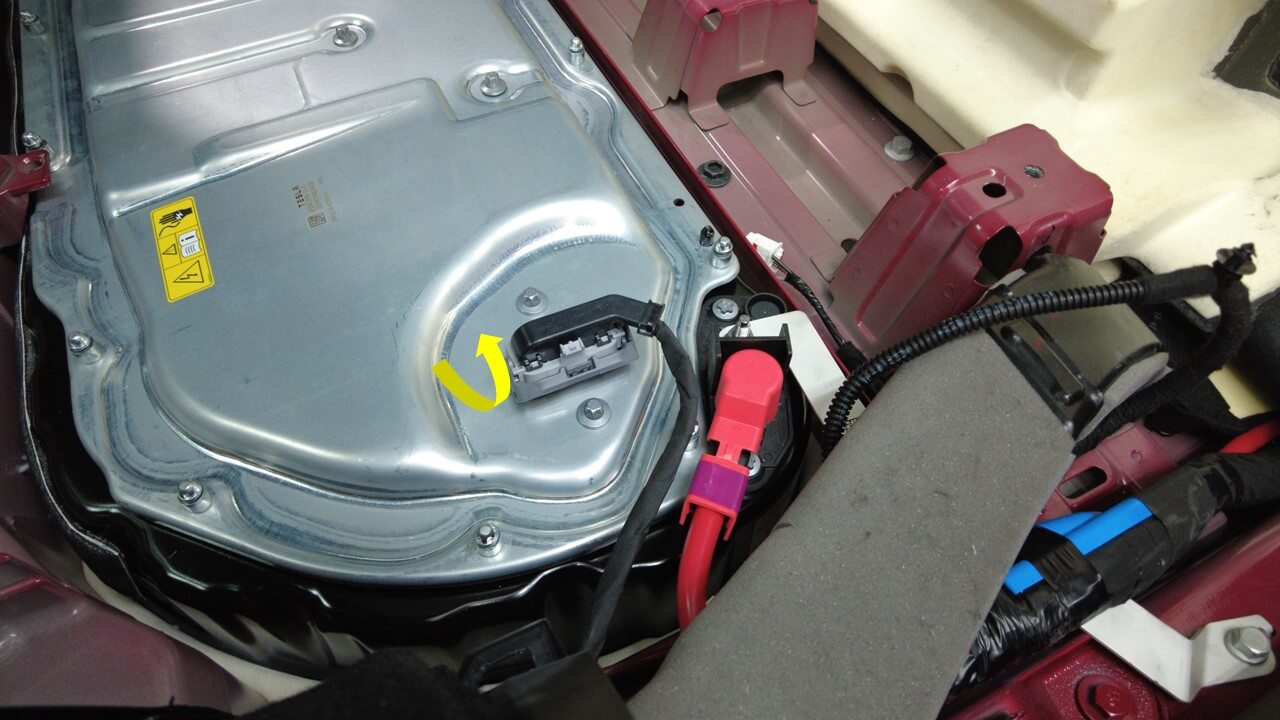

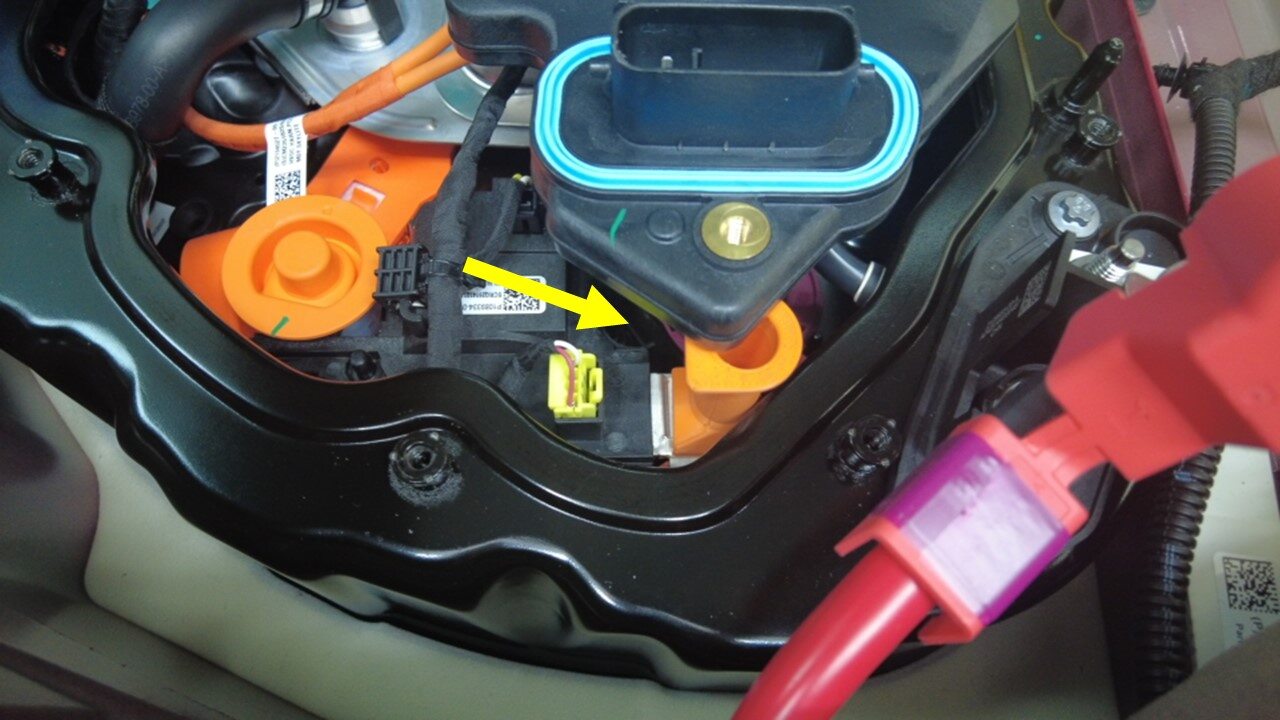

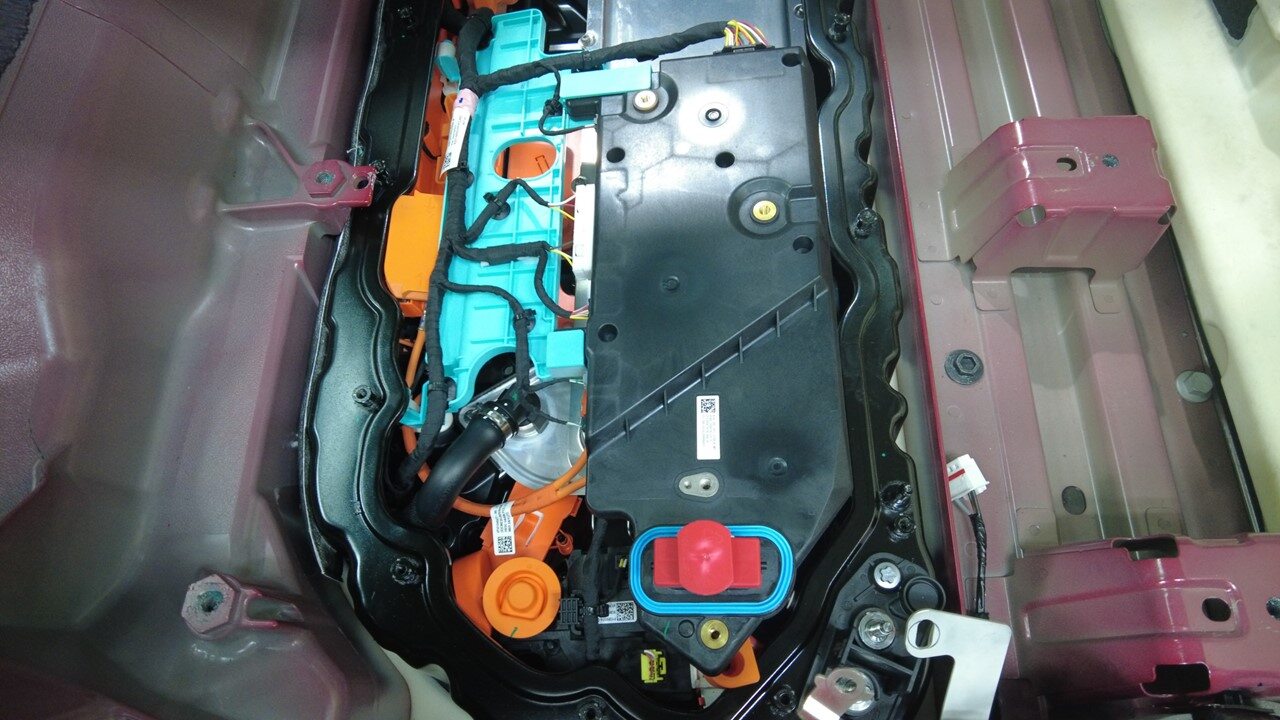

Disconnect HVC logic connector and install logic cap

注

1x connector, 1x cap, Release locking tab then push the handle downward to release connector

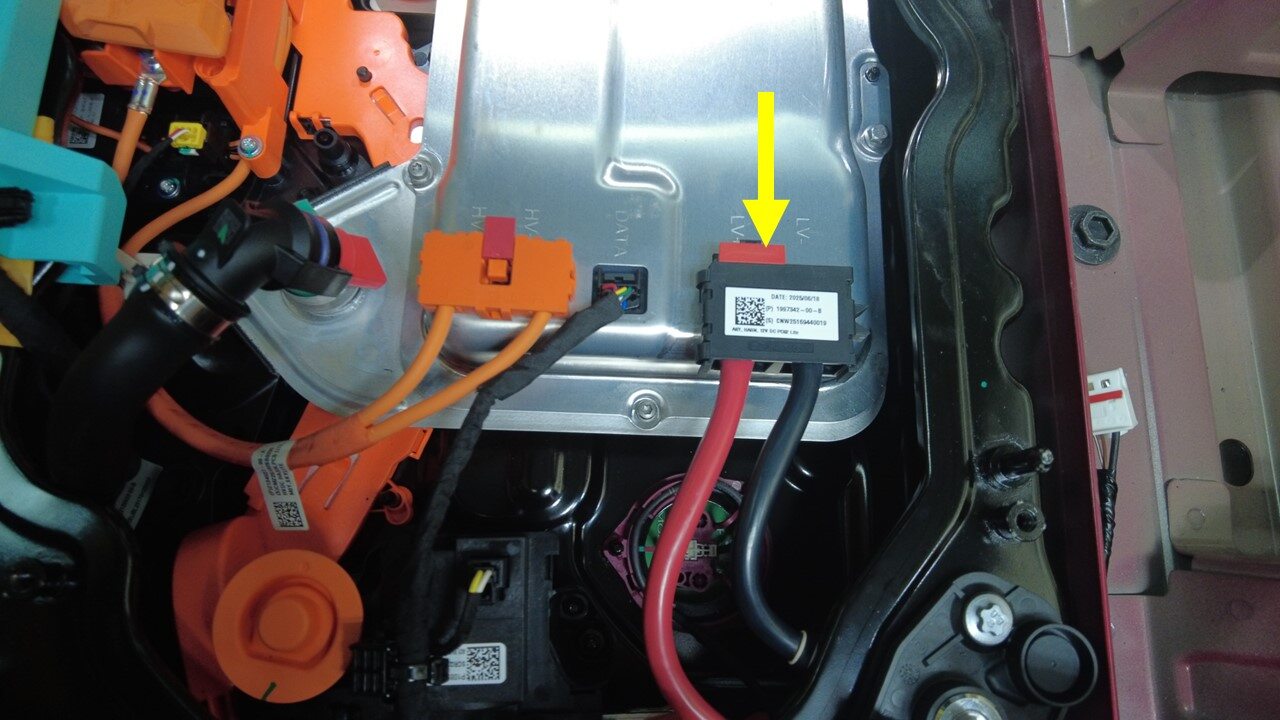

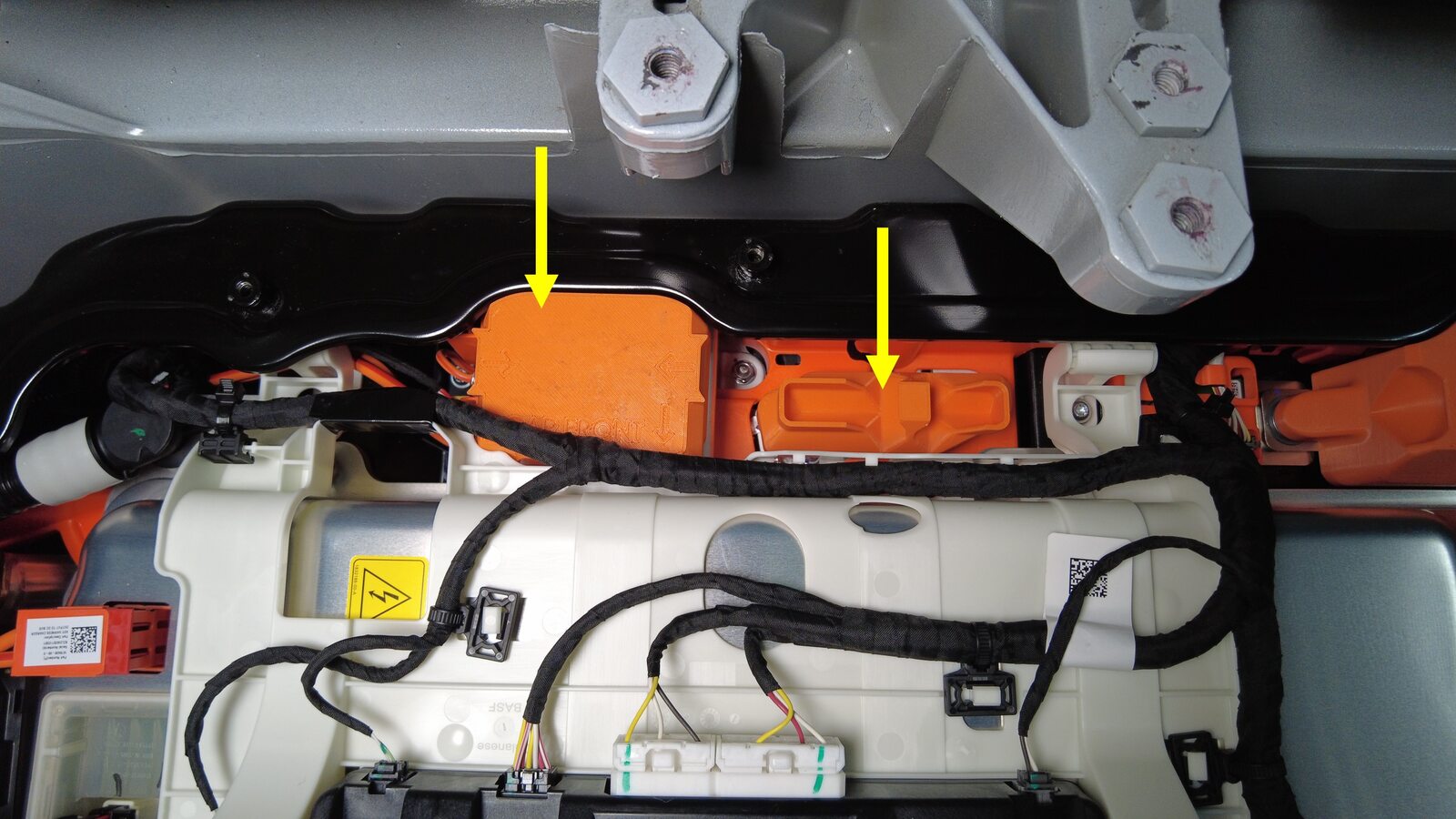

Release positive LV output cover from PCS2 lite cable

注

1x cover

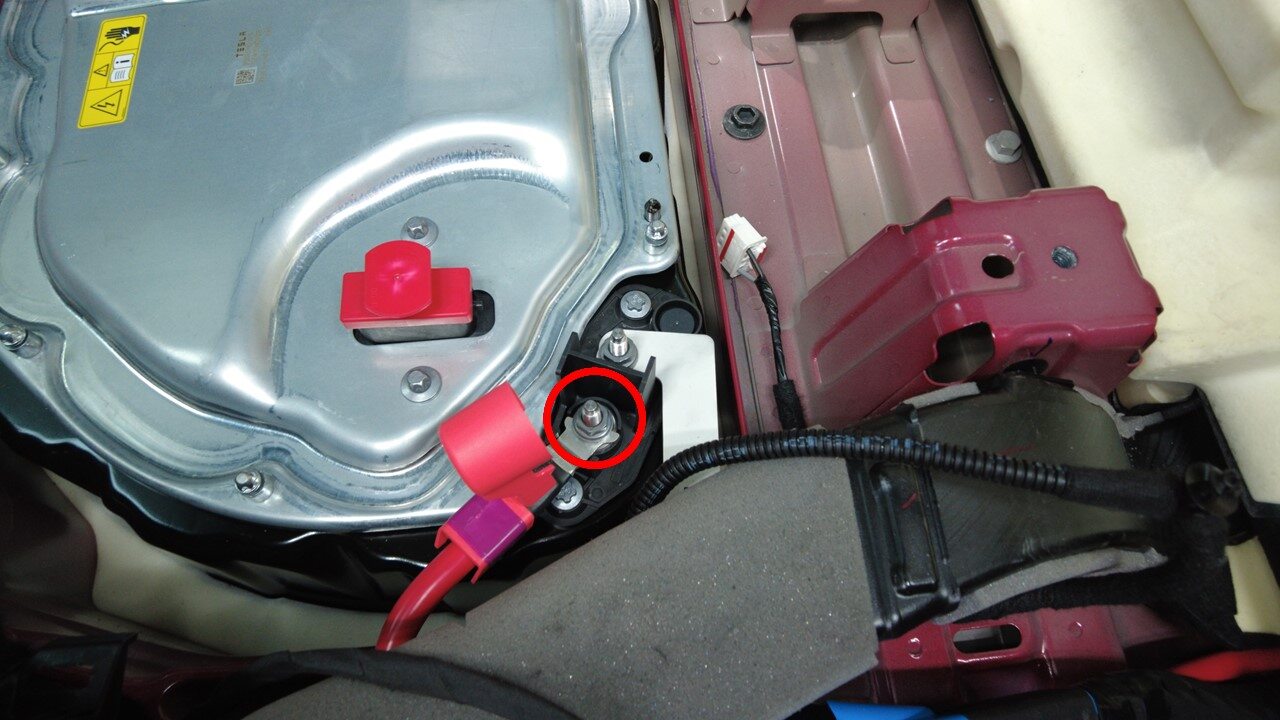

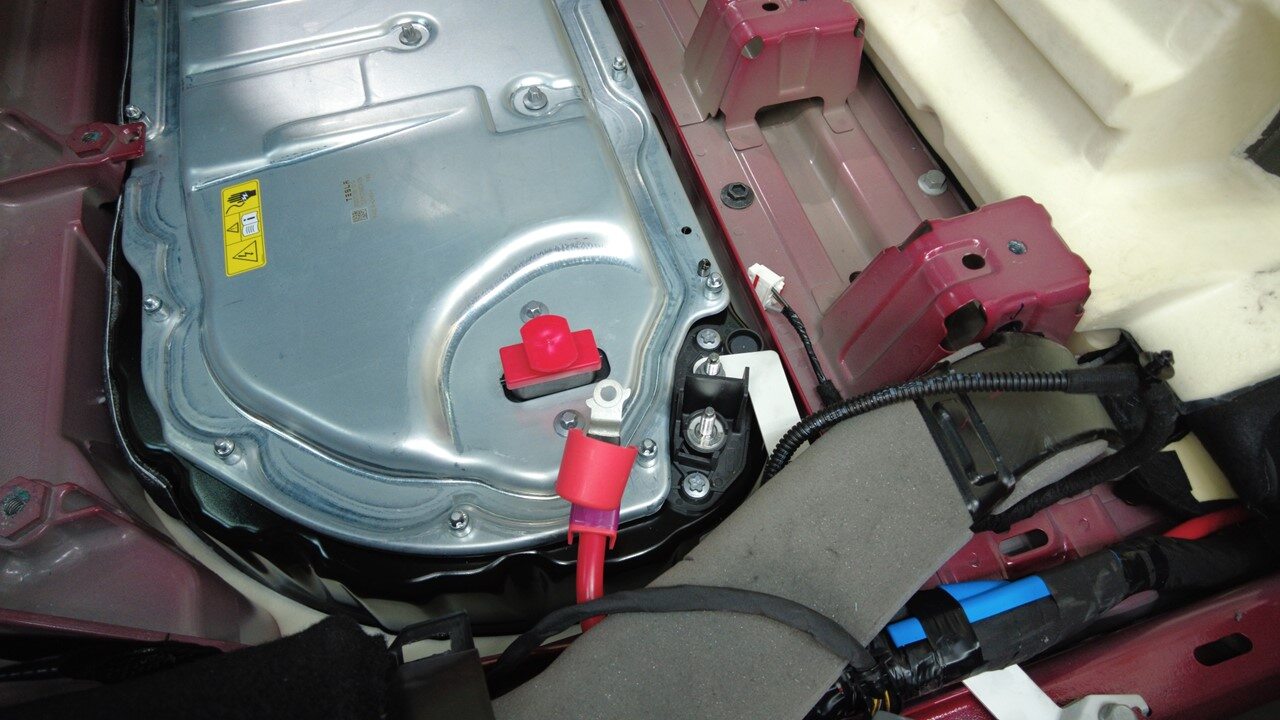

Remove PCS2 lite cable from LV passthrough output

注

1x nut, 13mm, 9 Nm, Discard nut after removal

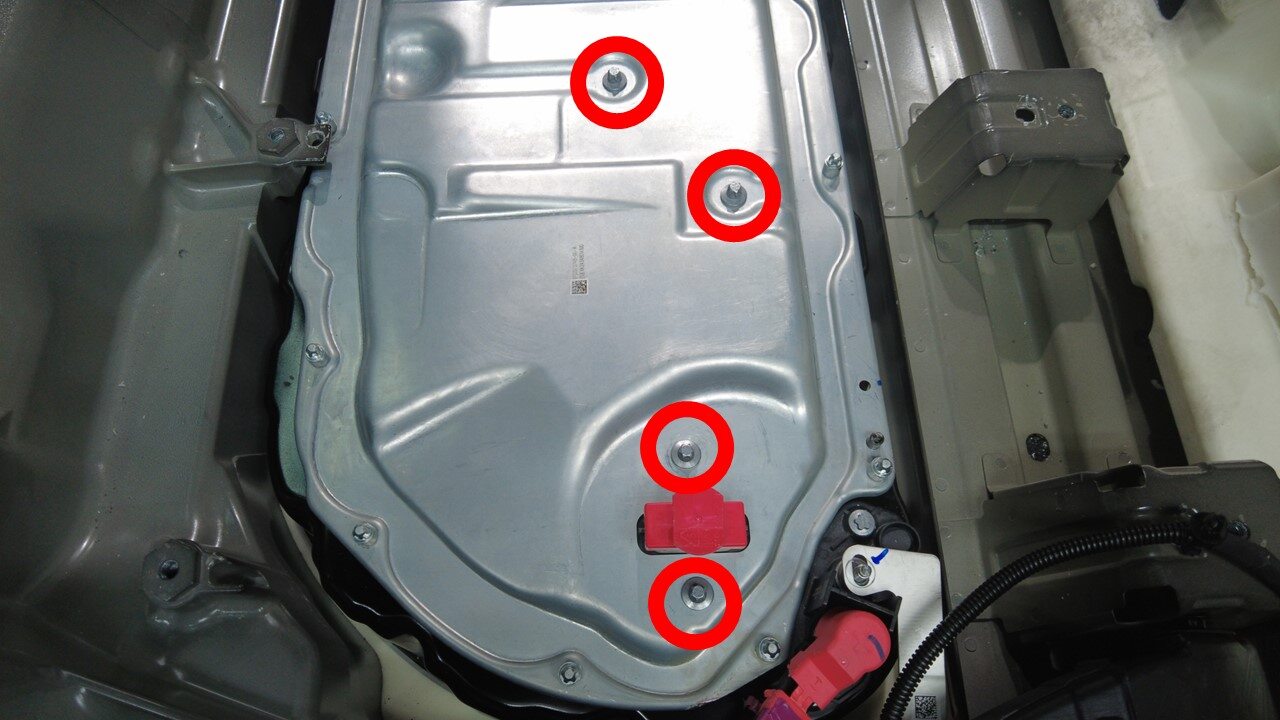

Remove bolts securing ancillary bay cover to HVC

注

4x bolts, E10, 5 Nm + 30 degrees

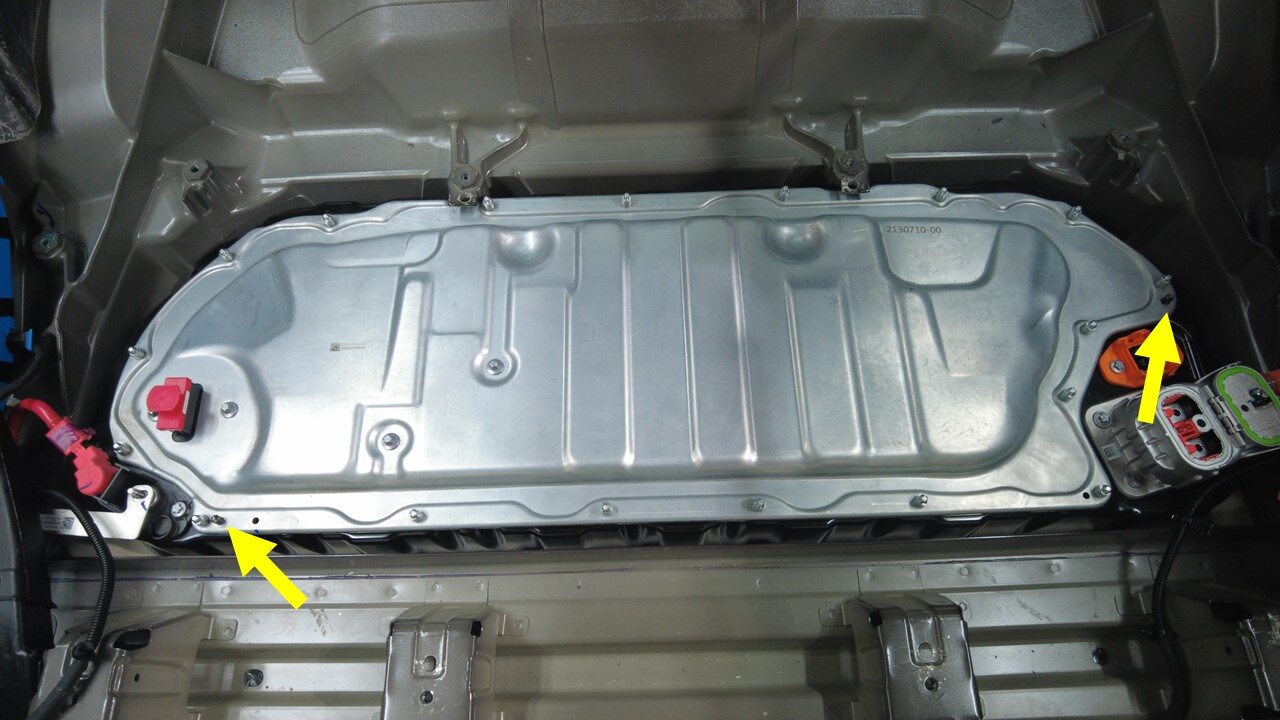

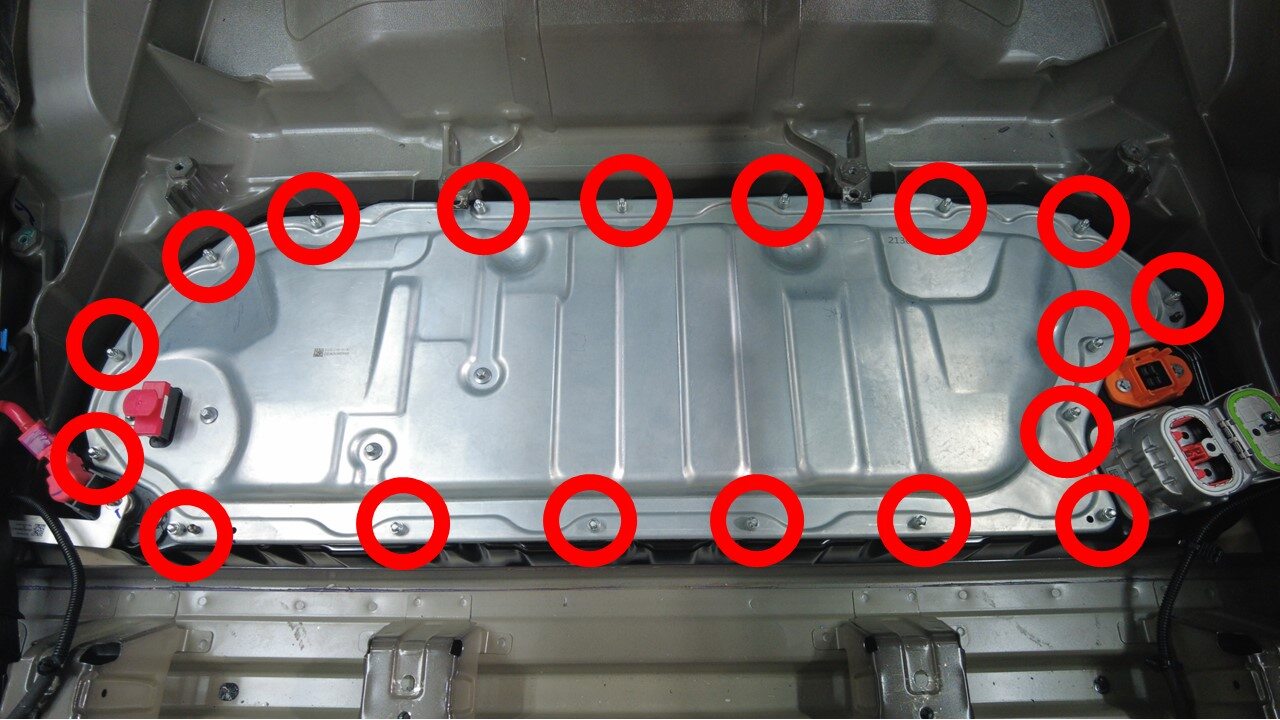

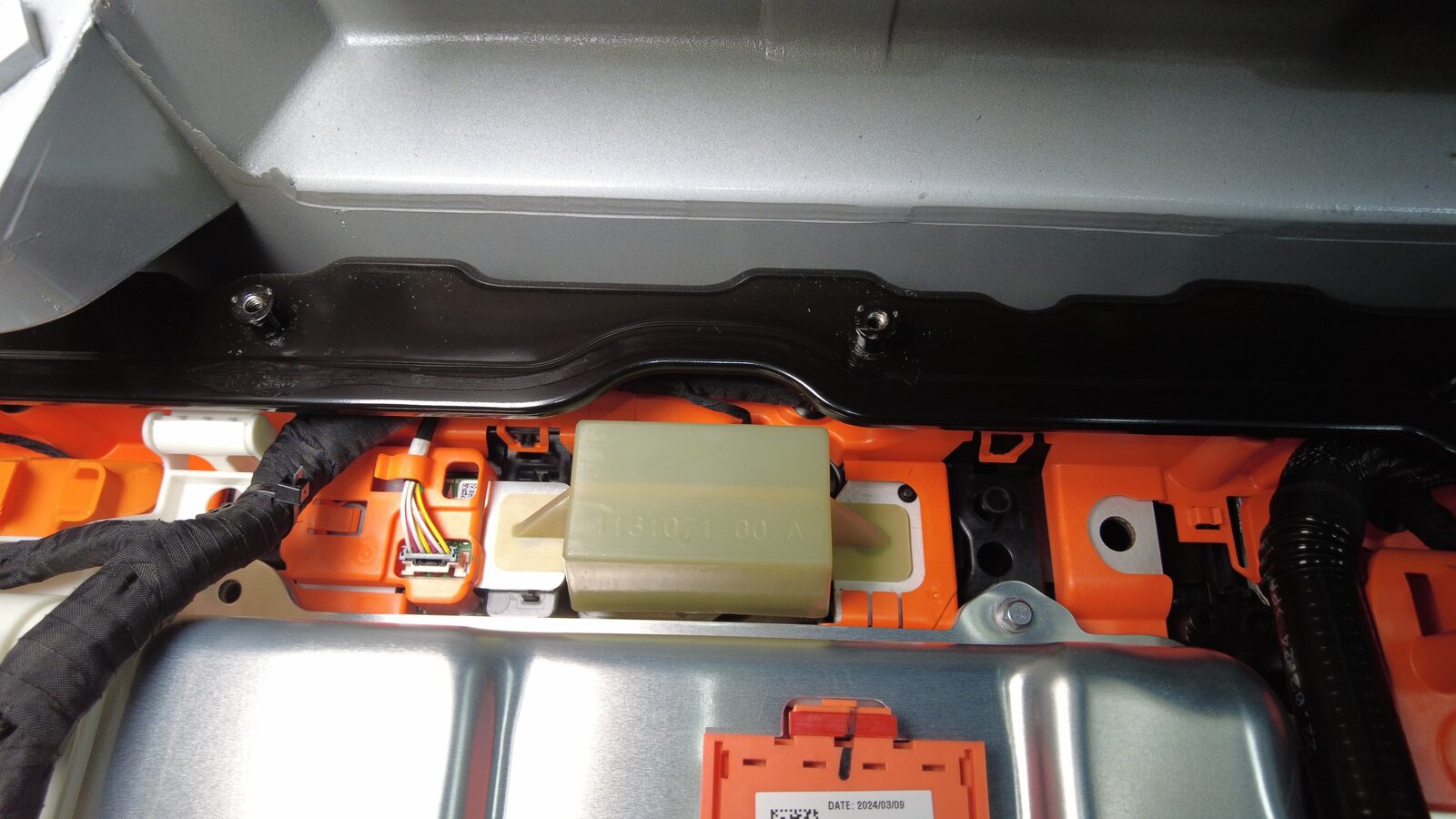

Remove bolts securing ancillary bay cover to HV battery

注

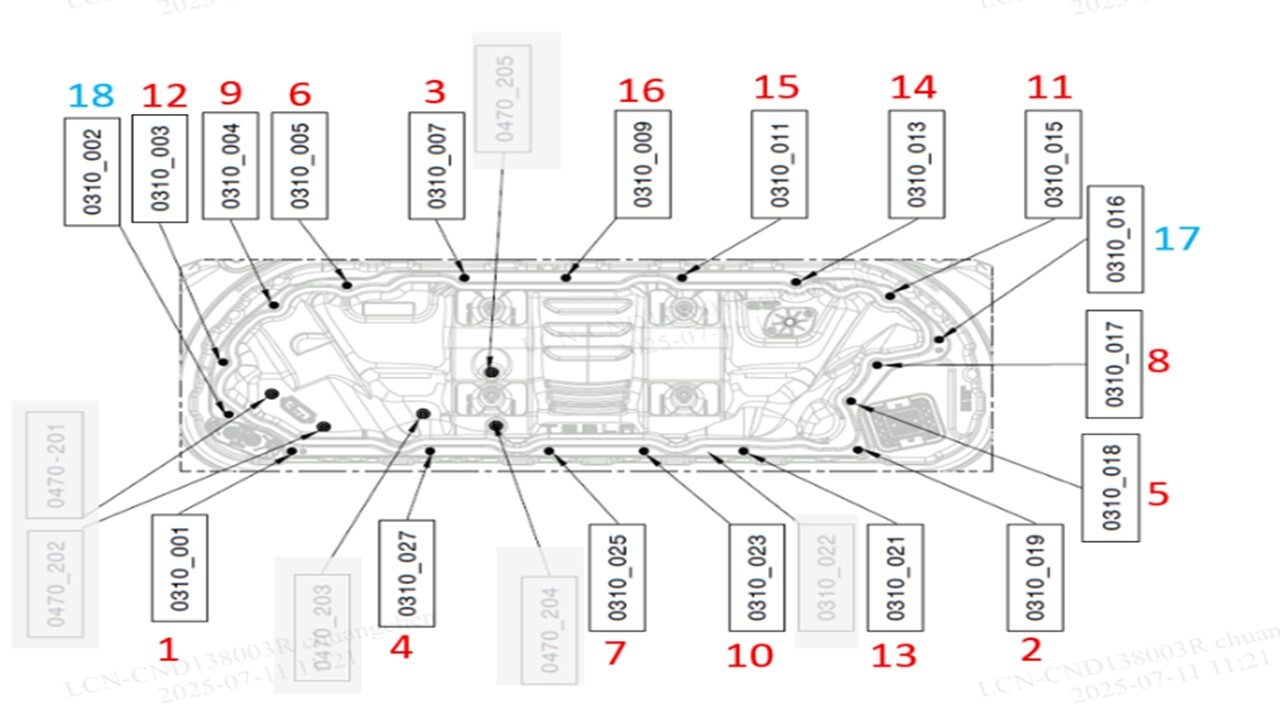

2x location pins, 18x bolts, EP10 5-Lobe, 10.5 Nm, Use EP10 5-Lobe socket, The fasteners are captive and will stay attached to the ancillary bay cover

Remove HVC logic cap

注

1x logic cap

Inspect HV insulating gloves

注

Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

Put on HV insulating gloves and leather over gloves

注

Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.

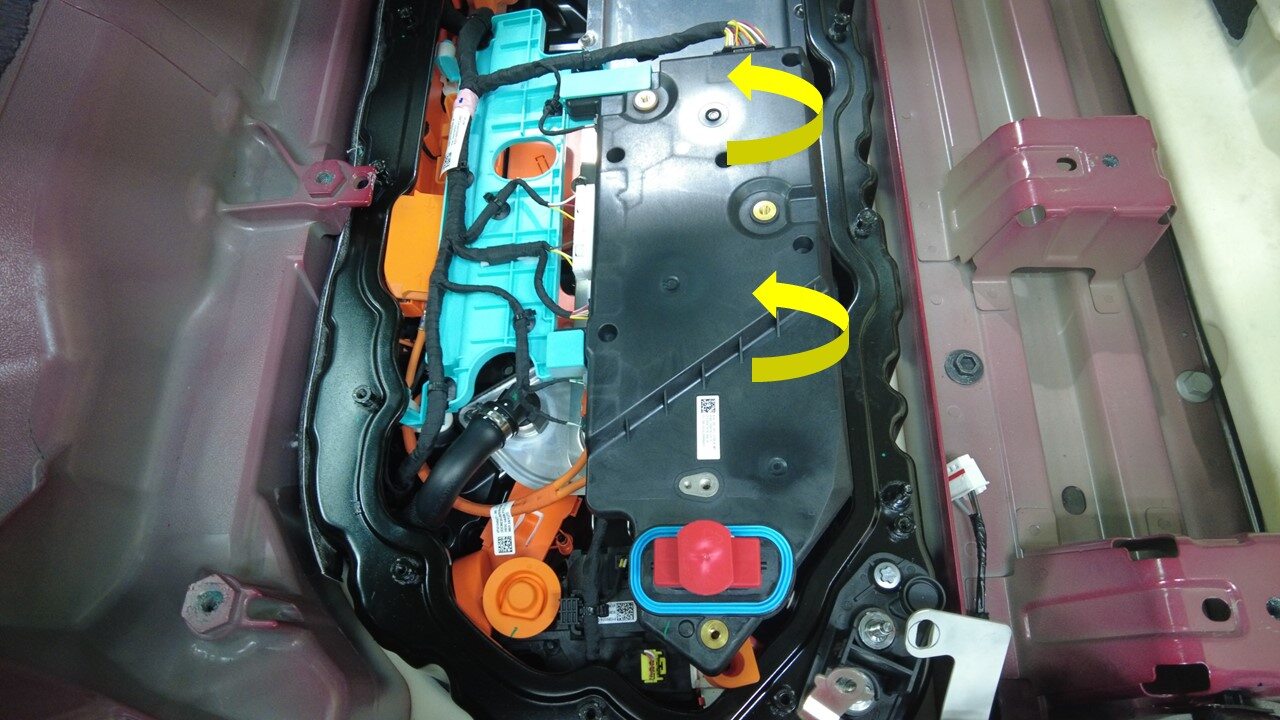

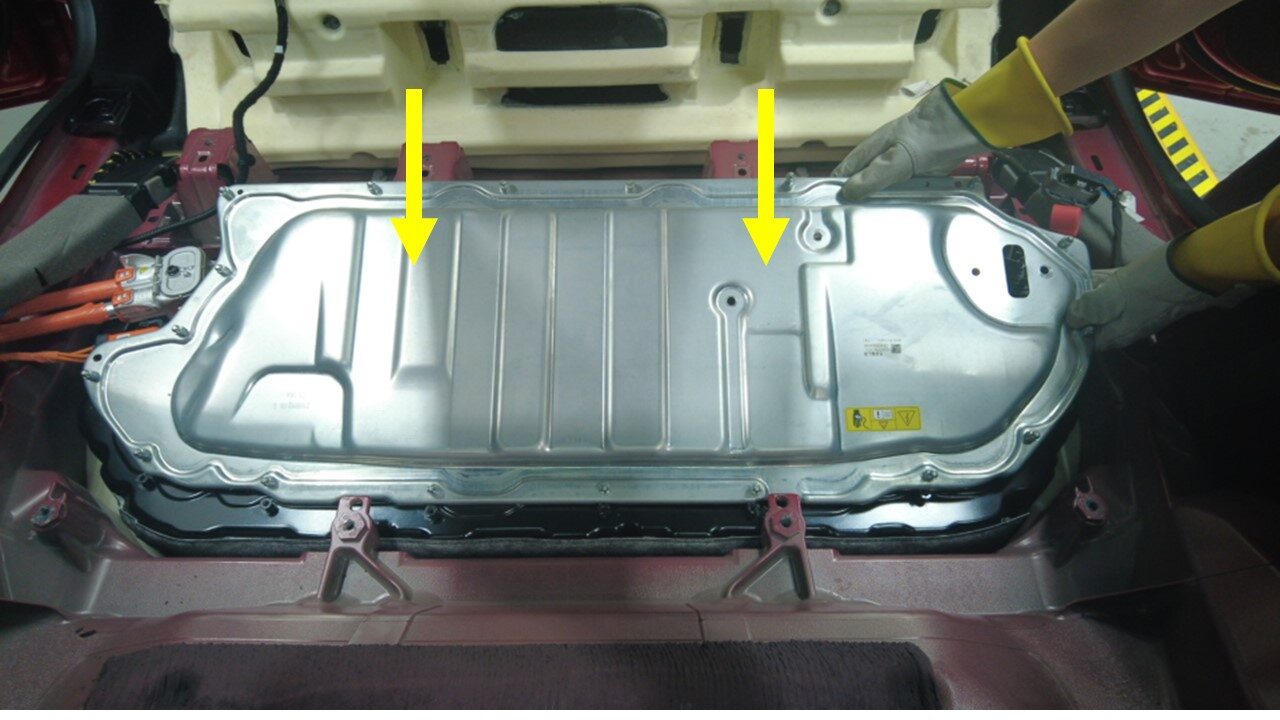

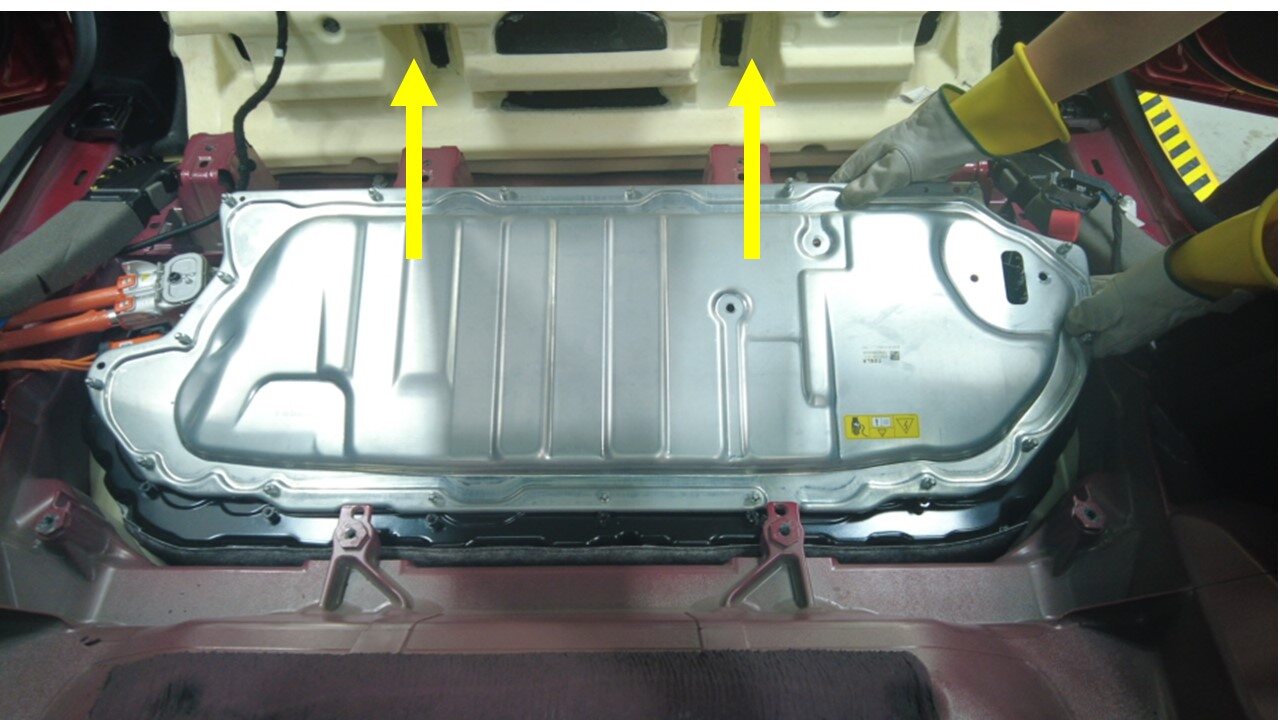

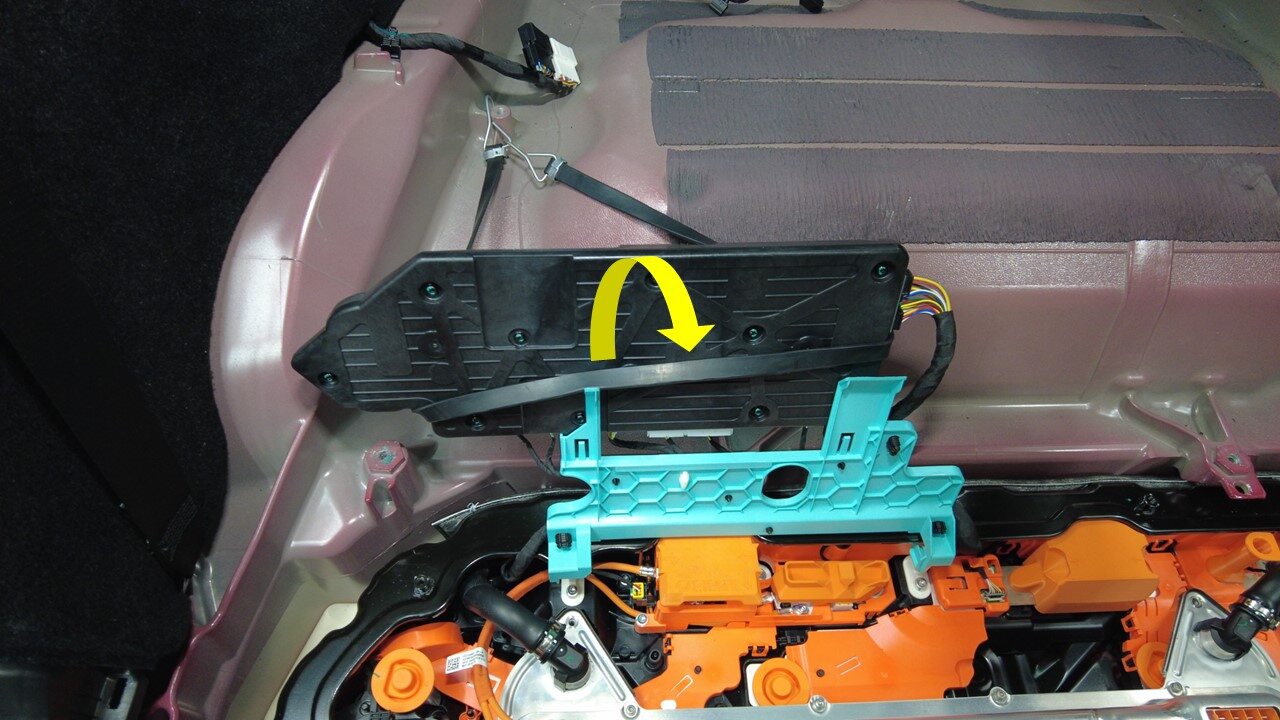

Remove ancillary bay cover from HV battery

注

Raise the front part of the ancillary bay cover and remove the slow ancillary bay cover forward

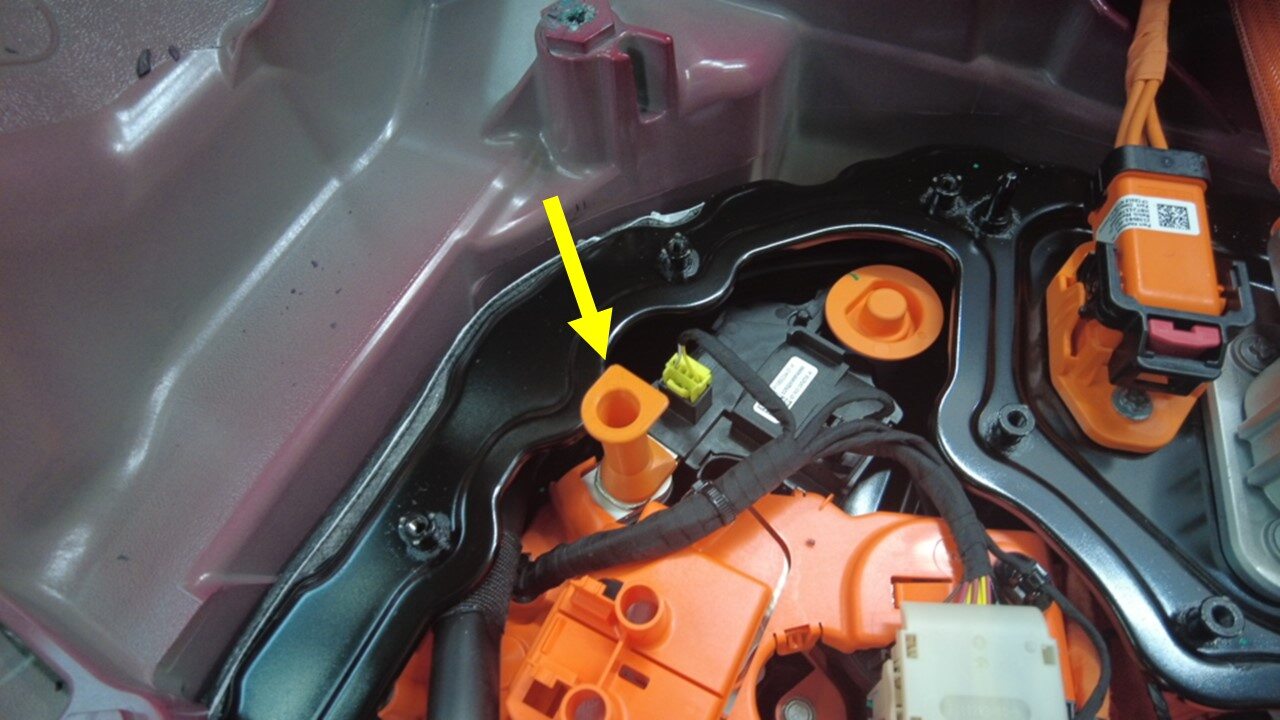

Install HVC logic cap

注

1x logic cap

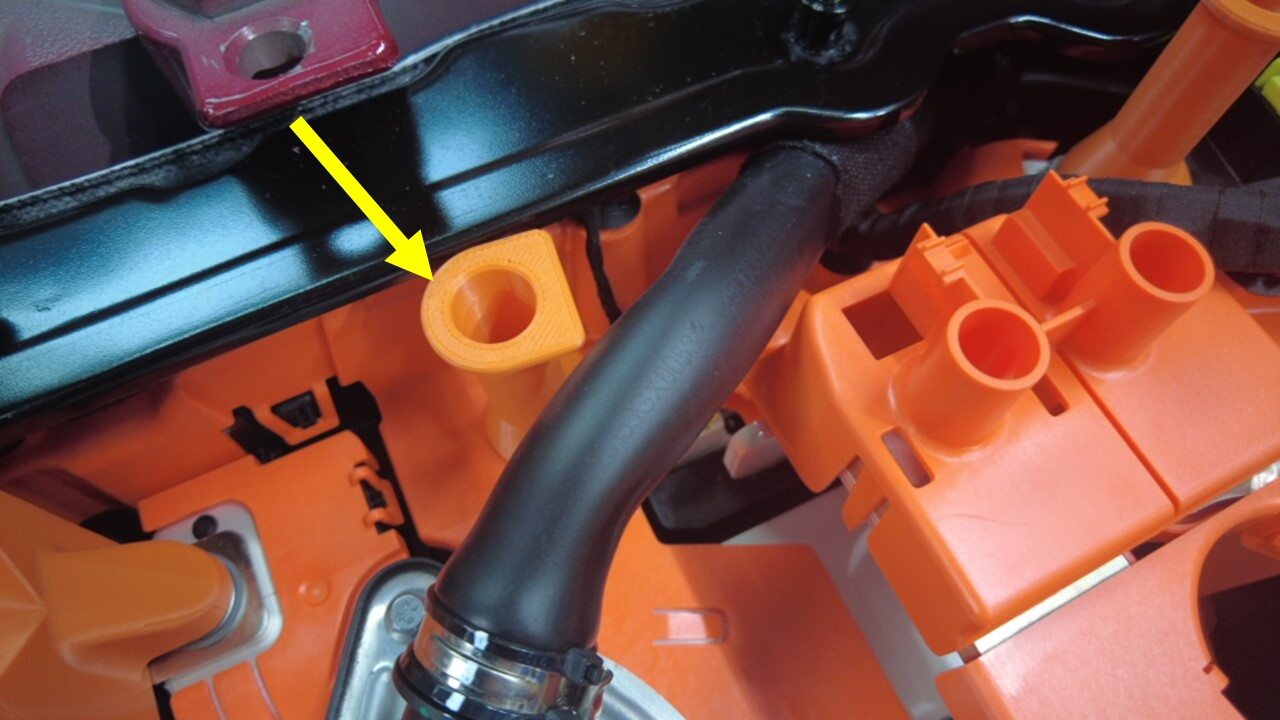

Inspect ancillary bay for any missing insulators

注

Install service insulator kit before continuing to next step

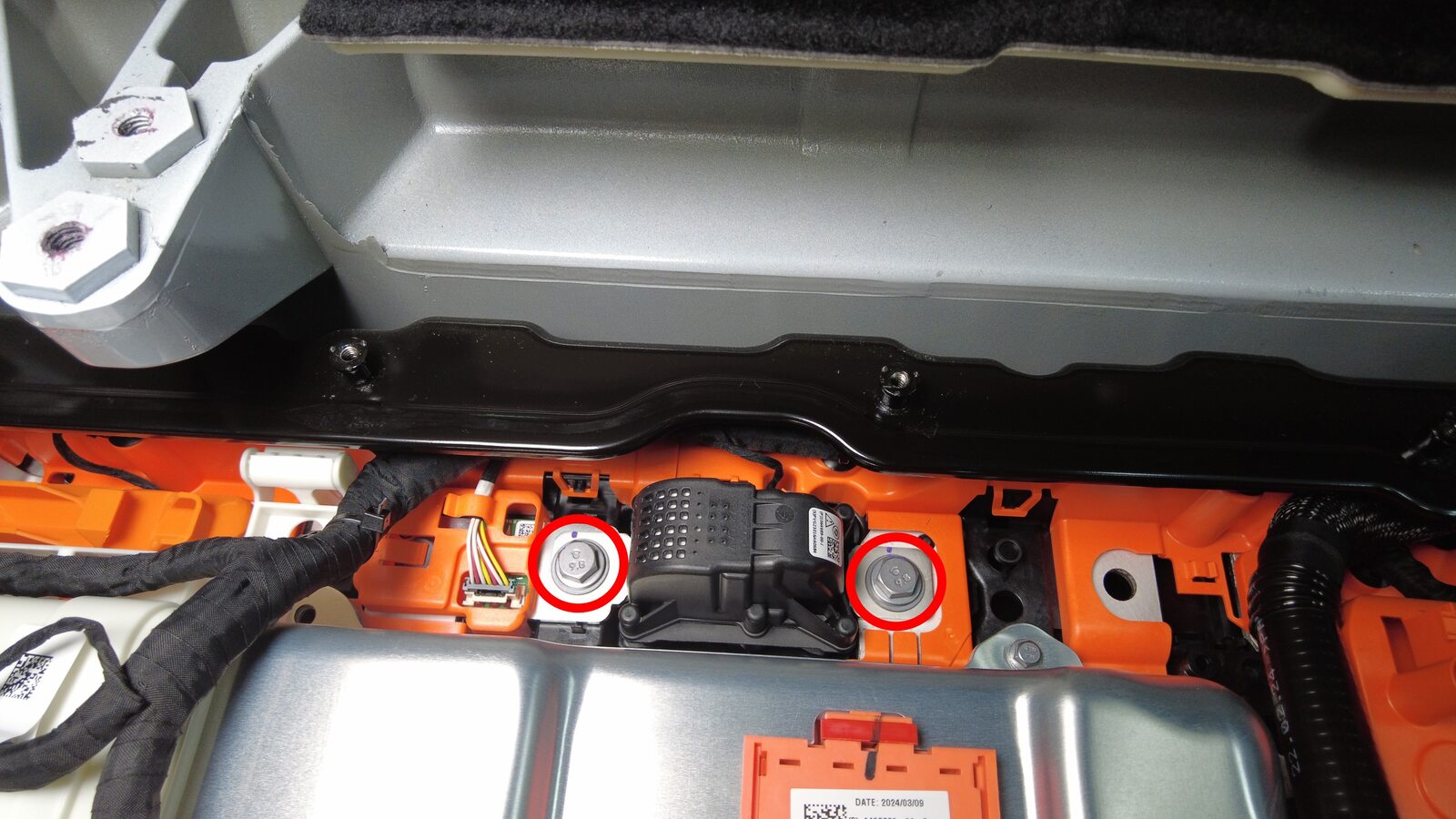

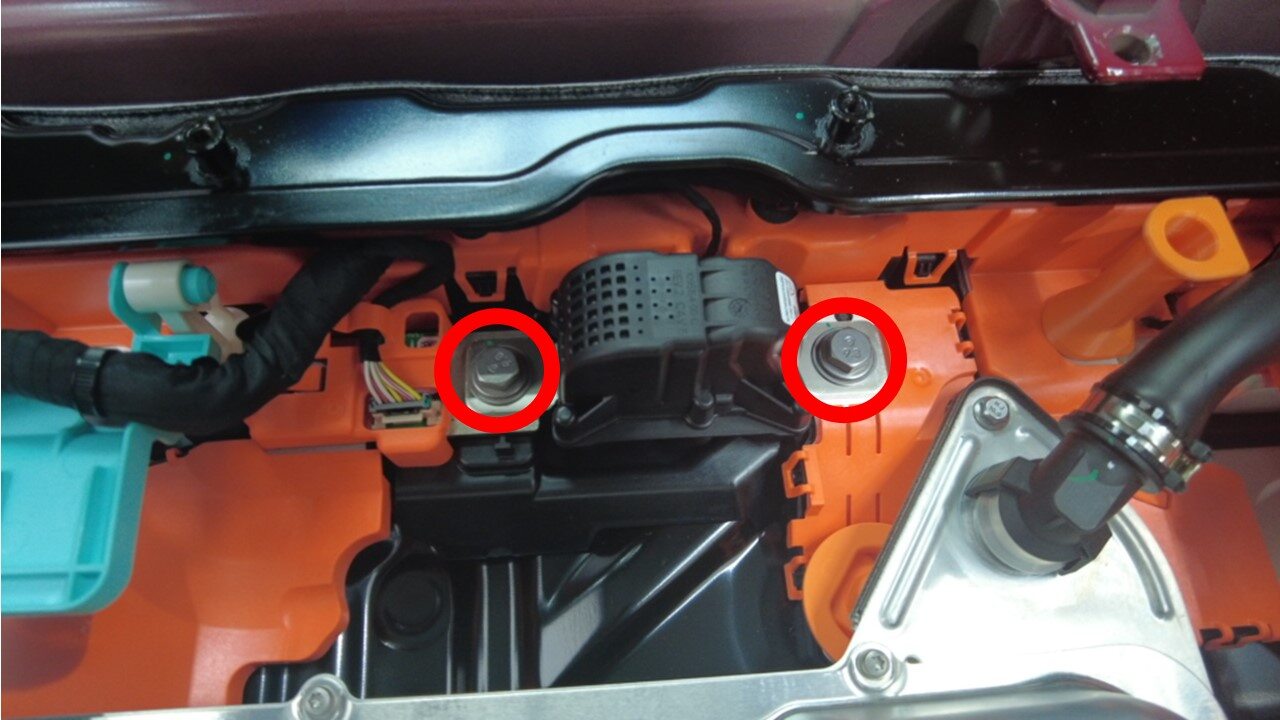

Remove bolts securing pyro disconnect to ancillary bay

注

1x insulator, 2x patch bolts, 13mm, 9 Nm, Discard after removal

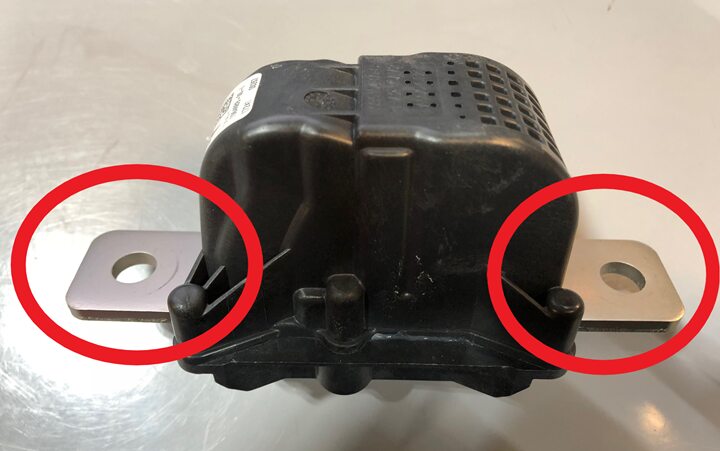

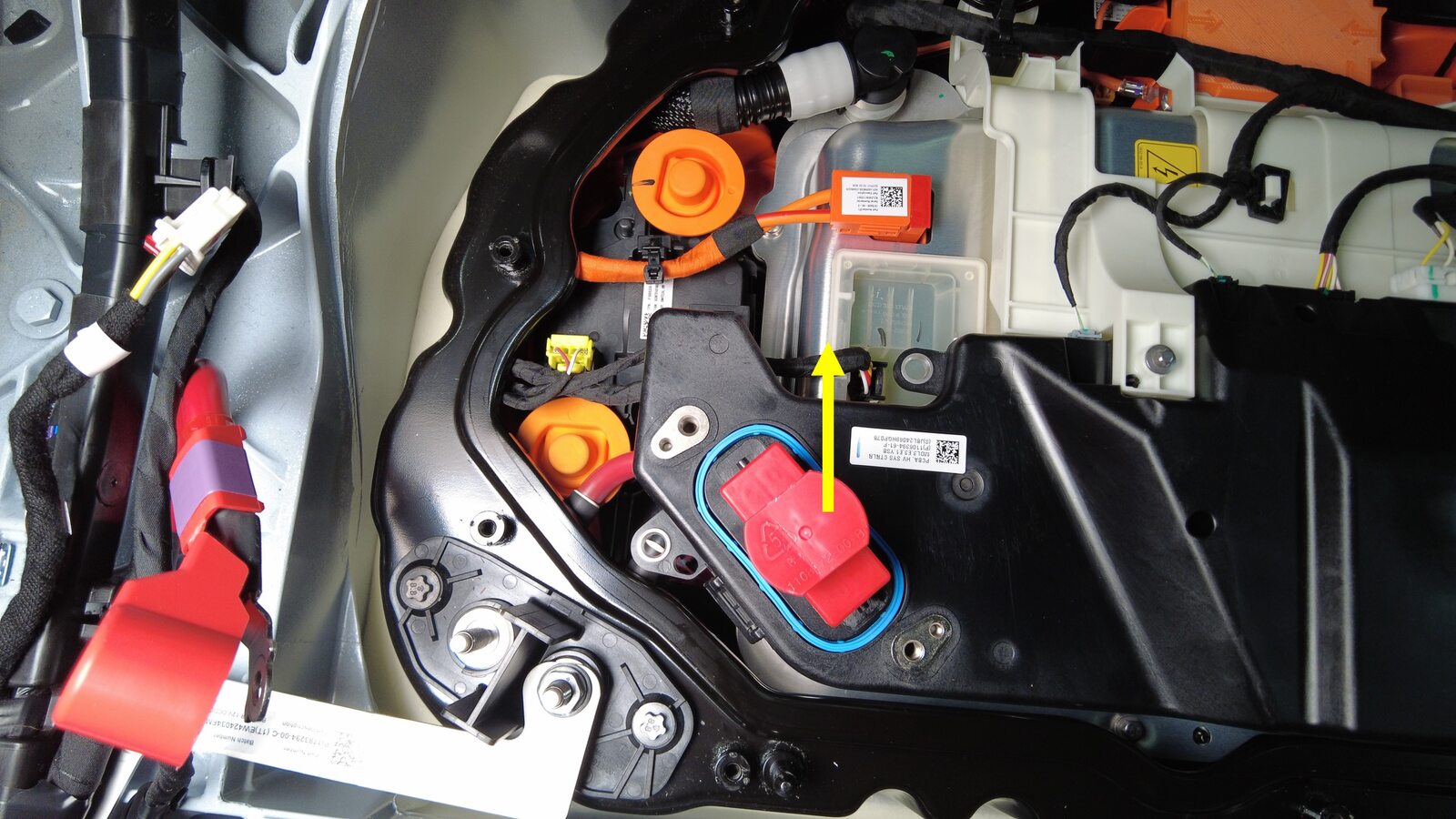

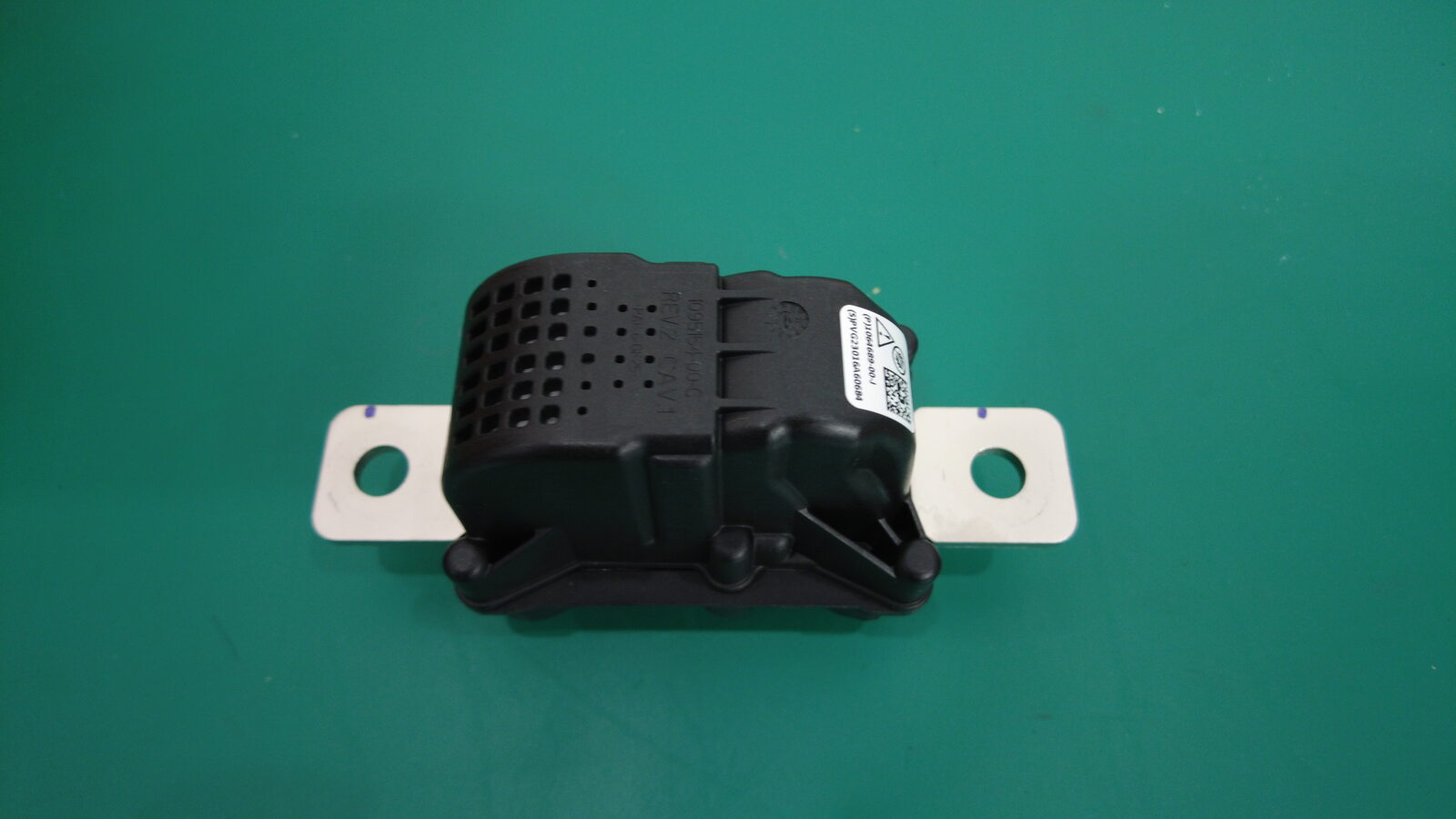

Remove pyro disconnect from ancillary bay

注

1x connector, From the bottom, Lift pyro disconnect straight up and out of the ancillary bay

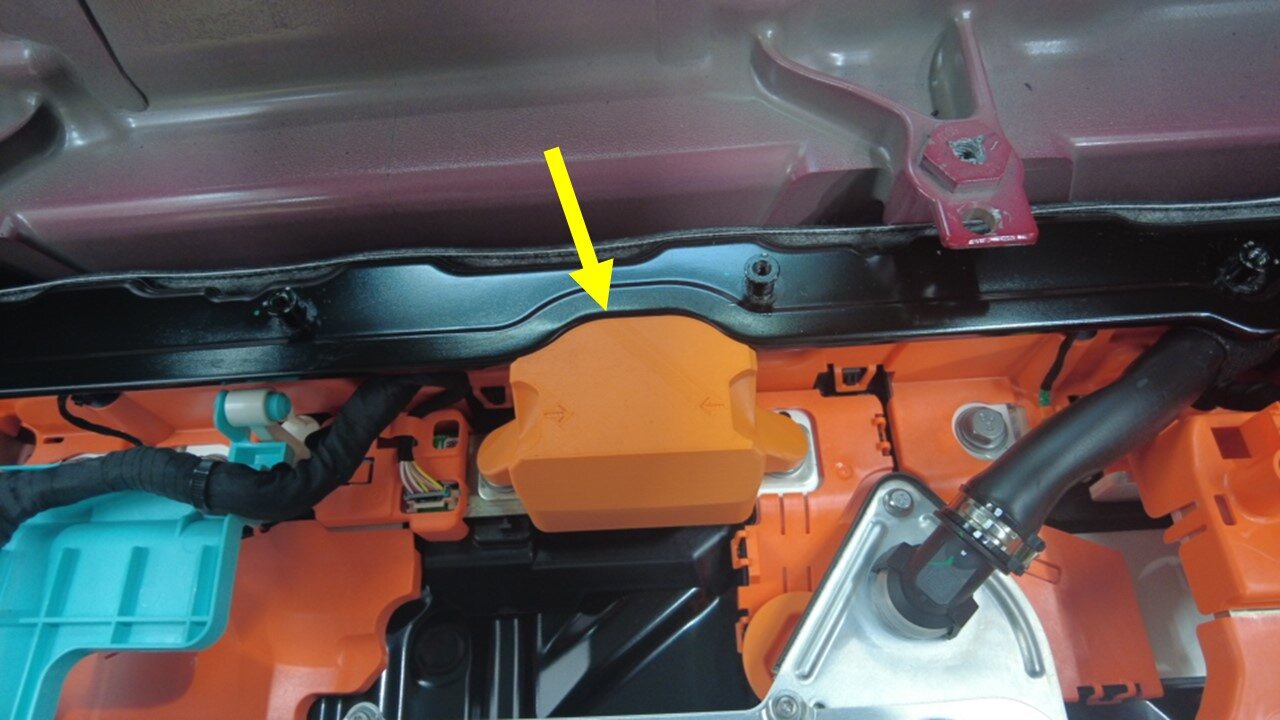

Install pyro disconnect dummy

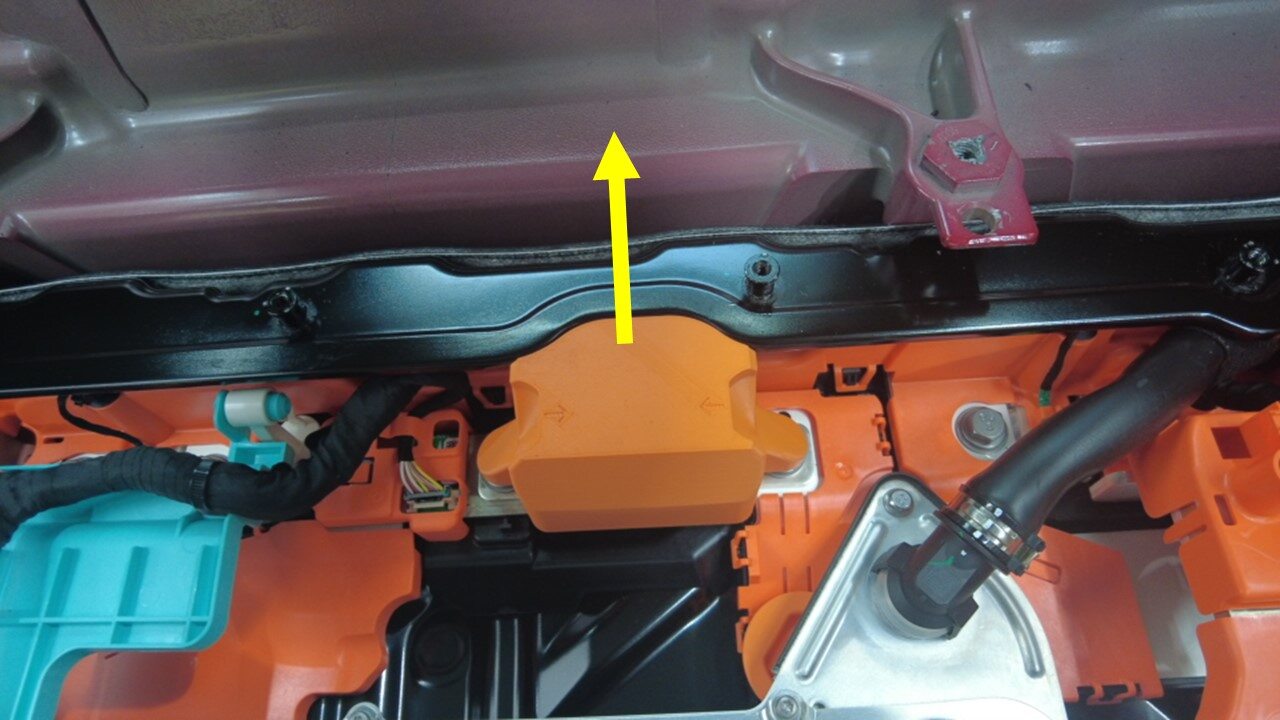

Use rubber bands to secure HVC to vehicle body

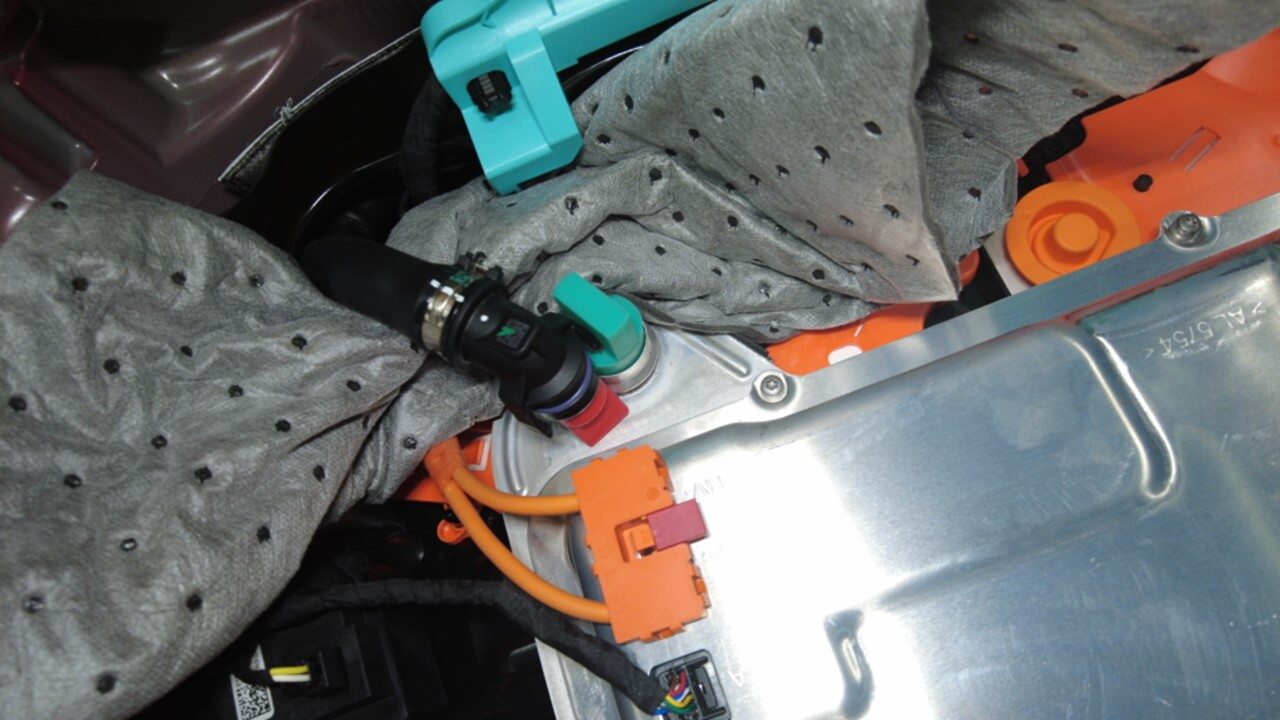

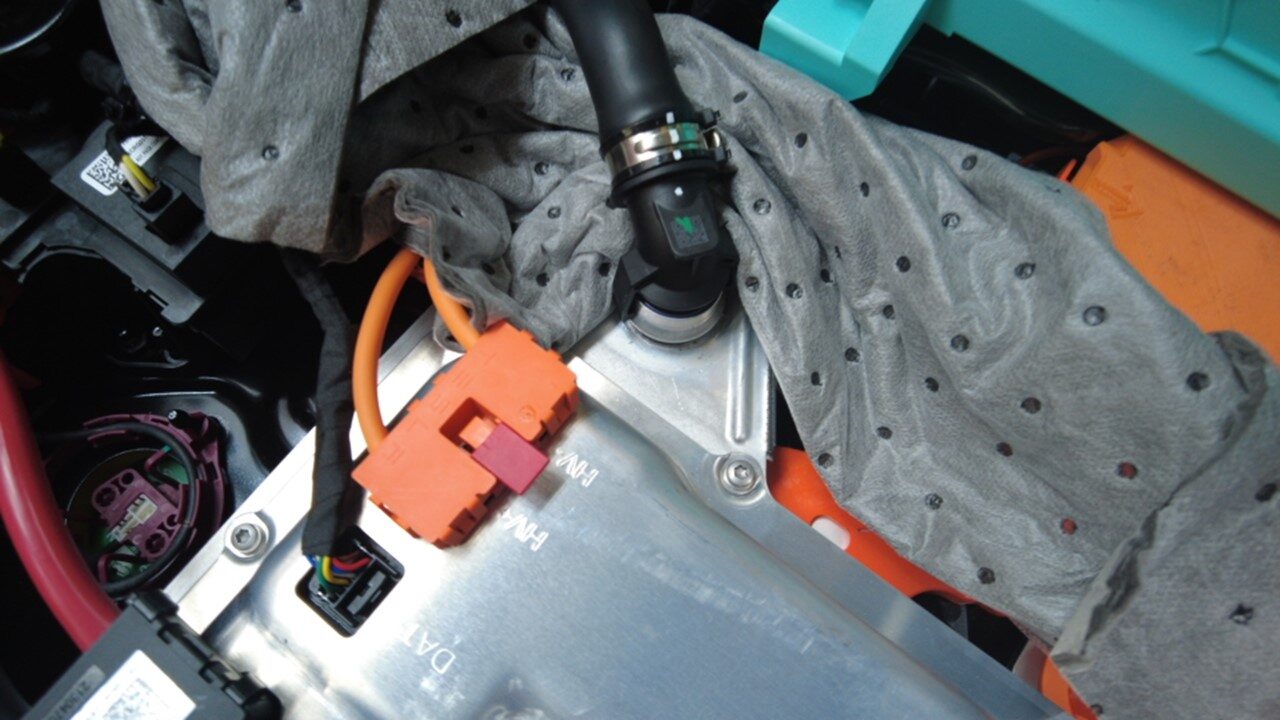

Position absorbent sheets below and around PCS2 lite coolant inlet hose to avoid excess coolant dripping

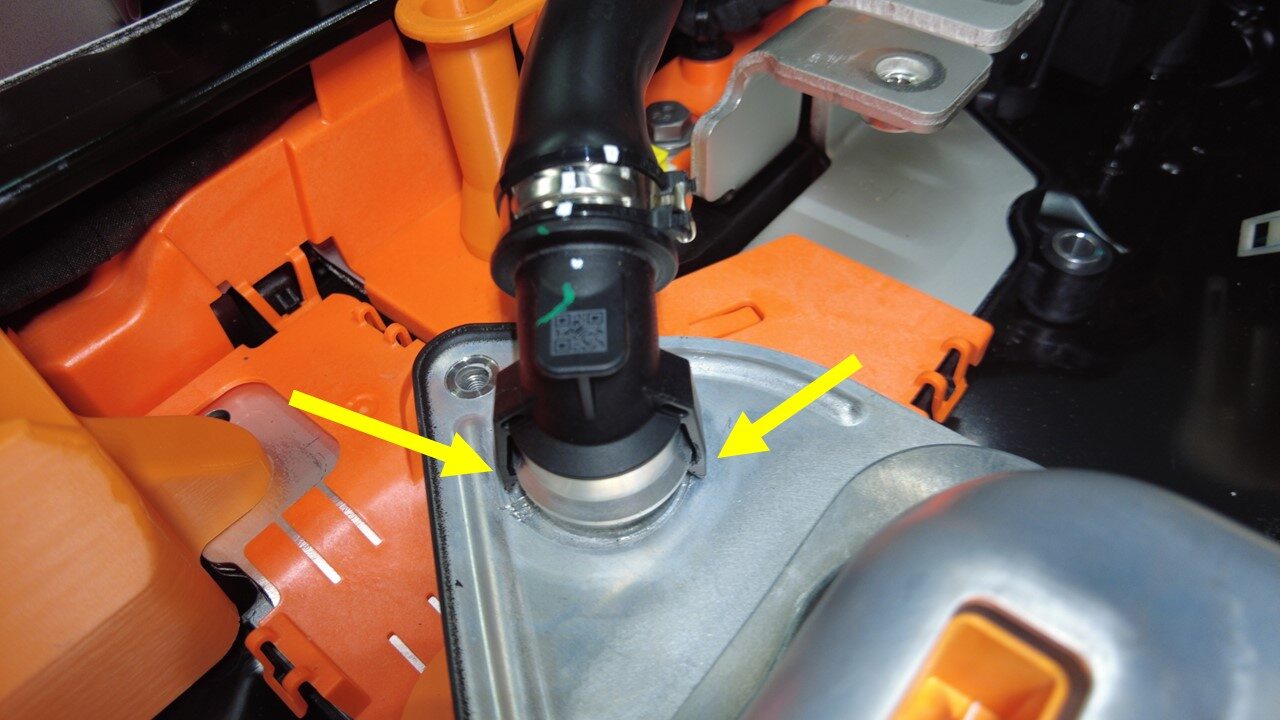

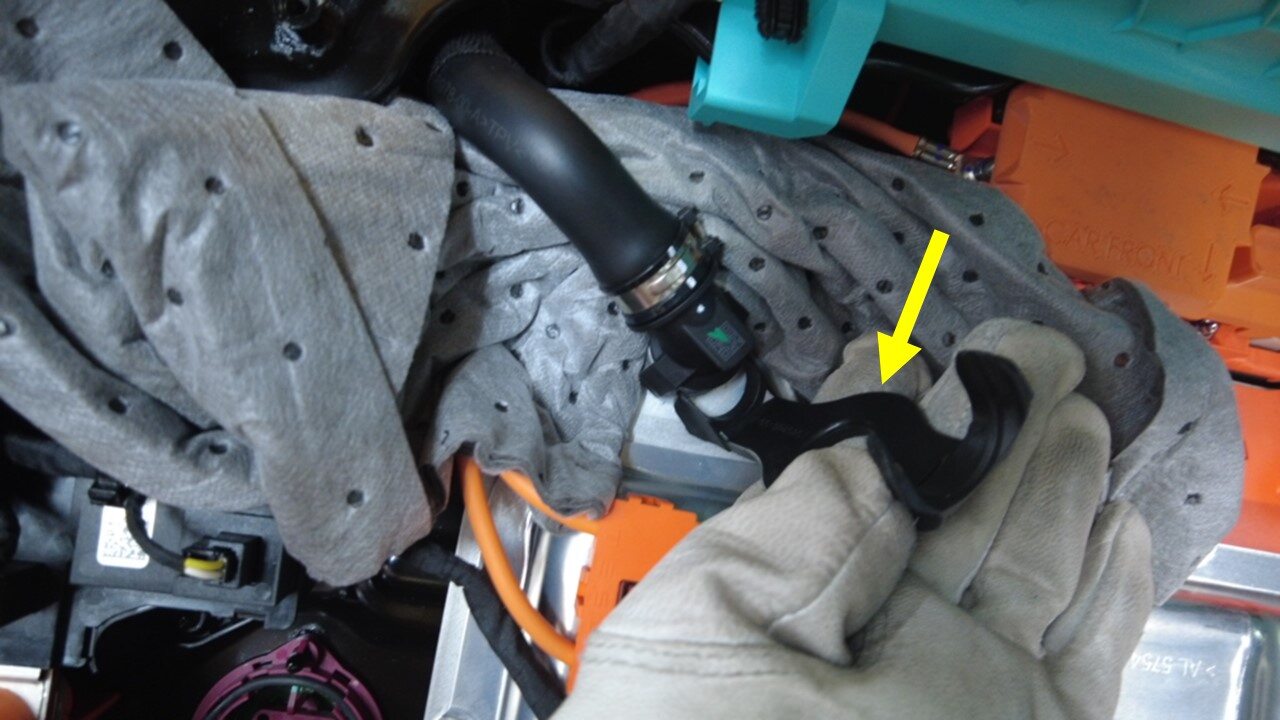

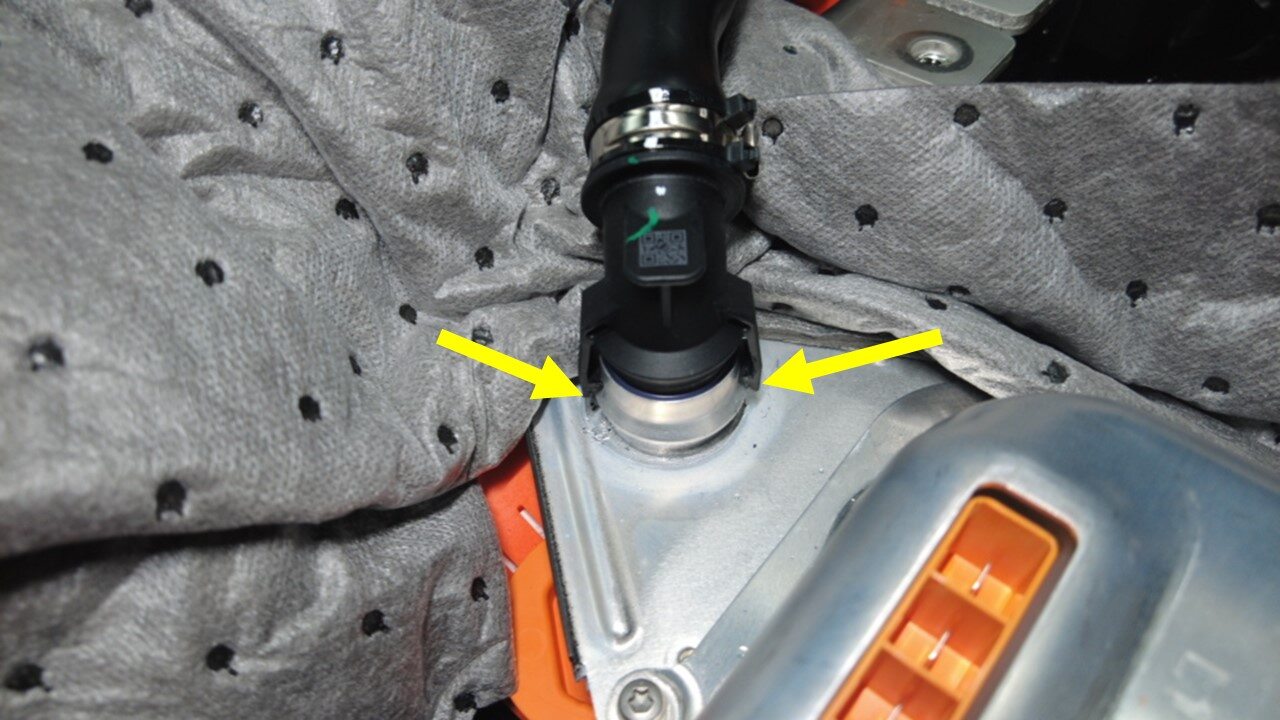

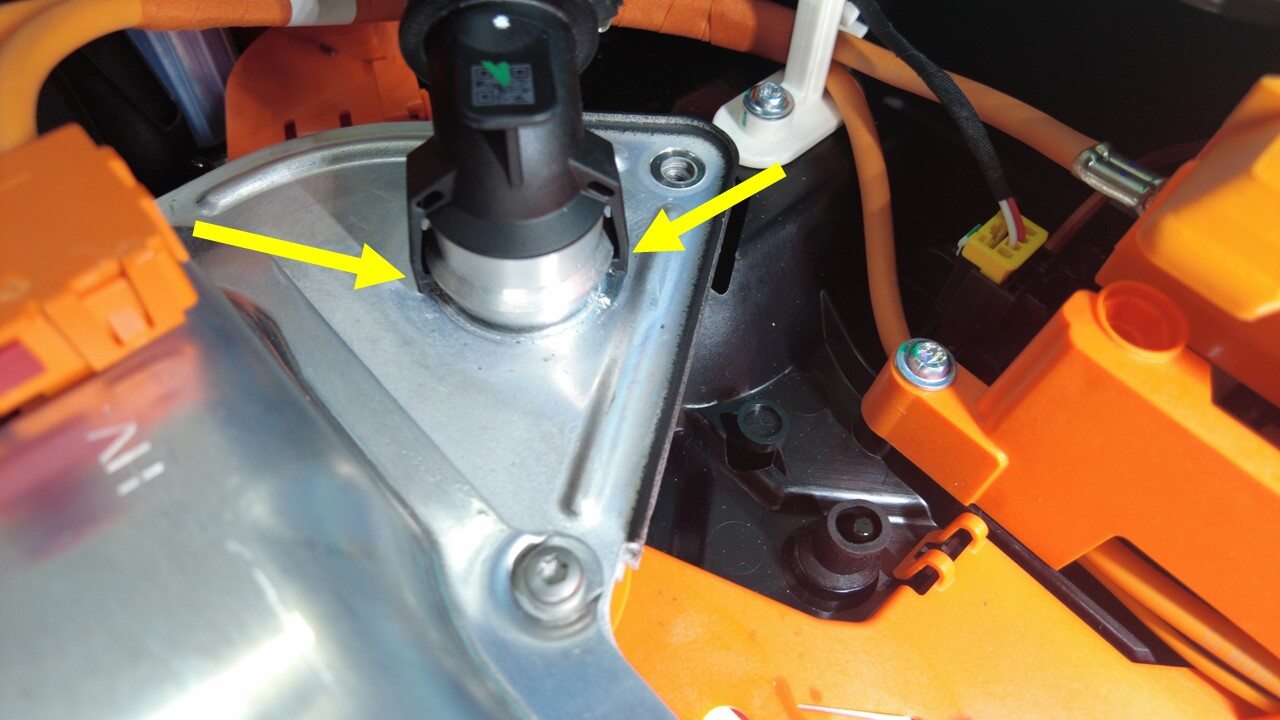

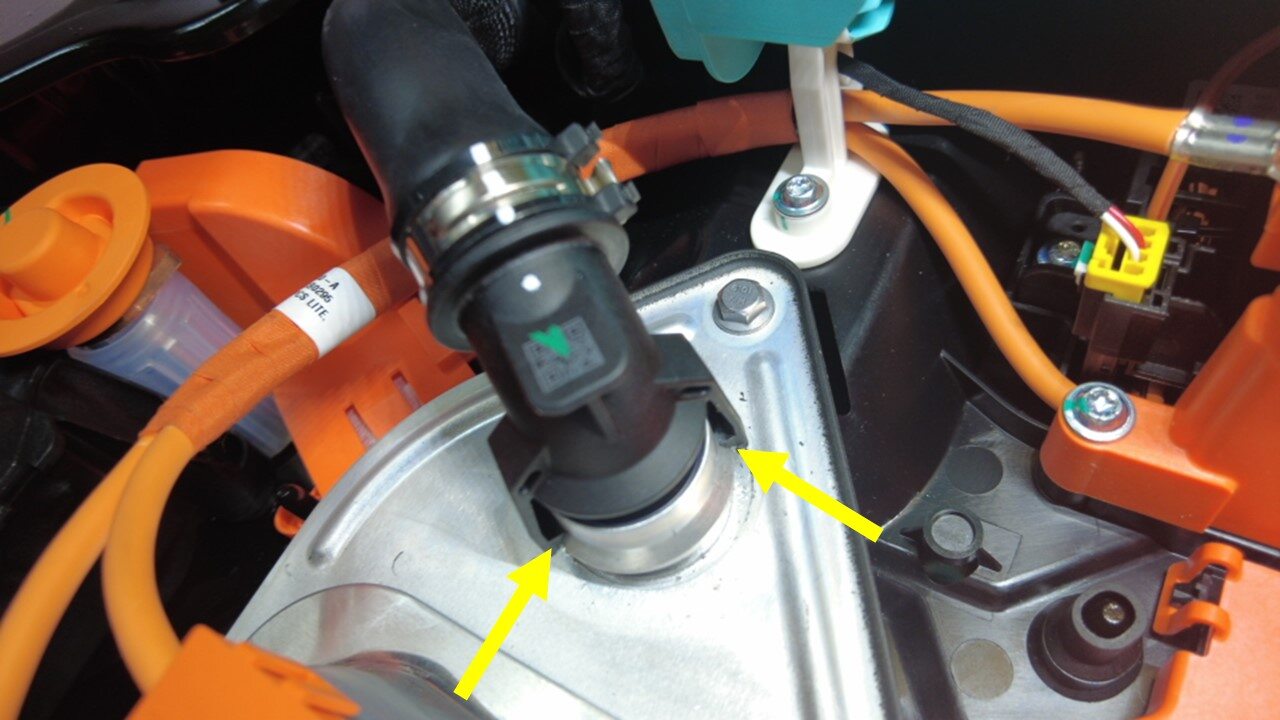

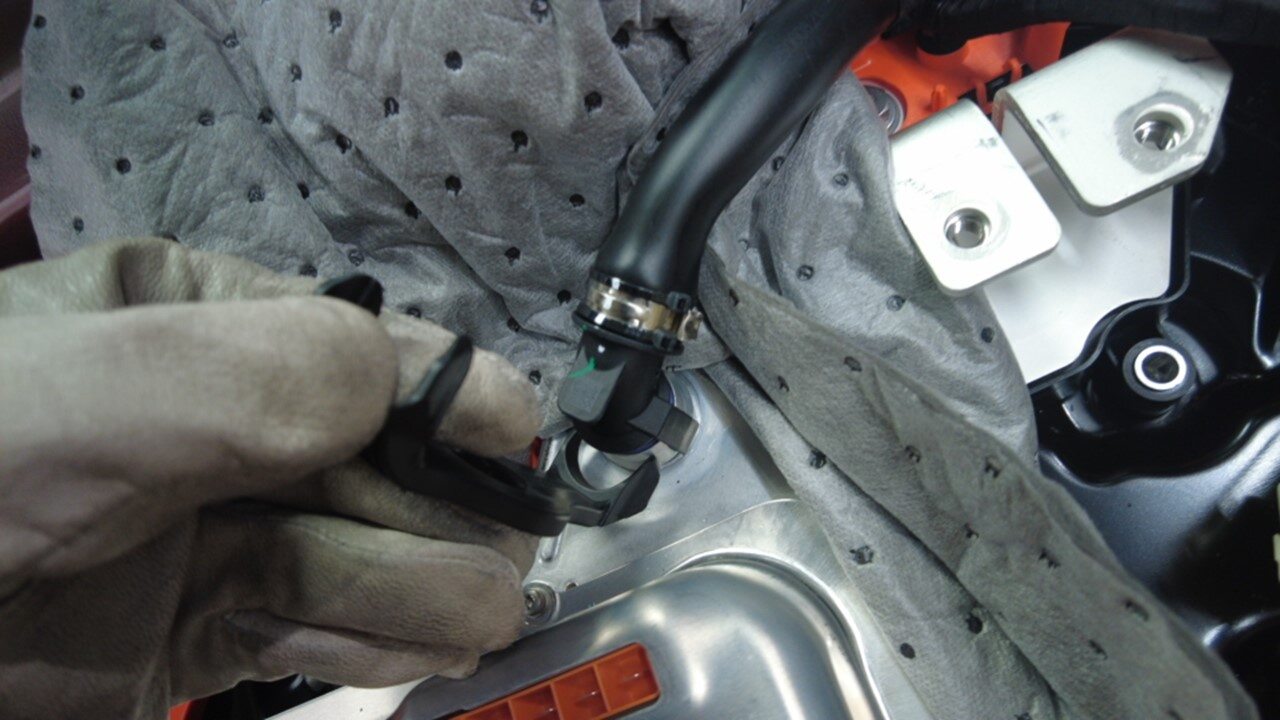

Disconnect PCS2 lite coolant inlet hose from PCS2 lite

注

2x clips, 2x plugs, Use the special tool to release clips, Place absorbent sheet under hose to catch excess coolant, Visually inspect area for any coolant residue, Clean with shop towel if necessary, Install plugs to PCS2 lite and hose, Discard O-ring

Disconnect PCS2 lite coolant outlet hose from PCS2 lite

注

2x clips, 2x plugs, Use the special tool to release clips, Place absorbent sheet under hose to catch excess coolant, Visually inspect area for any coolant residue, Clean with shop towel if necessary, Install plugs to PCS2 lite and hose, Discard O-ring

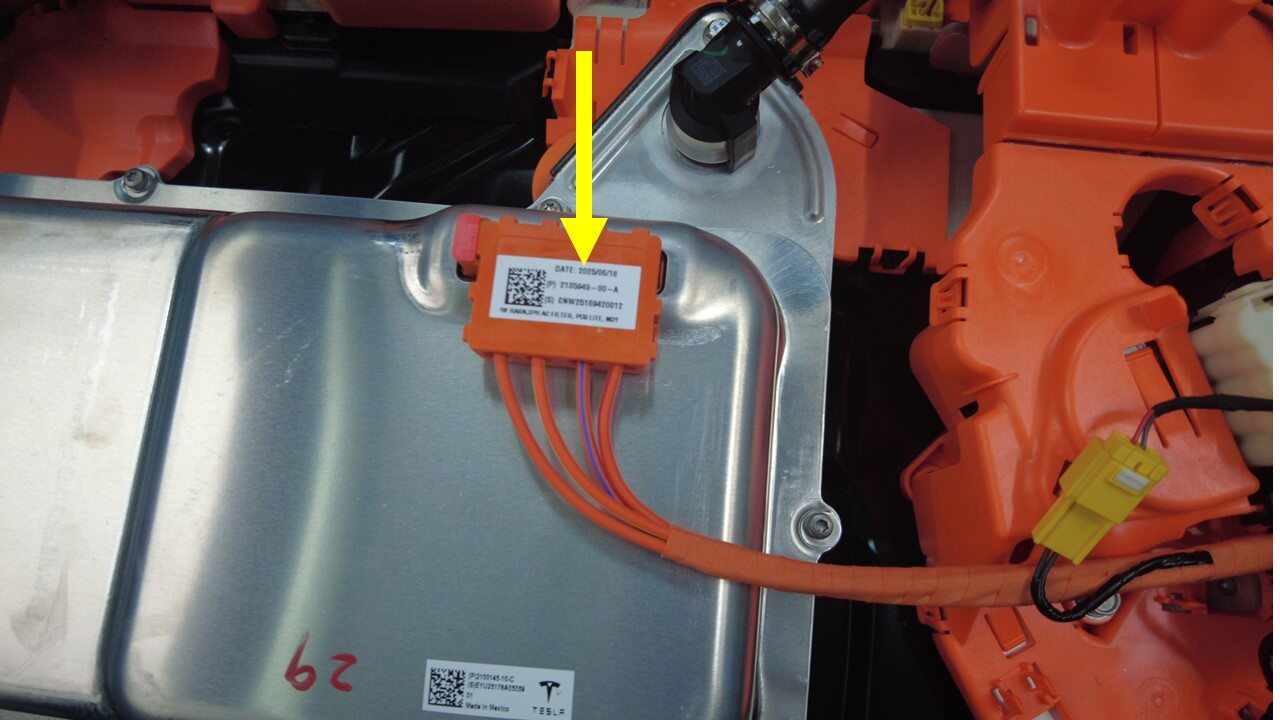

Disconnect AC filter harness connector from PCS2 Lite

注

1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward

Disconnect PCS2 lite HV DC harness HV connector

注

1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward

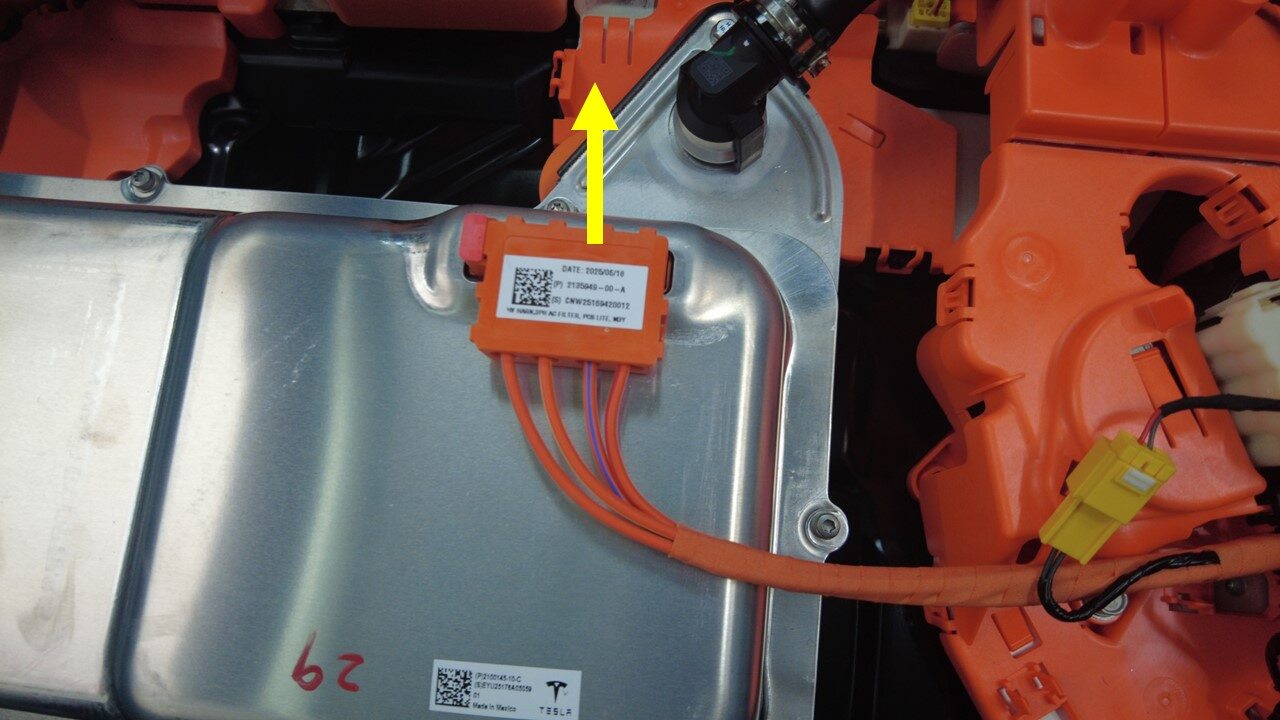

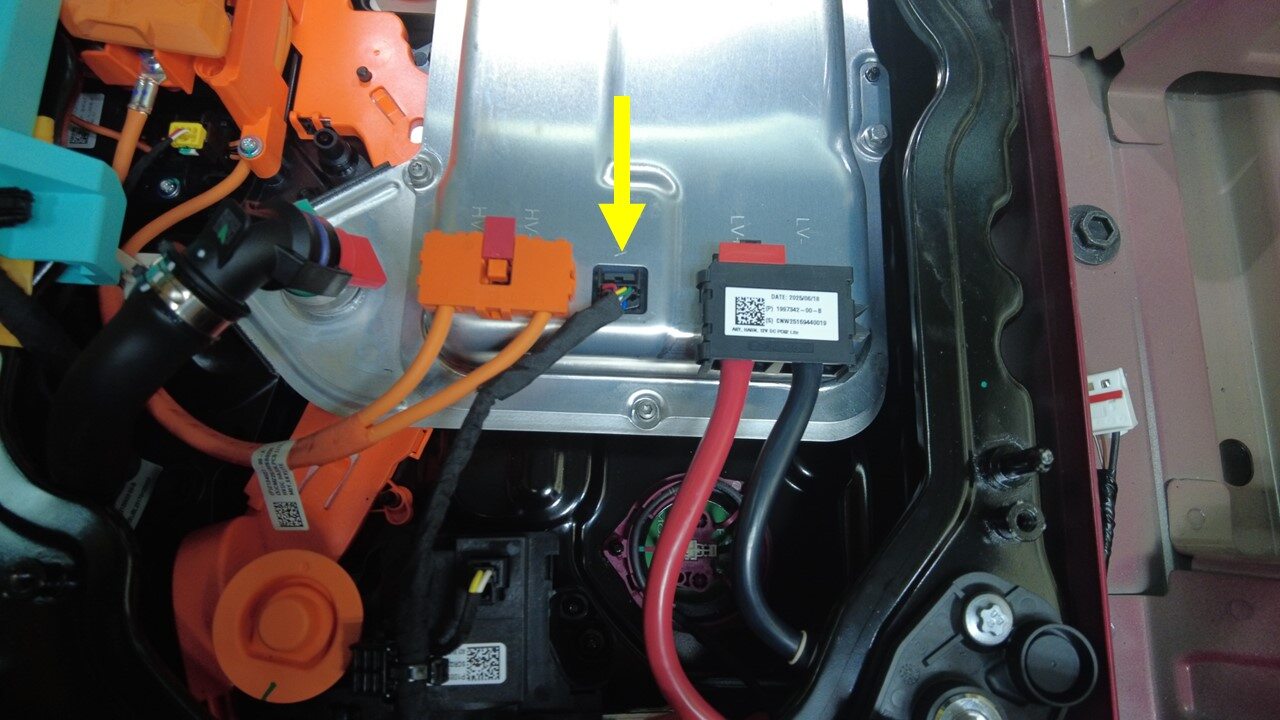

Disconnect PCS2 lite logic connector from PCS2 lite

注

1x connector

Disconnect PCS2 lite LV connector from PCS2 lite

注

1x connector, Release the locking tab by pulling upward, May need plastic trim tool to help lift the connector upward

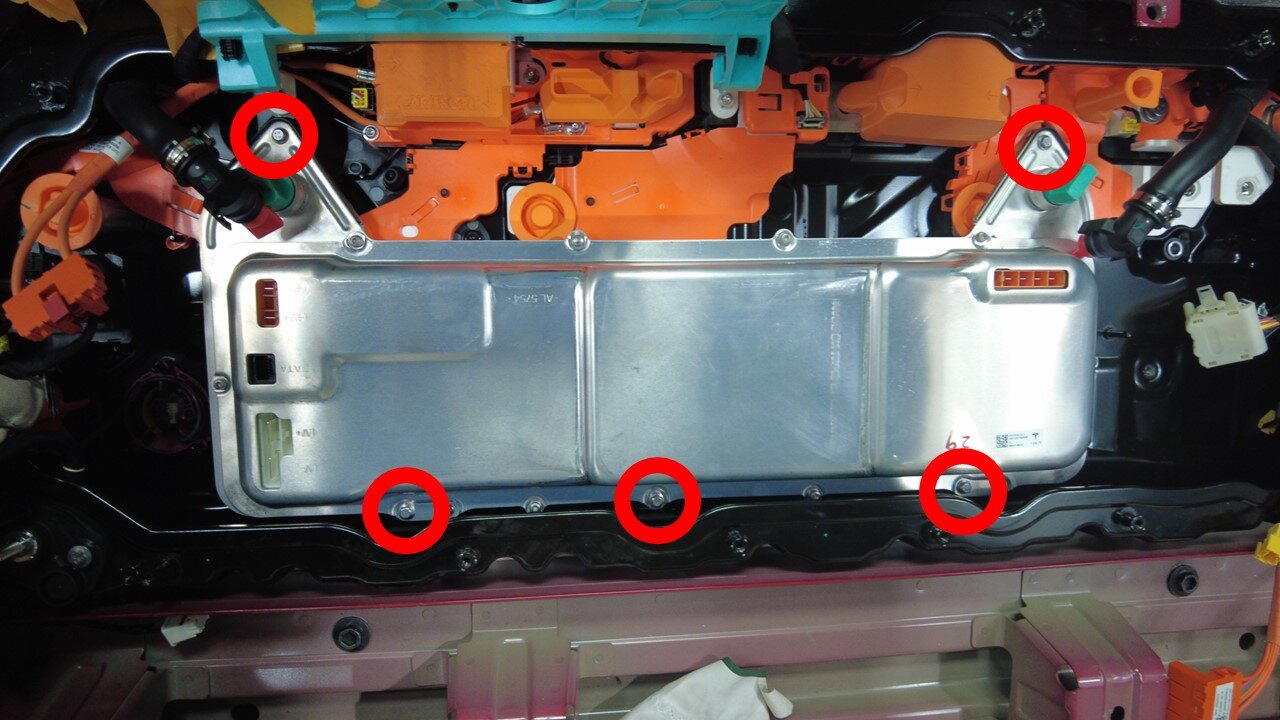

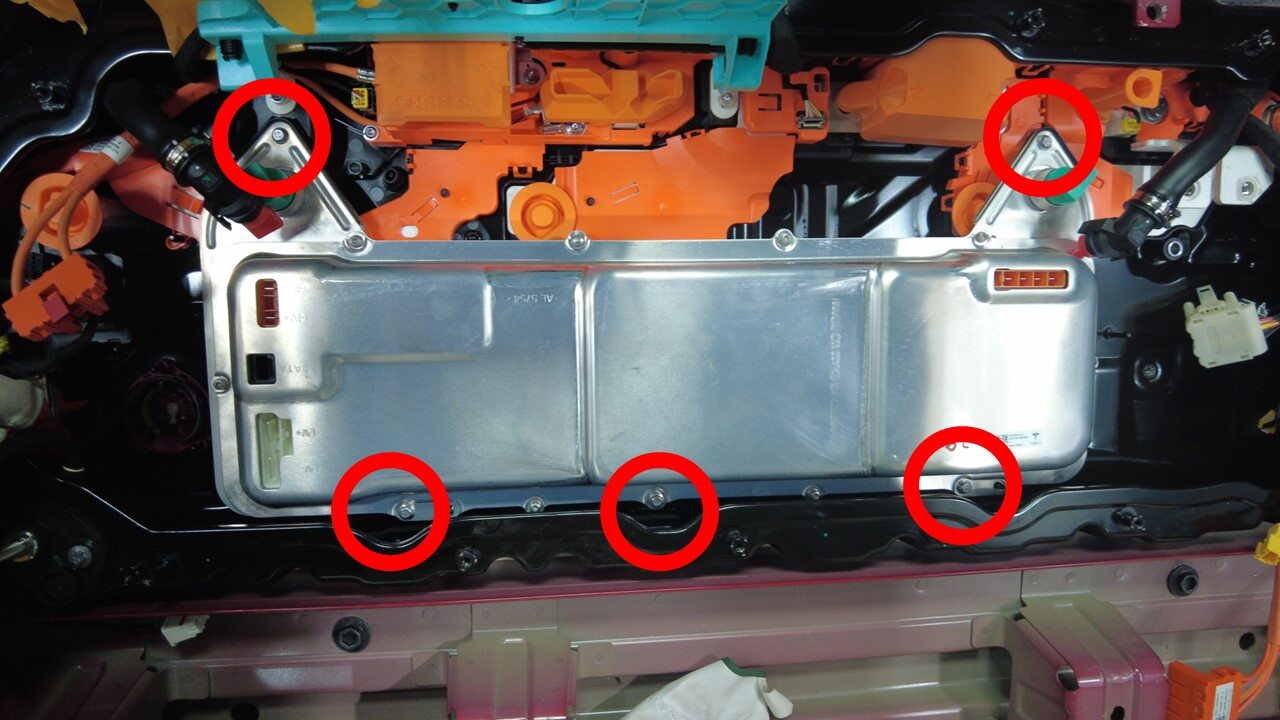

Remove bolts securing PCS2 lite to HV battery

注

5x bolts, 8mm, 15 Nm, Minus 180 degrees, 15 Nm, Ensure only the 8mm fasteners are removed, Do not remove the T20 fasteners, Discard after removal

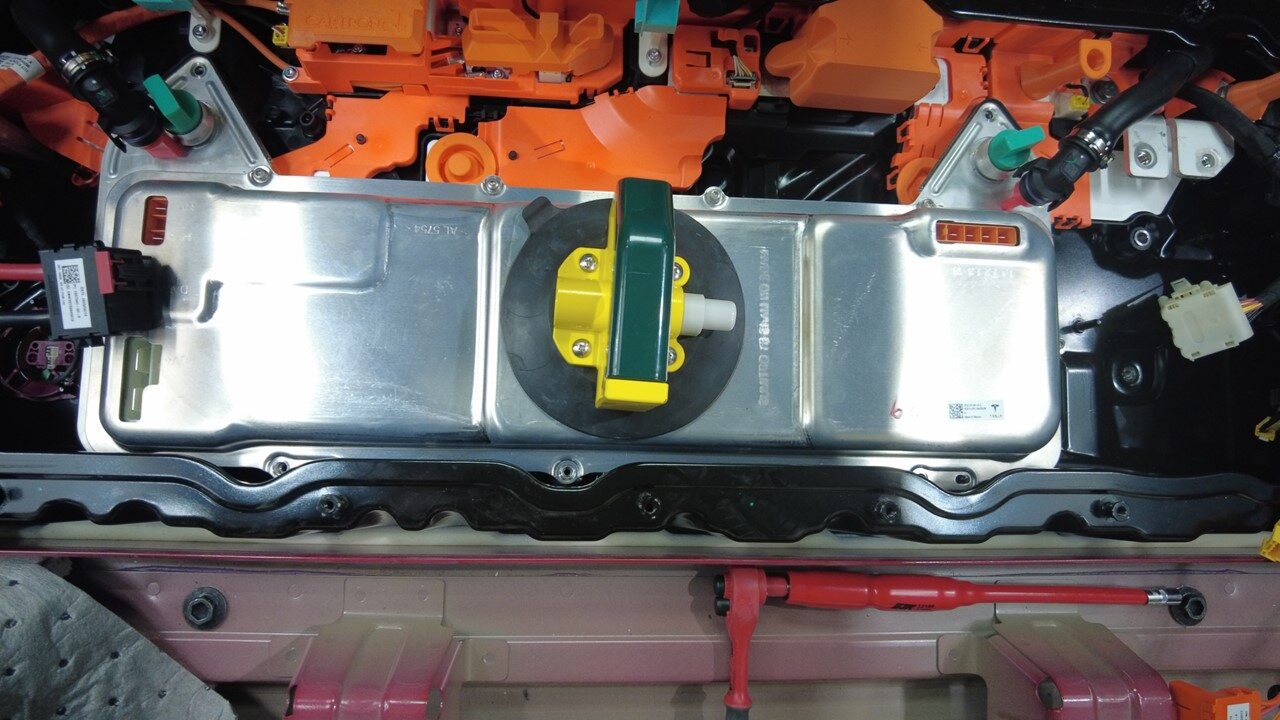

Secure suction cups to PCS2 lite

注

Continue pressing plunger until red line is no longer visible

Lift PCS2 lite up and remove it from ancillary bay

注

2x datums, Slightly tilt rear of PCS2 lite upward then lift out to remove, Inspect any missing insulators under PCS, Install any missing insulators before continuing to next step, Visually inspect area for any coolant residue, Clean with shop towel if necessary

Position PCS2 lite into ancillary bay

注

2x datums, Ensure all busbar insulators beneath PCS2 lite are present, Slightly tilt rear of PCS2 lite upward and lower into position, Align datums into PCS2 lite holes

Remove suction cups from PCS2 lite

Install bolts securing PCS2 lite to HV battery

注

5x bolts, 8mm, 15 Nm, Minus 180 degrees, 15 Nm, Install new bolts

Connect AC filter harness connector from PCS2 Lite

注

1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated

Connect PCS2 Lite LV connector to PCS2 Lite

注

1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated

Connect PCS2 lite logic connector to PCS2 lite

注

1x connector

Connect PCS2 lite DC busbar HV connector

注

1x connector, Push connector downward then push the locking tab downward to install connector, Make sure the connector is fully seated

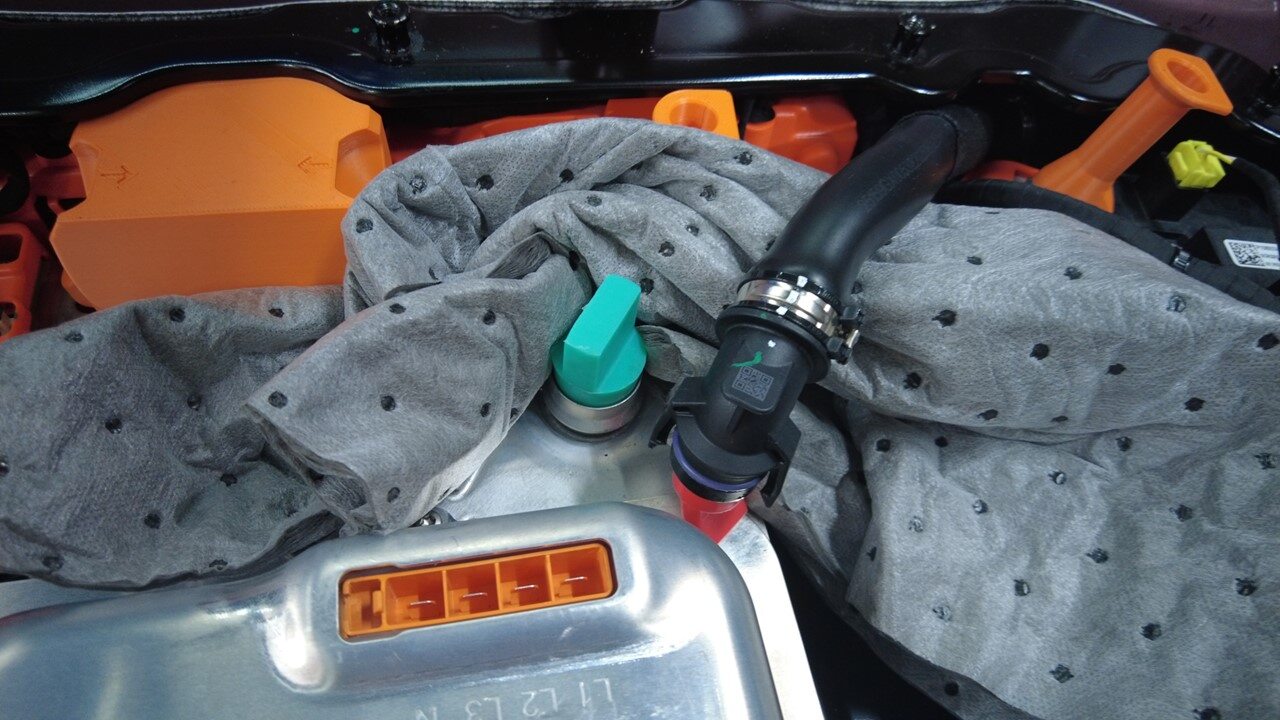

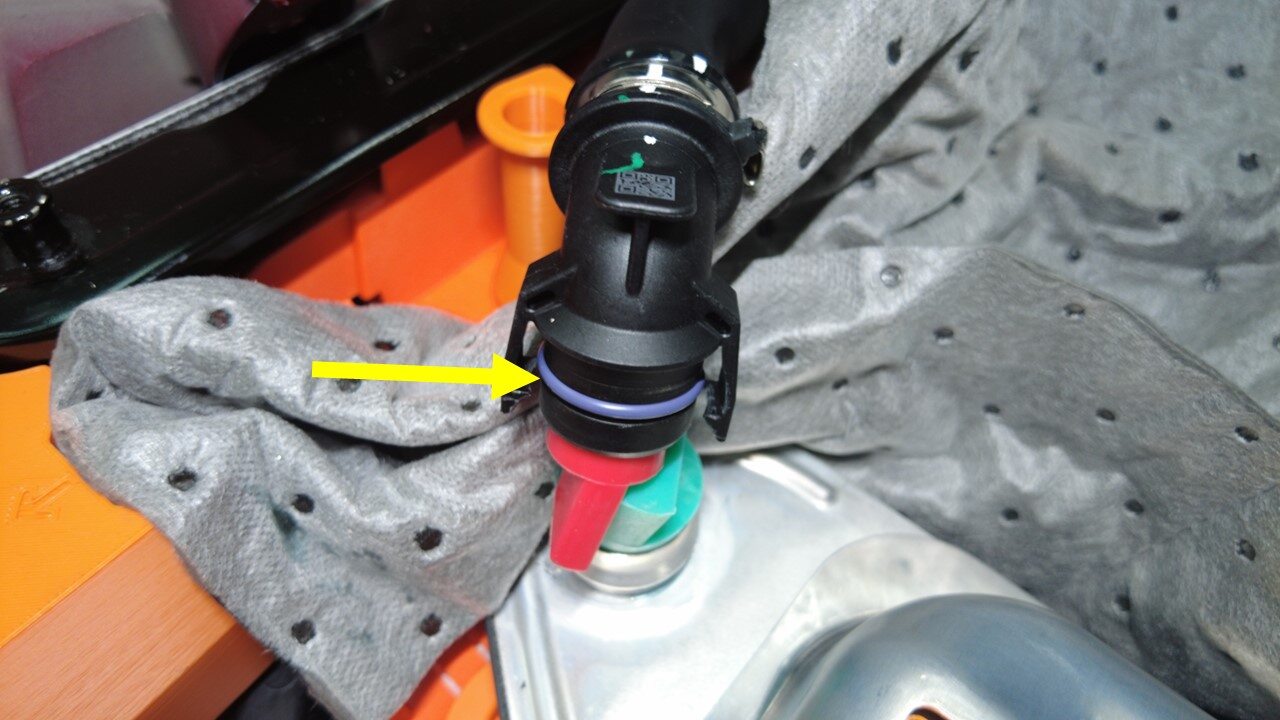

Connect PCS2 lite coolant inlet hose to PCS2 lite

注

2x clips, 1x plug, Remove plug from PCS2 lite, Place absorbent sheet under hose to catch excess coolant, Caution when installing this hose, it's difficult to align hose to coupling, Use caution not to damage the O-ring, Perform push-pull-push test to make sure coolant hose is fully latched, Then visually verify clip is fully seated, Apply light amount of Krytox 203, Install new O-ring

Connect PCS2 lite coolant outlet hose to PCS2 lite

注

2x clips, 1x plug, Remove plug from PCS2 lite, Place absorbent sheet under hose to catch excess coolant, Caution when installing this hose, it's difficult to align hose to coupling, Use caution not to damage the O-ring, Perform push-pull-push test to make sure coolant hose is fully latched, Then visually verify clip is fully seated, Apply light amount of Krytox 203, Install new O-ring

Position HVC and skylite hinge to PCS2 Lite

注

Release bungee

Remove pyro disconnect dummy

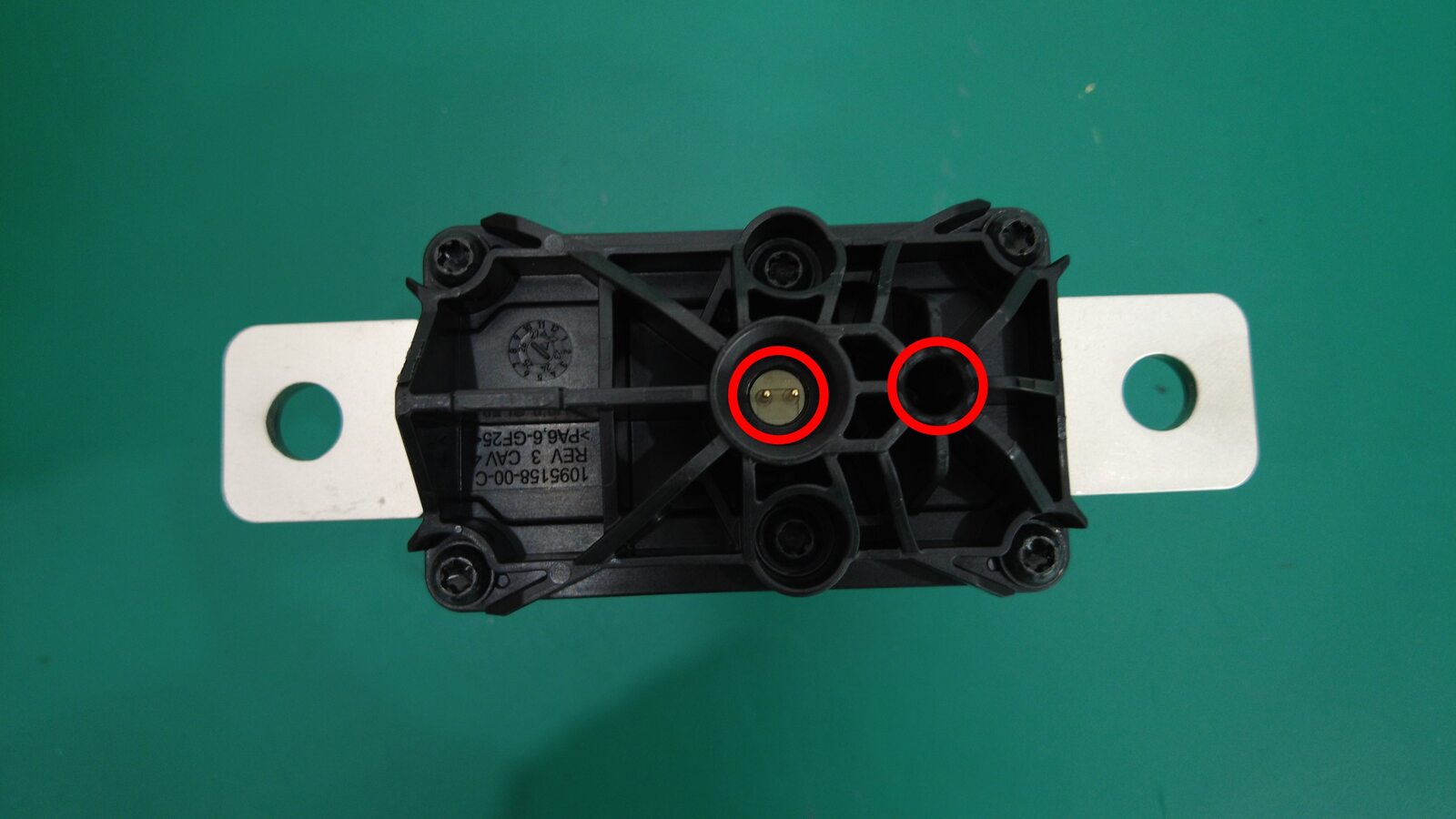

Clean mating surface of pyro

注

Allow to 1 minute dry time, Use an IPA wipe to clean the HV mating surfaces of the shunt, Busbar, And the pyrotechnic battery disconnect

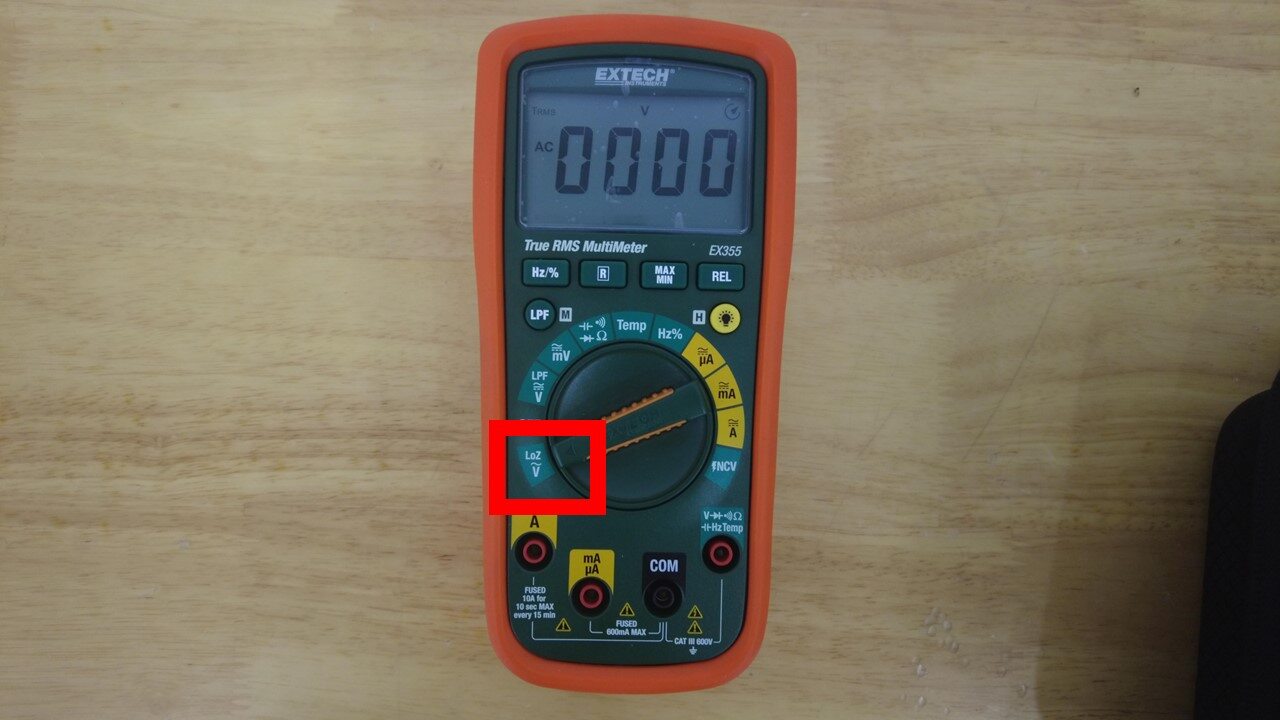

Set multimeter to "LoZ" (low impedance) mode

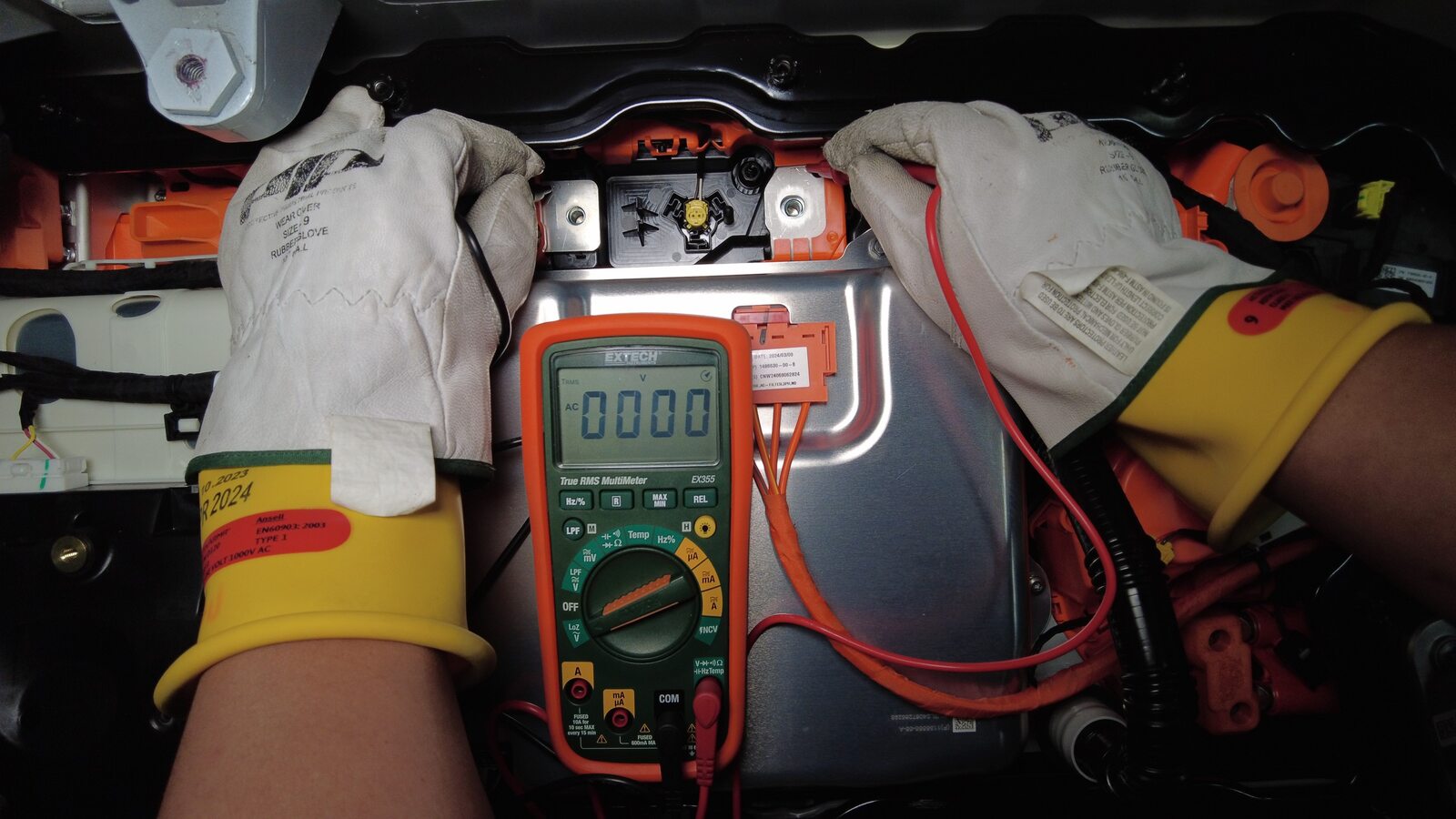

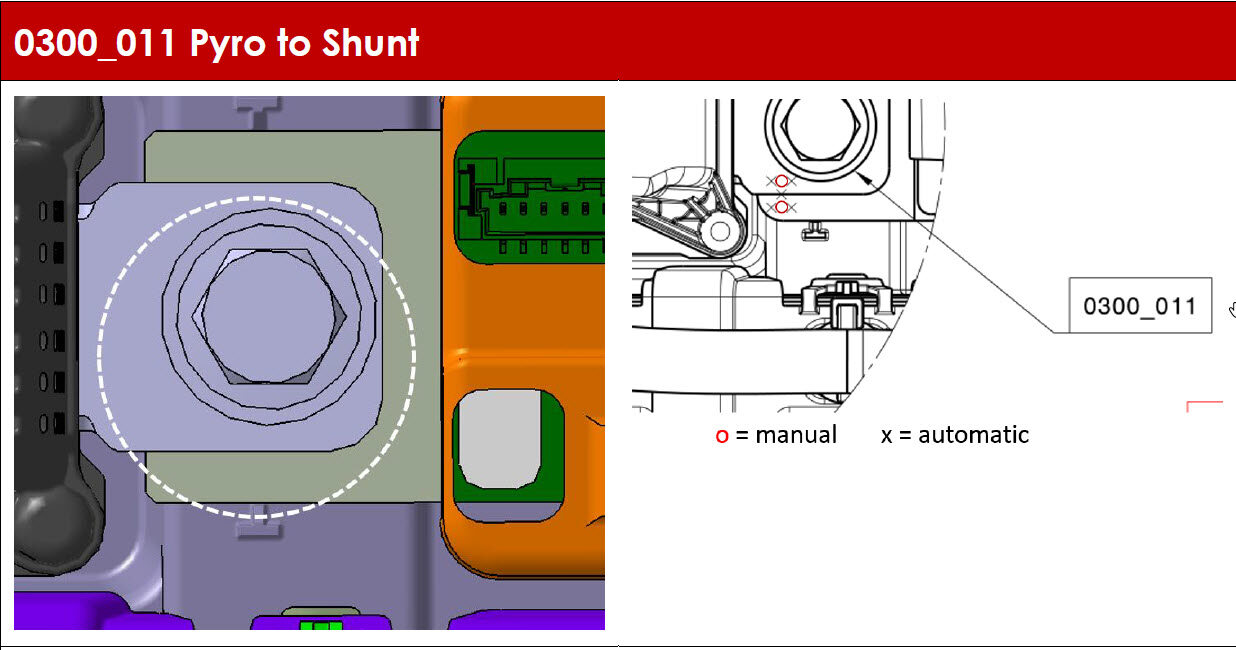

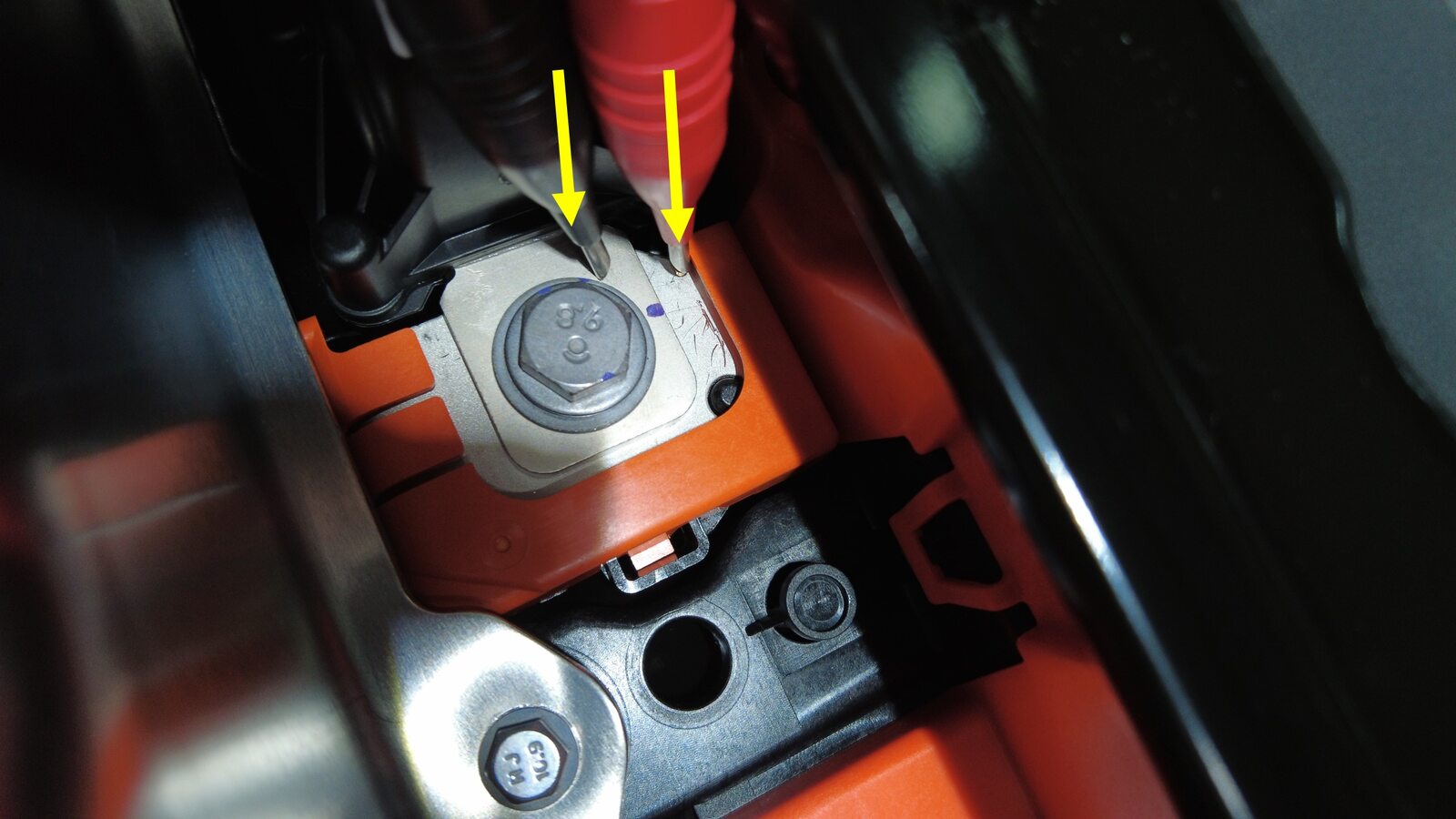

Measure voltage between busbar and shunt

注

Measure the voltage between the busbar (left) and shunt (right) for at least 10 seconds, so as to balance the voltage across the pyrotechnic battery disconnect mount points, Note: The voltage displayed on the multimeter is not as important as balancing the mount points

Position pyro disconnect to ancillary bay for installation

注

1x connector, While still measuring the voltage, Have an assistant position the pyrotechnic battery disconnect into the HV battery for installation. Make sure to align the pins of the connector with the new pyrotechnic battery disconnect, And then press the pyrotechnic battery disconnect down onto the busbars, The pyro disconnect can only be installed one way

Install bolts securing pyro disconnect to ancillary bay

注

2x patch bolts, 13mm, 9 Nm, Install new patch bolt, Mark with paint pen

Measure resistance from pyro disconnect to shunt

注

1x HV joint, 33μΩ or less, Perform zero adjust to Hioki meter prior to testing

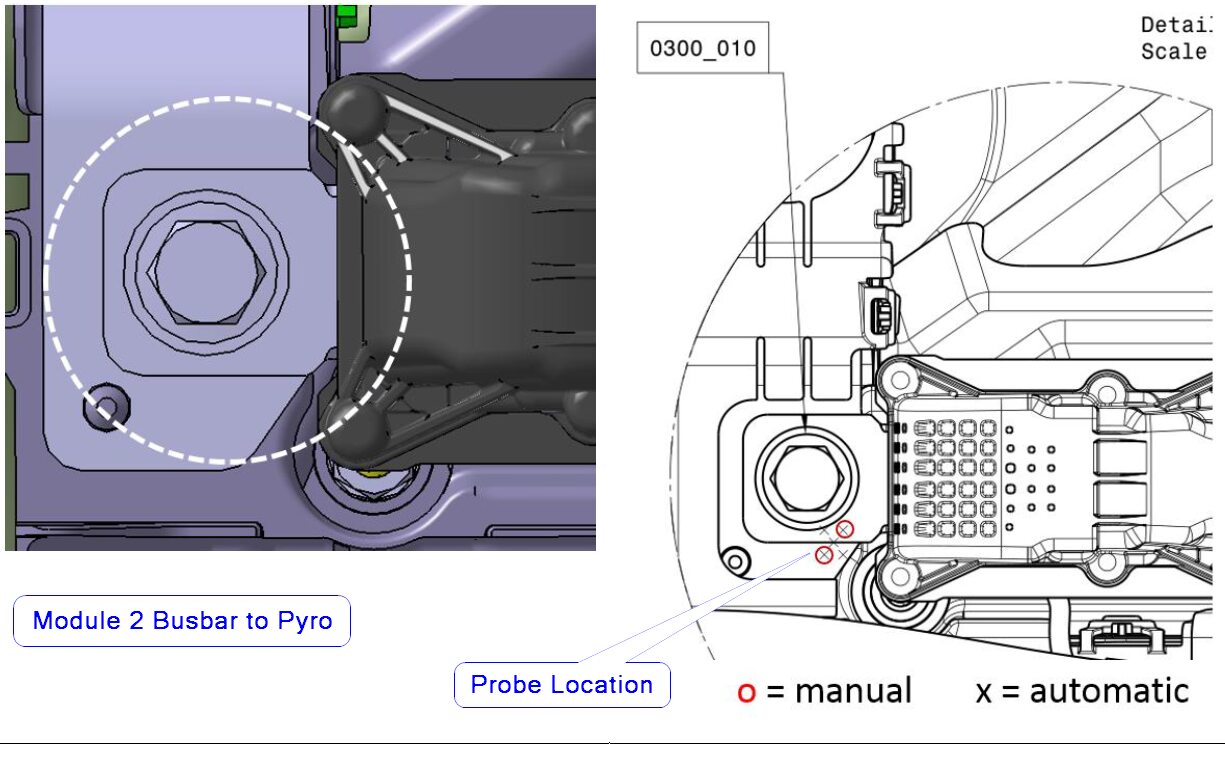

Measure resistance from module 2 busbar to pyro disconnect

注

1x HV joint, 48μΩ or less, Perform zero adjust to Hioki meter prior to testing

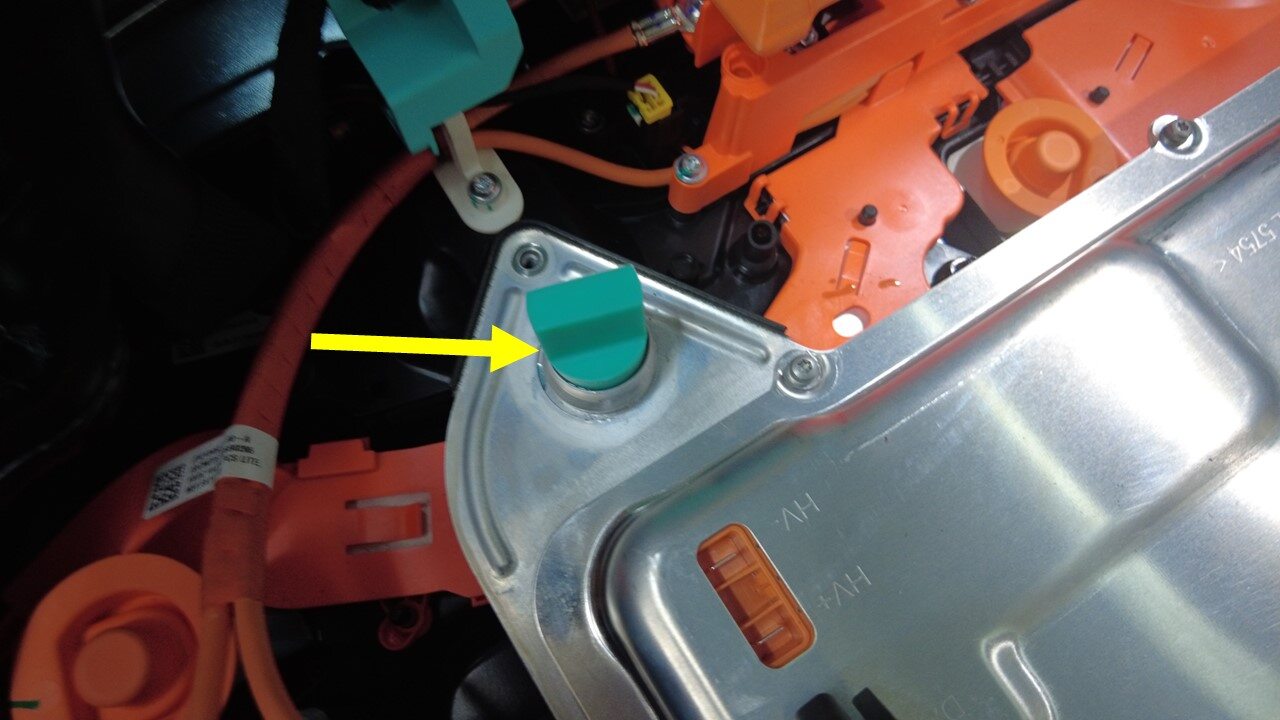

Remove service insulator kit

Remove HVC logic cap

注

1x logic cap

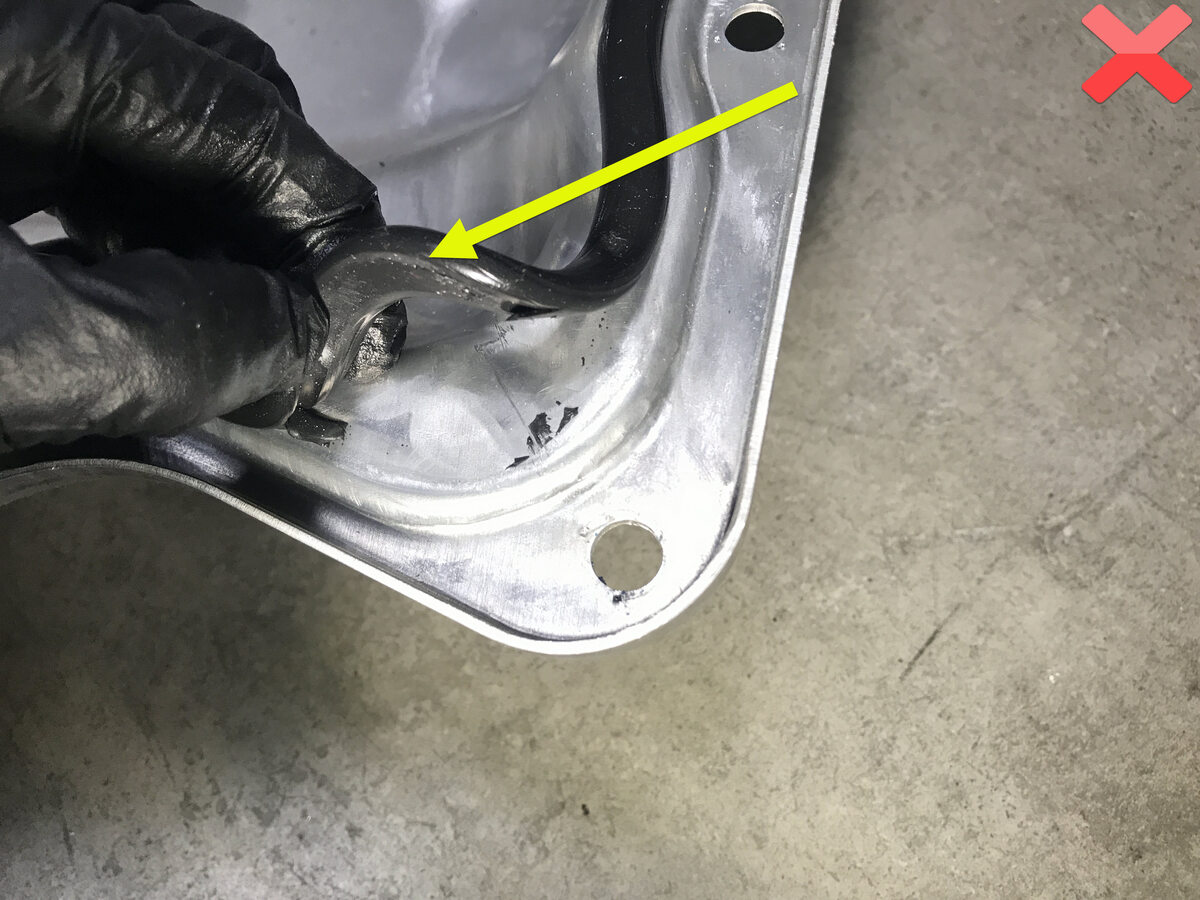

Inspect ancillary bay walls for damage

注

Any dent or depression in the sealing surface that causes it to not be flat will result in a leak, Any paint that comes off the ancillary bay wall, Whether or not it sticks to the seal, Will require enclosure leak test when reassembled, It can still be reused

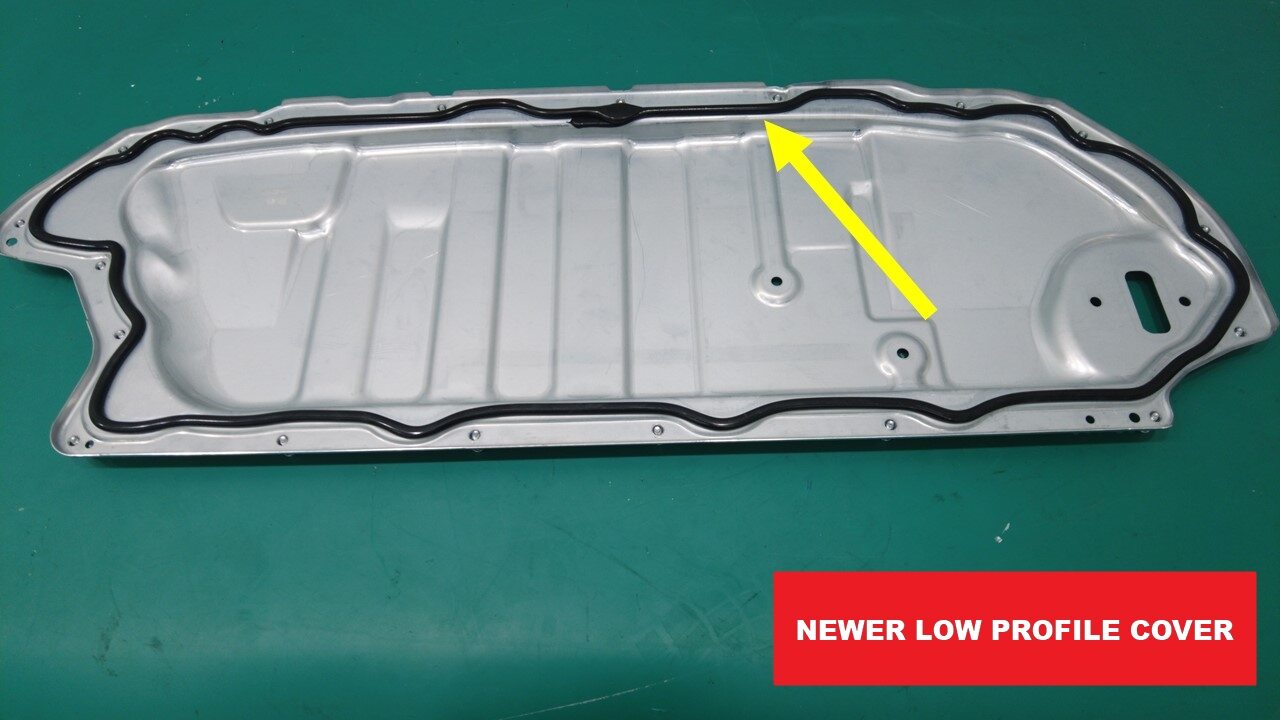

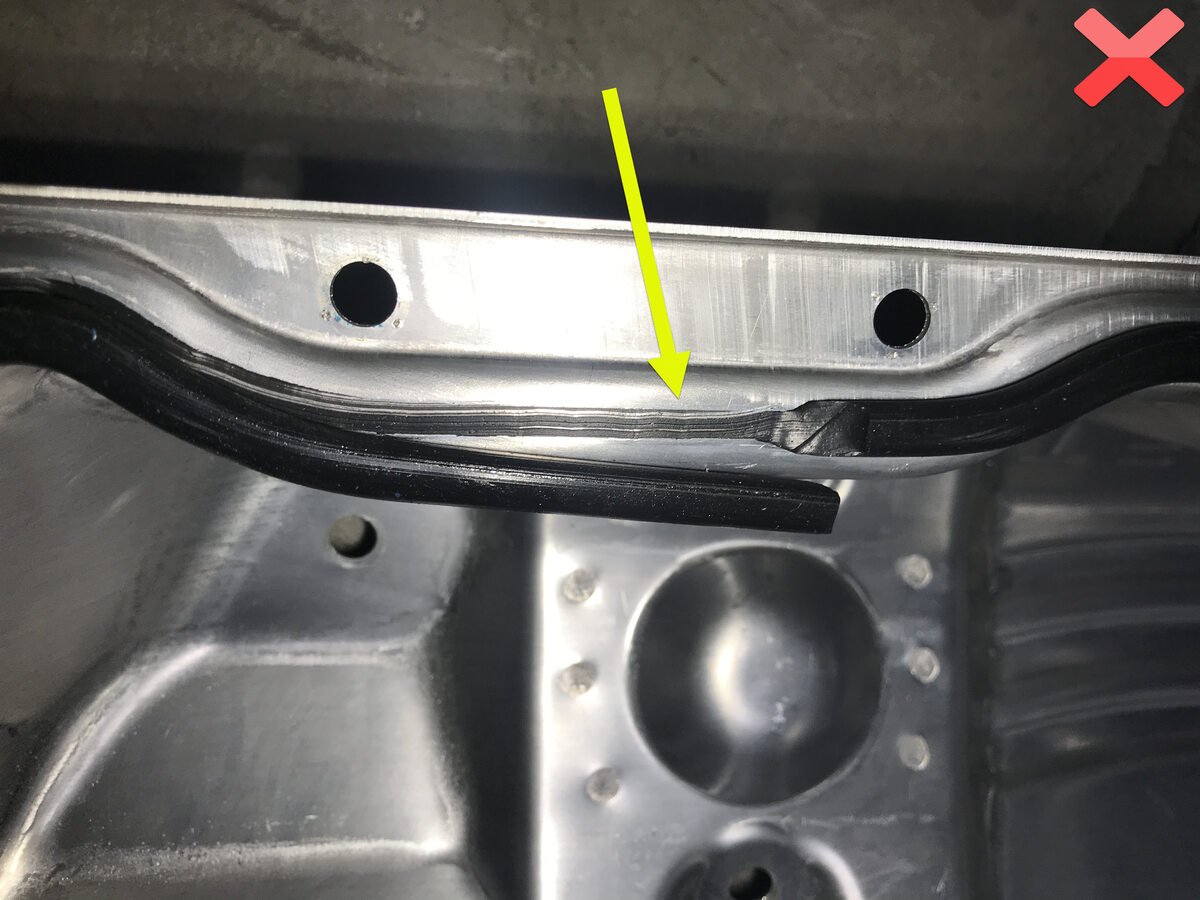

Inspect ancillary bay cover seal to confirm it has no visual damage

注

Image up close for clarity, Delaminated and torn seals cannot be reused

Wipe ancillary bay cover with IPA to clean surface

注

Allow to 1 minute dry time

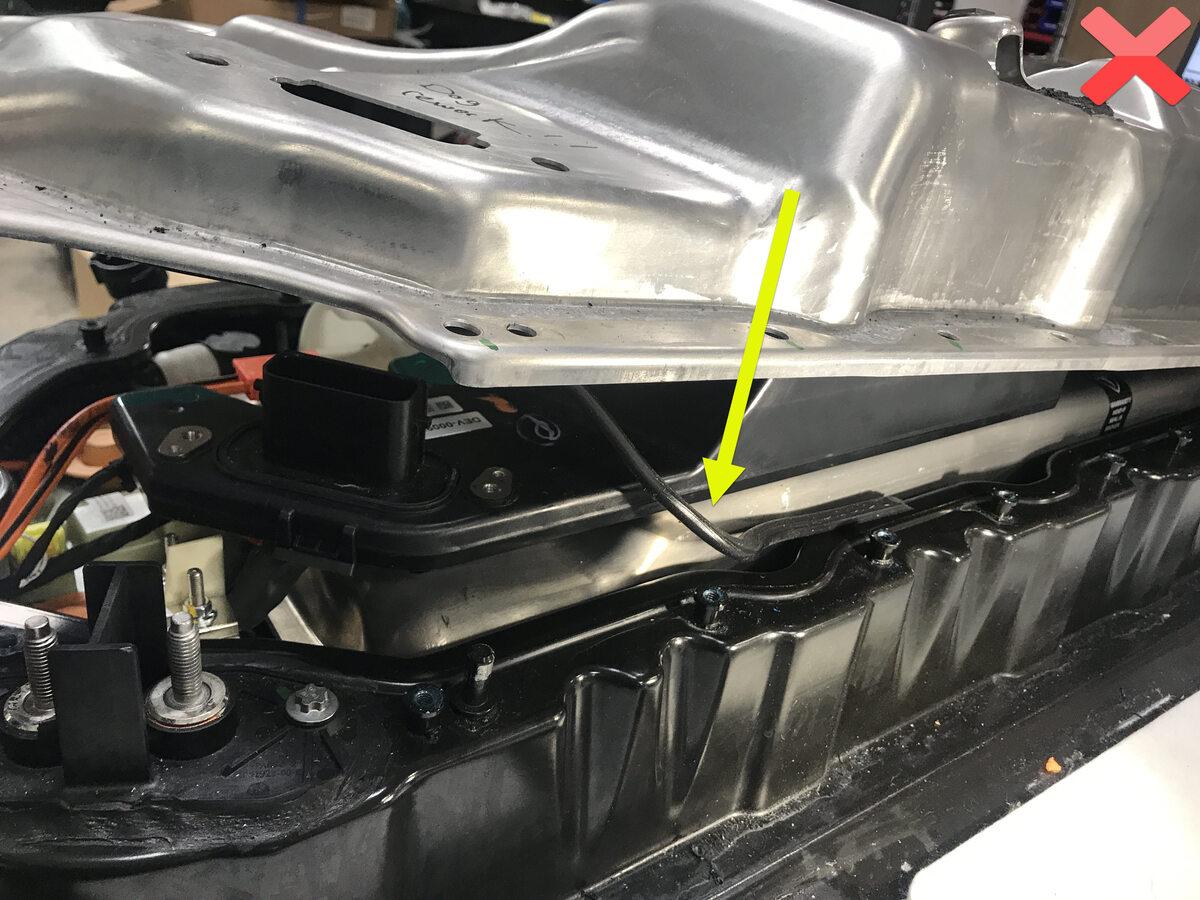

Position ancillary bay cover to HV battery for installation

注

Ensure all accessible insulators are present, Wearing Electrical Protective Gloves is not necessary once all HV components are covered

Remove leather over gloves and HV insulating gloves

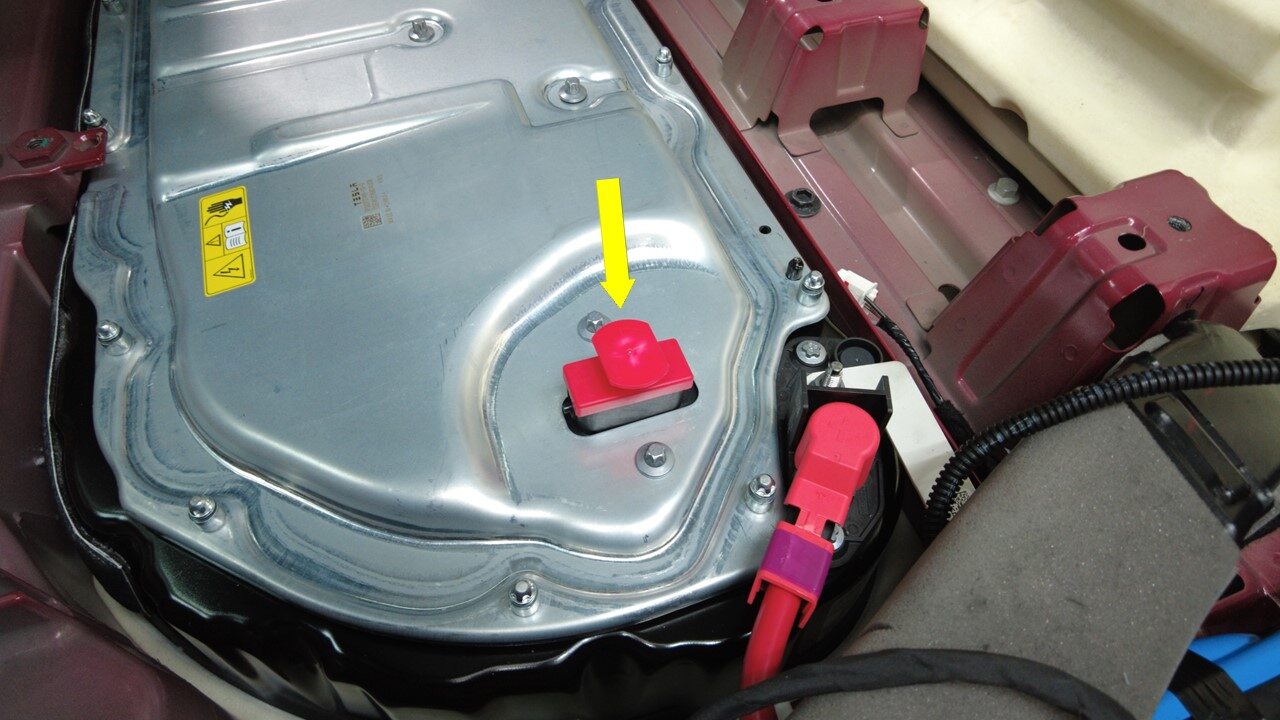

Install HVC logic cap

注

1x logic cap

Install bolts securing ancillary bay cover to HV battery

注

2x location pins, 18x bolts, EP10 5-Lobe, 10.5 Nm, Fasteners are captive, Follow torque sequence per image

Install bolts securing ancillary bay cover to HVC

注

4x bolts, E10, 5 Nm + 30 degrees

Install positive LV output from PCS2 lite cable and torque nut securing it

注

1x nut, 13mm, 9 Nm, Install new nut

Install positive LV output cover to PCS2 lite cable

注

1x cover

Remove logic cap and connect HVC logic connector

注

1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated

Position 2nd row 40 seat assembly into vehicle

注

Recommend assistance

Install 2nd row 40 seat frame to vehicle

注

4x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Inboard rear -> Outboard rear -> Inboard front

Connect 2nd row 40 seat connector

注

1x connector, Engage the tab

Position 2nd row 60 seat assembly

注

Set 60 seat assembly onto rear load floor through the rear side of the vehicle, Then install the seat assembly onto body, Use fender cover to avoid damaging trims, Recommend assistance

Install 2nd row 60 seat frame to body

注

5x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front

Connect 2nd row 60 seat connector

注

1x connector, Engage the tab

Install clips securing rear main cabin carpet to vehicle

注

3x push clips

Install 2nd row seat cushion

注

1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion

Raise vehicle fully and lower lift onto locks

注

Set vehicle to comfortable working height, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to the side if both locks are not engaged

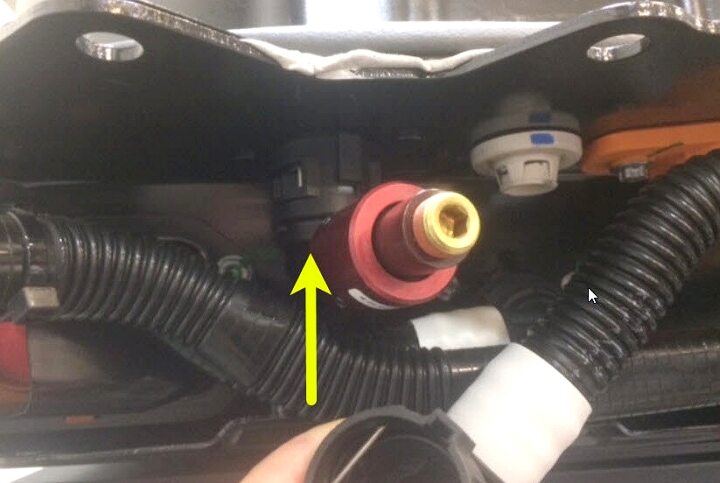

Connect coolant Leak Test Adapter plug to PCS outlet hose coupling

注

1x spring clip, 1x plug, Remove rubber plug from PCS outlet hose coupling if present, Install 90 degree Leak Test Adapter with NPT plug, Make sure the locking clip is fully seated

Connect coolant Leak Test Adapter to PCS inlet hose coupling

注

Remove rubber plug from coupler if installed, Make sure the locking clip is fully seated, Connection is at RH rear of HV Battery

Connect coolant Leak Test Fixture inlet hose to Leak Test Adapter

注

Hand tighten hose connection, No tool required to tighten

Close both valves on the coolant Leak Test Fixture tool

注

The valve knobs should both be perpendicular to the air lines when closed.

Connect compressed air to coolant Leak Test Fixture tool

注

Air supply source should be above 50 psi

Open inlet valve on Leak Test Fixture tool then adjust regulator to 50 psi

注

Turn on digital gauge and set to "psi", Turn inlet valve counter clockwise to open, Turn Regulator knob clockwise to increase pressure and counter clockwise to decrease pressure, Use caution as coolant may spill, Make sure to wear safety glasses

Open outlet valve on Leak Test Fixture tool.

注

Open valve slowly, Valve knob should be inline with airline when open, Use caution as coolant may spill, Make sure to wear safety glasses

Allow pressure in PCS coolant loop to stabilize at 50 psi

注

Pressure should settle around 50 psi

Set timer for 4 minutes

Close inlet valve on Leak Test Fixture tool

注

The valve knob should be perpendicular to the air line when closed

Record the PCS coolant loop leak check starting pressure

注

Record the value shown on the digital gauge

Start 4 minute timer

注

Once timer is complete, select Stop Reset

Record the PCS coolant loop leak check end pressure

注

Record the value shown on the digital gauge after 4 minute timer is complete, Max delta between start and end pressures is 0.35 psi, Check coolant hose to see if it is fully seated if pressure test fails

Disconnect compressed air from Leak Test Fixture tool

Open inlet valve on Leak Test Fixture to discharge air from coolant system

注

1x valve, Turn valve slowly to release air

Disconnect coolant Leak Test Fixture hose from Leak Test Adapter

Disconnect Leak Test Adapter from PCS inlet hose coupling

注

1x spring clip

Connect rear PT supply hose to PCS inlet hose coupling

注

执行推拉推测试，确保软管完全就位。请勿晃动软管连接点。

Disconnect Leak Test Adapter plug from PCS outlet hose coupling

注

1x spring clip, Connection located at LH rear of HV Battery

Connect RDU inverter inlet tube to PCS outlet hose coupling

注

1x spring clip, 1x plug, Remove plugs, Perform push-pull-push test to make sure hose is fully engaged, Connection is located at LH rear of HV Battery, Vacuum fill required if > 1L lost during repair

Position HV battery rear skid plate enclosure

注

Recommend assistance if needed

Install upper bolts securing HV battery rear skid plate enclosure hand tight

注

4x bolts, 13mm, 64 Nm

Install lower bolts securing HV battery rear skid plate enclosure

注

2x bolts, EP10, 13 Nm

Install RH side hose clips to rear battery skid plate

注

2x fir tree clips

Install LH side hose clip to rear battery skid plate

注

1x fir tree clip

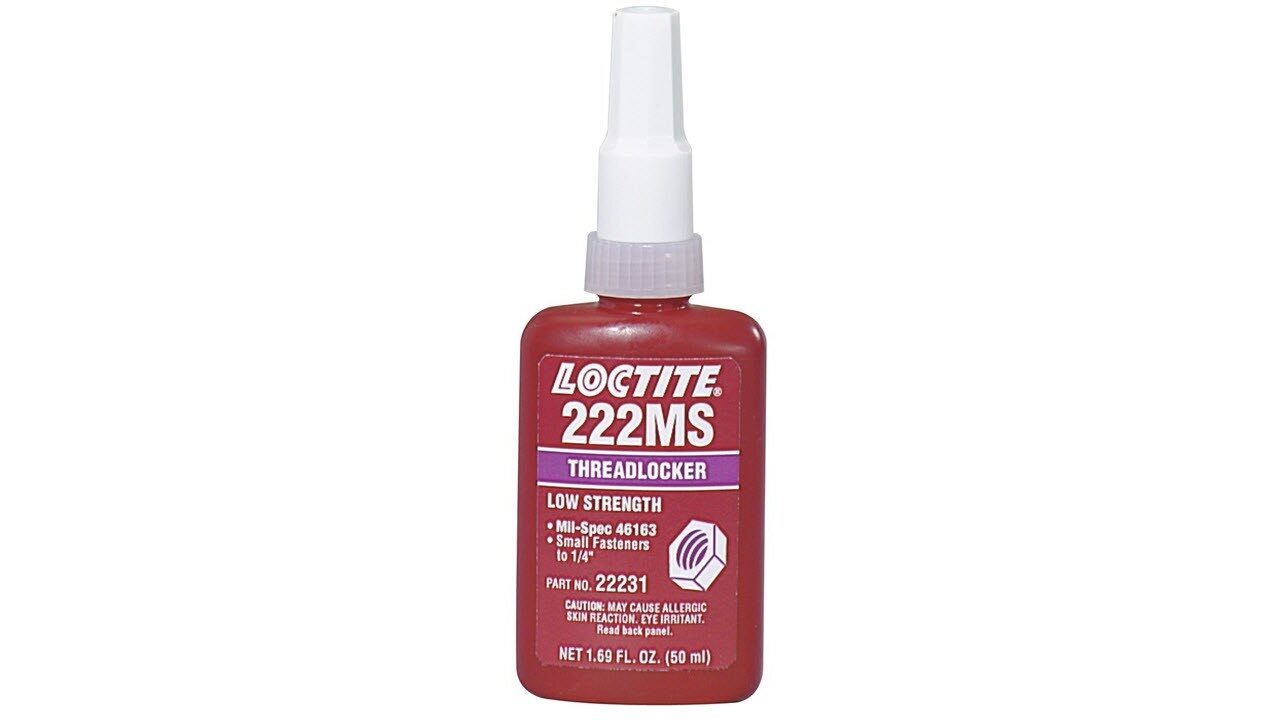

Install mid aero shield

注

2x tabs, 11x bolts, 10mm, 5 Nm, Position rear datums first, Apply Loctite 222 onto rear aero shield bolts

Install LH and RH push clips securing mid aero shield to wheel house liner

注

2x clips

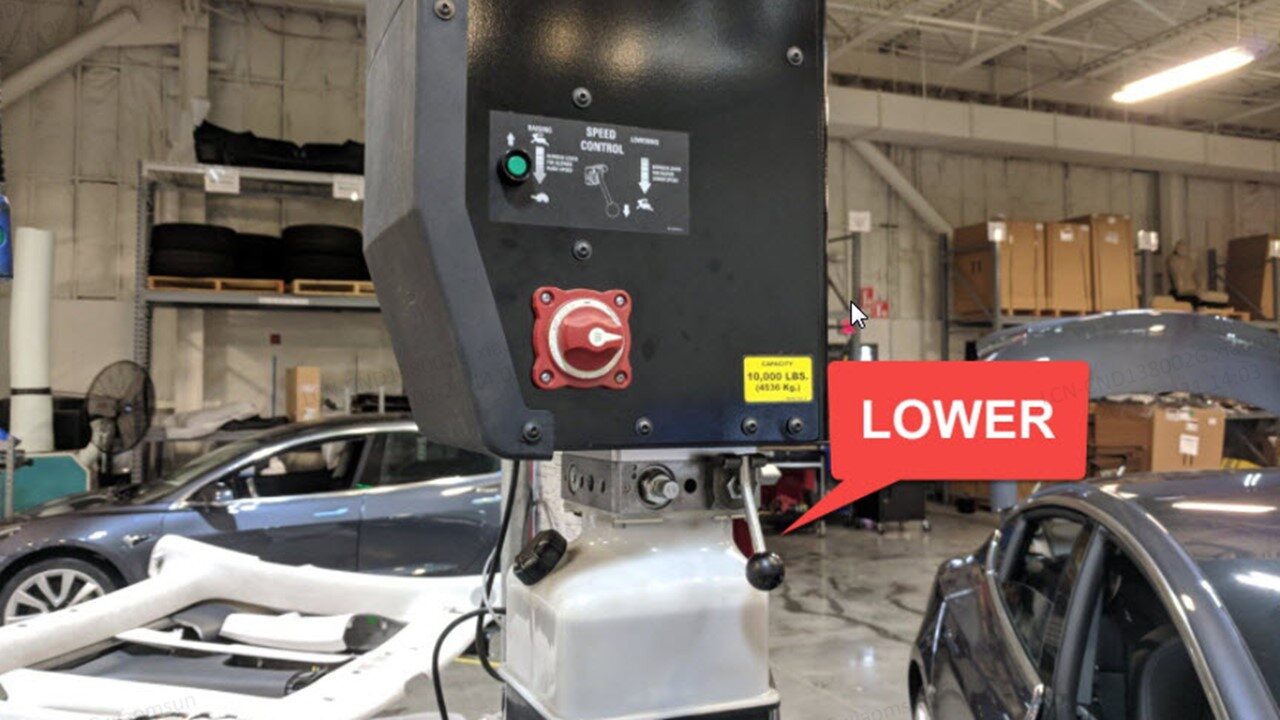

Lower vehicle fully

注

Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered

Place towel into front storage area

注

Prevent front storage area pollution

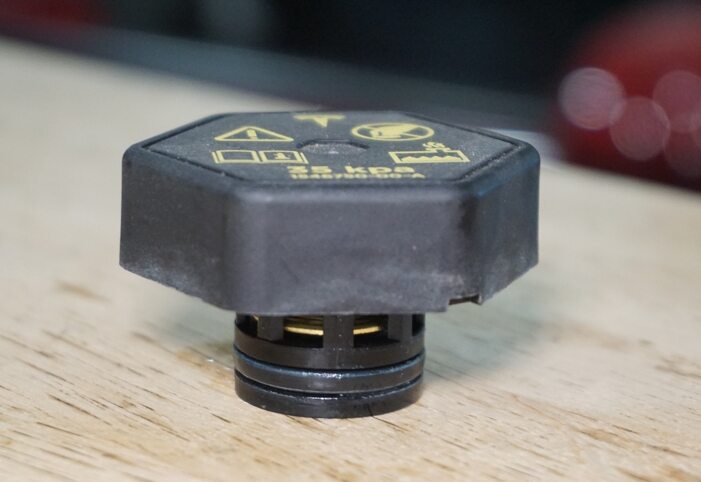

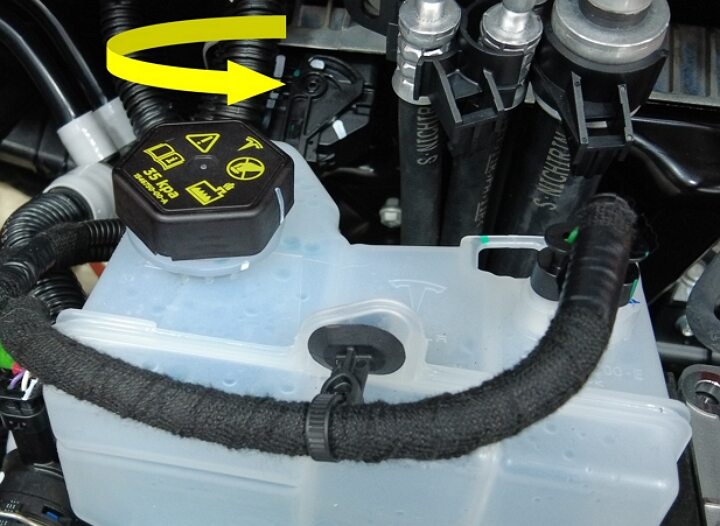

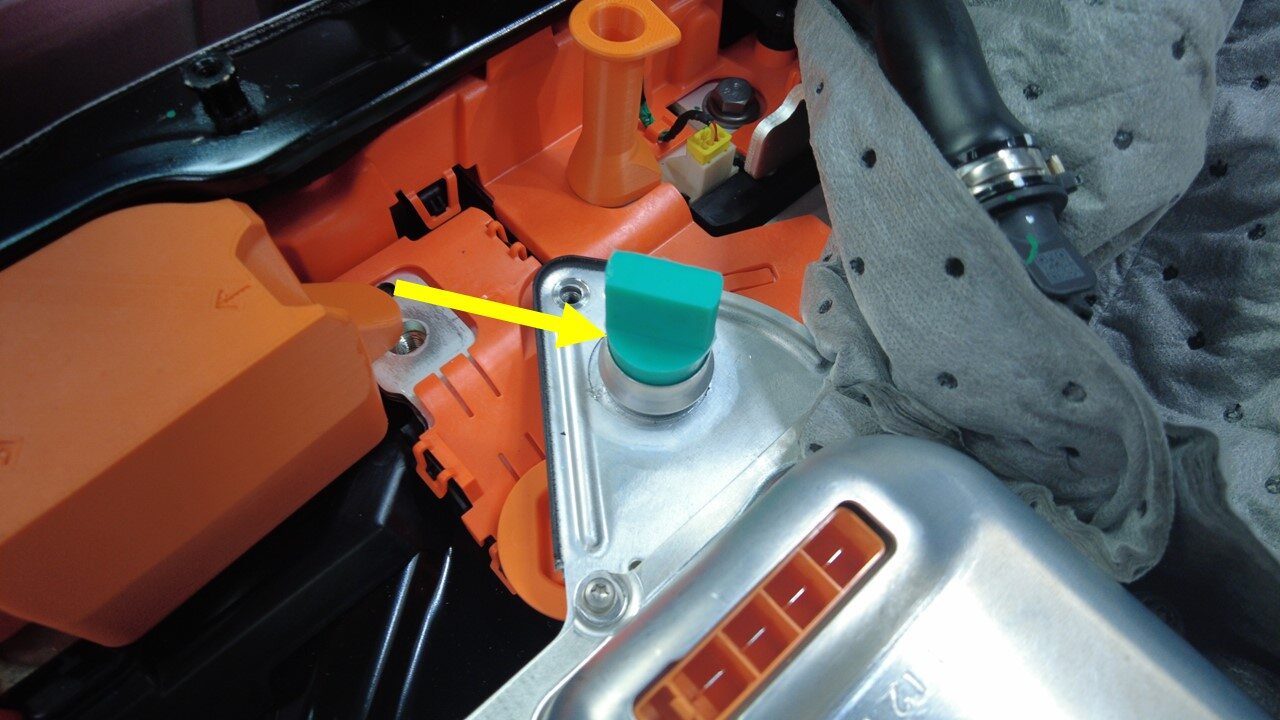

Remove coolant bottle cap

注

(*Use this step for Model Y vehicles with heat pump)

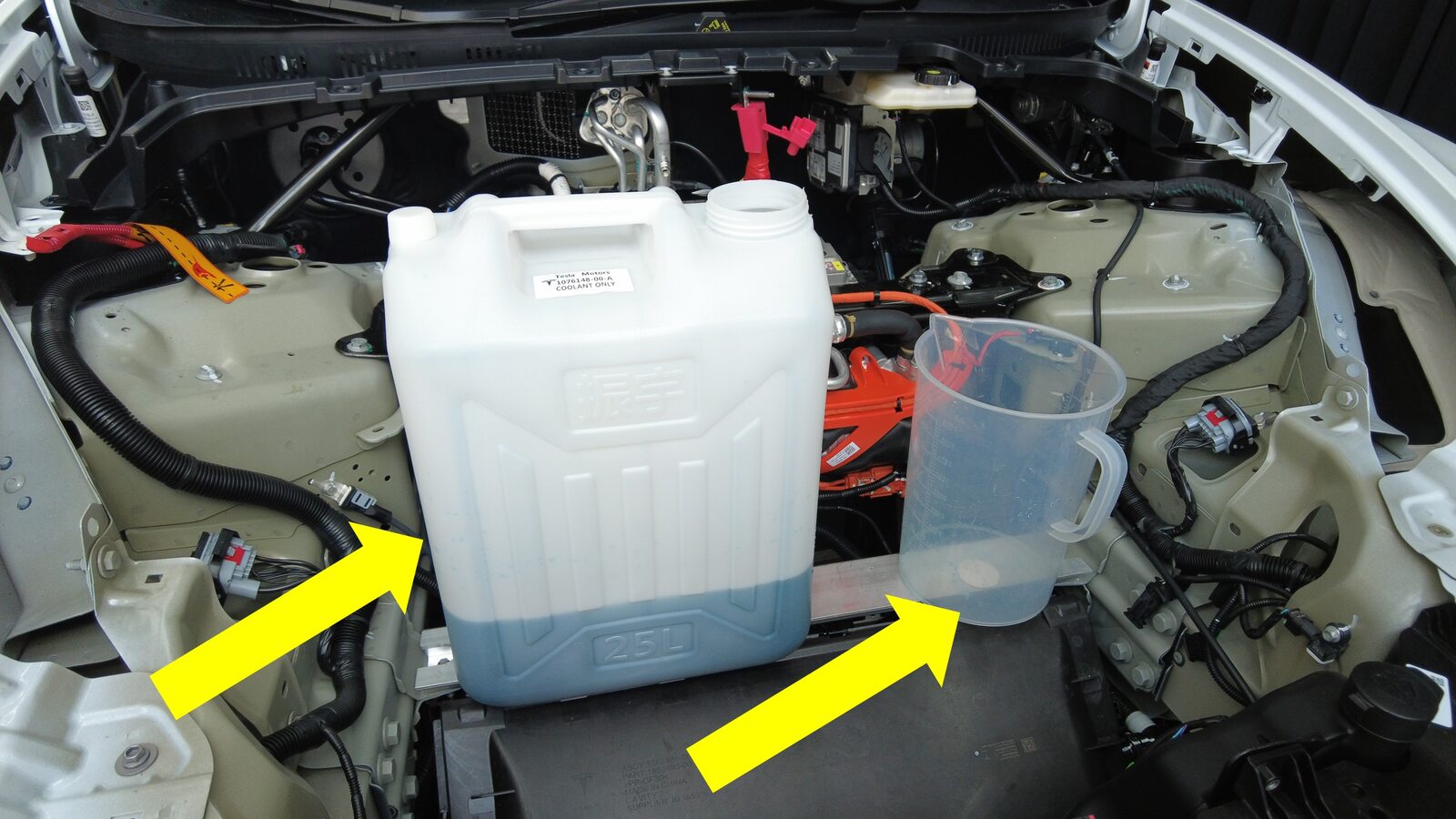

Place empty coolant container into front storage area

Fill container with coolant

注

Do not draw in air during fill process, For RWD, The entire system requires coolant is 15L, for AWD, The entire system requires coolant is 18L

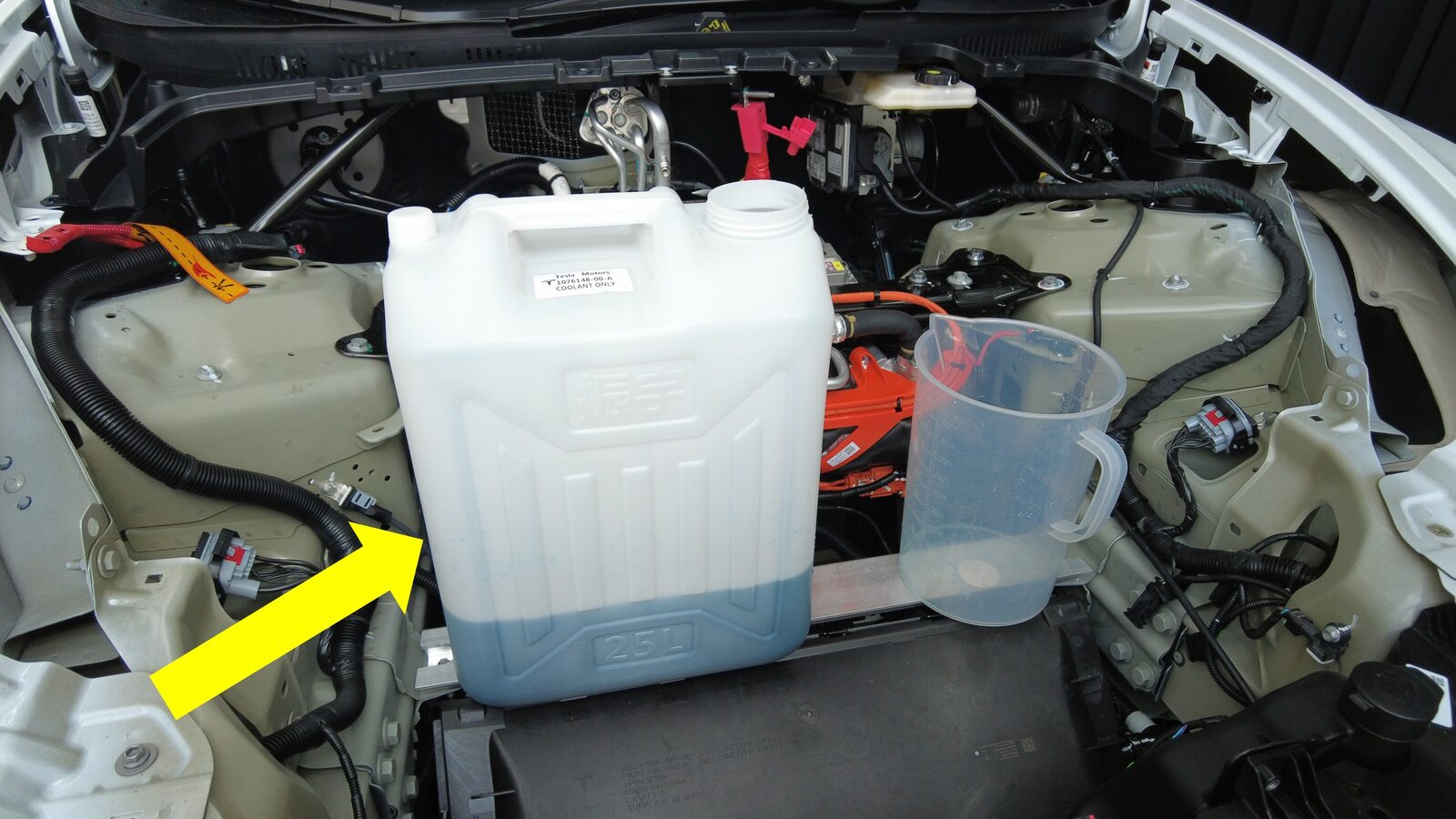

Place filled coolant container into front storage area

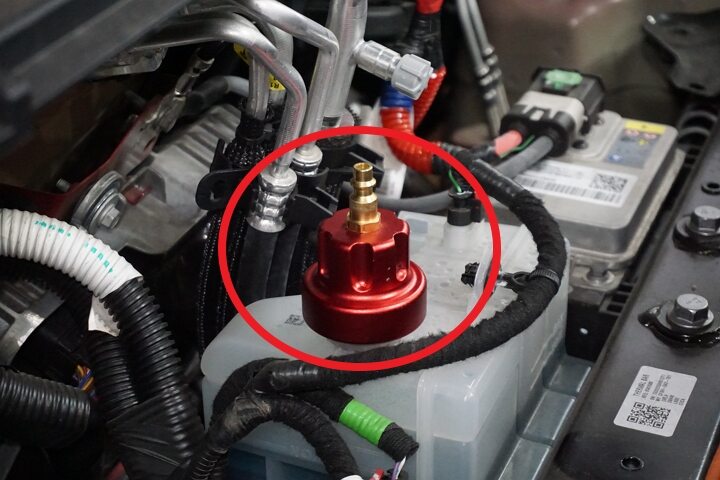

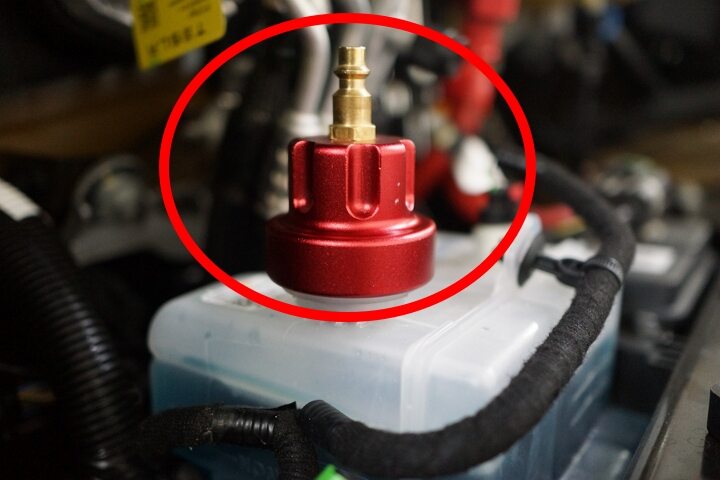

Install coolant reservoir adapter cap onto coolant bottle assembly

注

(*Use step for Model Y & NV36 coolant procedures)1x adapter cap, Adapter found in Vacuum Refill kit, turn clockwise to tighten cap onto coolant bottle

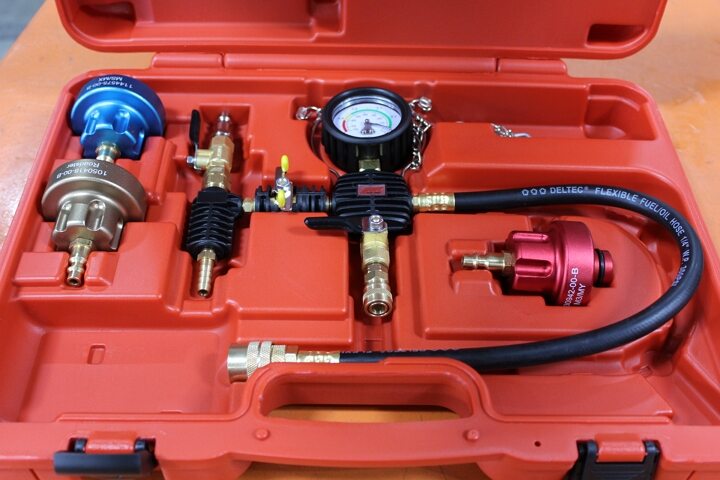

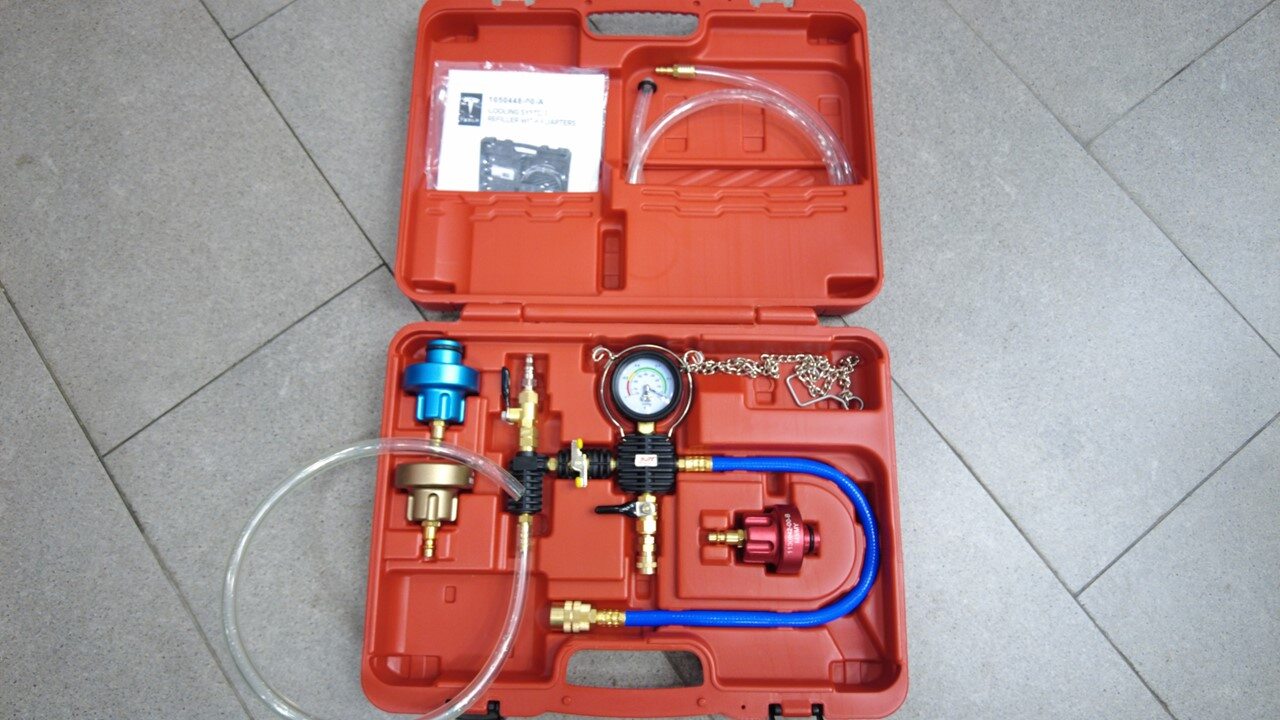

Setup vacuum refill tool

注

Verify all valves on refill tool are in the closed position, See image for clarity

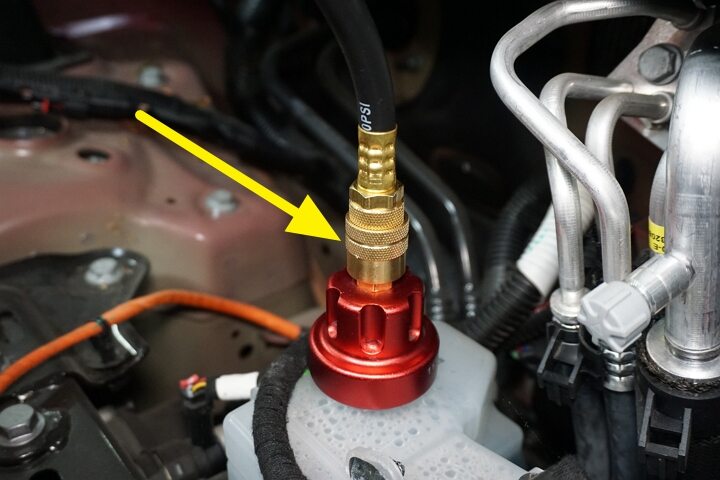

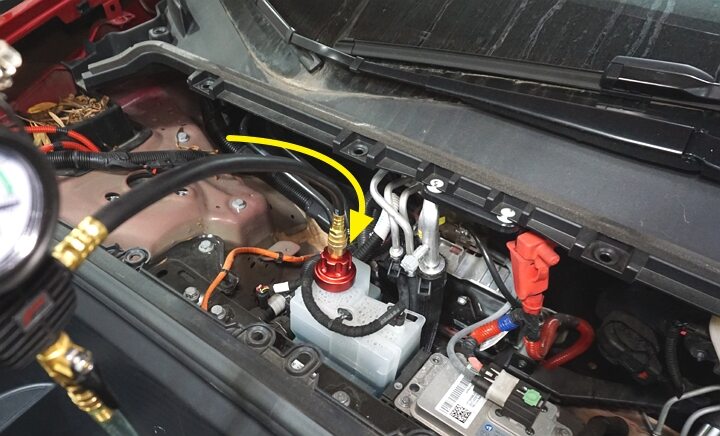

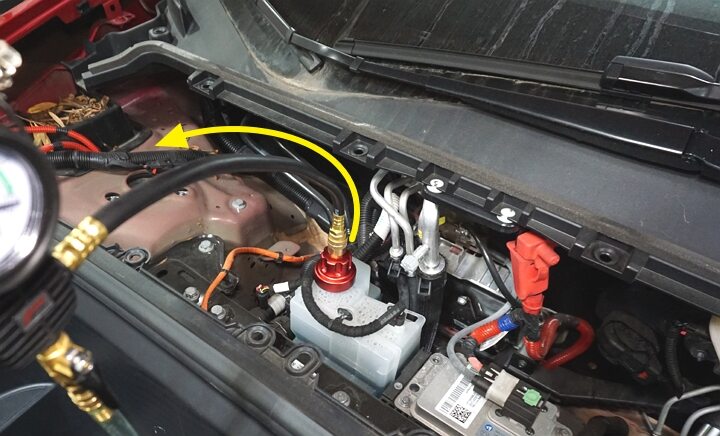

Connect vacuum refill hose to refill cap on coolant bottle

注

Perform push-pull-push test to verify hose is fully engaged

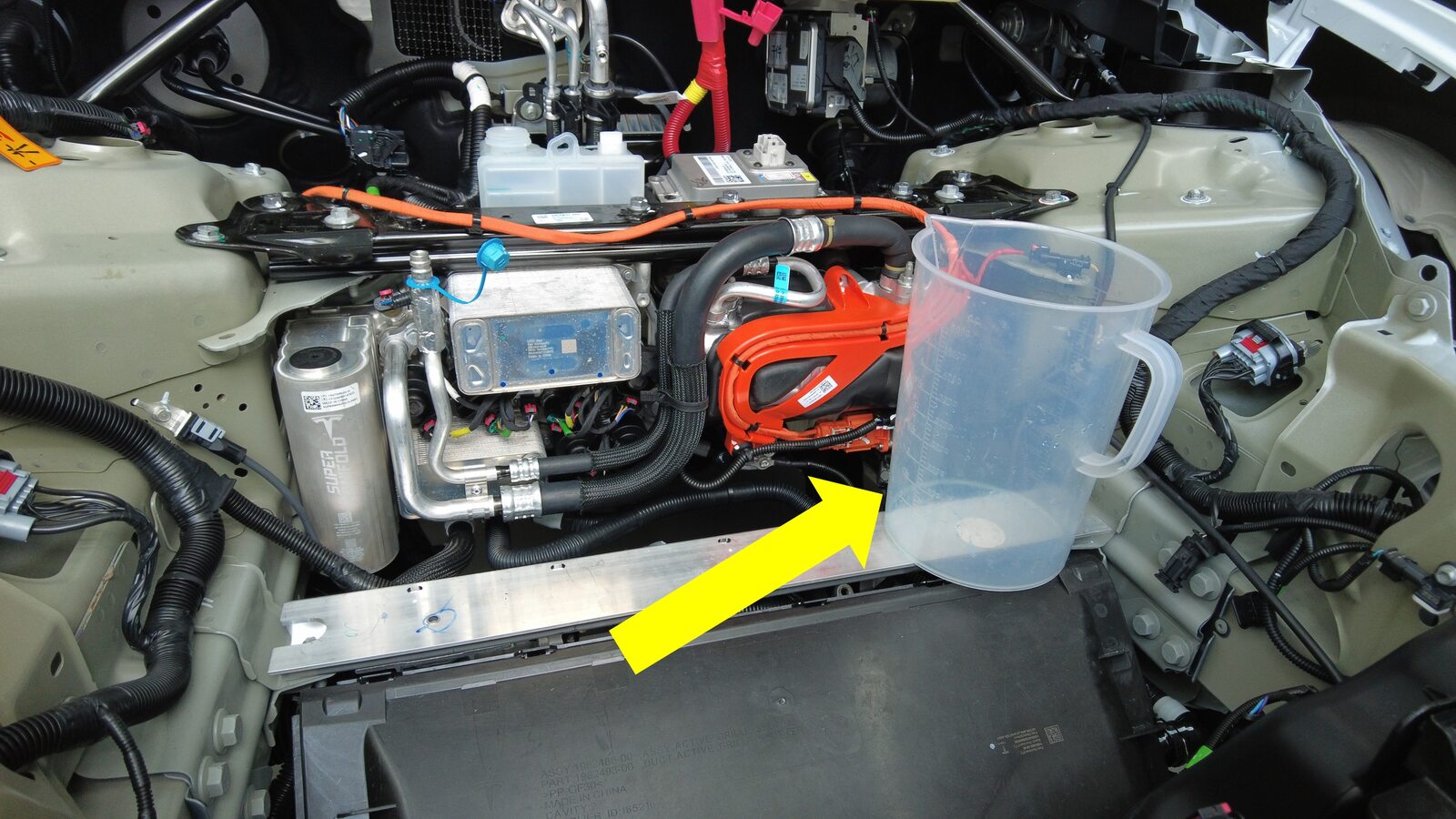

Position overflow hose into empty container

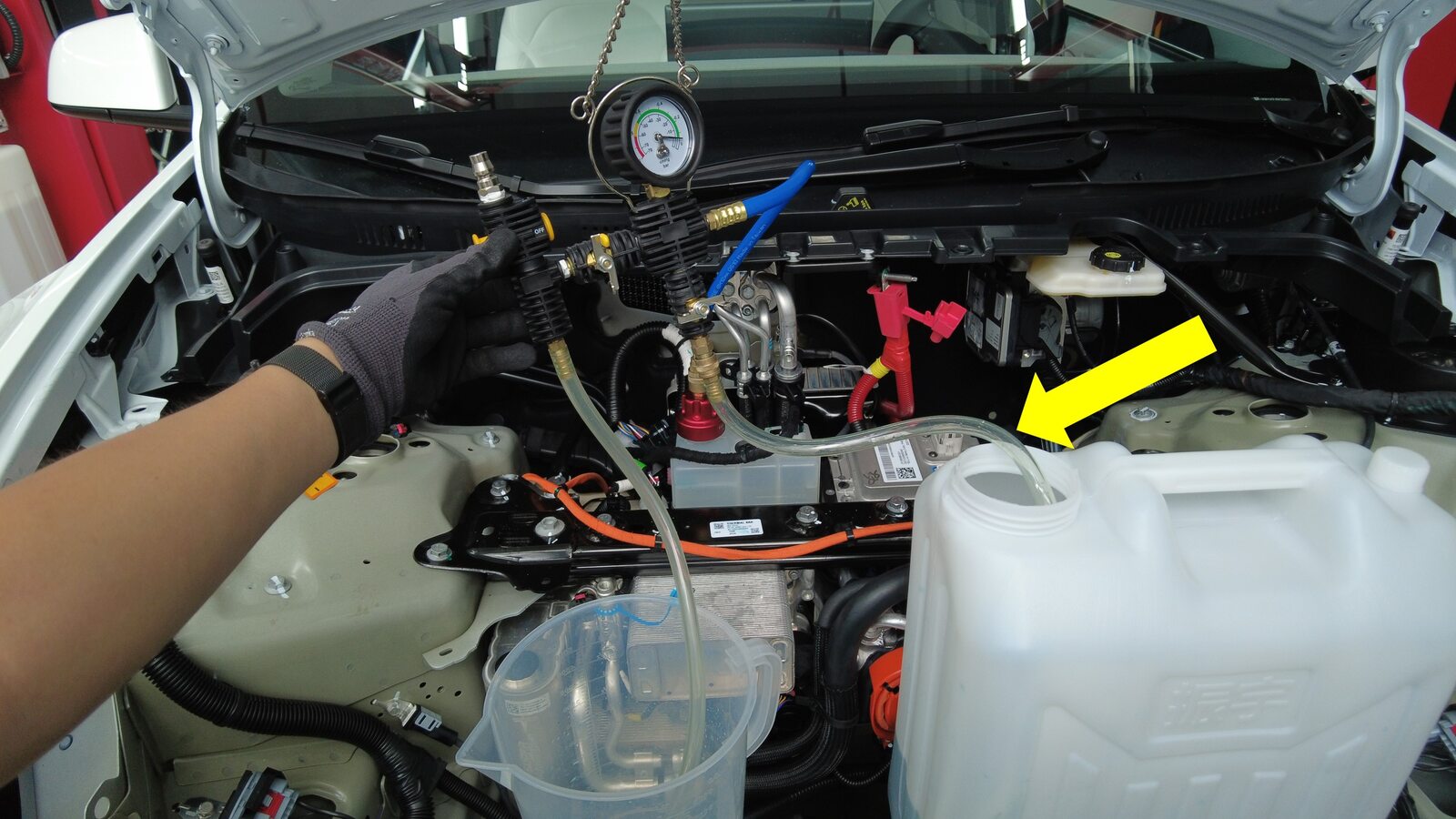

Place refill hose inside filled coolant container

注

Make sure hose end is fully submerged into coolant

Connect shop air supply to coolant refill tool

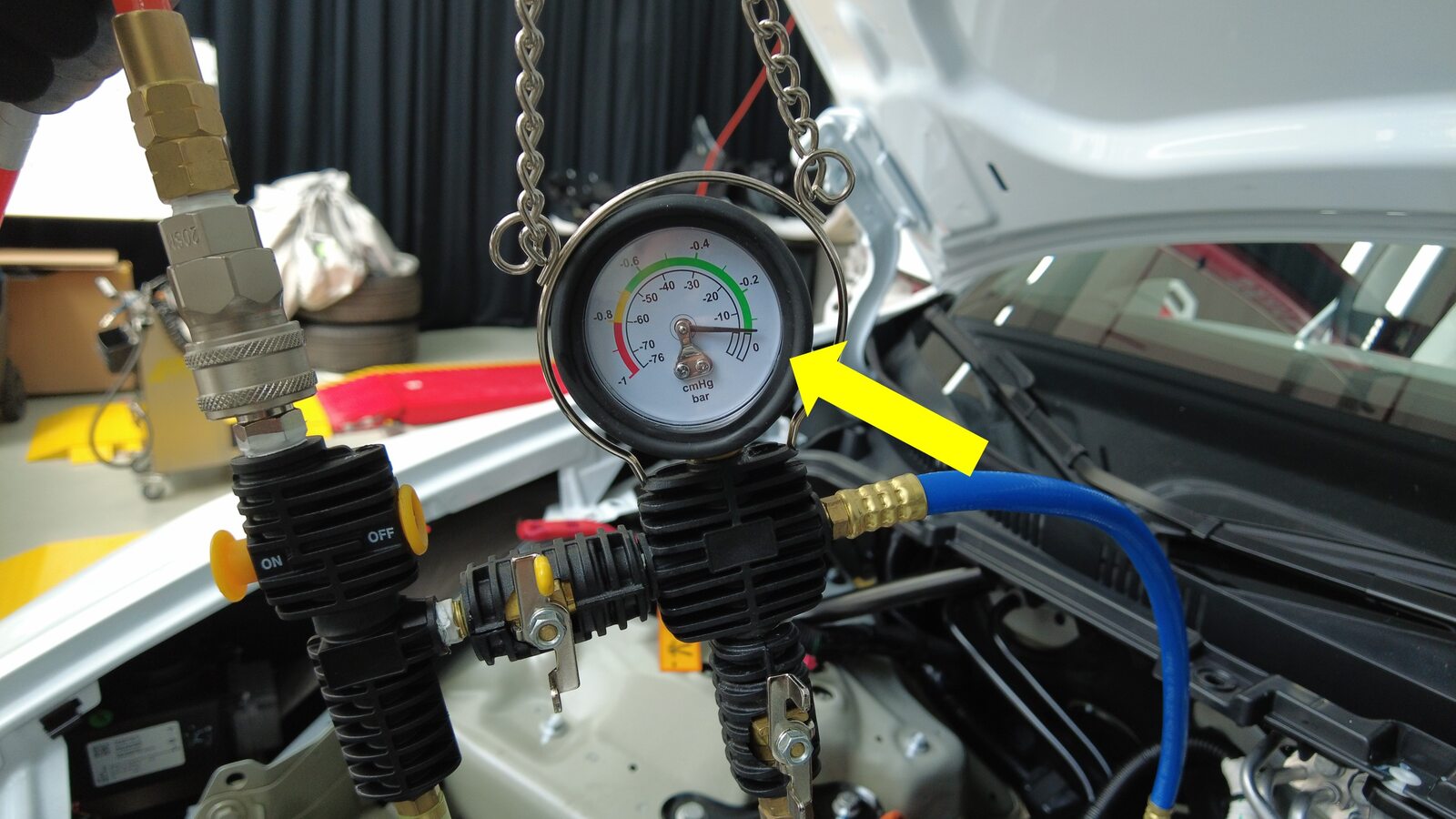

Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve

注

Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed

Monitor gauge for 30 seconds to verify a vacuum is maintained in cooling system

Slowly open refill valve to allow coolant to be drawn into system

注

Make sure hose end of refill hose is fully submerged during entire process

Once gauge reads zero, close refill valve

Disconnect shop air supply from coolant refill tool

Remove coolant refill hose from coolant container

Remove coolant overflow hose from coolant container

Disconnect vacuum refill hose from refill cap on coolant bottle

Remove refill tool cap from coolant bottle assembly

Remove coolant refill tool from vehicle

Remove both coolant containers from inside underhood area

Connect first responder loop and LV battery

注

2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

Move RH front seat to original position

Move LH front seat to original position

运行 ODIN 例行程序 UPDATE_CAN-REDEPLOYvia Service Mode Plus:

Drive Inverter Replacement ➜ Drive Inverter DIRE1L Replacement ➜ CAN Redeploy
Drive Inverter Replacement ➜ Drive Inverter DIRE1R Replacement ➜ CAN Redeploy
Drive Inverter Replacement ➜ Drive Inverter DIRE2 Replacement ➜ CAN Redeploy
Drive Inverter ➜ Front Drive Inverter Replacement ➜ CAN Redeploy
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ CAN Redeploy
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ CAN Redeploy
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ CAN Redeploy
Drive Unit ➜ Front Drive Unit Replacement ➜ CAN Redeploy
Drive Unit ➜ Rear Drive Unit Replacement ➜ CAN Redeploy
Thermal ➜ HVAC ➜ CAN Redeploy
chassis ➜ DPB Post Replacement ➜ CAN Redeploy
chassis ➜ ESP Post Replacement ➜ CAN Redeploy
chassis ➜ IDB Post Replacement ➜ CAN Redeploy
chassis ➜ RCU Post Replacement ➜ CAN Redeploy
chassis ➜ ESP Replacement Panel ➜ CAN Redeploy
chassis ➜ IBST Replacement Panel ➜ CAN Redeploy

via Toolbox:(link)

运行 ODIN 例行程序 PROC_VCFRONT_X_STOP-THERMAL-FILL-DRAINvia Service Mode:

Thermal ➜ Actions ➜ Stop Thermal Fill/Drain
Thermal ➜ Coolant System ➜ Stop Coolant Fill/Drain
Thermal ➜ Refrigerant System ➜ Stop Refrigerant Fill/Drain

via Service Mode Plus:

Drive Inverter ➜ Front Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Stop Fluid Fill/Drain
Drive Unit ➜ Front Drive Unit Replacement ➜ Stop Coolant Fill/Drain
Drive Unit ➜ Rear Drive Unit Replacement ➜ Stop Coolant Fill/Drain

via Toolbox:(link)

运行 ODIN 例行程序 TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGEvia Service Mode:

Thermal ➜ Actions ➜ Coolant Purge Stop or Coolant Purge Start
Thermal ➜ Coolant System ➜ Coolant Purge Start

via Service Mode Plus:

Drive Inverter ➜ Front Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Coolant Air Purge
Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Coolant Air Purge
Drive Unit ➜ Front Drive Unit Replacement ➜ Coolant Air Purge
Drive Unit ➜ Rear Drive Unit Replacement ➜ Coolant Air Purge

via Toolbox:(link)

Coolant air purge run time

注

Run time: 00:10:00, Subtract overlap time spent on other operations while waiting for coolant purge run

运行 ODIN 例行程序 PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)

Inspect coolant level and top off as necessary

注

Ensure that fluid level is at Max line, Vacuum fill required if greater than 1L lost during repair

Install coolant bottle cap

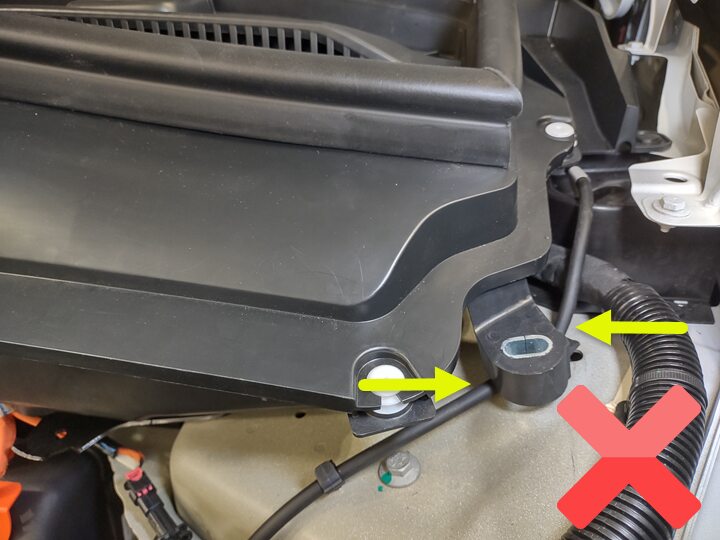

Install HEPA filter assembly

注

2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose in between HEPA filter assembly and body
