校正代码 16304402 FRT 1.08 注意： 除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。 除非明确要求，否则请勿堆叠校正代码。 注意： 请参阅平均维修工时深入了解 FRT 及其创建方式。 注意： 请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意： 请参阅人体工程学注意事项查看安全健康的作业规程。

1. Open all four doors
2. Lower all four windows

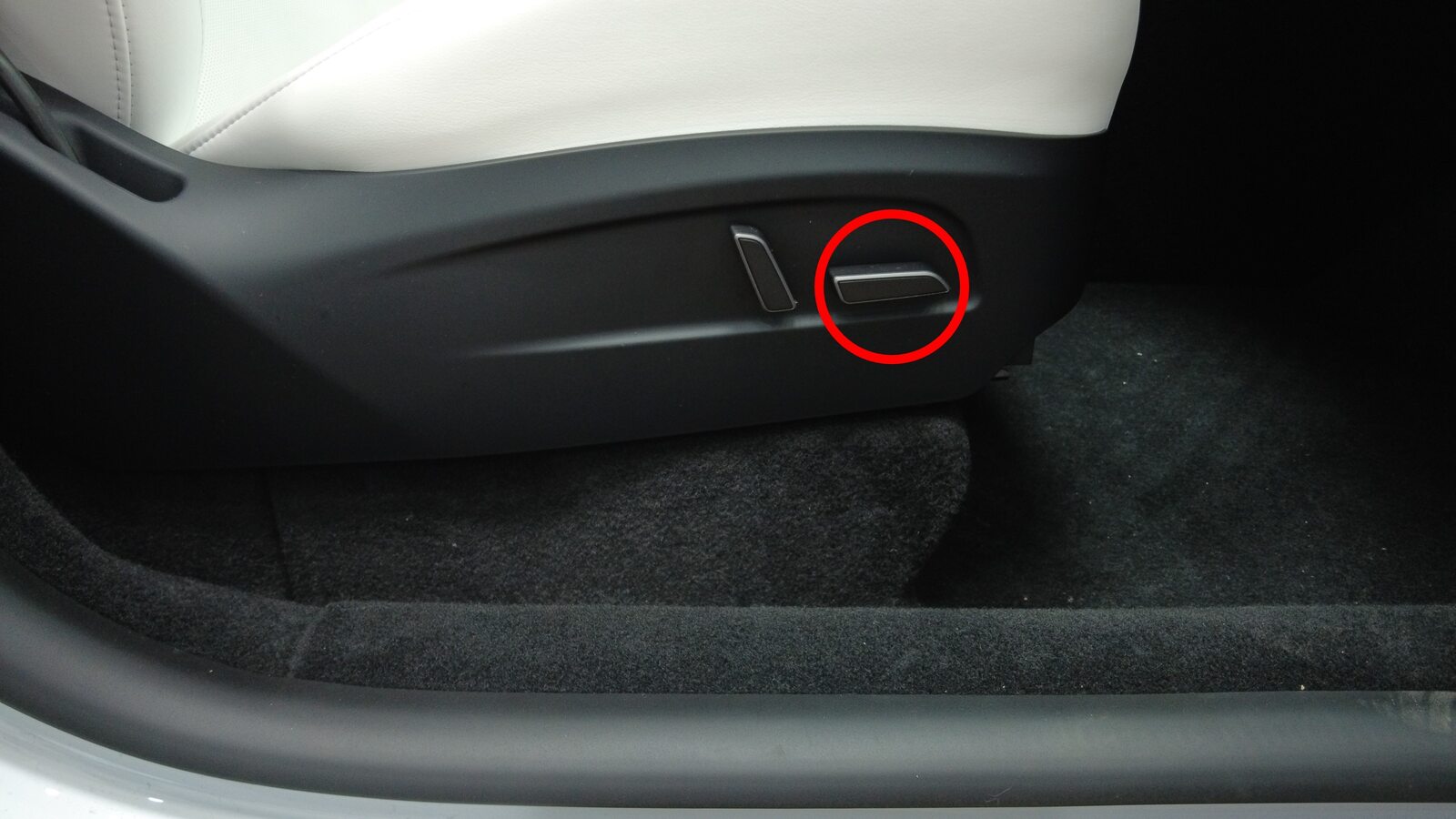

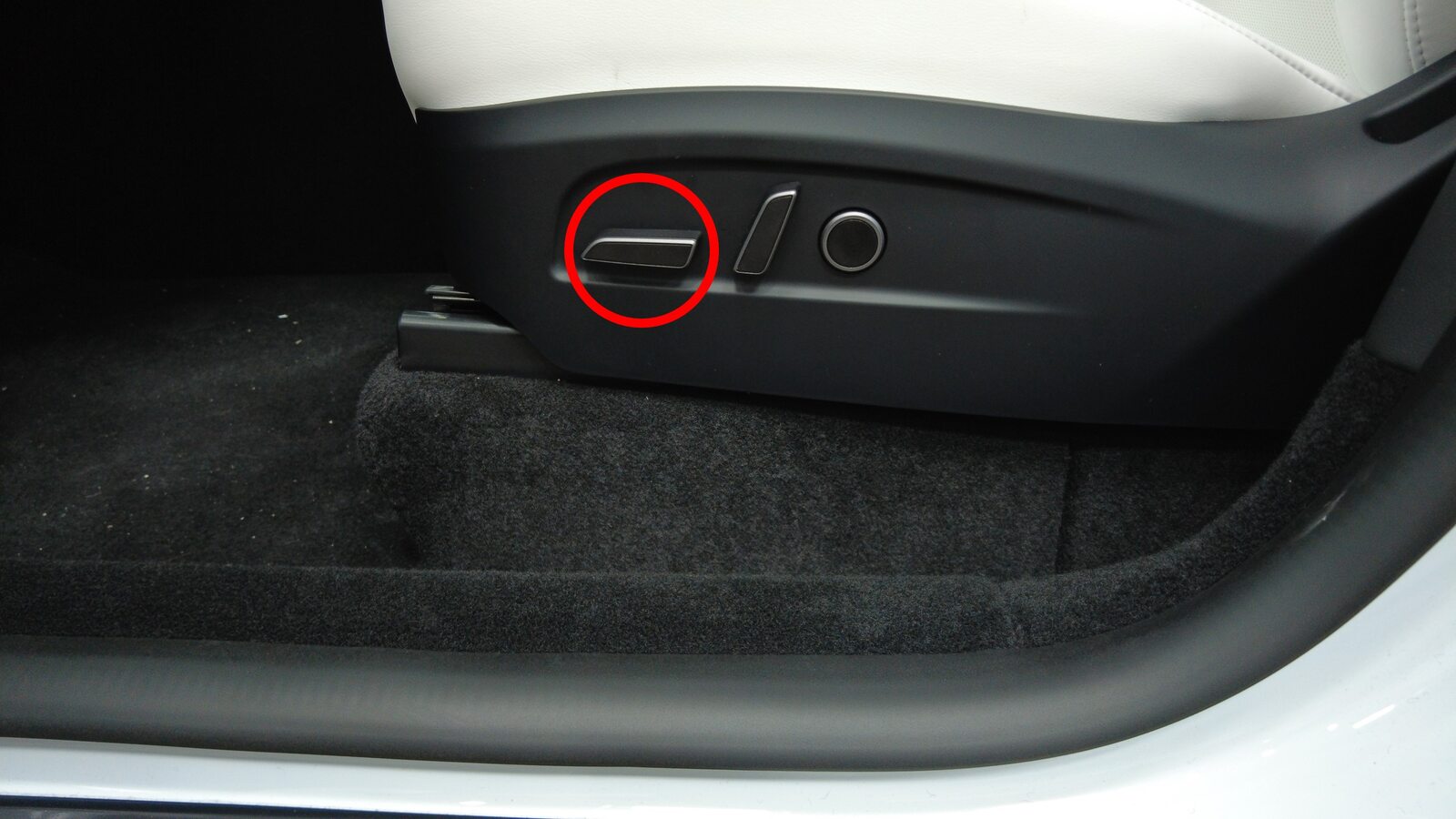

3. Move LH front seat forward
   注

   Adjust seat back if needed to avoid contacting headliner



4. Move RH front seat forward
   注

   Adjust seatback if needed to avoid contacting headliner

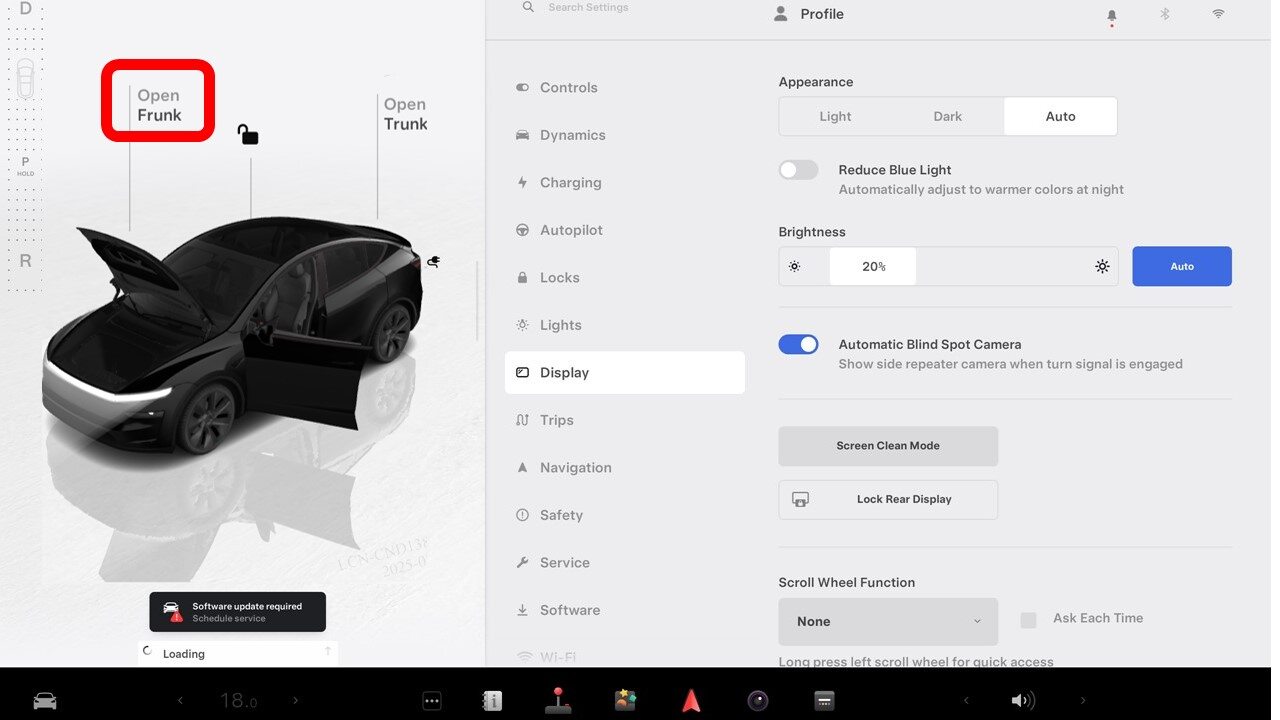

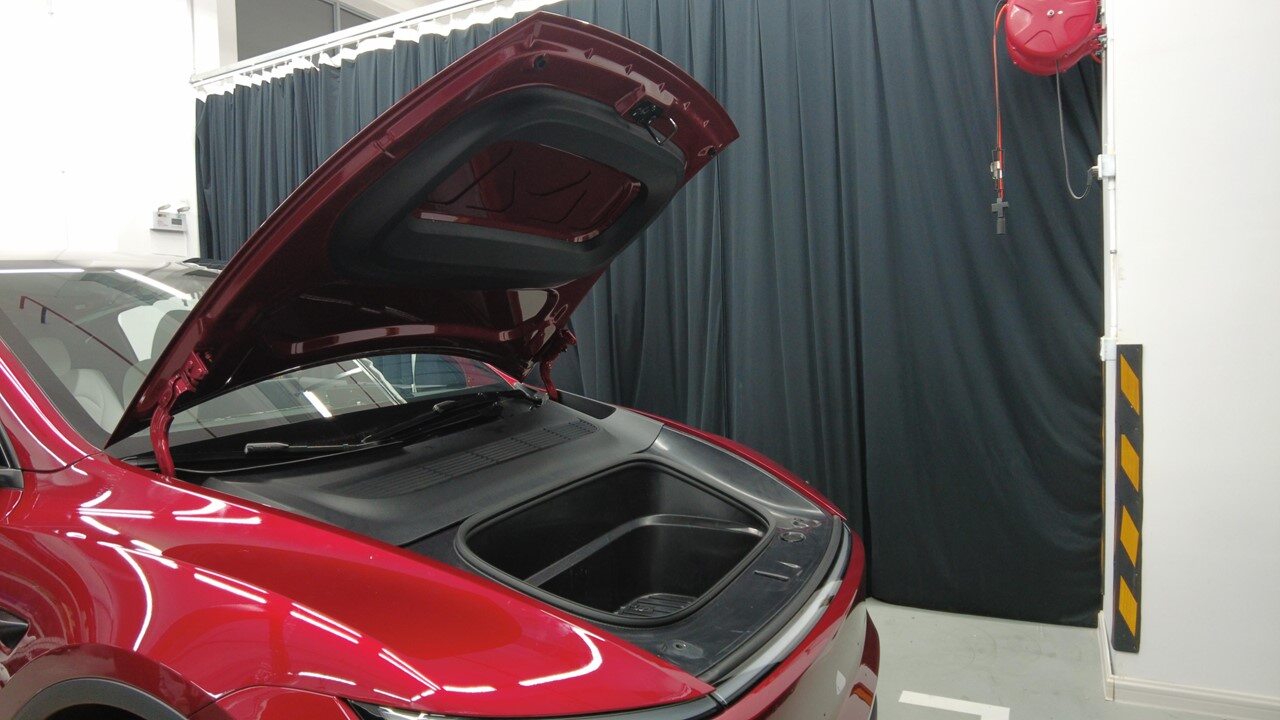

5. Open hood

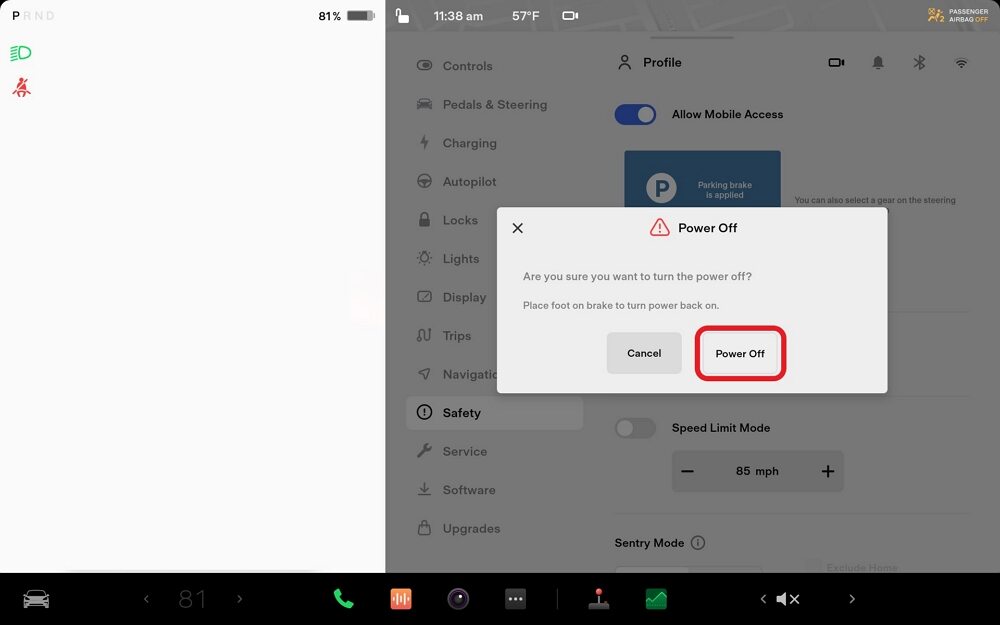

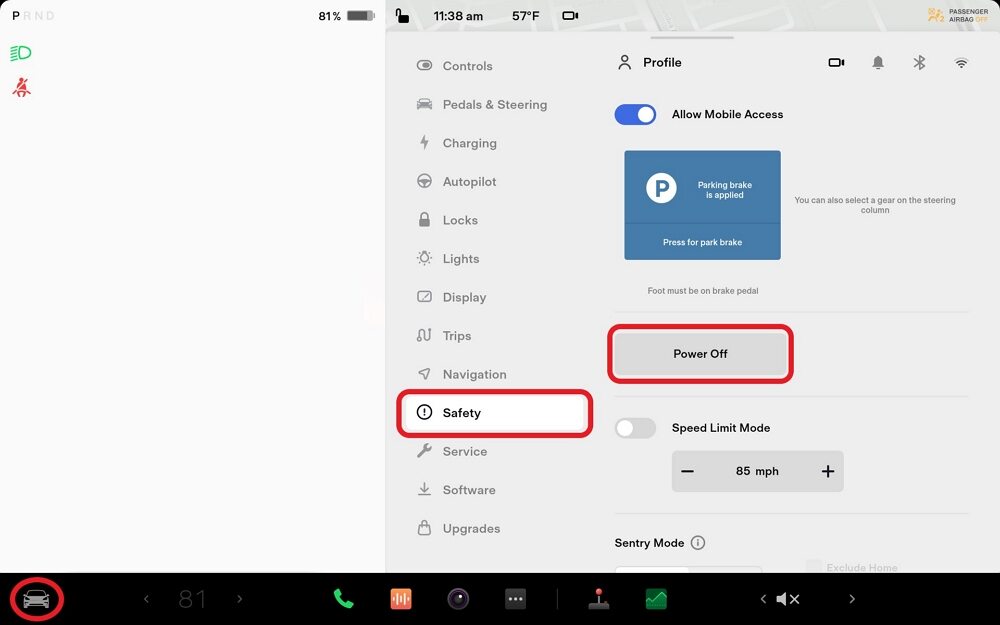

6. Power off vehicle from center display
   注

   Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

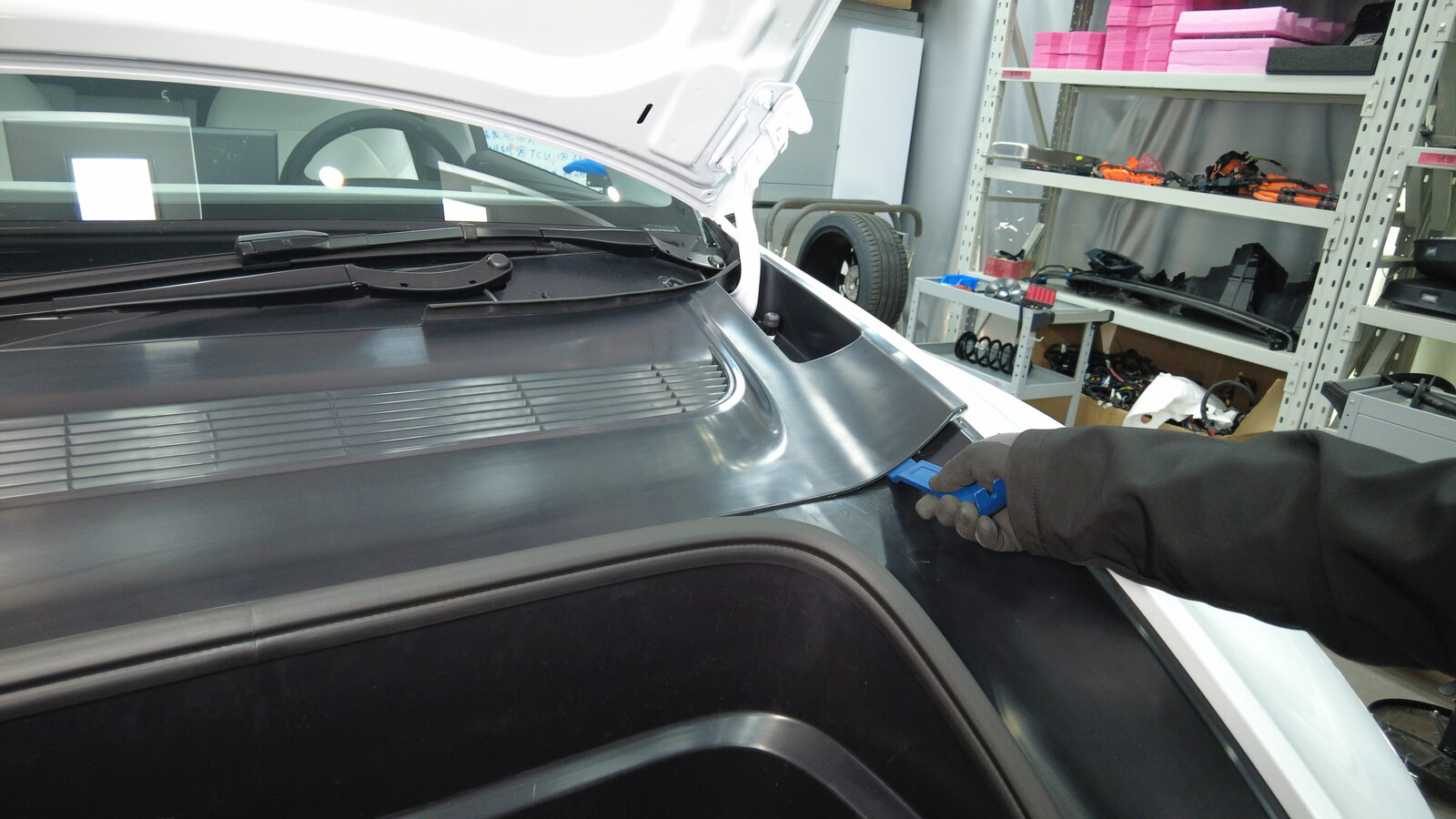

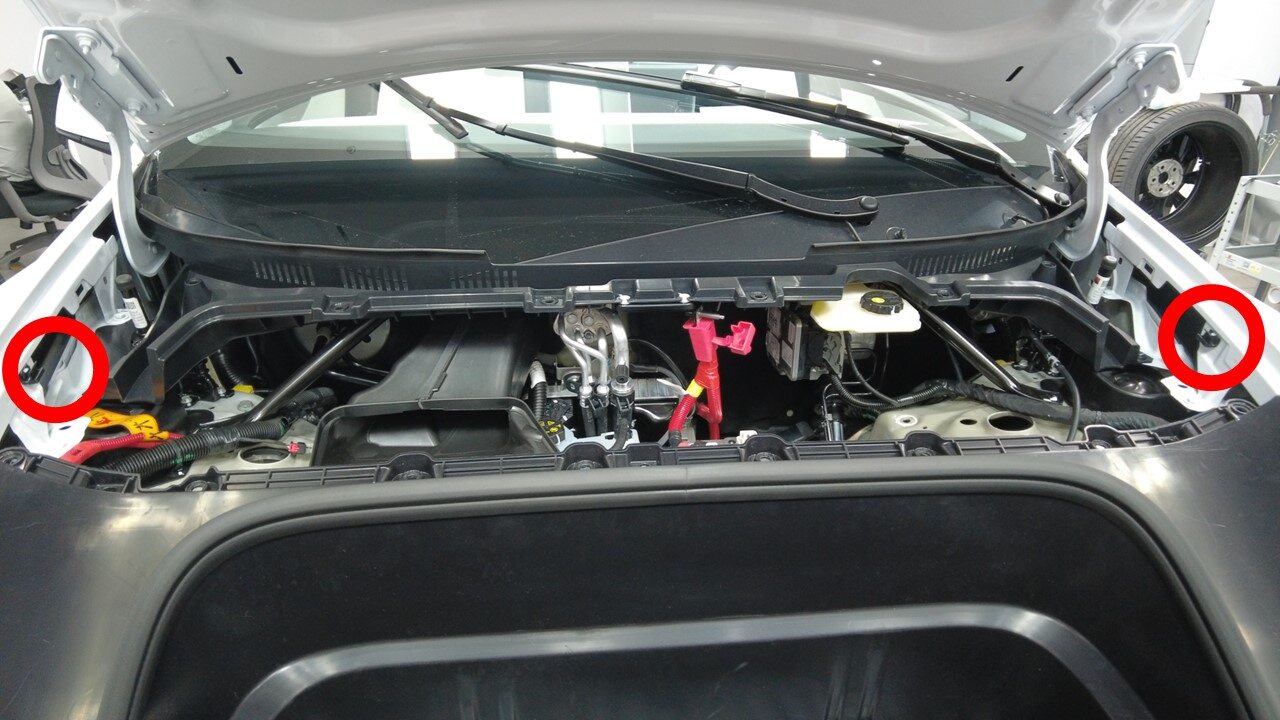

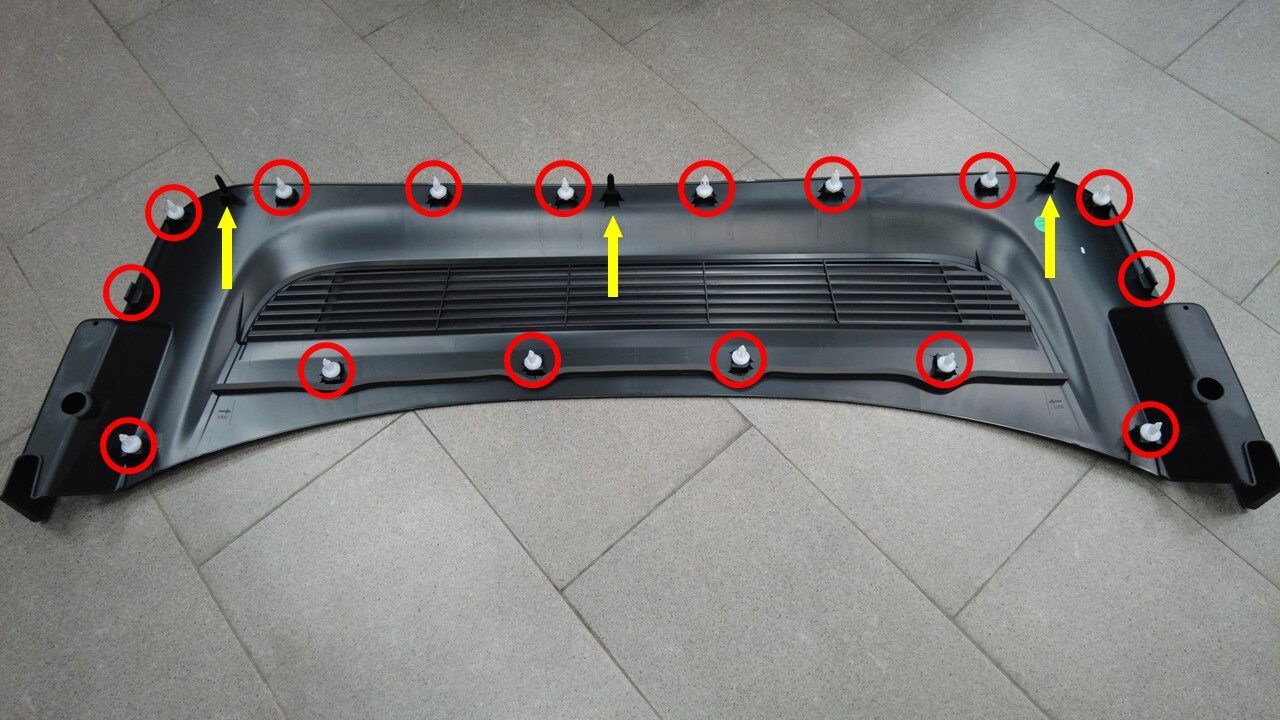

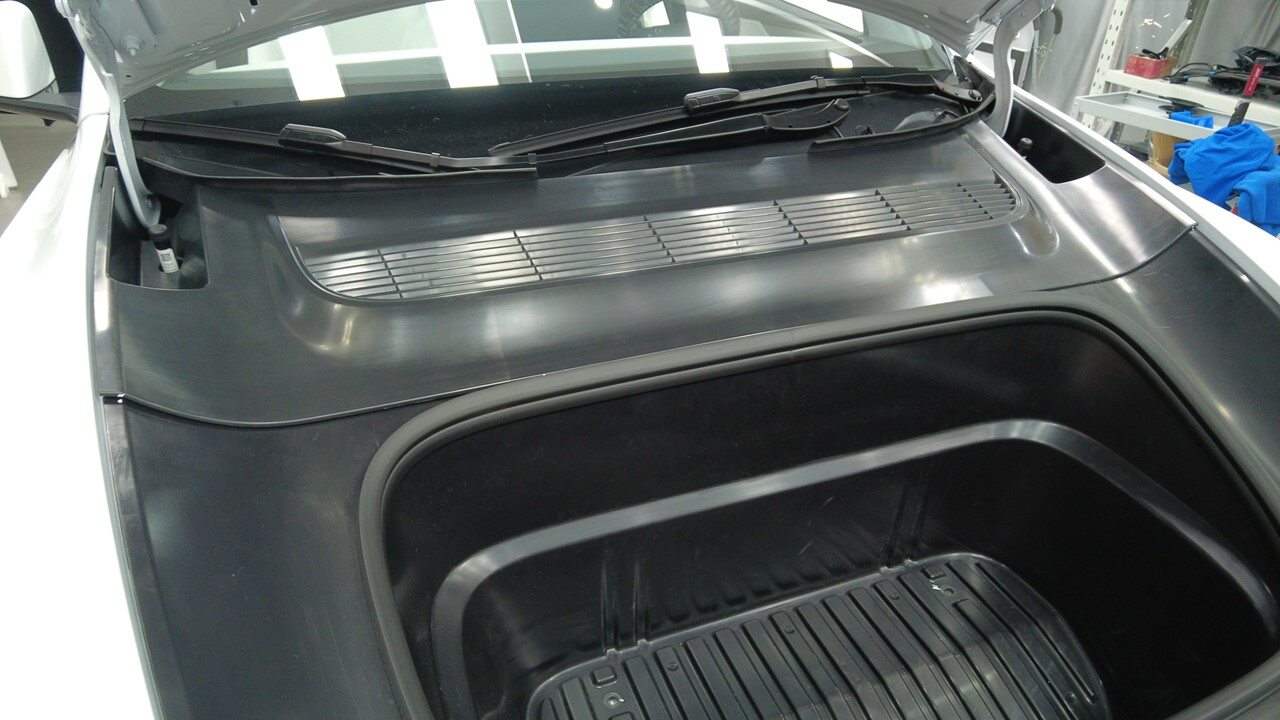

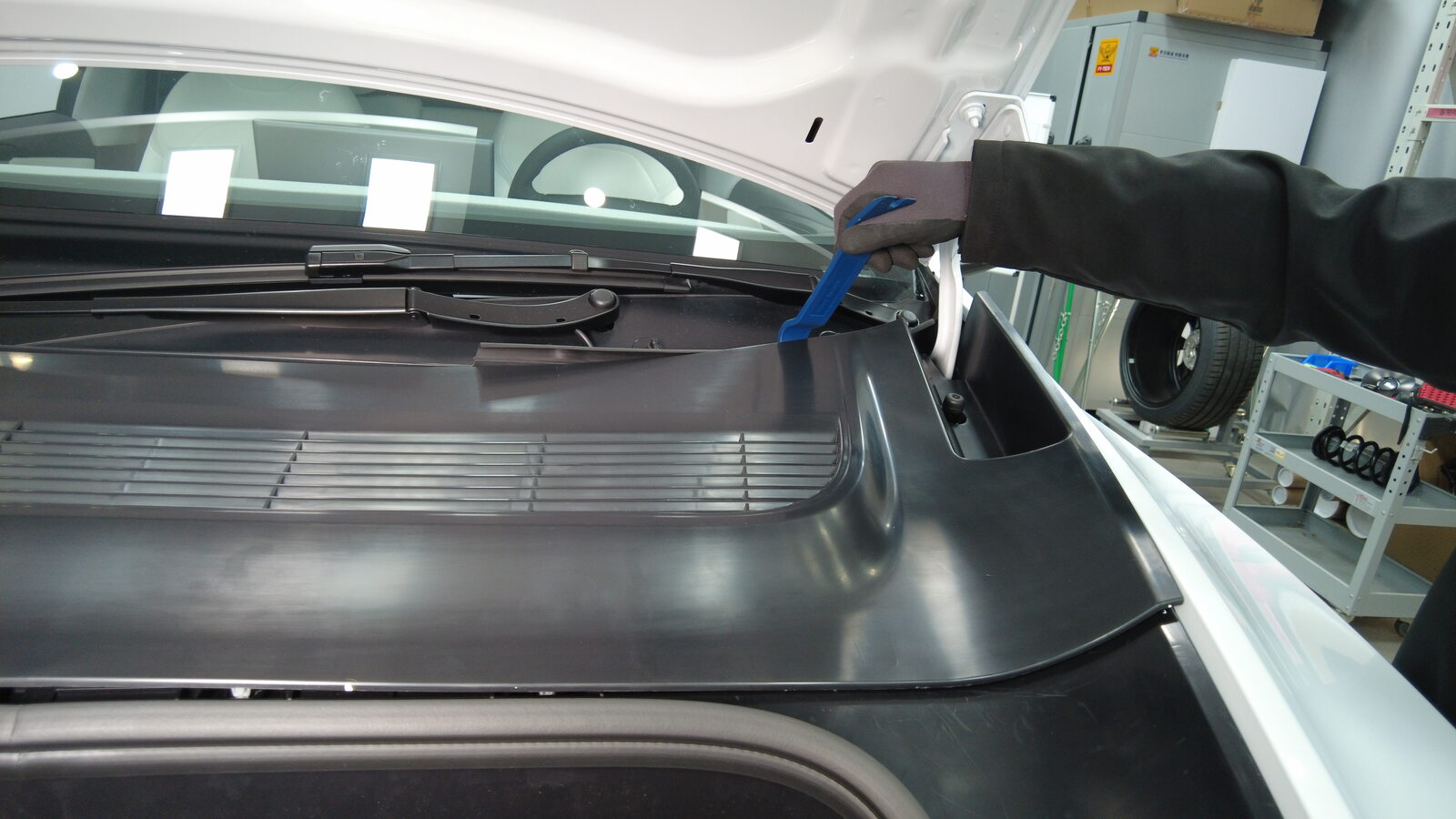

7. Remove rear apron
   注

   16x trim clips, 3x datums, 2x clips

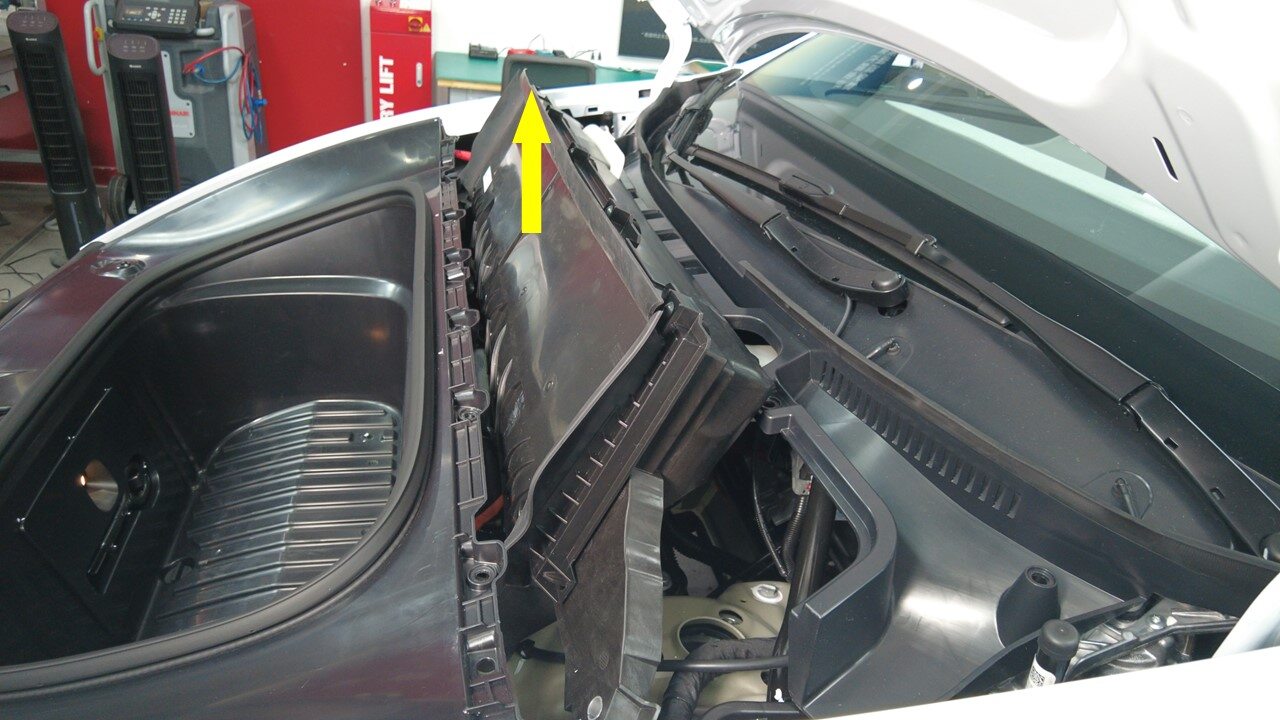

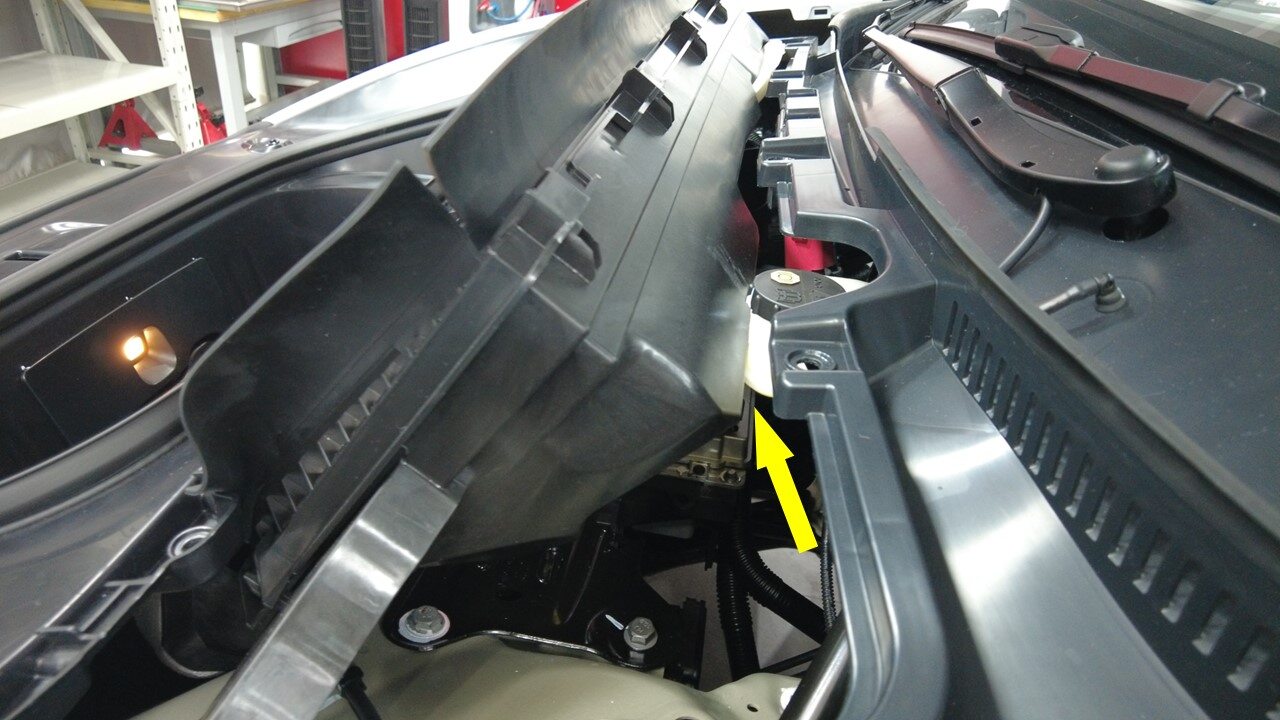

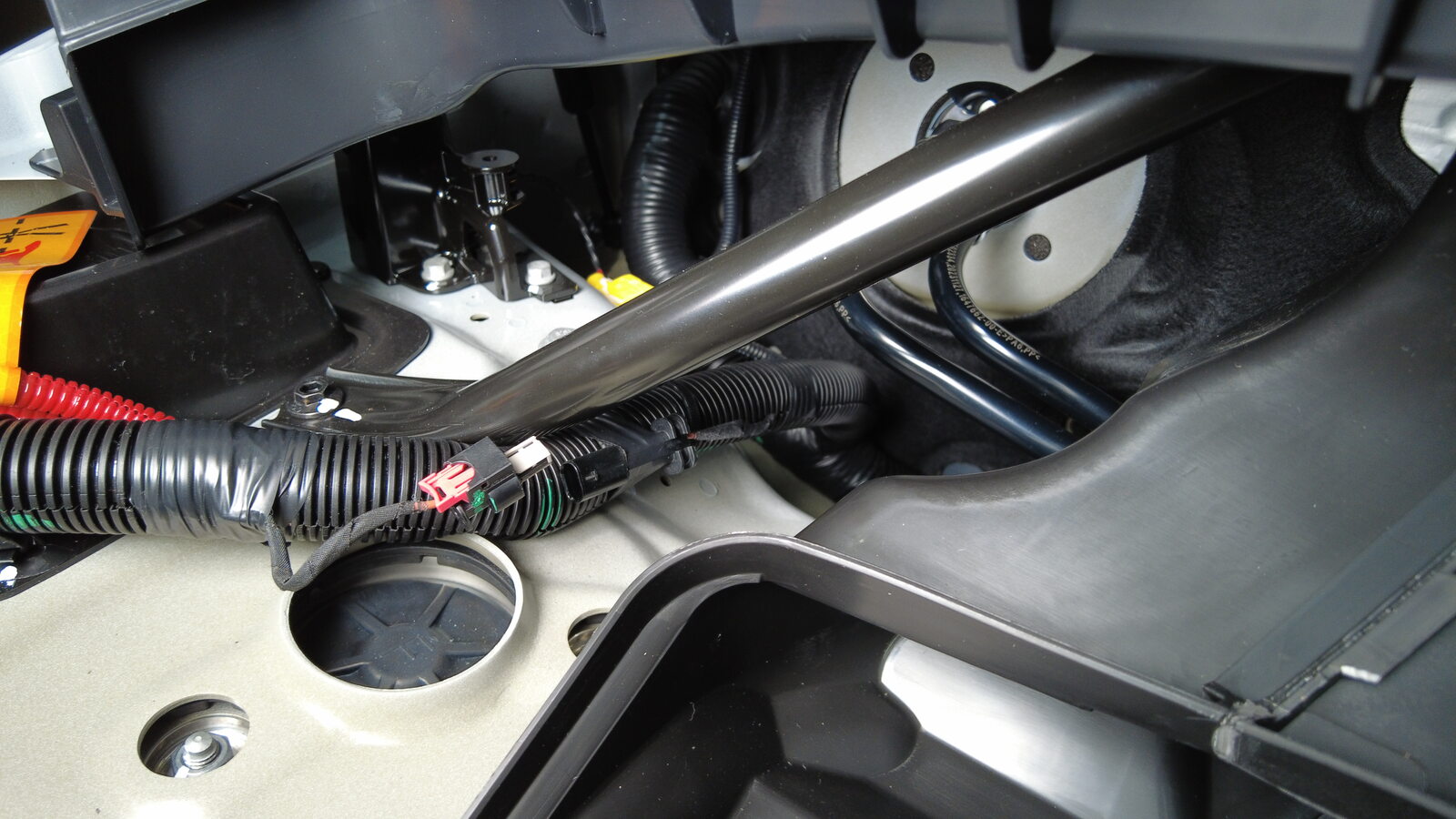

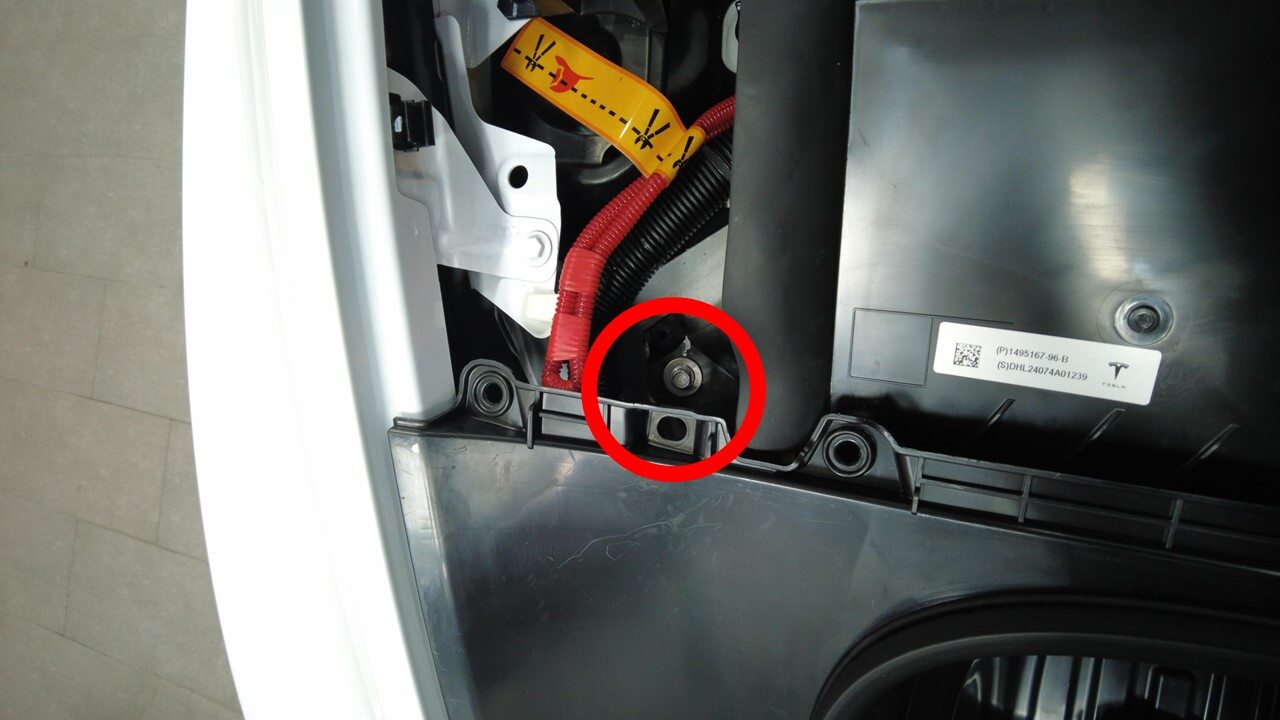

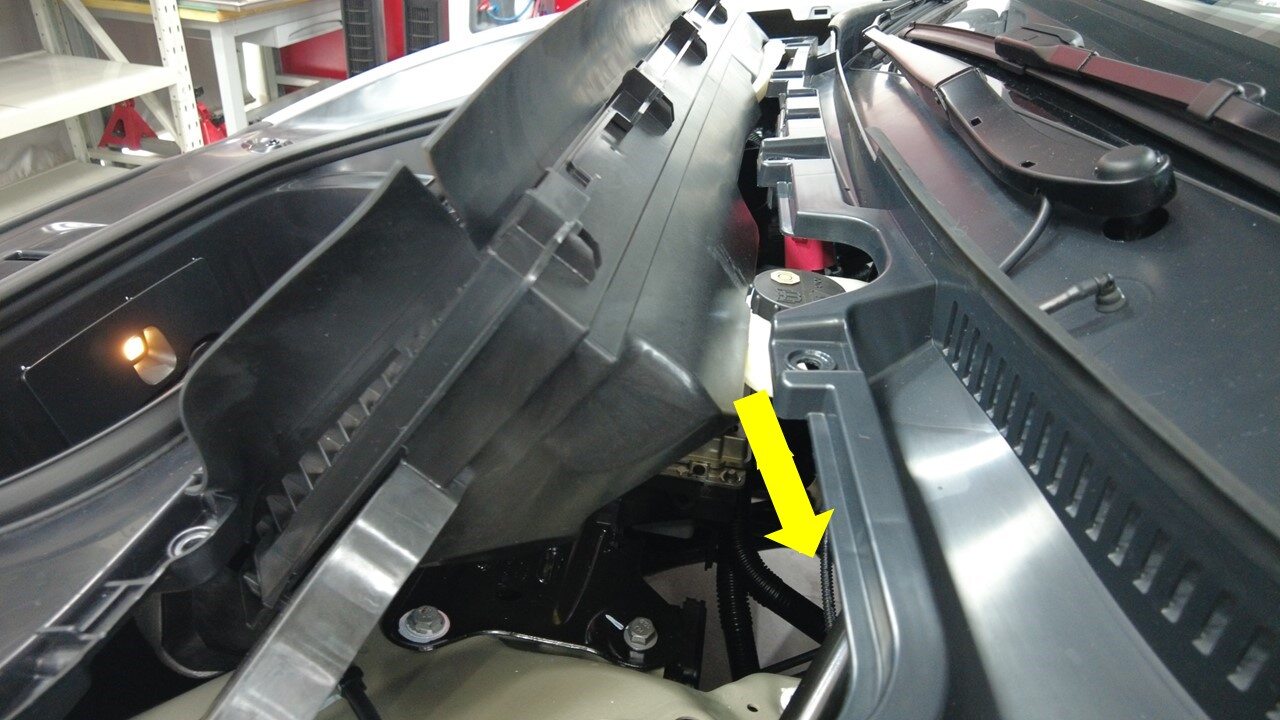

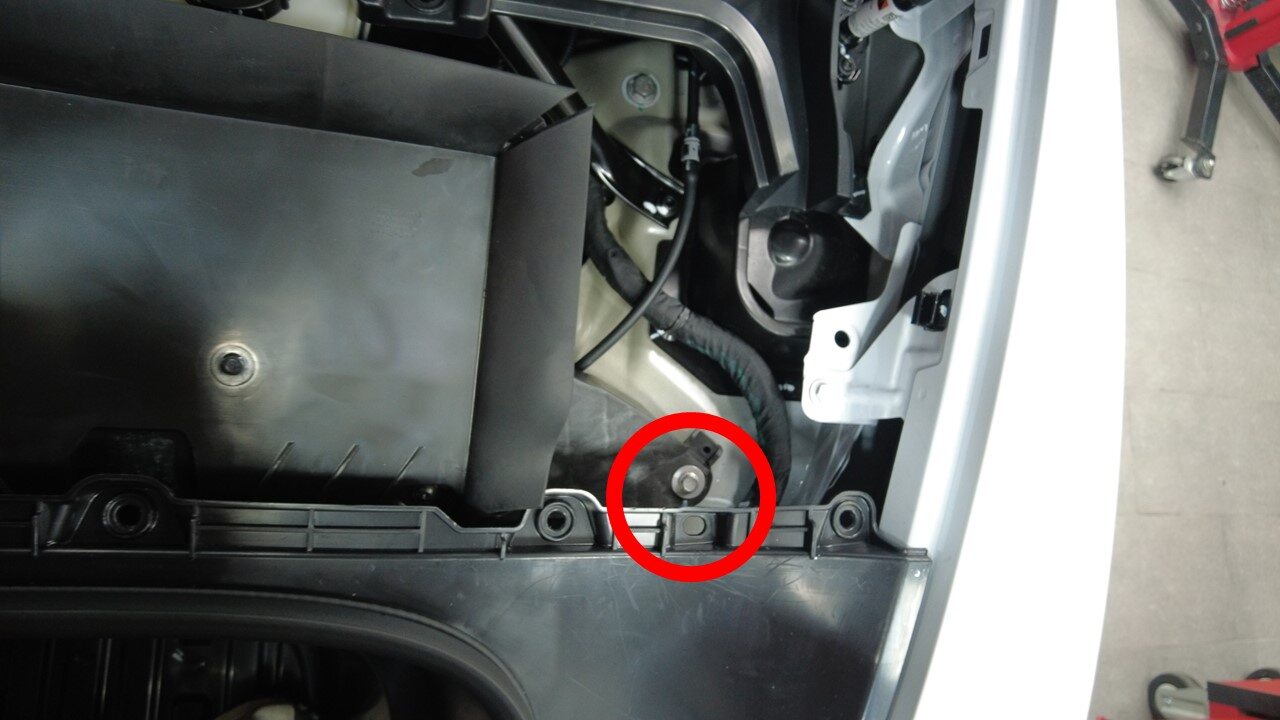

8. Remove HEPA filter assembly
   注

   2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly

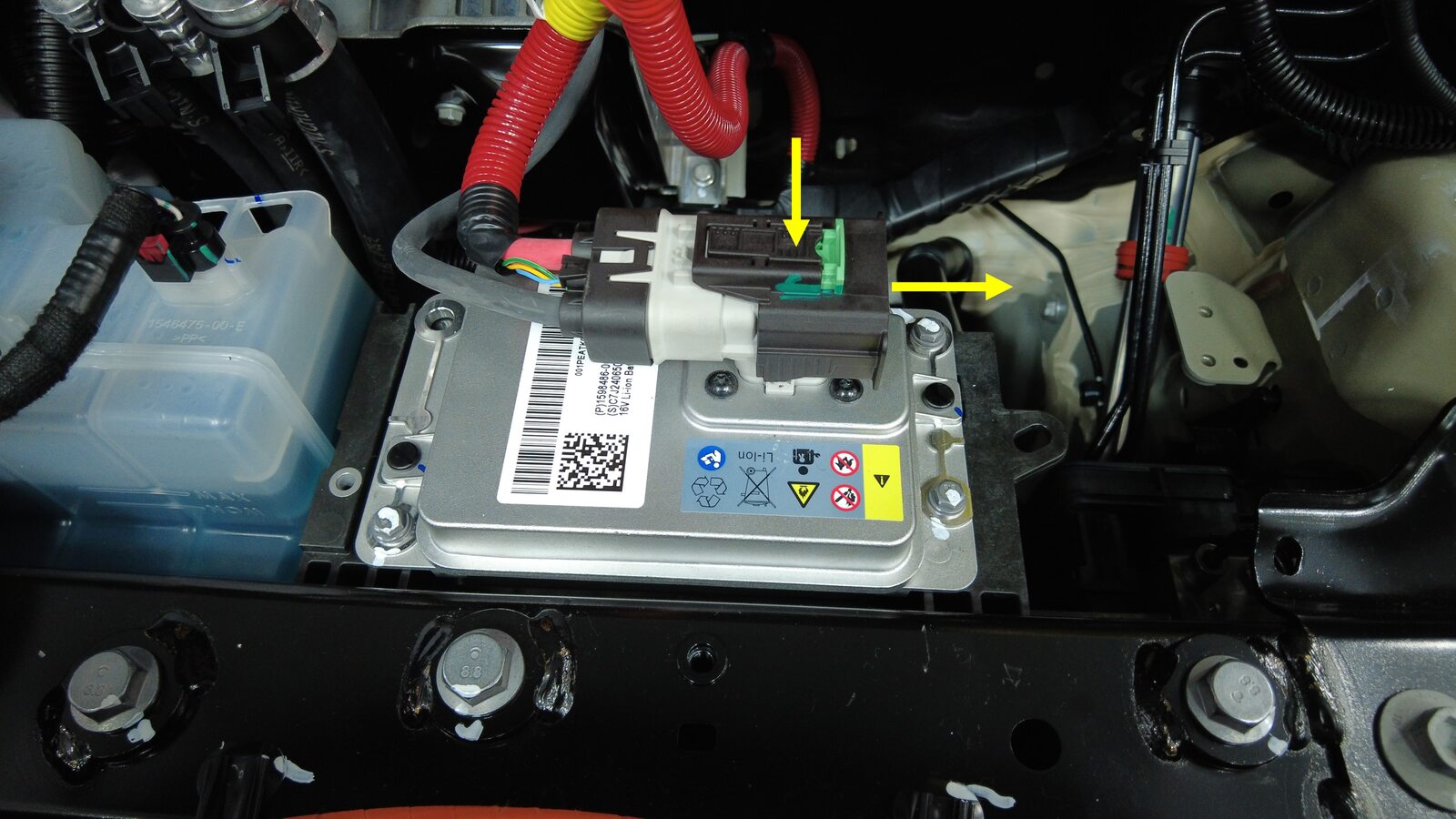

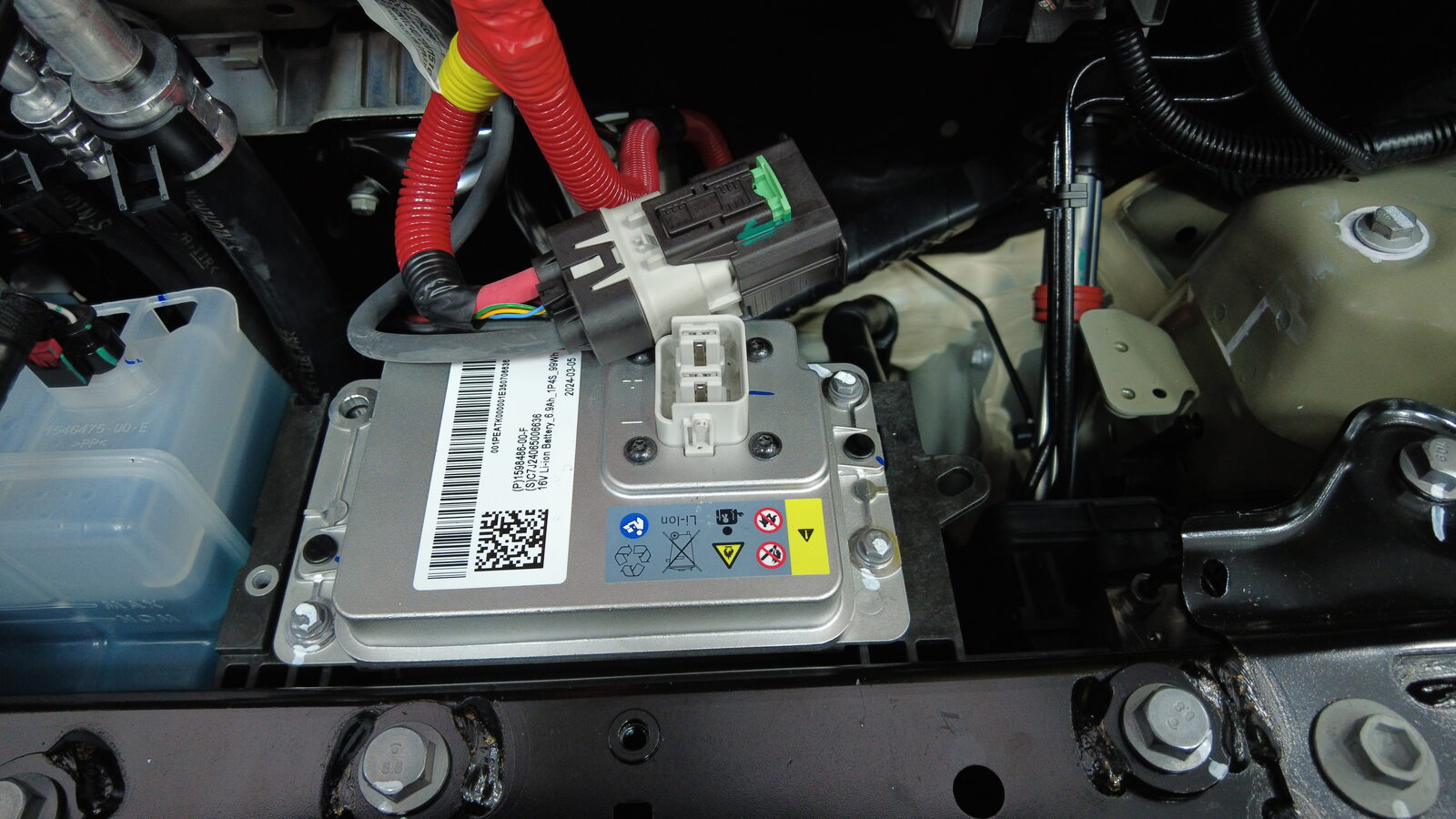

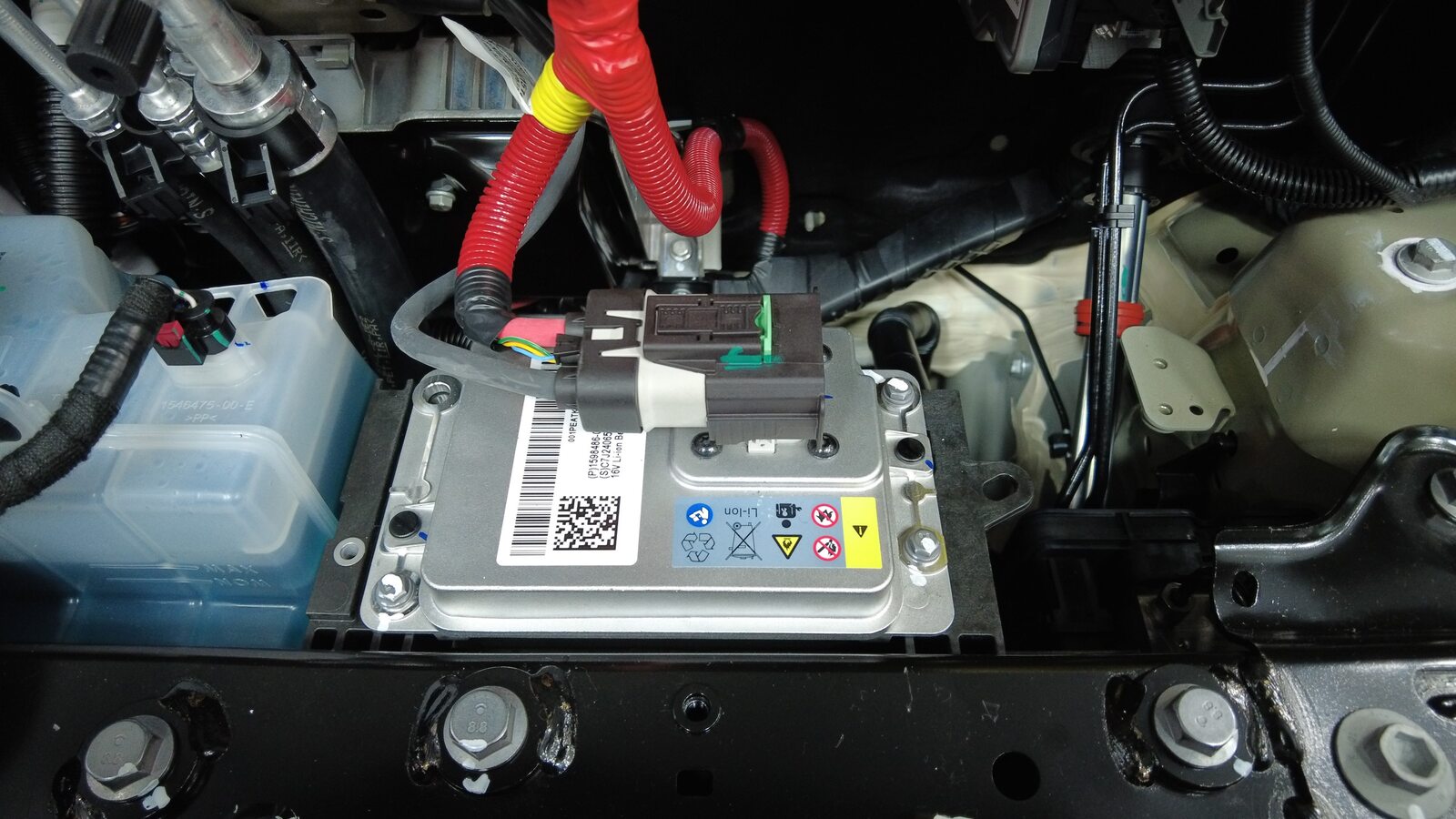

9. Disconnect LV battery and first responder loop
   注

   2x connectors, Ensure that one minute has passed after window movement before performing the power-off, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

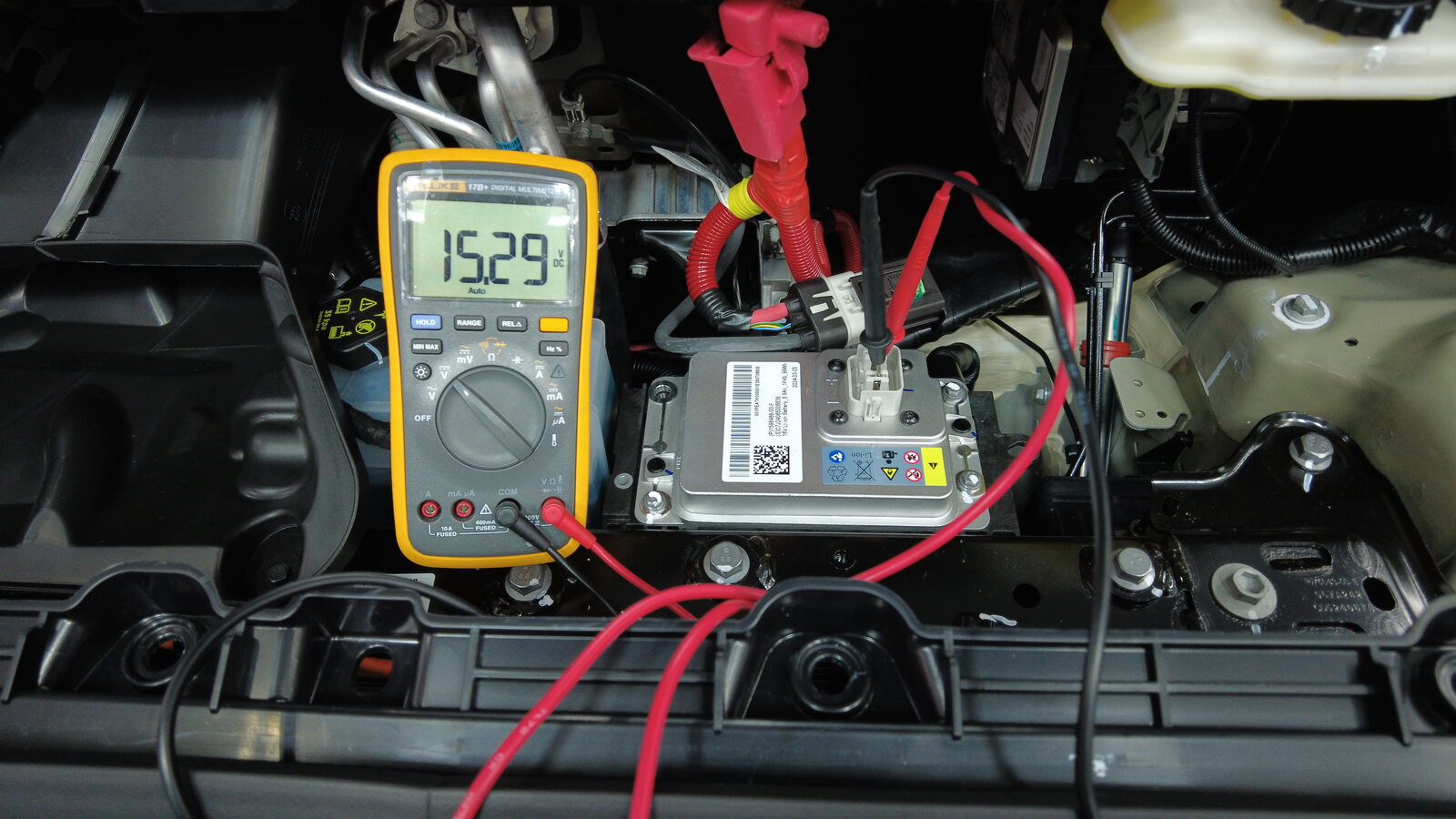

10. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery

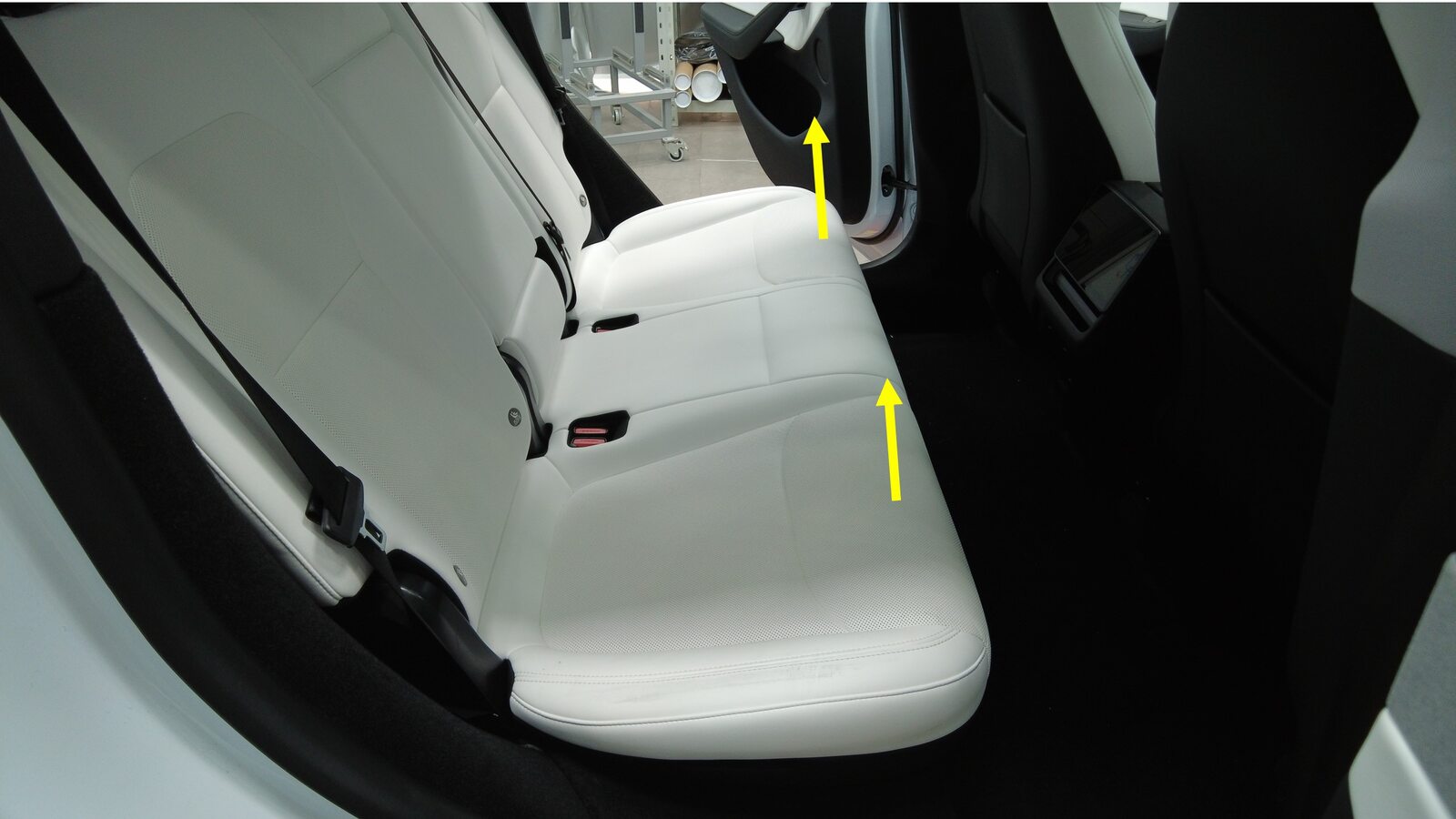

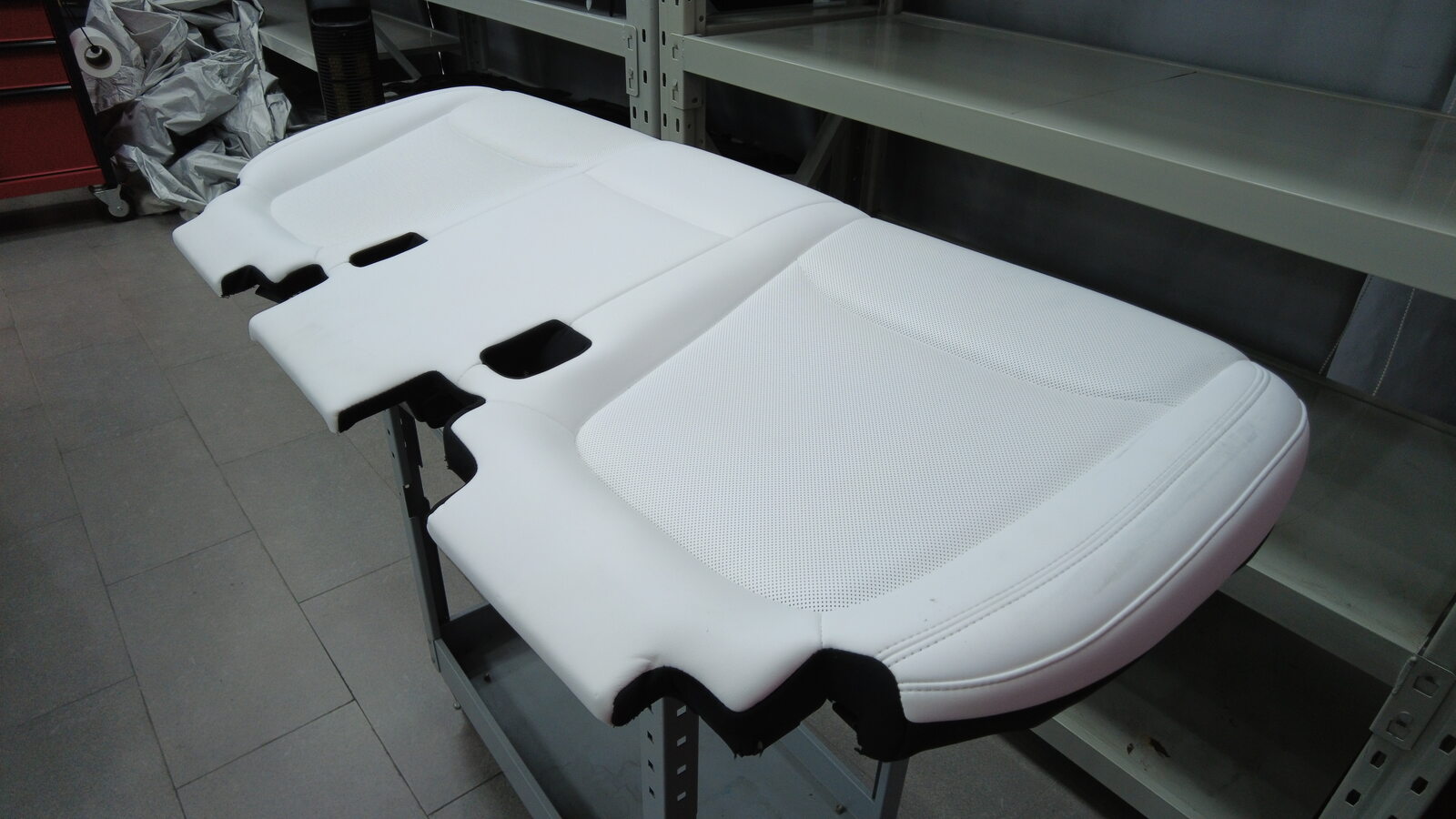

11. Remove 2nd row seat cushion
    注

    1x connector, Lift front edge of seat cushion upward to release foam from frame, Adjust the backrest to the appropriate position as needed

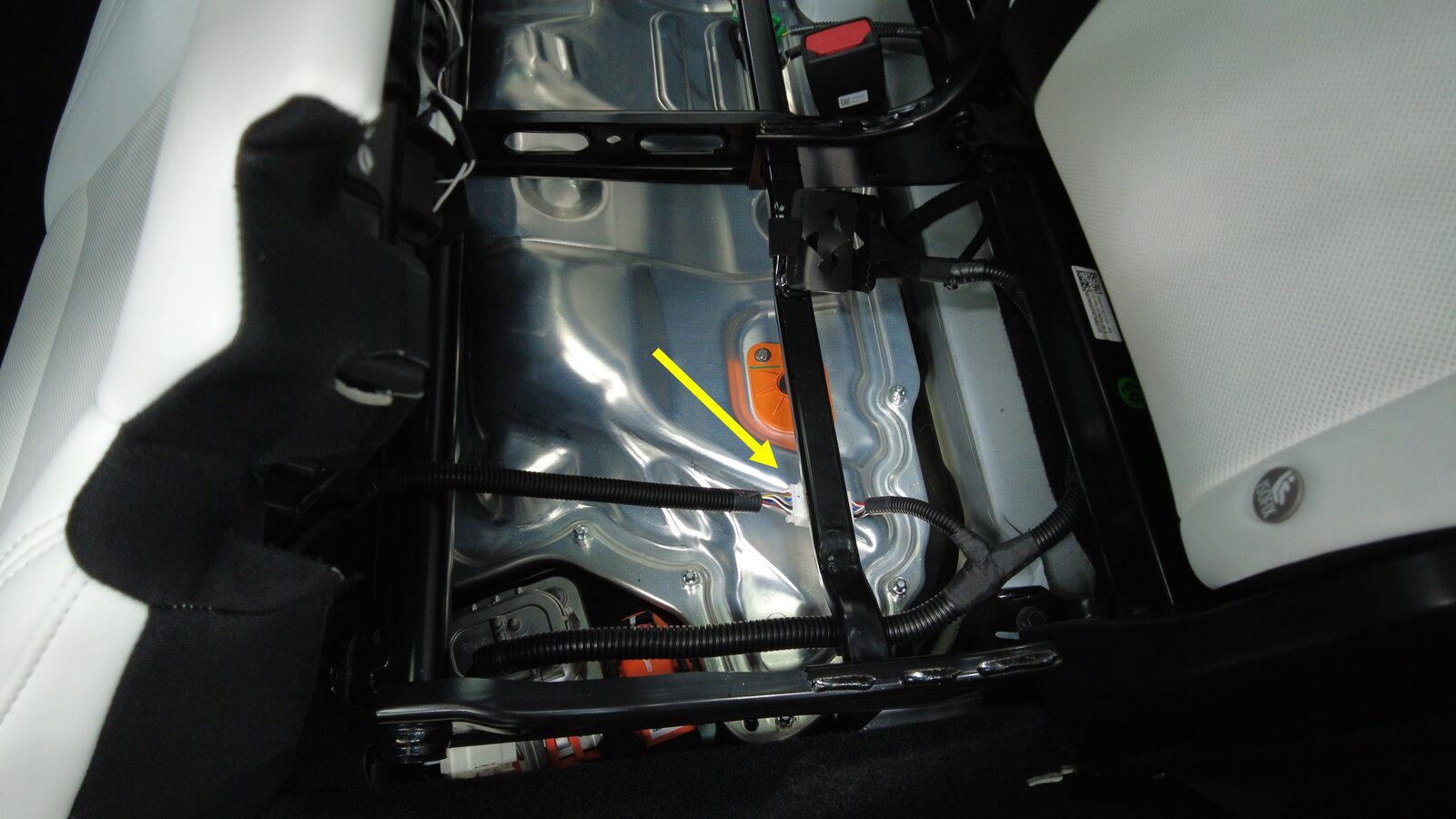

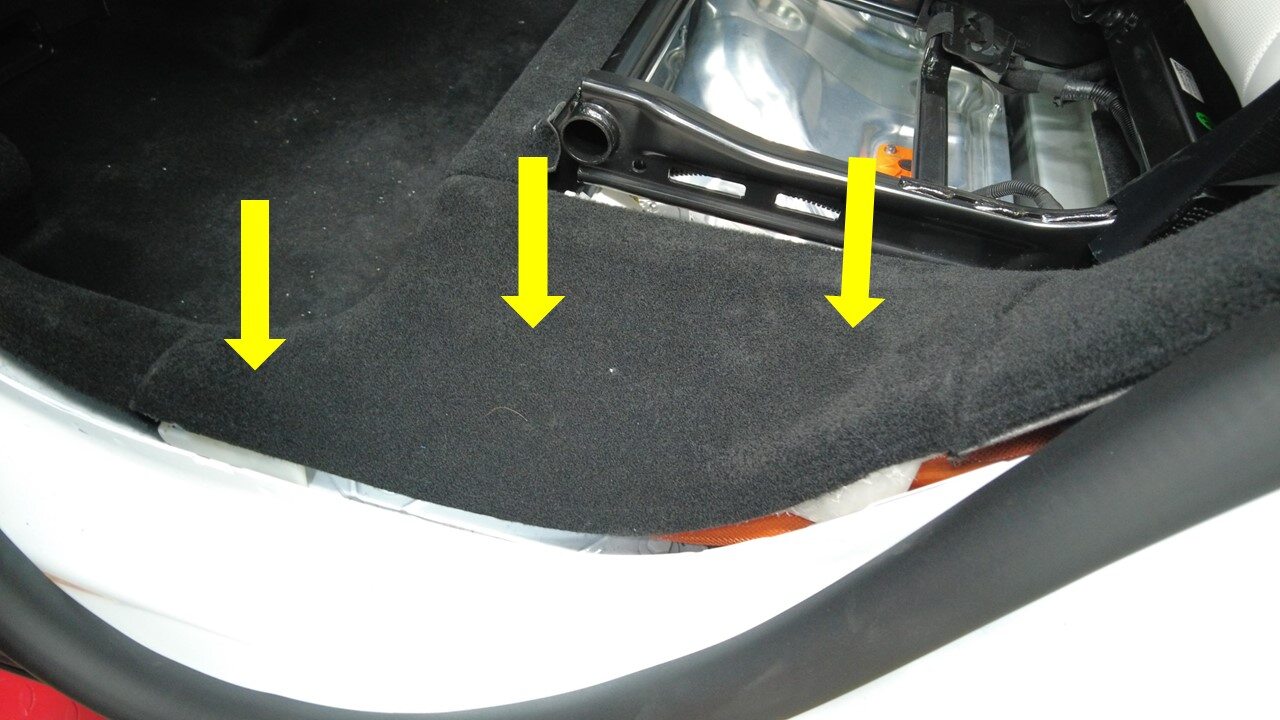

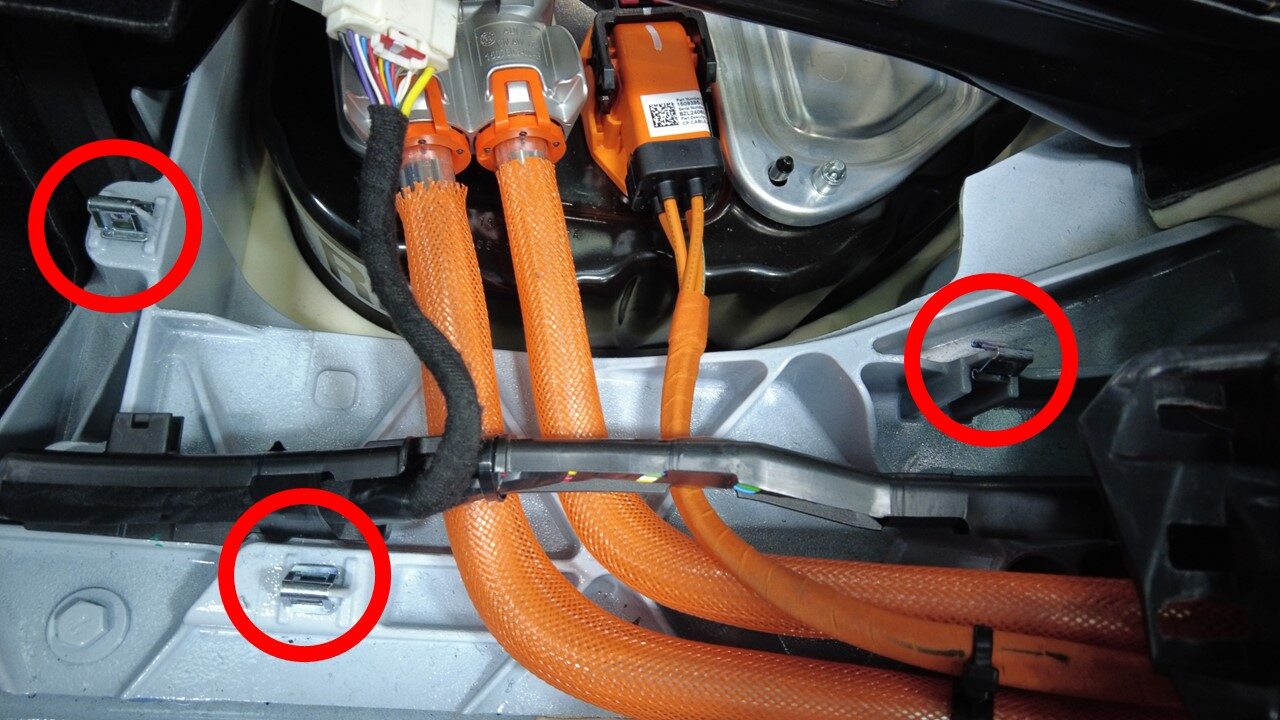

12. Remove clips securing rear main cabin carpet to vehicle
    注

    3x push clips

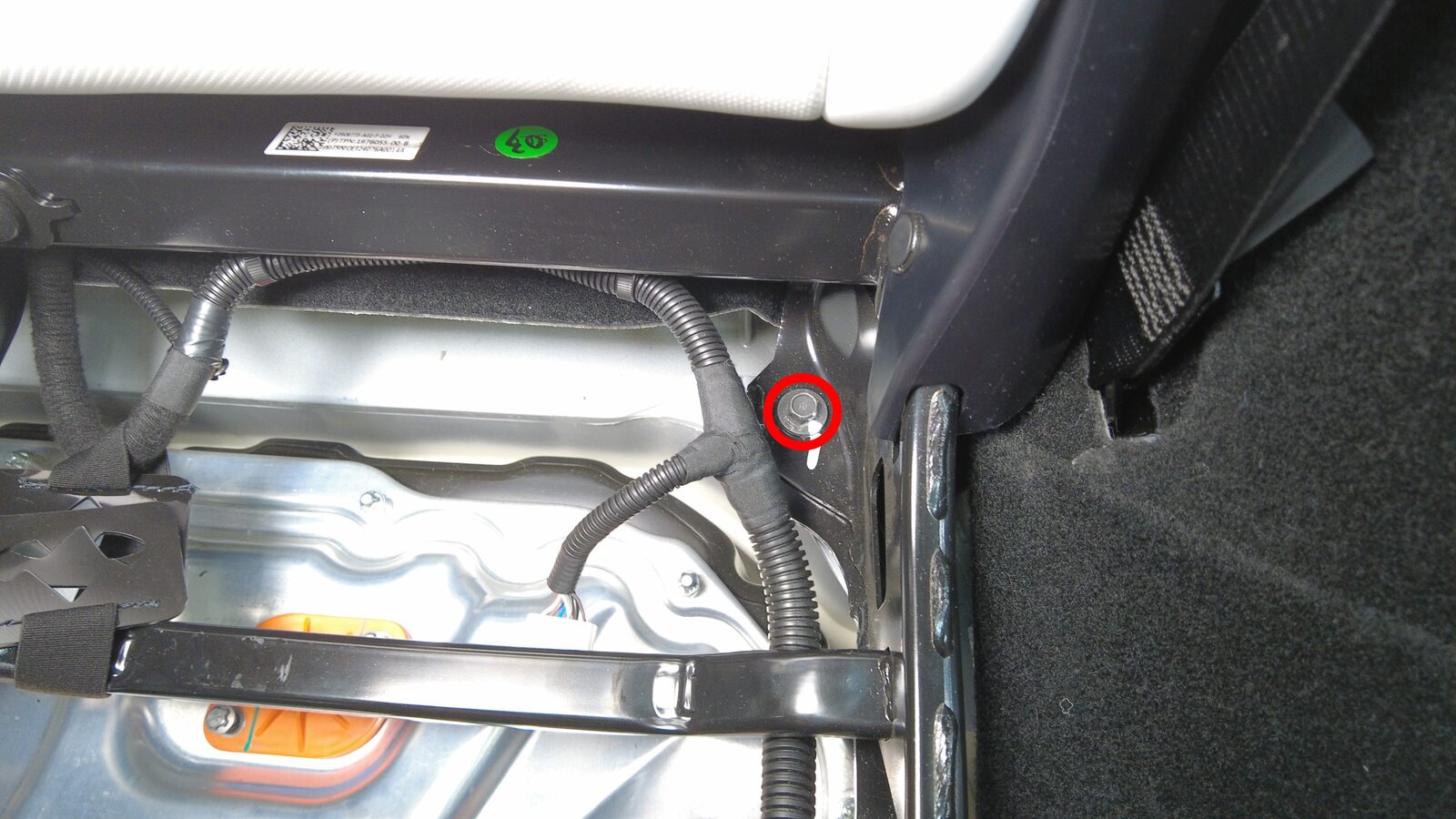

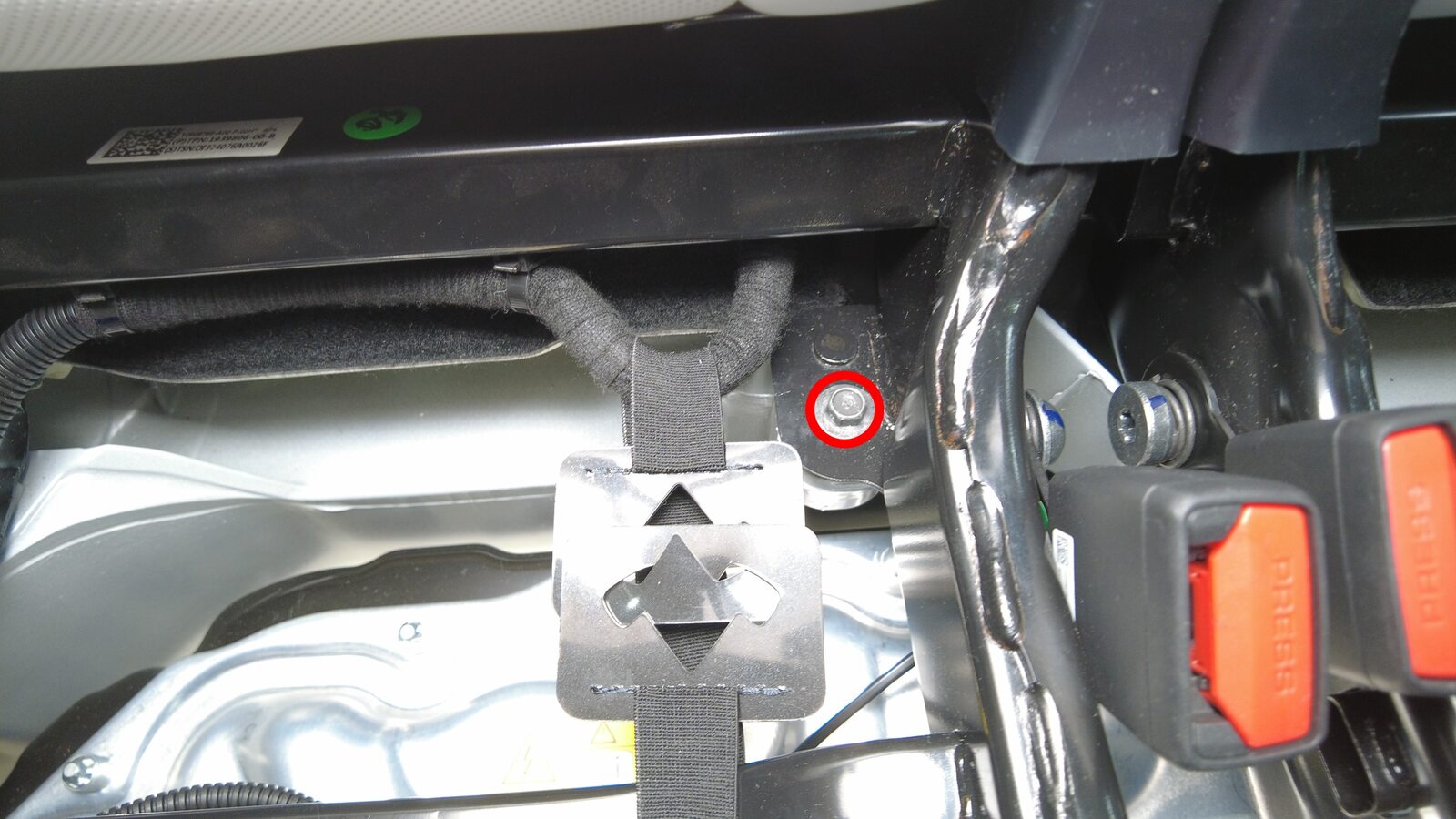

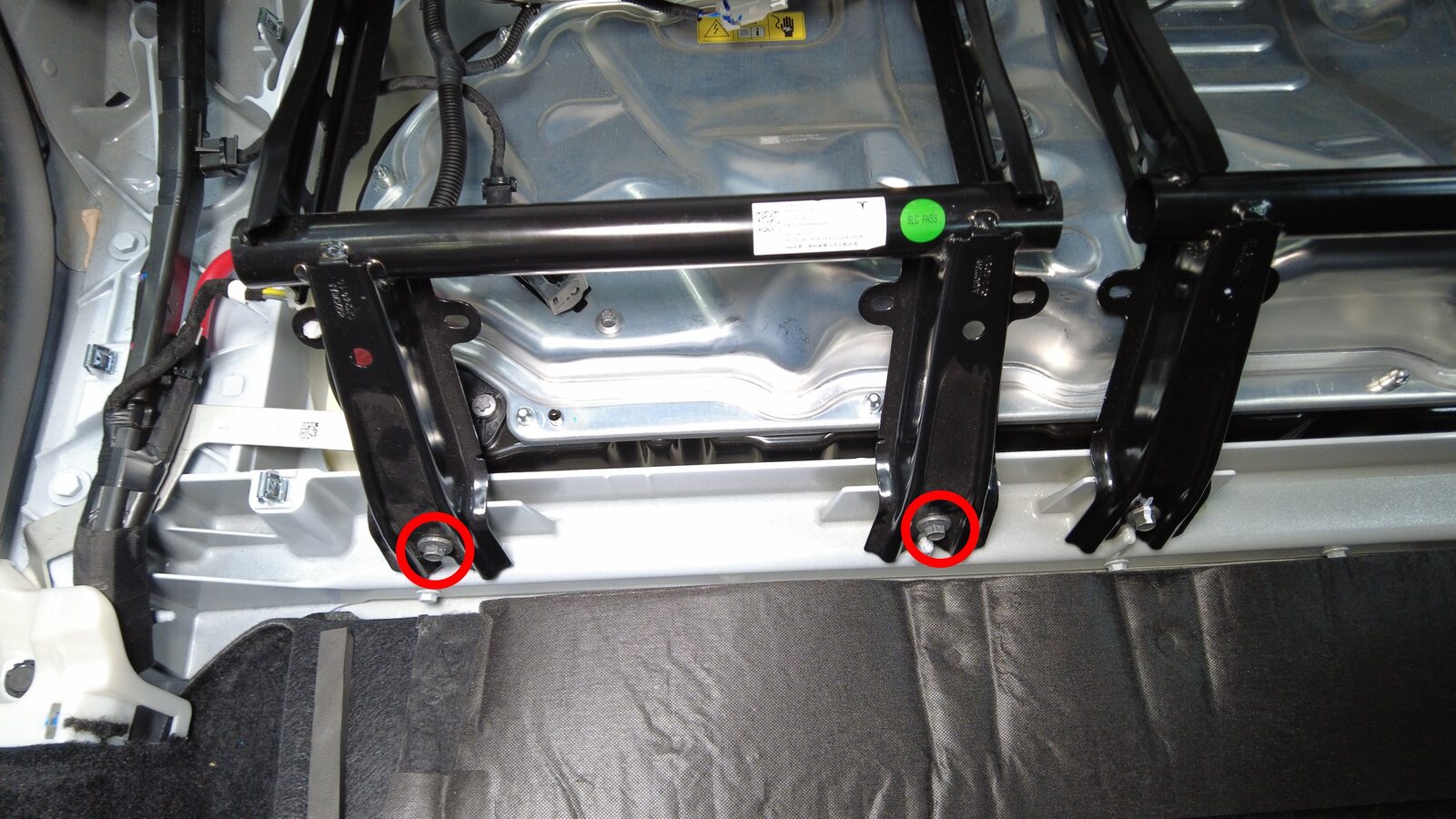

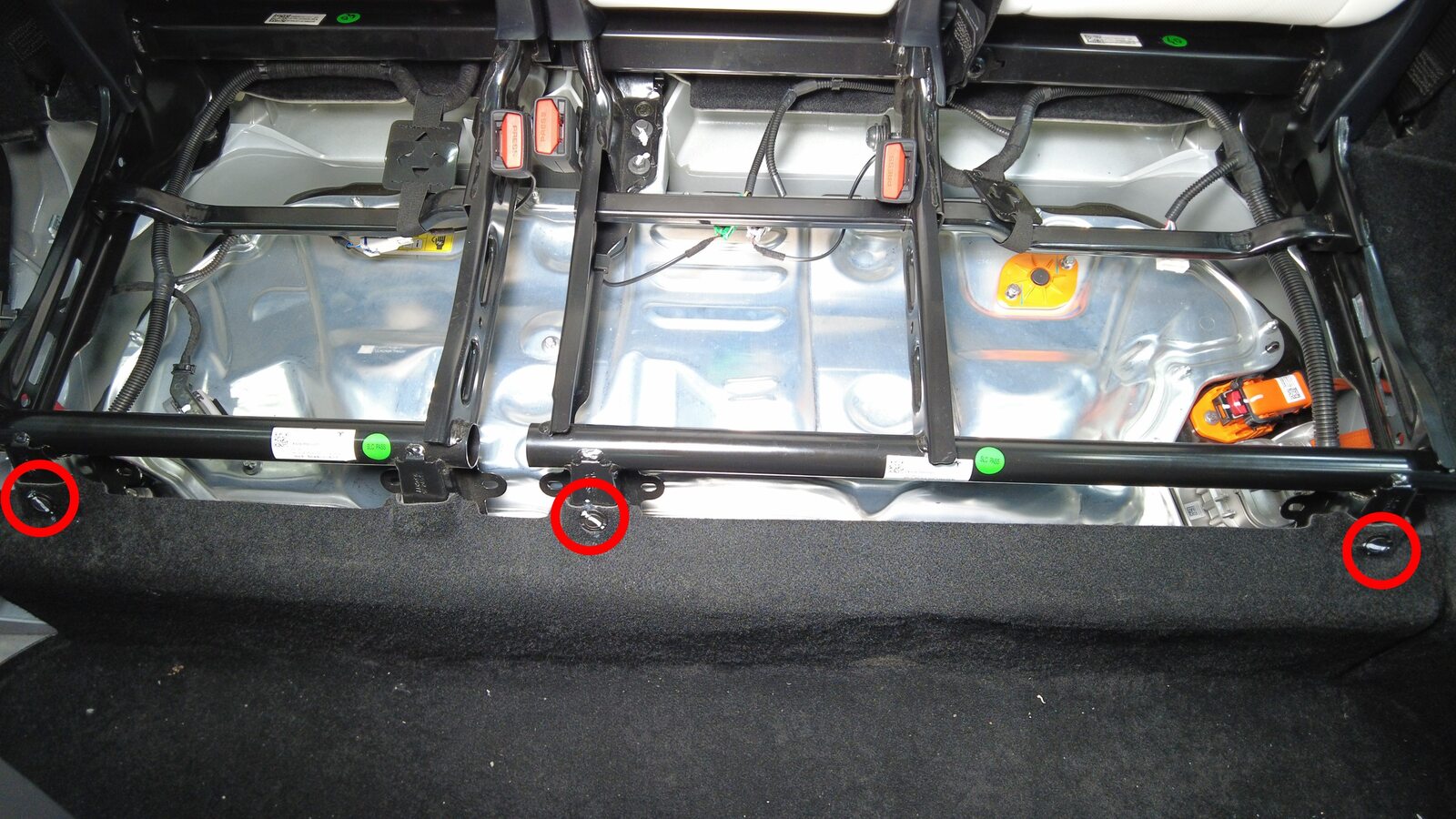

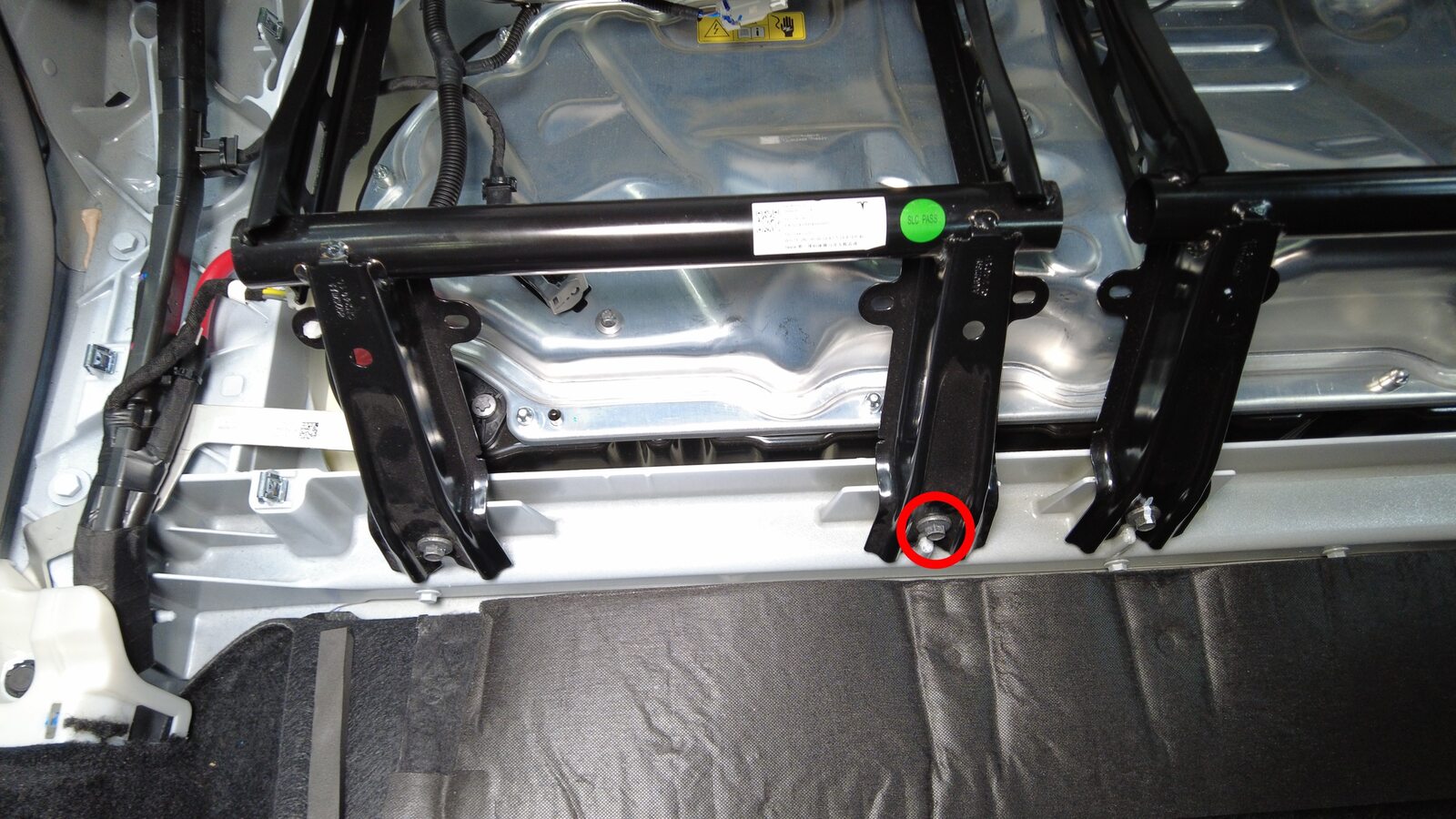

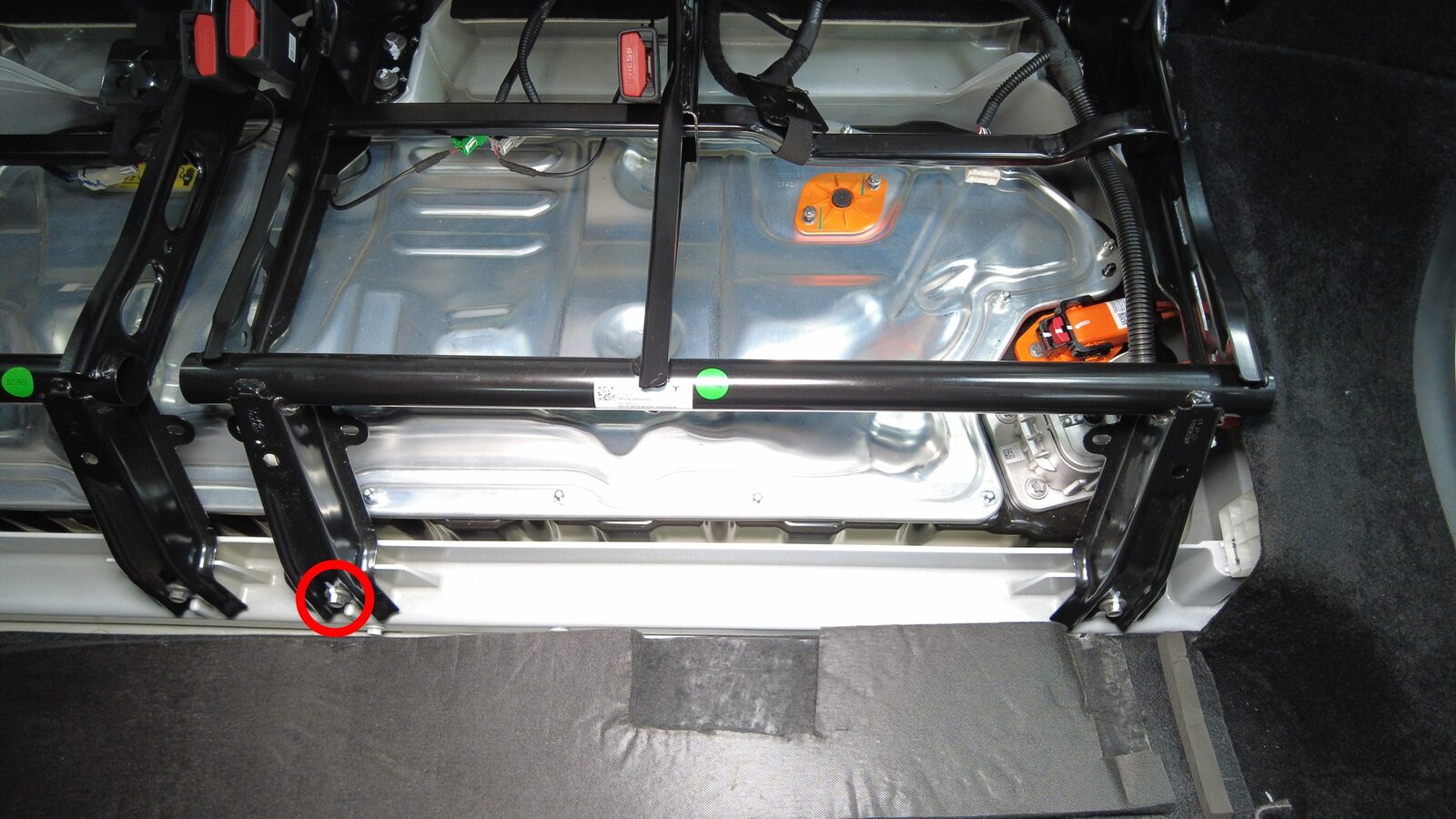

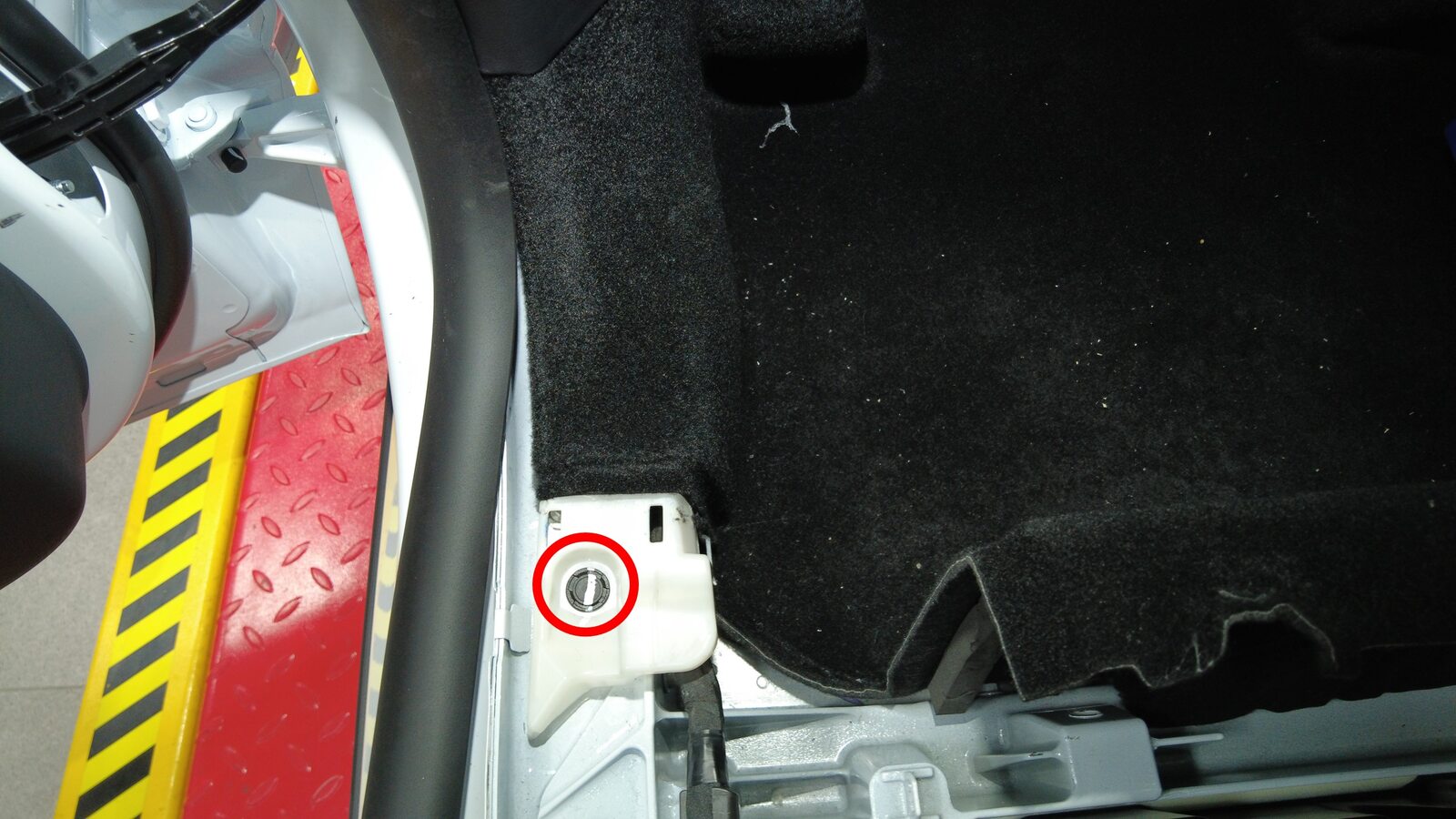

13. Remove fasteners securing 2nd row 40 seat frame to body
    注

    4x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal

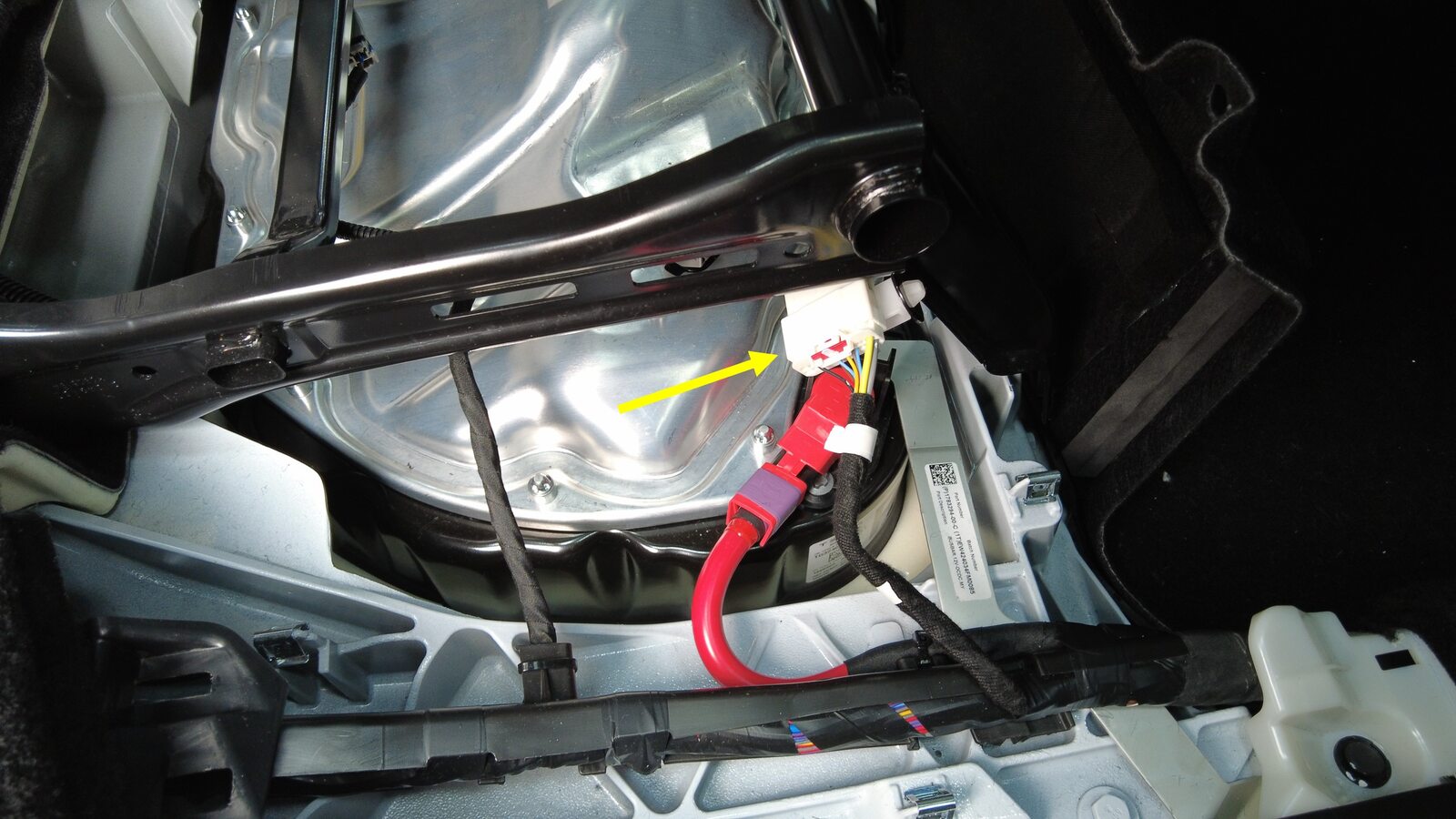

14. Disconnect 2nd row 40 seat connector
    注

    1x connector, Disengage the tab

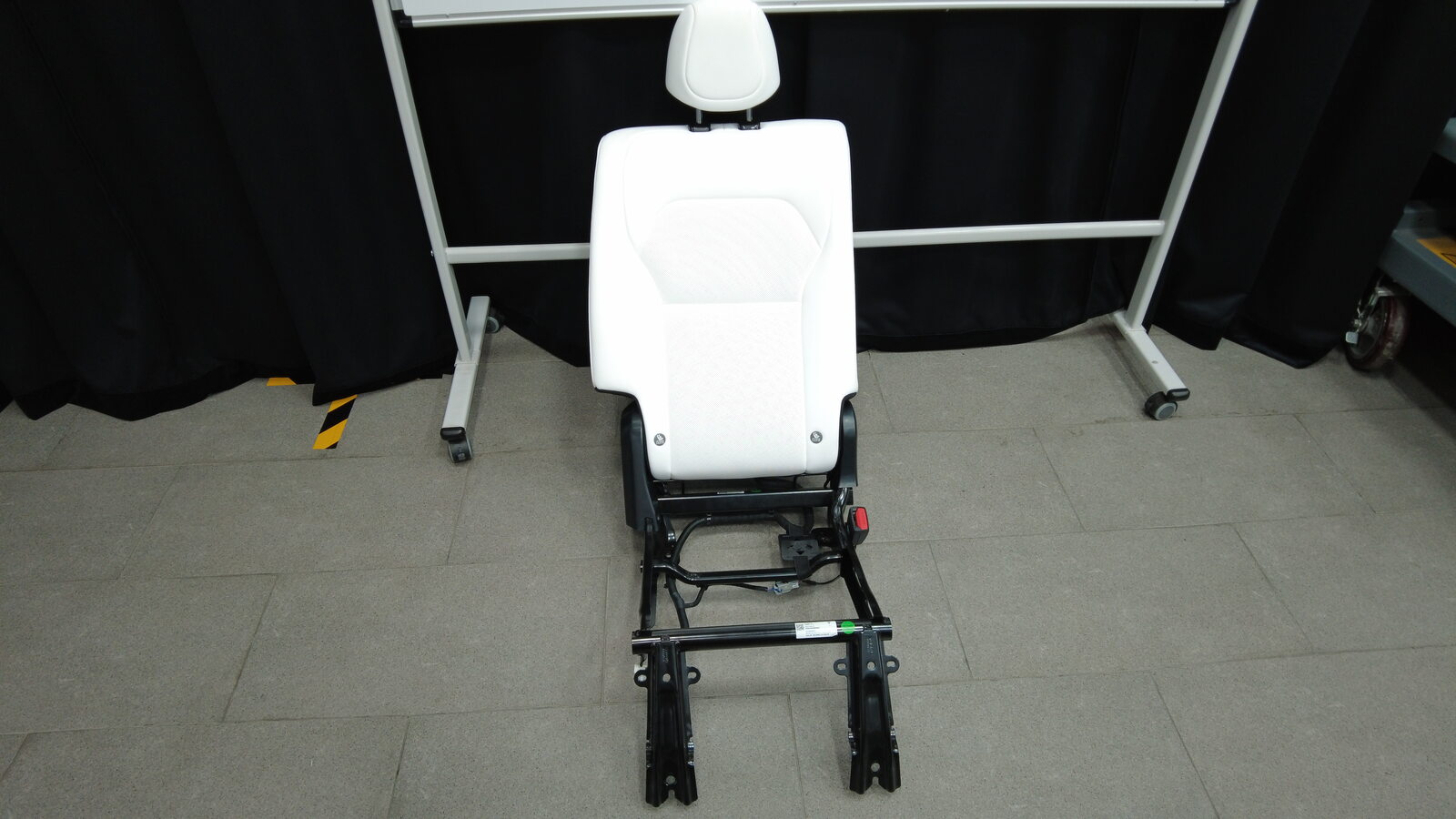

15. Remove 2nd row 40 seat assembly from vehicle
    注

    Recommend assistance

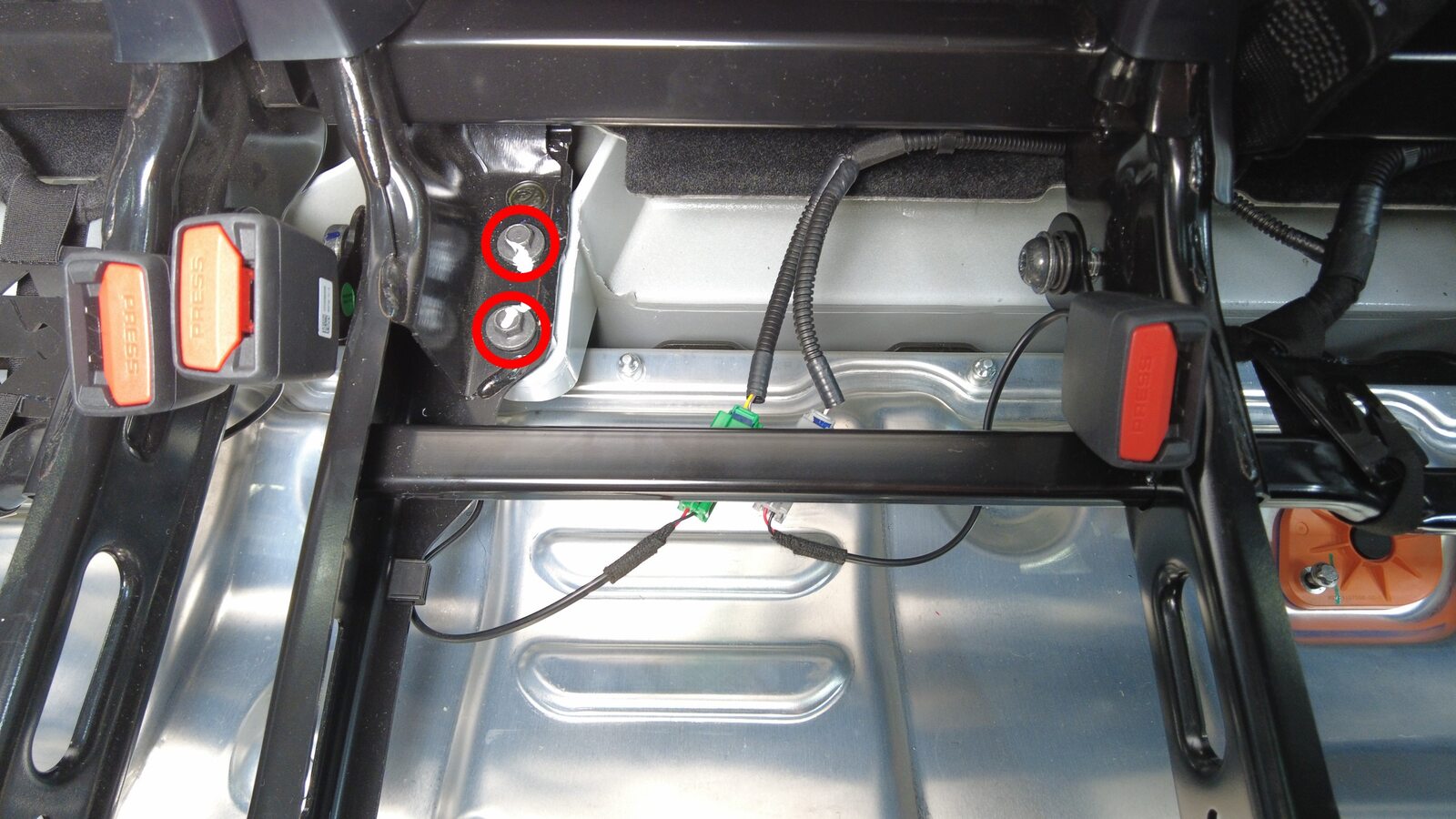

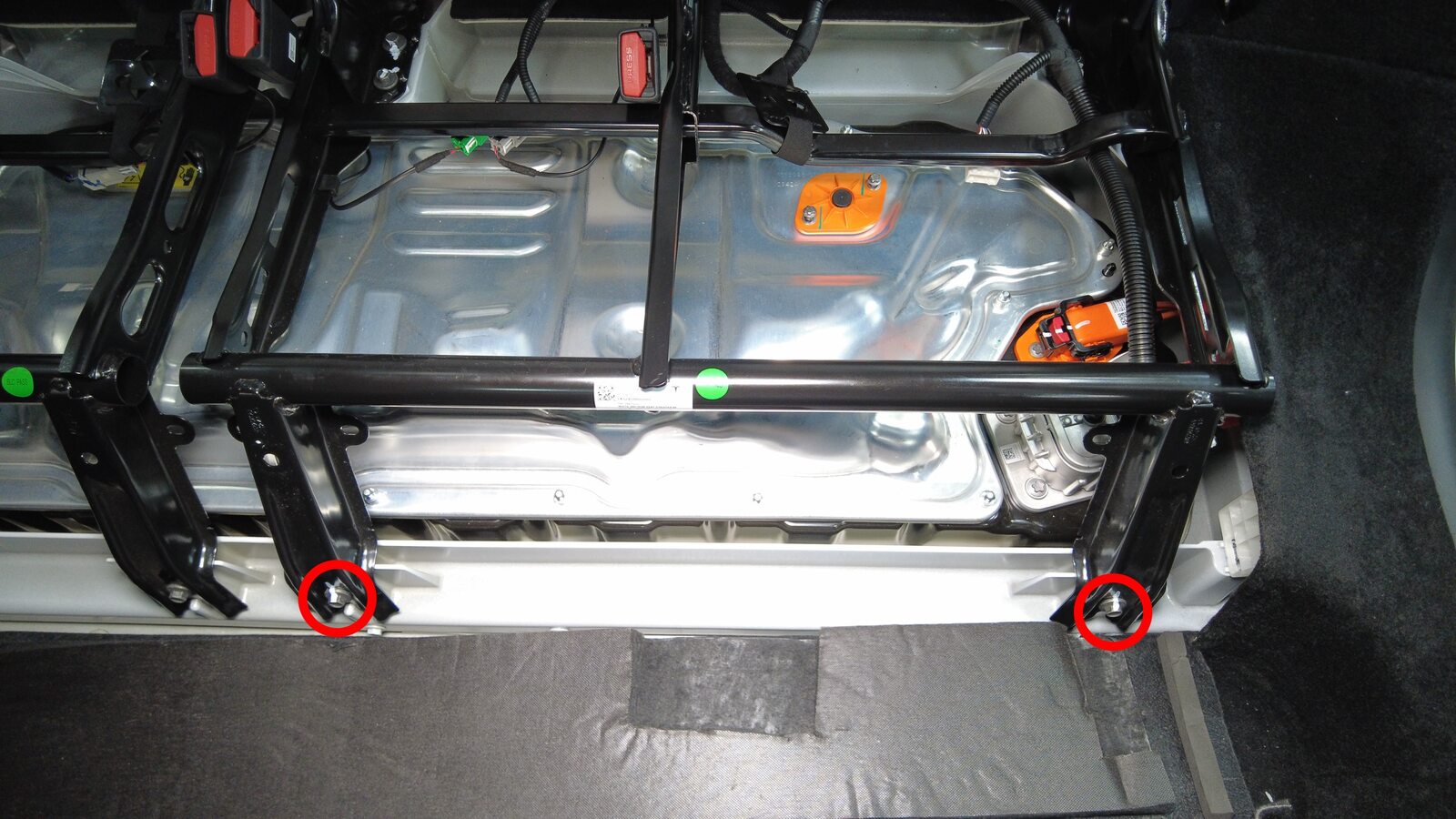

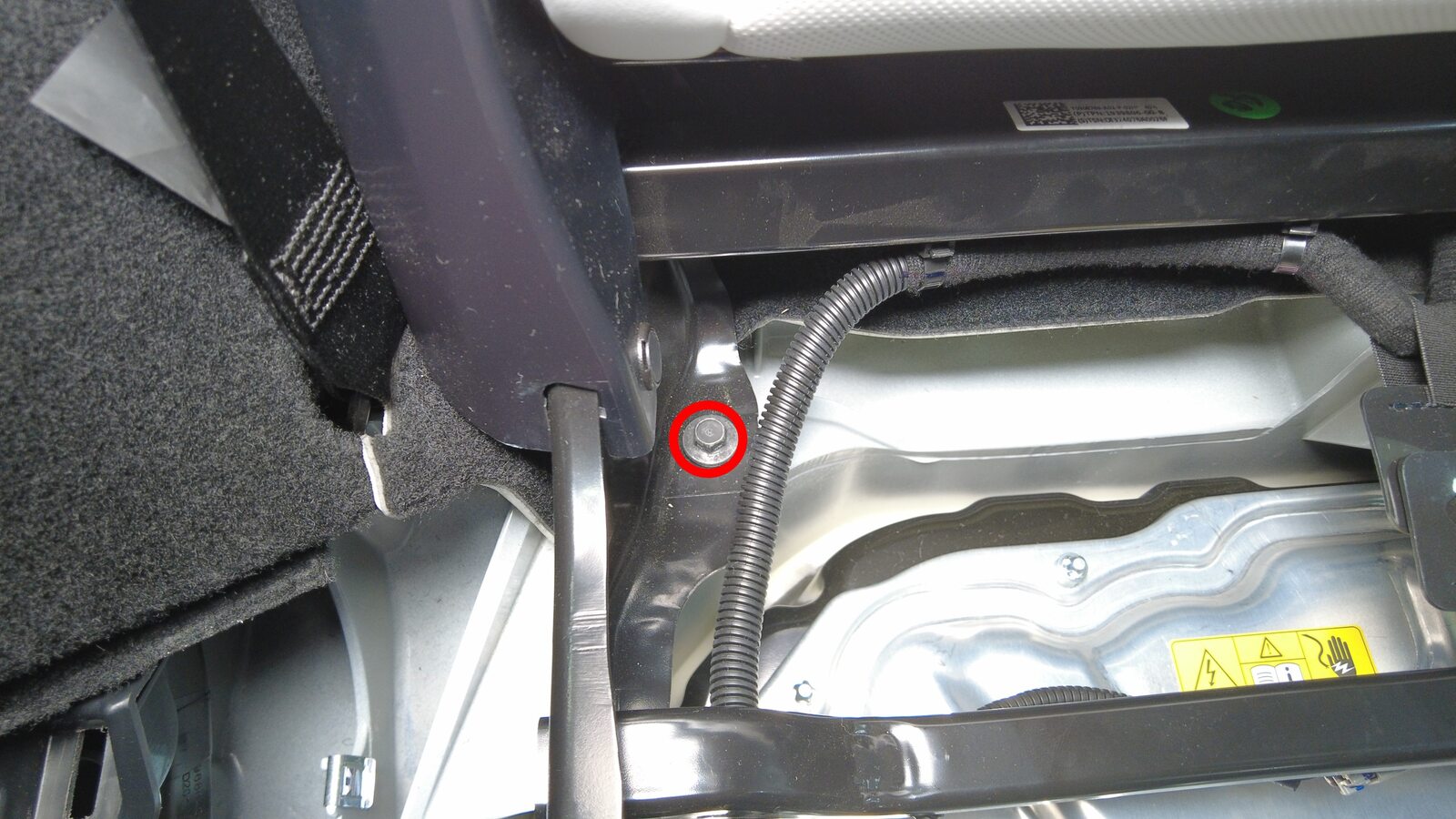

16. Remove fasteners securing 2nd row 60 seat frame to body
    注

    5x bolts, 11mm, 37 Nm, Bottom seat bolts located behind main carpet, Discard after removal







17. Disconnect 2nd row 60 seat connector
    注

    1x connector, Disengage locking tab

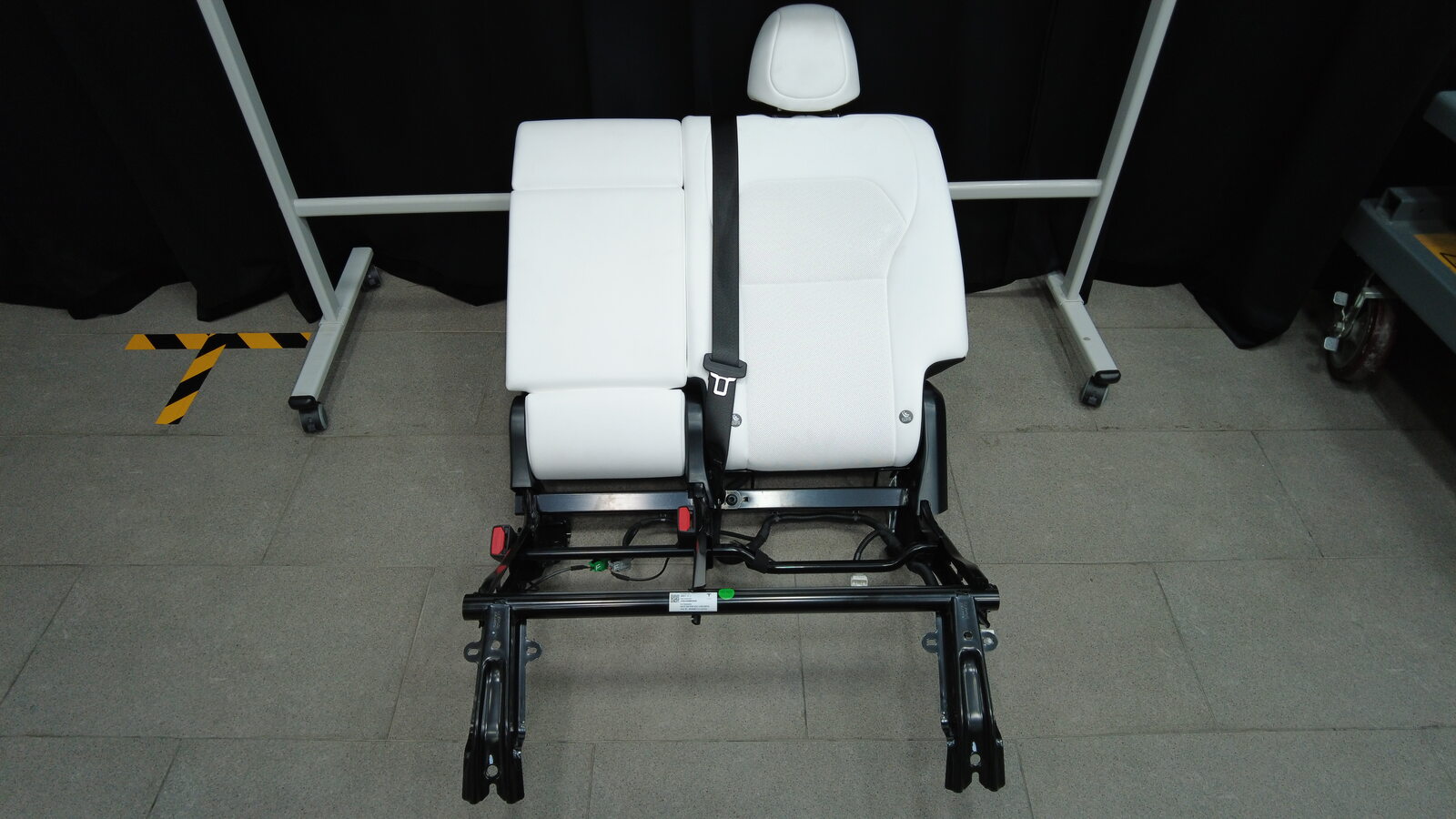

18. Remove 2nd row 60 seat assembly from vehicle

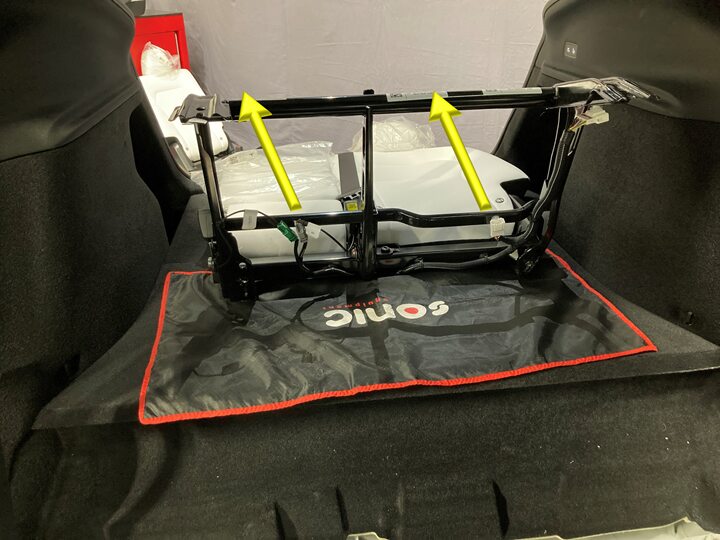

    注

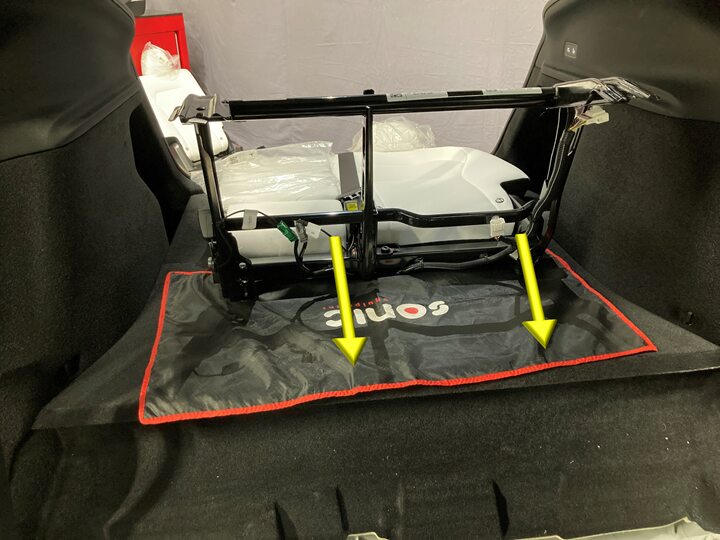

    Set 60 seat assembly onto rear load floor, Then remove the seat assembly from the rear side of the vehicle, Use fender cover to avoid damaging trims, Recommend assistance

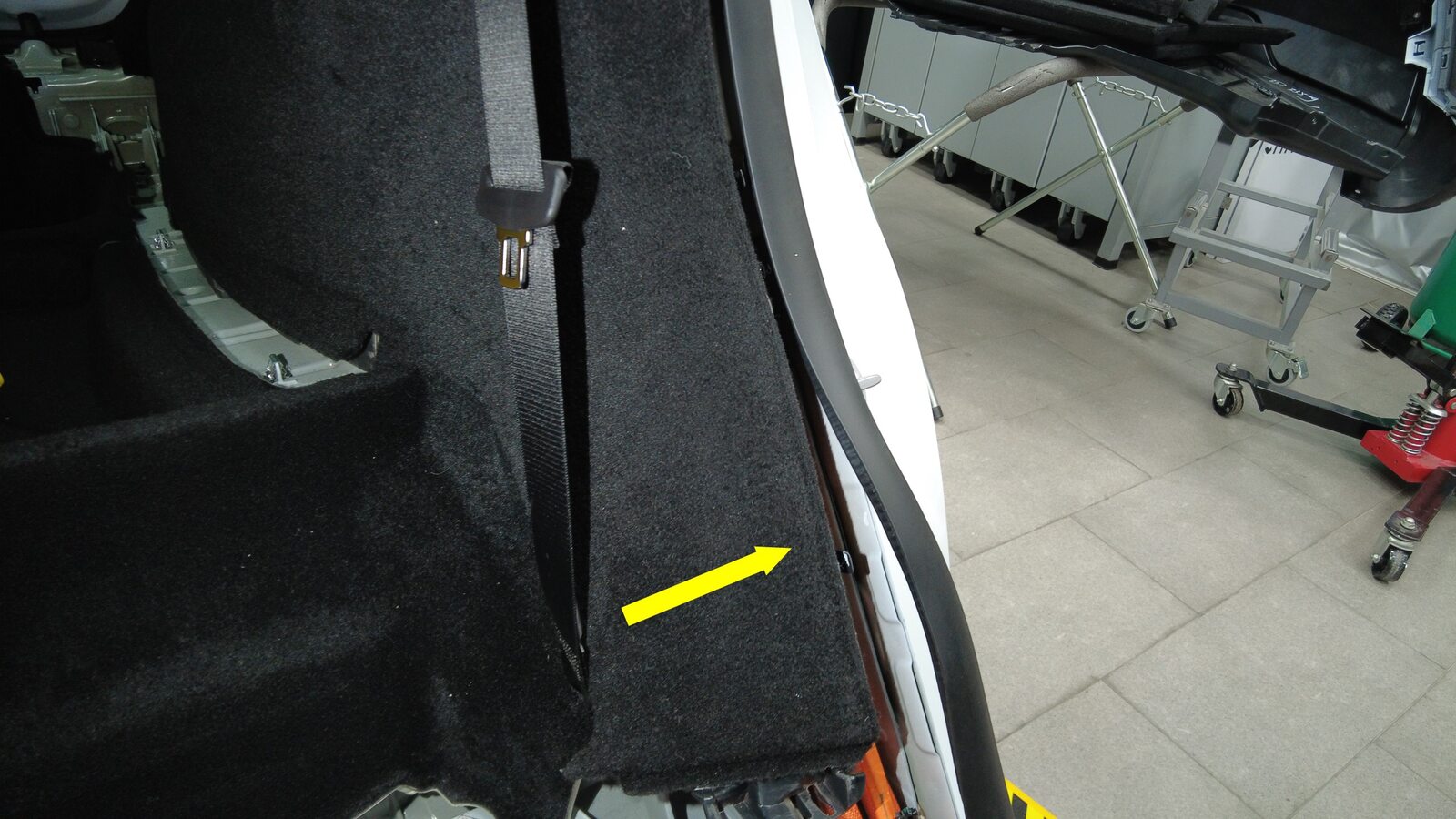

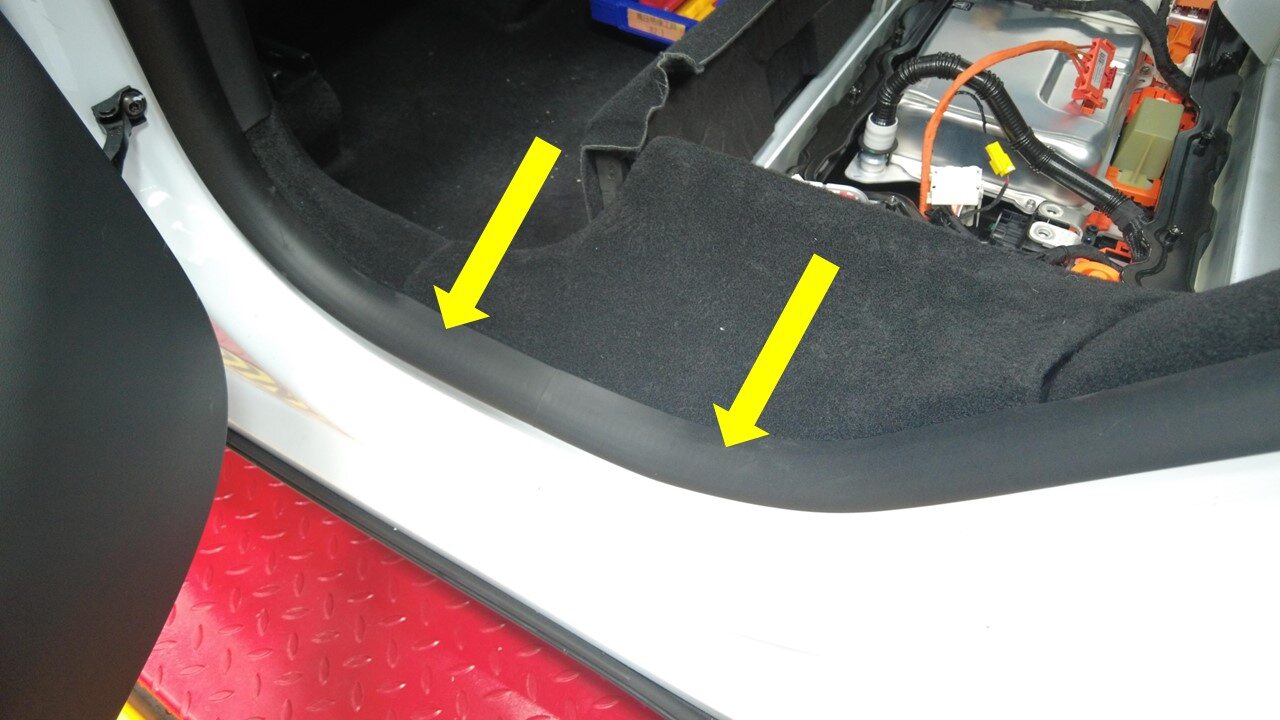

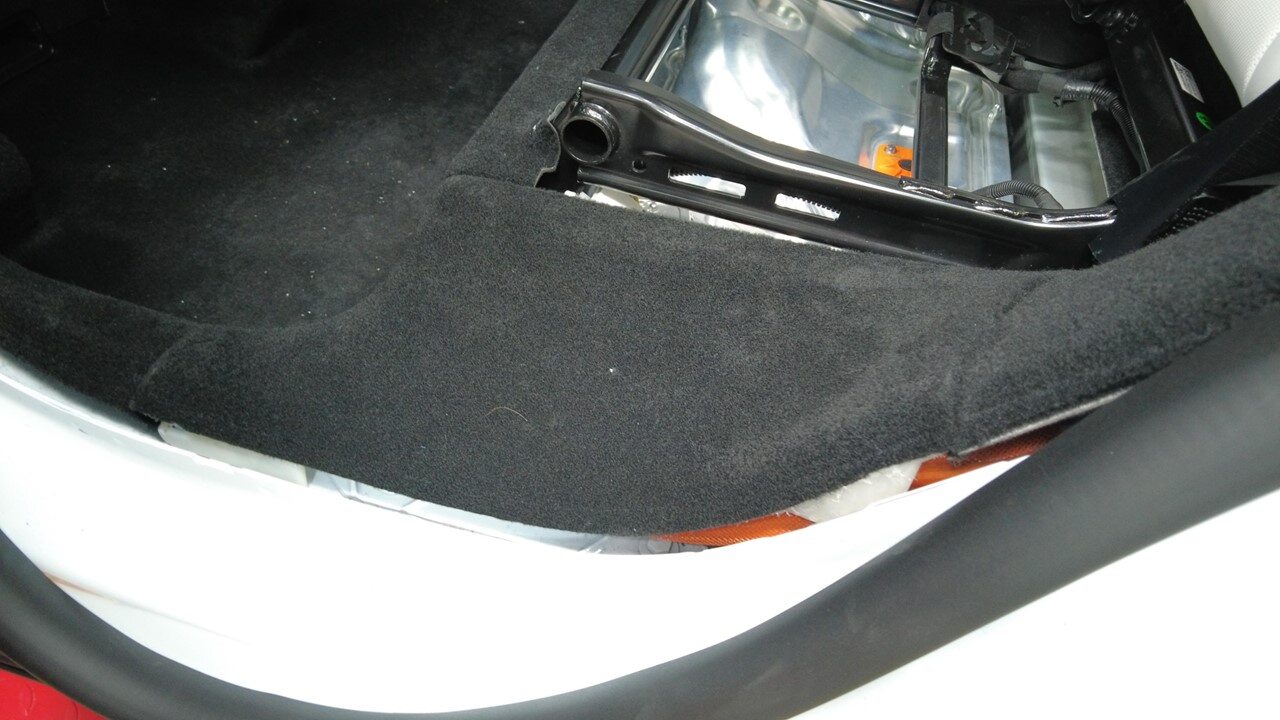

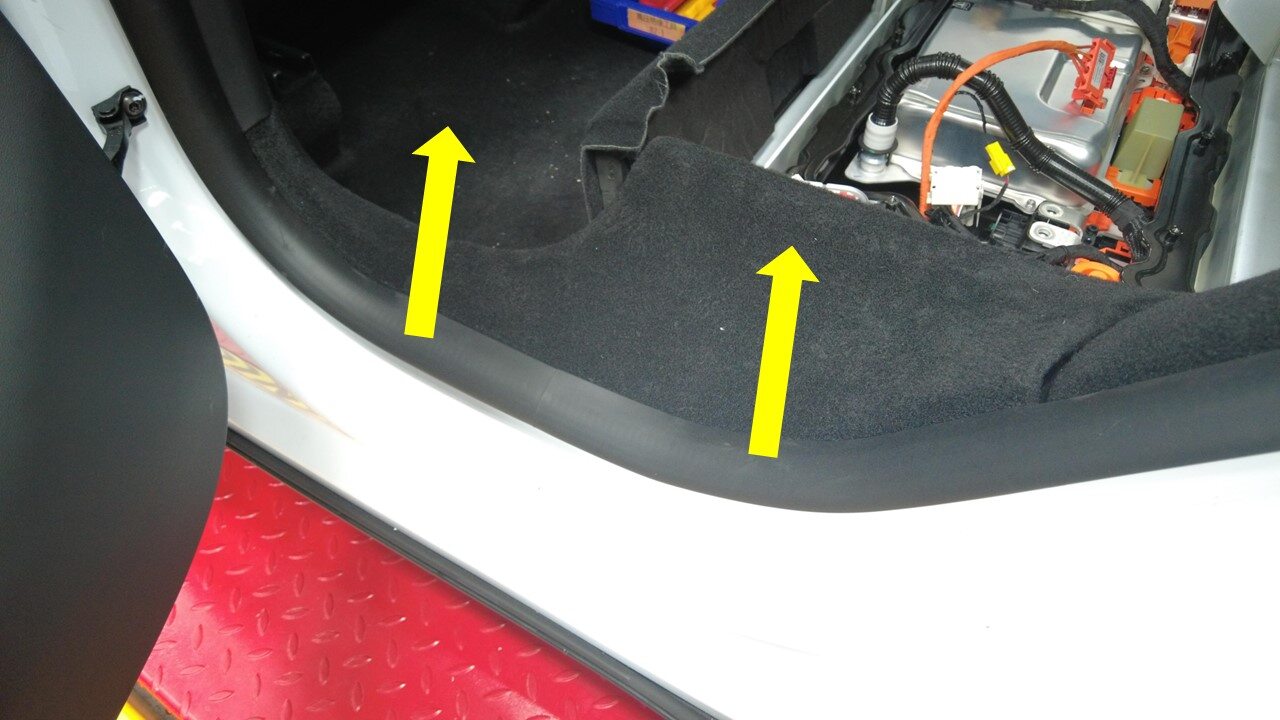

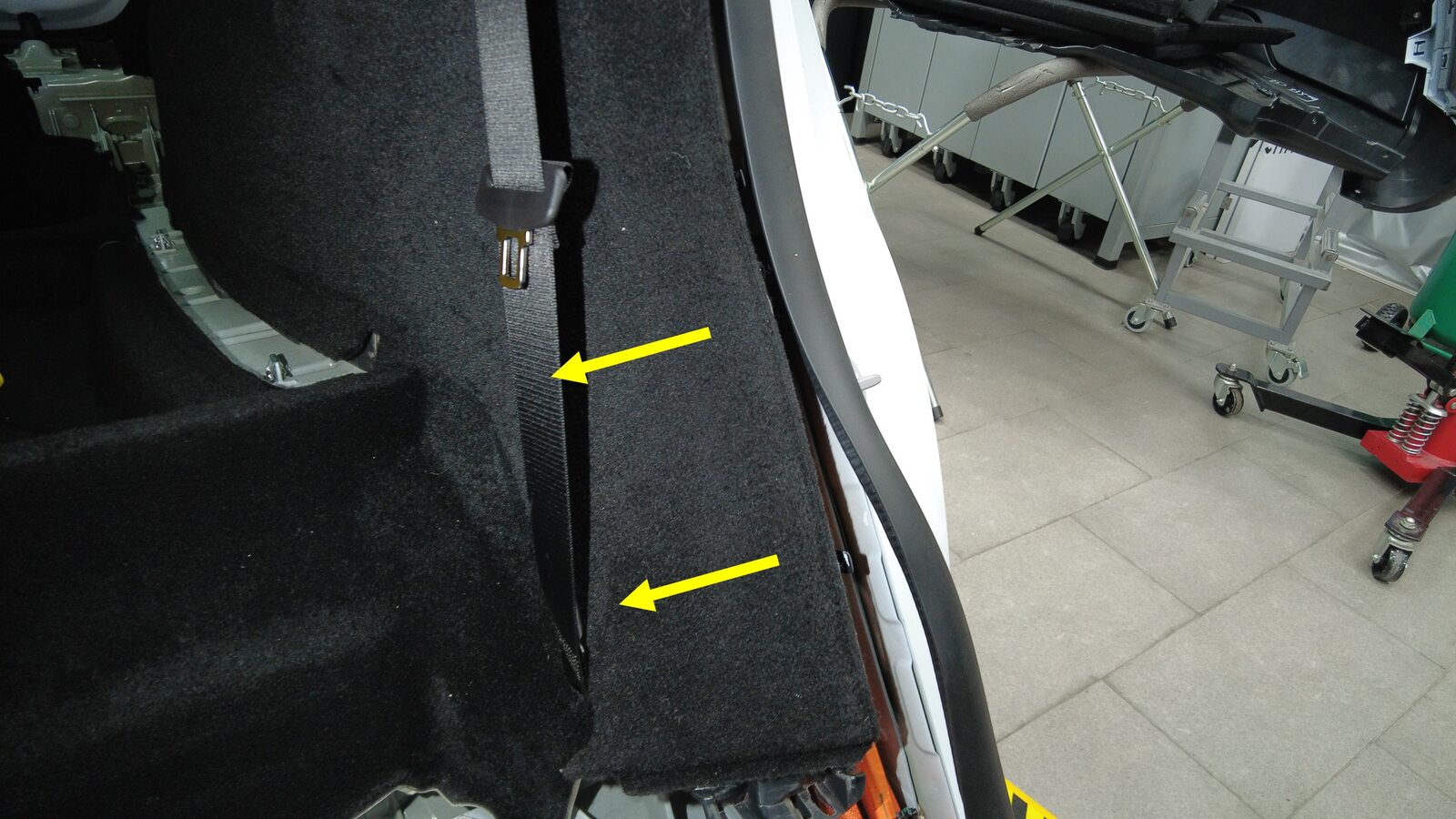

19. Partially release LH rear primary door seal from body

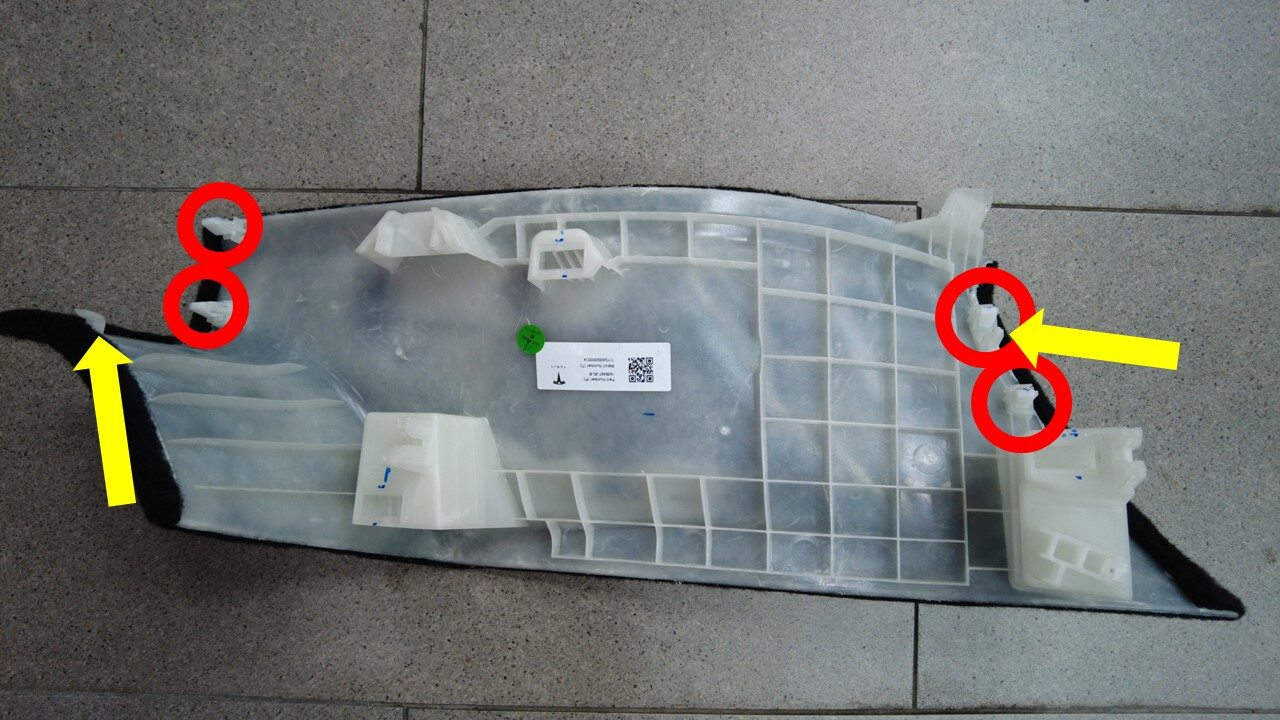

20. Remove LH lower C pillar trim
    注

    7x clips, 2x guide tabs, Pull the trim upward to release all clips







21. Partially remove lower portion of LH C-pillar trim



22. Remove all items from pockets and ensure not wearing metal items

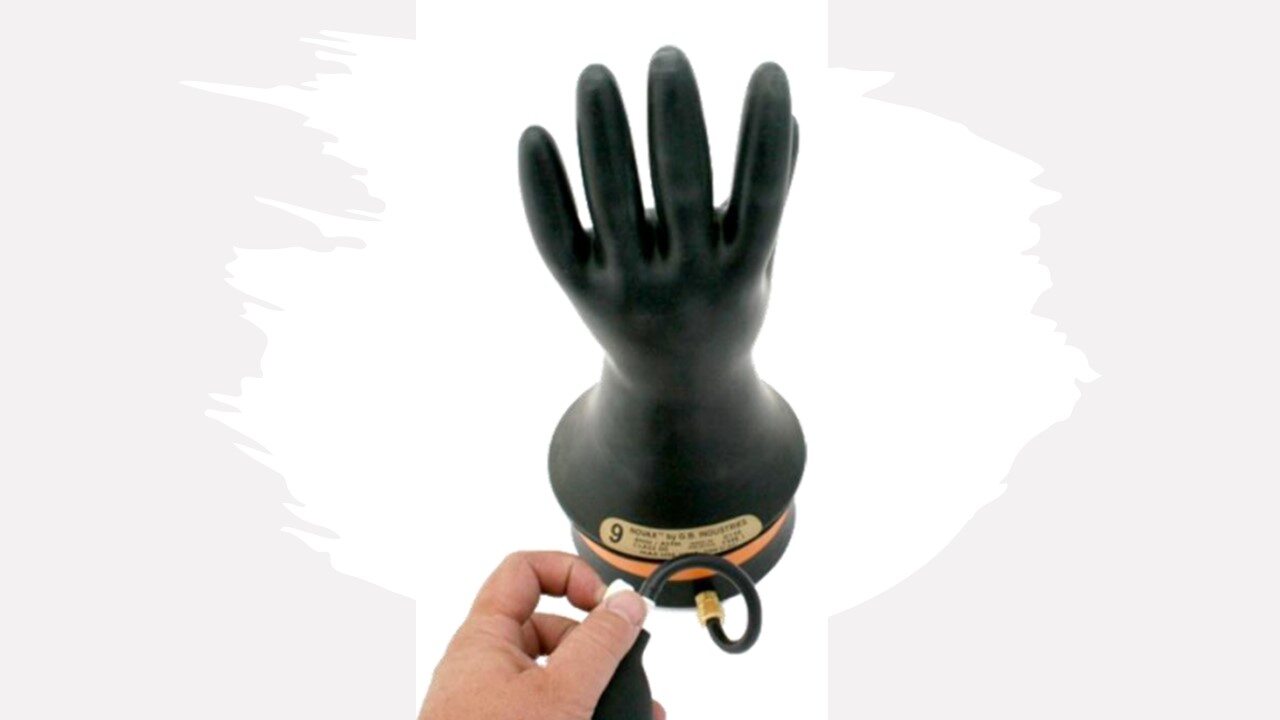

23. Inspect HV insulating gloves
    注

    Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC

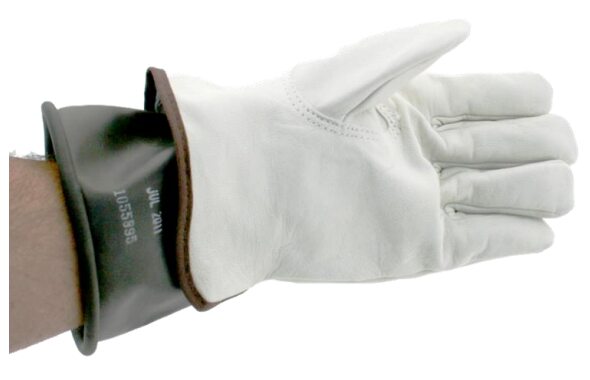

24. Put on HV insulating gloves and leather over gloves
    注

    Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.

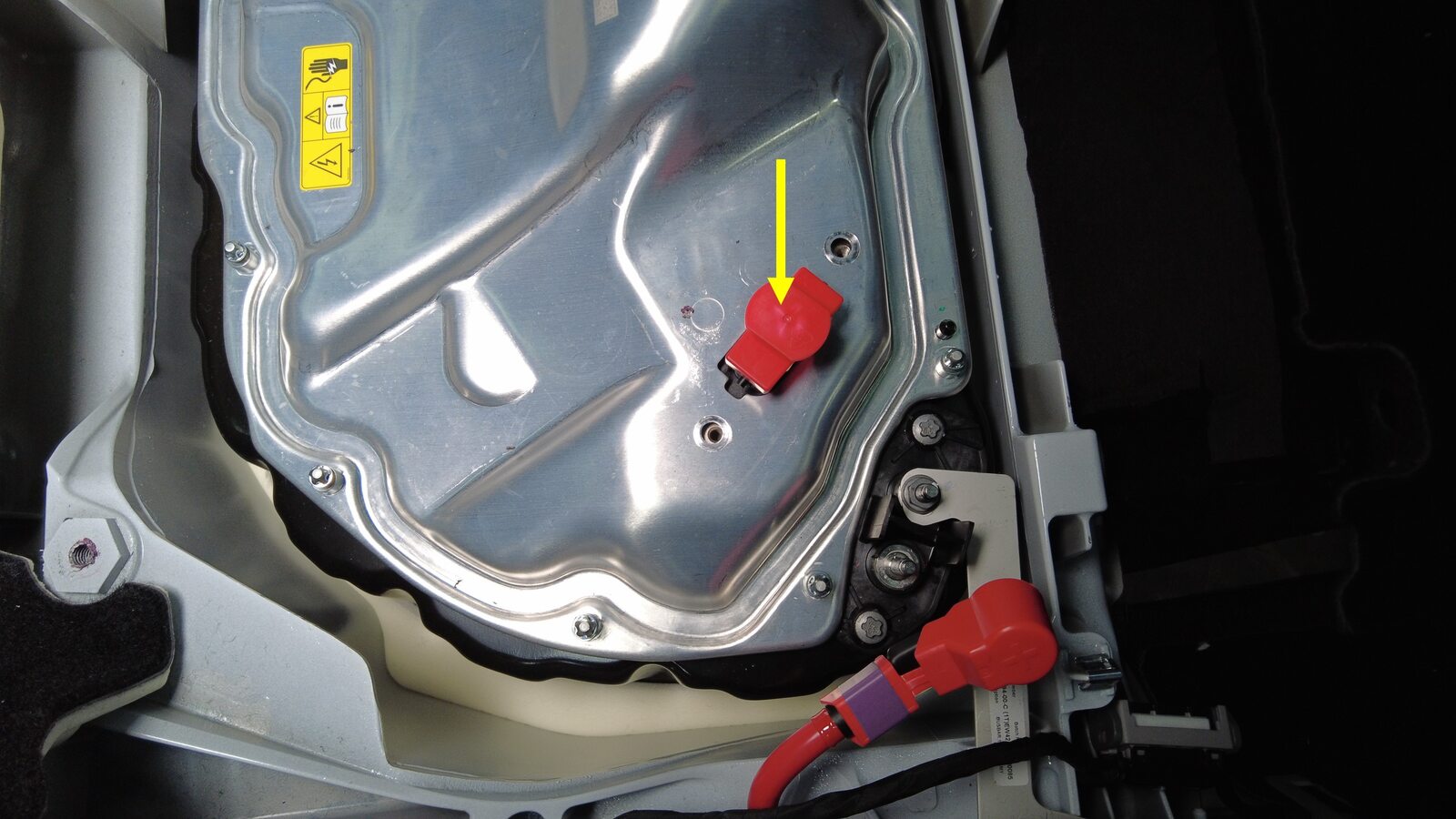

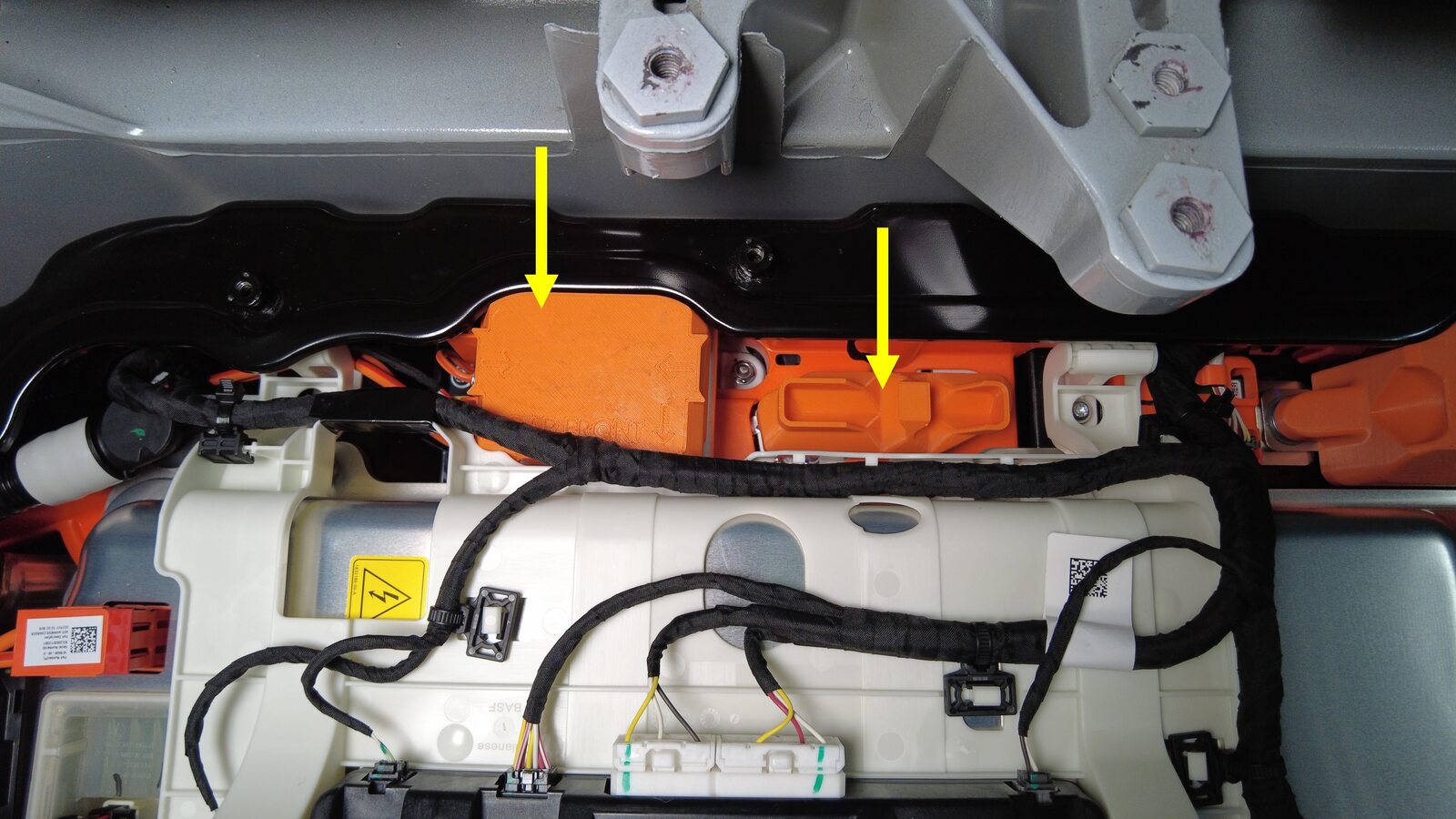

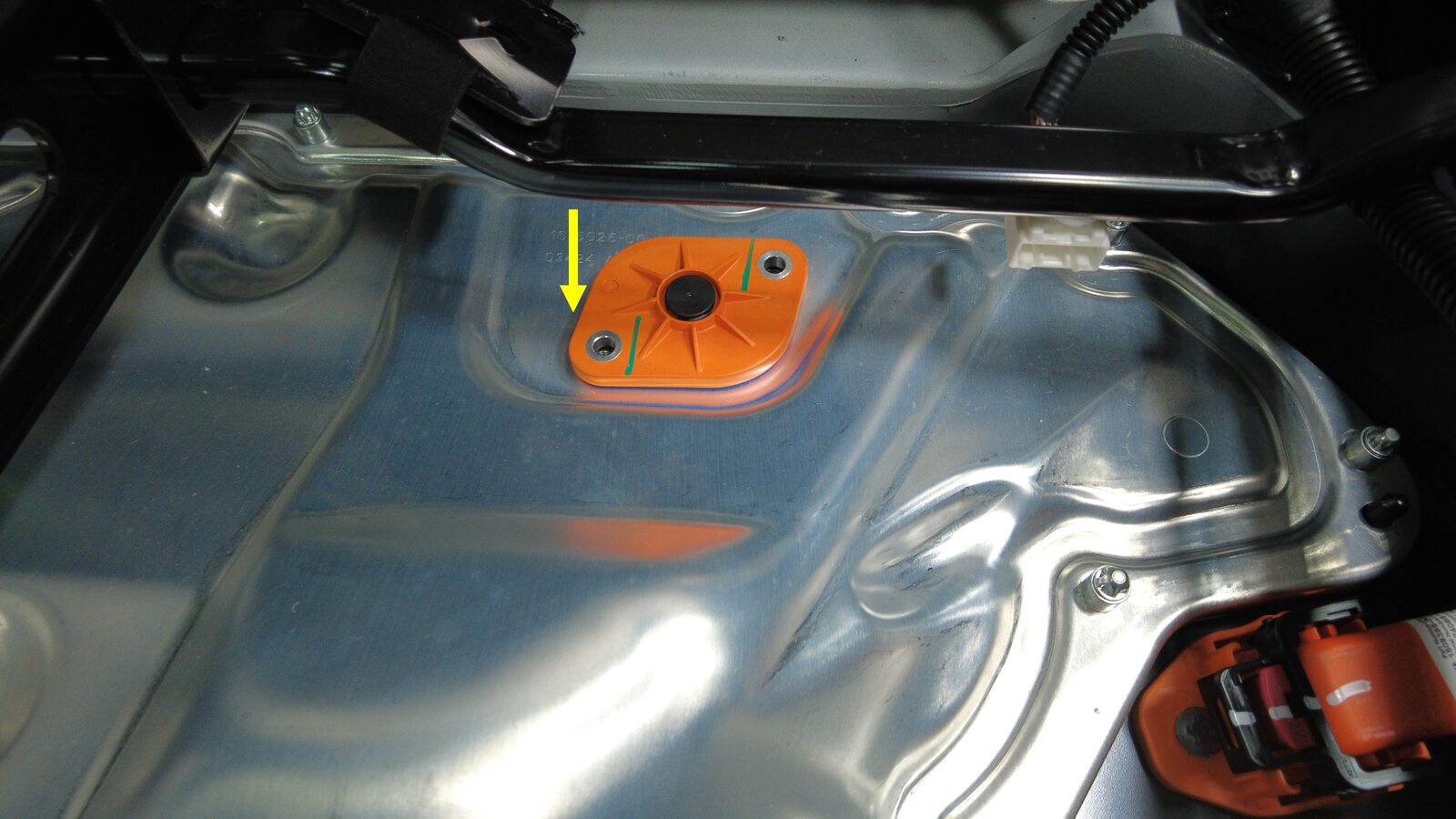

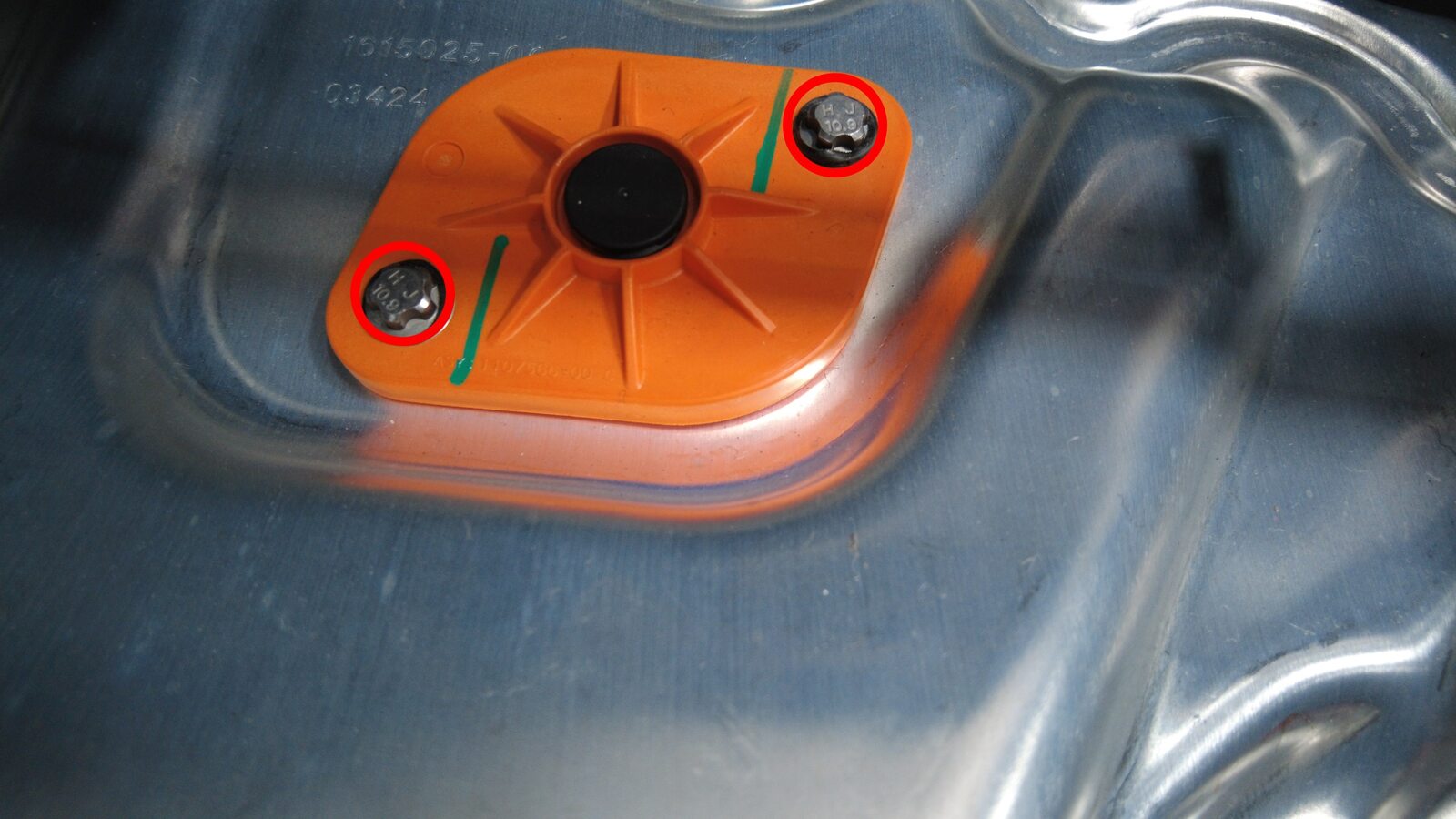

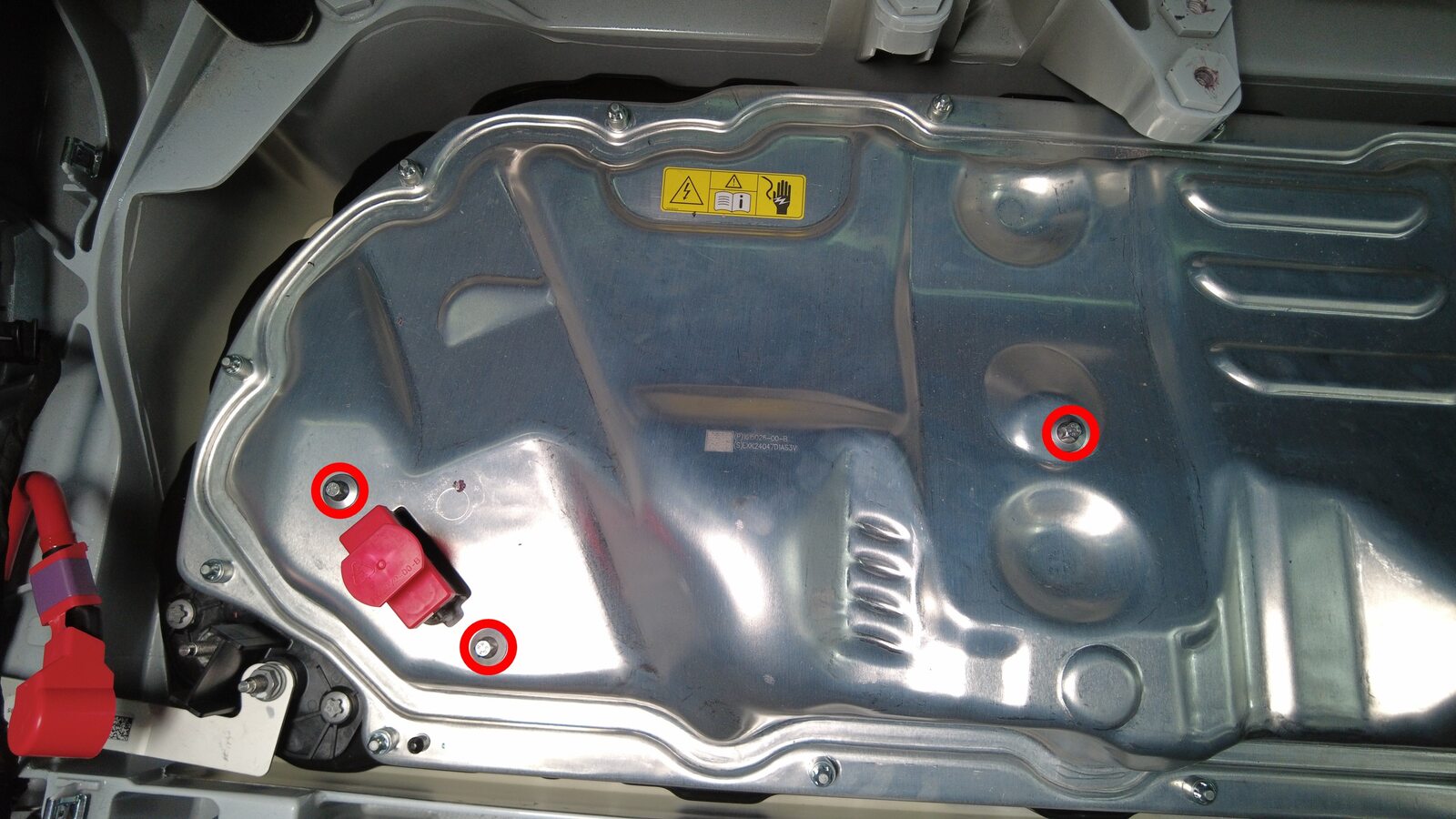

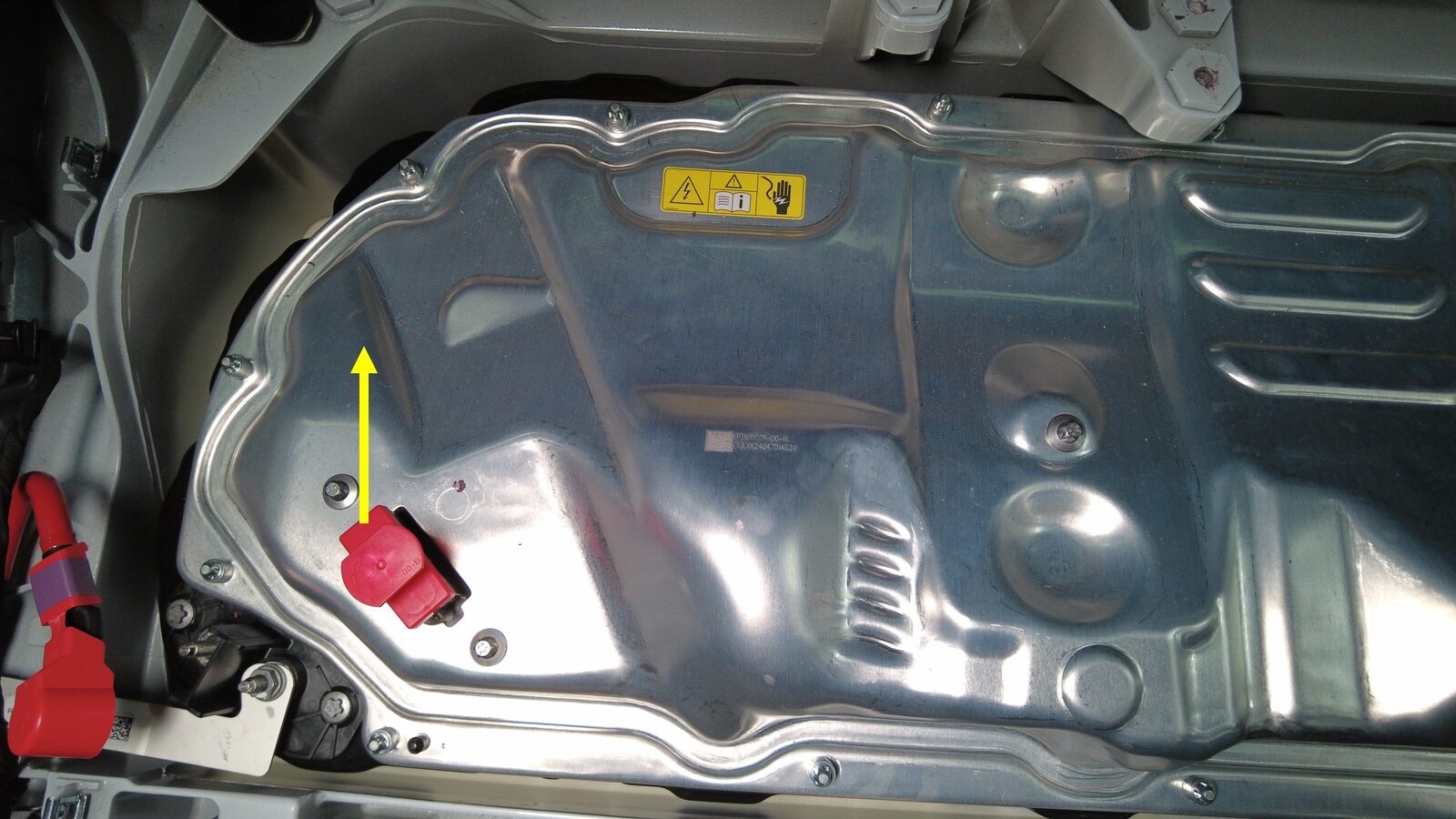

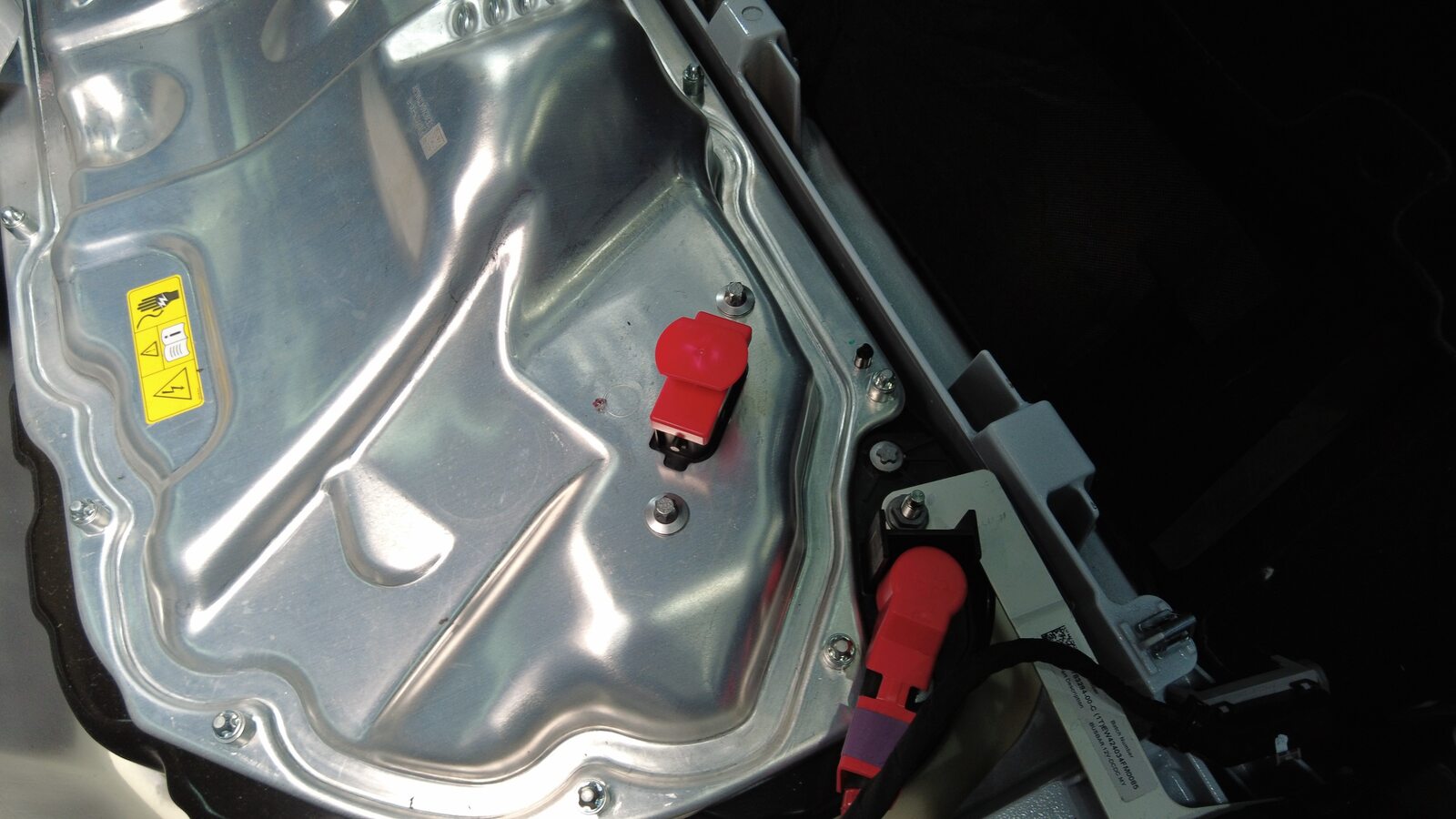

25. Remove bolts securing ancillary bay probe lid cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal



26. Remove ancillary bay probe lid cover

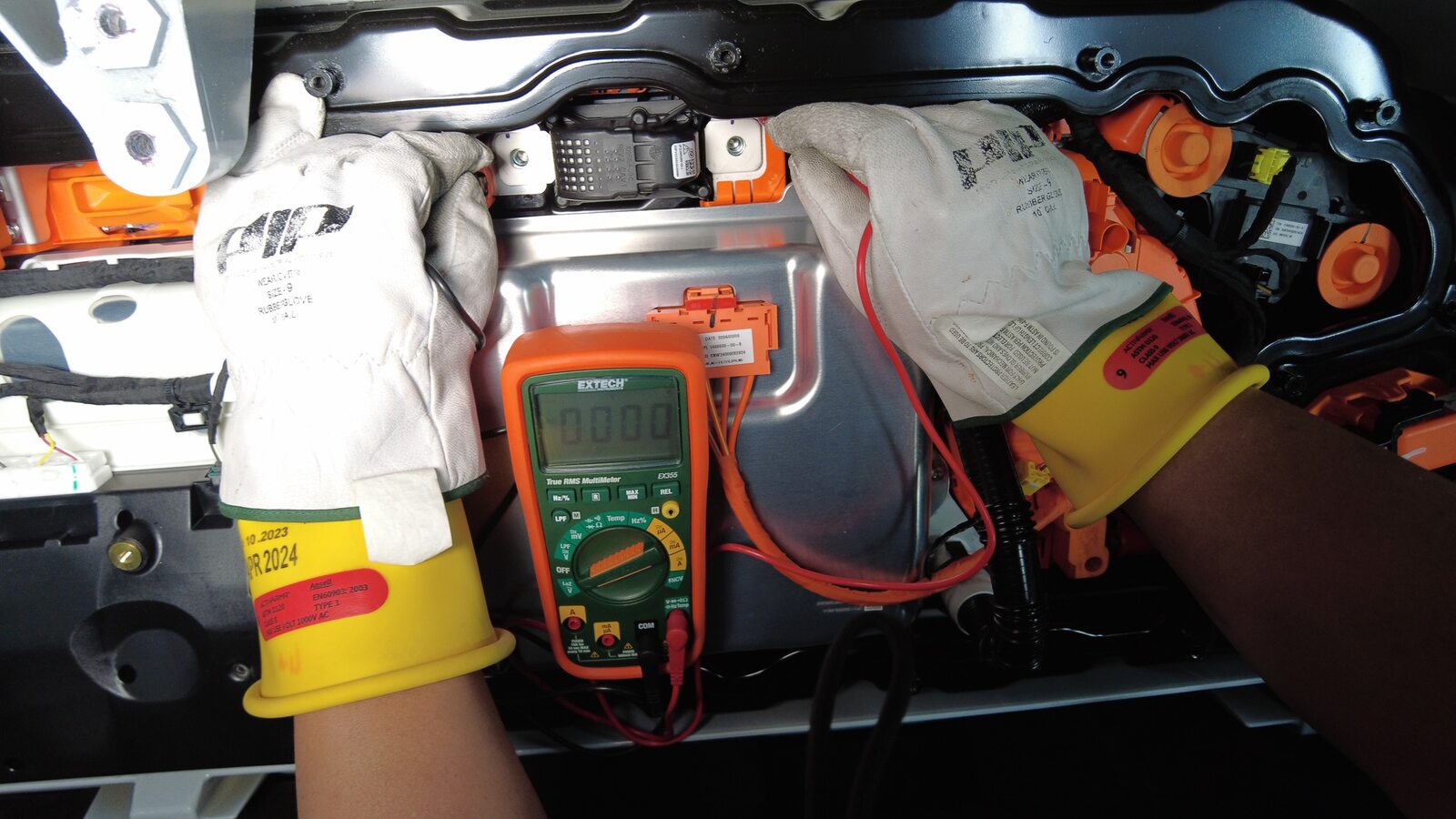

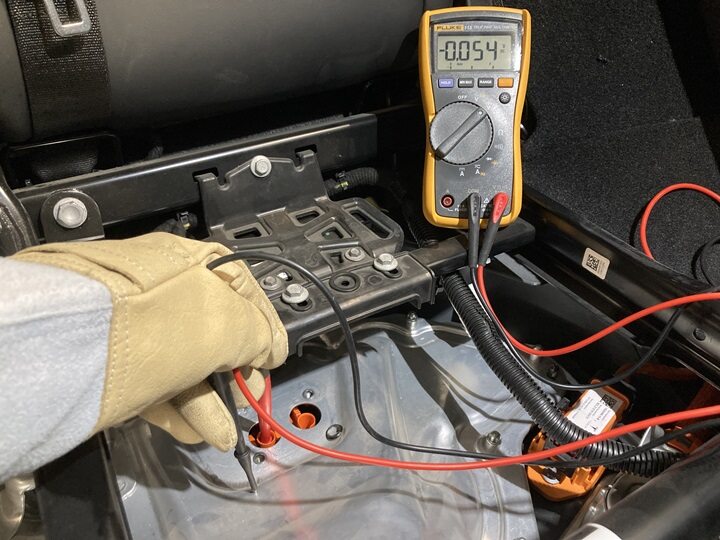

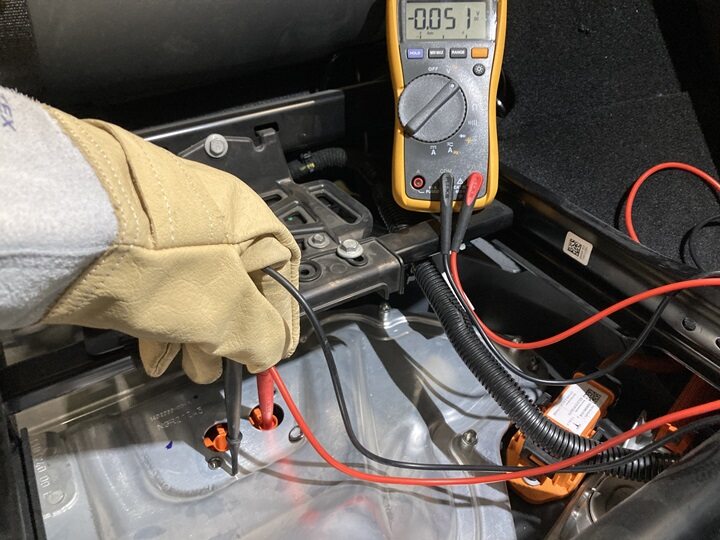

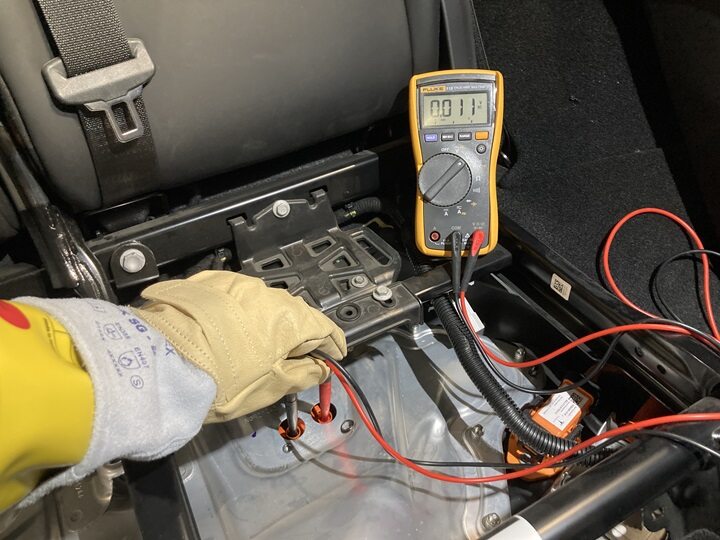

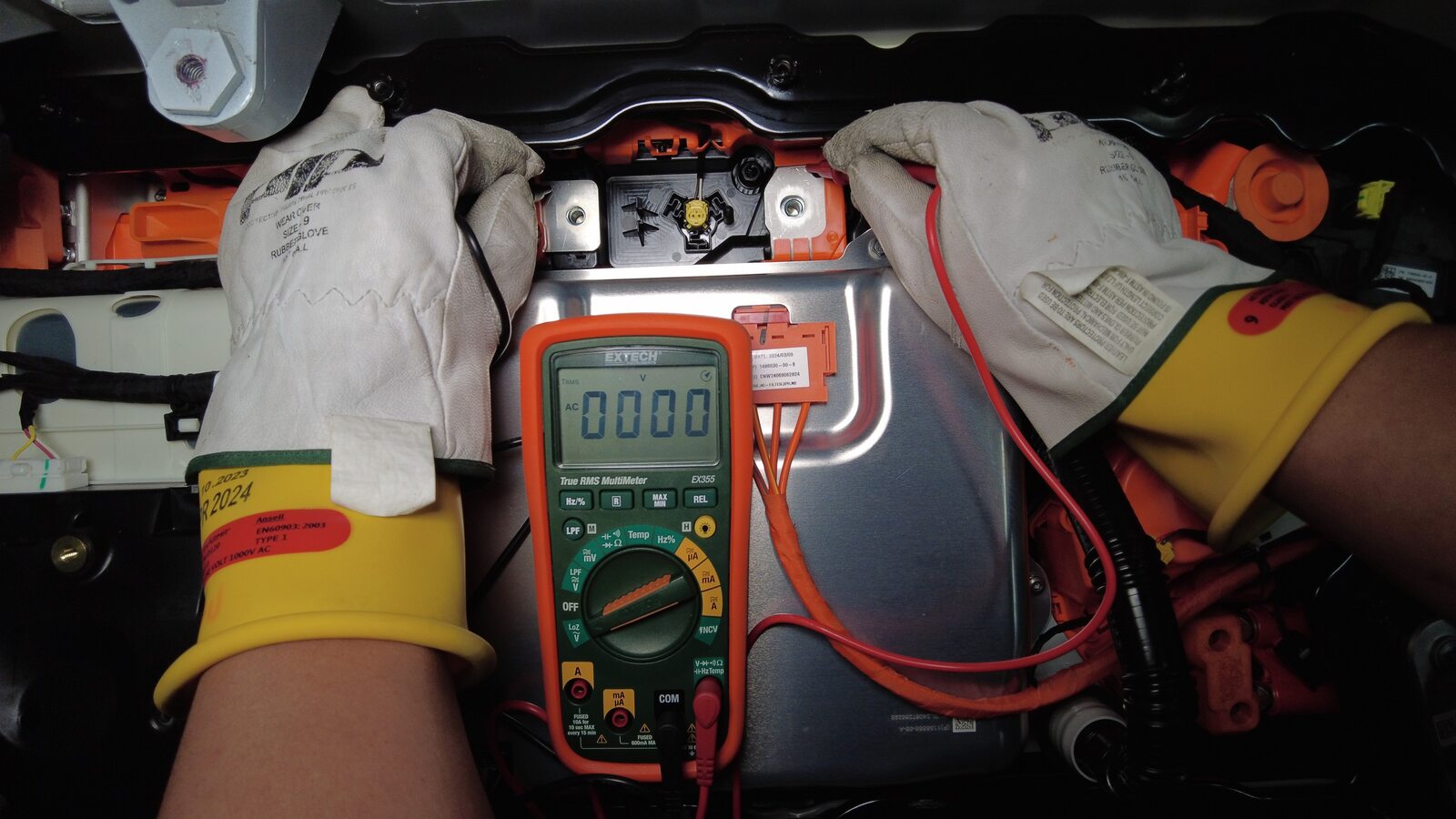

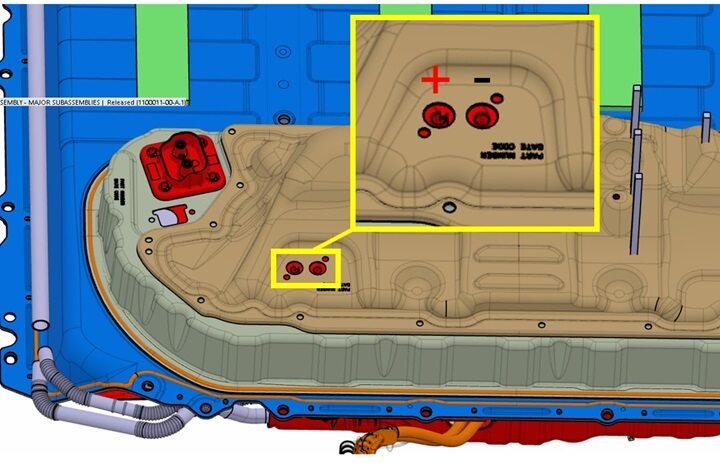

27. Verify no high voltage
    注

    Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

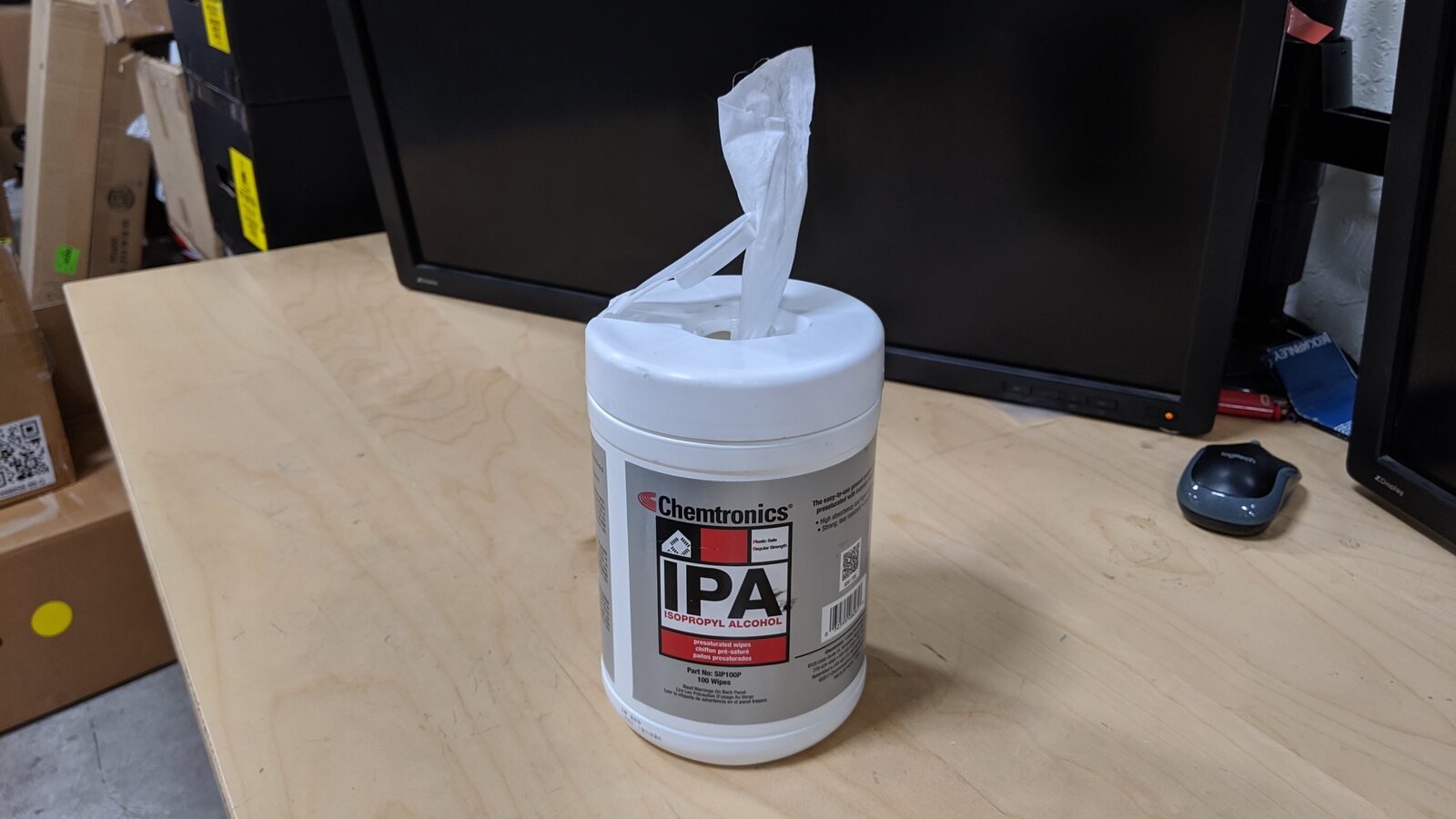

28. Wipe ancillary bay cover with IPA to clean surface
    注

    Allow to 1 minute dry time

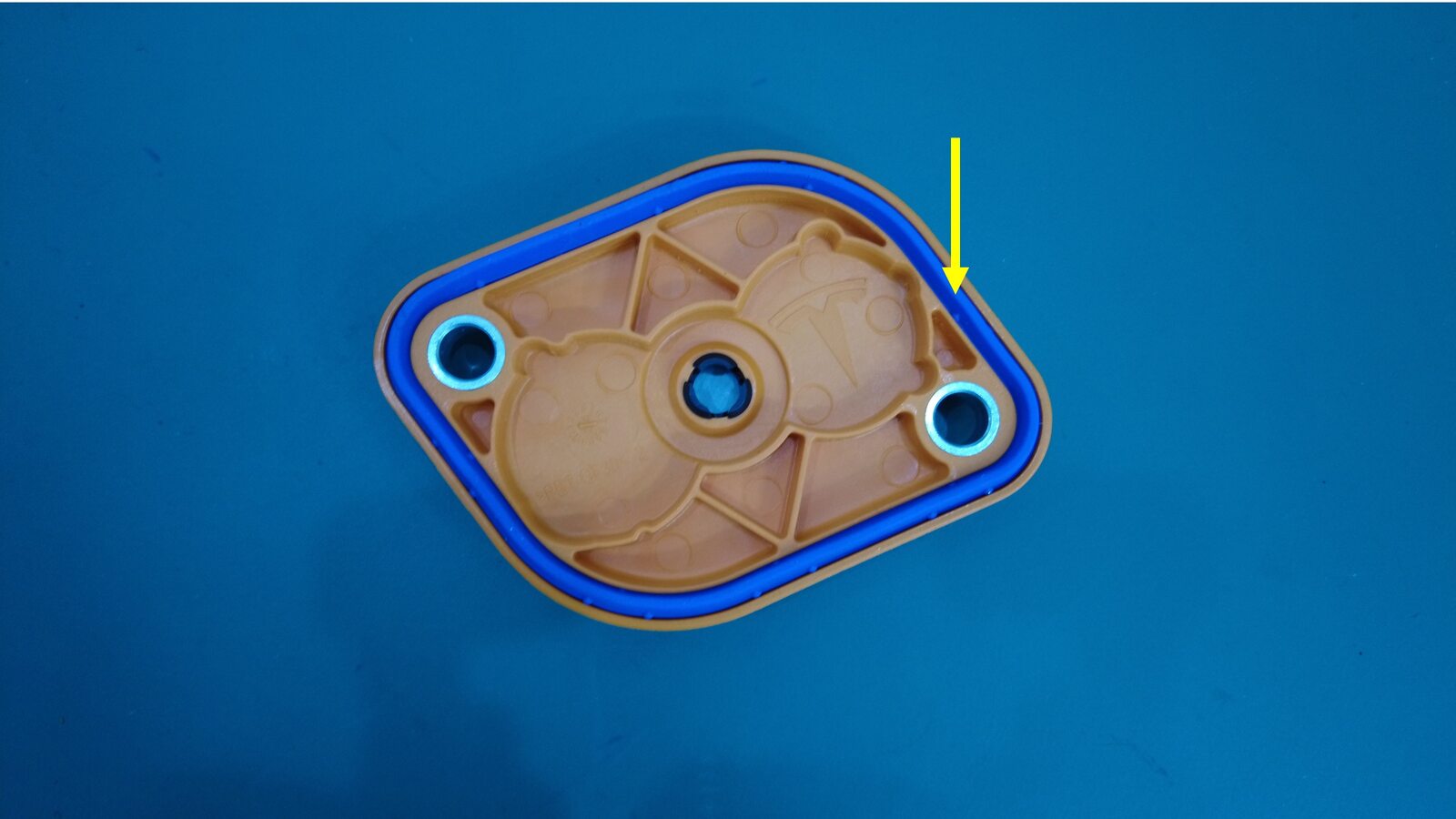

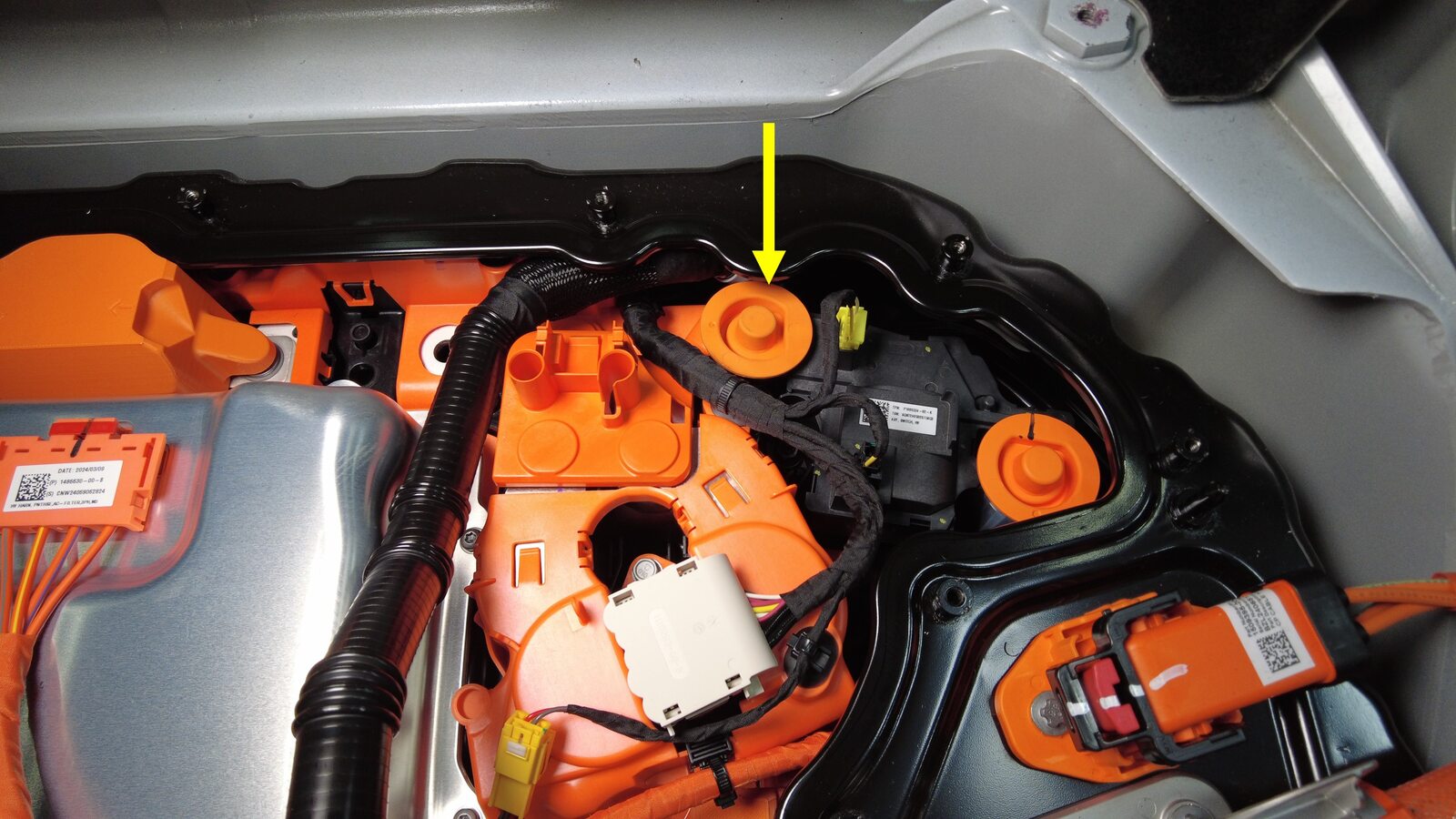

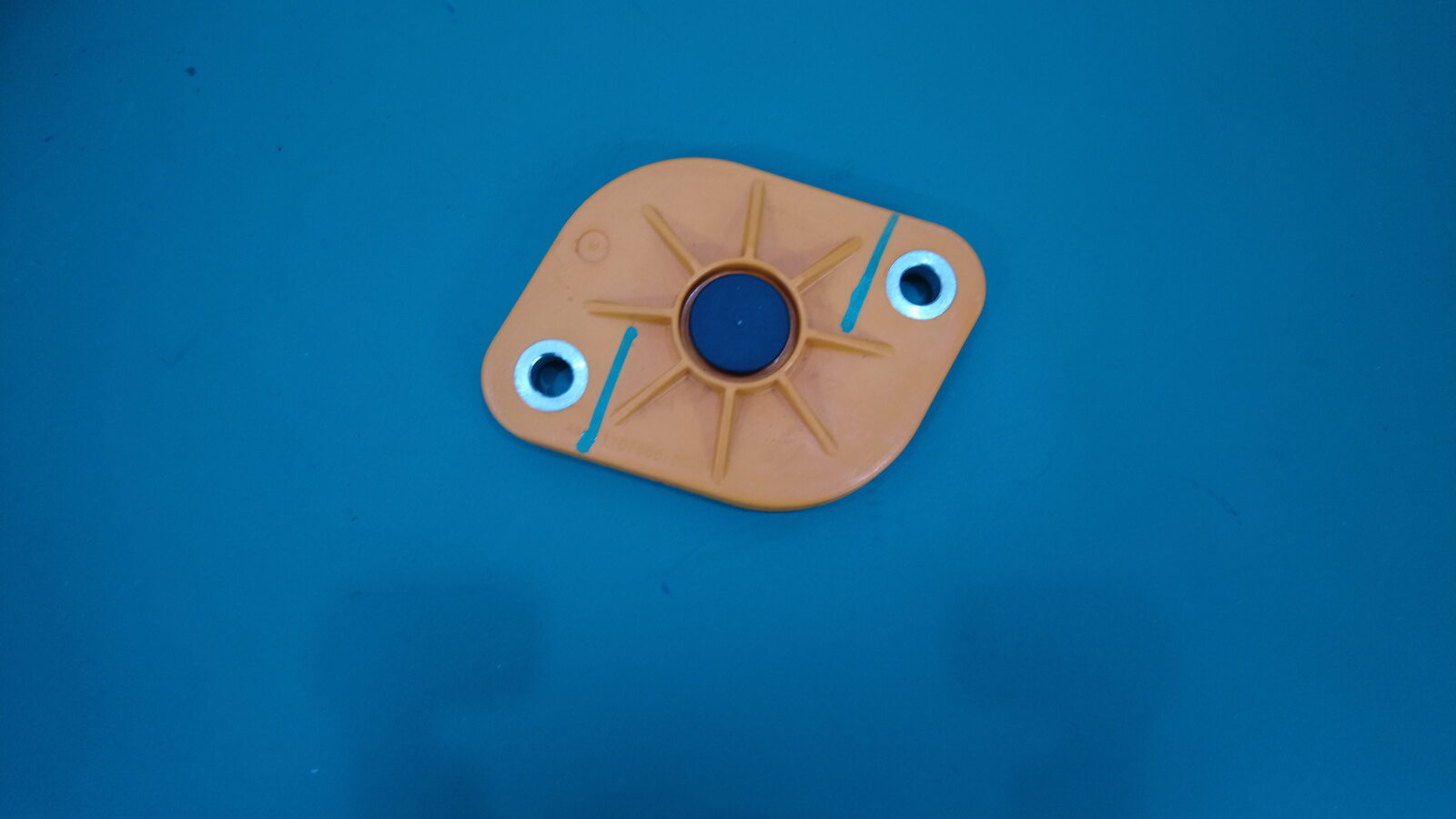

29. Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover
    注

    Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time

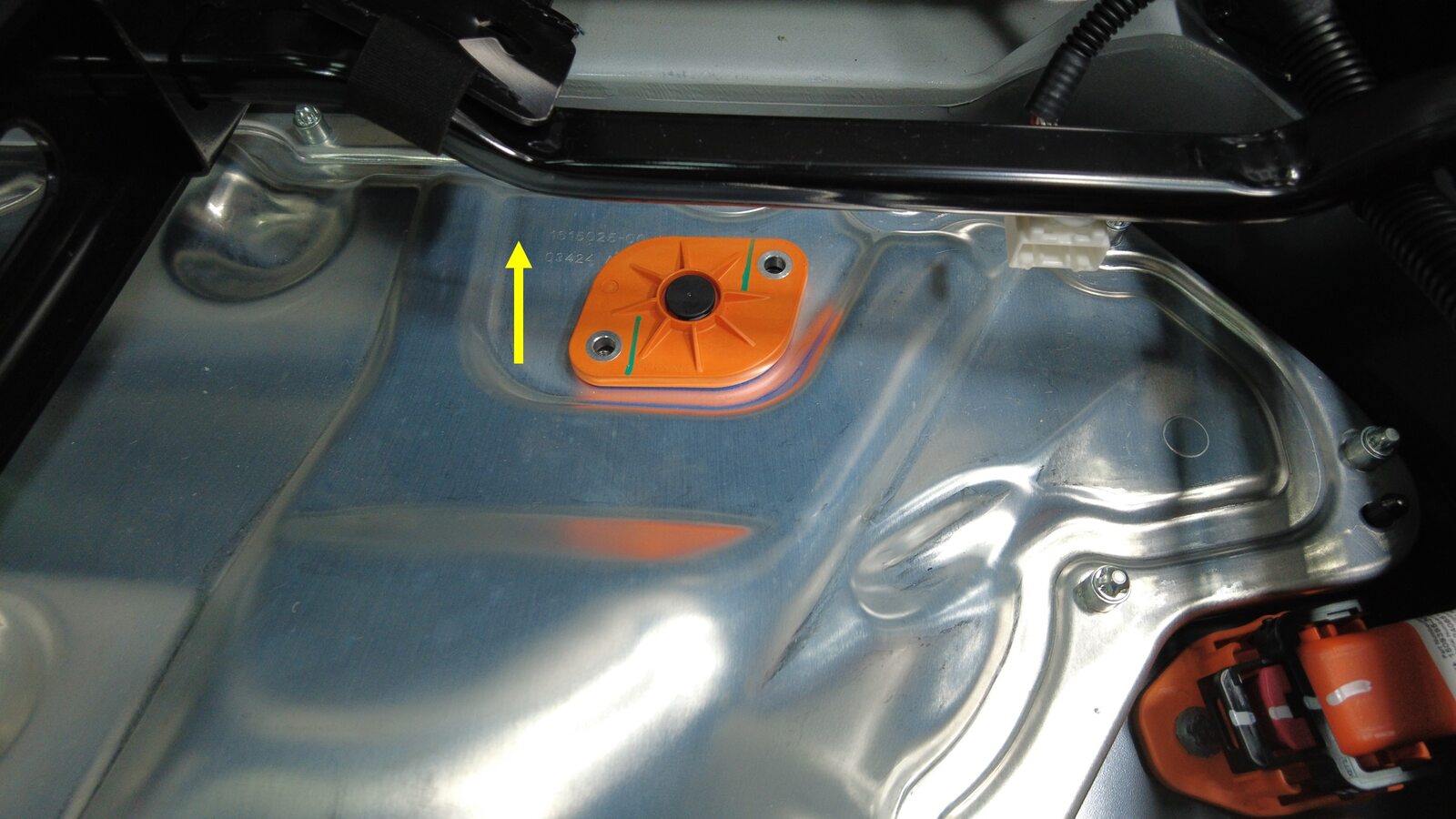

30. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts

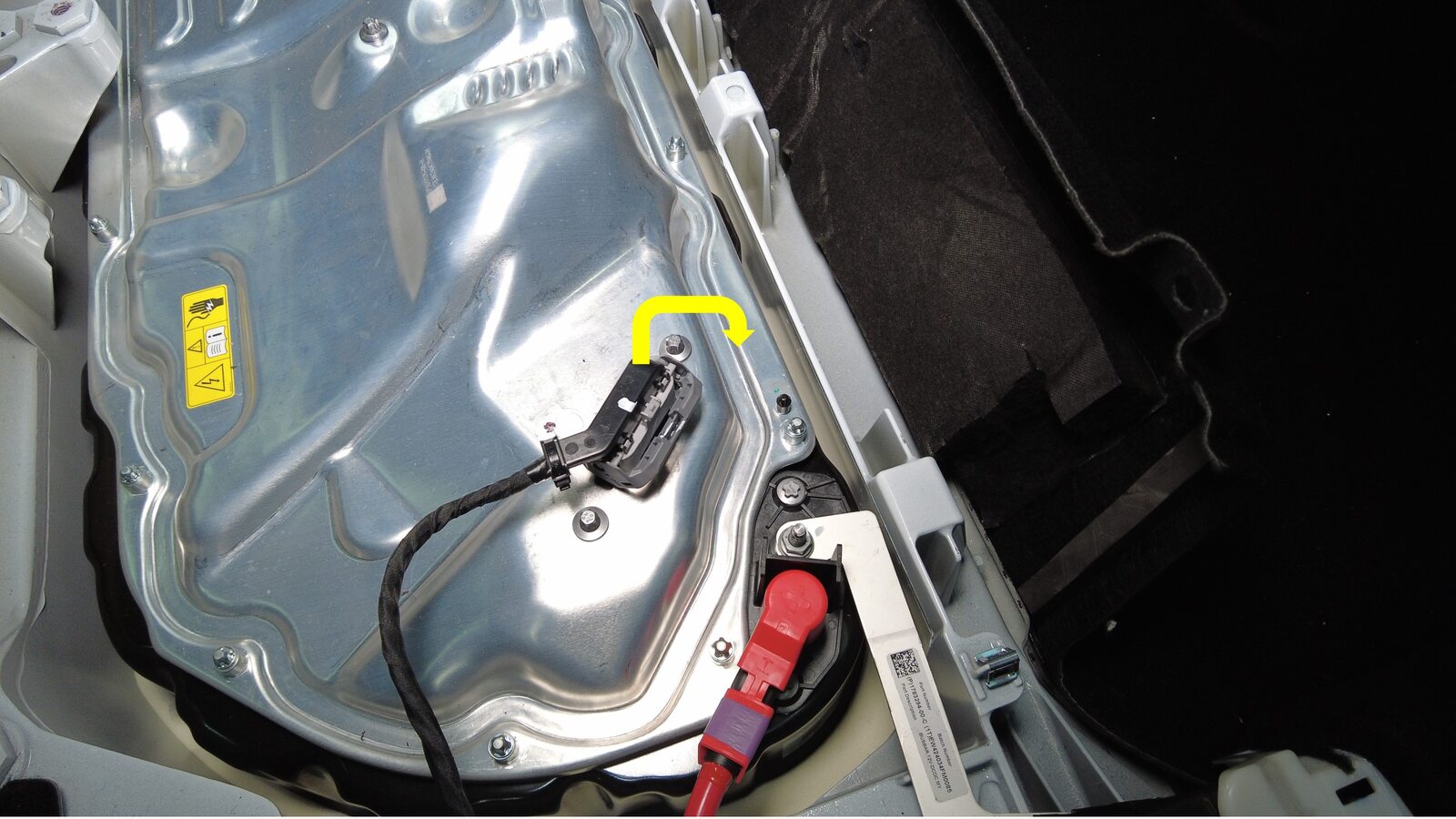

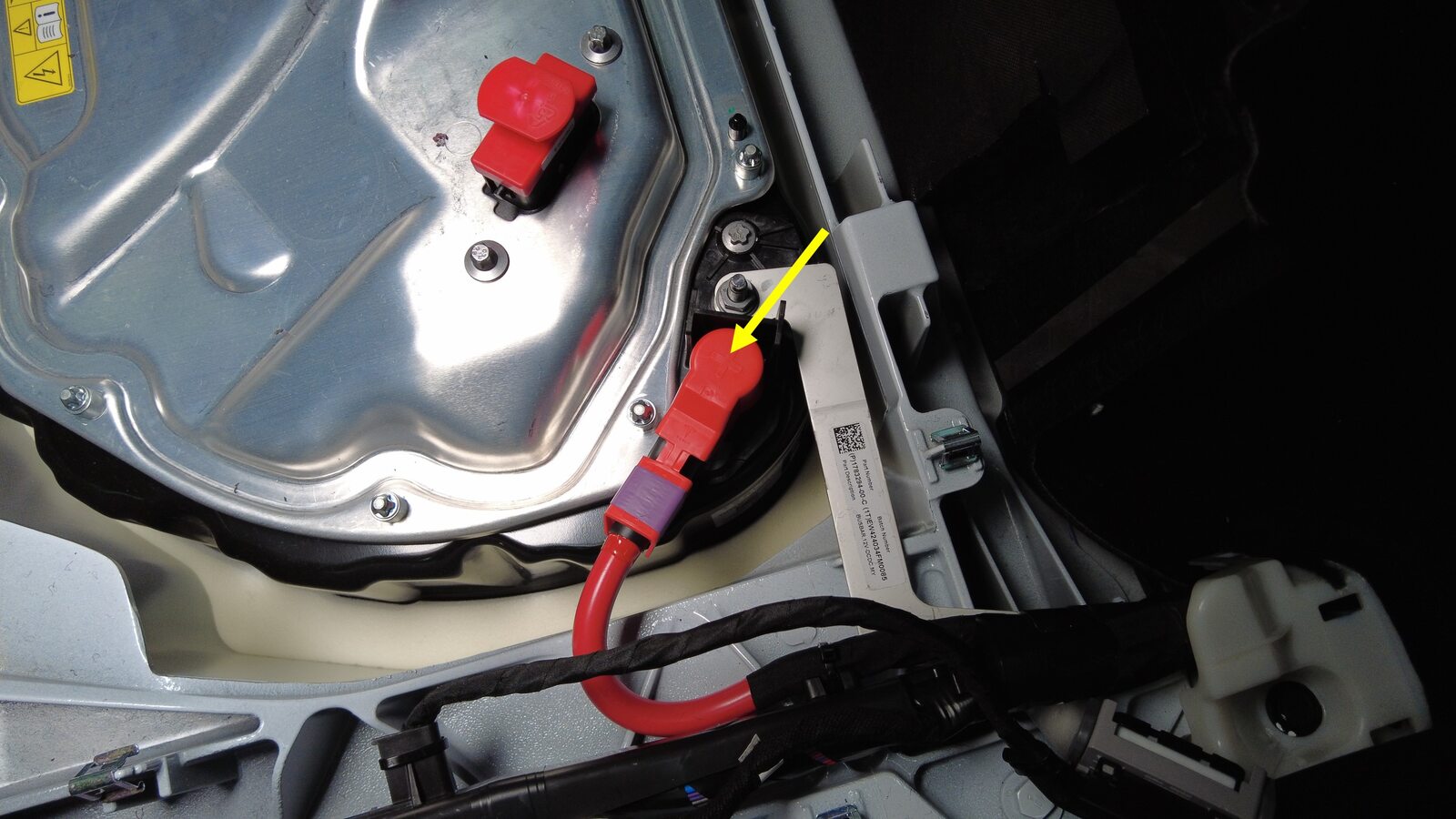

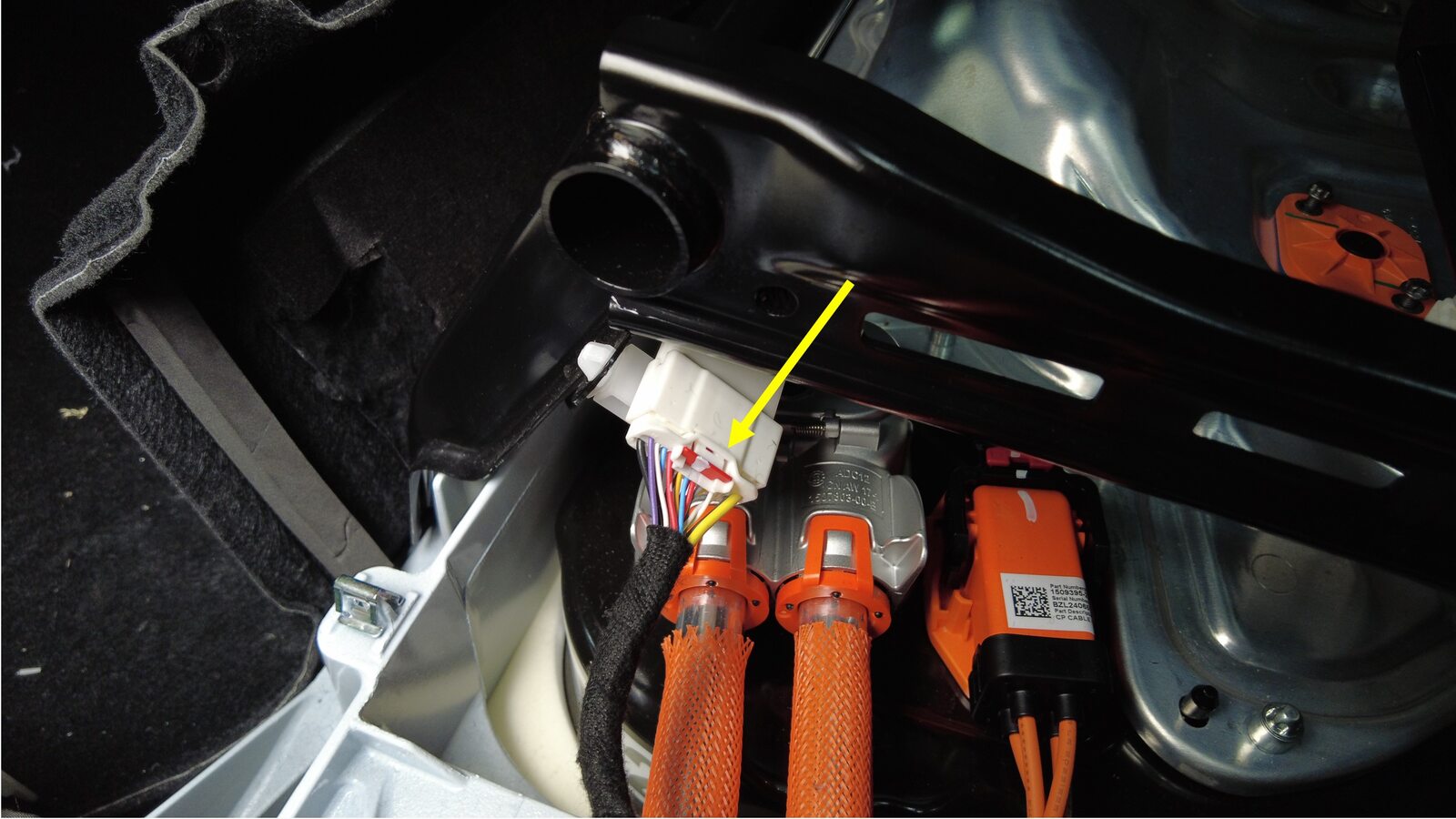

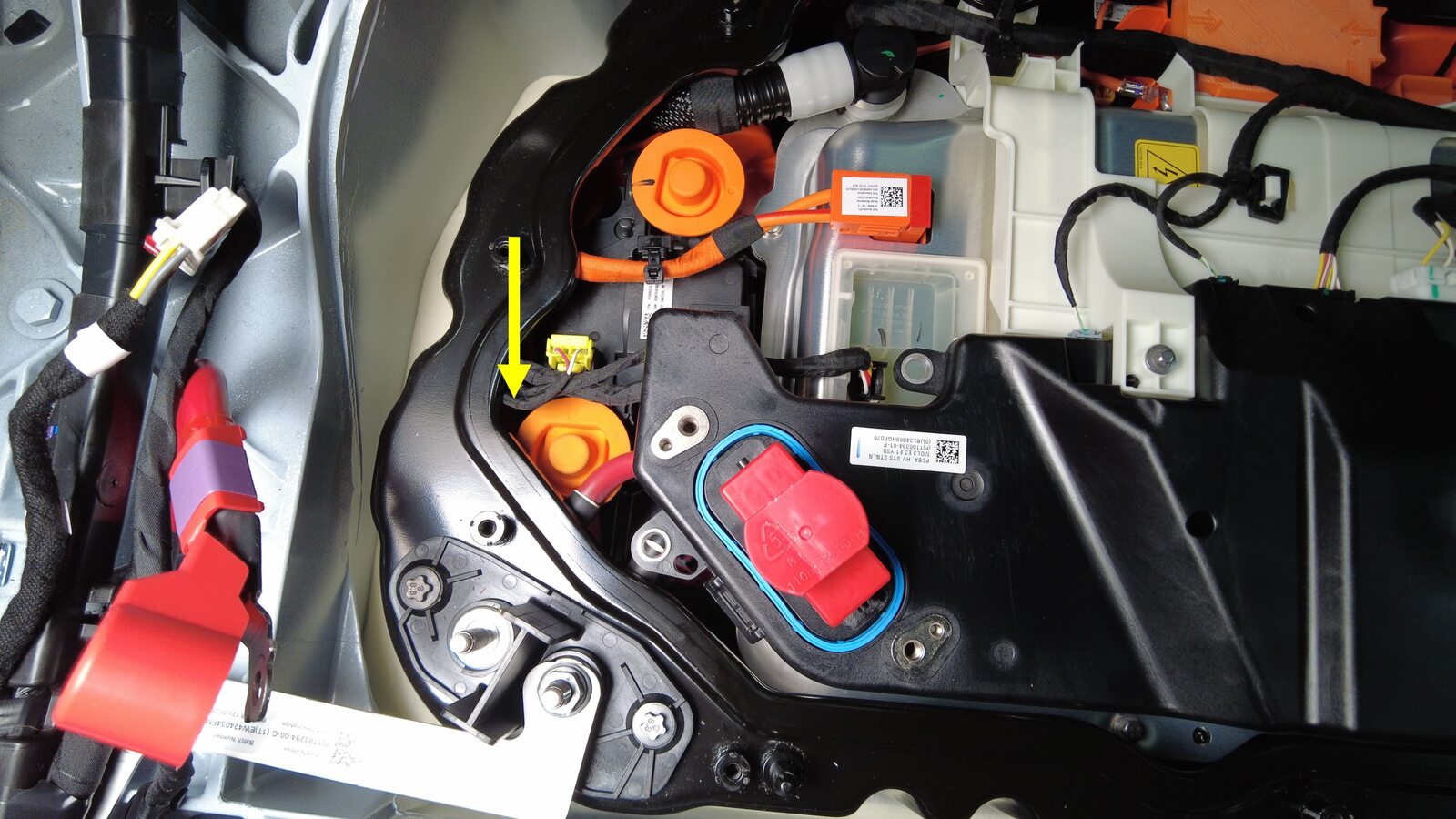

31. Disconnect HVC logic connector and install logic cap
    注

    1x connector, 1x cap, Release locking tab then push the handle downward to release connector





32. Release positive LV output cover from PCS cable
    注

    1x cover

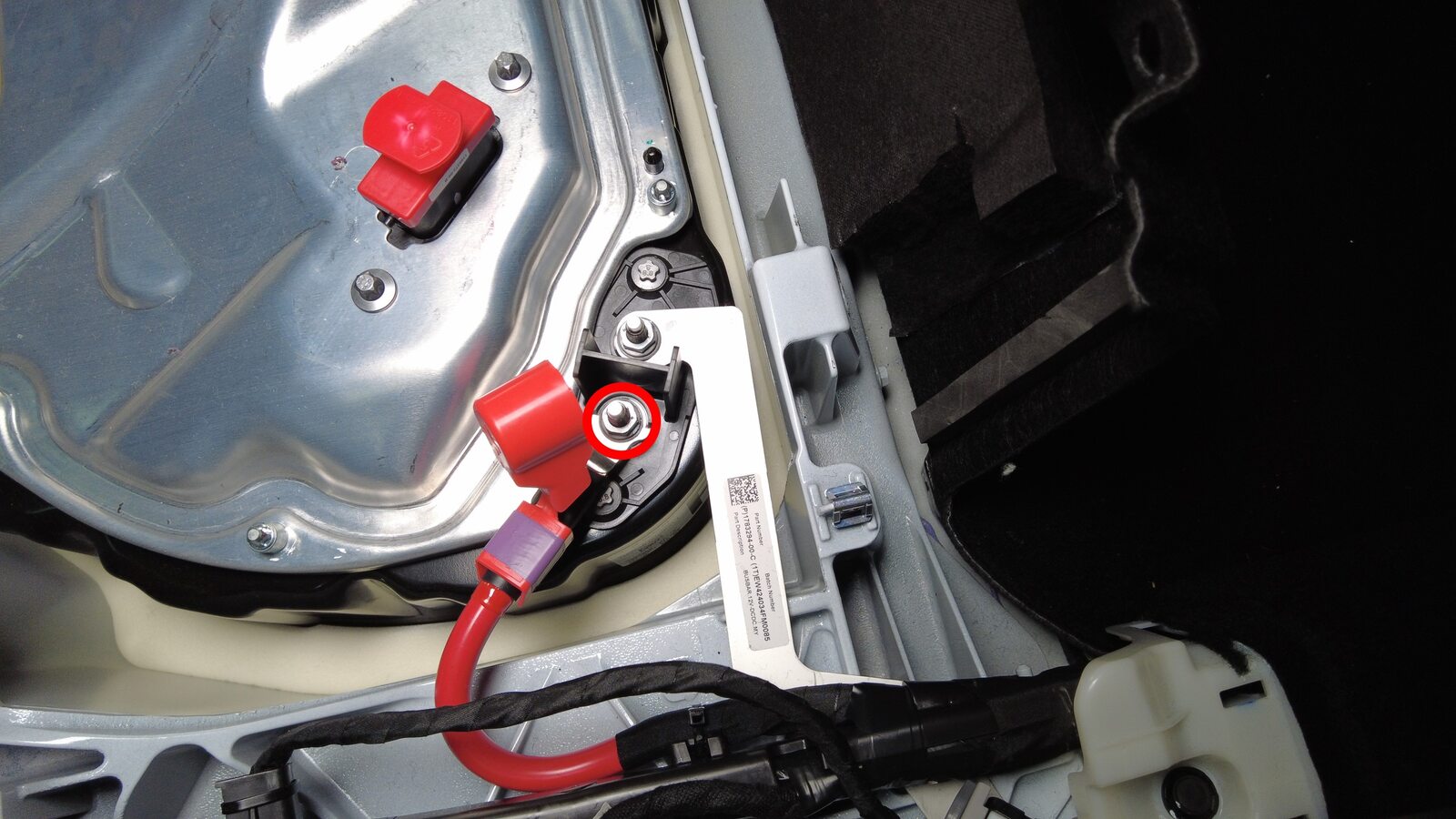

33. Remove PCS cable from LV passthrough output
    注

    1x nut, 13mm, 9 Nm, Discard nut after removal



34. Remove bolts securing ancillary bay cover to HVC
    注

    3x bolts, E10, 5 Nm + 30 degrees



35. Remove bolts securing ancillary bay cover to HV battery
    注

    18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the ancillary bay cover





36. Remove HVC logic cap
    注

    1x logic cap

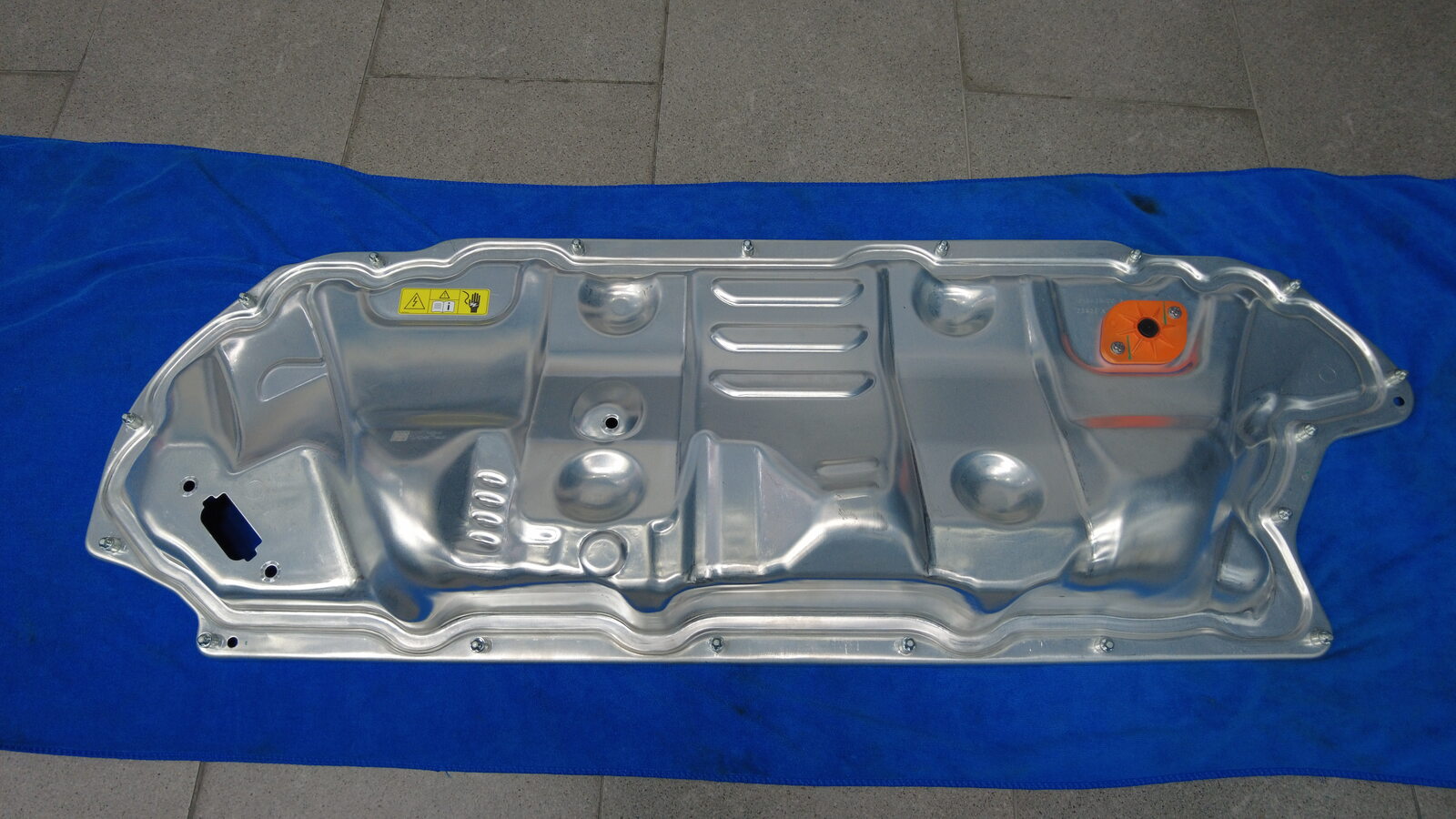

37. Remove ancillary bay cover from HV battery





38. Install HVC logic cap
    注

    1x logic cap

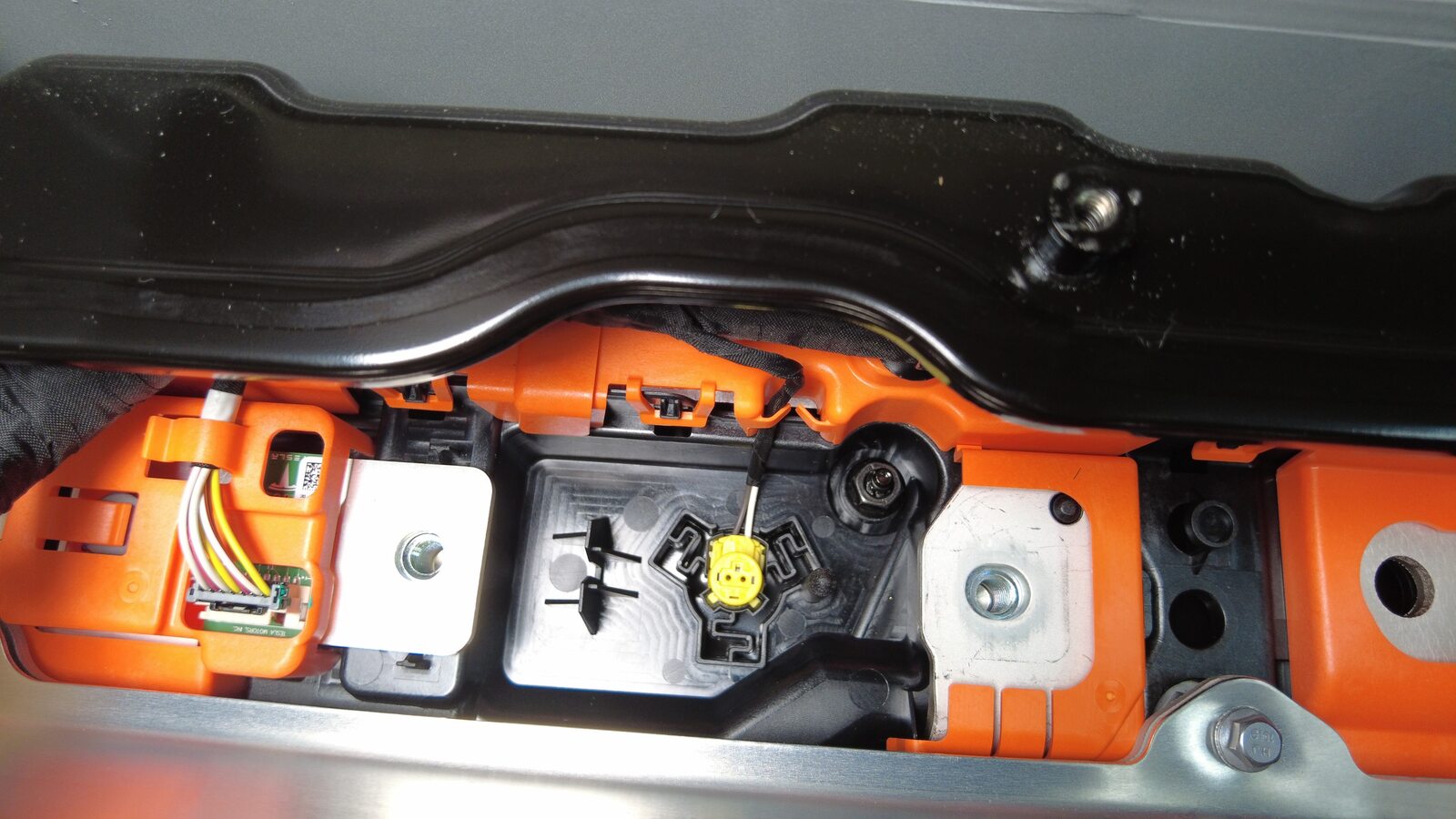

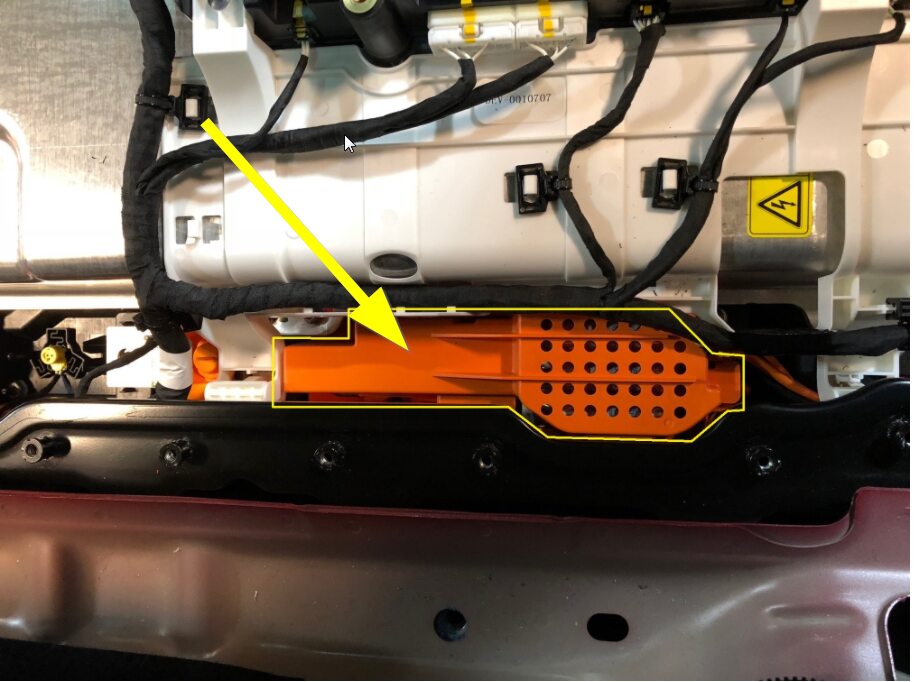

39. Inspect ancillary bay for any missing insulators
    注

    Install service insulator kit before continuing to next step

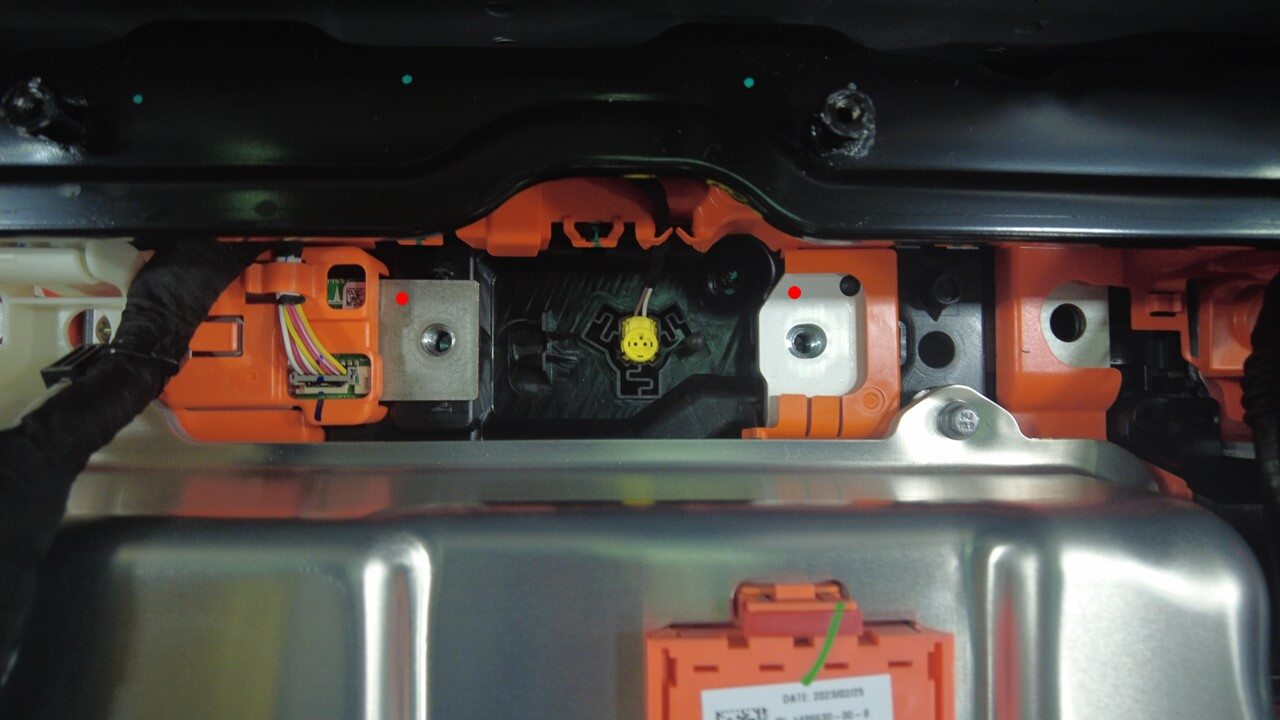

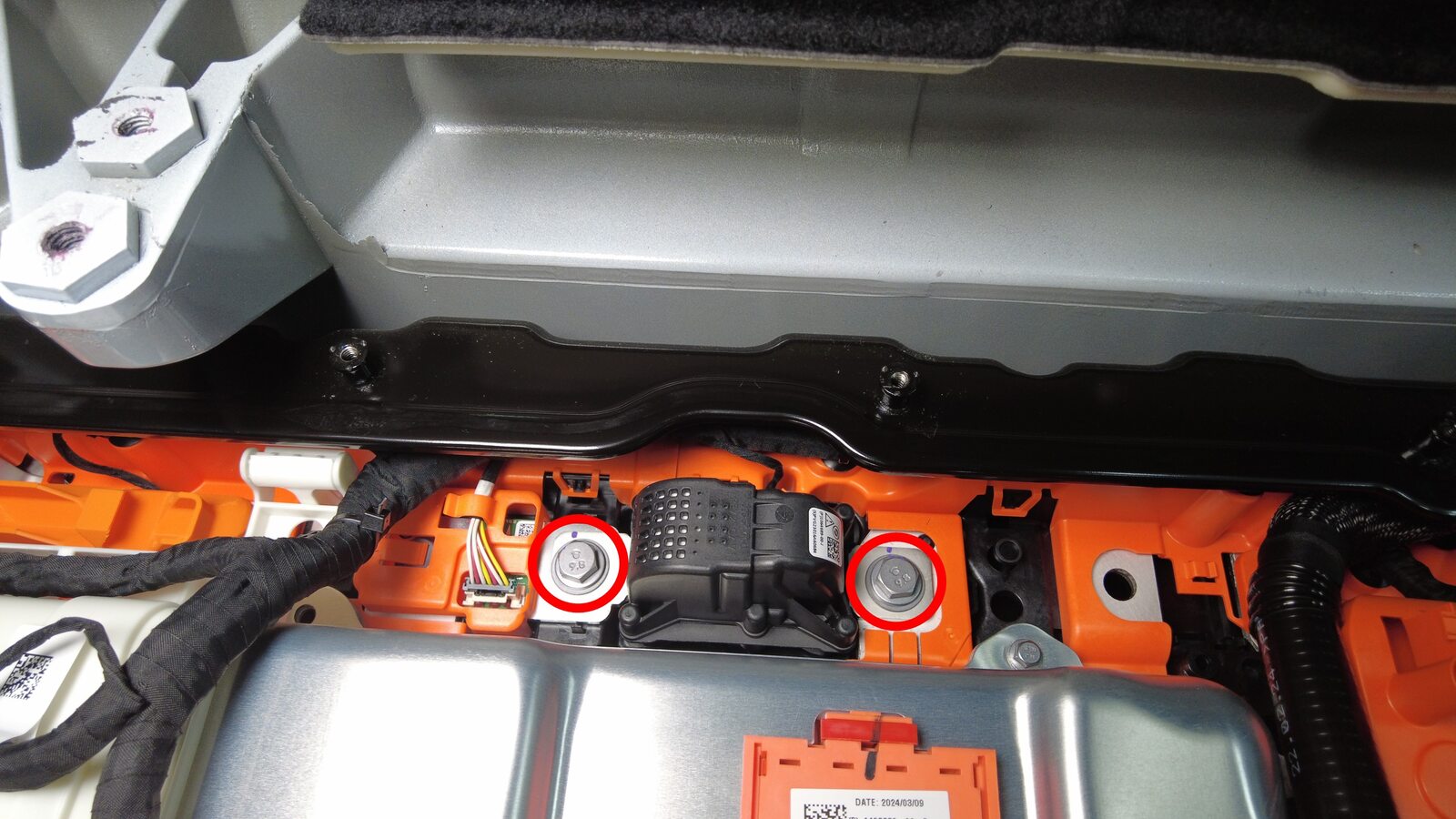

40. Remove bolts securing pyro disconnect to ancillary bay
    注

    1x insulator, 2x patch bolts, 13mm, 9 Nm, Discard after removal

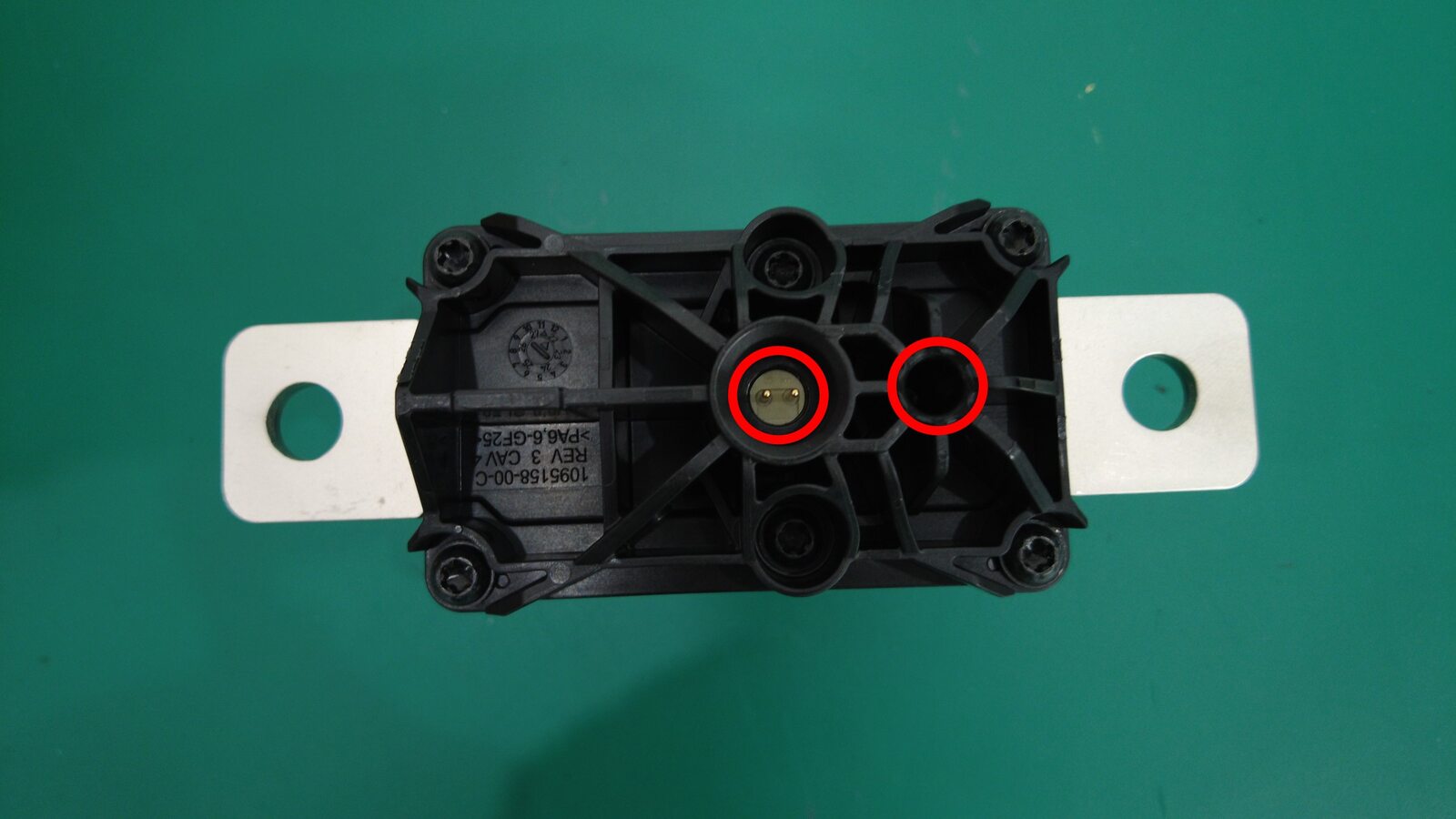

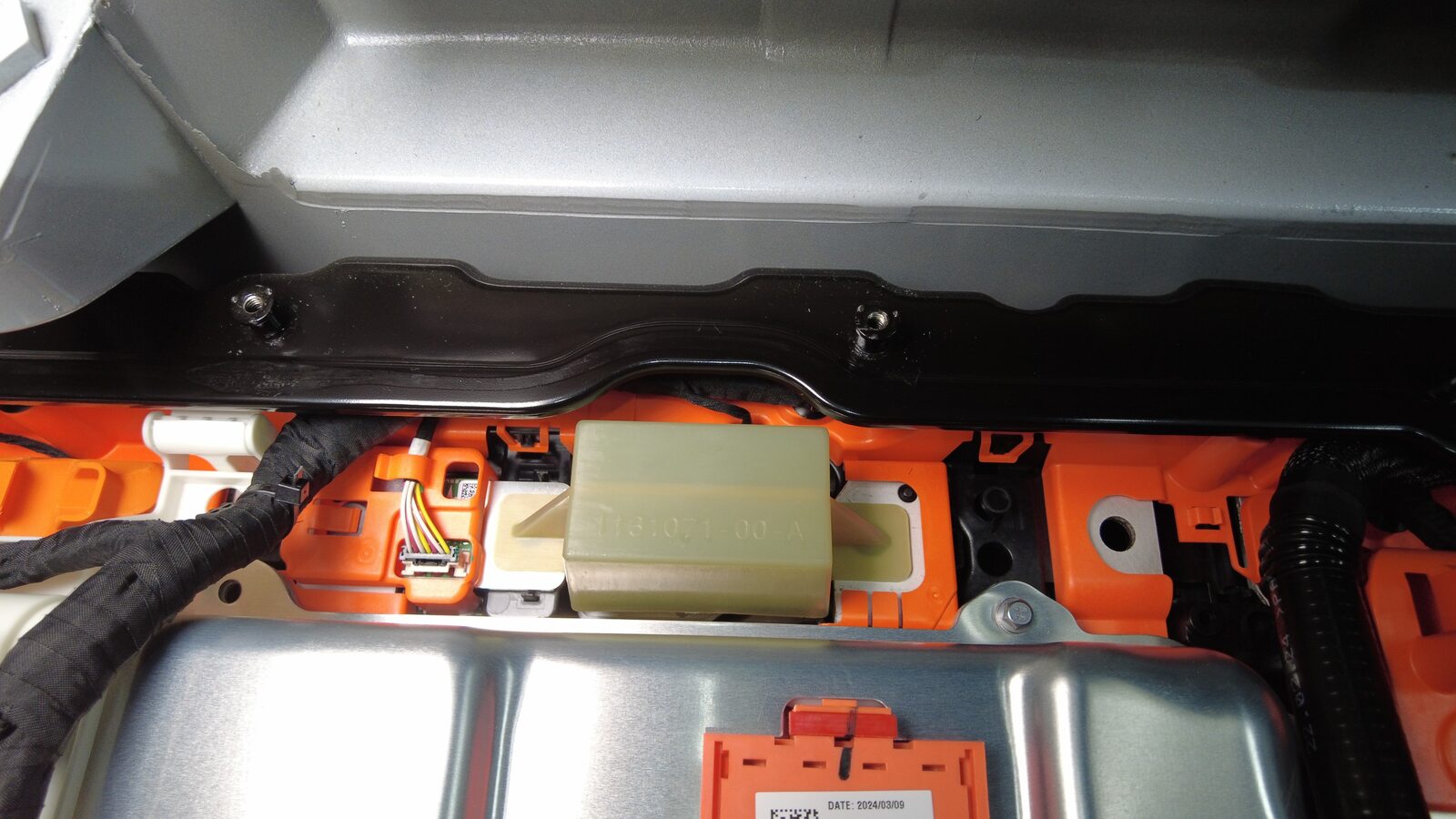

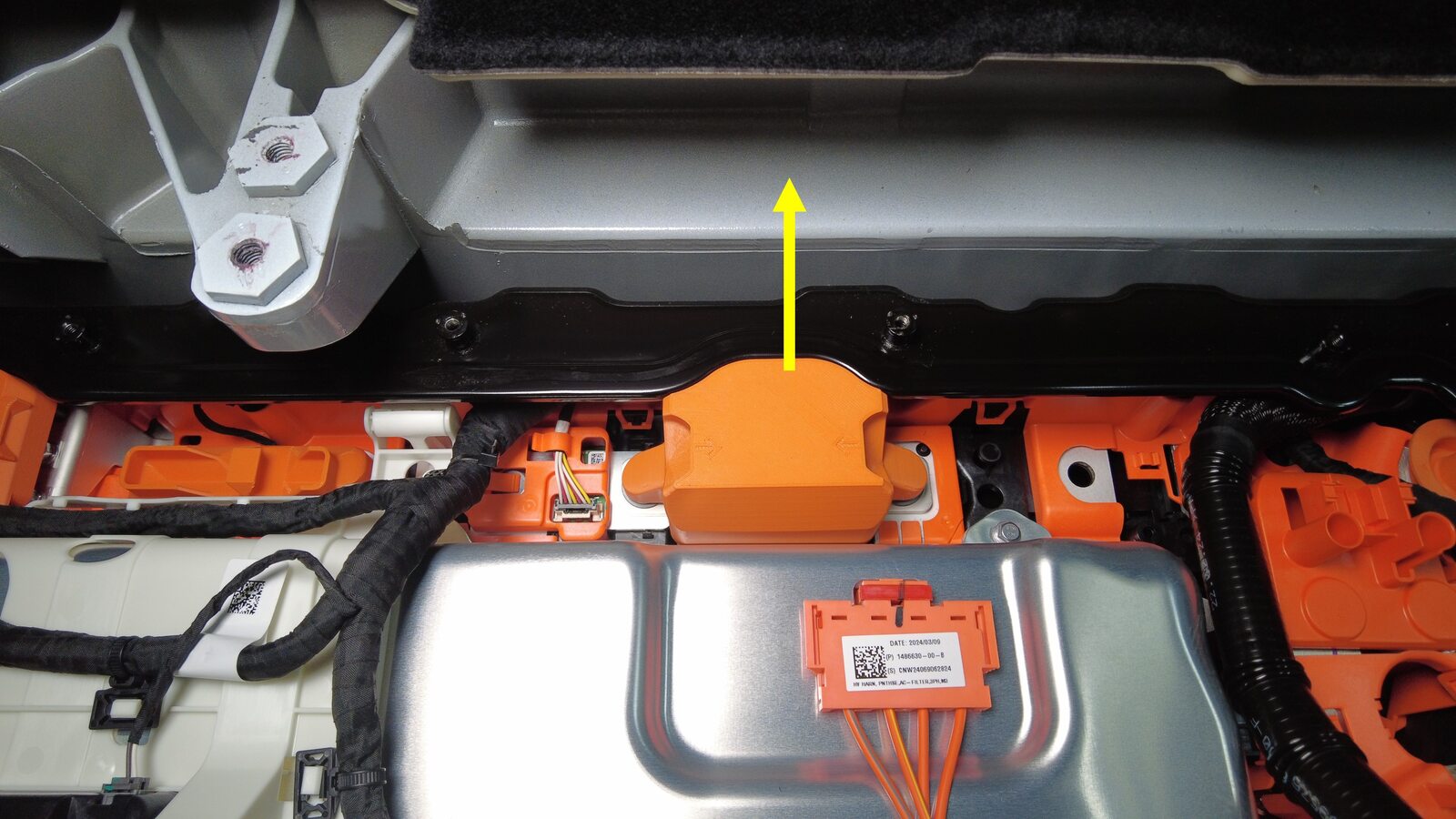

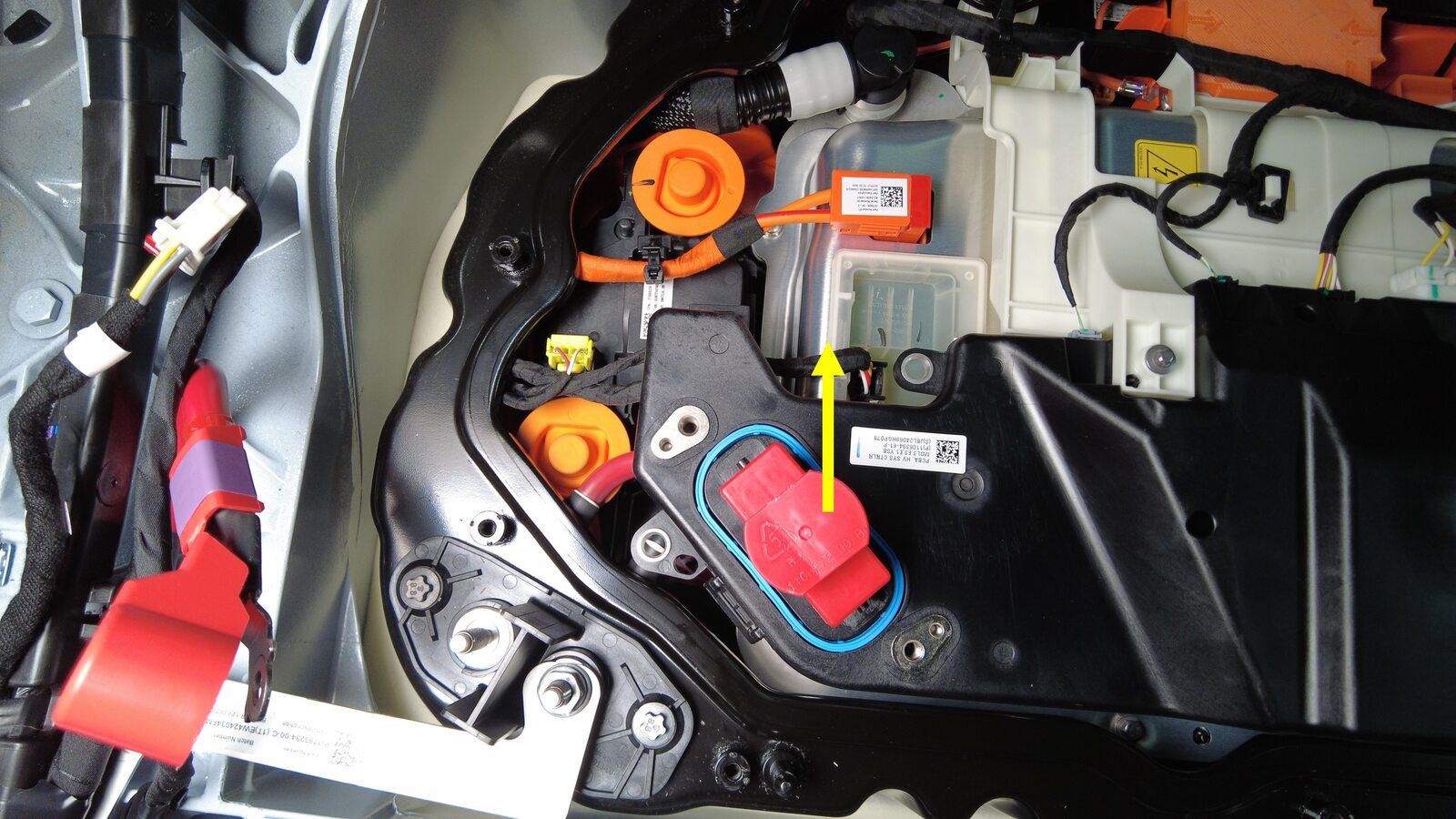

41. Remove pyro disconnect from ancillary bay
    注

    1x connector, From the bottom, Lift pyro disconnect straight up and out of the ancillary bay

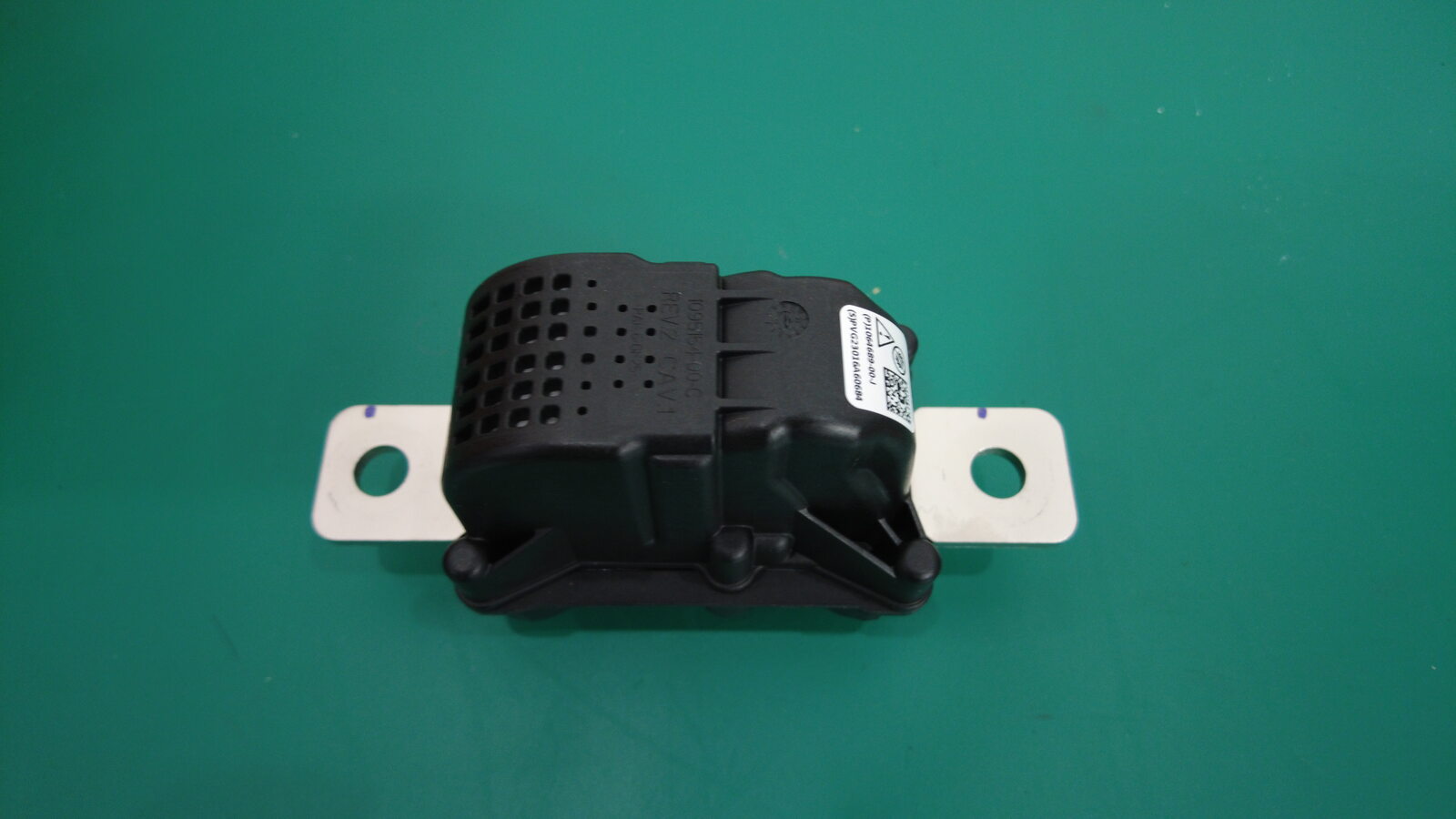

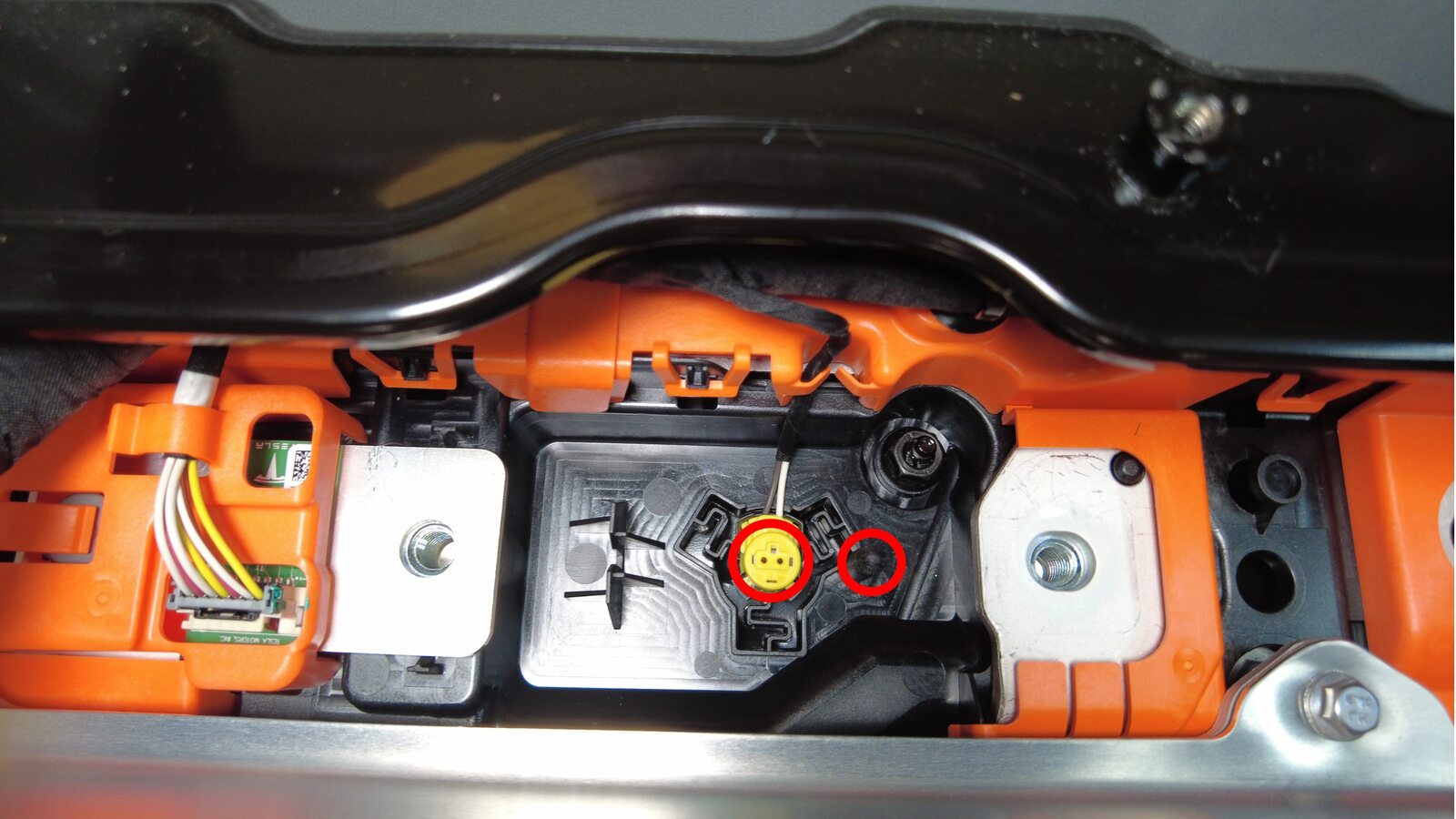

42. Install pyro disconnect dummy

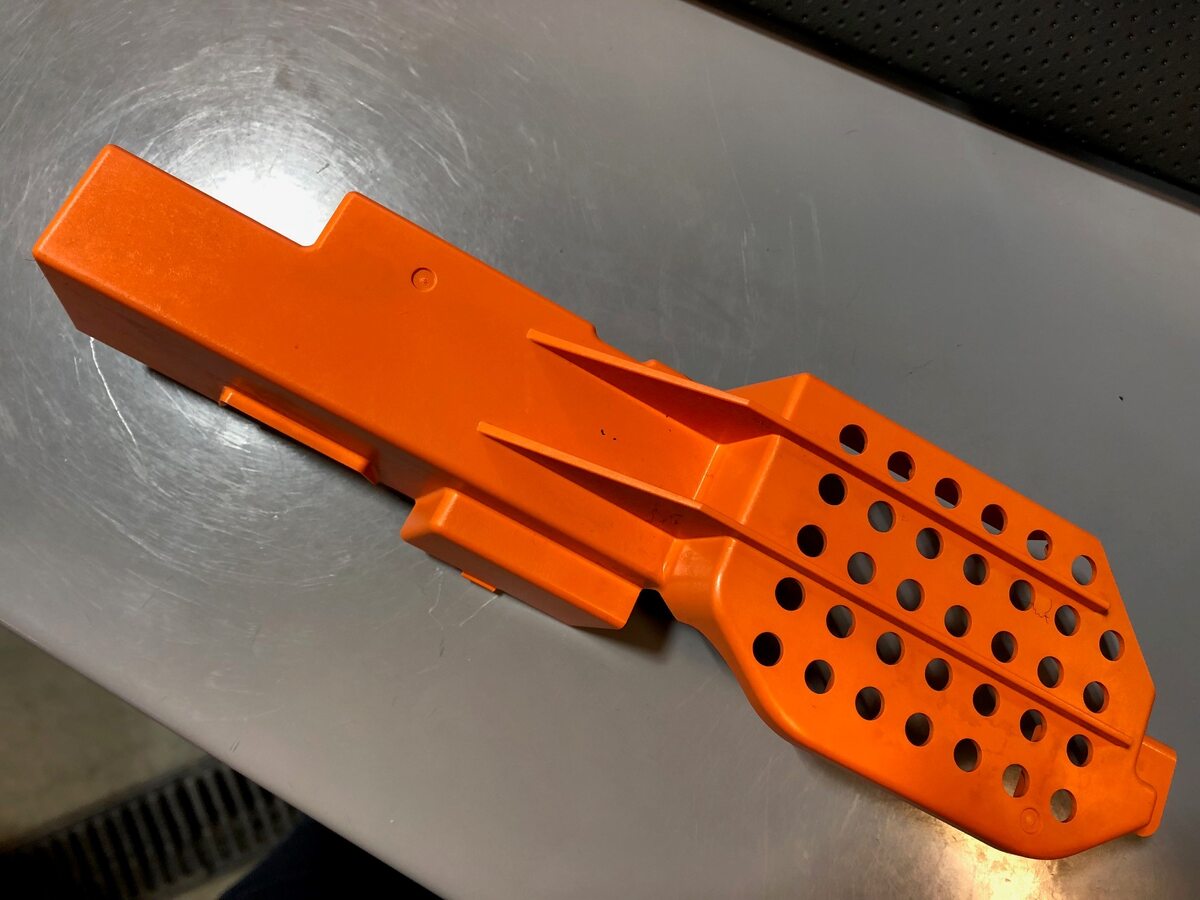

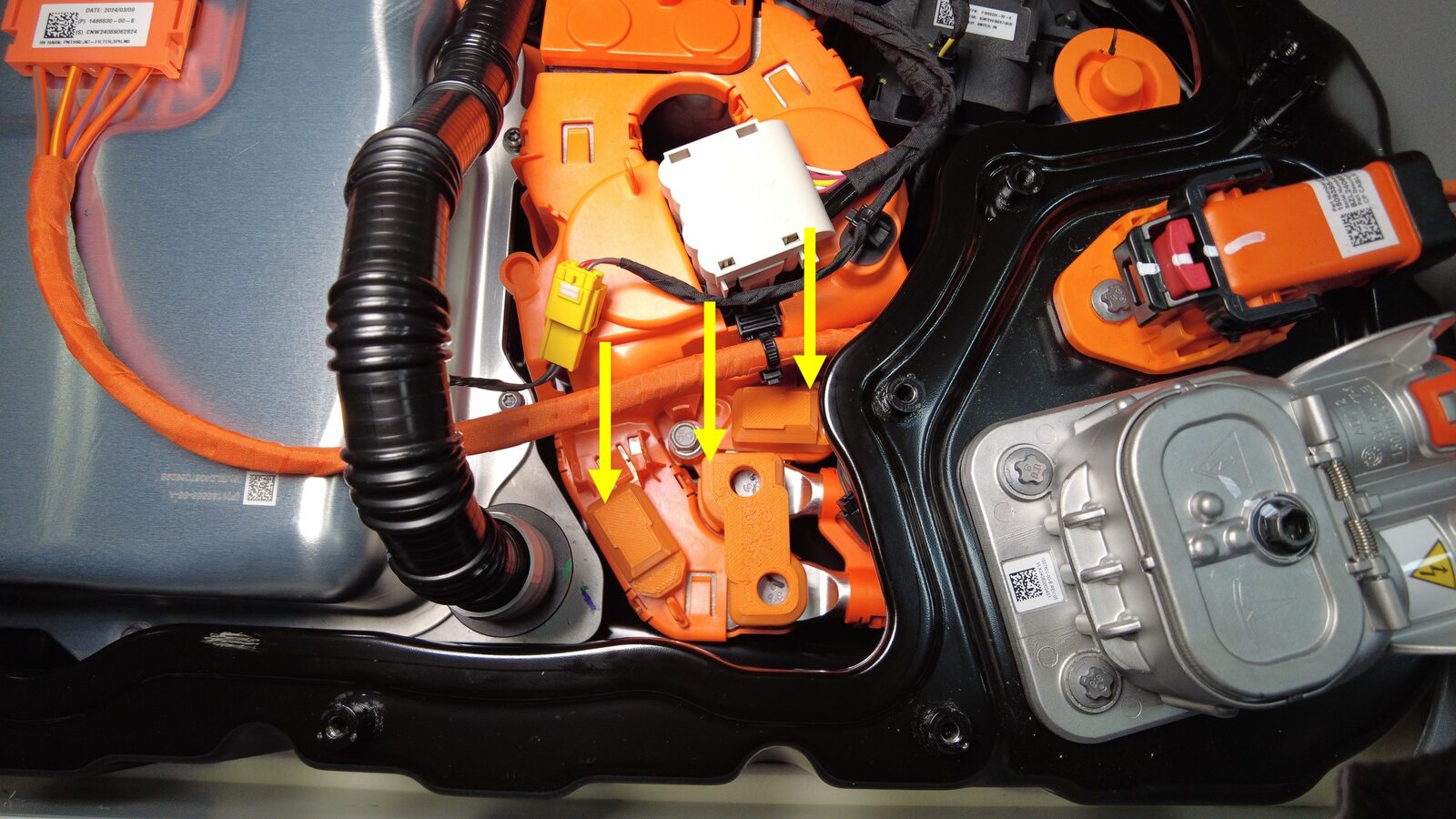

43. Remove fuse access insulator
    注

    3x clips, Lift straight up off of the fuses

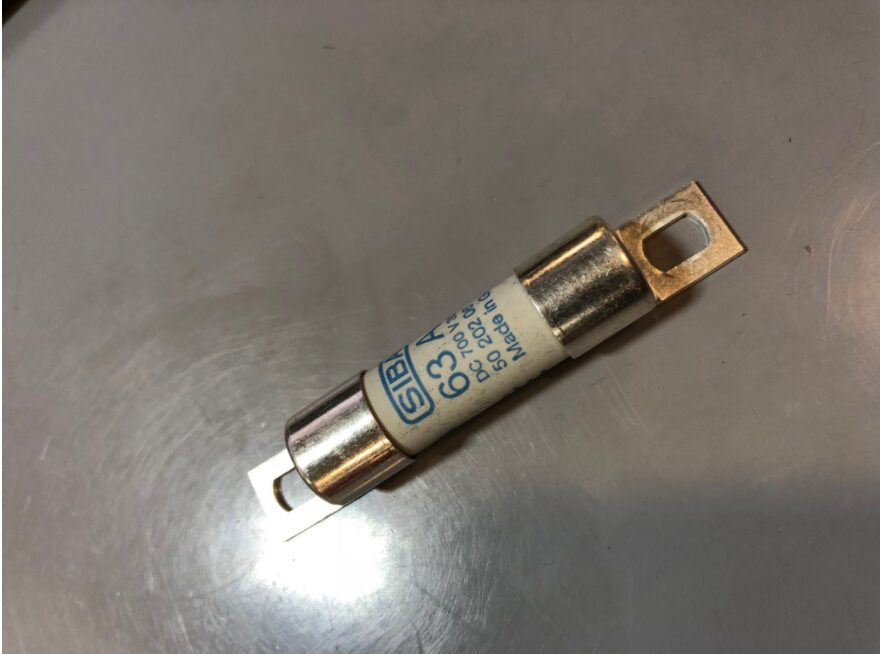

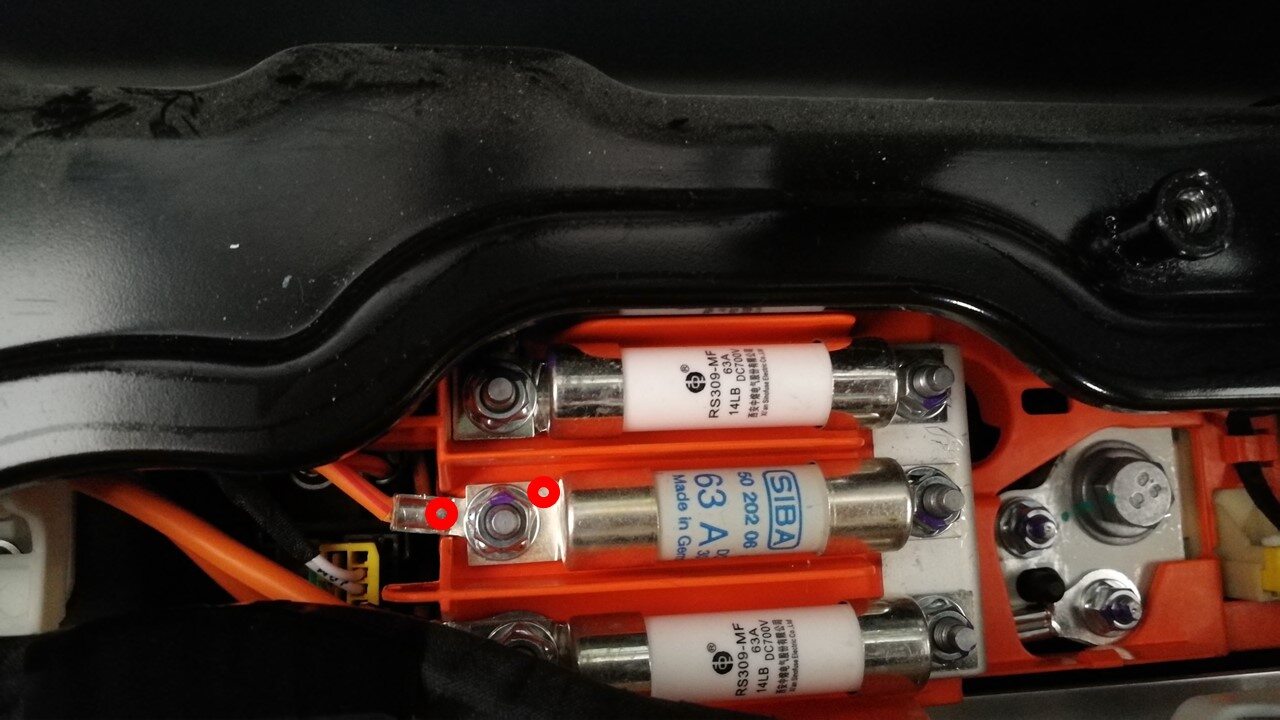

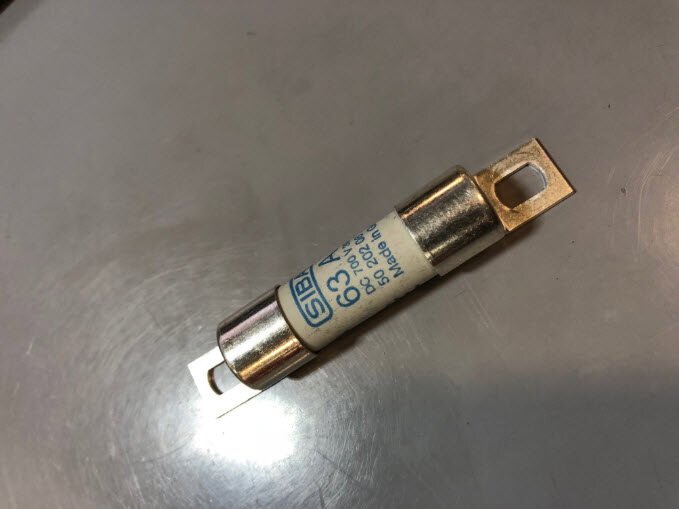

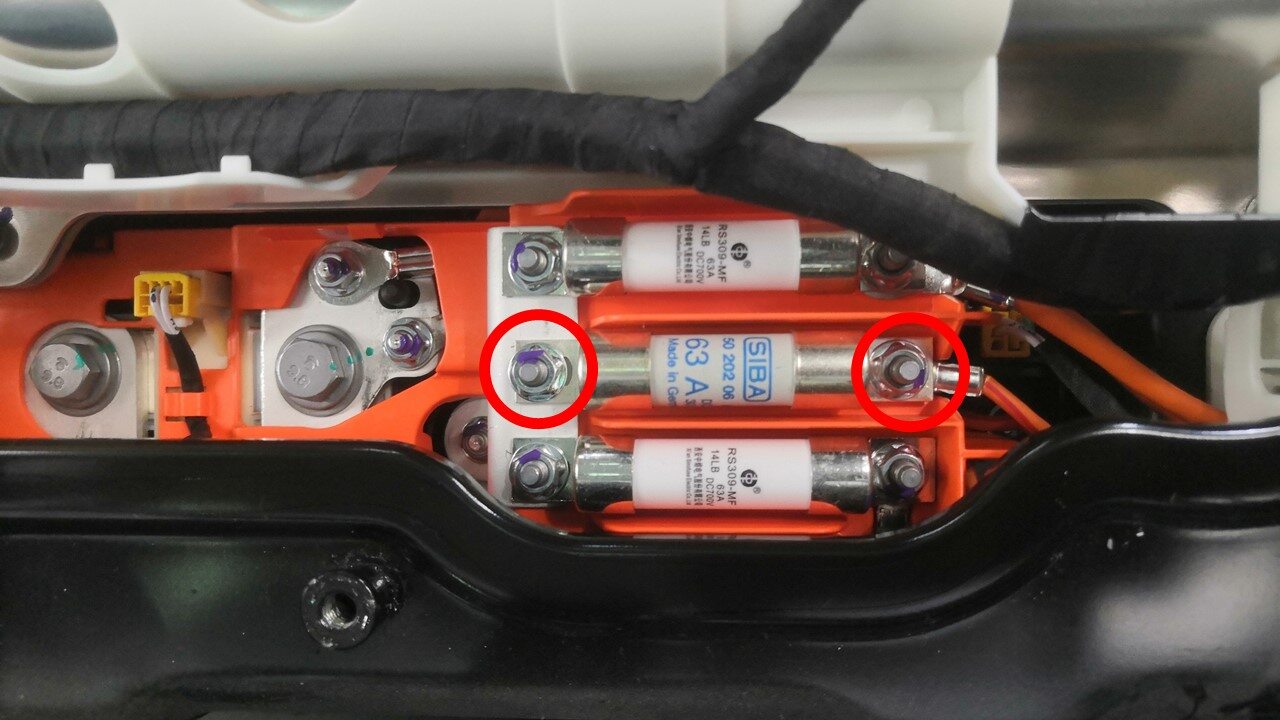

44. Release 700VDC 63A compressor fuse
    注

    2x patch nuts, 8mm, 2.5 Nm, Discard after removal



45. Remove 700VDC 63A compressor fuse from AWD bus and dist assembly
    注

    1x fuse



46. Position 700VDC 63A compressor fuse to AWD bus and dist assembly
    注

    1x fuse



47. Install 700VDC 63A compressor fuse
    注

    2x patch nuts, 8mm, 2.5 Nm, Install new patch nuts, Mark after torque

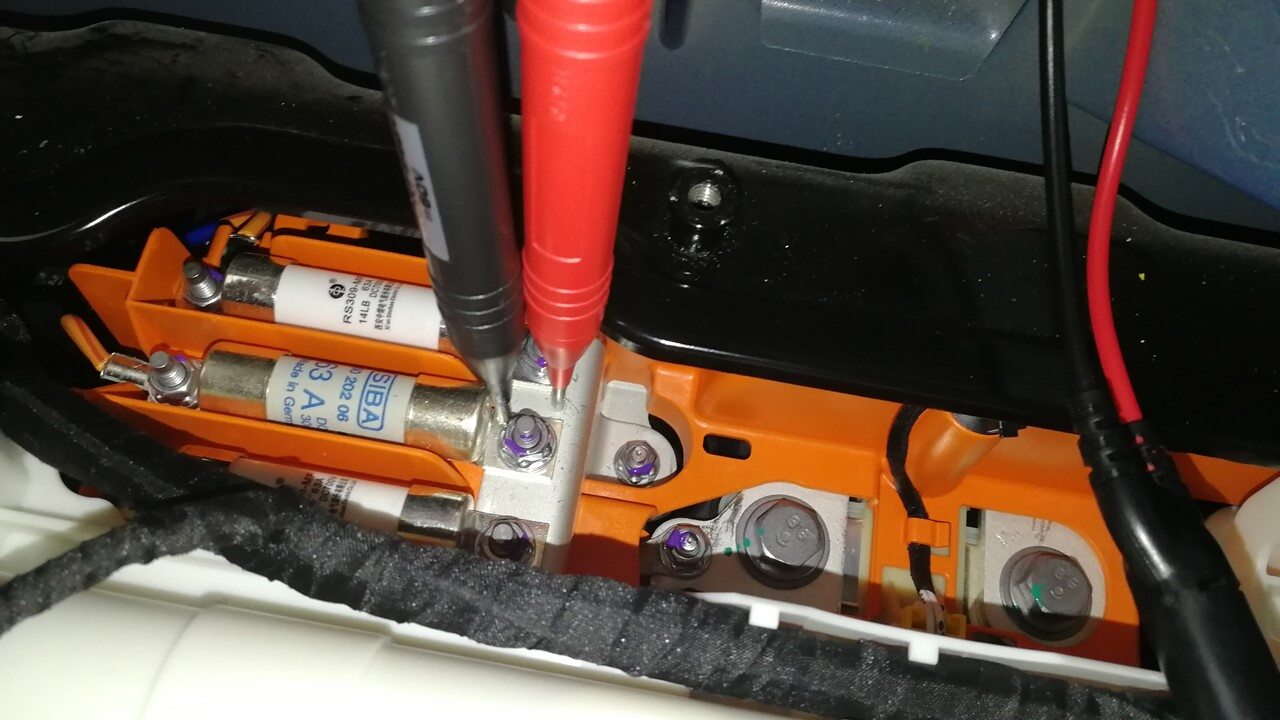

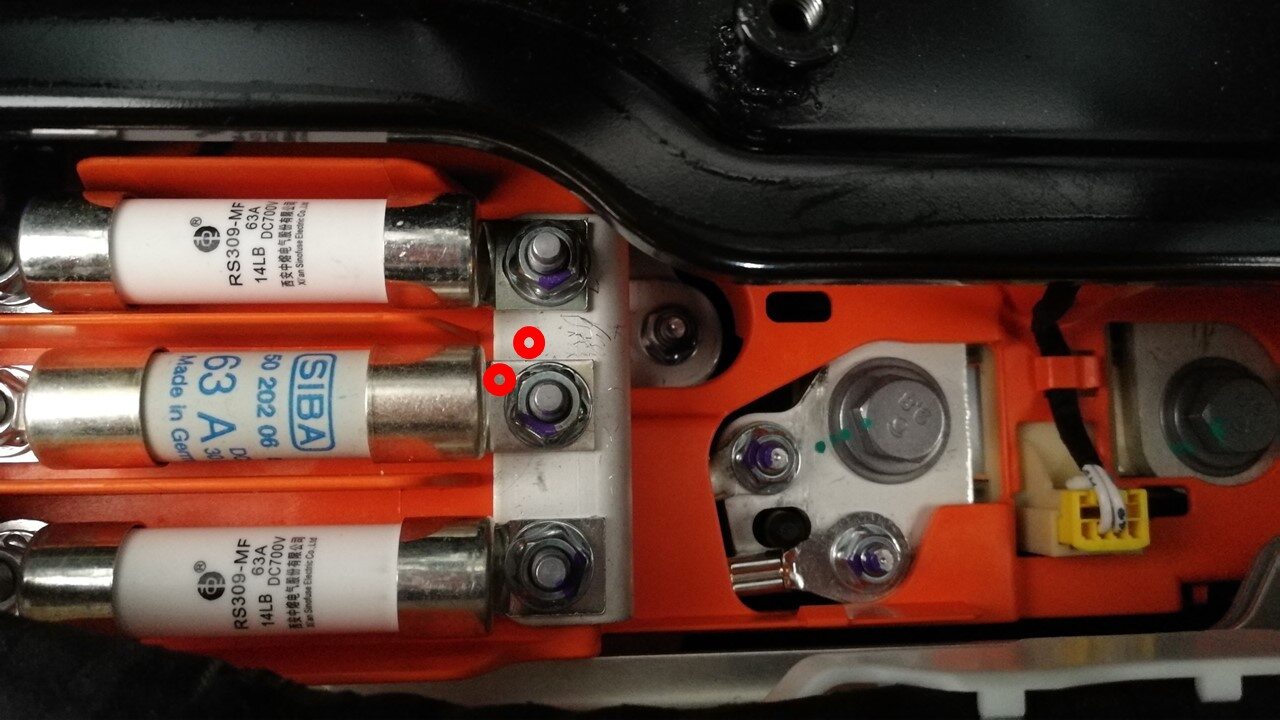

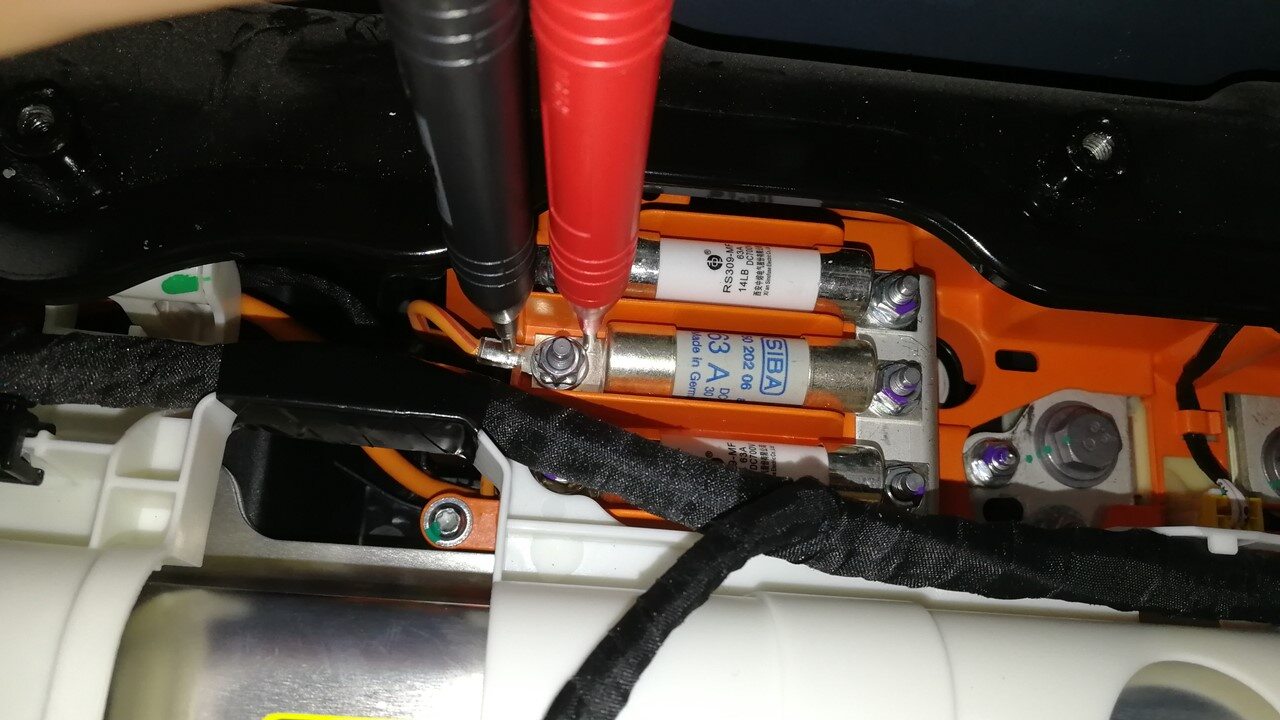

48. Perform Hioki resistance test at 63A fuse out joint
    注

    1x HV joint, 145μΩ or less, Perform zero adjust to Hioki meter prior to testing





49. Perform Hioki resistance test at 63A fuse in joint
    注

    1x HV joint, 105μΩ or less, Perform zero adjust to Hioki meter prior to testing





50. Install fuses access insulator
    注

    3x clips



51. Remove pyro disconnect dummy



52. Clean mating surface of pyro
    注

    Allow to 1 minute dry time, Use an IPA wipe to clean the HV mating surfaces of the shunt, Busbar, And the pyrotechnic battery disconnect

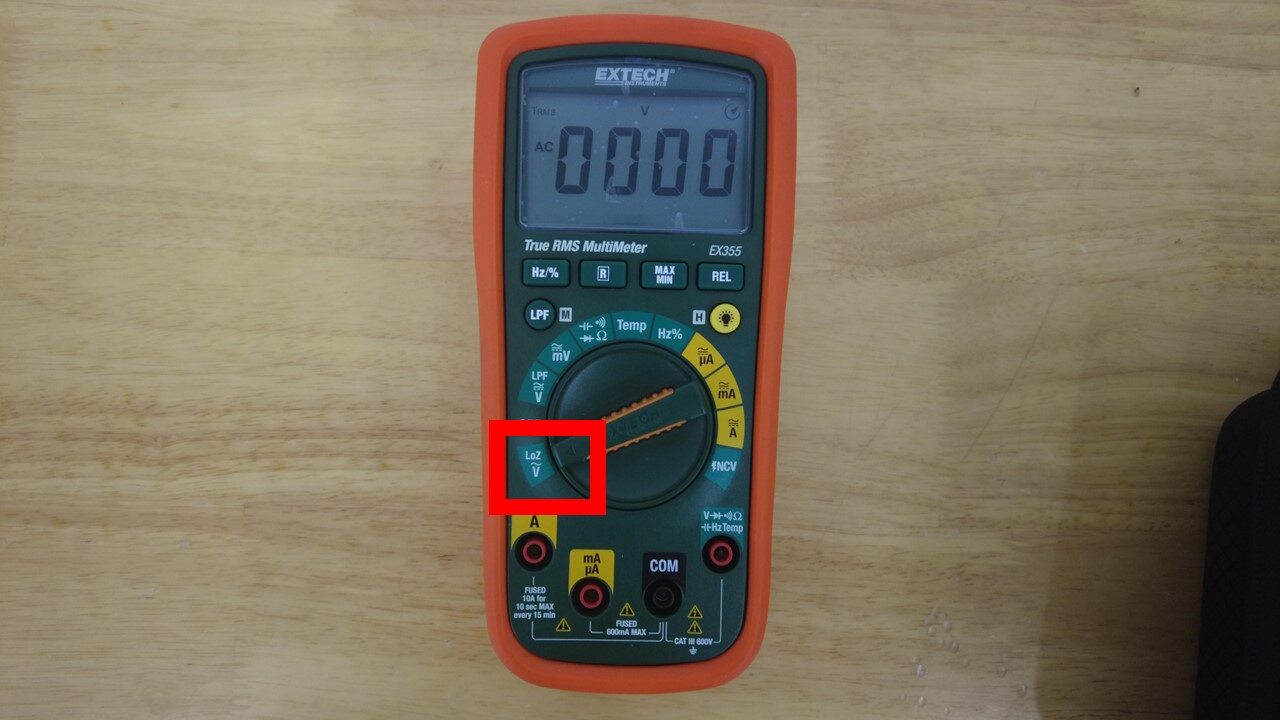

53. Set multimeter to "LoZ" (low impedance) mode



54. Measure voltage between busbar and shunt
    注

    Measure the voltage between the busbar (left) and shunt (right) for at least 10 seconds, so as to balance the voltage across the pyrotechnic battery disconnect mount points, Note: The voltage displayed on the multimeter is not as important as balancing the mount points





55. Position pyro disconnect to ancillary bay for installation
    注

    1x connector, While still measuring the voltage, Have an assistant position the pyrotechnic battery disconnect into the HV battery for installation. Make sure to align the pins of the connector with the new pyrotechnic battery disconnect, And then press the pyrotechnic battery disconnect down onto the busbars, The pyro disconnect can only be installed one way









56. Install bolts securing pyro disconnect to ancillary bay
    注

    2x patch bolts, 13mm, 9 Nm, Install new patch bolt, Mark with paint pen

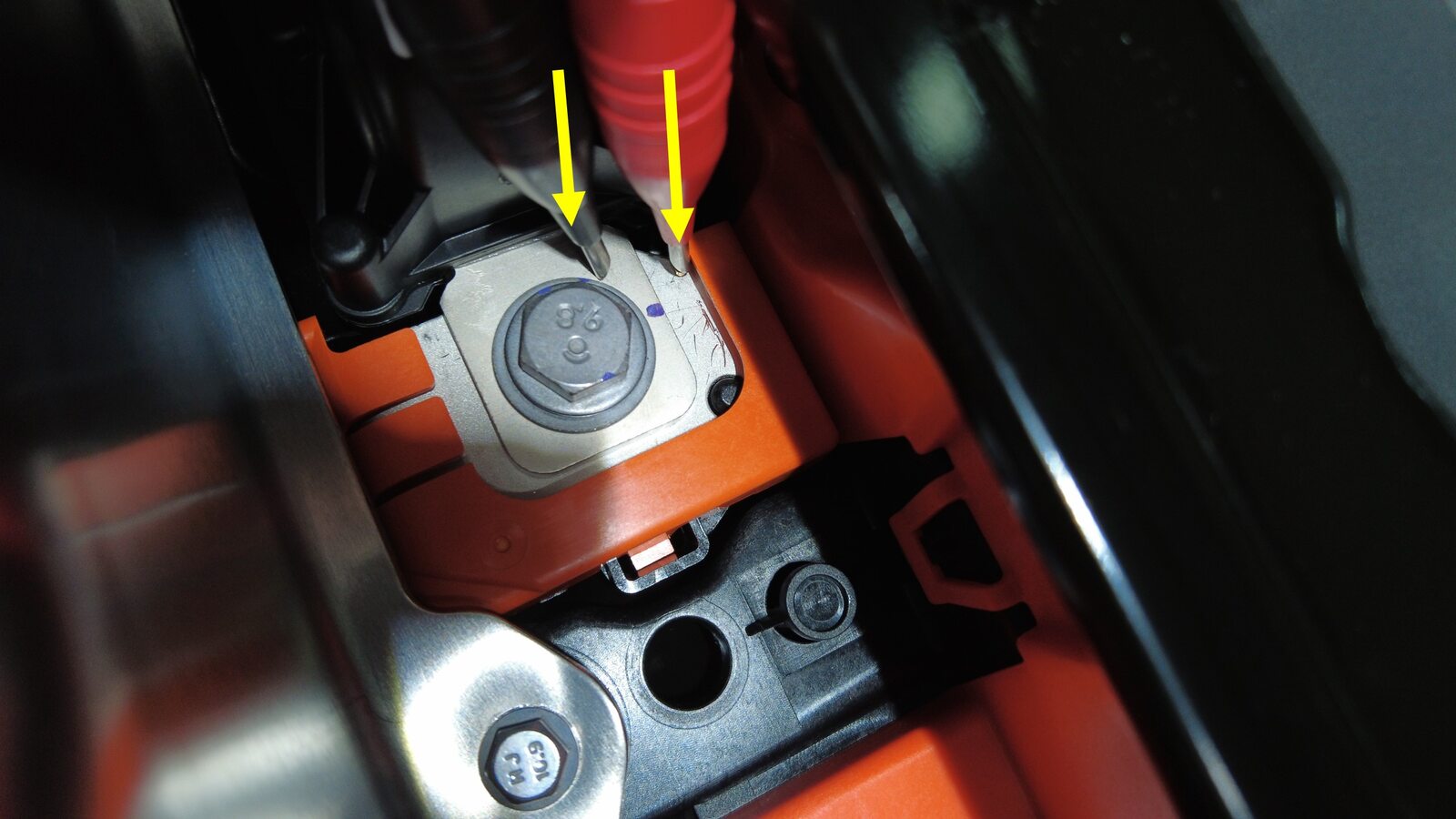

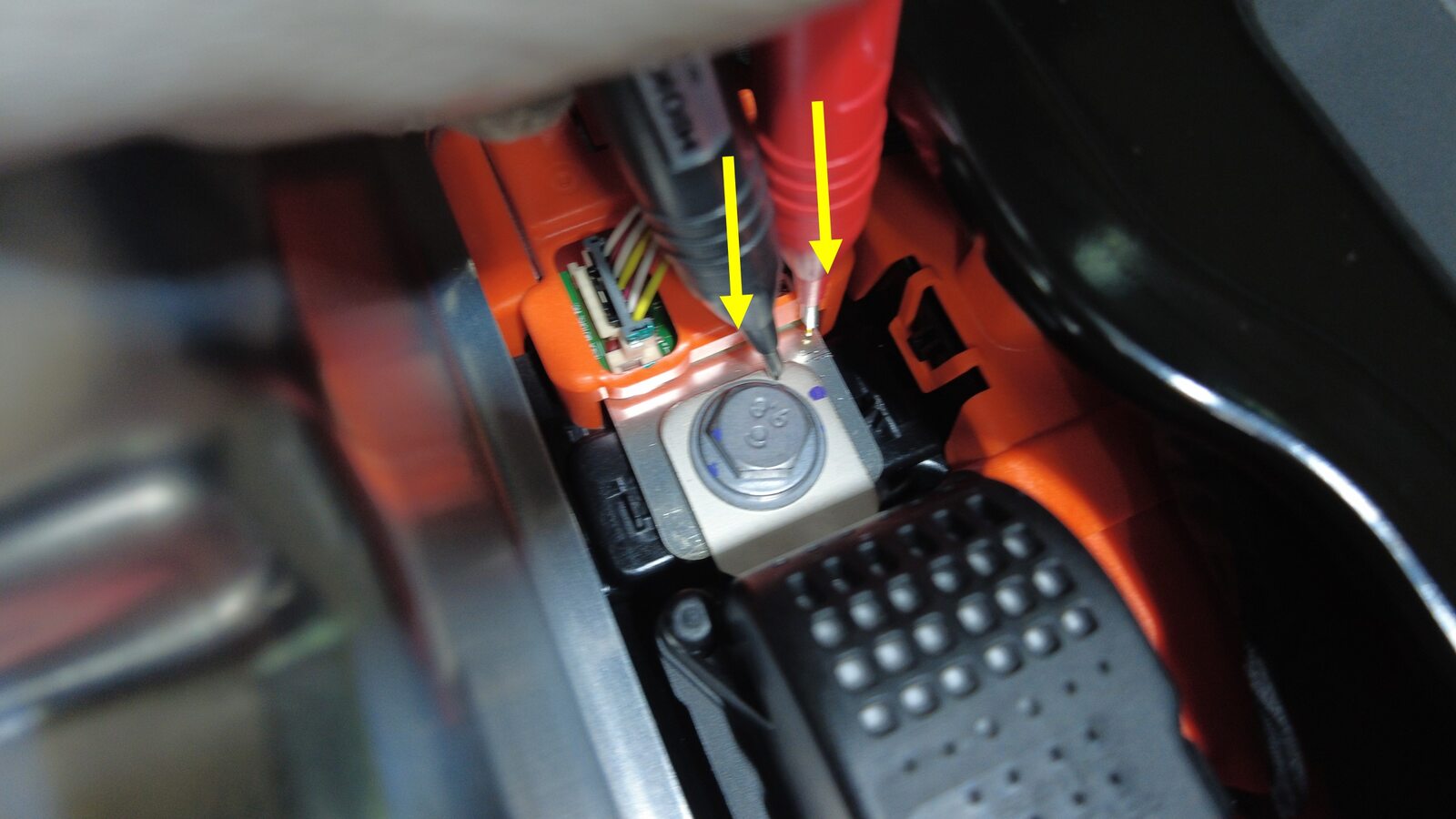

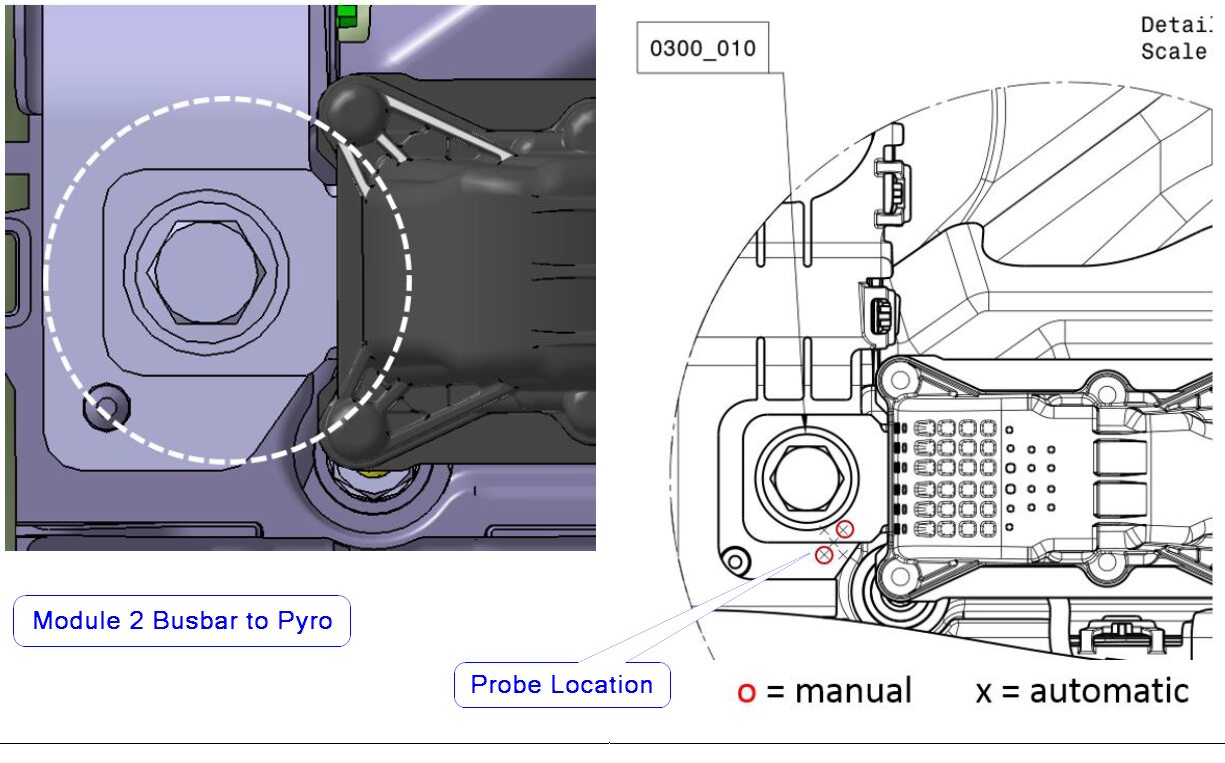

57. Measure resistance from module 2 busbar to pyro disconnect
    注

    1x HV joint, 60μΩ or less, Perform zero adjust to Hioki meter prior to testing

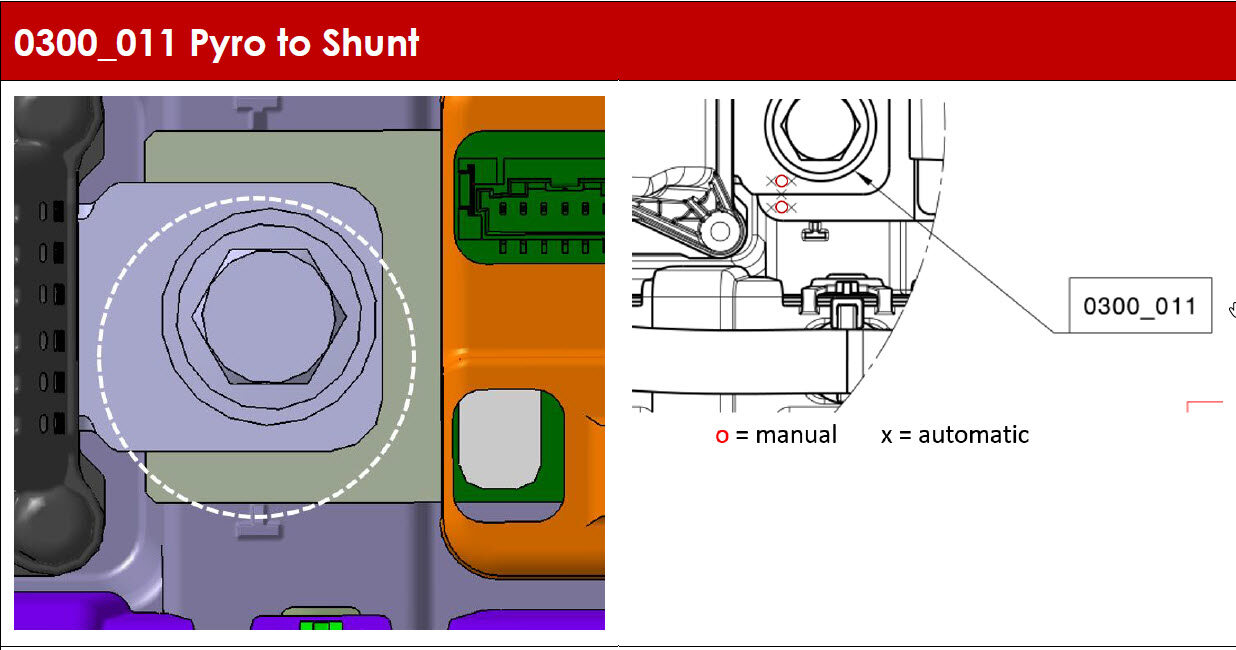

58. Measure resistance from pyro disconnect to shunt
    注

    1x HV joint, 45μΩ or less, Perform zero adjust to Hioki meter prior to testing





59. Remove service insulator kit









60. Remove HVC logic cap
    注

    1x logic cap

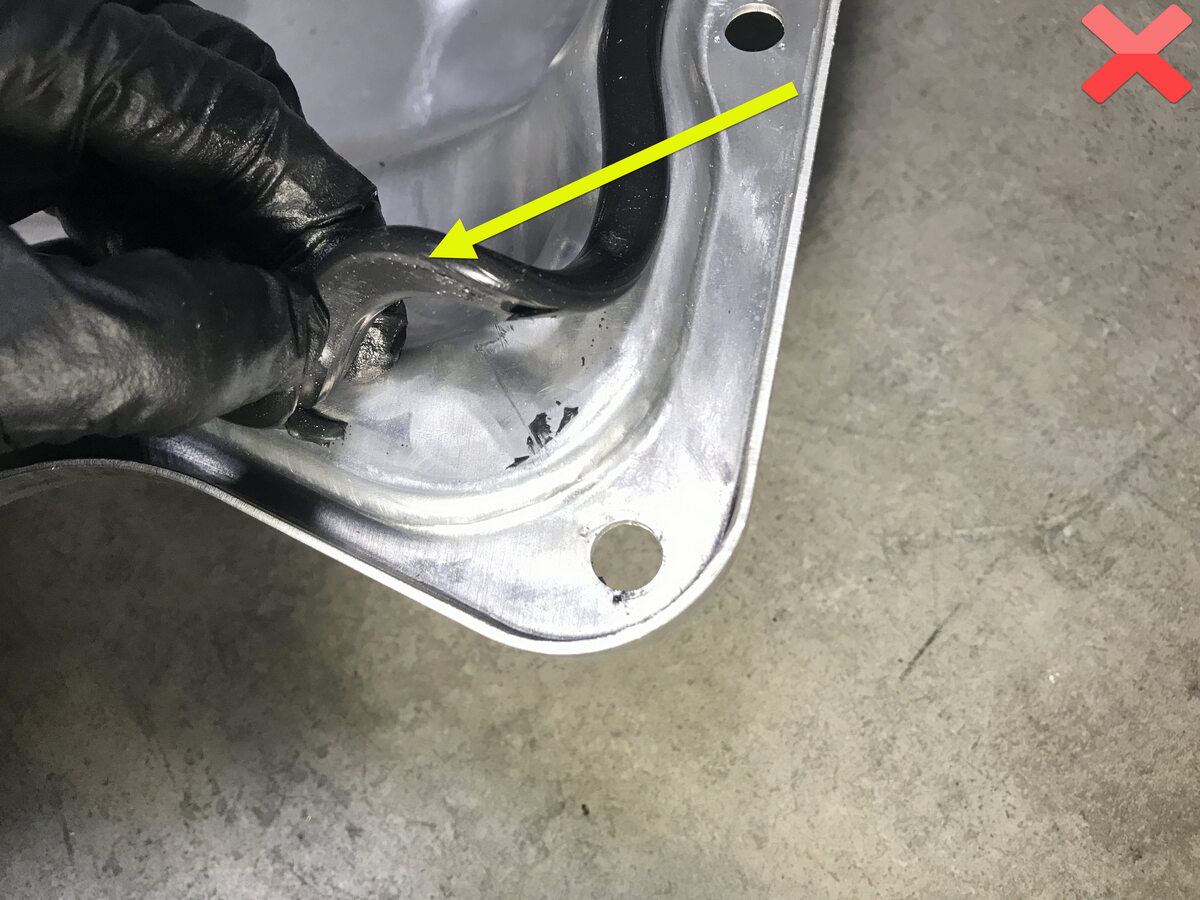

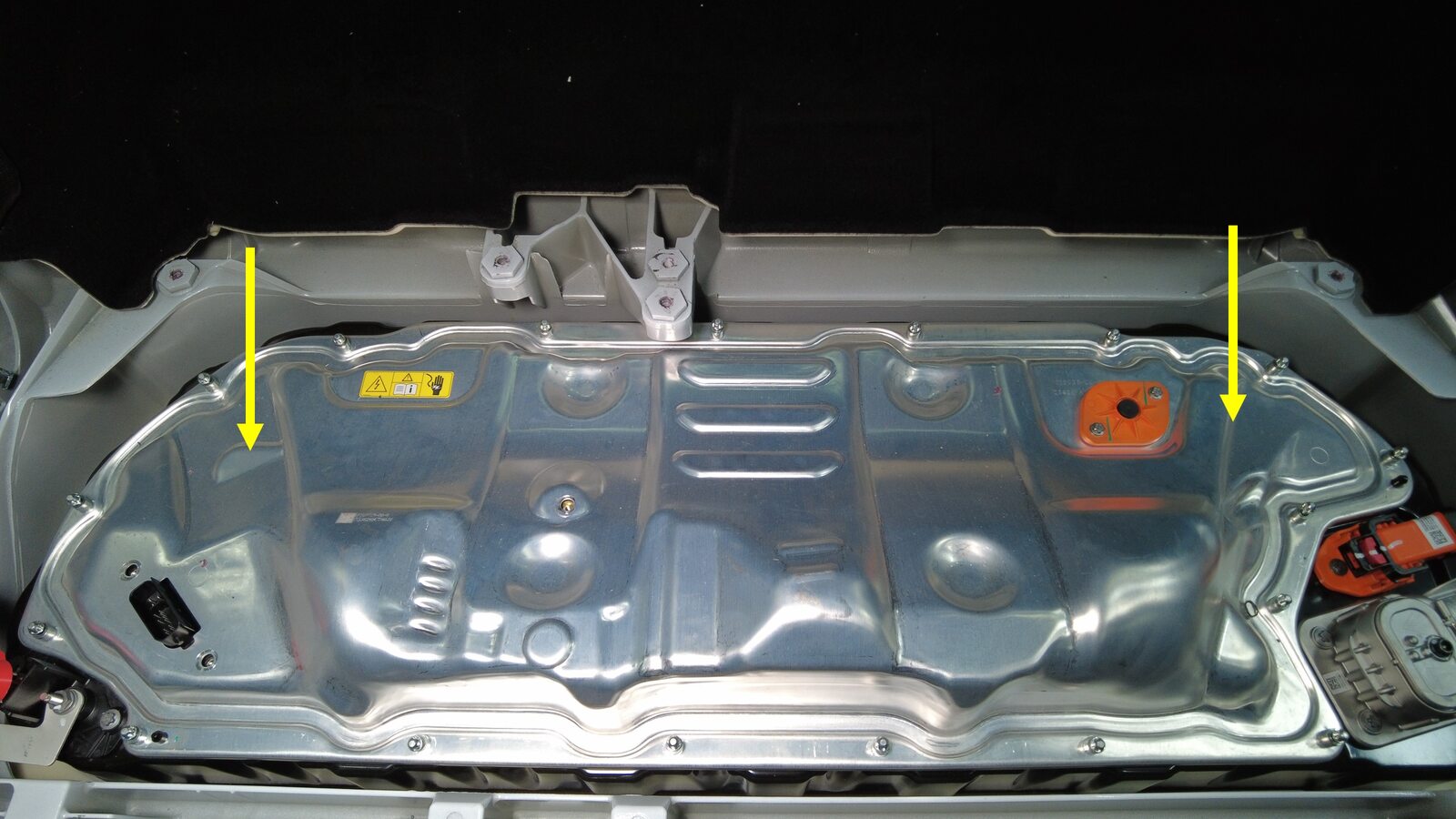

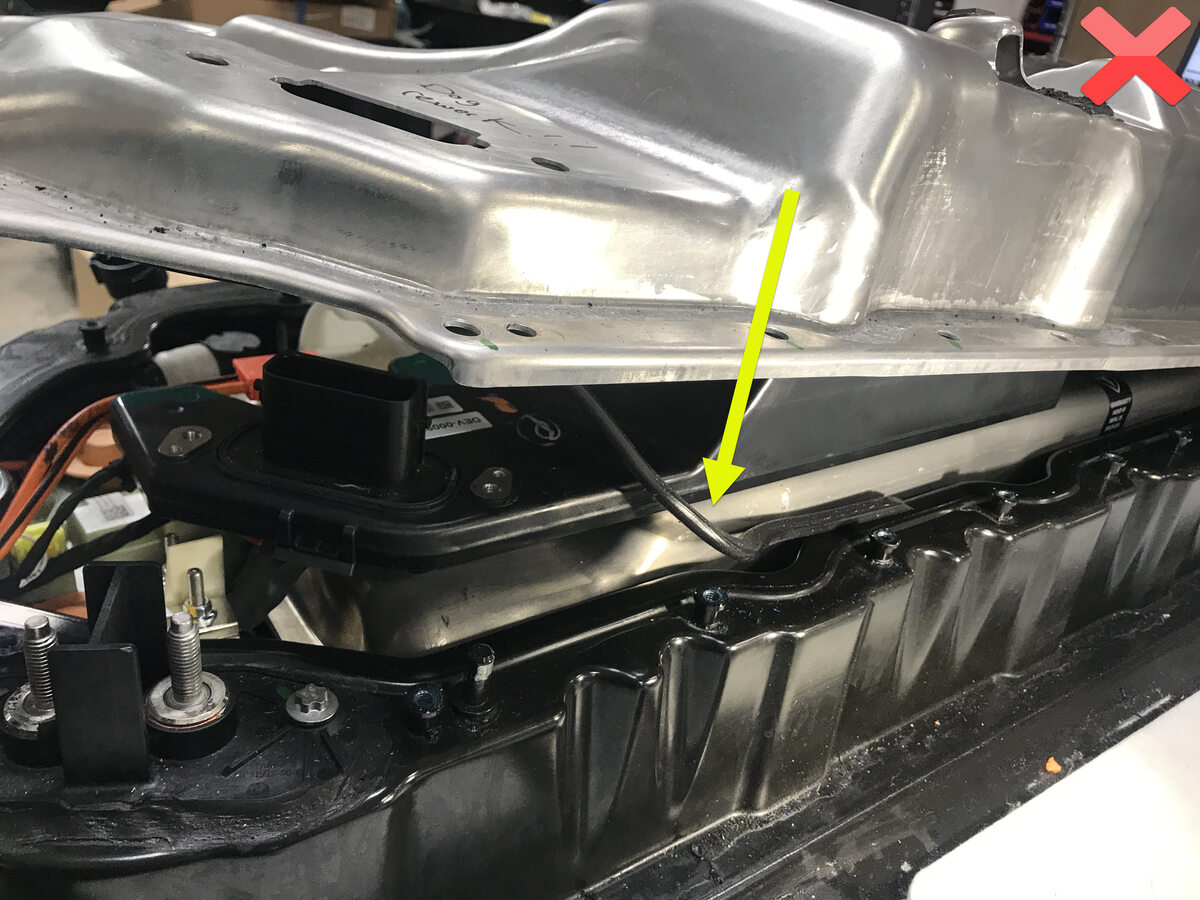

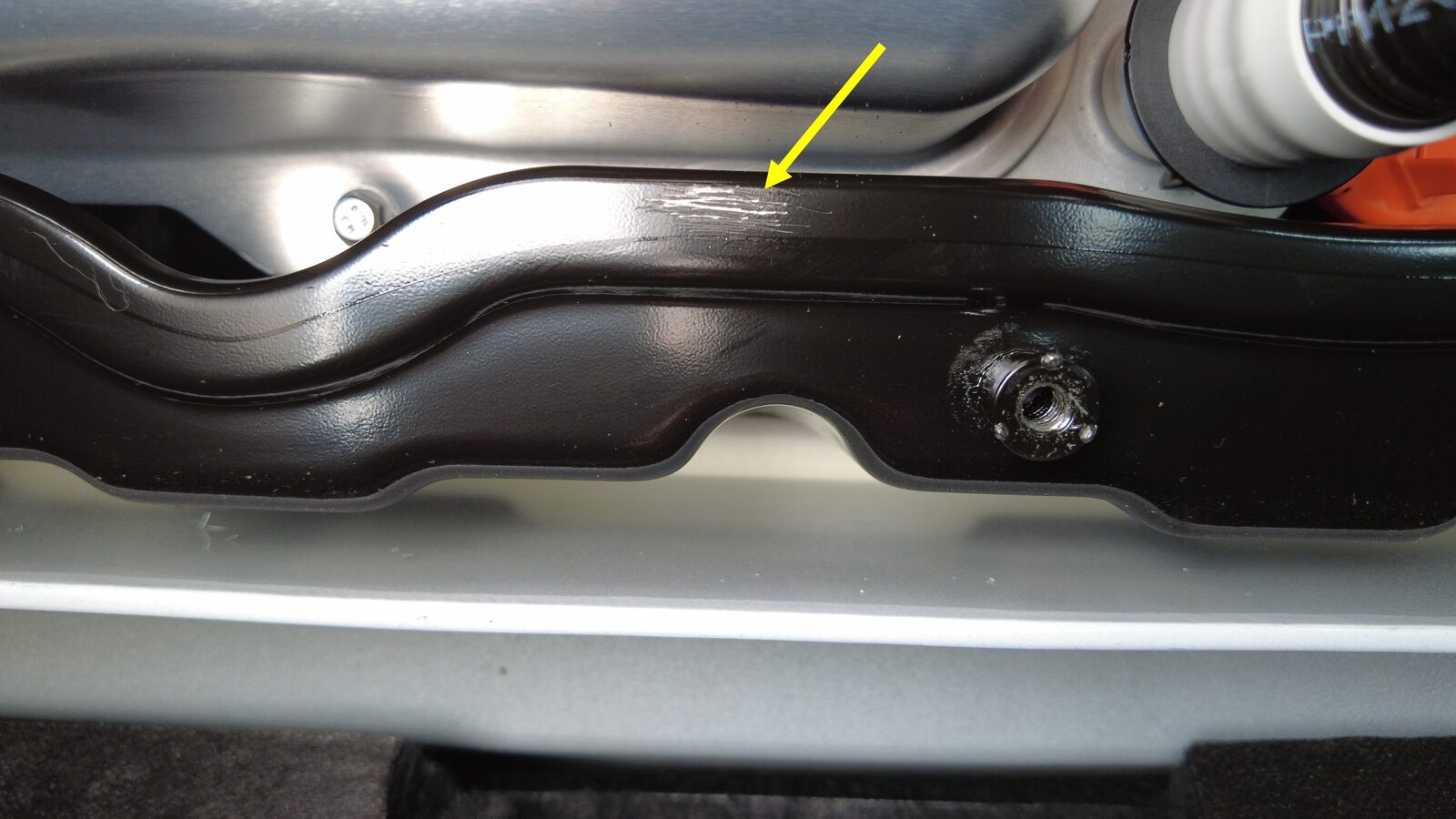

61. Inspect ancillary bay walls for damage
    注

    Any dent or depression in the sealing surface that causes it to not be flat will result in a leak, Any paint that comes off the ancillary bay wall, Whether or not it sticks to the seal, Will require enclosure leak test when reassembled, It can still be reused

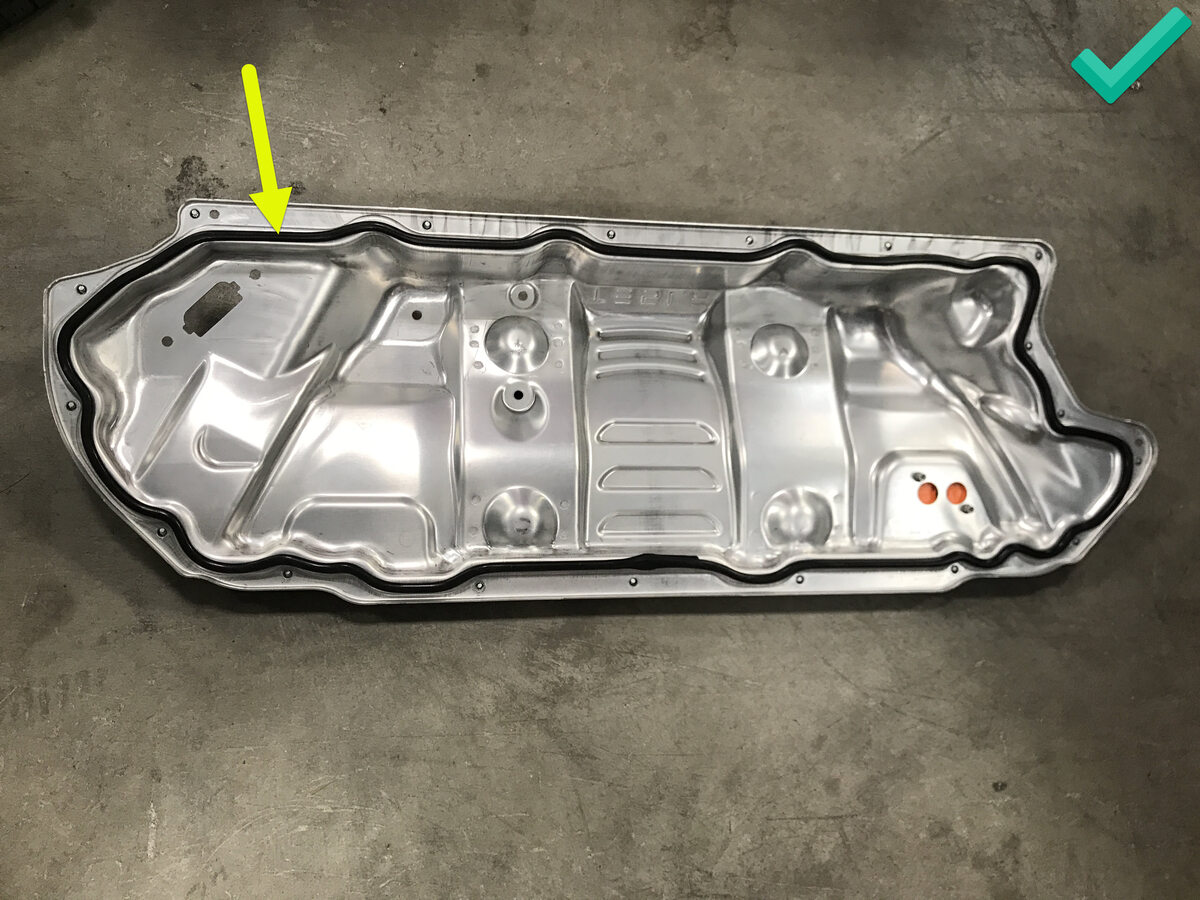

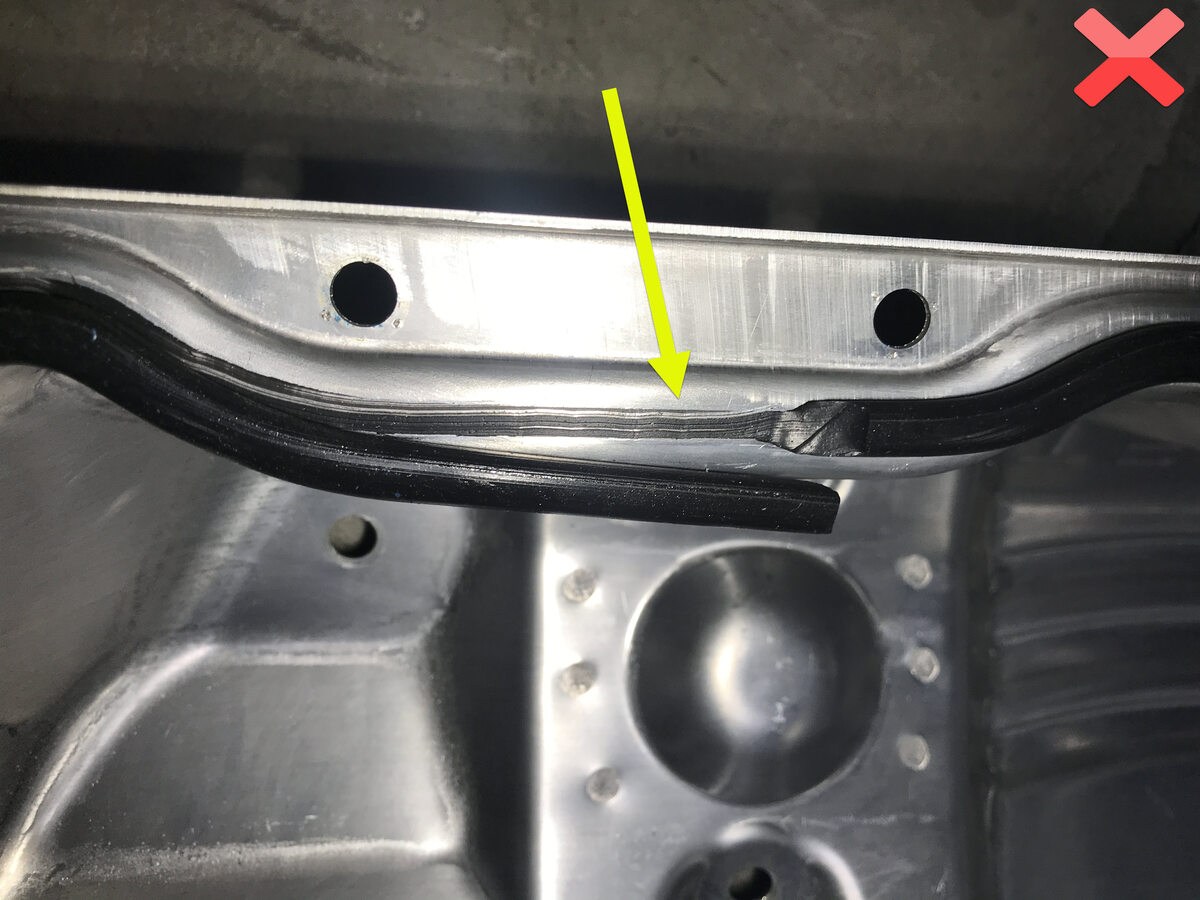

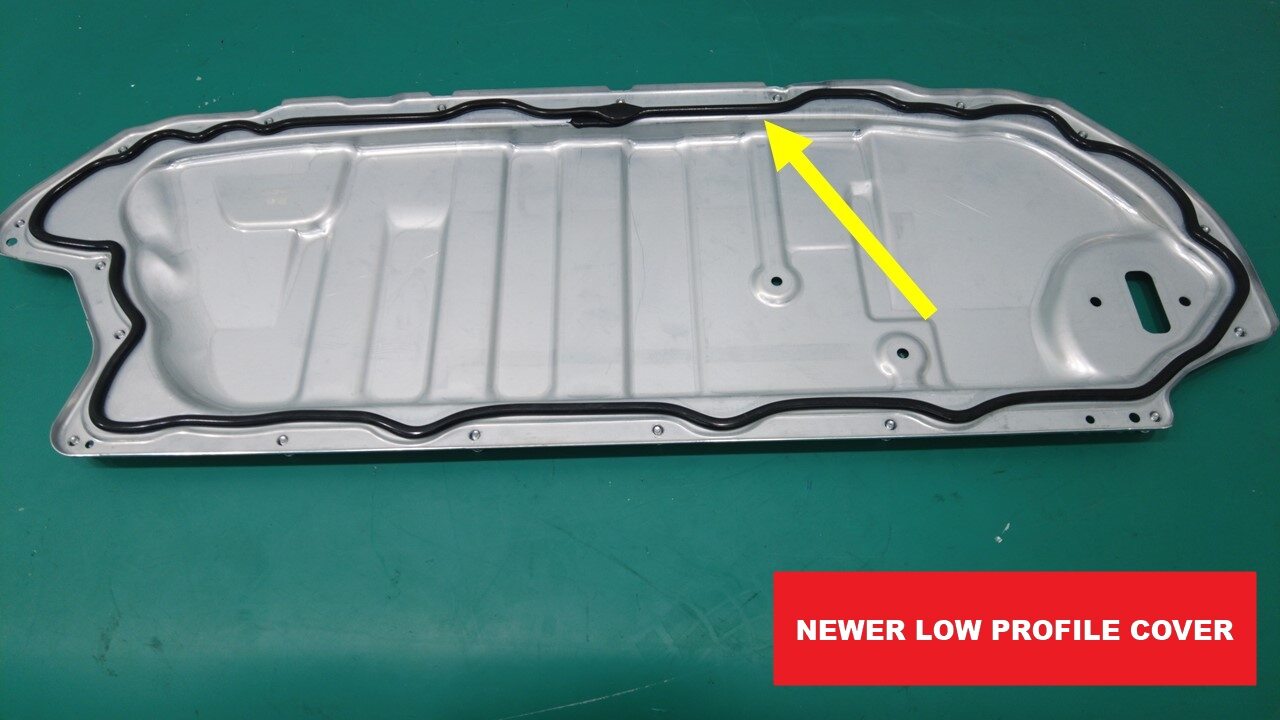

62. Inspect ancillary bay cover seal to confirm it has no visual damage
    注

    Image up close for clarity, Delaminated and torn seals cannot be reused











63. Wipe ancillary bay cover with IPA to clean surface
    注

    Allow to 1 minute dry time



64. Position ancillary bay cover to HV battery for installation
    注

    Ensure all accessible insulators are present, Wearing Electrical Protective Gloves is not necessary once all HV components are covered.





65. Remove leather over gloves and HV insulating gloves



66. Install HVC logic cap
    注

    1x logic cap

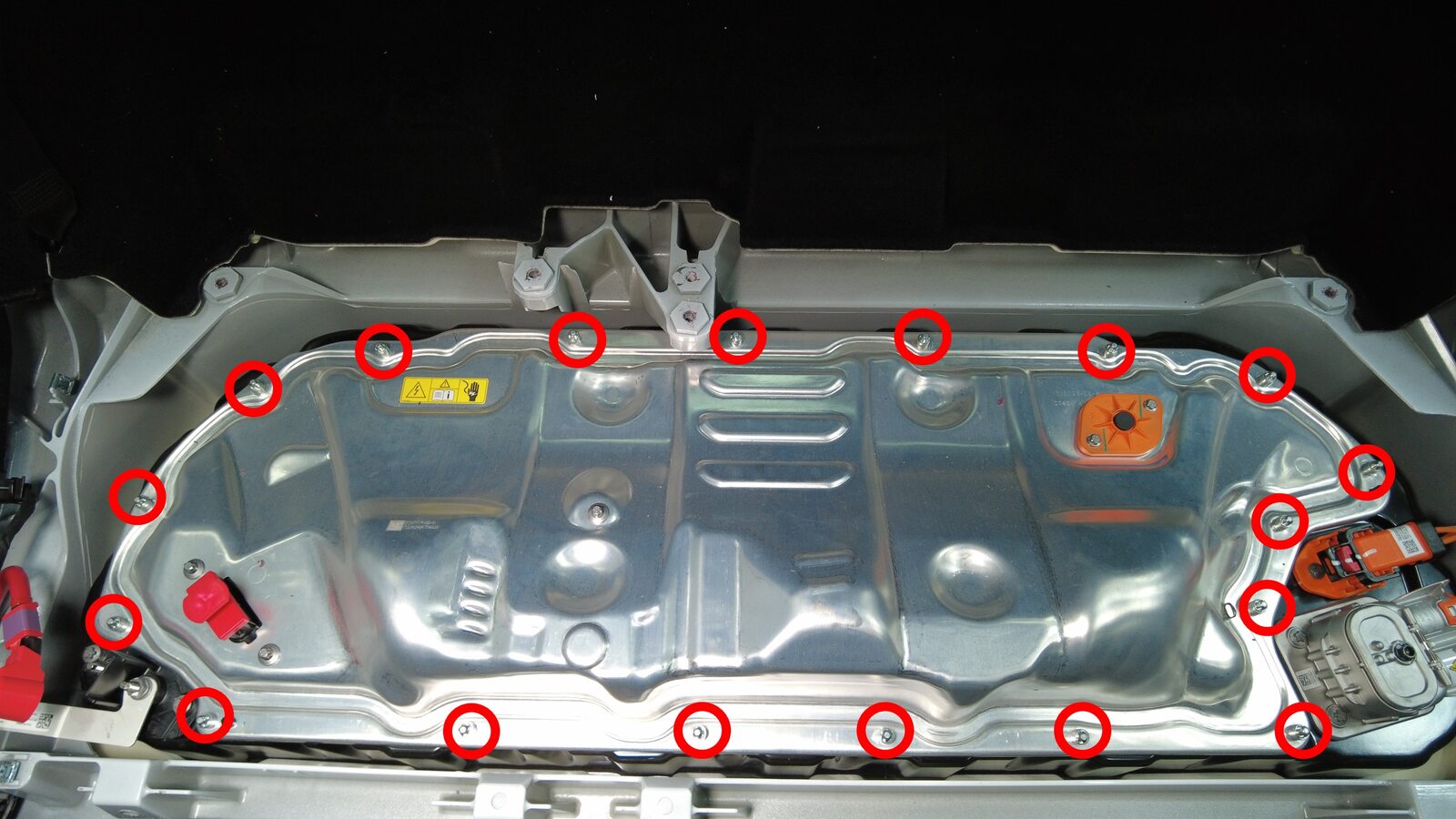

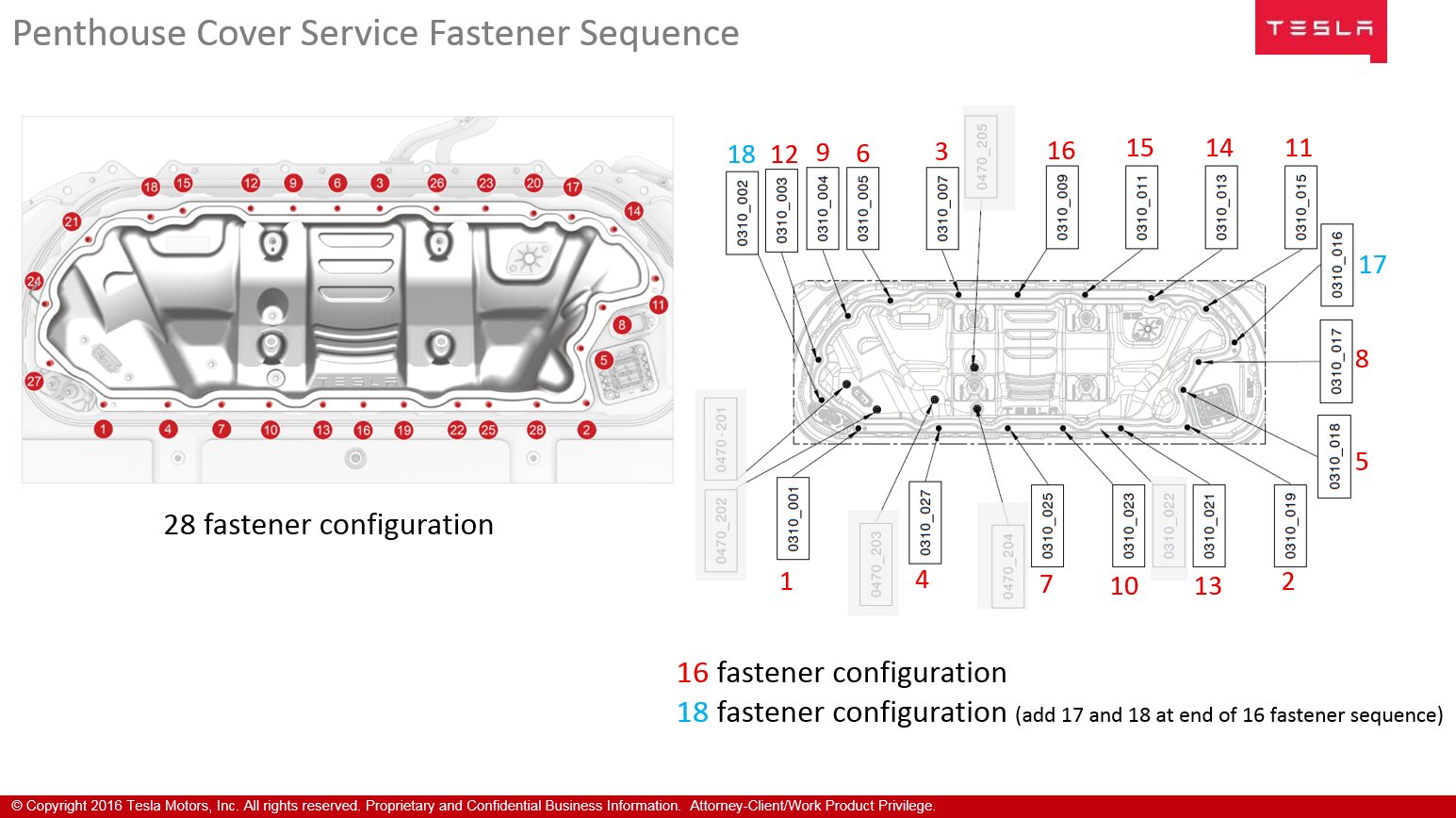

67. Install bolts securing ancillary bay cover to HV battery
    注

    18x bolts, EP10 5-Lobe, 8 Nm, Fasteners are captive, Follow torque sequence per image





68. Install bolts securing ancillary bay cover to HVC
    注

    3x bolts, E10, 5 Nm + 30 degrees



69. Install positive LV output from PCS cable and torque nut securing it
    注

    1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque



70. Install positive LV output cover to PCS cable
    注

    1x cover



71. Remove logic cap and connect HVC logic connector
    注

    1x connector, 1x logic cap, Align connector then pull the handle to locking position get connector fully seated

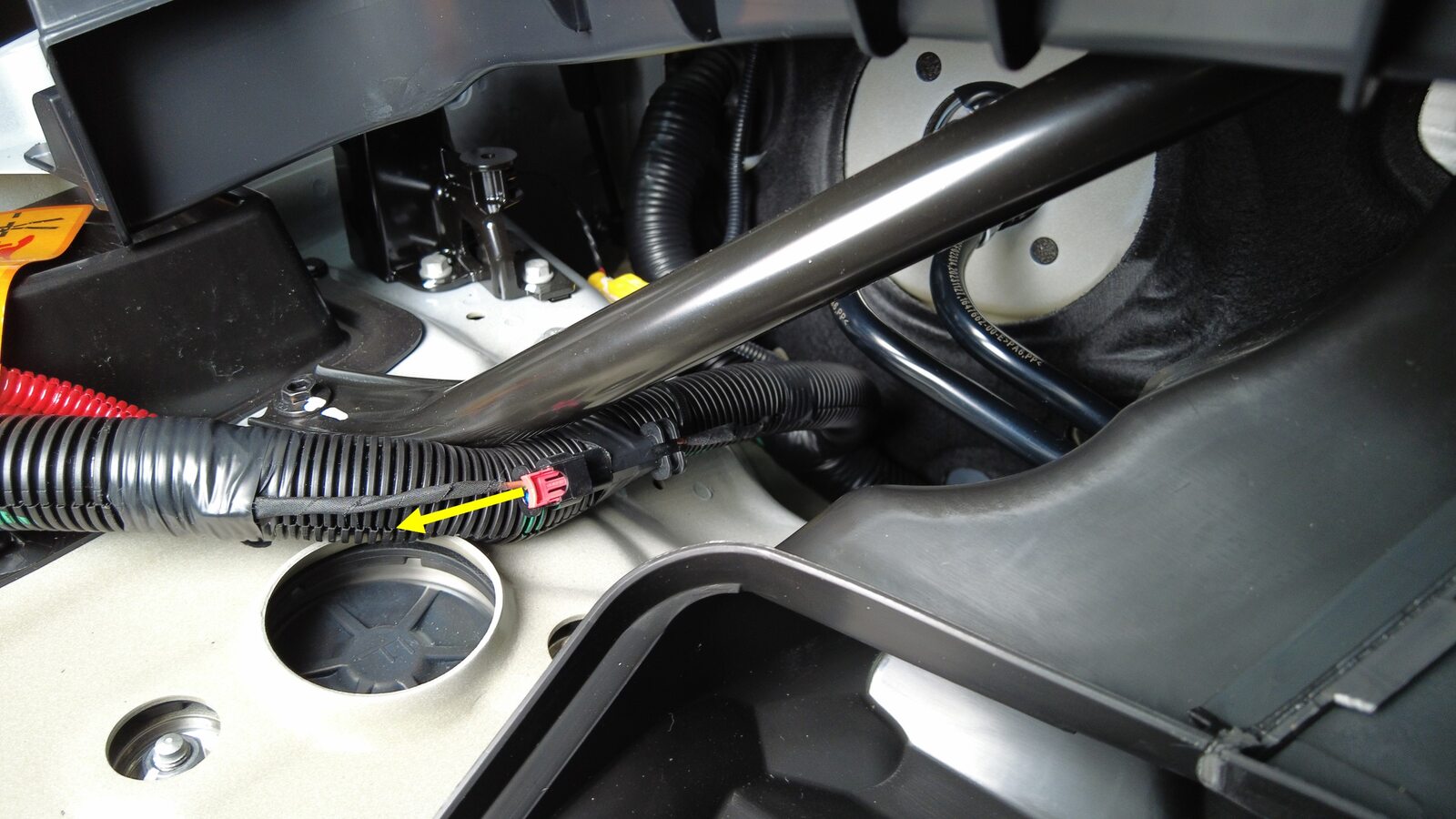

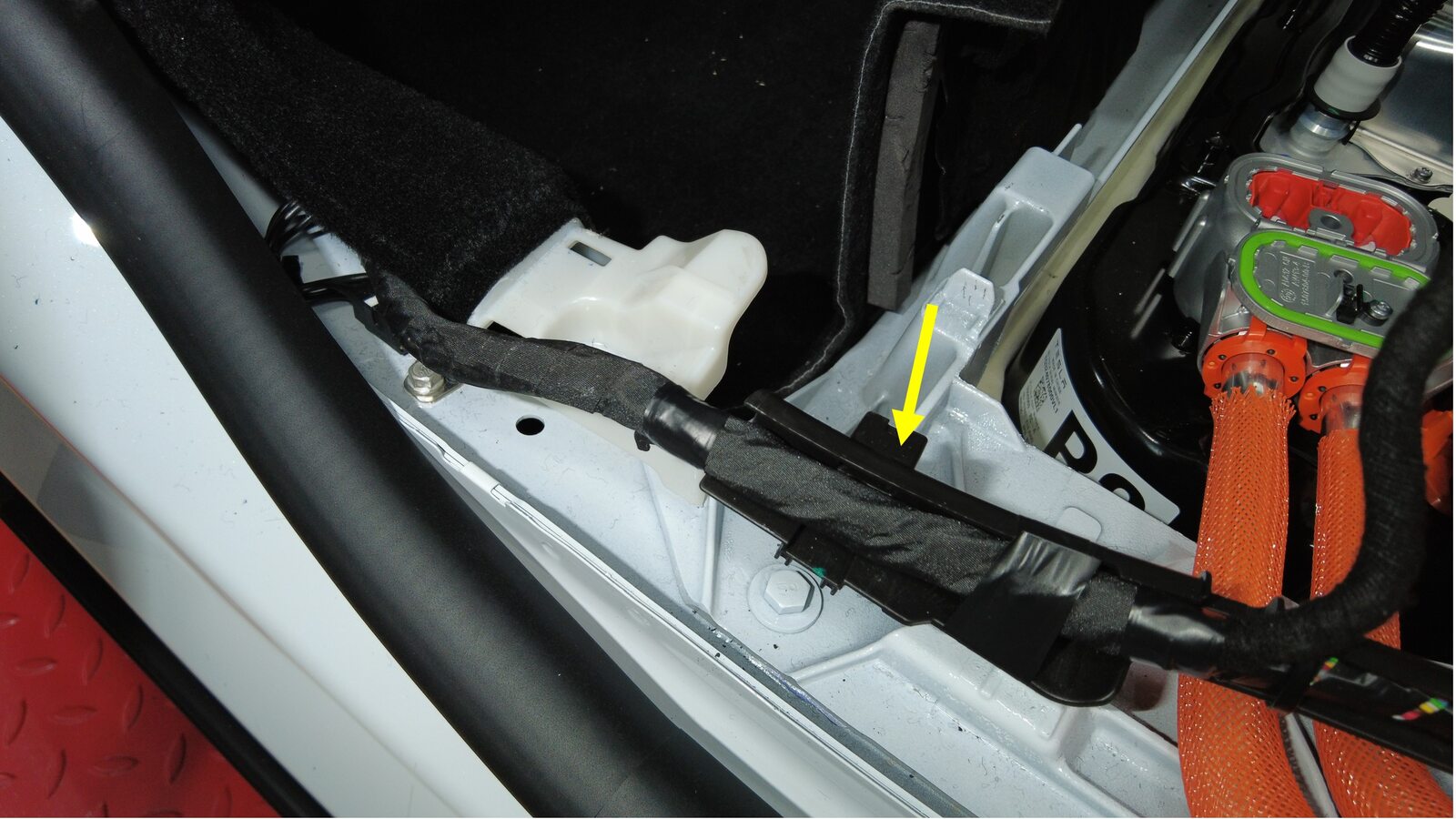

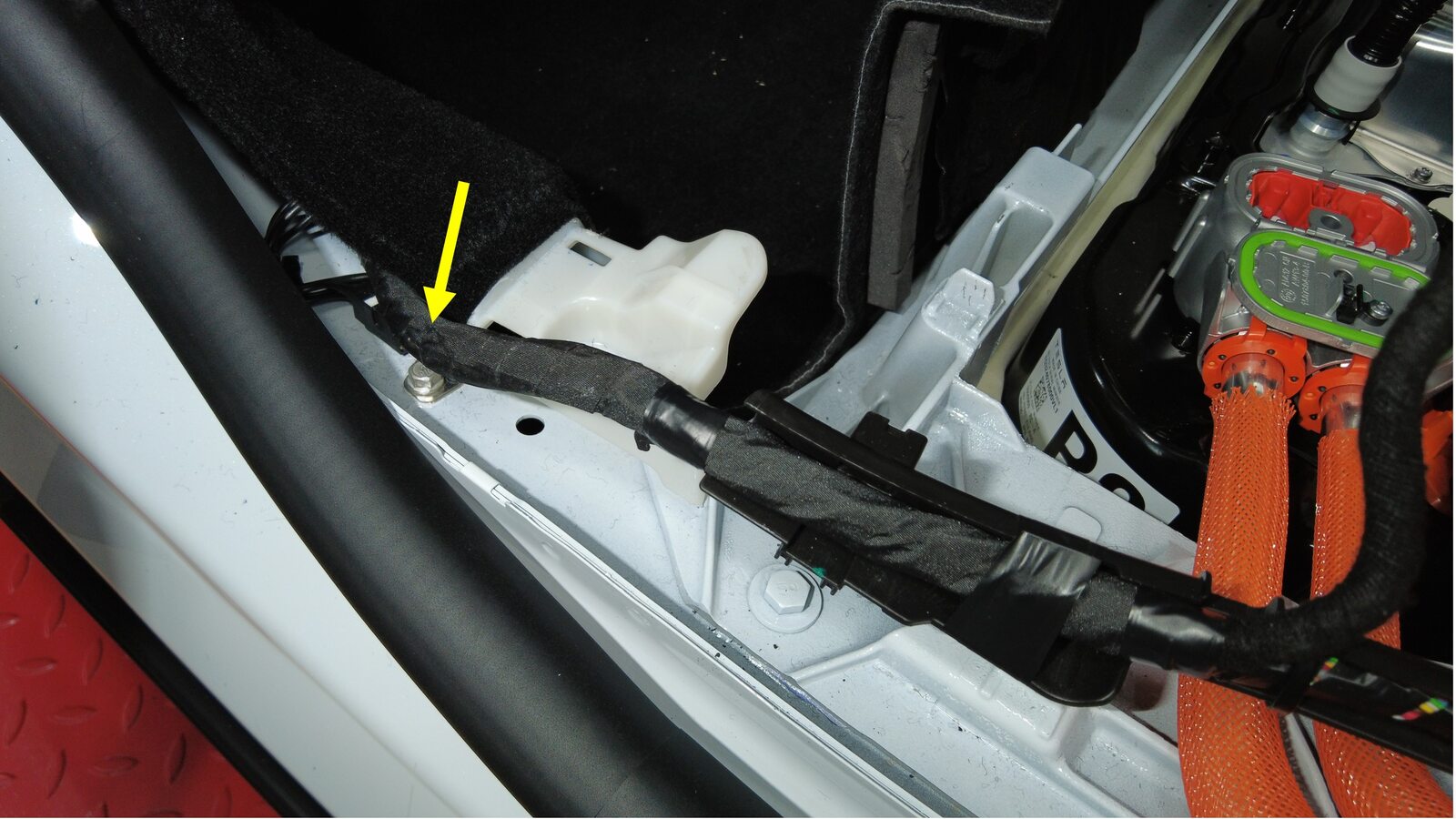

72. Position LH rear body harness under LH lower C pillar trim



73. Install LH body harness onto rear body
    注

    1x clip



74. Partially install LH B-pillar lower trim
    注

    1x push clip



75. Partially install lower portion of LH C-pillar trim



76. Install LH lower C pillar trim
    注

    7x clips, 2x guide tabs, Align guide tabs, Then press down to securing all clips







77. Partially install LH rear primary door seal
    注

    Verify seal is seated properly on all trim panels





78. Position 2nd row 40 seat assembly into vehicle
    注

    Recommend assistance

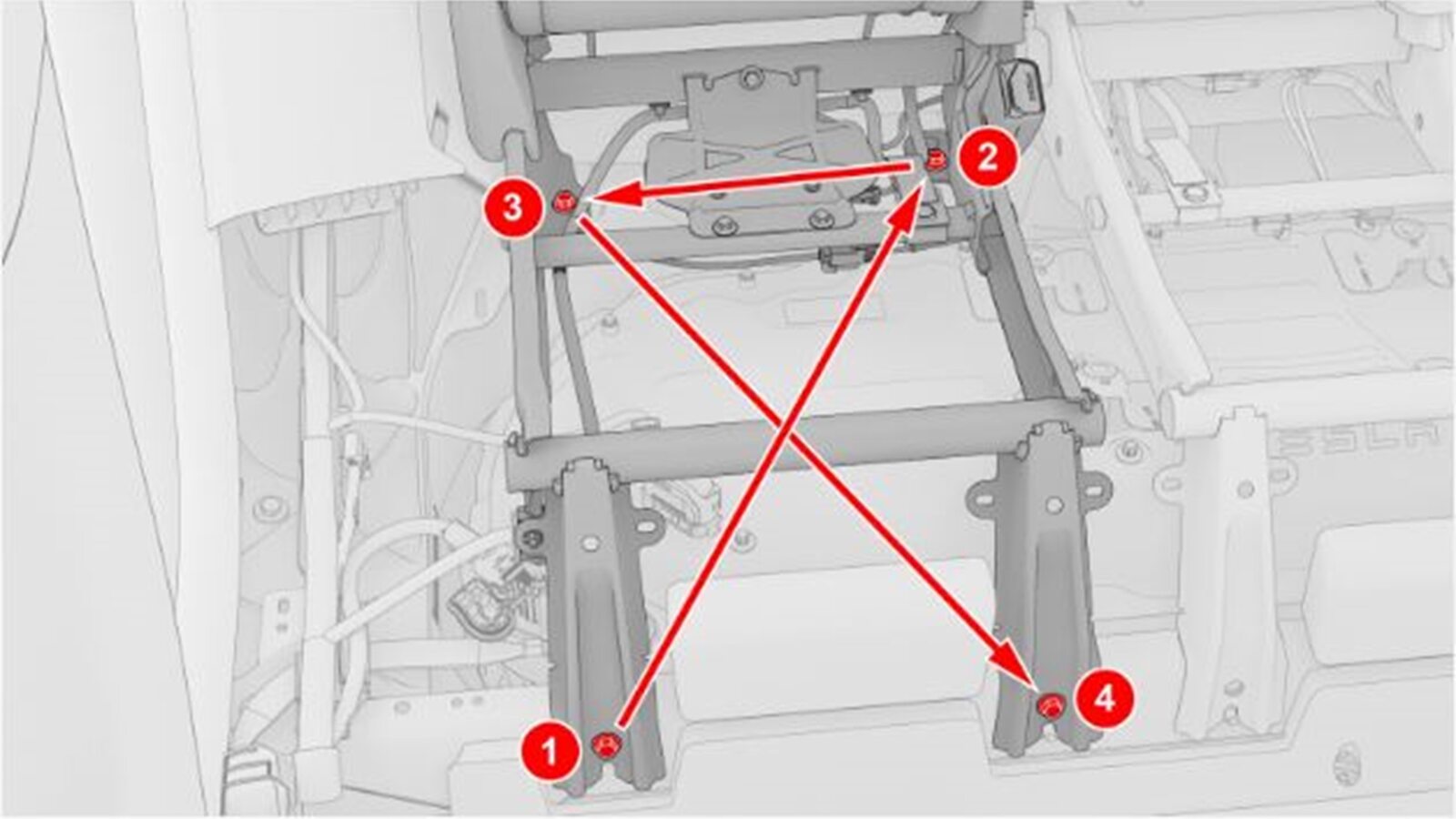

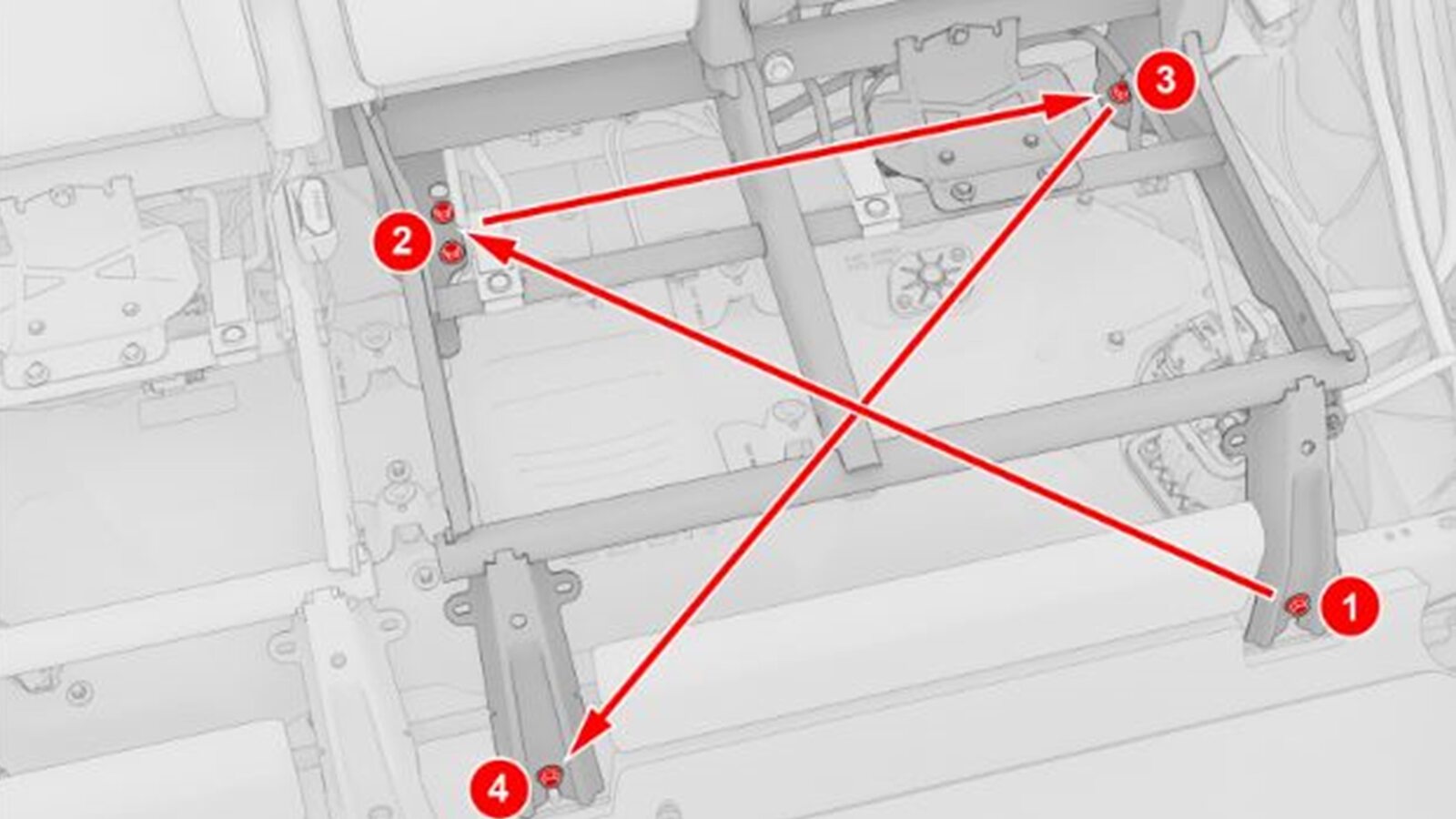

79. Install 2nd row 40 seat frame to vehicle
    注

    4x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Inboard rear -> Outboard rear -> Inboard front











80. Connect 2nd row 40 seat connector
    注

    1x connector, Engage the tab



81. Position 2nd row 60 seat assembly
    注

    Set 60 seat assembly onto rear load floor through the rear side of the vehicle, Then install the seat assembly onto body, Use fender cover to avoid damaging trims, Recommend assistance







82. Install 2nd row 60 seat frame to body
    注

    5x bolts, 11mm, 37 Nm, Install new bolts, Bottom seat bolts located behind main carpet, Torque in sequence; Outboard front -> Both inboard rear -> Outboard rear -> Inboard front











83. Connect 2nd row 60 seat connector
    注

    1x connector, Engage the tab



84. Install clips securing rear main cabin carpet to vehicle
    注

    3x push clips

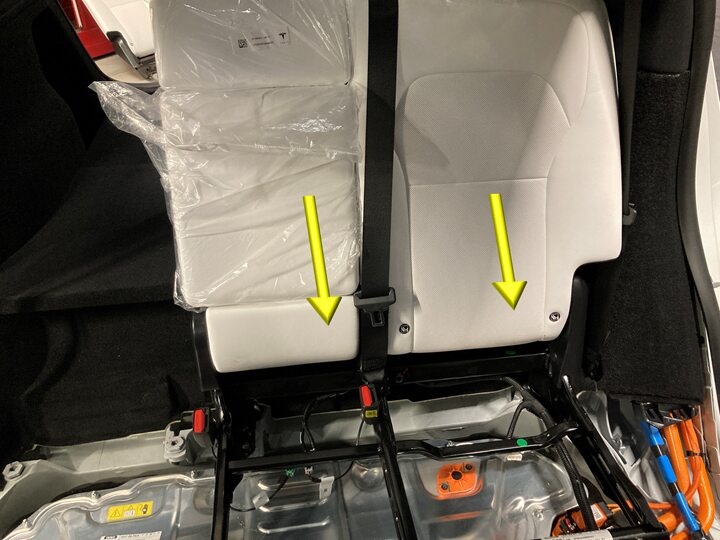

85. Install 2nd row seat cushion
    注

    1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test, And ensure the buckles get stuck under the 2nd row cushion





86. Connect first responder loop and LV battery
    注

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated

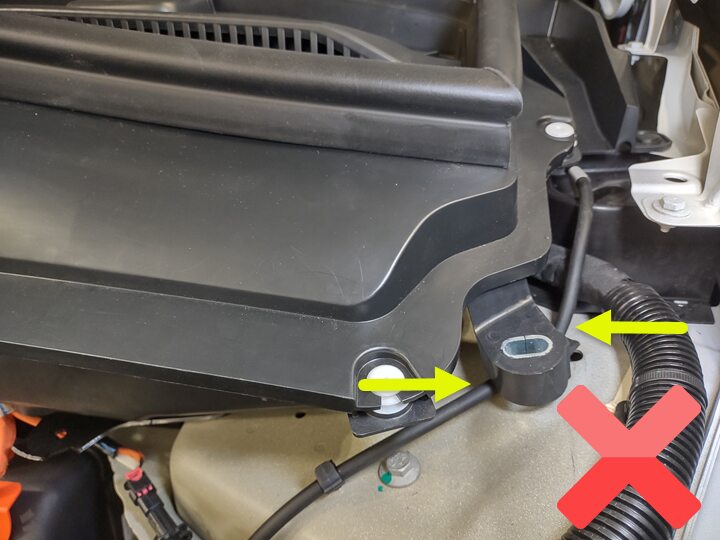

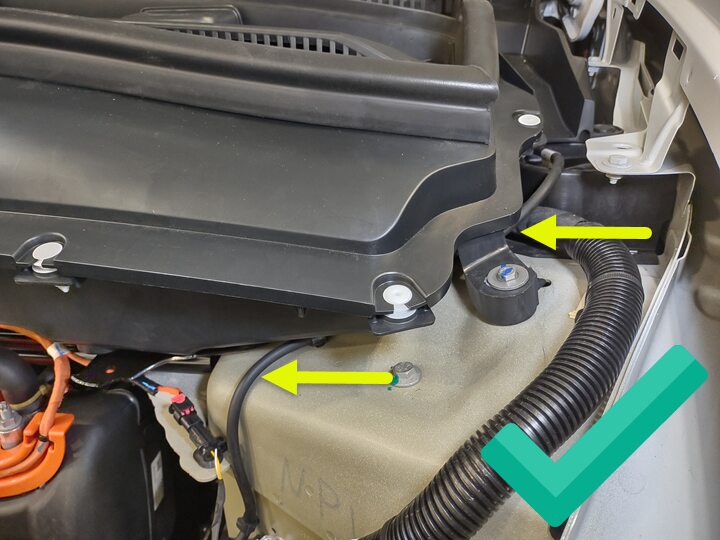

87. Install HEPA filter assembly
    注

    2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose in between HEPA filter assembly and body













88. Install rear apron
    注

    16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron







89. Close hood
90. Move RH front seat to original position
91. Move LH front seat to original position
92. Raise all four window
93. Close all four doors
    注

    Unlatch doors before closing if necessary
