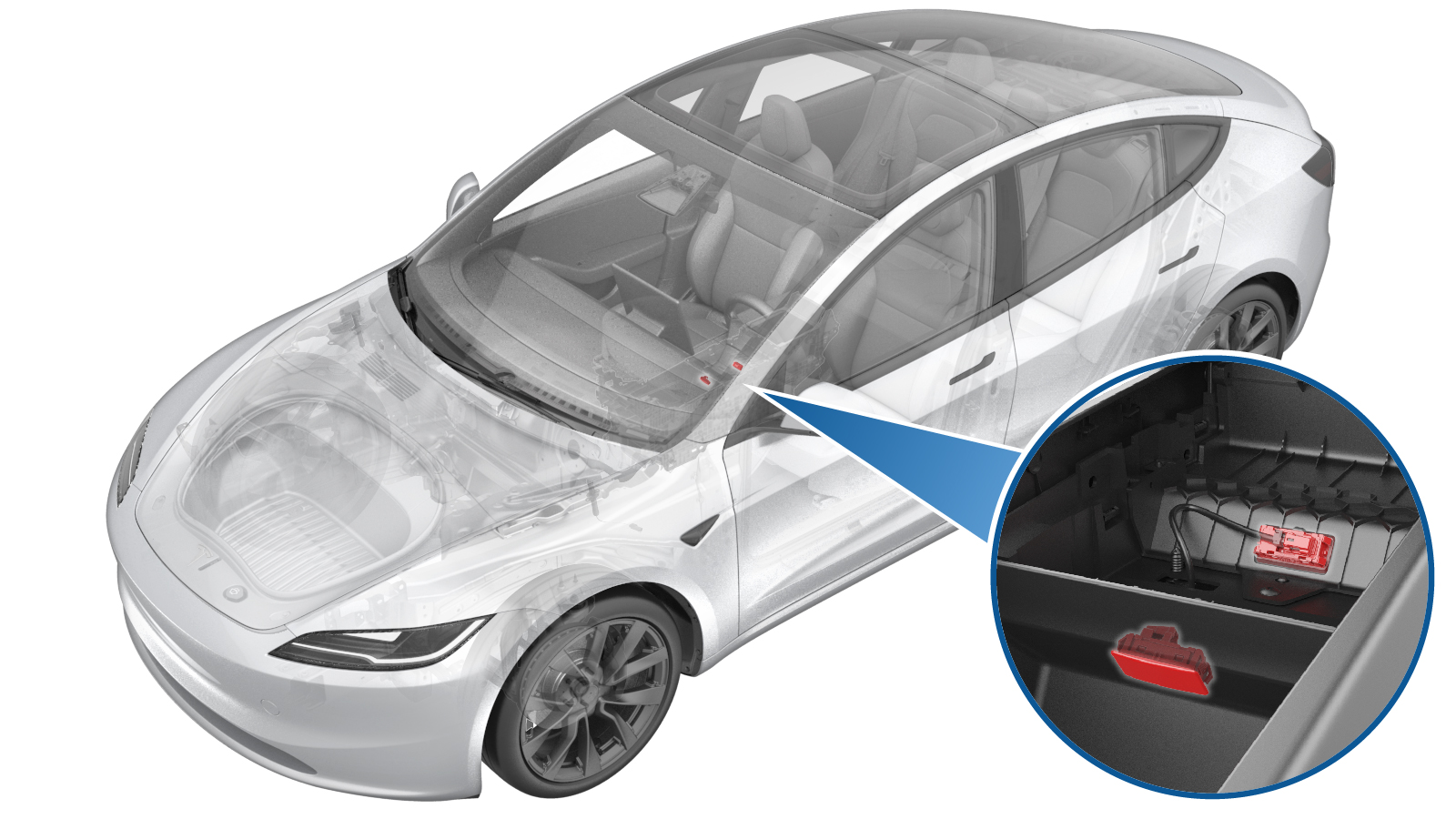

Puddle Lamp - Center Console (Remove and Replace)

Correction code 1519010242 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-02-08: Updated the original removal method to directly prying the puddle lamp out.

Remove

  1. Open the LH front door and lower the LH front window.

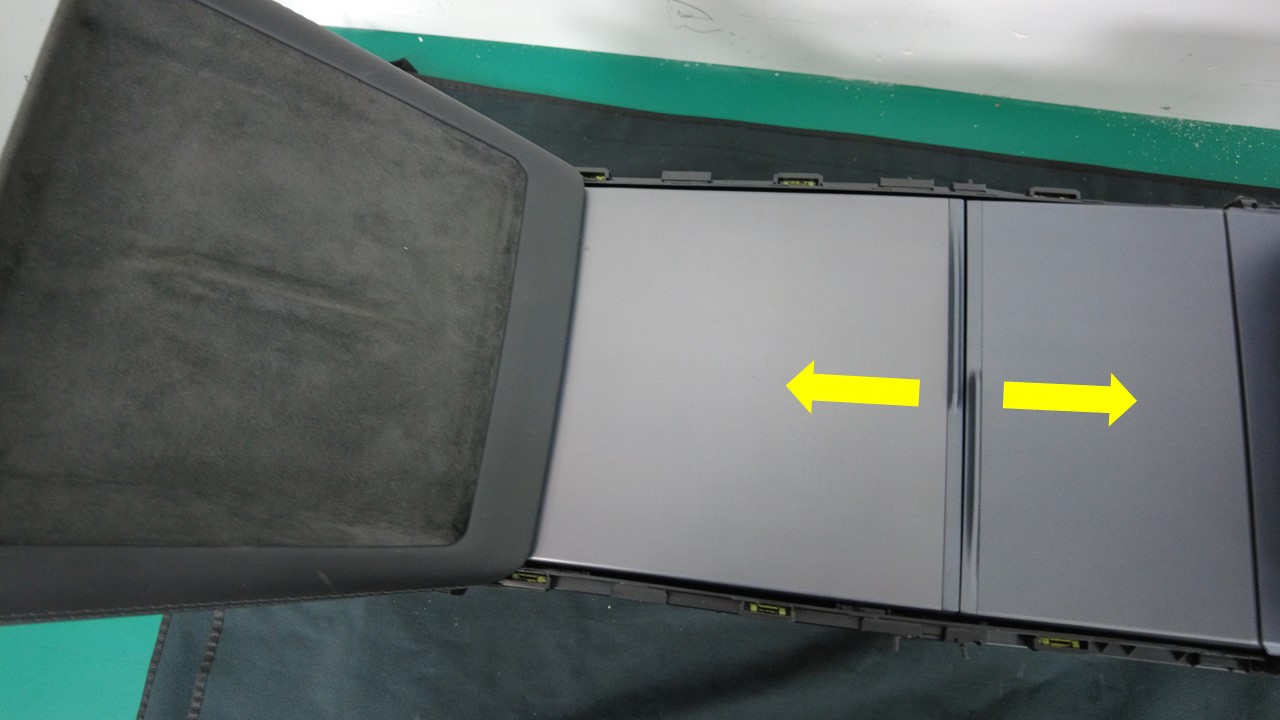

  2. Fully retract the media bin lid and the cup holder lid on the center console to the locked position.

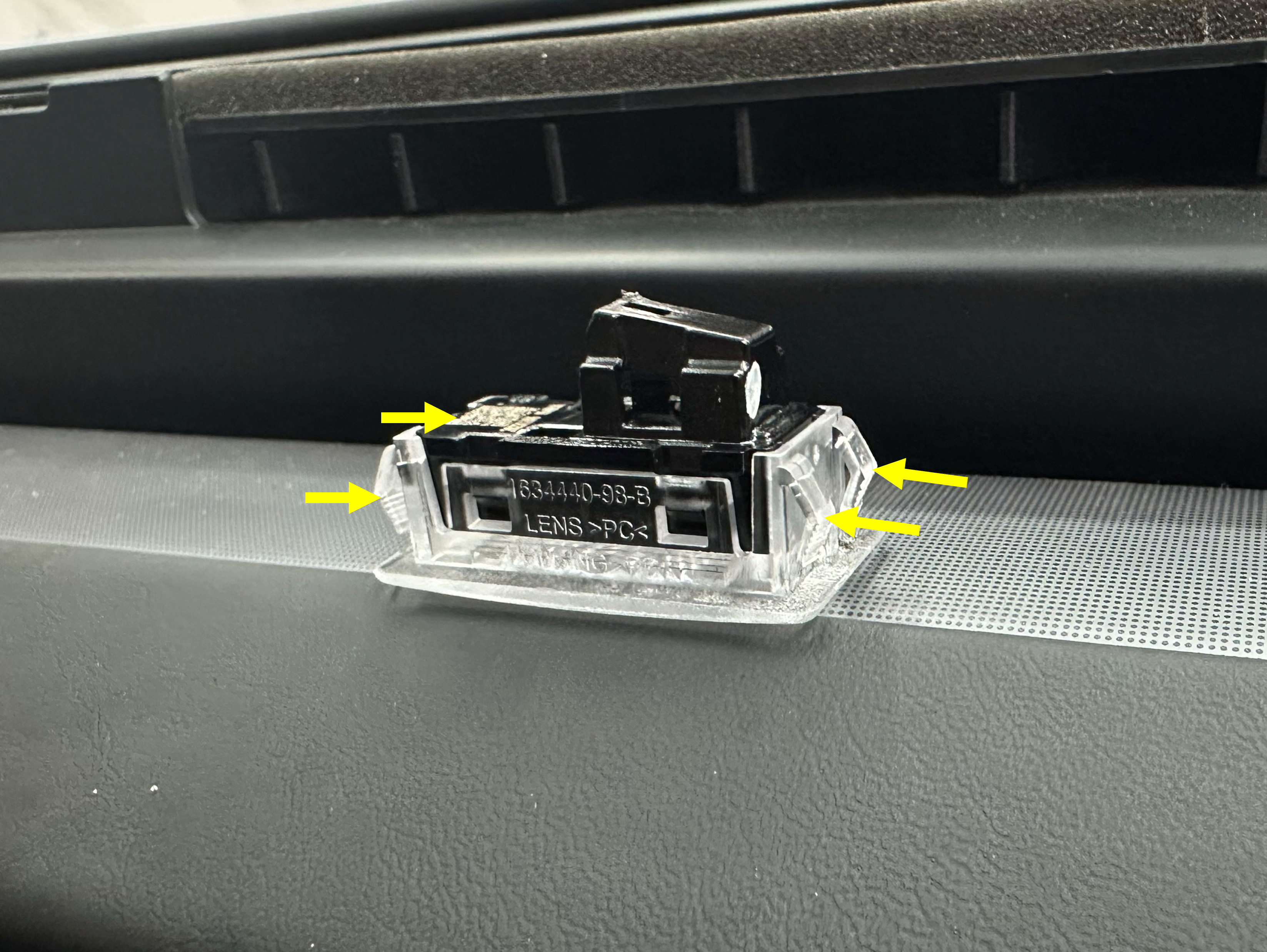

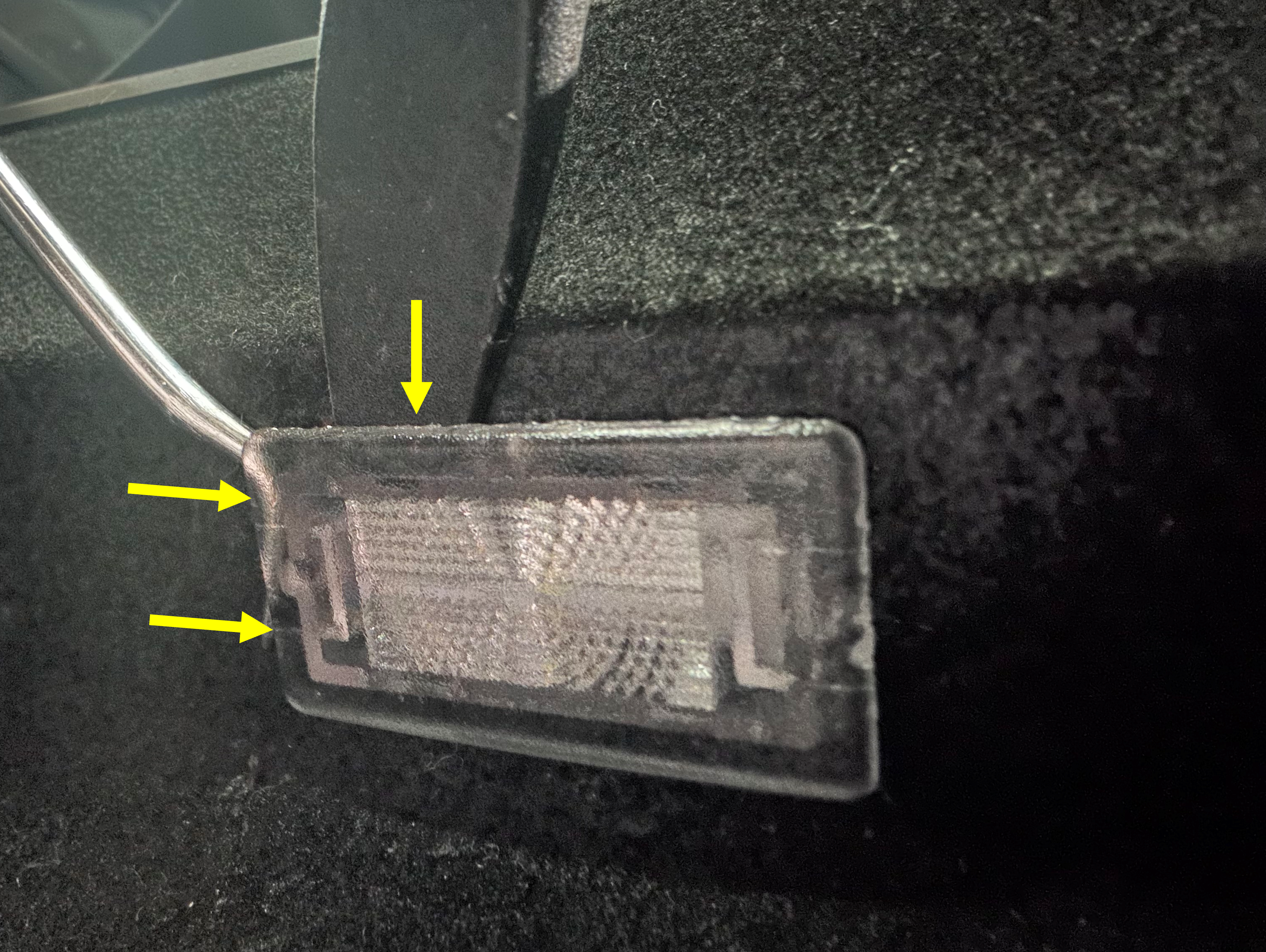

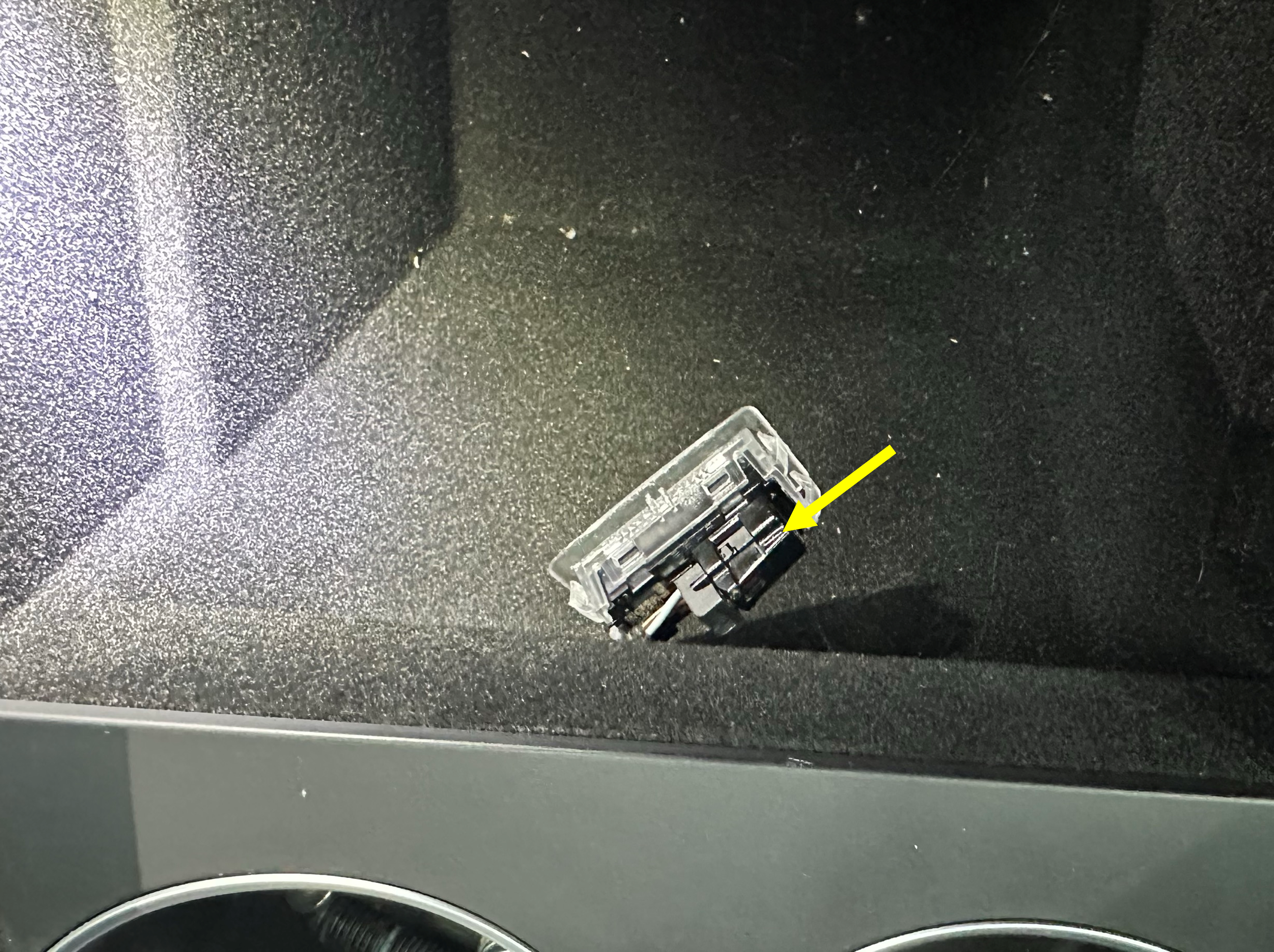

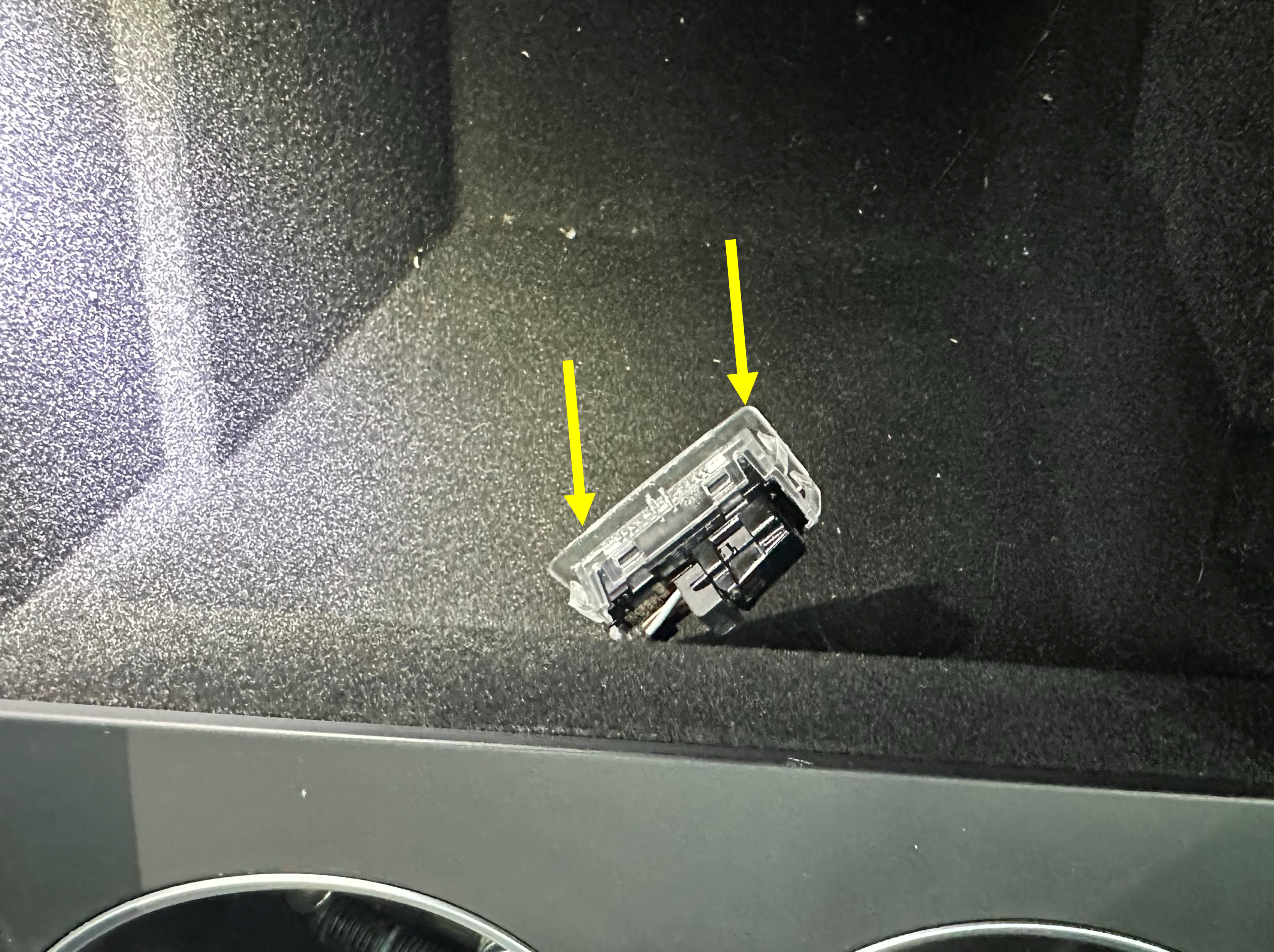

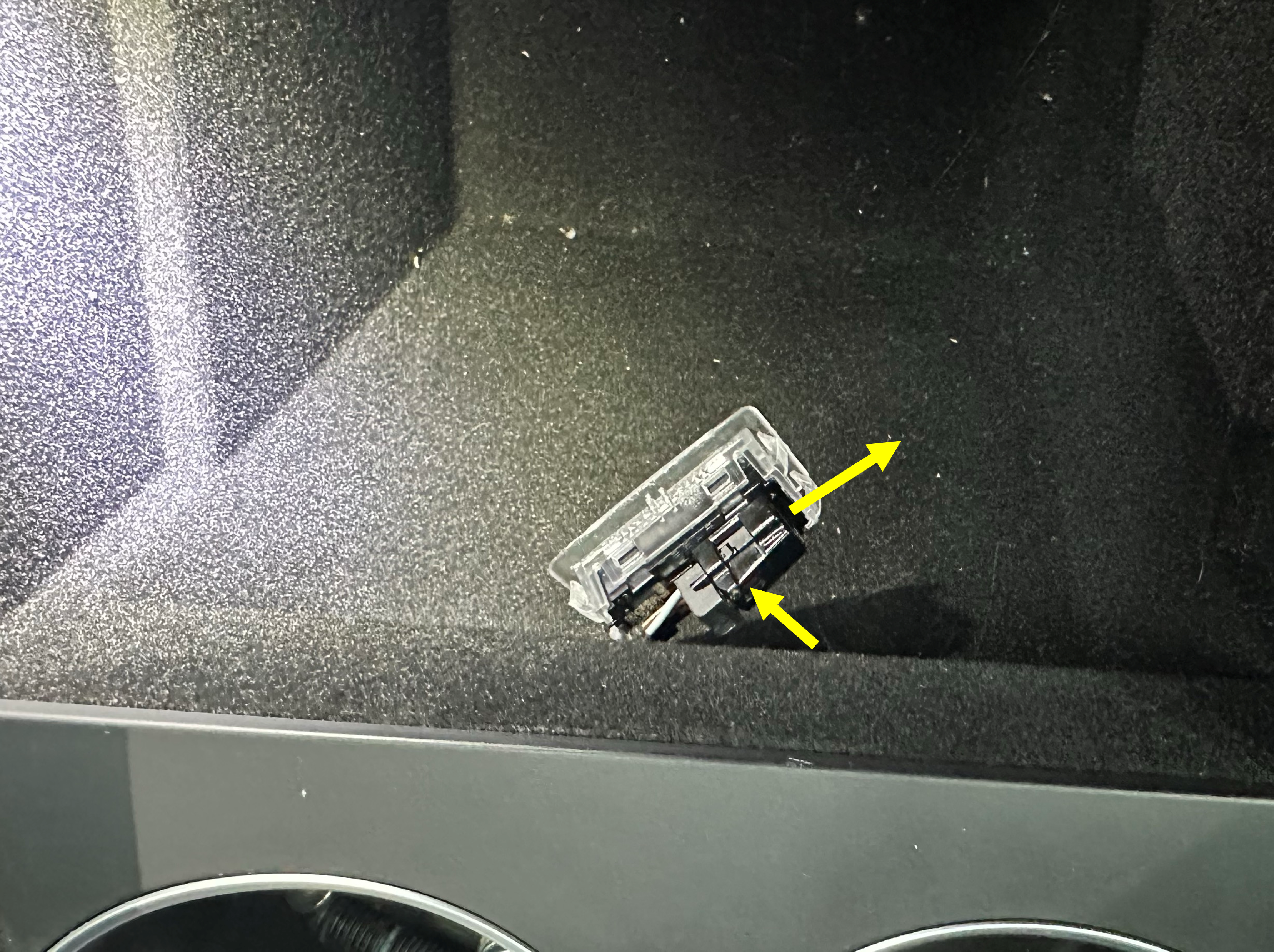

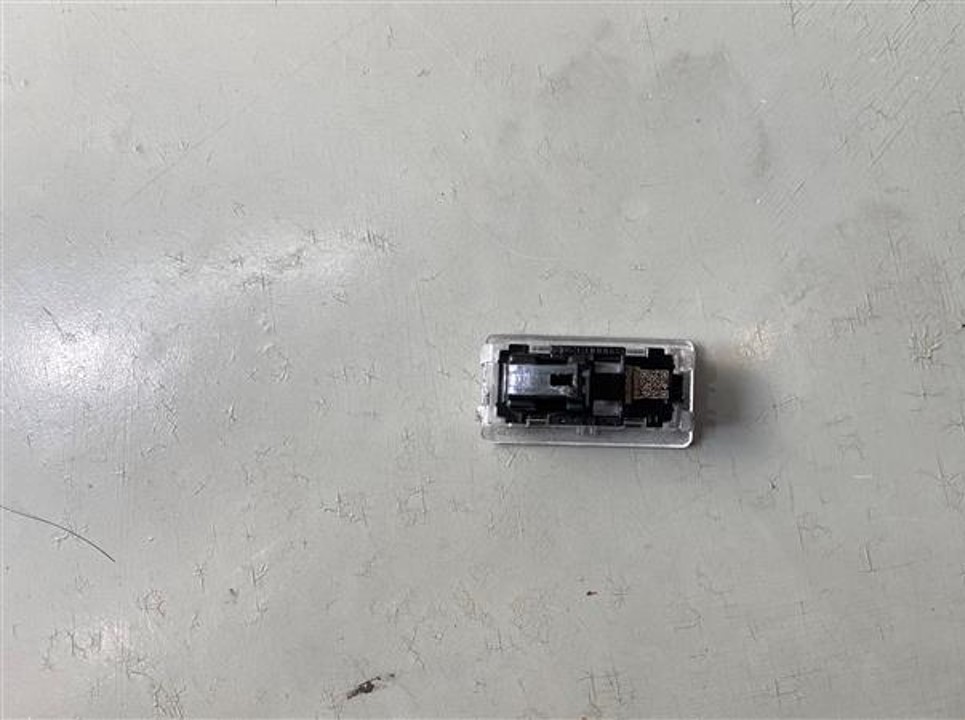

  3. Use a plastic trim tool to release the clips (x4) and pry the puddle light outward, and then disconnect the electrical connector.

Install

  1. Connect the electrical connector, and then clip the puddle light into the center console.
  2. Close the media bin lid and the cup holder lid.
  3. Raise the LH front window and close the LH front door.
