Cover - Footwell - Front Passenger (RHD) (Remove and Replace)
Correction code
1405011062
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Open the LH front door and lower the LH front window.
- Move the LH front seat backward.
-

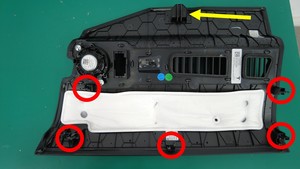

Release the clips (x5) and guide tab
that attach the passenger footwell cover to the instrument panel.
-

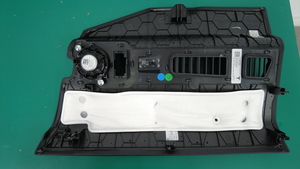

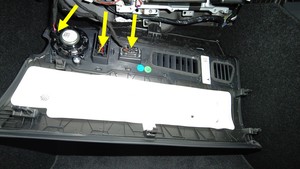

Disconnect the electrical harness
connectors (x3) from the passenger footwell cover, and then remove the passenger
footwell cover from the vehicle.
Install
-
Connect the electrical harness connectors (x3) to the passenger footwell cover.
-
Install the clips (x5) and guide tab that attach the passenger footwell cover to the
instrument panel.
- Move the LH front seat to its original position.
- Raise the LH front window and close the LH front door.
