Riser Bracket - Instrument Panel - RH (Remove and Replace)

Correction code 1405020022 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Riser Bracket - Instrument Panel - RH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the RH cross bar beam bracket to the cross beam
25 Nm (18.4 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 13 mm socket
  • Flex head ratchet/flex head torque wrench
 Reuse
Nut that attaches the RH cross bar beam bracket to the cross beam
25 Nm (18.4 lbs-ft)
  • 13 mm socket
  • Cordless Ratchet/Impact Driver
  • Flex head ratchet/flex head torque wrench
 Reuse

Remove

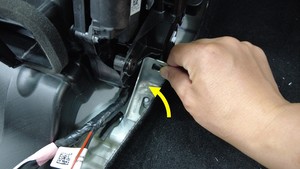

  1. Remove the RH center console front side panel. See Carpet - Side - Center Console - RH (Remove and Replace).

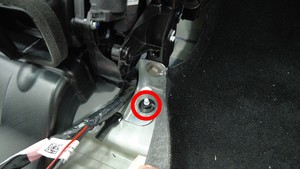

  2. Remove the bolt that attaches the RH cross bar beam bracket to the cross beam.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench

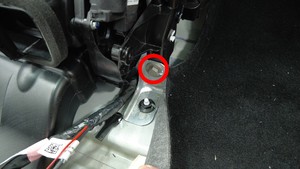

  3. Remove the nut that attaches the RH cross bar beam bracket to the cross beam.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench

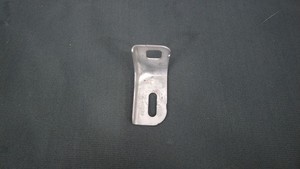

  4. Remove the RH cross bar beam from the vehicle.

Install

  1. Install the RH cross bar beam to the vehicle.
  2. Install the bolt that attaches the RH cross bar beam bracket to the cross beam.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
  3. Install the nut that attaches the RH cross bar beam bracket to the cross beam.
    25 Nm (18.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  4. Install the RH center console front side panel. See Carpet - Side - Center Console - RH (Remove and Replace).
