Cover - Tow Hook - Front (Remove and Replace)

Correction code 1001020102 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Remove

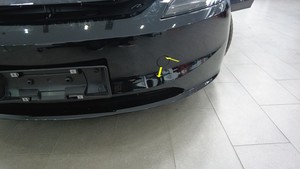

  1. Place two thumbs at the 1 and 2 o'clock positions, resting your knuckles on the bumper fascia surface to support your hand position. Use both thumbs to apply force on the outer edge of the cover.

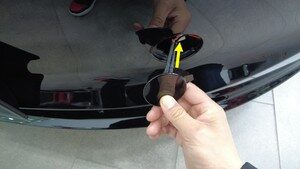

  2. Remove the 12V jumper wires from the front tow hook cover, and then remove the cover from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

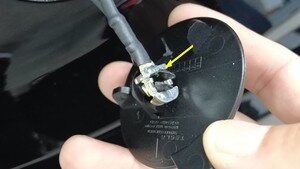

    Gently squeeze the retaining tabs together to remove the wires.

Install

  1. Connect the 12V jumper wires to the front tow hook cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure both wire terminals are fully seated on the retaining tabs.

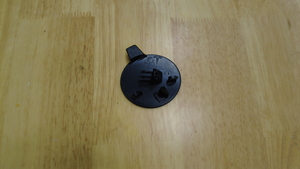

  2. Insert location tab between the 1 and 2 o'clock position and rotate the bottom snap fit tabs into the slots in the fascia. Once the tabs are located, push on the outer edge to snap the cover on.
