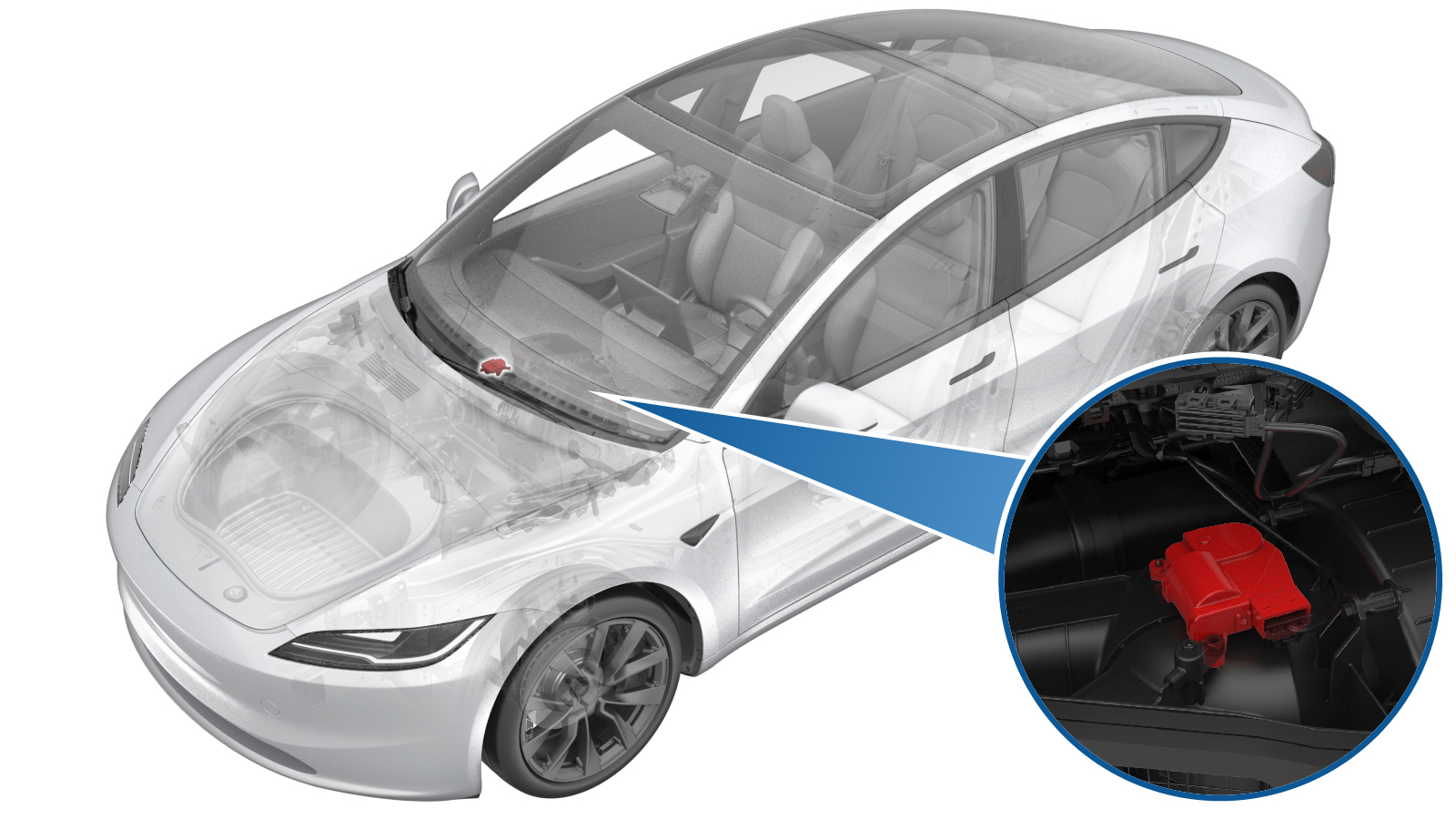

Actuator - HVAC (Remove and Replace)

Correction code 1810010072 FRT 2.76 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Informational PurposesAn informational icon, calling your attention
Note
This procedure requires the A/C Refrigerant (Recovery and Recharge) procedure to be performed. If not already automatically added to the Service Visit, add correction code 18200102 as a separate activity to the Service Visit.

Torque Specifications

Table 1. Torque Specifications: Actuator - HVAC (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the intake actuator to the HVAC assembly
2.3 Nm (1.7 lbs-ft)
  • 4 in extension
  • Flex head ratchet/flex head torque wrench
  • 6 mm socket
  • Torx T20 bit
Reuse

Remove

  1. Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).

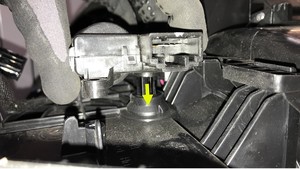

  2. Disconnect the intake actuator connector.

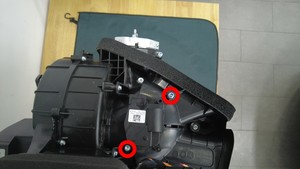

  3. Remove the bolts (x2) that attach the intake actuator to the HVAC assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • 6 mm socket
    • Torx T20 bit

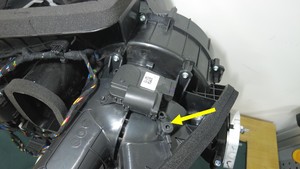

  4. Remove the intake actuator fixing bracket from the HVAC assembly.

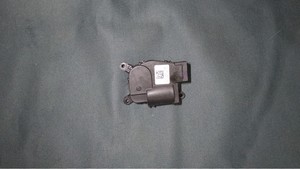

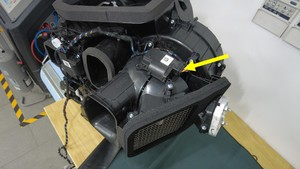

  5. Remove the intake actuator from the HVAC assembly.

Install

  1. Install the intake actuator to the HVAC assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Align the guide and push the actuator to secure during installation.
  2. Install the intake actuator fixing bracket to the HVAC assembly.
  3. Install the bolts (x2) that attach the intake actuator to the HVAC assembly.
    2.3 Nm (1.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • 6 mm socket
    • Torx T20 bit
  4. Connect the intake actuator connector.
  5. Install the HVAC assembly. See HVAC Assembly (Remove and Replace).
