Ground Strap - Rear Defrost (Remove and Replace)
Correction code
1710040062
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the side rail trim. See Trim - Side Rail - LH (Remove and Replace).
- Remove tether hooks from LH body.
- Fold the LH 2nd row seatback down.
-

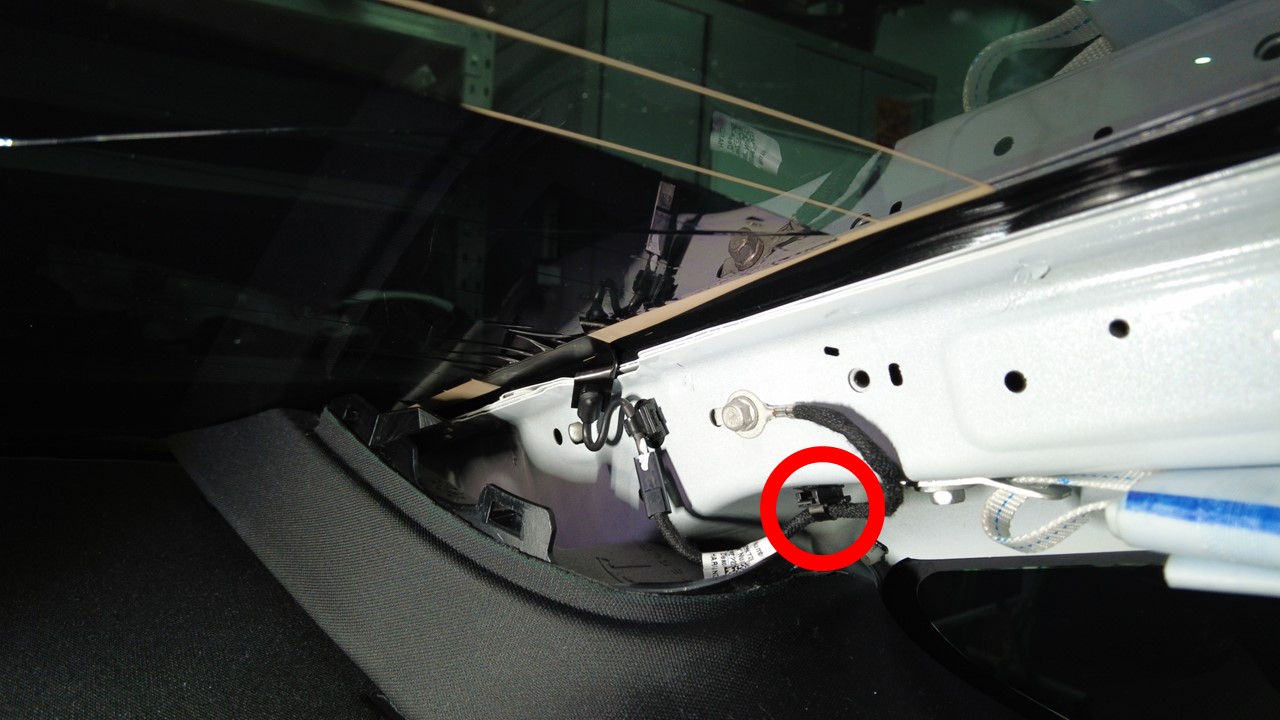

Disconnect the LH antenna filter harness connector
-

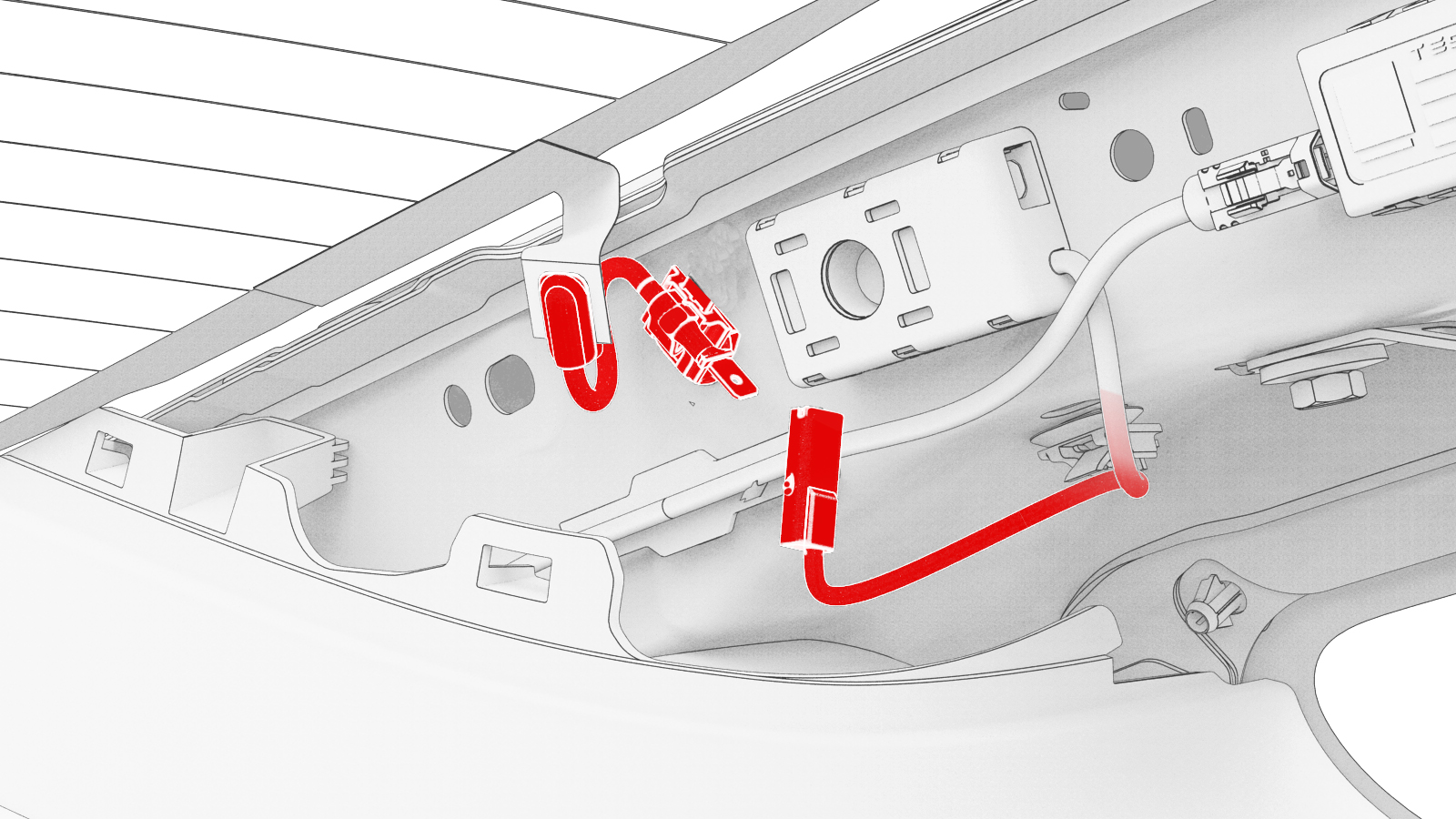

Disconnect the LH antenna filter harness connector from the LH C-pillar
ground.
-

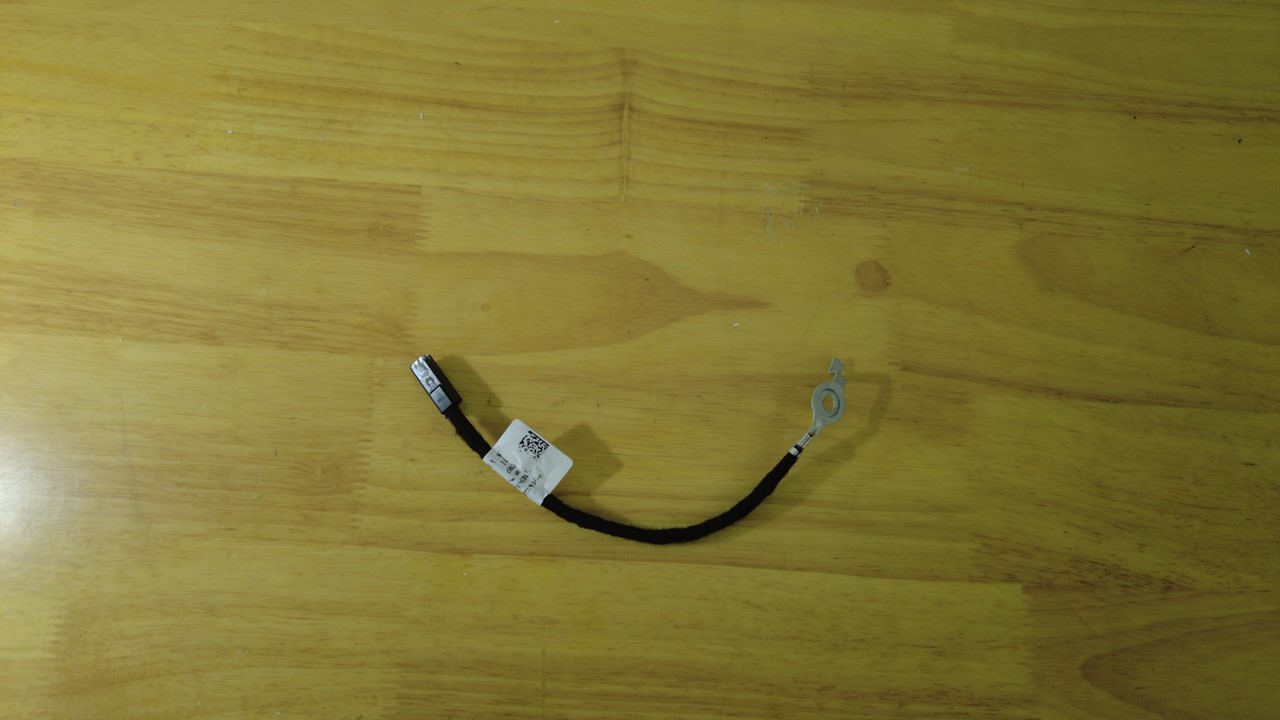

Disconnect LH antenna filter harness fixing clip, and then remove the
filter antenna.
Install
-
Connect LH antenna filter harness fixing clip to install the filter
antenna.
-
Connect the LH antenna filter harness connector to the LH C-pillar
ground.
-
Connect the LH antenna filter harness connector.
- Raise the 2nd row seatback.
- Install the side rail trim. See Trim - Side Rail - LH (Remove and Replace).
