Fan - Triple Cam (Remove and Replace)

Correction code 1724010052 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Fan - Triple Cam (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x3) that attach the triple camera fan to the camera
0.12 Nm (1 lbs-in)
  • Torx T6 bit
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Remove the upper camera cover. See Camera Cover - Upper (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the interior camera from the upper camera cover.

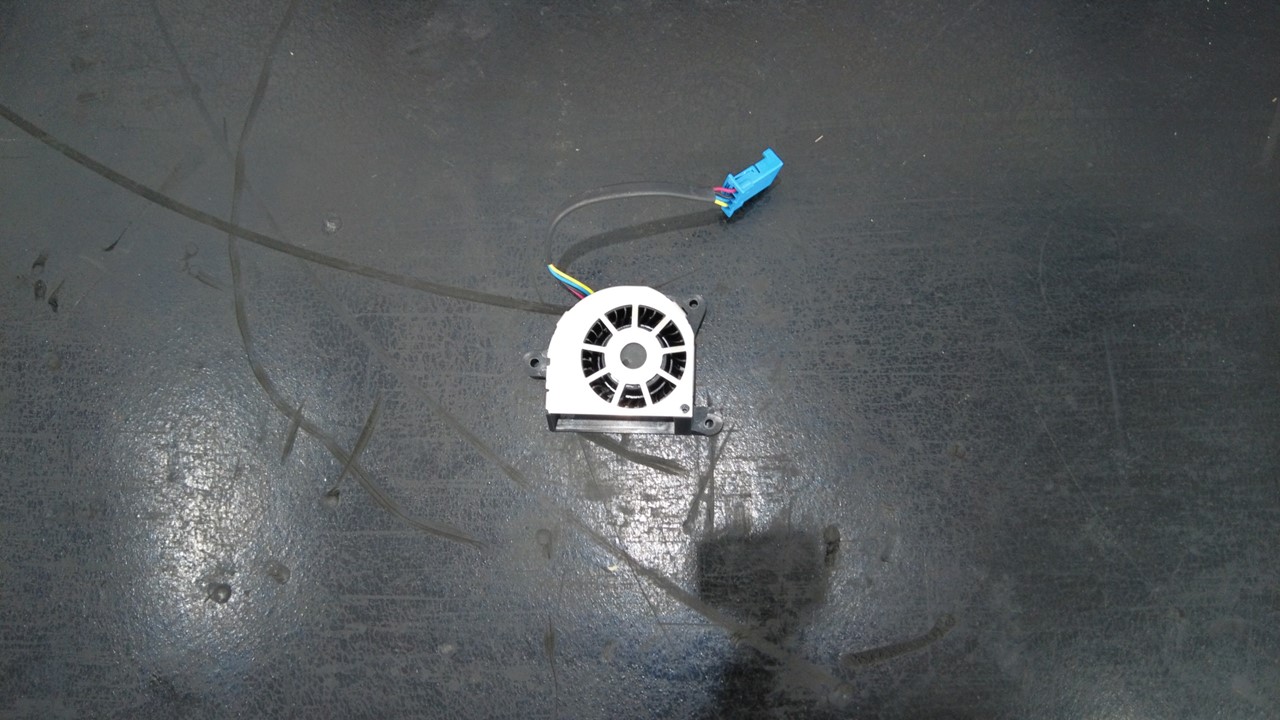

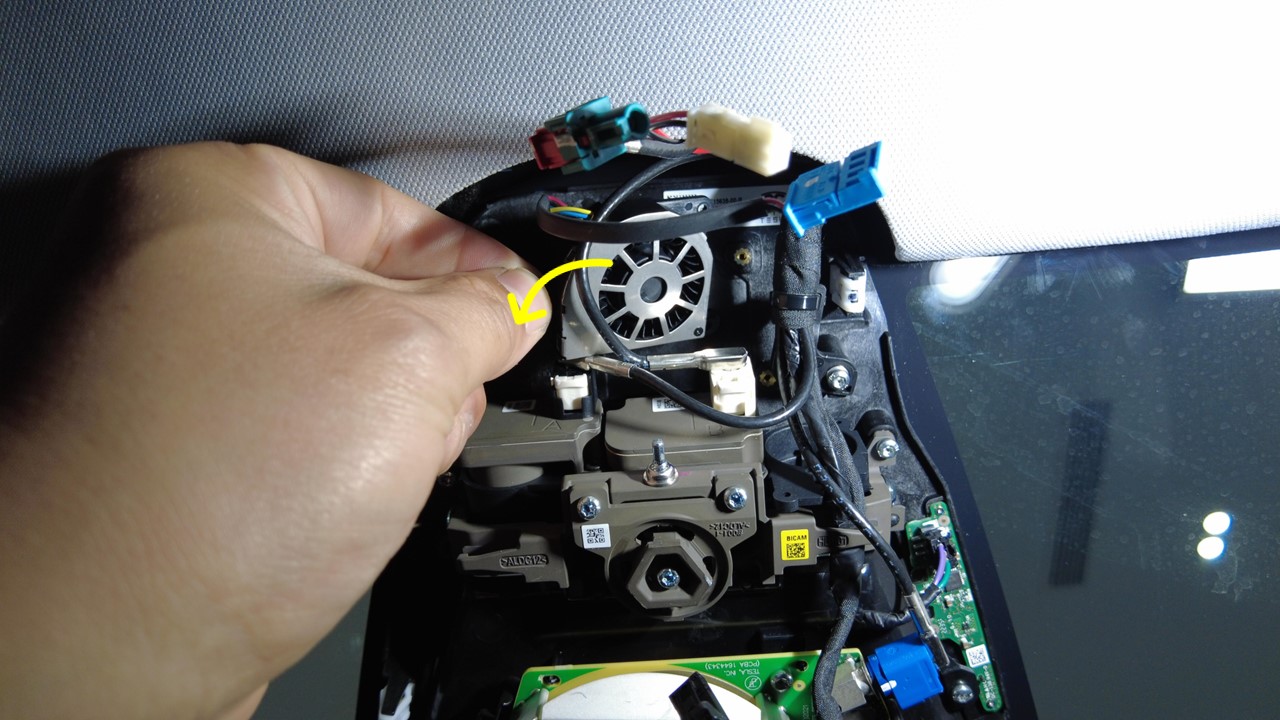

  2. Release the screws (x3) that attach the triple camera fan to the camera, and then remove the triple camera fan.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T6 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

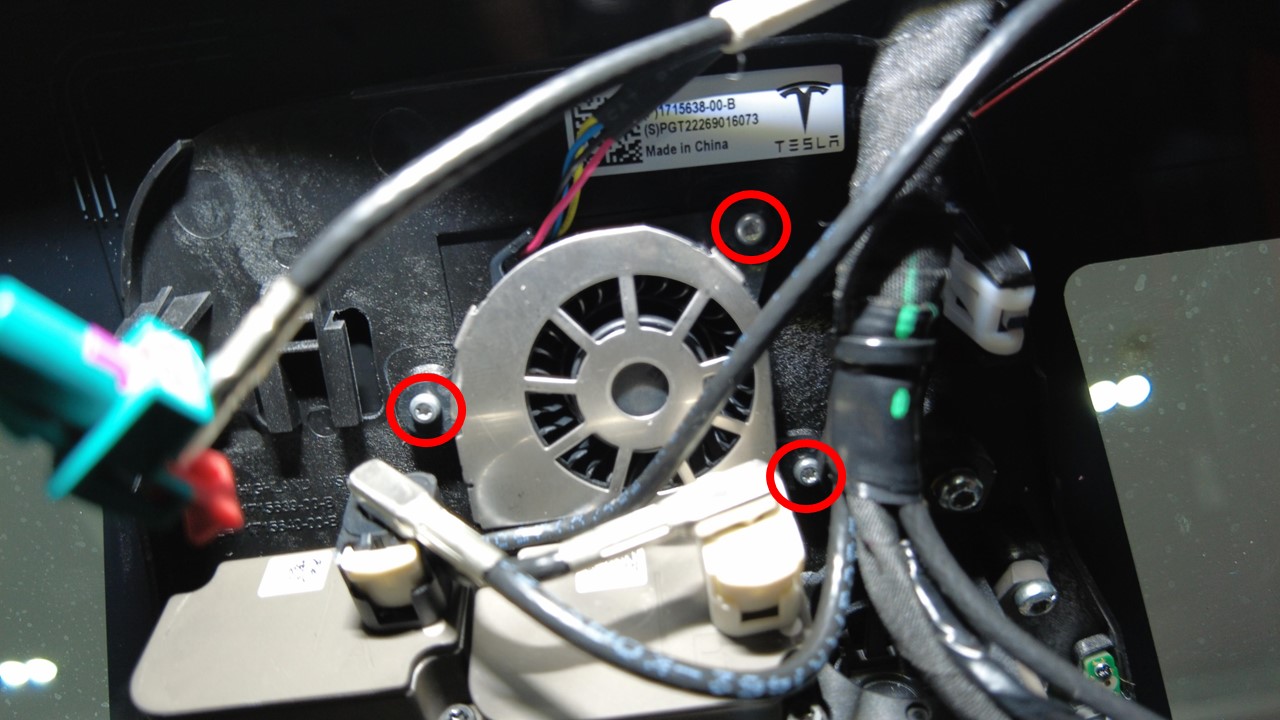

  1. Install the screws (x3) that attach the triple camera fan to the camera, and then install the triple camera fan.
    0.12 Nm (1 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T6 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the upper camera cover. See Camera Cover - Upper (Remove and Replace).
