Lamp - Trunk (Remove and Replace)

Correction code 1530030082 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the trunk garnish. See Garnish - Trunk (Remove and Replace).

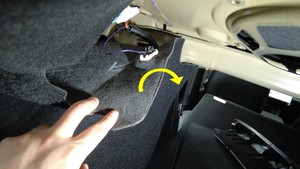

  2. Slightly lift the upper part of the LH trunk side trim to access the puddle light.

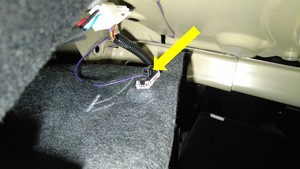

  3. Disconnect the electrical connector from the puddle light.

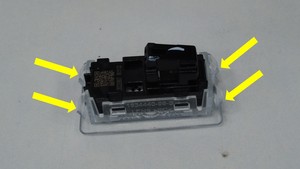

  4. Release the tabs (x4) that attach the LH puddle light to the vehicle.

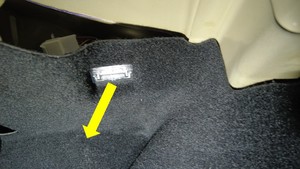

  5. Remove the LH puddle light.

Install

  1. Install the tabs (x4) that attach the LH puddle light to the vehicle.
  2. Connect the electrical connector from the puddle light.
  3. Move the LH trunk side trim back to its original position.
  4. Install the trunk garnish. See Garnish - Trunk (Remove and Replace).
