Cover - Latch - Trunk (Remove and Replace)
Correction code
1511010062
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2025-12-22: Removed the trunk lid trim steps.
Remove
- Open the trunk.
-

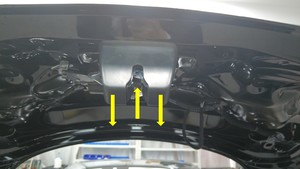

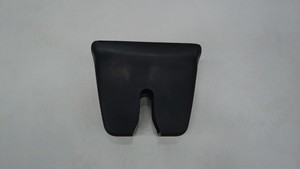

Insert a small flat head
screwdriver between the latch and latch cover, and then gently pry the latch
cover away from the latch.
Install
-

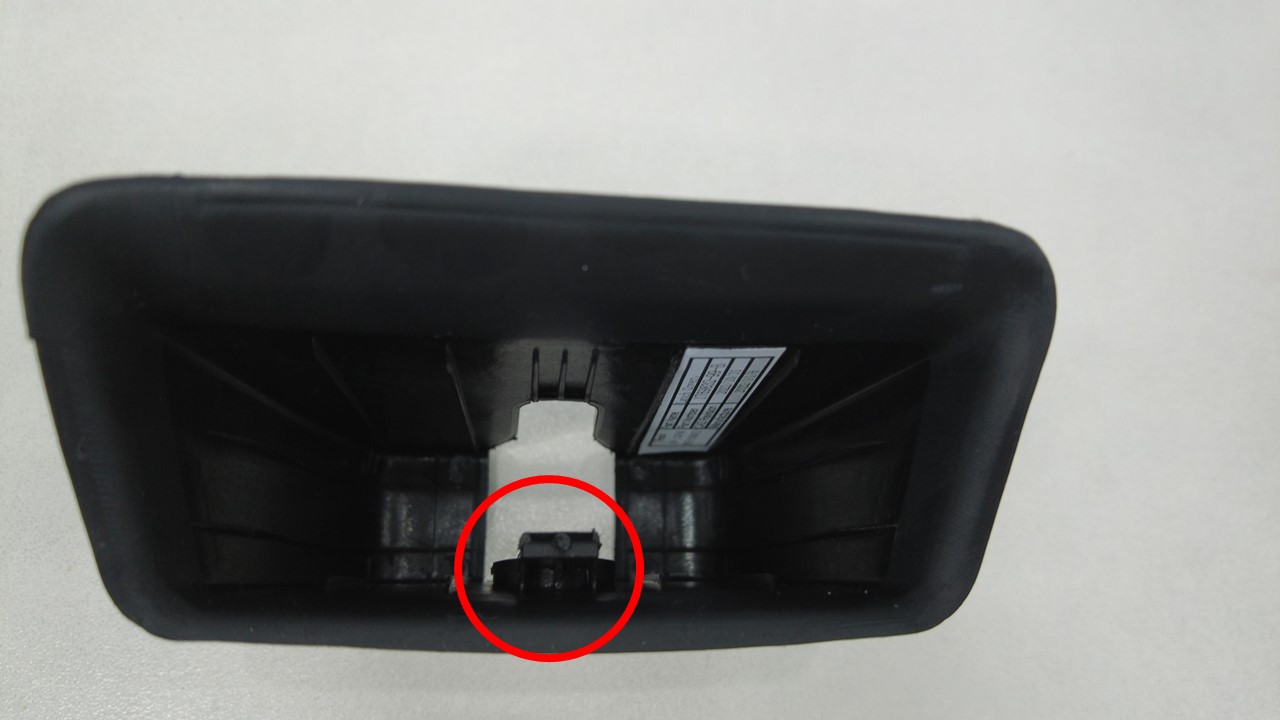

Install the latch cover to the latch and make sure the tab engaged.
- Close the trunk.
