Garnish - Trunk (Remove and Replace)

Correction code 1511010042 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the trunk.

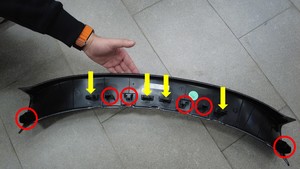

  2. Release the push clips (x6) and tabs (x4) that attach the ends of the trunk garnish to the body, then remove the trunk garnish from the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Install

  1. Install the trunk garnish onto the body, and fasten the push clips (x6) and tabs (x4) that attach the trunk garnish to the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the trunk garnish is firmly attached to the body.
  2. Close the trunk.
