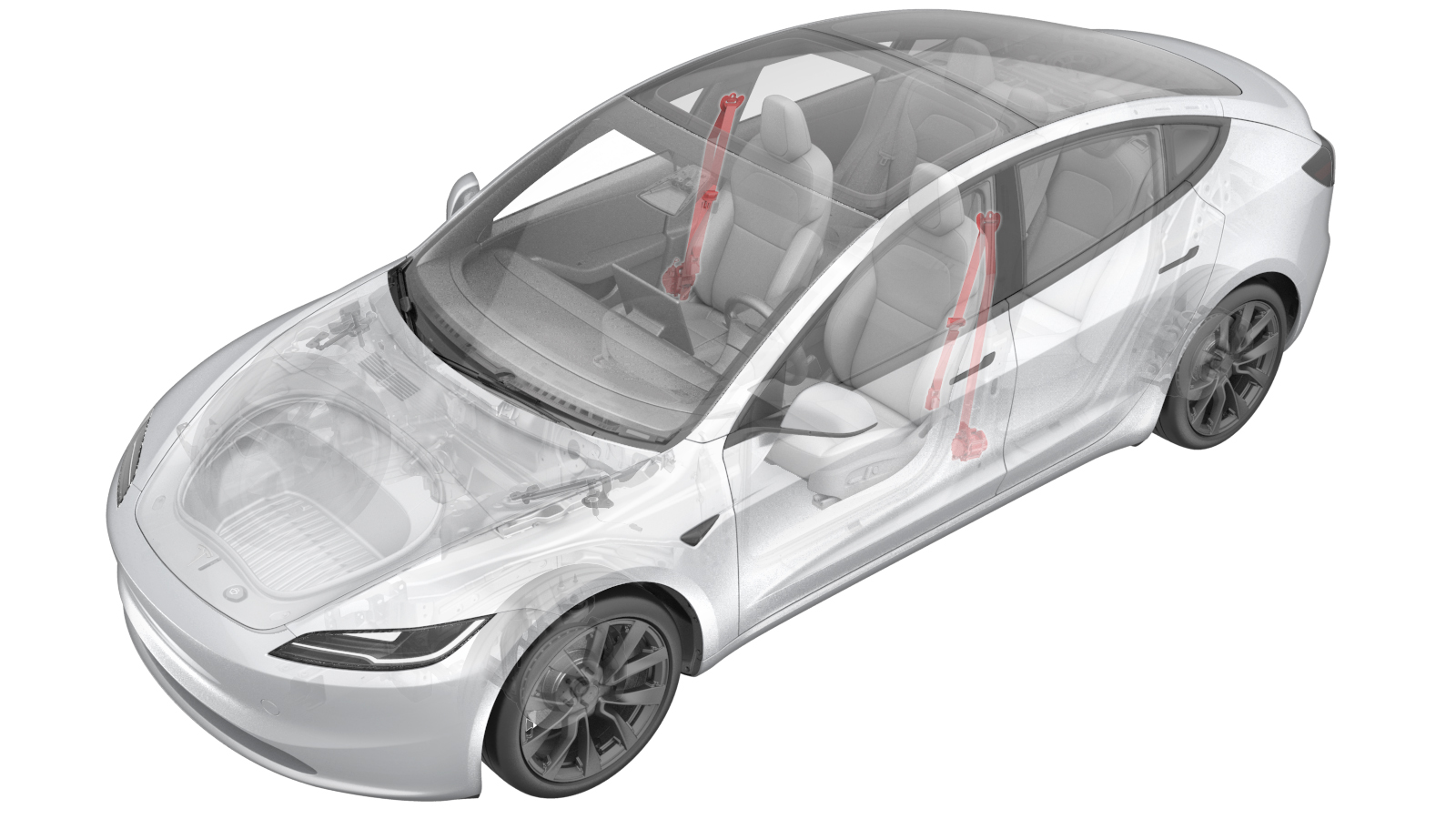

Retractor - Seatbelt - Driver (Remove and Replace)

Correction code 2005010062 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-04-13: Updated the specs of the bolt securing the LH front seat belt retractor to the base of the LH B-pillar from 15 mm to 13 mm.

Torque Specifications

Table 1. Torque Specifications: Retractor - Seatbelt - Driver (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
The patch bolt that attaches the LH upper D-ring to the adjustable top loop
30 Nm (22.1 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 3 in extension
  • Torx T50 socket
  • Ratchet/torque wrench
 Replace 1098380-00-B
The patch bolt that attaches the LH front seat belt retractor to the base of the LH B-pillar
40 Nm (29.5 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 13 mm deep socket
  • Ratchet/torque wrench
 Replace 1846261-00-A

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Remove the LH 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  3. Disconnect the LV battery. See LV Power (Disconnect and Connect).
  4. Insert the seat belt release tool (1133787-00-A) into the bottom of the seatbelt pretensioner coupling to release the seatbelt from the pretensioner.
  5. Remove the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  6. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  7. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  8. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
  9. Remove the LH middle B-pillar trim. See Trim - B-Pillar - Middle - LH (Remove and Replace).
  10. Remove the LH upper B-pillar trim. See Trim - B-Pillar - Upper - LH (Remove and Replace).
  11. Remove the LH 1st row seatbelt webbing guide bar. Webbing Guide Bar - Seatbelt - 1st Row (Single Side) (Remove and Replace).

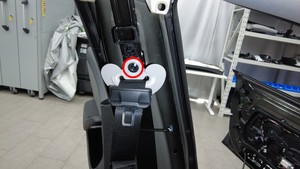

  12. Remove and discard the patchbolt that attaches the LH upper D-ring to the adjustable top loop.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 3 in extension
    • Torx T50 socket
    • Ratchet/torque wrench

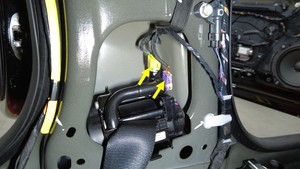

  13. Disconnect the electrical harness from the LH front seat belt retractor connector (x2).
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the orange locking tabs on the both sides of the connector at the same time to release the connectors.

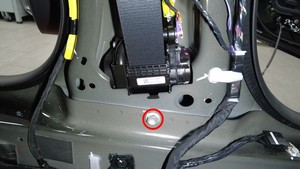

  14. Remove and discard the patch bolt that attaches the LH front seat belt retractor to the base of the LH B-pillar.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 13 mm deep socket
    • Ratchet/torque wrench

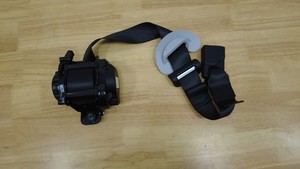

  15. Remove the LH front seatbelt retractor from the vehicle.

Install

  1. Connect the electrical harness to the seatbelt retractor connectors (x2).
    Informational PurposesAn informational icon, calling your attention
    Note
    An audible click will be heard when the connectors are fully seated.
  2. Install the LH front seatbelt retractor into the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure to engage the T-tab on the retractor with the slot on the base of the B-pillar.
  3. Install a new patch bolt to attach the LH front seat belt retractor to the base of the LH B-pillar.
    40 Nm (29.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 13 mm deep socket
    • Ratchet/torque wrench
  4. Install a new patchbolt to attach the LH upper D-ring to the top loop.
    30 Nm (22.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 3 in extension
    • Torx T50 socket
    • Ratchet/torque wrench
  5. Install the LH 1st row seatbelt webbing guide bar. Webbing Guide Bar - Seatbelt - 1st Row (Single Side) (Remove and Replace).
  6. Install the LH upper B-pillar trim. See Trim - B-Pillar - Upper - LH (Remove and Replace).
  7. Install the LH middle B-pillar trim. See Trim - B-Pillar - Middle - LH (Remove and Replace).
  8. Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace).
  9. Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace).
  10. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace).
  11. Install the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  12. Install the 2nd row seat side bolster. See Bolster - Side - Seat - 2nd Row - LH (Remove and Replace).
  13. Install the LH front seatbelt pretensioner coupling onto the LH front seat pretensioner.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform a pull-push-pull test to verify the pretensioner and coupling are fully seated.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform a pull test on the webbing to make sure it is properly installed. It should be able to be pulled out smoothly at normal speeds and locked when pulled on quickly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
  14. Connect the LV battery. See LV Power (Disconnect and Connect).
  15. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
