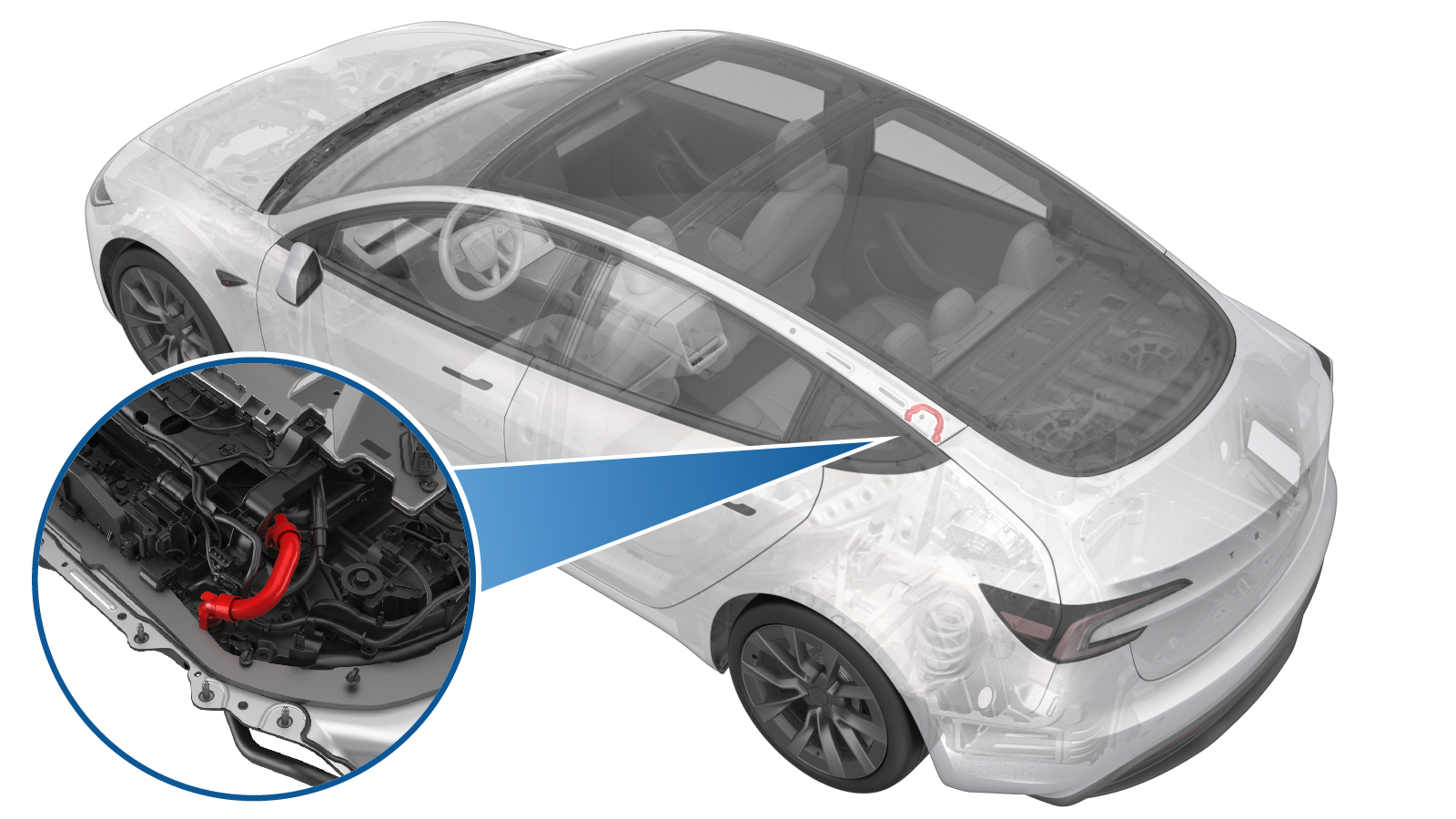

Hose - Inlet - Power Conversion System (Remove and Replace)
Correction code
1630010132
FRT
2.64
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the postie DC link from ancillary bay. See Busbar - Fast Charge Contactor to DC Bus - Positive (Remove and Replace).
-

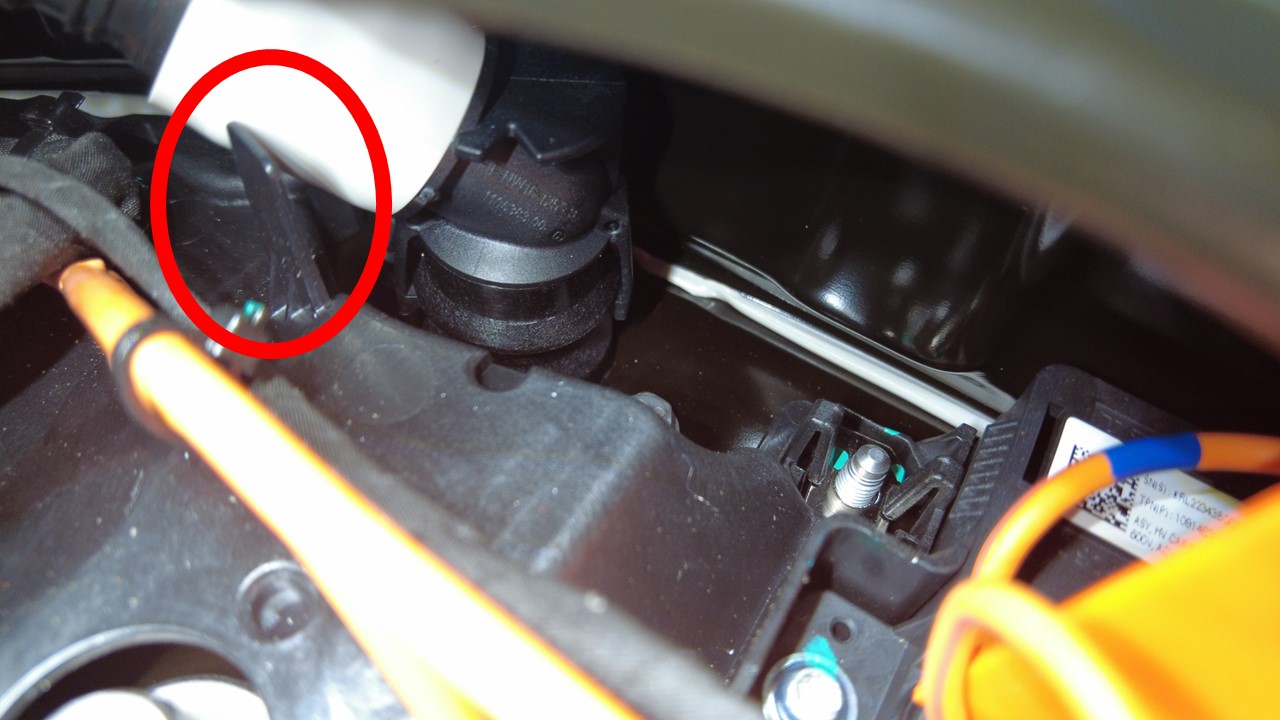

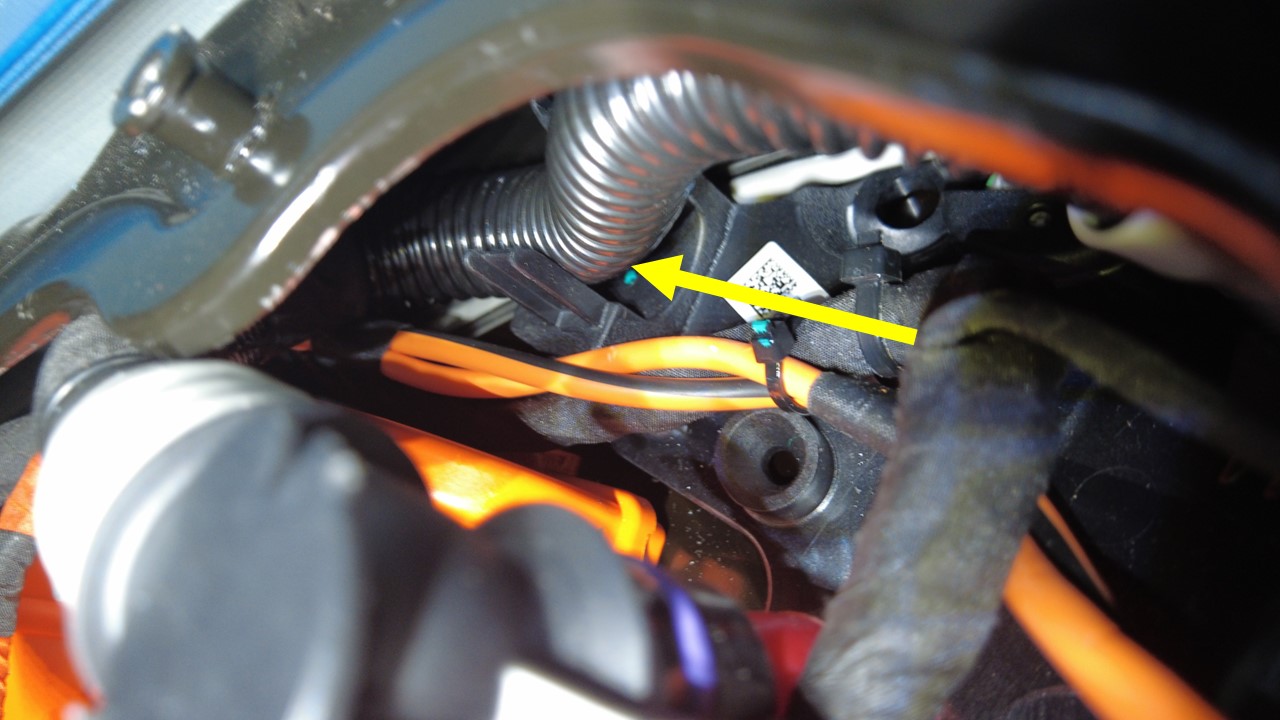

Release PCS coolant inlet hose from
hose clip.
-

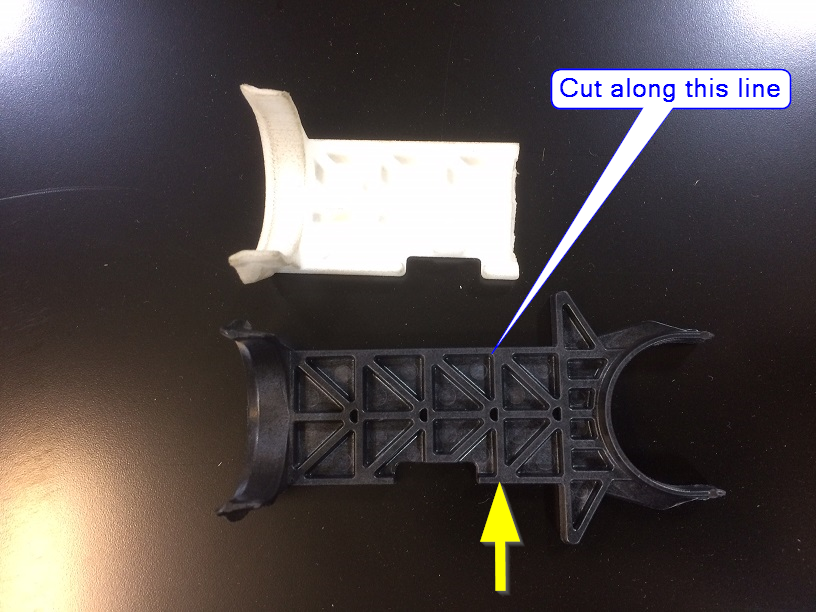

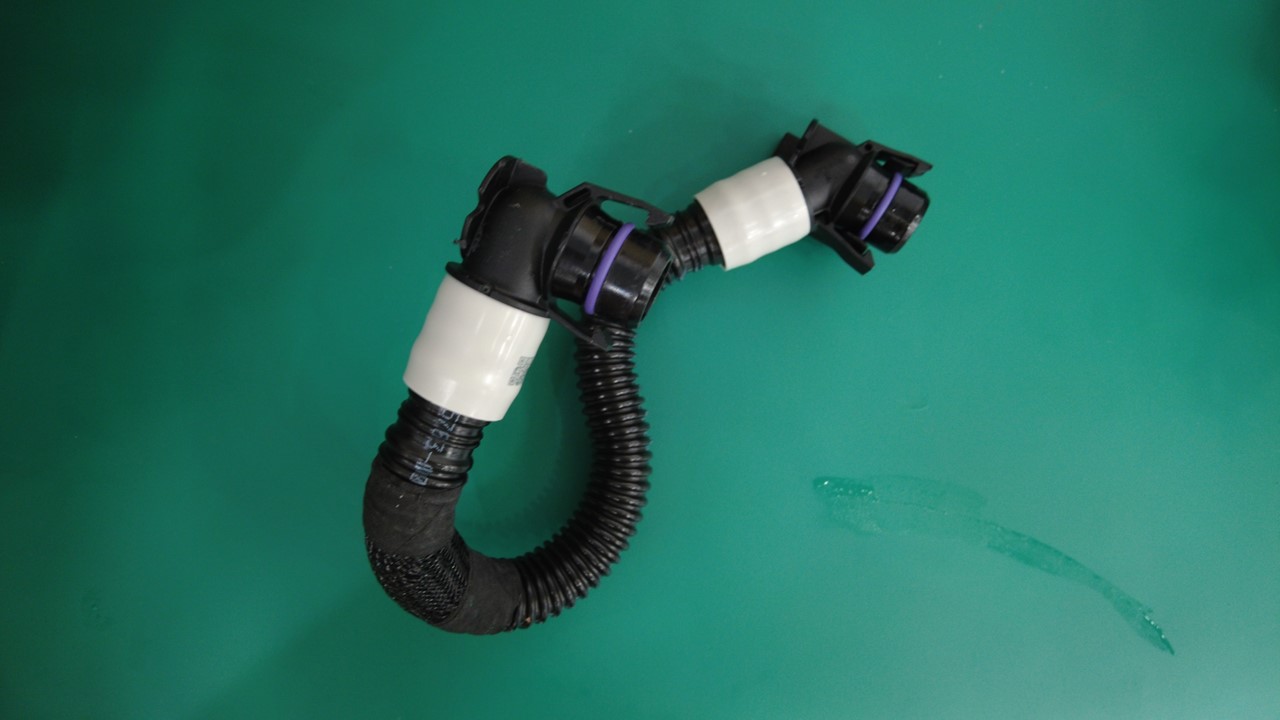

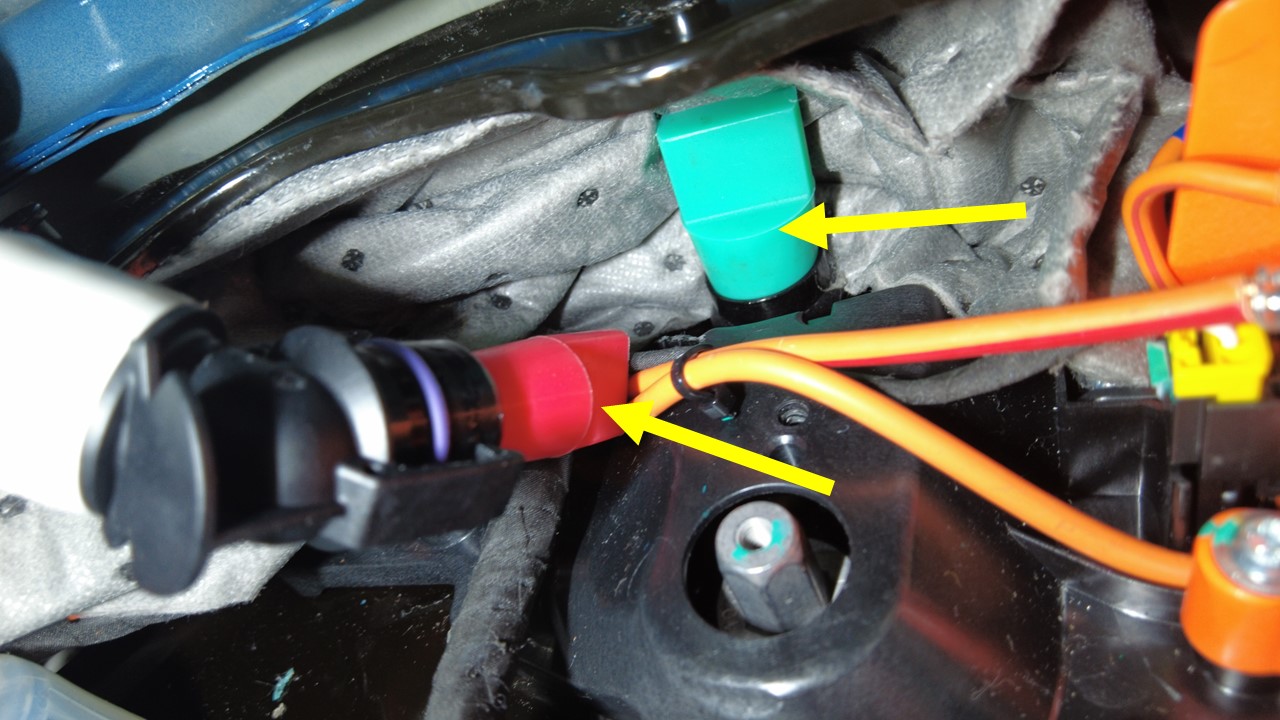

Cut 90 degree portion of Model 3 coolant hose special tool to 2CM long.
-

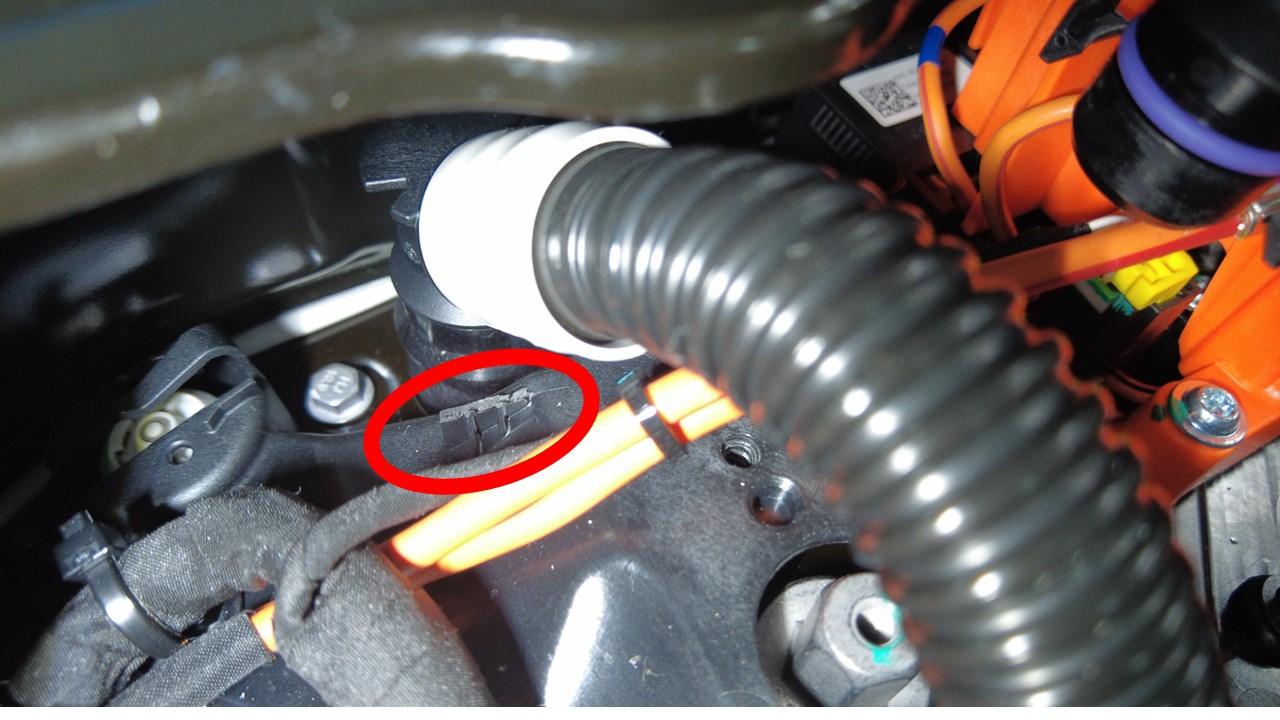

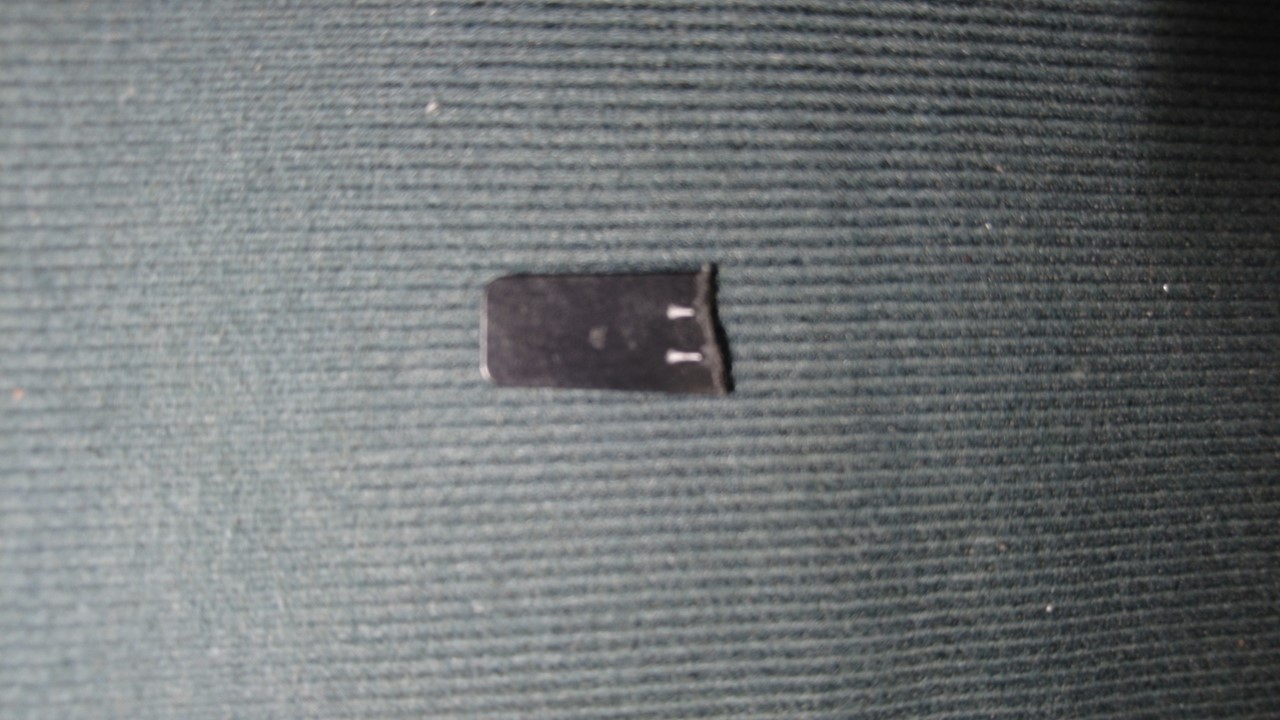

Cut protrusion on the ancillary bay harness base.
-

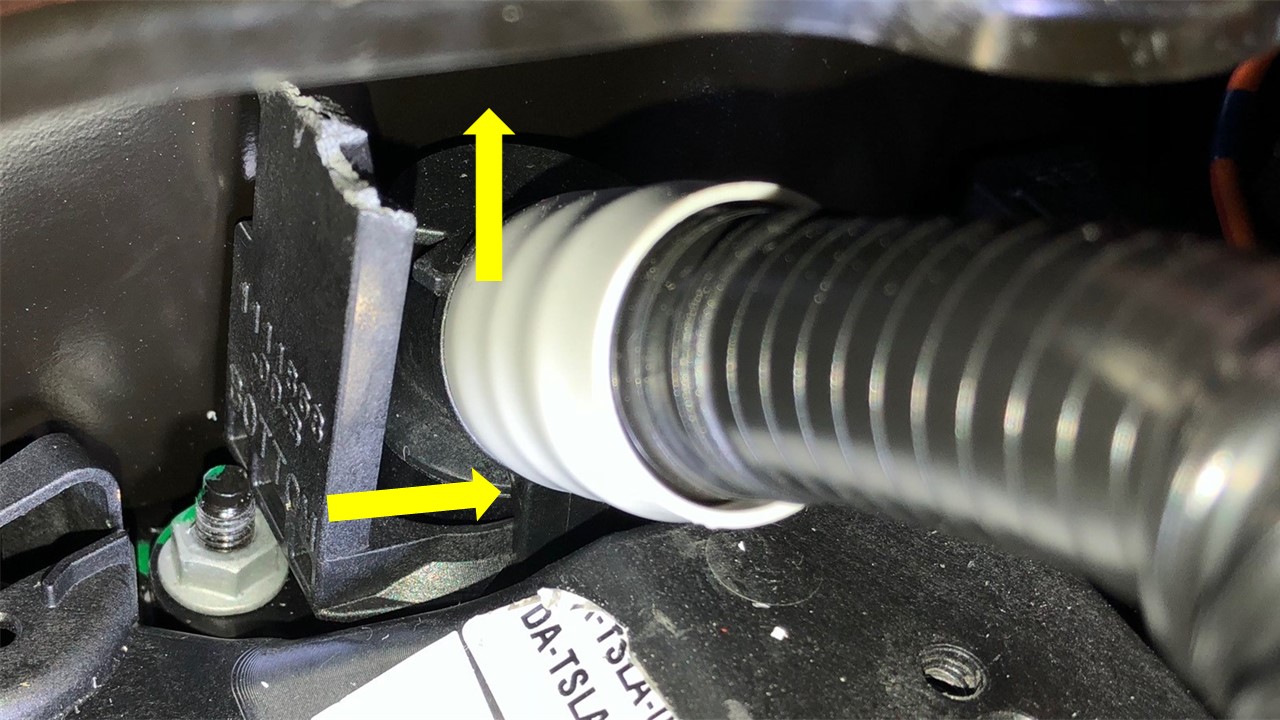

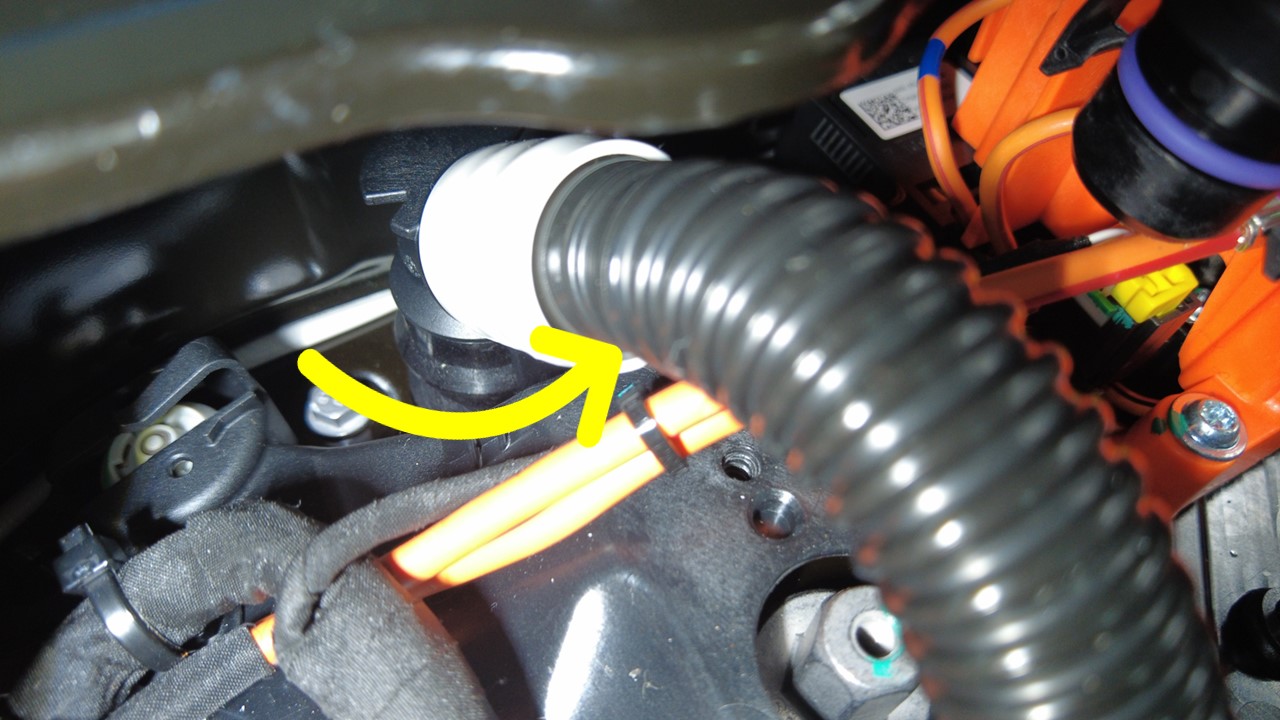

Disconnect PCS coolant inlet hose from ancillary bay.
Install
-
Connect PCS coolant inlet hose to
ancillary bay.
-
Secure PCS coolant inlet hose to hose
clip.
- Install the postie DC link to ancillary bay. See Busbar - Fast Charge Contactor to DC Bus - Positive (Remove and Replace).
