2024-11-18
NVH Seal - HVAC (Remove and Replace)
Correction code
1810010112
FRT
2.58
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Note
This procedure requires the A/C
Refrigerant (Recovery and Recharge) procedure to be performed. If not already
automatically added to the Service Visit, add correction code 18200102 as a
separate correction within the same activity to the Service Visit.
Remove
- Remove the HVAC assembly. See HVAC Assembly (Remove and Replace).
-

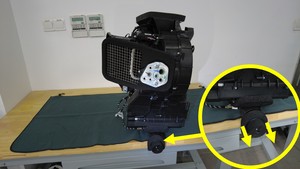

Remove the NVH seal from the HVAC
assembly.
Install
-

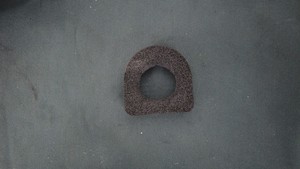

Install the NVH seal to the HVAC
assembly.
- Install the HVAC assembly. See HVAC Assembly (Remove and Replace).
