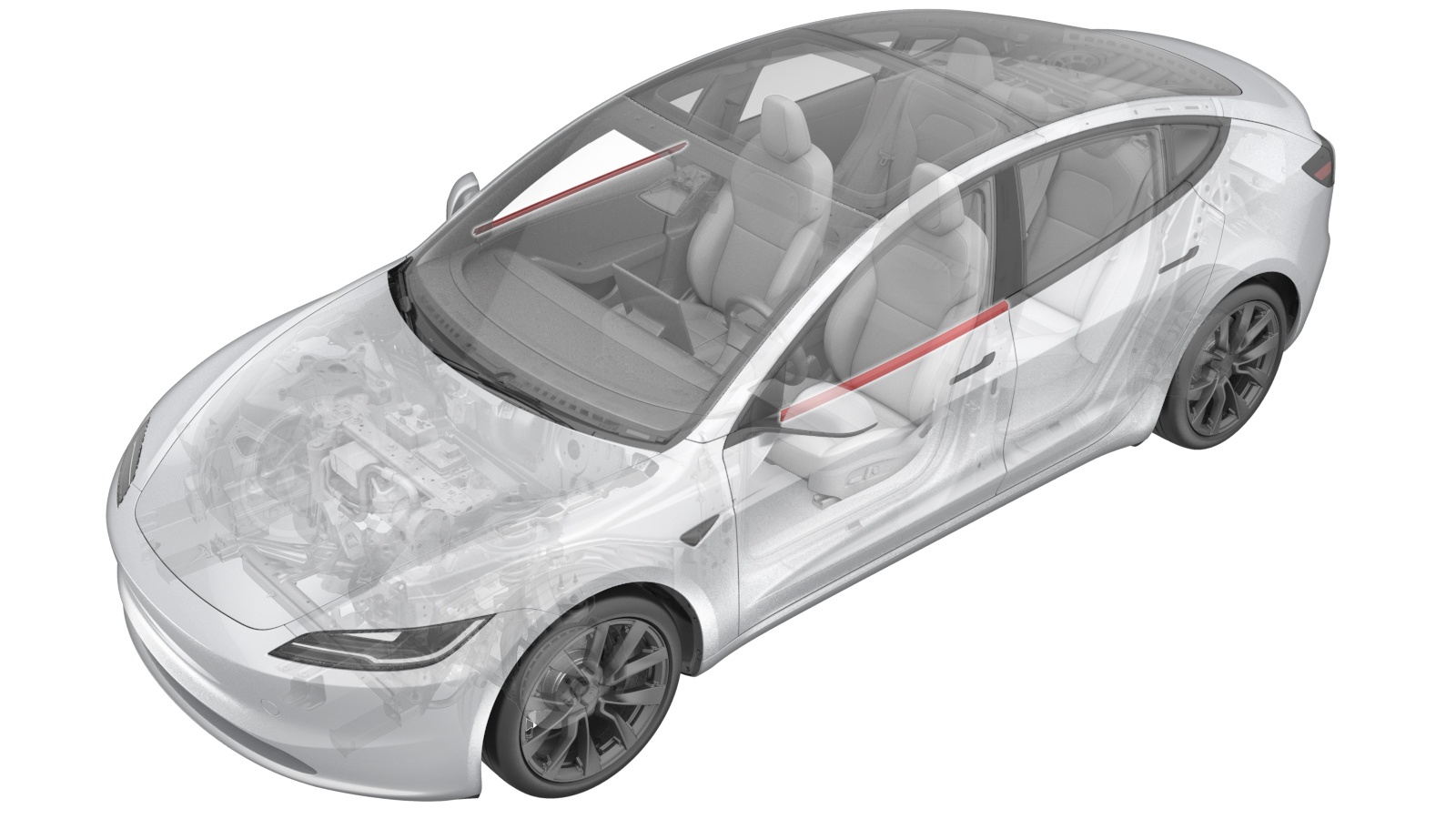

Seal - Outer Belt - Front Door - LH (Remove and Replace)

Correction code 1170020012 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window fully.

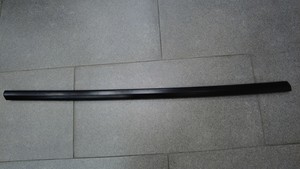

  2. Pull up and then pry to release the LH front door outer belt seal from the door using a plastic trim tool, and then remove the seal from the door.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Install

  1. Install the LH front door outer belt seal onto the door assembly by pushing down to secure it.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use P-80 emulsion lubricant to ease installation of the seal.
  2. Close the LH front door and raise the LH front window.
