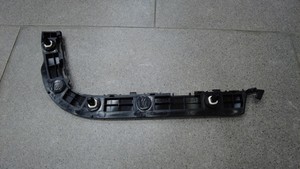

Bracket - Rear Wing - LH (Remove and Replace)

Correction code 1001040072 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Bracket - Rear Wing - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x3) that attach the rear wing bracket to the vehicle
3.5 Nm (2.6 lbs-ft)
  • 8 mm socket
 Reuse

Remove

  1. Remove the rear fascia. See Fascia Assembly - Rear (Remove and Install).

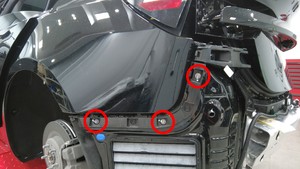

  2. Remove the bolts (x3) that attach the rear wing bracket to the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket
    • Cordless hex driver

Install

  1. Install the bolts (x3) that attach the rear wing bracket to the vehicle.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket
  2. Install the rear fascia. See Fascia Assembly - Rear (Remove and Install).
