Brake Rotor - Front (Base Brakes) - LH (Remove and Replace)

Correction code 3301010312 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-05-08: Added brake pad burnishing step to be performed after rotor replacement.
Equipment:
  • 1082171-00-A S-HOOK, BRAKE CALIPER (SET OF 2)
Note
For detailed brake specifications, see Brakes.

Torque Specifications

Table 1. Torque Specifications: Brake Rotor - Front (Base Brakes) - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the LH front brake hose bracket to the LH front knuckle
5 Nm (3.7 lbs-ft)
  • 10 mm socket
 Reuse
Bolts (x2) that attach the LH front brake caliper to the LH front knuckle
94 Nm (69.3 lbs-ft)
  • External Torx E18
 Replace
Bolt that attaches the LH front brake rotor to the knuckle
5 Nm (3.7 lbs-ft)
  • 10 mm deep socket
 Reuse

Remove

  1. Remove the LH front wheel. See Wheel Assembly (Remove and Install).

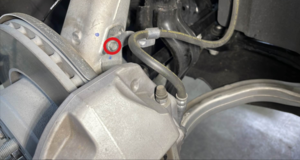

  2. Remove the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket

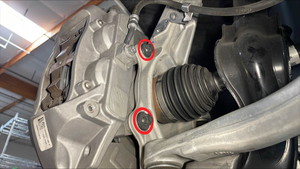

  3. Remove and discard the bolts (x2) that attach the LH front brake caliper to the LH front knuckle, remove the caliper from the knuckle, and allow the caliper to hang from an S-hook.
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E18
  4. Remove the bolt that attaches the LH front brake rotor to the knuckle.
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  5. Remove the LH front rotor from the vehicle.
    Note

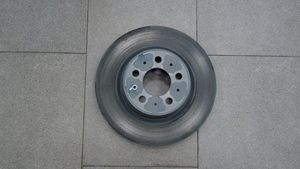

    Store the rotor face down to reduce likelihood of damage to the rotor face.

Install

  1. Install the LH front brake rotor onto the vehicle.
  2. Install the bolt that attaches the LH front brake rotor to the knuckle.
    5 Nm (3.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  3. Install new bolts (x2) that attach the LH front caliper to the LH front knuckle.
    94 Nm (69.3 lbs-ft)
    Note
    Mark with a pen after installation.
    Tip
    Use of the following tool(s) is recommended:
    • External Torx E18
  4. Install the bolt that attaches the LH front brake hose bracket to the LH front knuckle.
    5 Nm (3.7 lbs-ft)
    Tip
    Use of the following tool(s) is recommended:
    • 10 mm socket
  5. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  6. Burnish the brakes. See Brake Pads - Burnishing.
    Note
    During vehicle driving, make sure that proper brake pedal feel and performance is achieved.
    Note
    Add the correction code for brake pad burnishing 33013000 as a separate correction within the same activity to the Service Visit.
