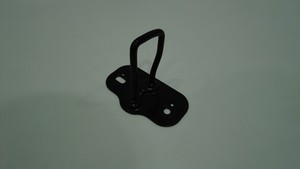

Striker - Active Hood (Remove and Replace)

Correction code 1133040022 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Striker - Active Hood (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the hood striker to the hood
18 Nm (13.3 lbs-ft)
  • 10 mm socket
 Reuse

Remove

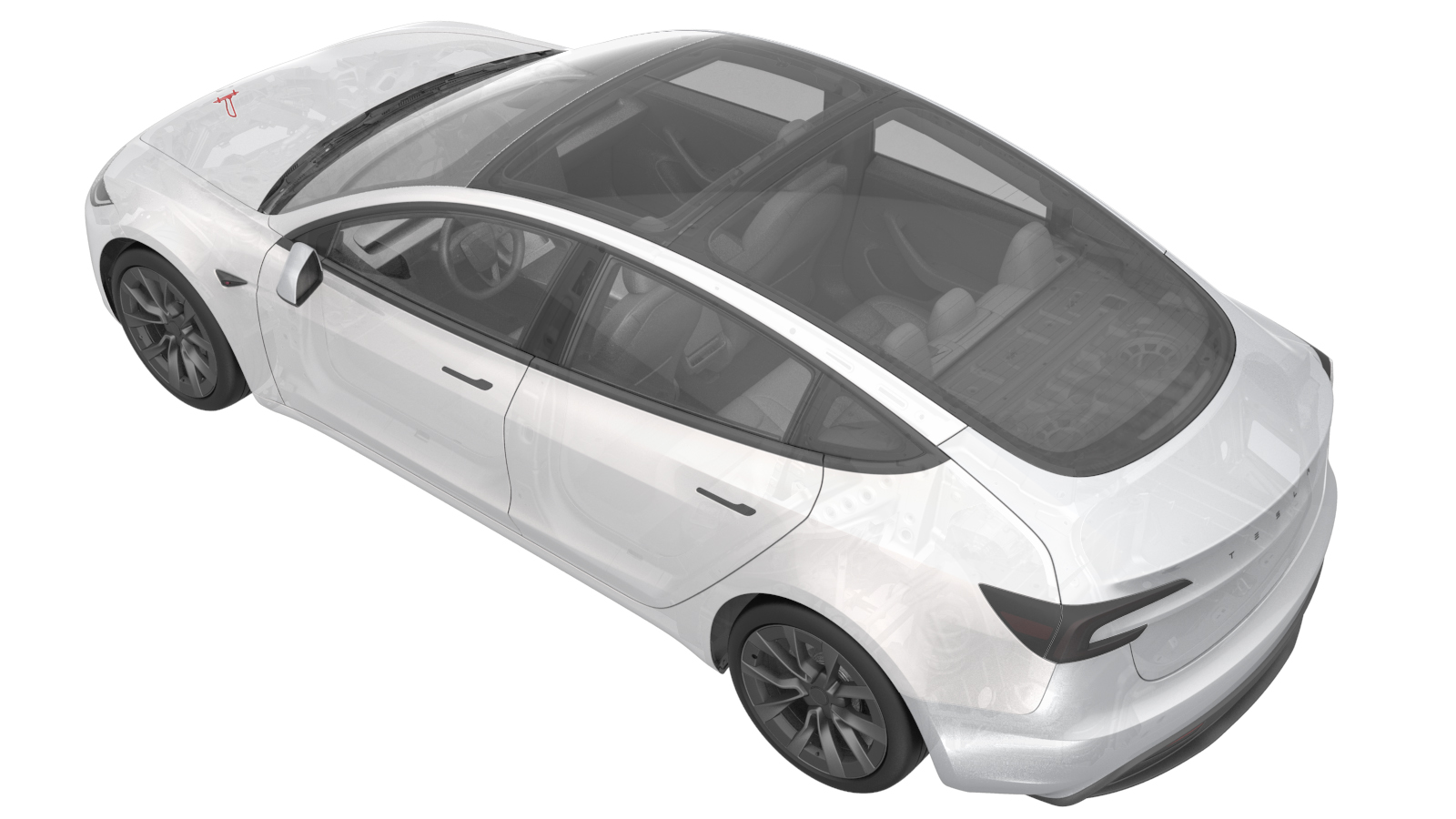

  1. Open the hood.

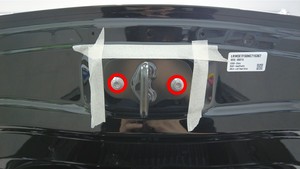

  2. Use masking tape to mark the location of the hood striker on the hood assembly.
  3. Remove the bolts (x2) that attach the hood striker to the hood, and then remove the striker from the hood.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. Install the striker on to the hood, but do not fully torque the bolts.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use the masking tape and hood indentations as a guide.
  2. Close the hood and use the gap and flush tool to verify alignment is within specification.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
  3. Open the hood and adjust the striker position as necessary.
  4. Repeat step 2 and step 3 until alignment is satisfactory.
  5. Fully tighten the bolts.
    18 Nm (13.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  6. Remove the masking tape, and then close the hood.
