Phone Dock Assembly - Center Console (Model 3 Standard) (Remove and Replace)

Correction code 15190402002 15190402001 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-09-05: Released new procedure.

Remove

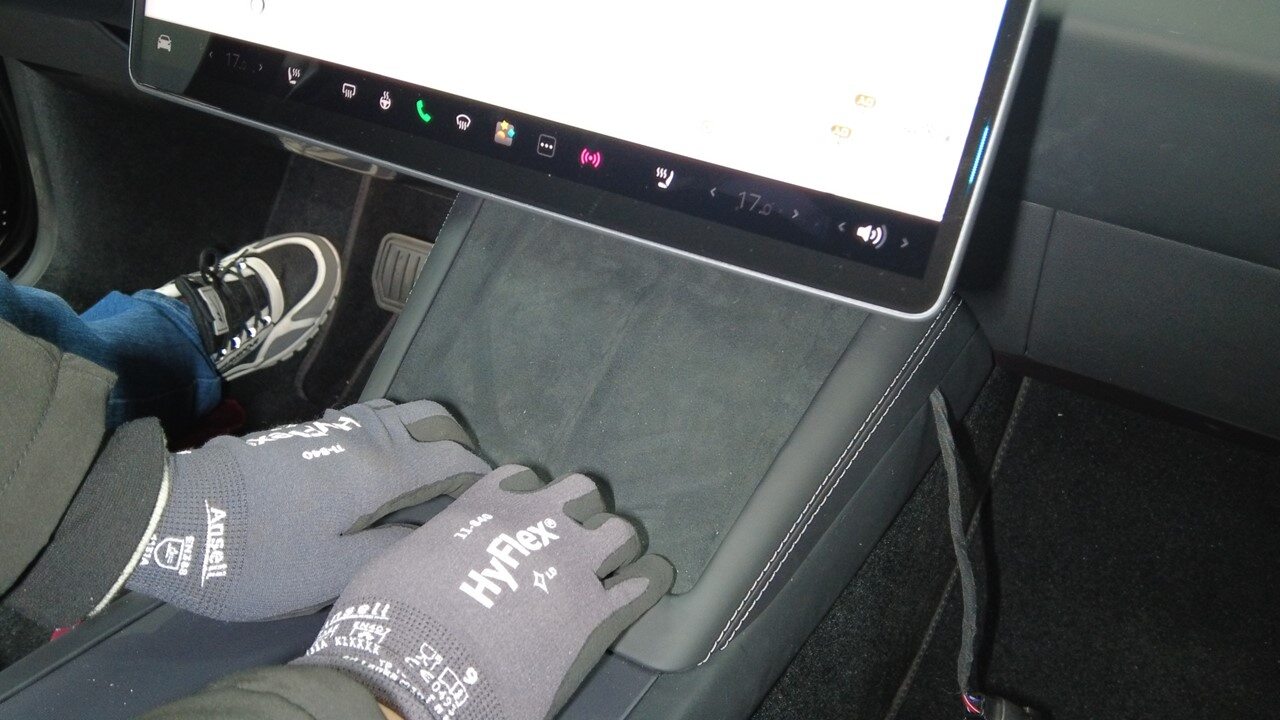

  1. Remove the center console assembly. See Center Console Assembly (Model 3 Standard) (Remove and Replace).

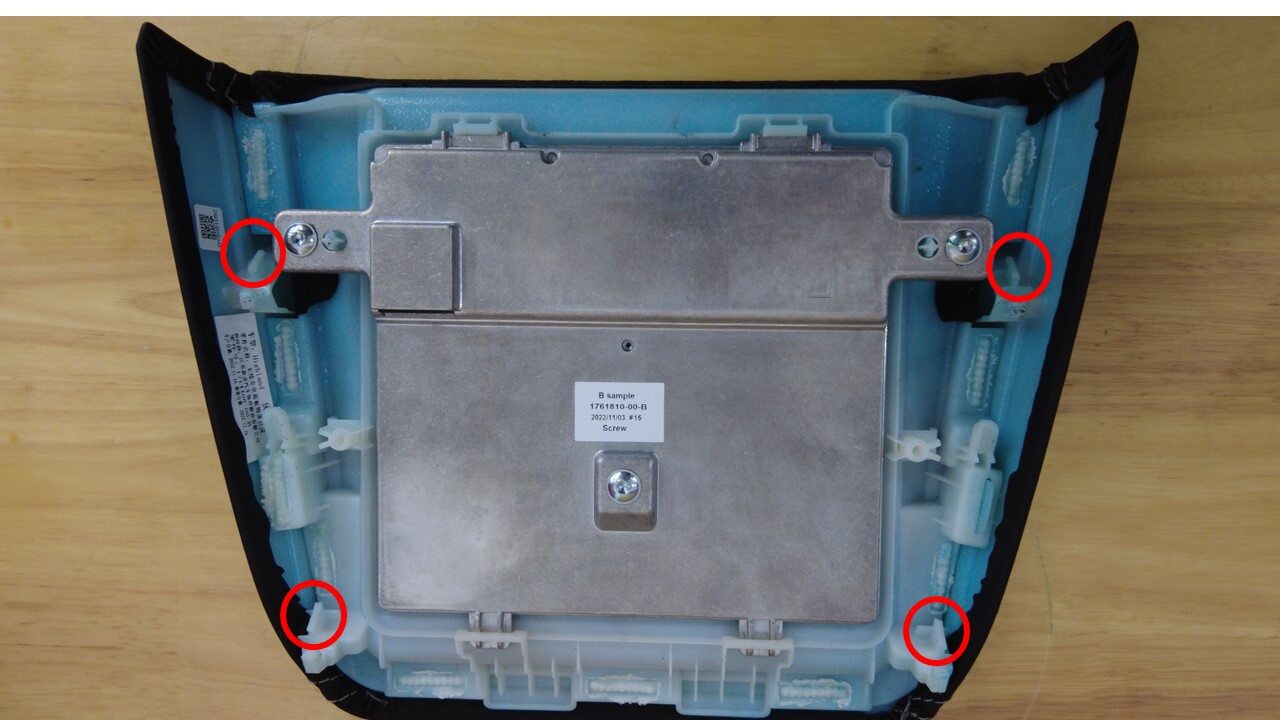

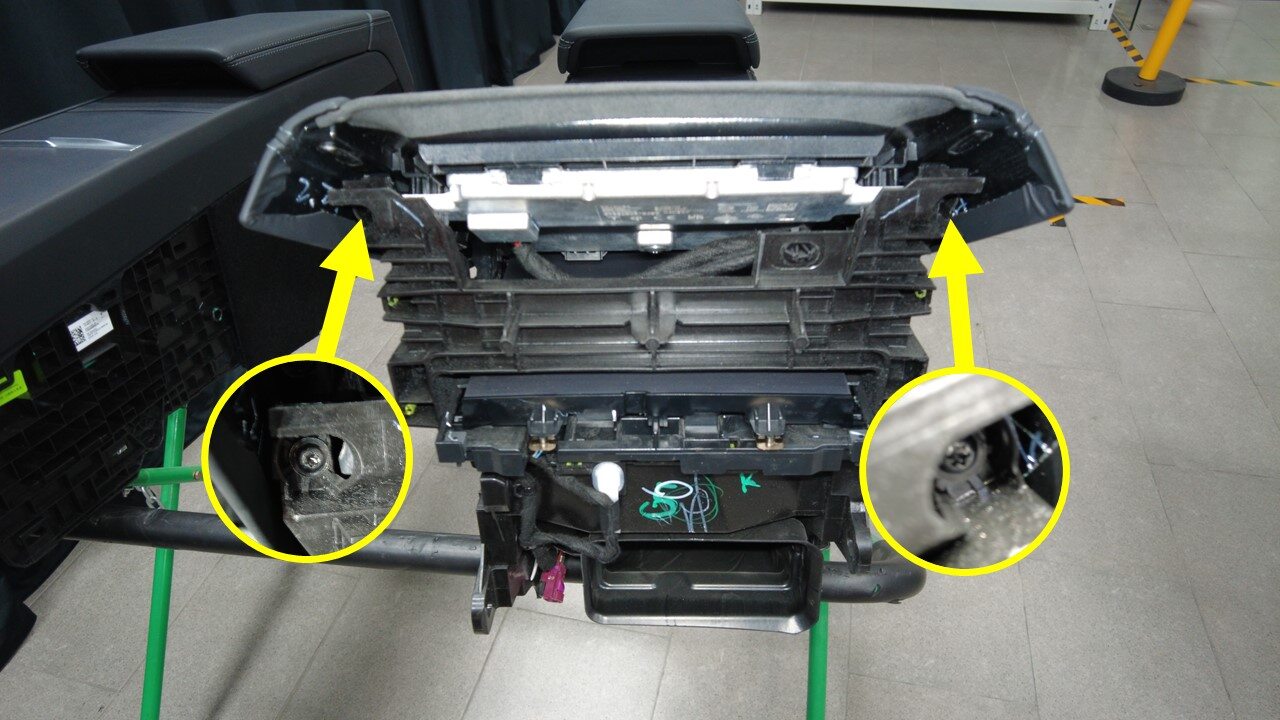

  2. Remove the screws (x2) that secure the phone dock to the center console assembly.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit

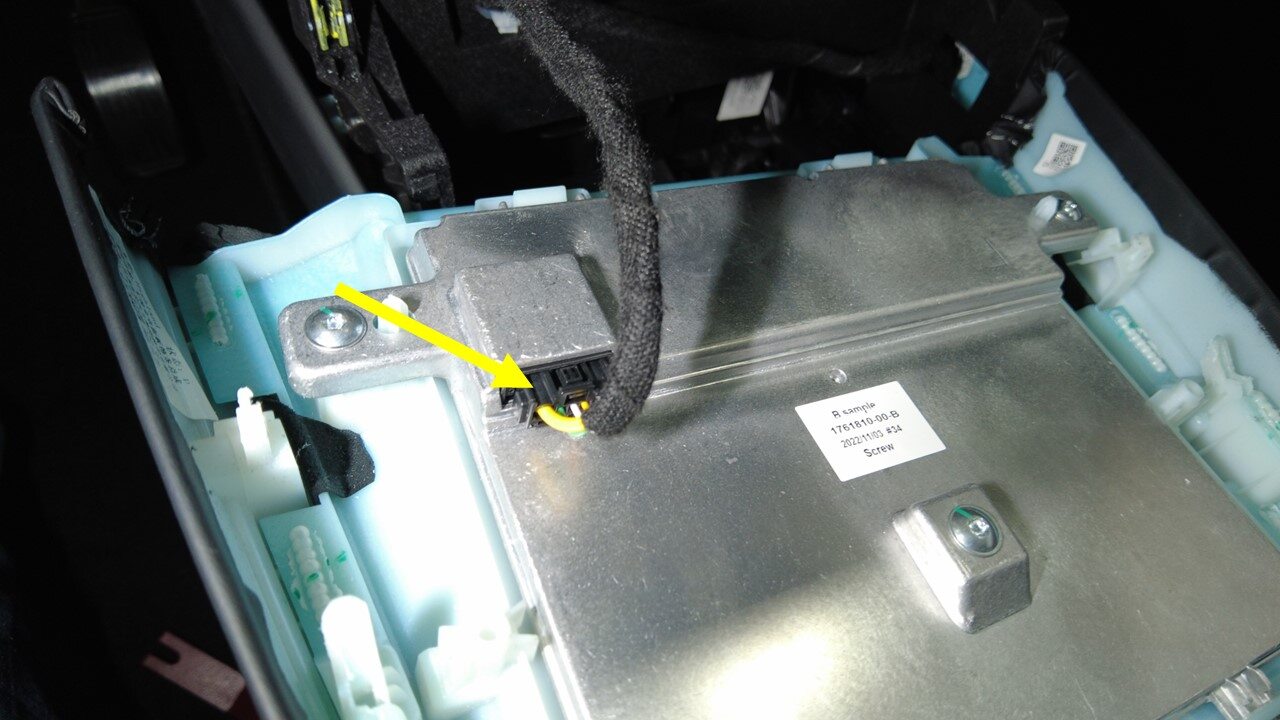

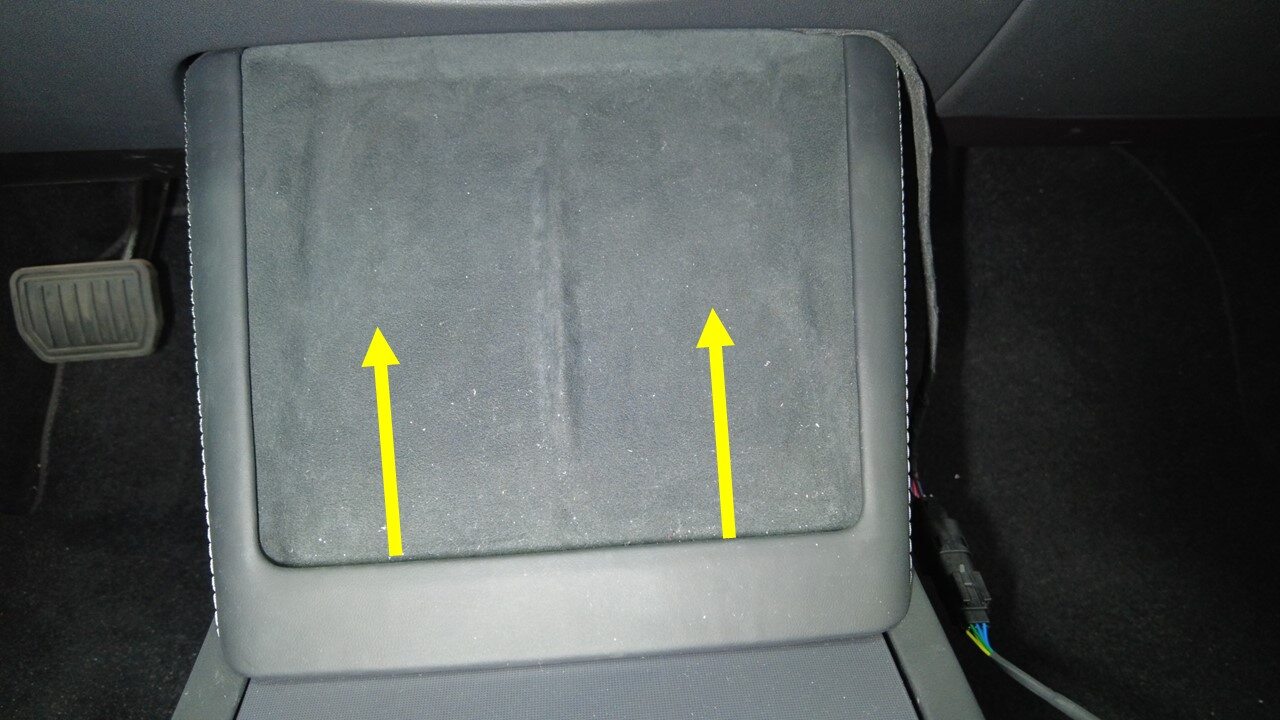

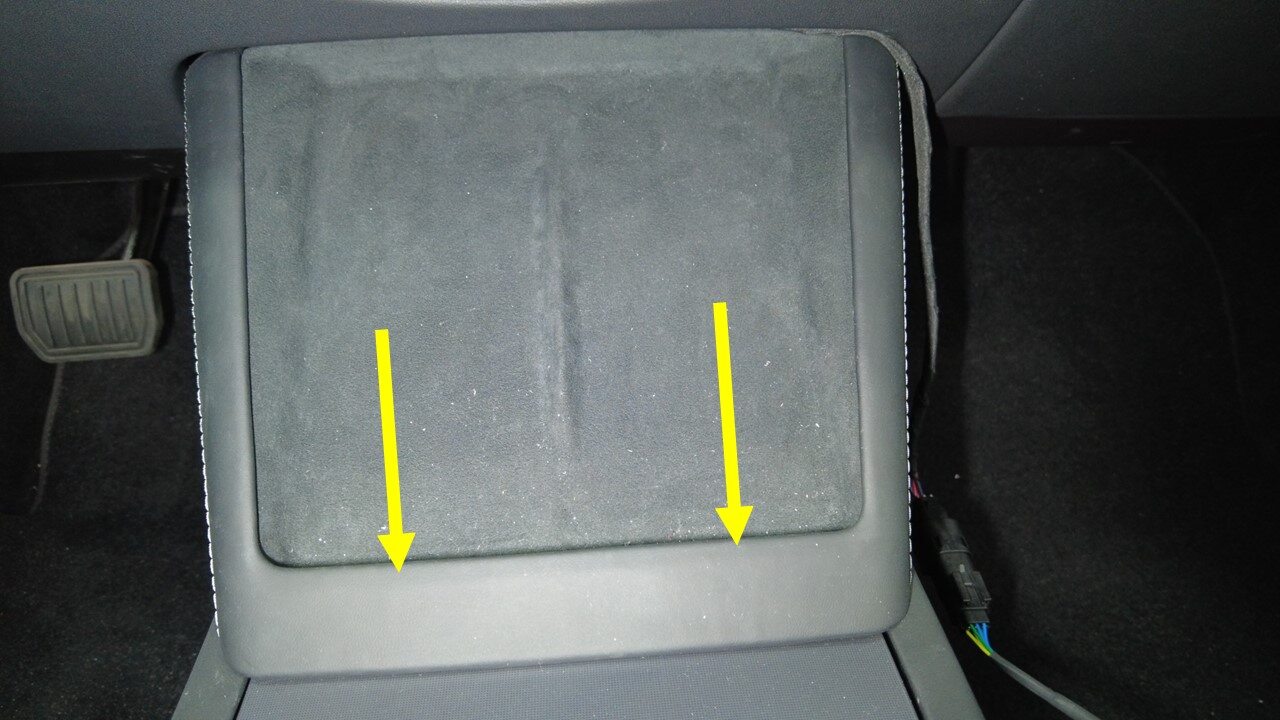

  3. Pull the phone dock assembly out, then slide it down to release the guide tabs. Disconnect the connector.

Install

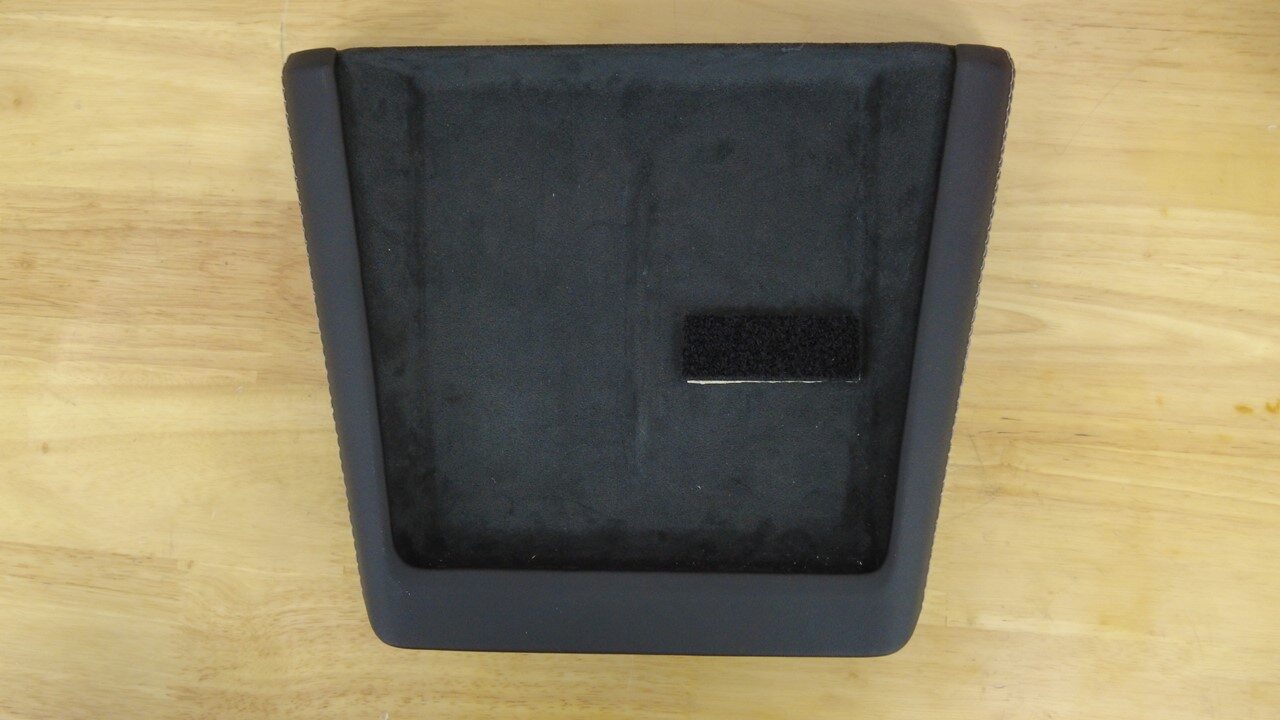

  1. Connect the phone dock connector, then install the phone dock assembly.
    Note

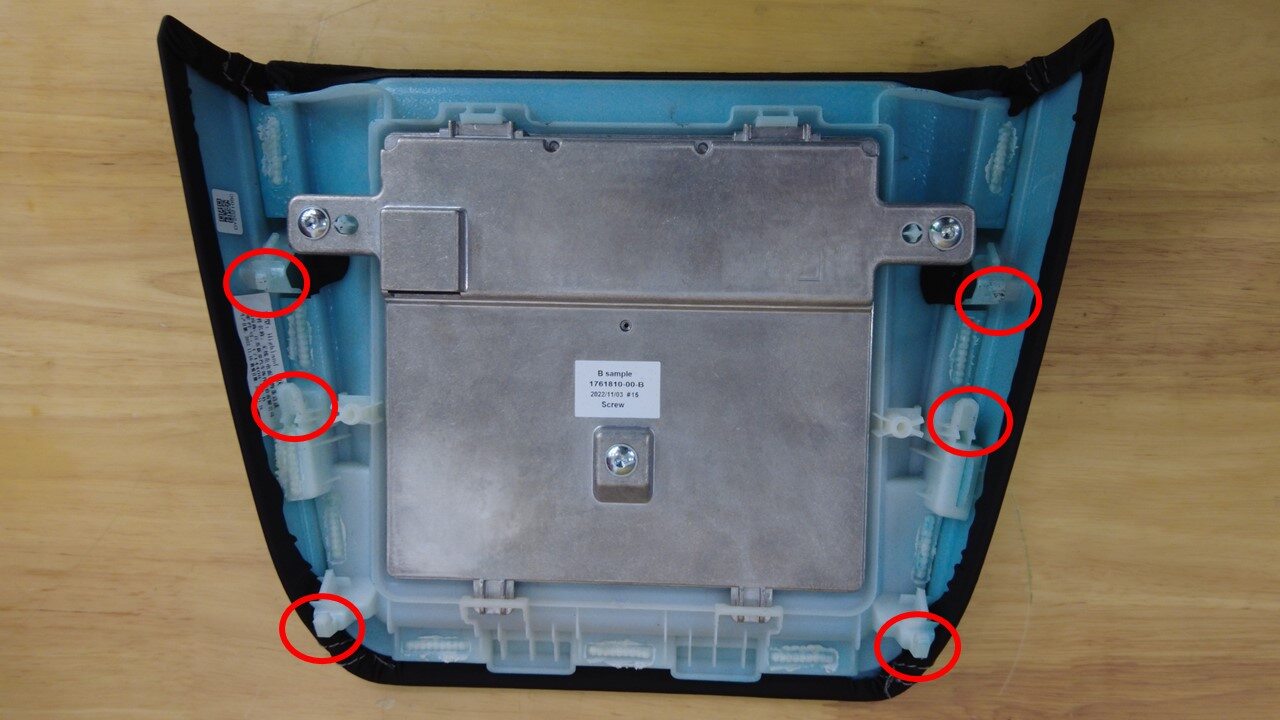

    Slide the guide tabs into the center console, then push to secure the clips (x6).
  2. Install the screws (x2) that secure the phone dock to he center console assembly
    Tip
    Use of the following tool(s) is recommended:
    • Torx T20 bit
  3. Install the center console assembly. See Center Console Assembly (Model 3 Standard) (Remove and Replace).
