Insulator - Fast Charge Access (Remove and Replace)
Correction code
1630010082
FRT
1.56
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Only
technicians who have completed all required certification courses are permitted to
perform this procedure. Tesla recommends third party service provider technicians
undergo equivalent training before performing this procedure. For more information on
Tesla Technician requirements, or descriptions of the subject matter for third parties,
see HV Certification Requirements. Proper personal protective equipment (PPE) and insulating HV
gloves with a minimum rating of class 0 (1000V) must
be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness
Care Points
for additional safety
information.
Remove

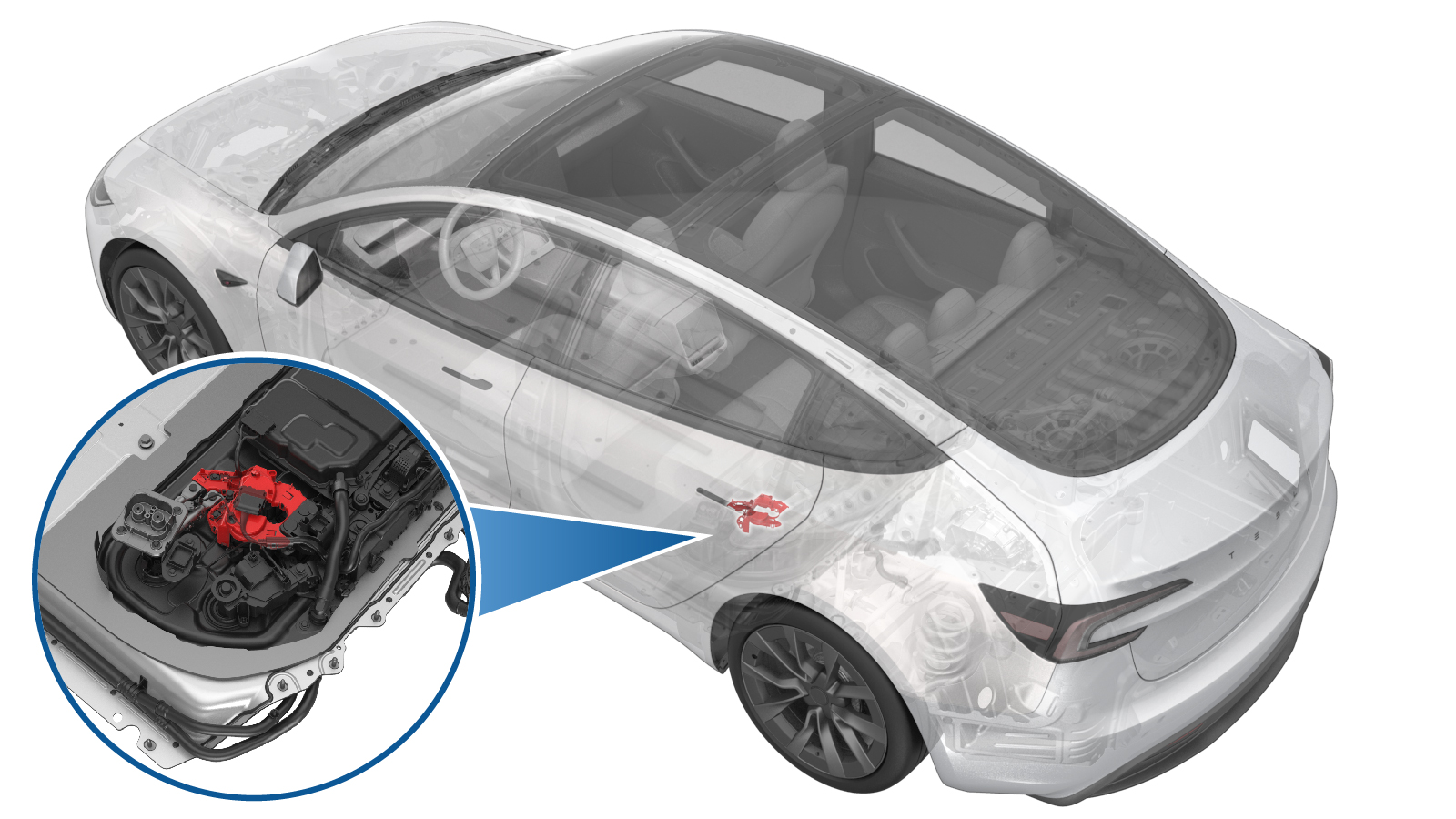

- Remove the fast charge contractor assembly. See Contactor - Fast Charge - HV Battery (Remove and Replace).
-

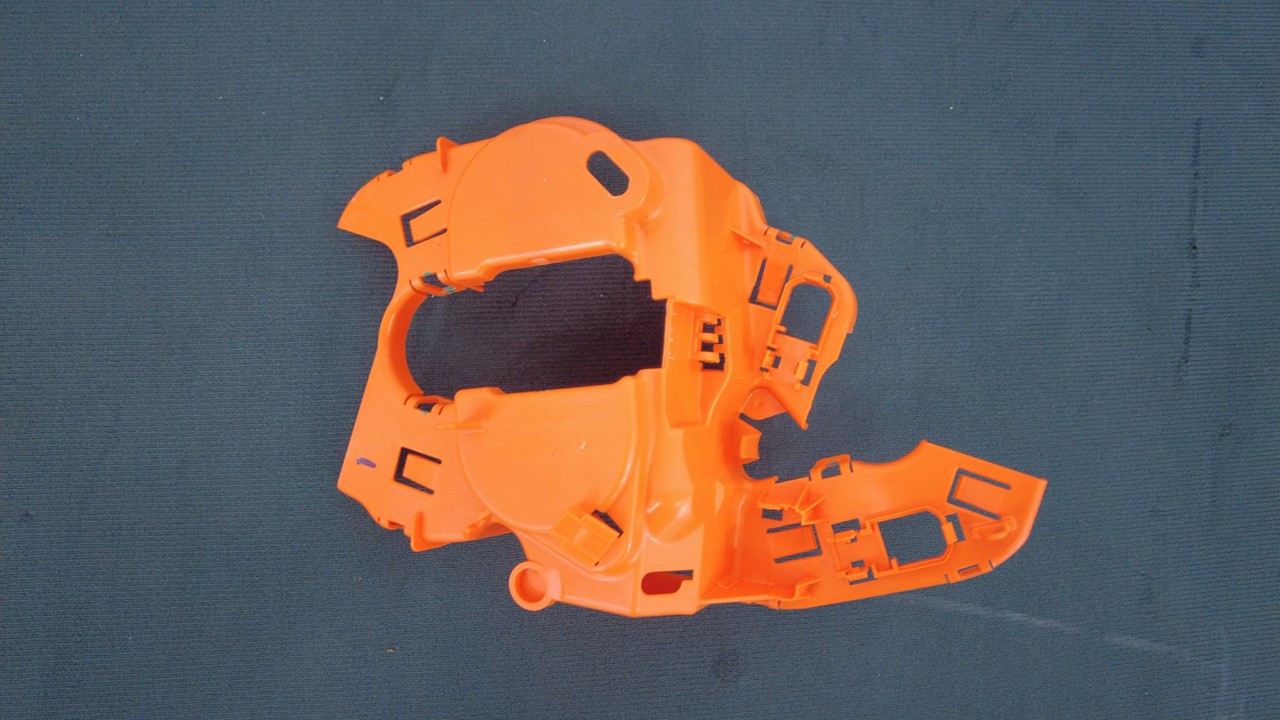

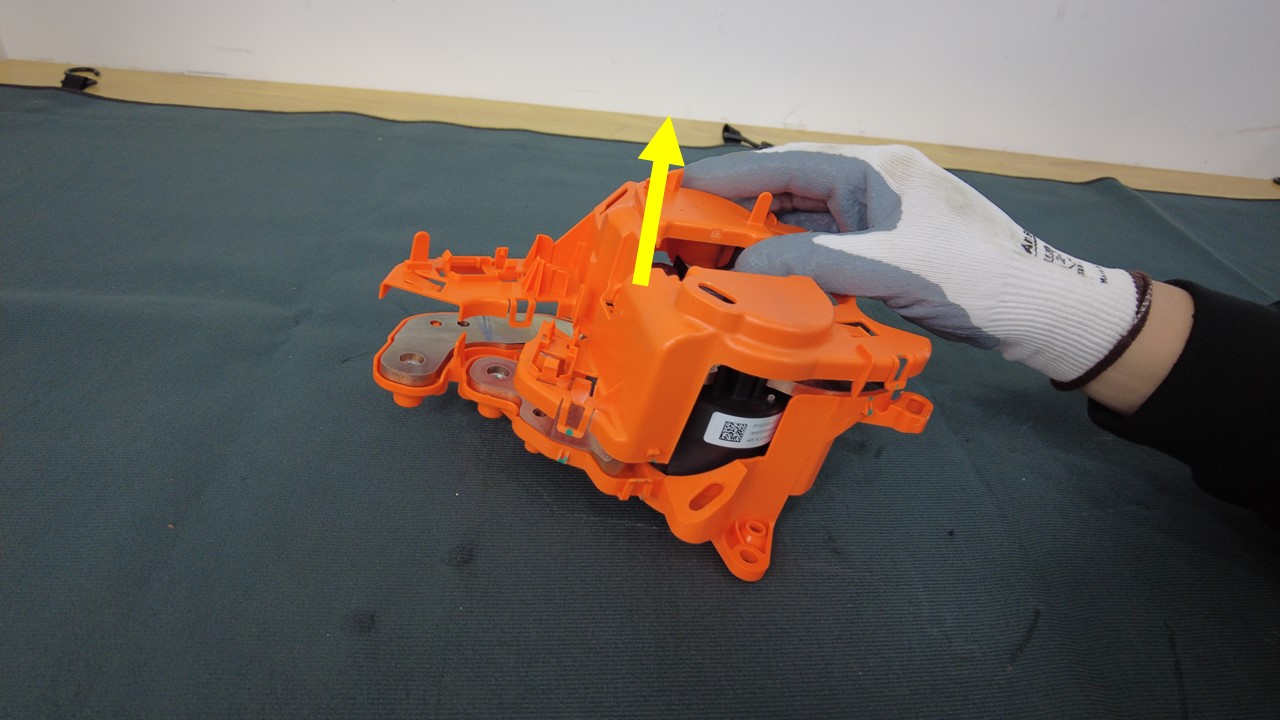

Remove and discard fast charge insulator cover from fast charge
assembly.
Install
-

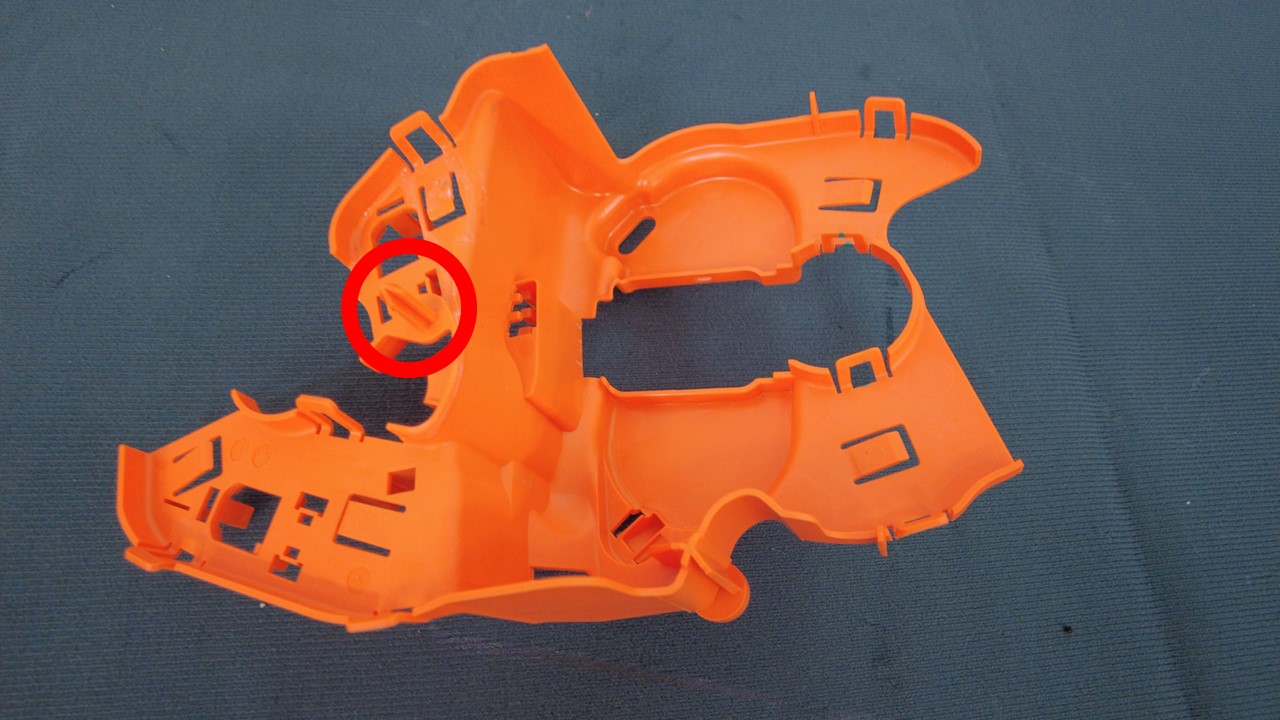

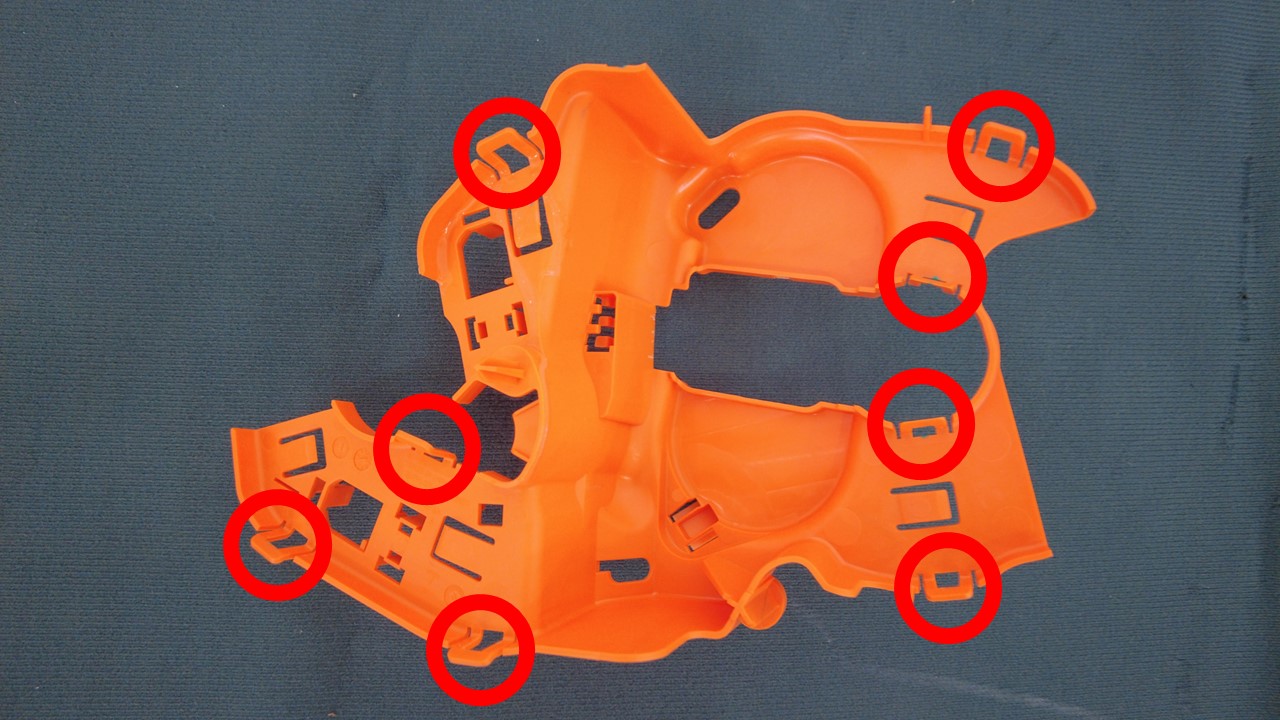

Install the new fast charge insulator cover from fast charge
assembly.
- Install the fast charge contractor assembly. See Contactor - Fast Charge - HV Battery (Remove and Replace).
