Seal - Frunk (Remove and Replace)
Correction code
1224057012
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove

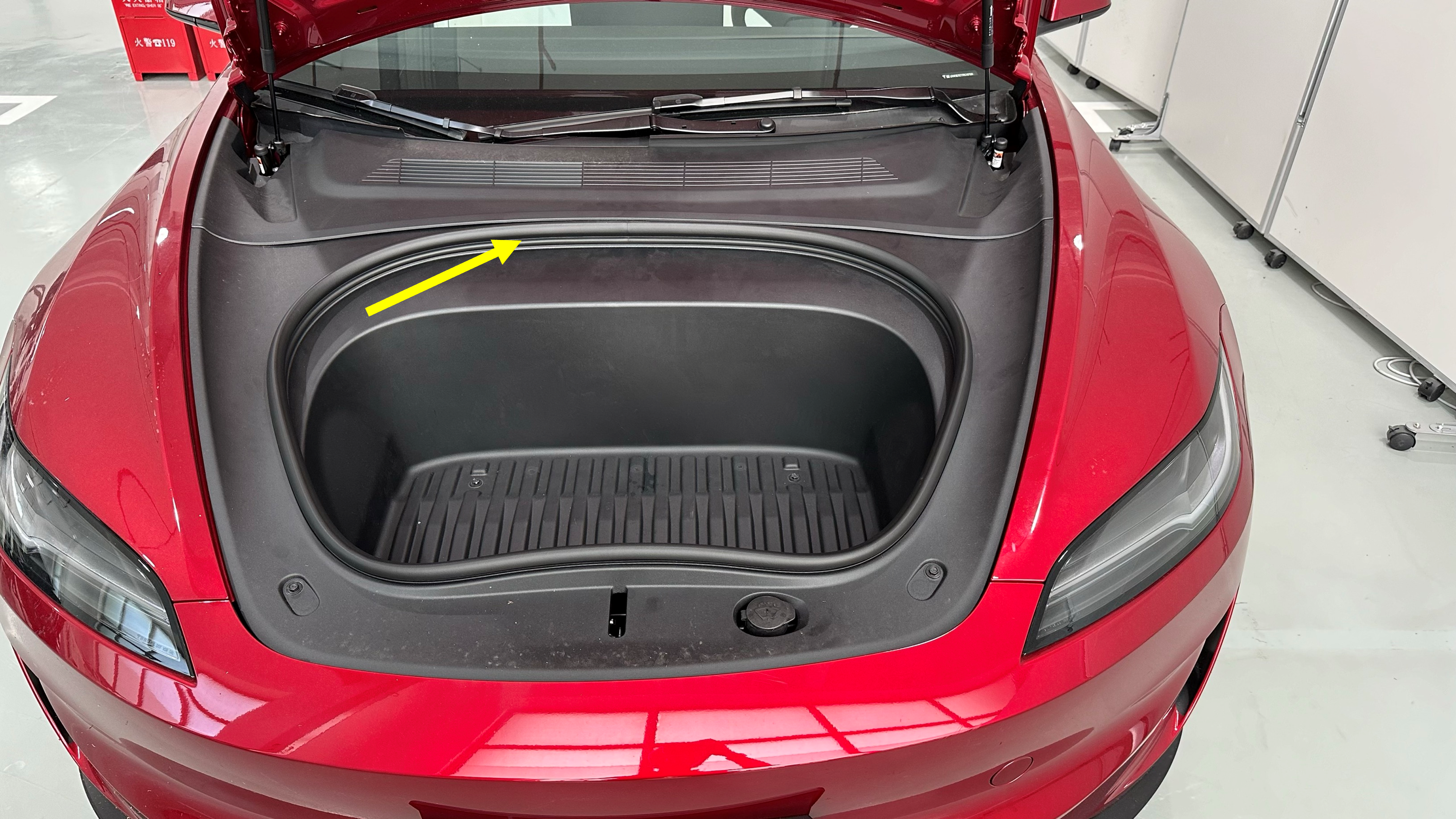

- Open the hood.
-
Remove the frunk seal from the edge of the frunk.
NotePull the seal upward and work way around to remove.
Install
-

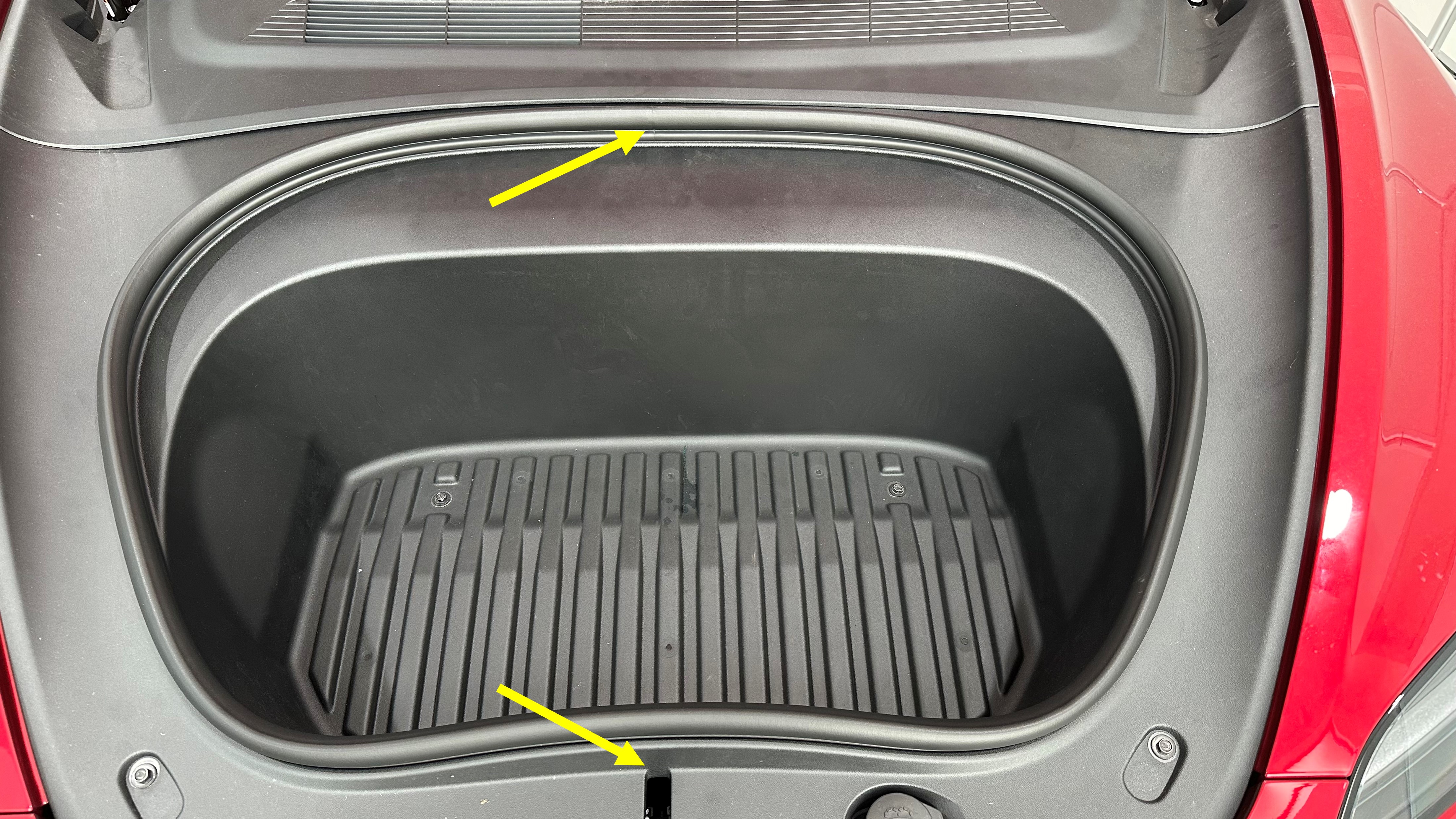

Install the frunk seal to the edge of the frunk.
NotePlace the line on the seal opposite the frunk hood latch and work way around to install.
- Close the hood.
