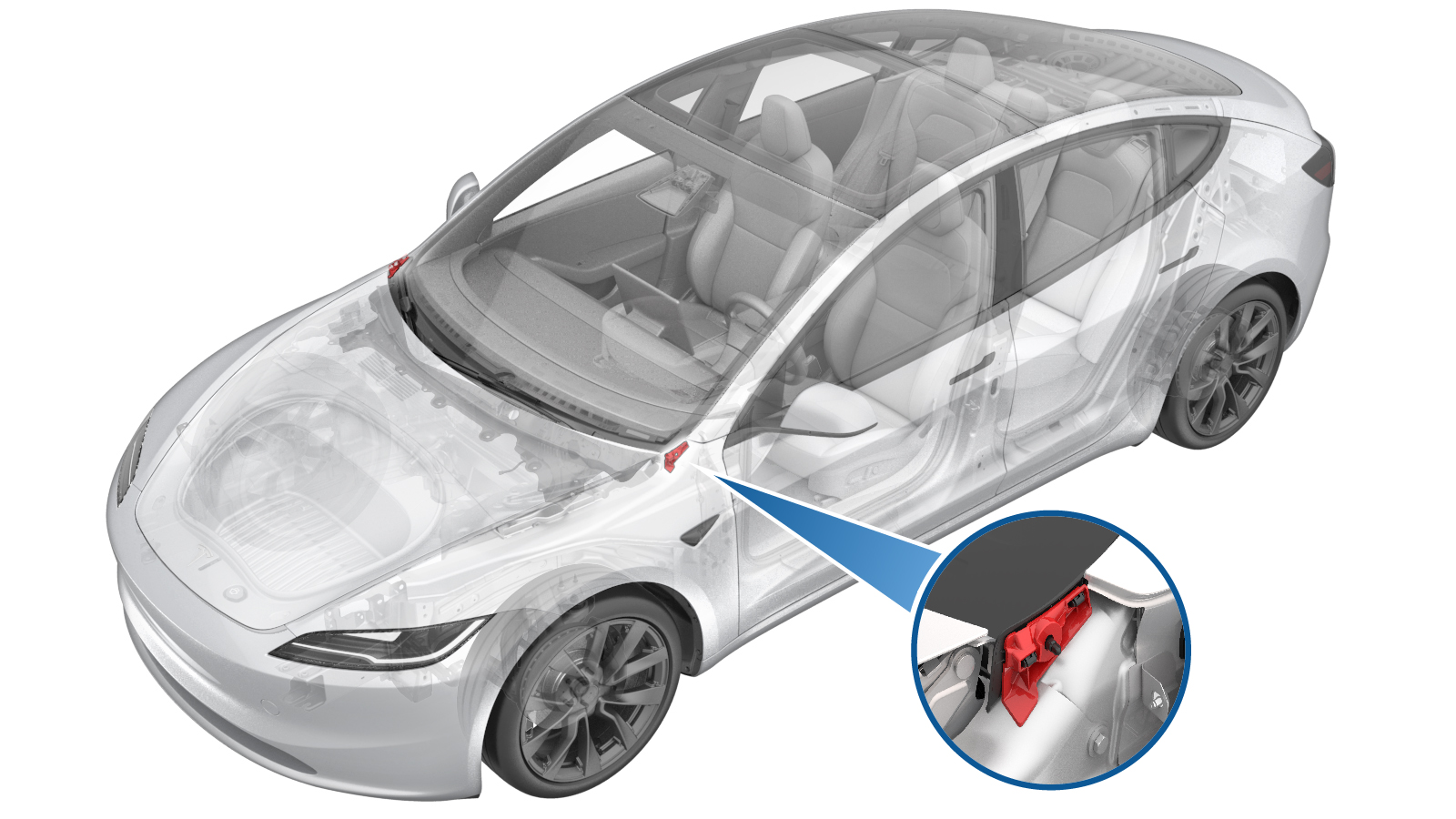

Carrier Bracket - Cowl Screen - LH (Remove and Replace)
Correction code
1225010042
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the LH hood hinge cover. See Cover - Hood Hinge - LH (Remove and Replace).
-

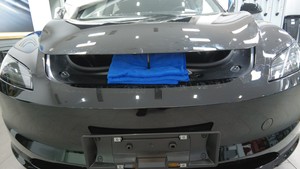

Place a towel on the latch and close the hood partially.
-

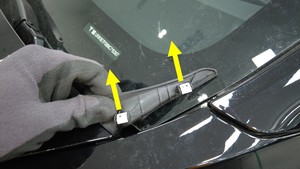

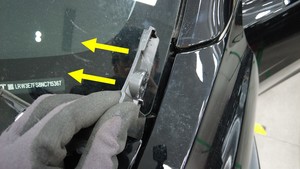

Release the clips (x2) of
the LH cowl screen that attach the cowl screen to the bracket.
-

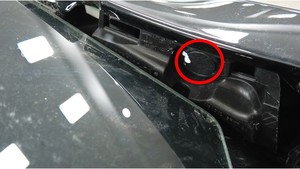

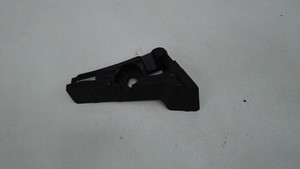

Release the clip that
attaches the bracket to the vehicle, and then remove the cover from the
vehicle.
Install
-
Install the clip that
attaches the bracket to the vehicle.
-

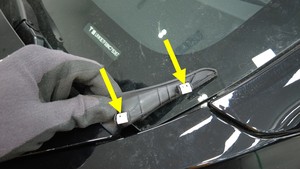

Install the LH clips (x2) of
the cowl screen that attach the cowl screen to the bracket.
- Open the hood and remove the towel.
- Install the LH hood hinge cover. See Cover - Hood Hinge - LH (Remove and Replace).
