iTPMS to TPMS (Model 3 Standard) (Retrofit)
Correction code
34020100806
FRT
0.06
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Procedure
- Enter Service Mode. See Service Mode
- Unlock the vehicle gateway. See Gateway Unlock.
-
Perform the following
routine using Service Mode or Toolbox (see 0005 - Service Modes):

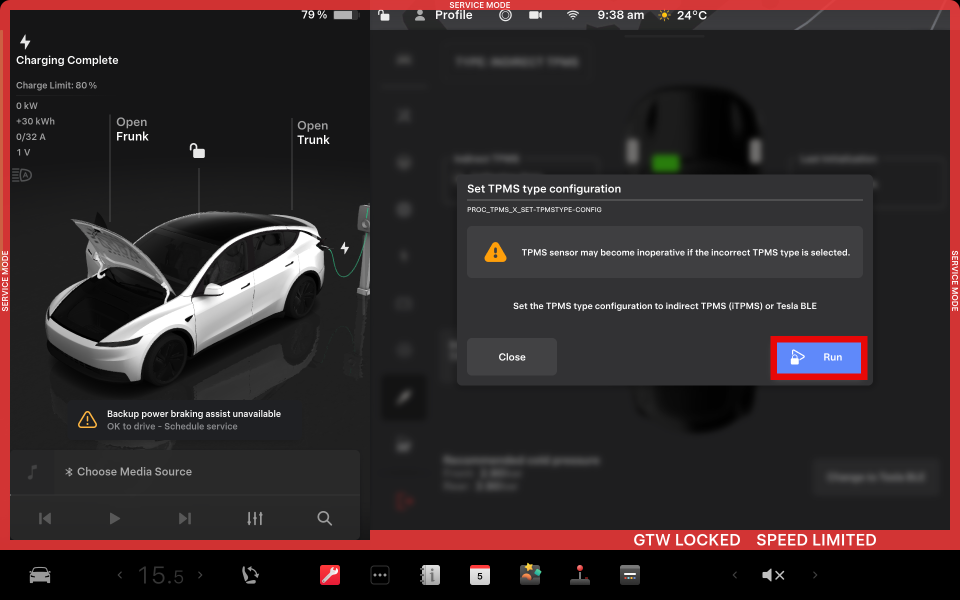

PROC_TPMS_X_SET-TPMSTYPE-CONFIGvia Service Mode:
- Chassis ➜ TPMS ➜ Set to or TESLA_BLE or Continental or Tesla BLE
- Chassis ➜ TPMS ➜ Change to or TESLA_BLE or Indirect TPMS or Tesla BLE
- Exit Service Mode. See Service Mode.
