Label - High Voltage Marking - Rear Drive Unit (4DU) (Remove and Replace)
Correction code
4001010012
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
- Remove the rear aero shield panel. See Panel - Aero Shield - Rear (Remove and Replace).
-

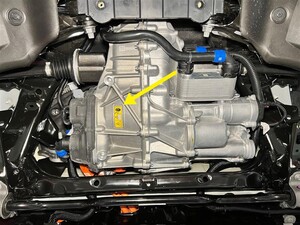

Remove the HV marking label.
- Use IPA wipes to clean the surface area and prepare for the HV marking label installation.
Install
-
Install the HV marking label.
- Install the rear aero shield panel. See Panel - Aero Shield - Rear (Remove and Replace).
- Lower the vehicle fully and remove the lift arms from below the vehicle.
