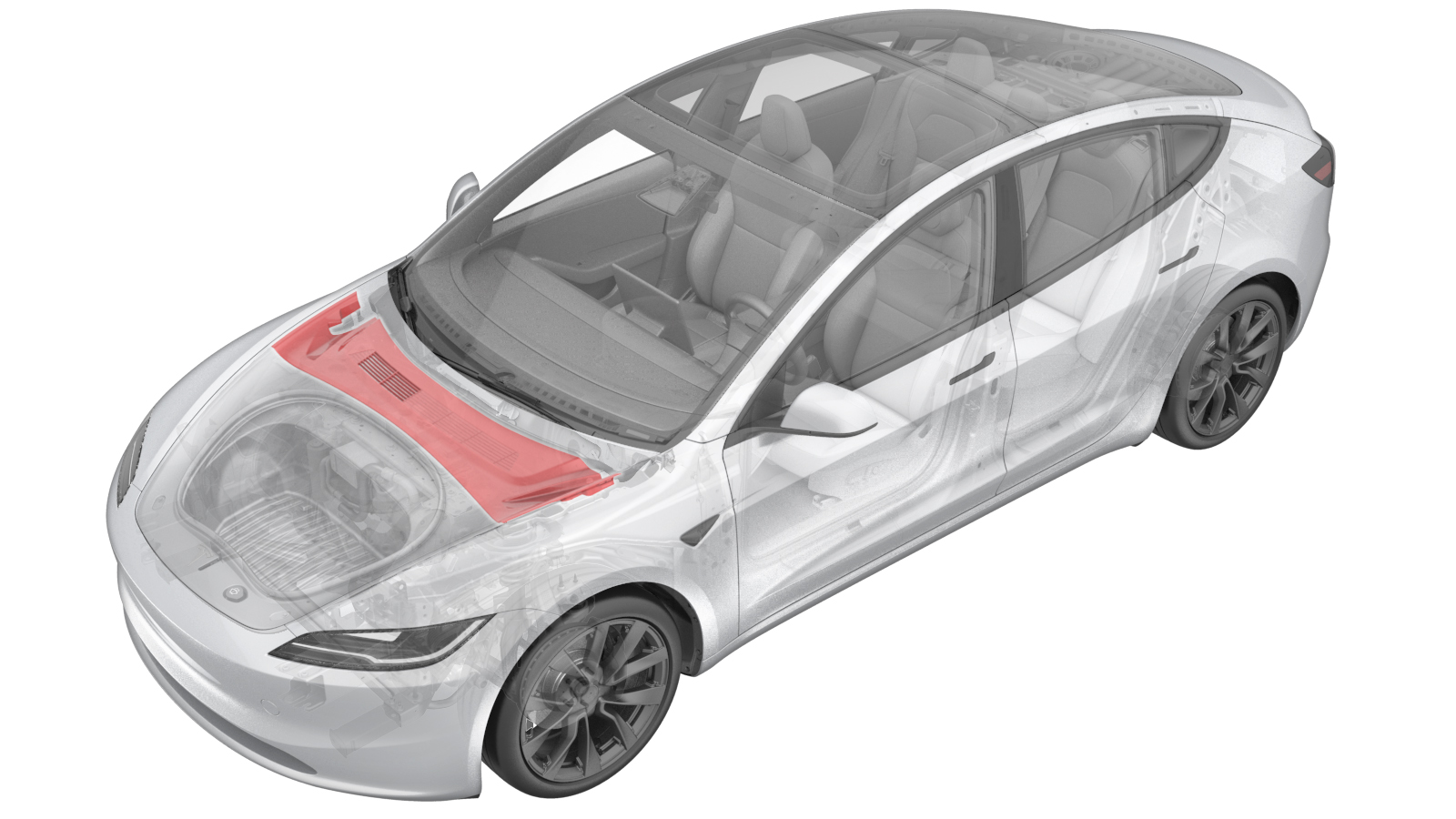

Underhood Apron - Rear (Remove and Replace)

Correction code 1225010062 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2023-11-23: Update to keep the first responder loop label from visible to not visible after installation.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

Remove

  1. Open the hood.

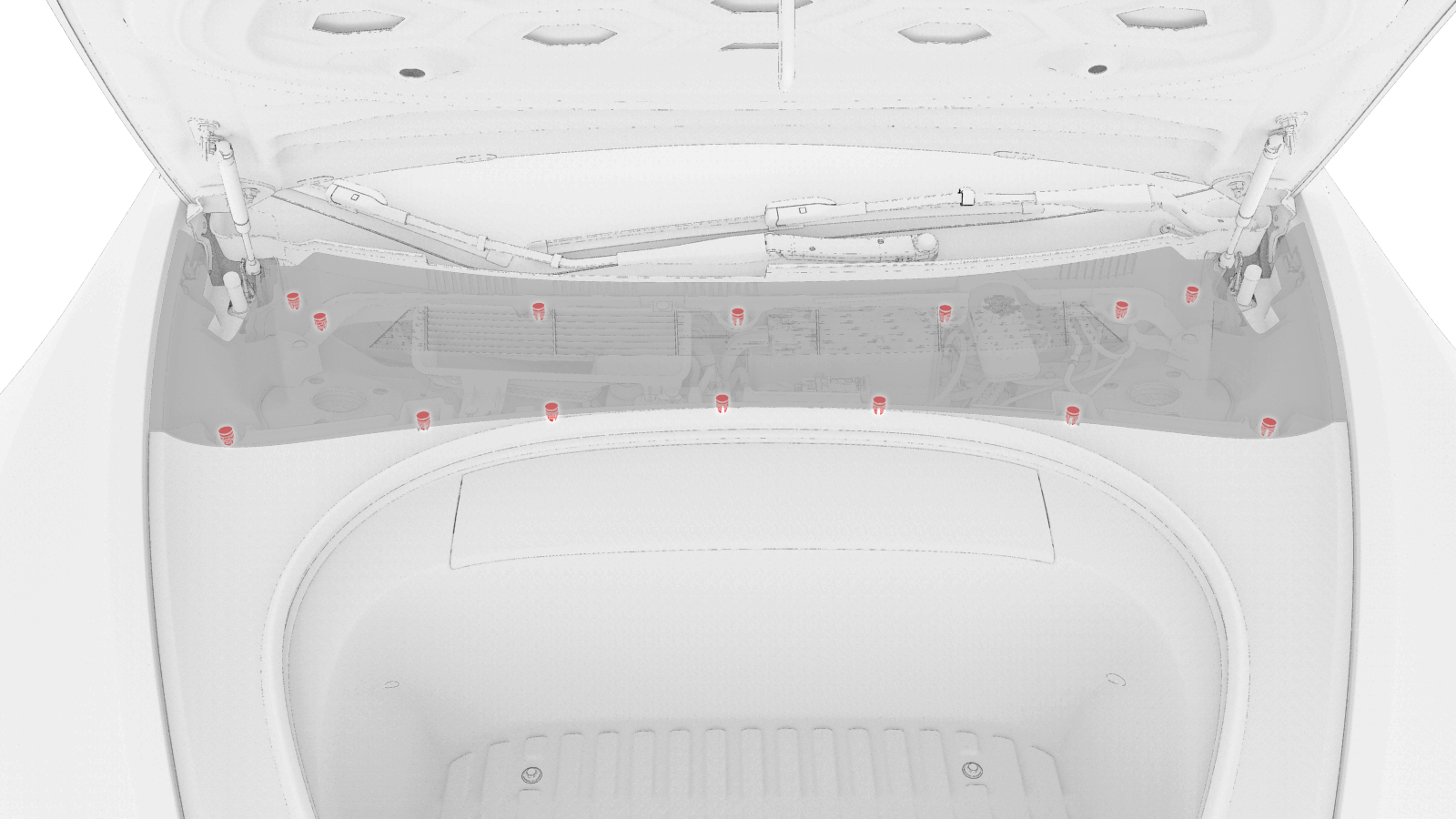

  2. Use the clip tool to release the clips (x14) that attach the rear underhood apron to the vehicle, and then remove the apron from the vehicle.

Install

  1. Install the clips (x14) that attach the rear underhood apron to the vehicle, and then install the apron to the vehicle.
  2. Close the hood.
  3. If equipped, ensure the first responder loop label is not visible after installing the rear apron.
