License Plate Light (Remove and Replace)
Correction code
1740020052
FRT
0.12
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2025-12-26: Added the trunk latch cover steps.
Remove
- Remove the trunk latch cover. See Cover - Latch - Trunk (Remove and Replace).
- Remove the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
-

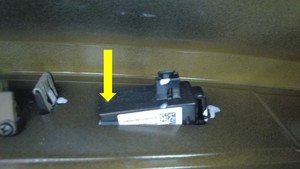

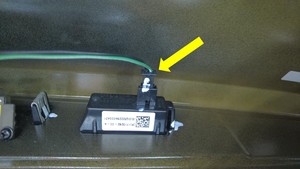

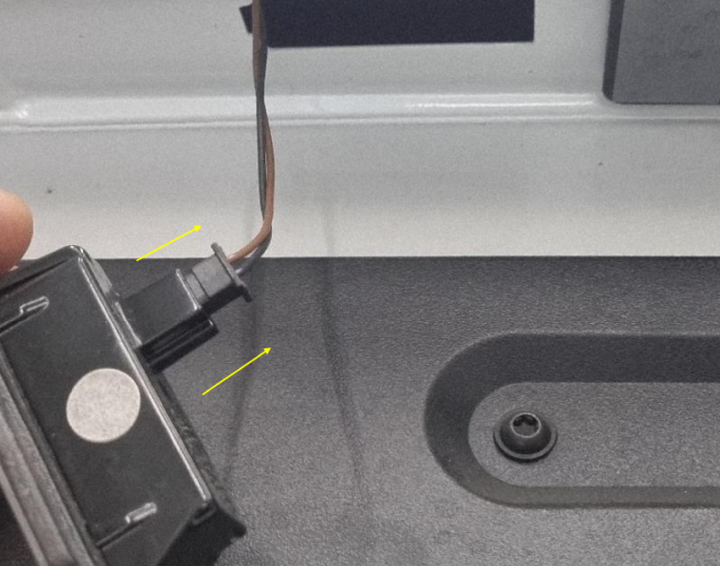

Disconnect the electrical connector from the license plate light.
-

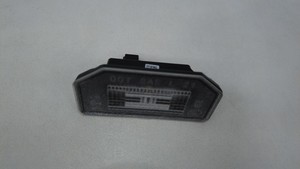

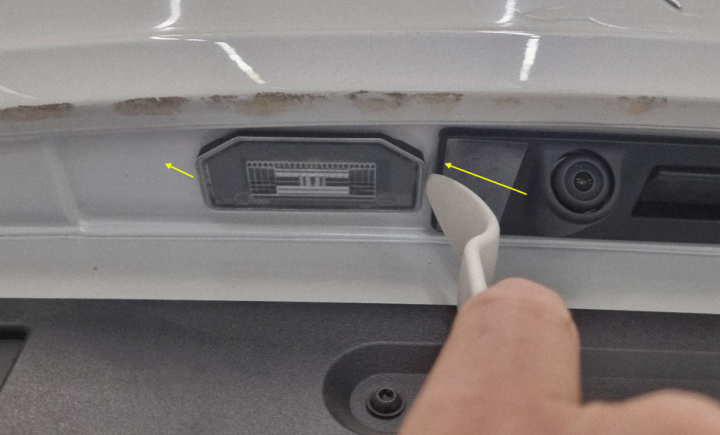

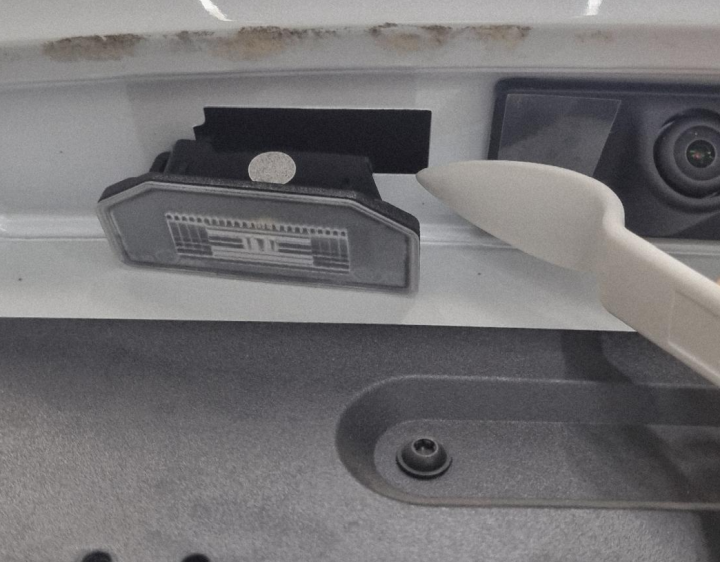

Push the license plate light
towards the RH of the vehicle to compress the clip, and then compress the
clip on the other side of the light to remove the light.
Install
-
Install the license plate light to the vehicle.
-
Connect the electrical connector to
the license plate light.
- Install the trunk lid trim. See Trim - Lid - Trunk (Remove and Replace).
- Install the trunk latch cover. See Cover - Latch - Trunk (Remove and Replace).
