Shroud - Lower - Steering Column (Model 3 Standard) (Remove and Replace)
Correction code
32050200102
32050200101
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
- 2025-09-05: Released new procedure.
Remove
- Remove the steering wheel from the steering column. See Steering Wheel (Remove and Replace).
-

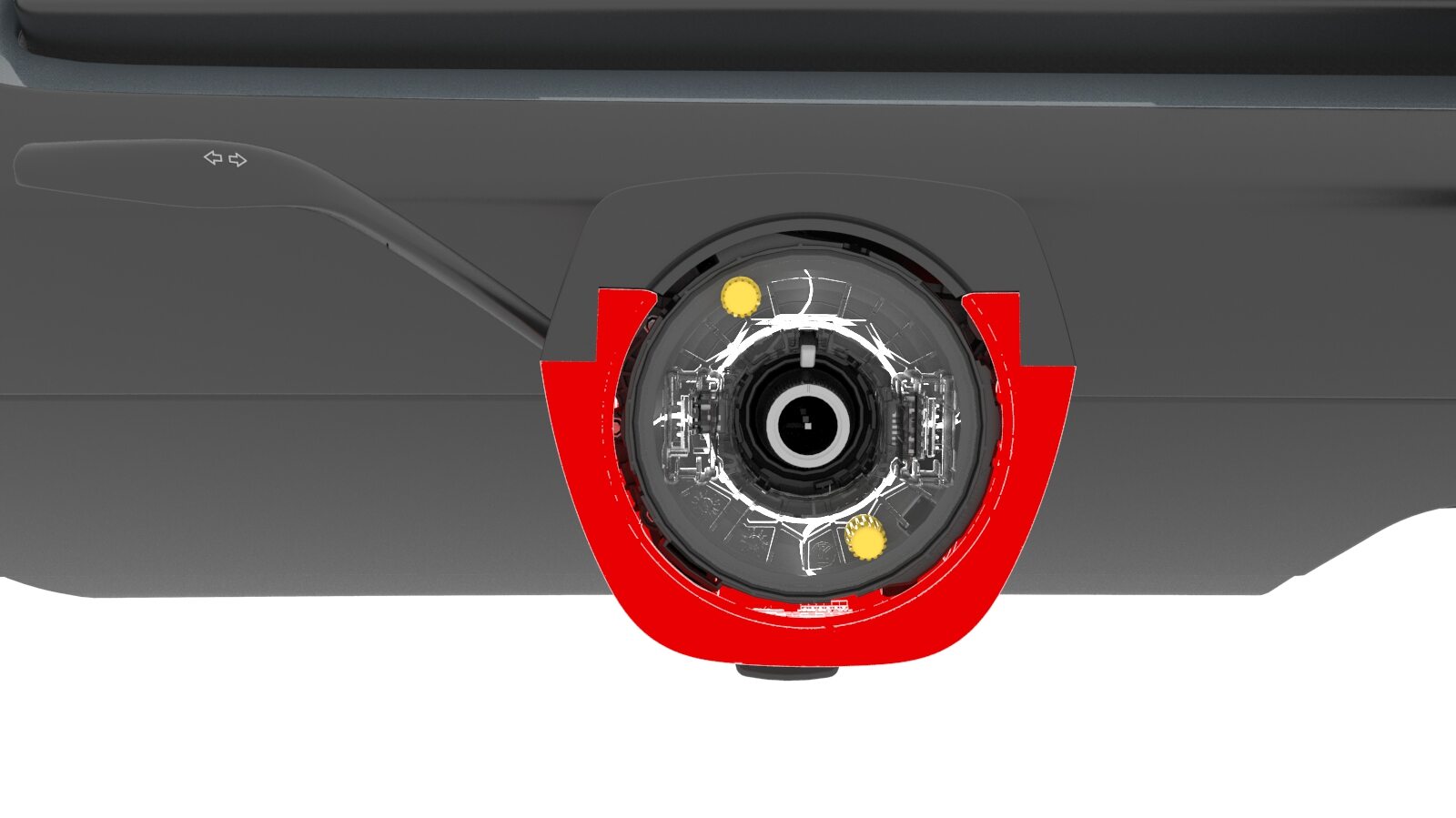

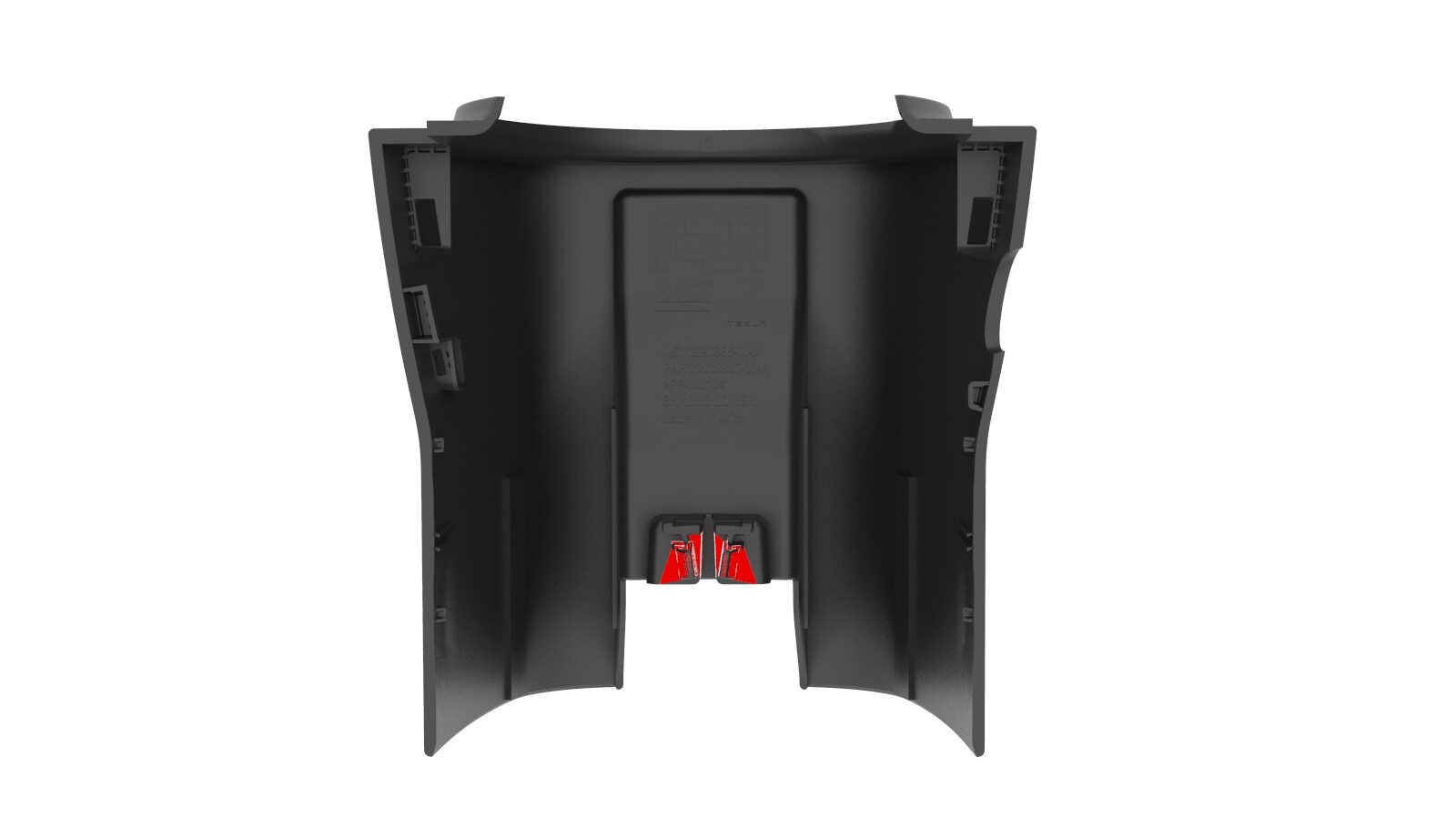

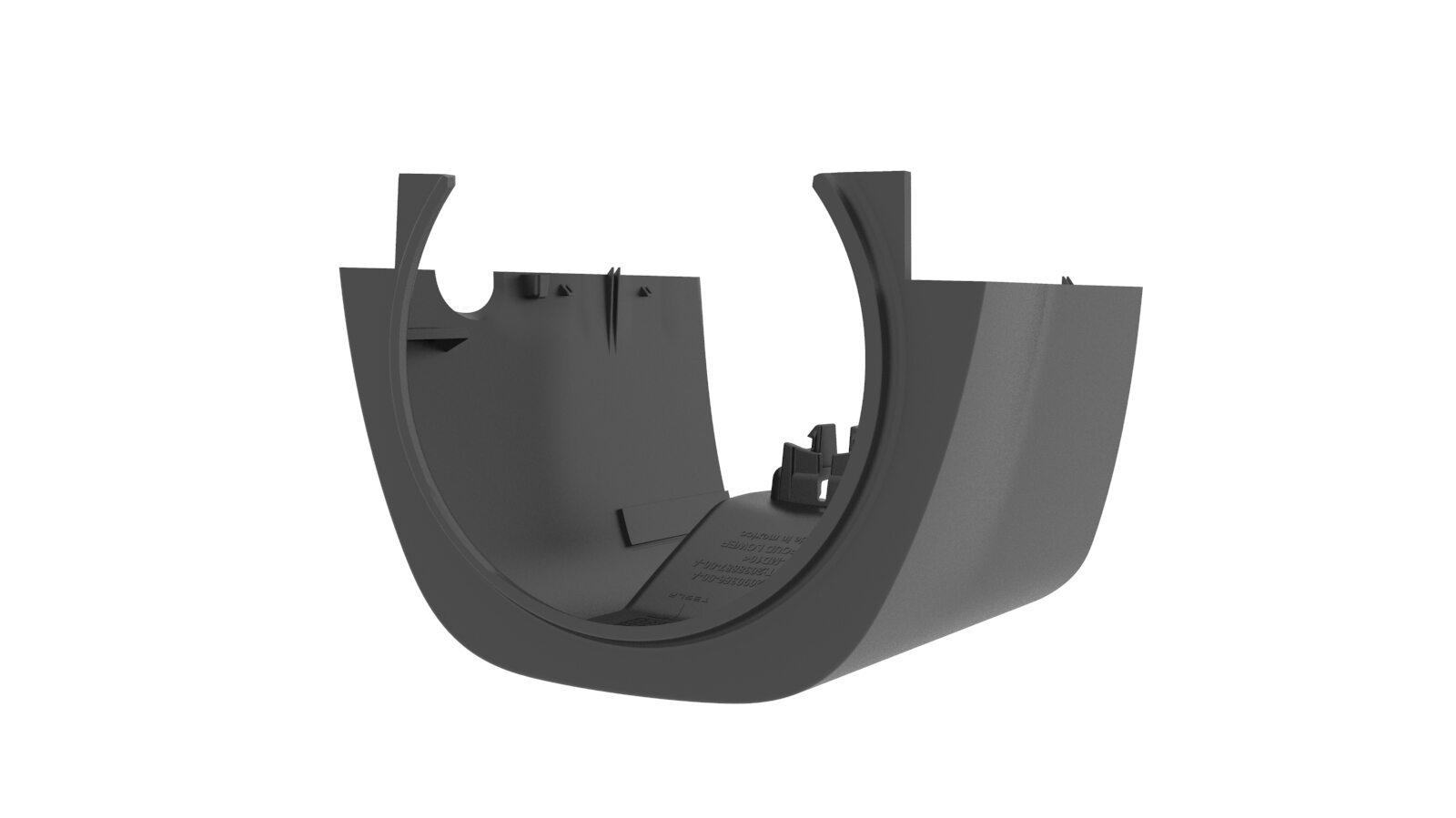

Release the steering column lower
shroud from the upper shroud.
Install
-

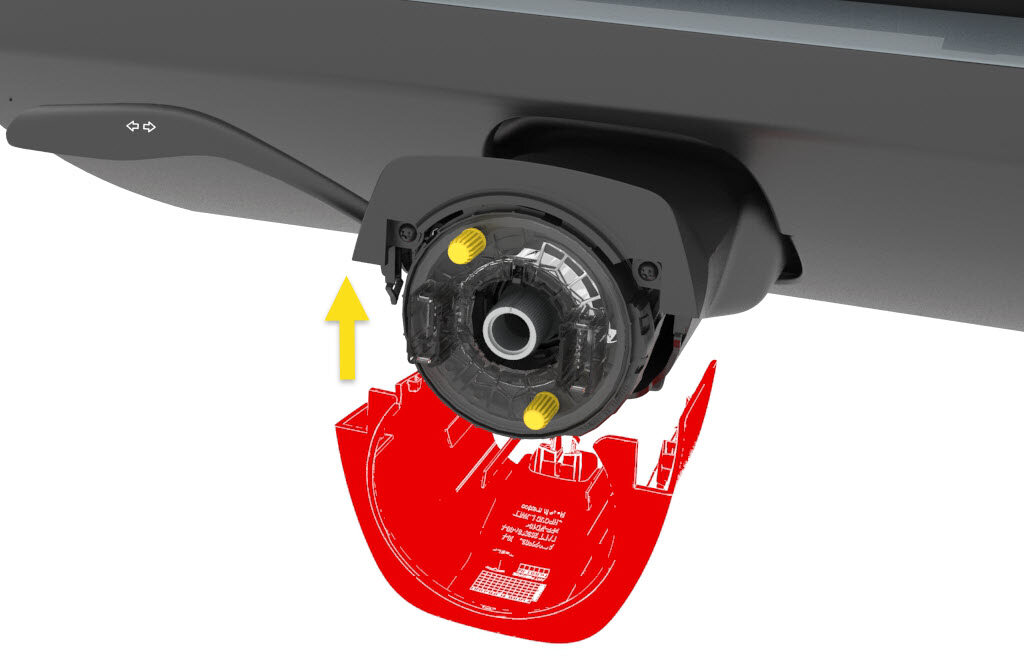

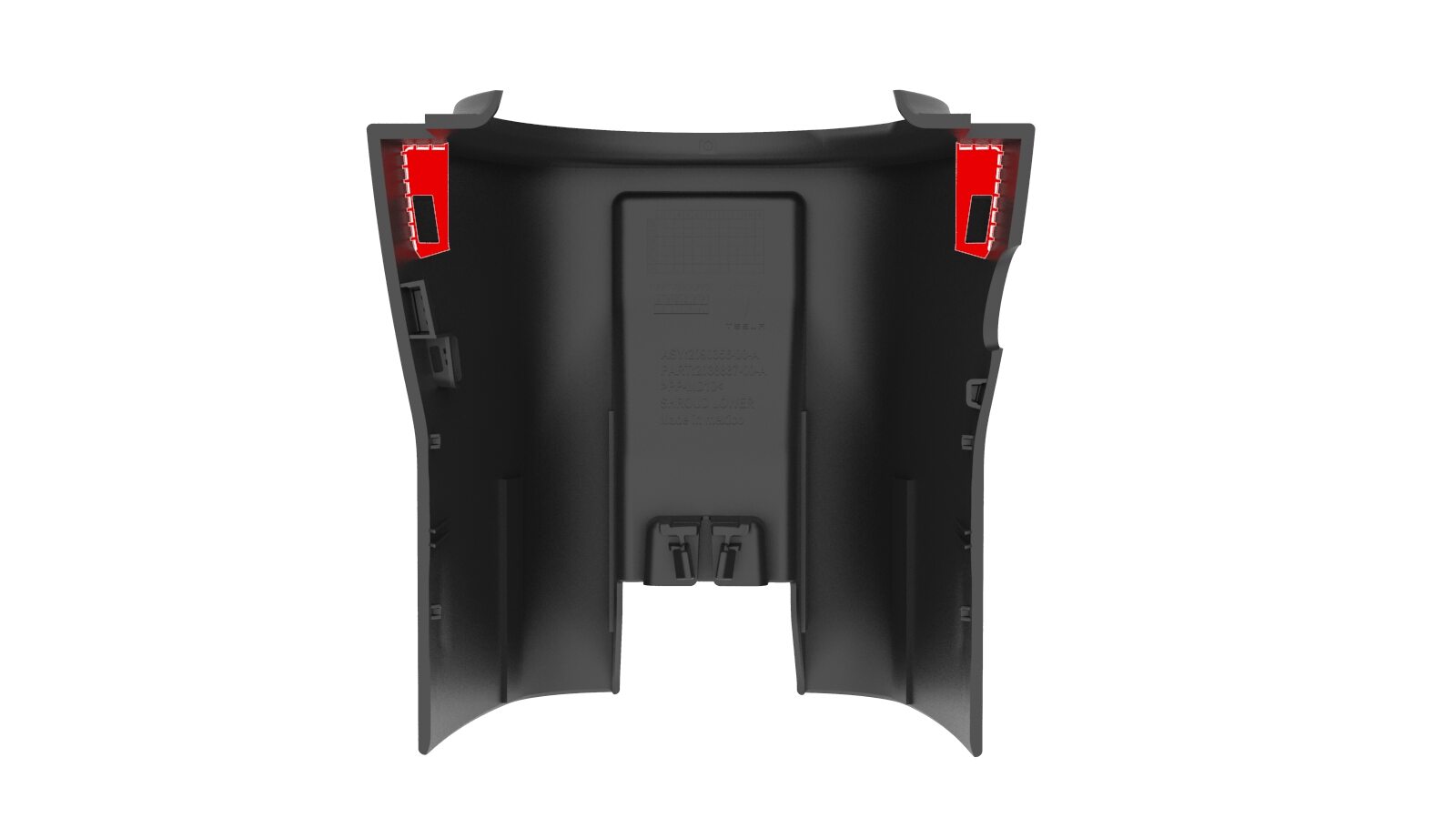

Install the steering column lower
shroud to the upper shroud.
- Install the steering wheel. See Steering Wheel (Remove and Replace).
