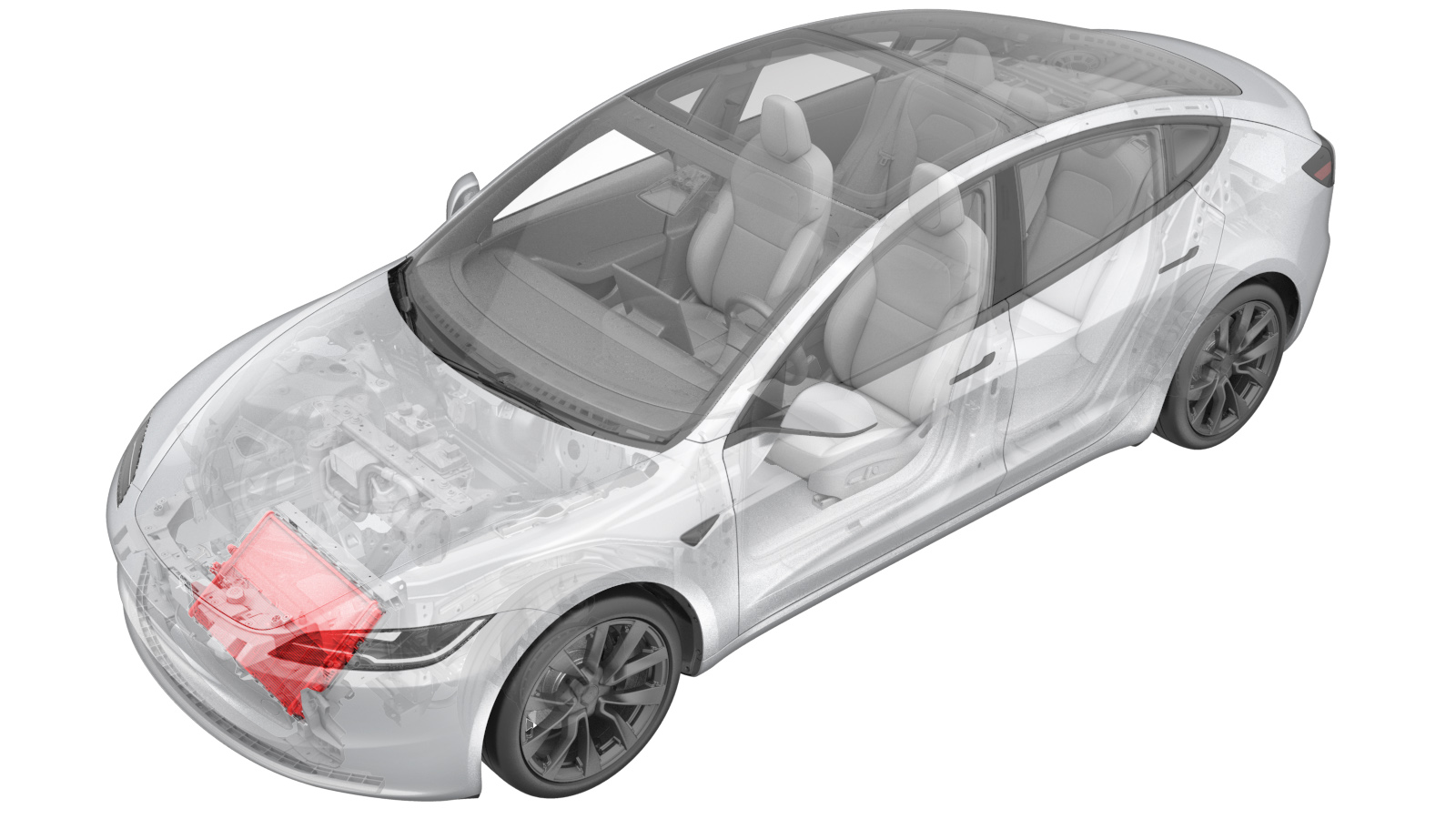

Radiator (Remove and Replace)

Correction code 1830010012 FRT 1.02 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-04: Added steps related to the stone guard.

Remove

  1. Remove the active grille shutter. See Active Grill Shutter (Remove and Replace).

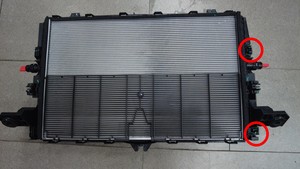

  2. Release the locking tabs that attach the radiator to the condenser fan assembly, and then slide the radiator out of the holding mounts.
  3. Remove the stone guard. See Stone Guard (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform this step only if the following conditions are met:
    • the old radiator is equipped with a stone guard.
    • the new radiator does not include a stone guard.

Install

  1. If removed, install the stone guard onto the radiator. See .

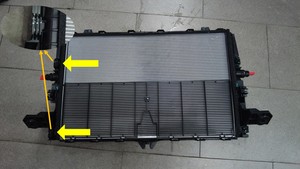

  2. Install the radiator to the cooling fan and shroud assembly, and install the locking tabs (x2) and holding mounts (x2) that attach the radiator to the cooling fan and shroud assembly.
  3. Install the active grille shutter. See Active Grill Shutter (Remove and Replace).
