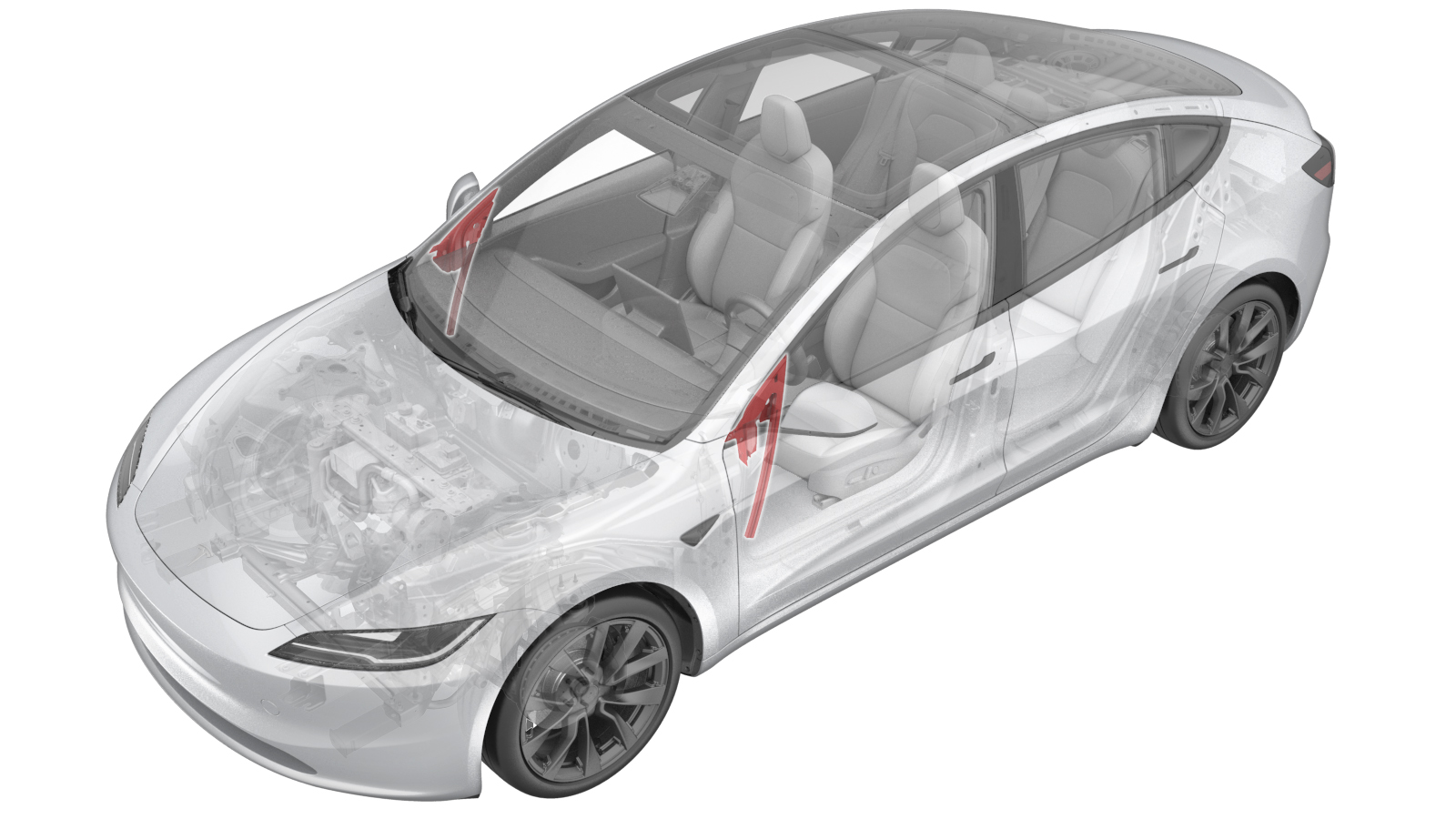

Seal - Glass Run - Front Door - LH (Remove and Replace)
Correction code
1150010012
FRT
0.30
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
- Remove the LH front exterior mirror assembly from the LH front door. See Mirror - Door - LH (Remove and Replace).
-

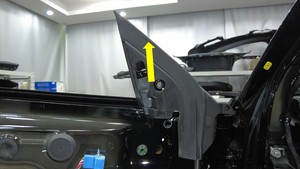

Pull upwards to remove the LH front door glass run seal from the LH front door.
Install
-

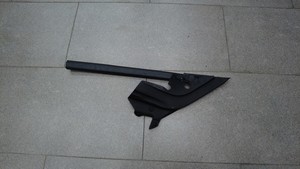

Position the new LH front door glass run seal on the LH front door.
TipIf necessary, apply a small amount of P80 lubricant on the length of the seal to aid installation.
- Install the LH front exterior mirror assembly to the LH front door. See Mirror - Door - LH (Remove and Replace).
- Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
