Sensor - Pressure - Door - Rear - LH (Remove and Replace)
Correction code
2020010072
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and FRT
listed above reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times
to learn more about FRTs and how they are created.
NOTE: See Personal Protection
to make sure you are wearing proper PPE when performing the procedure
below.
NOTE:
See Ergonomic Precautions for
safe and healthy working practices.
Remove
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
- Disconnect LV power. See LV Power (Disconnect and Connect).
- Remove the rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).
-

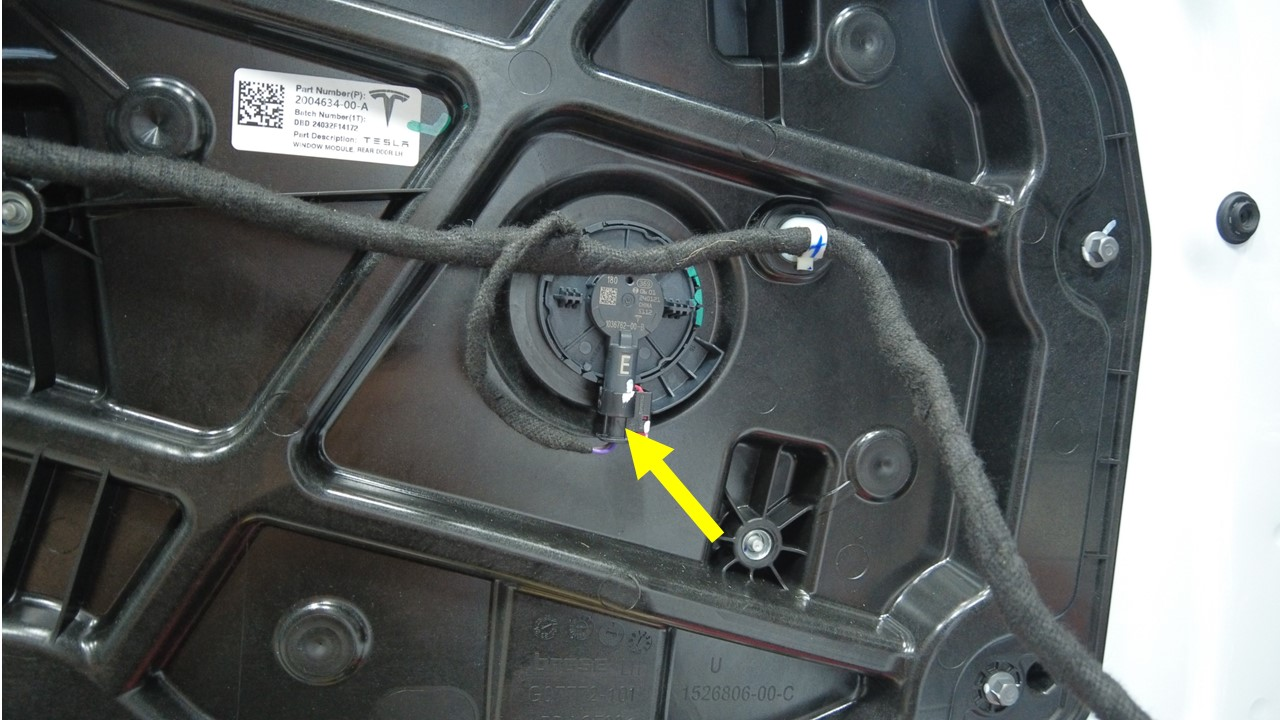

Disconnect the rear door pressure sensor connector.
-

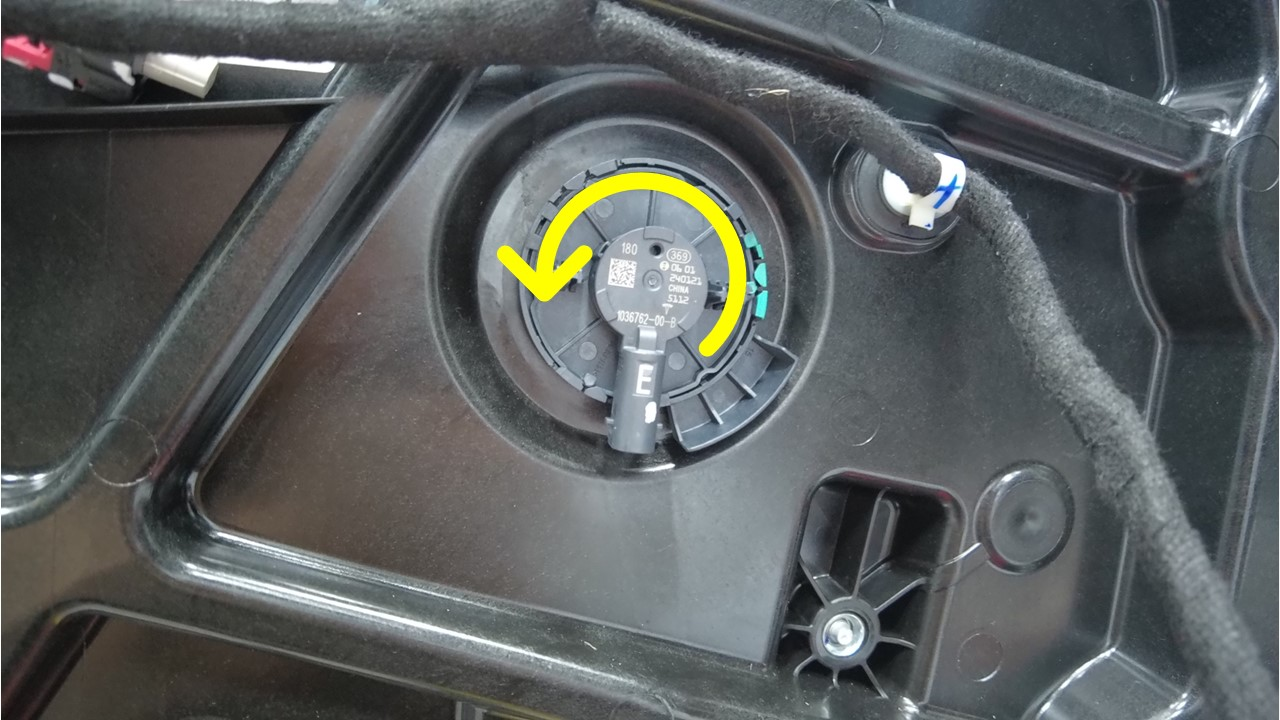

Twist the tabs counterclockwise and remove the rear door pressure sensor
from the closeout panel.
Install
Installation procedure is the reverse of removal.
