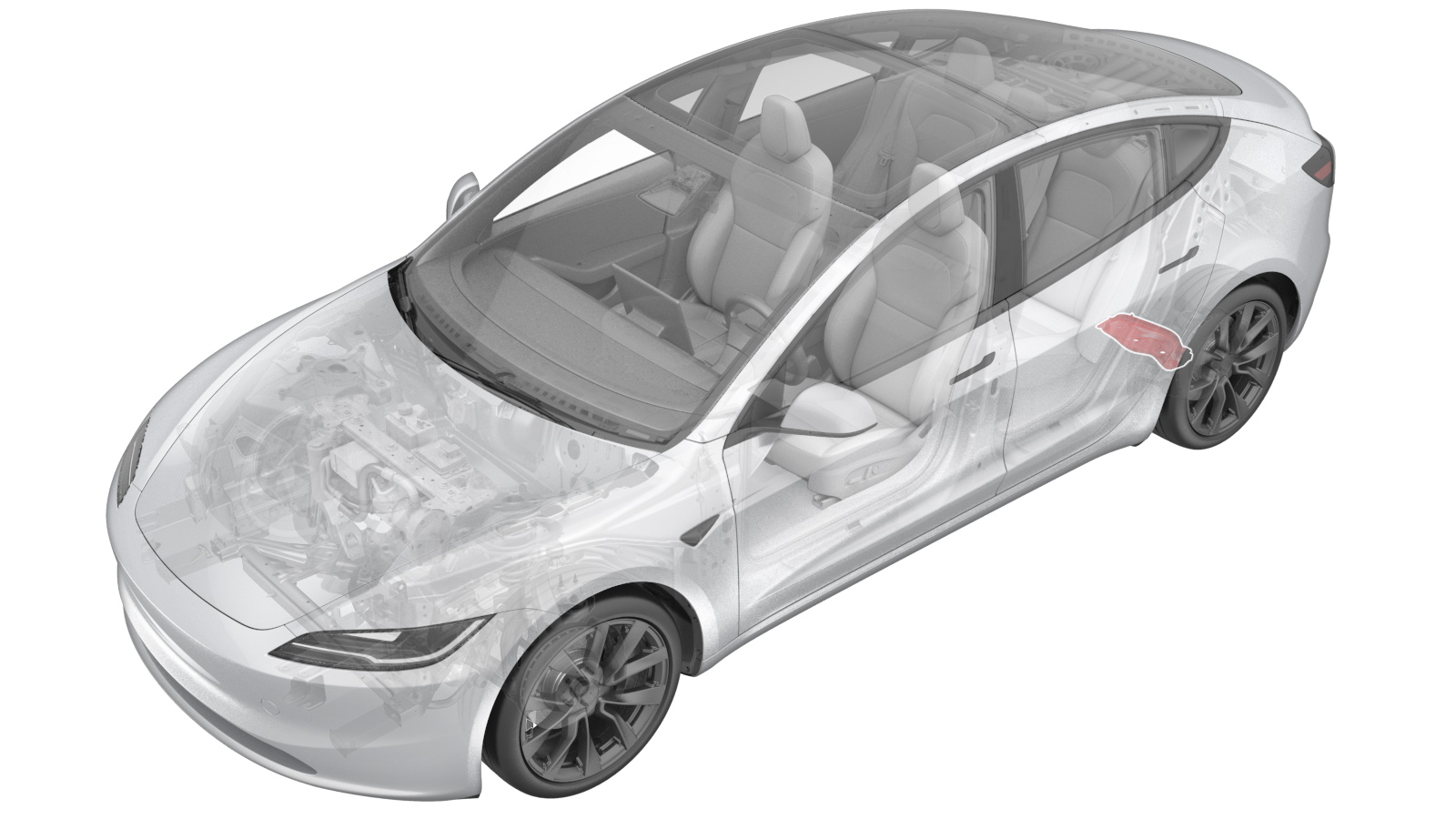

Cover - Rear Suspension - LH (Remove and Replace)

Correction code 1203020032 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Cover - Rear Suspension - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the rear suspension cover to the LH lower rear control arm assembly
6 Nm (4.4 lbs-ft)
  • 10 mm deep socket
 Reuse

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.

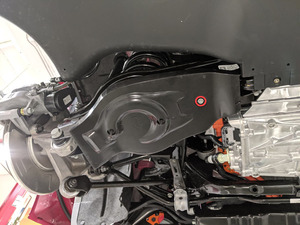

  2. Remove the bolt that attaches the rear suspension cover to the LH lower rear control arm assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  3. Release the tabs (x2) that attach the rear suspension cover to the LH lower rear control arm assembly, and then remove the LH rear suspension cover from the vehicle.

Install

  1. Install the bolt and tabs (x2) that attaches the rear suspension cover to the LH lower rear control arm assembly.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  2. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
