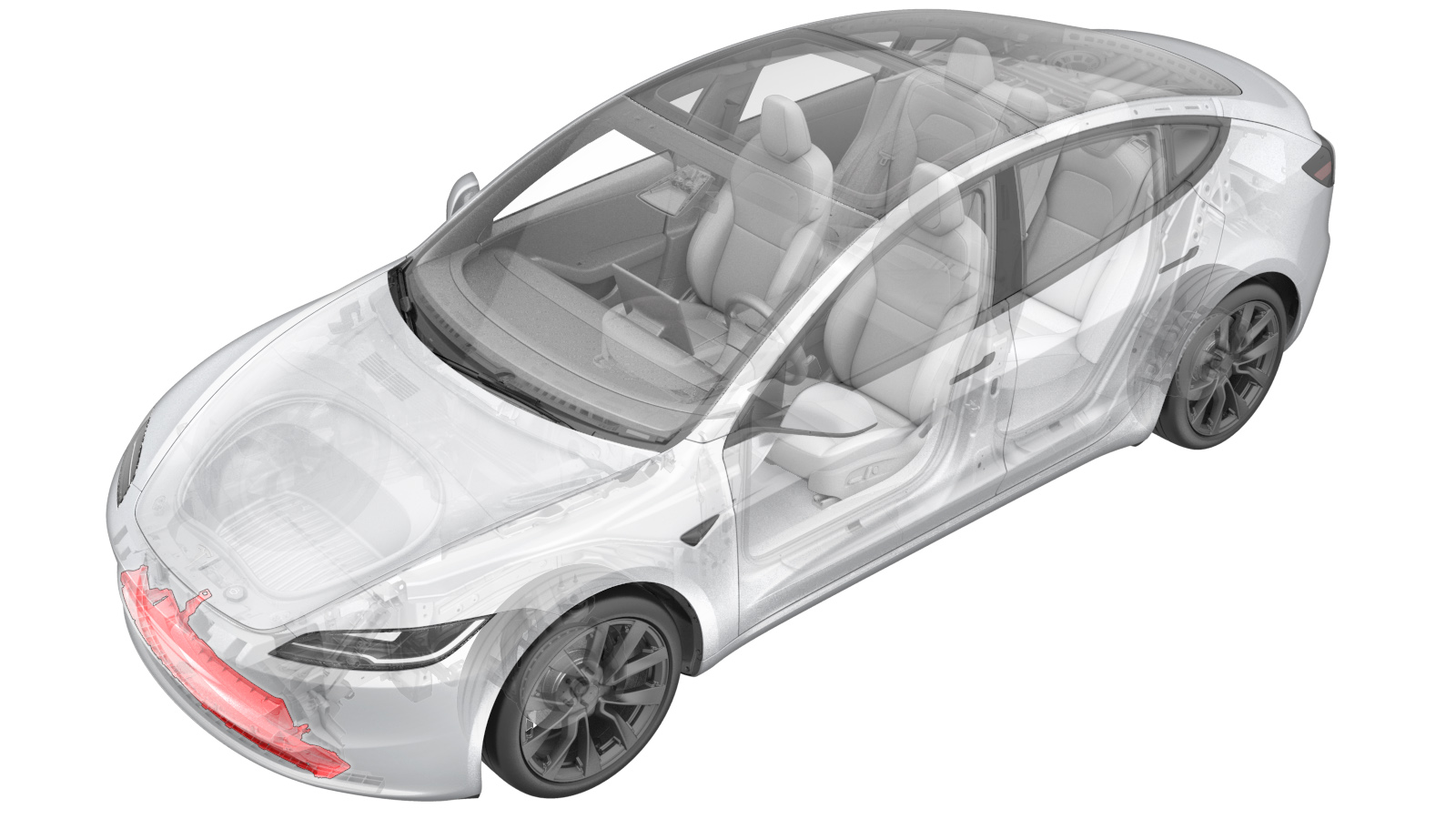

Grille - Fascia - Front (Remove and Replace)

Correction code 1001020052 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  1. 2025-10-11: Added steps relates to the front fascia camera.

Torque Specifications

Table 1. Torque Specifications: Grille - Fascia - Front (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the grille to the front fascia
1.8 Nm (1.3 lbs-ft)
  • Torx T25 socket
 Reuse
Screws (x2) that attach the front fascia camera cover to the front fascia assembly
4 Nm (2.9 lbs-ft)
  • Torx T20 socket
Reuse

Remove

  1. Remove the front fascia assembly. See Fascia - Front (Remove and Install).

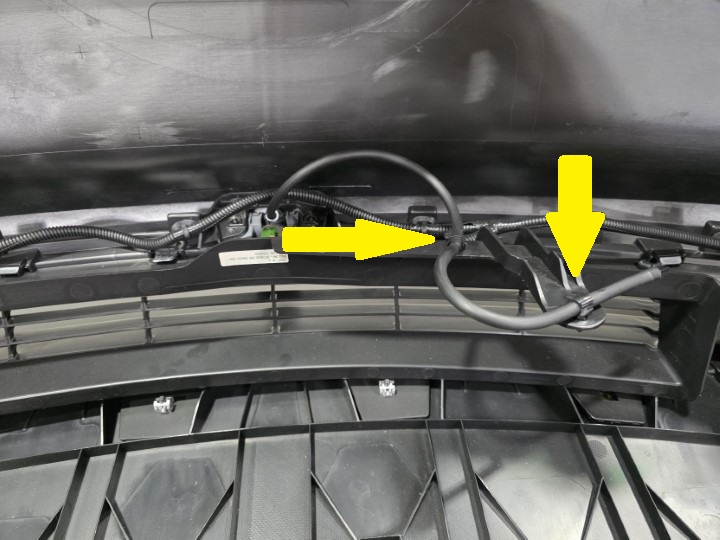

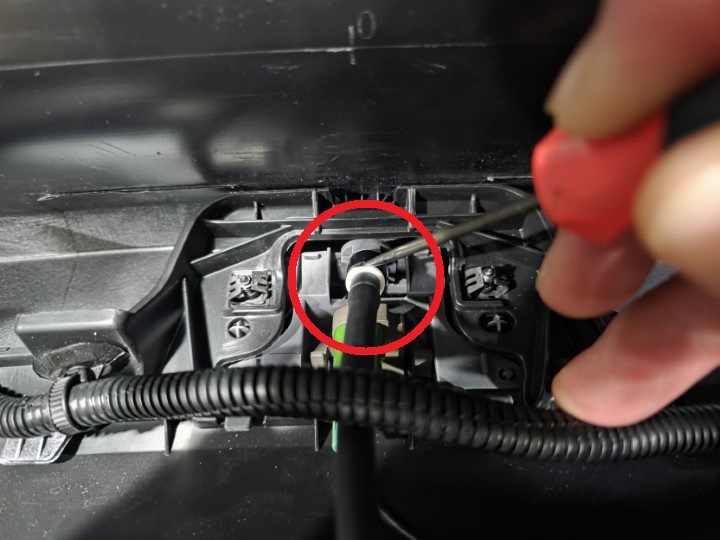

  2. Release the clips (x2) that attach the washer hose to the lower grille, and then disconnect the washer hose connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    This washer hose assembly may not be present on early production vehicles. If not, skip this step.

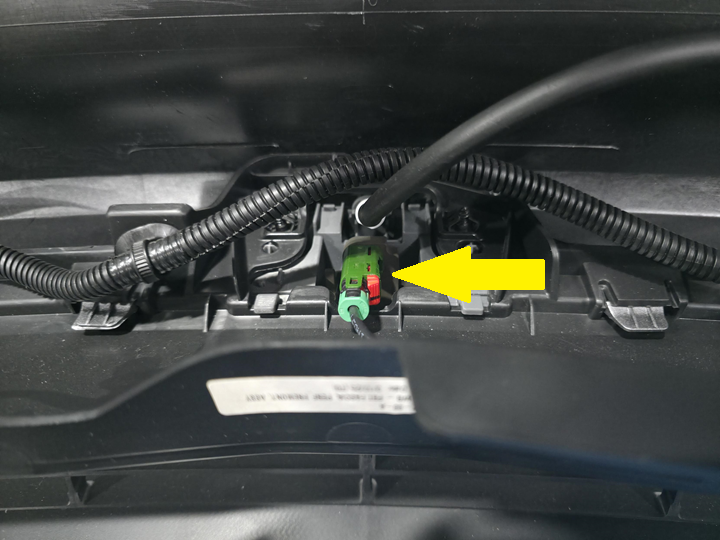

  3. Disconnect the electrical connector from the front fascia camera.
    Informational PurposesAn informational icon, calling your attention
    Note
    This connector may not be present on early production vehicles. If not, skip this step.
  4. Remove the screws (x2) that attach the front fascia camera cover to the front fascia assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket

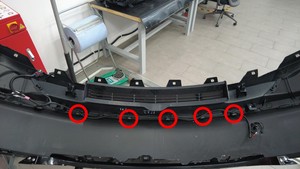

  5. Use a clip prytool to release the clips (x5) that attach the fascia harness to the grille.

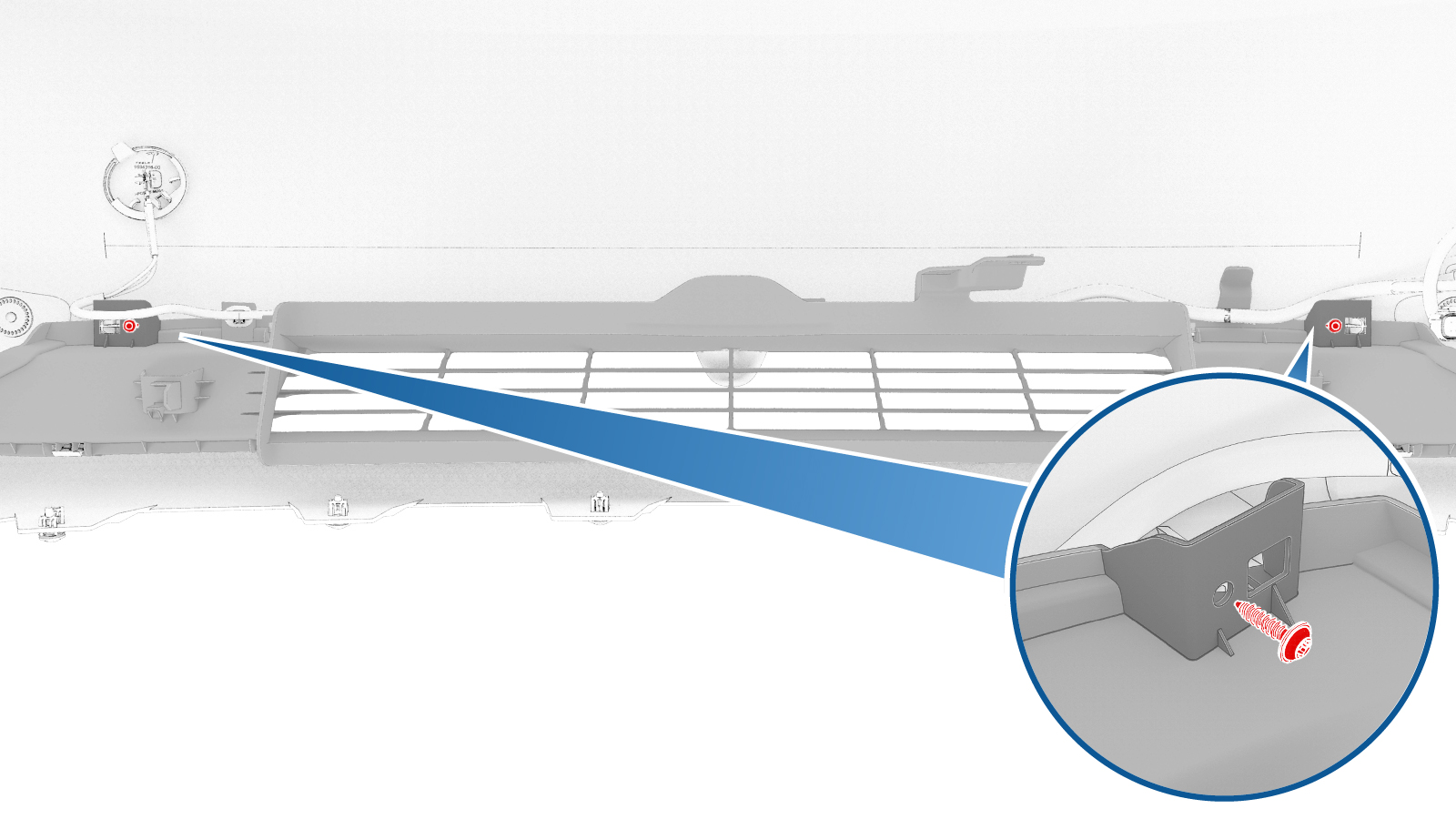

  6. Remove the bolts (x2) that attach the grille to the front fascia.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket

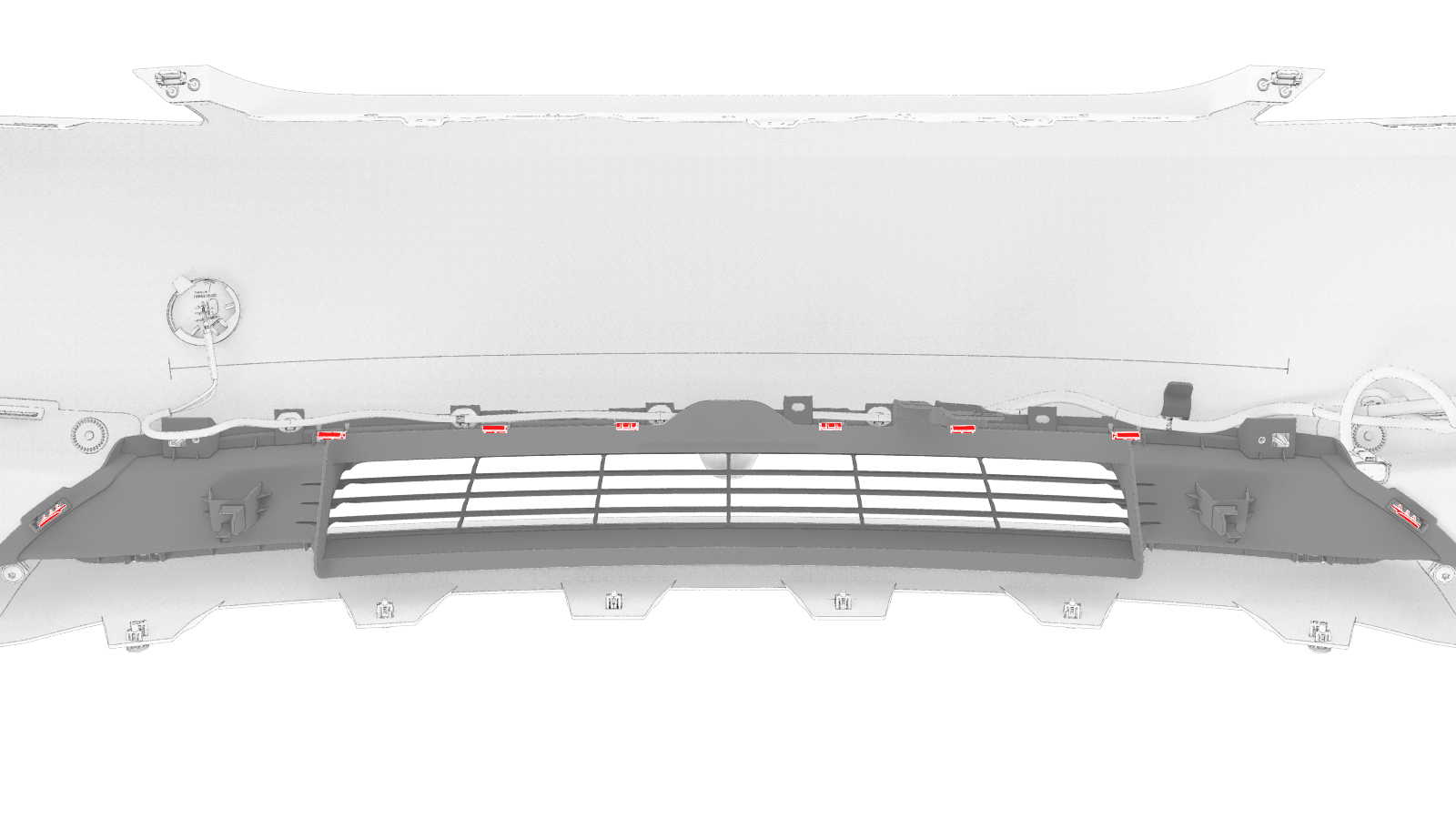

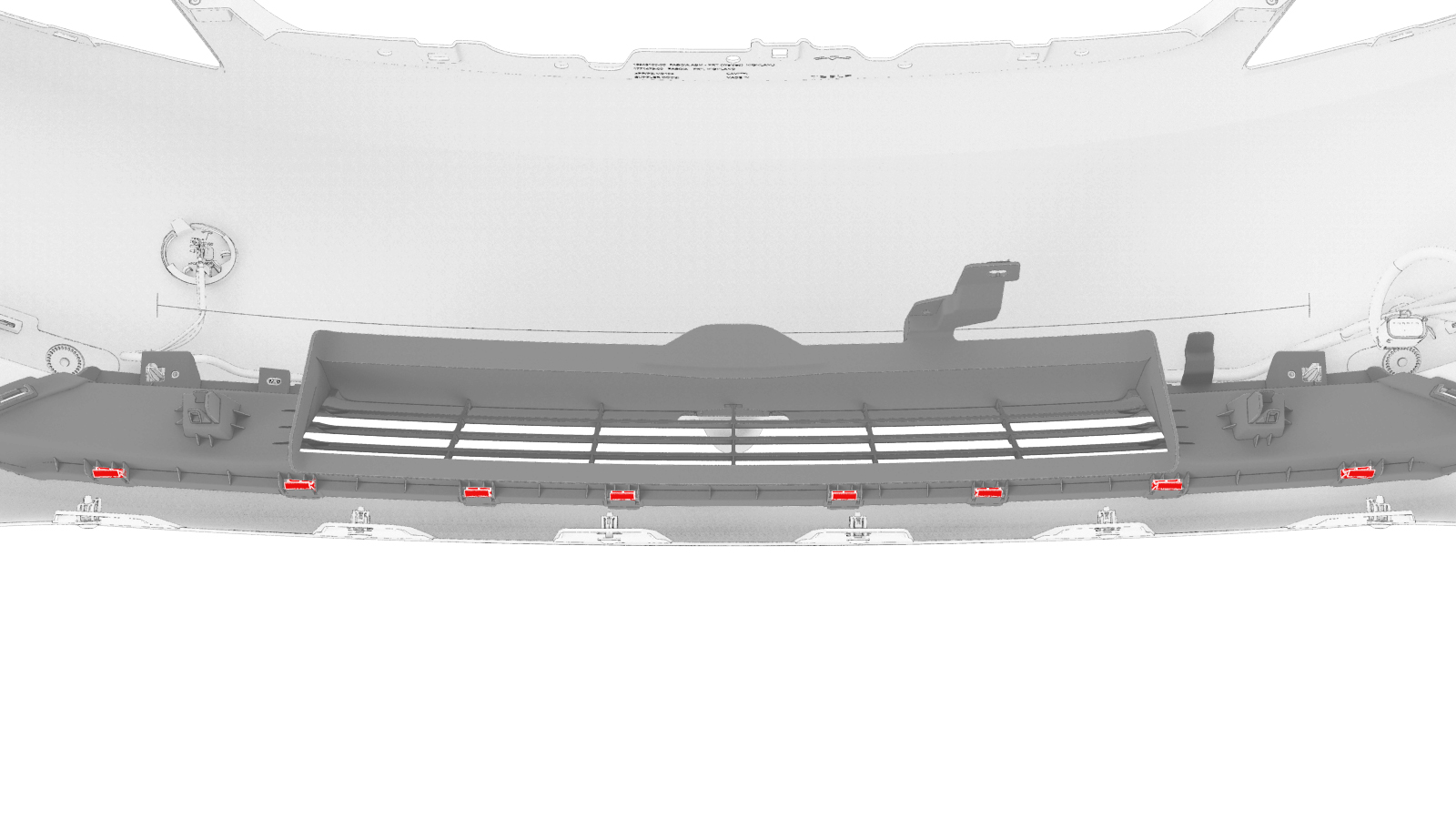

  7. Remove the clips (x16) that attach the grille to the front fascia.

Install

  1. Position the grille onto the front fascia.
  2. Install the clips (x16) that attach the grille to the front fascia.
  3. Install the bolts (x2) that attach the grille to the front fascia.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
  4. Install the clips (x5) that attach the fascia harness to the grille.
  5. Install the screws (x2) that attach the front fascia camera cover to the front fascia assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  6. Connect the electrical connector to the front fascia camera.
    Informational PurposesAn informational icon, calling your attention
    Note
    This connector may not be present on early production vehicles. If not, skip this step.
  7. Connect the washer hose connector, and then install the clips (x2) that attach the washer hose to the lower grille.
    Informational PurposesAn informational icon, calling your attention
    Note
    This washer hose assembly may not be present on early production vehicles. If not, skip this step.
  8. Install the front fascia assembly. See Fascia - Front (Remove and Install).
