Wheel Cover (Steel Wheel) (Model 3 Standard) (Remove and Replace)

Correction code 34010300202 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Equipment:
  • 1044206-00-A Wheel Trim Removal Tool

Remove

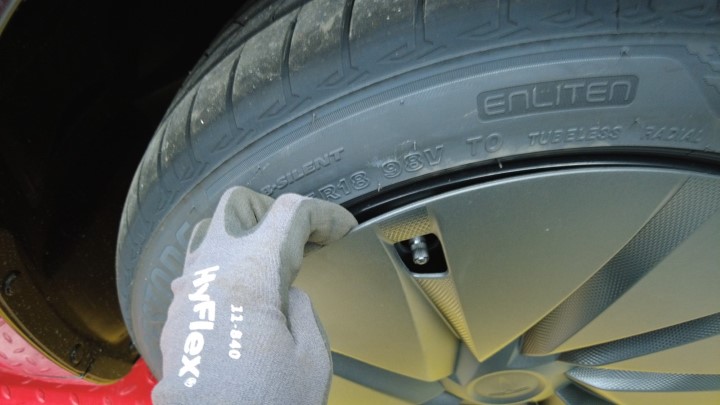

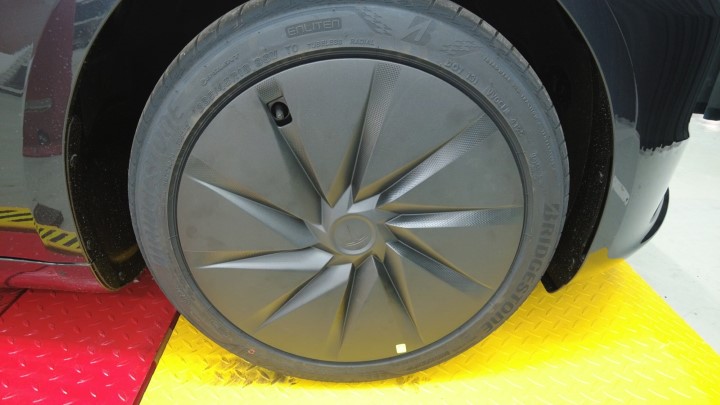

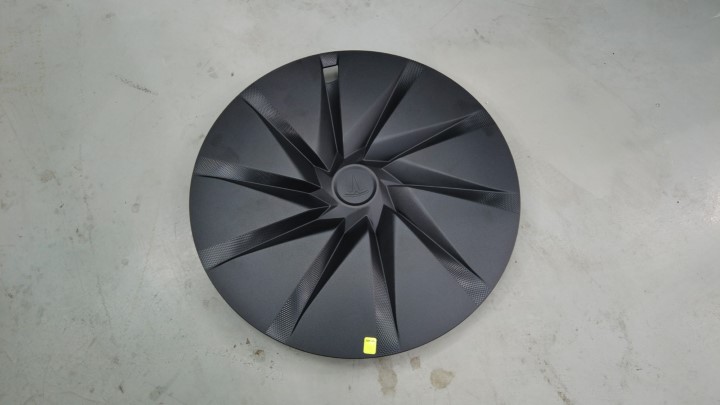

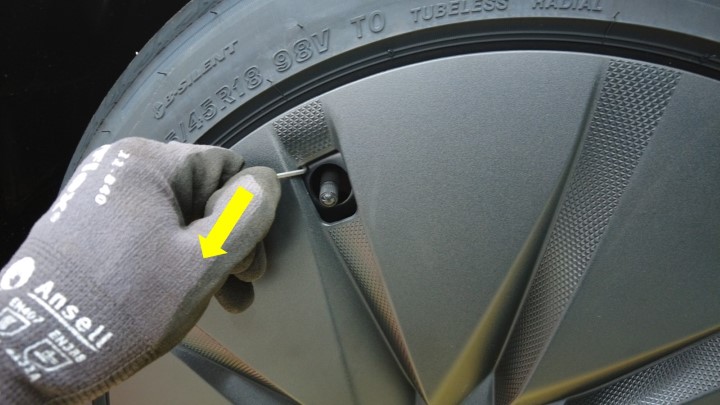

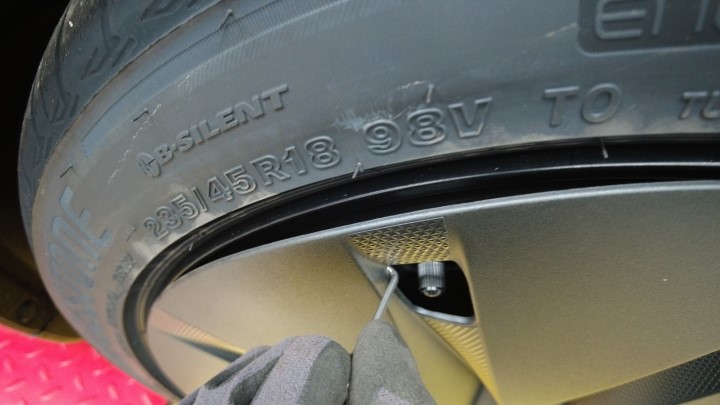

  1. Insert the wheel trim removal tool in the gap near the valve stem, and then gently pull the cover to remove the center cap.

Install

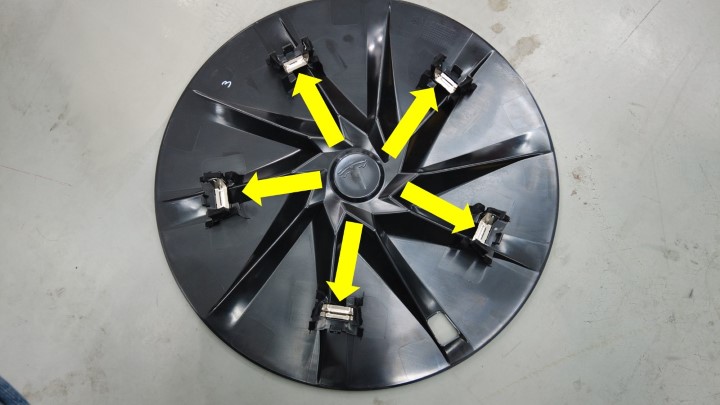

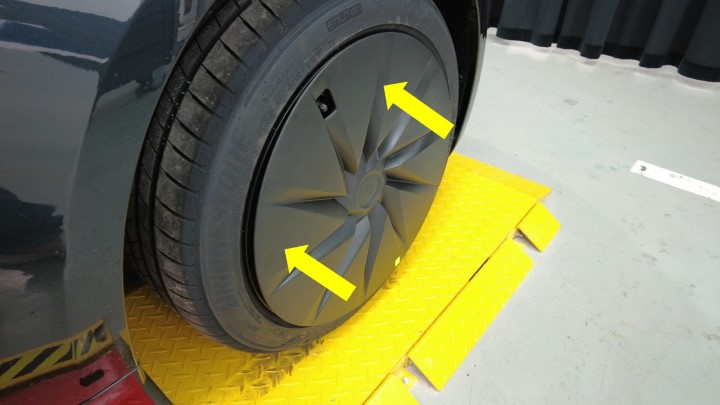

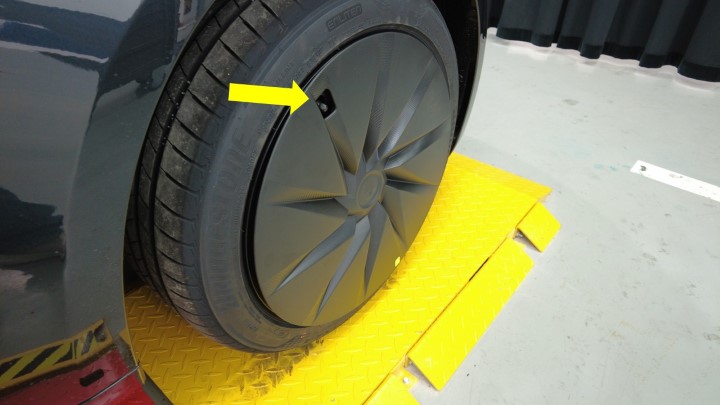

  1. Align the valve stem with the wheel cap cavity, then slightly press the cap to engage the clips (x5).
